Central Ray Placement (Radiologic Sciences)

PA and Lateral Chest

perpendicular to T7

KUB

perpendicular to iliac crest (L4)

decubitus KUB

horizontal and directed 2 inches above iliac crest for air/fluid level

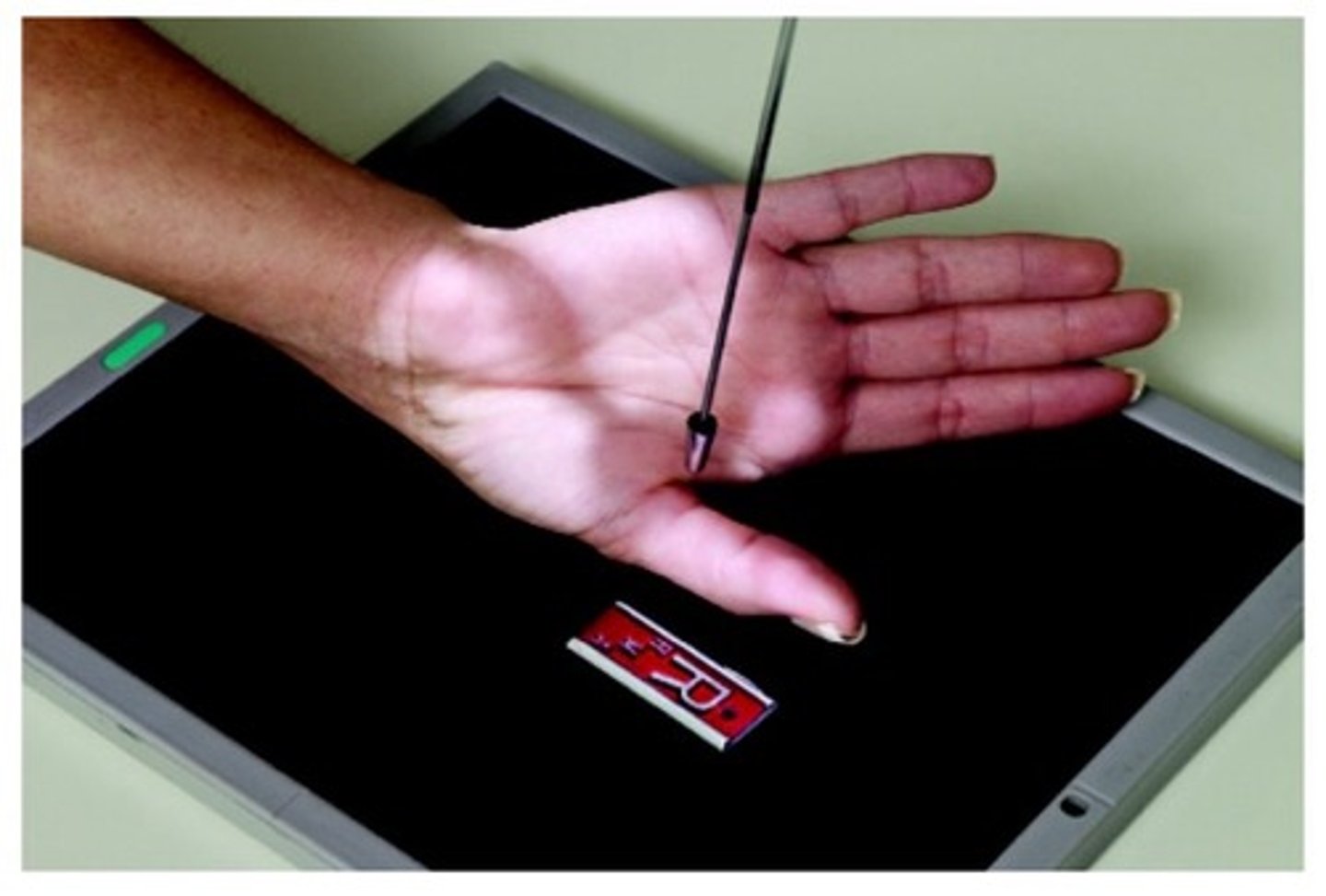

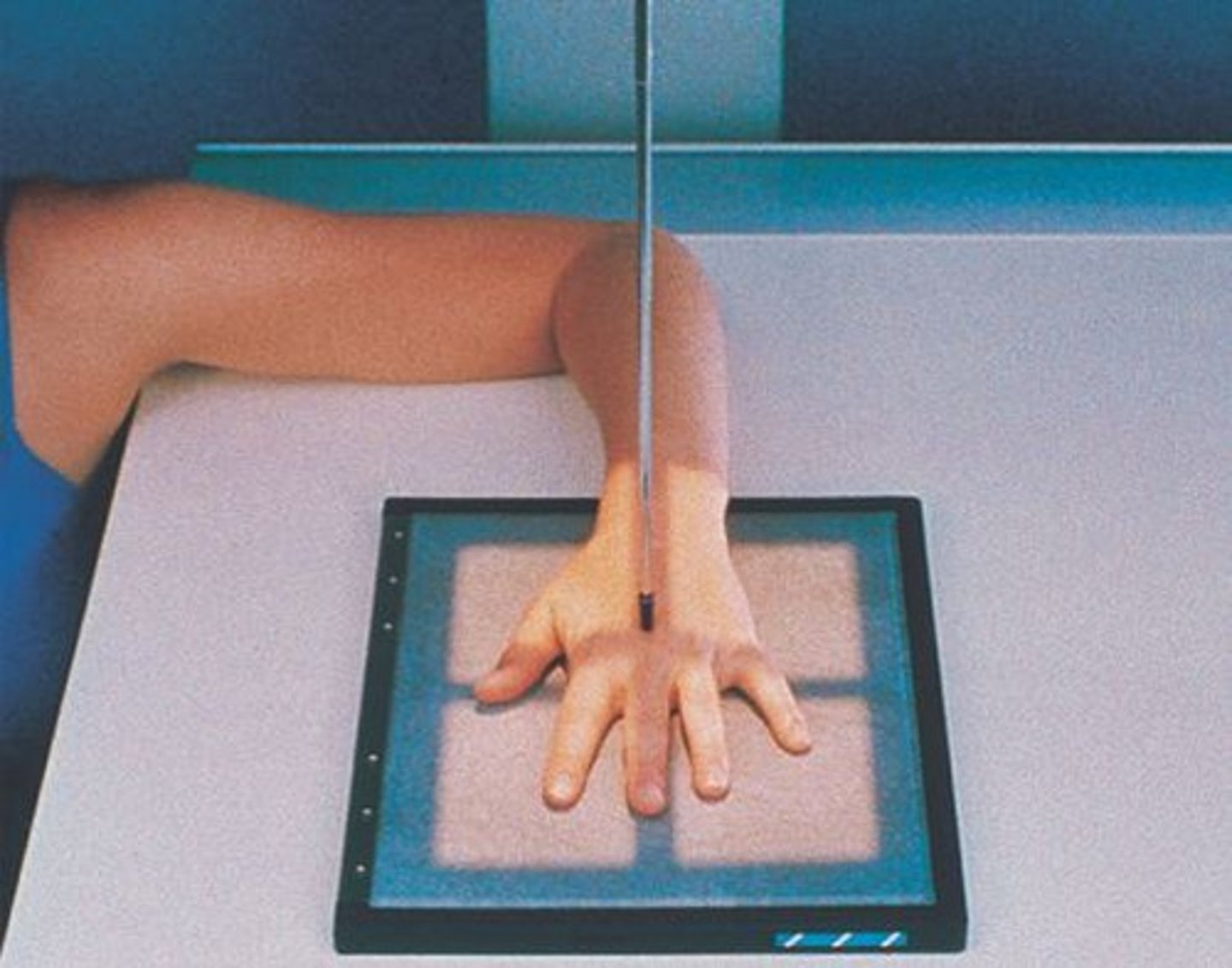

PA hand

perpendicular to 3rd MCP joint

oblique hand

perpendicular to 3rd MCP joint

fan lateral hand

perpendicular to 2nd MCP joint

lateral hand w/ extension

perpendicular to MCP joints

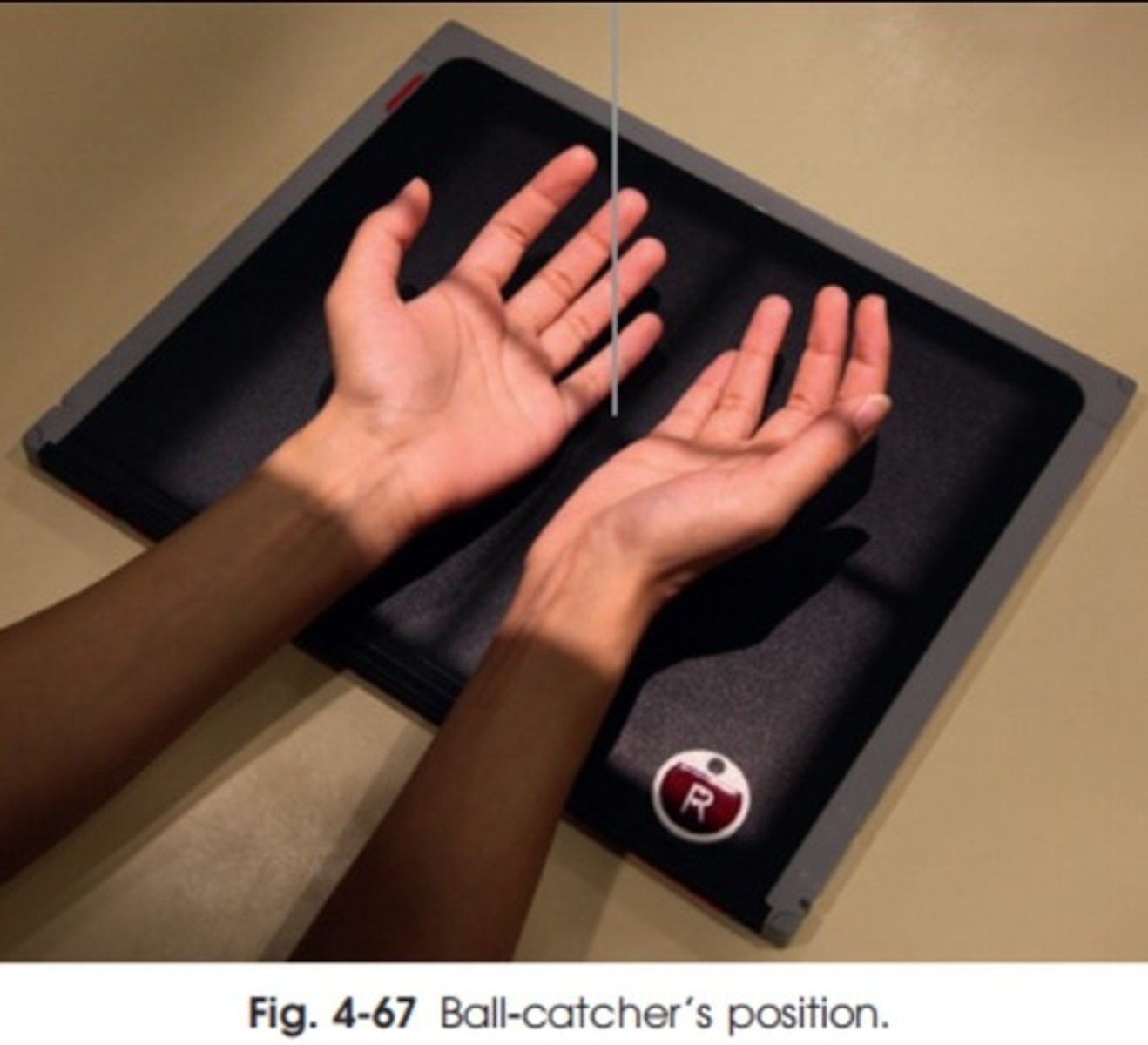

Norgaard Method/Ball Catcher hand

CR perpendicular, directed to midpoint between both hands at level of fifth MCP joints

PA finger

perpendicular to PIP joint

medial/lateral oblique finger

perpendicular to PIP joint

mediolateral/lateromedial finger

perpendicular to PIP joint

AP thumb

perpendicular to first MCP joint

PA oblique thumb

perpendicular to first MCP joint

lateral thumb

perpendicular to first MCP joint

modified robert's method (thumb)

CR directed 15 degrees proximal towards wrist entering first CMC joint

PA wrist

CR perpendicular to midcarpal area

PA oblique wrist

CR perpendicular to midcarpal area

Lateral wrist

perpendicular to midcarpal area

PA scaphoid wrist w/ ulnar devation

CR angled 10-15 degrees and enters scaphoid (2 cm distal and medial to radial styloid process)

modified stetcher method (wrist)

perpendicular to IR and directed to scaphoid

PA radial deviation (wrist)

CR perpendicular to midcarpal area

carpal canal tangential (gaynor-hart method)

angled 25-30 degrees, directed 1 inch distal to the base of the 3rd metacarpal (center of palm)

carpal bridge tangential (wrist)

CR angled 45 degrees directed to the midpoint of the distal forearm, about 4 cm proximal to the wrist joint

AP forearm

CR perpendicular to mid-forearm

lateral forearm

CR perpendicular to mid-forearm

AP elbow

CR perpendicular to mid-elbow joint (2 cm distal to midpoint line between epicondyles)

AP external/internal oblique elbow

CR perpendicular to mid-elbow joint (2 cm distal to midpoint line between epicondyles)

lateral elbow

CR perpendicular to mid elbow joint (4 cm medial to palpable posterior surface of olecranon process)

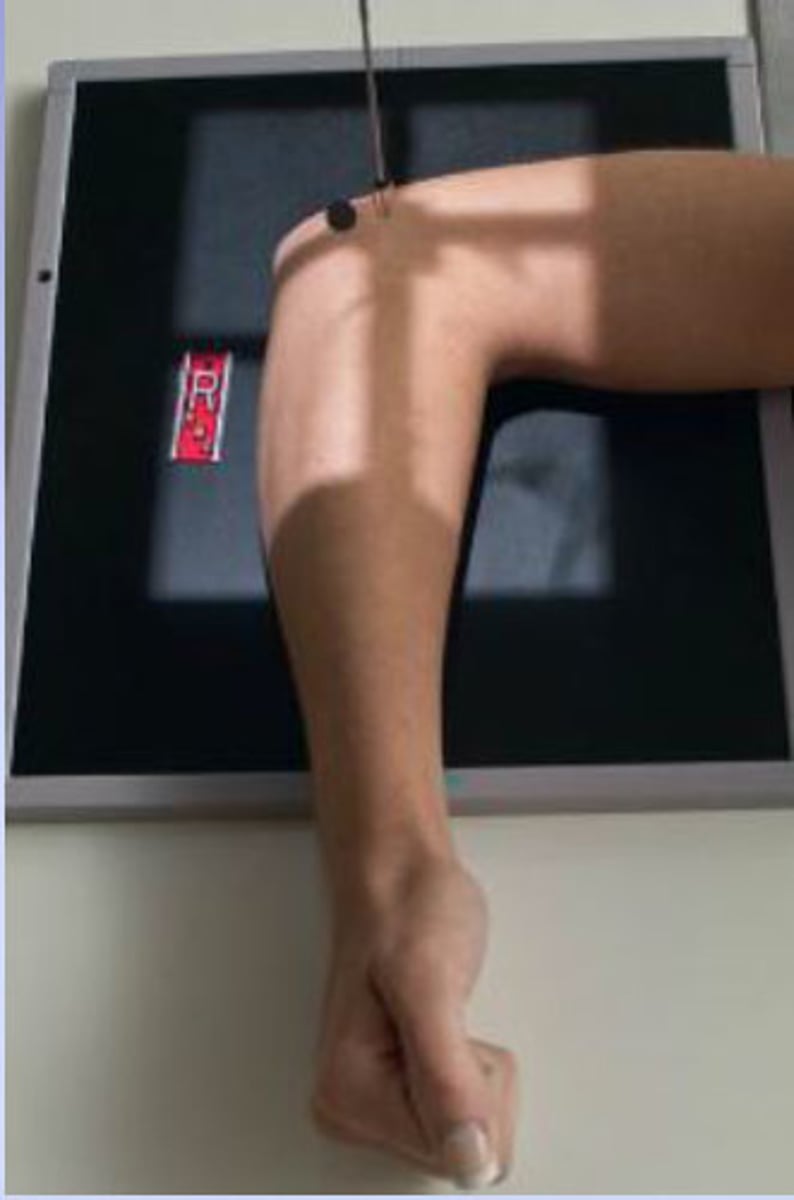

elbow acute flexion for distal humerus

CR perpendicular to midway between epicondyles

elbow acute flexion for proximal forearm

CR perpendicular to forearm (angling as needed) to a point 2 inches superior to olecranon process

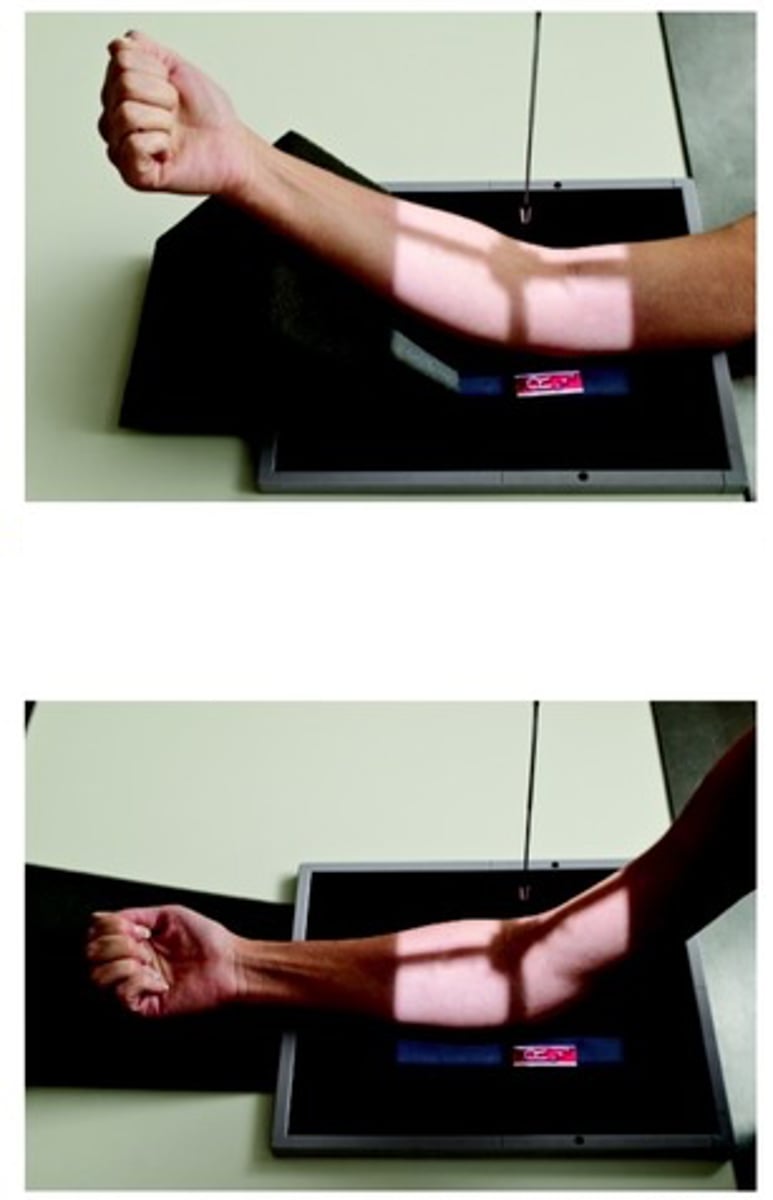

AP elbow partial flexion

CR perpendicular to mid-elbow joint (2 cm distal to midpoint line between epicondyles)

coyle method for radial head (elbow)

CR angled 45 degrees towards should directed to mid-elbow joint

coyle method for coranoid process

angled 45 degrees away from shoulder directed to mid-elbow joint

AP humerus

perpendicular to midpoint of humerus

mediolateral/lateromedial humerus

perpendicular to midpoint of humerus

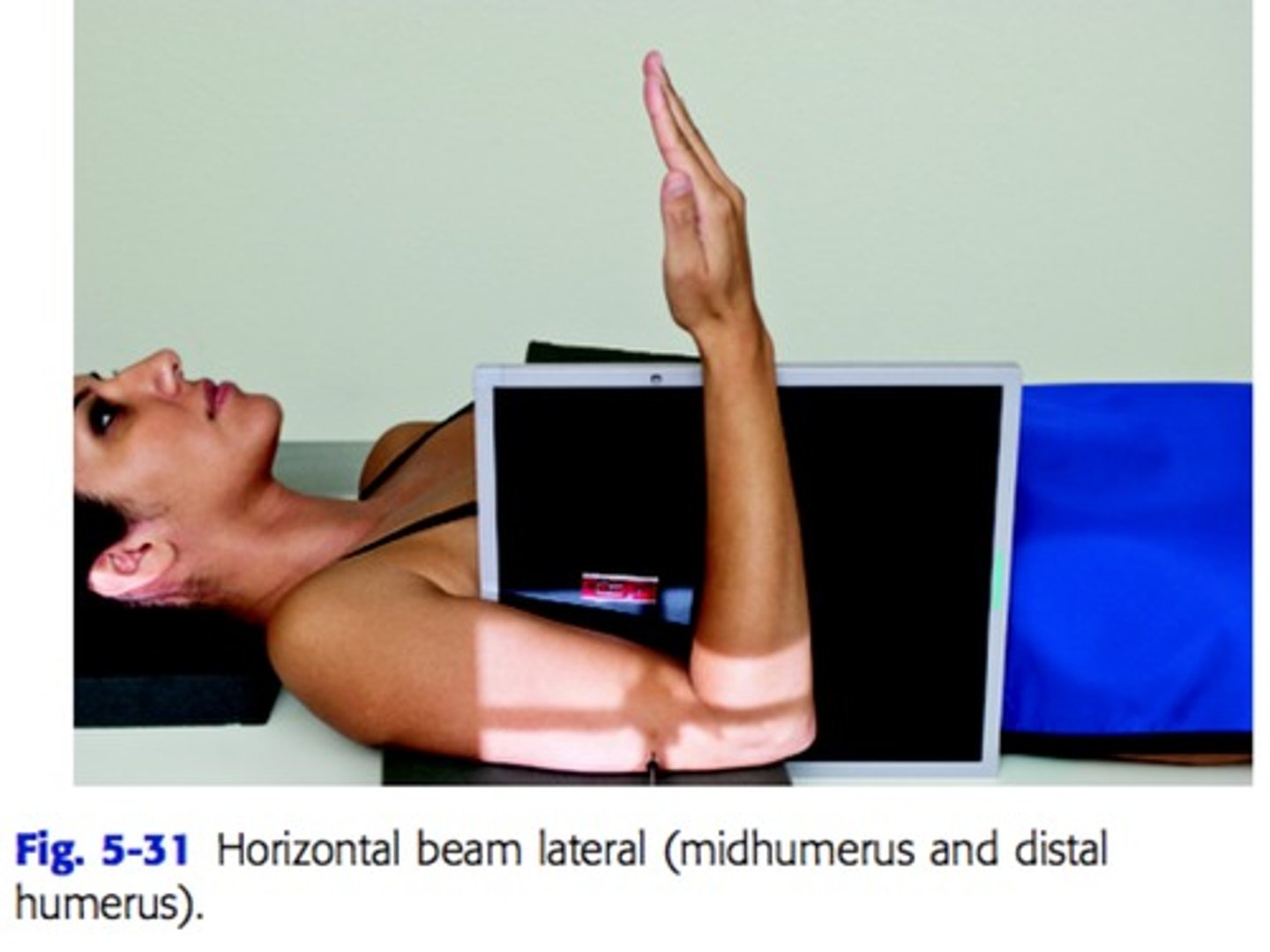

trauma horizontal beam lateromedial humerus

perpendicular to midpoint of distal two-thirds of humerus

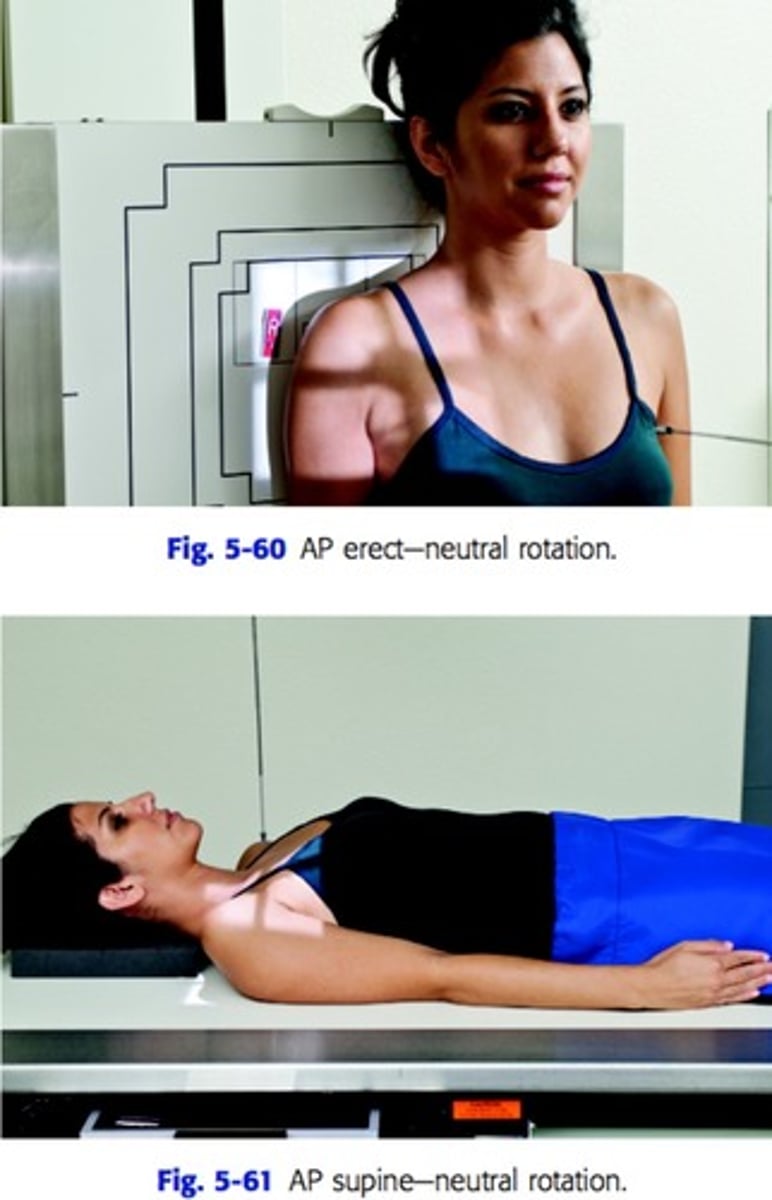

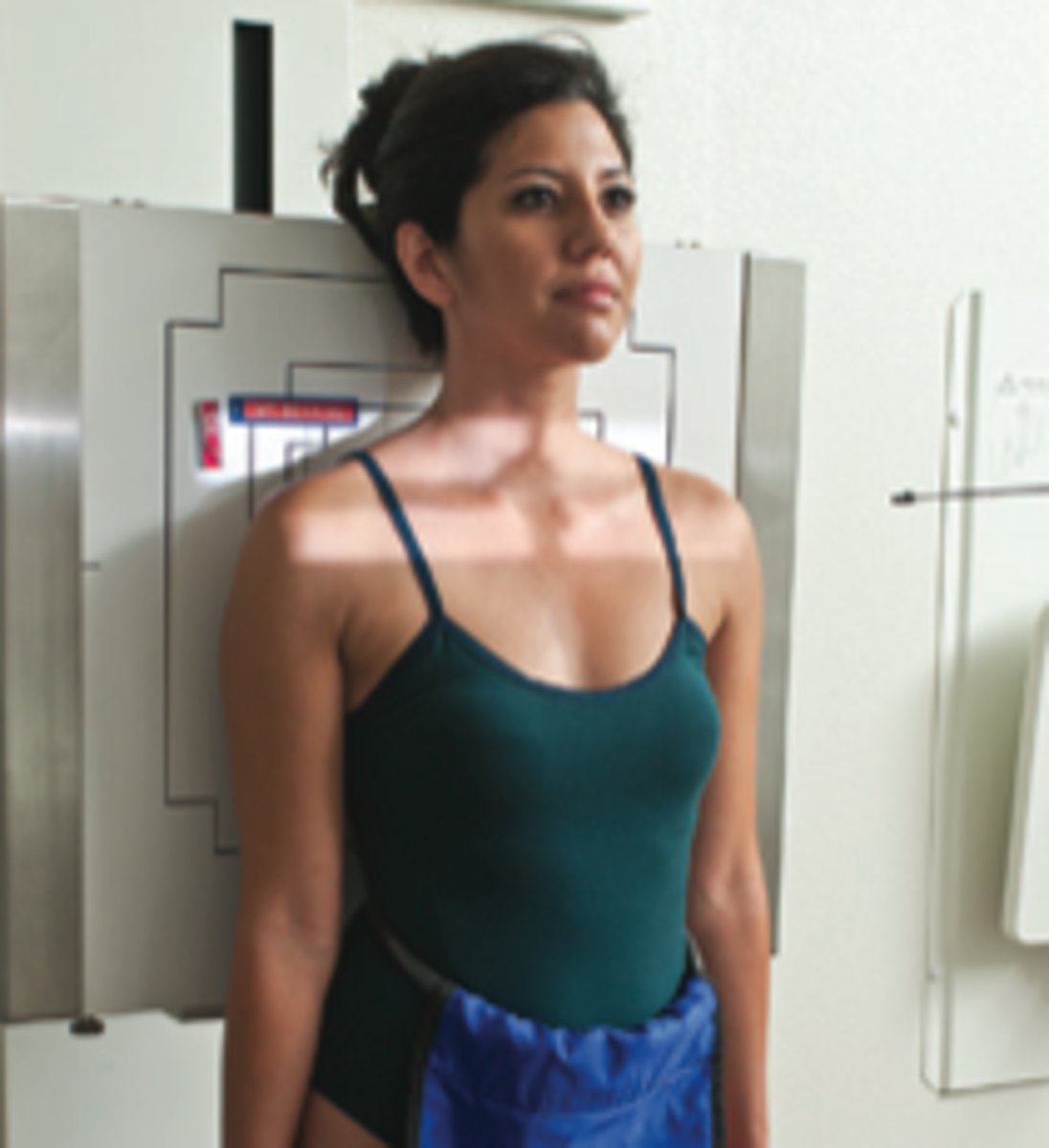

AP shoulder neutral rotation

CR perpendicular to mid-scapulohumeral joint

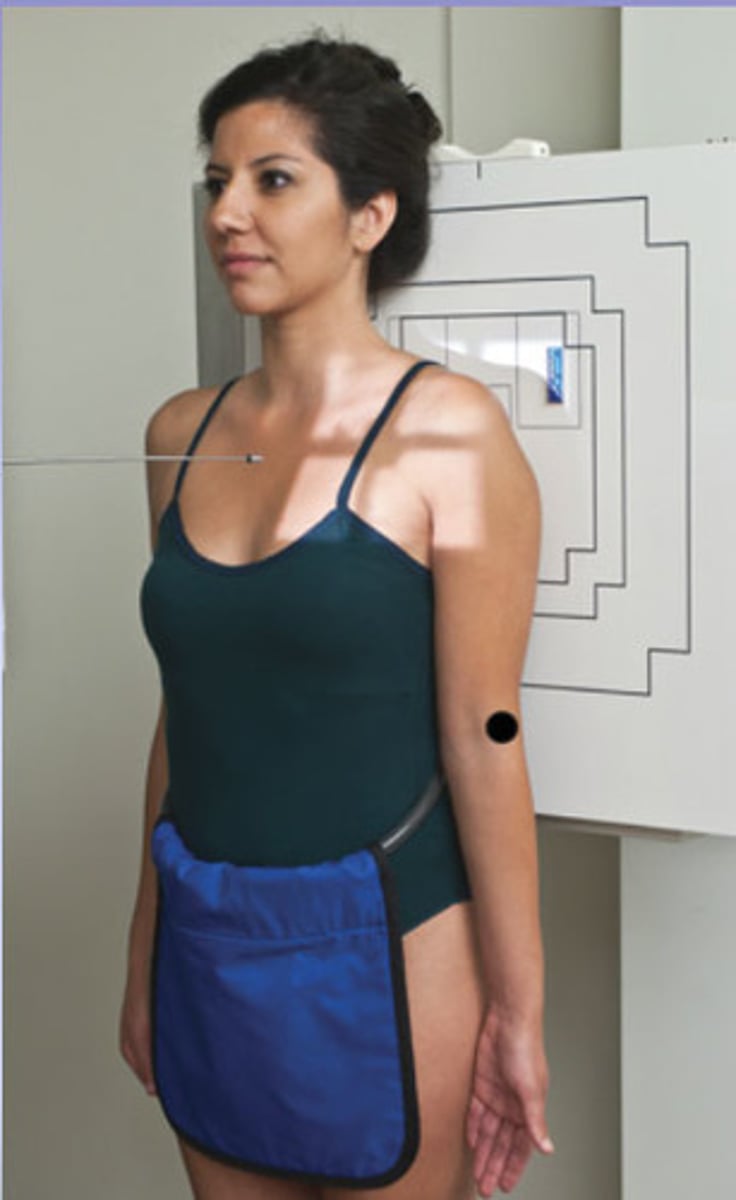

AP shoulder external rotation

perpendicular and directed 1 inch below coracoid process

AP shoulder internal rotation

perpendicular and directed 1 inch below coracoid

inferosuperior axial projection/ lawrence method (shoulder)

CR angled 25-30 degrees medially to axilla and humeral head

grashey method shoulder

perpendicular to scapulohumeral joint (2 inches medial and inferior from superolateral border of shoulder)

apical oblique axial/garth method (shoulder)

angled 45 degrees caudal centered to scapulohumeral joint

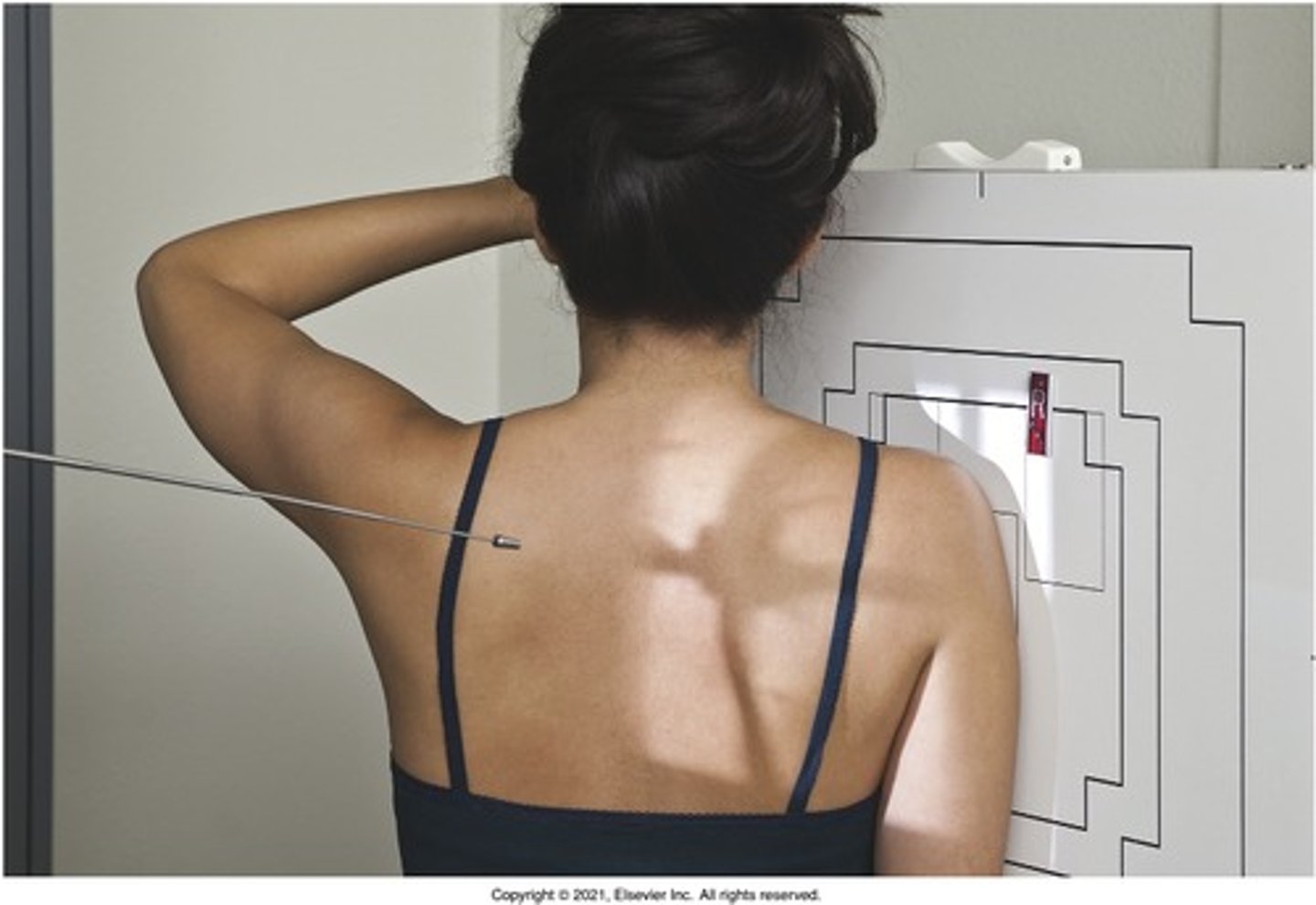

PA scapular y lateral

perpendicular and directed to scapulohumeral joint

AP clavicle

perpendicular to mid-clavicle

AP axial clavicle

angled 15-30 degrees cephalic to mid-clavicle

AP AC joints

perpendicular to midpoint between AC joints, 1 inch above jugular notch

AP scapula

perpendicular to midscapula (2 inches inferior to coracoid process or to level of axilla, and 2 inches medial from lateral border of patient)

neer method/tangential supraspinatous outlet

angled 10-15 degrees

lateral scapula

perpendicular to midvertebral border of scapula

AP toes

angled 10-15 degrees towards calcaneus to MTP joint (if a wedge is placed under the foot, the CR is perpendicular)

AP oblique toes

perpendicular to MTP joint of toe

lateral toe

perpendicular to IP joint for first digit and to PIP joint for second-fifth digits

prone lewis method tangential (foot-sesamoids)

perpendicular to first MTP joint

supine holly method (foot-sesamoids)

perpendicular to first MTP joint

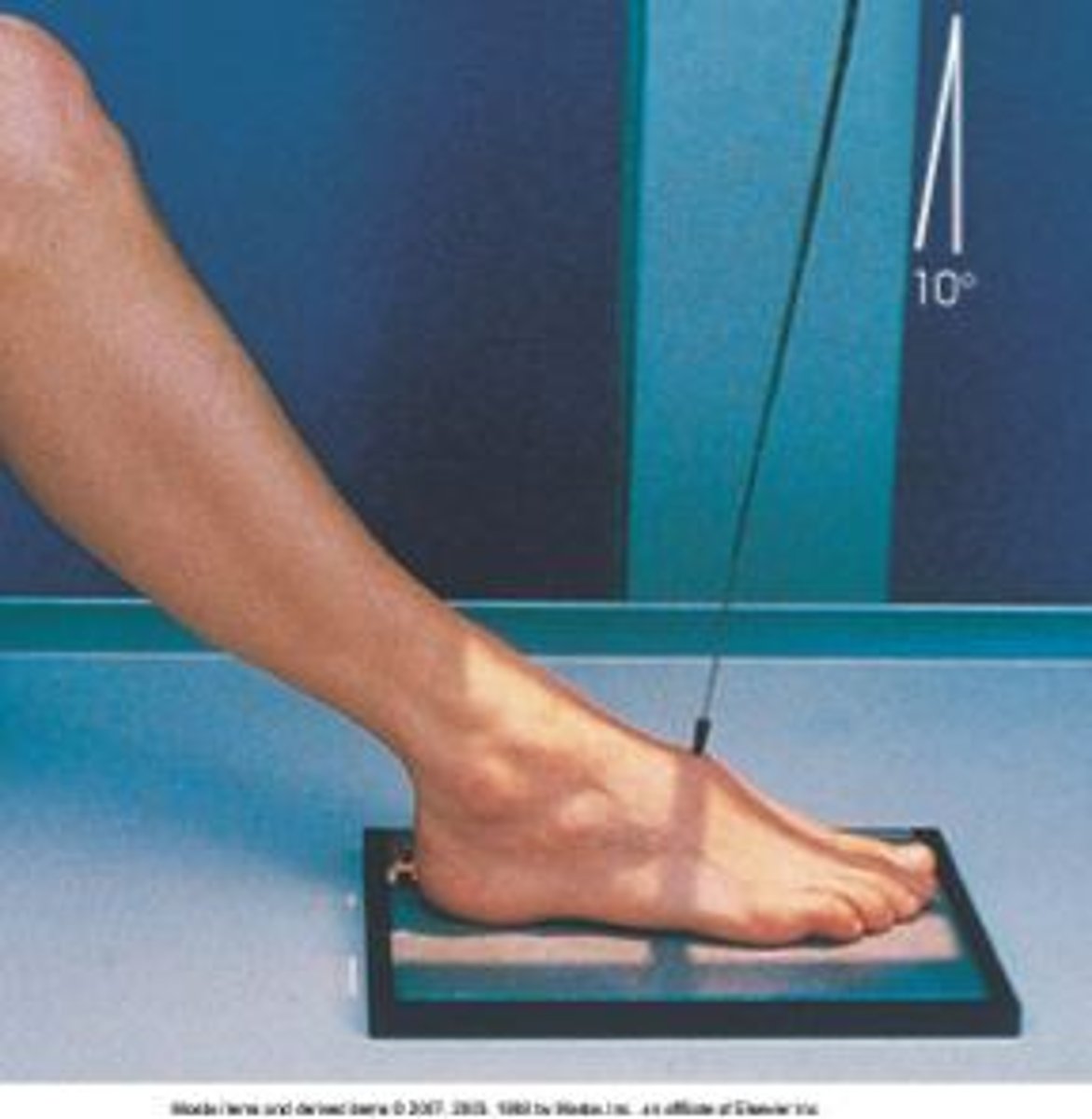

AP foot

angled 10 degrees posterior (towards heel) to base of the third metatarsal

AP oblique foot

perpendicular to the base of the third metatarsal (midfoot)

lateral foot

perpendicular to the base of the third metatarsal

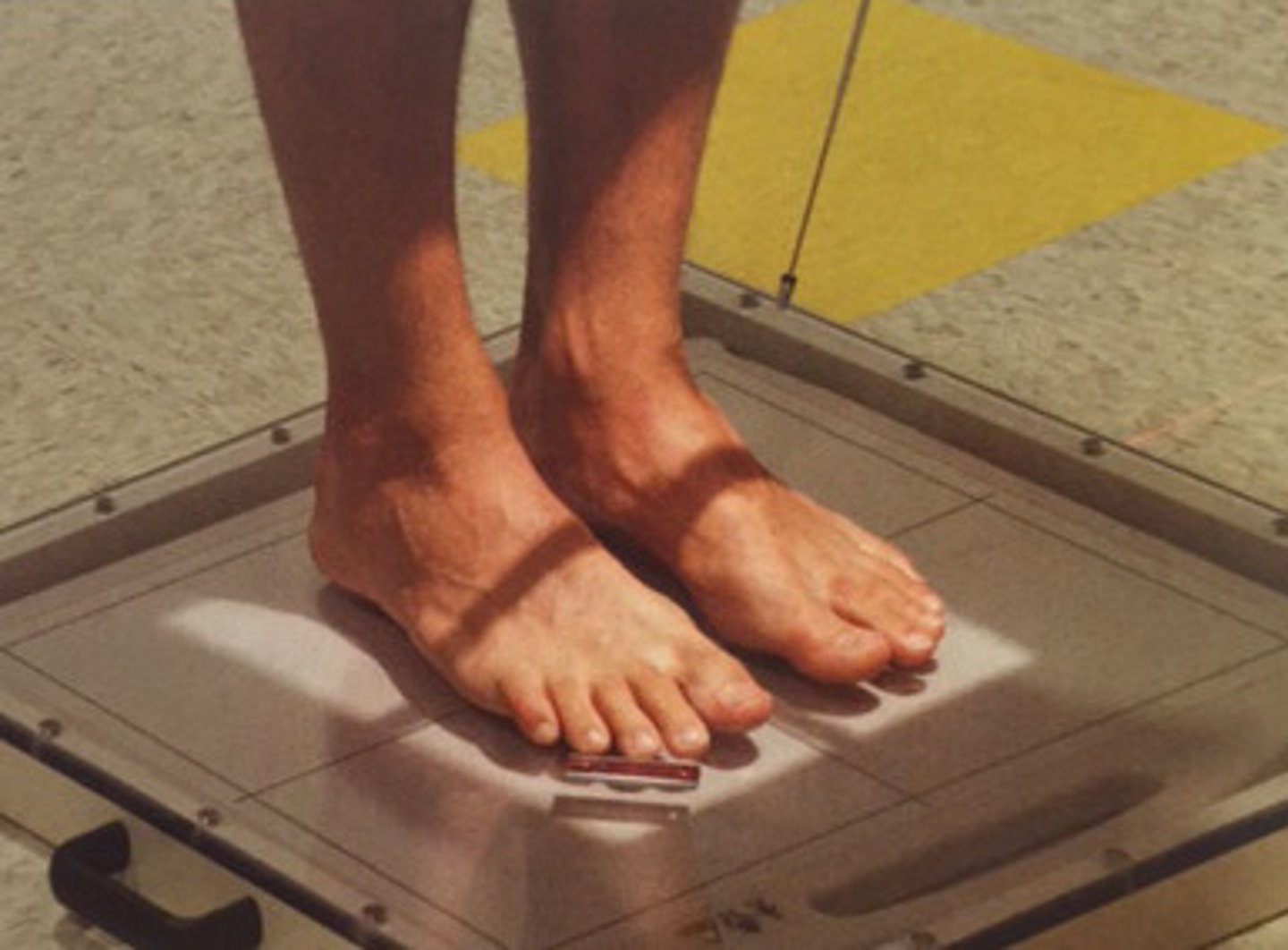

AP weight bearing foot

angled 15 degrees posterior to midpoint of feet at level of base of metatarsals

lateral weight bearing foot

perpendicular and directed to the base of the third metatarsal

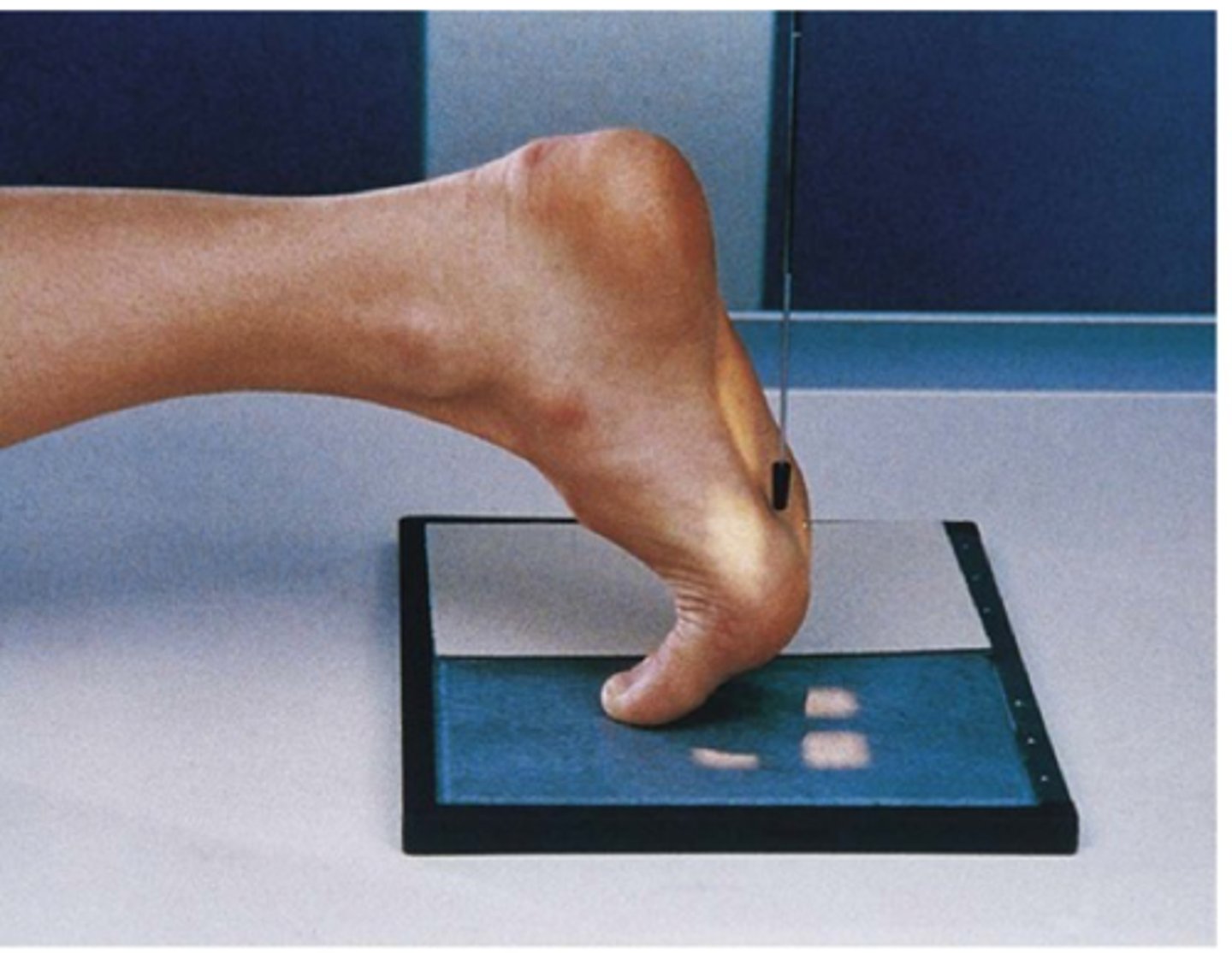

plantodorsal axial calcaneus

angled 40 degrees cephalic directed to the base of the third metatarsal

lateral-mediolateral calcaneus

perpendicular directed to a point 1 inch inferior to medial malleolus

AP ankle

perpendicular and directed to a point midway between malleoli

AP ankle mortise

perpendicular and directed to a point midway between malleoli

AP 45 oblique ankle

perpendicular and directed to a point midway between malleoli

lateral ankle (mediolateral or lateromedial)

perpendicular to medial malleolus

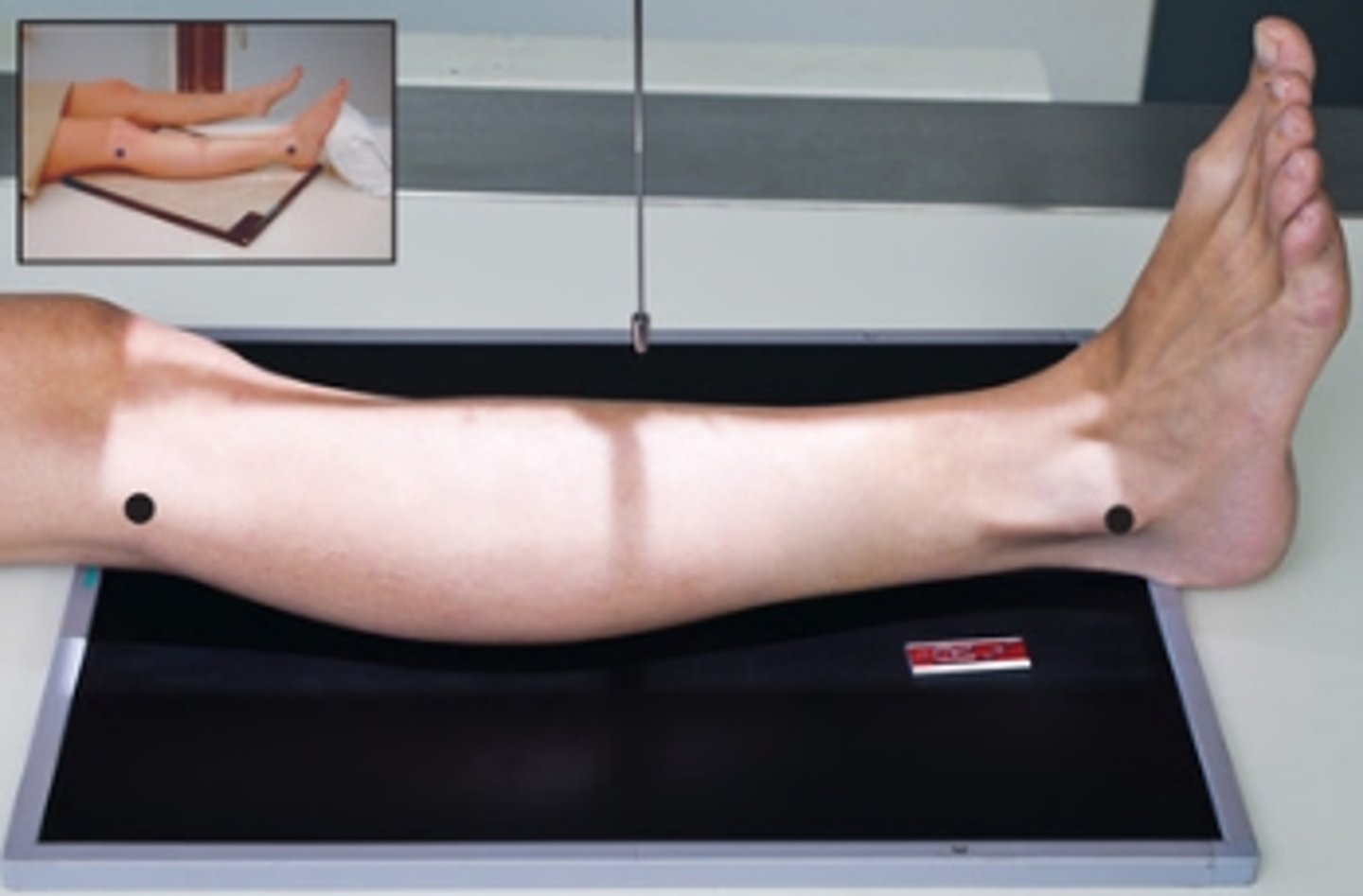

AP tib/fib

perpendicular and directed to midpoint of lower leg

lateral tib/fib

perpendicular, directed to midpoint of lower leg

AP knee

perpendicular for average sized patients, 3-5 caudal angle for smaller patients, 3-5 cephalic angle for larger patients

directed to midpoint of knee at a level 1/2 inch distal to the apex of the patella

AP oblique knee (medial/lateral)

perpendicular for average sized patients, 3-5 caudal angle for smaller patients, 3-5 cephalic angle for larger patients

directed to midpoint of knee at a level 1/2 inch distal to the apex of the patella

lateral knee

angled 5 to 7 degrees cephalic directed 1 inch distal to medial epicondyle

AP weight-bearing knee

perpendicular for average sized patients, 3-5 caudal angle for smaller patients, 3-5 cephalic angle for larger patients

directed to midpoint of knee at a level 1/2 inch distal to the apex of the patella

PA Axial Weight-Bearing Bilateral Knee Projection (Rosenberg Method)

CR angled 10 degrees caudal and centered to midpoint between knee joints at a level 1/2 below apex of the patellae

merchant bilateral method (knees)

CR angled 60 degrees caudal to a point midway between patellae

settegast method (knee)

angled 15-25 degrees cephalic and directed to patellofemoral joint space

hobbs modification (knee)

perpendicular to patellofemoral joint

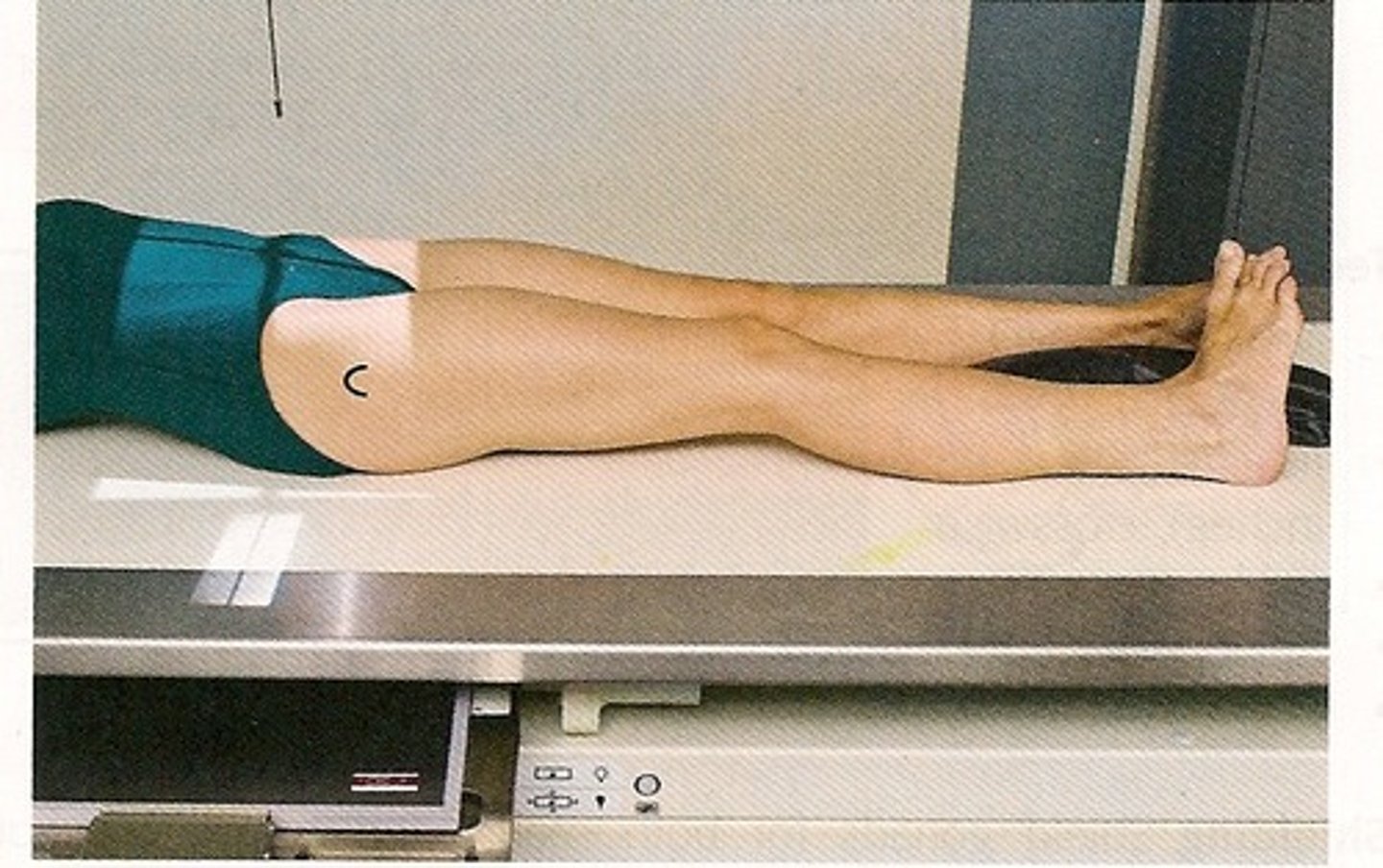

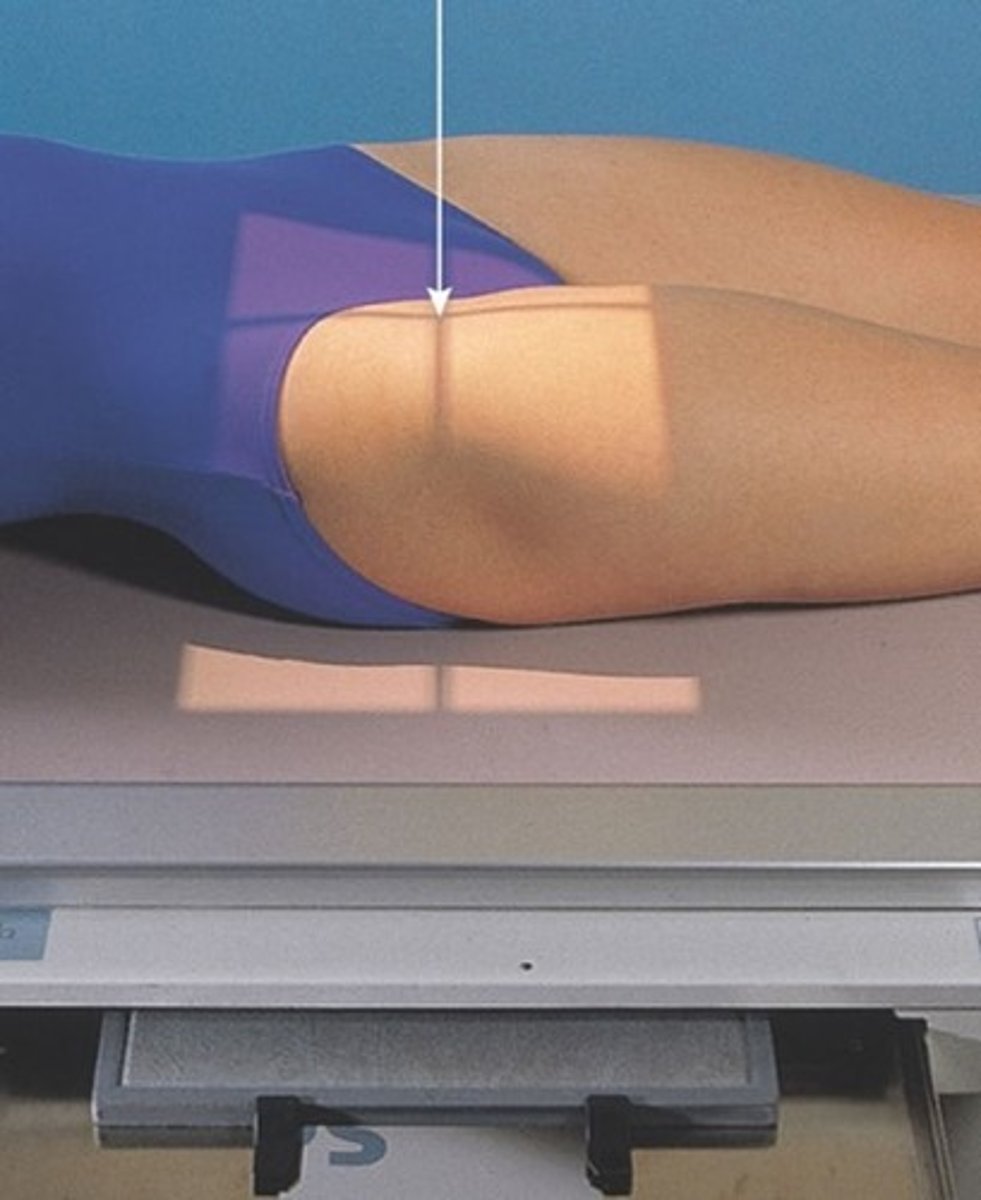

AP femur (mid and distal)

perpendicular and directed to midpoint of IR

AP pelvis (bilateral hips)

perpendicular and directed midway between ASIS and pubic symphysis

AP bilateral frog-leg pelvis (modified cleaves method)

perpendicular and directed 1 inch above pubic symphysis

AP axial outlet pelvis (taylor method)

angled 40 degrees cephalic directed 1-2 inches inferior to pubic symphysis

AP axial inlet pelvis (lilenfeld method)

angled 40 degrees caudal to ASIS

acetabulum iliac oblique (judet)

perpendicular and directed 2 inches medial and inferior to downside ASIS

acetabulum obturator oblique (judet)

perpendicular and directed 2 inches inferior to upside ASIS

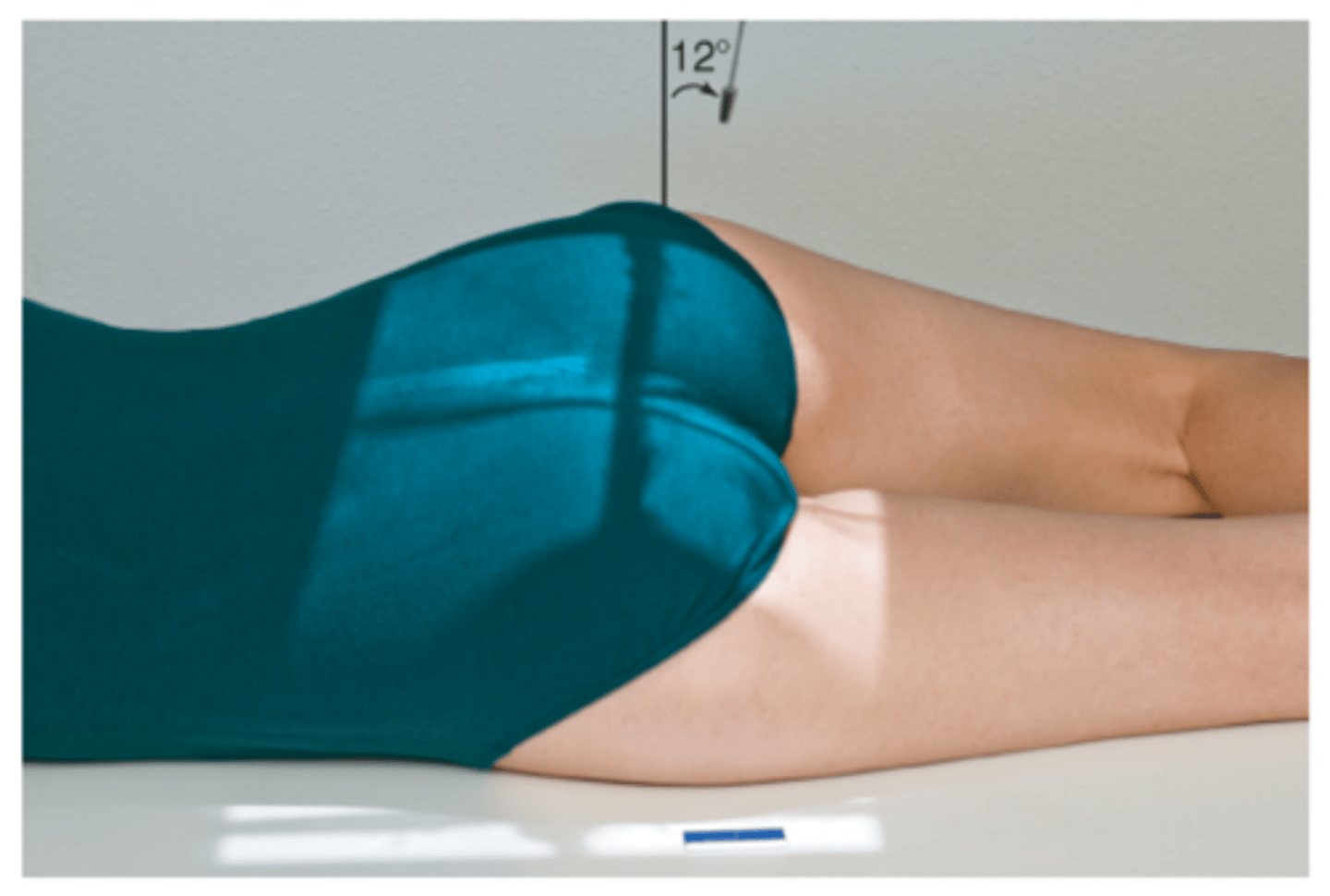

acetabulum PA axial oblique (teufel)

angled 12 degrees cephalic and directed 1 inch above greater trochanter/2 inches lateral to the midsagittal plane

AP hip

perpendicular to the femoral neck (1-2 inches medial and 3-4 inches distal to ASIS)

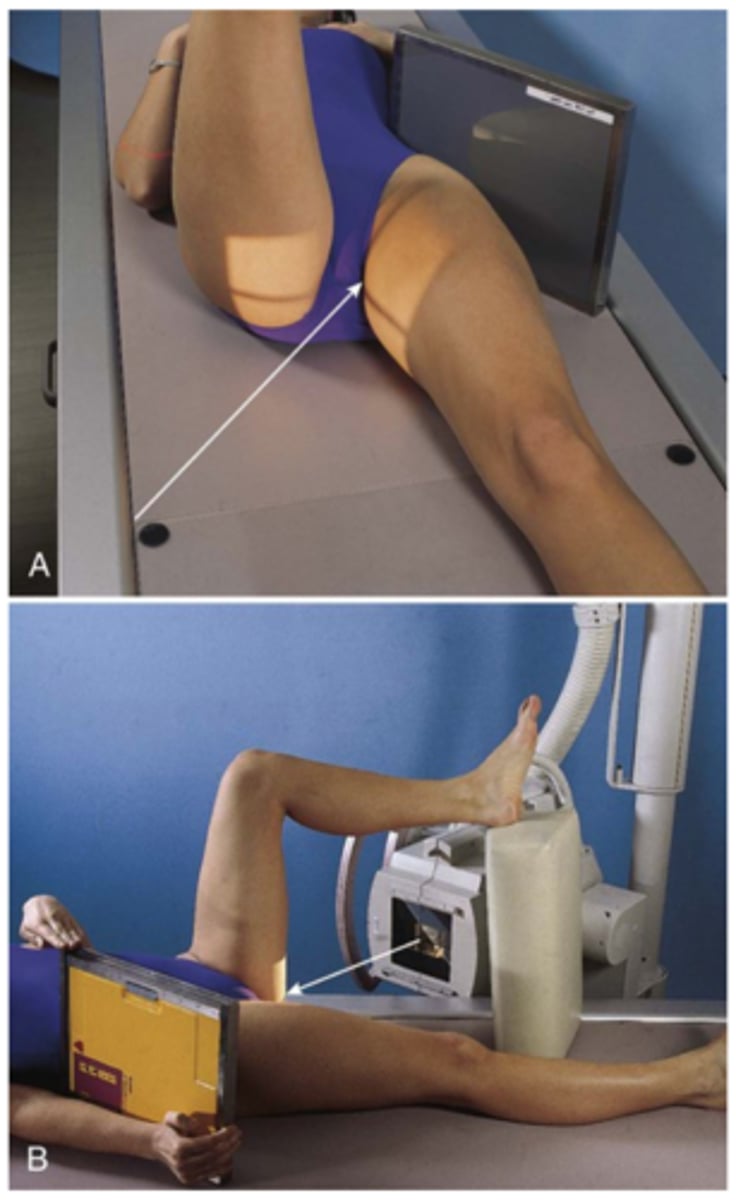

axiolateral inferosuperior hip (danelius-miller method)

horizontal and perpendicular to femoral neck and IR

AP unilateral frog leg hip

perpendicular to femoral neck

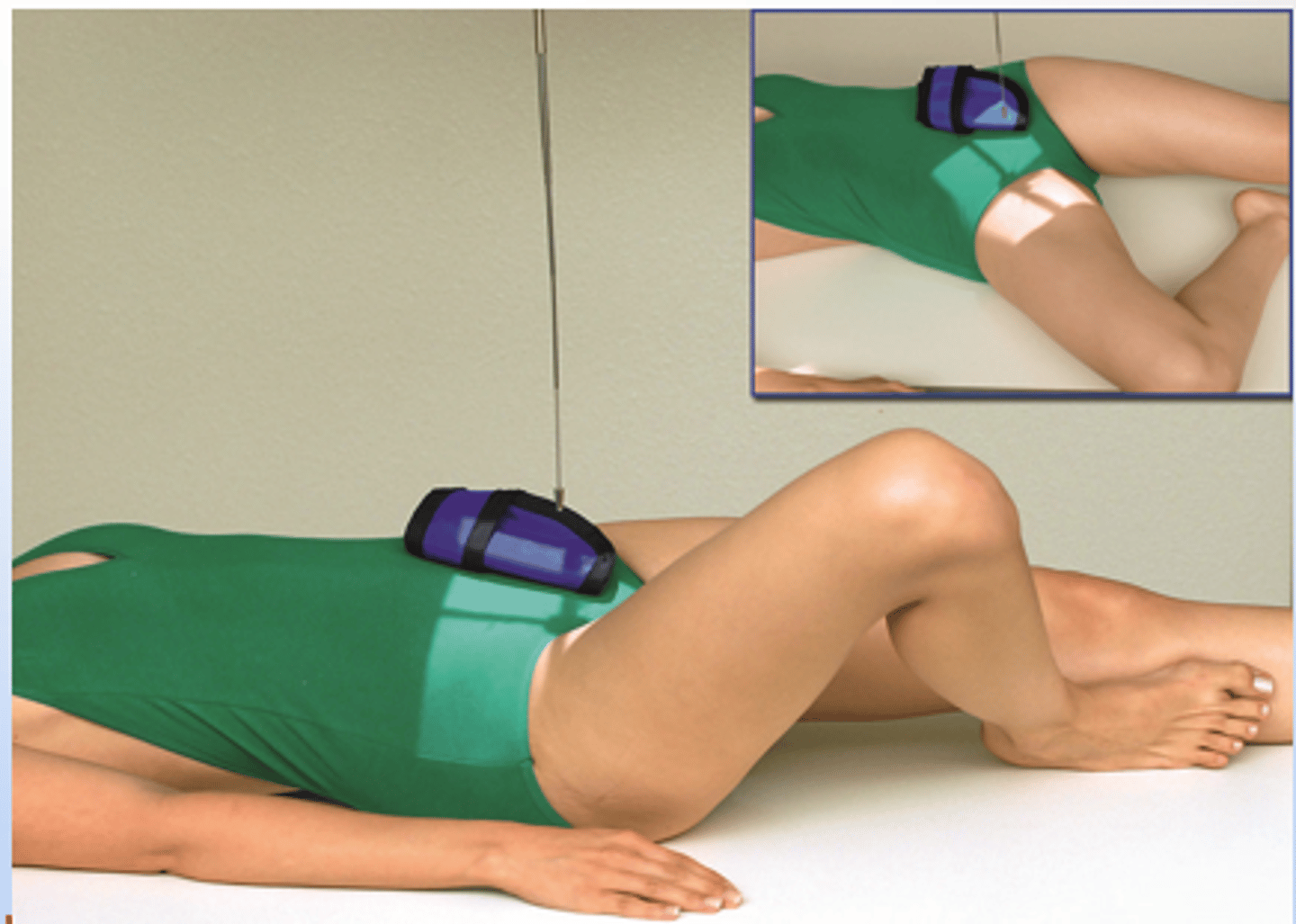

modified axiolateral hip (clements nakayama)

horizontal with a 15 degree posterior angle directed to femoral neck

AP axial sacrum

angled 15 degrees cephalic and directed 2 inches above pubic symphysis

AP axial coccyx

angled 10 degrees caudal 2 inches above symphysis
