11 Terms

1
New cards
term image

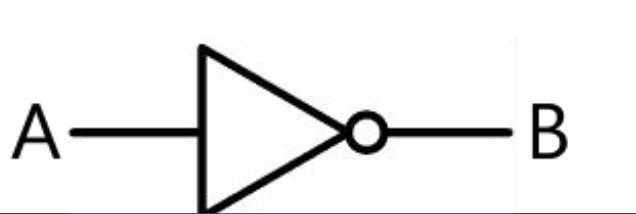

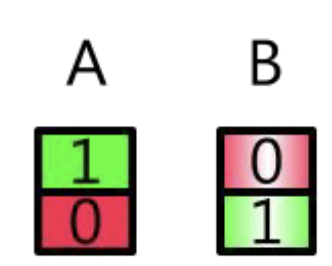

NOT gate

<p>NOT gate</p>
2
New cards
term image

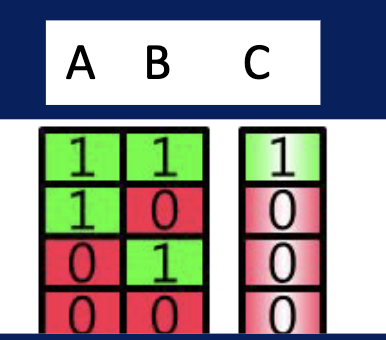

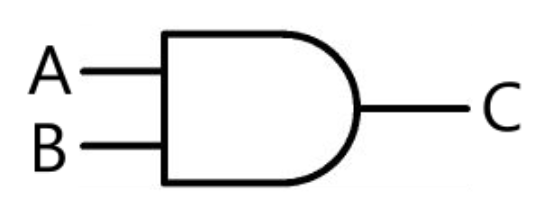

AND GATE is a digital logic gate that outputs true or 1 only when all of its inputs are true or 1.

<p>AND GATE is a digital logic gate that outputs true or 1 only when all of its inputs are true or 1. </p>
3
New cards
term image

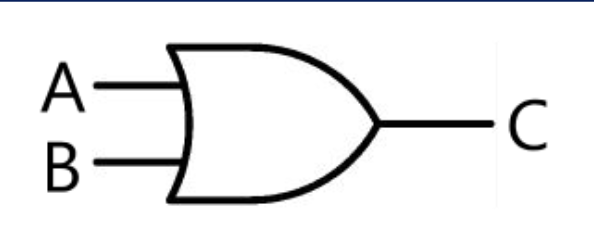

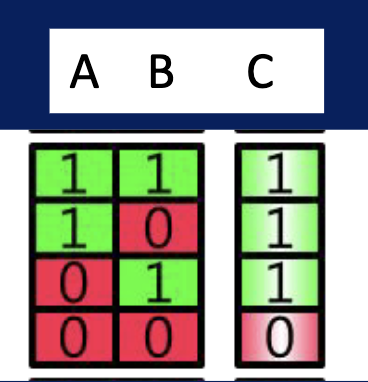

OR gateA digital logic gate that outputs true or high when at least one of its inputs is true or high.

<p>OR gateA digital logic gate that outputs true or high when at least one of its inputs is true or high. </p>
4
New cards
term image

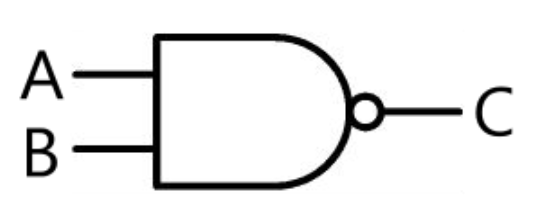

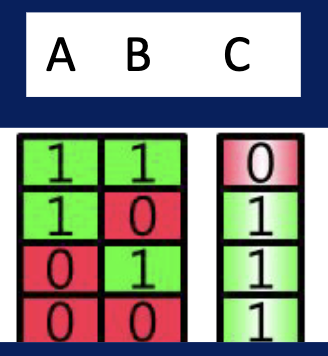

NAND gate is a digital logic gate that outputs false only when all of its inputs are true.

<p>NAND gate is a digital logic gate that outputs false only when all of its inputs are true. </p>
5
New cards
term image

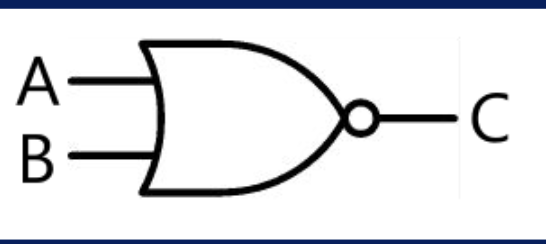

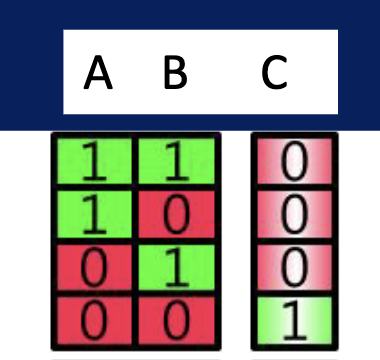

NOR gate is a digital logic gate that outputs true only when all of its inputs are false.

<p>NOR gate is a digital logic gate that outputs true only when all of its inputs are false. </p>
6
New cards
term image

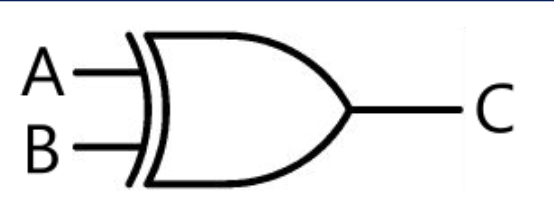

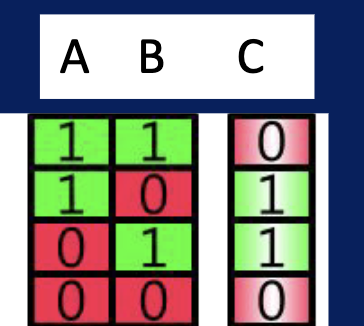

XOR gateis a digital logic gate that outputs true when the number of true inputs is odd, typically one of the inputs being true.

<p>XOR gateis a digital logic gate that outputs true when the number of true inputs is odd, typically one of the inputs being true. </p>
7
New cards
term image

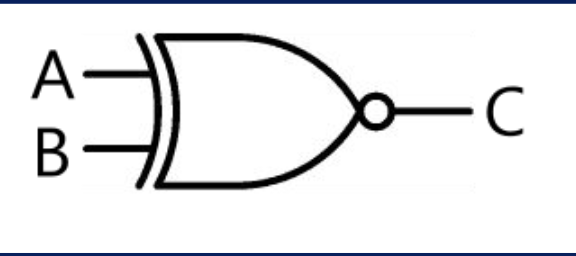

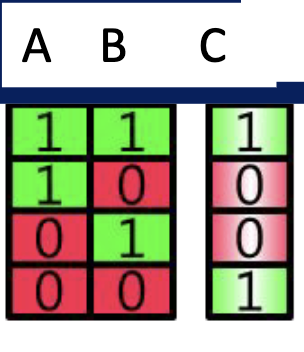

XNOR gate is a digital logic gate that outputs true when the number of true inputs is even, typically when both inputs are the same.

<p>XNOR gate is a digital logic gate that outputs true when the number of true inputs is even, typically when both inputs are the same. </p>
8
New cards

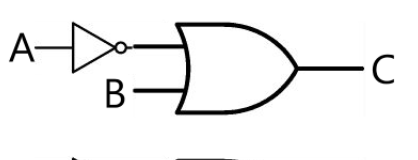

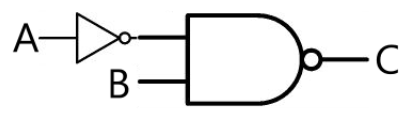

<p>Draw the truth table</p>

Draw the truth table

knowt flashcard image
9
New cards

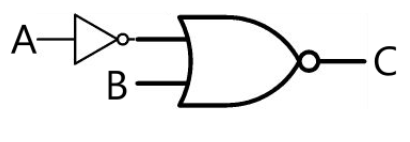

<p>Draw the truth table</p>

Draw the truth table

knowt flashcard image
10
New cards

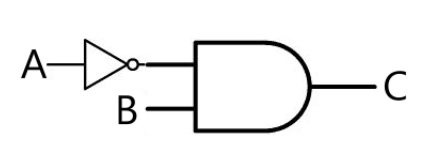

<p>Draw the truth table</p>

Draw the truth table

knowt flashcard image
11
New cards
<p>Draw the truth table</p>

Draw the truth table

knowt flashcard image
