ECG "cheat sheet"

Normal sinus rhythm

• Normal heart rate & rhythm

• Normal PQRST

• 60-100 BPM

Sinus Tachycardia

• Normal PQRST

• Rate 100-180 BPM

Sinus Bradycardia

• Normal PQRST

• Rate <60 BPM

Atrial Fibrillation

• Abnormal and irregular rhythm

• Abnormal P waves

• Normal QRS complex

Ventricular Tachycardia

• Irregular rhythm

• Patients can have a pulse or be pulseless

• QRS wide & bizarre

• P wave absent

• Rate 100-250 BPM

• Requires electrical defibrillation ASAP if pulseless

Ventricular Fibrillation

• Lethal arrhythmia

• Totally irregular

• No P wave or QRS complex

• Patient is pulseless

• Requires electrical defibrillation & CPR

Asystole

• Lethal arrhythmia

• Flat line with no waves

• No pulse

• Requires immediate CPR

What is this?

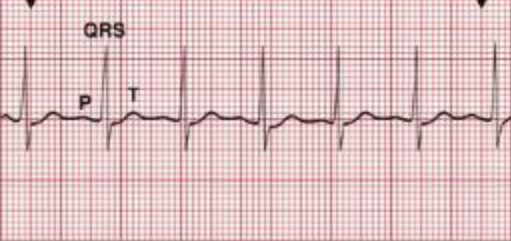

Normal sinus rhythm

What is this?

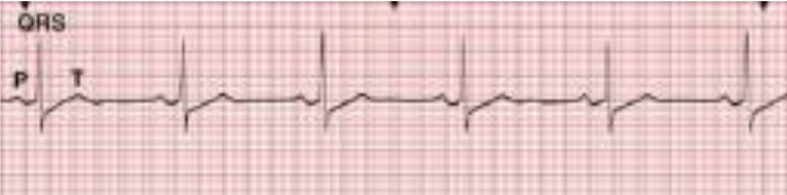

Sinus tachycardia

What is this?

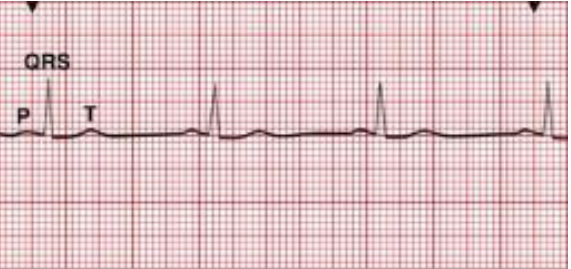

Sinus Bradycardia

What is this?

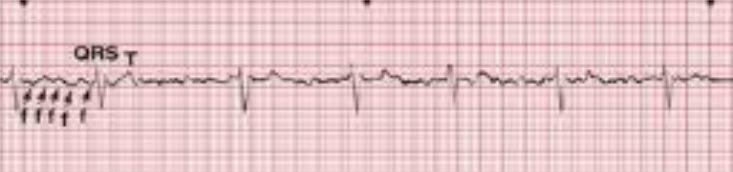

Atrial fibrillation

What is this?

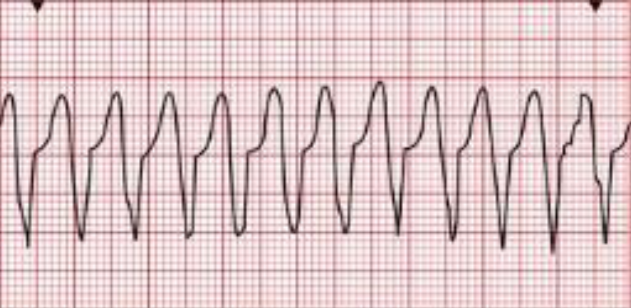

Ventricular tachycardia

What is this?

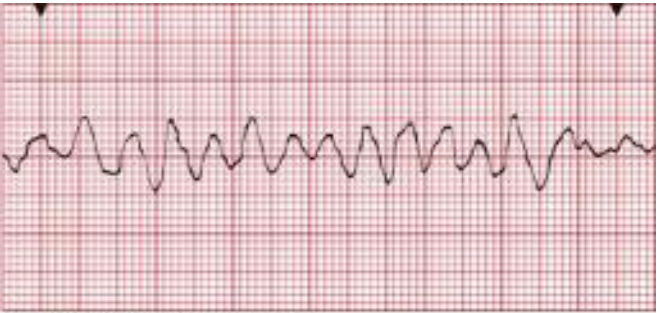

Ventricular Fibrillation

What is this?

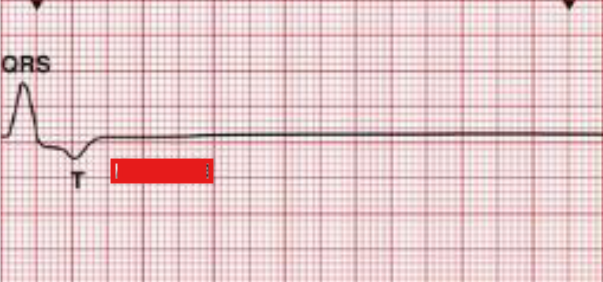

Asystole
