Cardiac Cycle

how can we study the mechanical events of the cardiac cycle?

catheters inserted into arteries or veins and passed into chambers of heart

• catheters filled with saline and attached to electronic pressure transducers

how is cardiac catheterization done for the left heart?

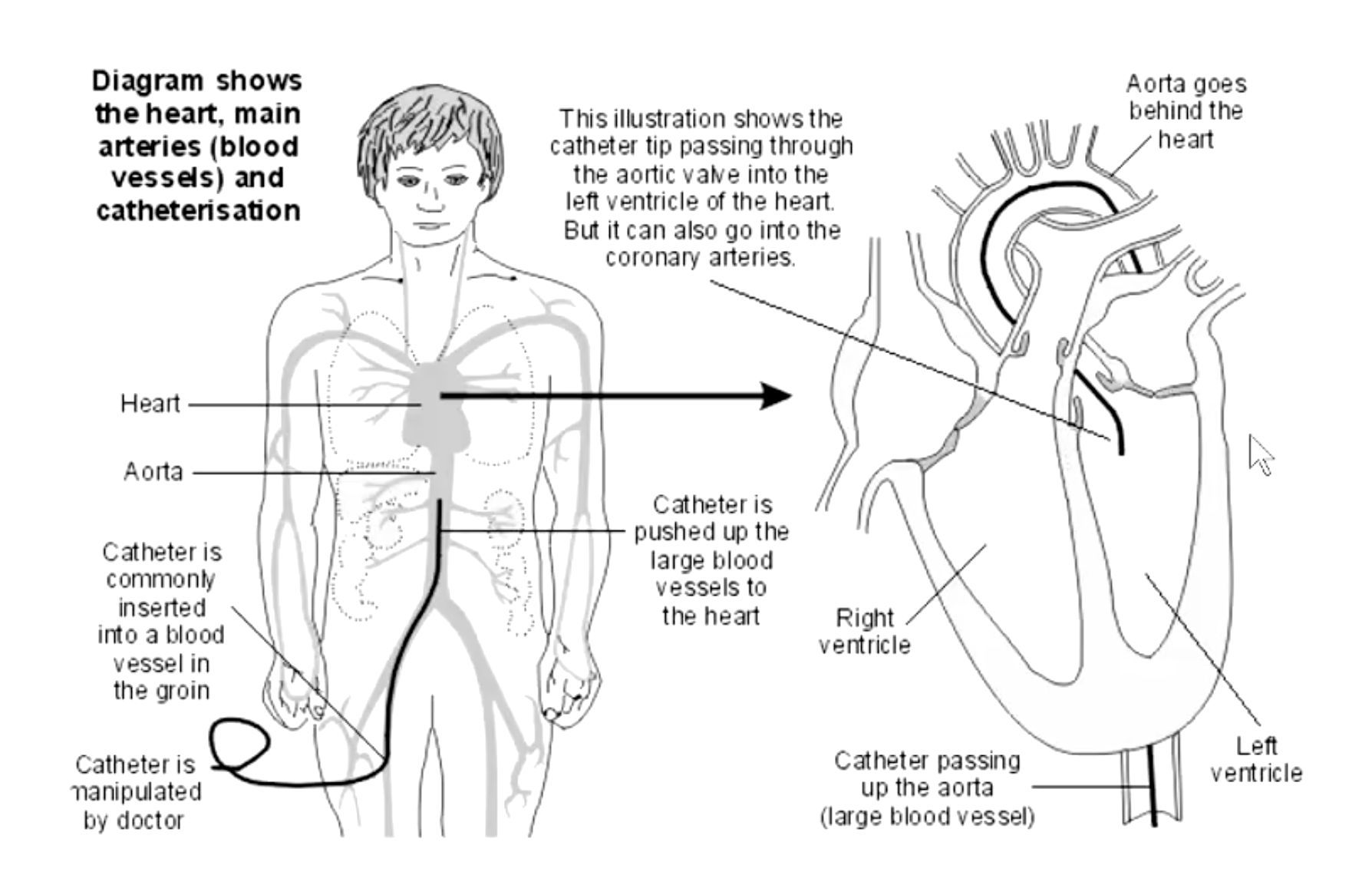

From the femoral artery, a catheter can advance to aorta, coronary arteries and left ventricle

how is cardiac catheterization done for the right heart?

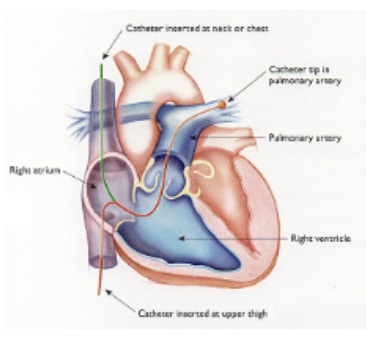

Swan-Ganz catheter

• inserted into vein and pushed to entrance to right atrium

• balloon at tip is inflated so that flow of blood carries catheter into atrium, right ventricle, and pulmonary artery

• catheter tip advanced into pulmonary circulation until it wedges in a small vessel

• forward flow of blood in that vessel is blocked and transducer detects “pulmonary wedge pressure” (good indicator of left atrial pressure)

A cardiac cycle consists of precisely timed electrical and mechanical events that are responsible for the rhythmic atrial and ventricular contractions: It includes:

• systole- ventricular contraction and ejection of blood

• diastole- ventricular relaxation and filling with blood

assuming a resting rate of 72 beats per minutes, one

cardiac cycle takes __ seconds

0.8

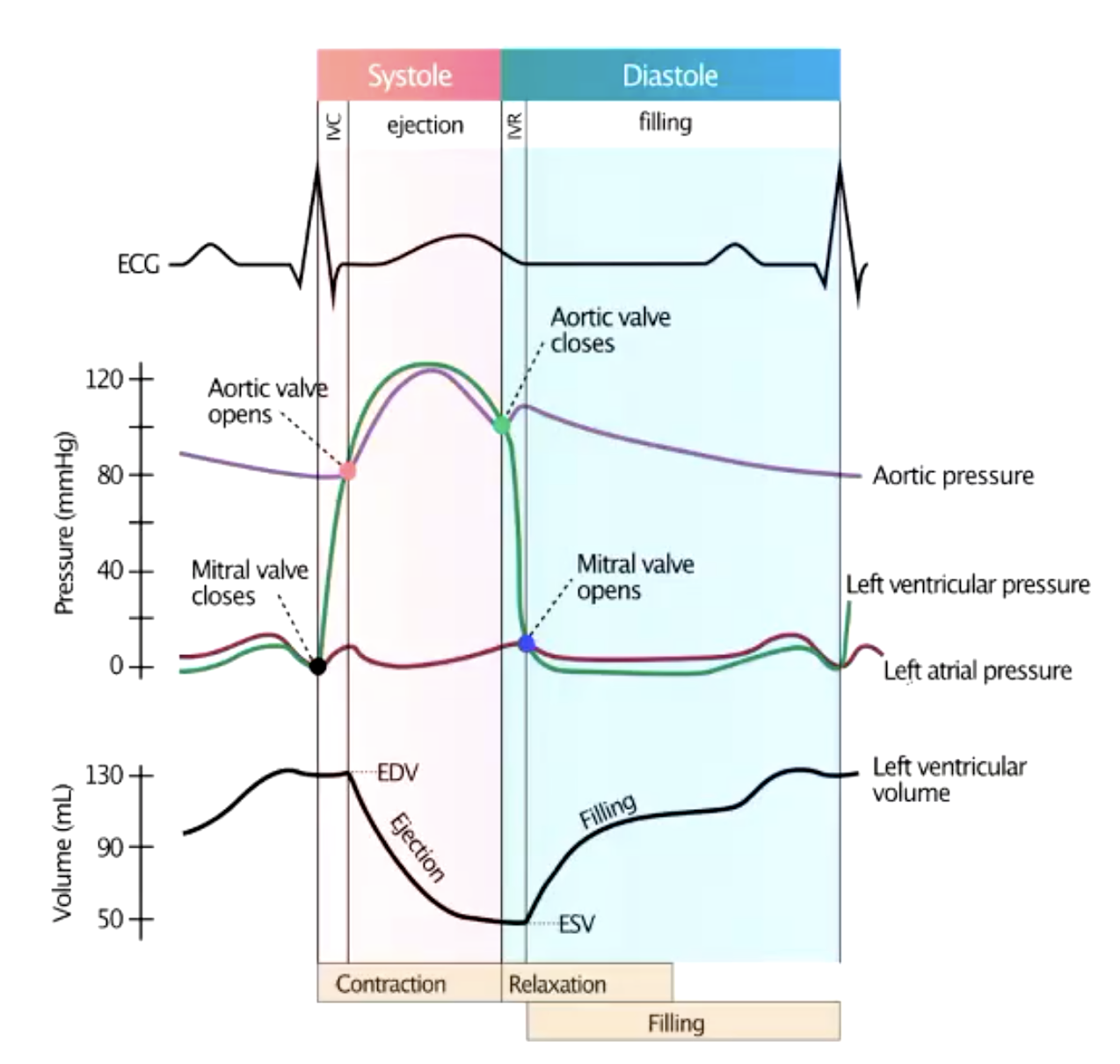

what diagram presents the events of a cardiac cycle for the left-sided cardiac chambers?

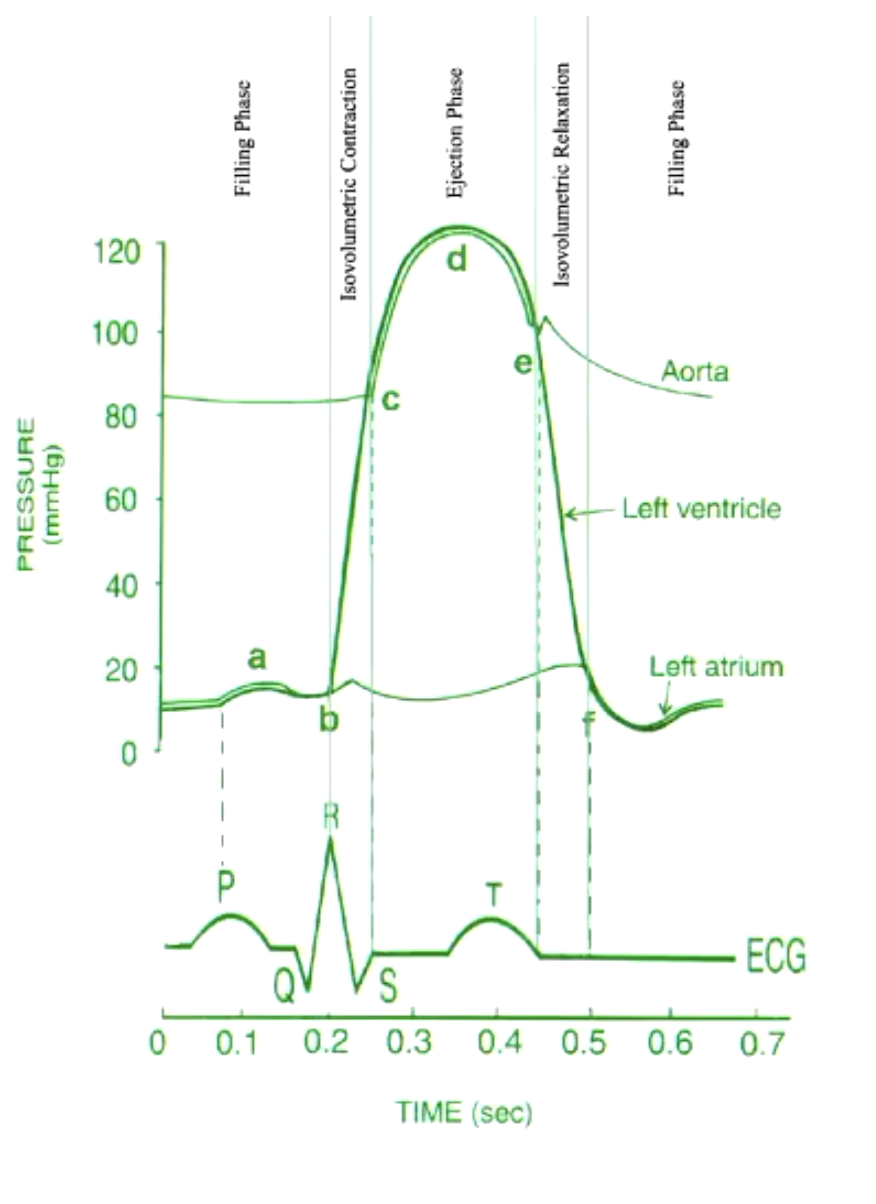

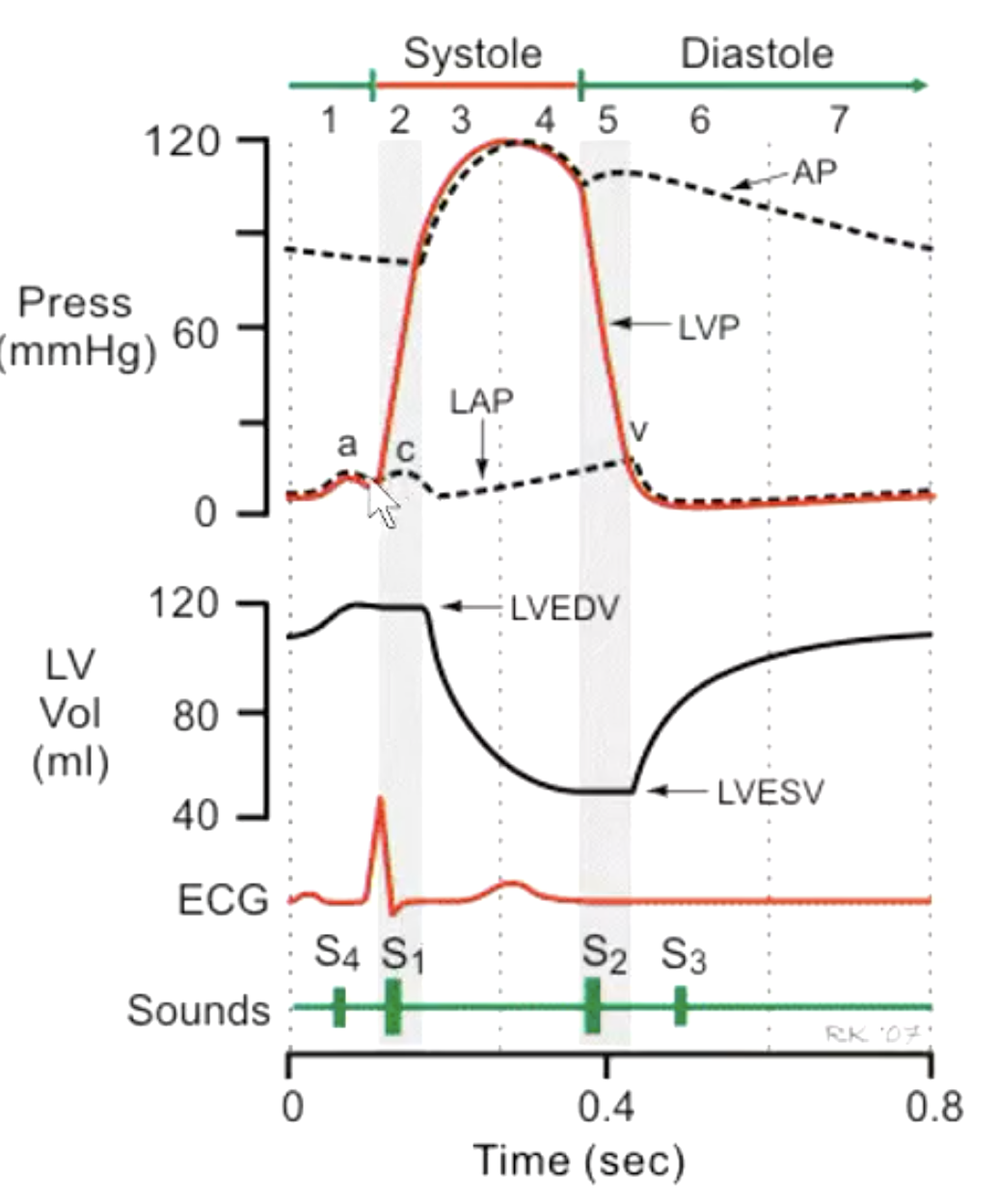

Wiggers diagram

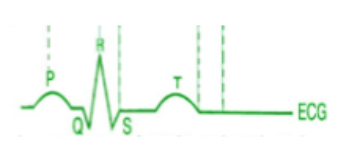

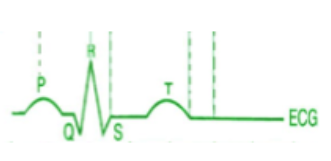

what does the QRS complex indicate on an EKG?

ventricular depolarization (+ atrial repolarization) – triggers ventricular contractions

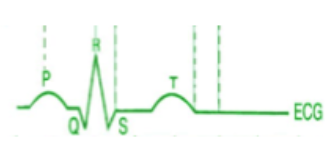

what does the P wave indicate on an EKG?

depolarization of the atria – triggers atrial contraction

what does the T wave indicate on an EKG?

ventricular repolarization

what happens during atrial systole? (a)

1. triggered by P wave

2. small pressure rise as atrium squeezes blood into ventricle

3. tops off ventricle (already 90-95% full of blood)

what happens during isovolumetric contraction? (b-c)

1. triggered by QRS complex

2. mitral valve closes (creates C wave in atrium)

3. aortic valve is closed

4. pressure rises rapidly

5. volume is constant

6. aortic pressure ~80 mmHg

what is happening at each point of the Wiggers diagram?

a) atrial systole

b-c) isovolumetric contraction

c) opening of aortic valve (ejection)

d) reduction in ejection rate

e-f) isovolumetric relaxation (closing of aortic valve)

f) opening of mitral valve

what happens during opening of aortic valve - ejection? (c)

1. ventricular pressure exceeds aortic

2. begins ejection phase

3. ejection initially rapid

4. aortic pressure rises

what happens during reduction in ejection rate (d)?

1. ventricle approaches the end of contraction (T wave occurring)

2. outward flow declines as kinetic energy of blood decreases

3. ventricular and aortic pressures begin to fall

what happens during isovolumetric relaxation? (e-f)

1. forward movement of blood reverses, closing aortic valve

2. incisura (dichrotic notch)indicates aortic valve closure

3. ventricular pressure falls precipitously

4. atrial pressure rises as venous inflow fills the atrium

5. aortic pressure falls as ejected blood drains away from heart

what happens during opening of mitral valve? (f)

begins rapid filling of ventricle from accumulated blood in atrium

rapid filling followed by reduced filling from pulmonary veins.

when does ventricular systole begin and end?

ventricular systole begins when the mitral valve closes and ends when the aortic valve closes

what are the normal pressure ranges for the left heart?

ventricular:
aortic:
atrial:

ventricular: 0 – 120 mmHg

aortic: 80-120mmHg

atrial: 6-~10 mmHg

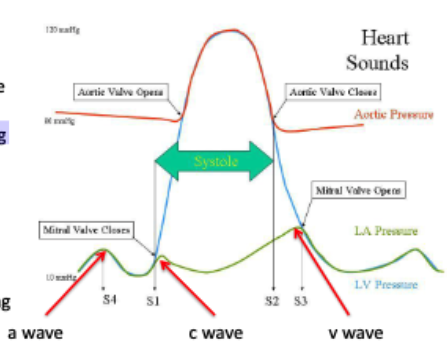

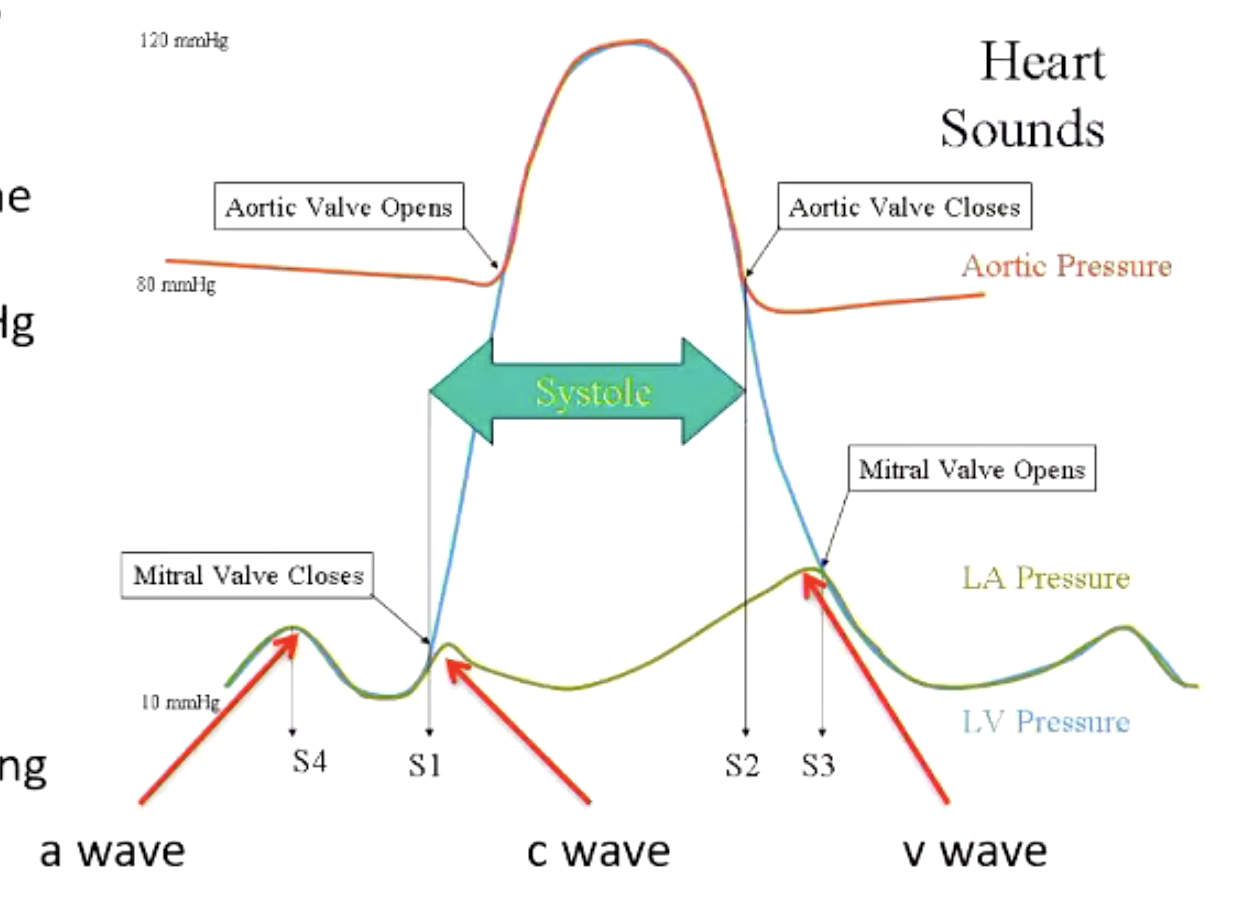

what are the different atrial pressure waves that occur on a Wiggers diagram?

a – atrial systole

c – closure of mitral valve

v – atrial filling and emptying

what is end diastolic volume (EDV)?

atrial systole fills the ventricular to the end diastolic volume (EDV)

what is end systolic volume (ESV)?

at the end of ejection, the volume remaining in the ventricle is the end systolic volume (ESV)

how does volume change during isovolumetric contraction and ejection?

the volume stays constant during isovolumetric contraction, then decreases as blood is ejected into the aorta

how do you calculate stroke volume?

EDV - ESV = stroke volume

what are the heart sounds? what causes heart sounds?

S1, S2, S3, S4

caused by turbulence or vibrations of blood

what is S1 sounds caused by?

closure of mitral (and tricuspid) valves with the sudden rise in ventricular pressure causes turbulence of blood in ventricles

this is the “lub”

what is S2 sounds caused by?

closure of aortic and pulmonic valves causes vibrations of blood in the high pressure vessels

this is the “dub”

what is S3 sounds caused by?

during rapid filling in some individuals- normal in children (Kentucky)

what is S4 sounds caused by?

vibration of ventricular walls during atrial systole in some individuals (Tennessee)

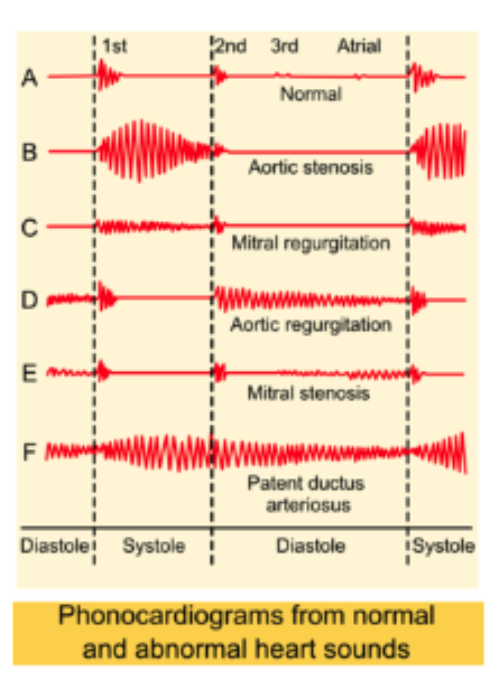

what are abnormal heart sounds that arise from congenital or acquired abnormalities that create turbulence in flow?

Murmurs

murmurs can result from…?

• partial obstruction of flow (e.g. aortic stenosis)

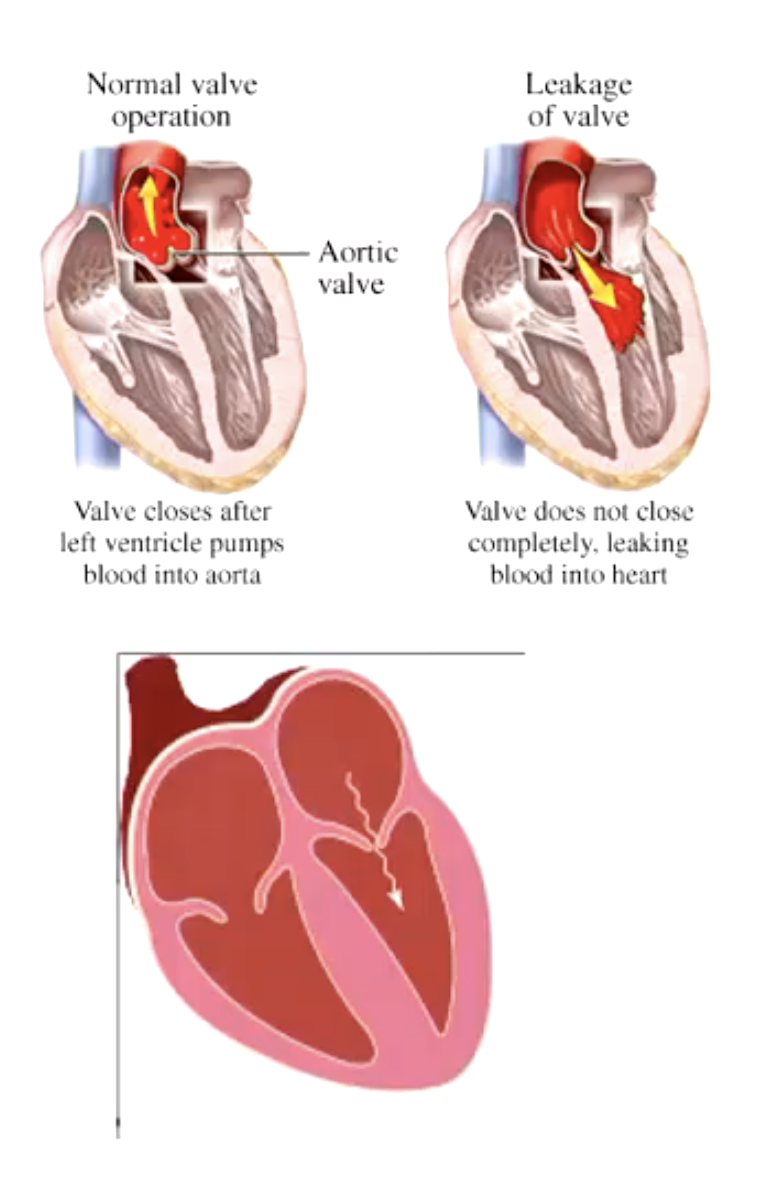

• regurgitant flow across an incompetent valve (e.g. mitral regurgitation)

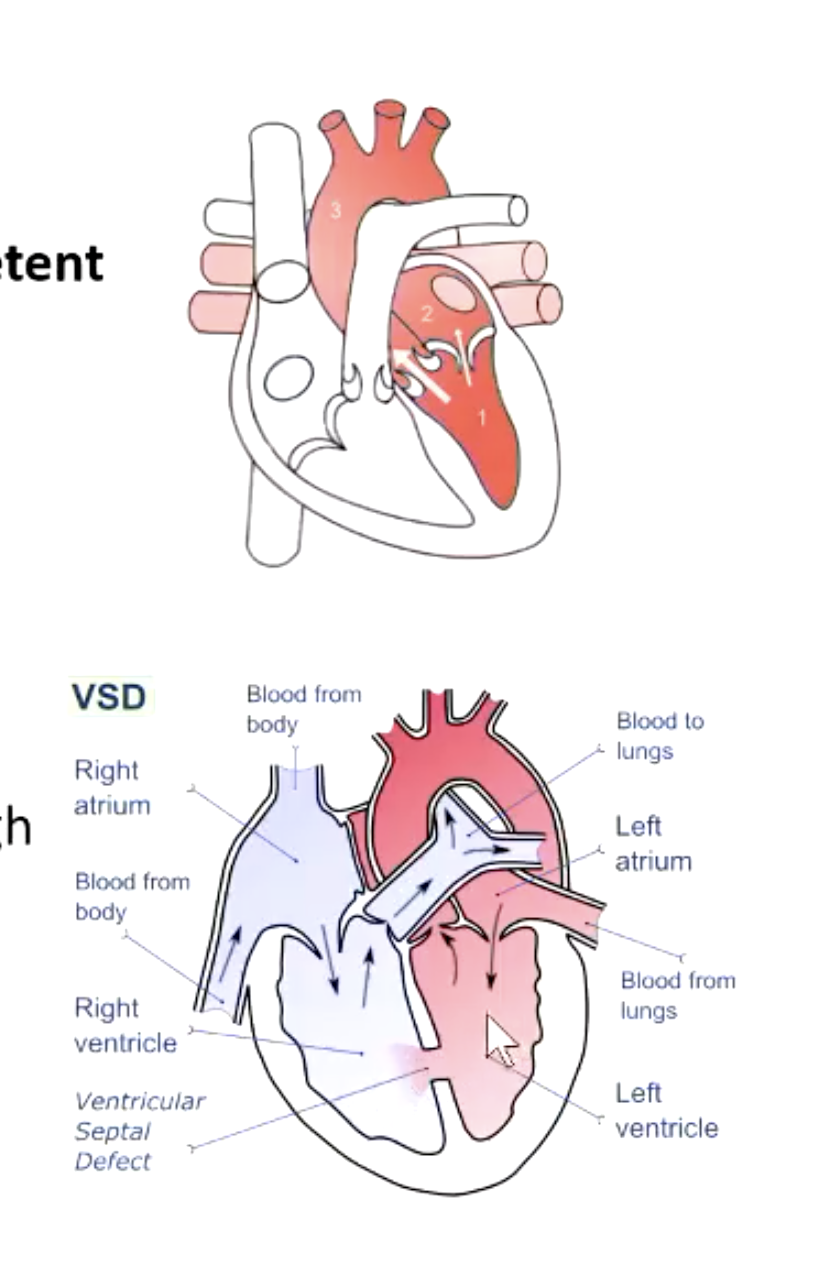

• abnormal shunting of blood from one vascular chamber to another lower pressure chamber (ventricular septal defect).

• increased flow through normal structures (e.g. high flow rate associated with anemia)

systolic (ejection) murmurs are caused by…?

aortic or pulmonic stenosis

pansystolic murmurs are caused by…?

• regurgitant flow through incompetent mitral or tricuspid valve

• From left to right ventricle through a ventricular septal defect

diastolic murmurs are caused by…?

• regurgitant flow through incompetent aortic or pulmonic valve

• mitral or tricuspid stenosis

continuous murmurs are caused by…?

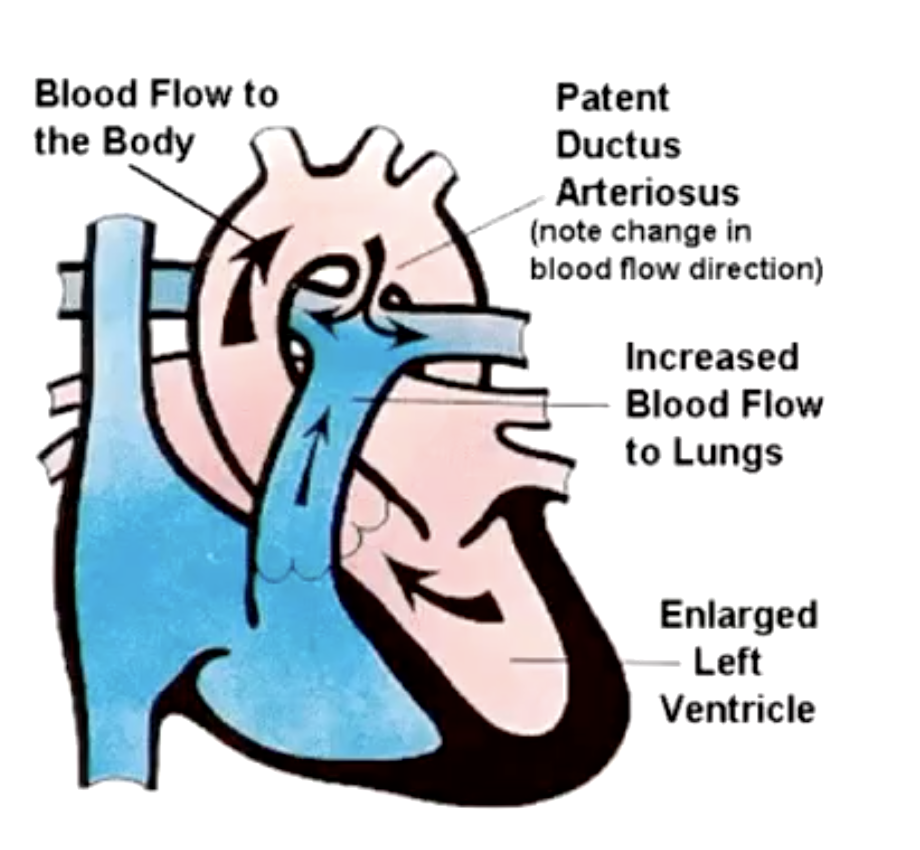

Patent ductus arteriosus: pressure gradient between aorta and pulmonary artery persists in both systole and diastole

(heard throughout cardiac cycle)

A Wiggers diagram for the right heart has qualitatively all of the features that we saw for the left. However, what’s different?

the pressures in the chambers are lower as shown in the figure

• the right ventricle develops a systolic pressure of only 25 mmHg and drops to 0-4 in diastole

• the pulmonary arterial blood pressures are ~ 25/10

the duration of systole is about ___ of the cycle while diastole is ~__

1/3

2/3

emptying occurs at high/low pressure while filling is mostly passive at high/low pressure

emptying occurs at high pressure while filling is mostly passive at low pressure

t/f: systemic and pulmonary blood flow are equal although SVs can vary from beat to beat

true

how is ejection fraction calculated?

SV/EDV = ejection fraction (55%)

volumes and pressures can change in …?

exercise or disease

all valves are opened/closed during isovolumetric contraction and relaxation

closed

what are the major heart sounds? when do they occur?

S1 and S2 (each occurs when valves close and blood becomes turbulent)

what events occur almost simultaneously with onset of systole?

- QRS complex

- S1

- c wave

- closure of mitral valve

- rise in ventricular pressure

what events occur almost simultaneously with onset of diastole?

- S2

- closure of aortic valve

-incisura

-drop in ventricular pressure

when does the heart pump its stroke volume?

time between S1 and S2
