7 Terms

1
New cards

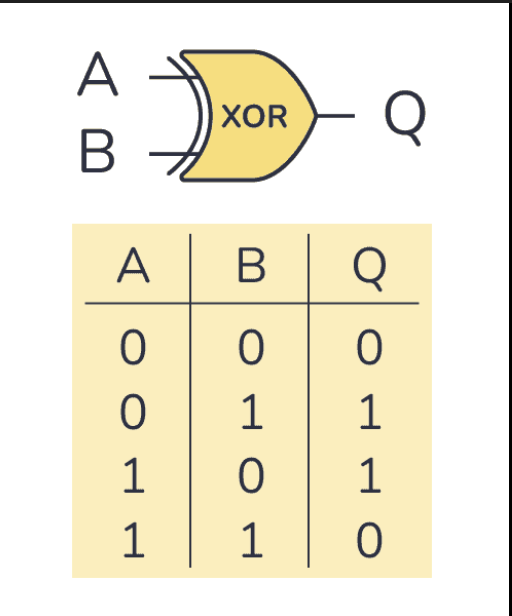

XOR

XOR (Exclusive OR): Output is True (1) if inputs are different (one True, one False)

<p><strong>XOR (Exclusive OR):</strong><span><span> Output is True (1) if inputs are </span></span><strong>different</strong><span><span> (one True, one False)</span></span></p>
2
New cards

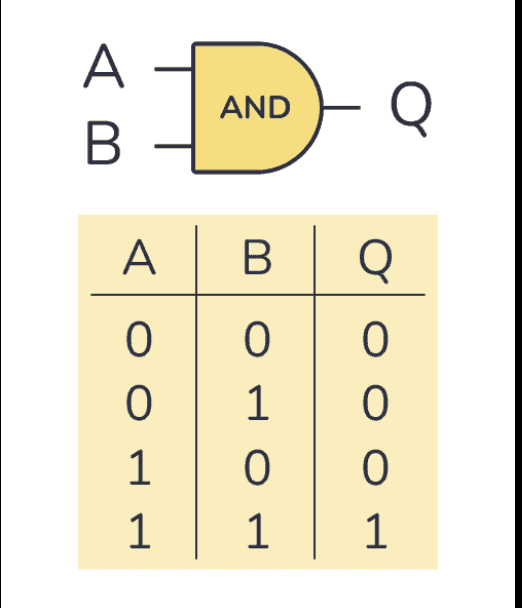

AND

“0 is dominant'“

<p>“0 is dominant'“</p>
3
New cards

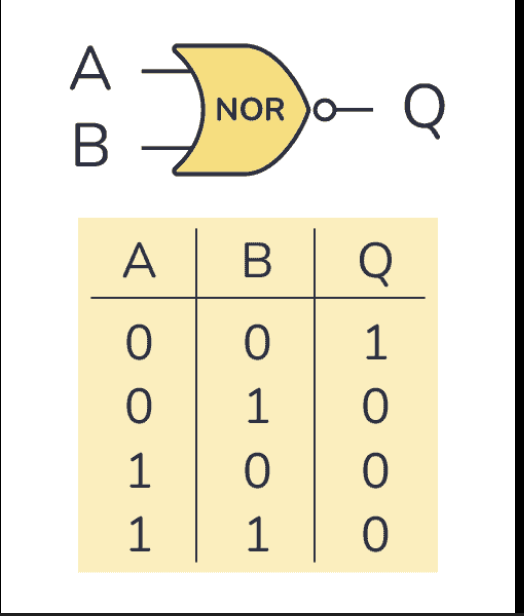

NOR

knowt flashcard image
4
New cards

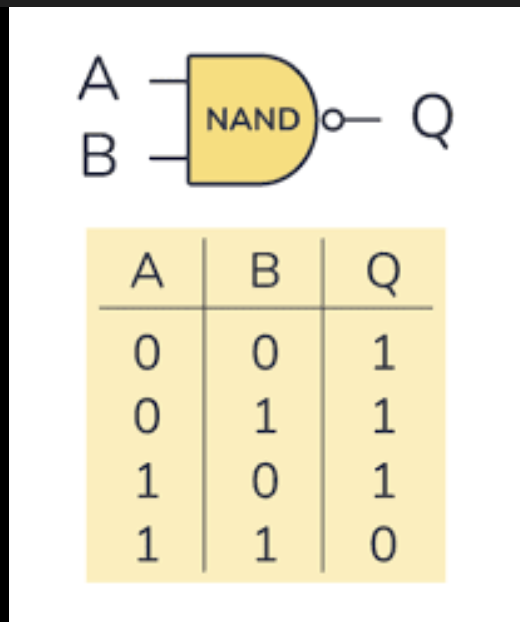

NAND

The opposite of AND. Output is False (0) only when all inputs are True (1).

<p><span><span>The opposite of AND. Output is False (0) only when all inputs are True (1).</span></span></p>
5
New cards

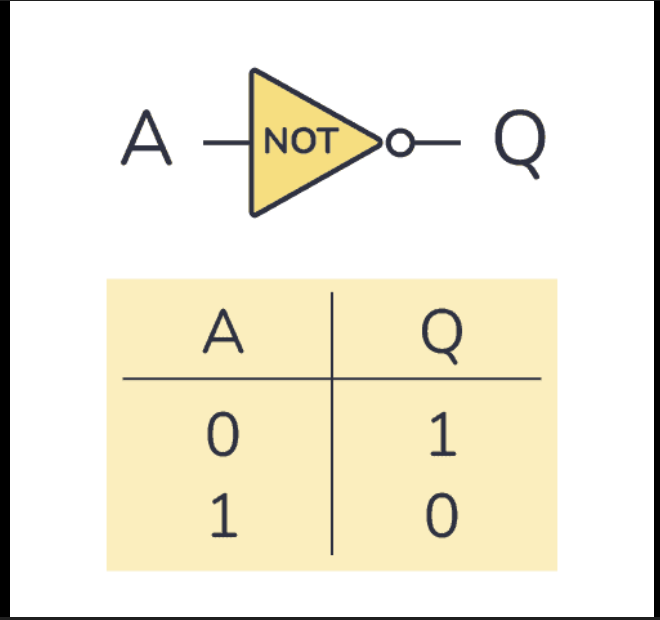

NOT

Reverses the input. Input 1 -> Output 0; Input 0 -> Output 1.

<p><span><span>Reverses the input. Input 1 -&gt; Output 0; Input 0 -&gt; Output 1.</span></span></p>
6
New cards

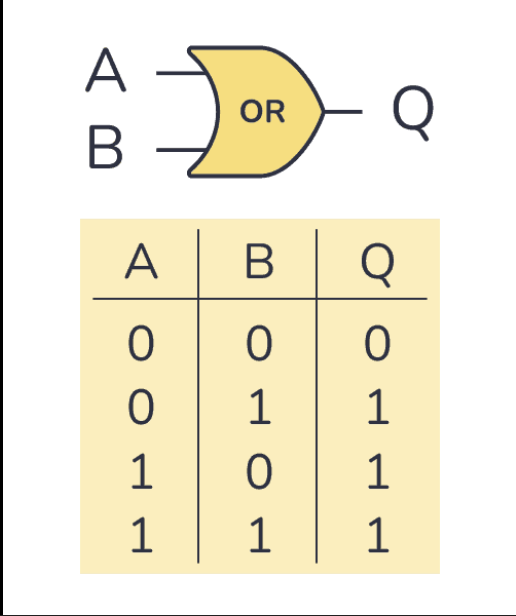

OR

“1” is dominant"

<p>“1” is dominant"</p>
7
New cards

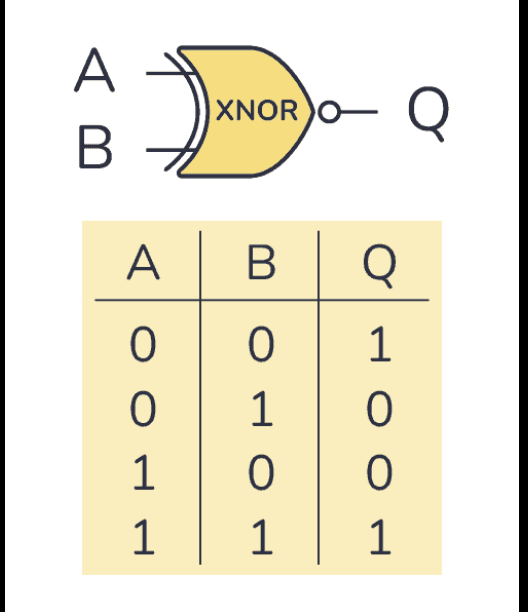

XNOR

  • XNOR (Exclusive NOR): Output is True (1) if inputs are the same (both True or both False).

<ul><li><p><span><strong><span>XNOR (Exclusive NOR):</span></strong><span> Output is True (1) if inputs are the </span><strong><span>same</span></strong><span> (both True or both False).&nbsp;</span></span></p></li></ul><p></p>
