Cranial Bones

Cranial Bones

Consists of eight bones that surround and protect the brain, forming the cranial cavity

• Frontal, parietal, temporal, occipital, sphenoid, and ethmoid bones

Facial Bones

Consists of fourteen bones that form the structure of the face, support the teeth, and create the openings for the eyes, nose, and mouth

• Maxillae, zygomatic bones, nasal bones, lacrimal bones, palatine bones, inferior nasal conchae, vomer, and mandible

How do the work together?

Cranial and facial provides protection for brain, support the sensory organs, enable functions such as chewing and breathing, and contribute to the overall shape and appearance of the face

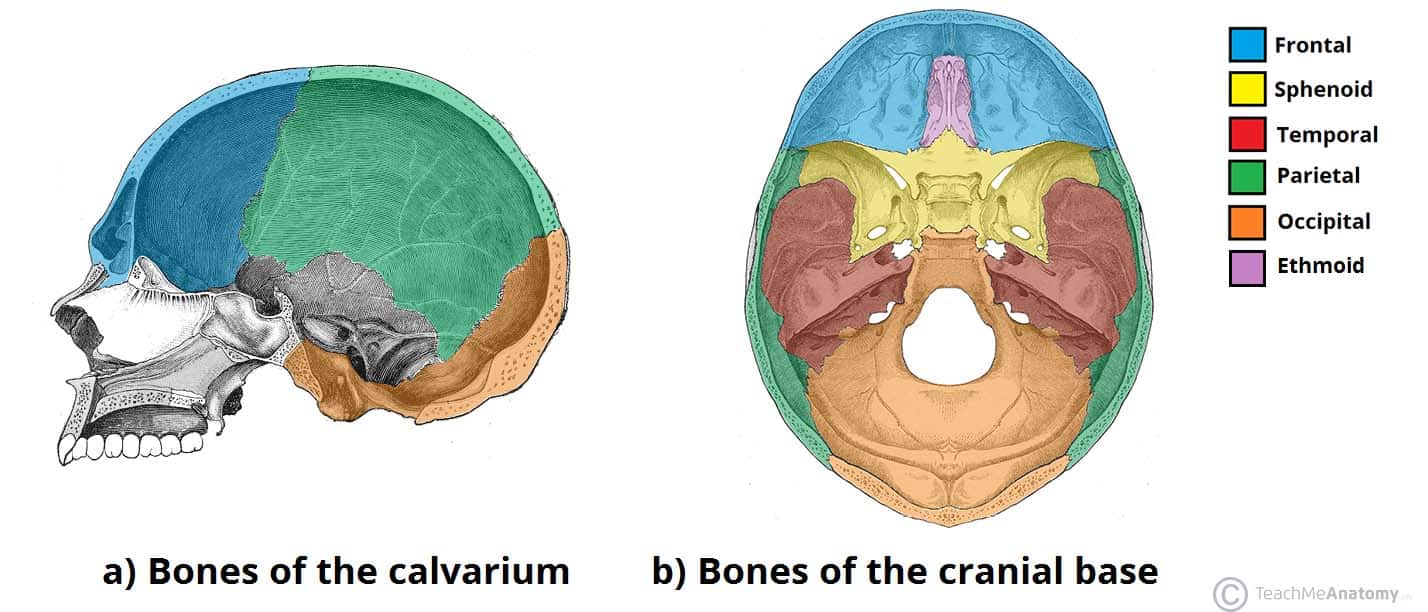

Cranium Roof

• Frontal

• Occipital

• Two Parietal Bones (Calvaria)

Cranial Base

Articulate with the 1st cervical vertebra (atlas), and the facial bones, and the mandible (jaw)

• Frontal

• Sphenoid

• Ethmoid

• Occipital

• Parietal

• Temporal

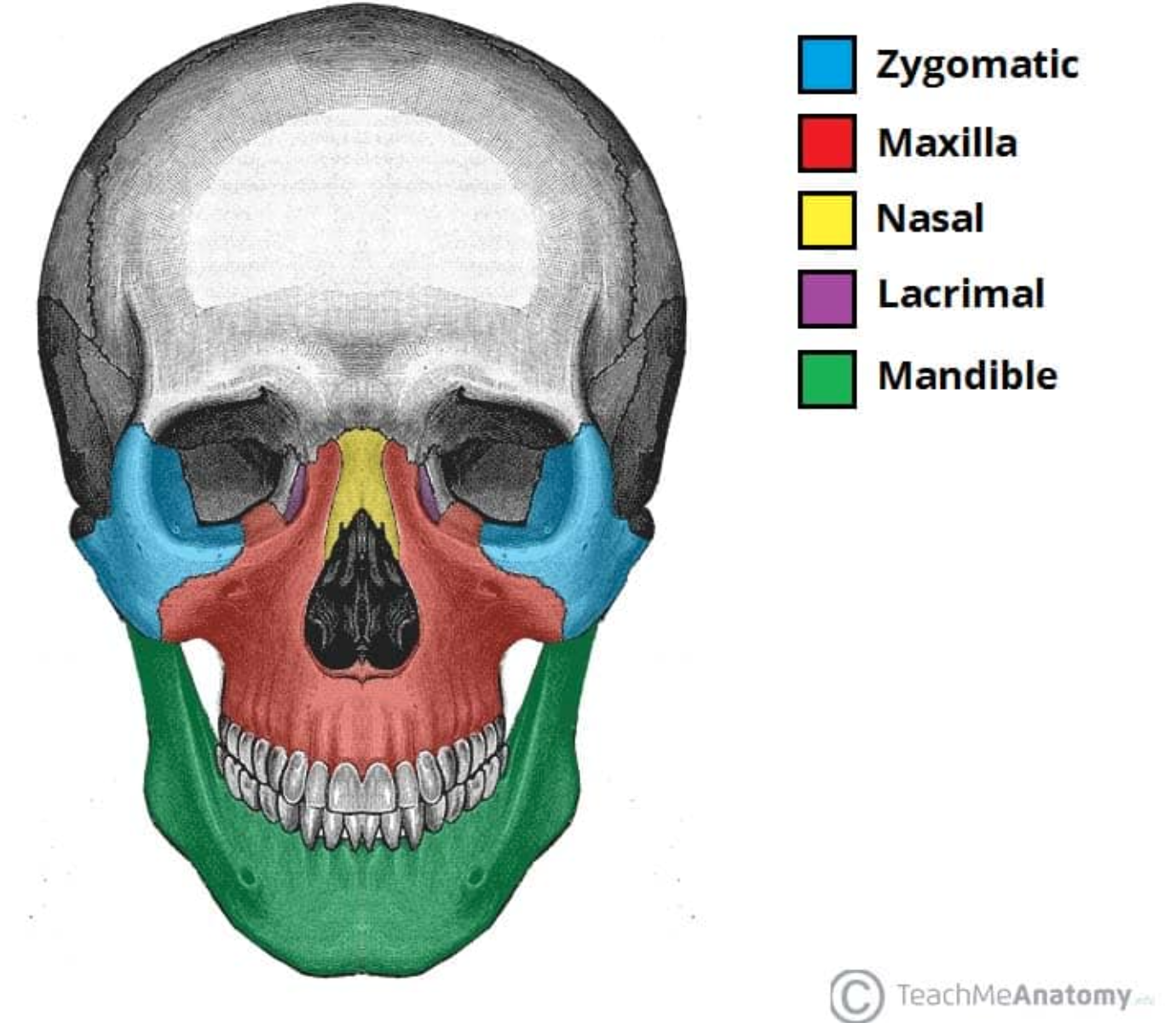

Facial Skeleton (Viscerocranium)

• Zygomatic (2)

• Lacrimal (2)

• Nasal (2)

• Inferior Nasal Conchae (2)

• Palatine (2)

• Maxilla (2)

• Vomer

• Mandible (Jaw)

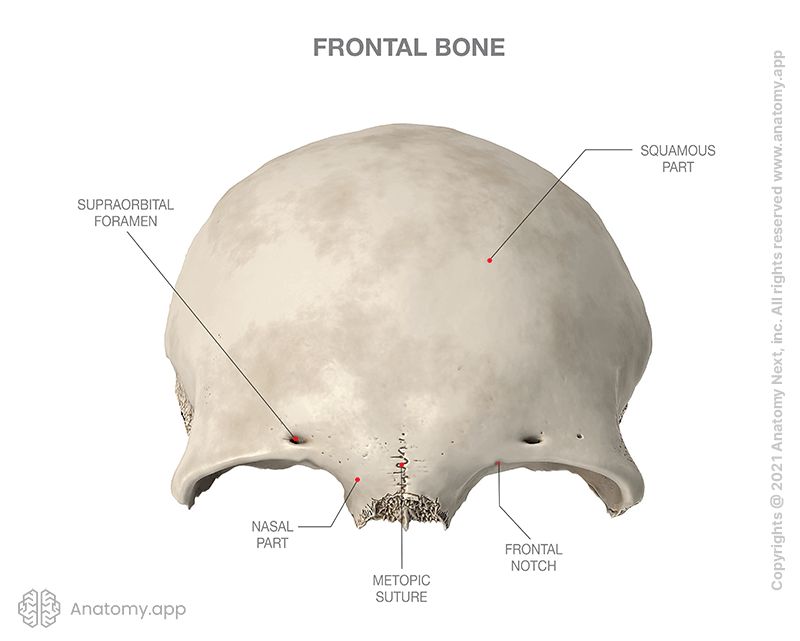

Frontal (1)

Supraorbital foramen

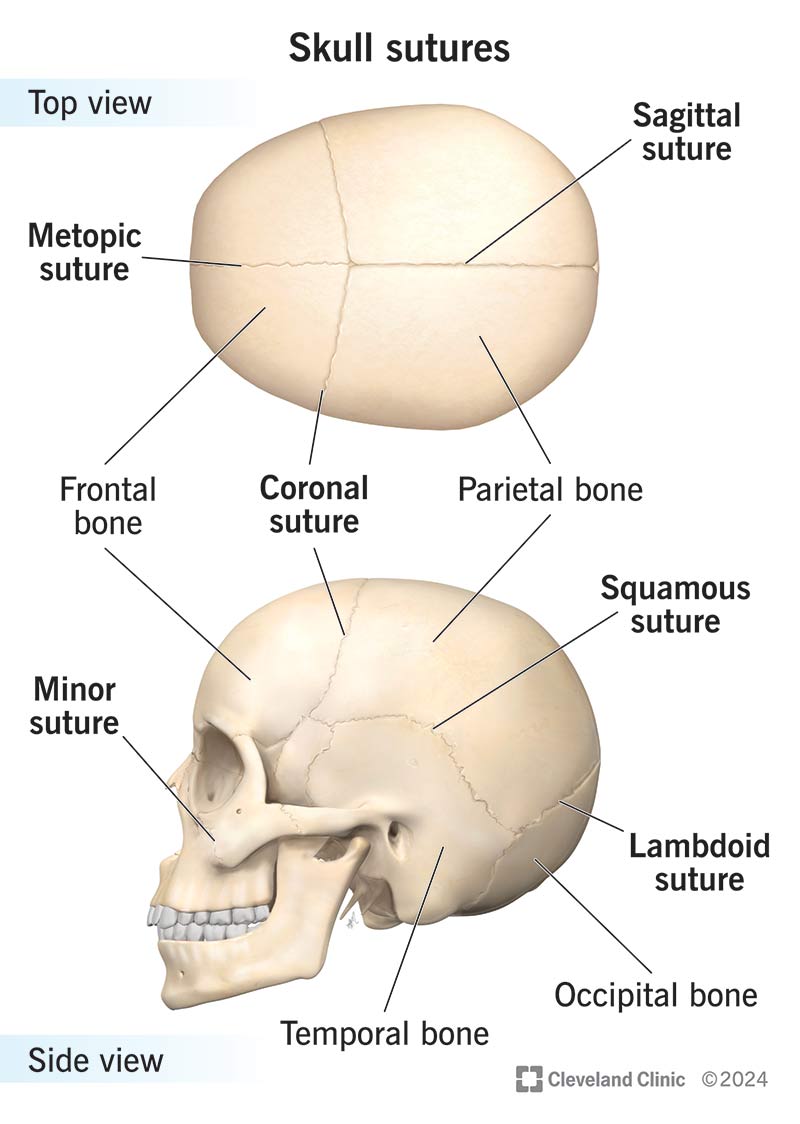

Parietal (2)

• Saggital Suture

• Coronal Suture

• Lambdoidal Suture

• Squamous Suture

Temporal (2)

• Zygomatic Process

• External Auditory Meatus

• Mastoid Process
