8 Terms

1
New cards

Advantages of AC

  • can be transformed

  • easier to generate

  • cheaper

  • can be transmitted over long distance

2
New cards

Peak-to-Peak Voltage (Vpp)

Vpp = 2Vm

3
New cards

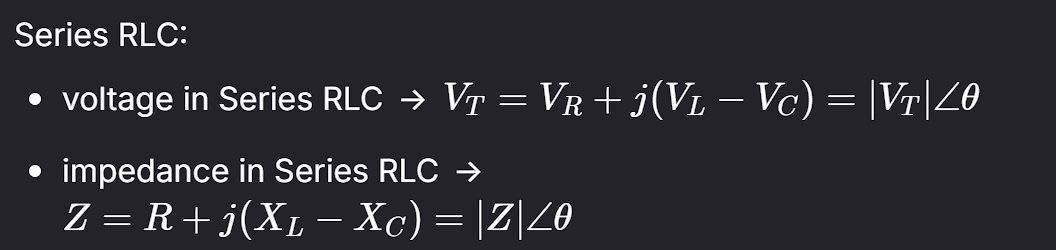

What is the voltage and impedance in Series RLC?


<p><br></p>
4
New cards

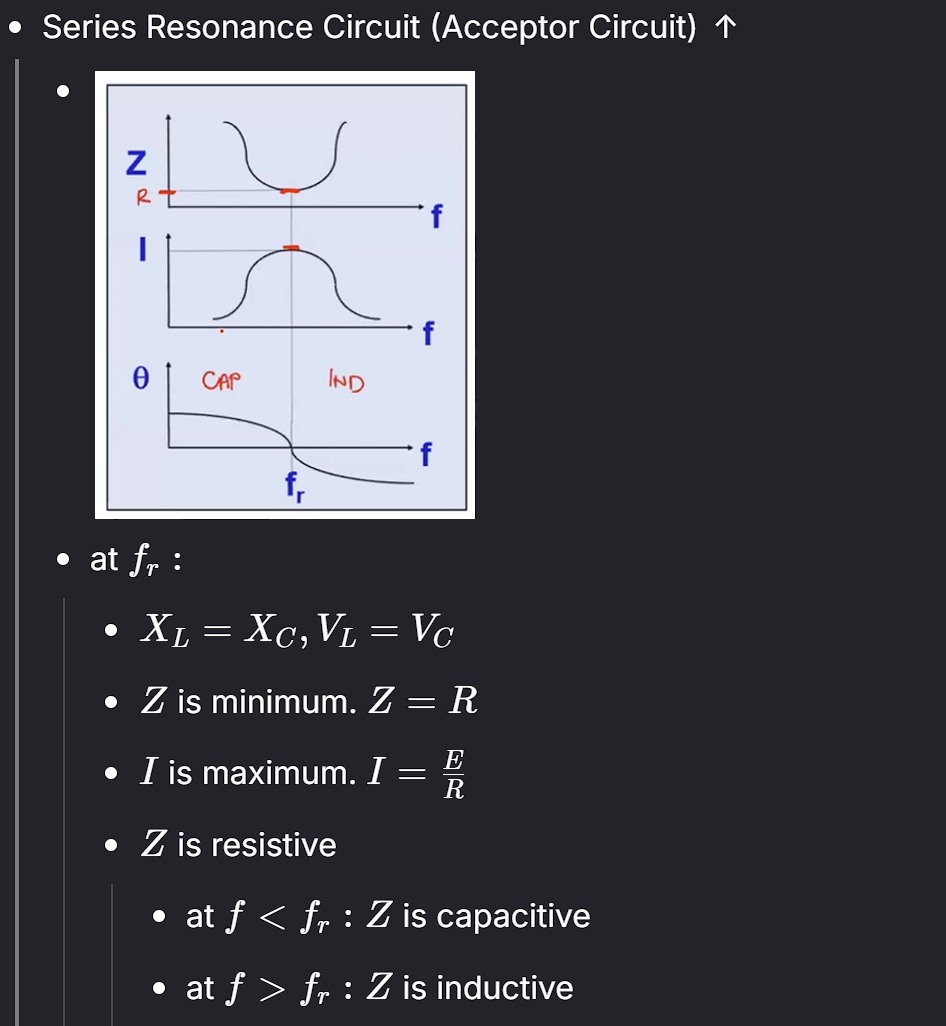

What is the voltage, current, and impednace in Series Resonance Circuit (Acceptor Circuit)

knowt flashcard image
5
New cards

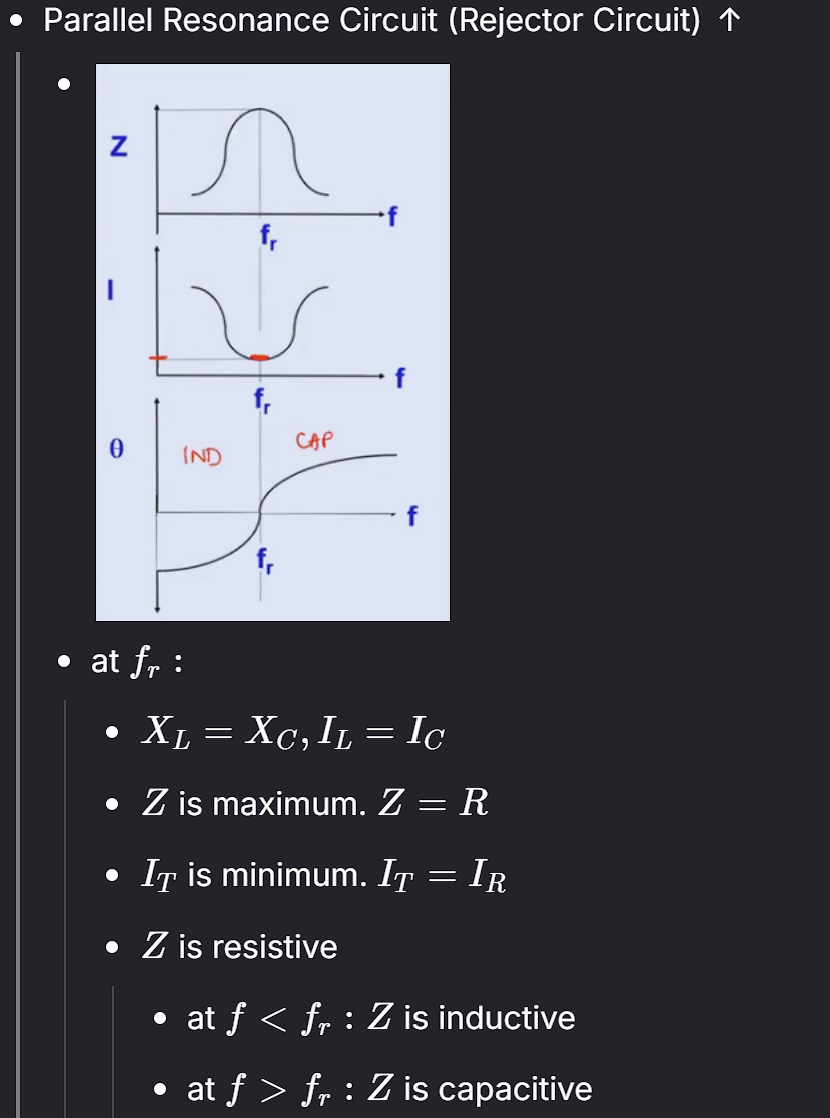

What is the current, and impedance in a Parallel Resonance Circuit

knowt flashcard image
6
New cards

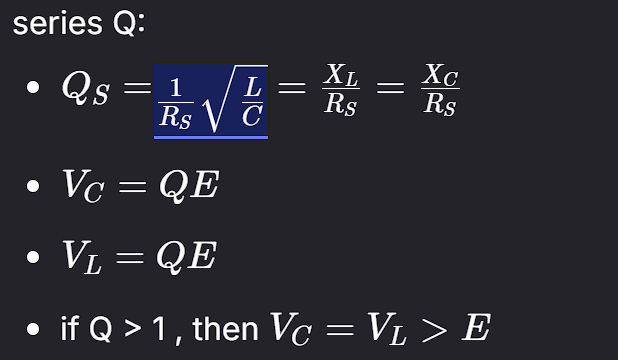

Quality factor for Series Resonant Circut

knowt flashcard image
7
New cards

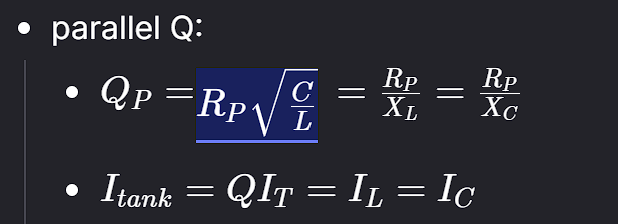

Quality factor for Parallel Resonant Circut

knowt flashcard image
8
New cards

What is the flywheel effect?

Oscillation of energy between L and C
