What is the logic gate for AND
.
example - A.B - A and B
2
New cards
What is the logic gate for OR
+
example - A+B - A or B
3
New cards
What is the logic gate for NOT
_
A
Not A, line above the letter is the logic gate for not
4
New cards
What is the logic gate for XOR
Ꚛ
A XOR B
5
New cards

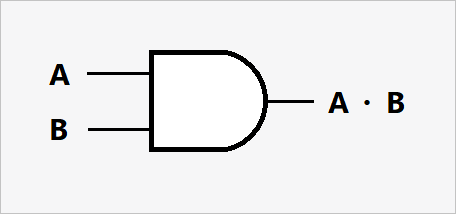

What is the Logic gate symbol for AND
6
New cards

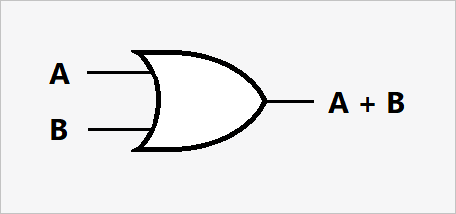

What is the Logic gate symbol for OR
7
New cards

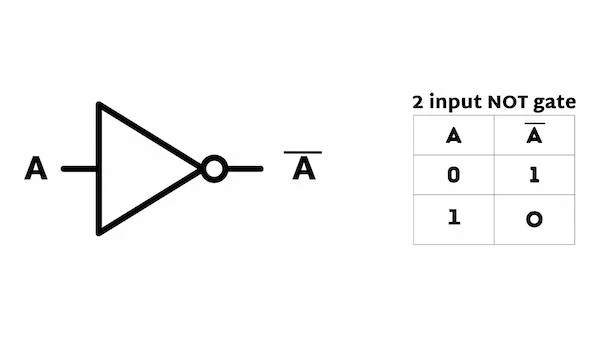

What is the Logic gate symbol for NOT
8
New cards
What is the logic gate symbol for XOR
