KNES 260 LAB MIDTERM

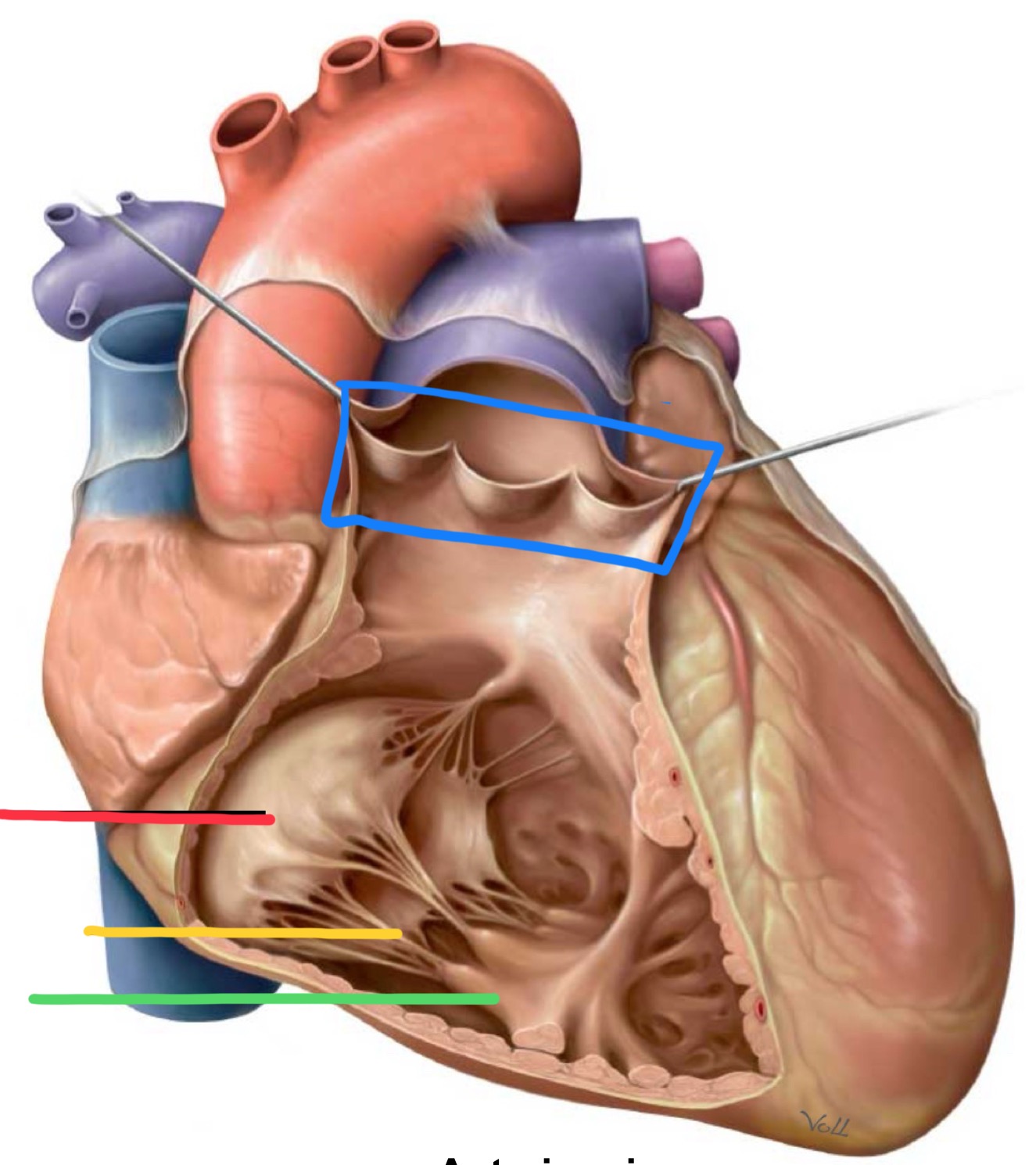

What structure is identified by the red line?

cusps tricuspid valve

What structure is identified by the yellow line? BE SPECIFIC

tendinous chords of the tricuspid valve

What structure is identified by the green line?

papillary muscles

What structure is identified by the blue line?

pulmonary valve

What structure is identified by the black line?

septomarginal trabecula, moderator band

What structure is identified by the red line?

interventricular septum

What structure is identified by the green line?

left auricle

What structure is identified by the blue line?

left AV orifice

What structure is identified by the yellow line?

pulmonary vein

What structure is identified by the red star?

semilunar depression

What structure is identified by the black star?

pectinate muscles

What structure is identified by the black line?

wall of left ventricle

What structure is identified by the black star?

trabeculae carnae

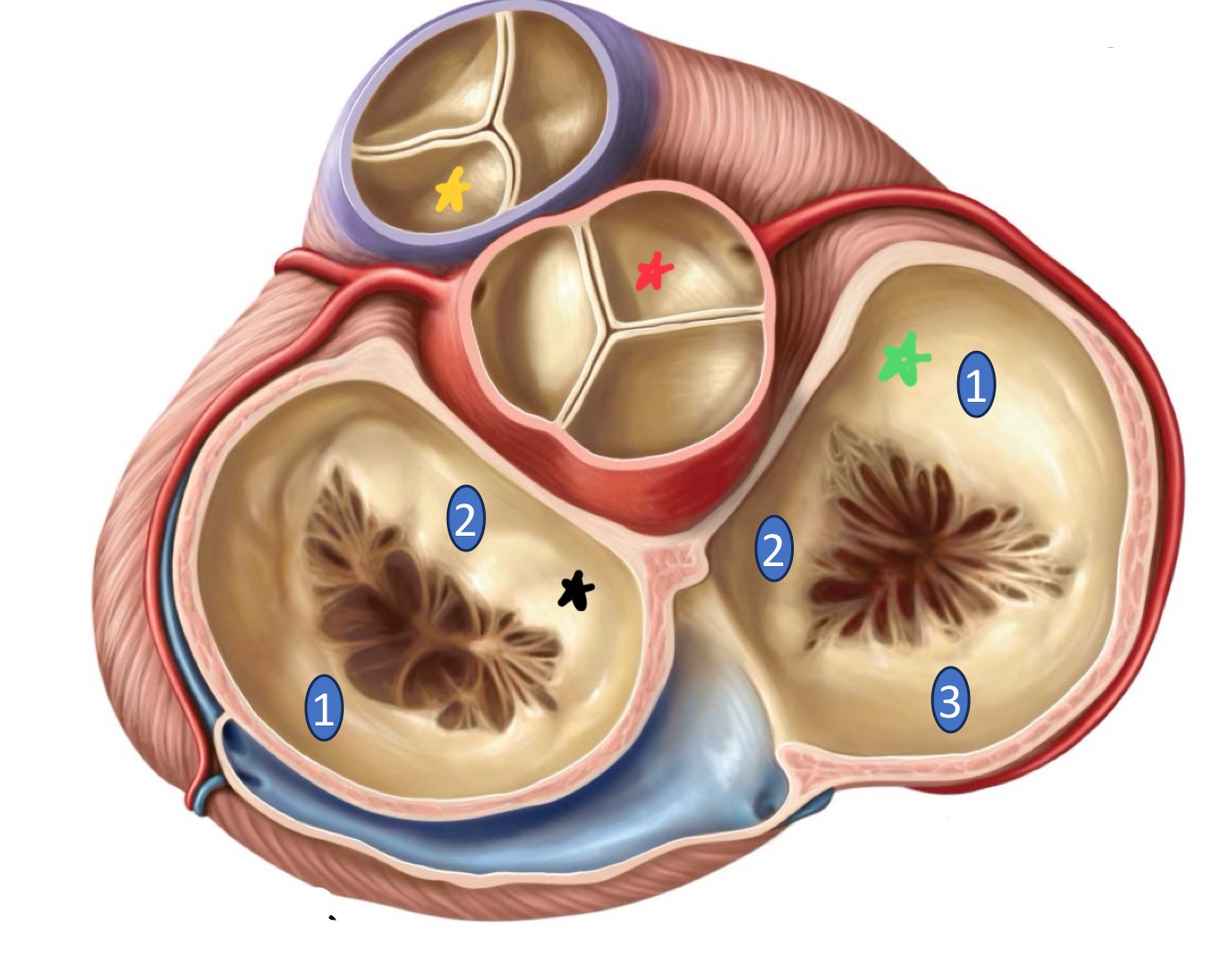

What structure is identified by the red star?

aortic valve

What structure is identified by the yellow star?

pulmonary valve

What structure is identified by the black star?

bicuspid valve

What structure is identified by the green star?

tricuspid valve

What state is shown in the image above?

ventricular relaxation (diastole)

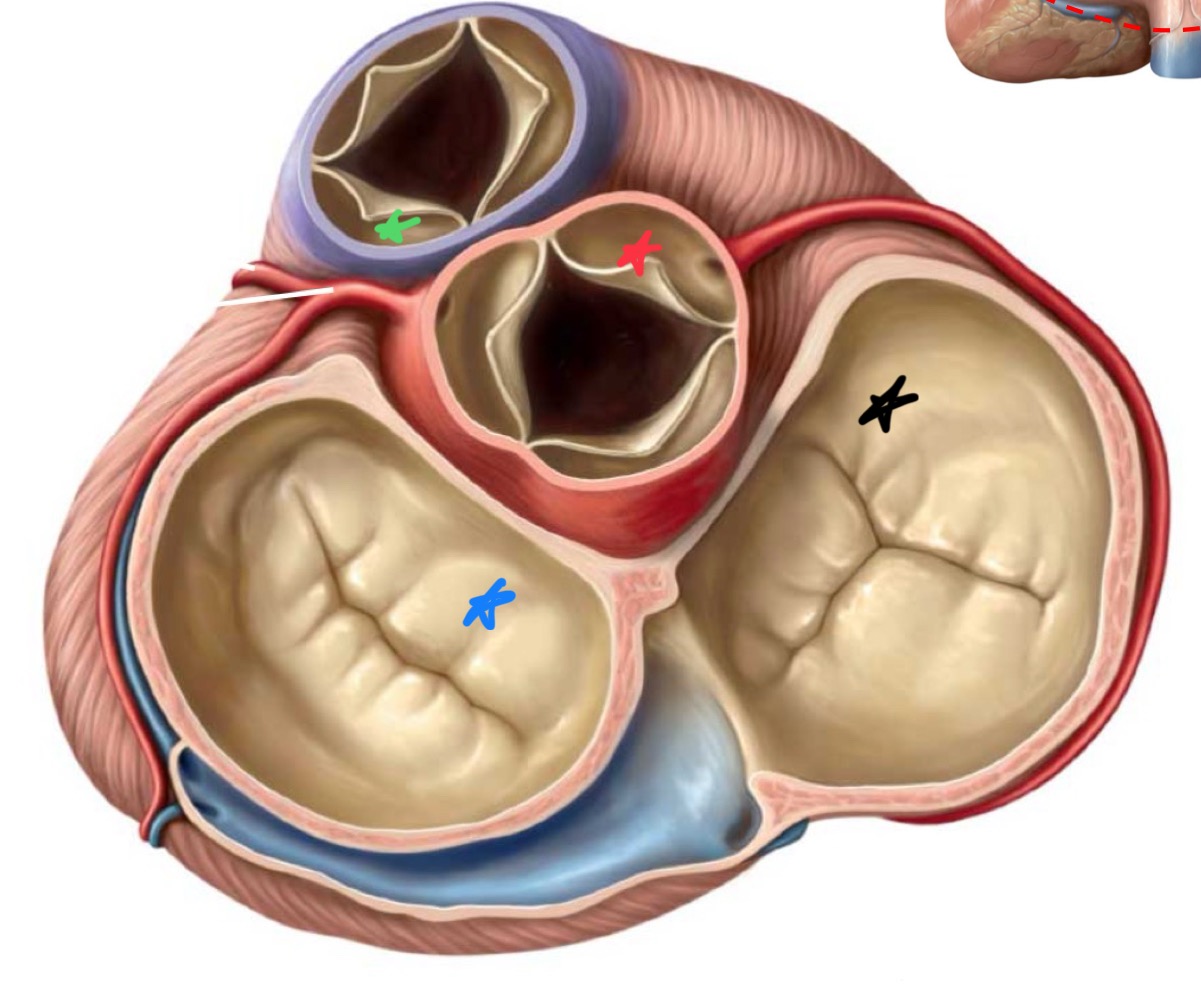

What structure is identified by the red star?

aortic valve

What structure is identified by the green star?

pulmonary valve

What structure is identified by the black star?

tricuspid valve

What structure is identified by the blue star?

bicuspid valve

What state is shown in the image?

ventricular contraction (systole)

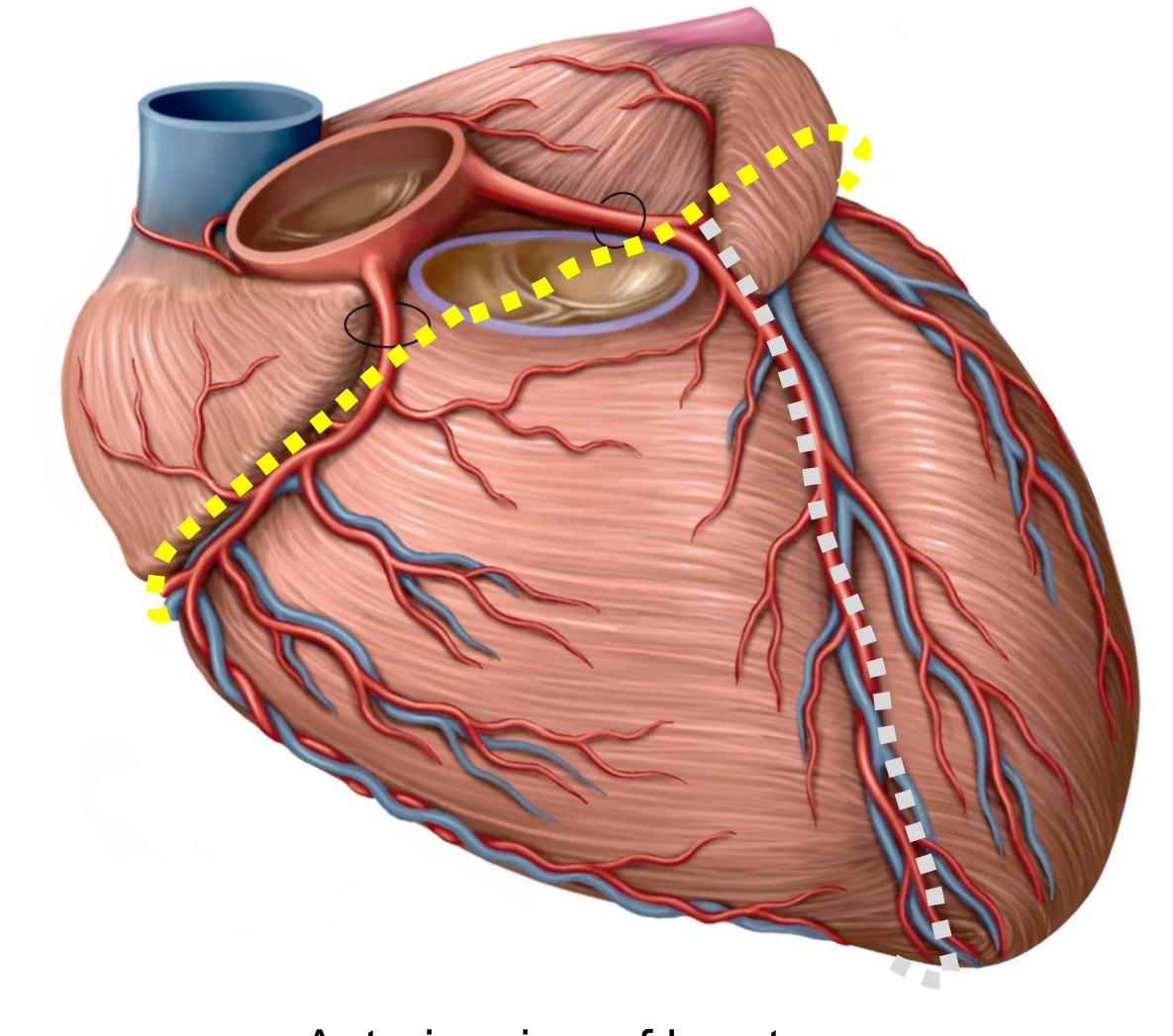

What structure is identified by the yellow line?

atrioventricular groove

What structure is identified by the grey line?

interventricular groove

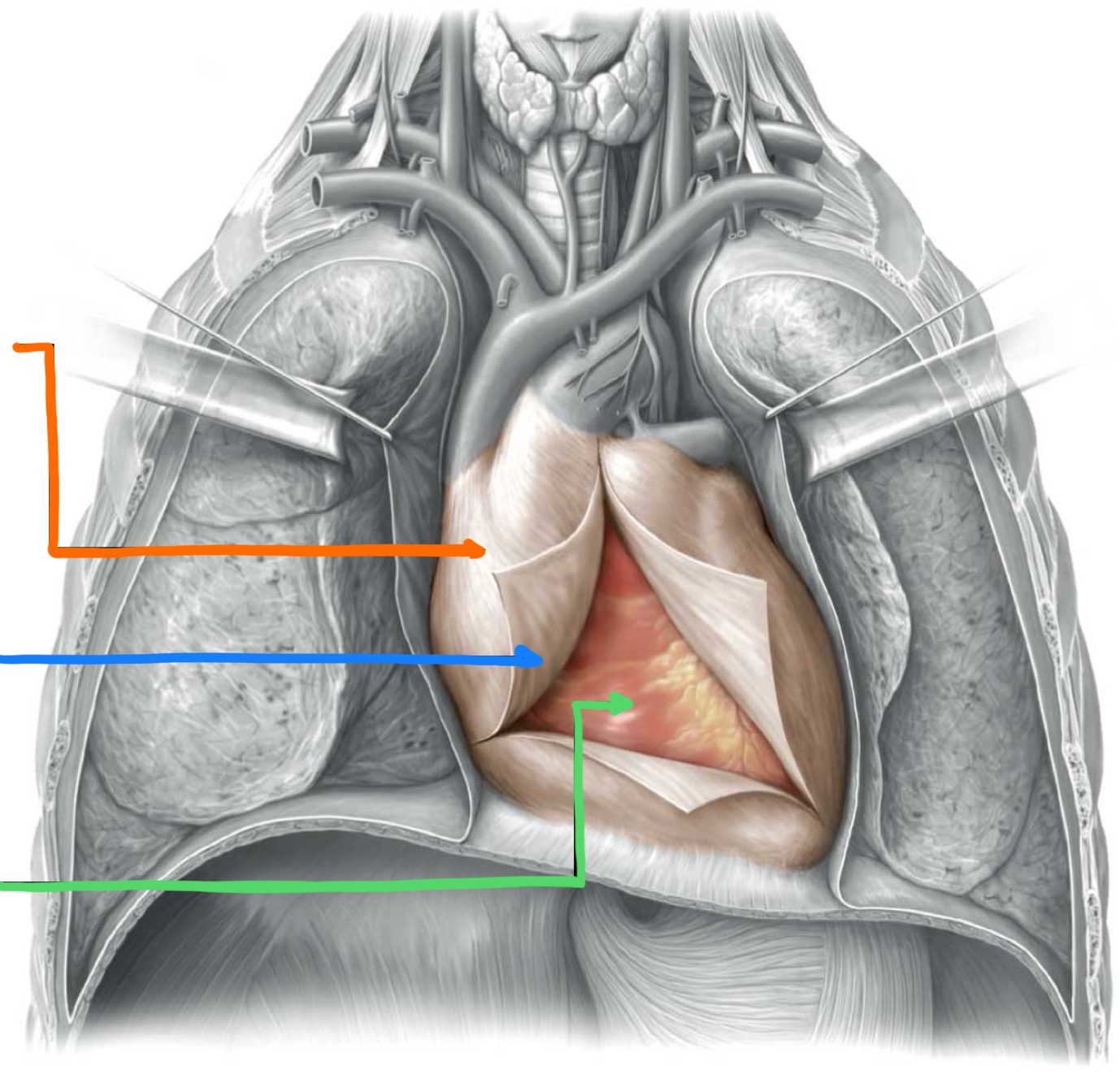

What structure is identified by the orange line?

fibrous pericardium

What structure is identified by the blue line?

parietal serous pericardium

What structure is identified by the green line?

visceral serous pericardium

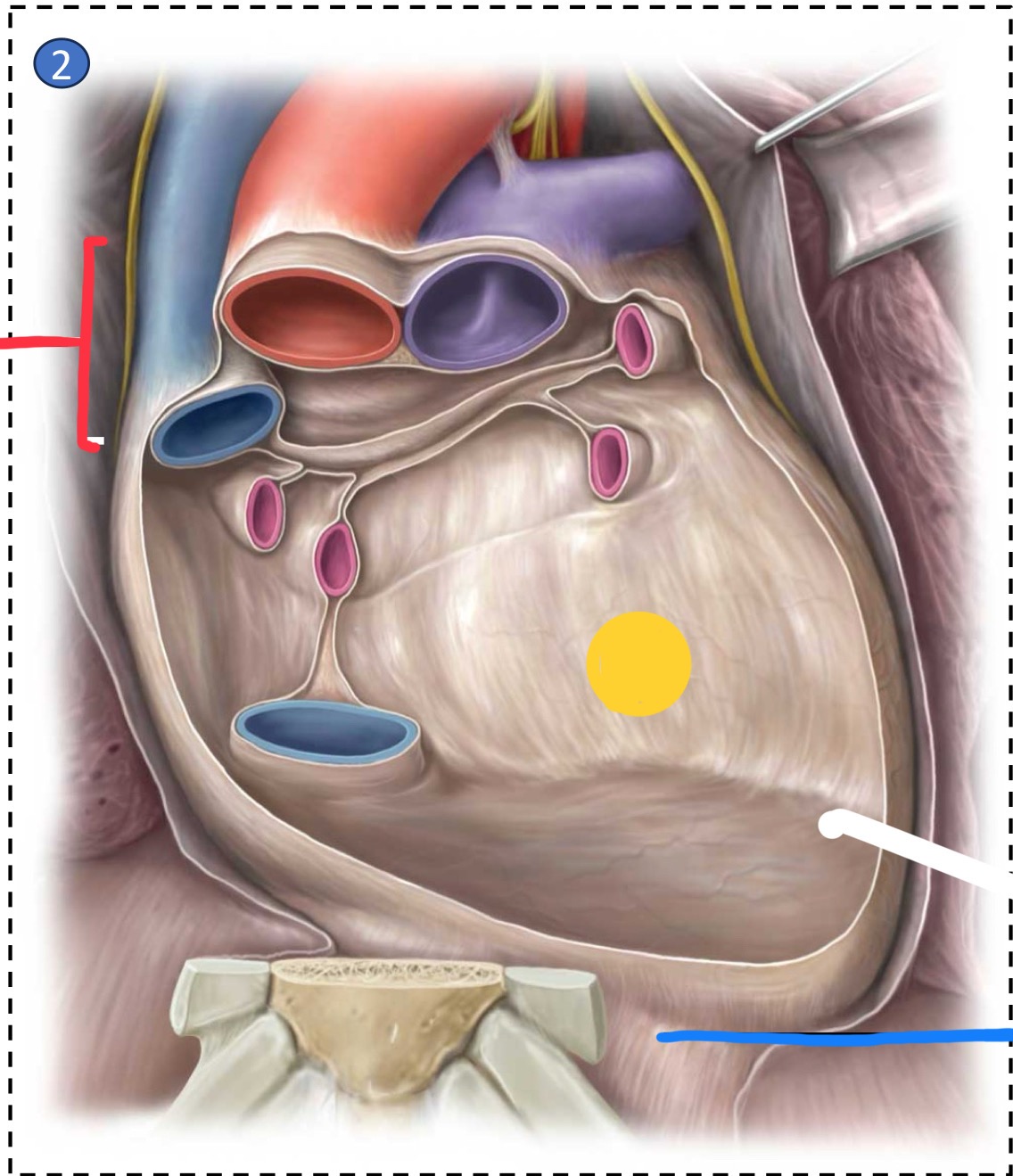

what is the 1st structure deep to the yellow circle?

parietal serous pericardium

what is the 2nd structure deep to the yellow circle?

fibrous pericardium

What structure is identified by the blue line?

continuation of fibrous pericardium with central tendon

What structure is identified by the red line?

continuation of fibrous pericardium with tunica adventitia

What structure is identified by the red line?

fibrous pericardium

What structure is identified by the black line?

parietal serous pericardium

What is the first structure deep to the yellow line?

visceral serous pericardium

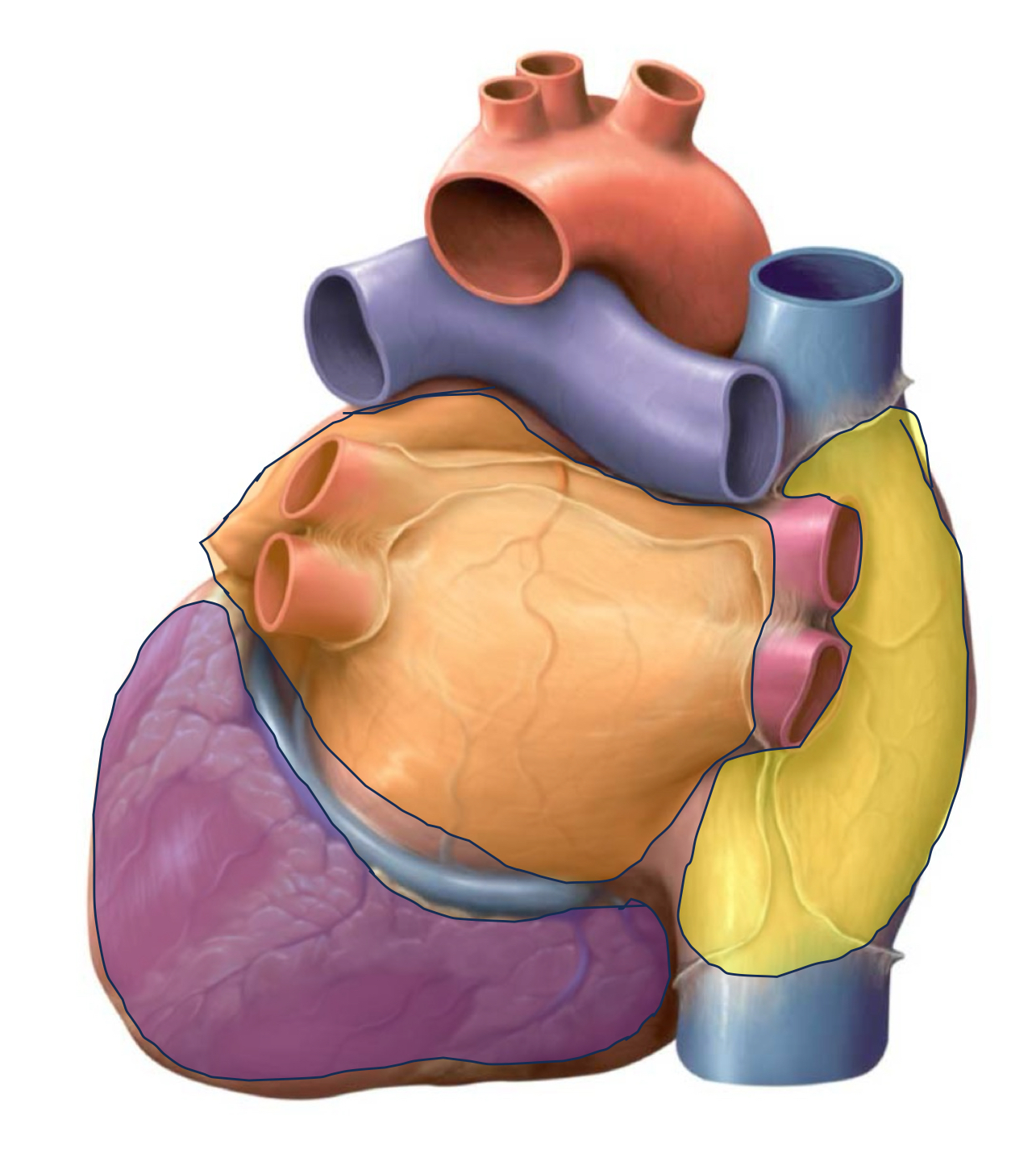

What structure is identified by the purple?

left ventricle

What structure is identified by the orange?

left atrium

What structure is identified by the yellow?

right atrium

What structure is identified by the red line?

pulmonary trunk

What structure cannot be observed from an anterior view of the heart in-situ?

IVC, pulmonary veins

Which part of the aorta is located right above the sternal angle?

arch of the aorta

Where does the pulmonary trunk bifurcate and what does it bifurcate into?

at the sternal angle into pulmonary arteries

What structure aligns with the IVC in a sagittal plane?

SVC

What structure aligns with the SVC in a sagittal plane?

IVC

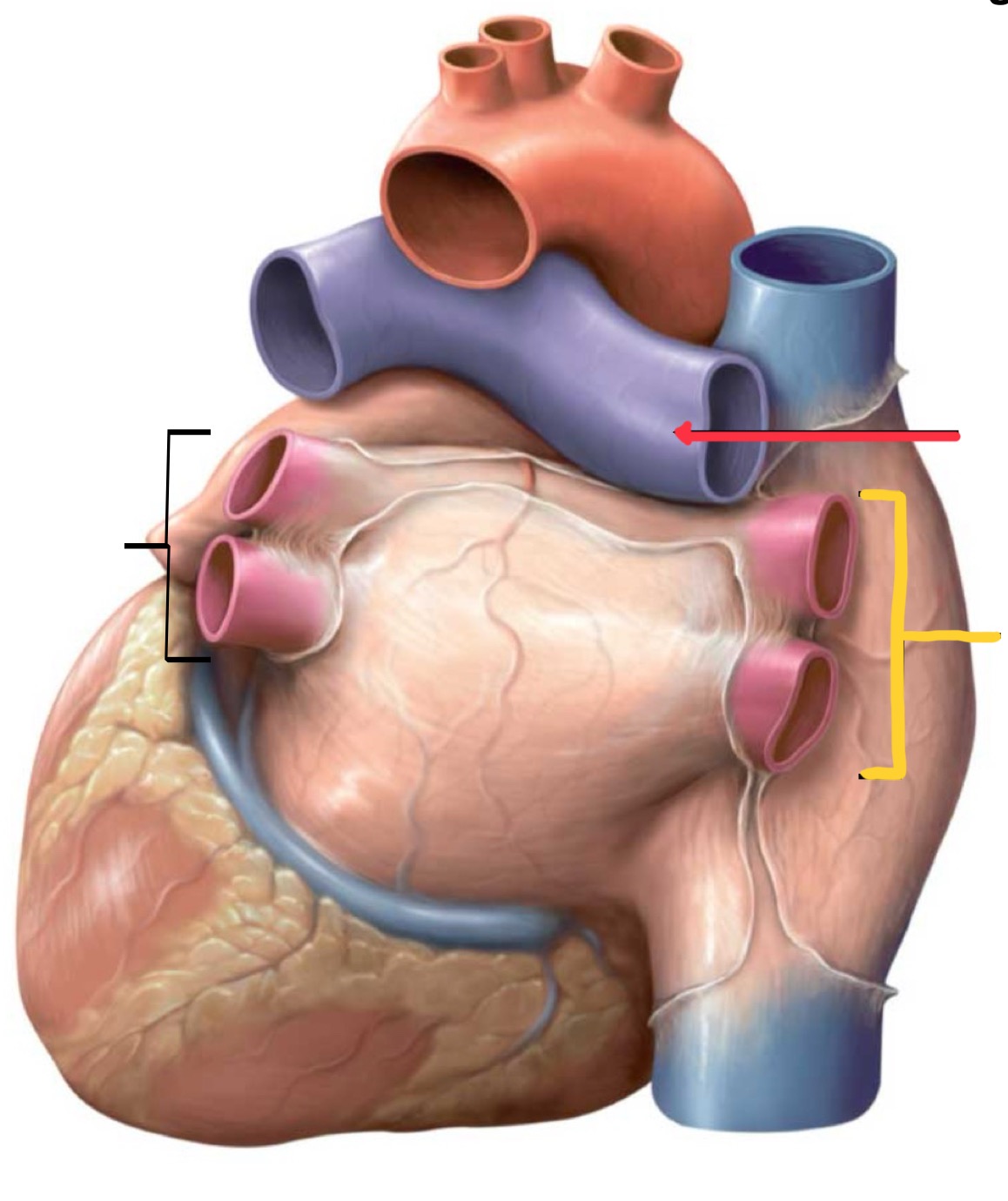

What structure is identified by the red line?

right pulmonary artery

What structure is identified by the yellow line?

pulmonary veins

What structure is identified by the black line?

pulmonary veins

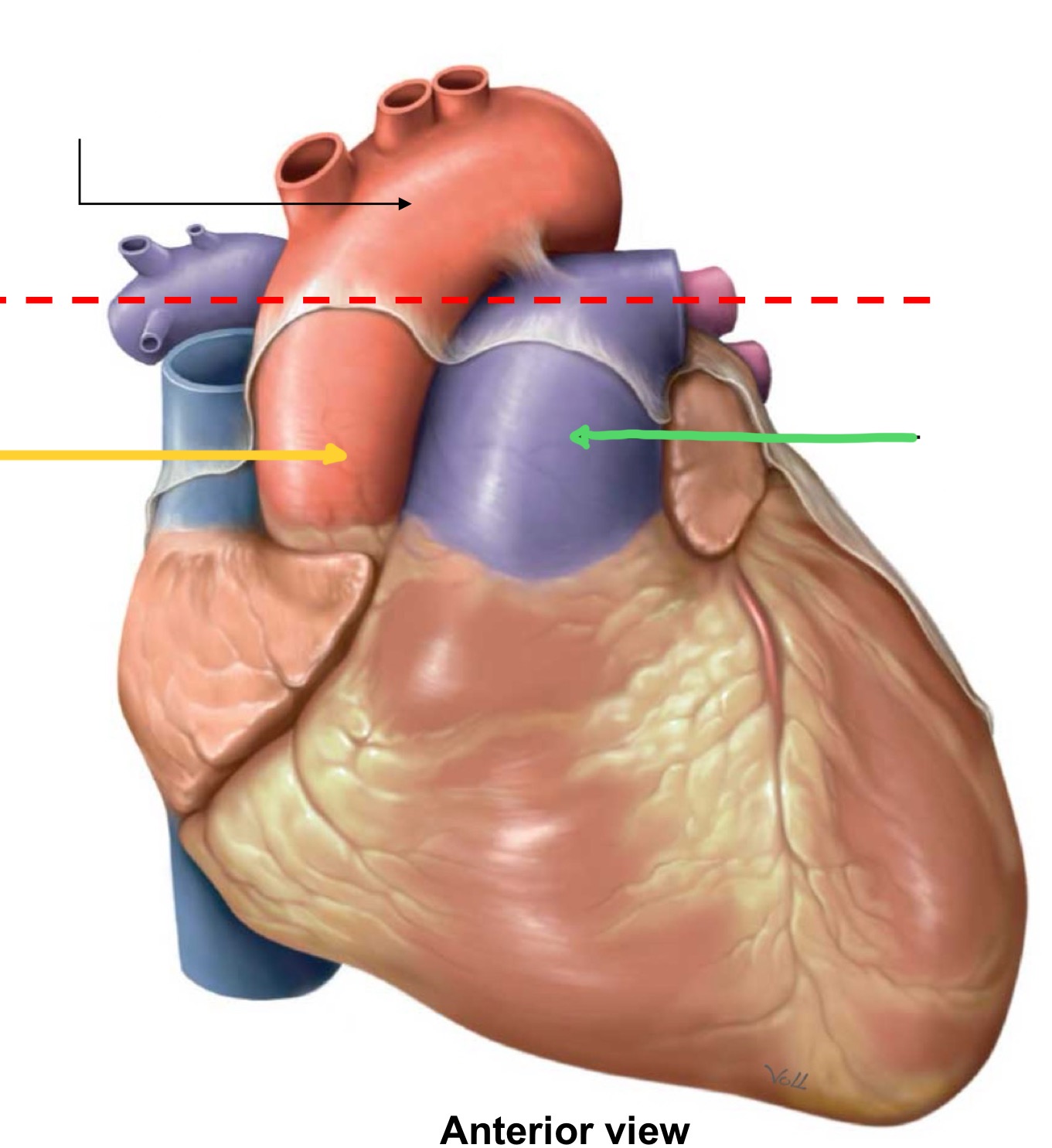

What structure is identified by the red line?

sternal angle

What structure is identified by the black line?

arch of the aorta

What structure is identified by the yellow line?

ascending aorta

What structure is identified by the green line?

pulmonary trunk

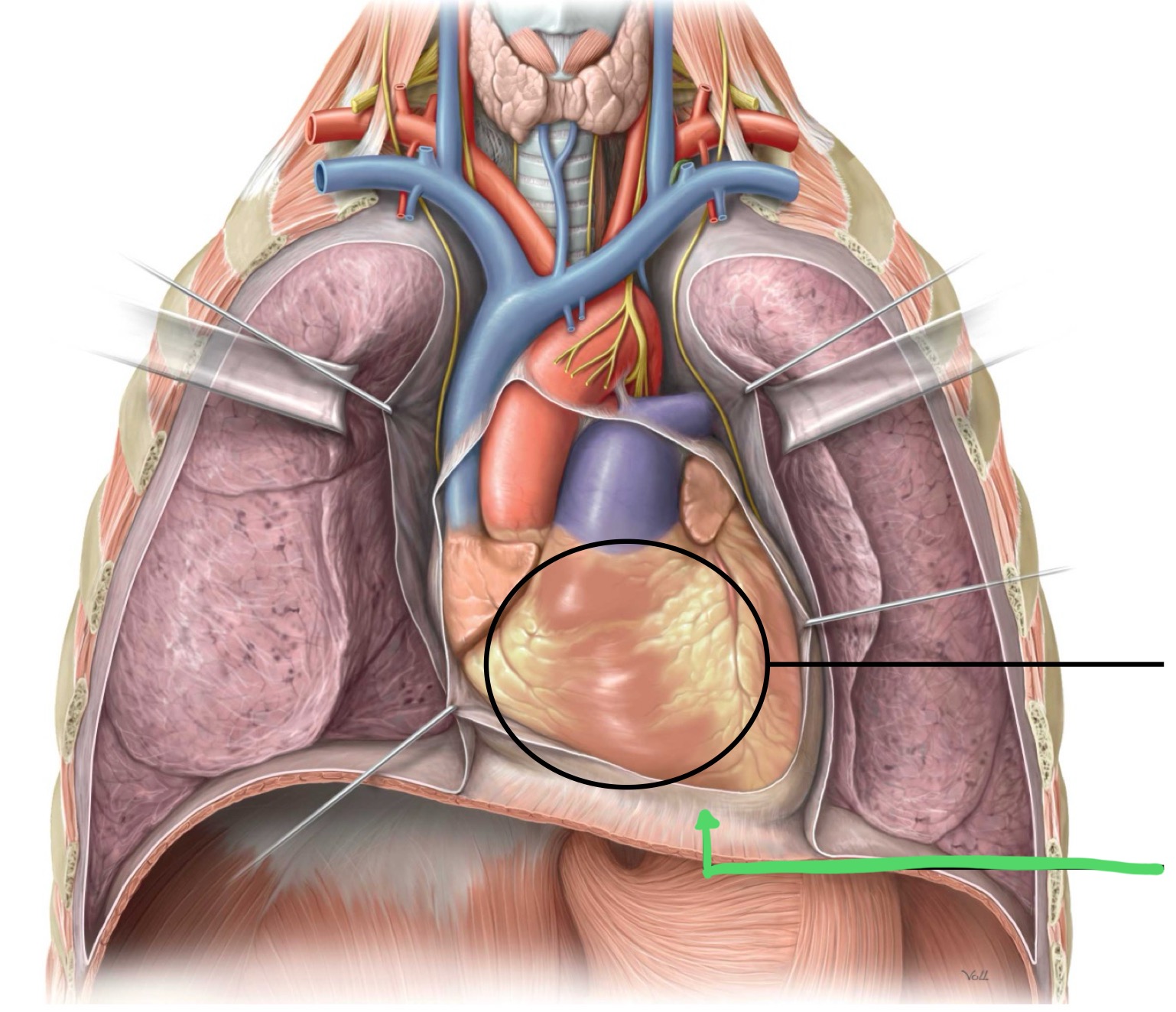

What surface is identified by the black line?

anterior/sternocostal surface

What surface is identified by the green line?

inferior/diaphragmatic surface

What surface is identified by the black line?

right pulmonary surface

What surface is identified by the green line?

left pulmonary surface

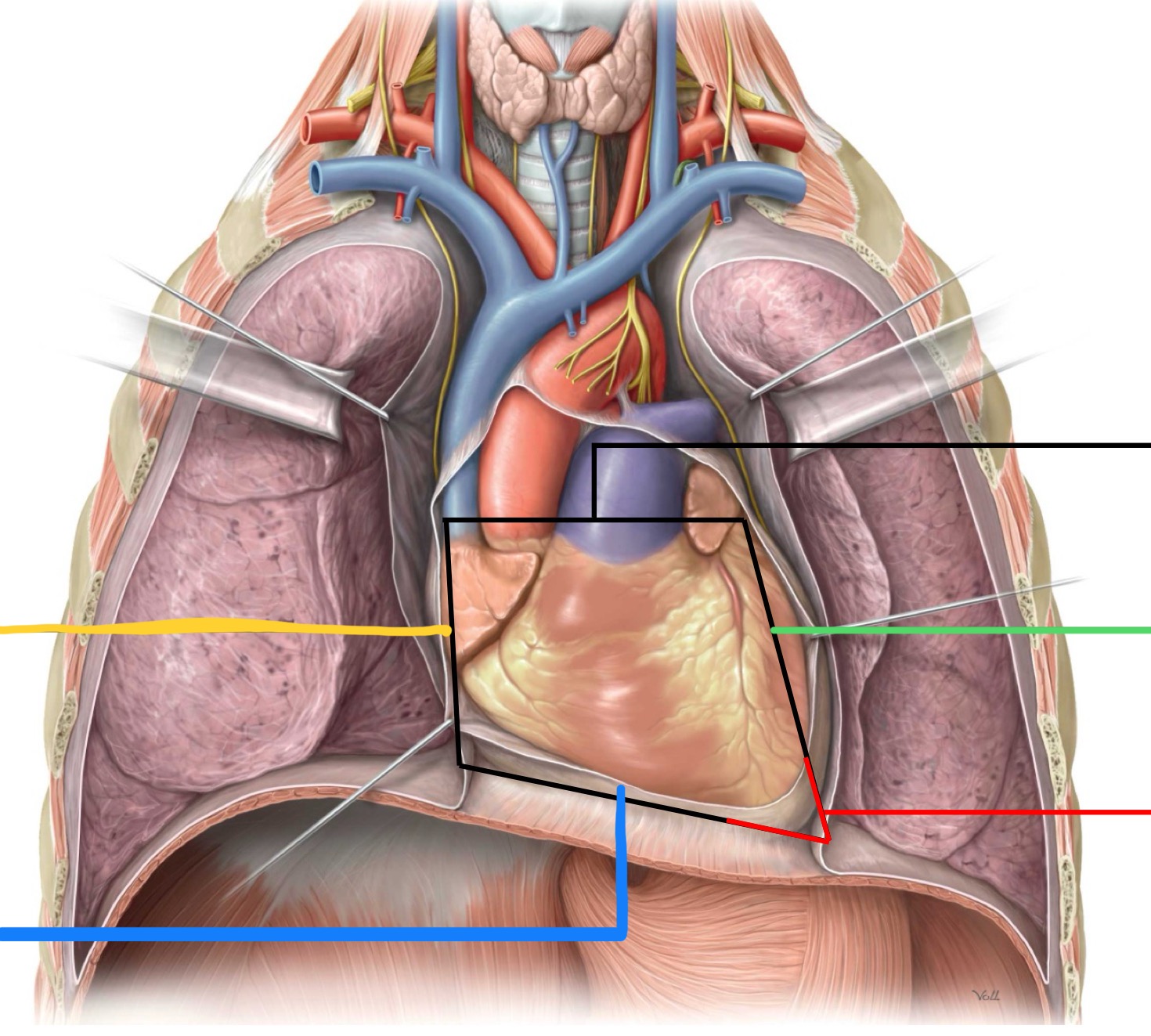

What border/surface is identified by the black line?

anterior/sternocostal surface

What border is identified by the green line?

left border

What border is identified by the blue line?

inferior/diaphragmatic border

What border is identified by the yellow line?

right border

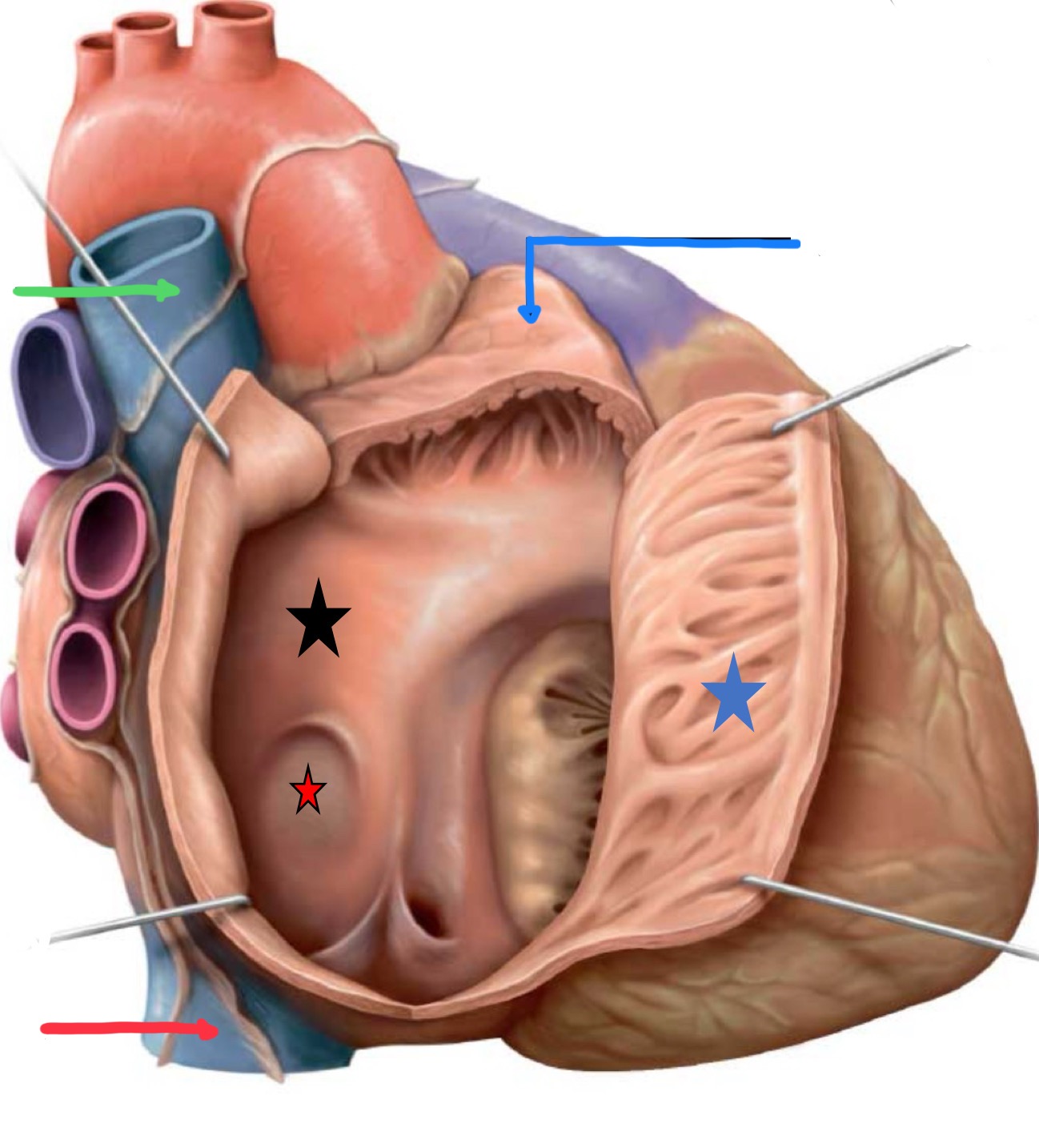

What structure is identified by the green line?

SVC

What structure is identified by the red line?

IVC

What structure is identified by the red star?

fossa ovalis

What structure is identified by the black star?

sinus venarum, interatrial wall

What structure is identified by the blue line?

right auricle

What structure is identified by the blue star?

pectinate muscles

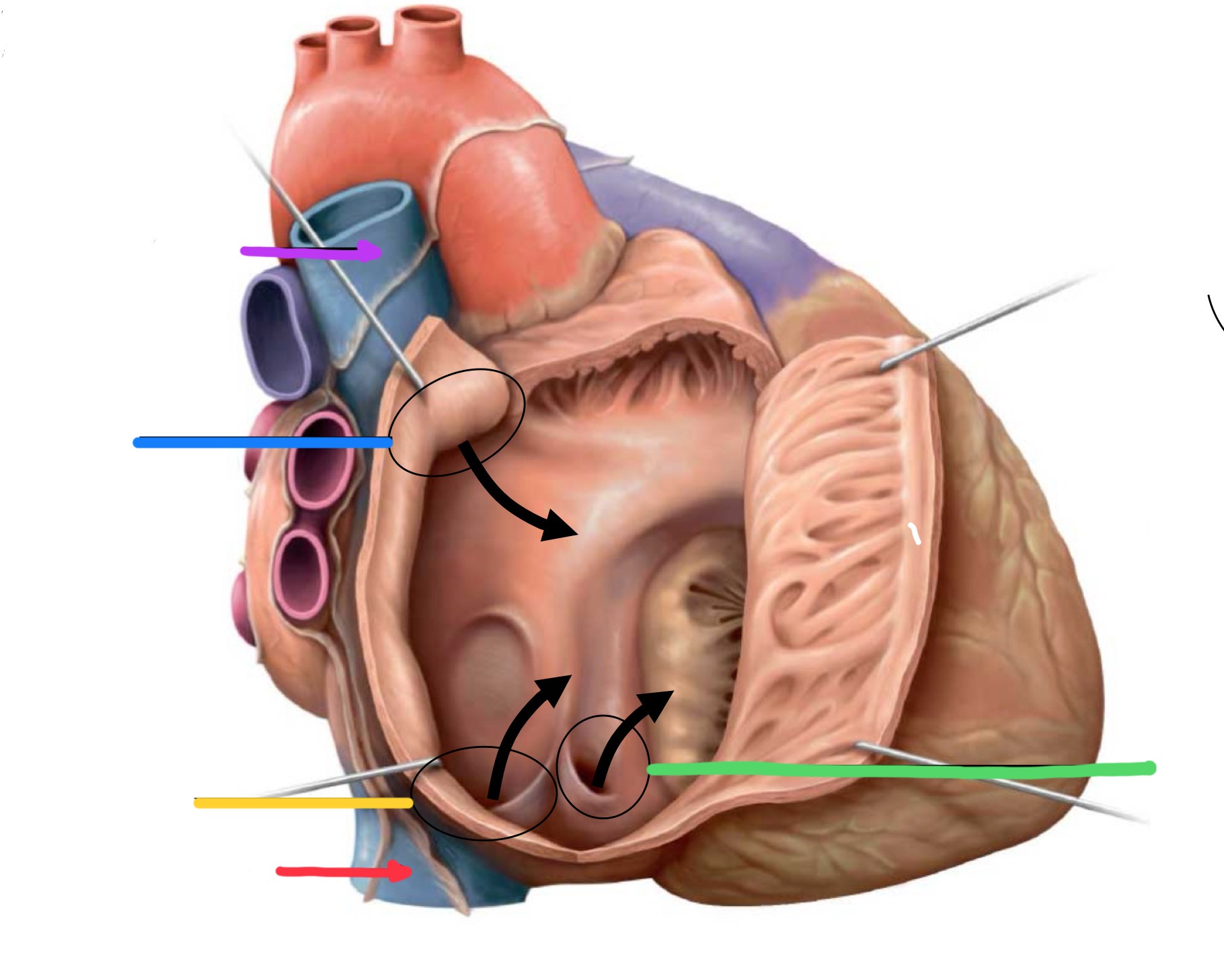

What structure is identified by the green line?

opening for the coronary sinus

What structure is identified by the yellow line?

opening for the IVC

What structure is identified by the red line?

IVC

What structure is identified by the blue line?

opening for the SVC

What structure is identified by the purple line?

SVC

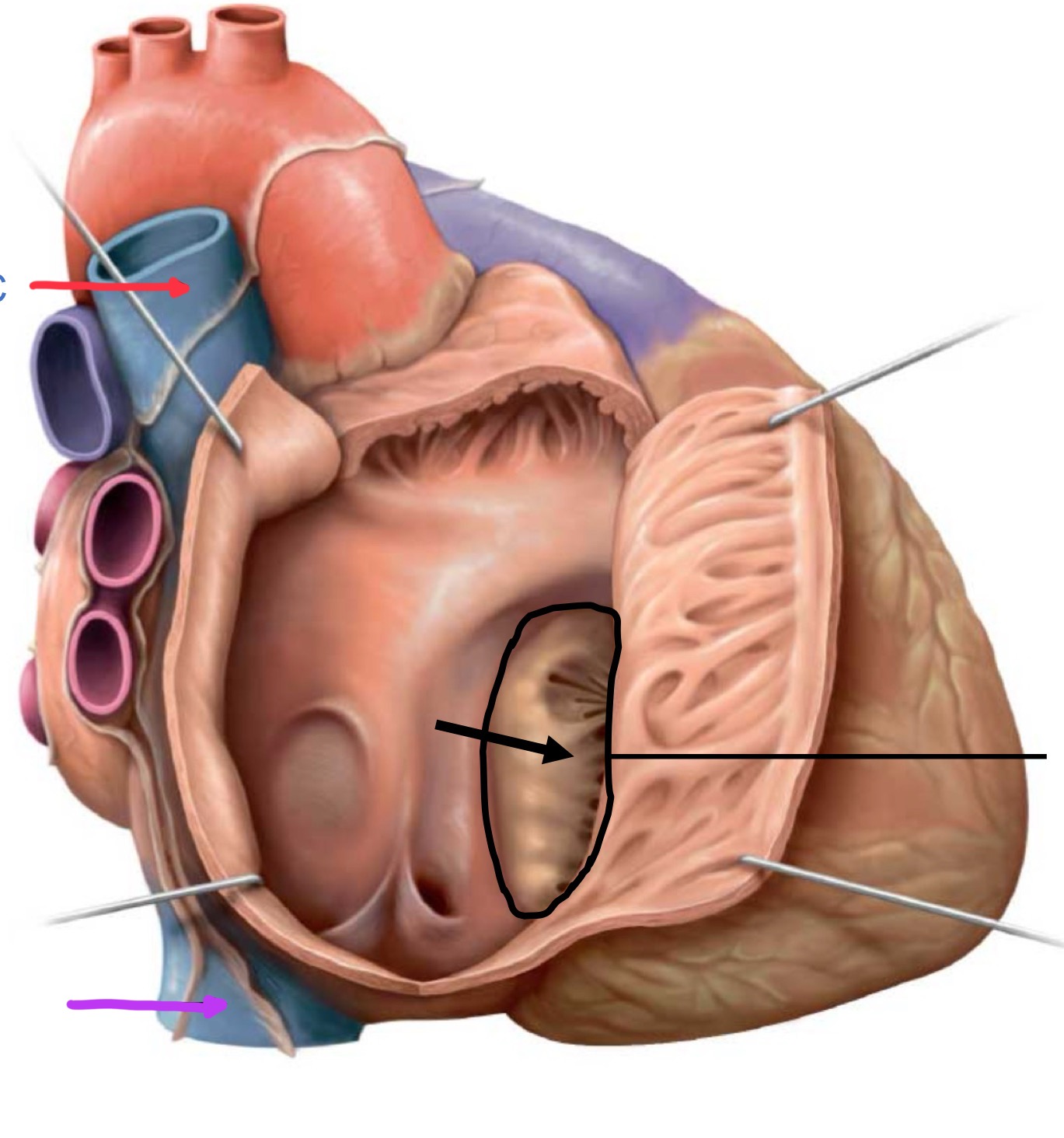

What structure is identified by the red line?

SVC

What structure is identified by the black line?

right AV orifice

What structure is identified by the purple line?

IVC

What structure is identified by the yellow line?

right AV orifice

What structure is identified by the red line?

interventricular septum

What structure is identified by the black star?

trabeculae carnae

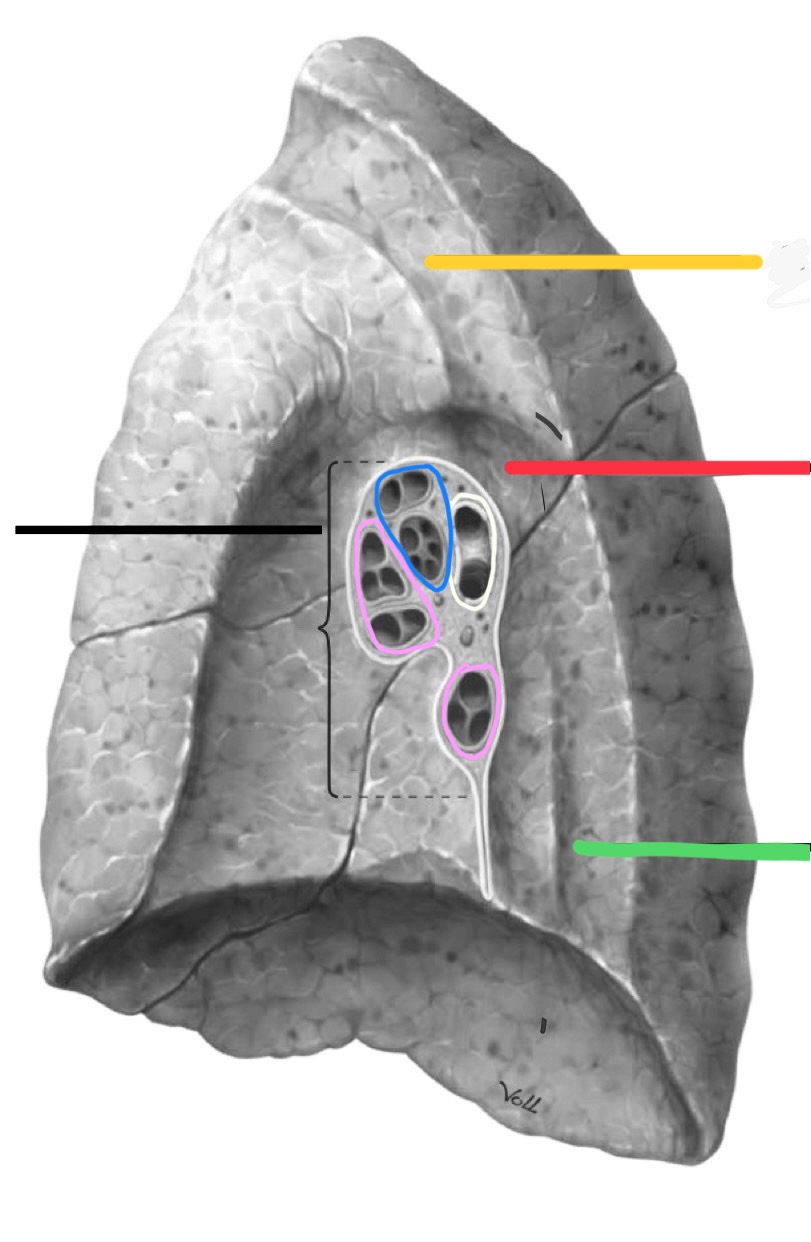

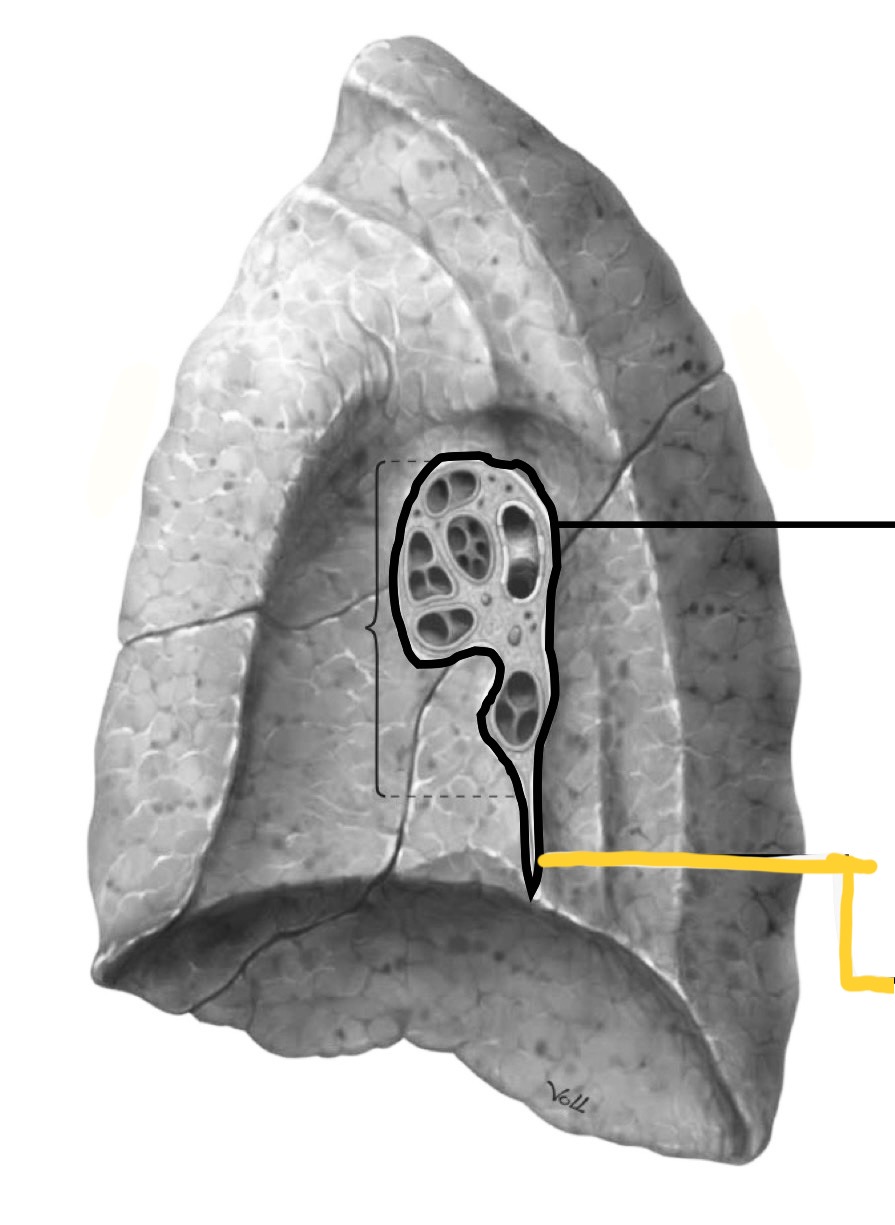

What structure is identified by the black line? BE SPECIFIC

hilum of the right lung

What structure is identified by the yellow line?

pulmonary ligament

What structure is identified in blue?

right pulmonary arteries

What structure is identified in pink?

right pulmonary veins

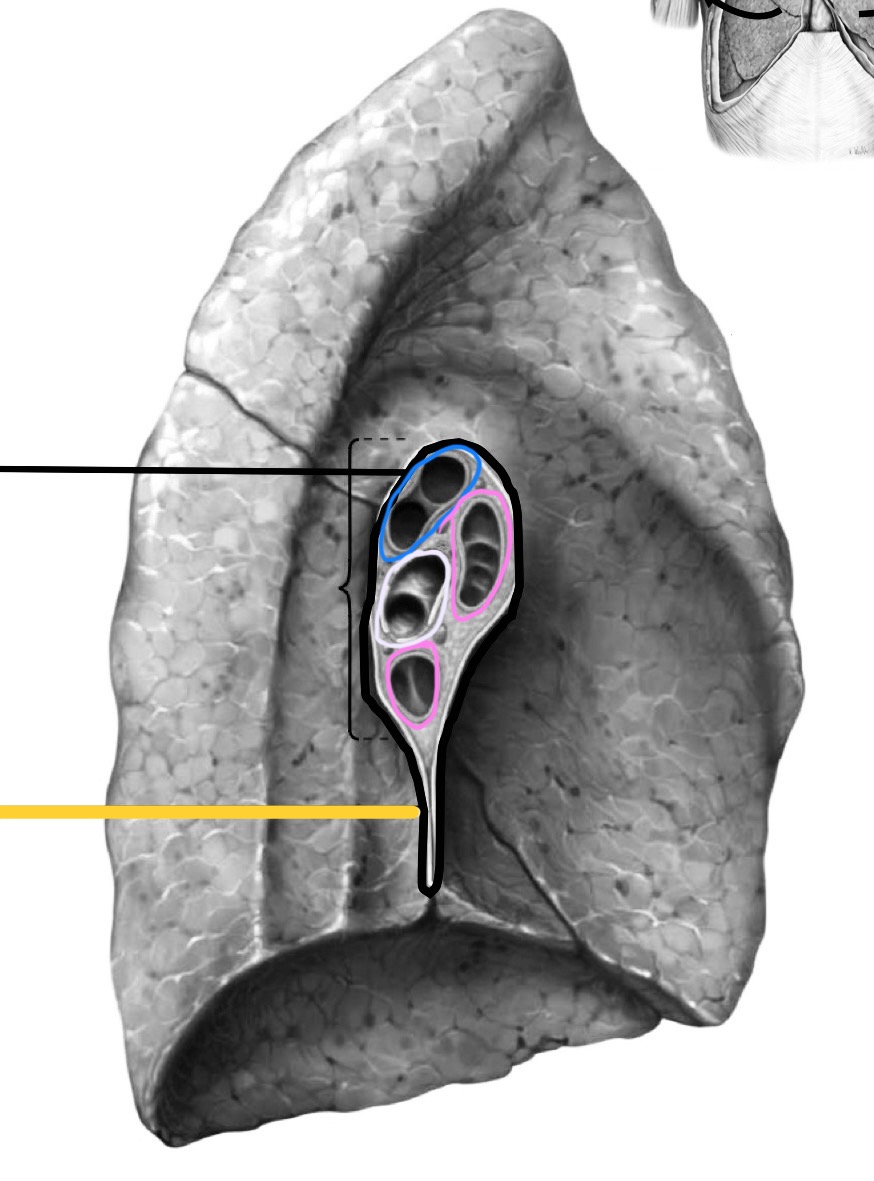

What structure is identified by the black line?

hilum of the left lung

What structure is identified by the yellow line?

pulmonary ligament

What structure is identified in blue?

left pulmonary arteries

What structure is identified in pink?

left pulmonary veins

What groove is identified by the yellow?

groove for the esophagus

What groove is identified by the red?

arch of the azygous vein

What groove is identified by the green?

groove for the azygous vein

What groove is identified by the black?

groove for the SVC

What groove is identified by the green?

groove for the arch of the aorta

What groove is identified by the black?

groove for the descending (thoracic) aorta

What groove is identified by the white?

cardiac impression

What groove is identified by the yellow?

cardiac notch

What structure is identified by the red?

lingula

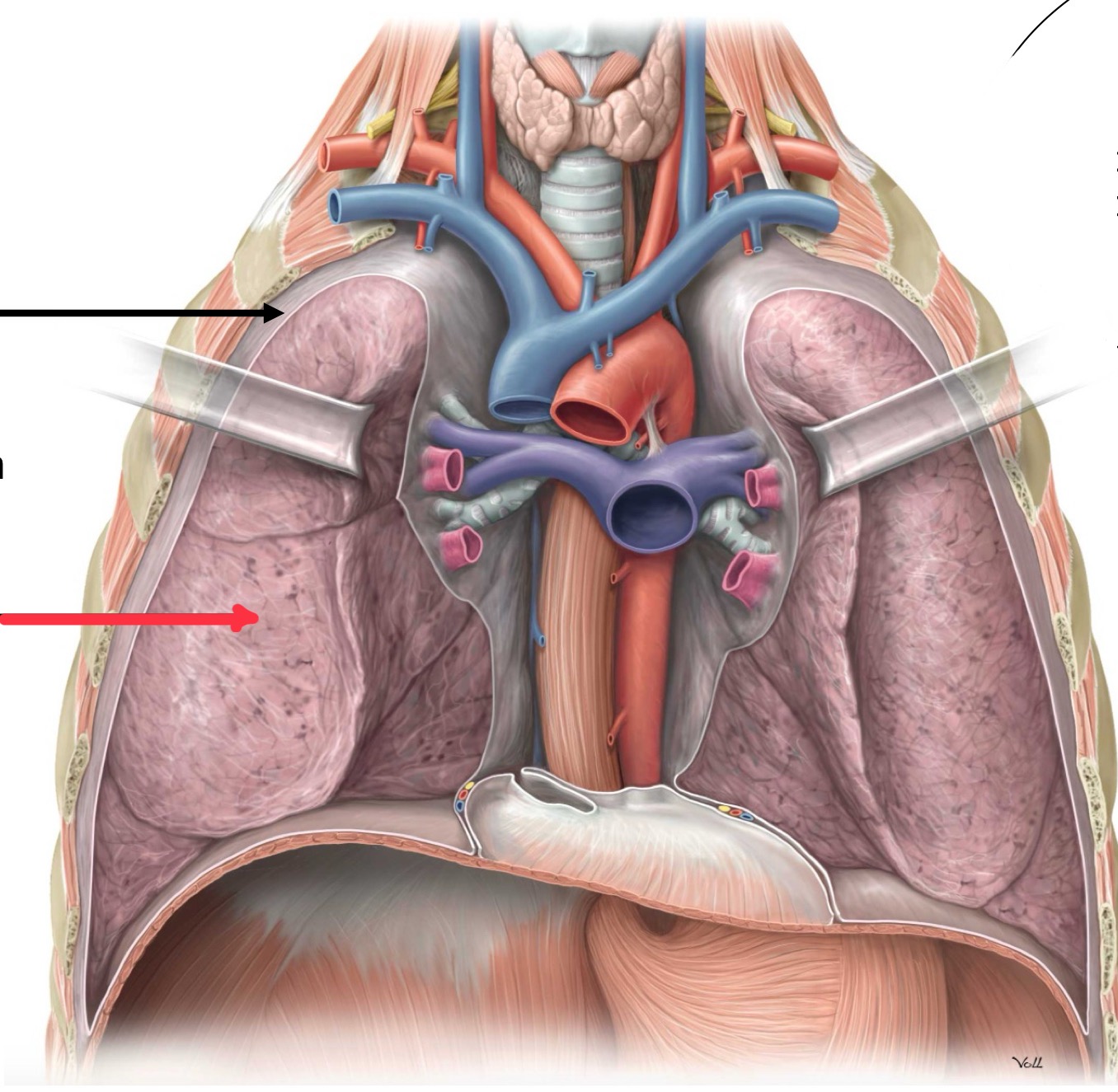

What structure is identified by the black line? (general structure)

parietal pleura of right lung

What is the first structure deep to the red line?

visceral pleura

What is the second structure deep to the red line?

middle lobe of the right lung

What structure is identified by the orange line?

visceral pleura

What structure is identified by the pink line?

mediastinal parietal pleura

What structure is identified by the yellow line?

cervical parietal pleura

What structure is identified by the blue line?

costal parietal pleura
