C200 Eval

What recording media can you use on a C200?

CFast and SD

What is the difference between a CFast card and an SD Card

CFast shoots uncompressed raw (highest quality footage), but has limited storage space.

What is Cannon Log 3 Format?

A gamma that has the greatest dynamic range for post production

What does initializing media mean?

Clearing the card

What is Depth of Field?

What is in focus between the foreground and background

What is a shallow depth of field? How do you achieve it?

Less of the image is in focus. Achieved with a larger aperture, or a longer lens/larger focal length.

What is a larger depth of field? How do you achieve it?

More of the image is in focus. Achieved with a smaller aperture, or a shorter lens/focal length

What is the relationship between focal length and depth of field?

A shorter focal length = greater depth of field

A larger focal length = shallow depth of field

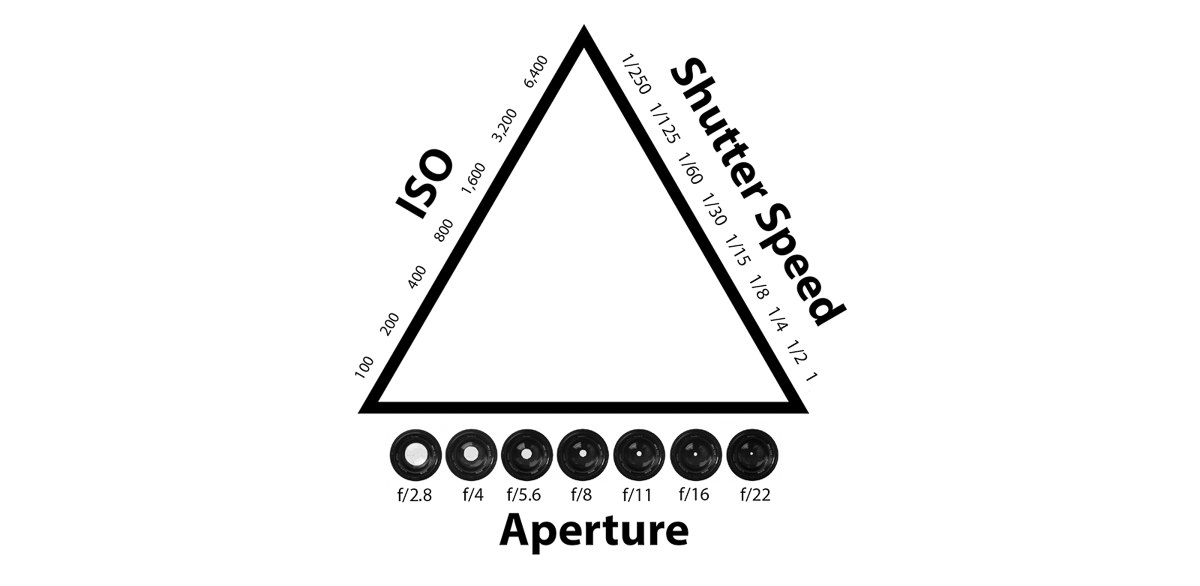

What are 4 ways to control exposure?

Aperture, ISO, Shutter Speed, ND Filters

What is the relationship of aperture to exposure?

Greater aperture = more exposed

What is the relationship of ISO to exposure?

Greater ISO = more exposed

What is the difference between a BPA60 battery and a BPA30 battery?

A BPA60 battery lasts 2.5-3 hours, while a BPA30 battery lasts 90 minutes

What is the color temperature of daylight?

5600K+

What is the color temperature of Fluorescent light?

4000K

What is the color temperature of Tungsten lights?

3200K

What should you do if you have dueling color temperatures?

Try to eliminate one

What happens if you shoot something with a lower color temperature setting when it needs a higher color temperature?

Ex: If you shoot daylight (5600K) with a tungsten color temperature (3200K)

the image turns more blue

What happens if you shoot something with a higher color temperature setting when it needs a lower color temperature?

Ex: If you shoot fluorescent lights (4000K) with a daylight setting (5600K)

the image turns more yellow

What is the native ISO for a C200?

800

What does a wide angle lens do to movement?

it makes it look more intense

What does a 59.94P frame rate do to movement?

It makes it look more fluid

For movement to appear normal, what should the shutter speed be?

1/twice the Frame Rate

What is the relationship between shutter speed and exposure?

Higher shutter speed = darker image

Lower shutter speed = brighter image

What is the relationship between shutter speed and movement?

Higher shutter speed = choppier movement

Lower shutter speed = smoother/blurrier movement

What do you use to power the mic when connecting it to the camera?

Phantom power

Define Phantom power

Using an XLR cable to power the mic with the camera

What settings should you use for the mic when using Phantom power?

Mic+48V, Analog

What is a LUT?

Look up table

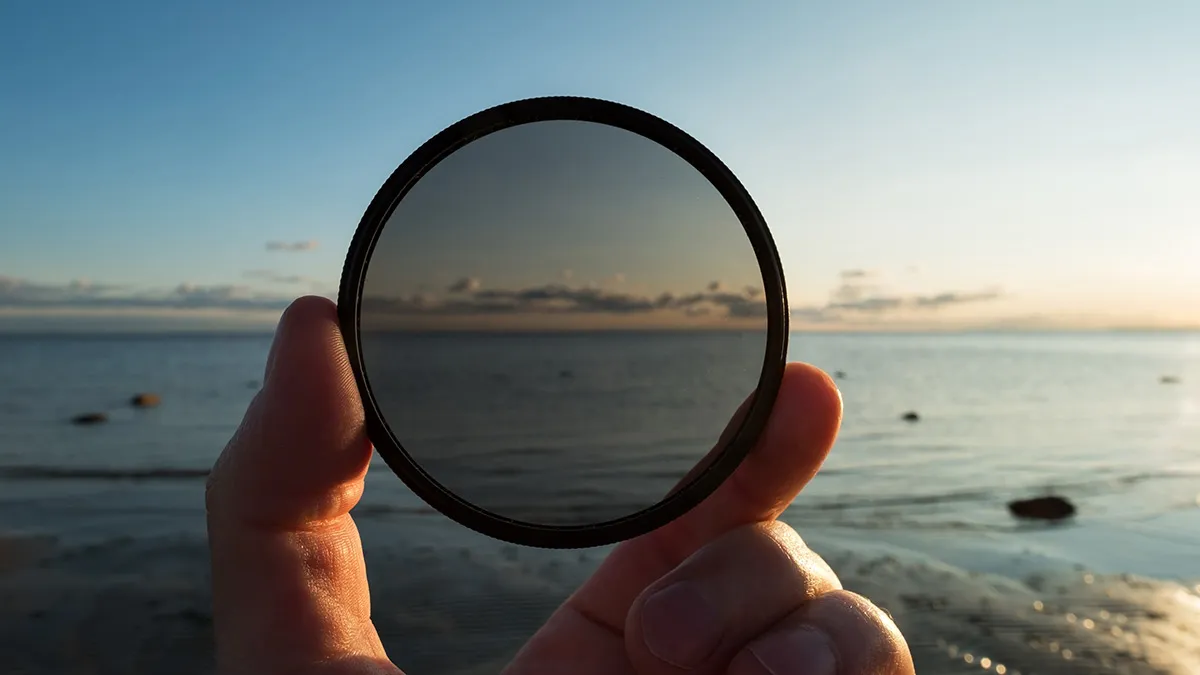

What is an ND Filter?

Neutral Density filter

Battery (BP-A30)

Battery Charger

Body Cap

Camera grip

CFast card

CFast card reader

Top handle

LCD Attachment unit

LCD Monitor

Lens (24-105mm)

Power Supply

Unit Cable

Canon C200 Body

Manfrotto Tripod

Mic Holder

Shotgun mic

XLR Cable

Where are each of these used?

Shorter screw = top handle

Longer screw = monitor bracket

What does the first ring (top) do?

controls focus

What does the second ring (bottom) do?

controls zoom

What is relay recording?

Camera automatically moves from card Slot A to Slot B

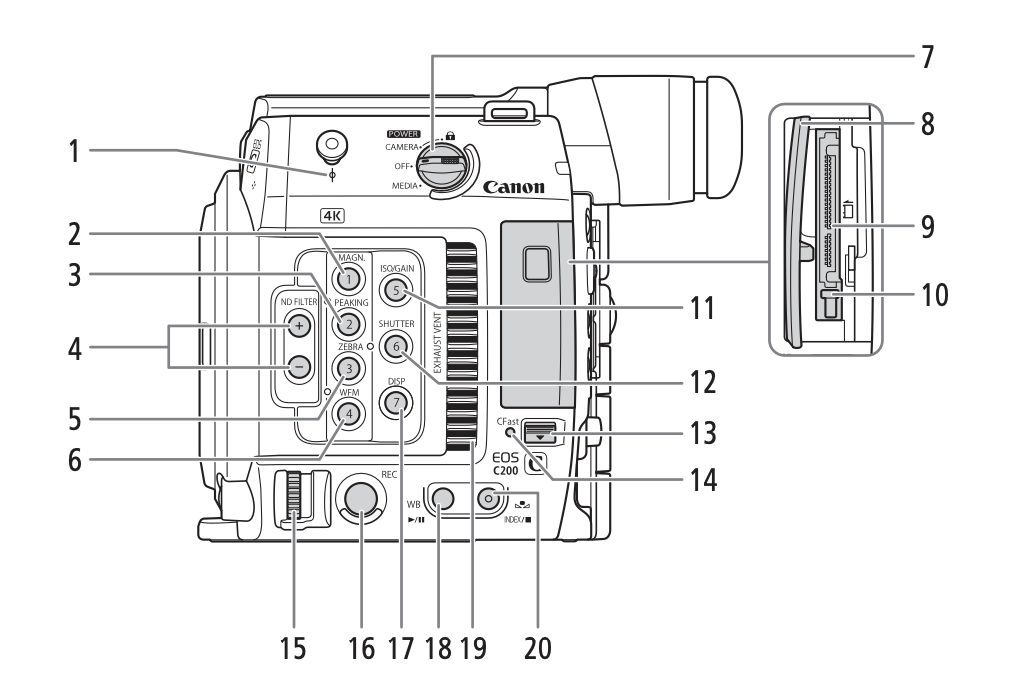

1

Tape measure hook and focal plane mark

2

Magnify button

3

Peaking button

4

ND Filter +/- buttons

5

ZEBRA Button

6

Wave Form Monitor button

7

Power switch

8

CFast card slot cover

9

CFast card slot

10

Card release button for CFast card slot

11

ISO/GAIN button

12

Shutter speed mode button

13

CFast card slot cover switch

14

CFast access indicator

15

Control Dial

16

Start/stop recording button

17

Display button

18

White balance button/play and pause button

20

White balance adjustment button/index button

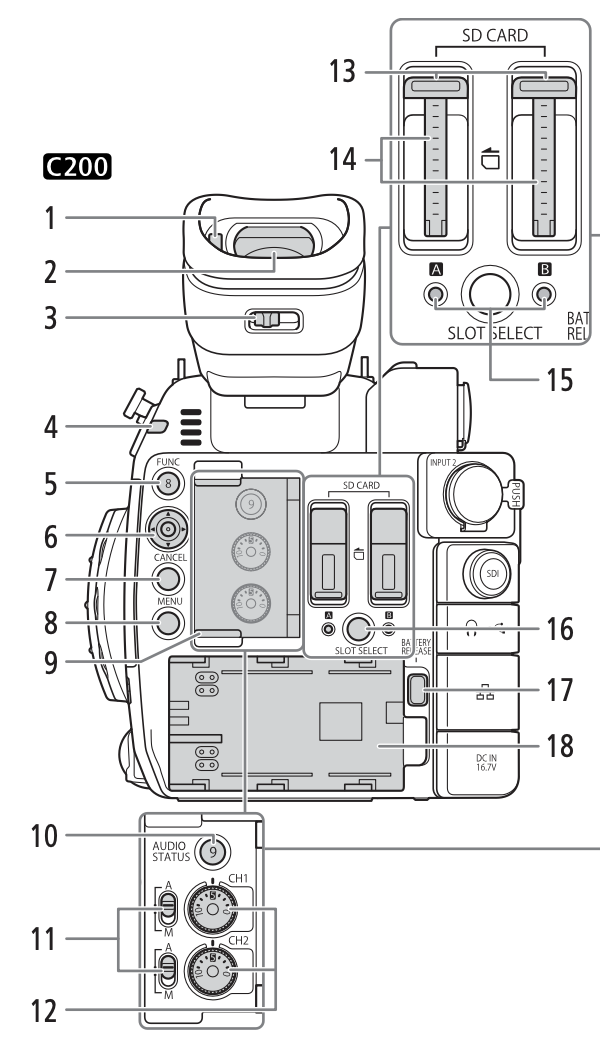

1

eye sensor

2

Viewfinder

3

dioptric adjustment lever

4

tally lamp

5

Main functions button

6

Joystick

7

Cancel button

8

Menu button

9

Cover for audio controls

10

Audio status button

11

audio level switches for CH1 (top) and CH2 (bottom)

12

Audio level dials for CH1 (top) and CH2 (bottom)

13

SD Card slot A (left) and SD Card slot B (right)

14

SD Card slots

15

SD Card A and B access indicators

16

Slot select (SD card selection) button

17

Battery release button

18

battery compartment
