Hugo Practice Quiz

What is the name and function of this computer?

Core Computer (MSC): Holds the primary application software for the tower

How many computers on the system are running Windows OS?

2: SCDC (surgeon console) and SimPC (task simulator)

Where do the files for the brake regeneration go on the service laptop?

C://RSM/Files/Updates

Where is the 12V generated in the system for the RASA?

Cart E-Box (internal power PCBA)

Where in the system do we convert the AC voltage from the wall to DC, so that 48V DC is provided to the ACAs?

TPSC (Tower Power Supply Controller)

What two applications does the FSE run to upload the post-processed logs to Hugo Connect?

EMS and Teneo

Which module does the customer connect to when outputting the video to an external display?

Camera Controller Module (CCM)

What do the 3 AC mains on the tower power? (In order)

1. Power Distribution Unit (PDU) - Tower

2. Tower Power Supply Controller (TPSC) - ACAs

3. Footswitch Emulator (FSE) - FT10

What are the 3 cables that connect from the cart to the RASA?

1. Power (12/48V)

2. EtherCat communication (RT)

3. System Pause

For each system component (tower, ACA, SC), which computer (or node) is the HLA serial number information stored?

1. ORTI (Visualization) - Tower

2. SRA (Ebox) - ACAs

3. SMC (Surgeon Motion Controller) - Surgeon Console

Which computer on the system is the procedure ID information stored?

ORTI (Visualization Computer)

Which computer on the system is the central log database stored?

ORTI (Visualization Computer)

Name the RASA joint that provides the registration yaw (dock) angle during setup

SA_J3

What type(s) of electrosurgical energy can currently be used on the system robotically?

Monopolar, Bipolar, and LigaSure energy

What types of sensors are on the input devices for hand detect?

1. IR sensor on back of hand controller

2. Encoder in finger lever

At least one has to be active to get into and stay in tele-operation

What size trocars do we currently use with the system?

8mm (wristed instruments)

11mm (endoscope)

Which joints in the RASA use stepper motors (as opposed to electromagnetic brakes)?

RA_J1, RA_J2, SA_J4, RA_J5 (Z-Slide)

Which joints in the RASA use electromagnetic brakes (as opposed to stepper motors)?

SA_J1, SA_J2, SA_J3

Which component on the surgeon console is responsible for the overlay of the GUI on the 3D/2D image?

Video Scalar

What do the green LEDs on the ACAs indicate?

“Safe to Unbrake” - Cart is currently braked and undocked

True or False: The setup guide indicates where to place the tower, surgeon console, and ACAs in the surgical field?

False, the setup guides do not indicate where to place the surgeon console.

True or False: The Hugo system requires a direct connection to the hospital network?

False

True or False: The DS1 requires a direct connection to the hospital network?

True

How many serviceable PCBA stacks are located in the RASA?

4 (SA_J123, SA_J4, RA_J12, RA_J5)

True or False: We perform preventative FRU replacements based on clinical procedure count?

True

How often do we perform the system PM?

Every 6 months

Which joints on the RASA do not have motors or brakes, and are instead maintained by tungsten cables?

RA_J3 and RA_J4

What does the RCM stand for and what is its function?

Robotic center of motion. The RCM is the point in space we define when we setup the arms around the bed. It is an exact point in space (noted by the thick black band on the trocar), around which the robotic arm joints pivot during tele-robotic surgery.

What is the purpose of the REM pad?

It is a return electrode pad when using monopolar energy on the FT10, to allow the energy to complete its circuit and return safely to the FT10.

When replacing the RASA, why do we place the shipping bolts in the column?

To lock the counterweight stack for safety. Prevents the counterweight from accidentally being moved (without the weight of the RASA - the counterweight can damage the cart or cause personal injury if moved)

When replacing the SAFETY computer on the tower, which software steps does the FSE need to perform?

Hint: The SAFETY computer is one of the ESAT nodes for the tower.

Software and Language. Any computer or circuit board on the system that stores software appears in ESAT as a node. If we replace any of these parts, we will always need to redeploy software and language to that HLA.

What file format are the logs when the FSE pulls them from ESAT, and what file format do we convert them to when post-processing?

.TGZ (from the ORTI), and .JSON (after post-processing)

Which logs must be uploaded to Hugo Connect?

ALL clinical logs must be uploaded to Hugo Connect

True or False: RECAP requires an internet connection to use?

False

What is the purpose of the sensor on the port latch?

To detect when a drape and port are attached.

How many ergonomic motors are there on the surgeon console?

4 (2 for armrest, 1 for 3D monitor, 1 for foot pedal plate)

What is the function of the hall-effect sensor in the cart base?

It is a magnetic sensor that detects when the cart brake is active.

What is the behavior of the system when the FDC (fault detection circuit) is triggered?

The Fault Detection Circuit (FDC) checks for electrical safety and will shut the affected ACA off if it detects an Ethercat fault. When the FDC is repeatedly triggered, it creates a fault record file on the e-box of the ACA, which needs to be cleared with an ESAT script.

PowerShell scripts should be installed to which folder on the FSE laptop?

C:\RSM\Files\In

What are the two official repositories for getting software and documentation for Hugo?

ThingWorx and the Hugo SharePoint Knowledge Base

When the system is on and in operable mode, how long can the AC mains cables be unplugged from the tower before the backup battery starts?

60 seconds

How many joints are robotically controlled on the RASA?

6 (all of the robotic arm joints)

What is the range of motion of SA_J4?

Pitch, 75 total degrees of travel

Which component on the surgeon console is responsible for generating the GUI (graphic user interface) for the displays?

SCDC (surgeon console display computer) - this is one of the two nodes on the surgeon console, the other being the SMC

What percentage do the UPS batteries need to be charged to, in order to use the system in operable mode?

100%. The system will not let you start the setup until the batteries are fully charged.

What are the three types of PCBAs used on the RASA and which one(s) can be replaced in the field?

Power, Sensor, and Digital Computing. Currently, we can only replace power boards in the field.

What application is used to update the software for the FT10?

VLEX

Where do the files for the PowerShell scripts go on the service laptop?

C://RSM/Files/In

Once the logs have been pulled from the tower and post-processed, where can you find them on the service laptop?

C://RSM/Files/Out

How many crates does the system arrive in during installation (for a 4 arm system)?

6 crates (1 for tower, 1 for surgeon console, 4 for ACAs) and 1 pallet with simulator and all accessories (drapes, instruments, Storz, FT10, etc.)

When is the performance verification test performed on Hugo?

Installation and every 6 months during the PM

When does the IDU e-release reset procedure performed on Hugo?

Every 6 months during the PM and whenever the mechanical release is activated by a customer

True or False: Prior to the installation of the system, an FSE must go on site and complete the pre-installation checklist

True!

Which two RASA joint positions are specified in the clinical setup guides?

SA_J4 (pitch or tilt angle) and SA_J3 (yaw or dock angle)

When performing an Ebox replacement in the field, the FSE must perform a software and language deployment. How many system restarts into maintenance mode are required?

Two restarts. You can only deploy to a specific node one time per power cycle. Software deployments deploy to every node on the HLA, so you will always need to restart into maintenance mode to deploy language.

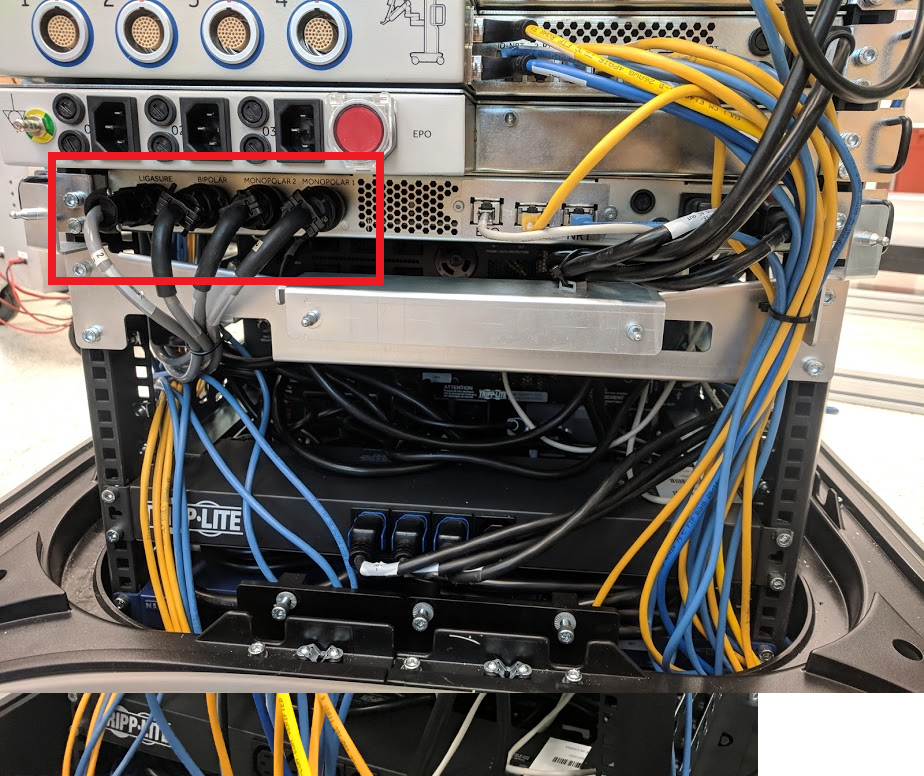

From which component in the tower does the FT10 receive power and all of its commands from?

Footswitch Emulator (FSE) sends power and communication to the FT10.

From which computer is the GUI (graphic user interface) generated in the surgeon console?

SCDC (surgeon console display computer) generates the GUI in the surgeon console. It is one of two software nodes in the surgeon console.

True or False: The ESAT laptop can only be connected to the tower when pulling logs or deploying software.

False; the ESAT laptop can be connected to either the tower or the simulator

When is a new procedure ID generated on the Hugo system?

A new procedure ID is generated each time the tower is restarted (it is not tied to the number of clinical procedures performed).

If a customer wants to output the ORTI to an external monitor, when should they connect the DVI cable to the tower?

External monitor must be connected to the DVI port on the CCM (camera controller module) prior to turning on the tower.

If an arm fails during surgery and cannot be controlled by the surgeon and by the bedside, what are the two mechanical releases that should be used and what do they do?

SIM mechanical e-release: mechanically opens the jaws of the instrument if the instrument is clamped on tissue

IDU mechanical e-release: mechanically withdraws the IDU and attached instrument up the z-slide

What are the two types of communication (ethernet) channels used in the system and what are they used for?

Real-Time (kinematic motion of input arms and RASA) and Non-Real Time (everything else - e.g. LEDs, sensors, alarms/messages)
