19 Terms

1
New cards

Beam

it is the structural member that supports the TRAVERSE LOAD which usually RESTS on supports at its end

2
New cards

Simple beam, Continuous beam,.Semi-continuous beam, Cantilevered beam

4 Classifications of beams

3
New cards

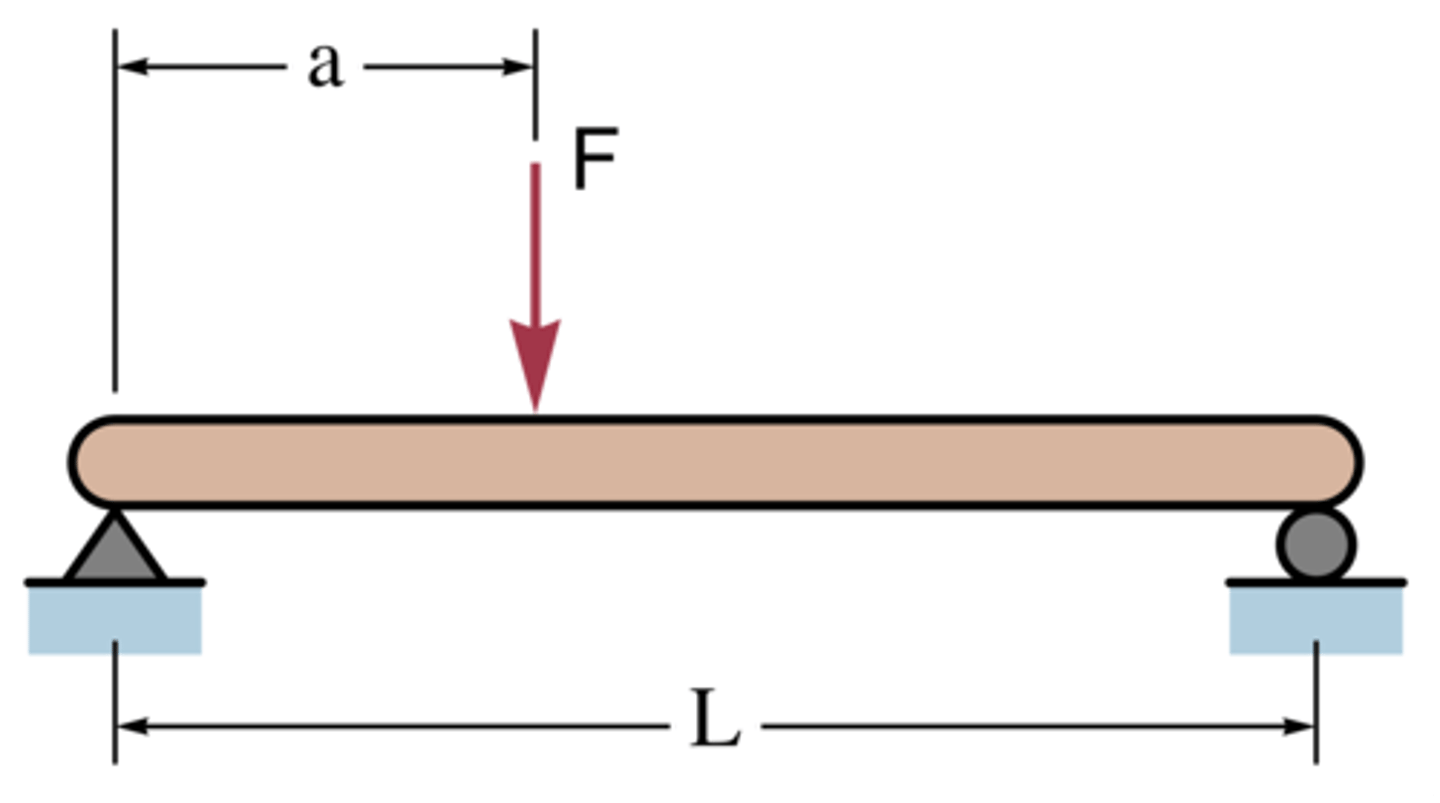

Simple beam

a beam having a SINGLE SPAN supported at its END

<p>a beam having a SINGLE SPAN supported at its END</p>
4
New cards

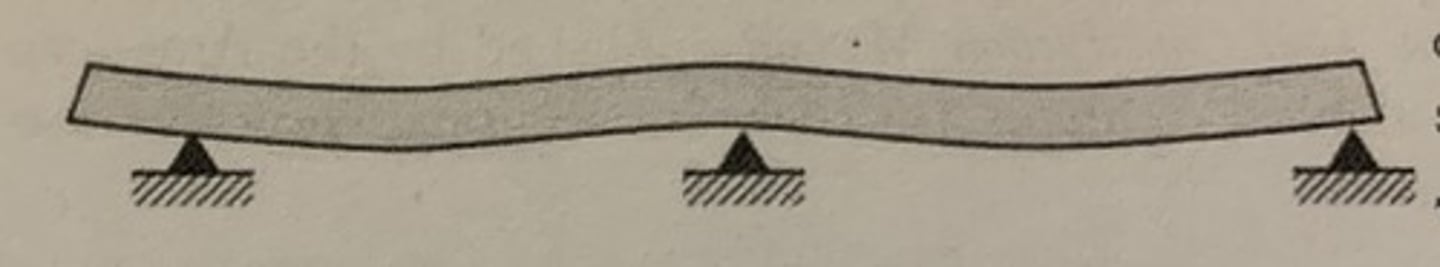

Continuous Beam

it is a beam that RESTS ON MORE THAN 2 SUPPORTS

<p>it is a beam that RESTS ON MORE THAN 2 SUPPORTS</p>
5
New cards

Semi-continuous beam

a beam with TWO SPANS

6
New cards

Cantilivered Beam

a beam that is supported at ONE END or along its length.

7
New cards

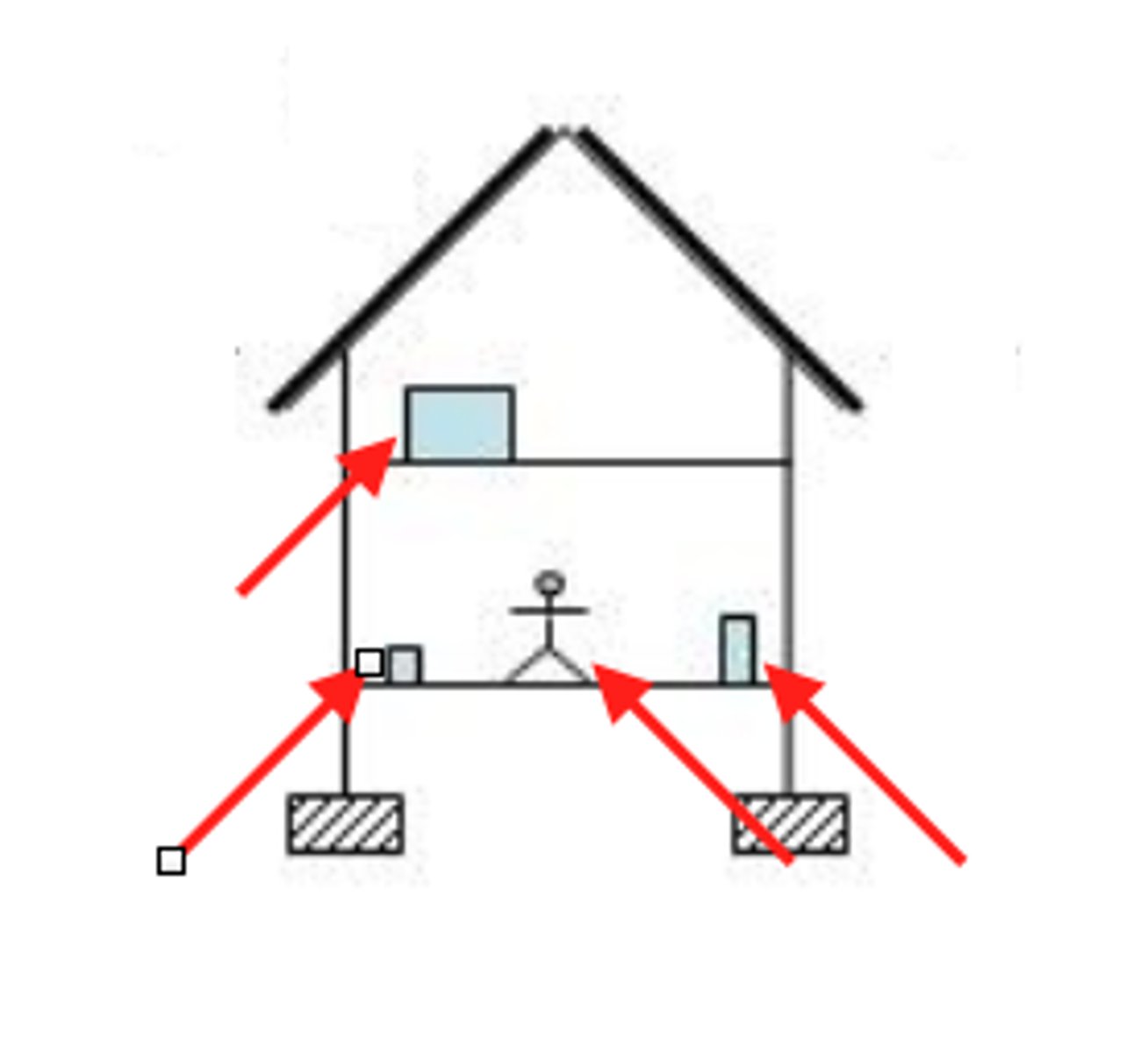

Live Load

MOVABLE LOADS imposed on the floor such as people, furniture and the like.

<p>MOVABLE LOADS imposed on the floor such as people, furniture and the like.</p>
8
New cards

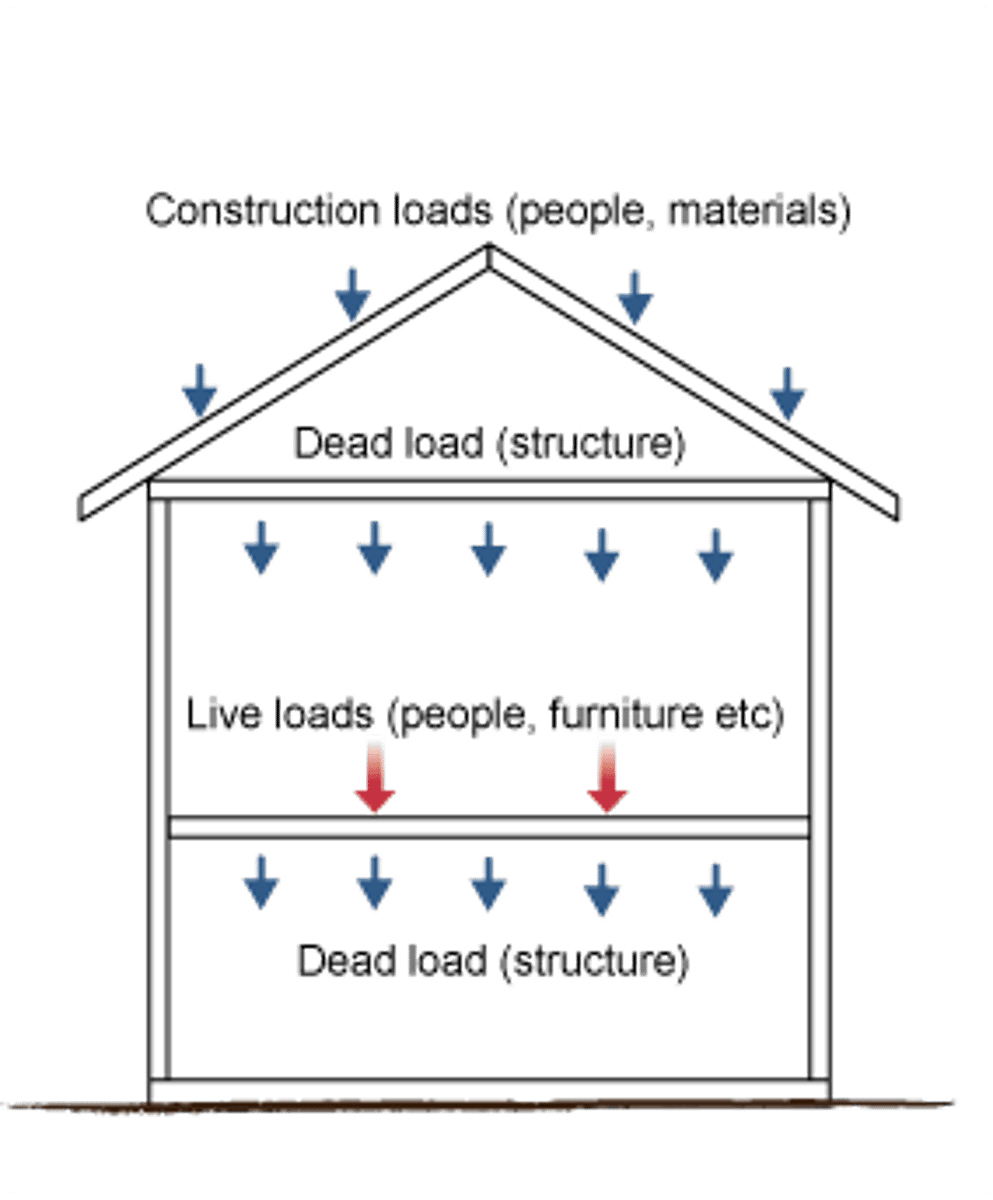

Dead Load

STATIC LOAD such as the weight of the construction materials which generally carry the live load

<p>STATIC LOAD such as the weight of the construction materials which generally carry the live load</p>
9
New cards

Floor Joist

those parts of the floor system PLACED ON THE GIRDER OF THE BEAMS where the floor boards are fastened.

<p>those parts of the floor system PLACED ON THE GIRDER OF THE BEAMS where the floor boards are fastened.</p>
10
New cards

Header of Trimmer

a SHORT TRAVERSE JOIST that supports the end of the cut-off joist at a stair well hole.

<p>a SHORT TRAVERSE JOIST that supports the end of the cut-off joist at a stair well hole.</p>
11
New cards

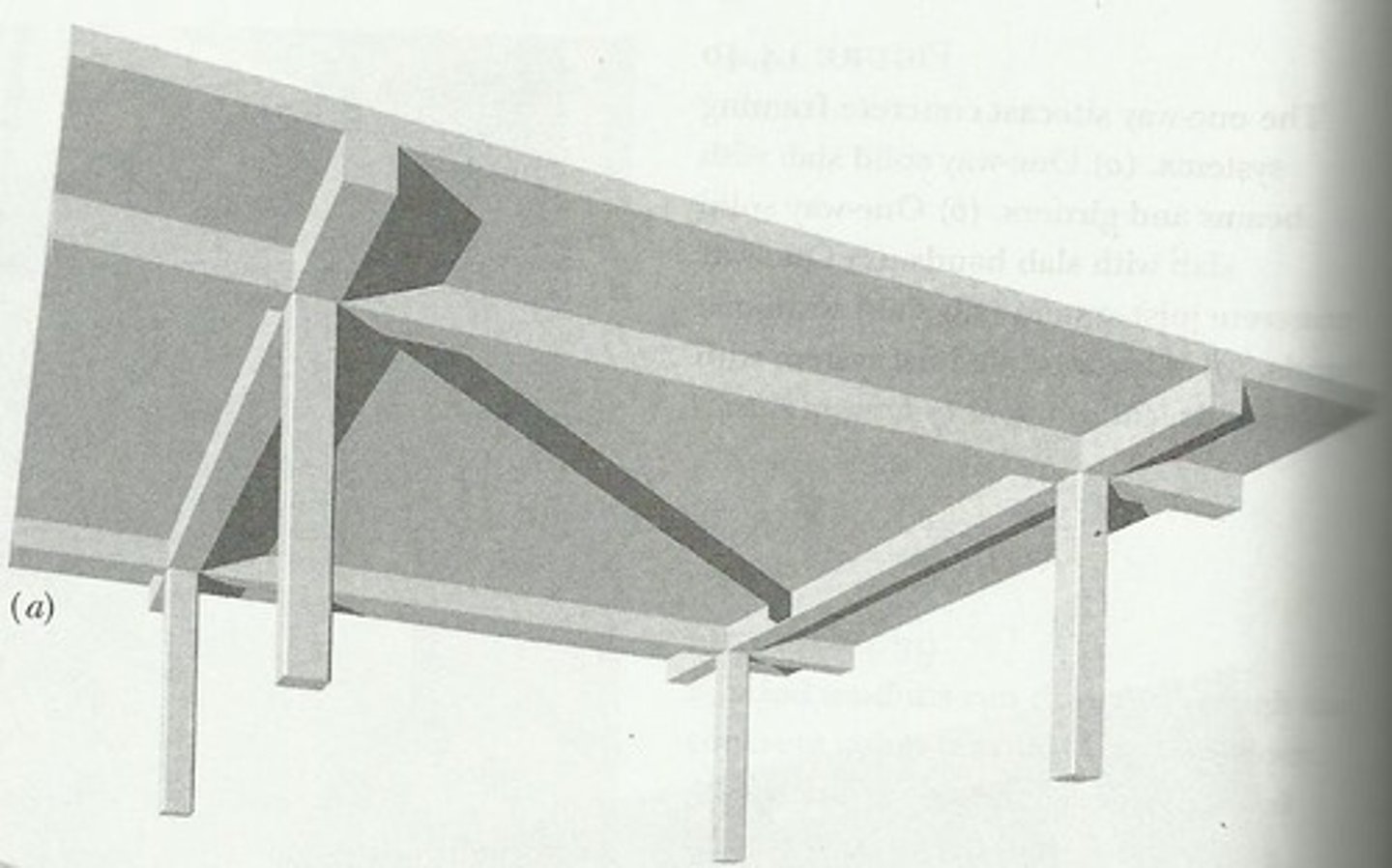

One Way Slab

- runs only at ONE DIRECTION that is FROM BEAM TO BEAM

- additional reinforcements are also placed on the slab parallel to the beams perpendicular to the main reinforcements called temperature reinforcement.

<p>- runs only at ONE DIRECTION that is FROM BEAM TO BEAM</p><p>- additional reinforcements are also placed on the slab parallel to the beams perpendicular to the main reinforcements called temperature reinforcement.</p>
12
New cards

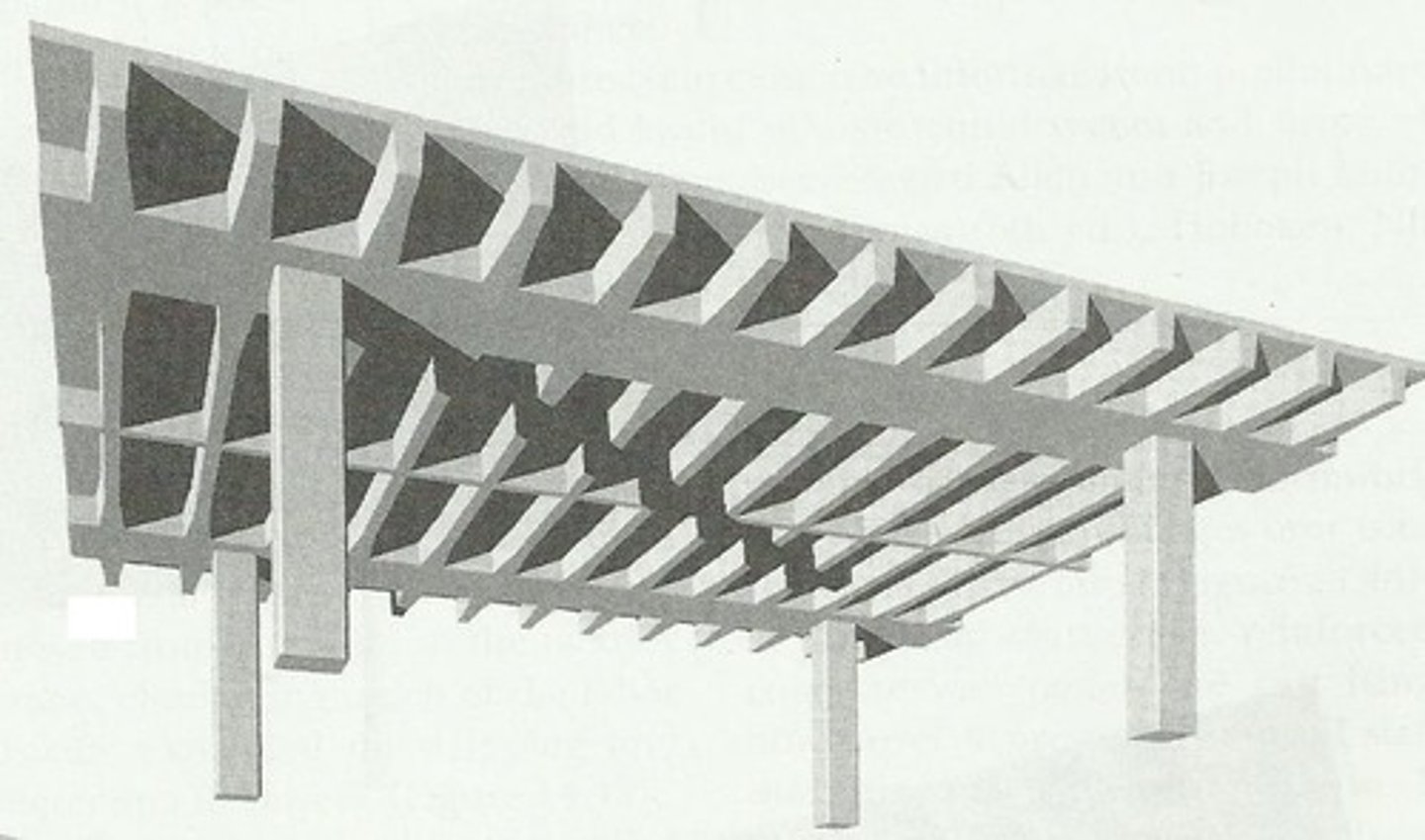

Two Way Slab

- supported on FOUR SIDES where the FLOOR PANEL is nearly SQUARE and is generally economical to employ the two directions of reinforcing bars placed at right angle with each other.

<p>- supported on FOUR SIDES where the FLOOR PANEL is nearly SQUARE and is generally economical to employ the two directions of reinforcing bars placed at right angle with each other.</p>
13
New cards

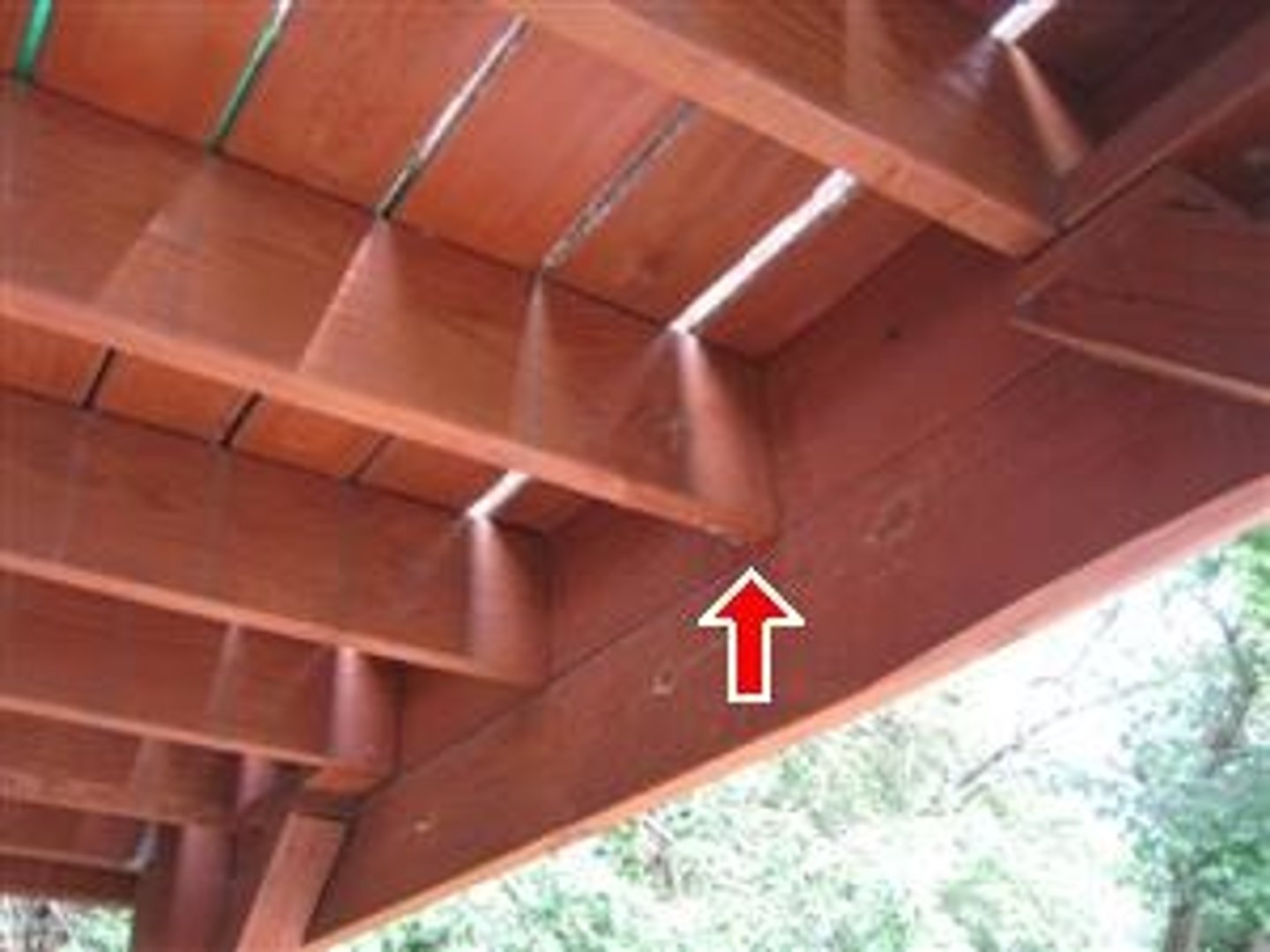

Corbel

structural wood That supports and ATTACH THE WOOD FLOOR JOIST TO BEAM

14
New cards

Bridging

BRACES fixed between floor joists to keep them in place.

<p>BRACES fixed between floor joists to keep them in place.</p>
15
New cards

Cantilevered slab

it is a slab that is supported at one end

16
New cards

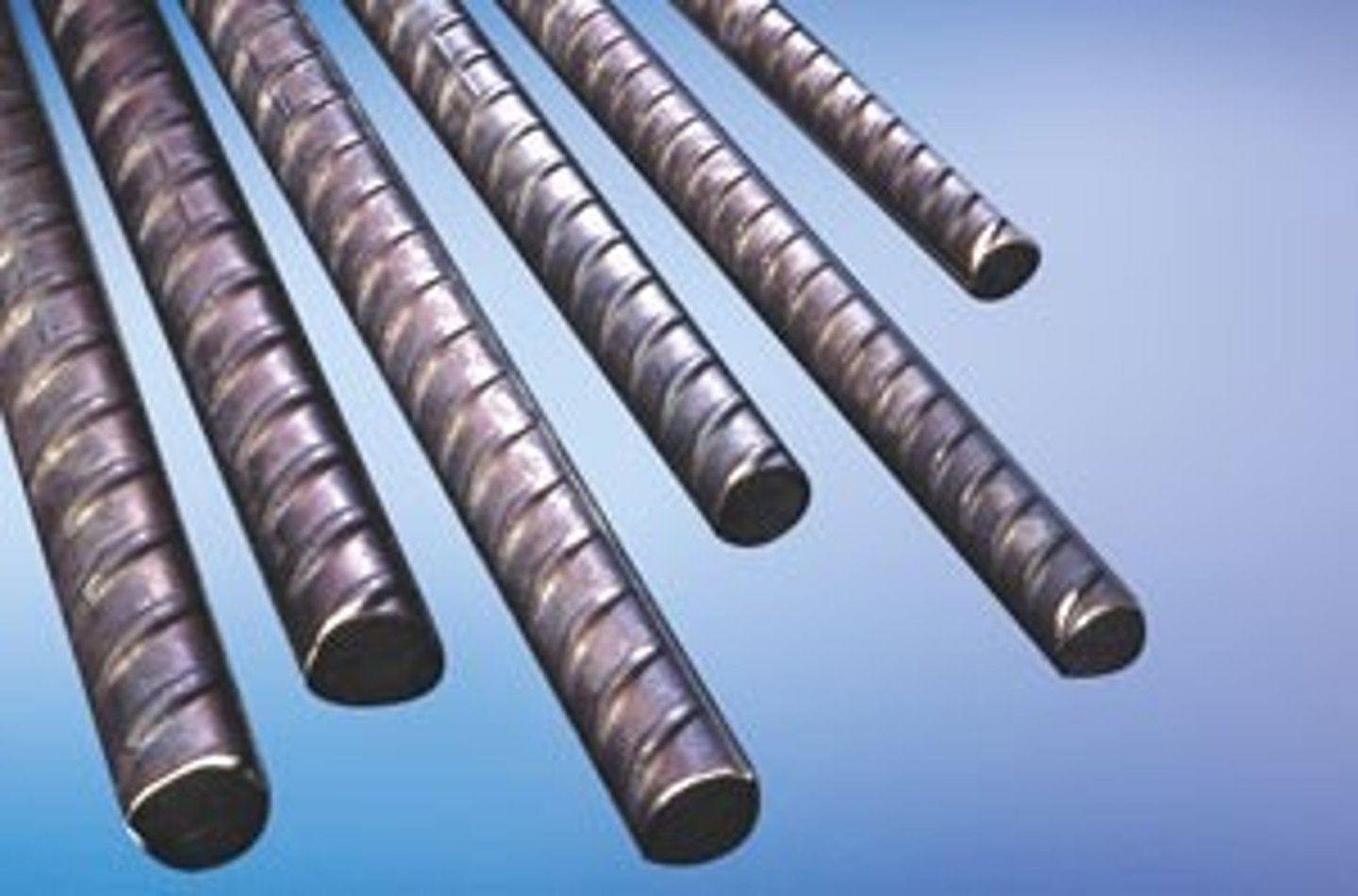

Deformed Bars

it is a STEEL REINFORCING BAR manufactured with SURFACE DEFORMATIONS to provide a LOCKING ANCHORAGE with the surrounding concrete.

<p>it is a STEEL REINFORCING BAR manufactured with SURFACE DEFORMATIONS to provide a LOCKING ANCHORAGE with the surrounding concrete.</p>
17
New cards

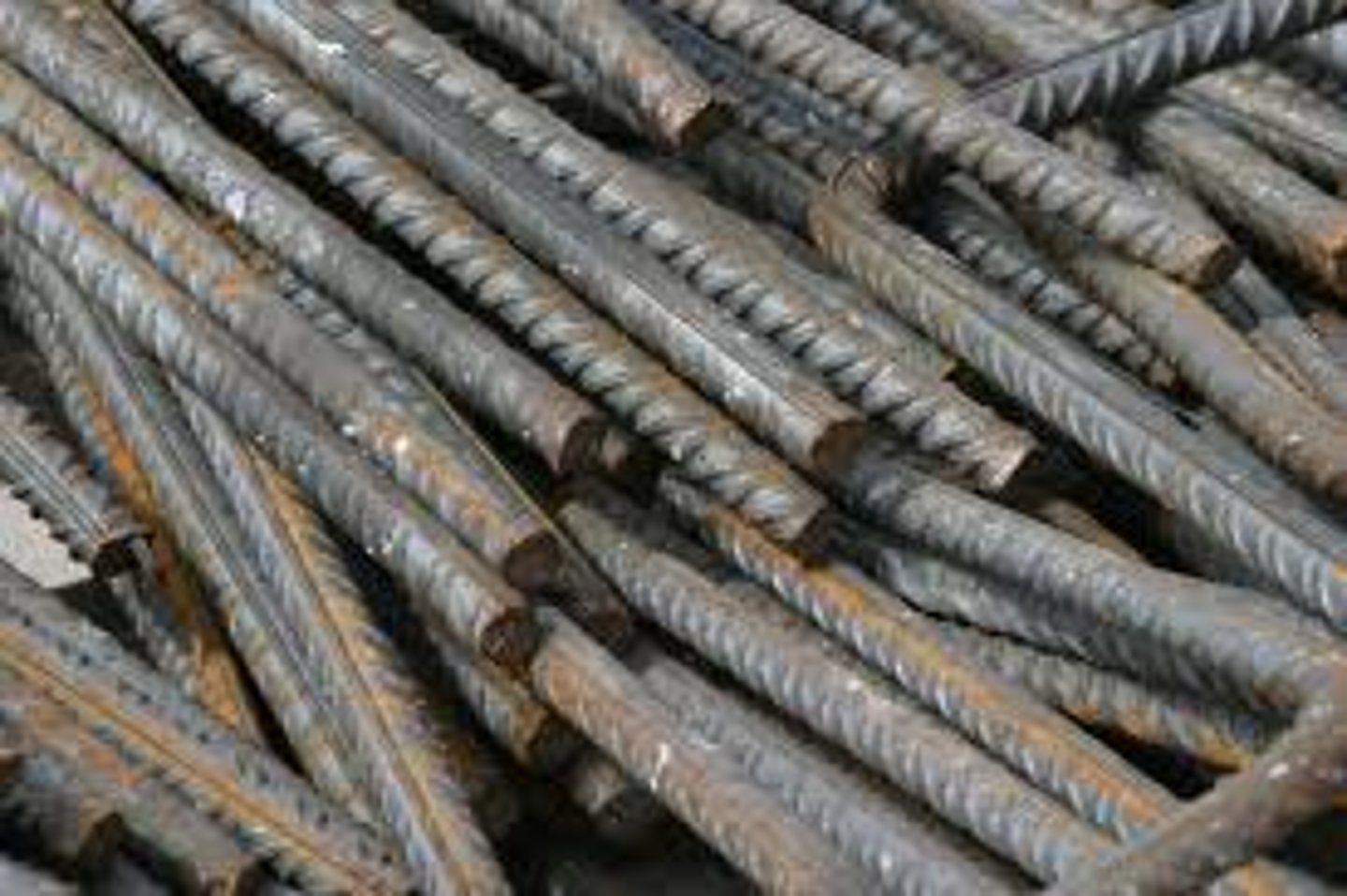

Rebars

a STEEL BAR having RIBS to provide greater bonding strength when used as a reinforcing bar in reinforced concrete.

<p>a STEEL BAR having RIBS to provide greater bonding strength when used as a reinforcing bar in reinforced concrete.</p>
18
New cards

Stirrups

a reinforcement device to RESIST SHEAR and DIAGONAL TENSION stresses in beam

19
New cards

a. 20' or 6.00 mts.

b. 25' or 7.50 mts.

c. 30' or 9.00 mts.

d. 35' or 10.50 mts.

e. 40' or 12.00 mts.

Length of steel bars:
