Neuroanatomy Labs 1 & 2

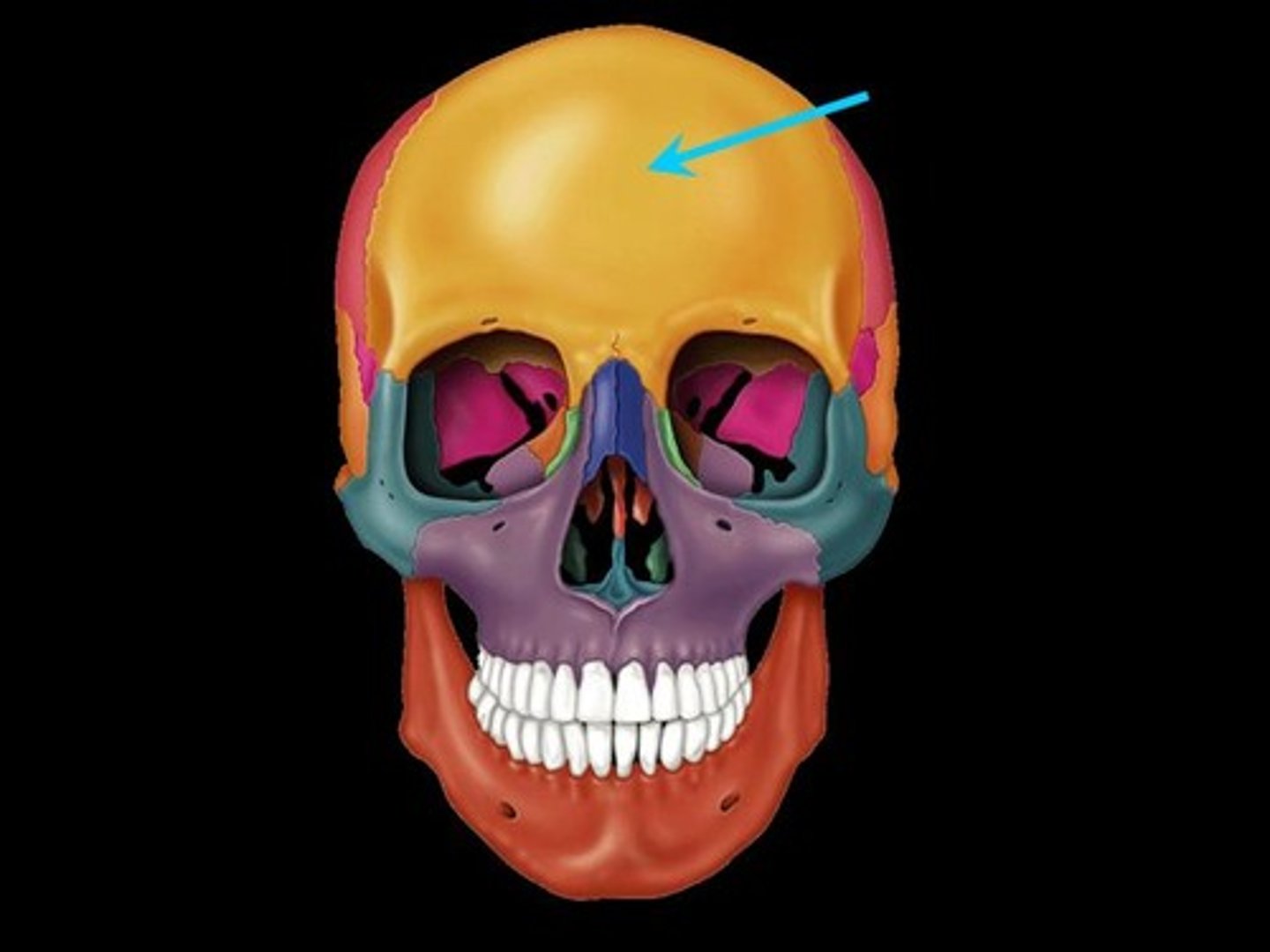

Frontal Bone

(anterior view)

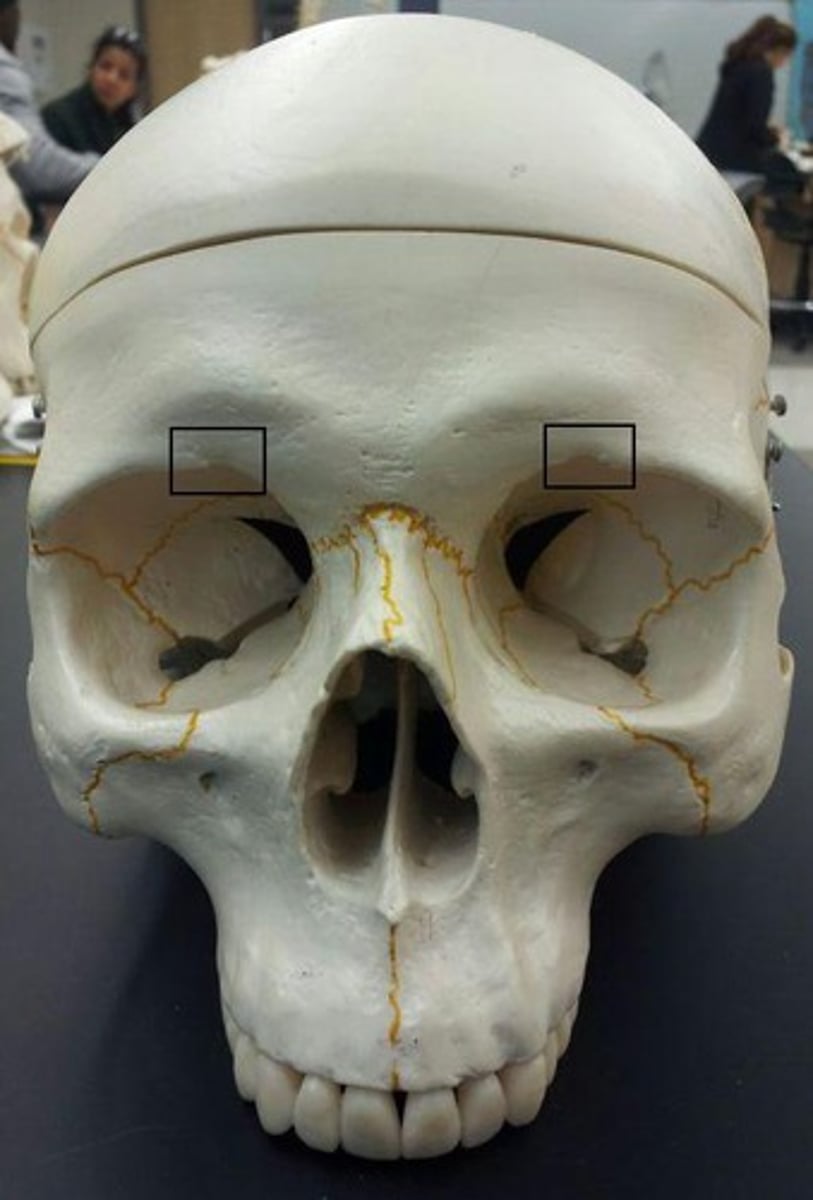

Supraorbital notch/foramen

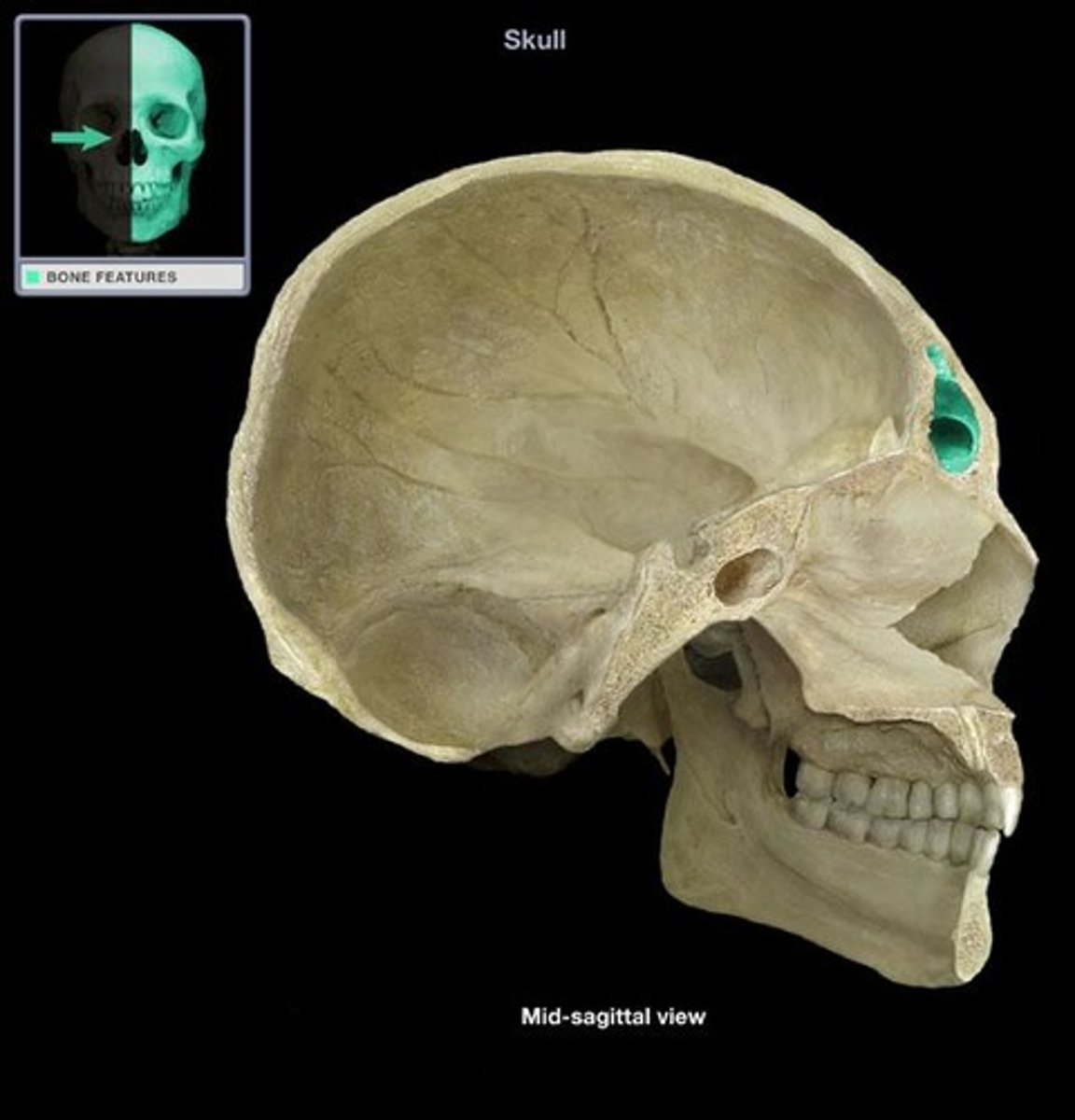

frontal sinus

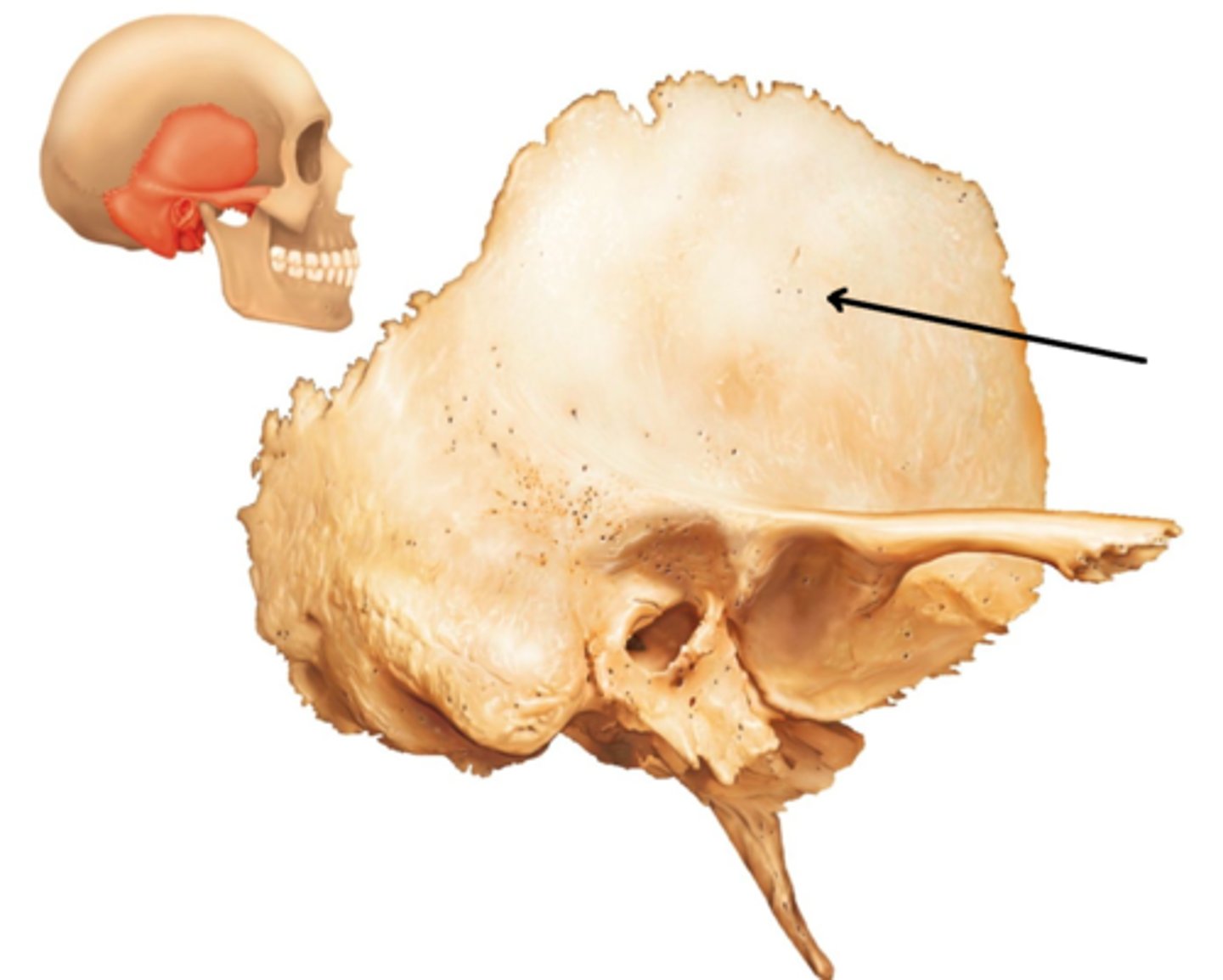

temporal bone of skull

squamous portion of temporal bone

groove for middle meningeal artery

external acoustic meatus

mastoid process

styloid process

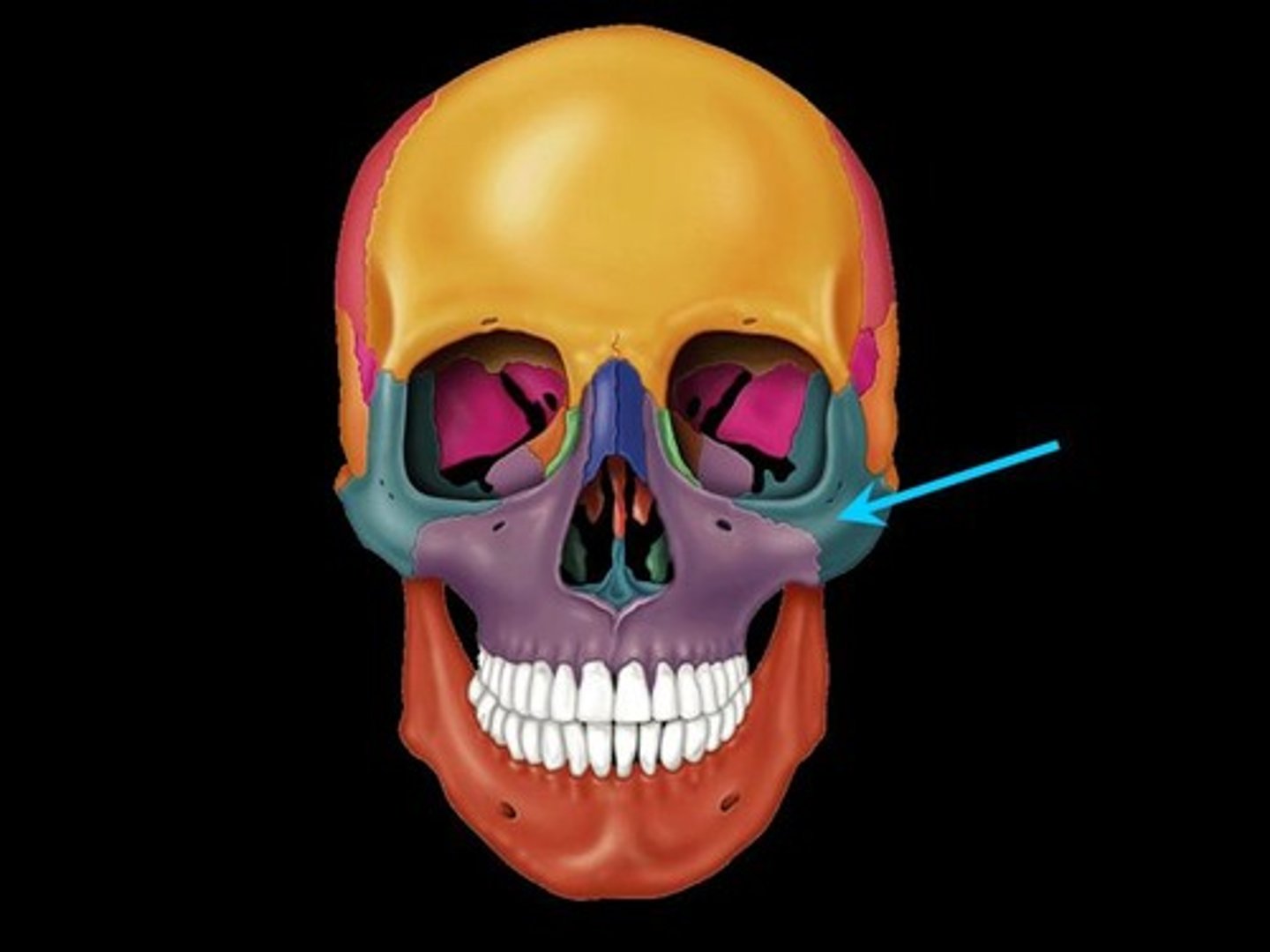

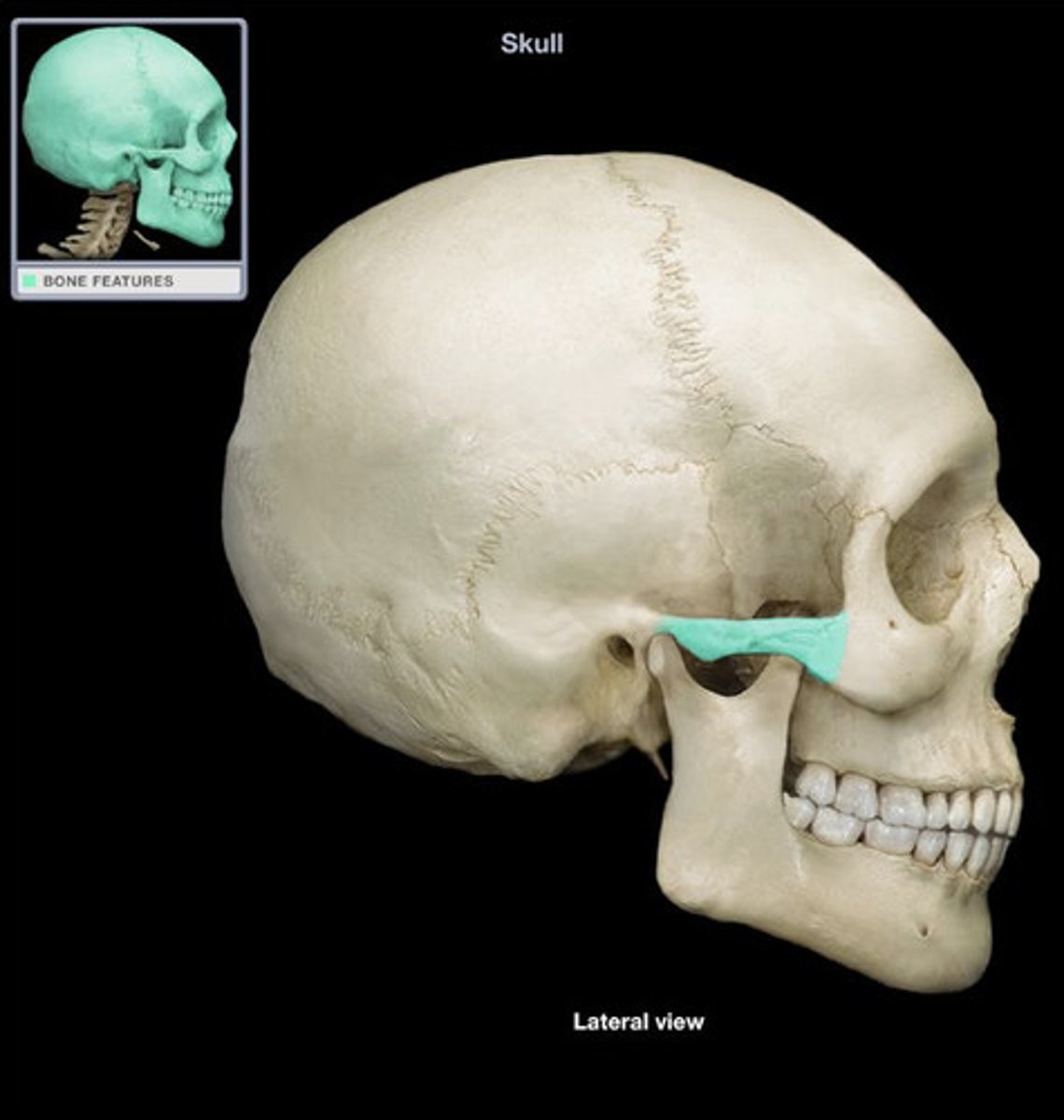

Zygomatic bone

temporal process of zygomatic bone

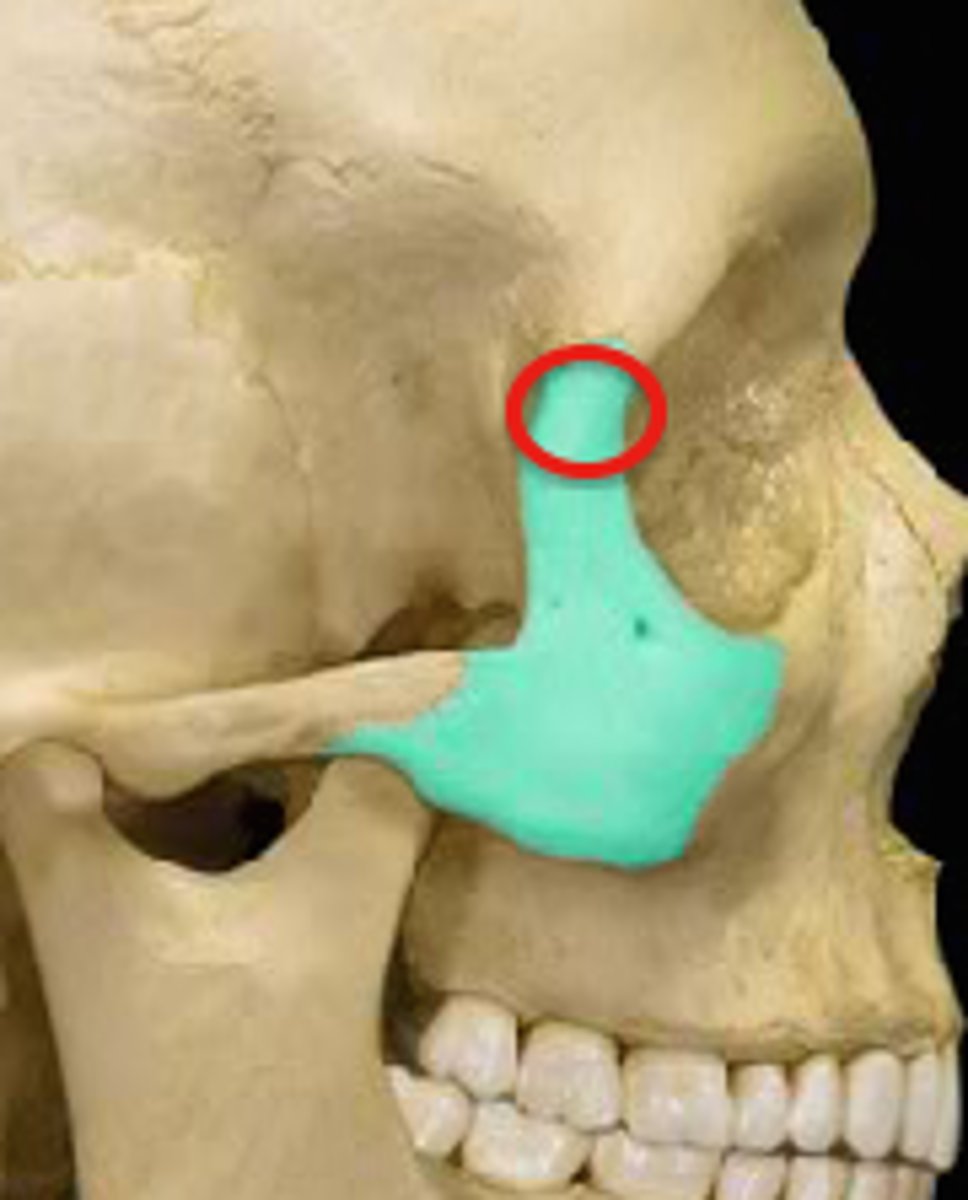

frontal process of zygomatic bone

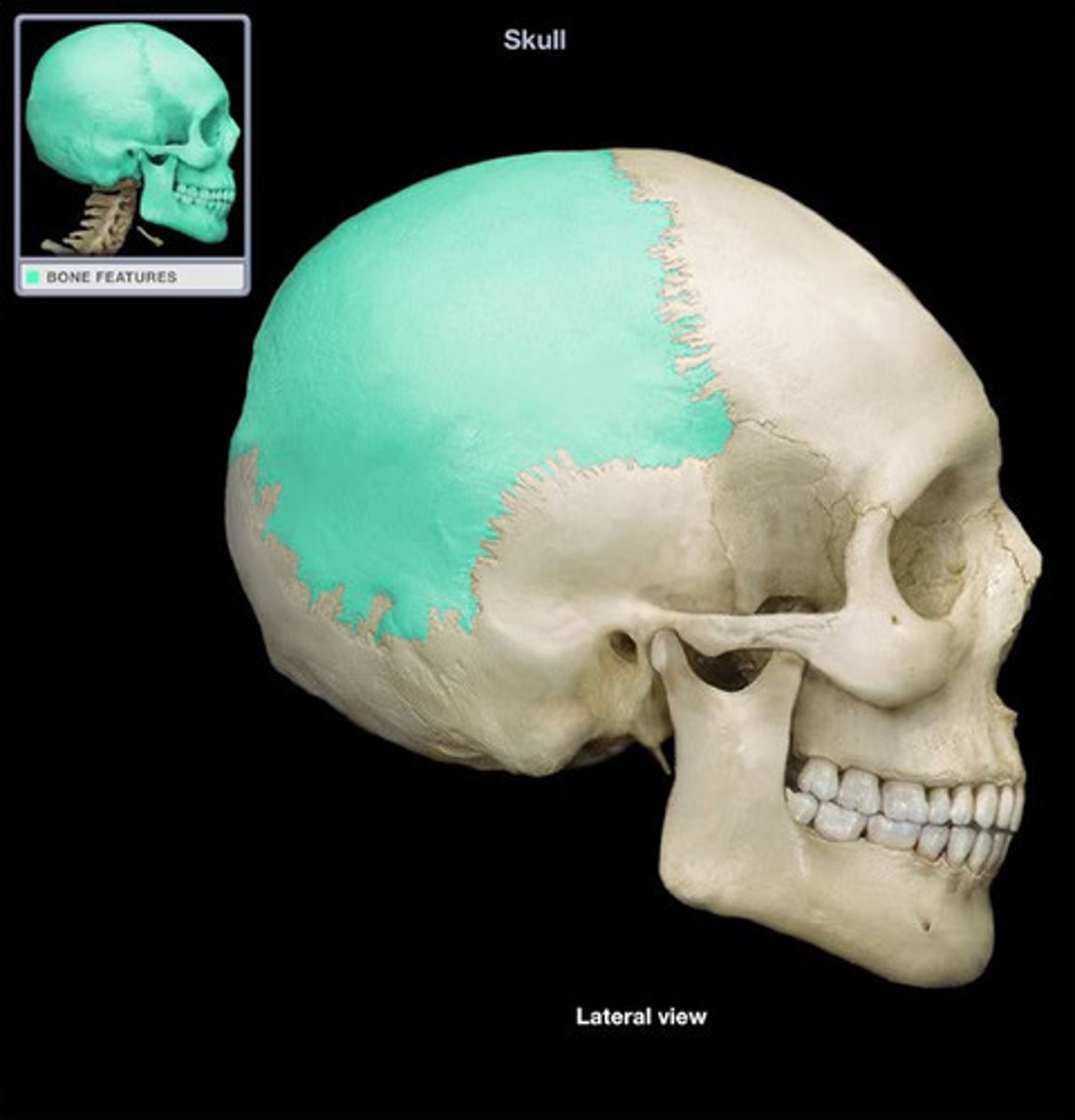

parietal bone of skull

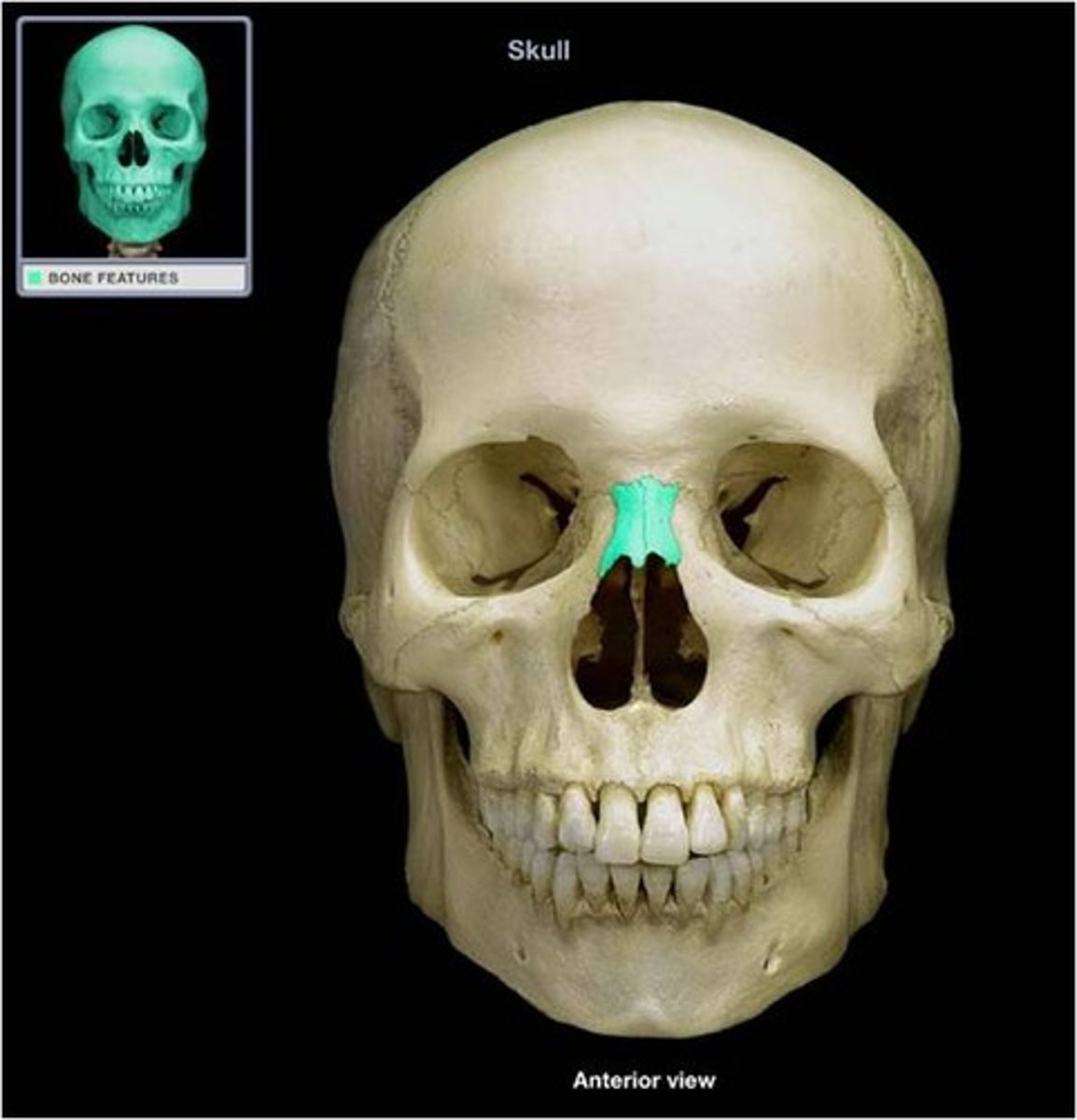

nasal bone

ethmoid bone

lacrimal bone

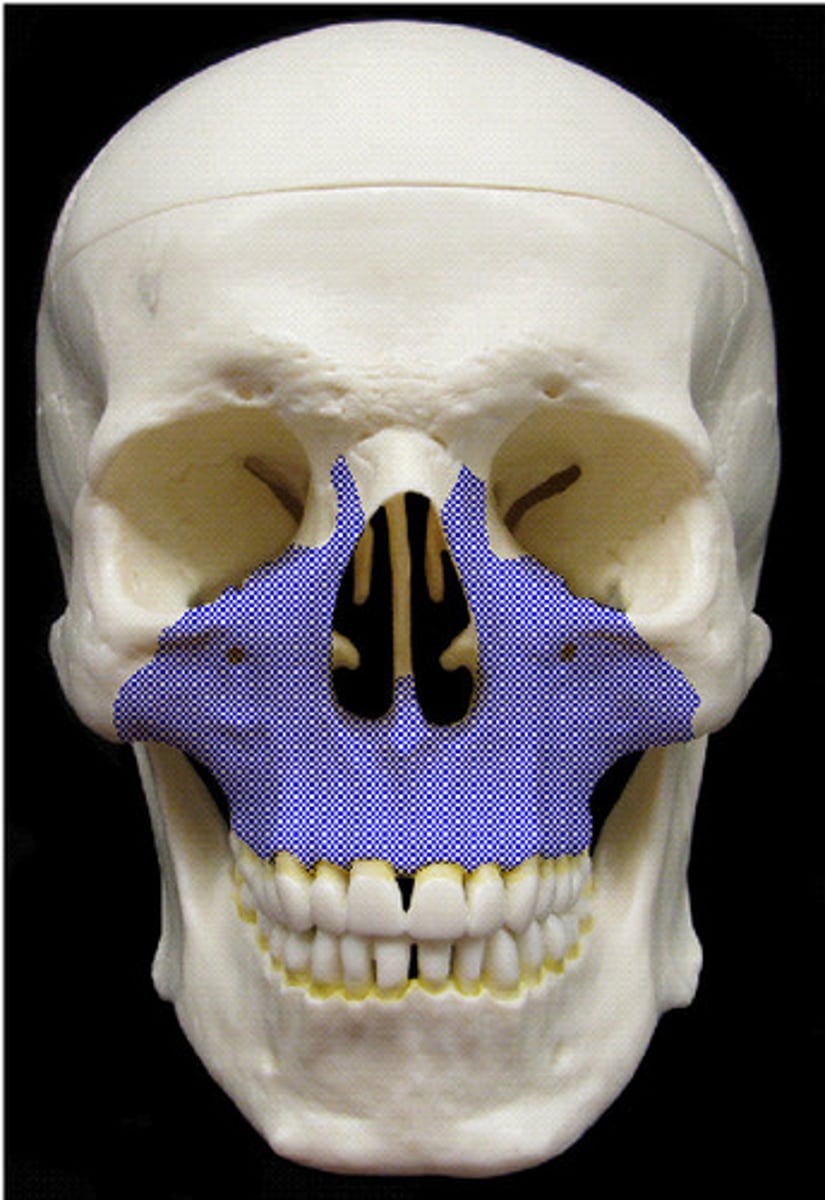

Maxilla

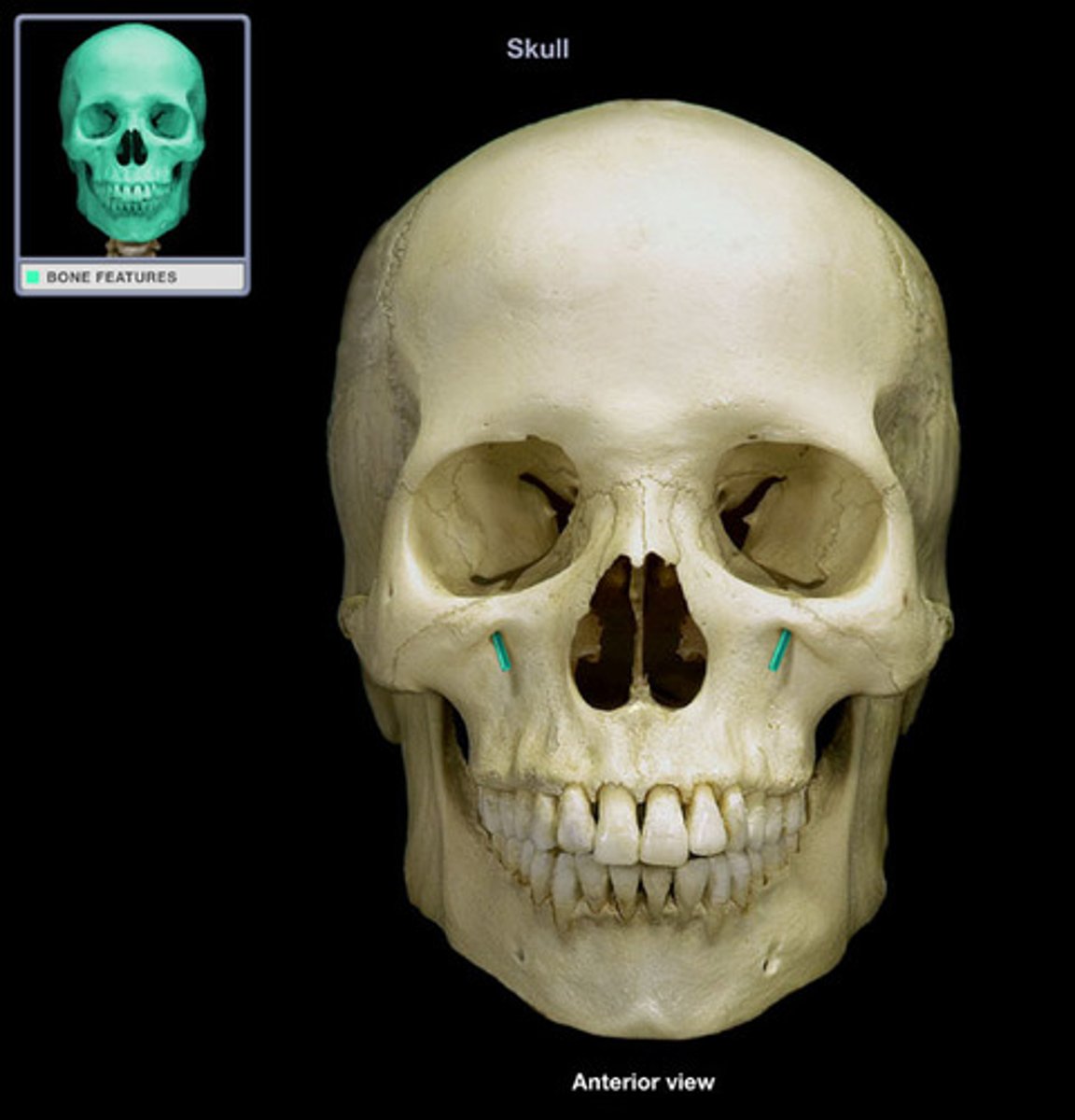

infraorbital foramen

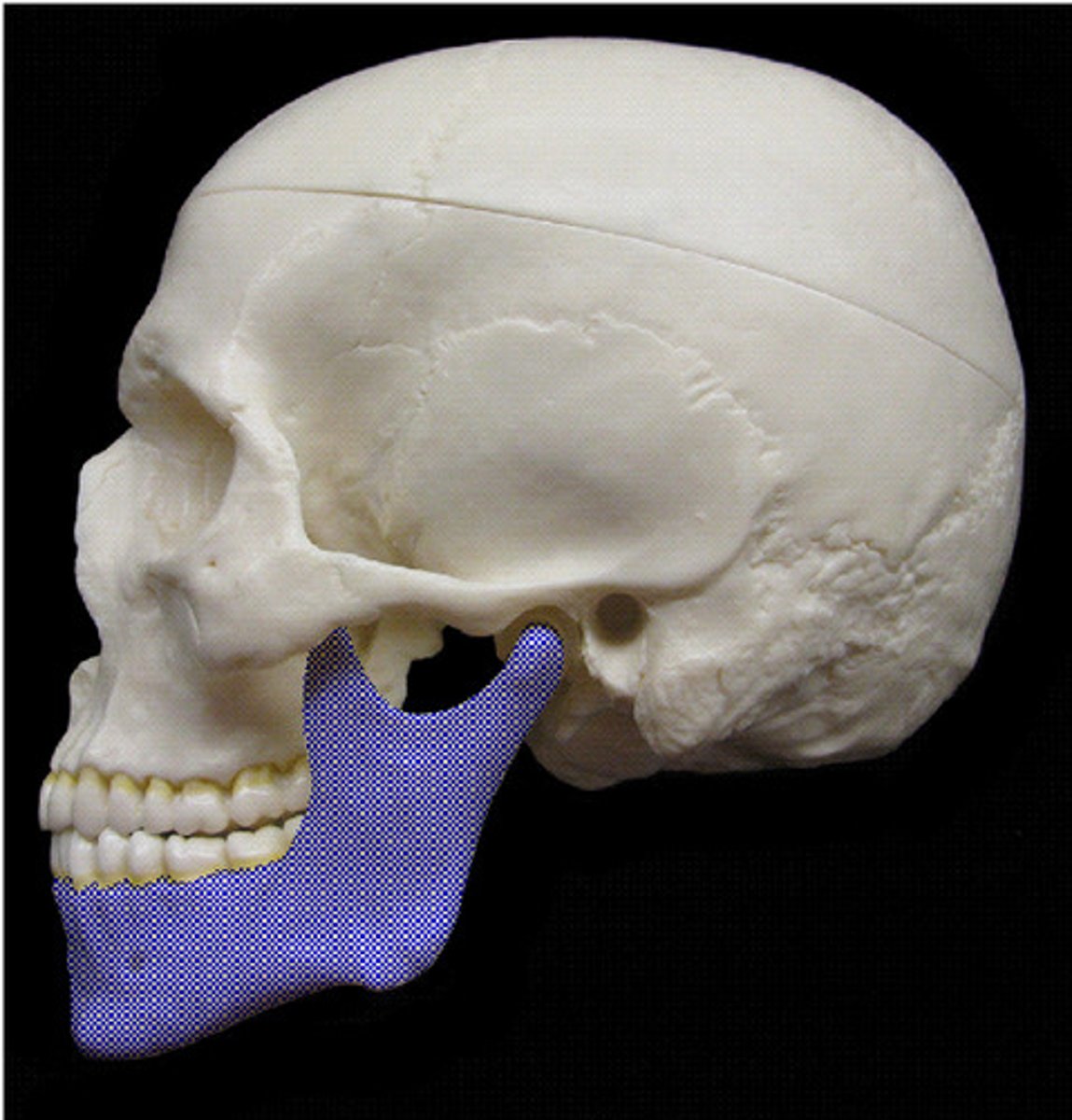

Mandible

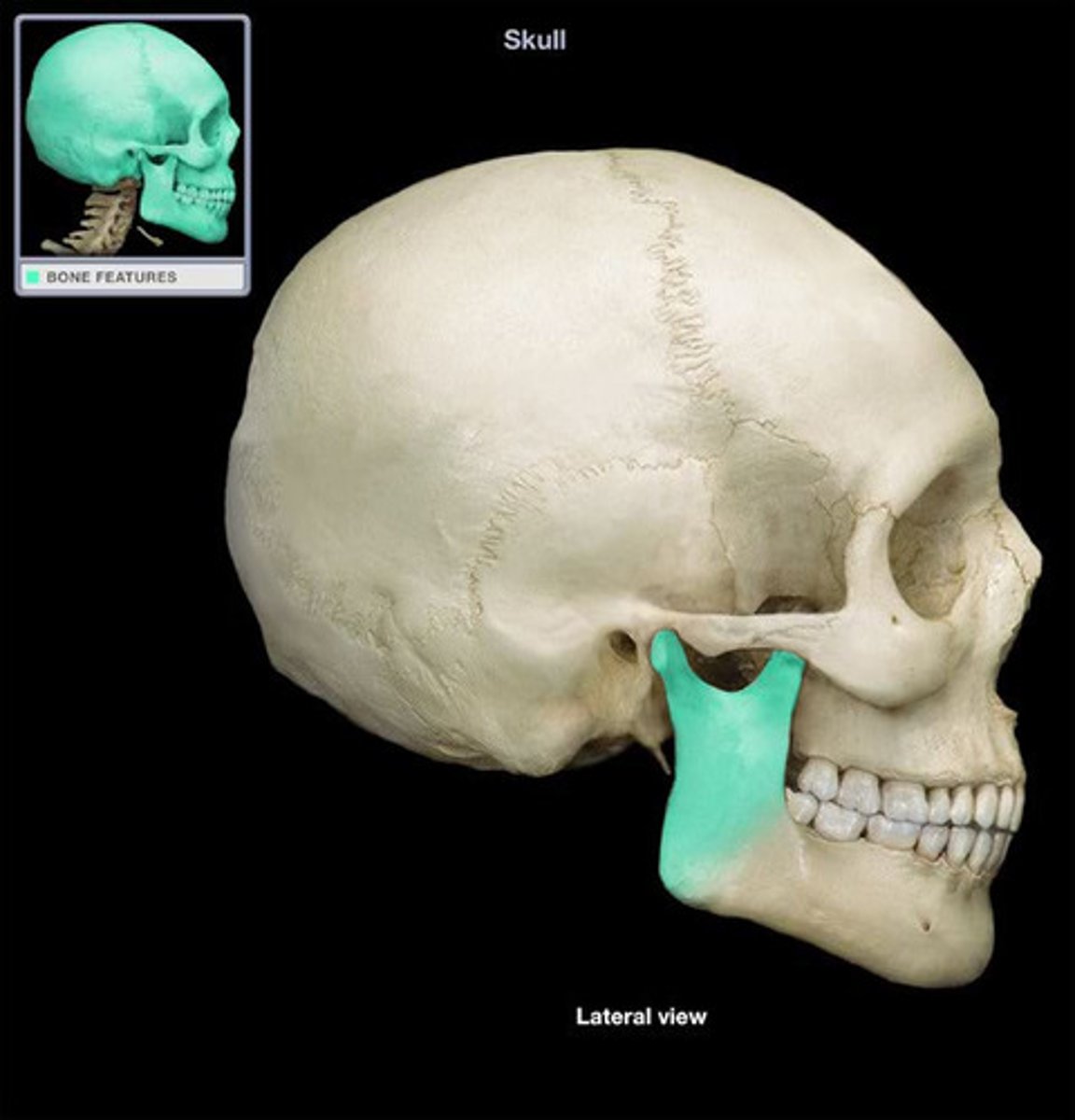

ramus of mandible

coronoid process

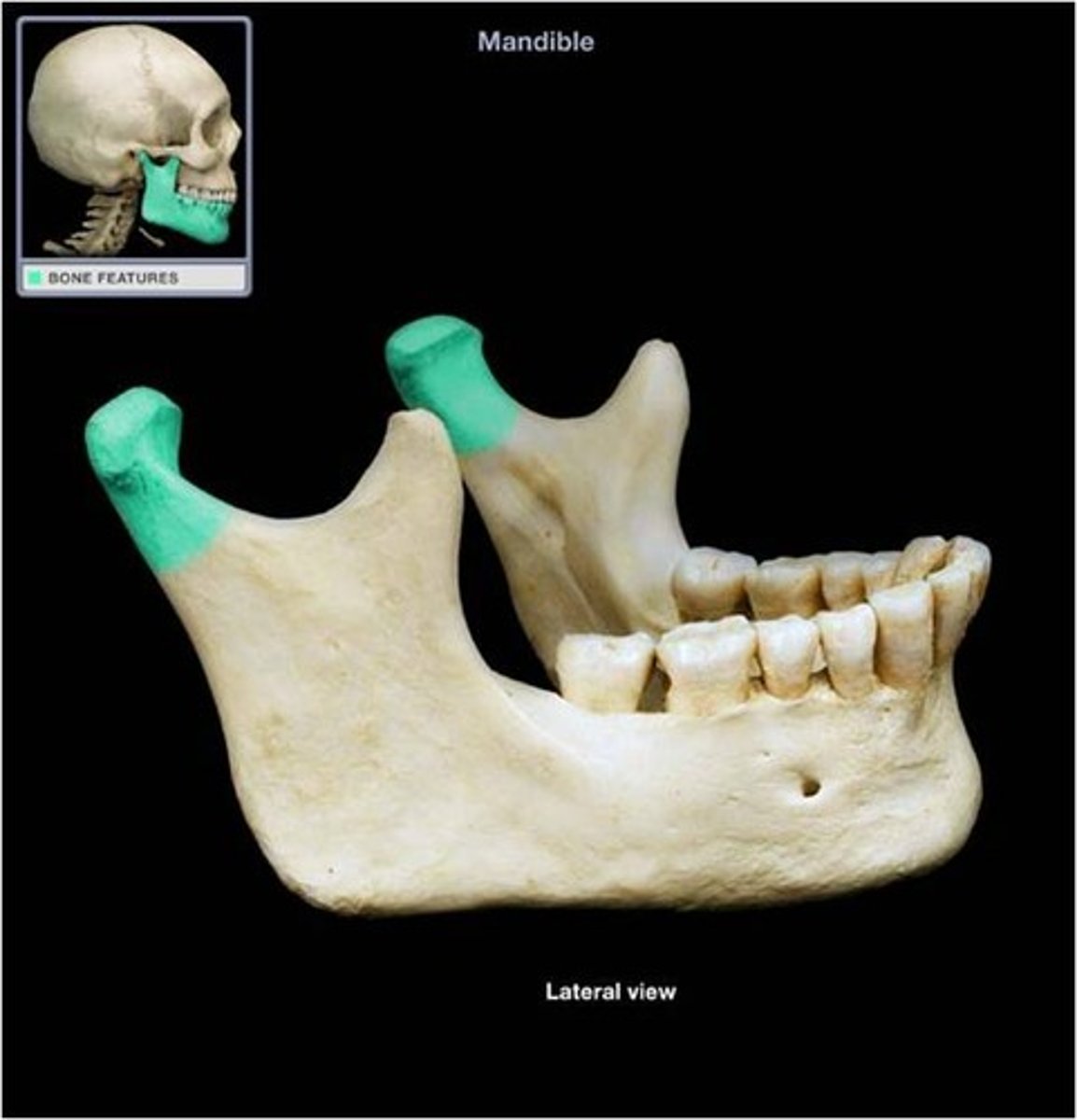

condylar process

body of mandible

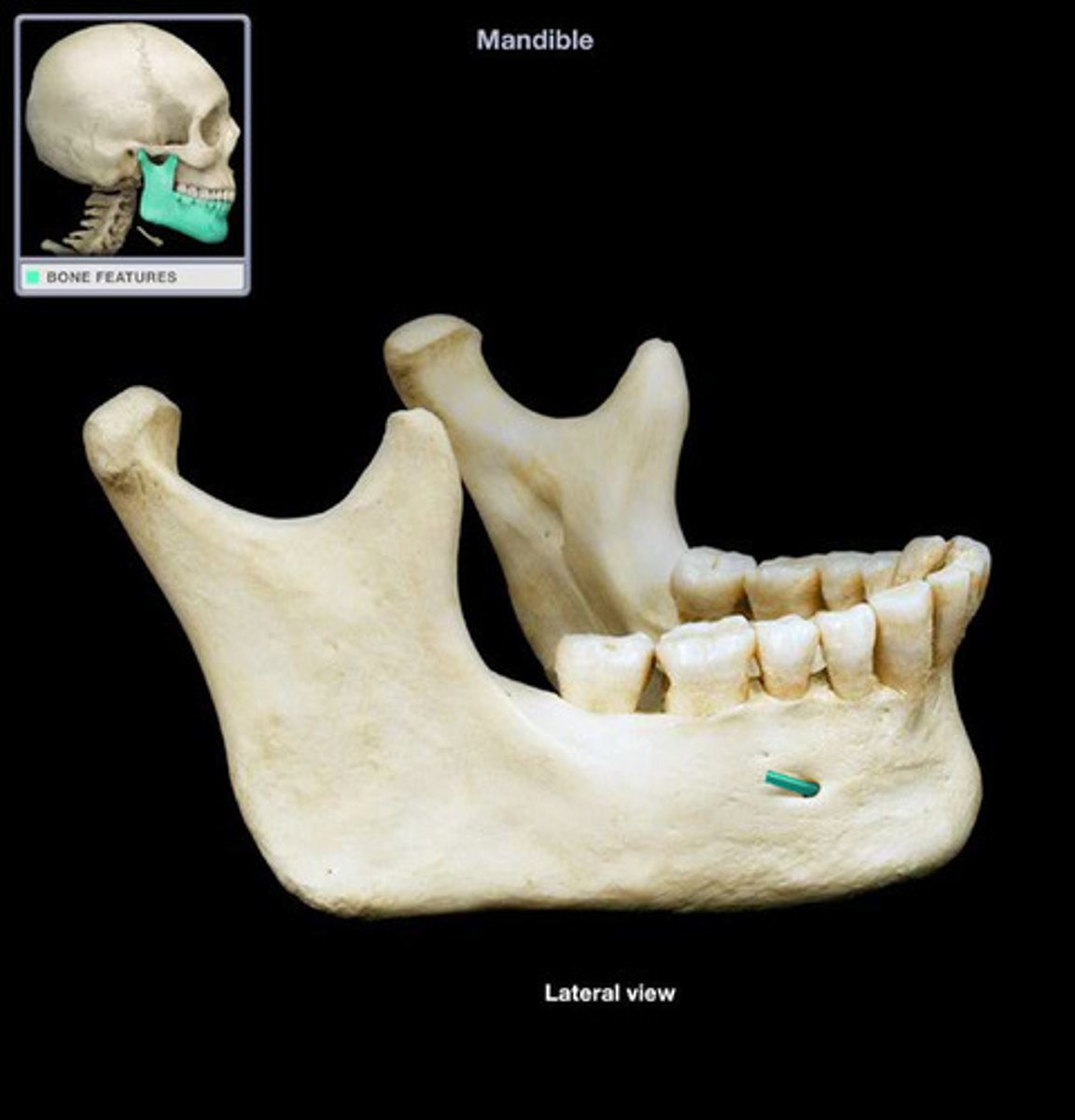

mental foramen

sphenoid bone

greater wing of sphenoid bone

lesser wing of sphenoid bone

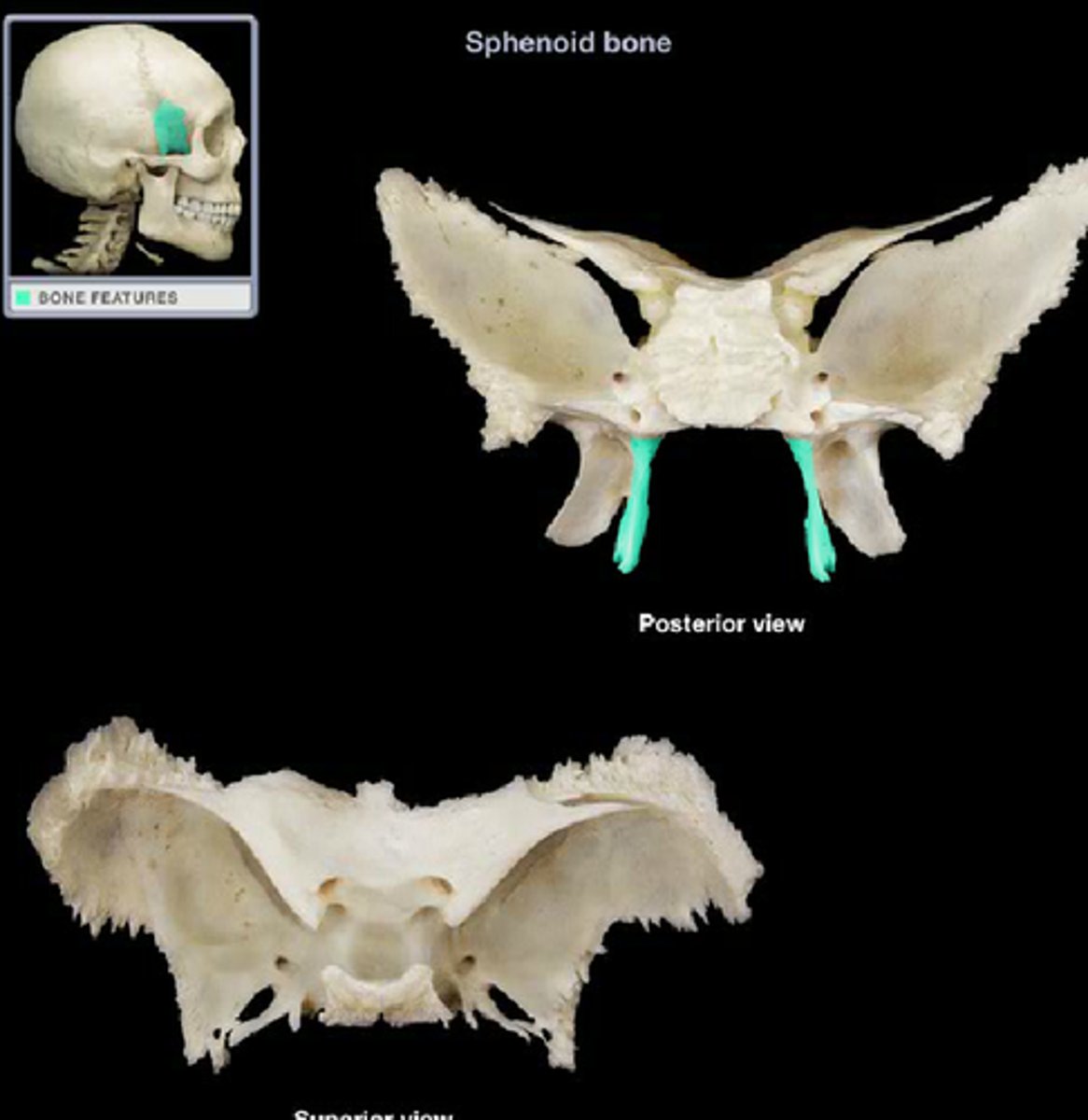

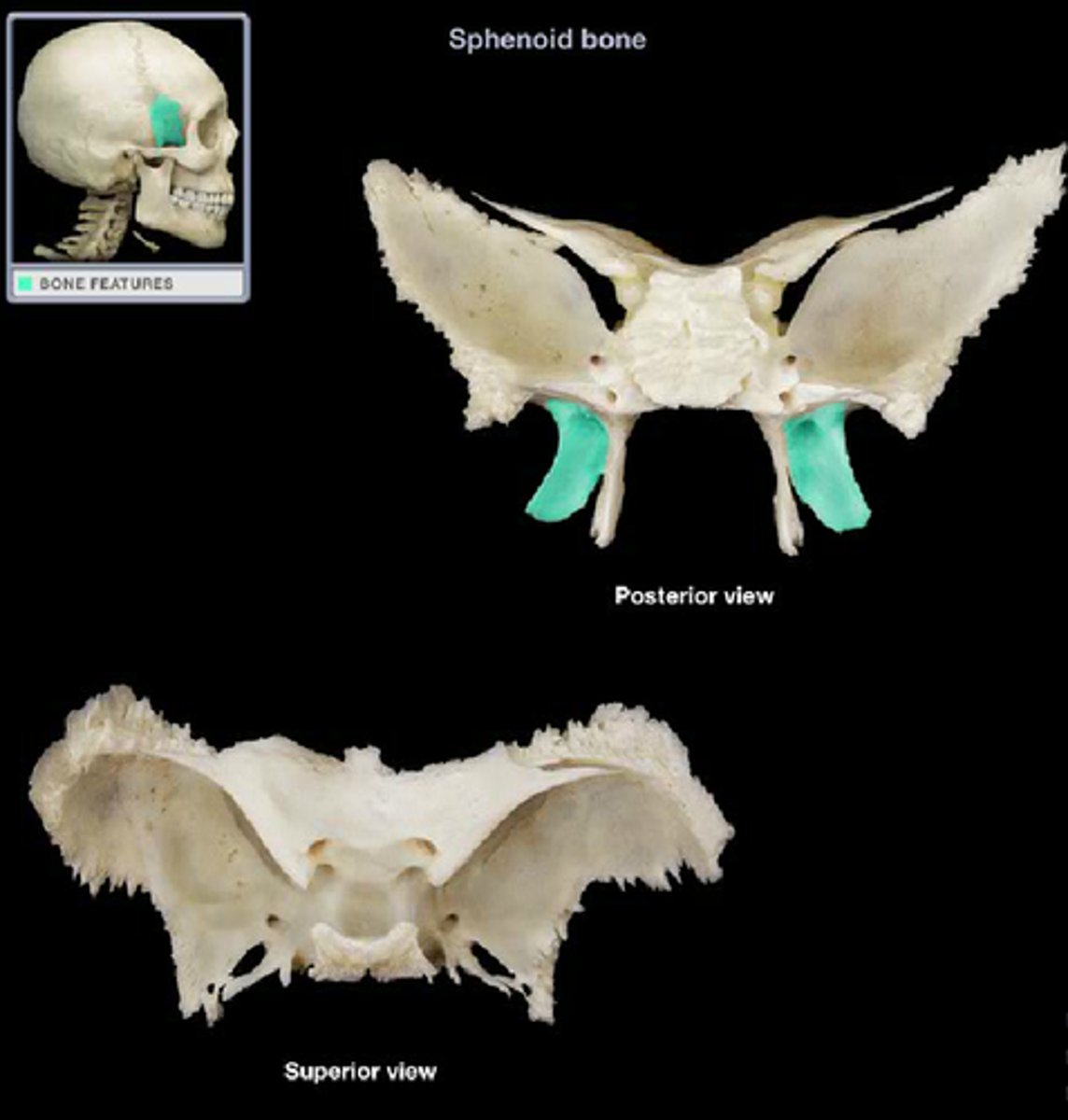

lateral pterygoid plate

medial pterygoid plate

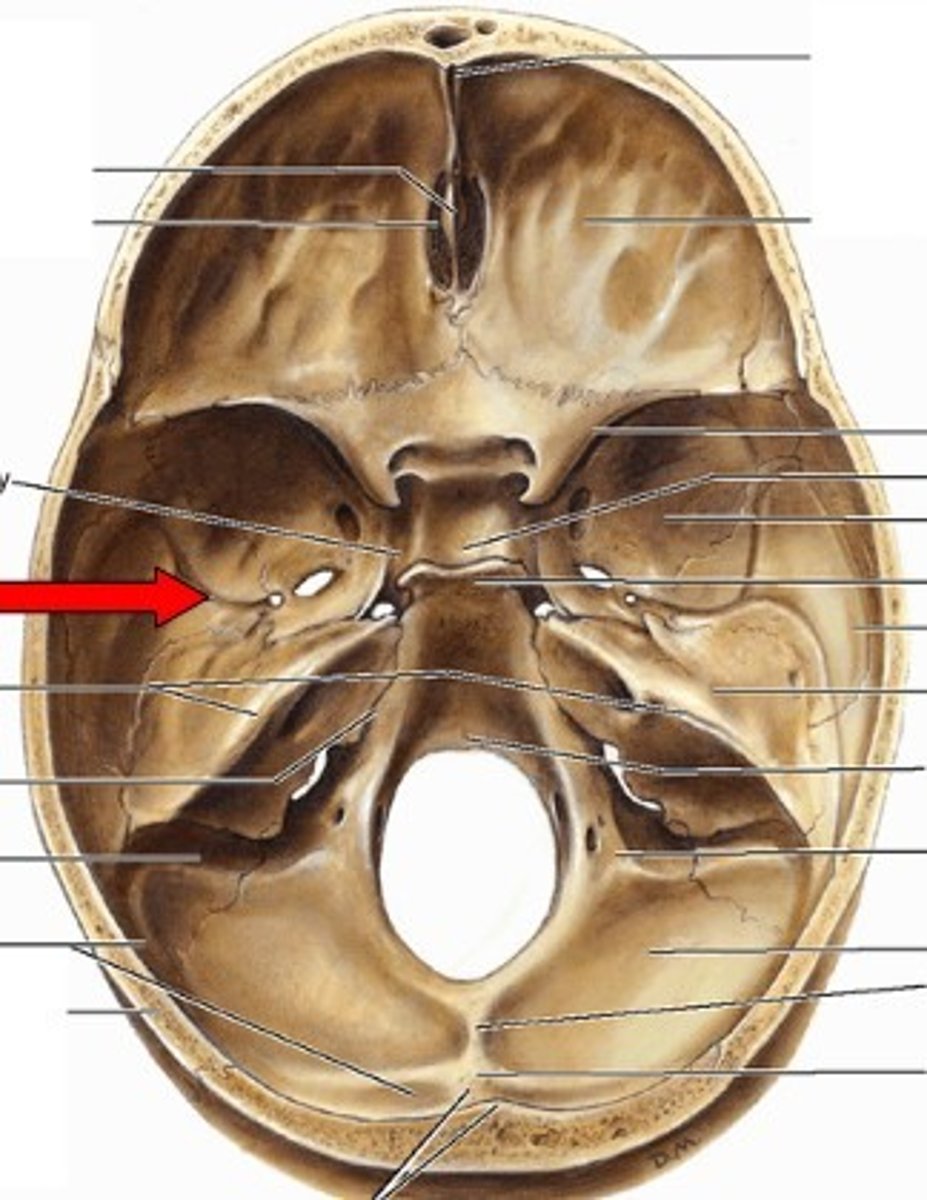

anterior cranial fossa

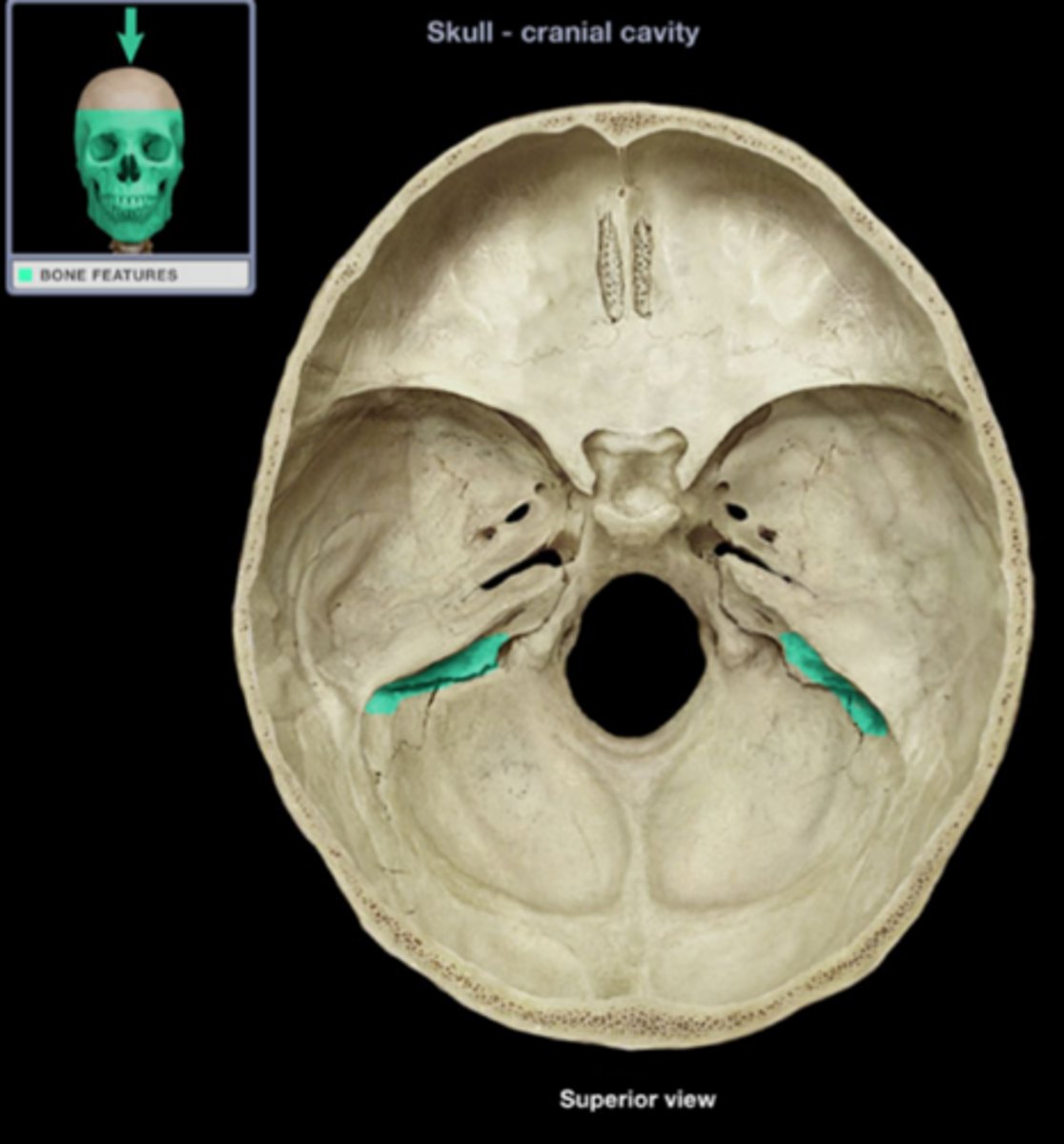

middle cranial fossa

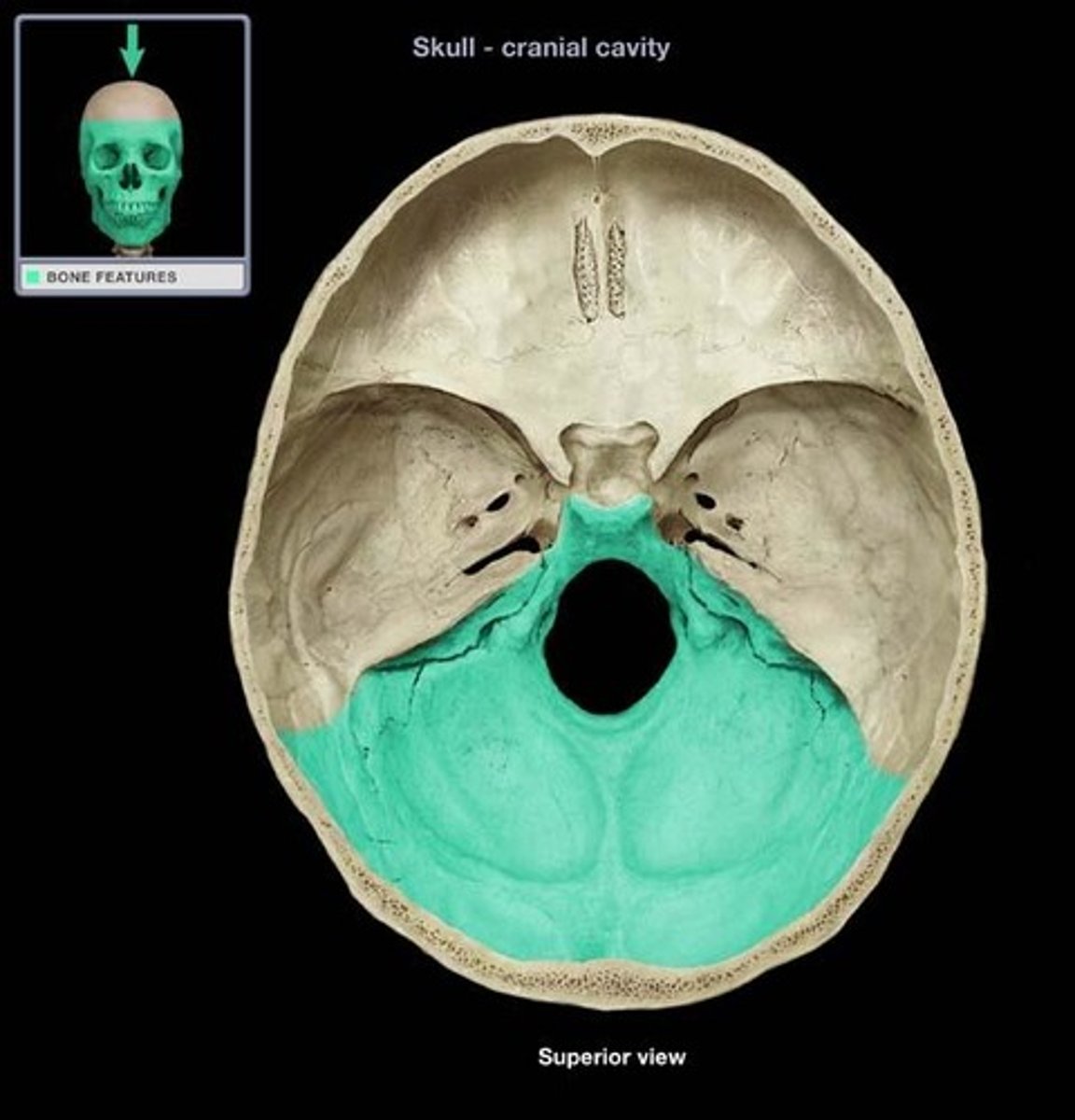

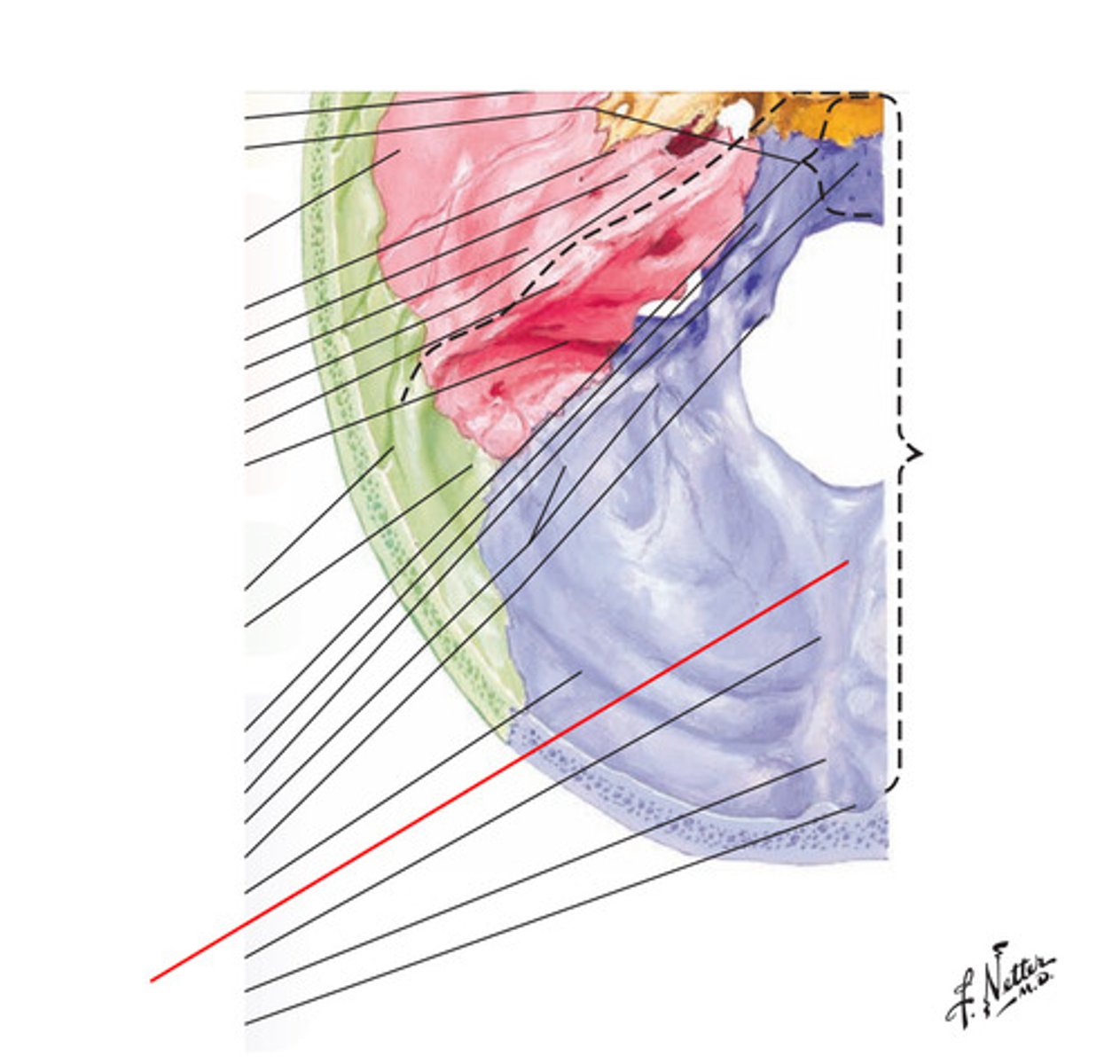

posterior cranial fossa

ethmoid bone

crista galli

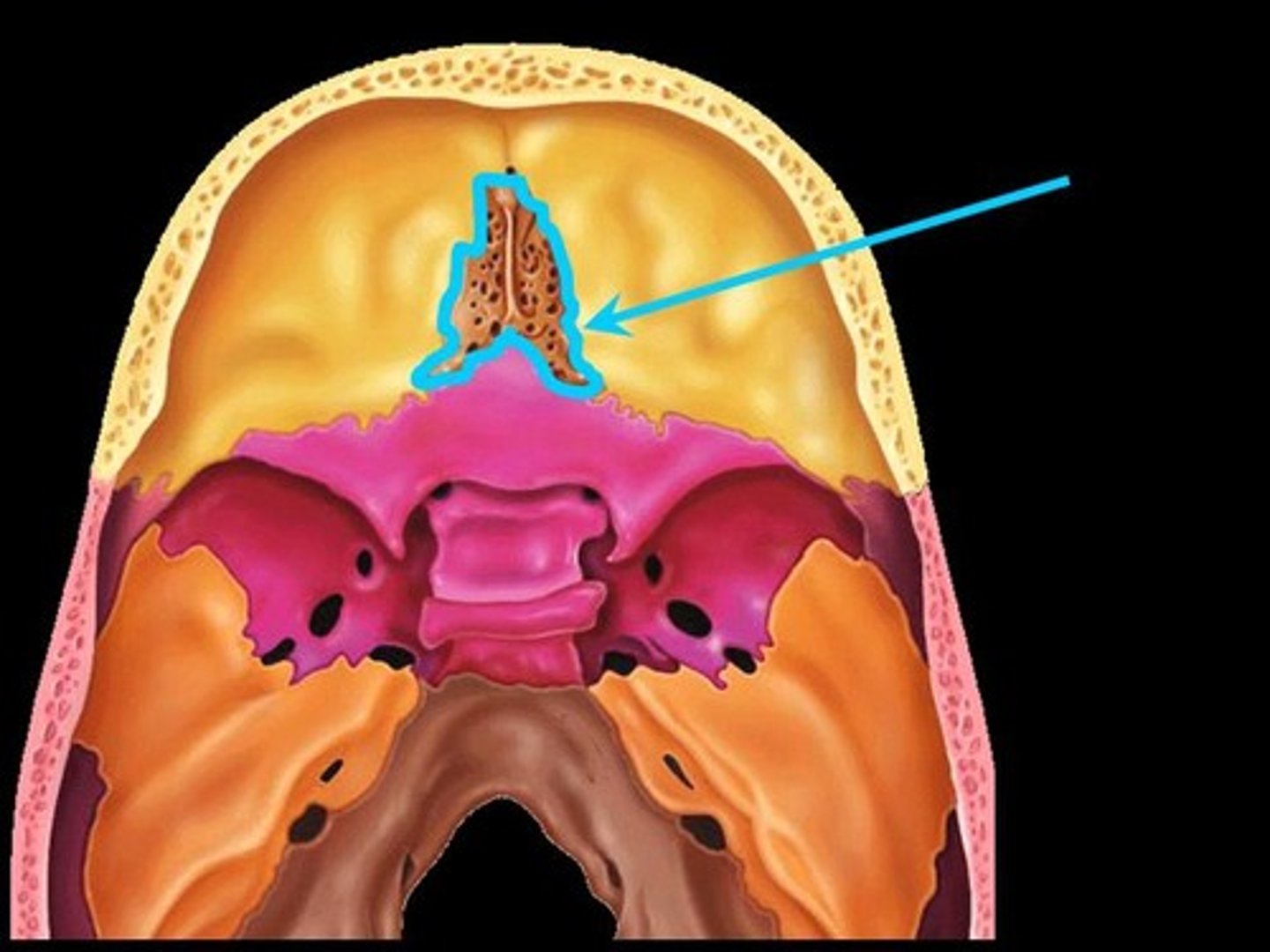

Cribiform plate of ethmoid

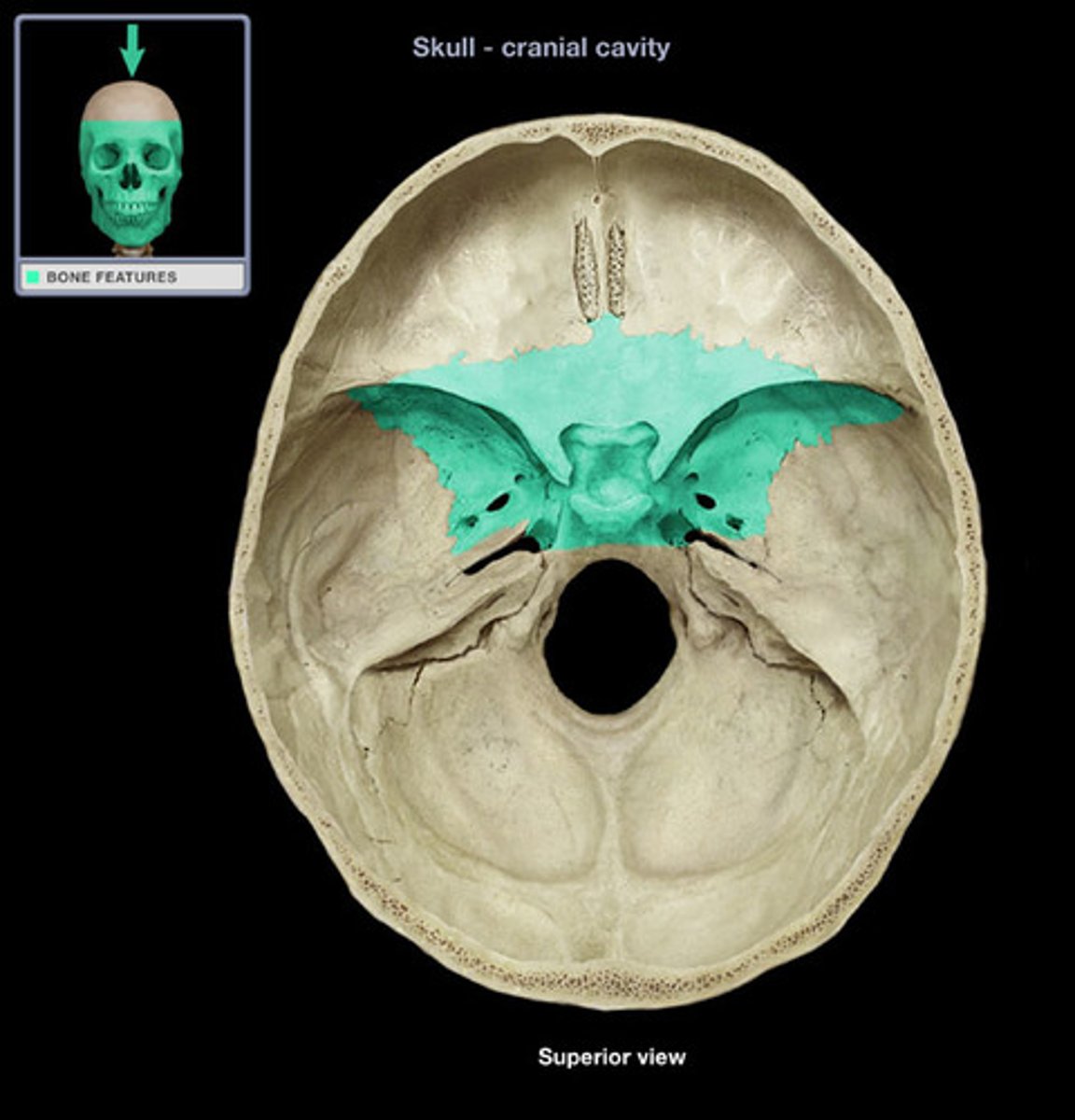

Sphenoid

greater wing of sphenoid bone

lesser wing of sphenoid bone

anterior clinoid process

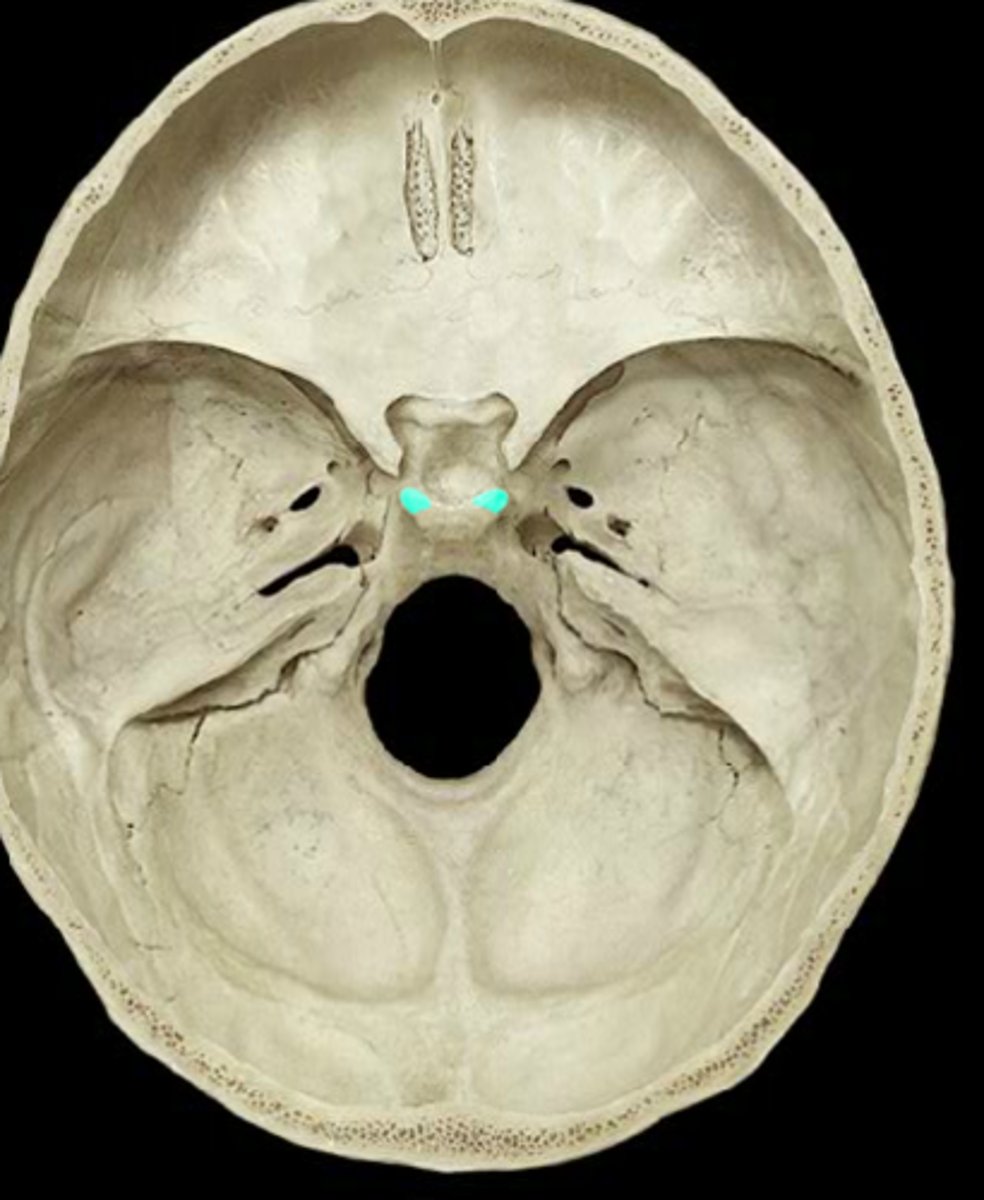

posterior clinoid process

hypophyseal fossa

dorsum sellae

sella turcica

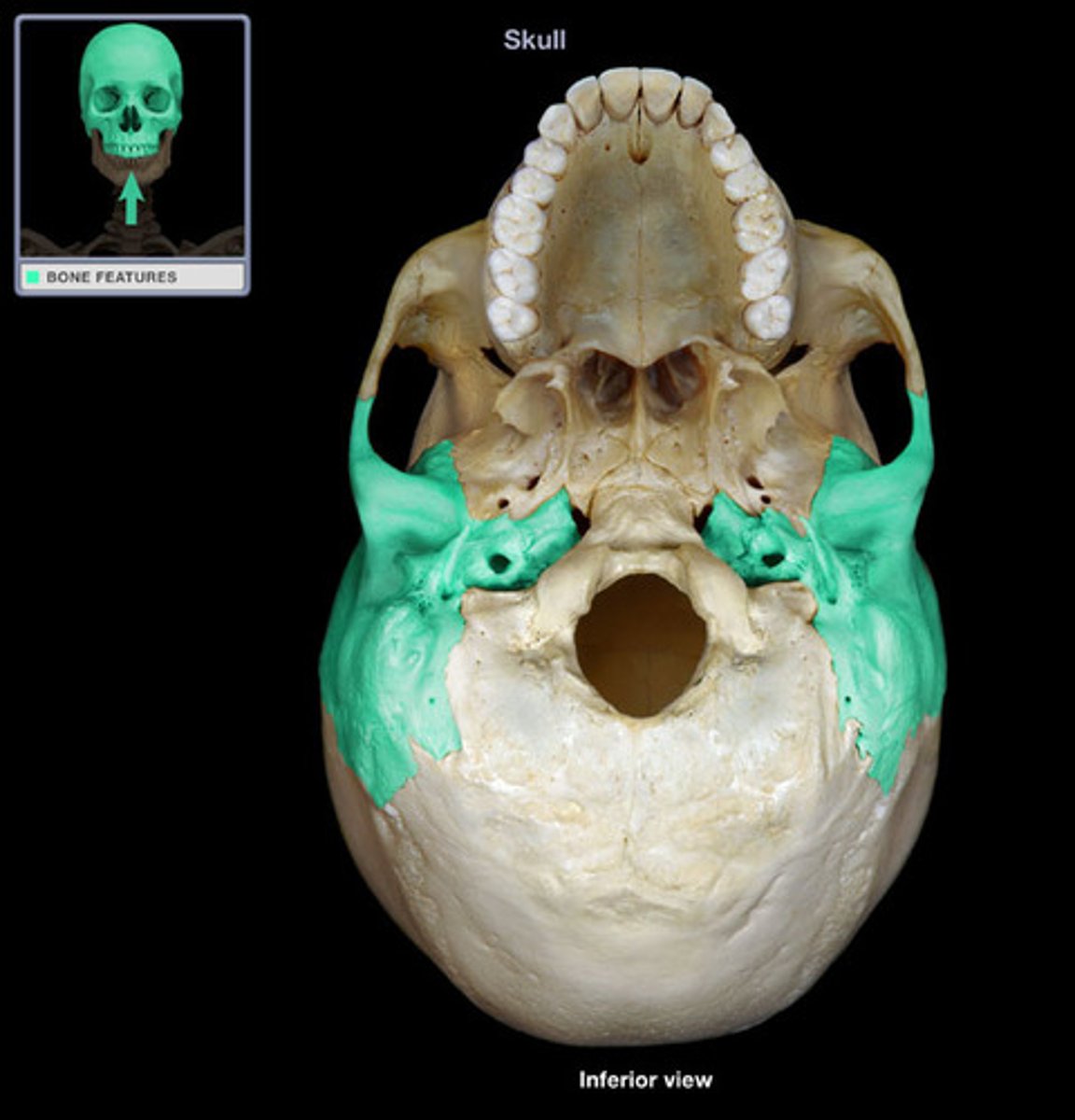

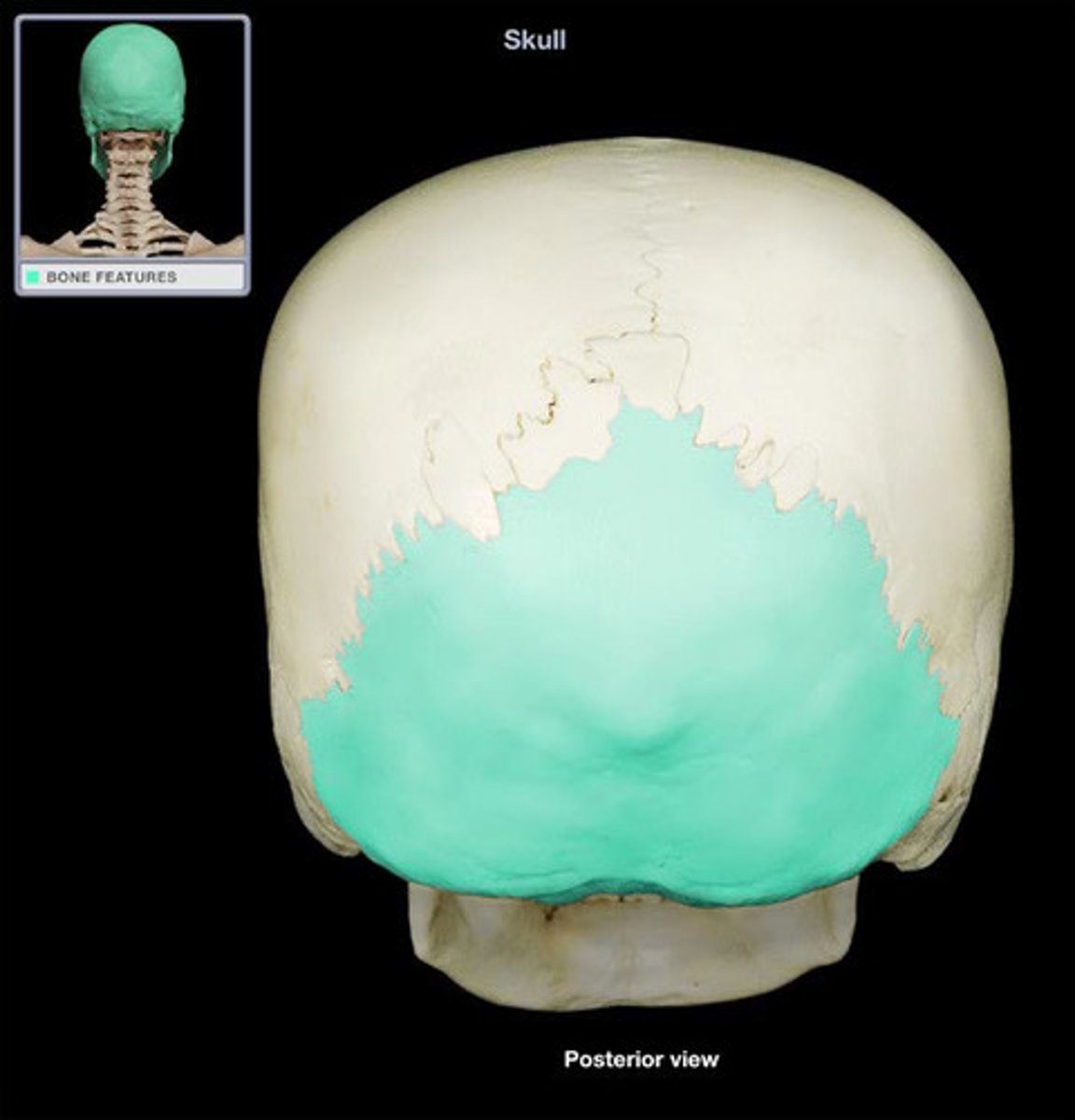

occipital bone (skull)

occipital condyles (inferior view)

occipital condyles (superior view)

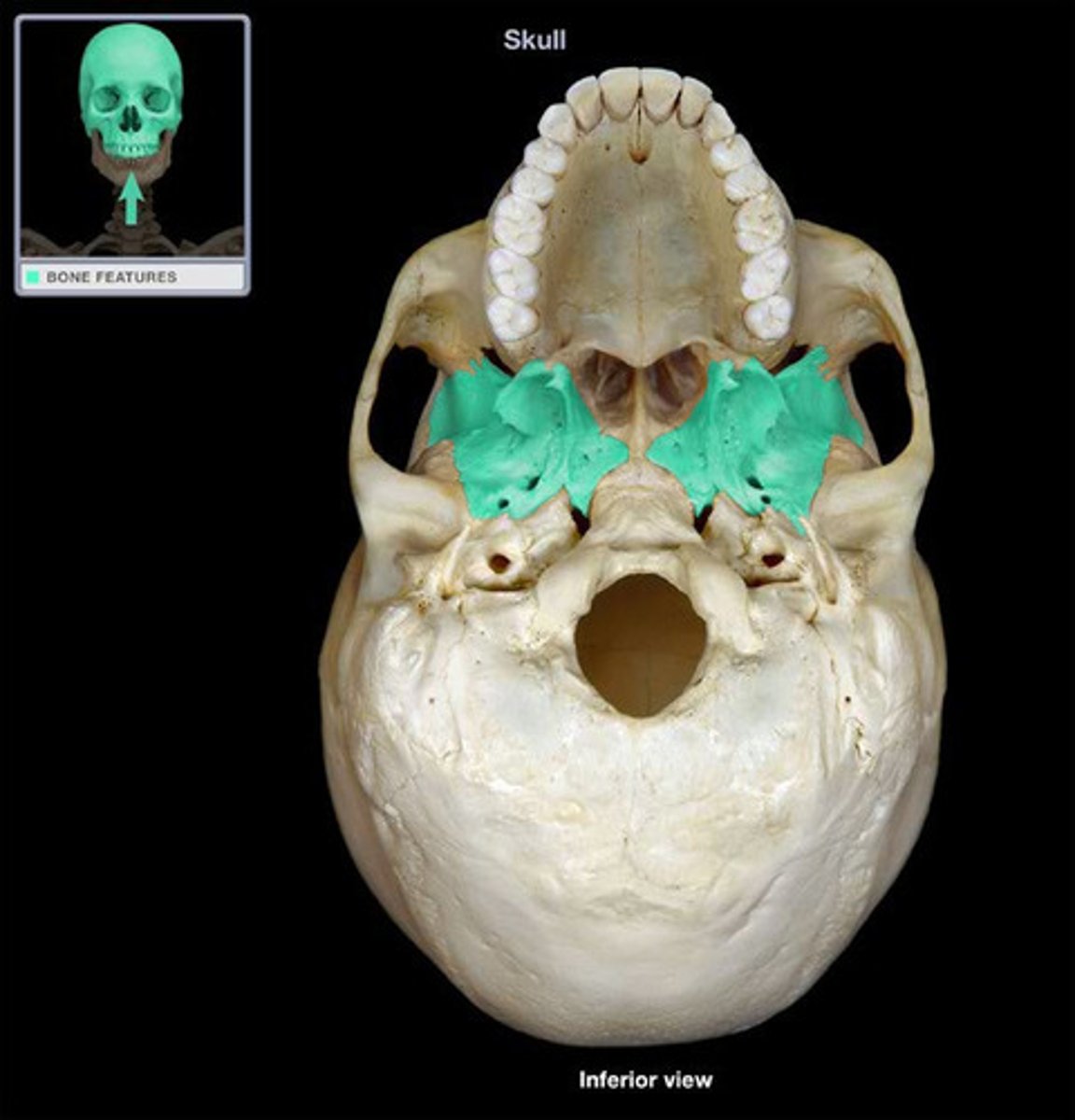

sphenoid bone (inferior)

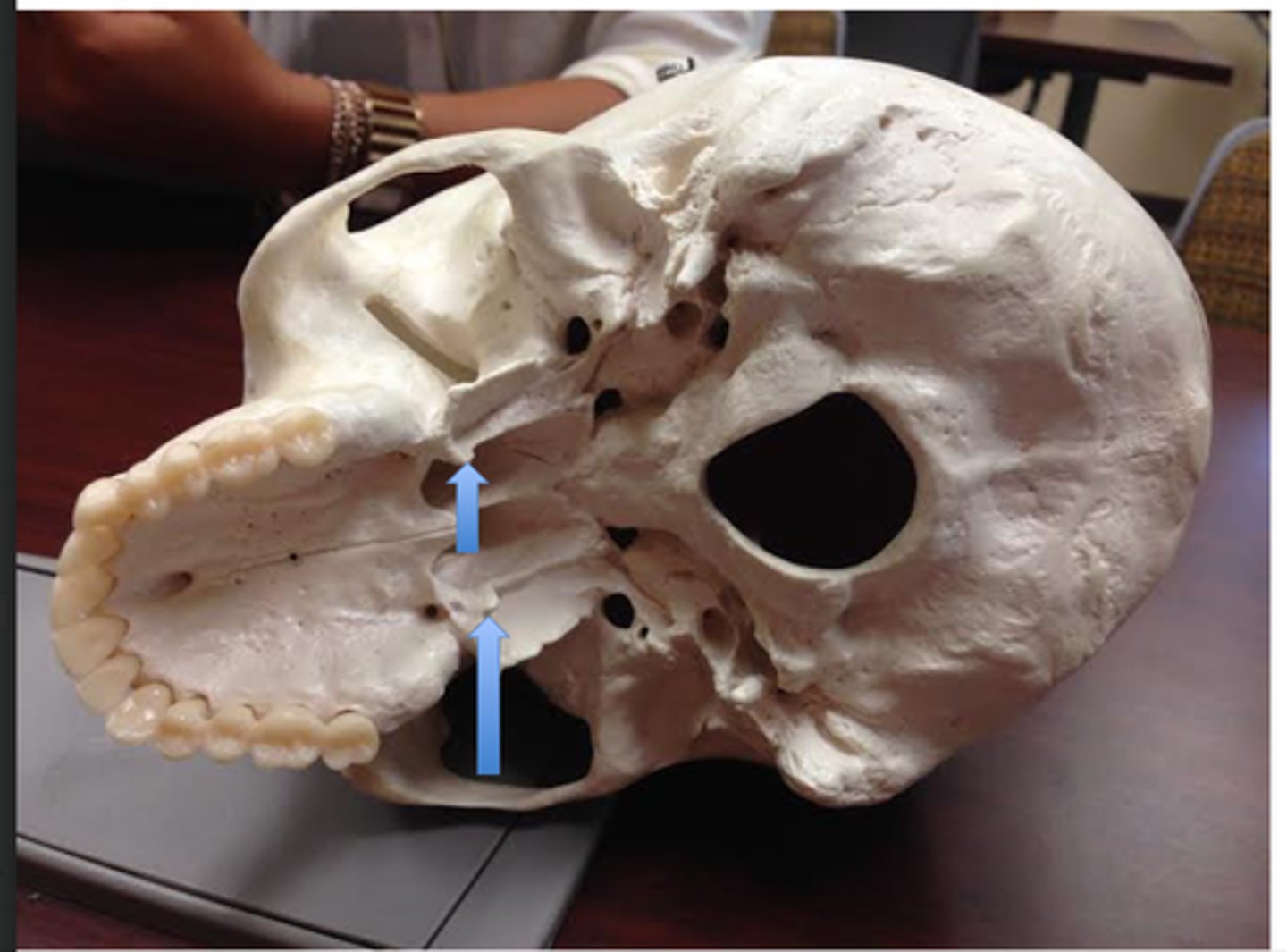

lateral pterygoid plate (inferior)

medial pterygoid plate (inferior)

Hamulus

tensor veli palatini muscle slides around it

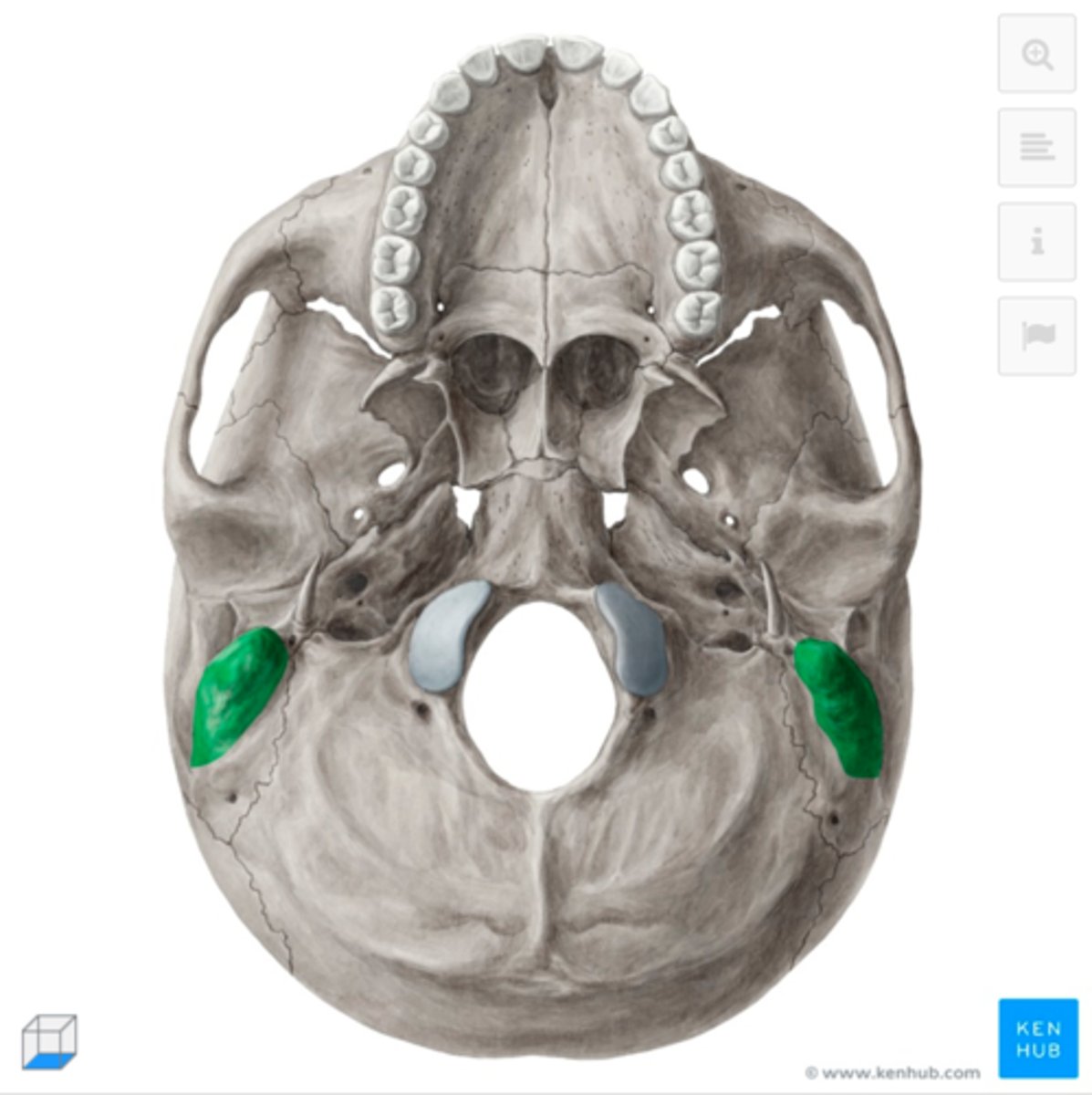

temporal bone (inferior view)

mastoid process (inferior view)

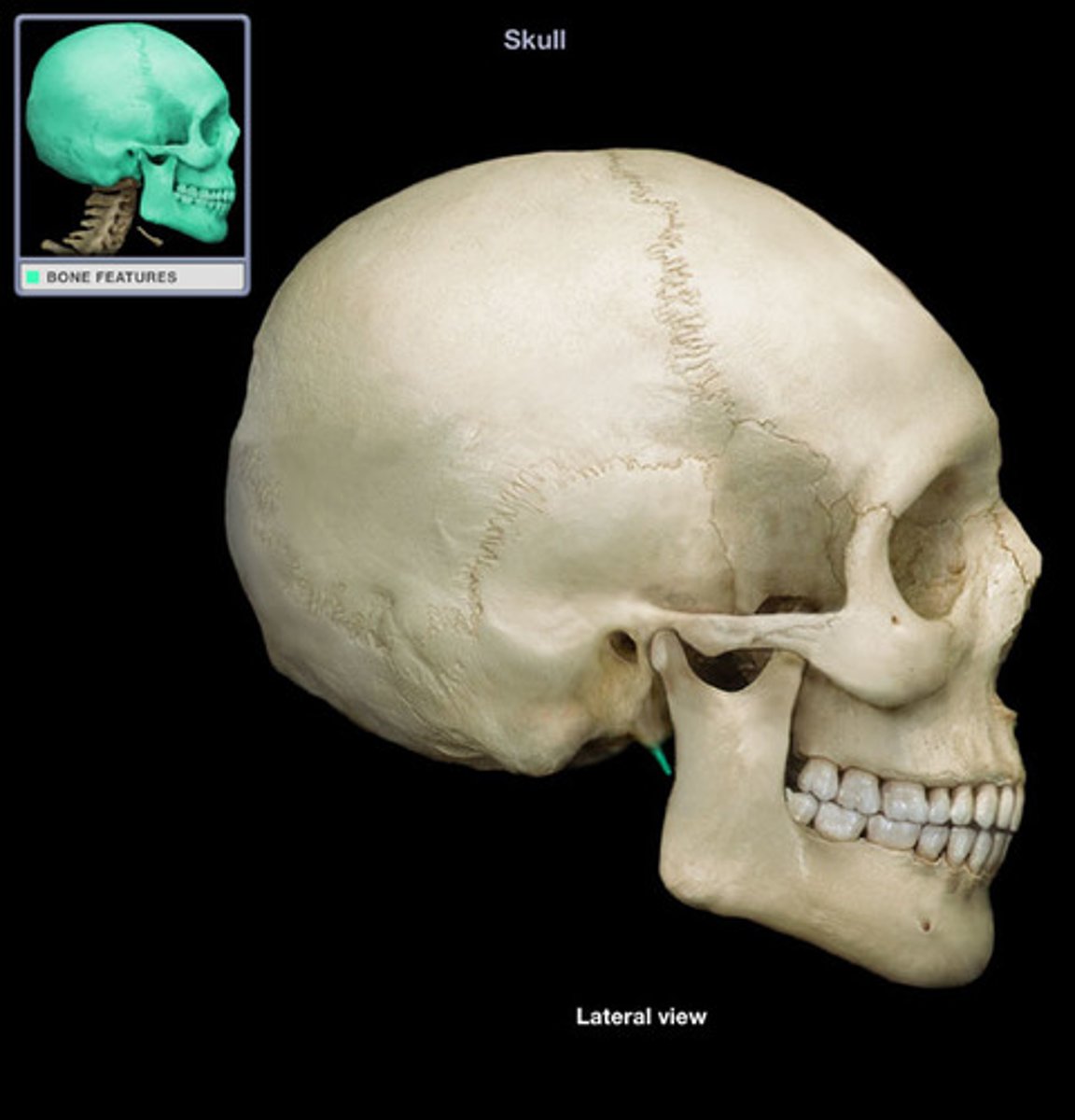

styloid process (inferior view)

coronal suture

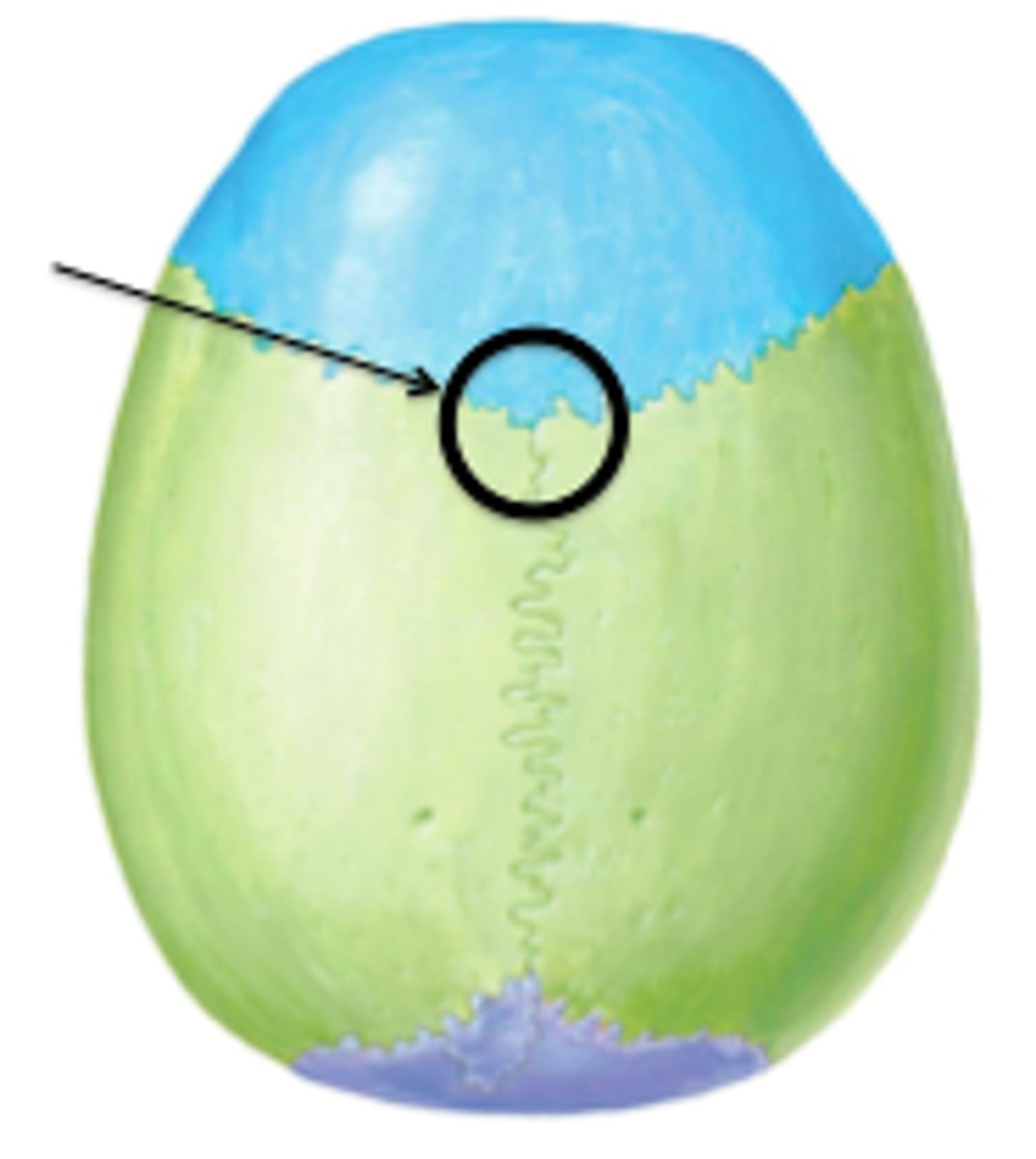

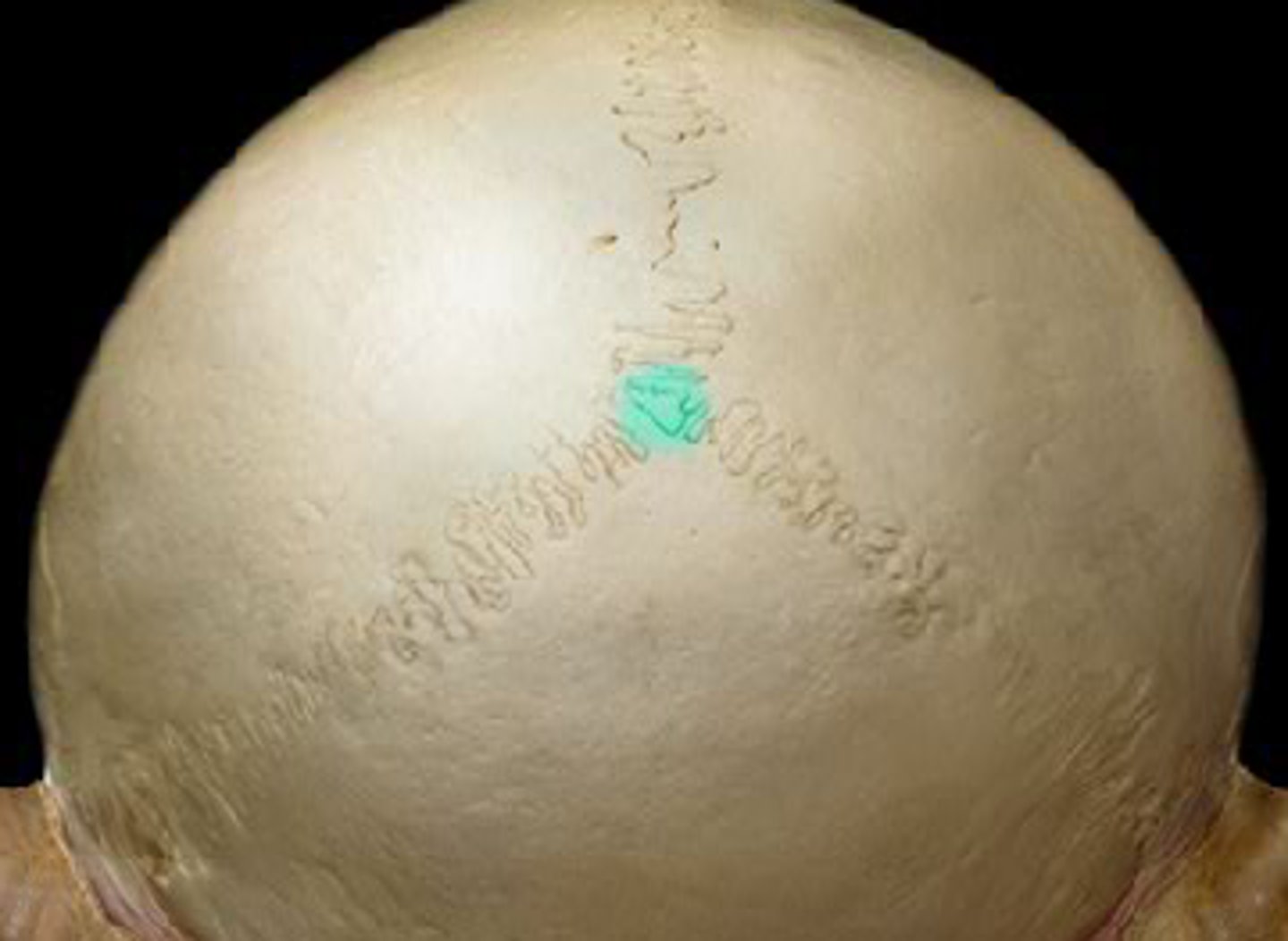

Bregma

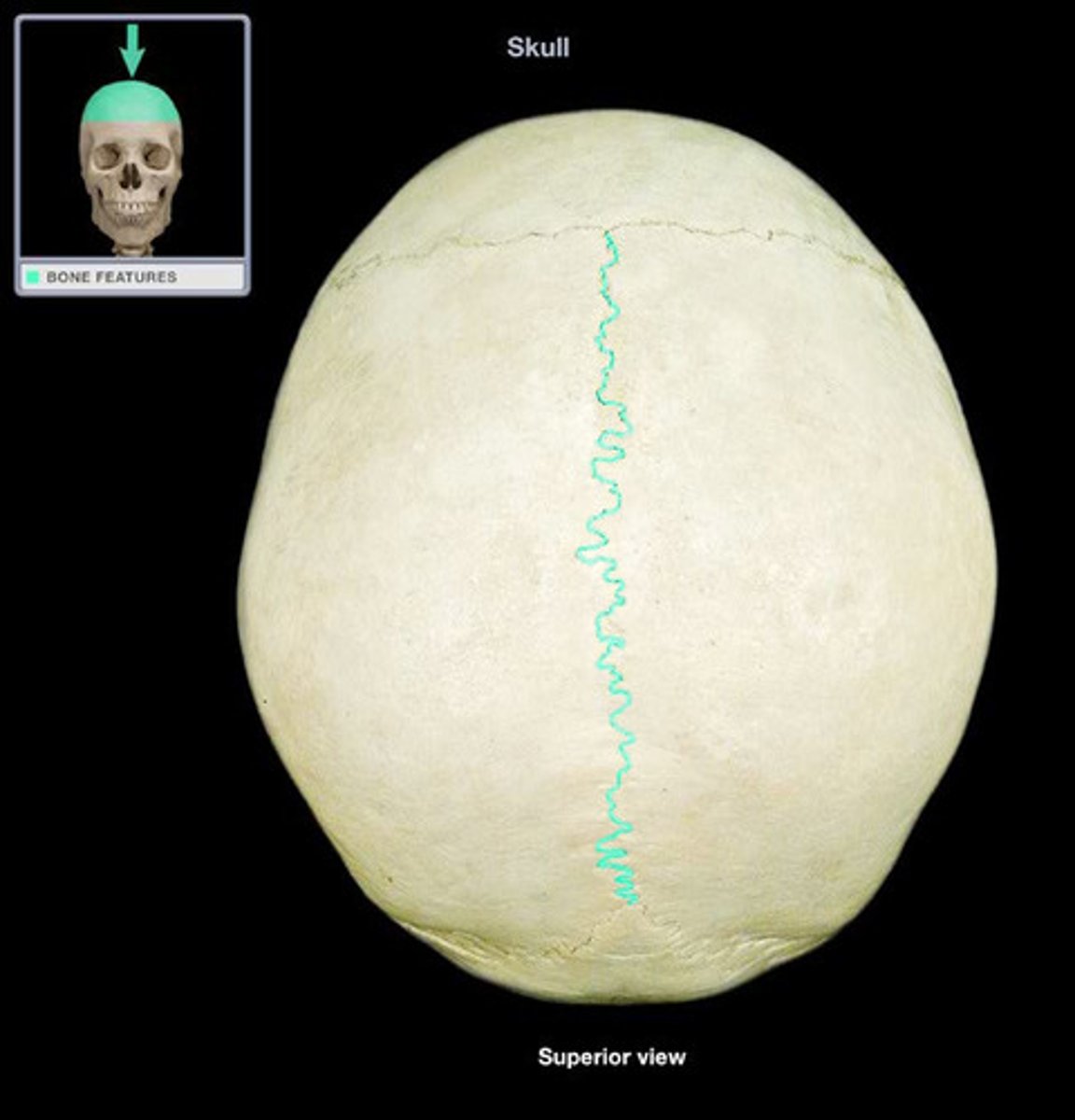

sagittal suture

Lambda

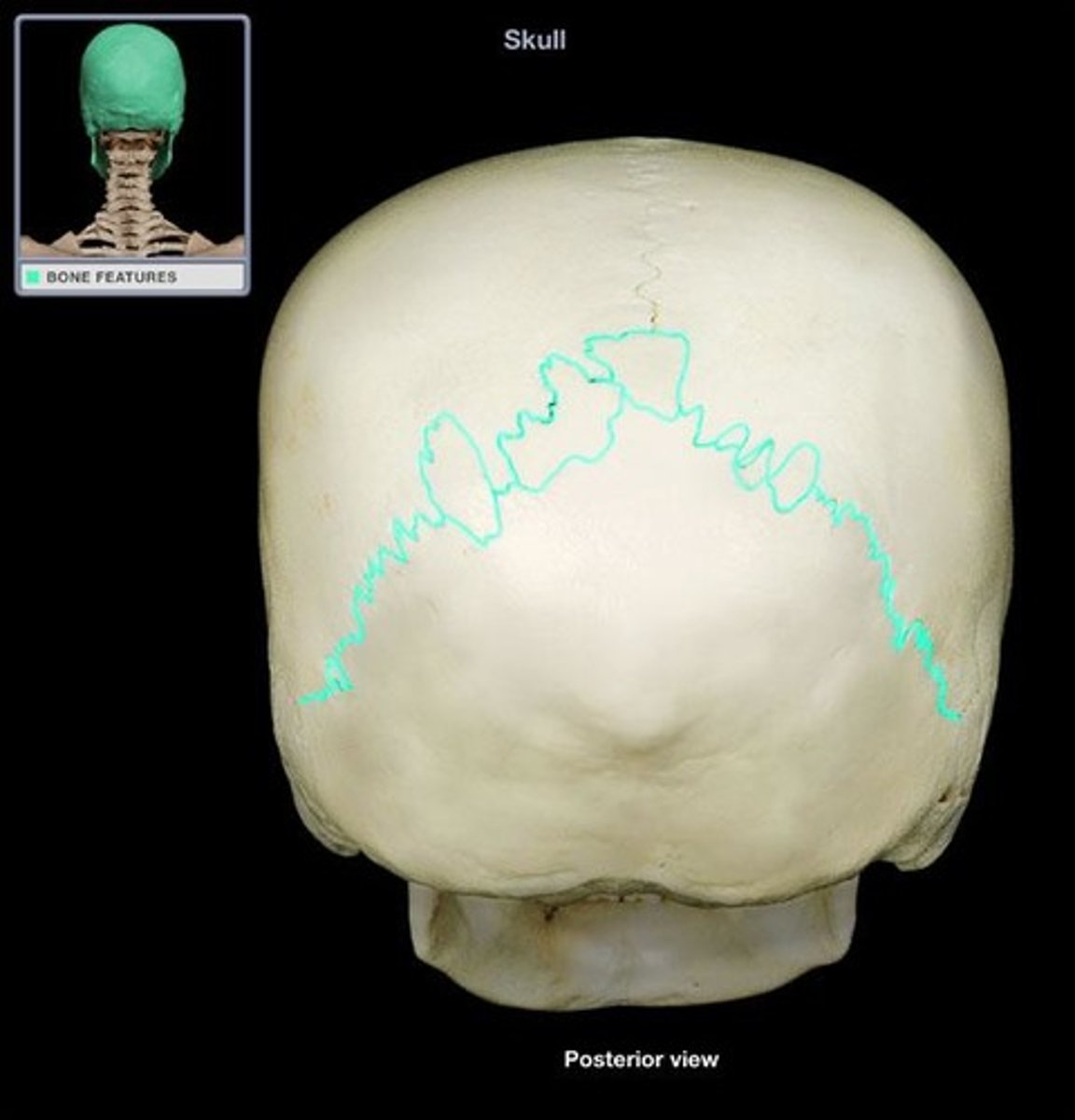

lamboid suture

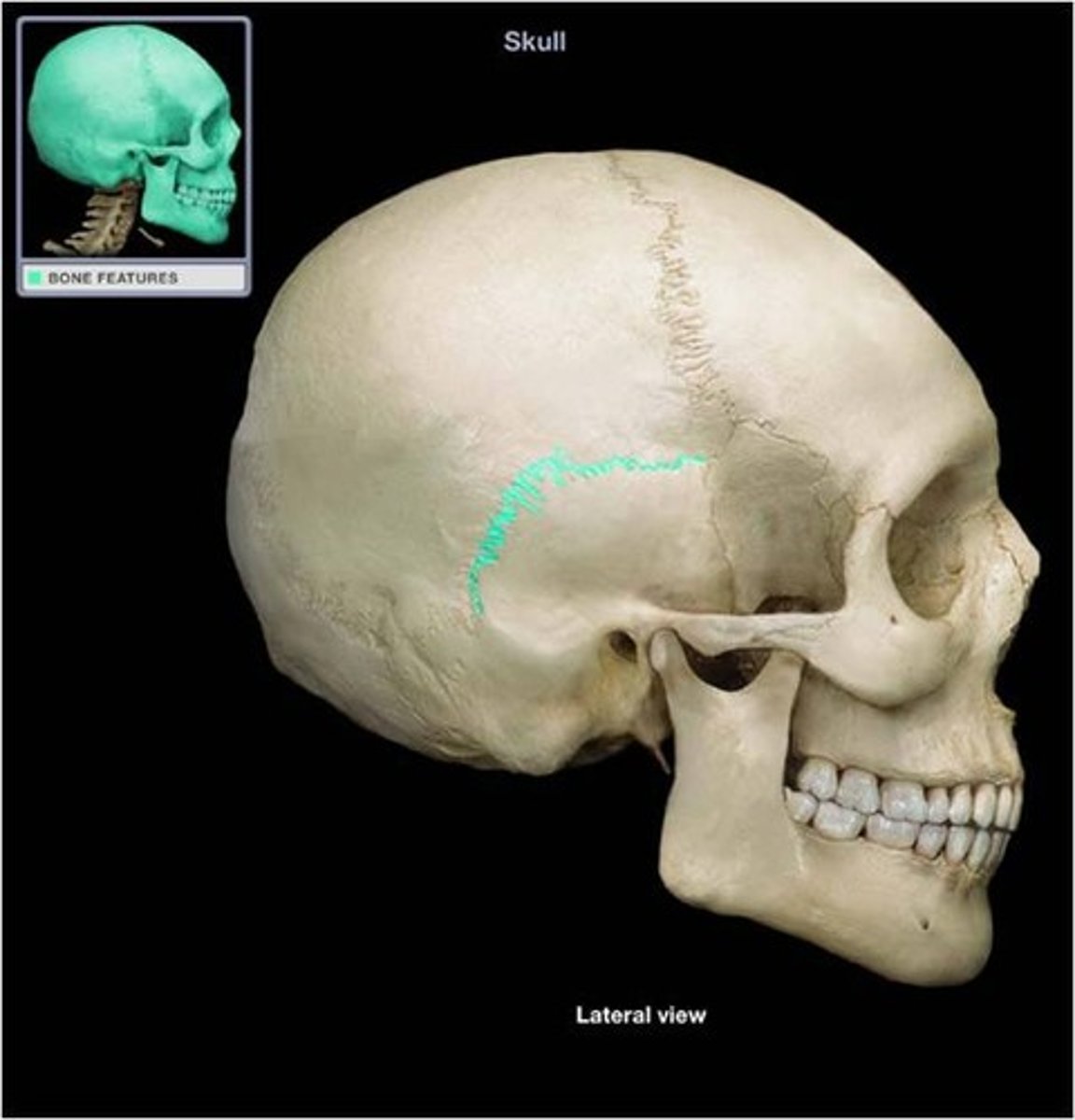

squamosal suture

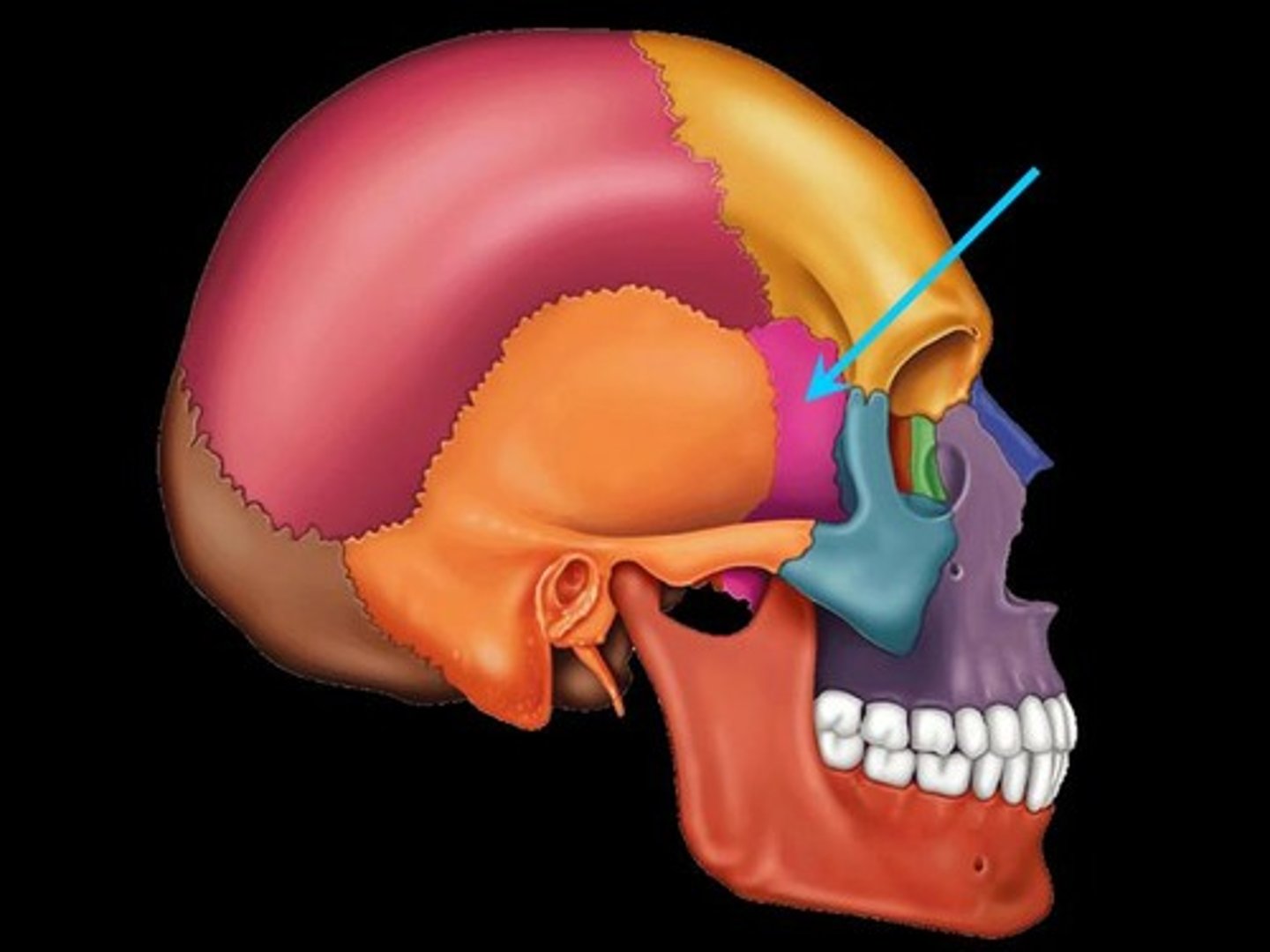

Pterion

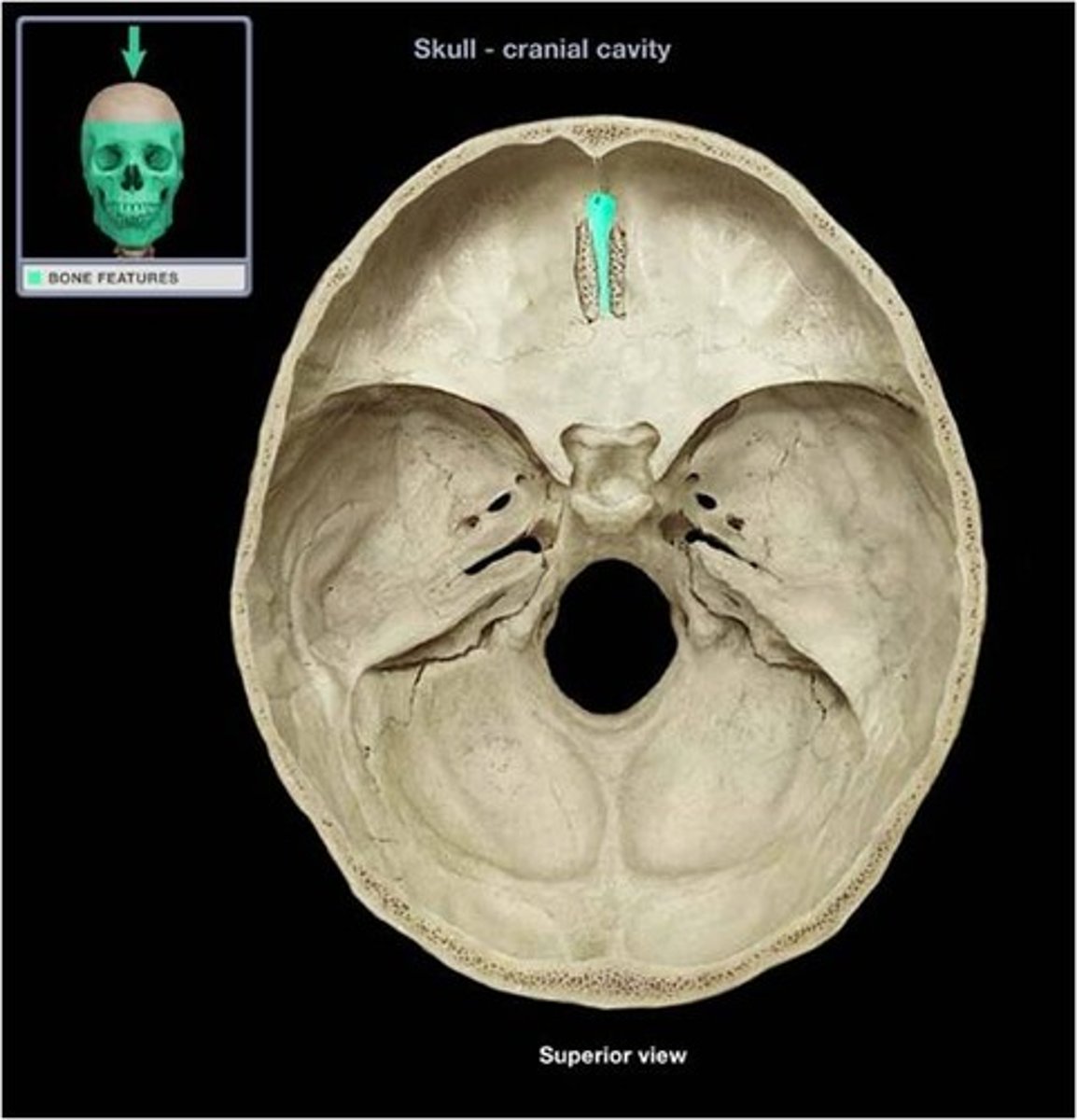

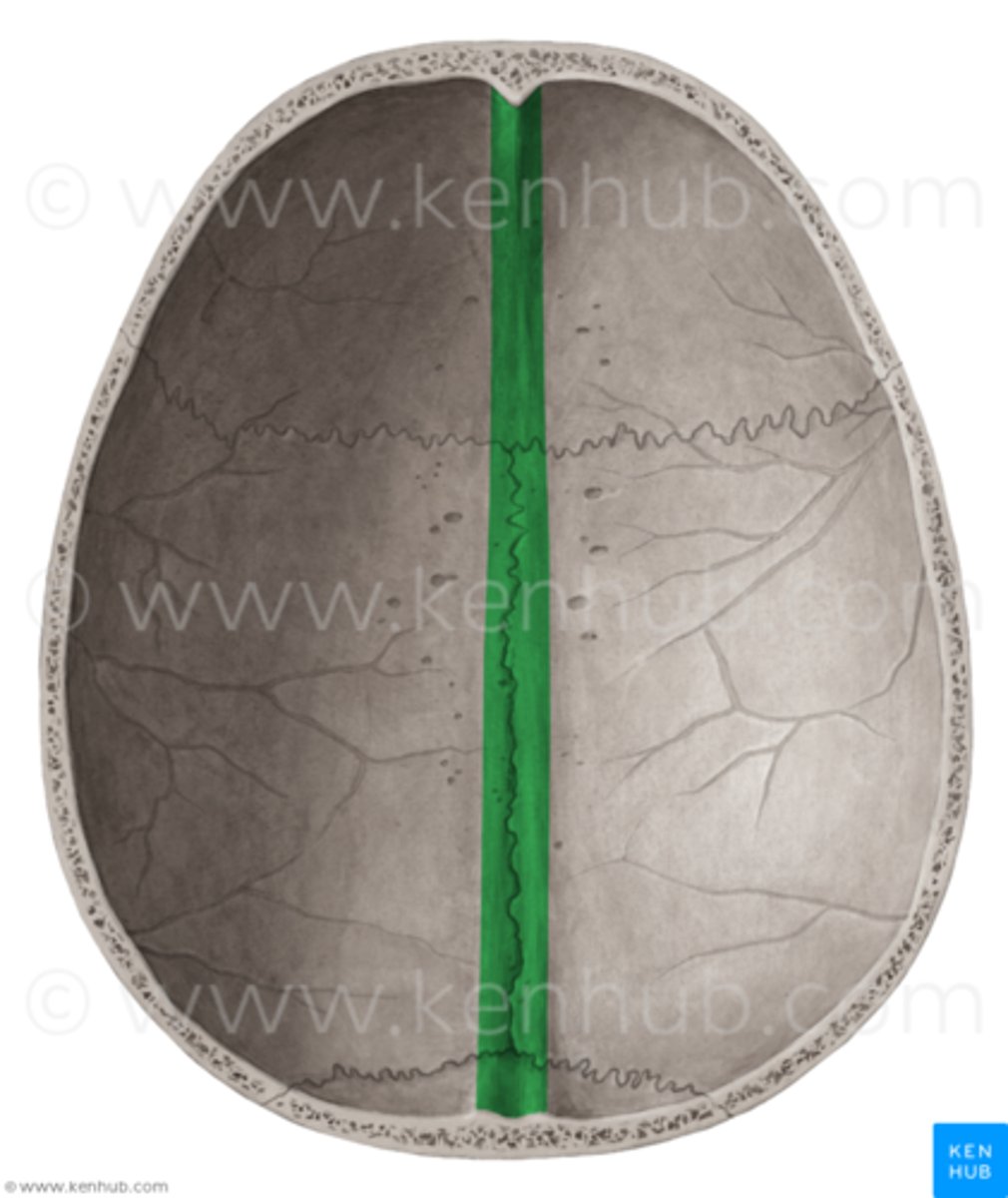

groove for superior sagittal sinus

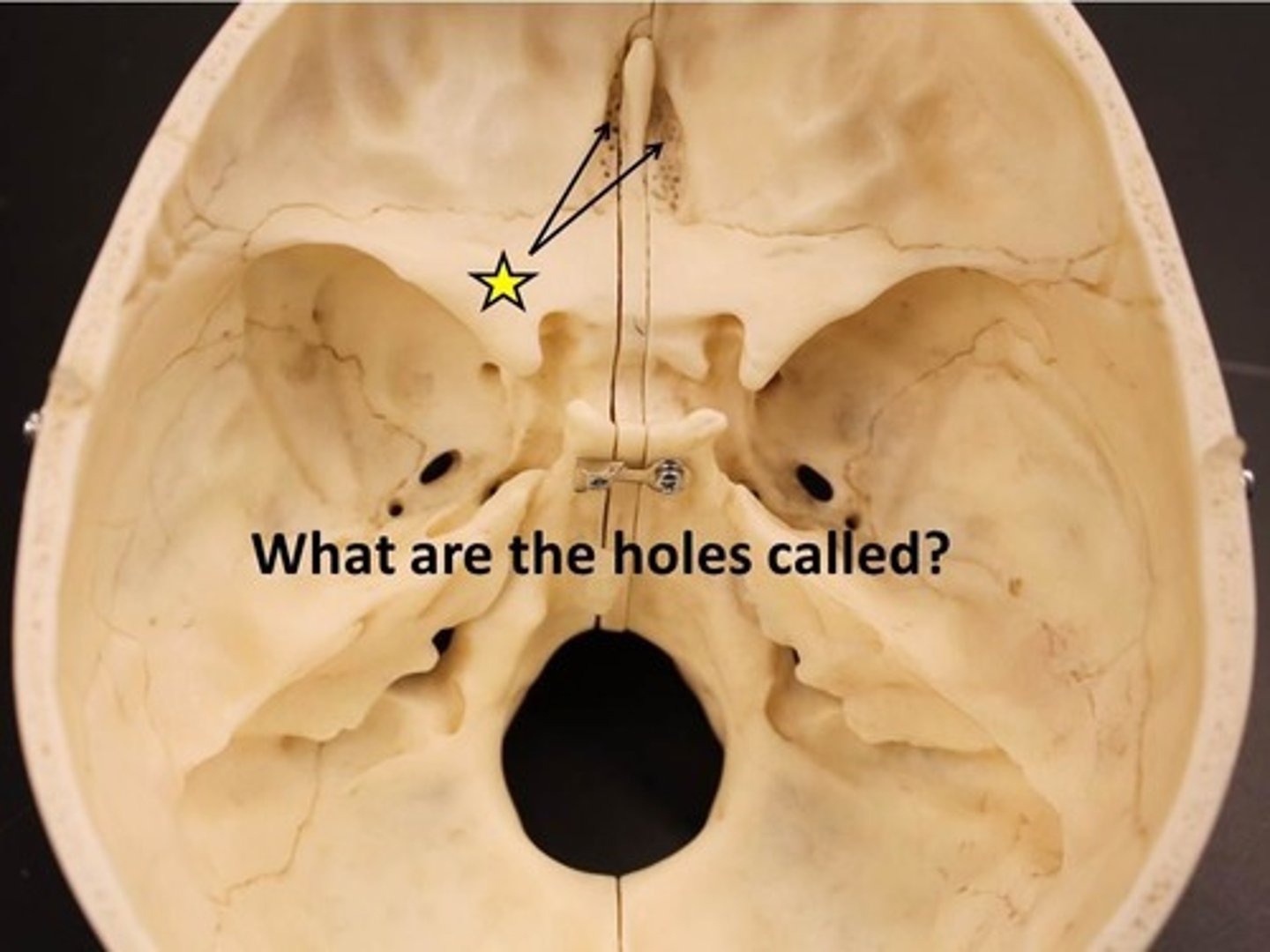

cribiform foramina

CN I

optic canal

CN II and ophthalmic artery

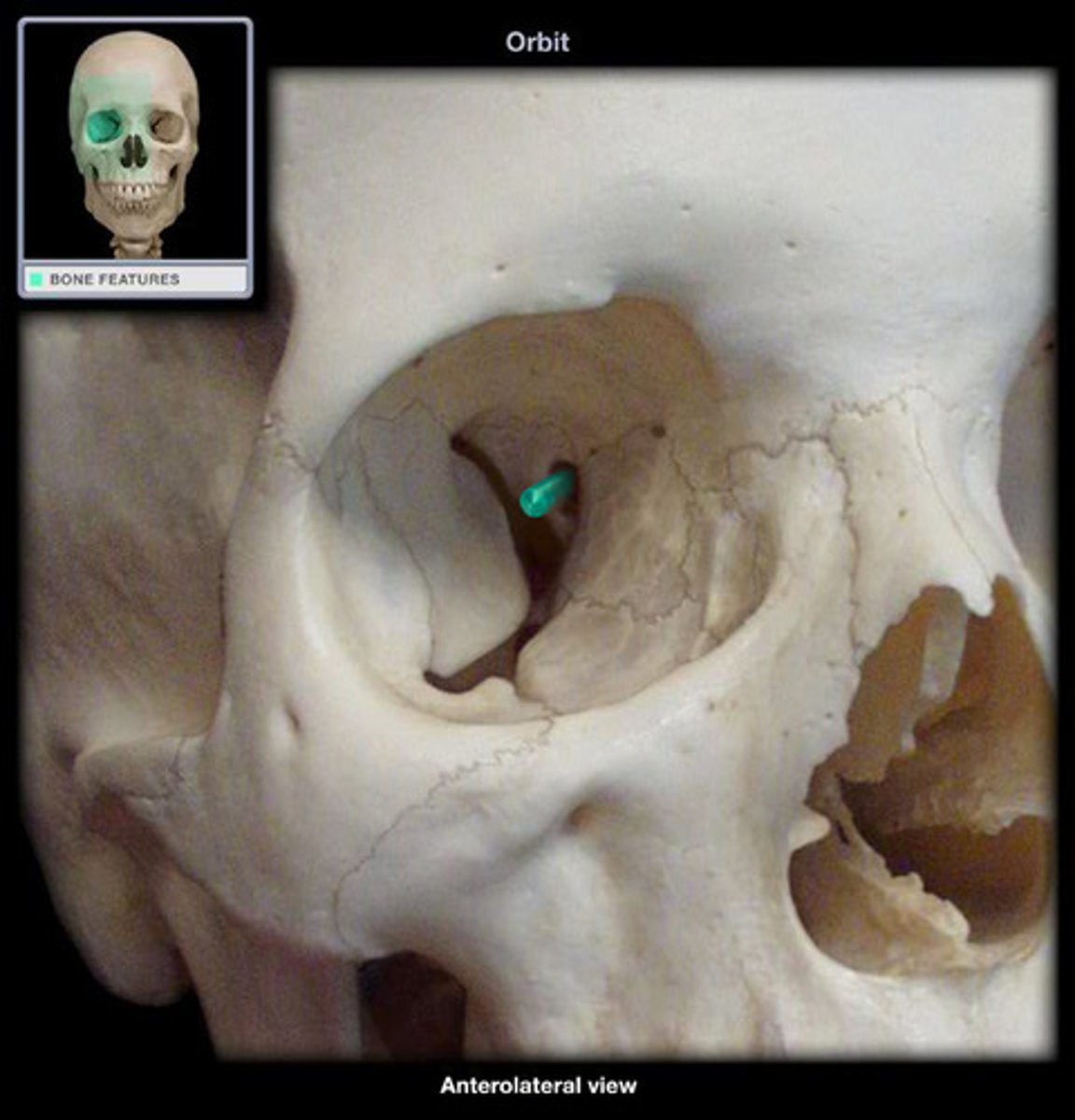

optic canal

CN II and ophthalmic artery

superior orbital fissure

CN III, IV, V1, VI and the superior ophthalmic vein

superior orbital fissure

CN III, IV, V1, VI and the superior ophthalmic vein

inferior orbital fissure

Zygomatic branch (CN VII), infraorbital artery, infraorbital vein

foramen rotundum

CN V2

foramen ovale

CN V3, lesser petrosal nerve (branch of CN IX)

foramen lacerum

covered with cartilage

carotid canal (inferior view)

internal carotid artery, carotid plexus of nerves

foramen spinosum

middle meningeal artery

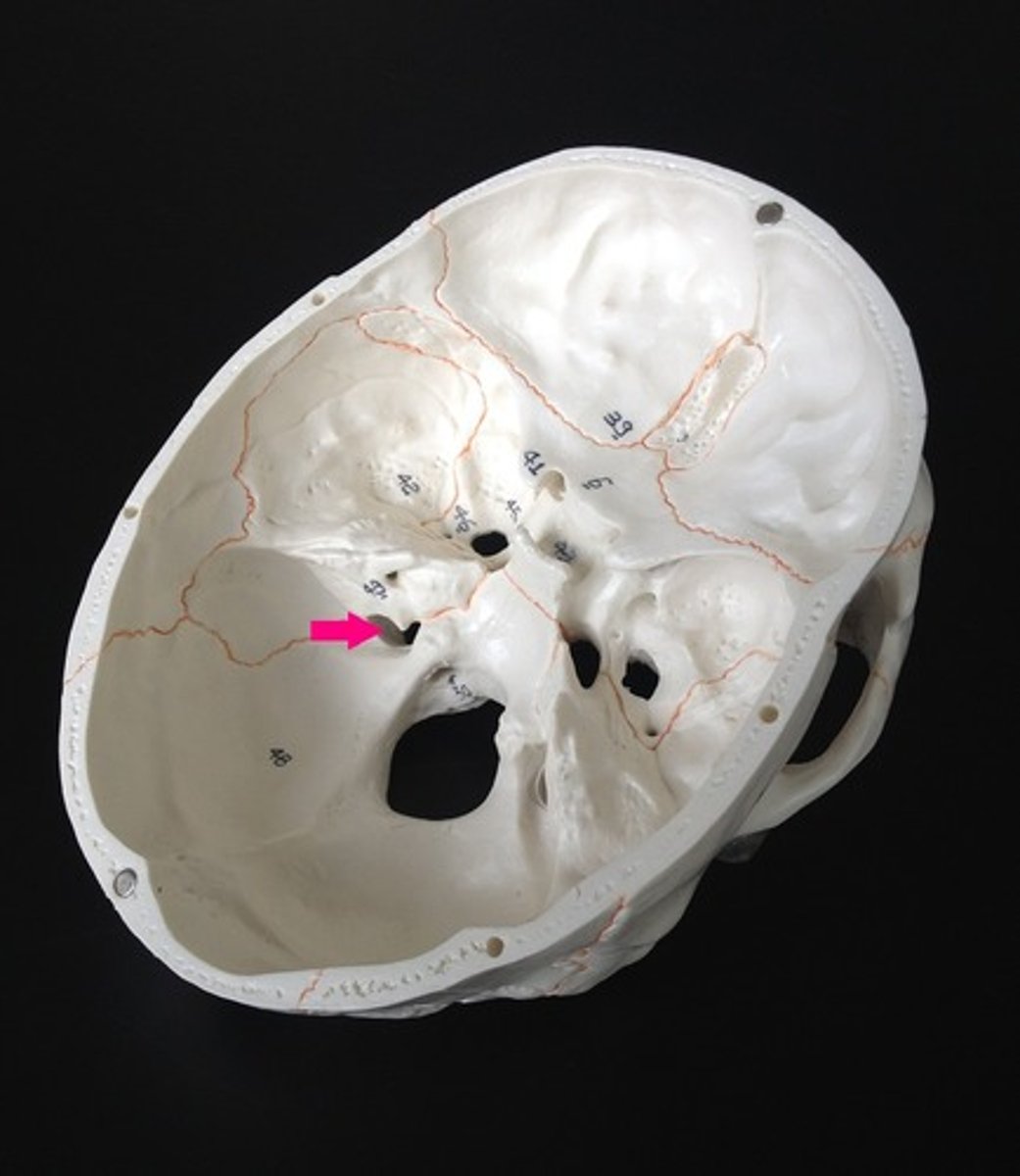

internal acoustic meatus

CN VII, CN VIII, labyrinthine artery

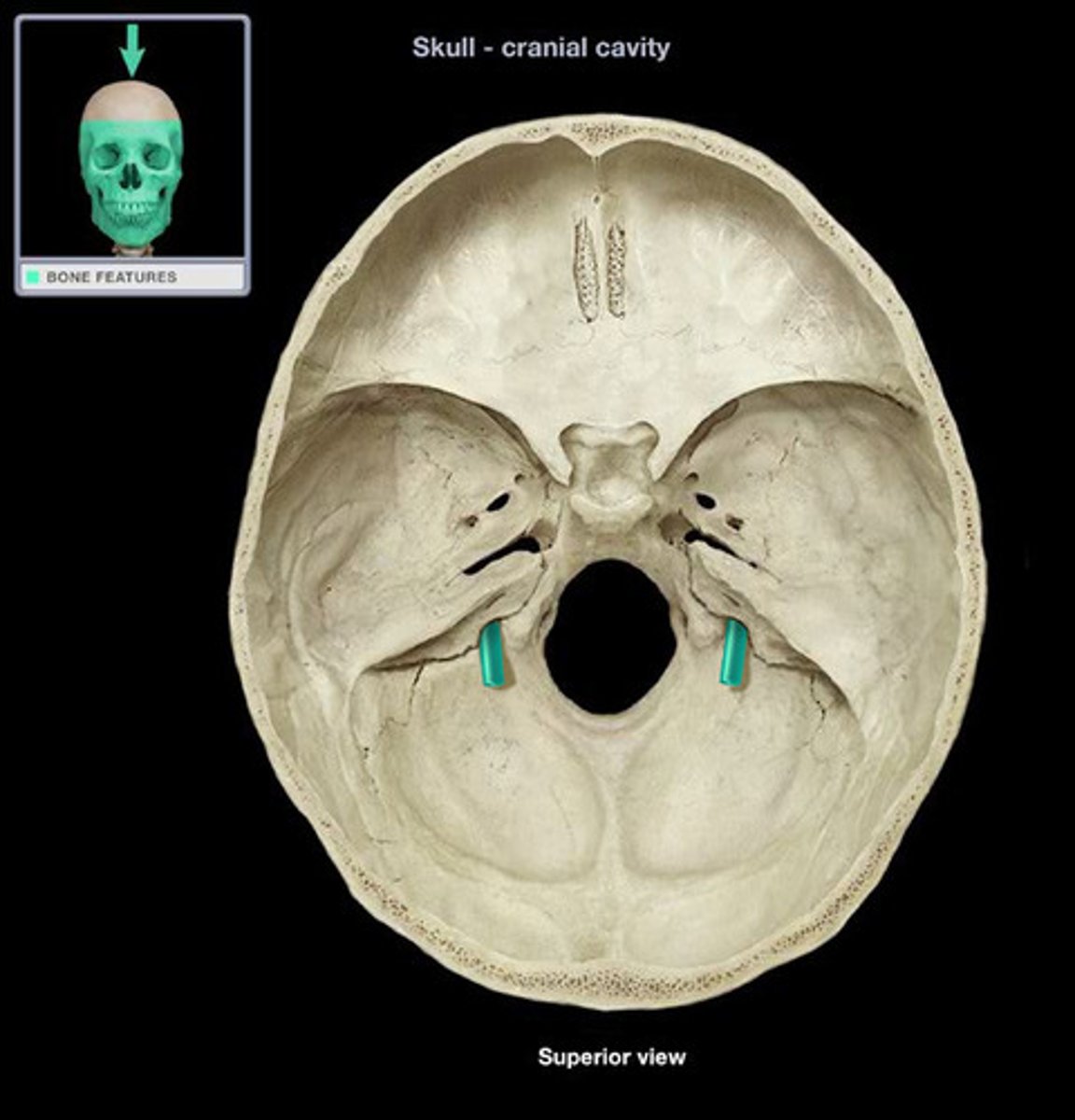

jugular foramen

CN IX, X, XI, sigmoid sinus

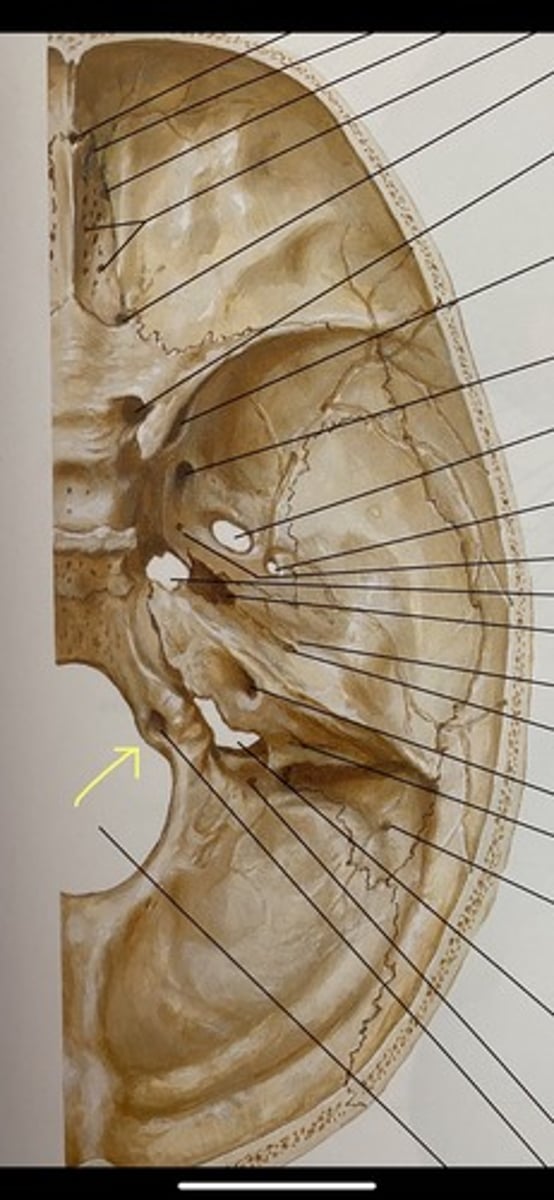

hypoglossal canal

CN XII

foramen magnum

spinal cord, vertebral arteries, CN XI

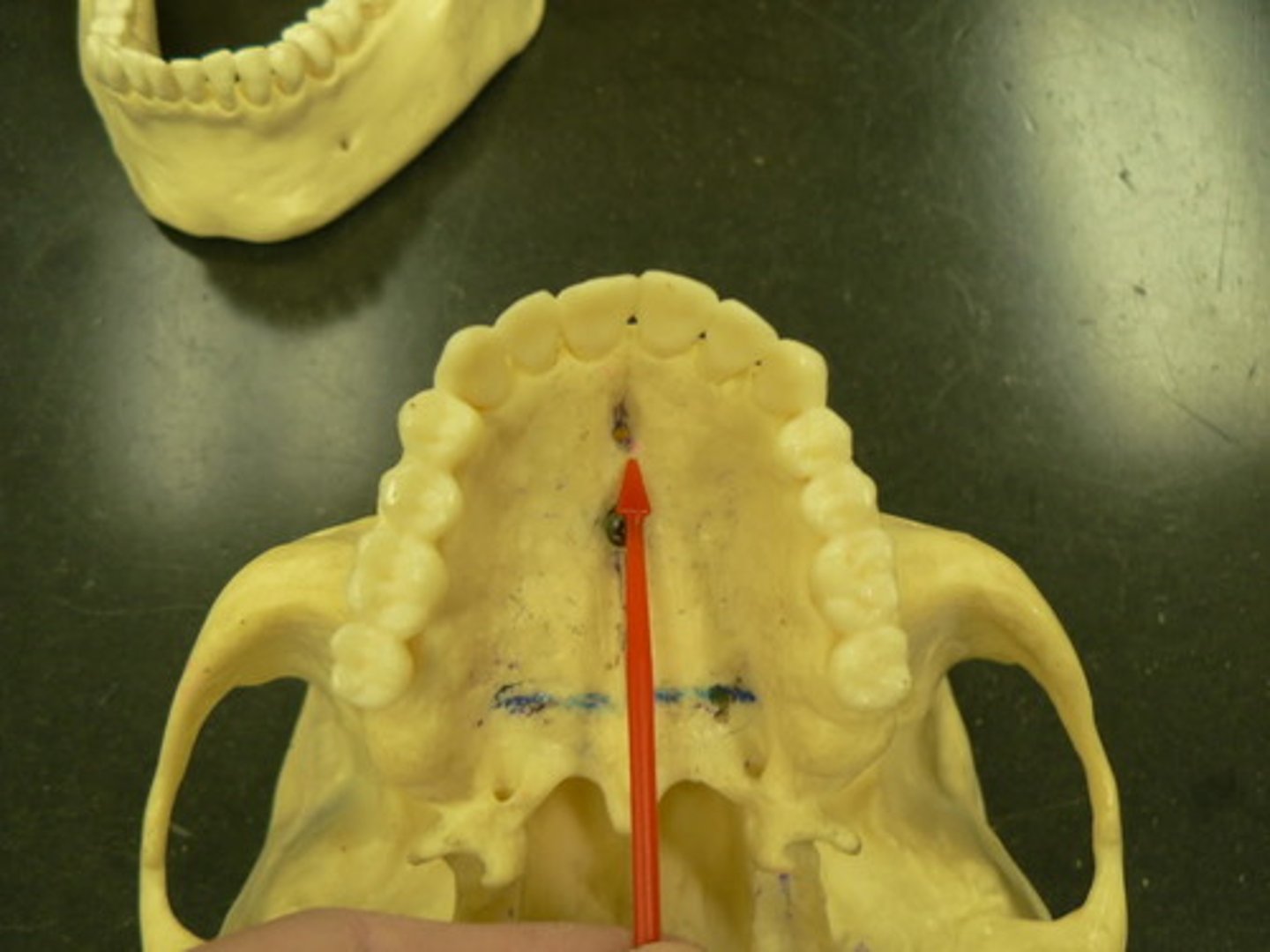

incisive canal

nasopalatine nerve and artery

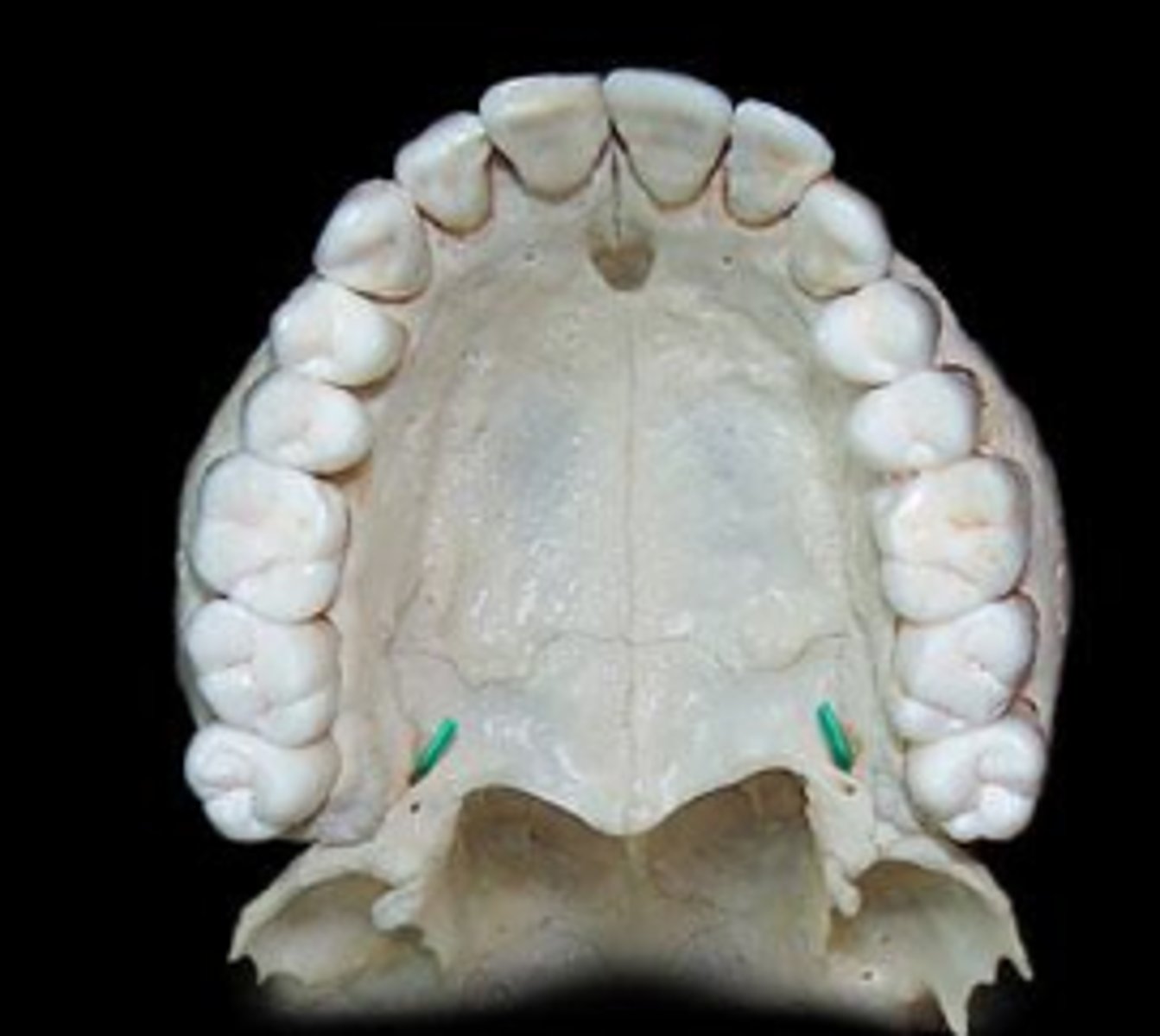

greater and lesser palatine canals

greater and lesser palatine nerve and vessles

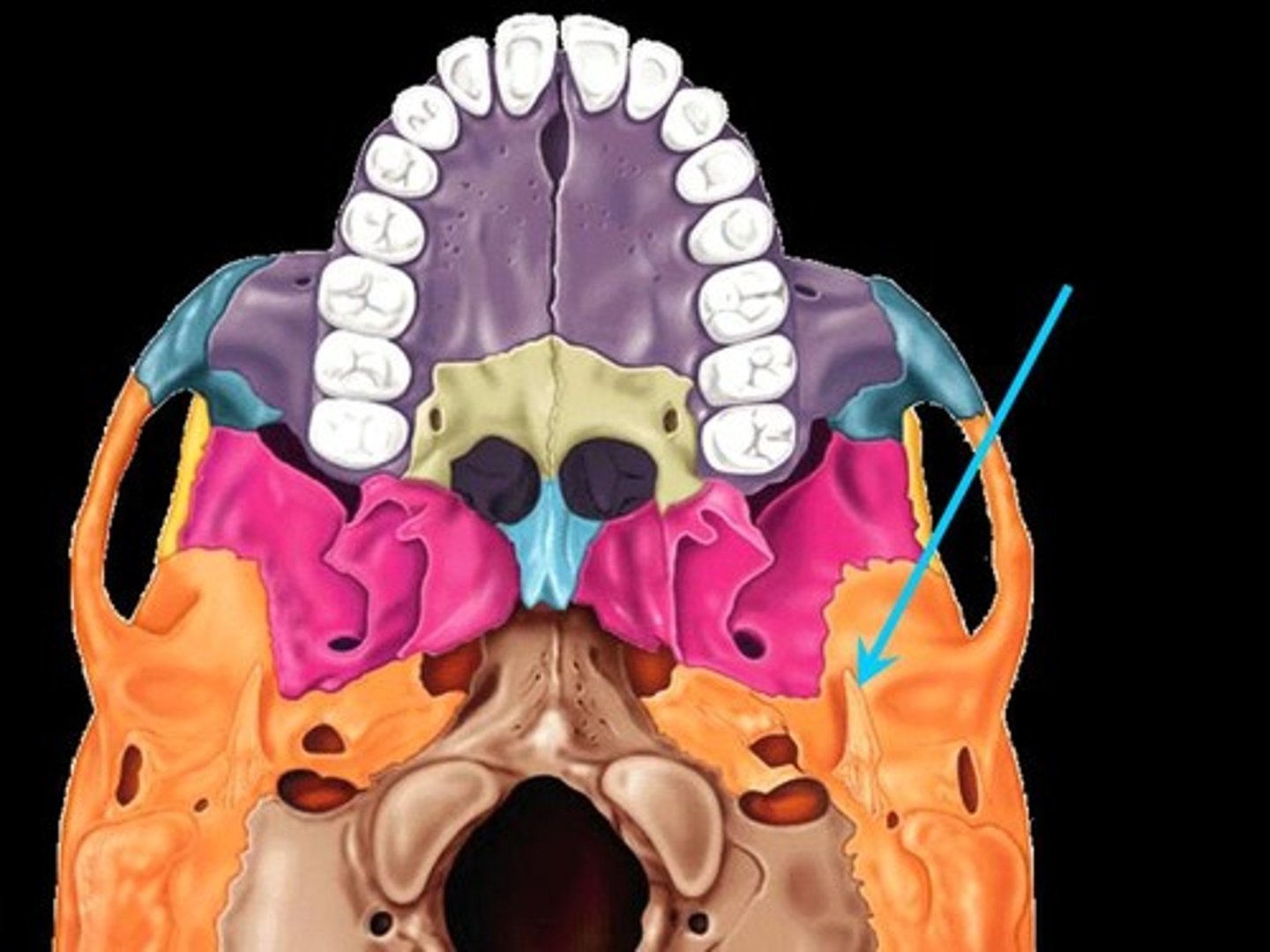

stylomastoid foramen

CN VII

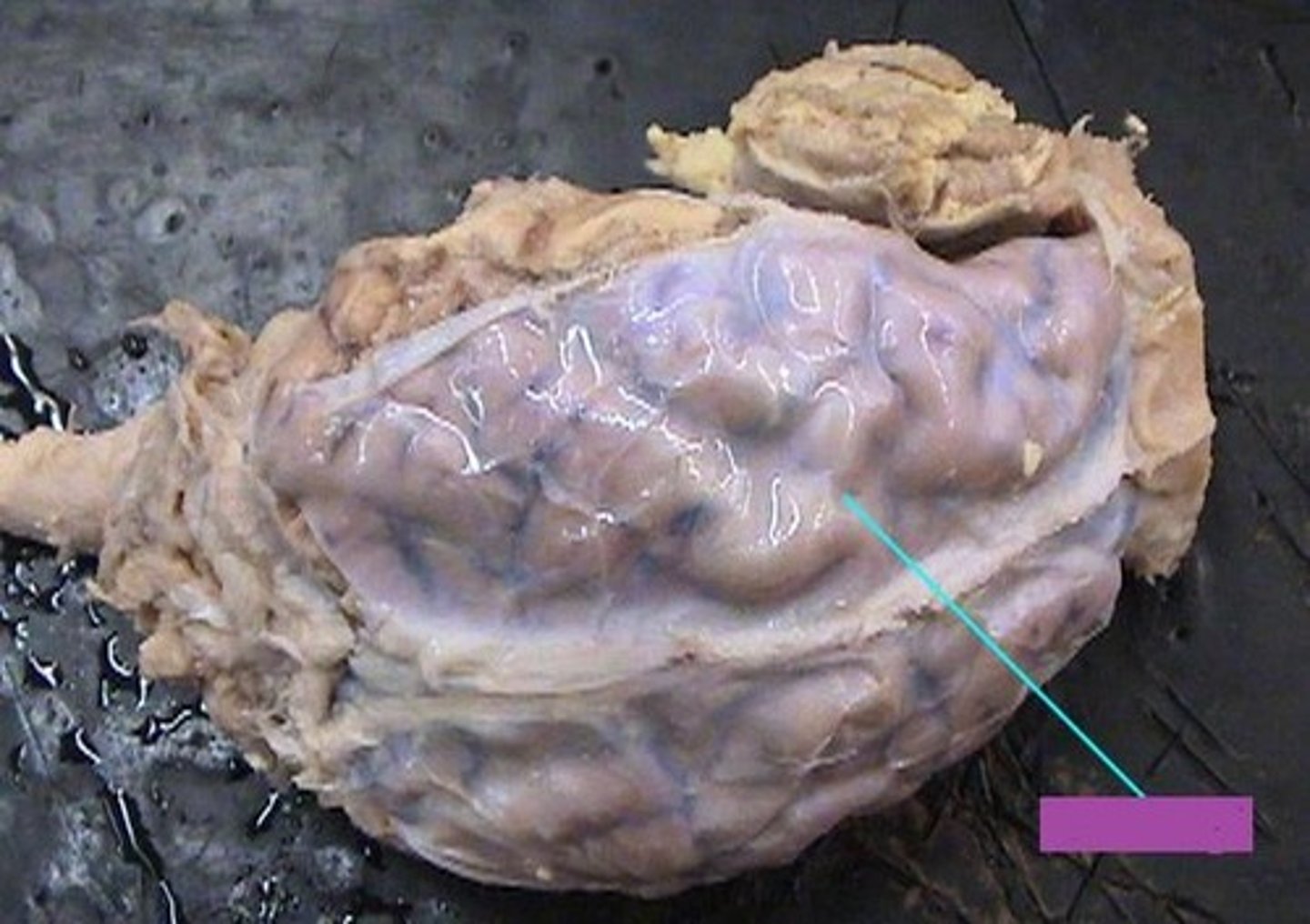

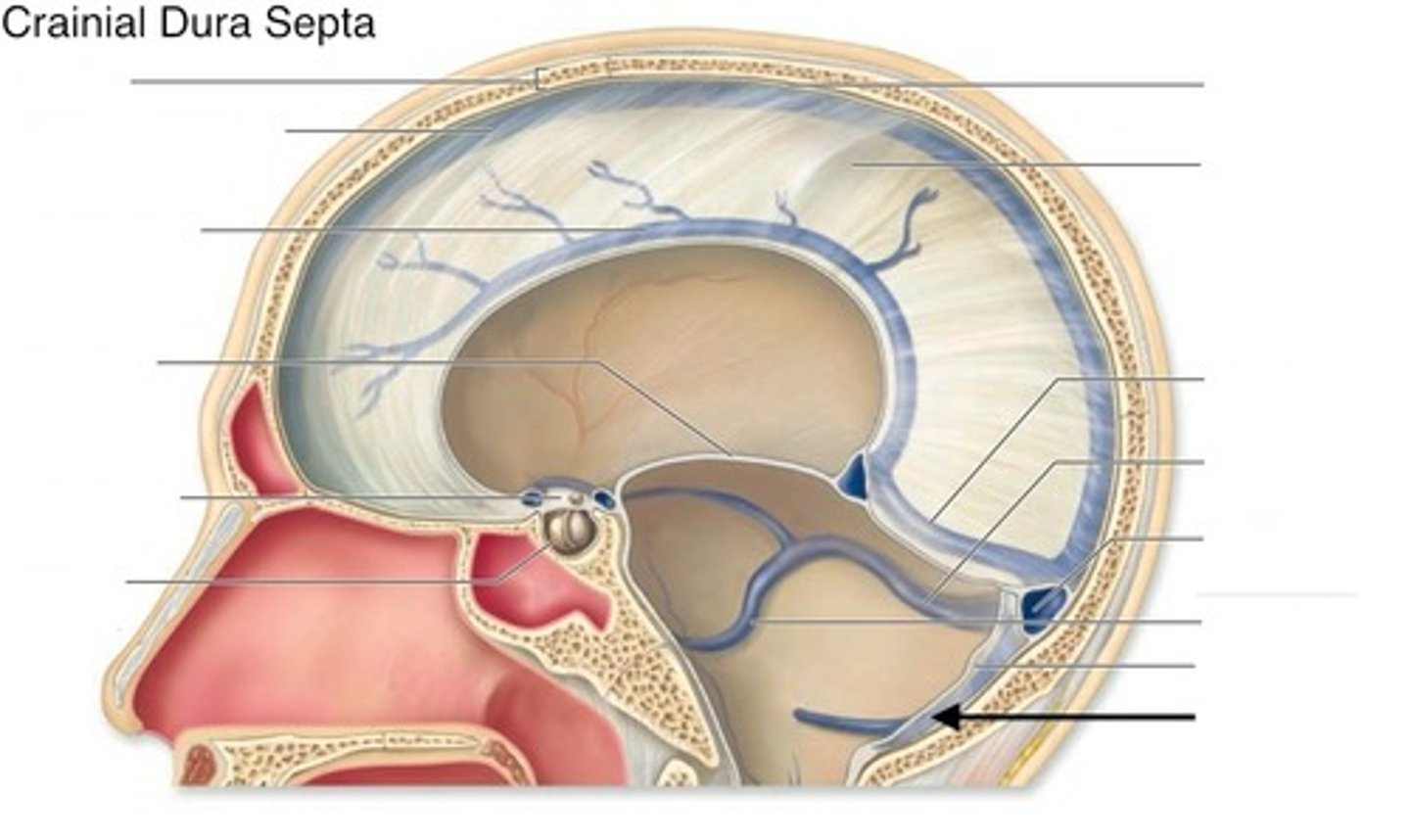

dura mater

falx cerebri

falx cerebelli

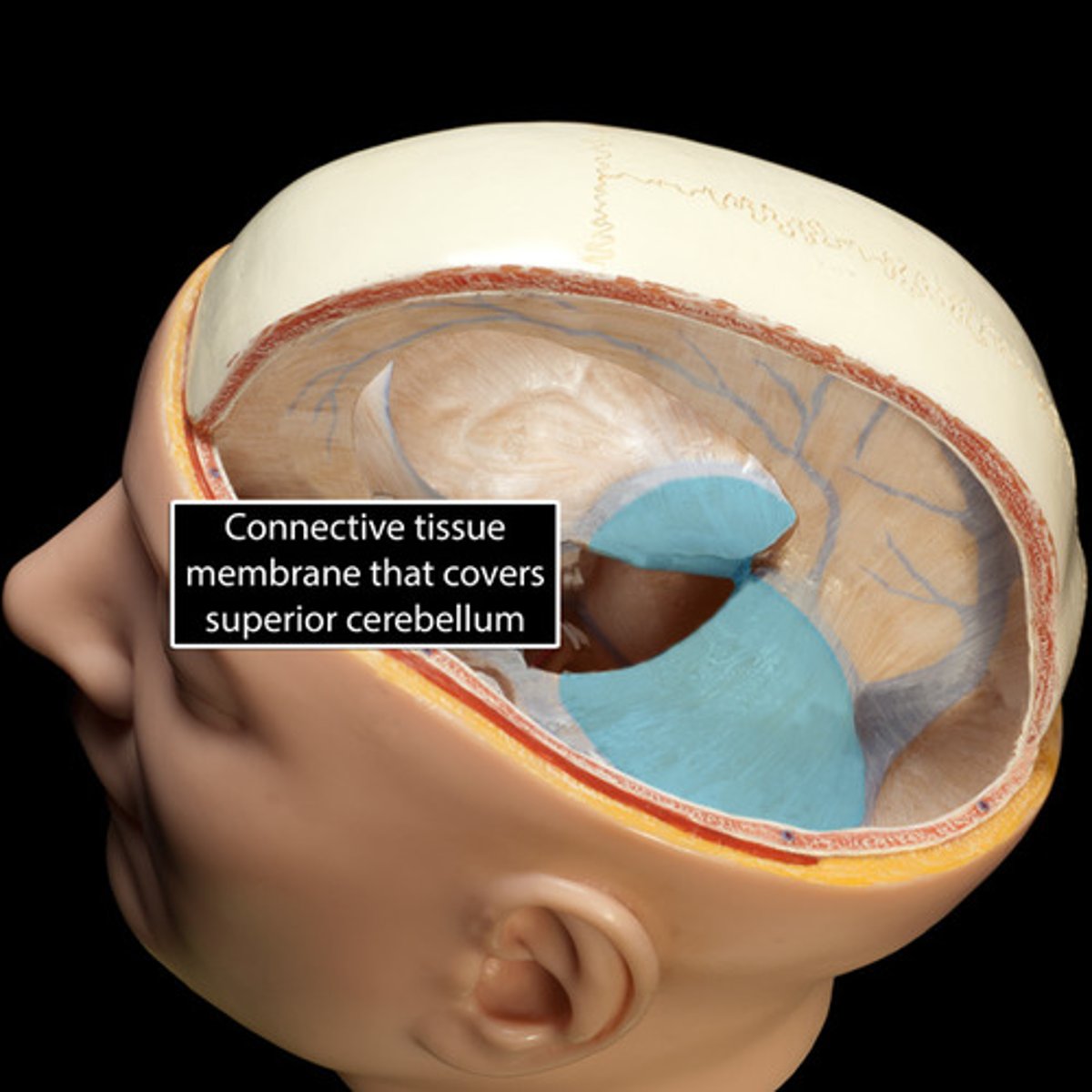

tentorium cerebelli

superior sagittal sinus

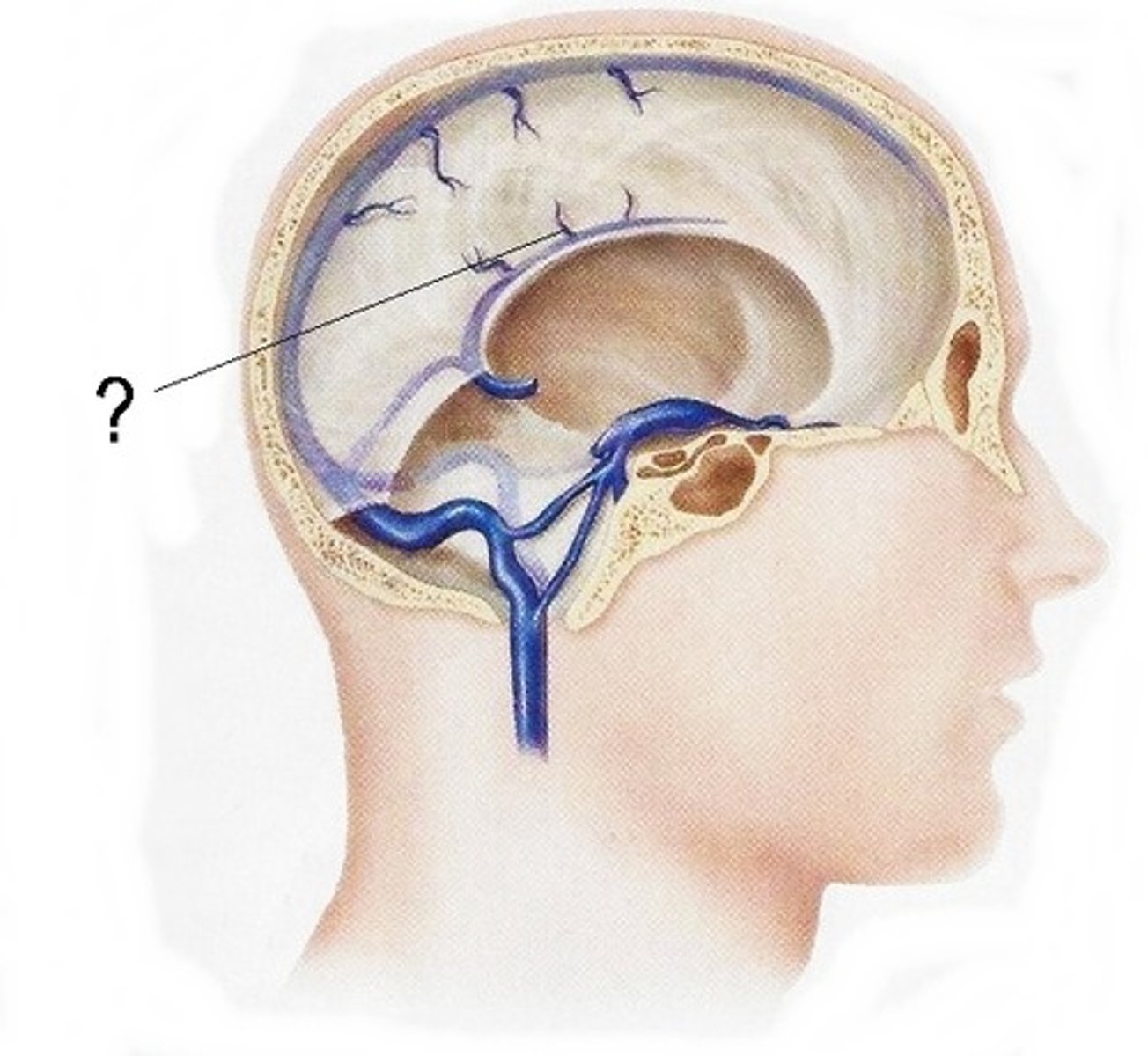

inferior sagittal sinus

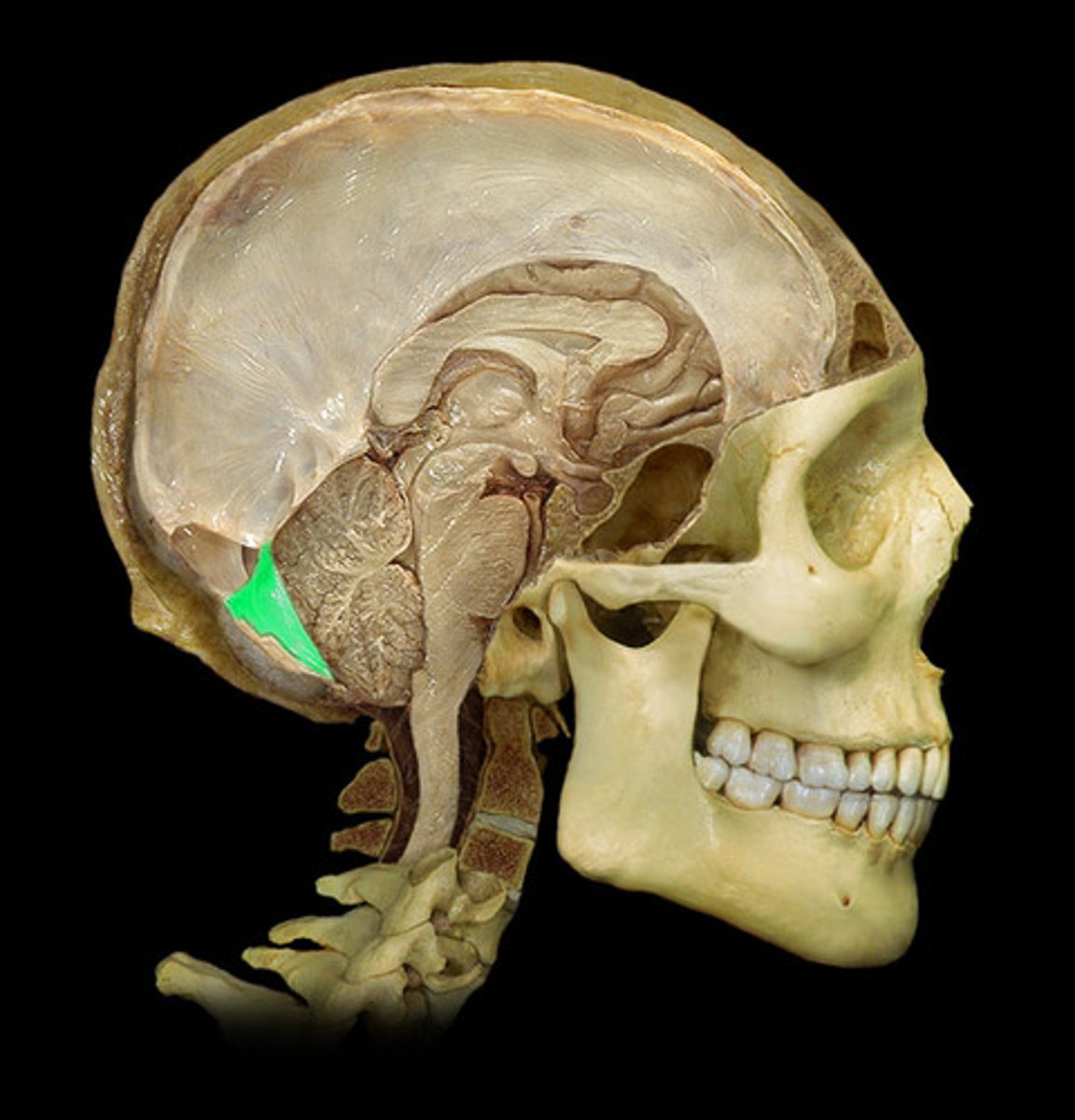

occipital sinus

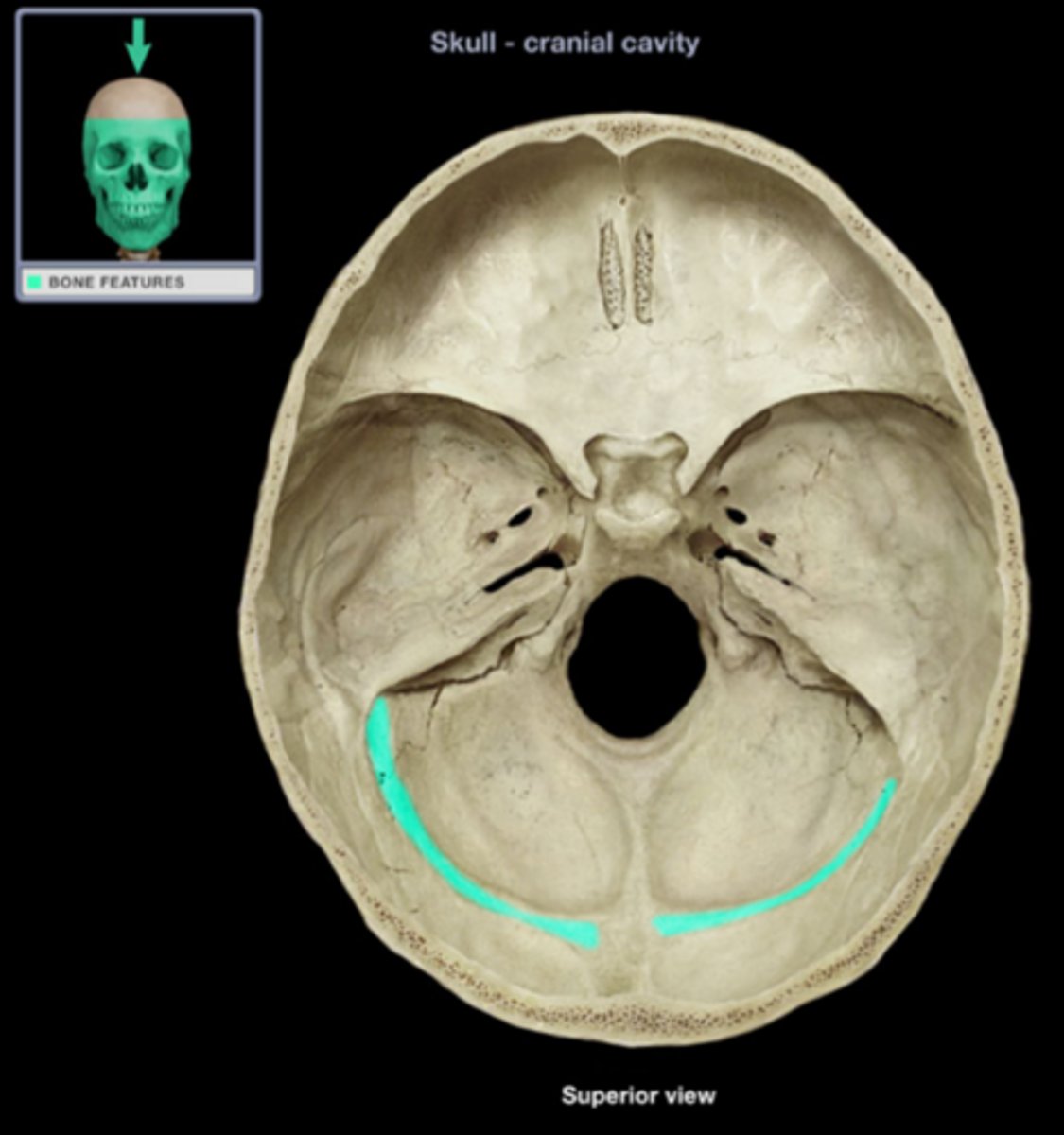

groove for occipital sinus

transverse sinus

groove for transverse sinus

sigmoid sinus

groove for sigmoid sinus

confluence of sinuses

internal jugular vein

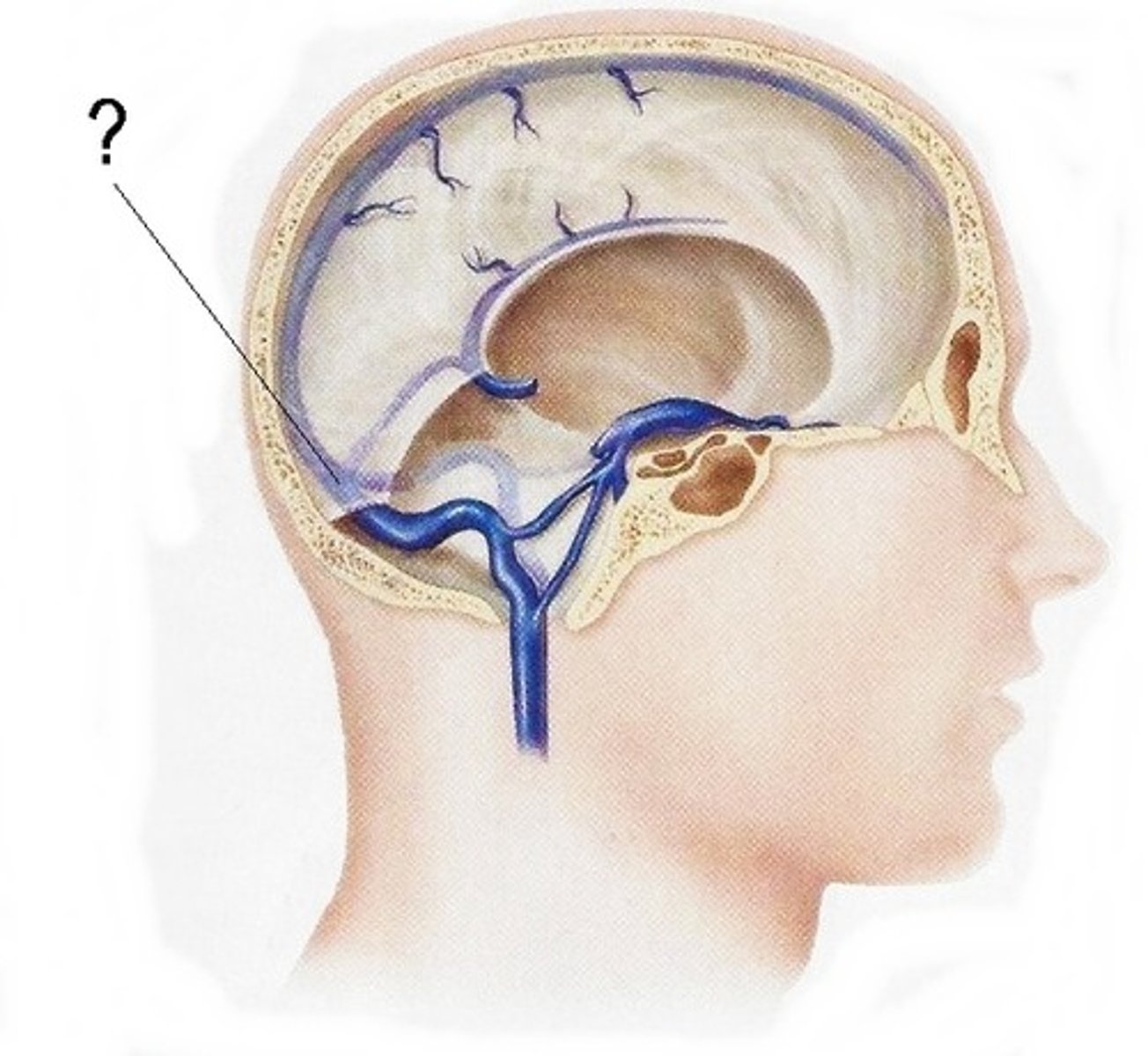

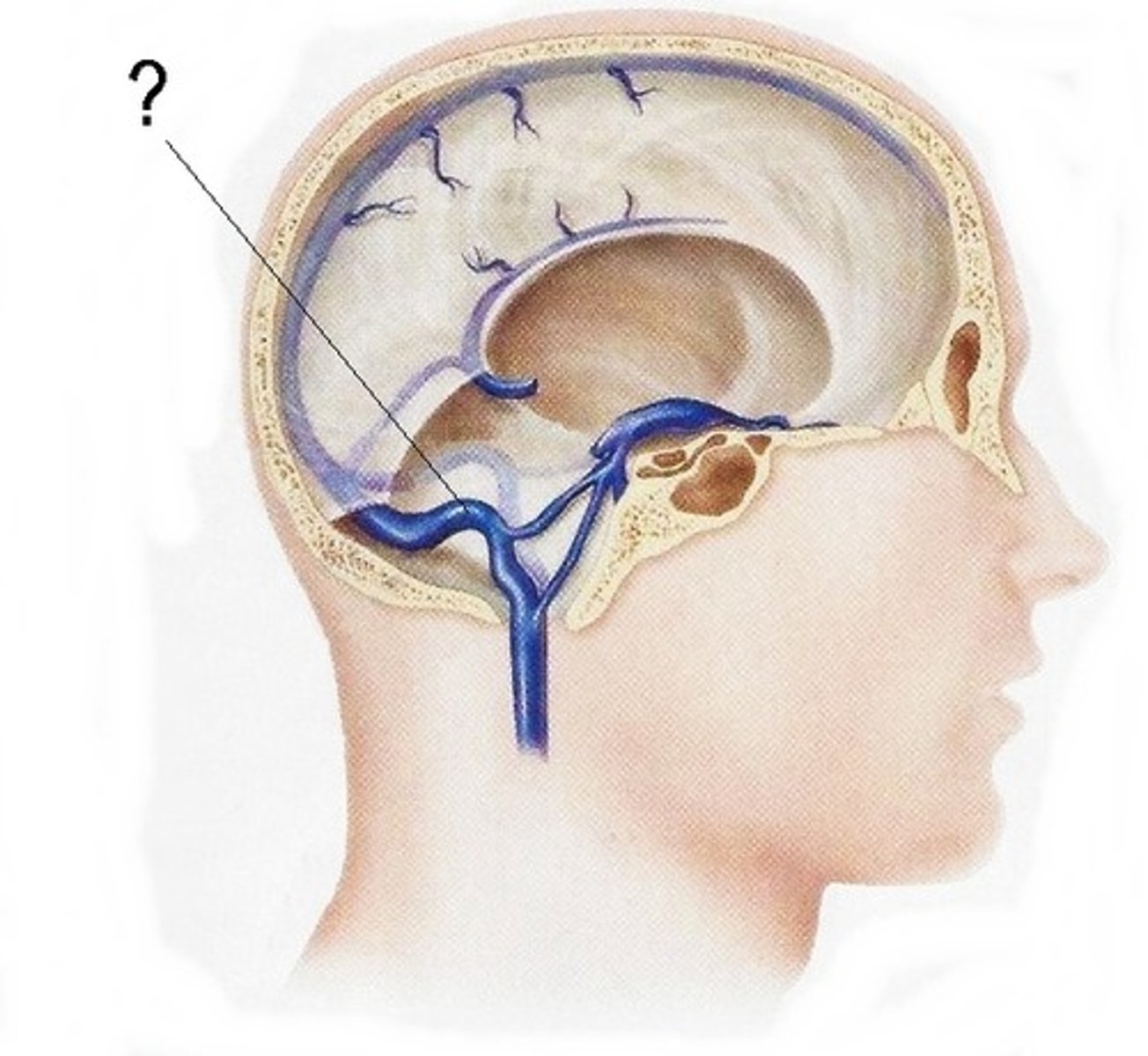

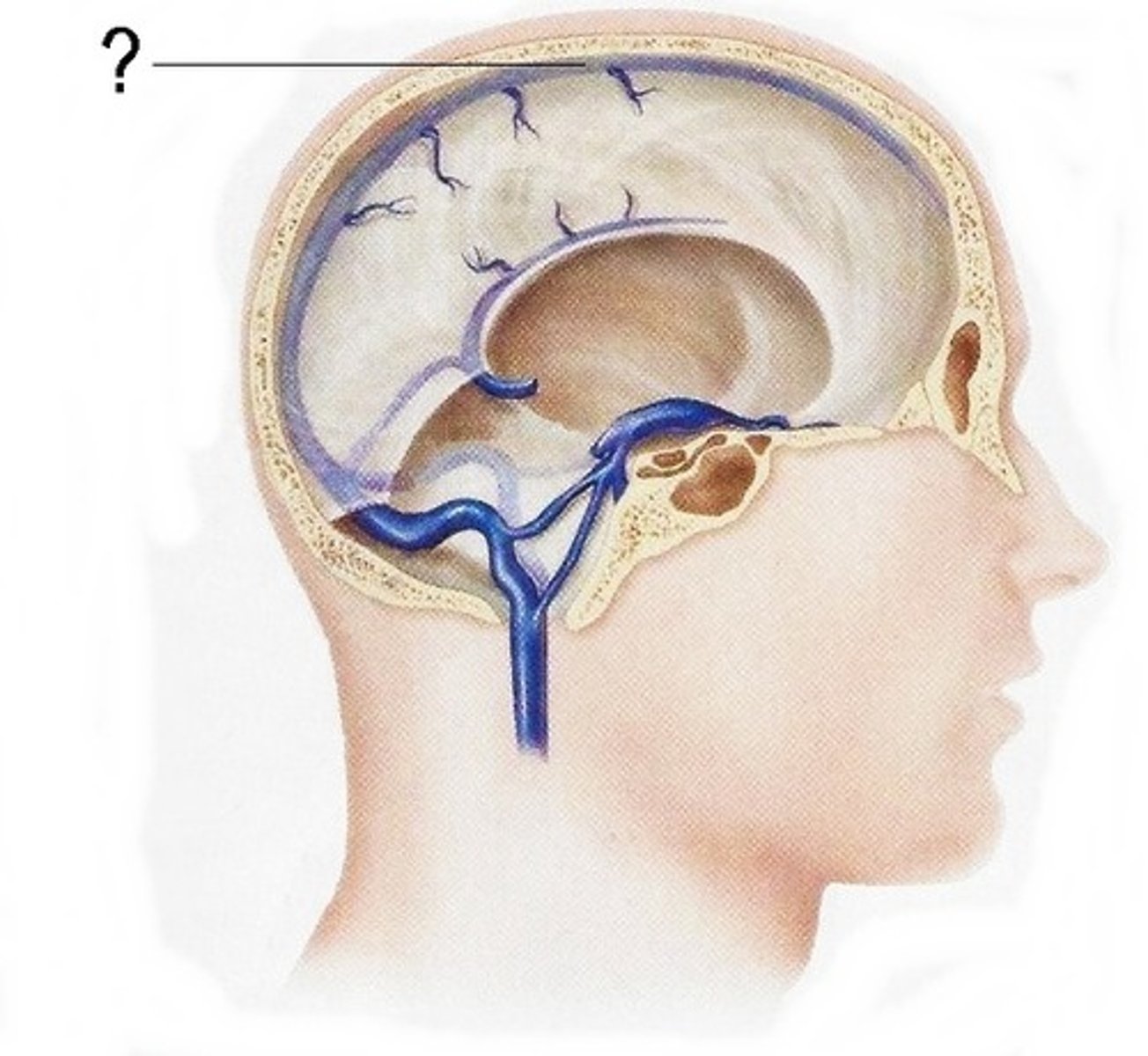

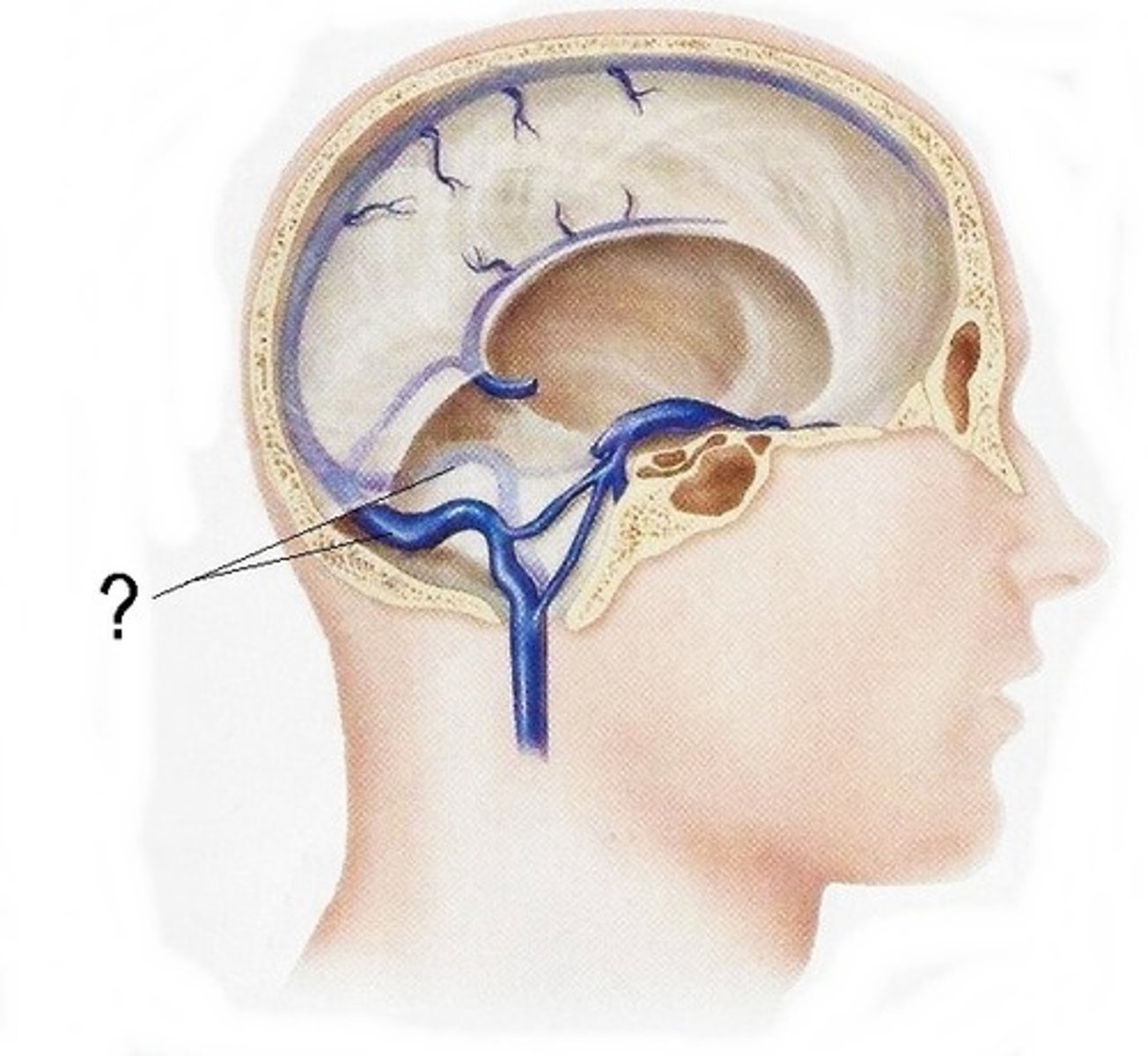

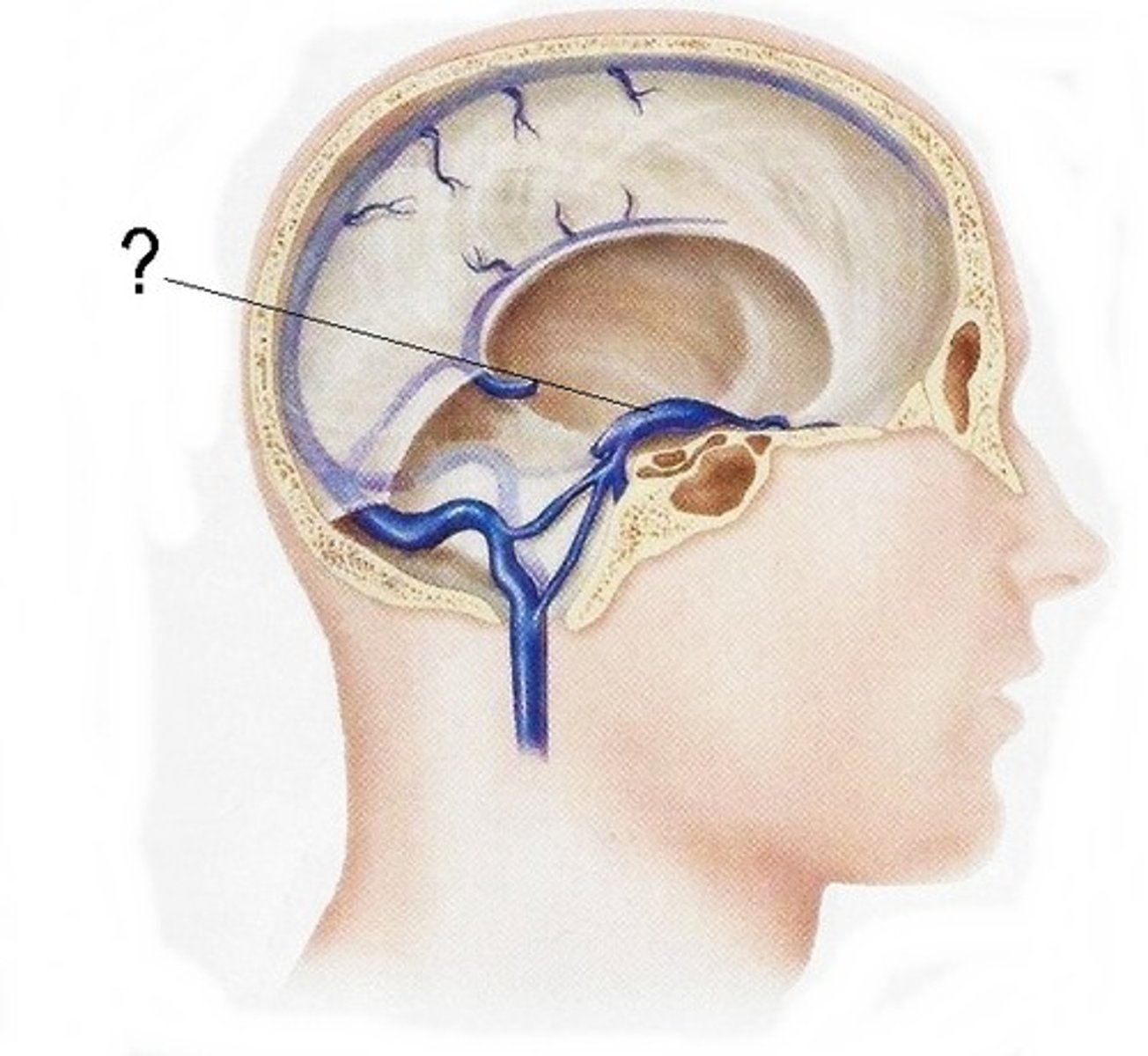

What vein drains through here?

cavernous sinus

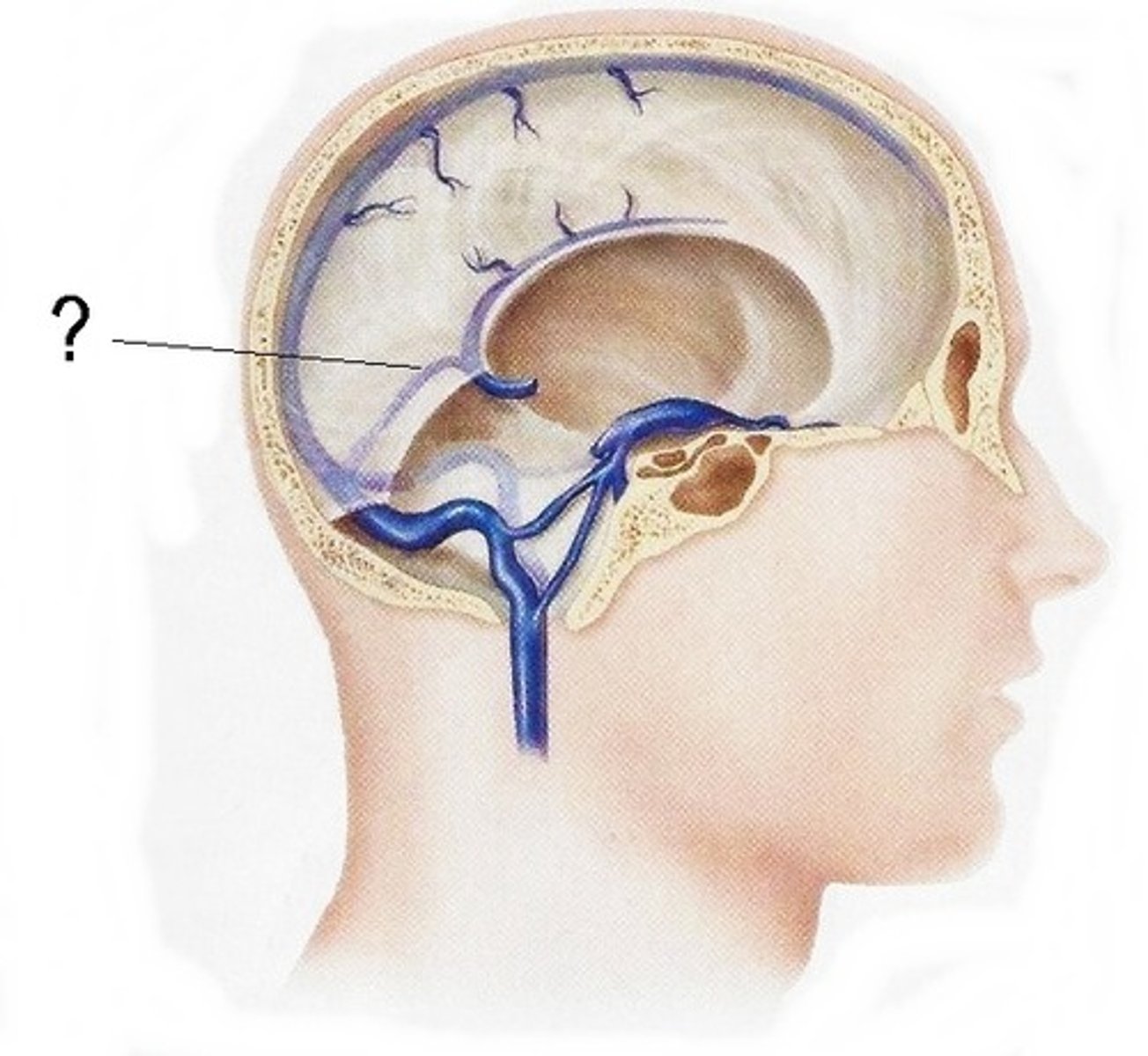

straight sinus

Great vein of Galen

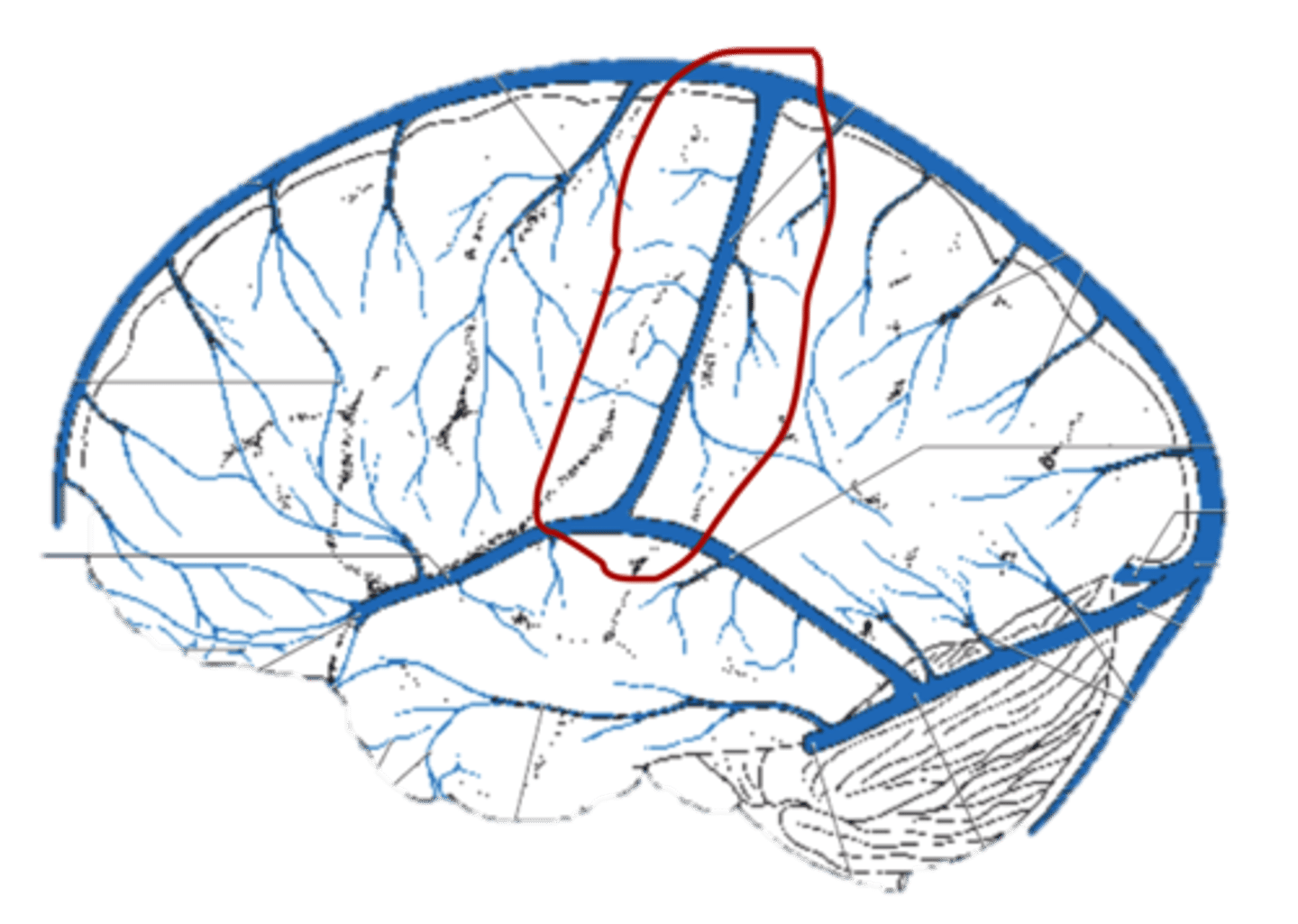

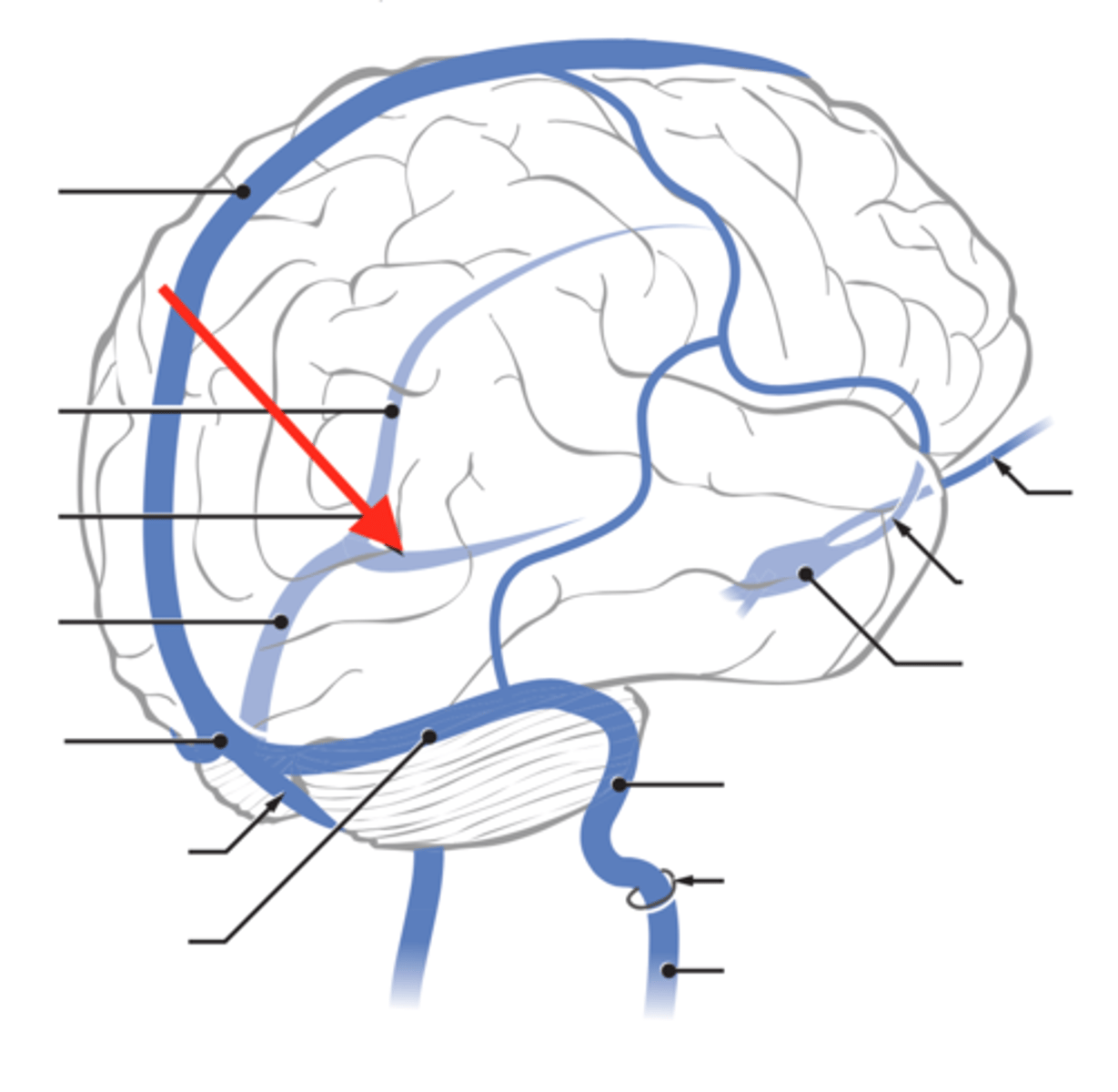

Anastomotic vein of Labbe

Found superficially right below meninges

Anastomotic vein of Trolard

Found superficially right below meninges

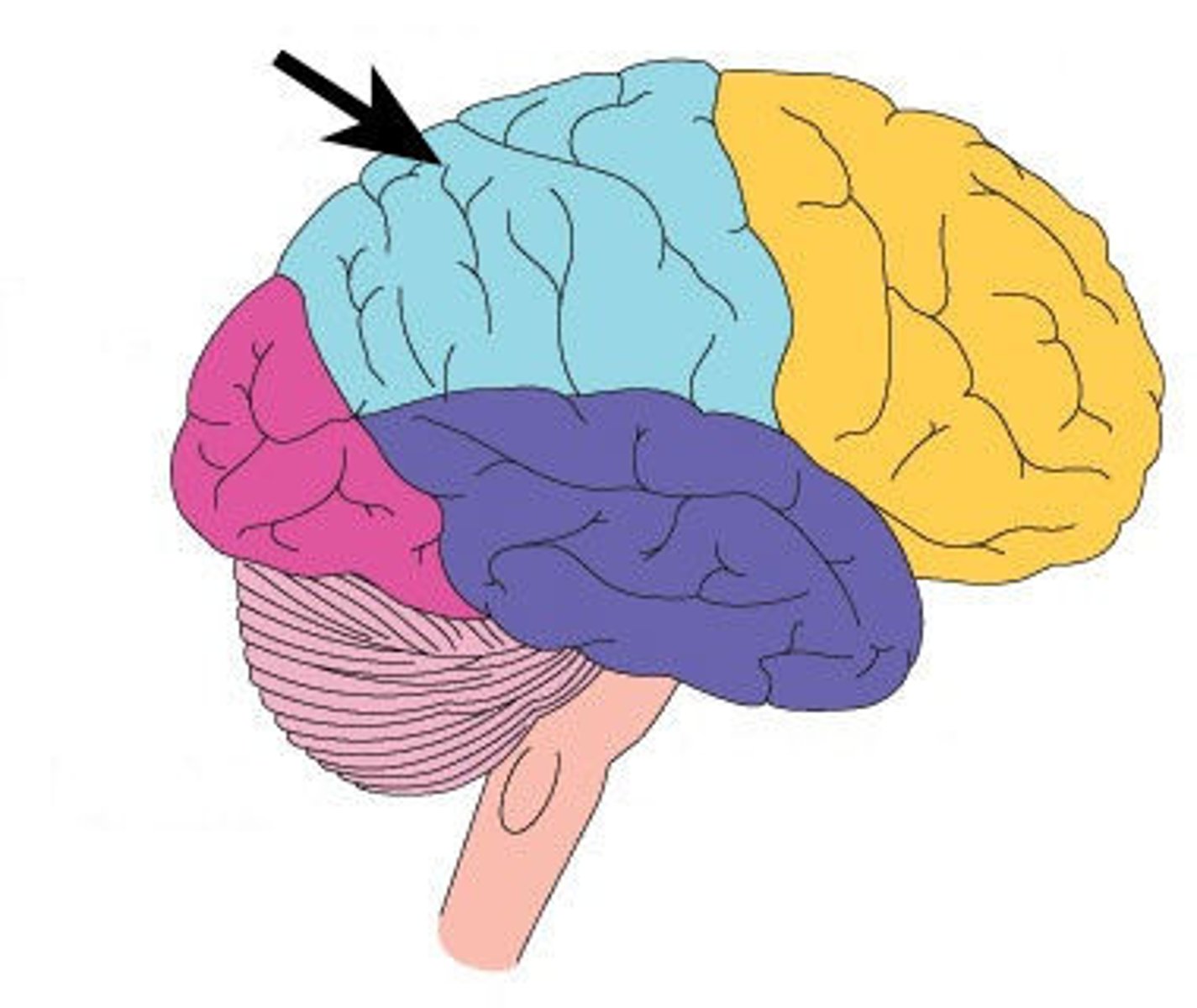

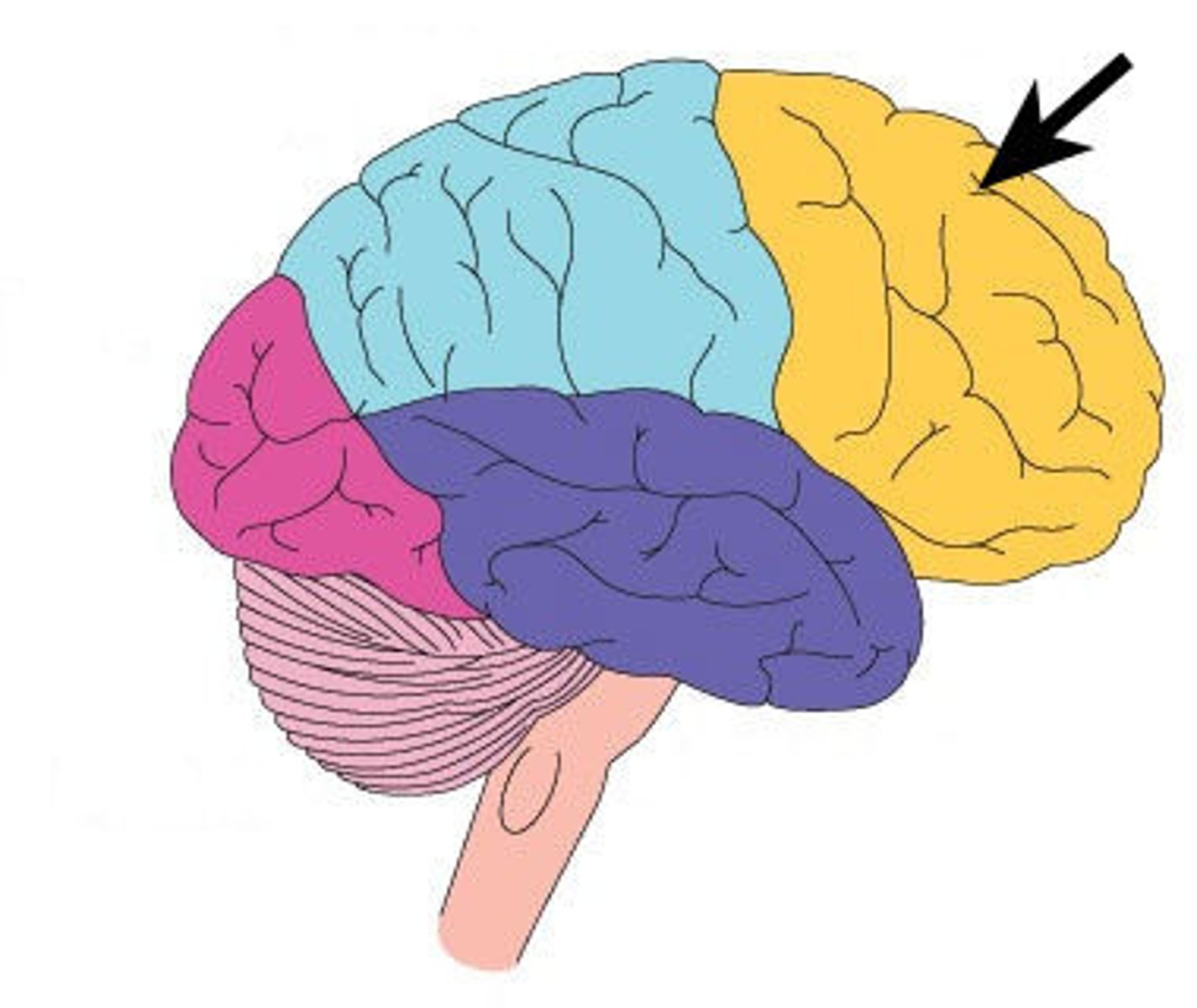

frontal lobe

parietal lobe
