Arithmetic and Logical Operators

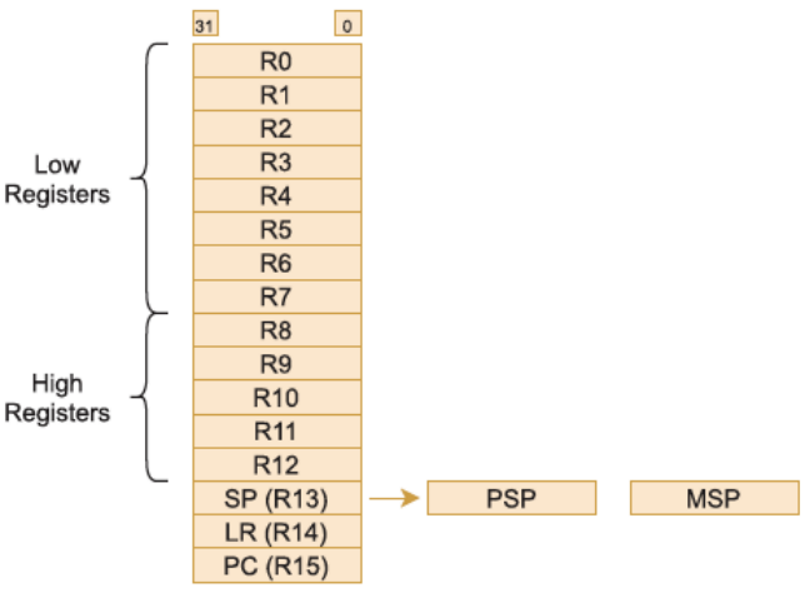

CPU Registers

• Registers are represented with a 4-bit number.

• R0–R7: lower registers (bit-4 = 0)

• R8-R12: higher registers (bit-4=1)

  • specific instructions store data to them automatically

• R13 is the Stack Pointer (SP)

• R14 is the Link Register (LR)

• R15 is the program counter (PC)

• Current Program Status Register (CPSR)

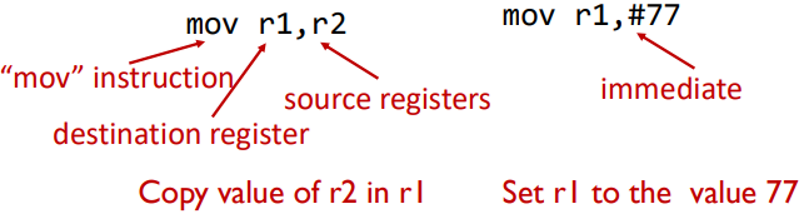

Move

Useful to copy data between registers, or set an immediate to a register

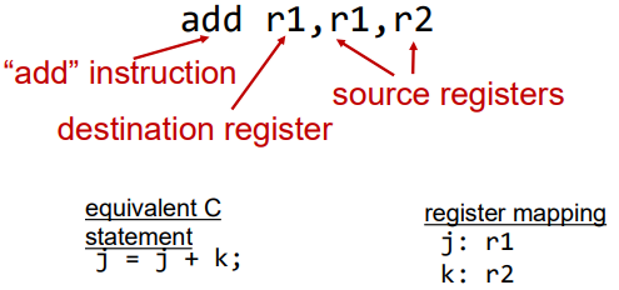

Adding

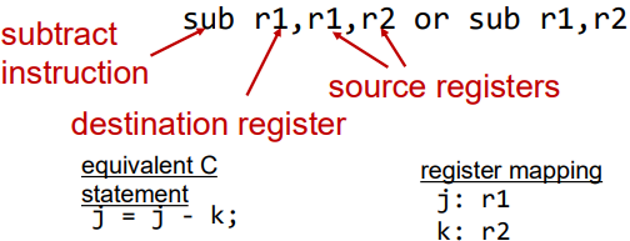

Subtracting

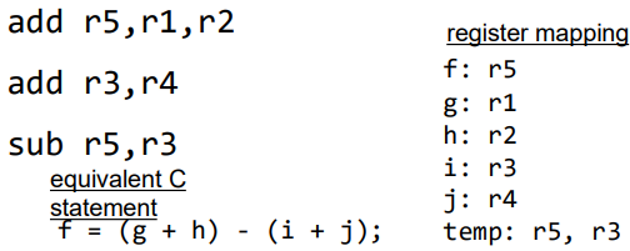

Complex Calculations

must be broken down in smaller steps —> compiler

Number Encoding

• The "add" instruction assumes that its operands are encoded using two’s complement

• Since each register holds a 32-bit number:

• Different instructions can have different expectations for how numbers are mapped or coded in registers

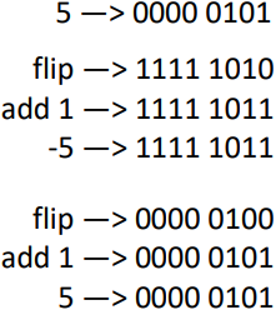

Two’s Compliment

• Positive number is directly converted

• To obtain negative number flip bits and add 1

• To obtain the corresponding positive value flip bits again and add 1

Recording Operation Effects

• Sometimes, more than 32-bits is needed for the outcome of an operation

  • Carry bit

  • Overflow

  • Comparison

• ARM uses a special register (CPSR) to record unusual arithmetic results

• We will discuss this a lot when we get to loop and if statements

Current Program Status Register (CPSR)

• An ARM register that records the state of the program

  • Arithmetic instructions will affect its value every time

• N bit - "negative flag”: instruction result was negative

• Z bit -"zero flag”: instruction result was zero

• C bit - "carry flag”: Instruction causes a carry-out or borrow

• V bit - "overflow flag”: Instruction produces an overflow in 2's complement numbers

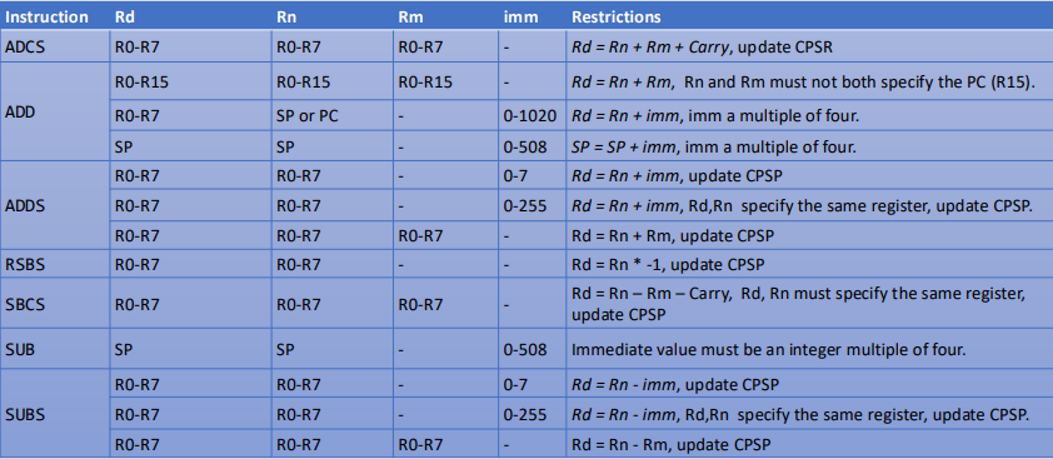

Integer Arithmetic Operations in ARM

Bit Shifting

• Key operation to manage individual bits in a register

• Can be used for fast multiplication/division with powers of 2

  • ASR arithmetic-shift-right

  • LSL logical-shift-left

  • LSR logical-shift-right

  • ROR right-rotation

• You can only use R0-R7

• Non-immediate operations must use the same source and destination register (i.e, lsl r0, r0, r1)

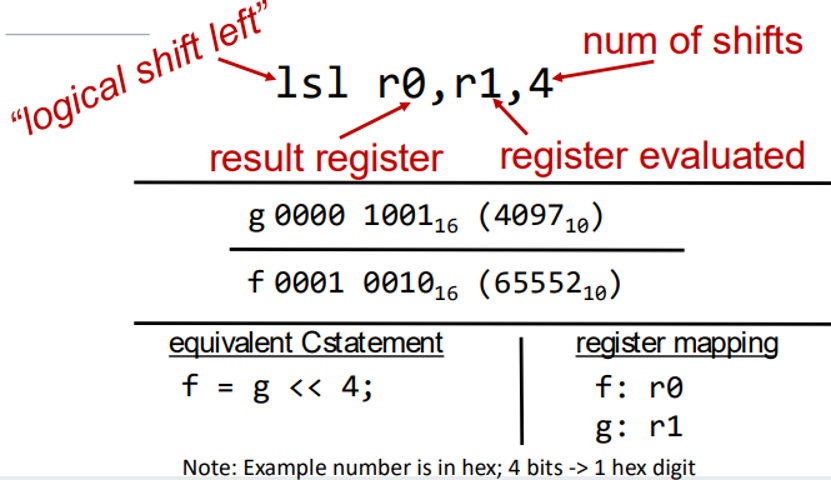

Logical Left Bit Shifting

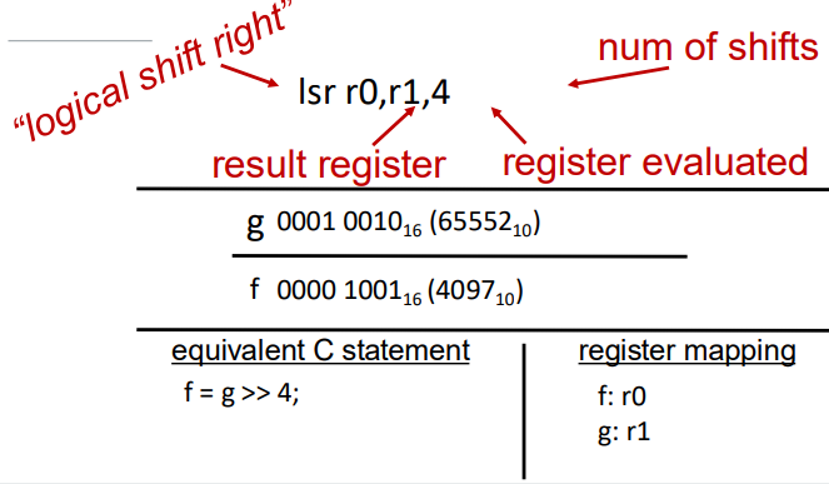

Logical Right Bit Shifting

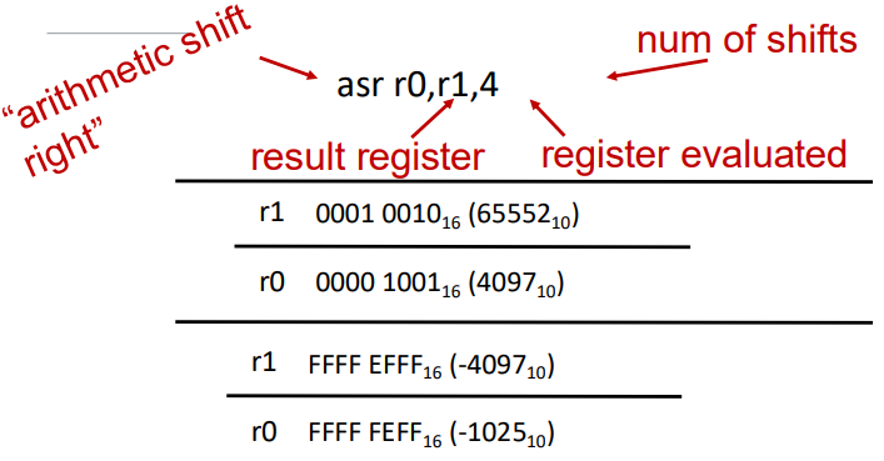

Arithmetic Right Bit Shifting

Bits filled in are the same as the MSB e.g. if MSB is  0 then filled with 0s and if MSB is 1 then filled with 1s

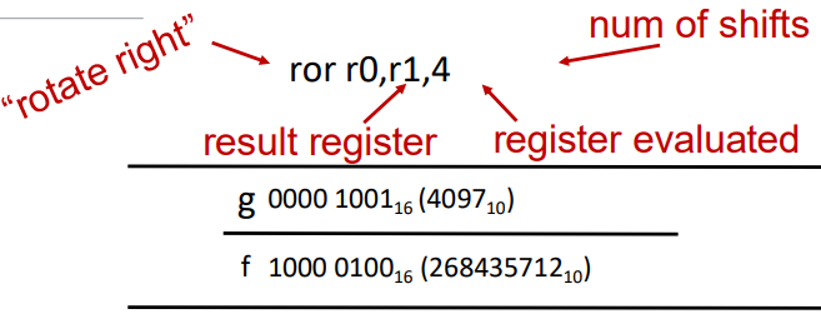

Rotate Right Bit Shifting

Any bit that leaves from the right becomes the MSB

Logical Operators

• Using these instructions you can apply all the Boolean operations you learned in the first part of this module

  • AND: Rn = Rd & Rm

  • EOR: Rn = Rd ^ Rm (xor)

  • ORR: Rn = Rd | Rm

  • BIC: Rn = Rd & ~Rm

• update the N and Z flags according to the result for the PCSR

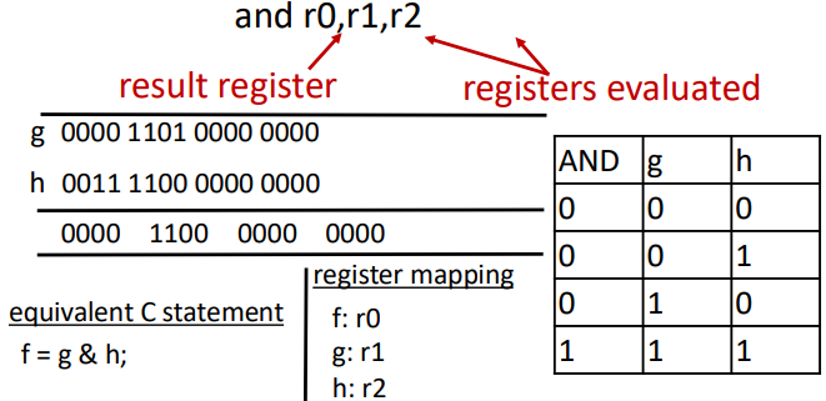

bit-by-bit AND

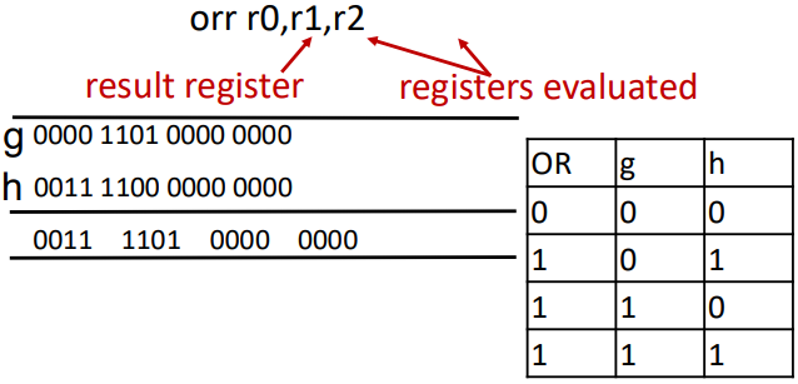

bit-by-bit ORR

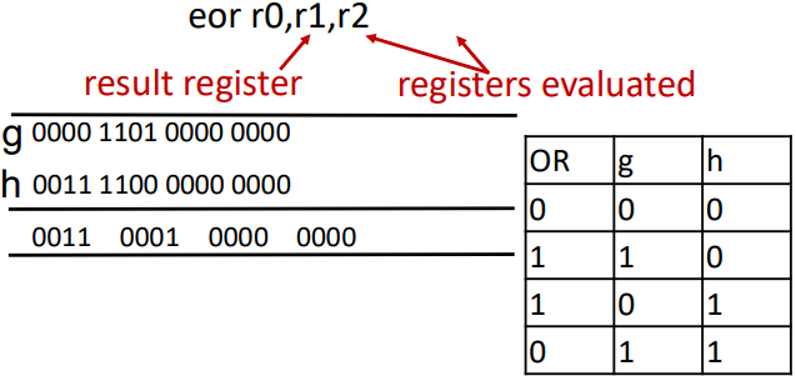

bit-by-bit EOR (Exclusive OR)

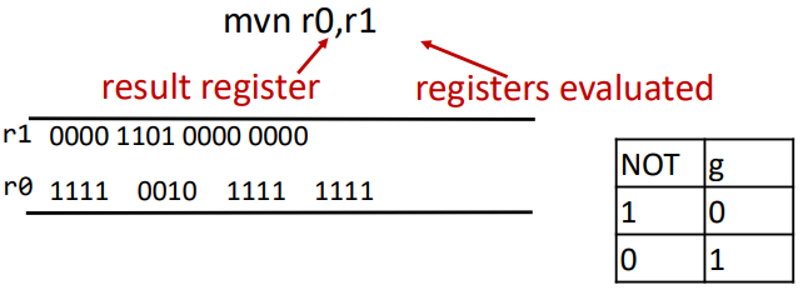

bit-by-bit MVN (Move and Not)

Immediate Operands

• Programmers require operations with constants

  • incrementing a number (e.g. counting, array indexes)

  • initialising the value held by a program variable

• Most instructions can replace one of the input register with an immediate, i.e. an integer value

• Because ARM MIPS aims to optimize the space of a program, immediate size varies

• You may need to load big values in a register in multiple steps

• or use memory to store constants

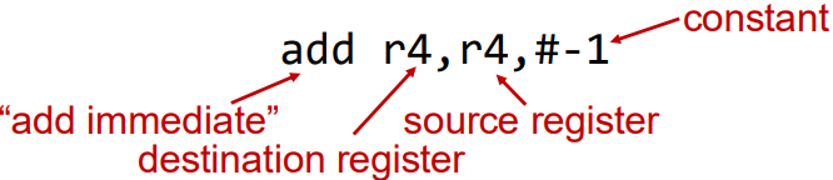

Adding a Constant

• Constants are frequently prepended with the symbol #

• They are interpreted as a signed integer

• Encoded using two’s complement

Integer Arithmetic Operations in ARM

Loading Large Immediates

• mov can load values between 0x00000000 to 0x0000FFFF to registers

• What about larger integers?

• movt can load 16-bit values into the upper 16 bits of a register (lower 16-bits remain the same)

  • mov r0, 0x1 @ r0 = 0x10000

mov r0, 0xffff @ Loading 0x7fffffff

movt r0, 0x7fff
