Imaging exam

- describe the radiological image using appropriate terminology • describe the most important features of pathological abnormalities • describe briefly the working principles of the imaging modality • advantages, disadvantages and contraindications • briefly describe the used contrast agent (where appropriate) • duties of the referring physician related to the imaging study • name the anatomical structures 15 exam topics, 6 images per topic each student gets 1 topic (6 images)

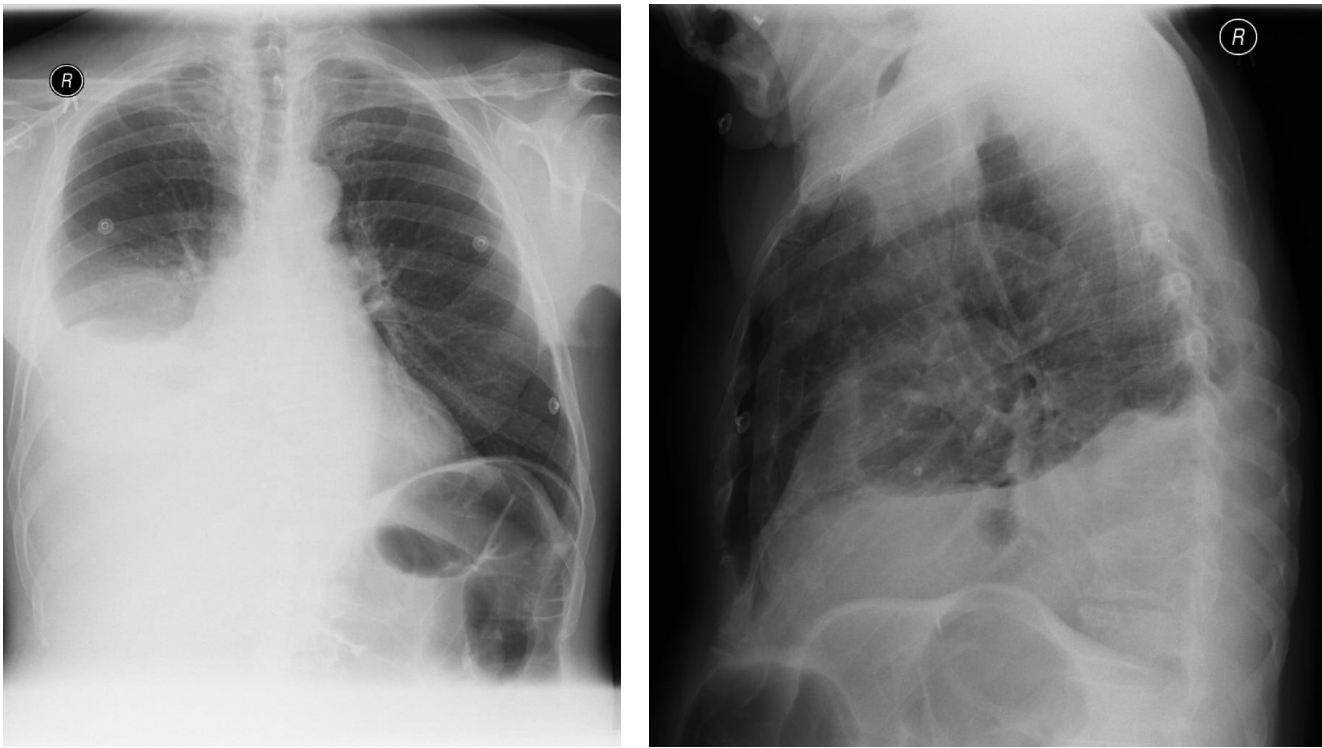

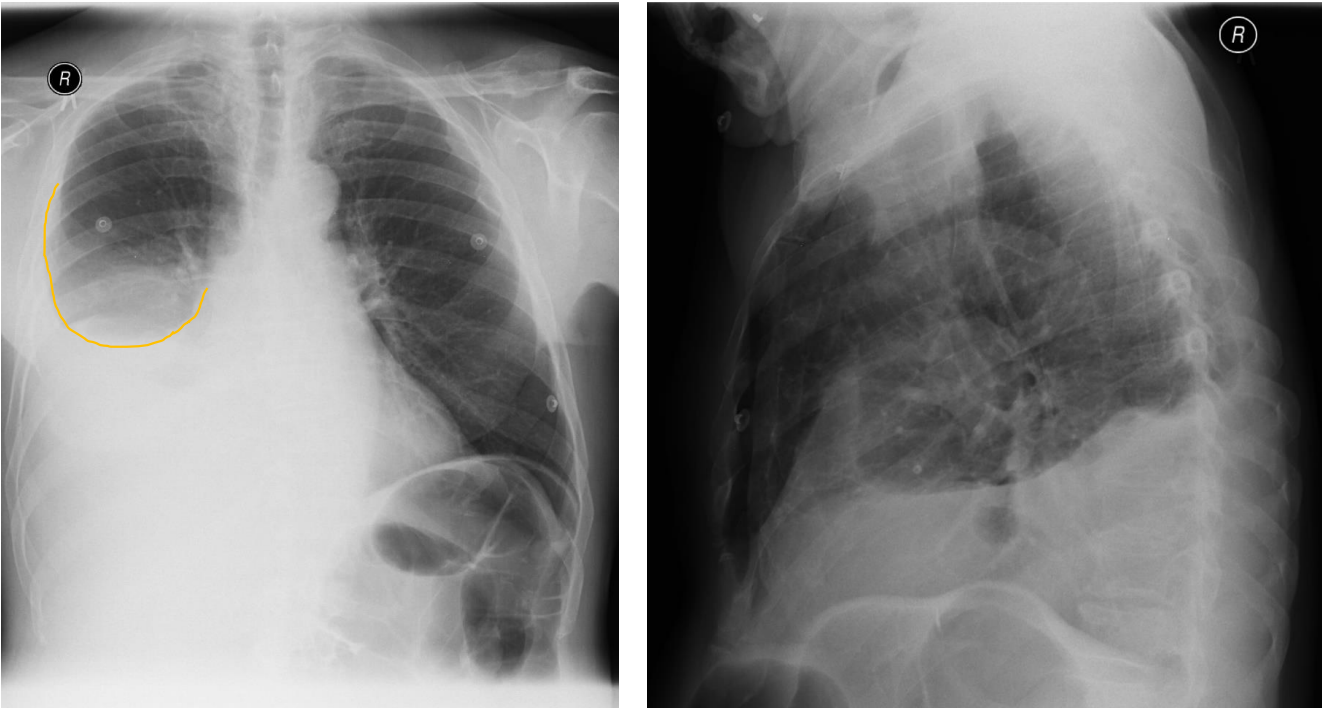

1.1

Patient history: abdominal postoperative condition

Modality: PA (left) and lateral (right) chest radiograph; hard-beam technique (120–140 kV)

Region: chest, pleura

Radiologic sign: Decreased transparency at the right lung base showing a meniscus-shaped contour on the right side (yellow line).

Diaphragm and lateral sinuses cannot be differentiated on the right. Left side is normal.

Diagnosis: right-sided pleural effusion

1.2

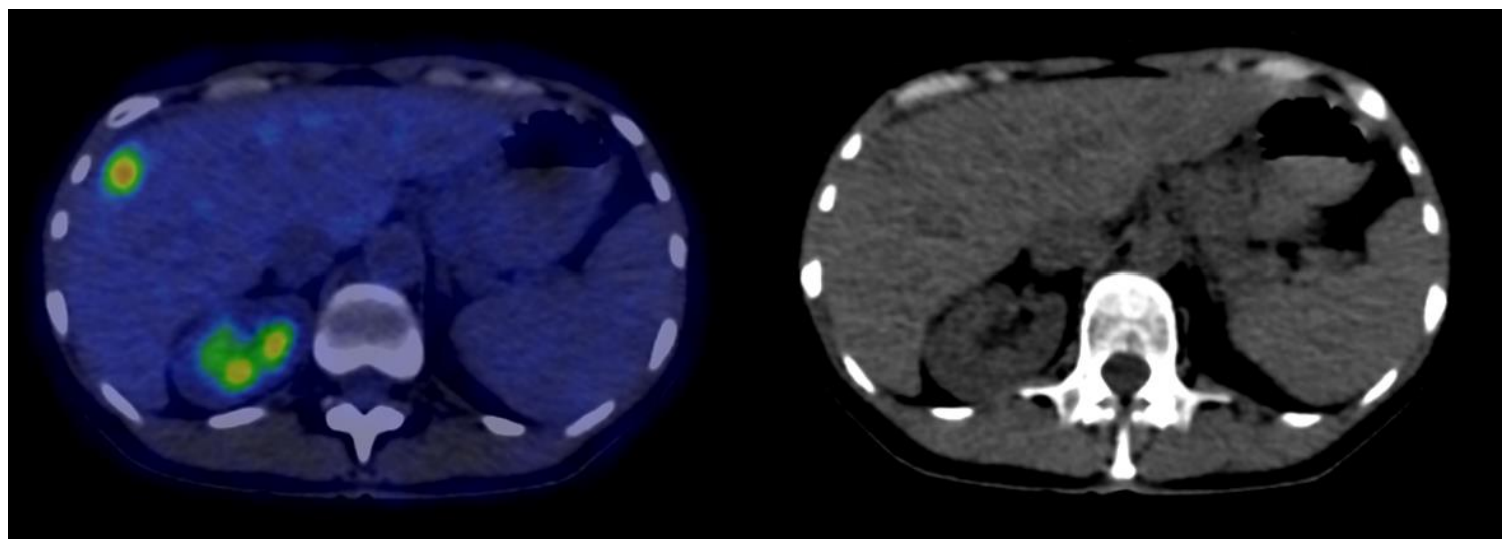

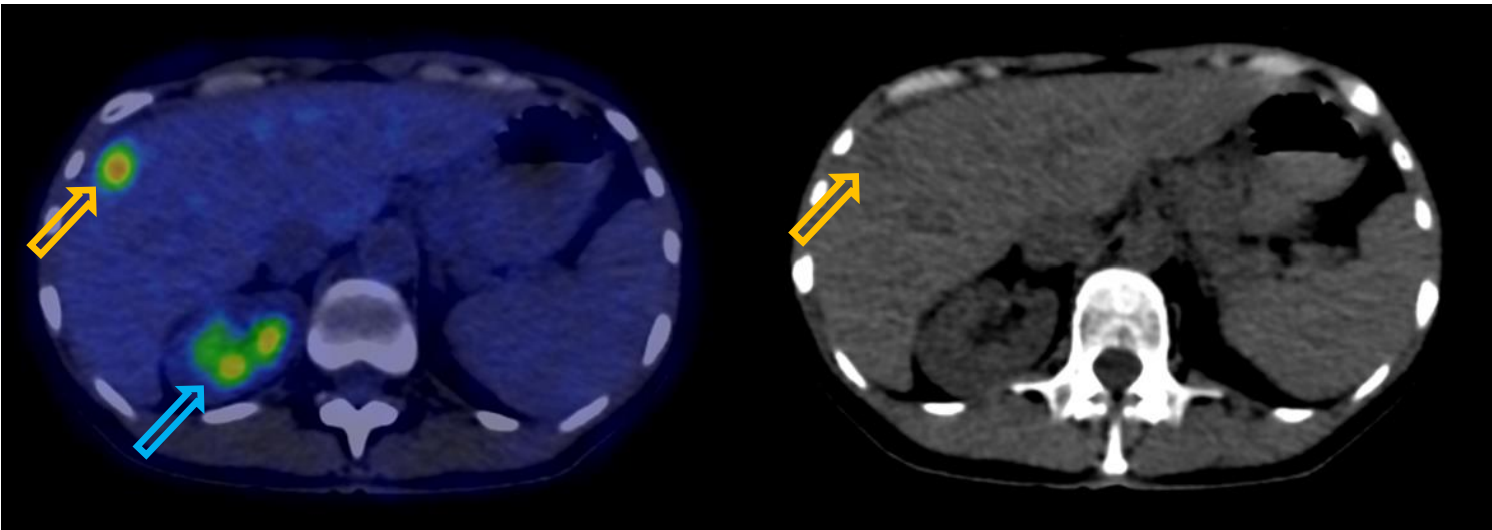

Patient history: colorectal tumor, elevated CEA-level, staging

Modality: FDG PET-CT (right panel: noncontrast CT); 18(F)-fluorodeoxyglucose

Region: upper abdomen, axial view

Sign: increased focal uptake in the liver; physiological high uptake in the right kidney

Diagnosis: malignant tumor (colorectal adenocarcinoma metastasis) in the liver

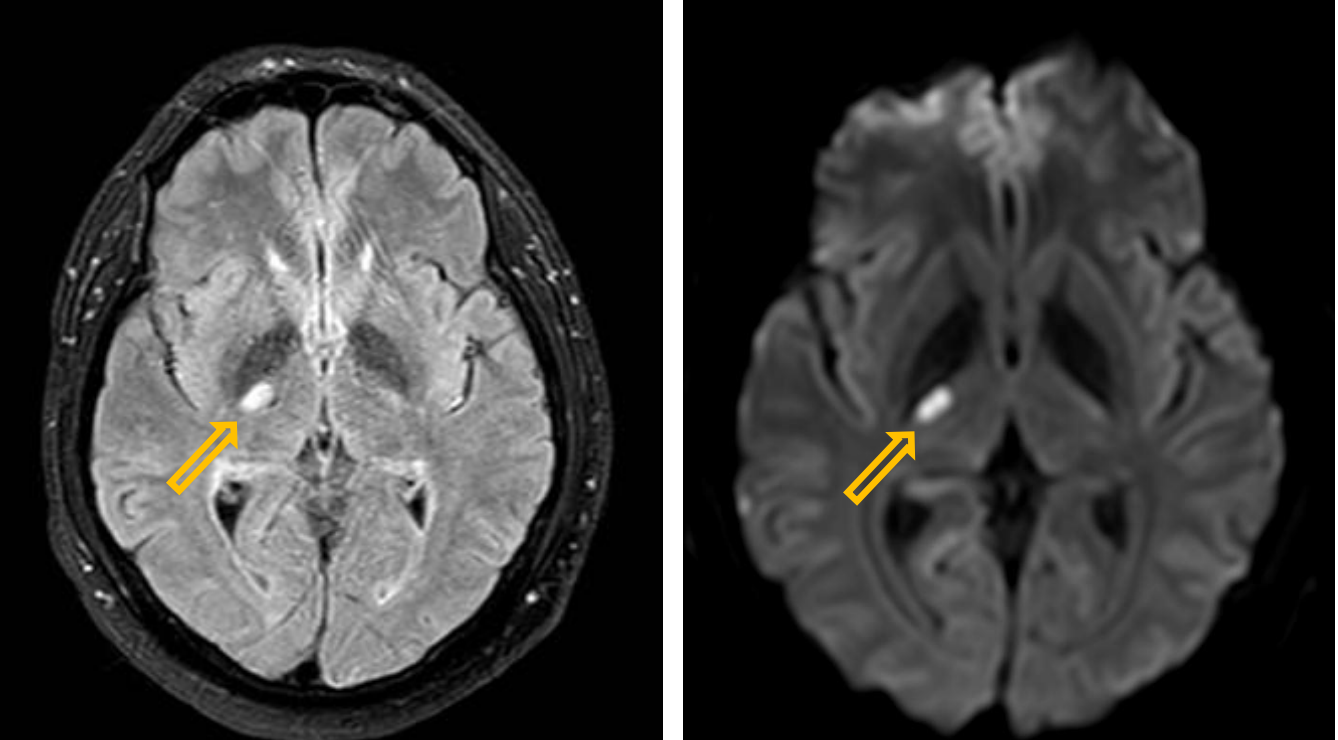

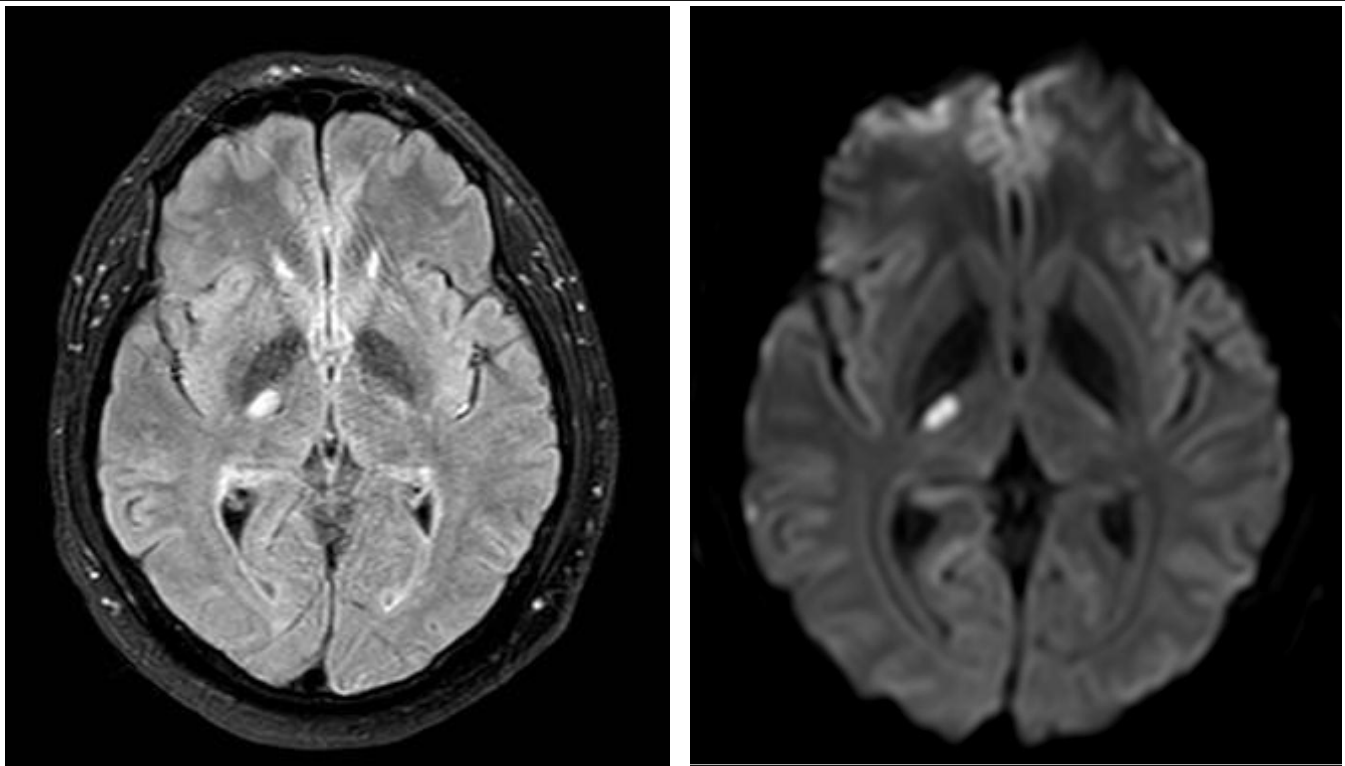

1.3

Patient history: at present left-sided hemiparesis (for some hours), with hypertension and diabetes mellitus in patient’s history

Modality: FLAIR (left) and DWI (right) MRI (noncontrast sequences) Region: brain, axial view

Radiologic sign: hyperintense lesion representing edema and restricted diffusion in the posterior genu of the right internal capsule

Diagnosis: small-area acute infarction

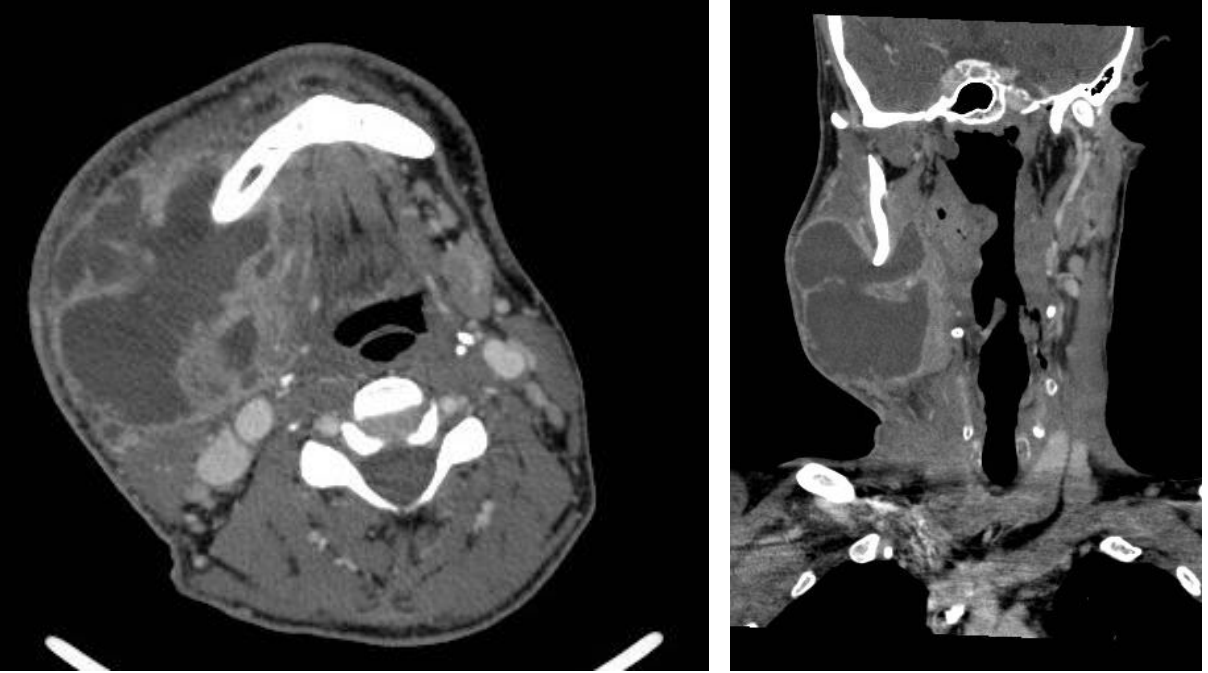

1.4

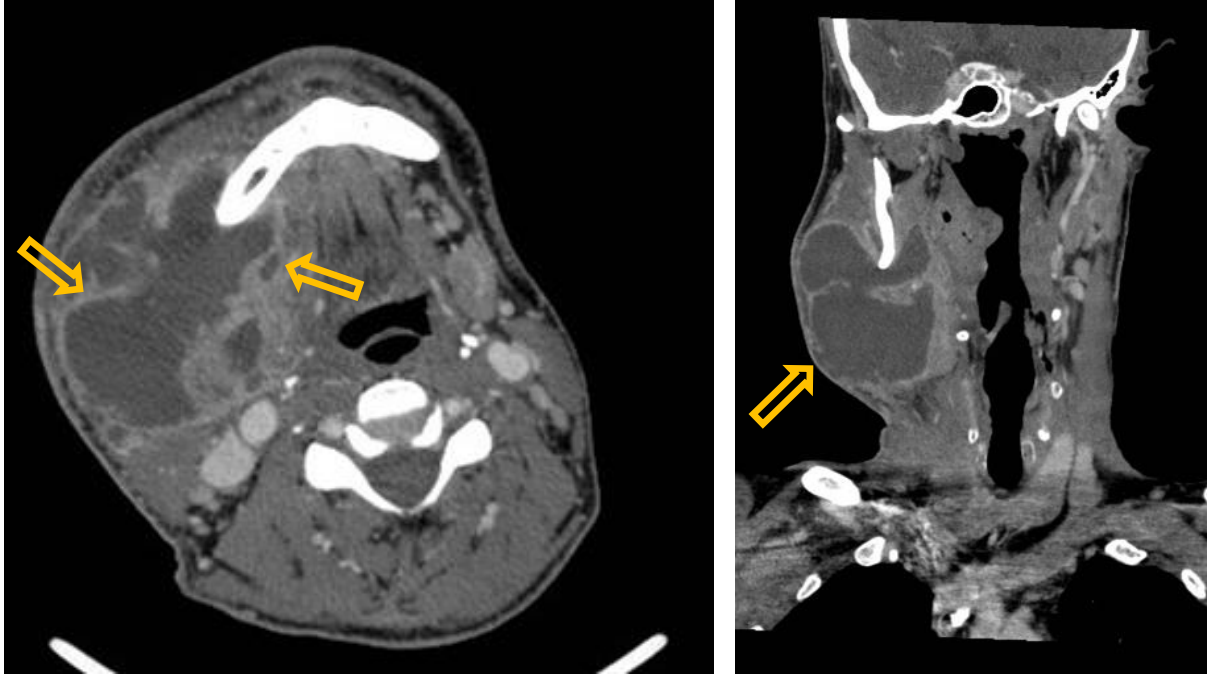

Patient history: right lower wisdom-tooth extraction 6 days ago, painful swollen mass on the right side of the masticator region

Modality: Contrast-enhanced CT, left image – axial view; right image – coronal reconstruction, iv. iodine-based contrast agent

Region: neck, axial (left) and coronal (right) views

Radiologic sign: Right-sided, hypodense submandibular fluid collection with thick, enhancing wall (yellow arrow). Fluid inside the abscess has a density of 0-10 HU and shows no enhancement. Patient had prior wisdom tooth extraction.

Diagnosis: neck abscess

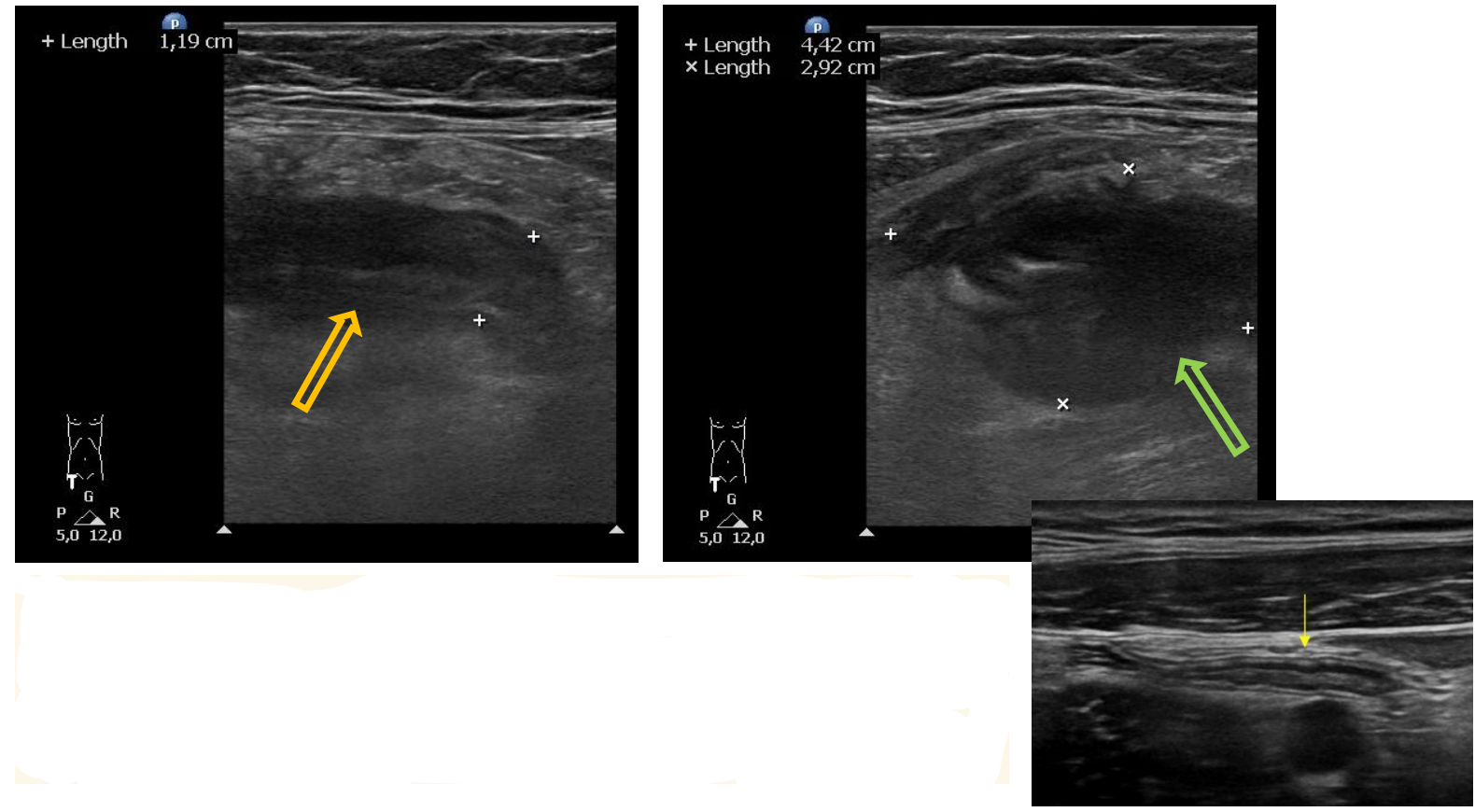

1.5

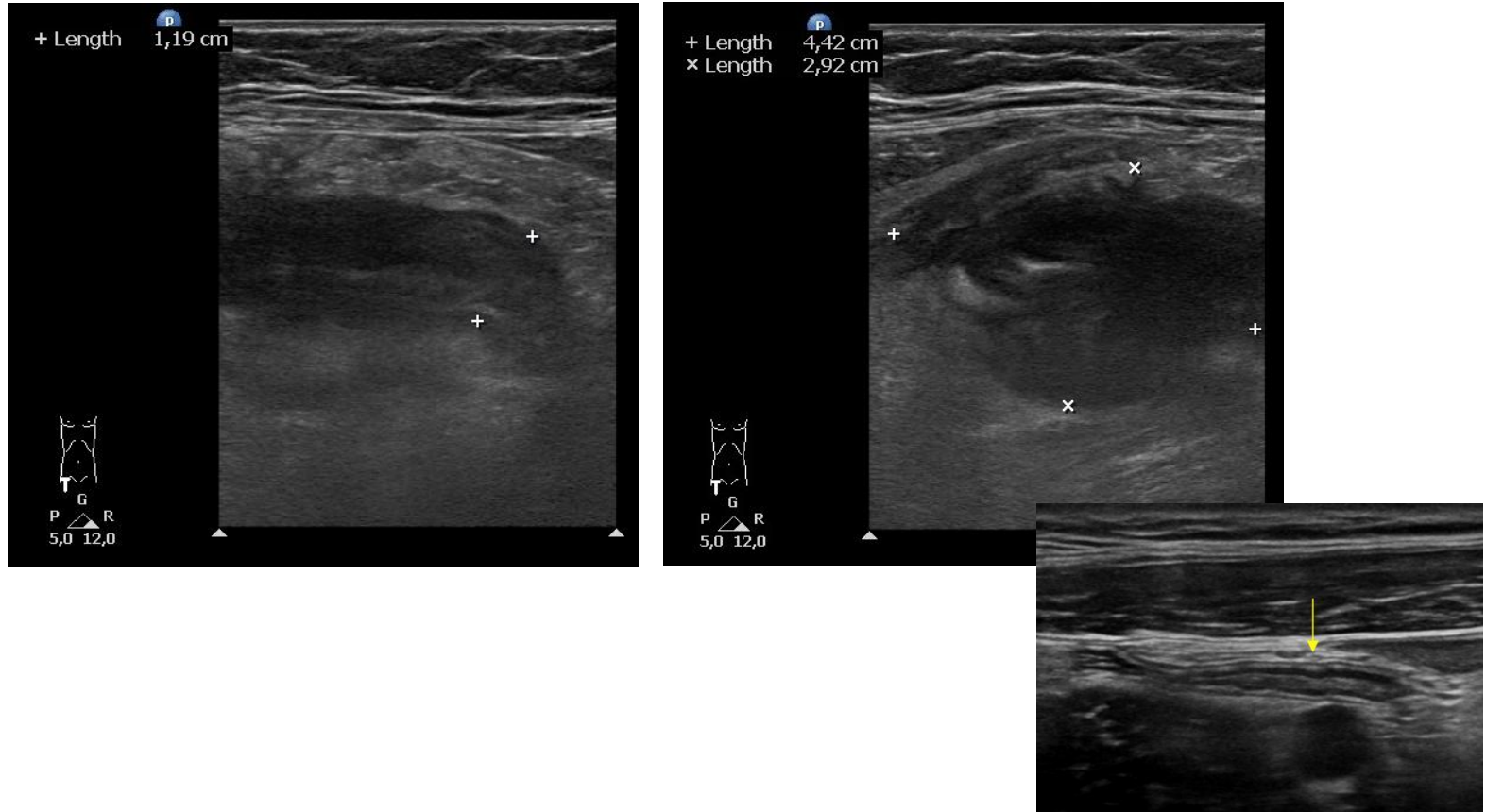

Patient history: acute right lower-quadrant abdominal pain in a young woman with normal body weight

Modality: sonogram of the appendix (linear 7,5–10 MHz probe), B-mode

Region: appendix, longitudinal and cross-sectional views

Radiologic sign: left image – thickened (12 mm), non-compressible hypoechogenic tubular structure

(yellow arrow); right image – hypoechogenic periappendiceal fluid collection around the tip of the

appendix (green arrow); small inlet – normal appendix ultrasonography

Diagnosis: acute appendicitis with periappendiceal abscess

2.1

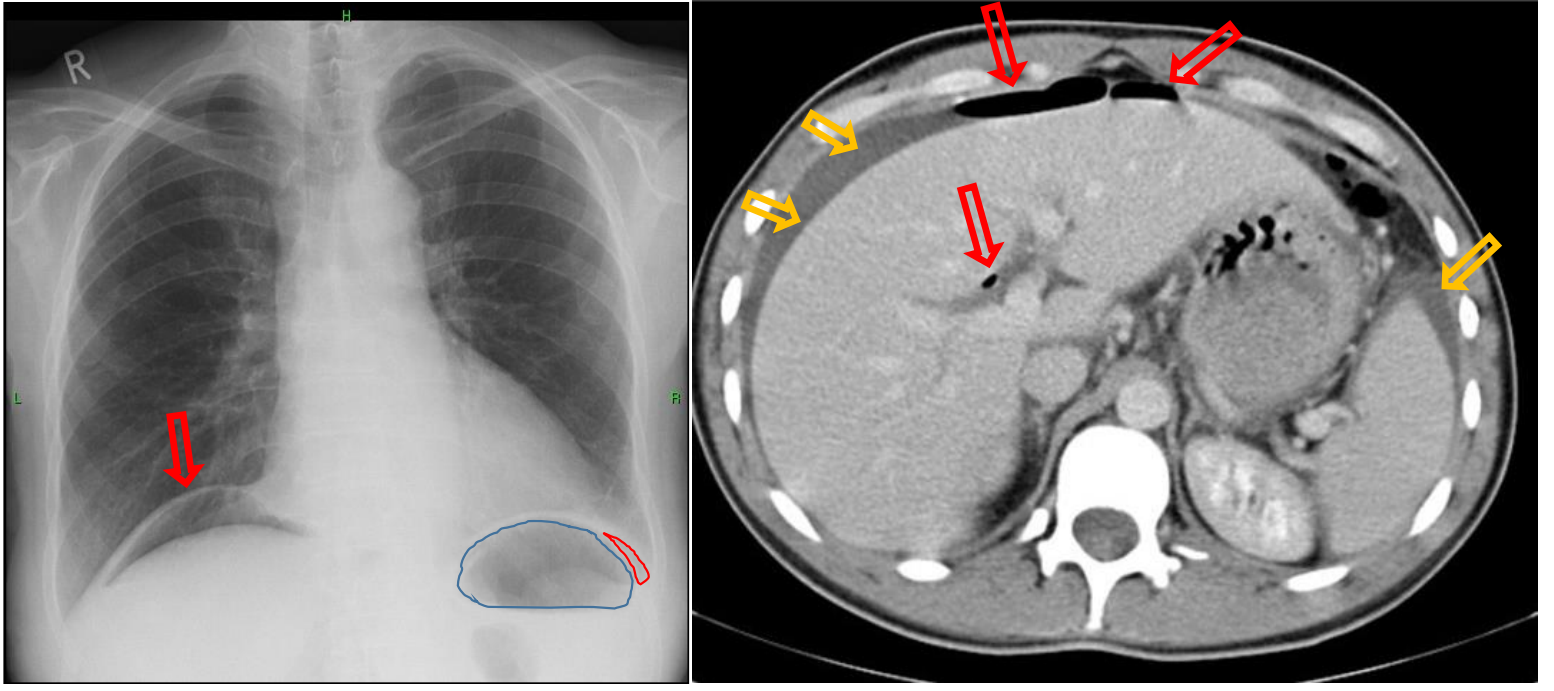

Patient history: sudden and severe upper abdominal pain, vomiting

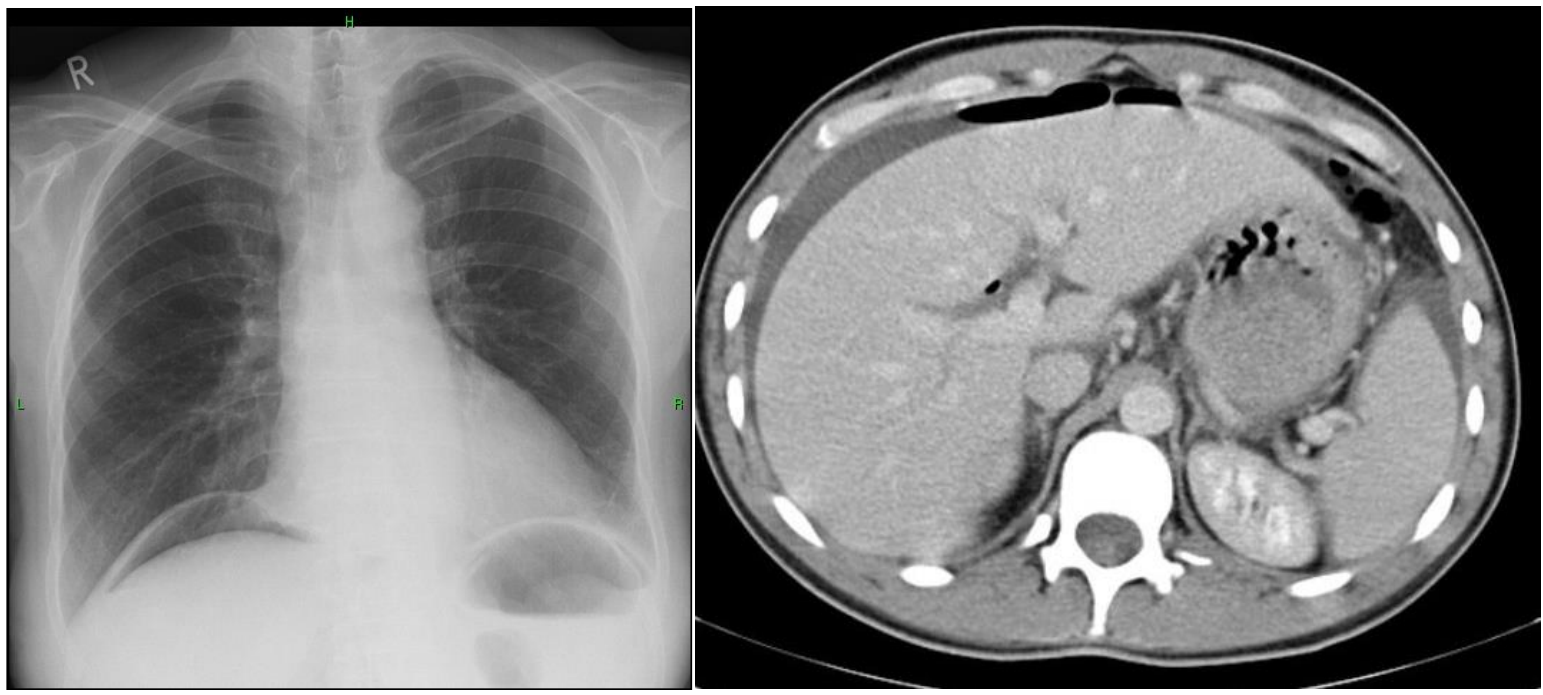

Modality: left – PA chest radiograph, frontal projection (upright position); right – contrast-enhanced CT, axial view

Region: chest, upper abdomen

Radiologic sign: Crescents of radiolucency under the hemidiaphragms (red arrows and outline) on the radiograph, free air accumulation at the convexity of the liver and at the liver hilum with density of -1000 HU (red arrows), perihepatic and perisplenic free fluid with density of 0 HU (yellow arrows) on CT.

Diagnosis: free abdominal air after ulcer perforation

2.2

Patient history: breast carcinoma, staging

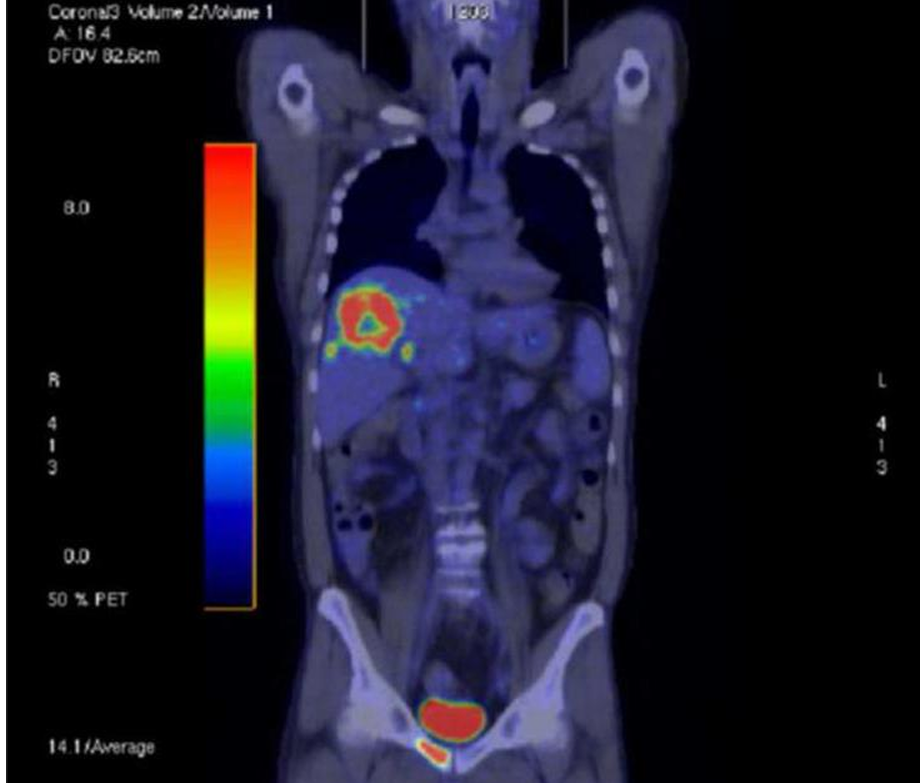

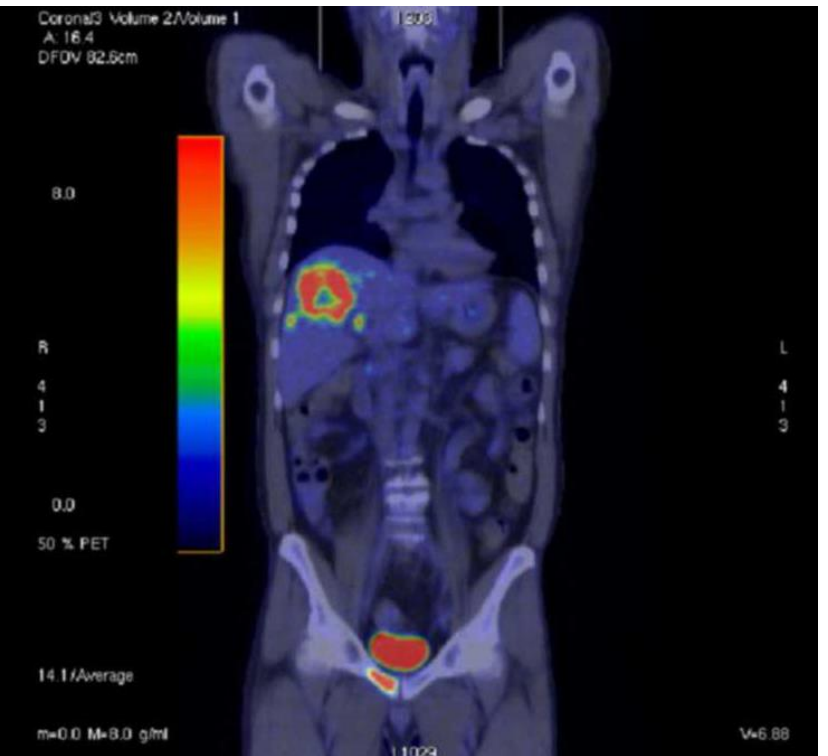

Modality: PET-CT, 18-fluorodeoxyglucose (18F-FDG) radiotracer; Hybrid imaging method: PET – metabolic activity, CT – morphology

Region: whole-body, coronal view

Radiologic sign: Increased fluorodeoxyglucose (18F-FDG) uptake in liver and pubic bone, high physiologic activity is shown in the bladder (normal finding). Liver lesion shows no central uptake, which is a sign of central necrosis.

Diagnosis: multiple metastases (liver, pubic bone) of breast carcinoma

2.3

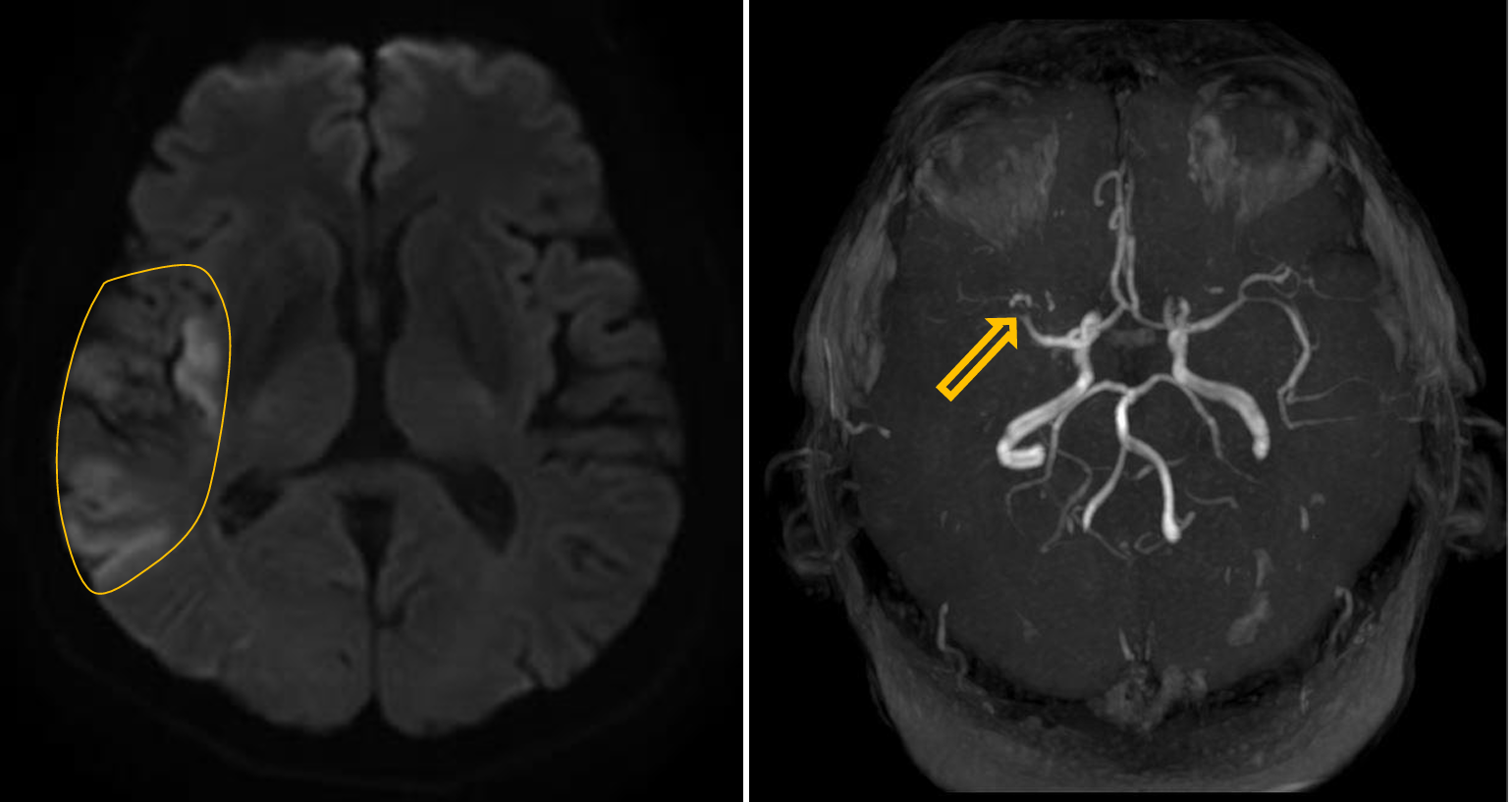

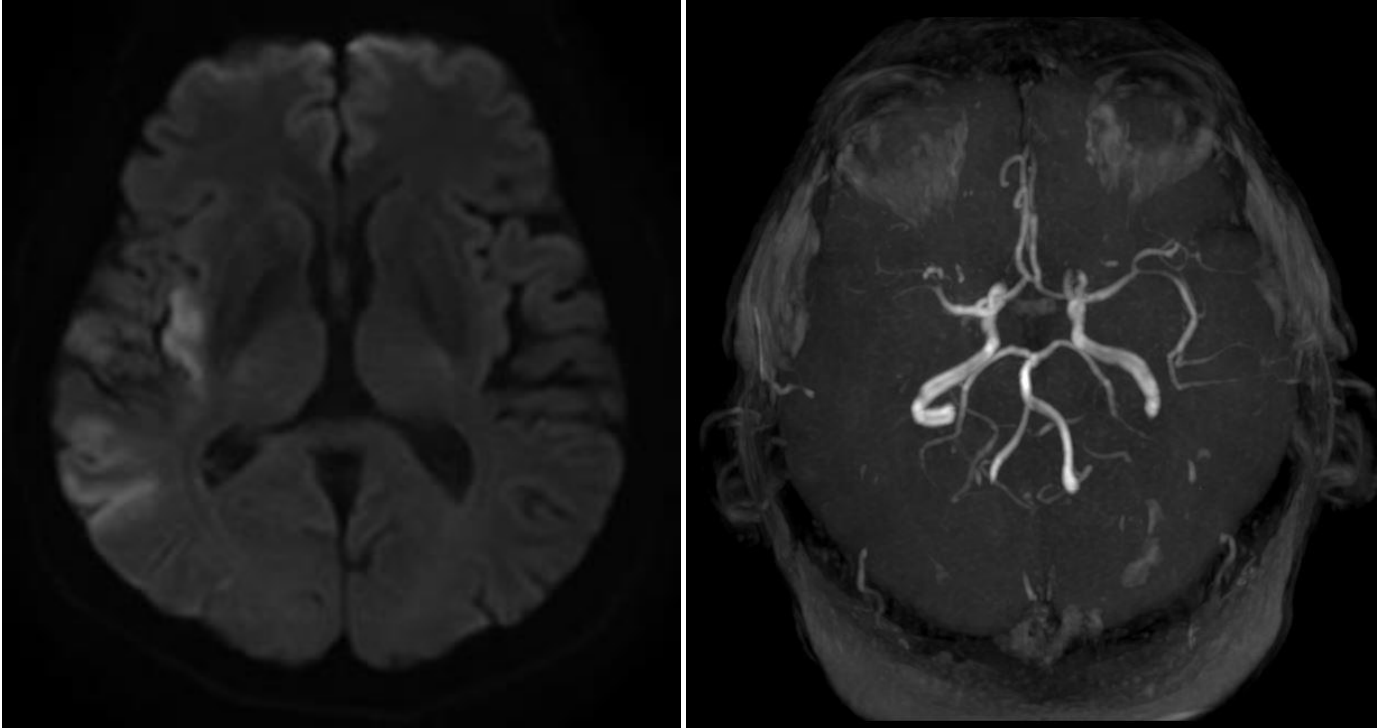

Patient history: leftsidedhemihypesthesia, visualneglect(ignores things on the left side) for a couple of hours

Modality: DWI MRI (left) and 3D TOF (time-of-flight) angiography (right); noncontrast sequence

Region: brain, axial view

Radiologic sign: significant hyperintensity (representing restricted diffusion) in the right parietal lobe with concomitant abrupt filling defect at the right middle cerebral artery

Diagnosis: large acute infarction due to acute thrombosis of the right middle cerebral artery

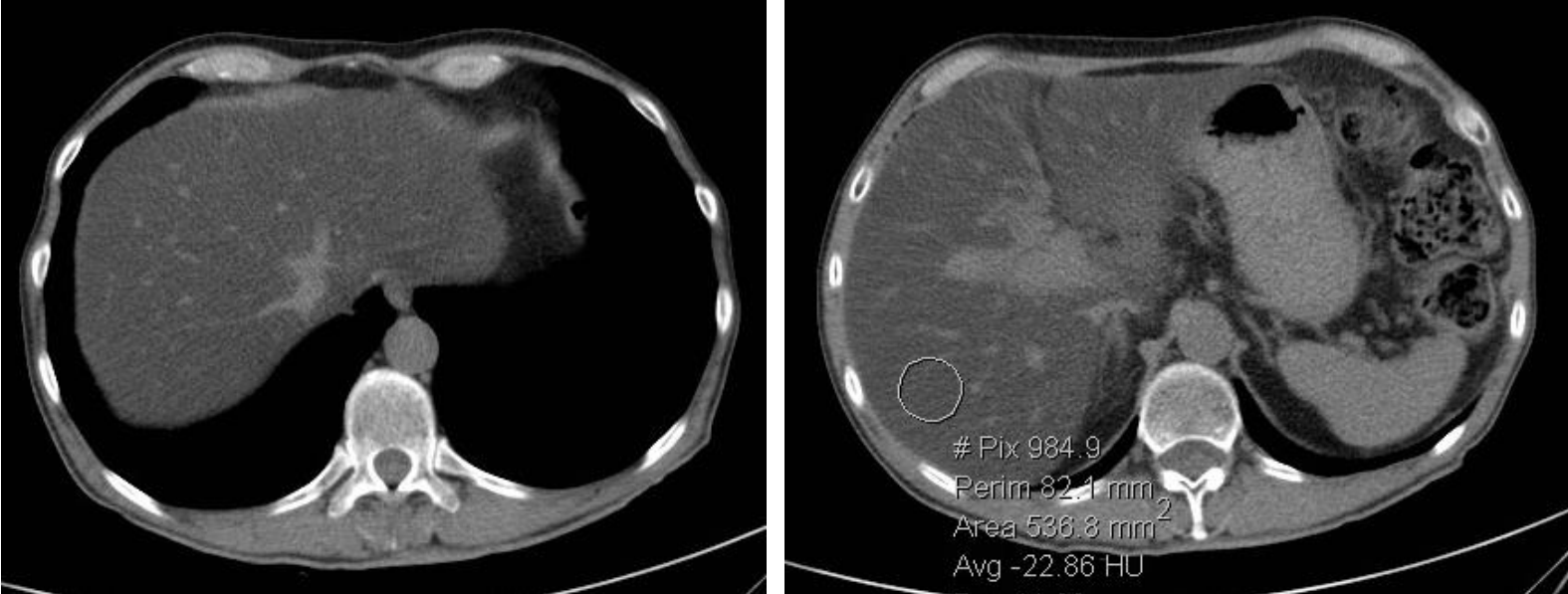

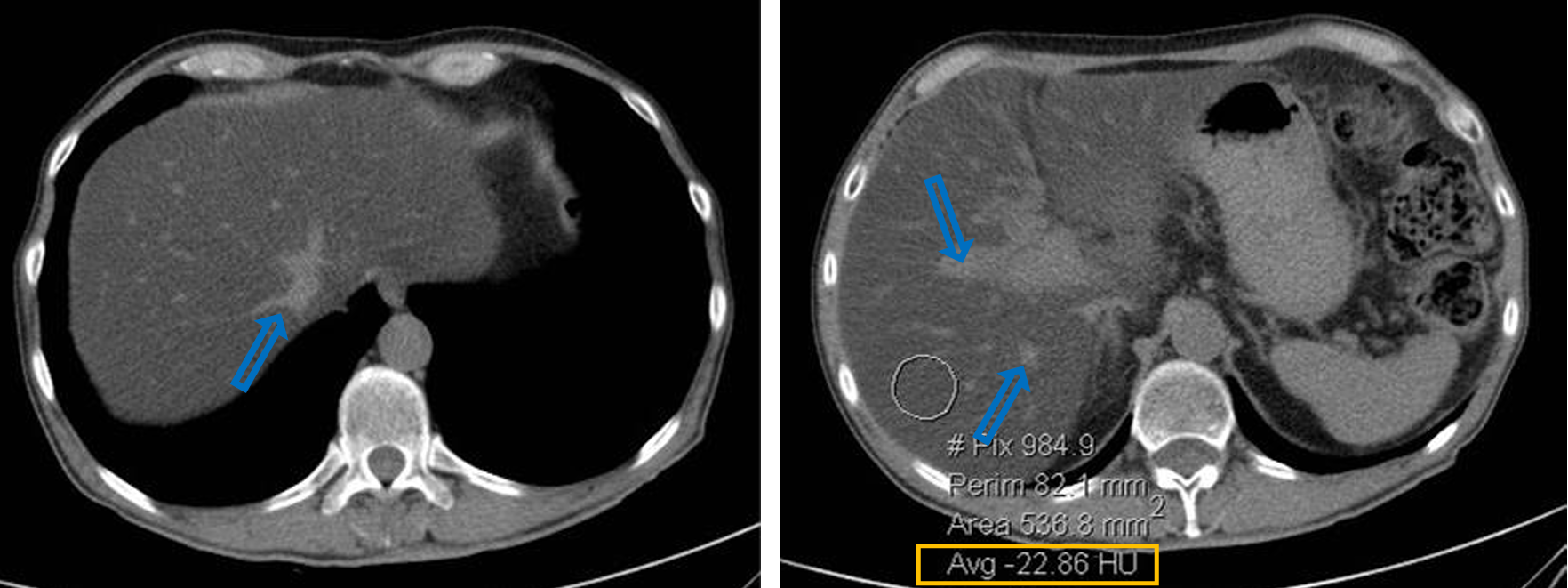

2.4

Patient history : elevated ALT (alanine transaminase) in a patient with hyperlipidemia

Modality: noncontrast CT

Region: upper abdomen, axial views

Radiologic sign: Diffusely, homogenously decreased density (cca. - 20 HU) of the liver (hepatic density normally is around 50-60 HU). The vessels (blue arrow) are denser in comparison to the liver parenchyma.

Diagnosis: steatosis hepatis (fatty liver)

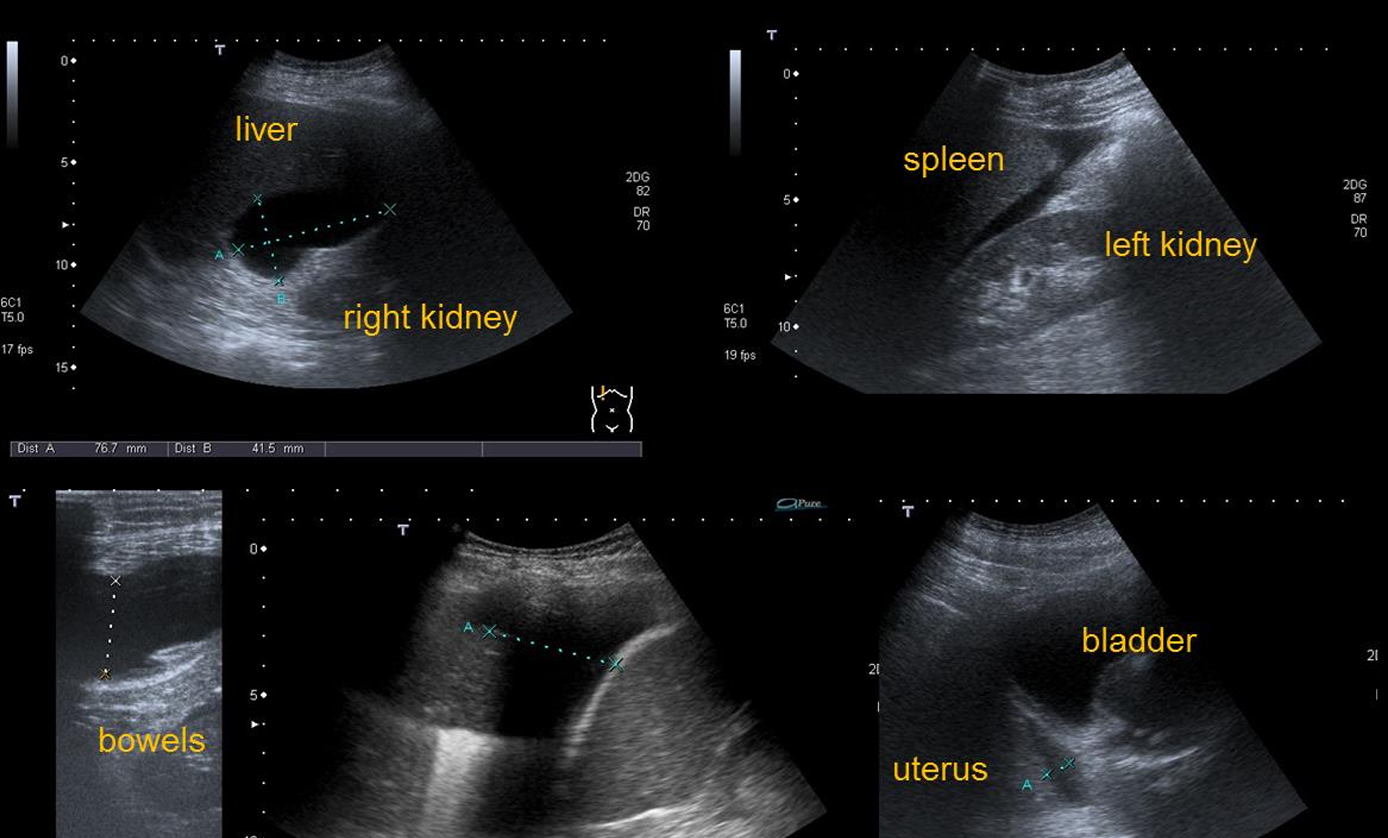

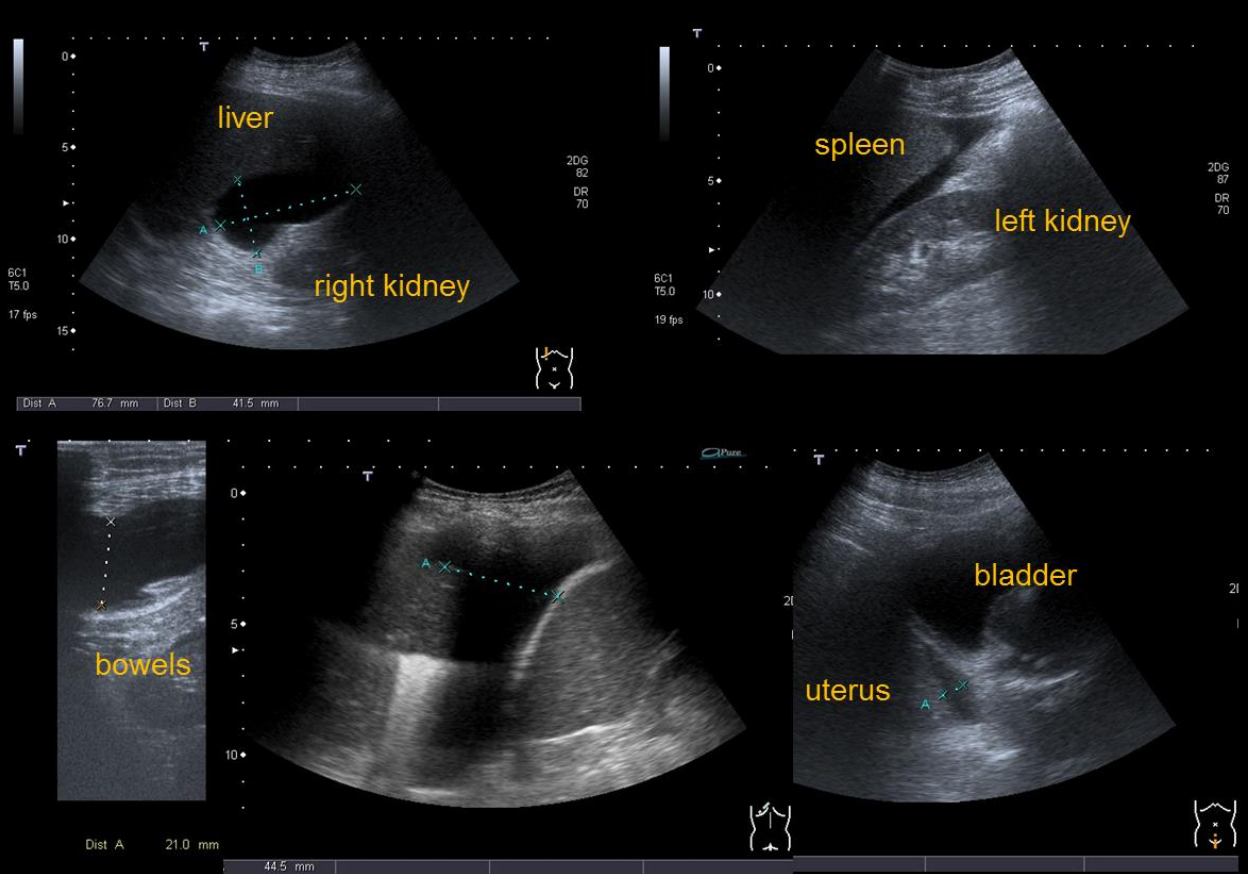

2.5

Patient history: blunt abdominal trauma

Modality: FAST (Focused Assessment with Sonography for Trauma) scan

Region: Abdomen, pleural sinuses, pericardium, aorta

Radiologic sign: Free abdominal fluid in the hepatorenal fossa, around the spleen, among the bowel loops and in Douglas pouch.

Diagnosis: Free abdominal fluid after blunt trauma, suspicious for internal hemorrhage.

3.1

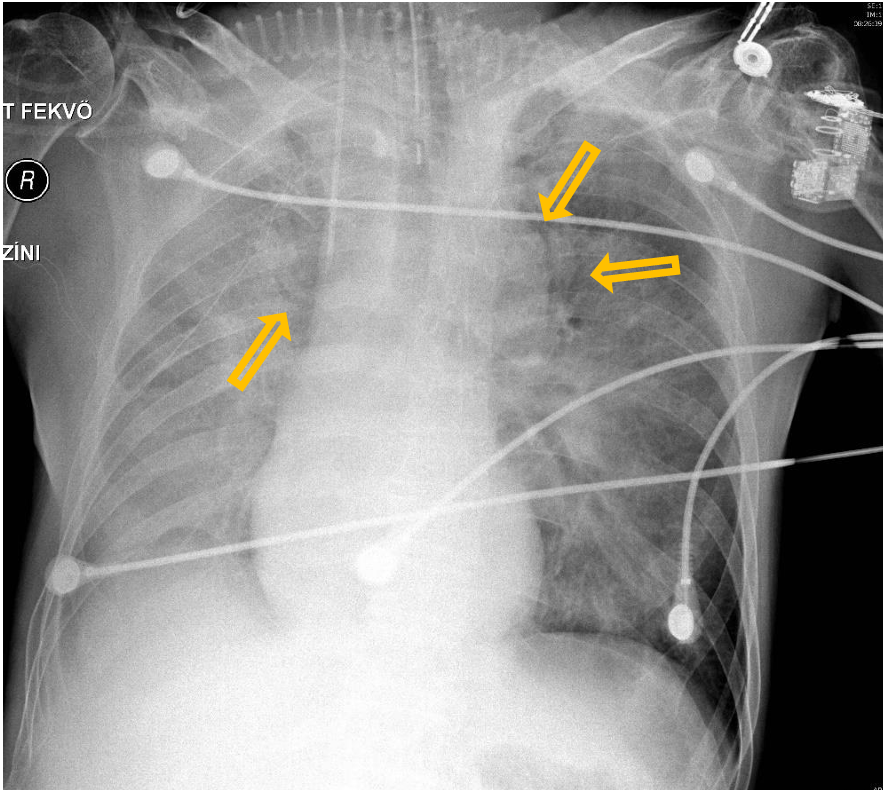

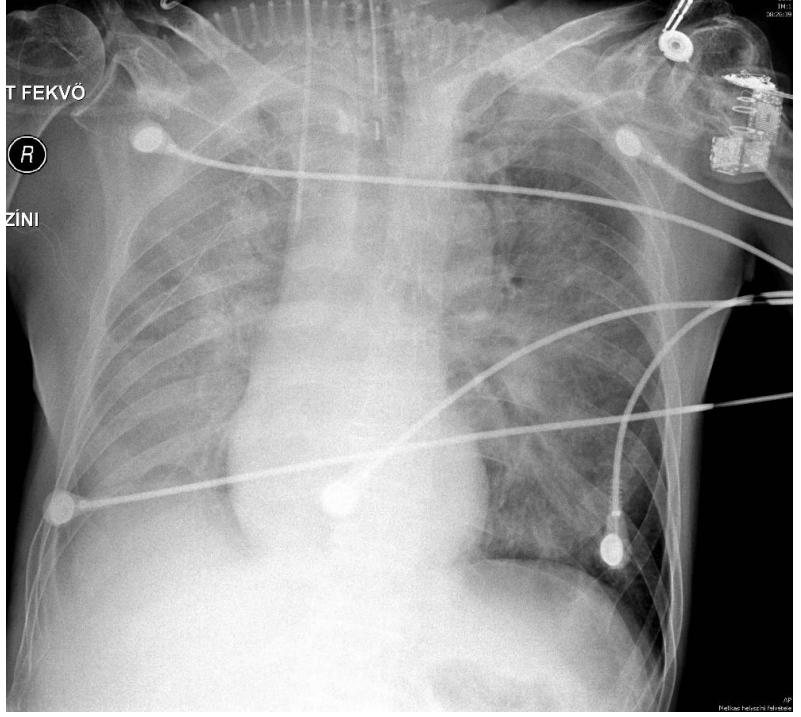

Patient history: postoperative condition, cardiac failure

Modality: AP chest radiograph

Region: chest, lungs

Radiologic sign: Extensive, bilateral perihilar opacities with air bronchograms (yellow arrow). Right diaphragm cannot be differentiated, on this side homogeneous loss of transparency can be seen due to the extending pleural effusion.

Diagnosis: severe pulmonary edema, right-sided hydrothorax

3.2

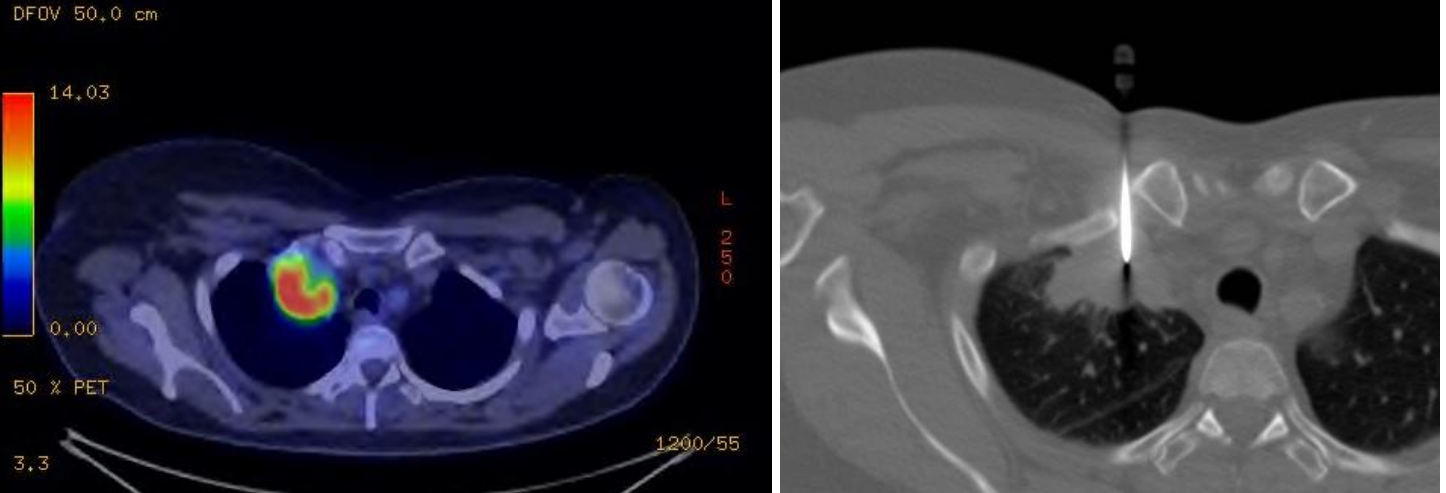

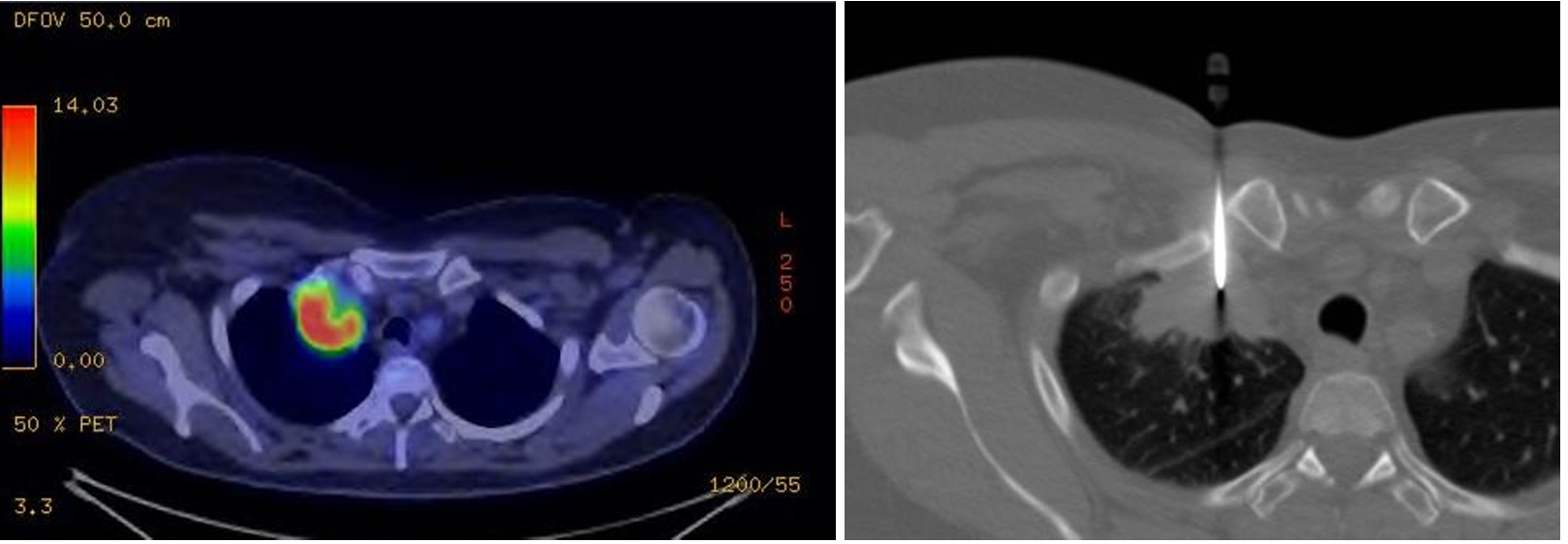

Patient history: heavy smoker for three decades, right shoulder pain at present in a middle-aged patient

Modality: PET-CT; 18-fluorodeoxyglucose (18F-FDG) radiotracer fused image (left); non-enhanced chest CT with bone window, core biopsy (right)

Region: chest, lung

Radiologic sign:Increased 18F-FDG uptake in the right apical mass;

Diagnosis: CT-guided core biopsy from the right apical mass. Pancoast-tumor, lung core biopsy

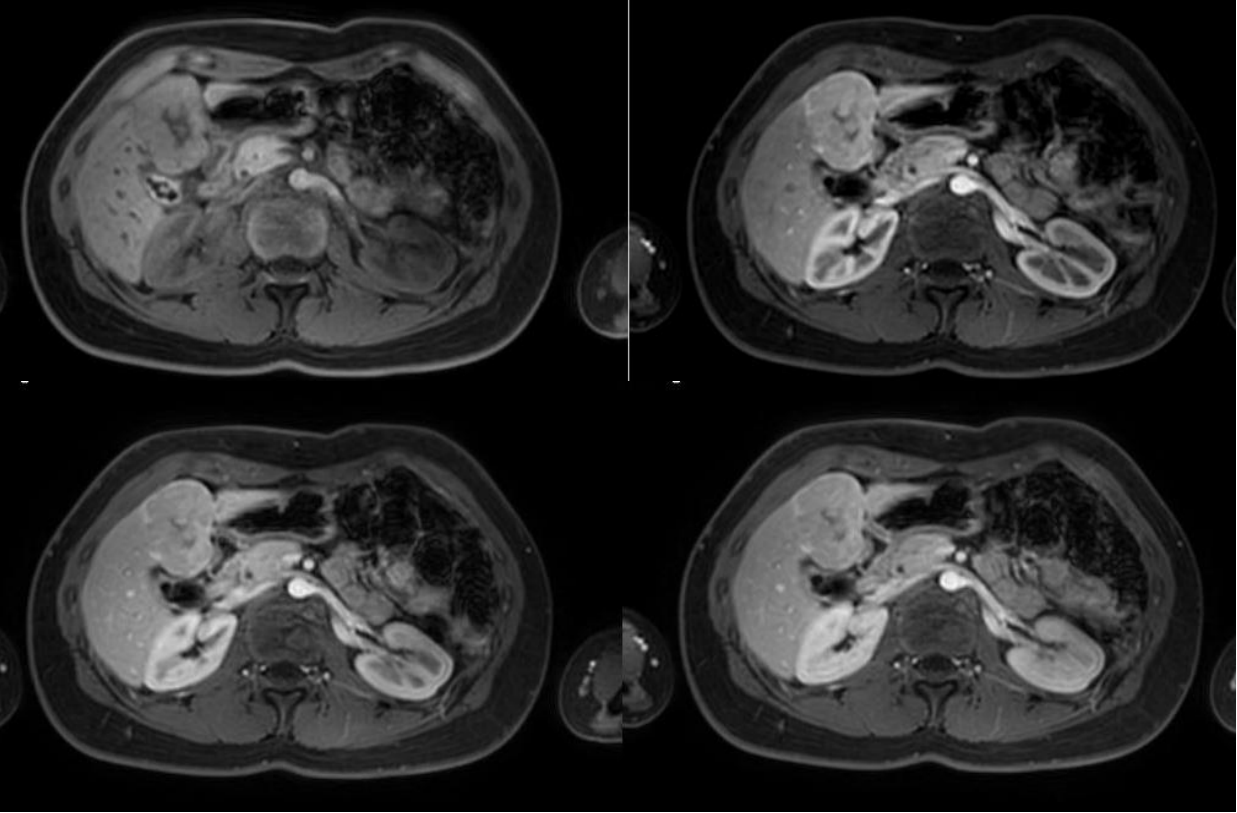

3.3

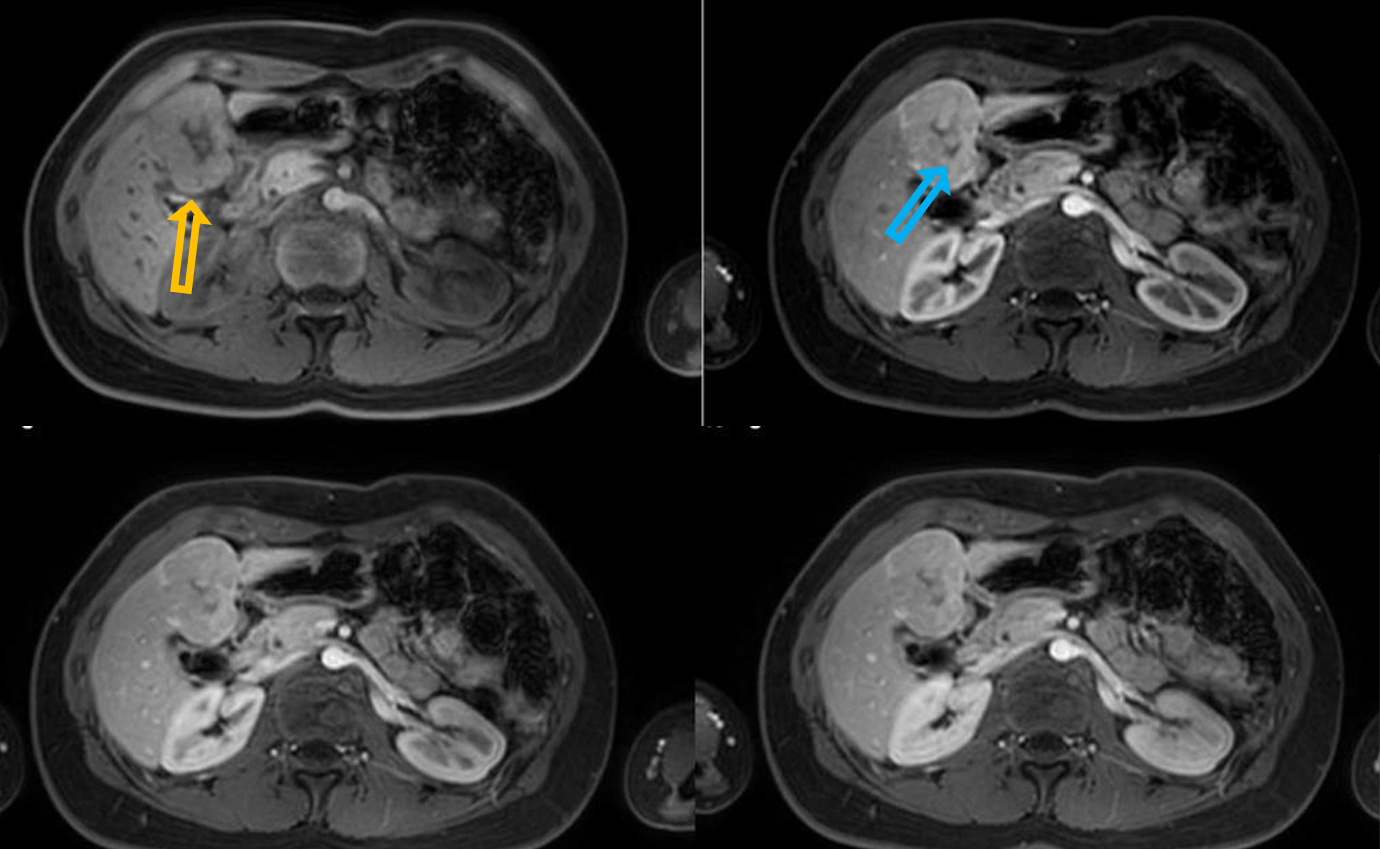

Patient history: liver mass was discovered on a routine abdominal ultrasound, work-up imaging

Modality: dynamic contrast-enhanced MR (T1 with fatsat) after iv. gadolinium (non-contrast, arterial phase, portal phase, venous phase), axial views

Region: upper abdomen

Radiologic sign: large hepatic mass (yellow arrow), intensive arterial enhancement, no „wash-out”, non-enhancing central scar (blue arrow).

Diagnosis: focal nodular hyperplasia (FNH)

3.4

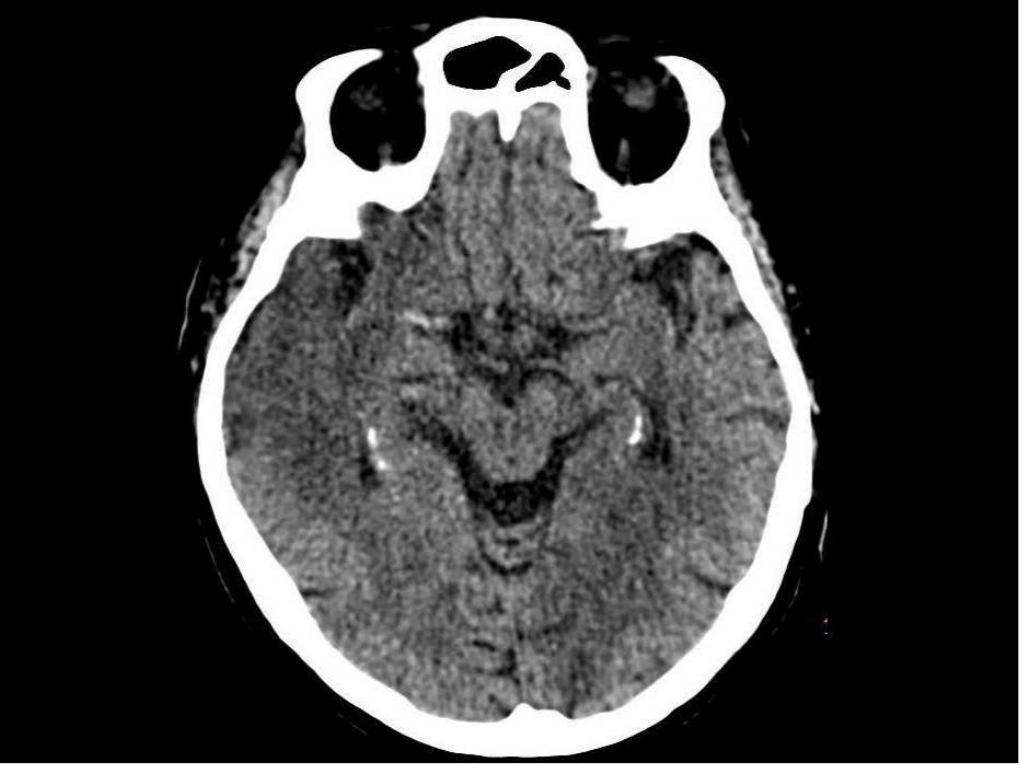

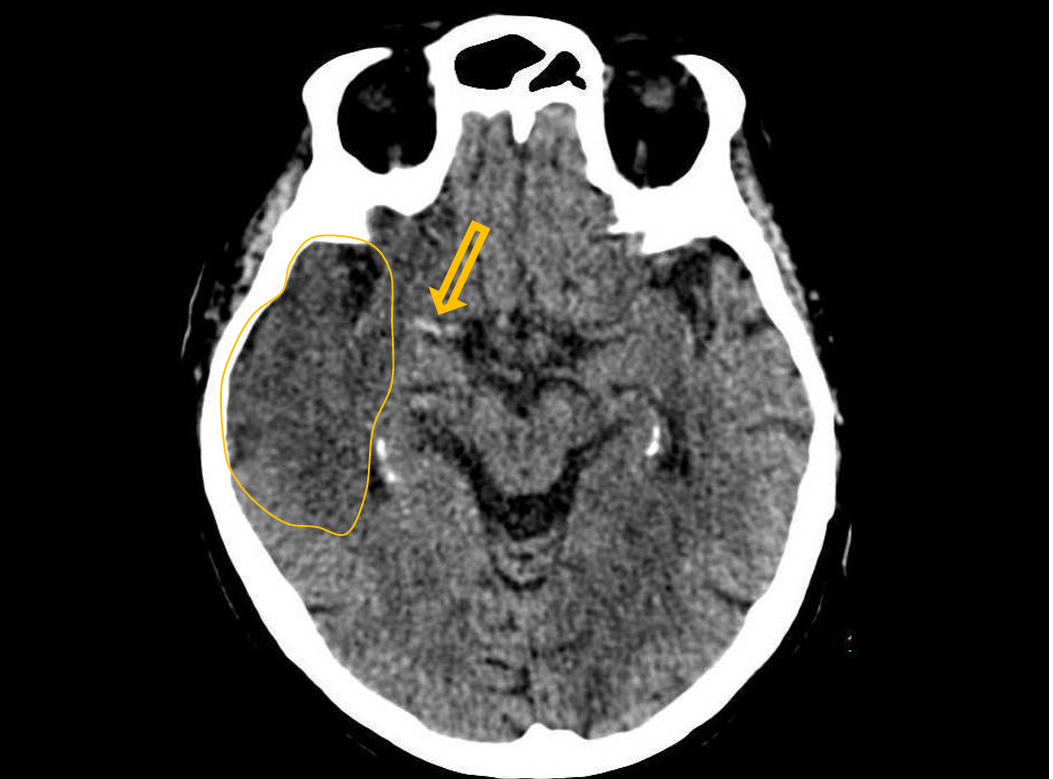

Patient history: epilepticseizure, hallucination, suddenmemoryimpairment

Modality: non-enhanced CT, brain window setting (window level: 40 HU; window width: 80 HU)

Region: brain, axial view

Radiologic sign: Cortical-subcortical border disappeared/blurred due to edema (blue area), “hyperdense media”-sign – thrombosis of the right middle cerebral artery (yellow arrow).

Diagnosis: acute/subacute ischaemia in the territory of the right MCA

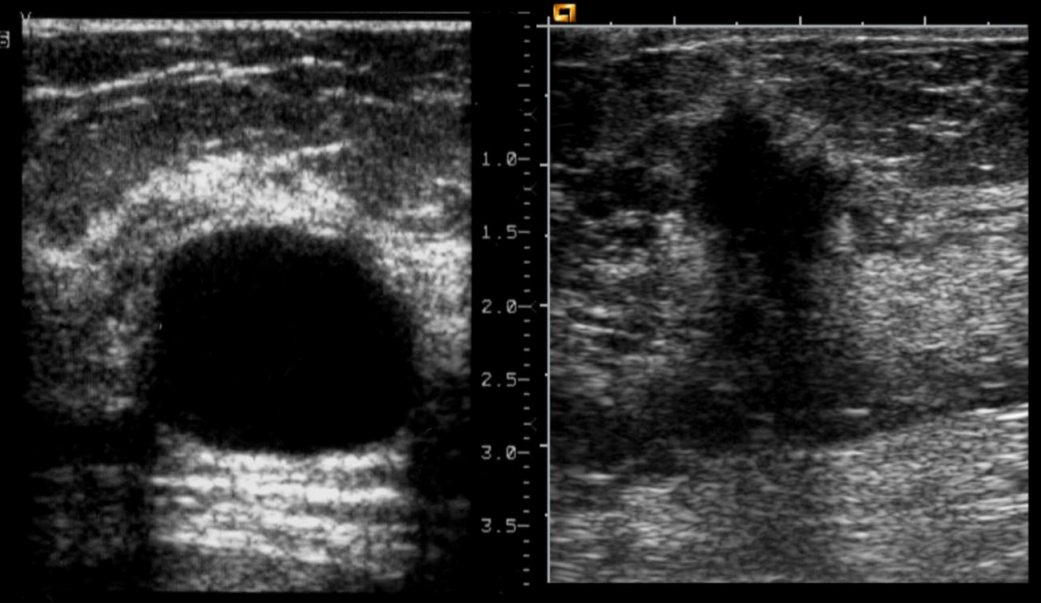

3.5

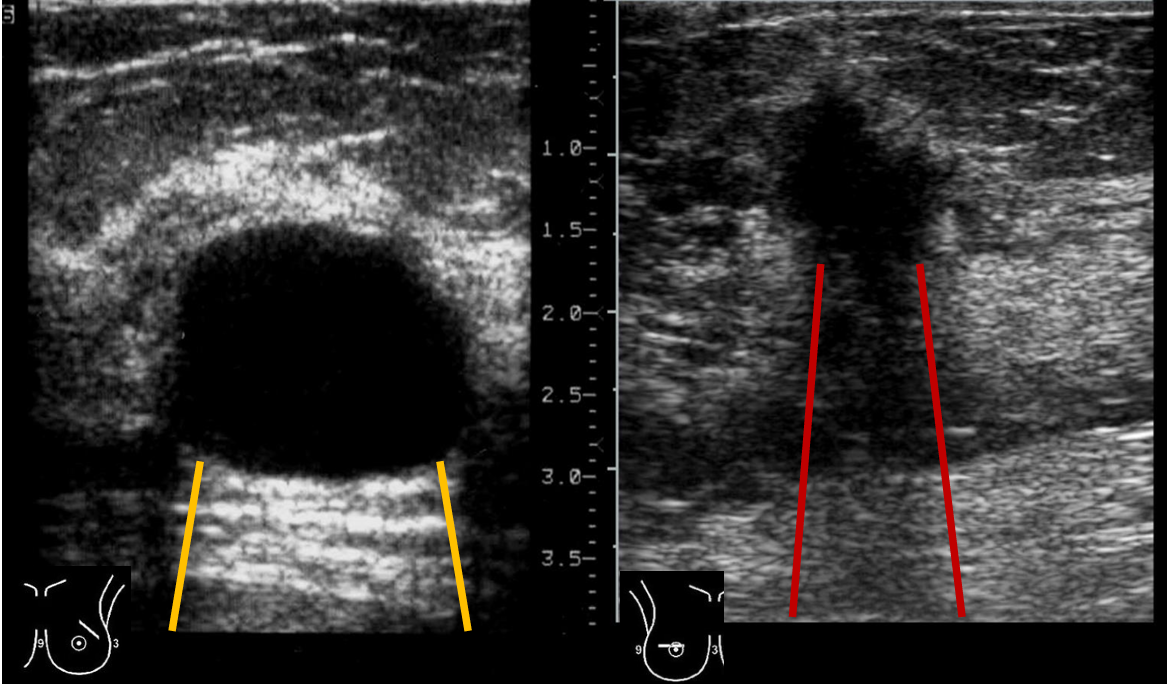

Patient history: asymptomatic patients, complex breast screening studies

Modality: breast sonography with linear probe (7.5–10 MHz), B-mode

Region: Breast, axilla

Radiologic sign: left image – well-defined anechoic lesion with posterior acoustic enhancement (btw yellow lines); right image – ill-defined hypoechogenic lesion with partial acoustic shadowing (btw red lines), “taller than wide” solid mass, suspicious of cancer

Diagnosis: simple cyst / breast carcinoma

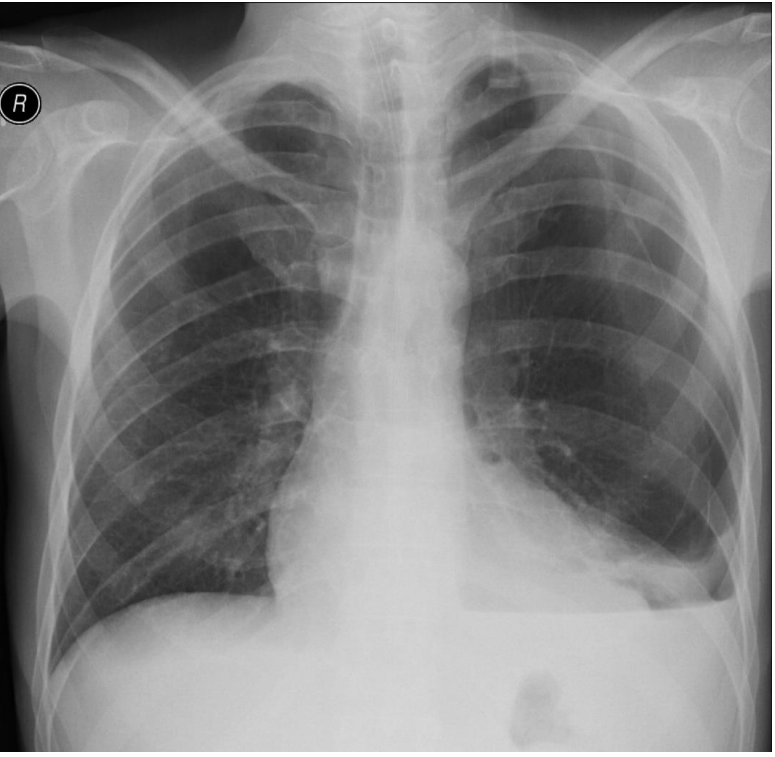

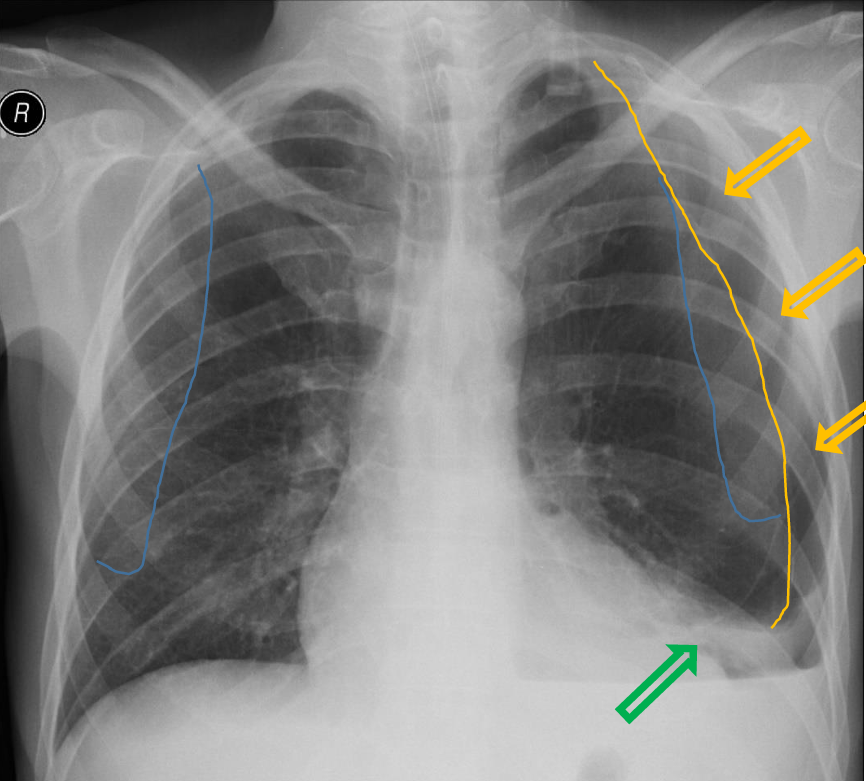

4.1

Patient history: blunt chest trauma in a young patient

Modality: PA chest radiograph

Region: chest, pleura

Radiologic sign: Left peripheral space is radiolucent without lung markings (yellow arrow); visible visceral pleural line (yellow line); slight mediastinal shift to the right. Left diaphragm and lateral sinus cannot be differentiated due to pleural fluid (horizontal fluid level is visible), while little above left lung basis partially collapsed (green arrow). Scapula lines are signed with blue lines.

Diagnosis: left-sided hydropneumothorax

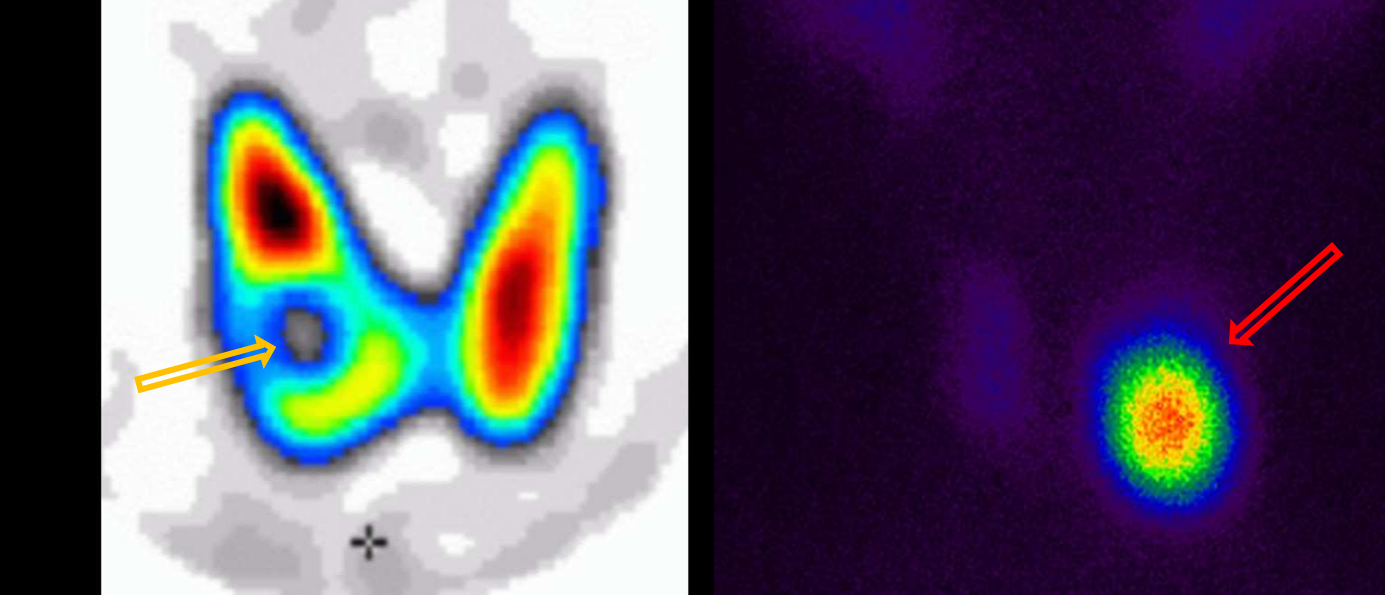

4.2

Patient history: thyroid masses found on routine ultrasonography

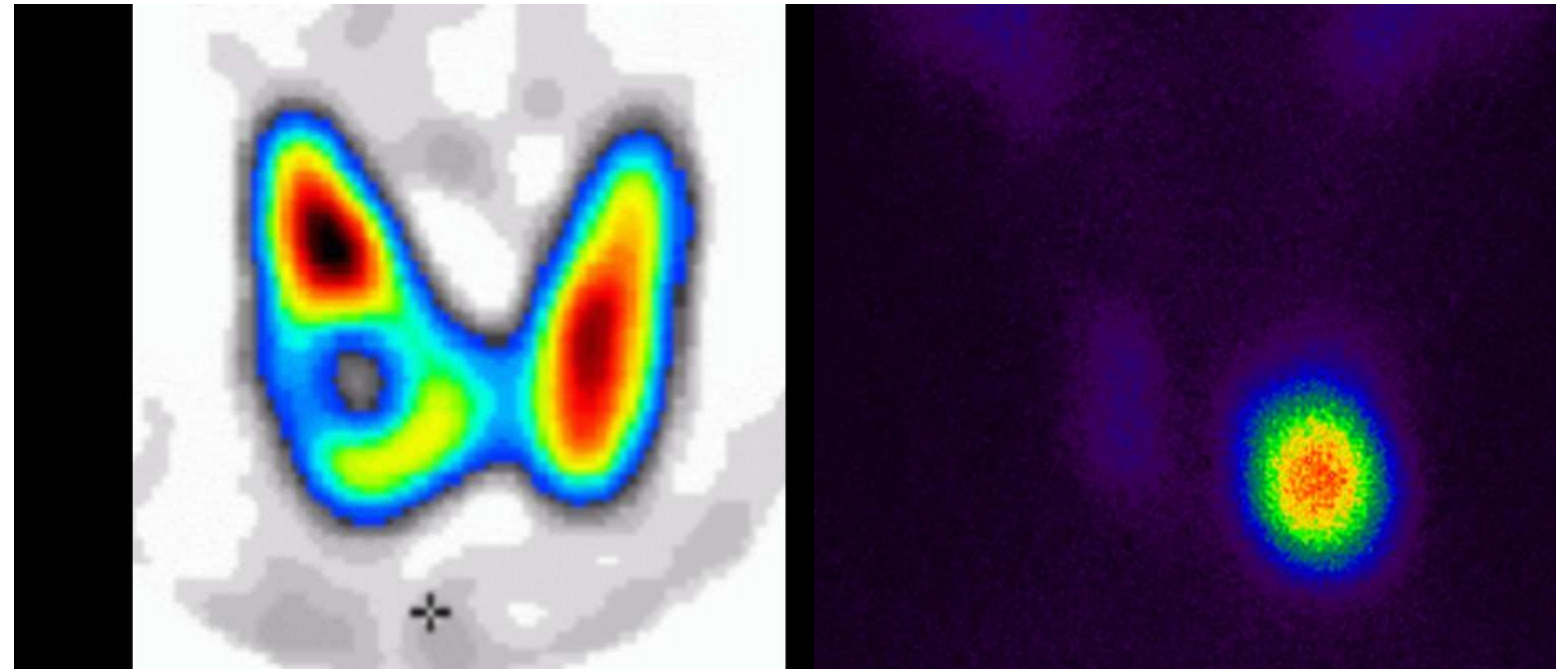

Modality: thyroid gland scintigram, Technetium-99m (99m Tc)-pertechnetate scintigraphy

Region: thyroid

Radiologic sign: left image - Focal lesion showing decreased tracer activity in the right lobe (yellow arrow); right image - increased uptake in the left lobe of the thyroid, low uptake in other parts of the gland (red arrow).

Diagnosis: left – cold nodule, which arise the suspicion of malignancy; right – hot, most probably benign nodule causing suppression of normal gland function

4.3

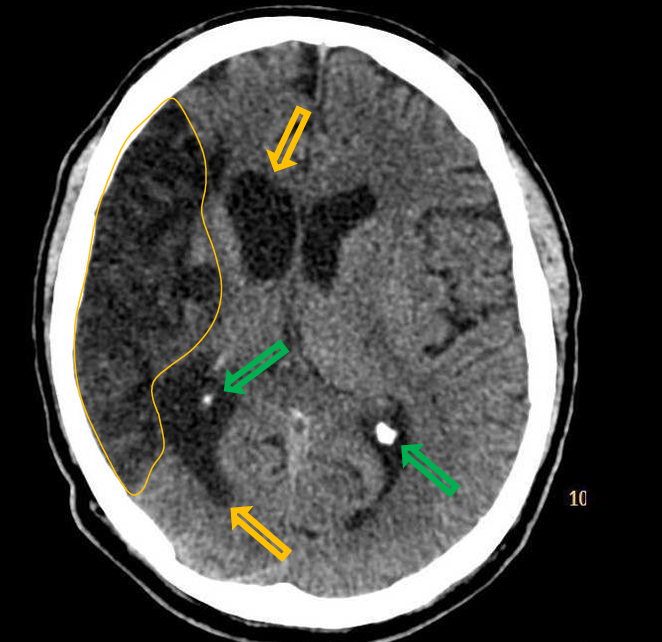

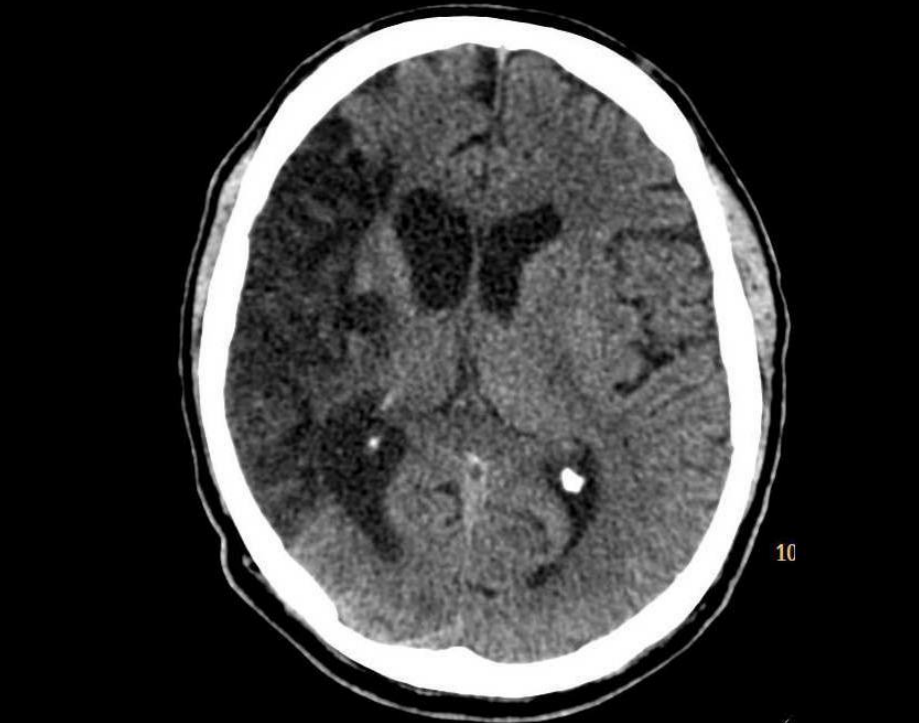

Patient history: elderly patient with chronic symptoms such as severe, left spastic hemiparesis with hemihypesthesia

Modality: Non-enhanced CT, brain window setting (window level: 40 HU; window width: 80 HU)

Region: brain, axial view

Radiologic sign: Extensive hypodense (20-25 HU) brain parenchyma, concomitant dilatation of the right lateral ventricle (yellow arrows) due to brain tissue loss; calcifications of the choroideal plexuses (common finding, green arrows)

Diagnosis: chronic ischemic lesion in the territory of right MCA

4.4. upper

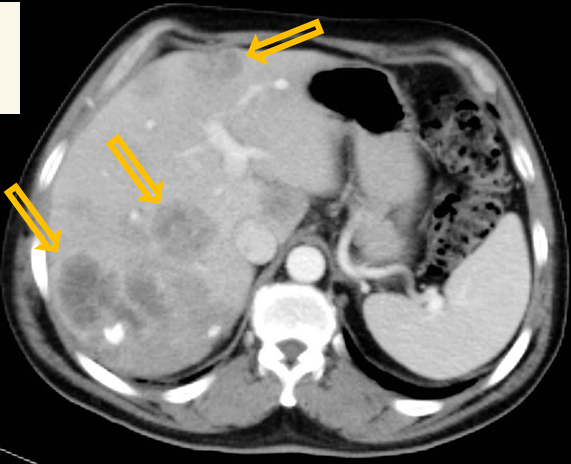

Modality: Region: contrast-enhanced

CT, portal phase, iv. iodine-based contrast agent upper abdomen, axial view

Radiologic sign: multiple hypoenhancing lesions of the liver, normal spleen

Diagnosis: multiple liver metastases (most commonly from colon adenocc.)

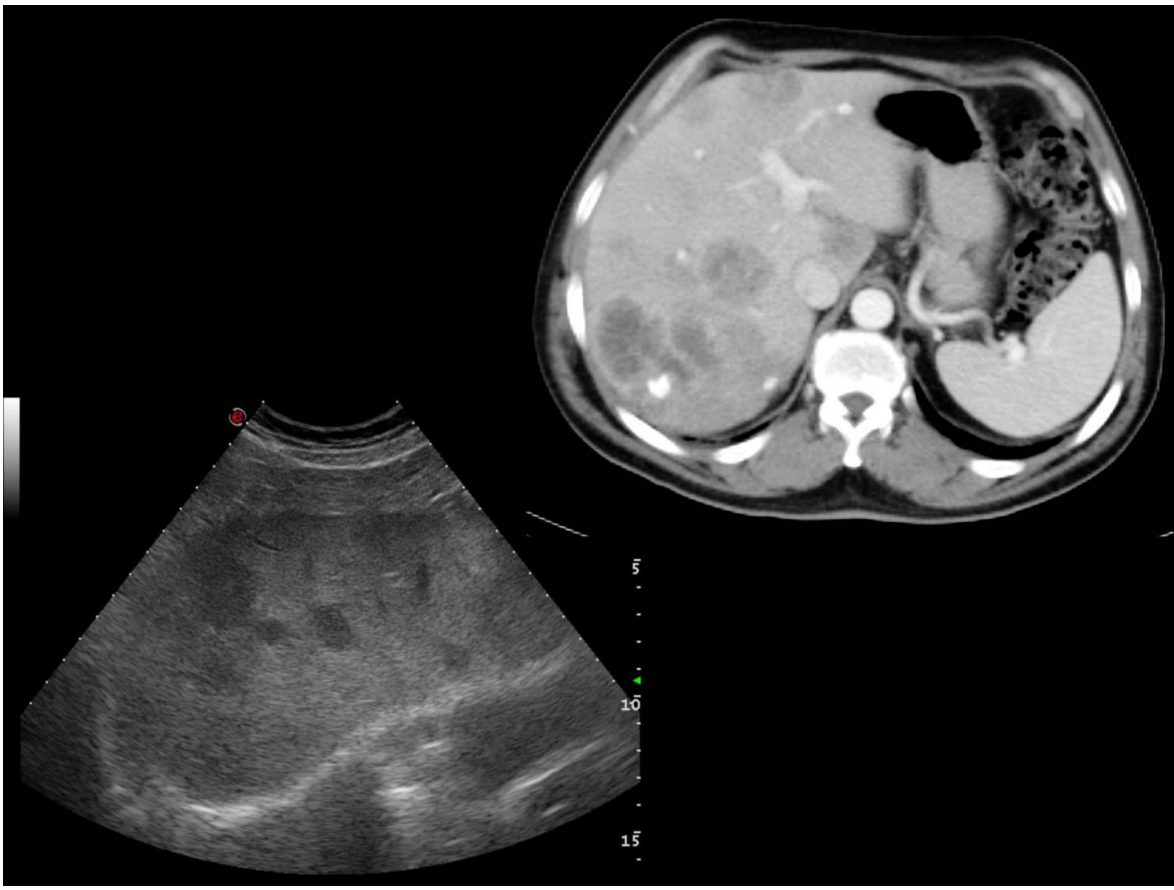

4.4 lower

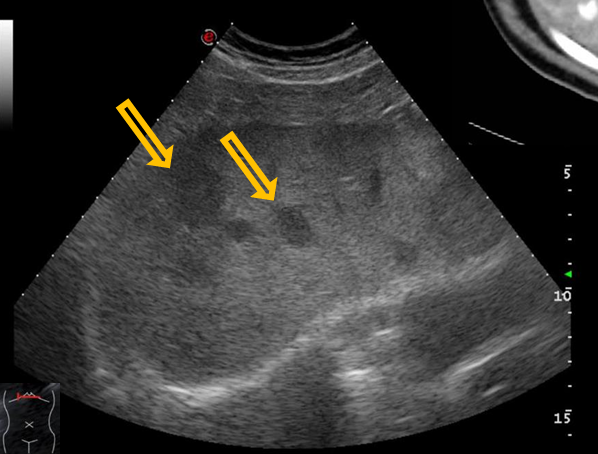

Patient history: colorectal tumor, increased CEA level at present

Modality: Liver ultrasound with convex probe (3.5-5 MHz), B-mode

Region: liver, right subcostal view

Radiologic sign: Diagnosis: hypoechoic lesions of the liver multiple liver metastases

4.5

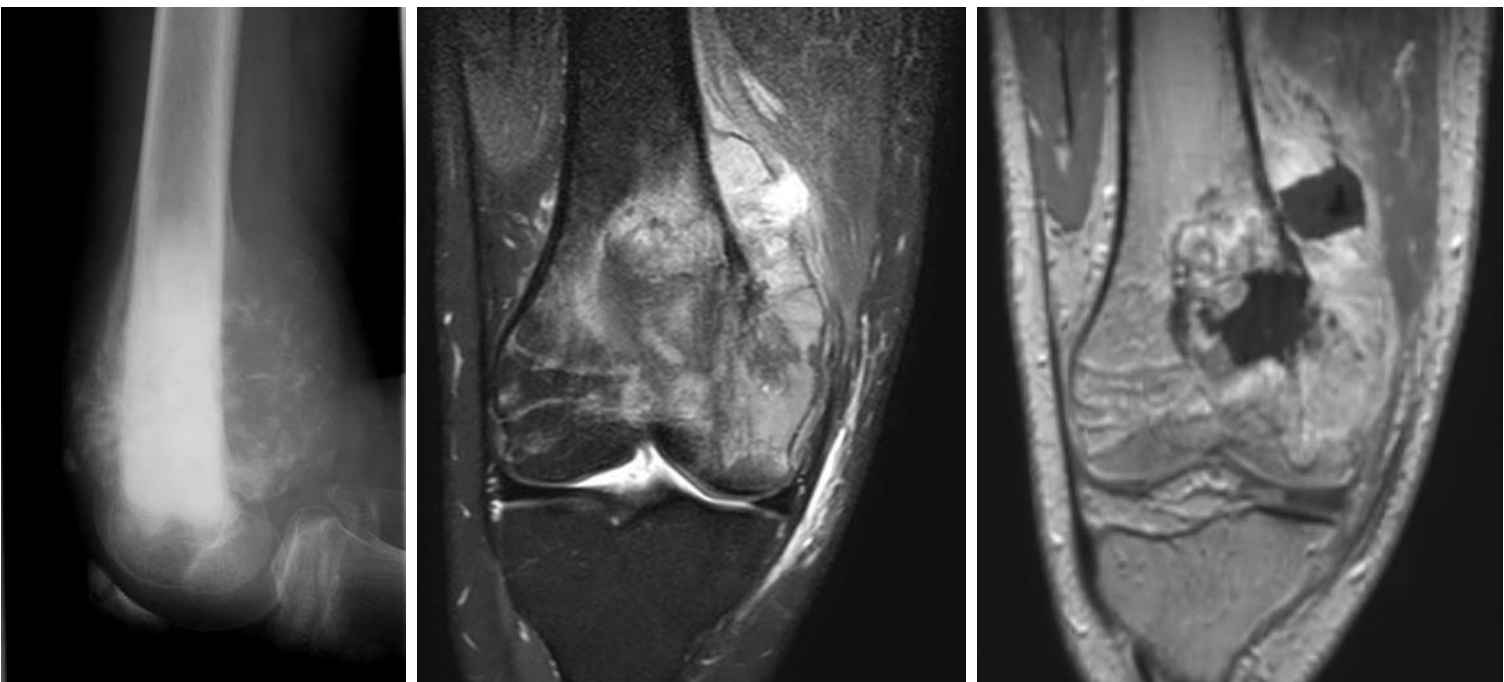

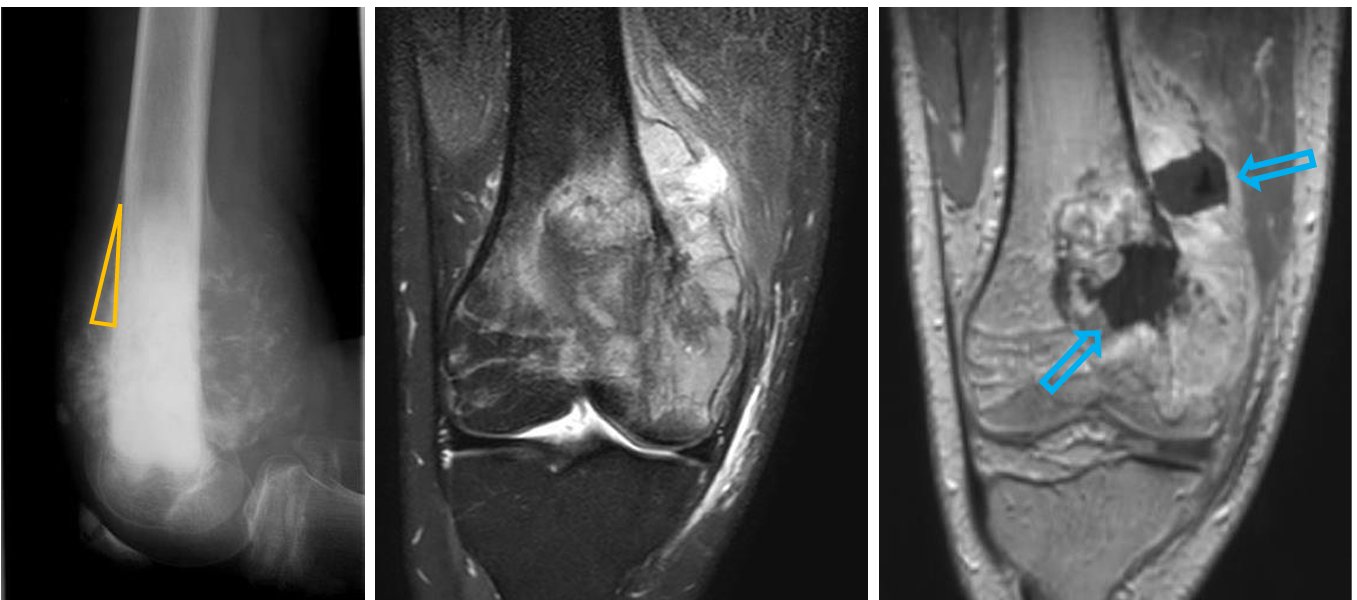

Patient history: soft tissue swelling and pain of the distal femur in a 22-year-old patient

Modality: X-ray of the left knee (left), PD FS (proton density fatsat) and T1W postcontrast MRI (middle and right, respectively)

Region: left knee, lateral view (radiograph), coronal views (MRI)

Radiologic sign: Inhomogeneous destructive metaphyseal lesion of the left femur. Periosteal reaction, Codman triangle (yellow triangle) and invasion of the surrounding soft tissue is also present (radiograph). Inhomogenously enhancing metaphyseal mass infliltrating the surrounding soft tissue (blue arrows).

Diagnosis: osteosarcoma of the femur

4.6

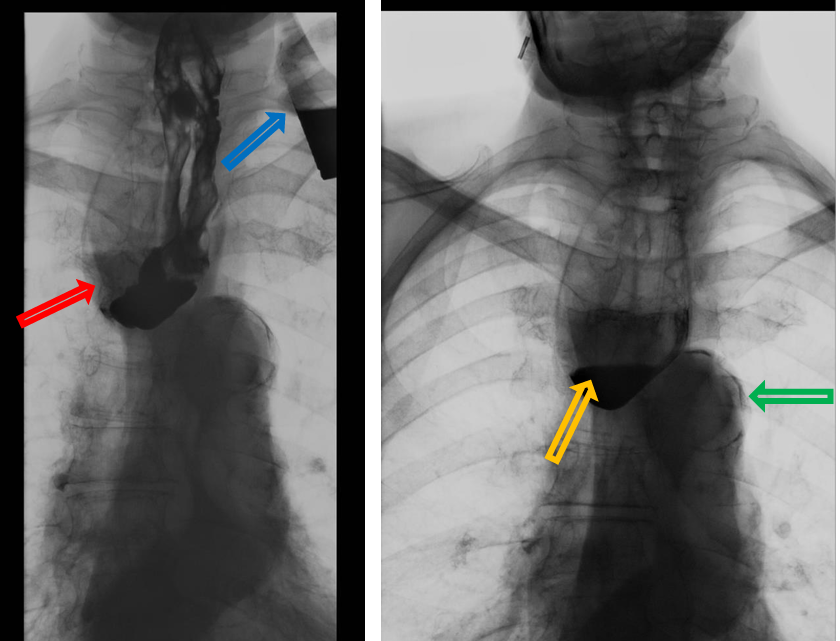

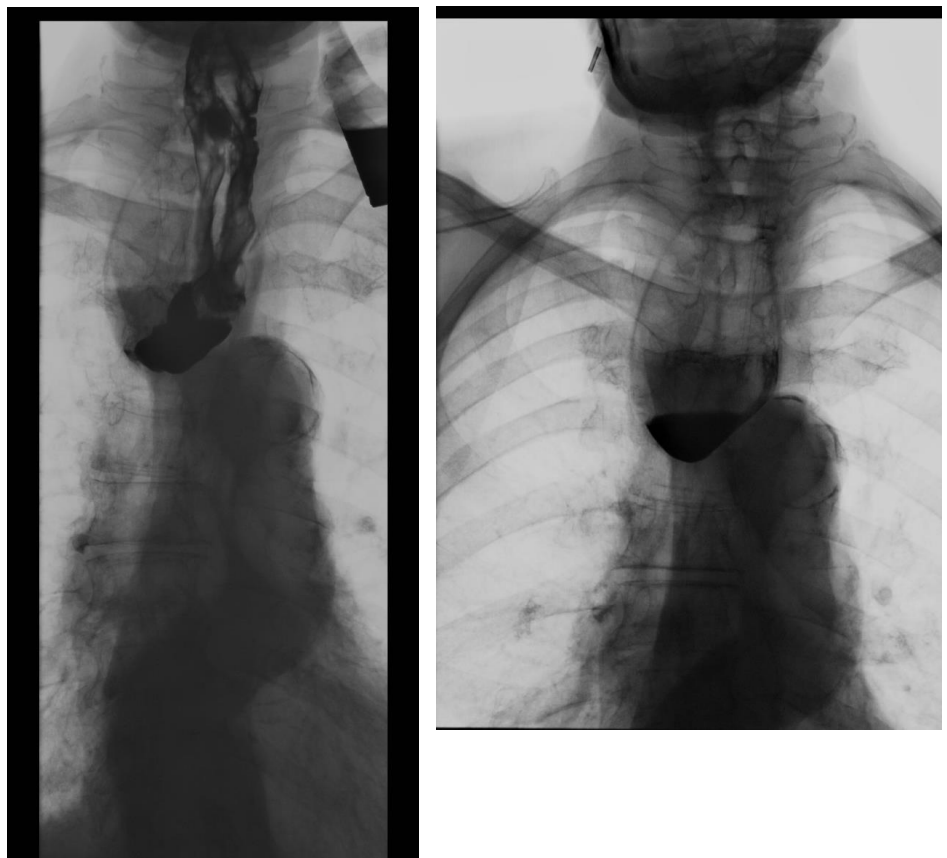

Patient history: dysphagia and sensation of food stuck

Modality: barium swallow test, fluoroscopy

Region: esophagus Radiologic sign: outpouching (red arrow) filled with contrast material near the pharyngo-esophageal junction; air-fluid level (yellow arrow) in the outpouching; dilated, sclerotic aorta (green arrow); glass filled with contrast material (blue arrow)

Diagnosis: Zenker’s diverticulum, aortosclerosis

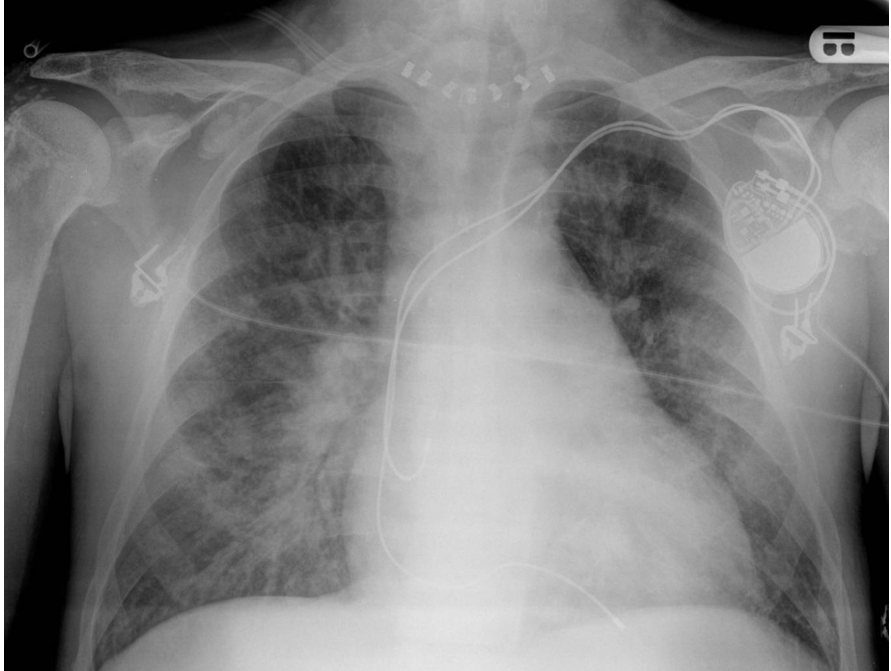

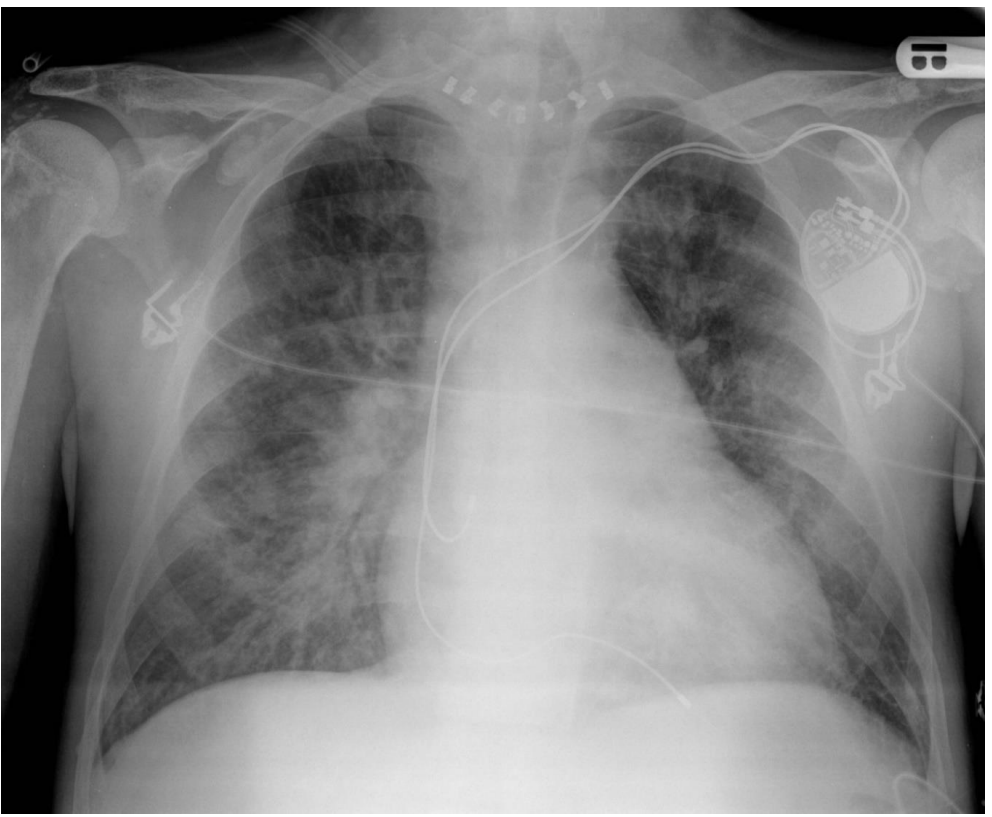

5.1

Patient history: postoperative condition (thyreoidectomy)

Modality: AP (prone) chest radiograph

Region: chest, lungs Radiologic sign: Cephalisation, bilateral perihilar consolidation and cardiomegaly (CTI > 0.5). Foreign bodies: pacemaker device and electrodes, surgical clips following thyroid surgery, ECG

Diagnosis: pulmonary edema

5.2

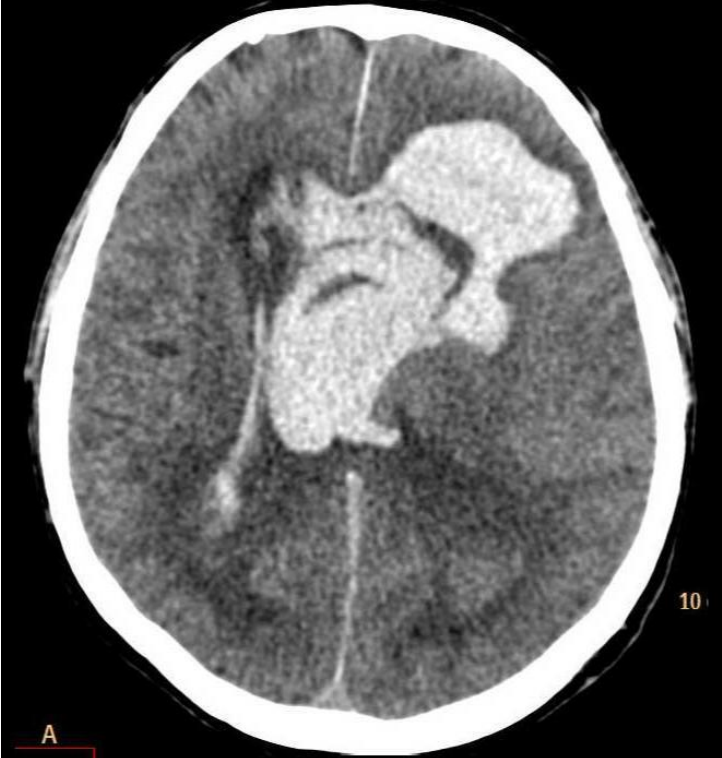

Patient history: sudden onset of altered mental status, loss of consciousness in an elderly patient with untreated hypertension

Modality: non-enhanced CT, brain window setting (window level: 40 HU; window width: 80 HU)

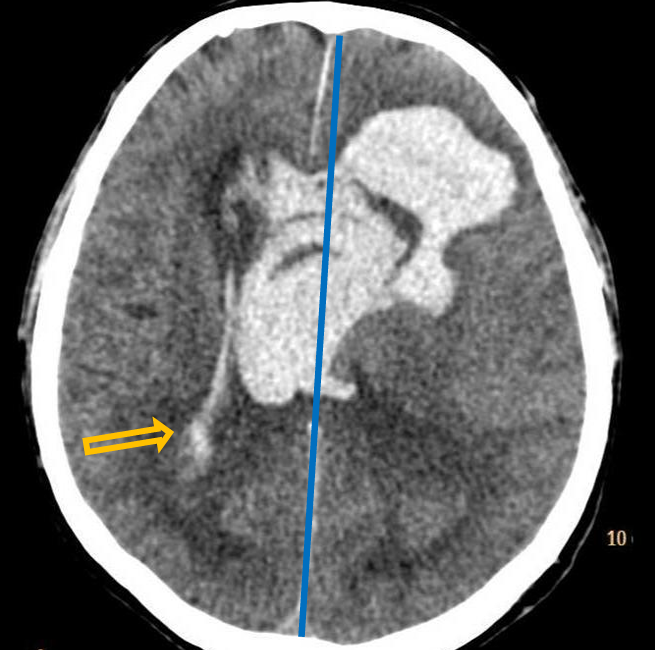

Region: brain, axial view Radiologic sign: Large hyperdense area (density: 60-70 HU) extending into the ventricles, slight midline shift to the right and compressed right lateral ventricle due to mass effect (yellow arrow).

Diagnosis: acute cerebral apoplexy

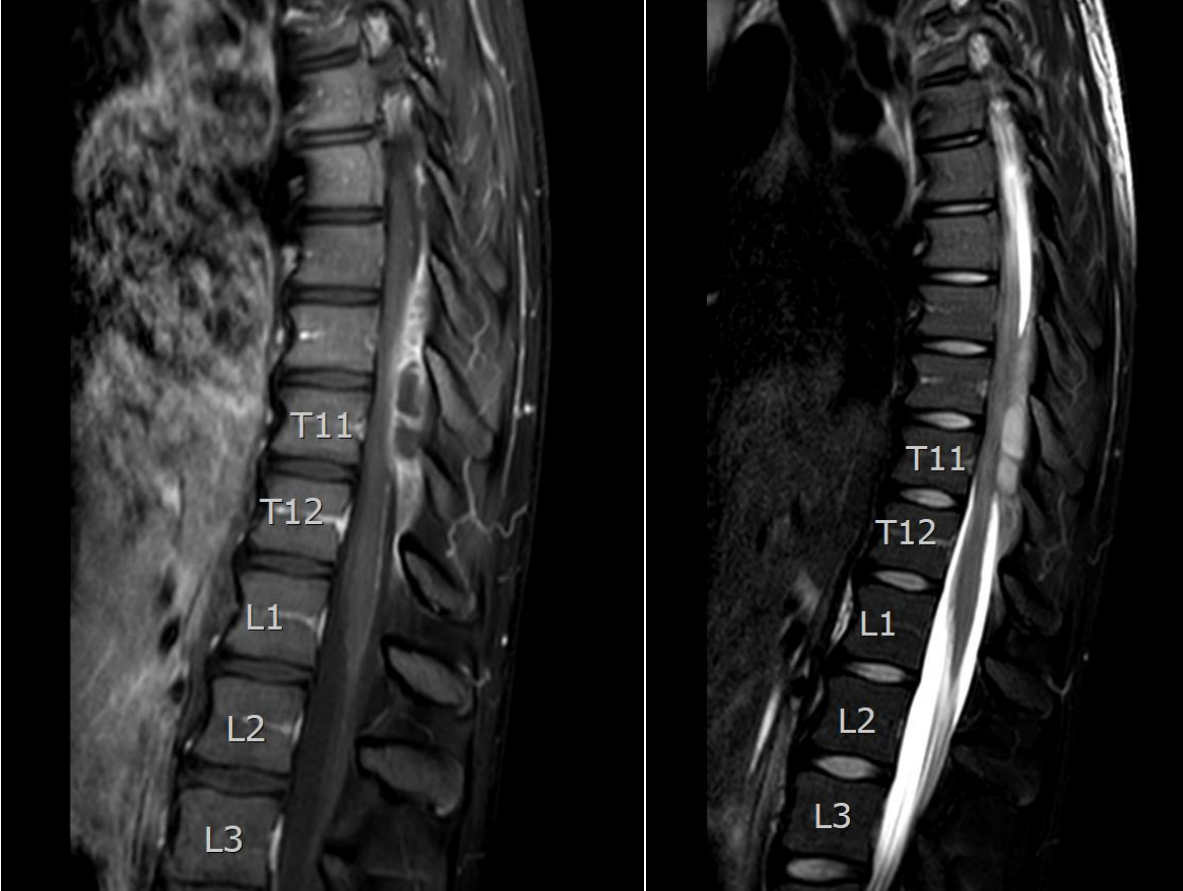

5.3

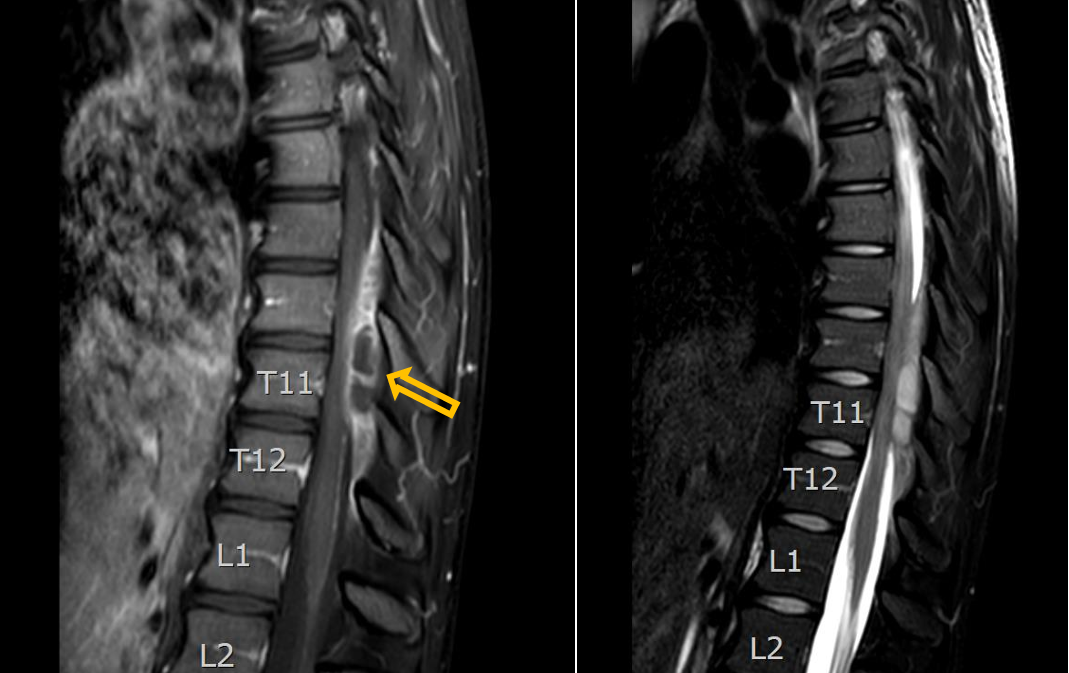

Patient history: days with progrediatingsevere lower back pain, fever, paraparesis, urinary retention disturbance in an immunocompromised patient

Modality: left – T1W fatsat postcontrast MRI after iv. gadolinium administration; right – T2W fatsat MRI (sagittal view)

Region: thoracic spine

Radiologic sign: epidural enhancing mass at the level of Th 9-12th vertebras (yellow arrow), no signal loss on fatsat image; non-enhancing fluid signal intensity inside of the mass

Diagnosis: epidural abscess

5.4

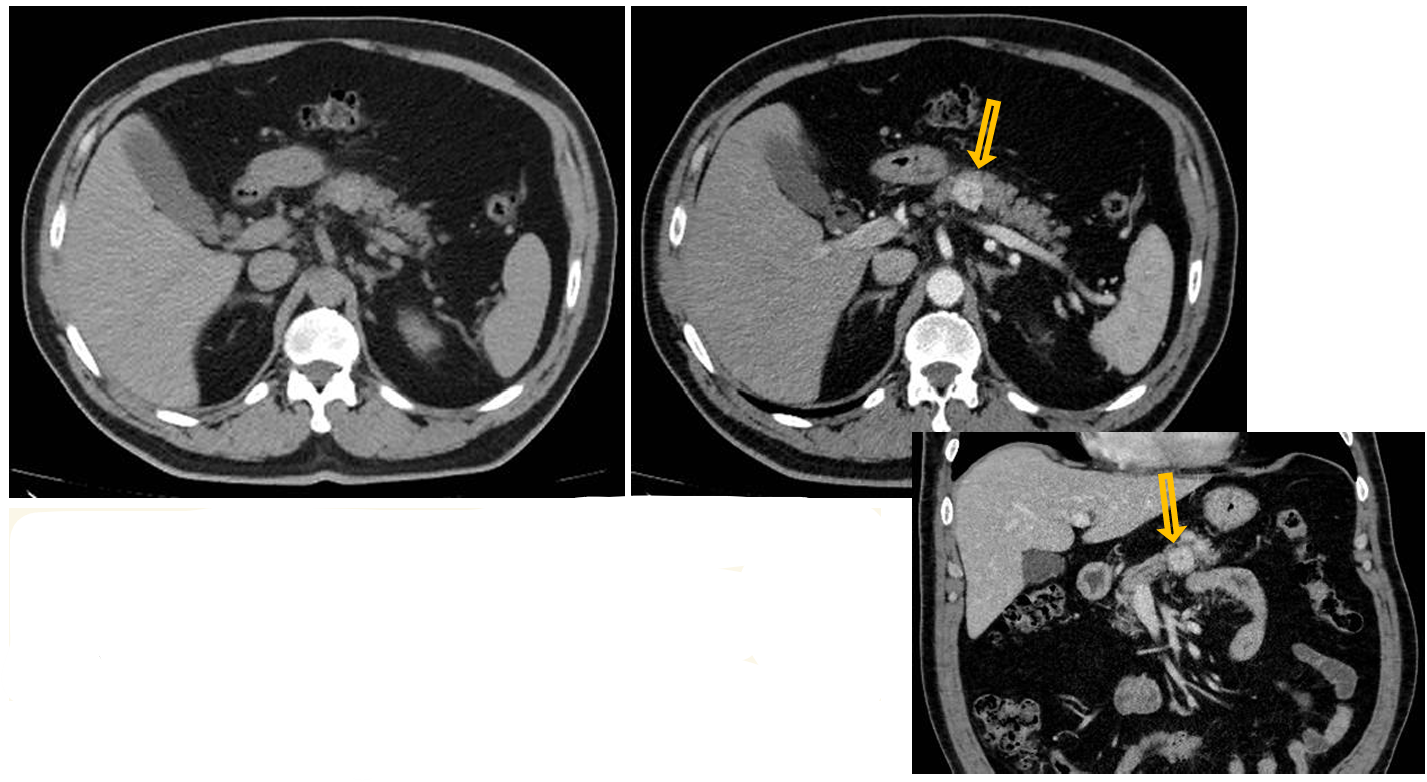

Patient history: symptoms of hypoglycemia, sweating and weight gain in a 52-year-old patient

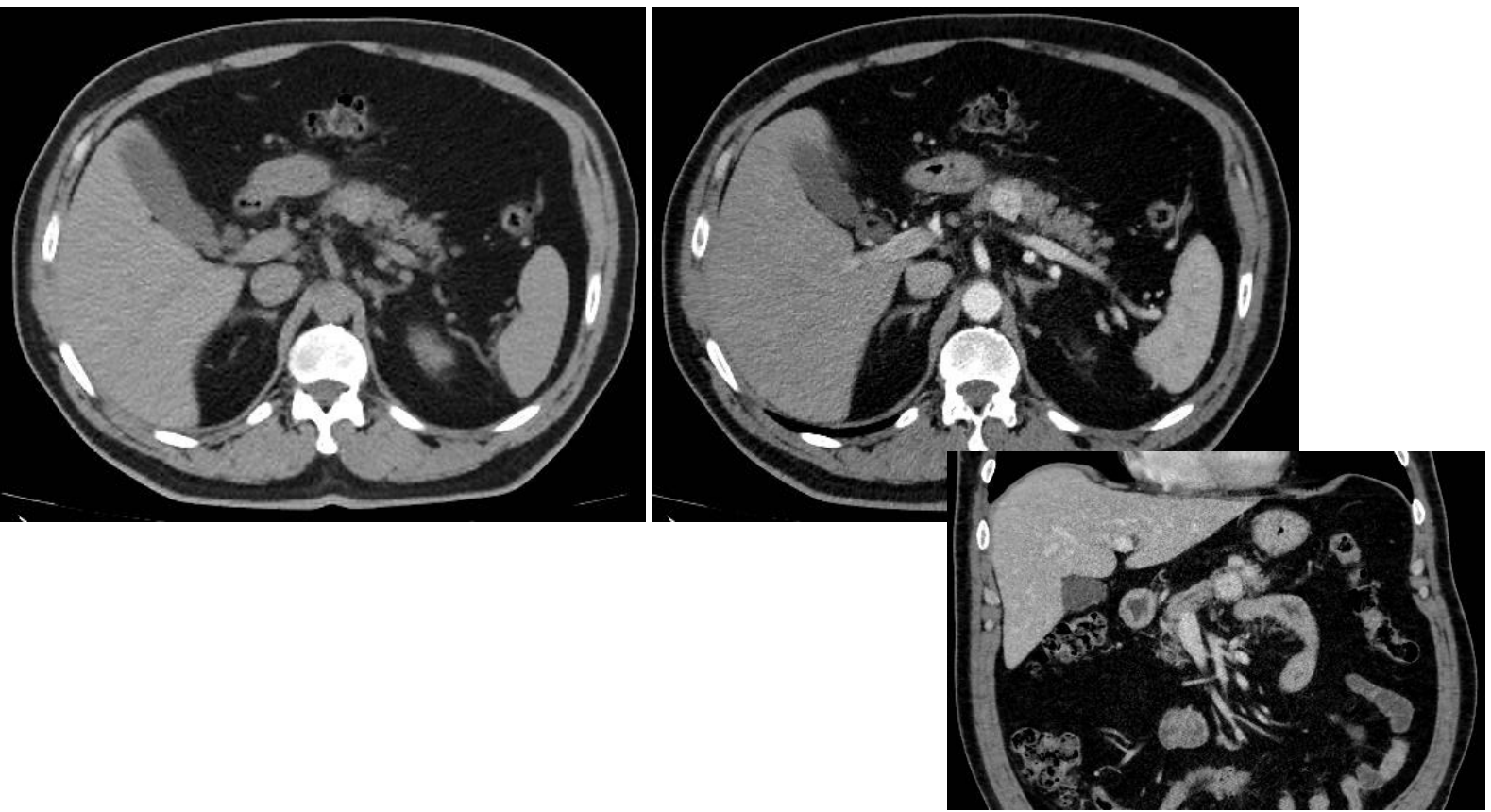

Modality: left – non-enhanced CT, axial plane; right – early arterial phase of dynamic CT (iv. iodinebased contrast agent), axial plane, and (bottom right) coronal reconstruction of the same study

Region: upper abdomen

Radiologic sign: solid mass in the pancreas body showing intensive early arterial contrast enhancement (yellow arrow)

Diagnosis: pancreas insulinoma

5.5

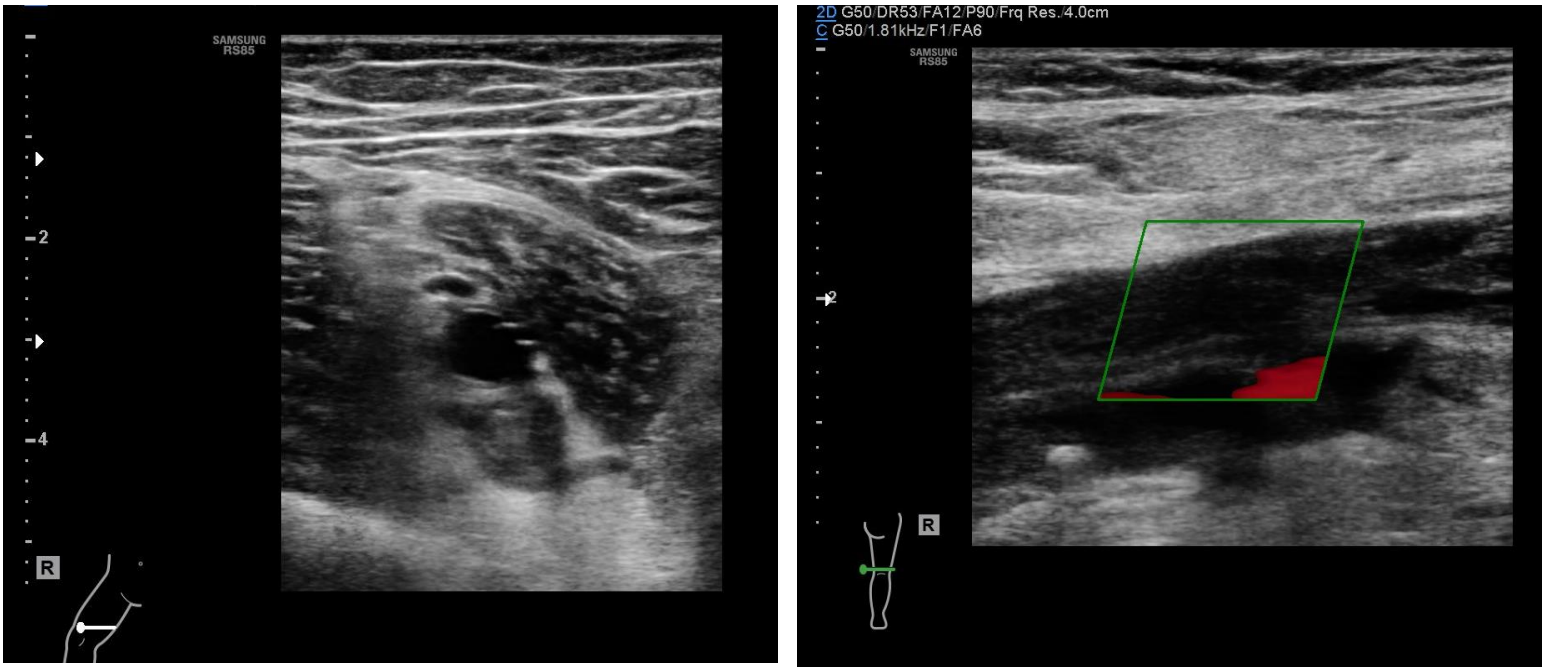

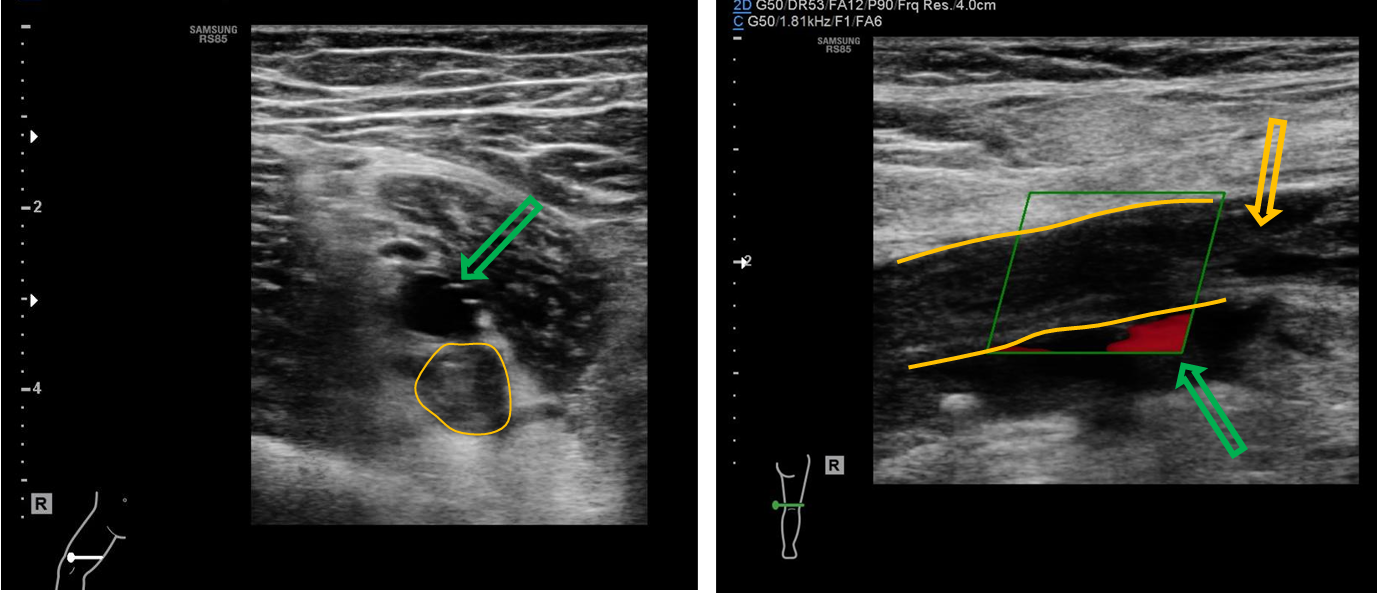

Patient history: calf pain and swelling of the right leg, plaster cast due to trauma in recent weeks

Modality: Lower extremity venous ultrasound, linear probe (7,5-10 MHz), B-mode and Color-Doppler mode (right panel)

Region: femoral superficial and popliteal veins; left image – transverse section, right image – sagittal section

Radiologic sign: Veins are filled with hypoechoic thrombus (yellow lines and arrow); the lumen is non-compressible demonstrating no flow (lack of Doppler-signal); beneath the popliteal artery has normal flow signal (green arrow).

Diagnosis: deep vein thrombosis (DVT)

6.1

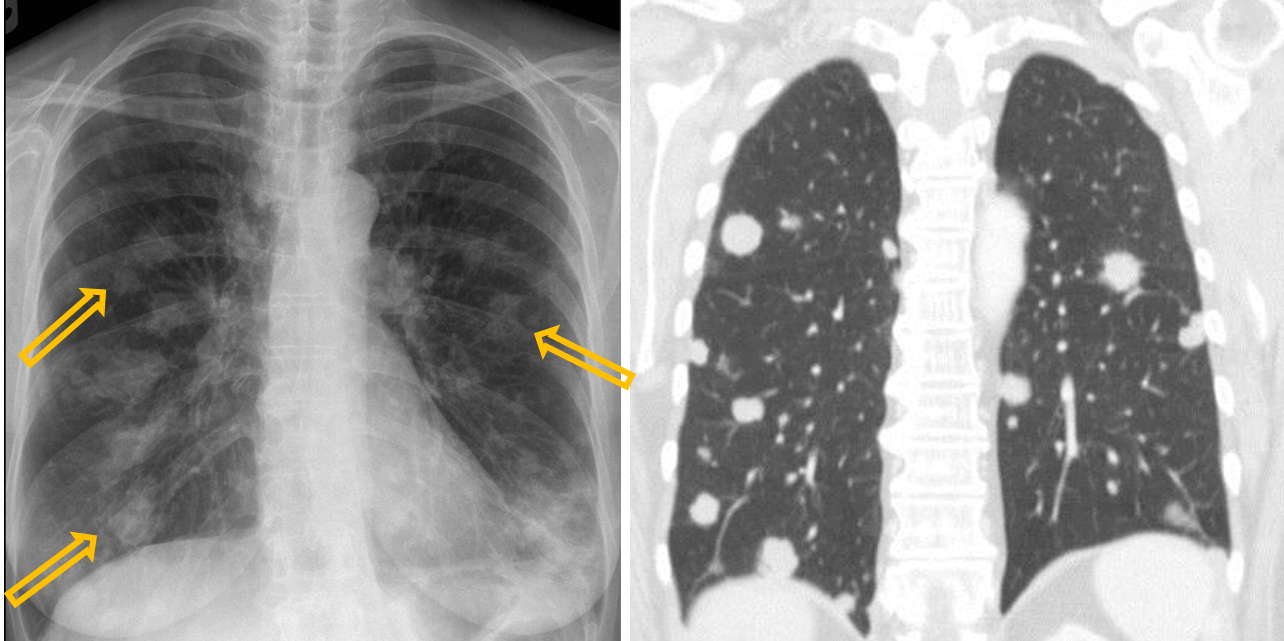

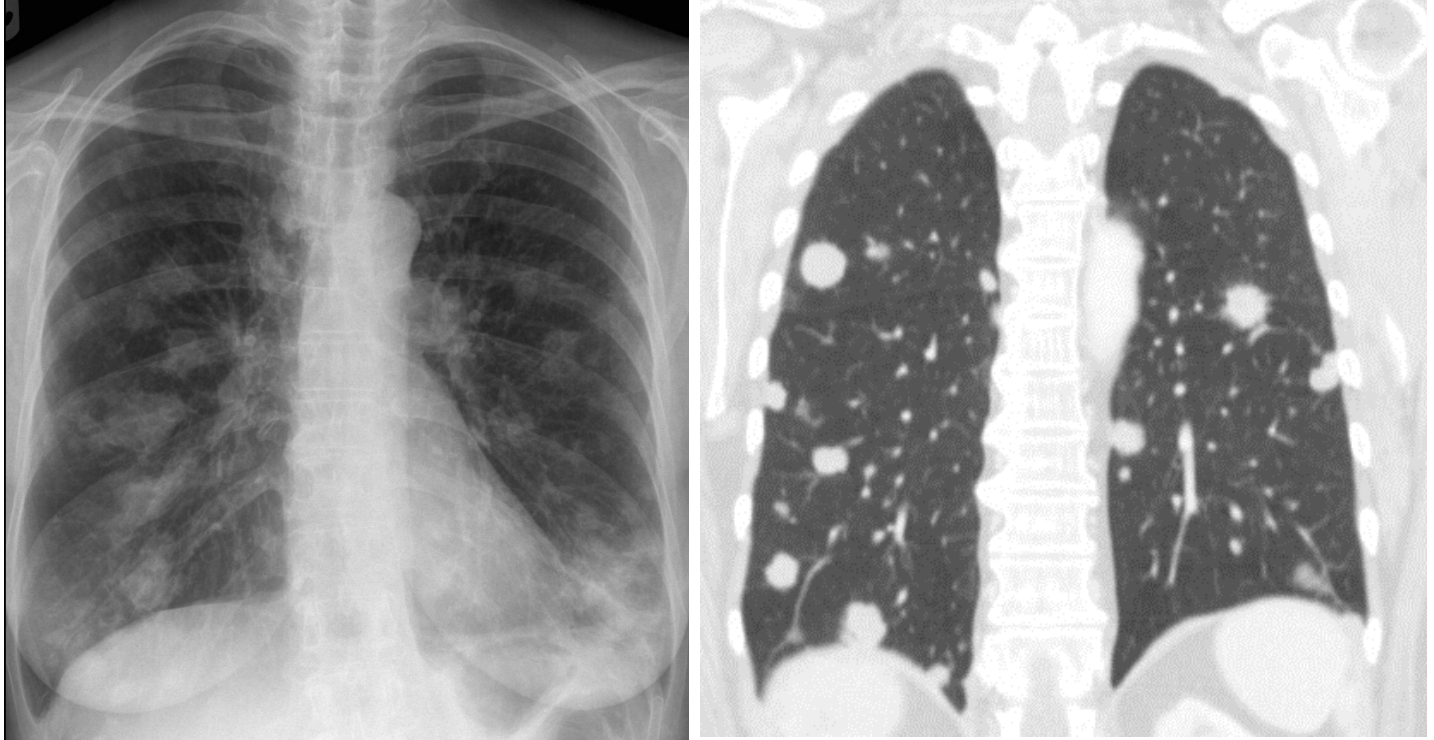

Patient history: melanoma malignum, staging

Modality: left image – PA chest radiograph (upright); right image – postcontrast chest CT; lung window setting, iv. iodine-based contrast agent

Region: chest, lung

Radiologic sign: Multiple soft tissue lesions showing different size and rounded shape (yellow arrows), number of nodules is higher at the base than the apex due to its higher perfusion.

Diagnosis: multiple lung metastases

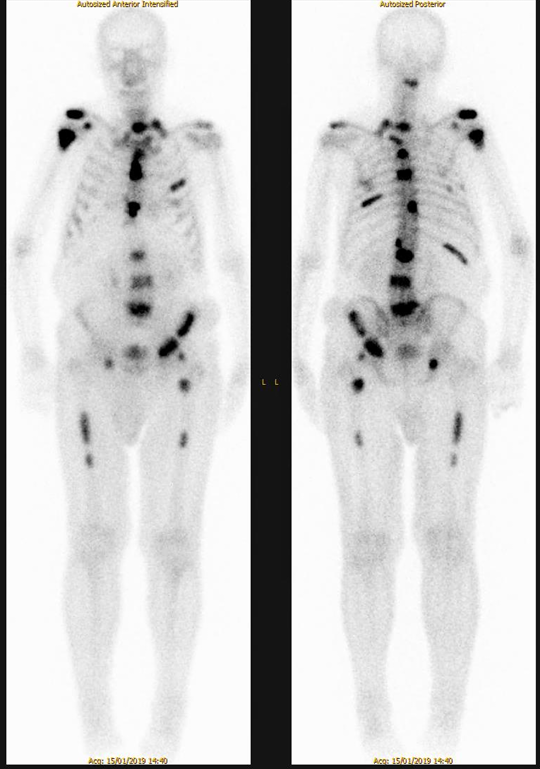

6.2

Patient history: history of prostate cancer, elevated PSA level at present

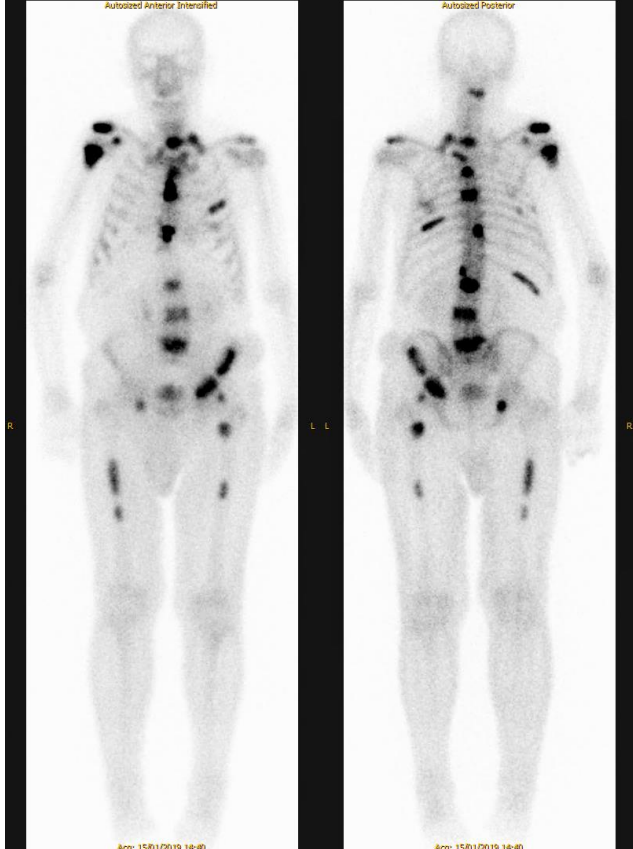

Modality: bone scintigraphy with 99mTc withmethylene diphosphonate(MDP) radiotracer

Region: whole body, AP and PA views

Radiologic sign: multiple foci of increased radiopharmaceutical uptake in the bones

Diagnosis: multiplex osseal metastases, scoliosis

6.3

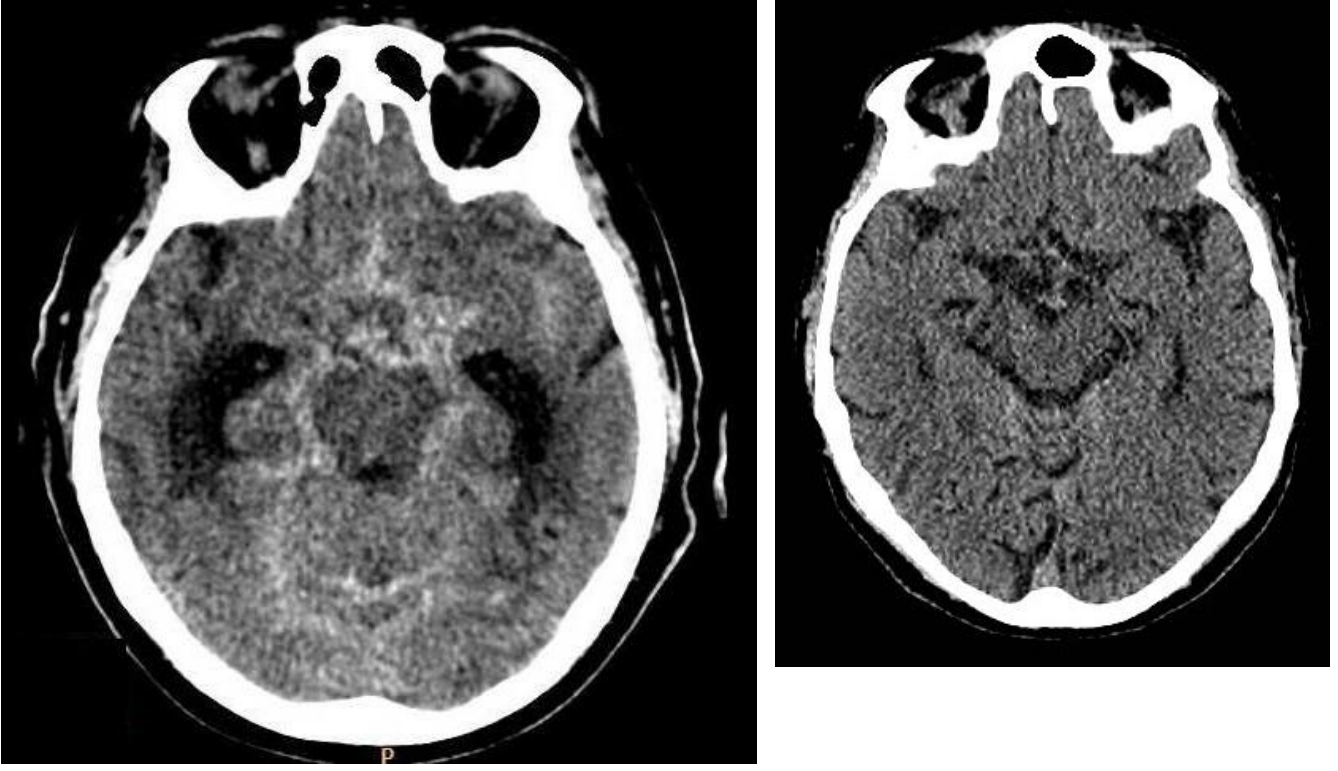

Patient history: “worst headache” in life with acute onset and nausea in a 42-year-old patient

Modality: non-enhanced CT

Region: brain, axial view

Radiologic sign: cast-like hyperdensity filling the basal cisterns and sulci (normal hypodens, liquor-filled cysterns are shown on the right image, blue arrow)

Diagnosis: acute subarachnoid hemorrhage, most commonly due to berry aneurysm rupture

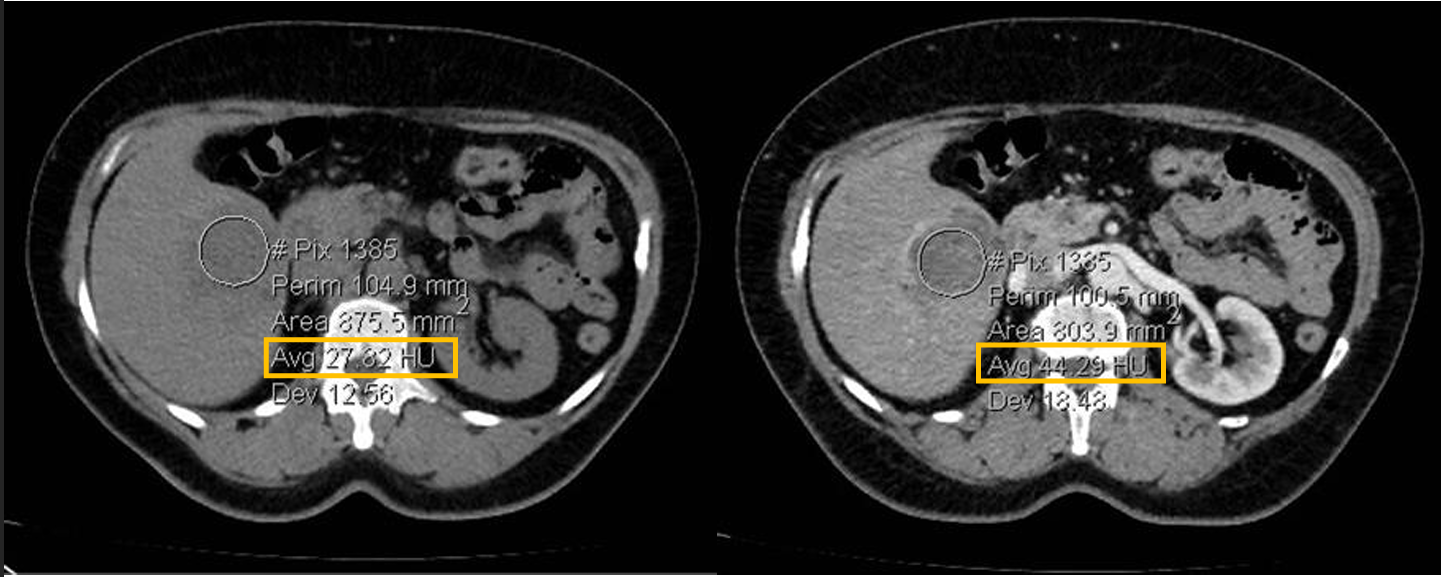

6.4

Patient history: tumor search in a middle-aged patient with fatigue and weight loss

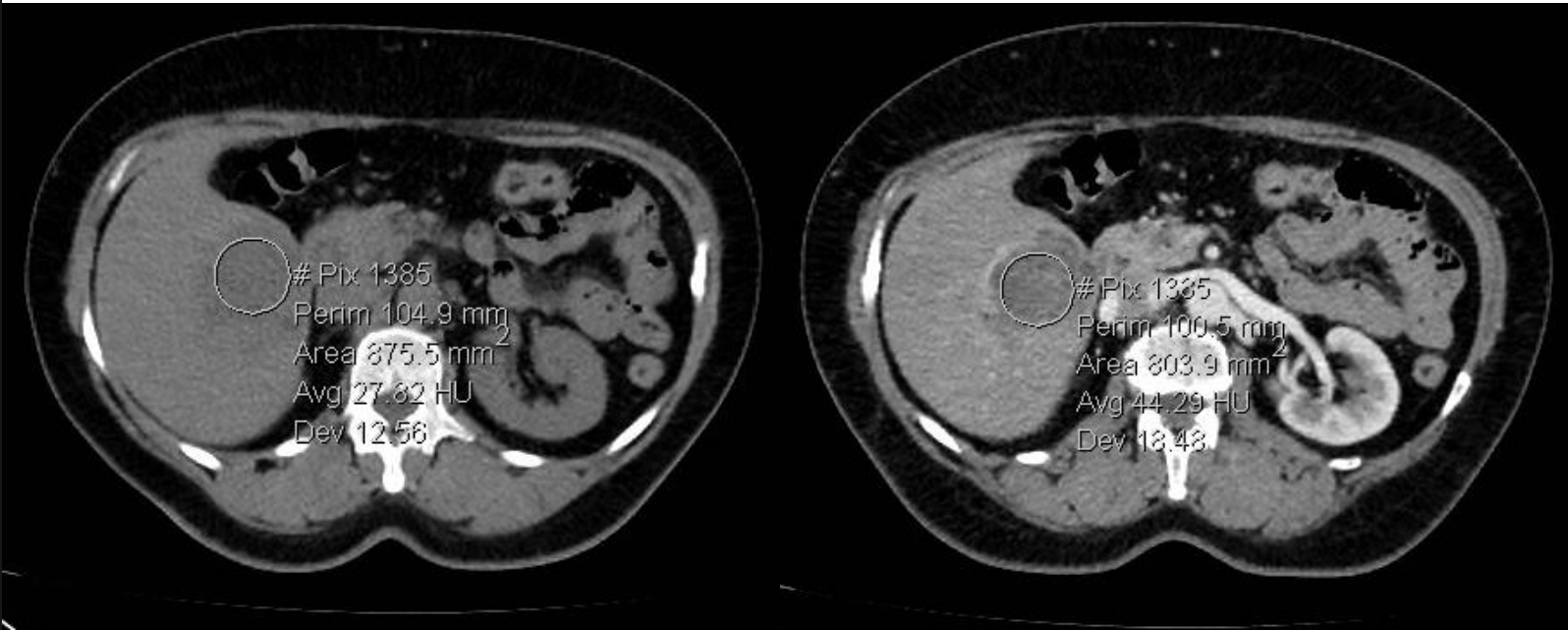

Modality: left image – non-enhanced CT; right image – arterial phase enhanced CT (iodine-based contrast agent)

Region: upper abdomen, axial views

Radiologic sign: solid, contrast-enhancing (from 27 HU to 44 HU), hypodense mass in the 5-6th segment of the liver

Diagnosis: cholangiocarcinoma

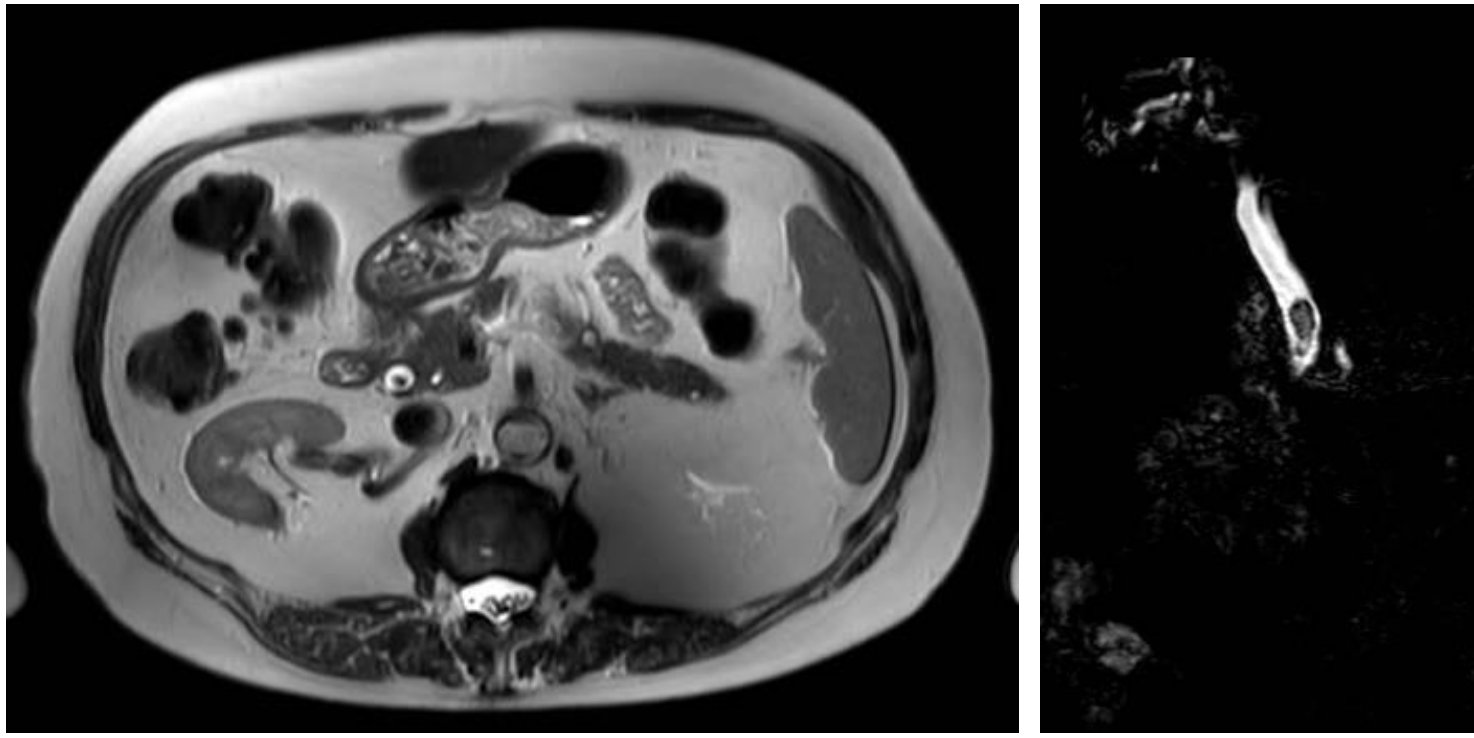

6.5

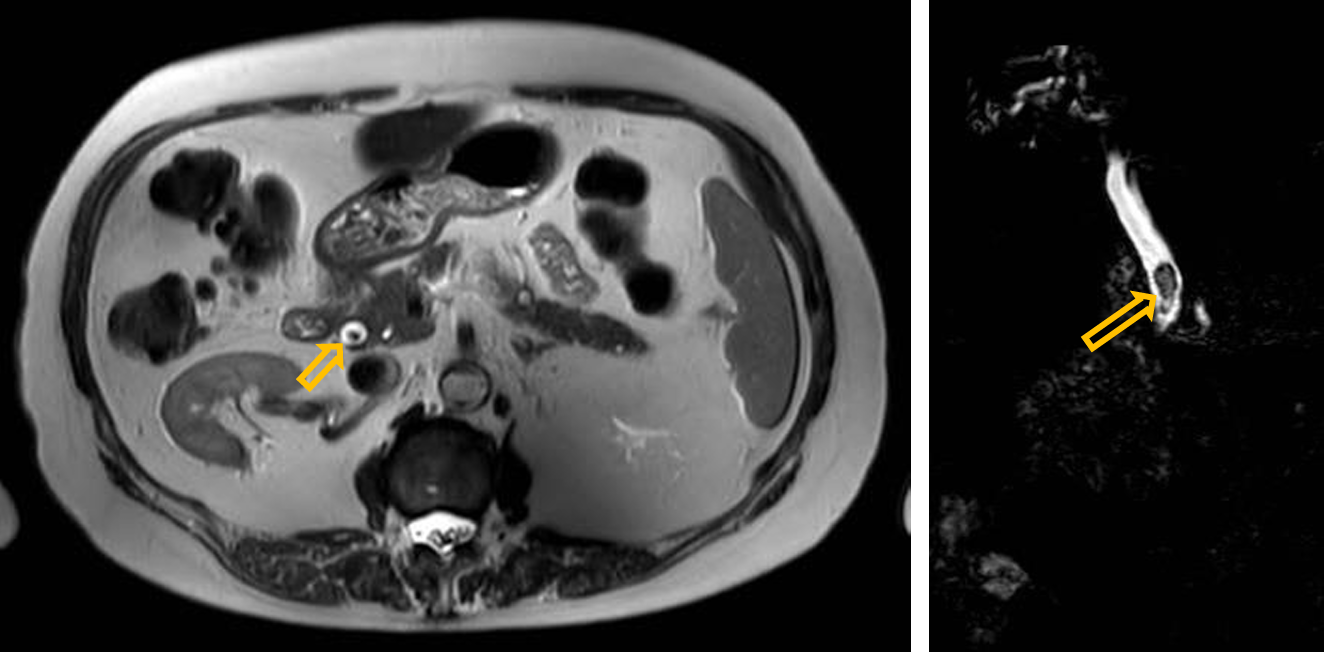

Patient history: chronic right upper abdominal pain

Modality: T2W MRI (left); 3D MRCP (a heavily T2-weighted sequence, right), noncontrast studies

Region: upper abdomen, axial (left) and coronal (right) views Radiologic sign: filling defect in the fluid-filled, hyperintense common bile duct

Diagnosis: choledocholithiasis

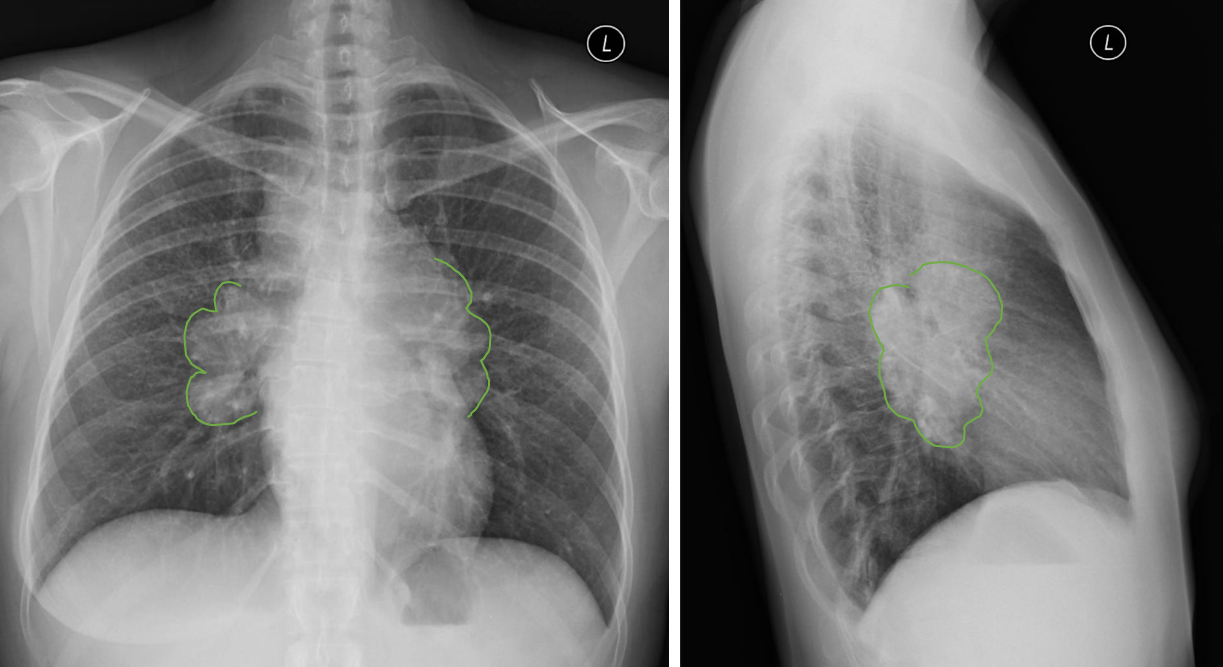

7.1

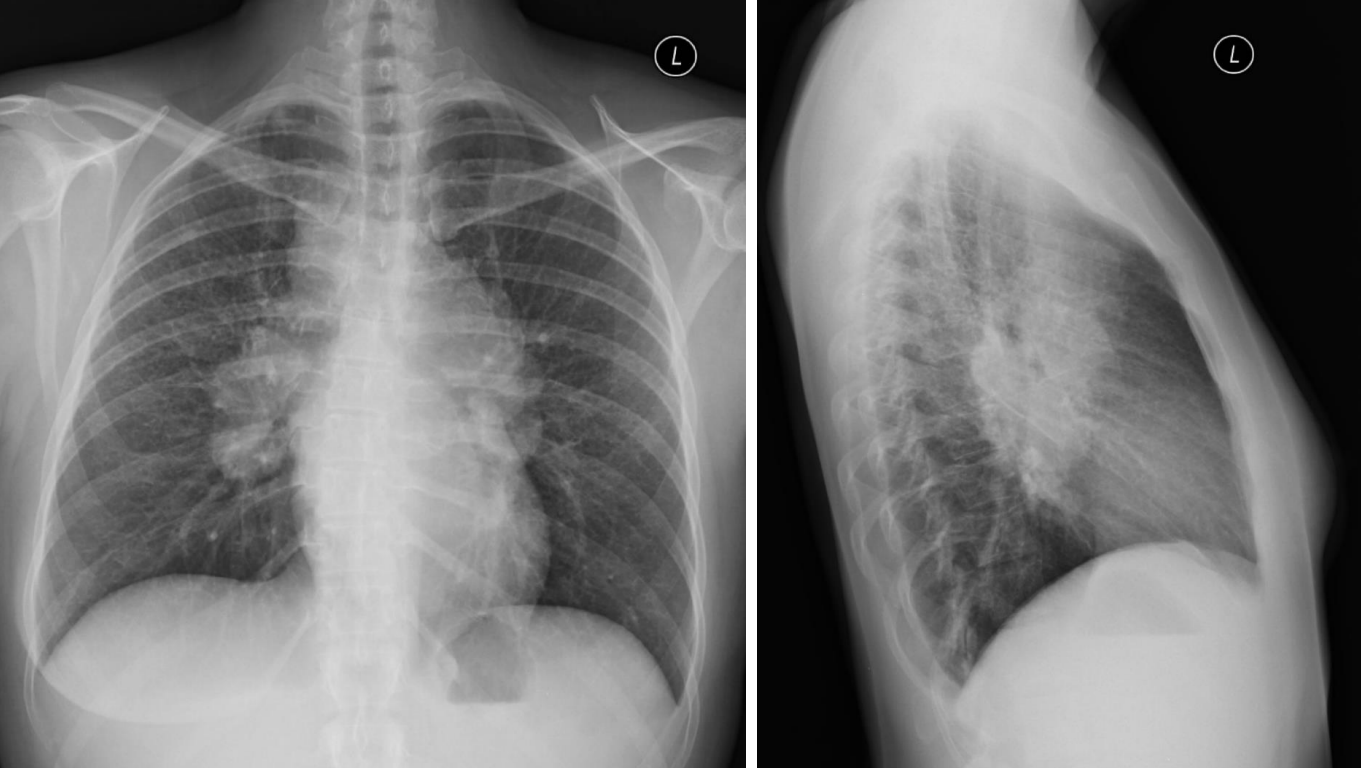

Patient history: chronic fatigue and weight loss in a 39-year-old patient

Modality: left – PA chest radiograph right – left lateral chest radiograph

Region: chest, lungs Radiologic sign: bilateral hilar enlargement (green area), middle mediastinal mass, no alteration in lung parenchyma

Diagnosis: bilateral hilar lymphadenopathy in sarcoidosis (stage 1)

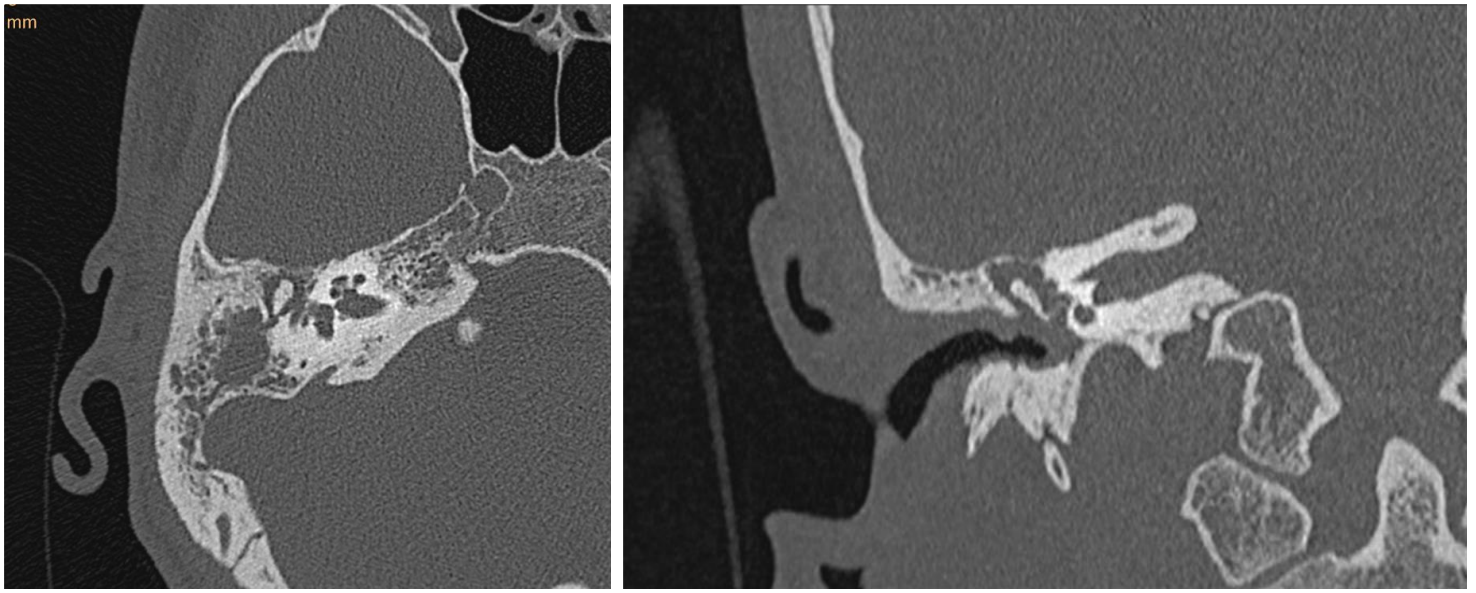

7.2

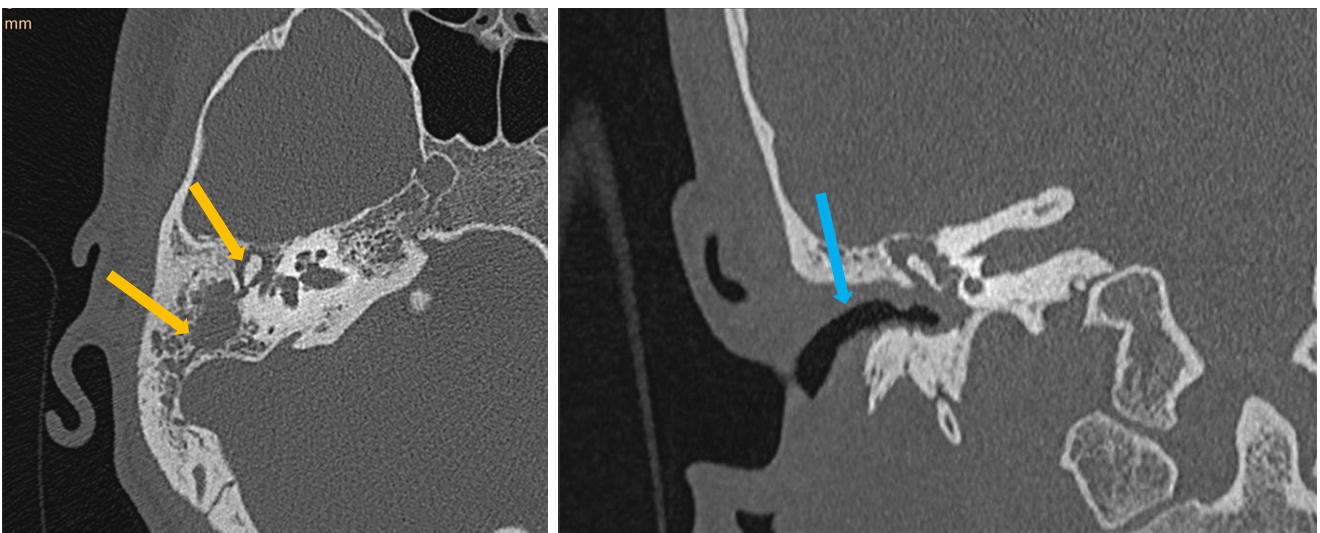

Patient history: Modality: ear pain and discomfort, poor hearing non-enhanced HRCT of the temporal bone

Region : temporal region, axial and coronal views

Radiologic sign: fluid-filled middle ear and mastoid cells (yellow arrows); bone erosion of the latter; thickened outer ear wall (blue arrow)

Diagnosis : recurrent otitis media

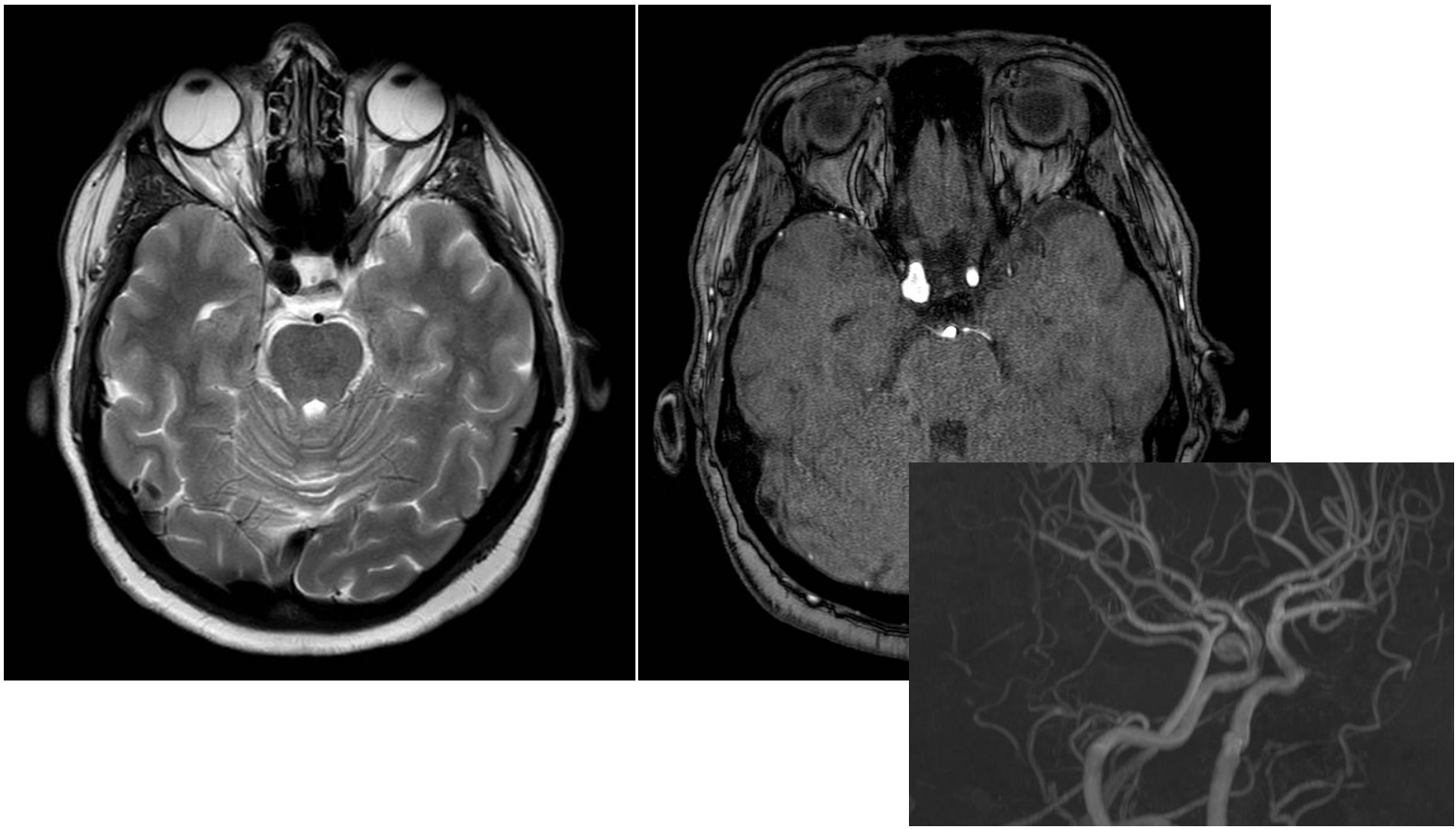

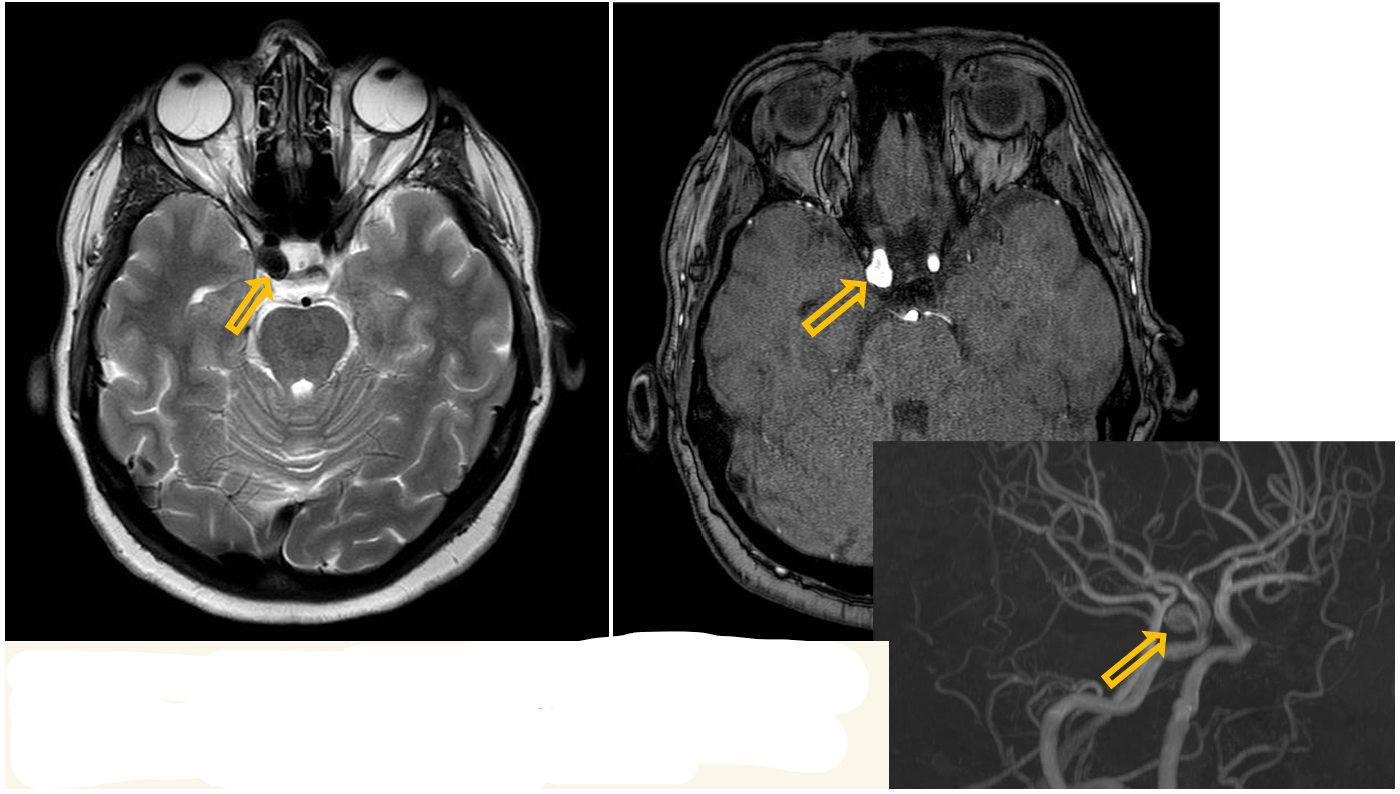

7.3

Patient history: young asymptomatic patient with positive family history of cerebral aneurysm

Modality: T2W MRI and 3D TOF angiography (noncontrast)

Region: brain, axial view

Radiologic sign: circumscribed, larger “flow-void” on T2W MRI and dilatation of the right internal carotid artery on TOF (yellow arrow)

Diagnosis: aneurysm of the right internal carotid artery (cavernous part)

7.4

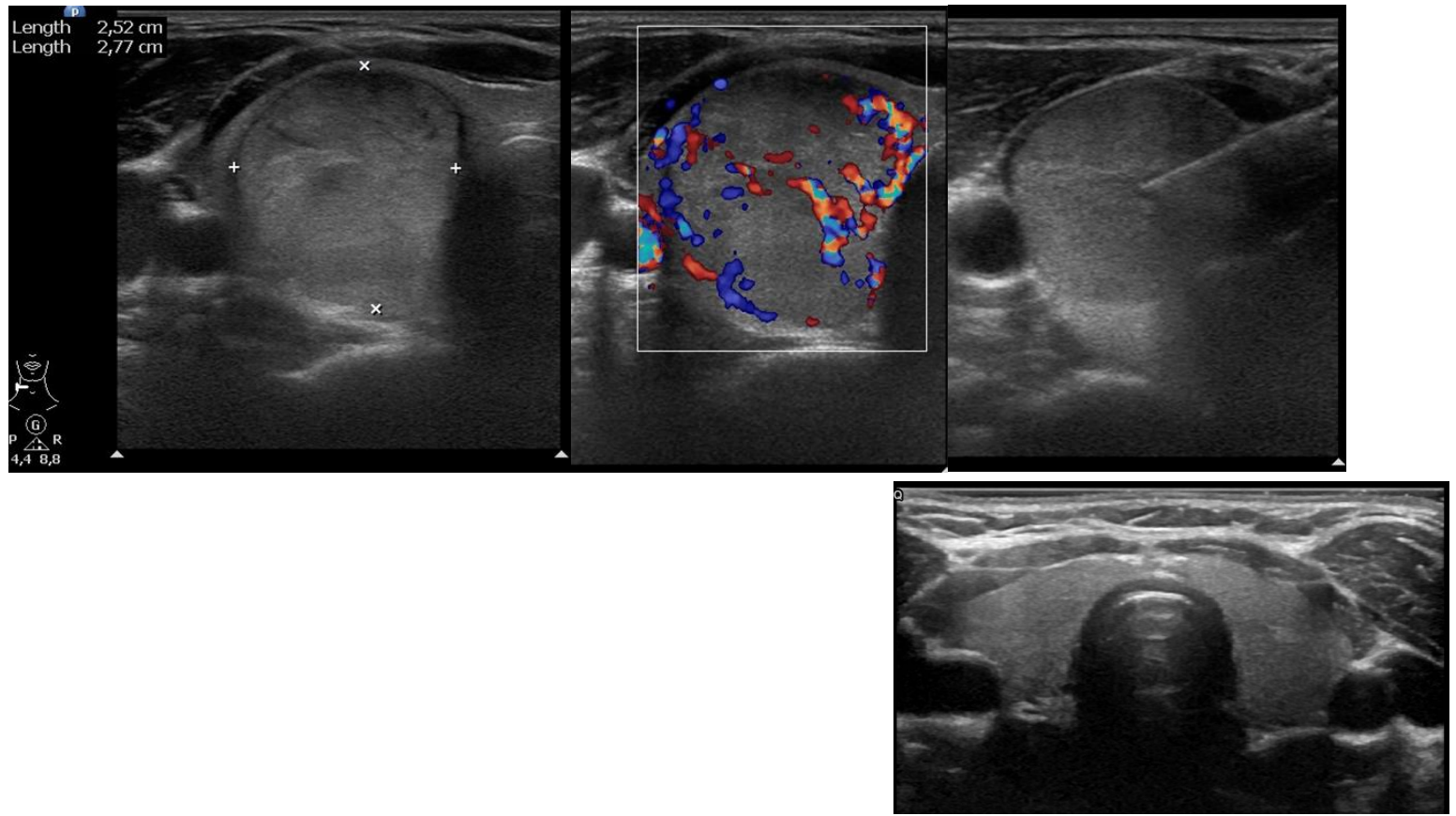

Patient history: palpable, unpainful mass in the right side of the neck

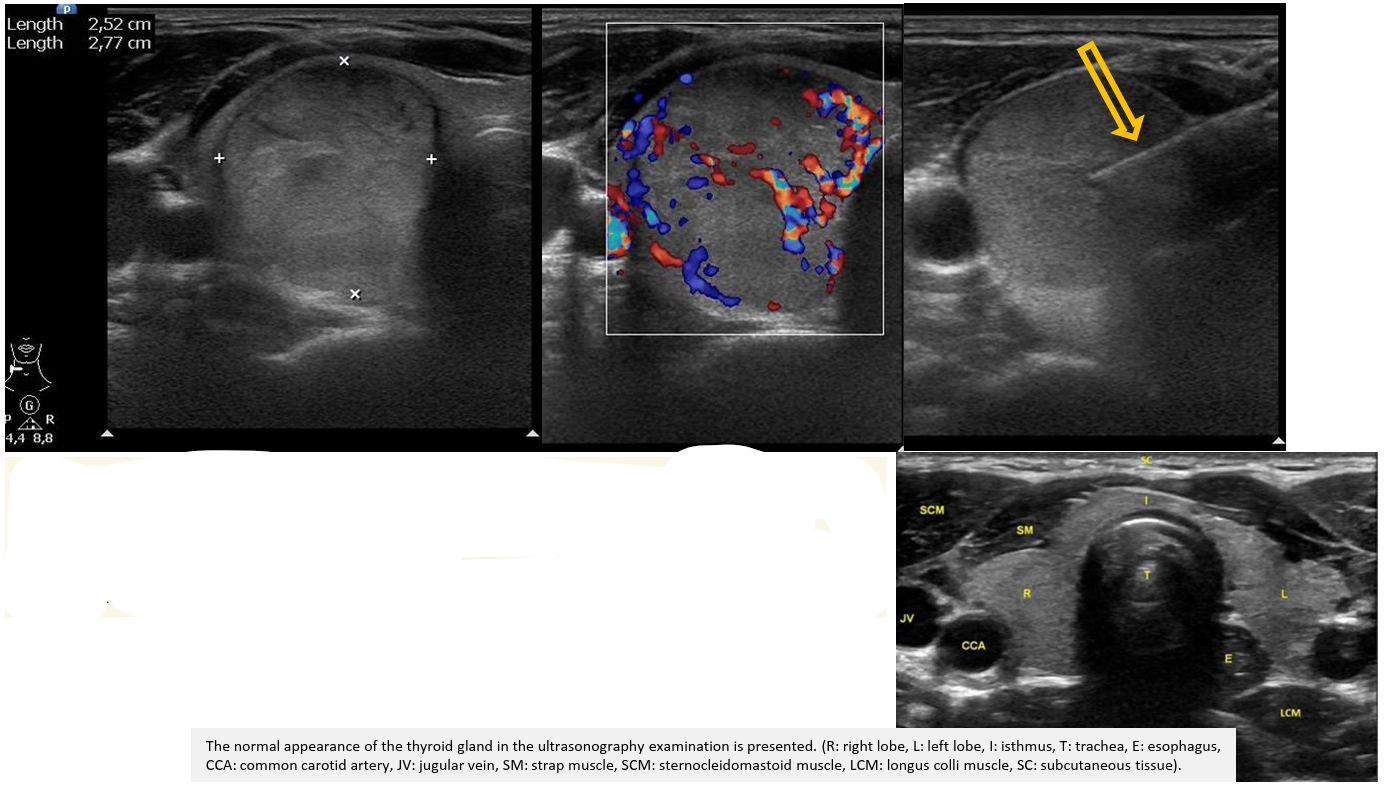

Modality: linear probe (7,5–10 MHz), left – B-mode US, middle – Color Doppler US, right – B-mode US

Region: neck, thyroid gland

Radiologic sign: well-circumscribed, isoechoic, vascularized nodule; FNAB (fine-needle aspiration biopsy), echodense needle (yellow arrow)

Diagnosis: suspicious thyroid nodule, cytology proved benignity

7.5

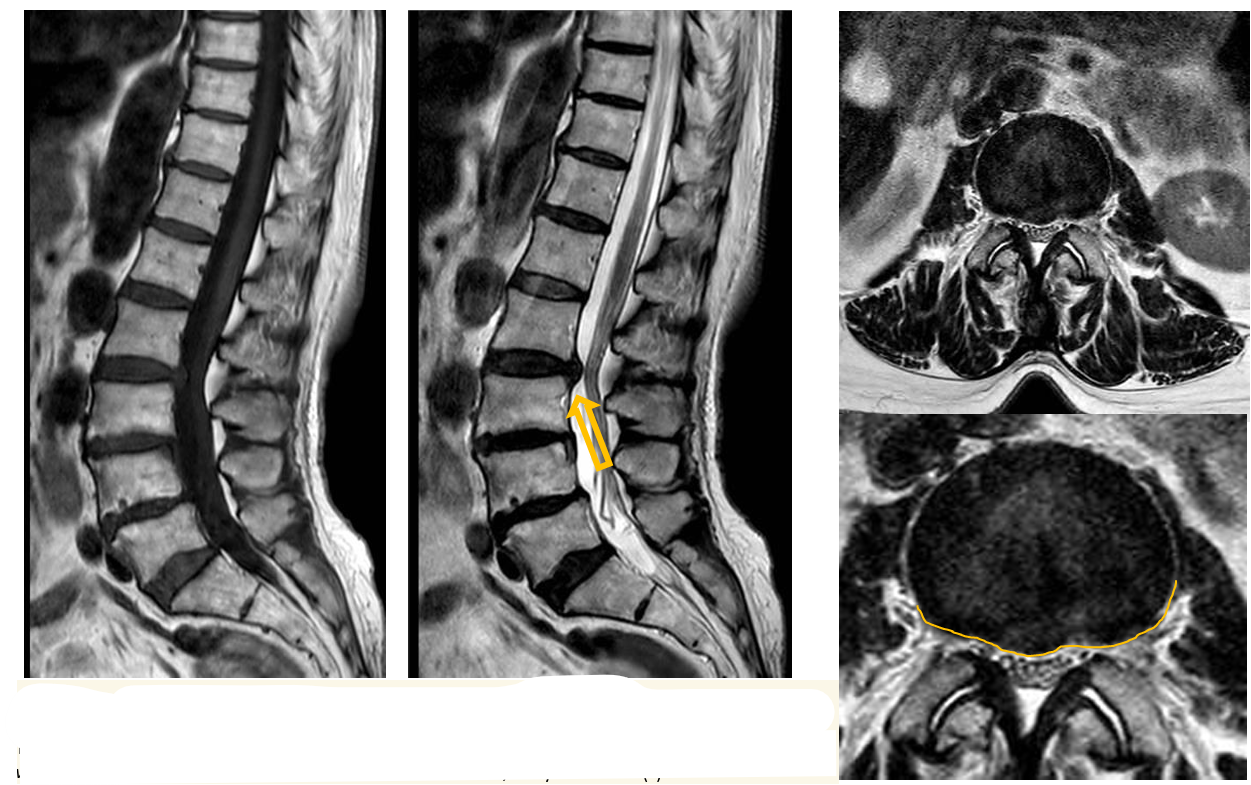

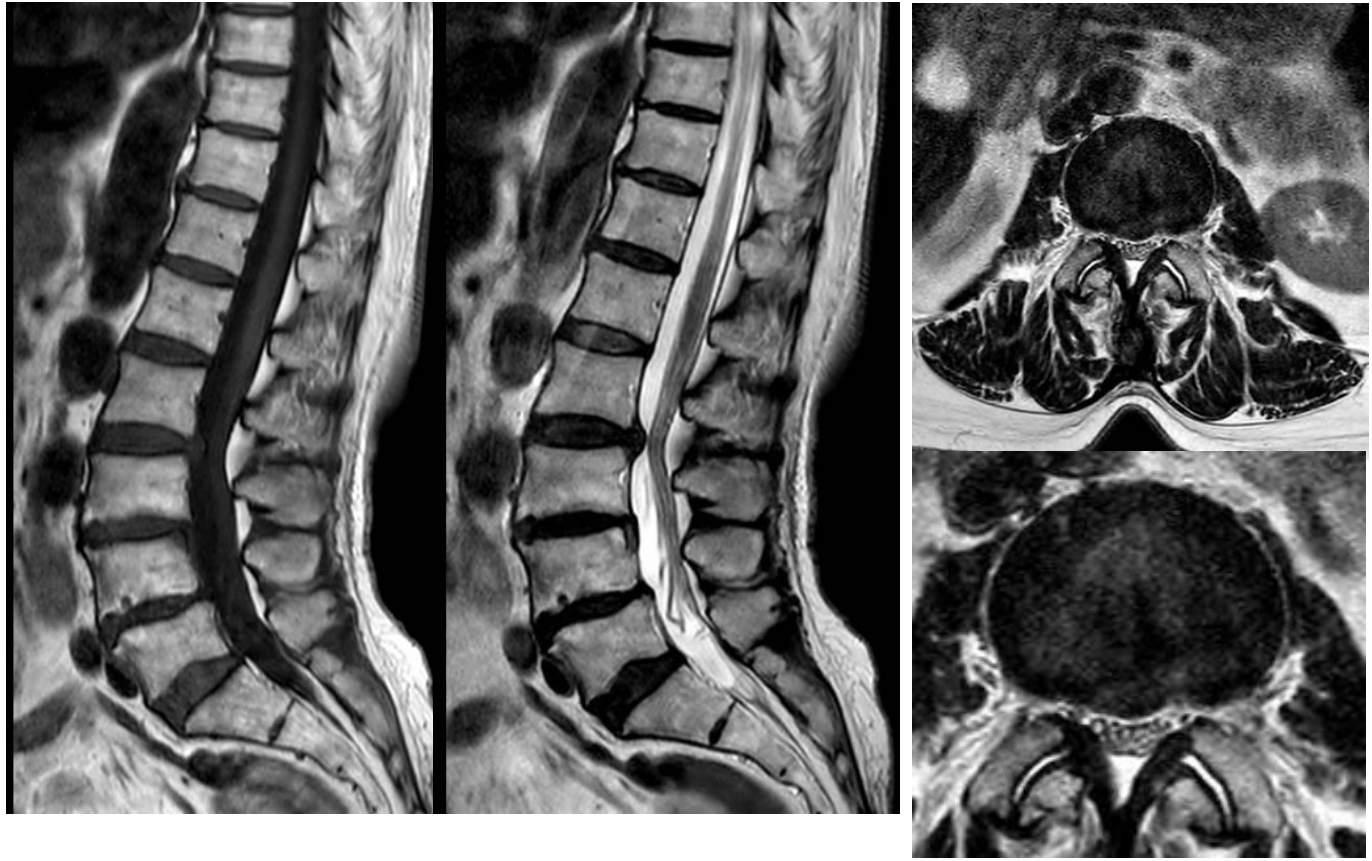

Patient history: pain radiating to the right L2 dermatome, without paresis or urinary disturbance.

Modality: Non-enhanced MRI (left: T1WI sagittal, center: T2WI sagittal, right: T2W axial)

Region: lumbar spine

Radiologic sign: Btw L2/3 hypointense (signaling low water content) disc protrudes into the spinal canal (yellow arrow)

Diagnosis: disc herniation between L2 and L3 level; dehydrated disc(s)

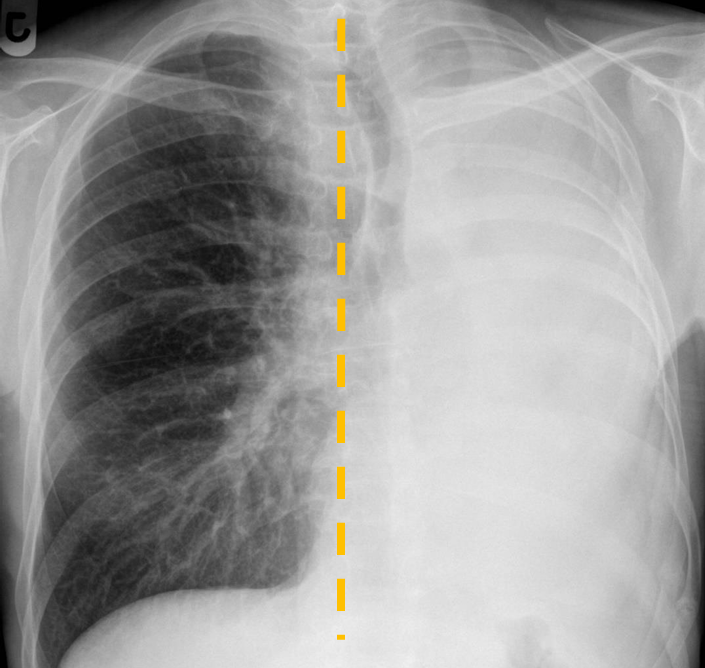

8.1

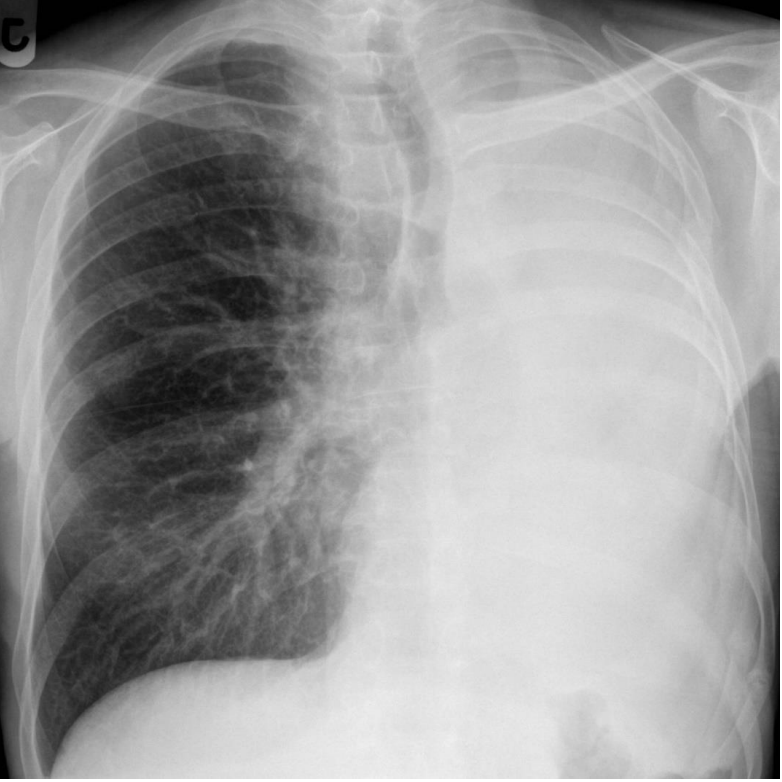

Patient history: left-sided pneumonectomy, control Modality: PA chest radiograph

Region: chest, lungs

Radiologic sign: In the projection of the left lung, air-filled lung parenchyma does not present; the trachea and the heart are deviated toward the pathological side (yellow dashed line)

Diagnosis: “white lung”, state of postpneumonectomy on the left side

8.2

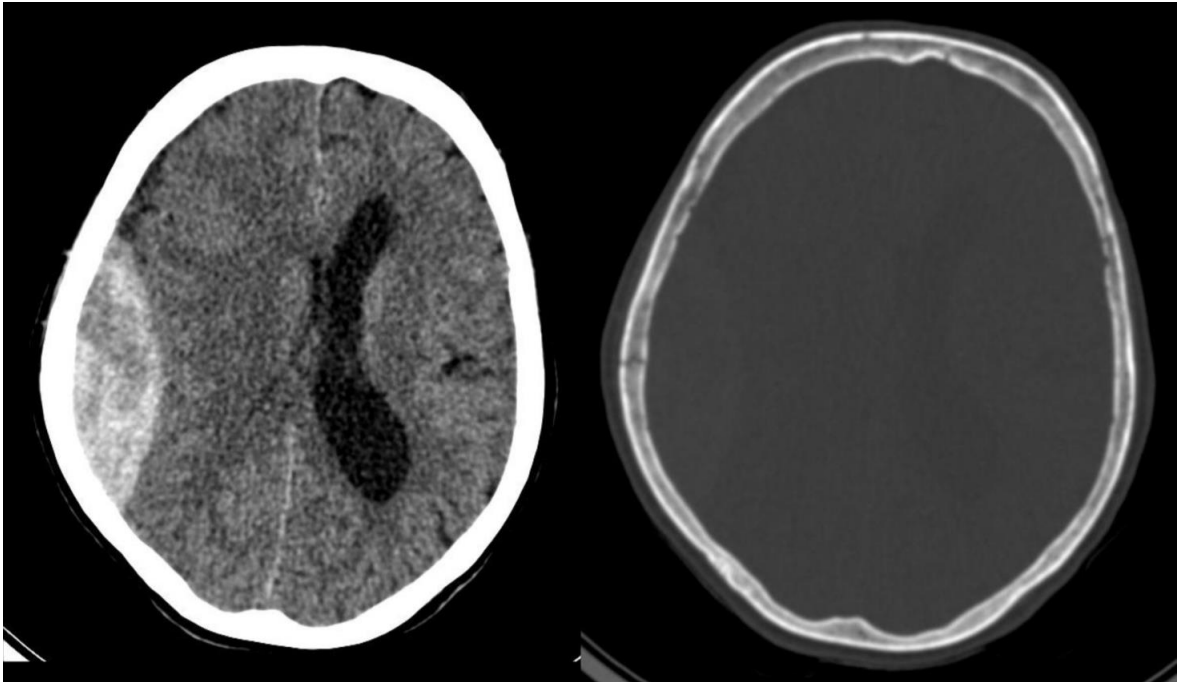

Patient history: loss of consciousness following a bike accident

Modality: Non-enhanced CT; left – brain window setting (window level: 40 HU; window width: 80 HU), right – bone window setting (window level: 600 HU; window width: 2800 HU)

Region : Brain, axial views

Radiologic: Lens-shaped hyperdense mass and a radiolucent line at identical position (yellow arrow); compressed right lateral ventricle and midline sign shift due to mass effect.

Diagnosis : right-sided epidural hematoma with skull vault fracture

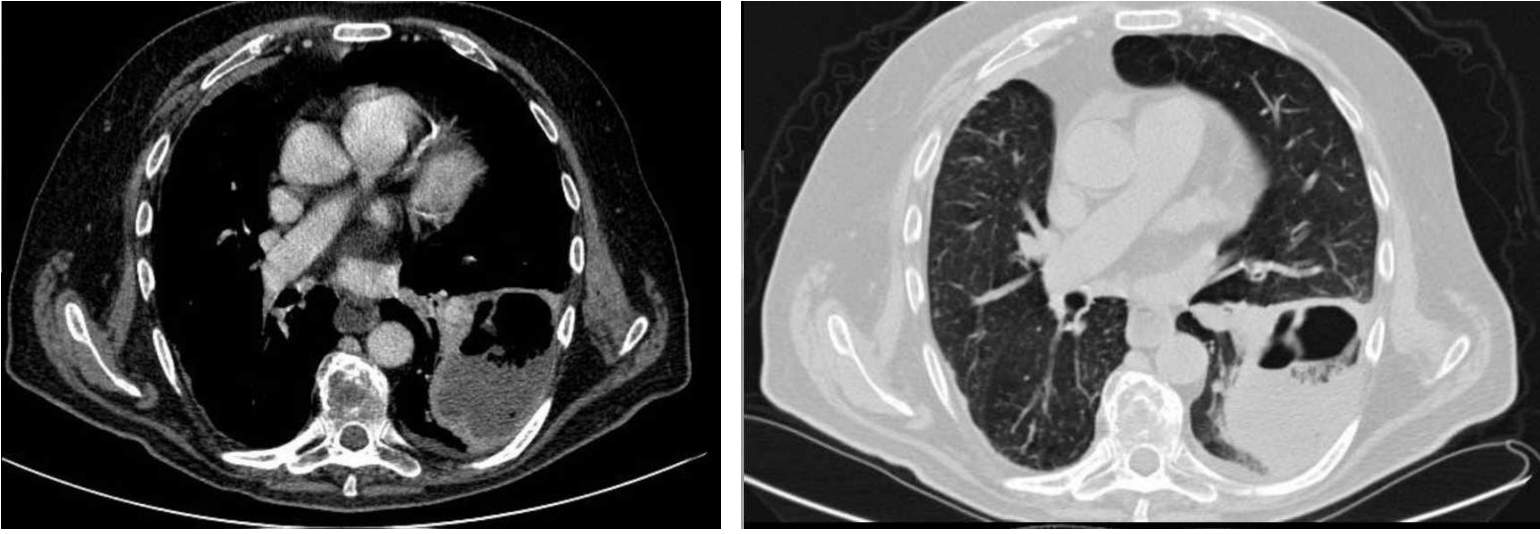

8.3

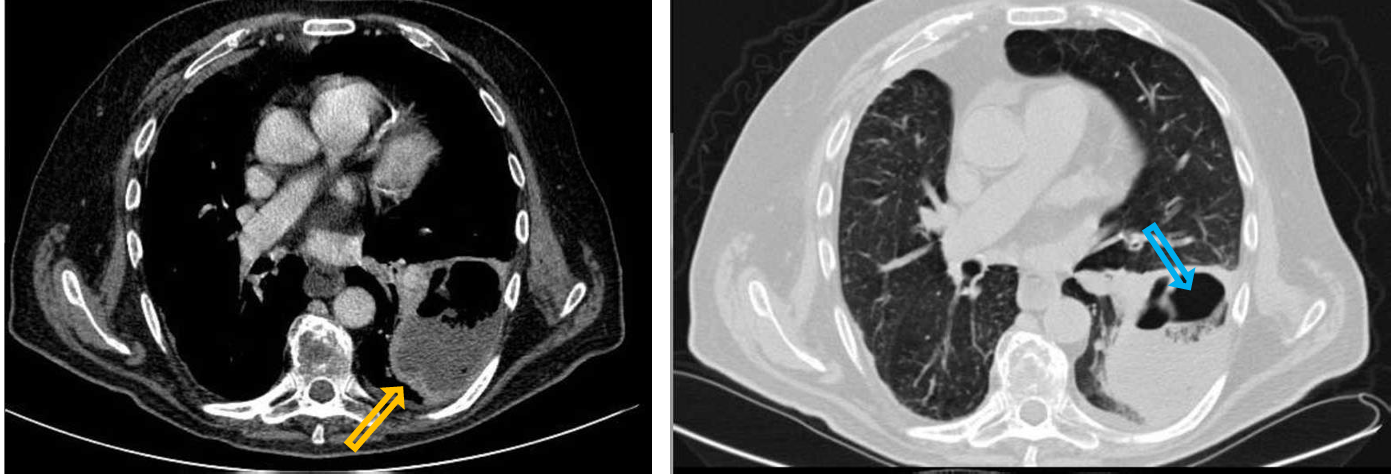

Patient history: chest pain, cough and fatigue in an immunocompromised patient

Modality: Contrast-enhanced chest CT, lung window setting (right panel); mediastinal window setting (left panel), iv. iodine-based contrast agent

Region: chest, axial views

Radiologic sign: air-containing (blue arrow) fluid collection with thick enhancing rim (yellow arrow)

Diagnosis: left-sided lung abscess

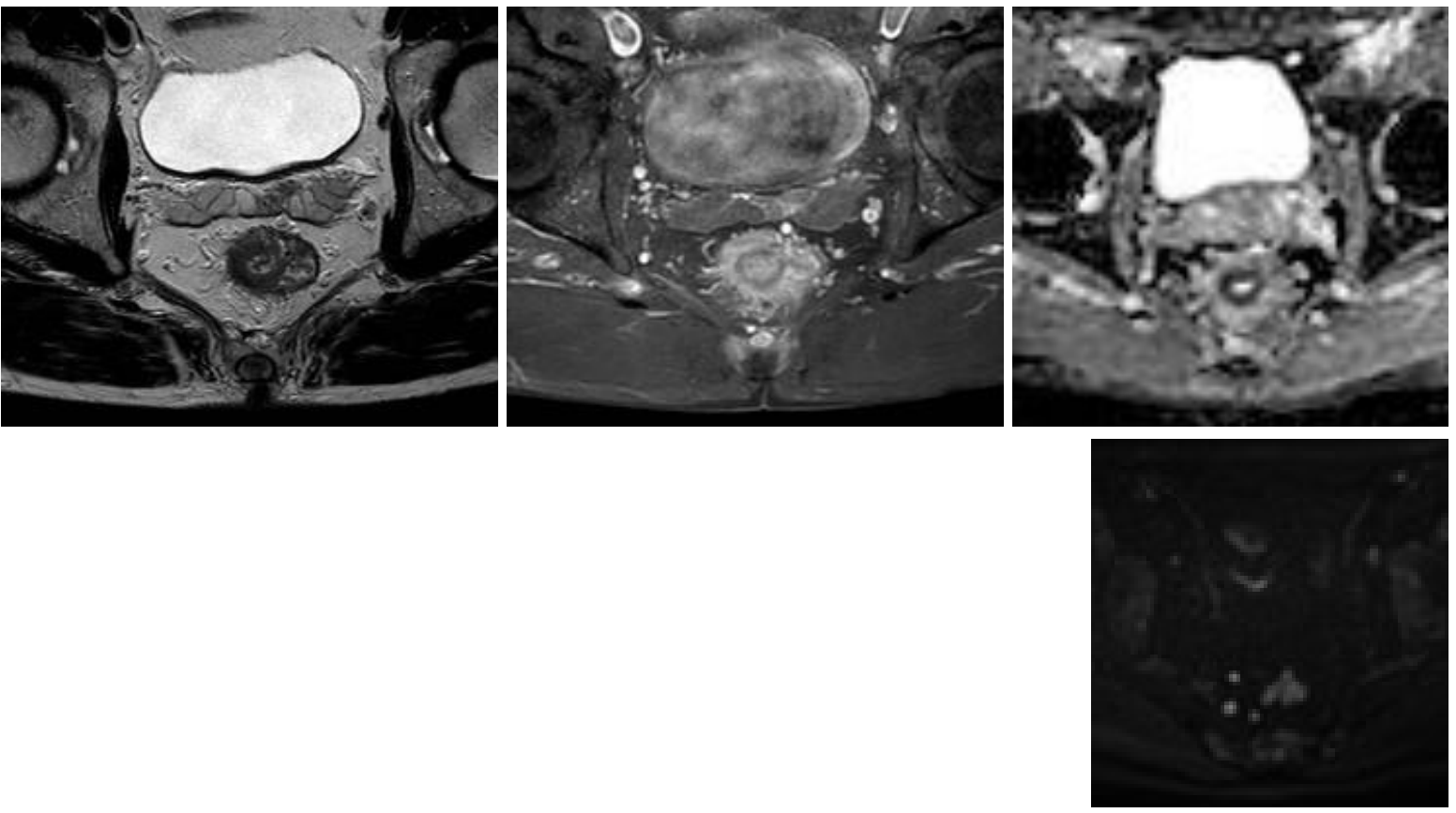

8.4

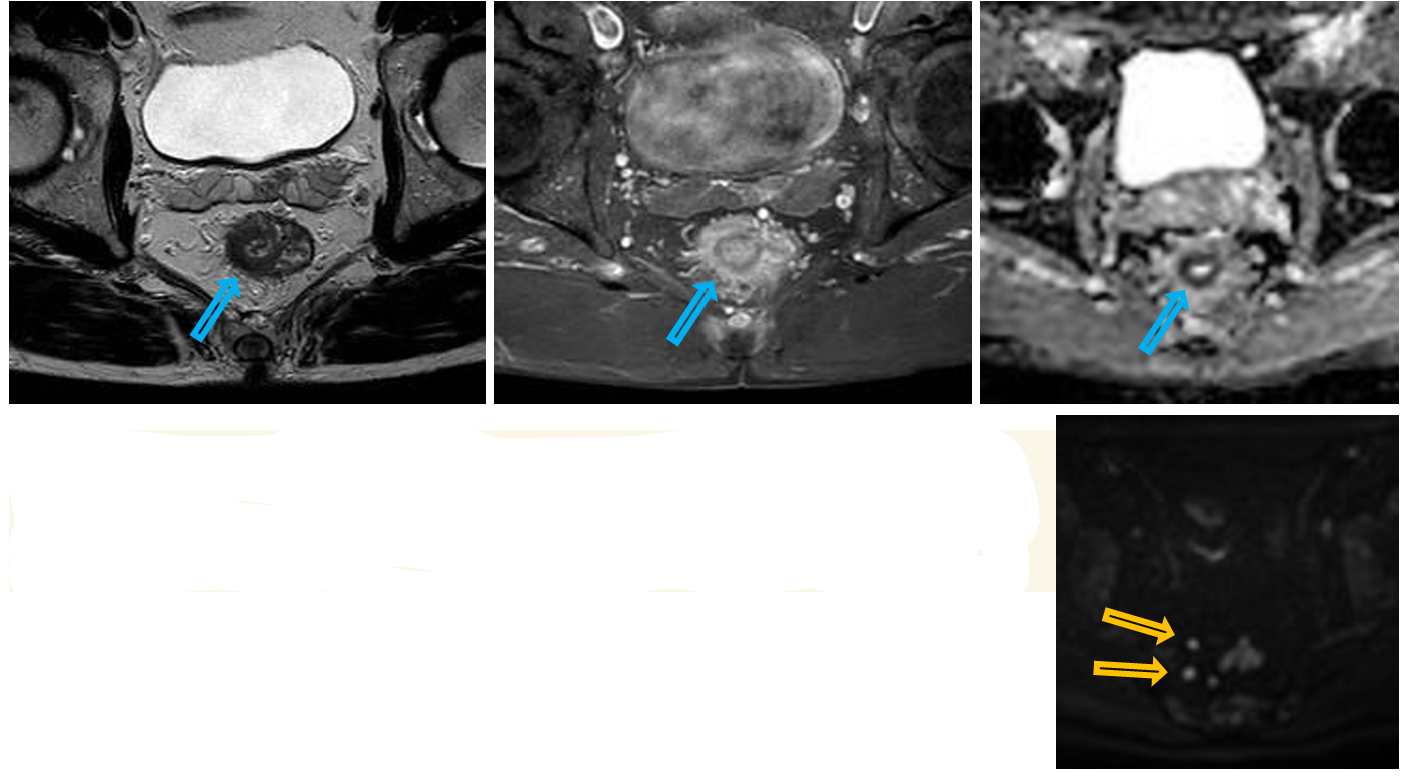

Patient history: bloody stool, colonoscopy showed high-grade rectal adenocarcinoma, staging MRI

Modality: pelvis, axial views

Region: T2W MRI (left), T1 fatsat contrast-enhanced MR (middle) after iv. gadolinium, ADC map MRI (right); DWI (lower)

Radiologic sign: semicircular thickened rectal wall with moderate contrast enhancement and concomitant restricted diffusion (blue arrows), enlarged locoregional lymph nodes with restricted diffusion (yellow arrows)

Diagnosis: rectal adenocarcinoma

8.5

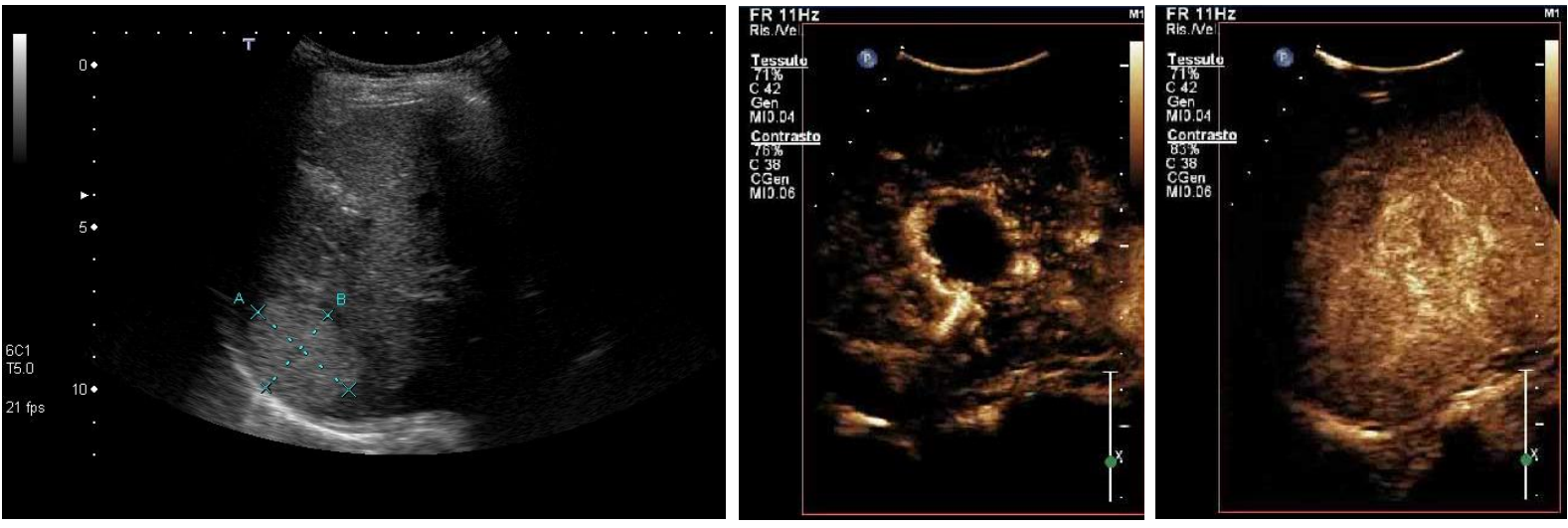

Patient history:

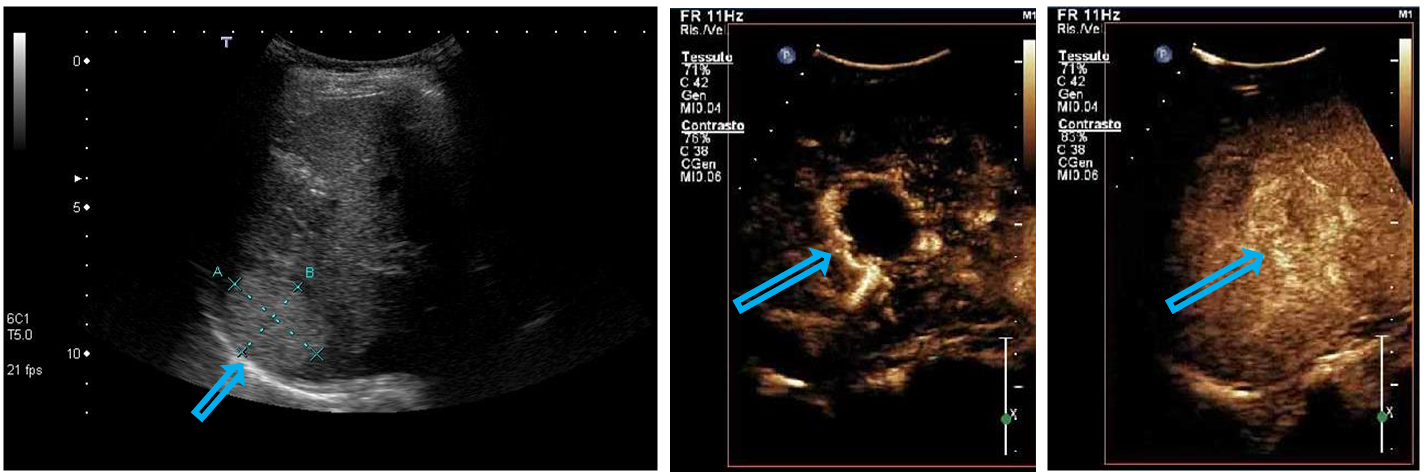

Modality: asymptomatic young patient, routine abdominal ultrasonography followed by CEUS work-up left – convex probe, B mode US; middle – contrast-enhanced ultrasonography (CEUS) after iv. microbubble administration, arterial phase; right – CEUS, late phase

Region: liver, right subcostal view

Radiologic sign: Hyperechoic, well-circumscribed hepatic mass showing peripheral nodular enhancement in the arterial phase and complete filling in the late phase.

Diagnosis: hepatic hemangioma

9.1

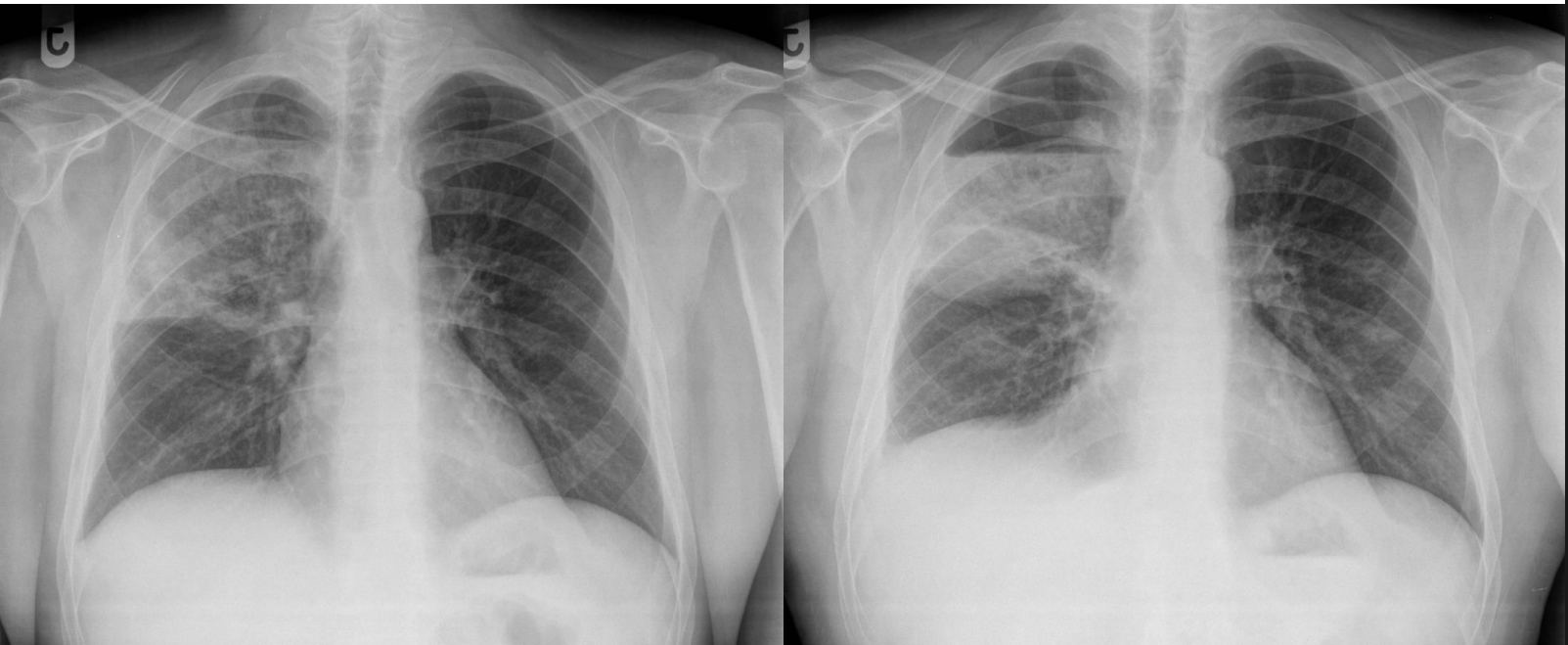

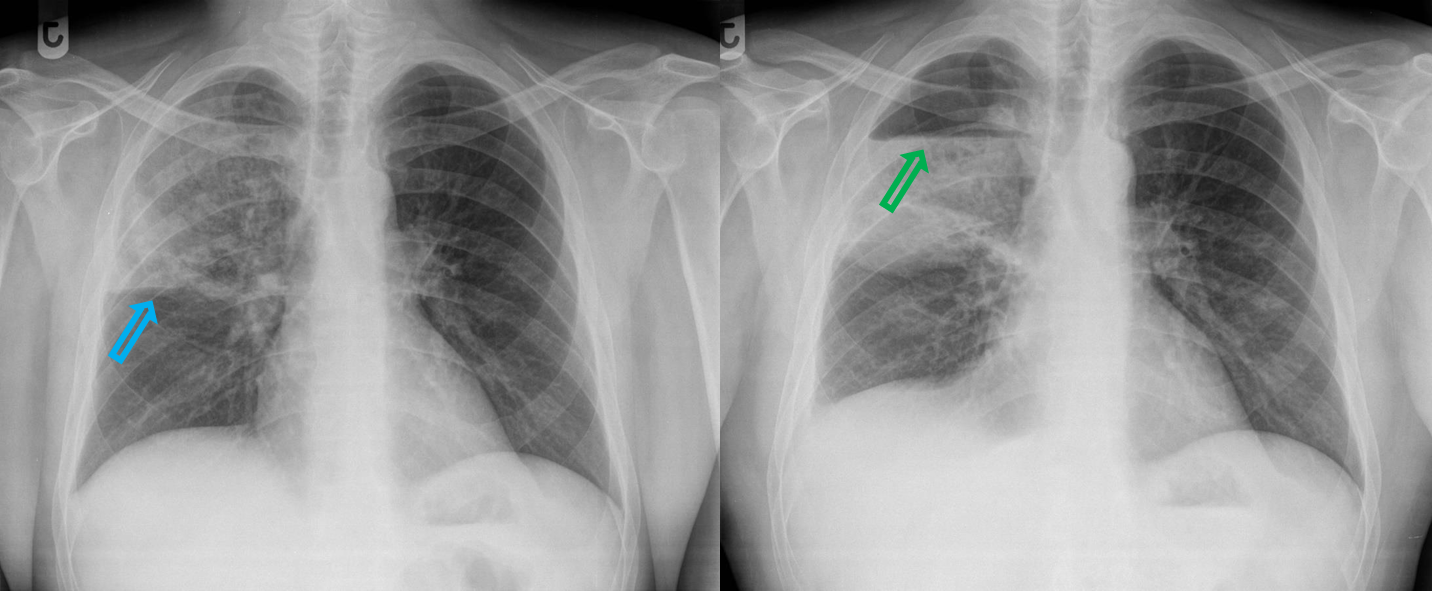

Patient history: chills, chest pain and cough with purulent sputum in an immunocompromised patient

Modality : PA chest radiograph

Region : chest, lungs

Radiologic sign : left - right-sided upper lobar consolidation right - abscess with air-fluid level two weeks later (blue arrow – horizontal fissure; green arrow – air-fluid level)

Diagnosis: lobar pneumonia in the right upper lobe, which later develops an abscess

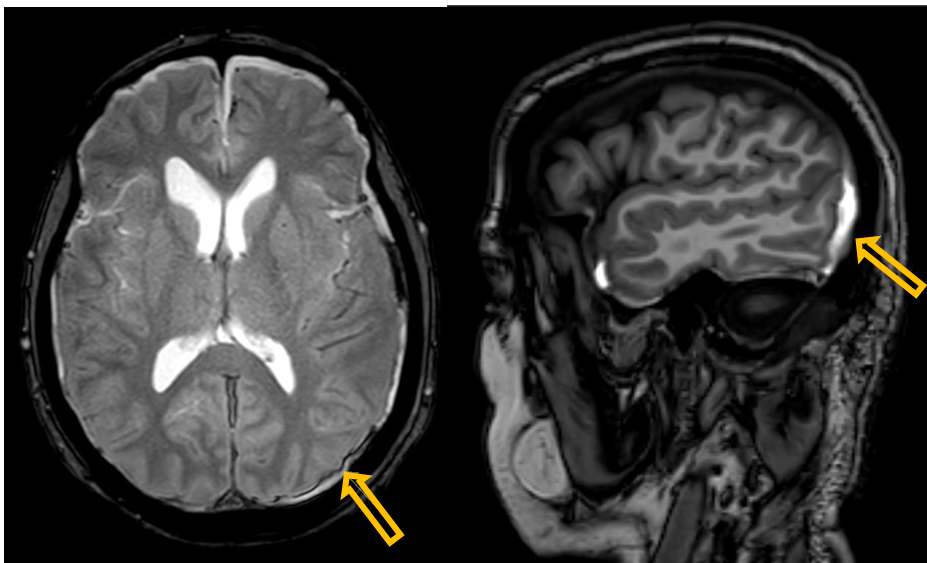

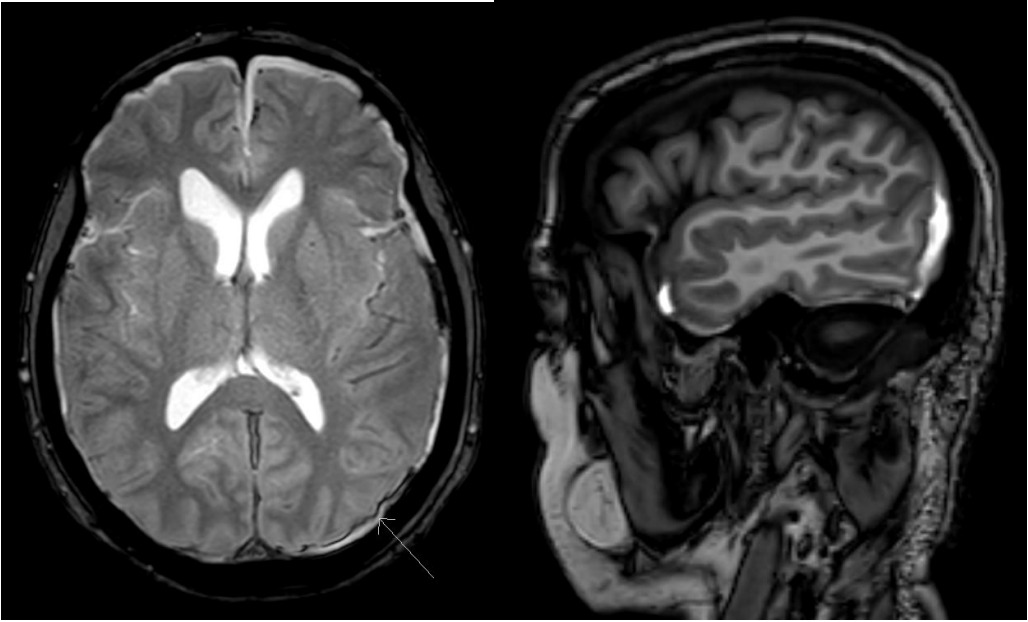

9.2

Patient history: headache after head trauma

Modality: left – T2W axial MRI; right – T1W sagittal MRI (without iv. contrast agent)

Region: brain, axial (left and middle) and sagittal (right) planes

Radiologic sign: crescent-shaped, hyperintense area in the subdural space (yellow arrow)

Diagnosis: left-sided acute parieto-occipital subdural hematoma

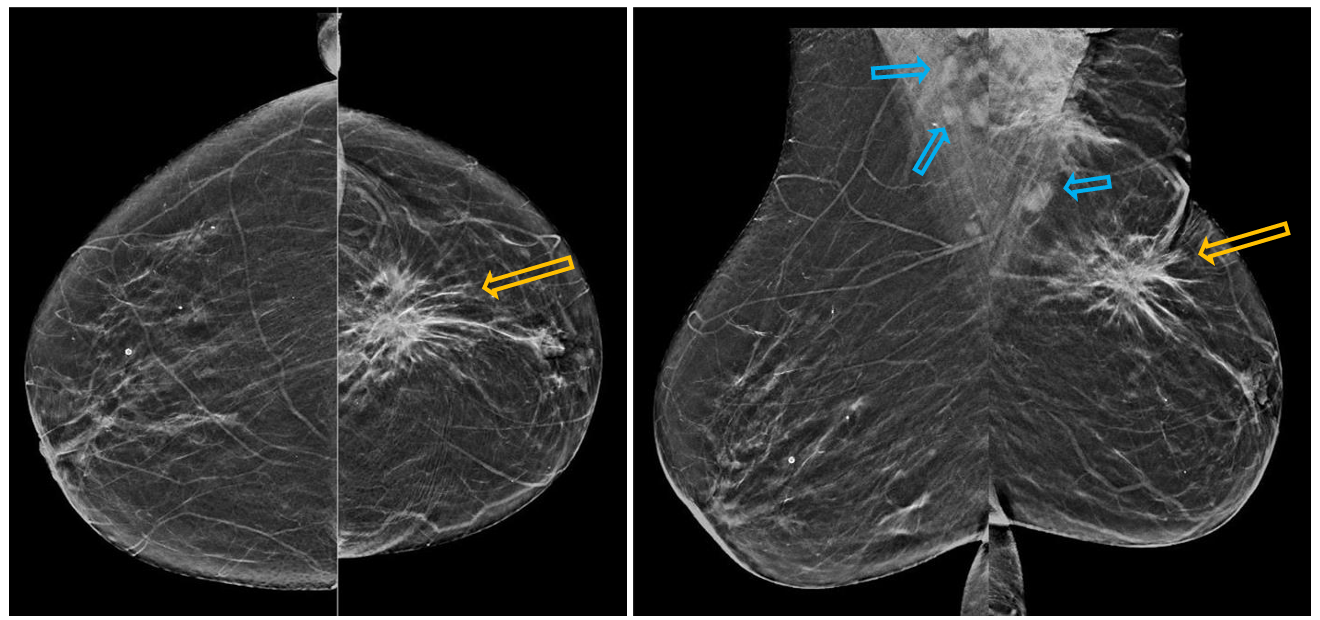

9.3

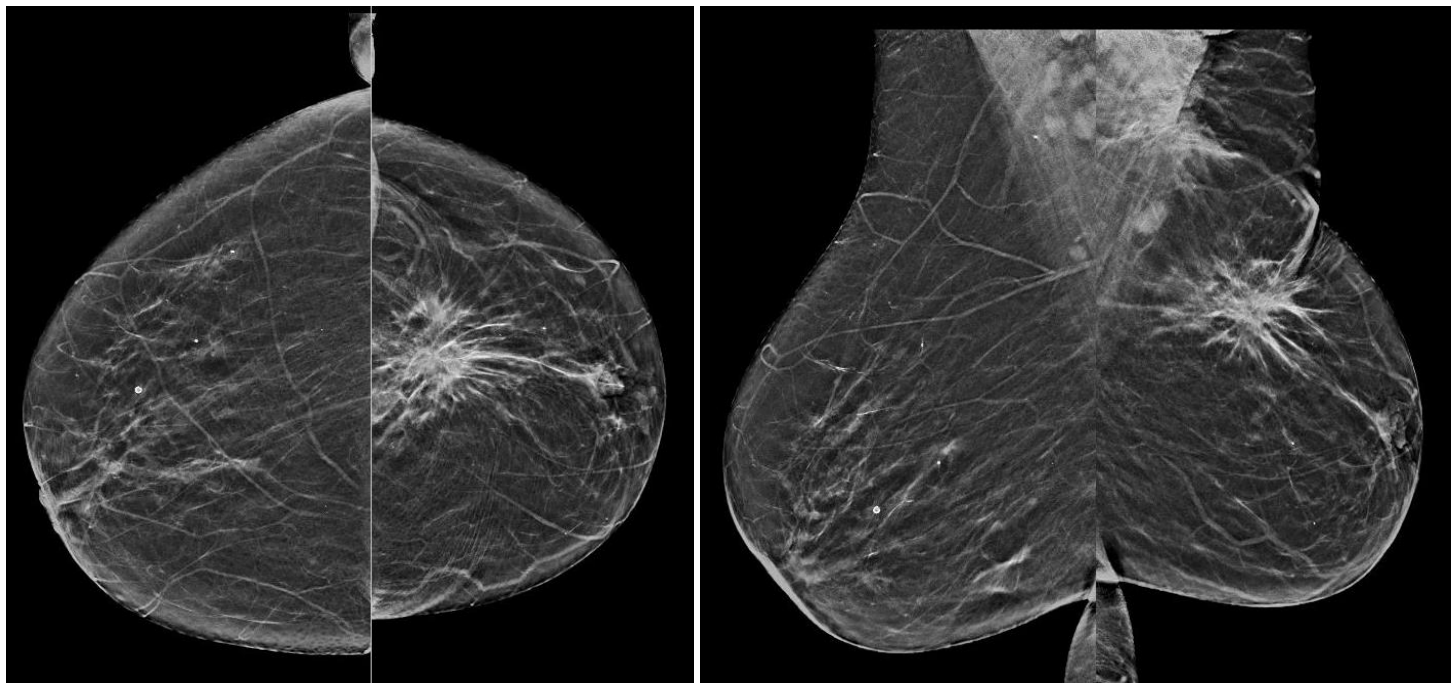

Patient history: palpable mass in the left breast in a 41-year-old female patient

Modality: mammograms of the right and left breast, low-energy beam technique (30 kV)

Region: left and right breasts, craniocaudal (CC, left images) and mediolateral oblique (MLO, right images) views

Radiologic sign: spiculated asymmetric lesion of the left breast (upper quadrants, on the border of medial and lateral quadrants). It is easier to detect lesions in adipose (fatty) breast than in dense breast. Axillary metastatic lymph nodes in the projection of the pectoral muscle (blue arrows).

Diagnosis: invasive carcinoma of the left breast, normal right breast

9.4

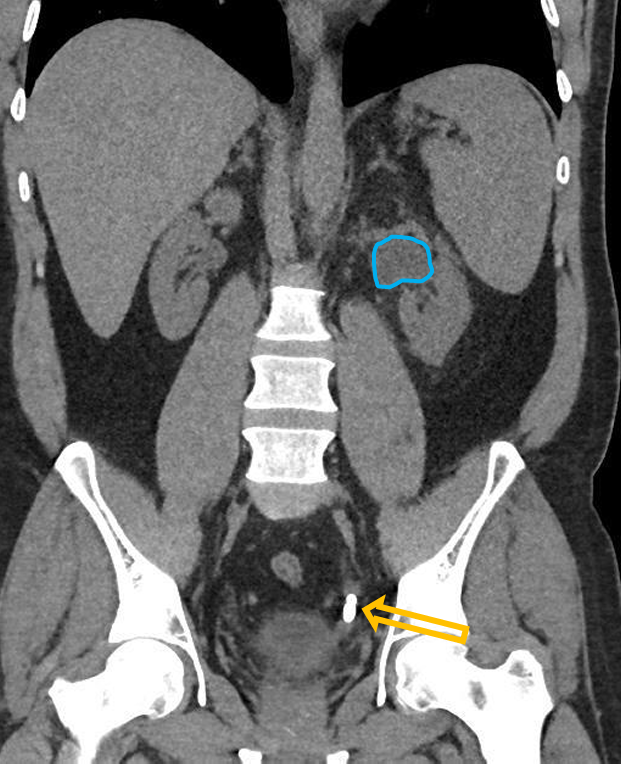

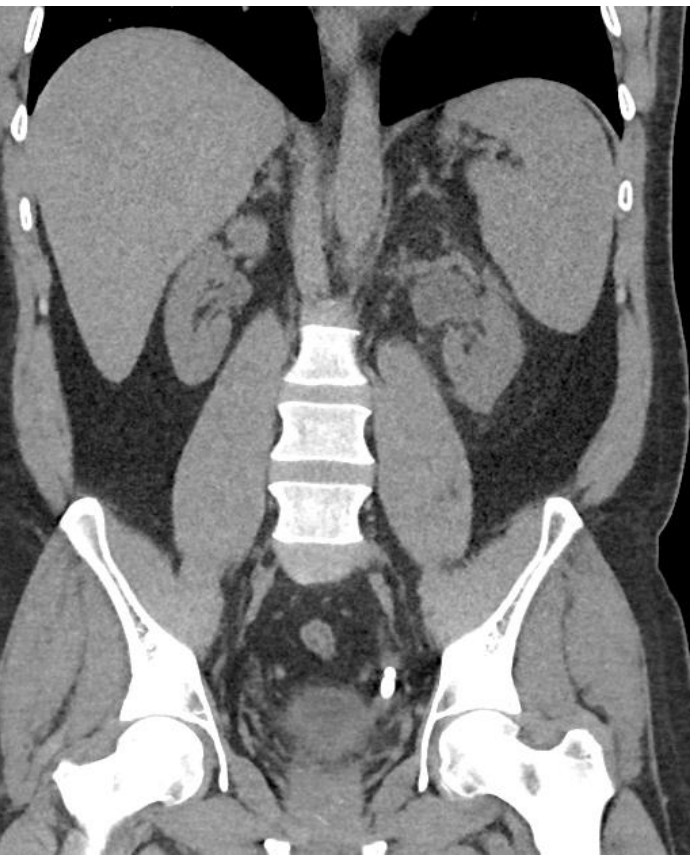

Patient history: acute severe left-sided flank pain, hematuria in a young patient

Modality: low-dose non-enhanced CT scan

Region: abdomen, coronal view

Radiologic sign: juxtavesical hyperdensity (yellow arrow, 450-500 HU) in the left distal ureter with ipsilateral hydronephrosis (blue area – dilated pyelon)

Diagnosis: obliterative juxtavesical ureter stone with hydronephrosis

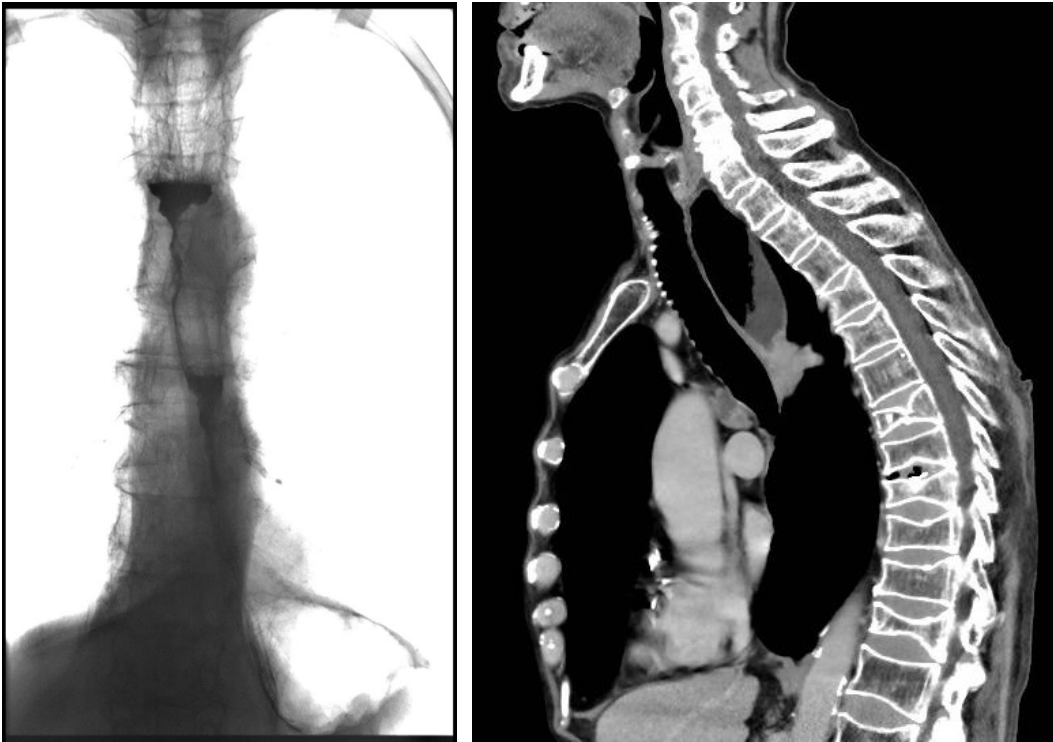

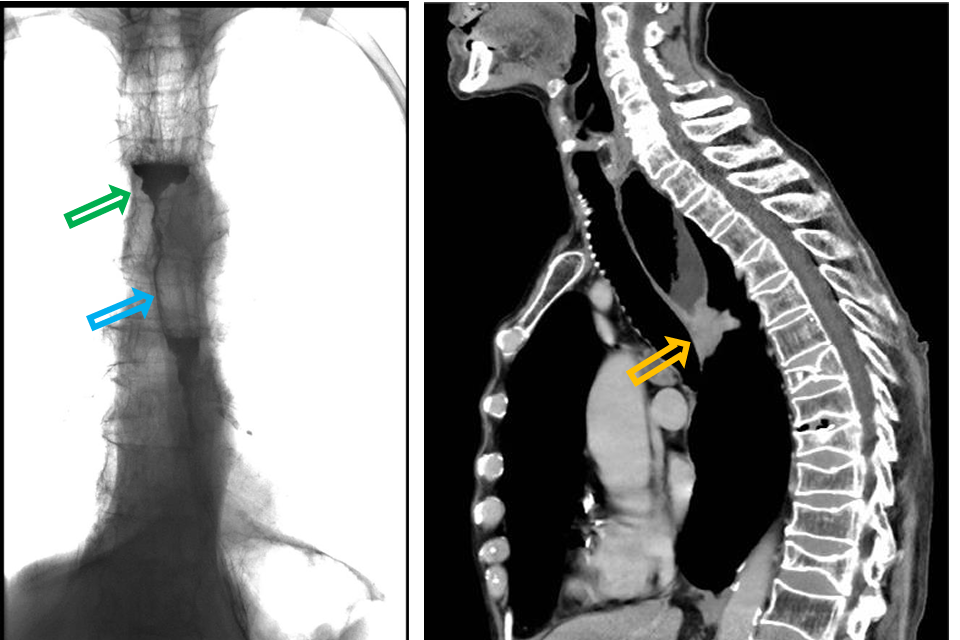

9.5

Patient history: dysphagia and weight loss in a middle-aged male patient with alcoholism

Modality: left – Barium swallow test, fluoroscopy, coronal view; right – contrast enhanced CT (iv. contrast agent), soft tissue window, sagittal view

Region: chest

Radiologic sign: contrast enhancing mass (yellow arrow) causing dilatation of the upper third of the esophagus; cranially to the mass the oral contrast agent is accumulated (green arrow), only a small amount of contrast agent passes through the stenosis (blue arrow).

Diagnosis: squamous cell carcinoma of the esophagus

9.6

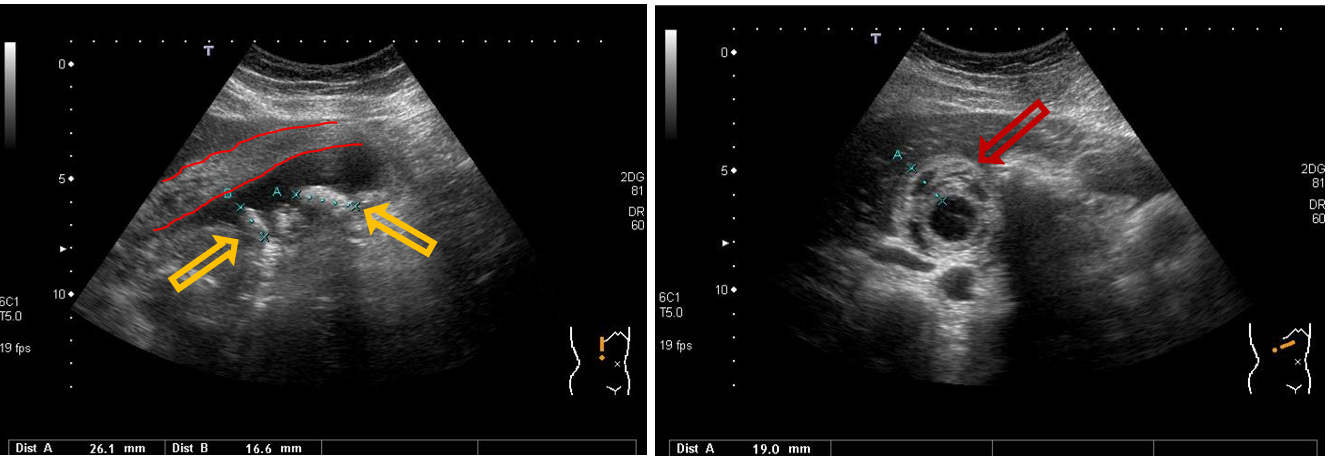

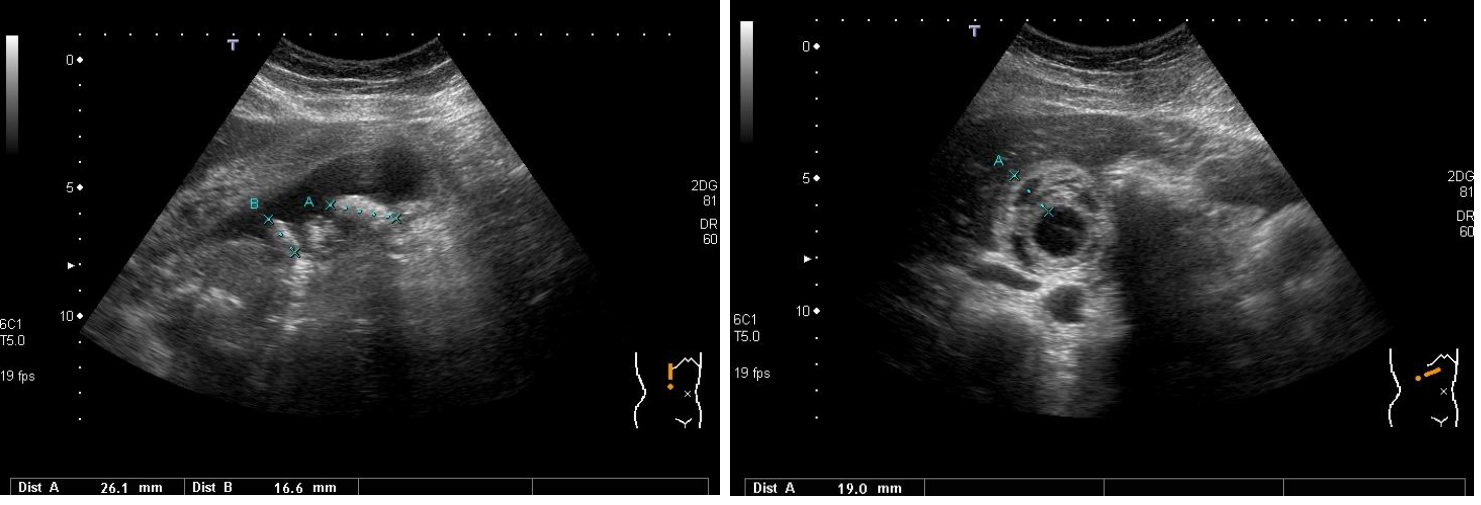

Patient history: fever, nausea, strong right upper abdominal pain Modality: B-mode gallbladder ultrasonography, convex probe (3.5–5 MHz)

Region: gallbladder, right subcostal view, longitudinal (left) and transverse (right) planes

Radiologic sign: echodense structure in the gallbladder lumen (yellow arrow) with acoustic shadowing; thick, stratified, oedematous wall (red arrow and red lines)

Diagnosis: cholecystitis with gallstone

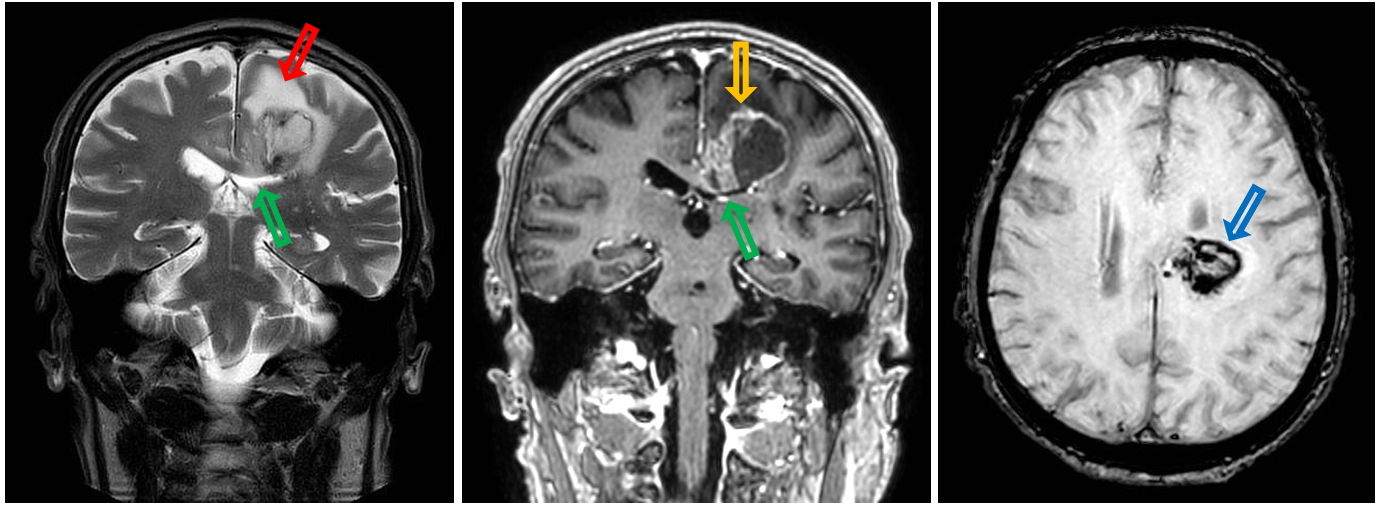

10.1

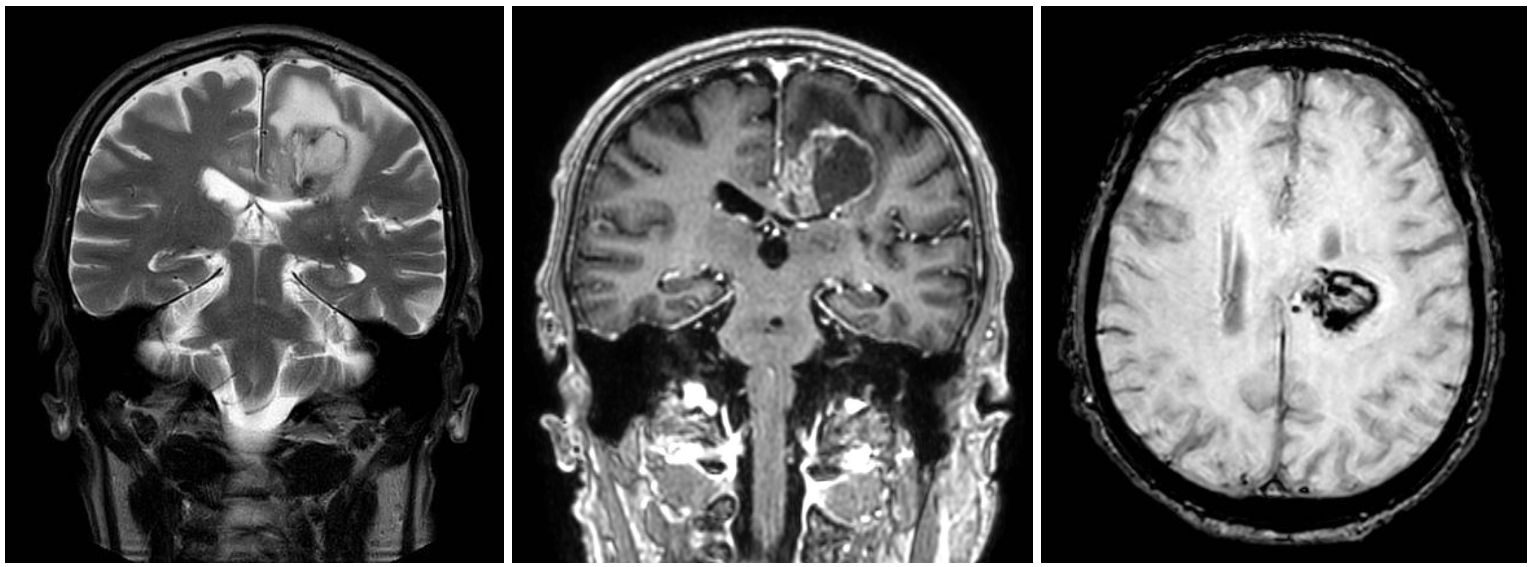

Patient history: mutism (inability to speak) and right lower extremity hemiparesis with spastic muscle tone in a 79-year-old male patient

Modality: left panel – coronal view T2W MRI; middle panel – coronal view CE T1W MRI; right panel – axial view SWI MRI

Region: brain, axial and coronal views

Radiologic sign: Intraaxial left-sided parenchymal mass in the corona radiata and corpus callosum. The lesion has large perifocal edema (hyperintensity on T2W, red arrow), rim-enhancement (T1W hyperintensity, yellow arrow), and compresses the left lateral ventricle (green arrow). Intralesional hemorrhage is observable on SWI (low signal intensity, blue arrow).

Diagnosis: glioblastoma multiforme

10.2

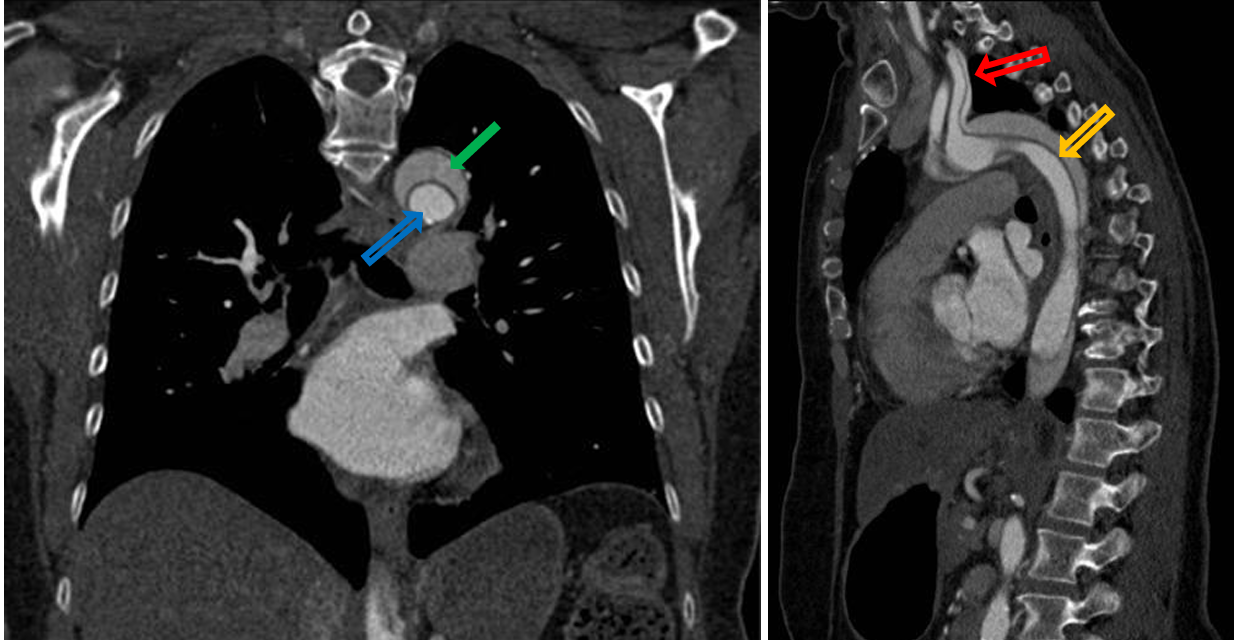

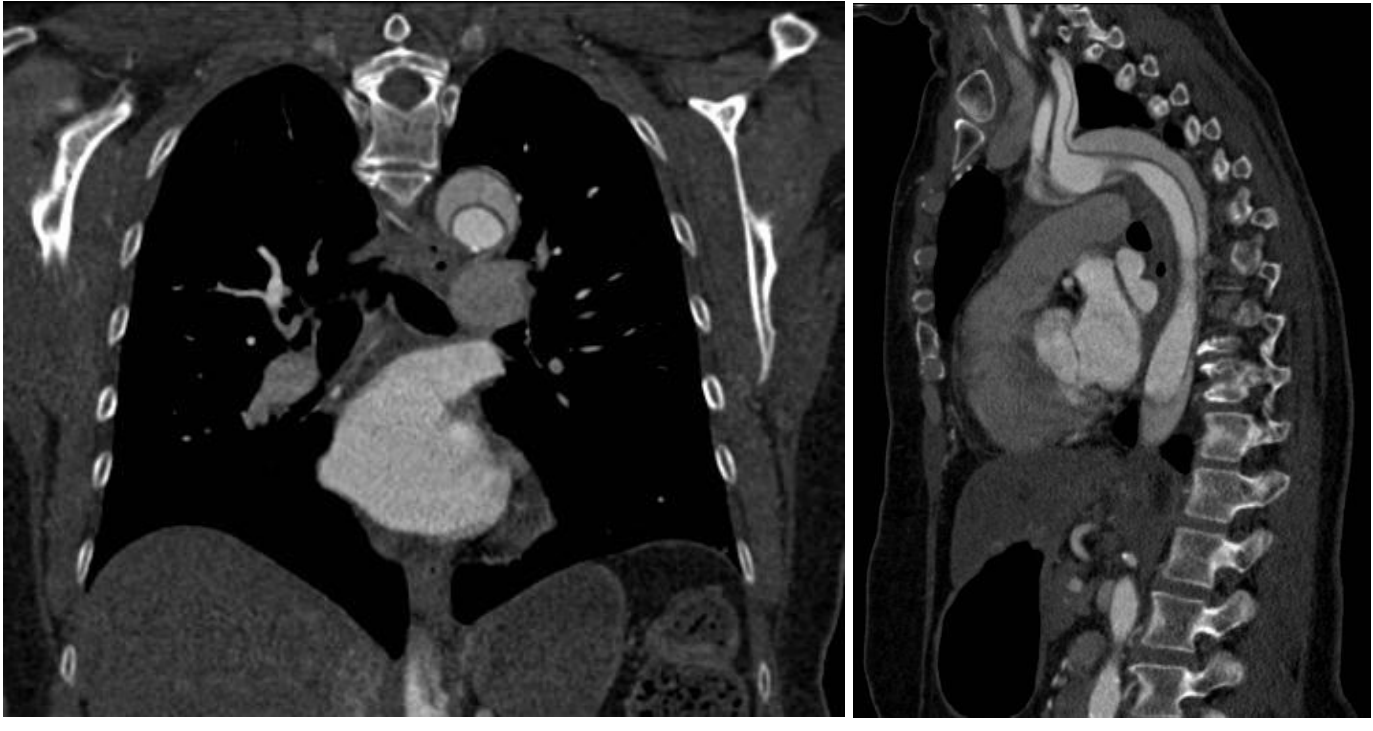

Patient history: sudden severe chest / upper back pain, shortness of breath in a middle-aged patient

Modality: aortic CT angiography;

Region: chest; left – coronal view, right – sagittal view, iv. iodine-based contrast agent

Radiologic sign: Hypodense intima flap (yellow arrow), crescent-shaped false lumen (green arrow), oval true lumen (blue arrow) in the aortic arch and descending aorta. True lumen is denser due to its higher contrast agent concentration.

Diagnosis: Stanford A aortic dissection, affecting the left subclavian artery (red arrow)

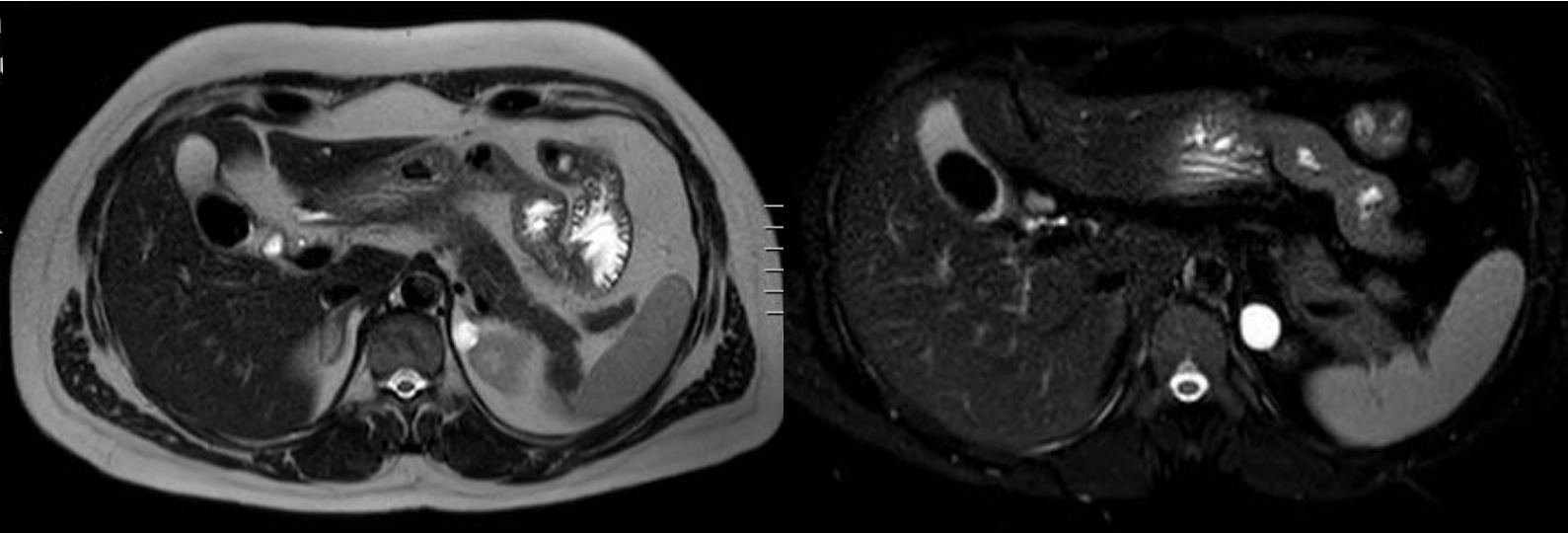

10.3

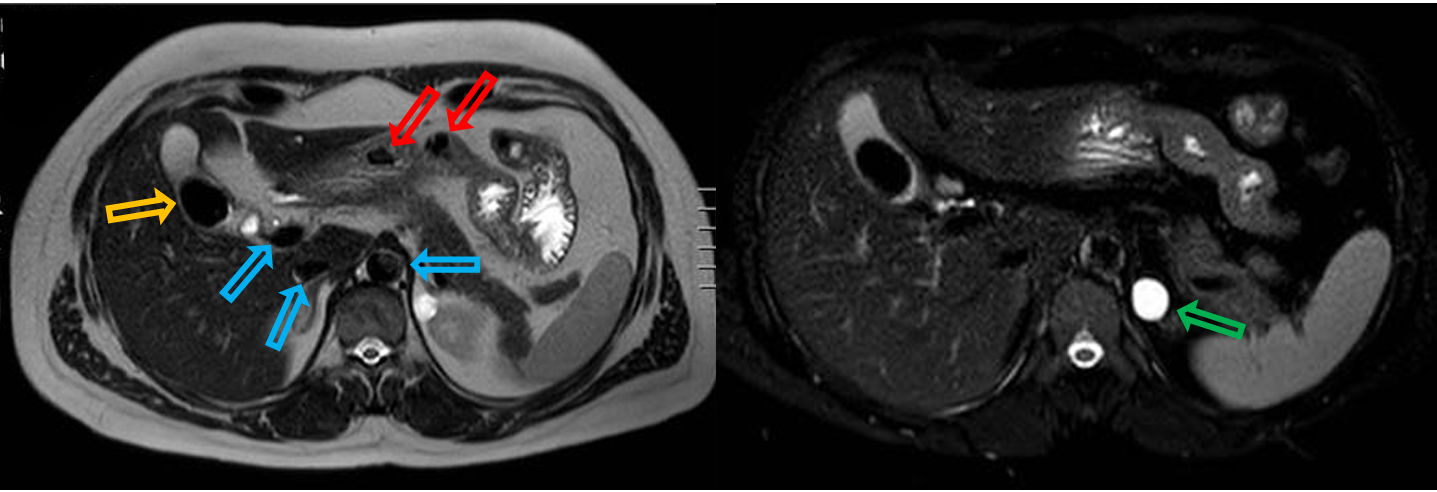

Patient history: upper abdominal MRI scan in a middle-aged patient (scanned for pelvic symptoms)

Modality: left – T2W axial MRI; right – T2W fat suppressed axial MRI (without iv. contrast administration)

Region: upper abdomoen

Radiologic sign: circumscribed signal loss in the gallbladder (yellow arrow); hyperintense well circumscribed lesion in the upper pole of the upper abdomen left kidney (green arrow). Signal loss detected in several additional places: flow-void (in the aorta, inferior vena cava, portal vein, blue arrows); and gas bubbles in the intestines (red arrows)

Diagnosis: cholecystolithiasis, kidney cyst

10.4

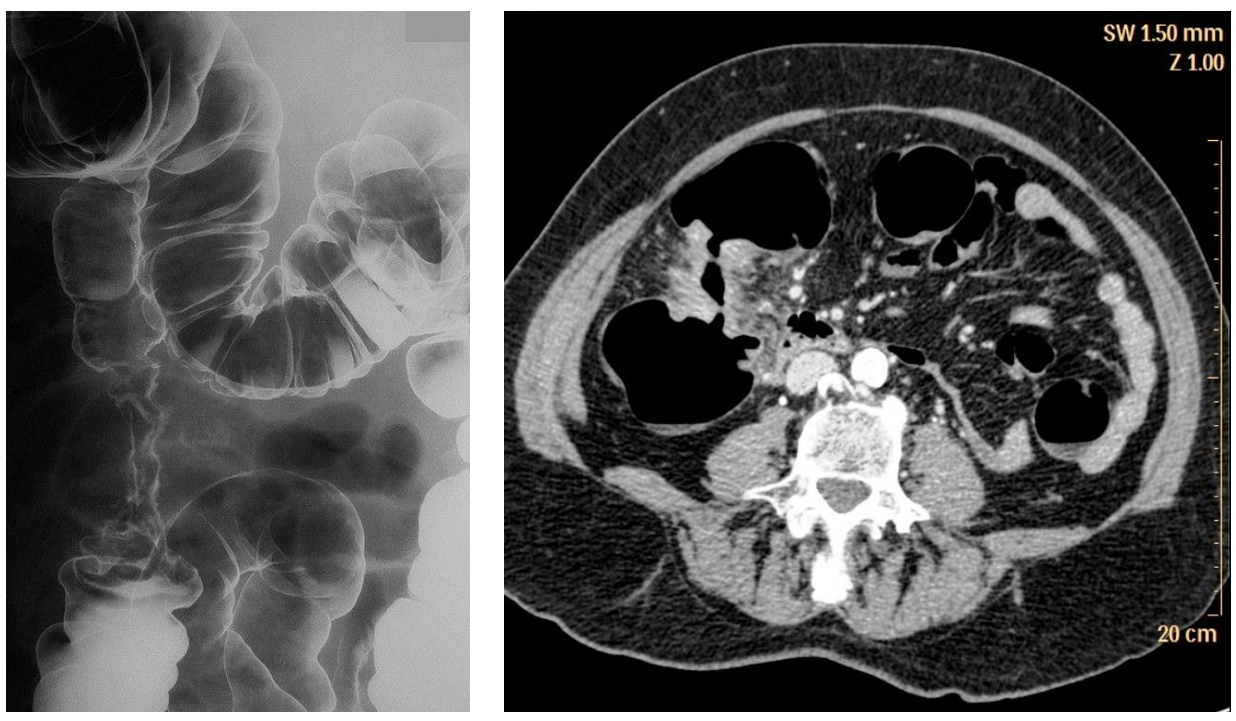

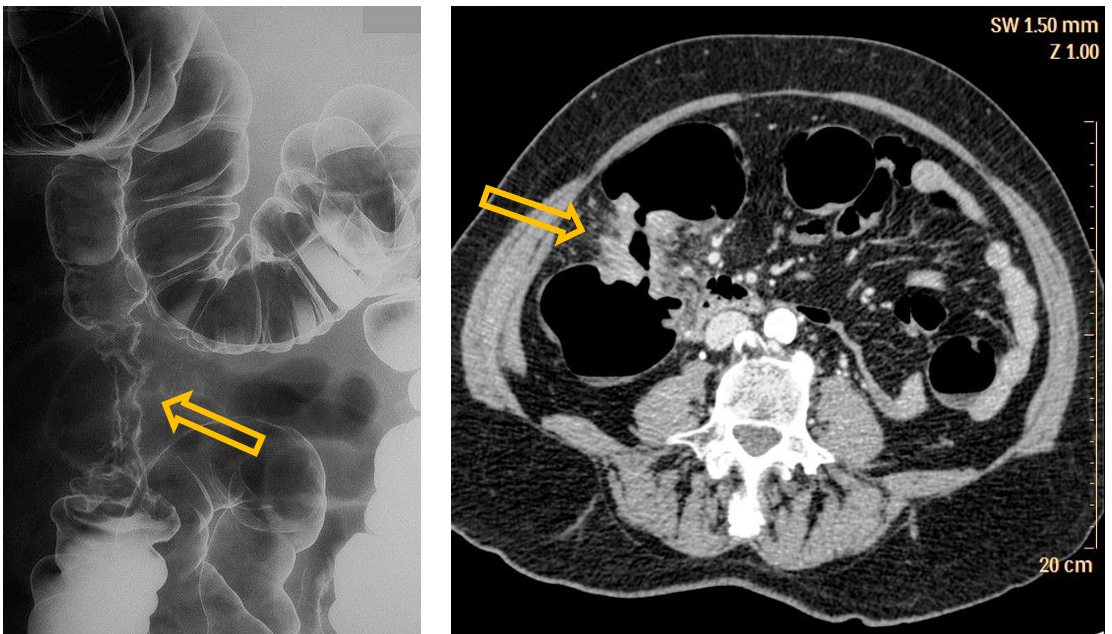

Patient history: change in bowel habits and weight loss

Modality: left - Barium enema study, double-contrast method (barium and air); right – contrast-enhanced CT, venous phase, iv. iodine-based contrast agent

Region: Abdomen, axial view

Radiologic sign: Annular irregular stenosis and bowel wall thickening (apple-core sign), tumorous infiltration of the surrounding fat (increased density)

Diagnosis: colon adenocarcinoma

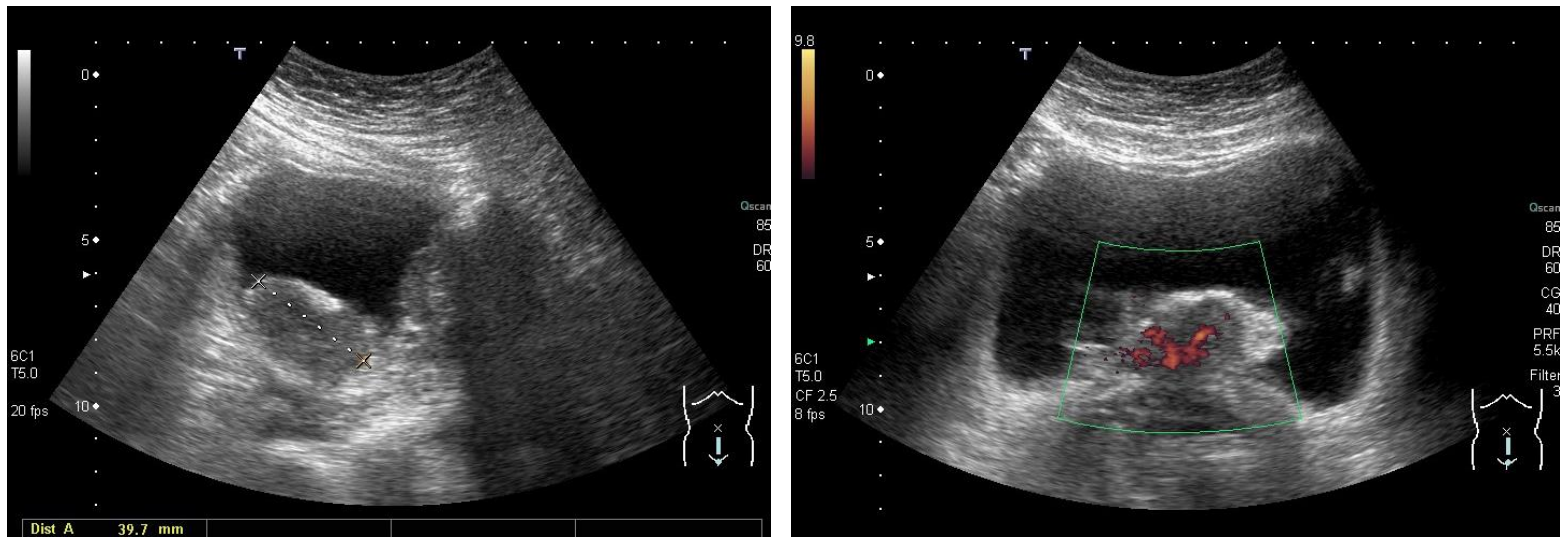

10.5

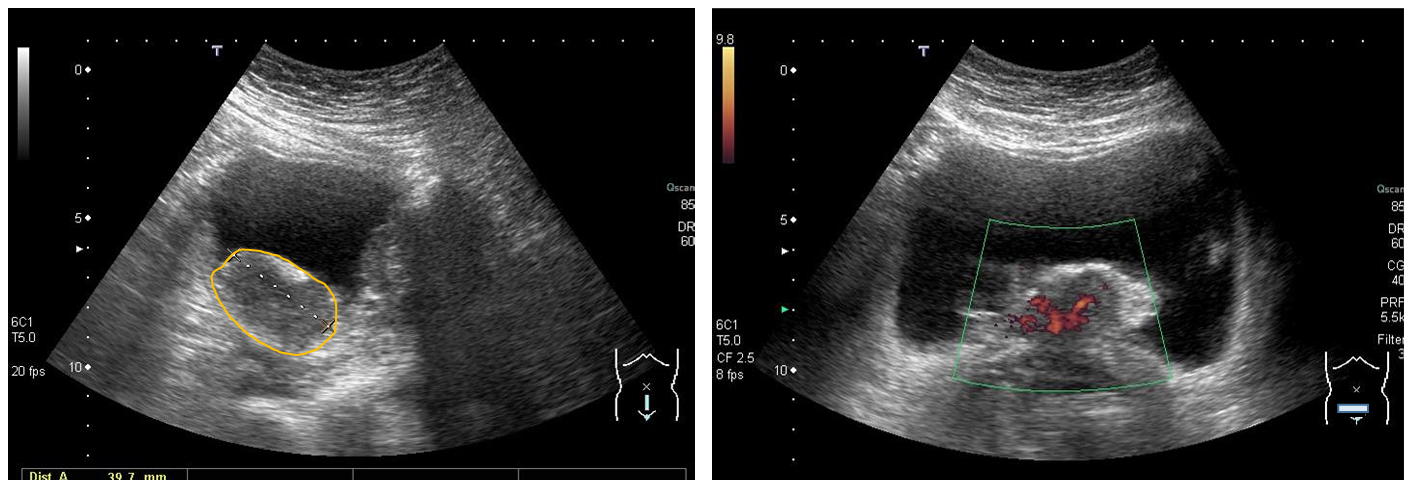

Patient history:elderly patient with macroscopic hematuria

Modality: Ultrasonography of the urinary bladder with convex probe (3.5–5 MHz), B mode (left image) and Power Doppler mode (right image) Region: pelvis, sagittal and transverse views

Radiological sign: Lobulated, hypoechoic, vascularized (Doppler-sign detectable) solid mass, which protrudes into the lumen of the urinary bladder. The bladder contains anechoic urine.

Diagnosis:urinary bladder transitional cell carcinoma

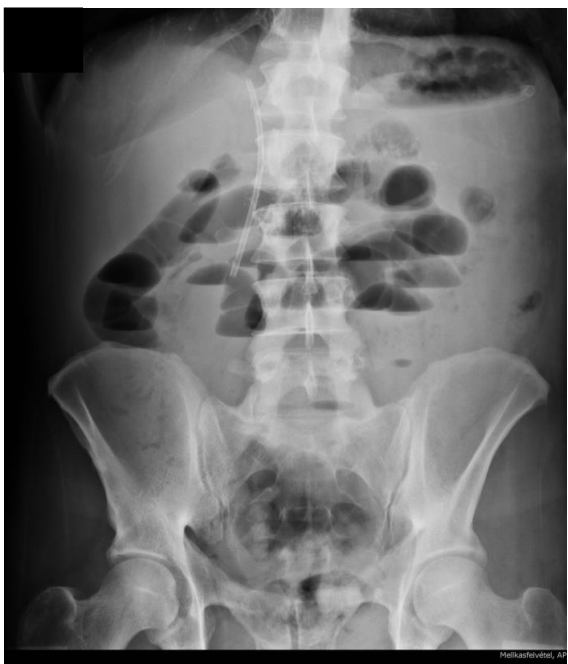

10.6

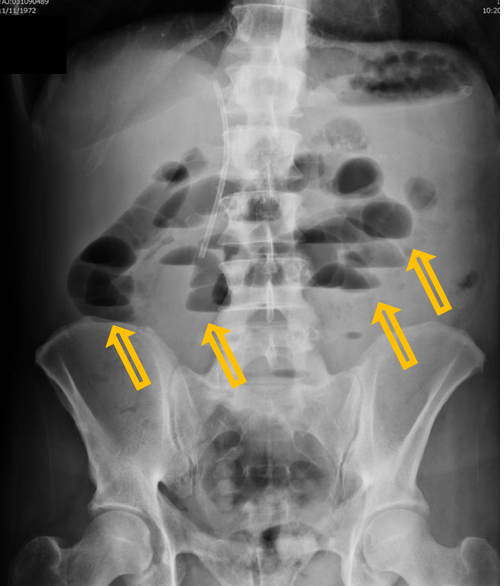

Patient history: vomiting and acute abdominal pain, swelling in the groin region

Modality: abdominal radiograph, erect position

Region: abdomen and pelvis

Radiologic sign: Several, distended (2-3 cm in diameter), meteoristic small bowel loops in the upper abdomen containing air-fluid levels (yellow arrows). The colon contains less gas than normal. A stent is visible in the extrahepatic bile ducts.

Diagnosis: mechanical small bowel ileus caused by incarcerated inguinal hernia

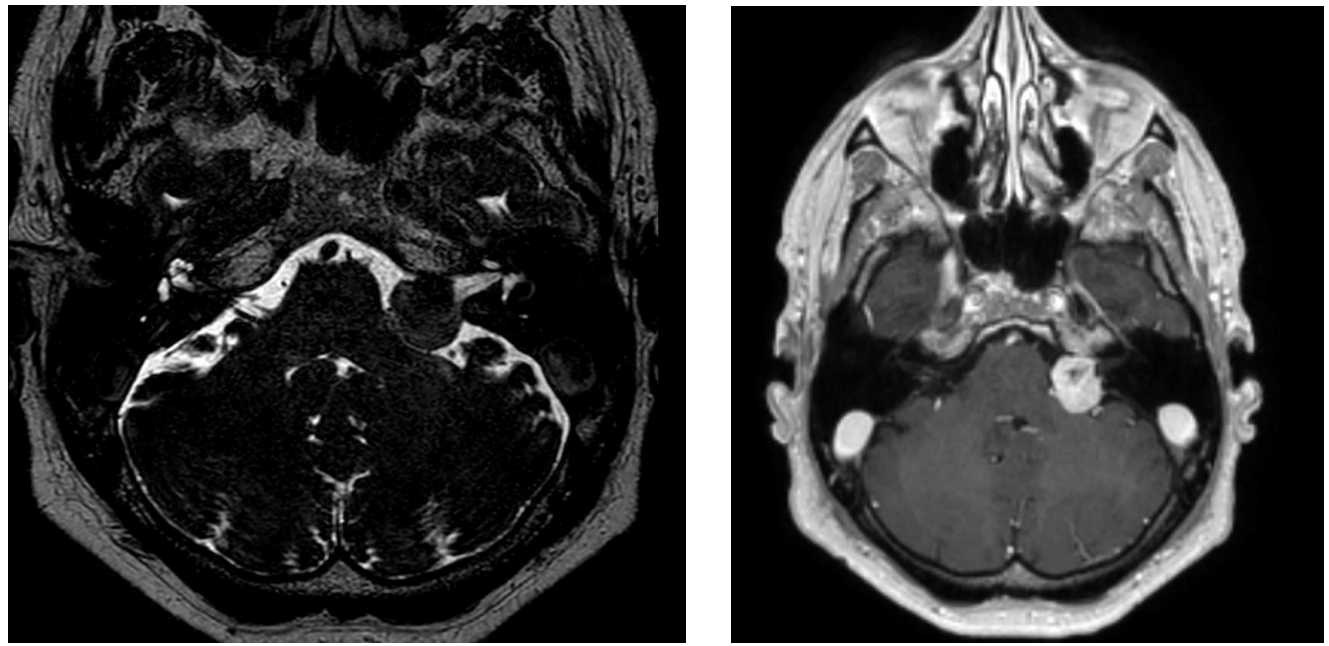

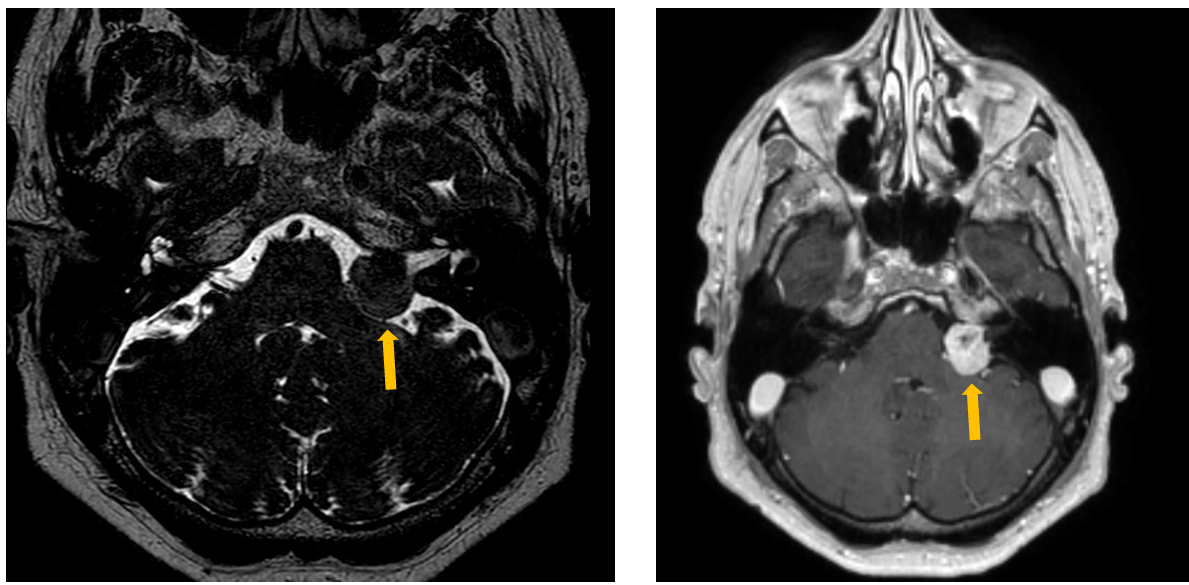

11.1

Patient history: neural hearing loss, that developed over months

Modality: left – T2 Drive MRI (non-contrast), right – post-contrast T1W MRI (after iv. gadolinium administration)

Region: brain, axial view

Radiologic sign: well-circumscribed, contrast-enhancing mass in the left cerebellopontine angle (yellow arrows)

Diagnosis: vestibular schwannoma (acoustic neuroma)

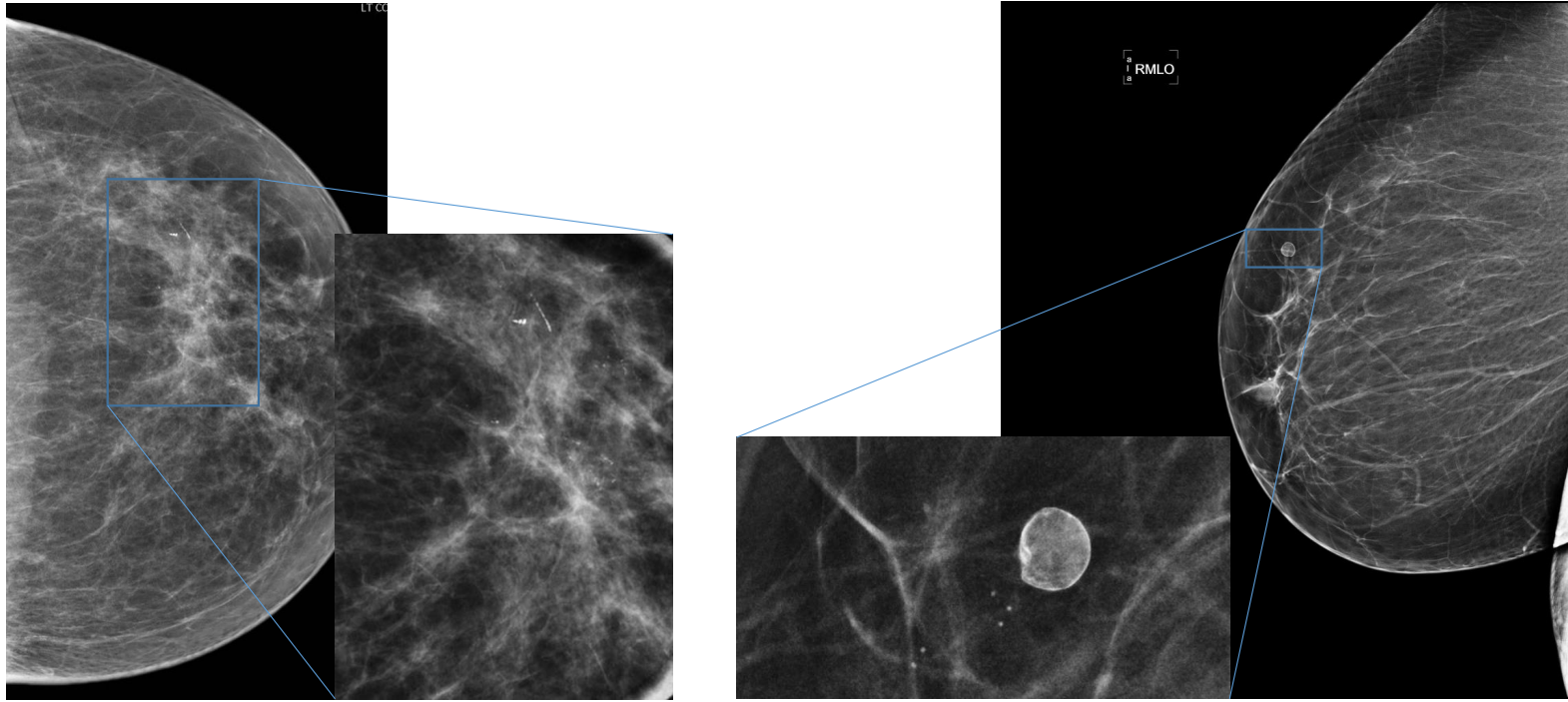

11.2

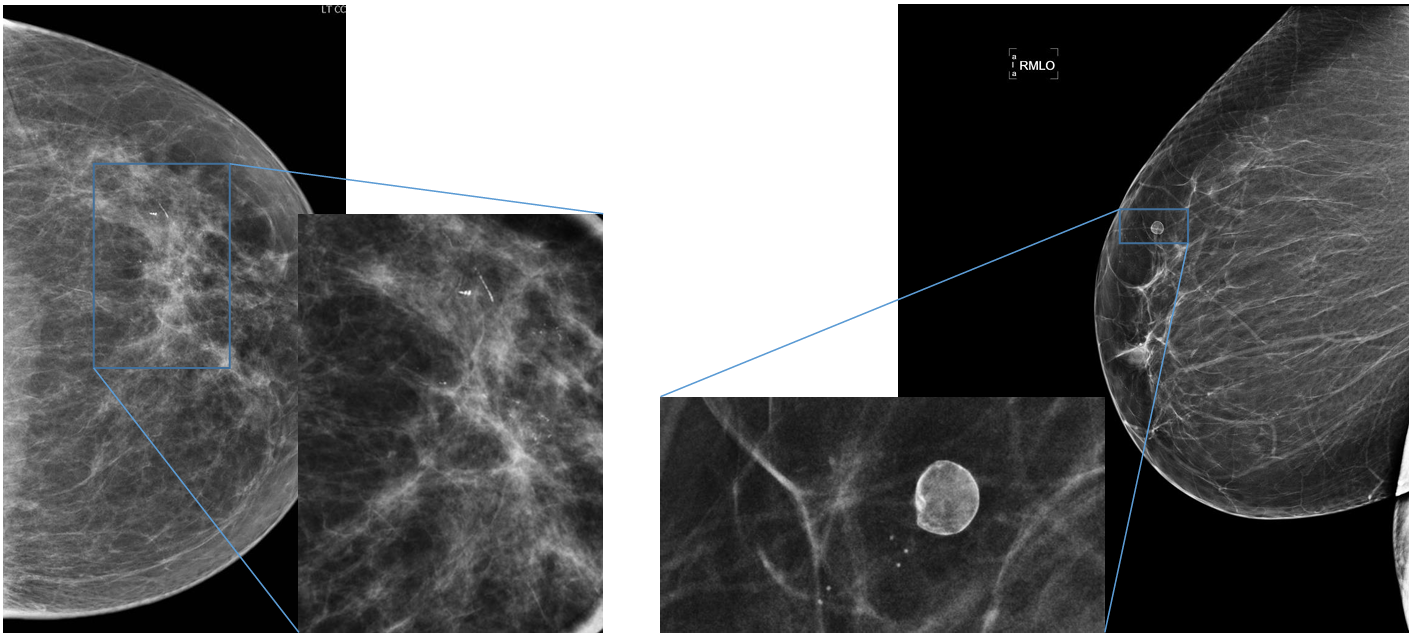

Patient history: screening mammograms in asymptomatic patients

Modality: mammograms of the left breast in craniocaudal (CC) view (left panels) and of the right breast in mediolateral oblique (MLO) view (right panels), low-energy beam technique (30 kV) + magnified compression images

Region: breasts

Radiologic sign: left panels – polymorph microcalcification; right panels – well circumscribed, eggshell calcification

Diagnosis: invasive ductal carcinoma / benign oil cyst

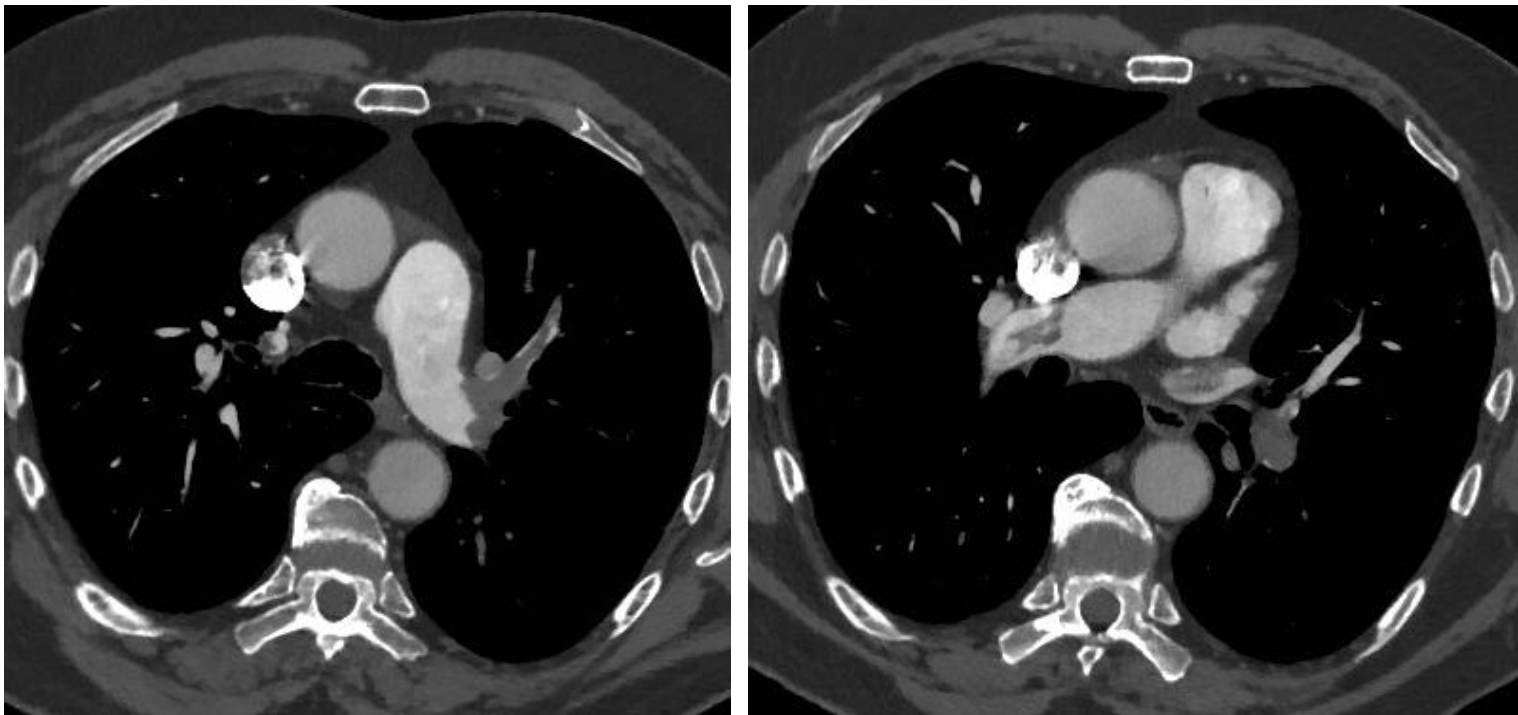

11.3

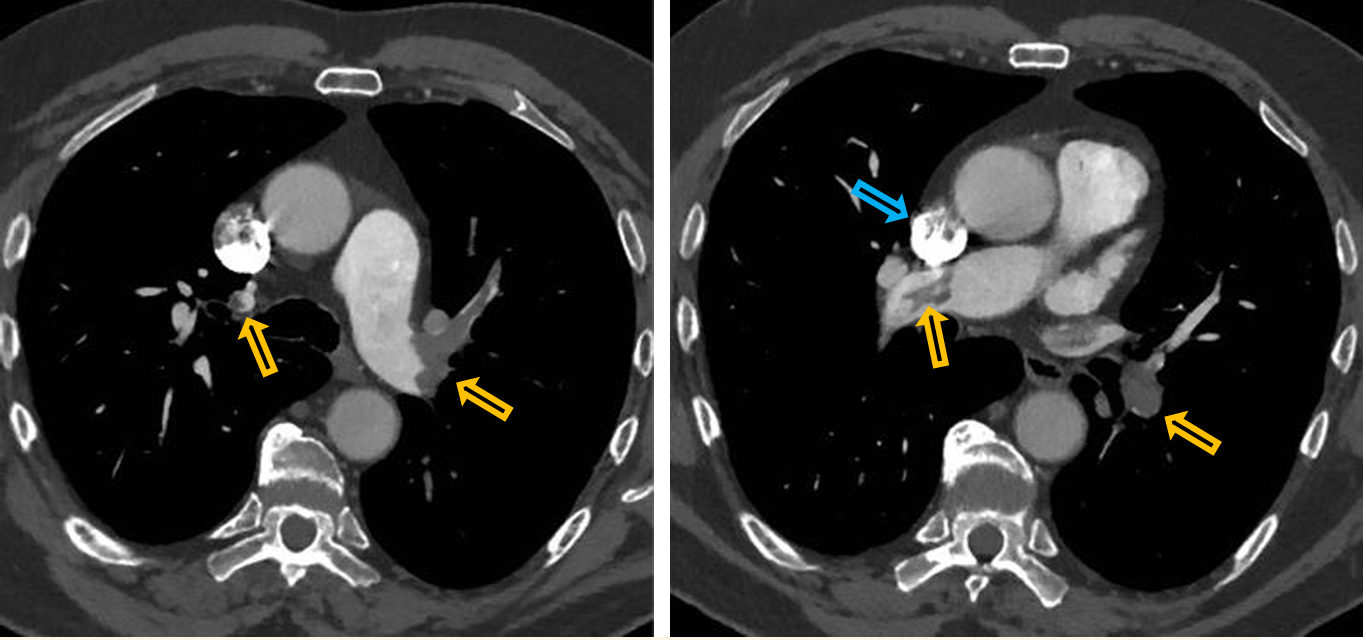

Patient history: elevated D-dimer, dyspnoe and heart palpitations in a female patient after cesarean section

Modality: Pulmonary CT-angiography, iv. iodine-based contrast agent

Region: chest, axial views at the level of the pulmonary bifurcation

Radiologic sign: Large hypodense filling defects in the pulmonary arteries on both sides (yellow arrows). Highest density can be observed in the SVC due to high contrast agent concentration, where it causes artefact (blue arrow).

Diagnosis: bilateral pulmonary embolism

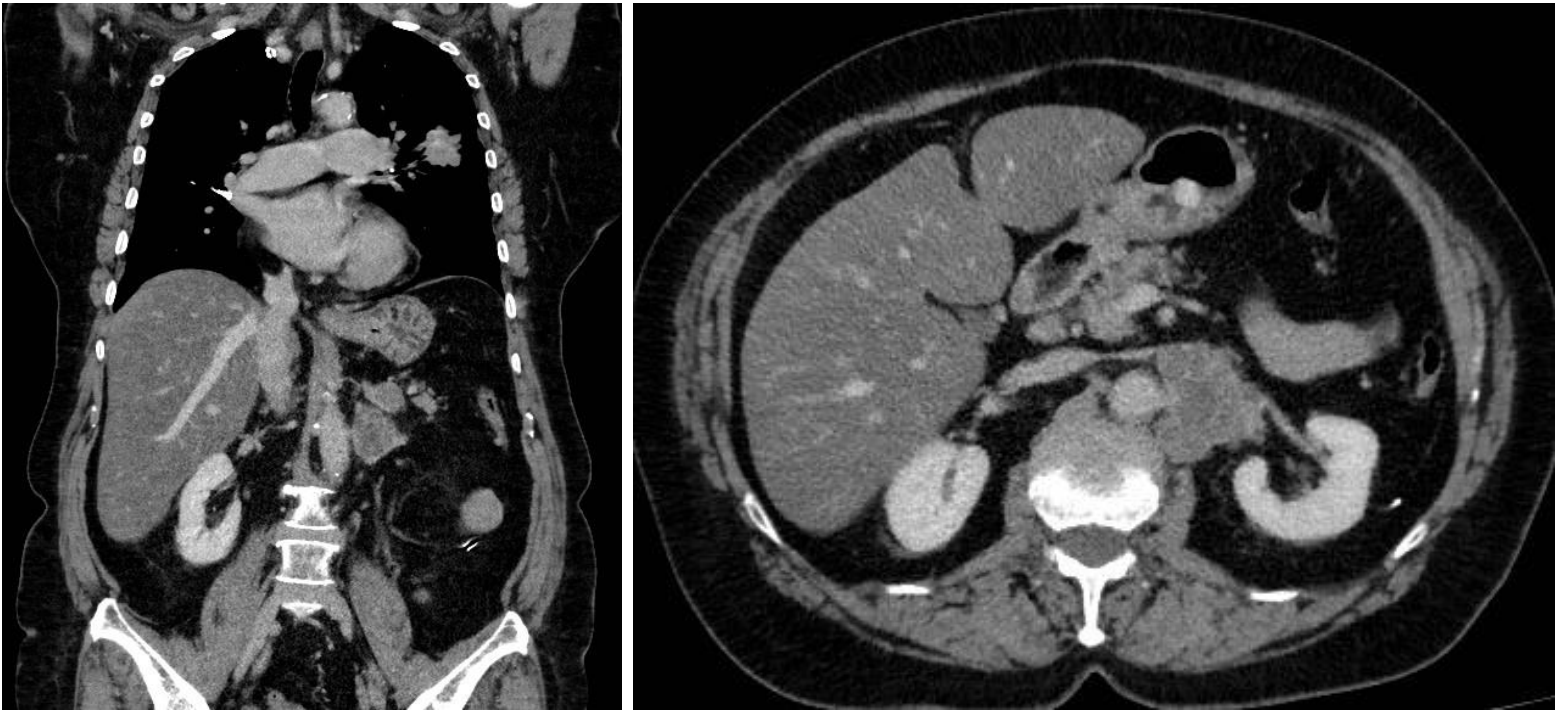

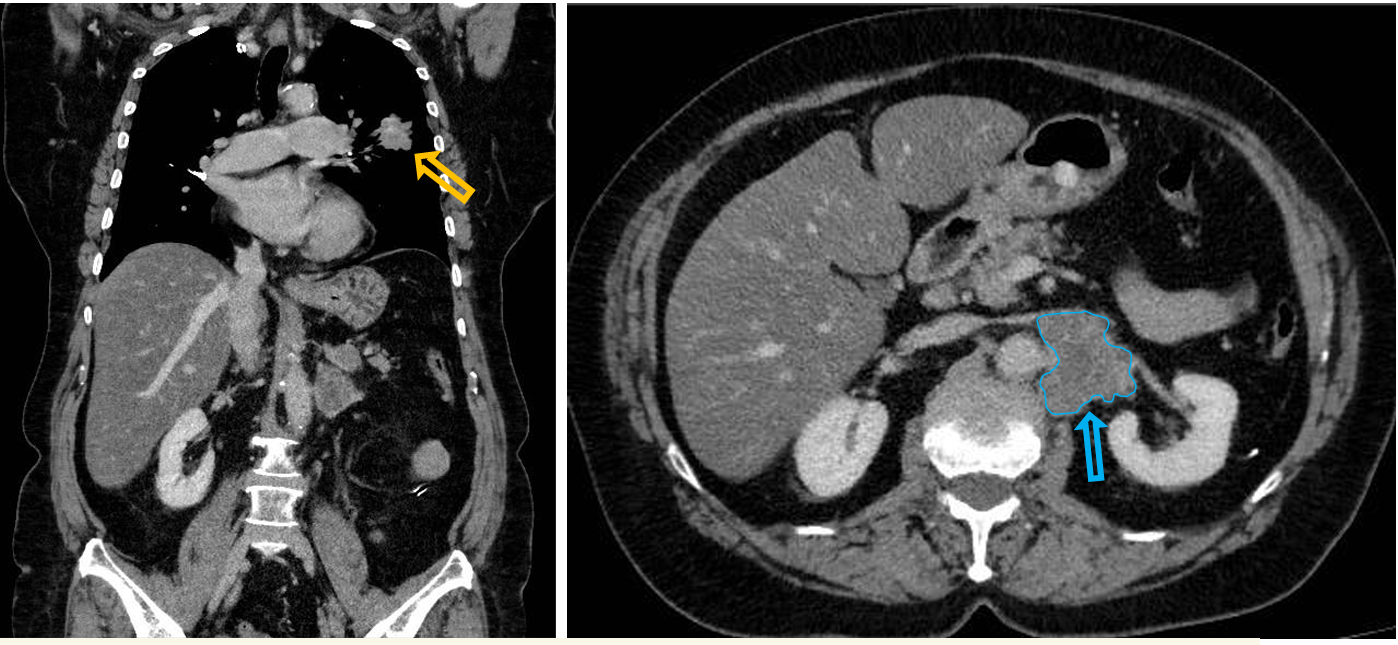

11.4

Patient history: staging CT after positive chest x-ray screening

Modality: contrast-enhanced CT scan, venous phase; left – coronal reconstruction; right – axial view

Region: chest and upper abdomen

Radiologic sign: lobulated, contrast-enhancing mass in the lower lobe of the left lung (yellow arrow), contrast enhancing solid mass in the left adrenal gland with similar morphology (blue arrow)

Diagnosis: primary non-small cell lung cancer with metastasis in the left adrenal gland

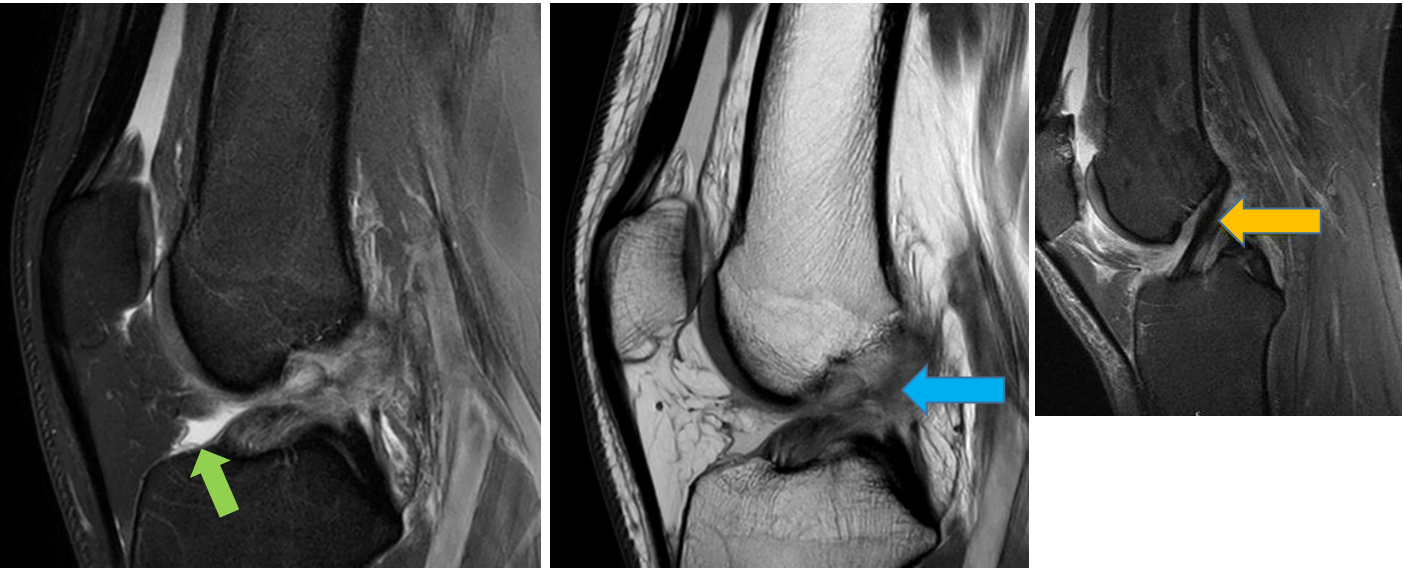

11.5

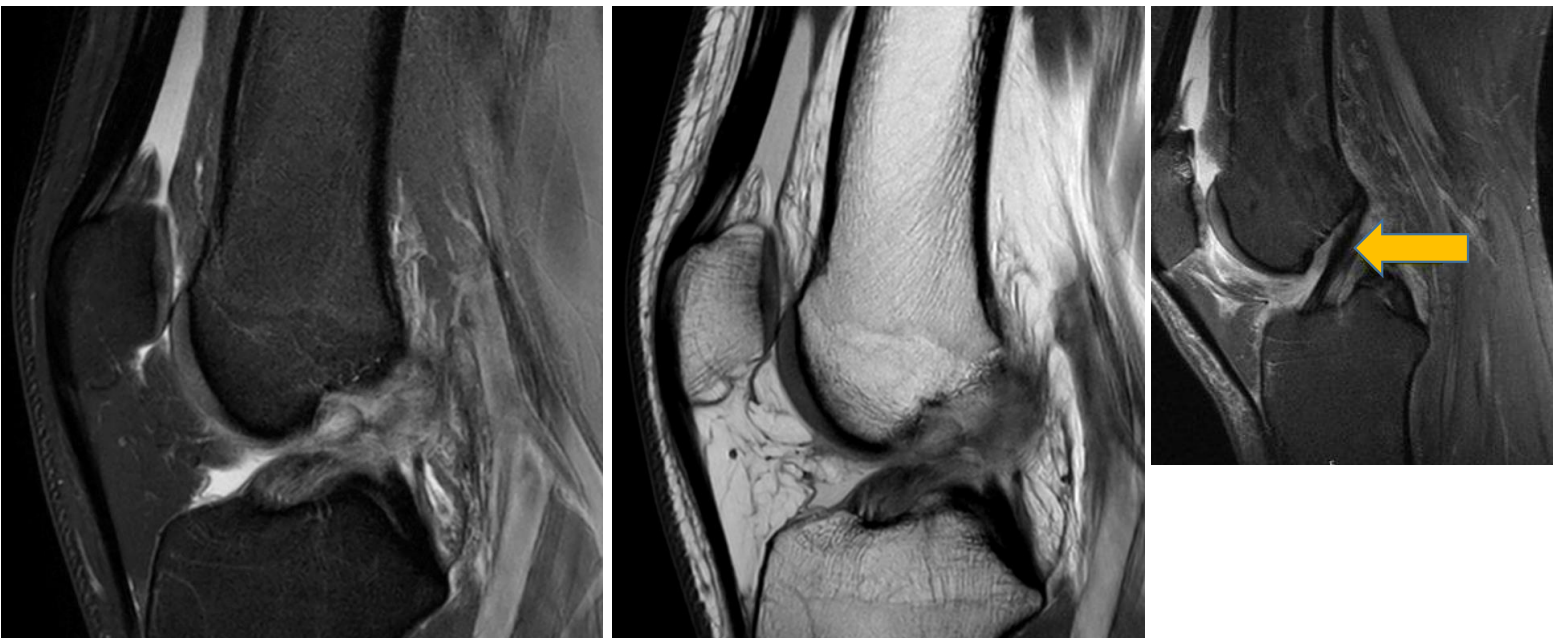

Patient history: young patient with unstable knee after ski accident

Modality: left– fatsat Proton Density (PD) MRI (sagittal view); middle – PD MRI (sagittal view); right (smaller) image – normal anatomy (normal, hypointense anterior crucial ligament marked with yellow arrow, visible through its whole length); without iv. contrast administration

Region: knee

Radiologic sign: normal anterior crucial ligament cannot be detected (blue arrow), small amount of hyperintense synovial fluid (green arrow)

Diagnosis: tear of the anterior crucial ligament caused by sport injury

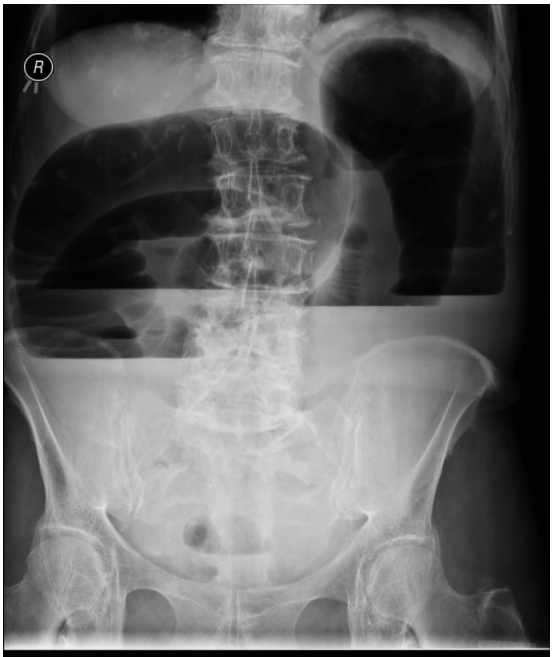

11.6

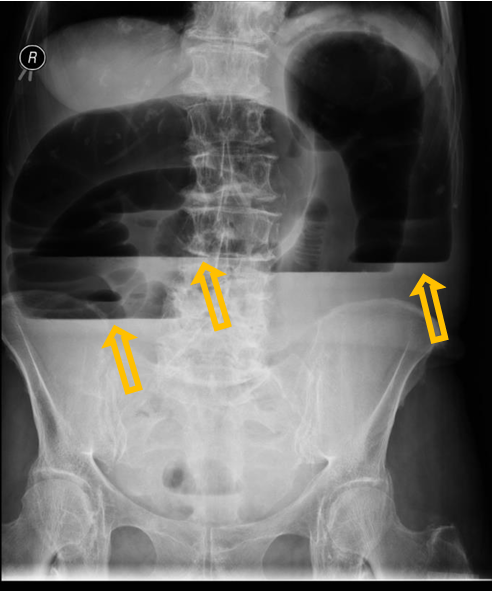

Patient history: pelvic tumor in history, at present severe abdominal pain and cramping in an elderly female patient

Modality: abdominal radiograph, erect position

Region: abdomen and pelvis Radiologic sign: Distended, meteoristic ascending, transverse and descending colon with several large air-fluid levels up to 10-15 cm in diameter (yellow arrows). Small bowels containing less gas than normal, few non distented jejunum loops visible epigastically.

Diagnosis: mechanical large intestine ileus caused by ovarial cancer infiltrating the sigmoid colon

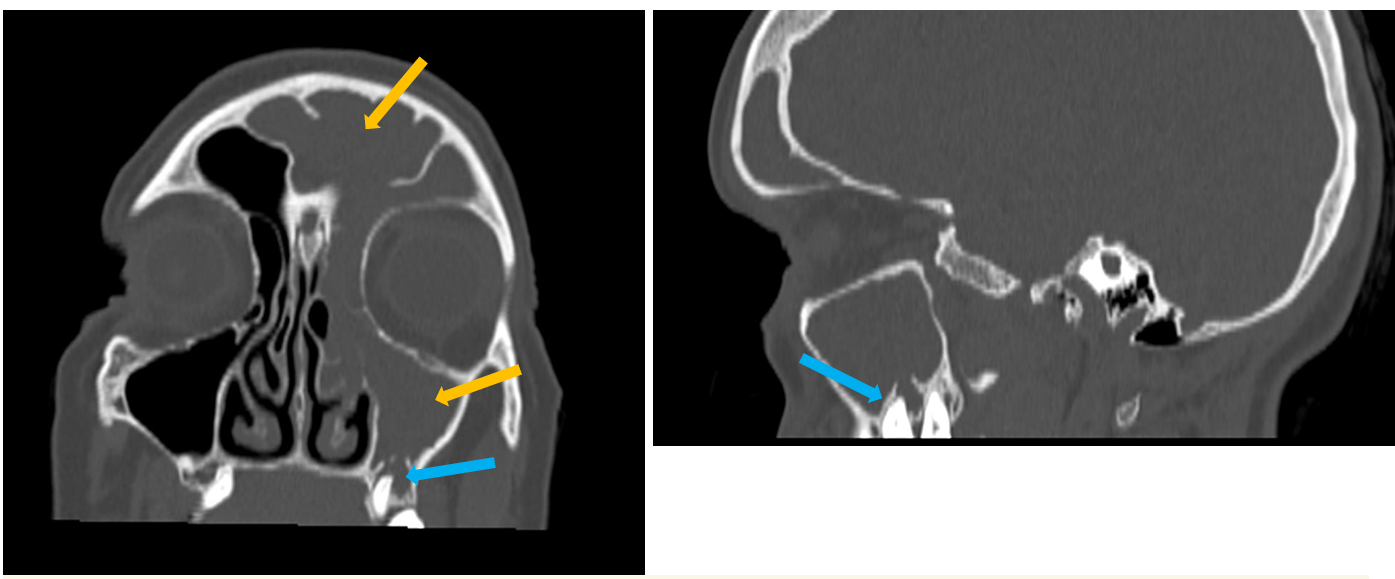

12.1

Patient history: chronic headache and cough

Modality: low-dose non-contrast CT scan, coronal and sagittal reconstructions, bone window

Region: maxilla, paranasal sinuses

Radiologic sign: mucosal thickening and fluid collection in the left frontal and maxillary sinus (0-20 HU) (yellow arrows), partially filled ethmoidal cells; periapical, radiolucent area can be observed around the left upper molar tooth (blue arrow) ; normal, air-containing (-1000 HU) right maxillary sinus

Diagnosis: odontogenic sinusitis

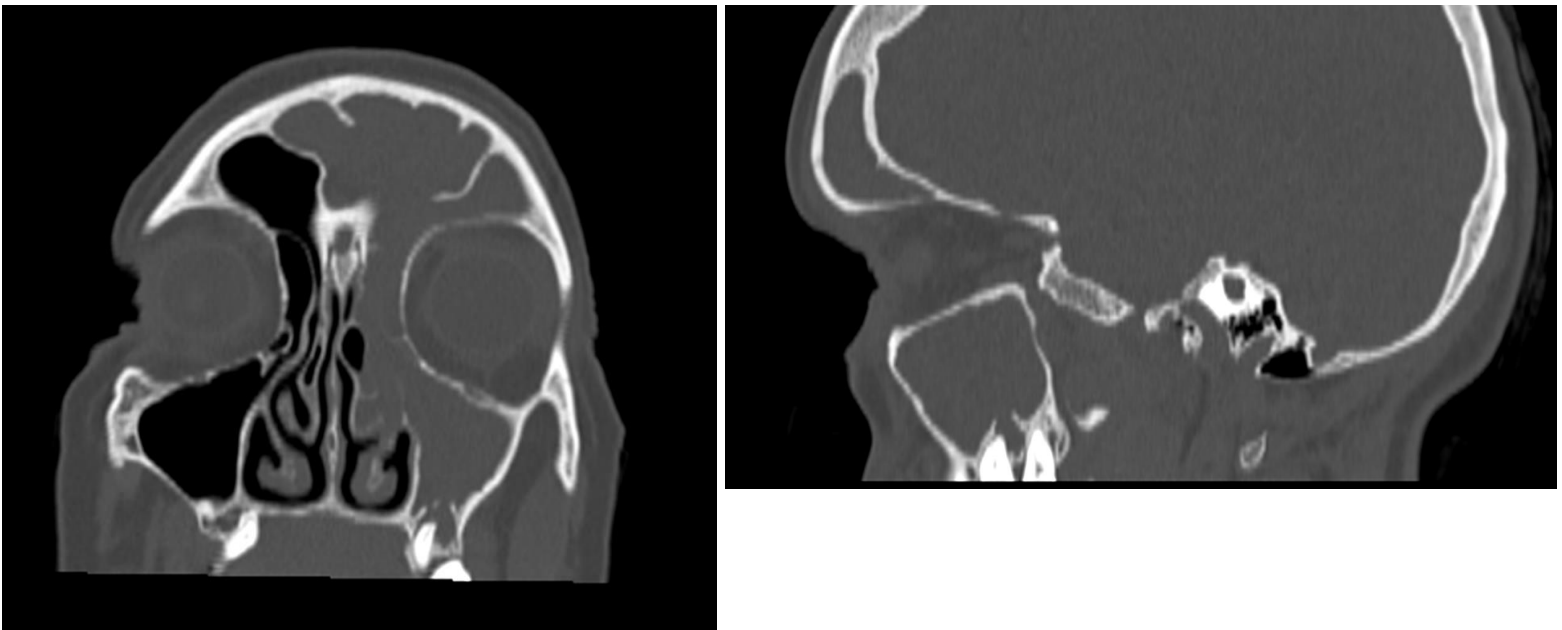

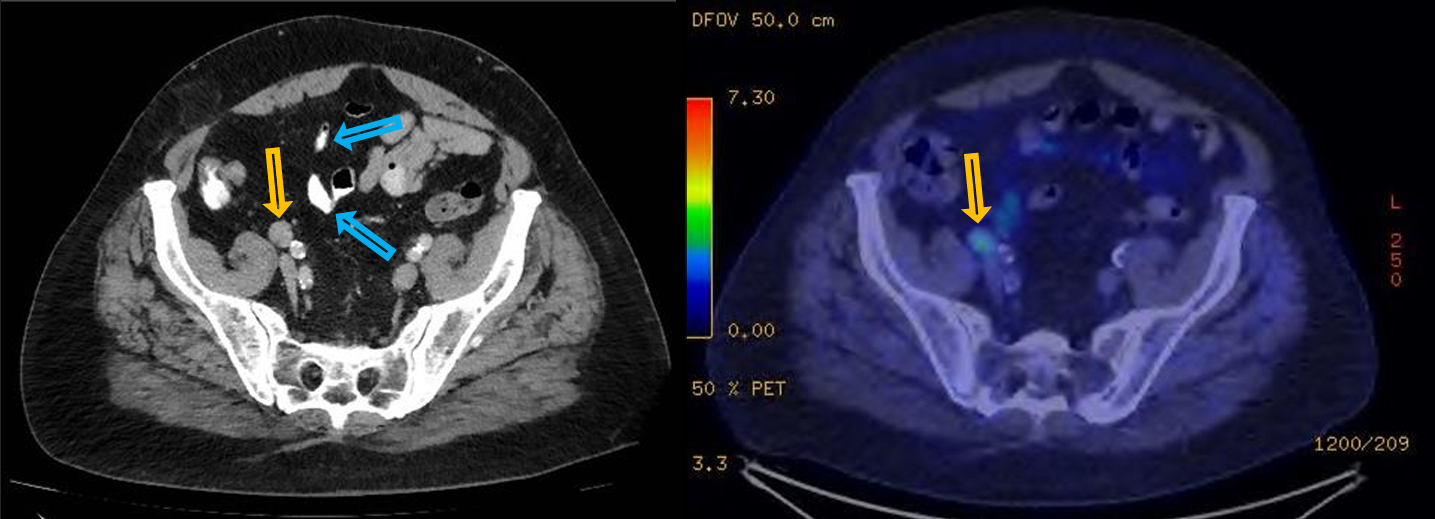

12.2

Patient history: follow-up study in a patient with colorectal tumor

Modality: left – contrast-enhanced CT scan, venous phase, soft tissue window (iv. and oral iodine-based contrast agent); right – PET-CT, iv. 18-FDG (fluorodeoxyglucose) radiotracer

Region: pelvis, axial views

Radiologic sign: Pathological (16 mm shorter diameter) lymph node in the right parailiac region (yellow arrow). In the same localization, increased FDGuptake can be observed on PET-CT scan 10 days later (yellow arrow). Oral contrast agent containing bowel loops are marked with blue arrows.

Diagnosis: FDG-avid, pathological lymph node, suspicious for metastasis.

12.3

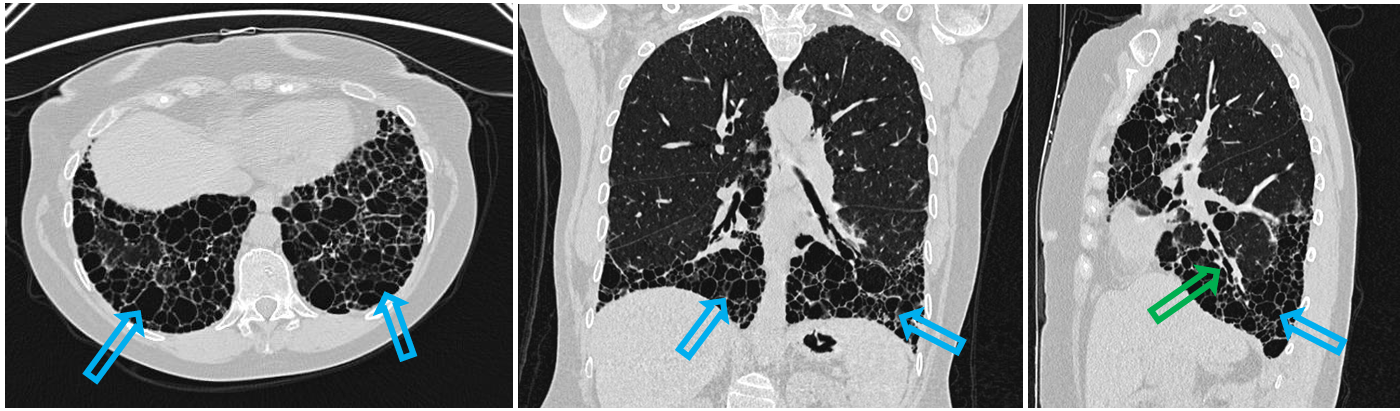

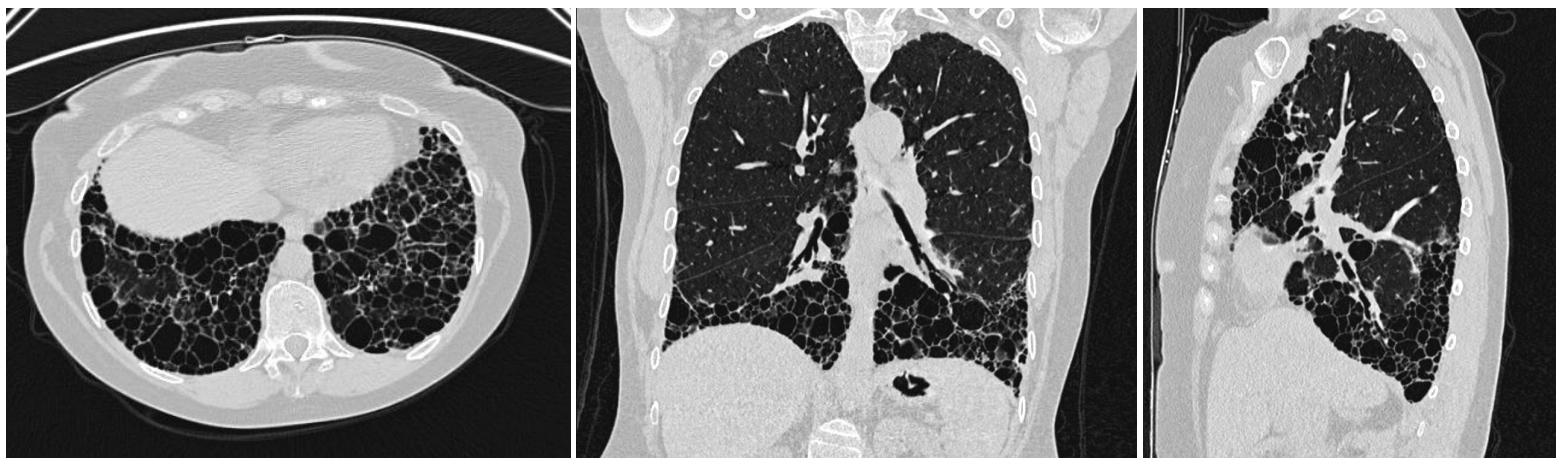

Patient history: 56-year-old female patient with systemic lupus erythematosus with moderate restrictive ventilation problems

Modality: HRCT of the lung (non-contrast study), lung window

Region: chest, lung, axial-coronal-sagittal views

Radiologic sign: view bilateral dorsobasal predominant honeycombing and reticulation (blue arrows), traction bronchiectasis and thickened bronchial wall (green arrow)

Diagnosis: large-area interstitial lung disease, UIP (usual interstitial pneumonia) pattern

12.4 upper

Modality: contrast-enhanced CT; arterial phase

Region: abdomen, axial view

Radiologic sign: inhomogenic, enlarged right kidney with patchy hypoenhancement

Diagnosis: acute pyelonephritis (right kidney)

12.4 lower

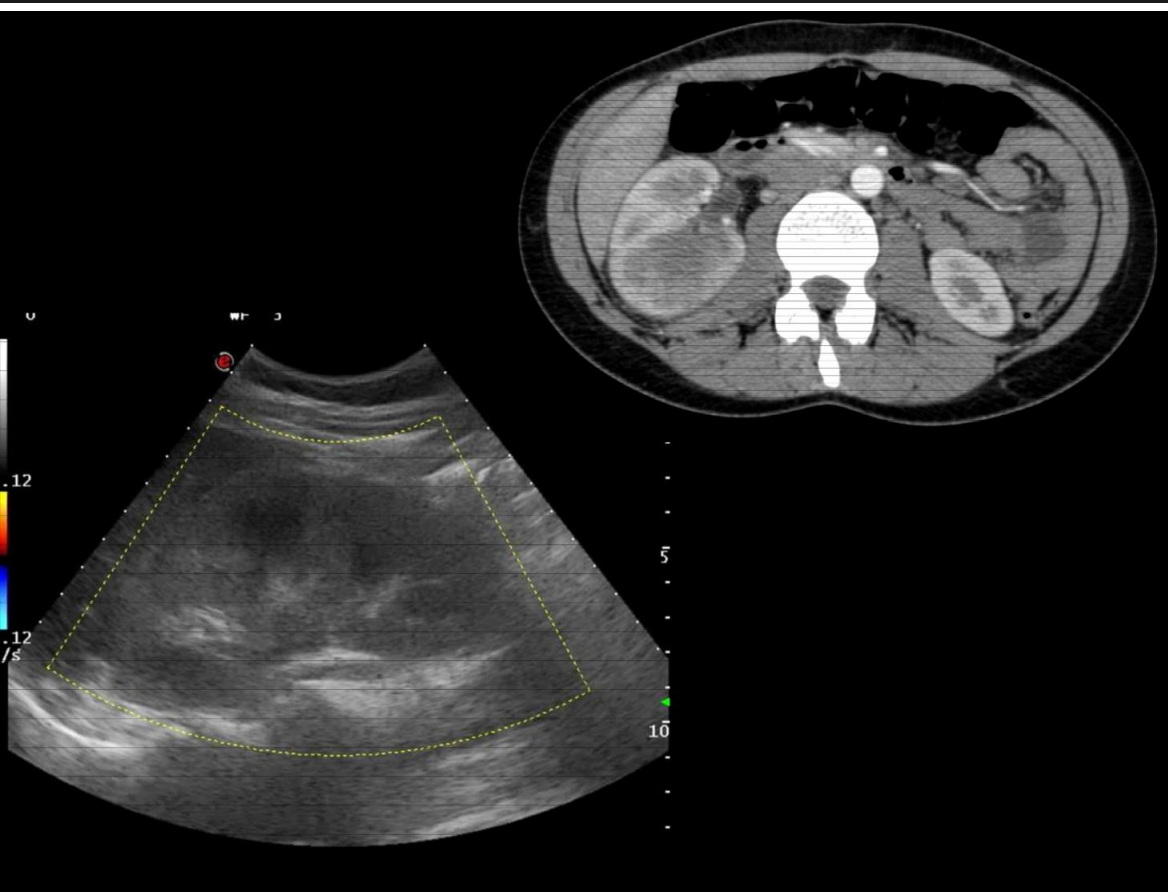

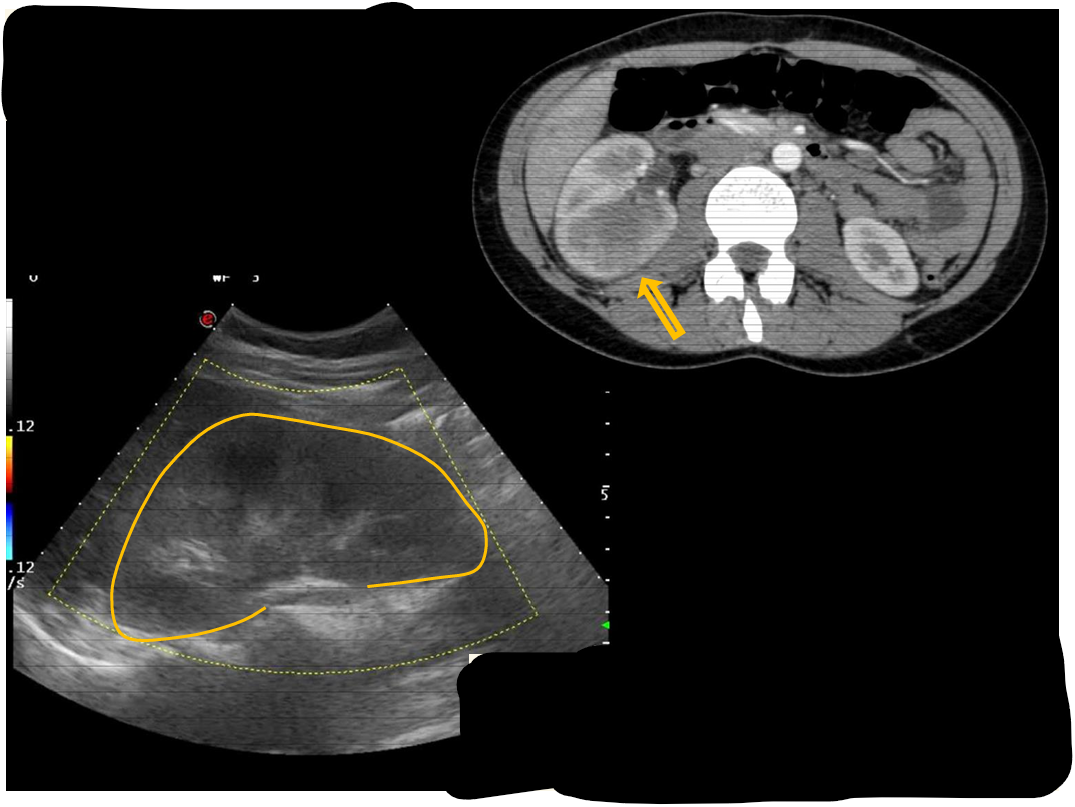

Patient history: fever, flank pain and bacteriuria Modality: kidney ultrasound with convex probe (3.5–5 MHz), B-mode & color Doppler

Region: abdomen, longitudinal view of the right kidney

Radiologic sign: enlarged right kidney shows ill-marginated central echo group and parenchymal hypovascularization.

Diagnosis: acute pyelonephritis

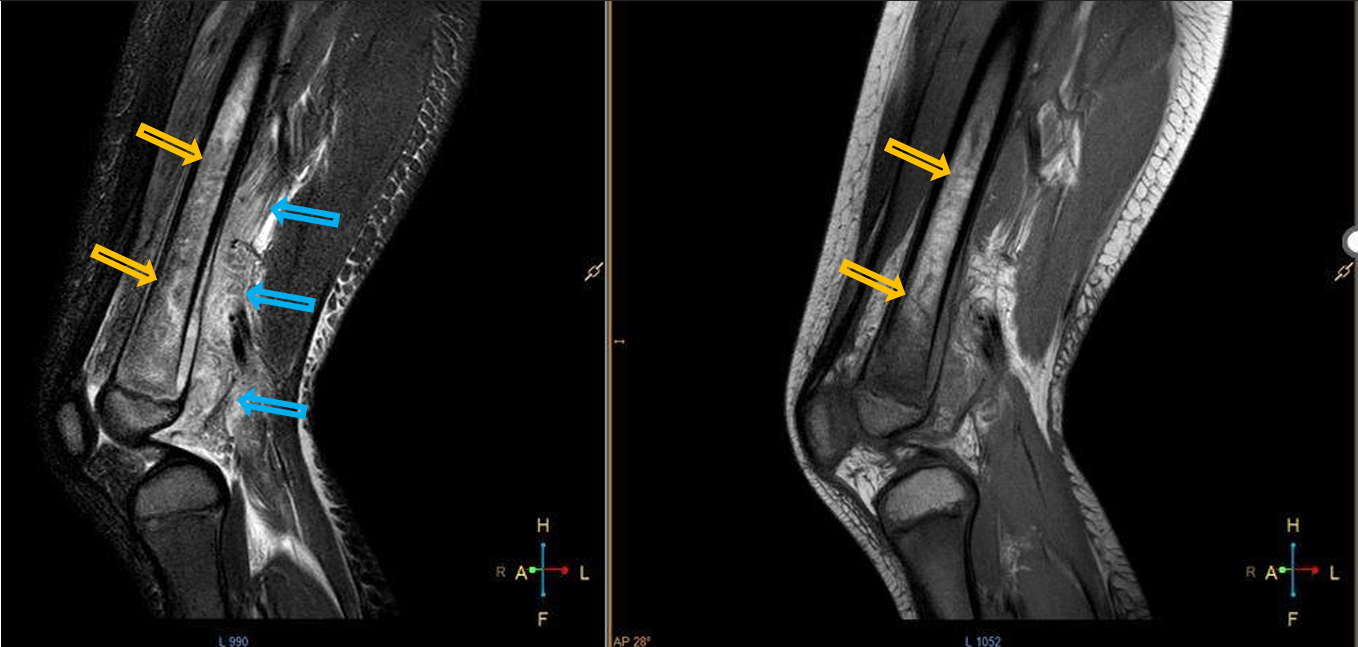

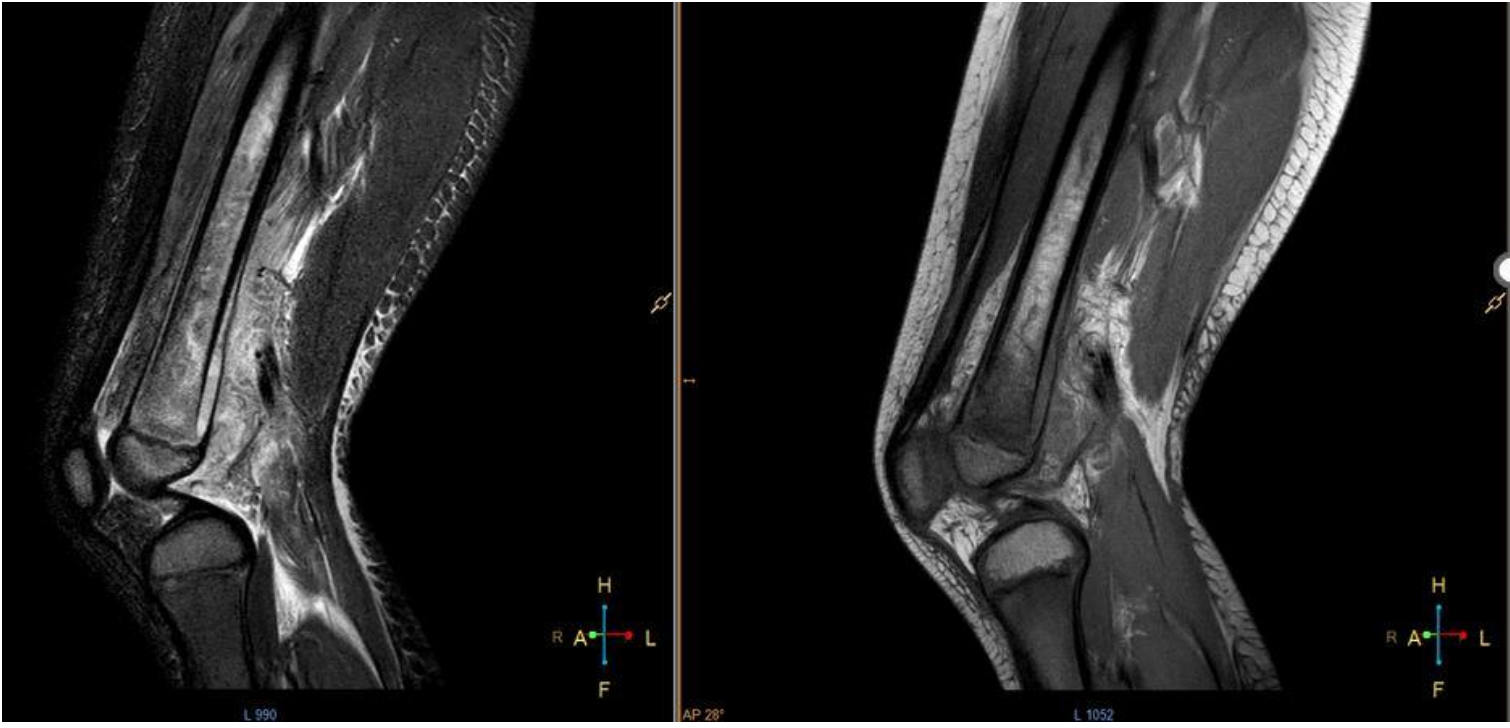

12.5

Patient history: swollen and painful area above the knee in a young adult

Modality: left – fatsat Proton Density (PD) MRI; right – PD MRI

Region: knee, sagittal views

Radiologic sign: Bone marrow hyperintensity detected in the middle and distal diaphysis and in the distal metaphysis of the femur due to edema (yellow arrows), significant periosteal reaction and edema in the sorrounding soft tissue (blue arrows – extensive hyperintensity in the sorrounding soft tissue)

Diagnosis: acute osteomyelitis of the femur

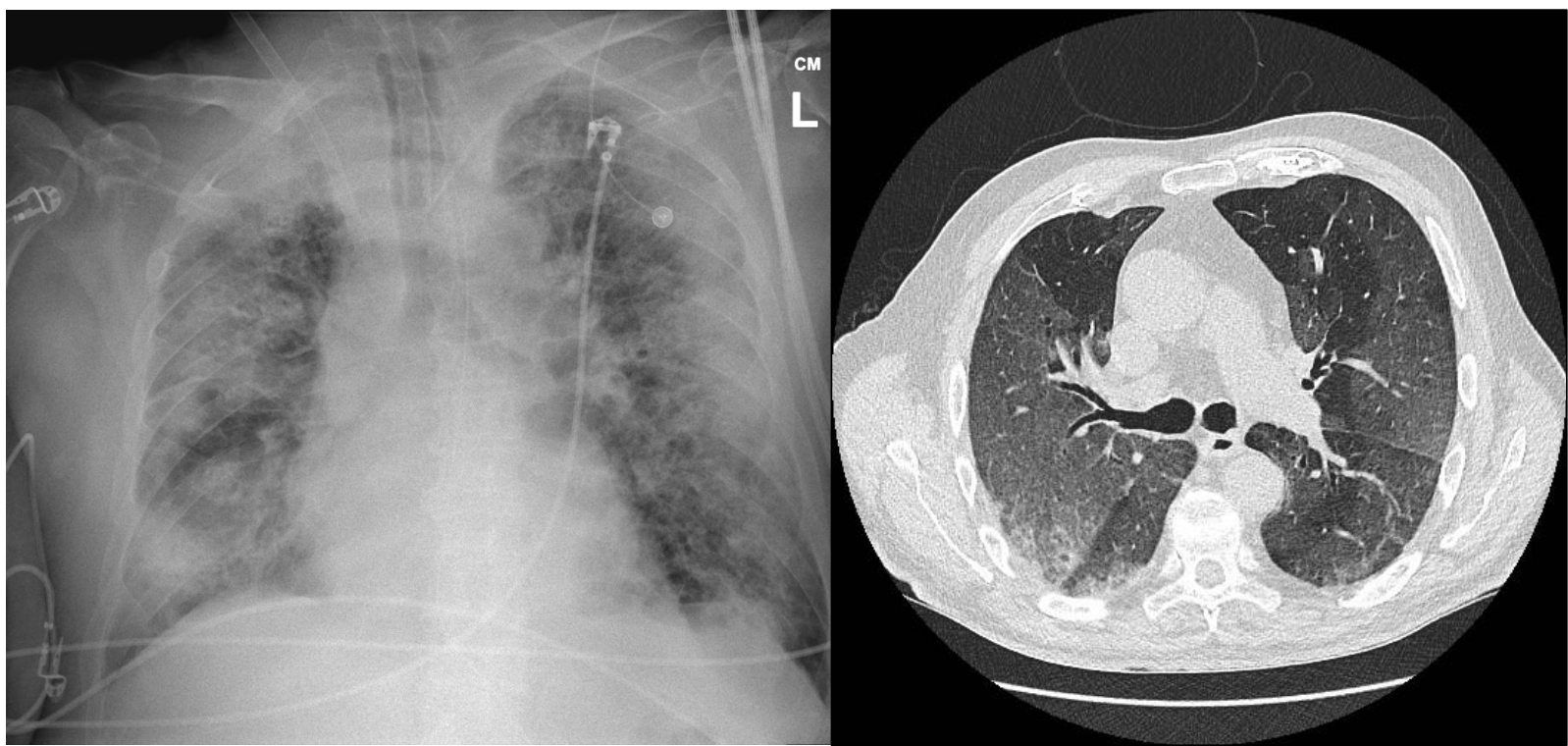

13.1

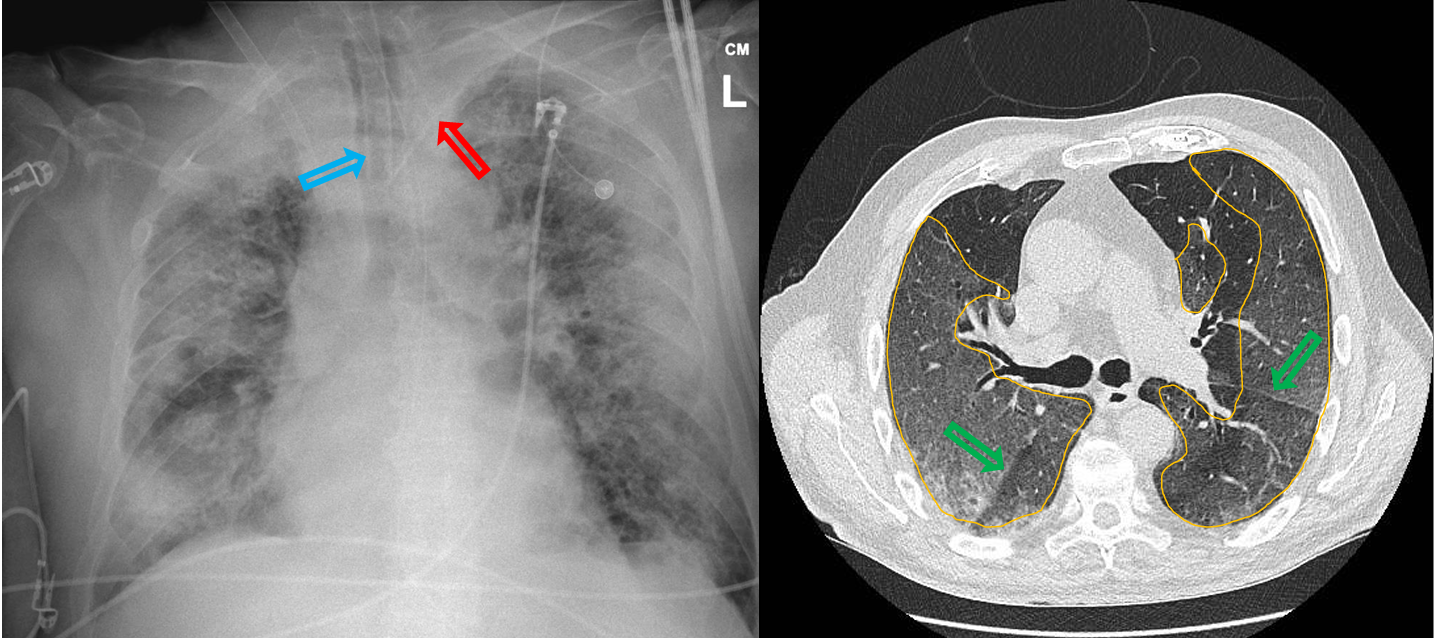

Patient history: acutely developed fever, shortness of breath, cough and fatigue in a 72-year-old patient

Modality: left– AP prone chest radiograph right–non-enhanced chest CT,axial plane

Region: chest

Radiologic sign: peripheral ground-glass opacity in all lung lobes (“ground-glass opacity” – yellow area) and consolidations; oblique fissures (green arrow); foreign bodies: endotracheal tube (blue arrow), ECG electrodes, left v. subclavia catheter (red arrow)

Diagnosis : Covid 19 pneumonia involving more than 80% of the lung parenchyma, CO-RADS 5

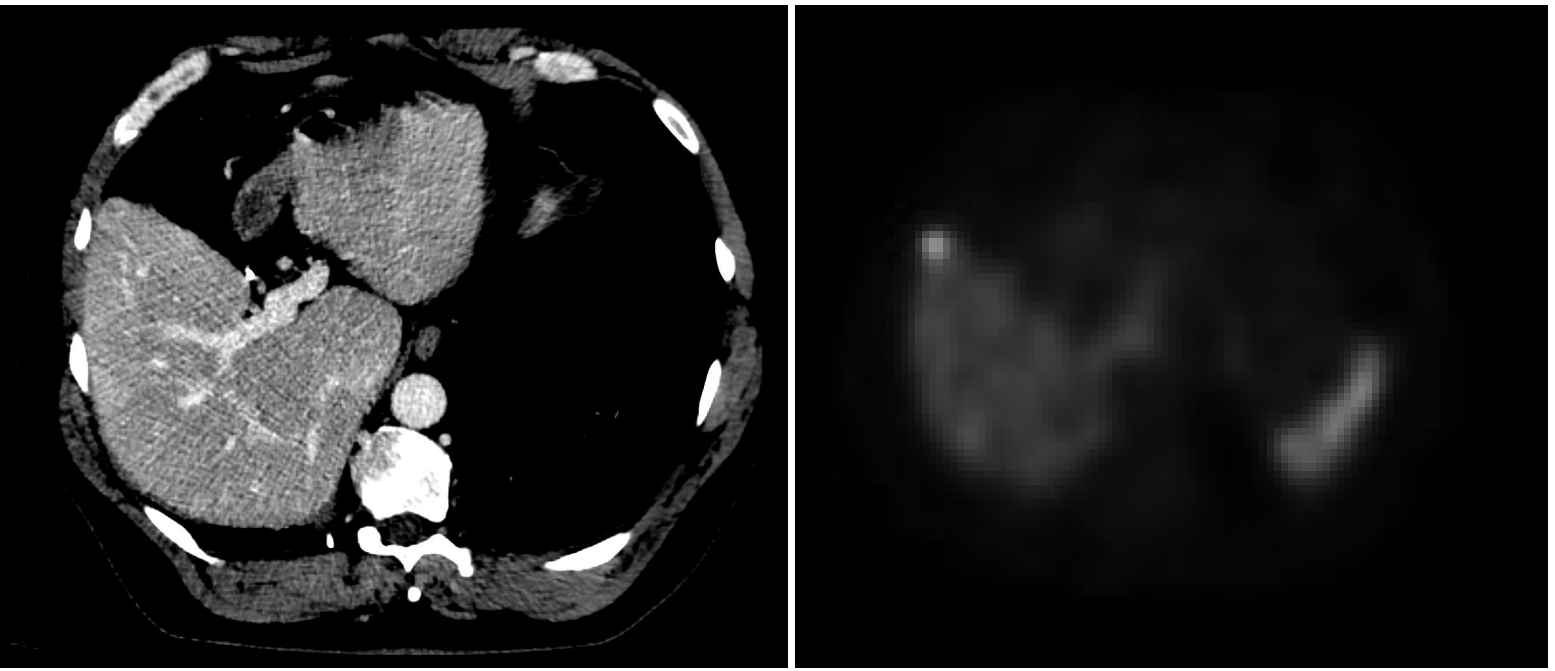

13.2

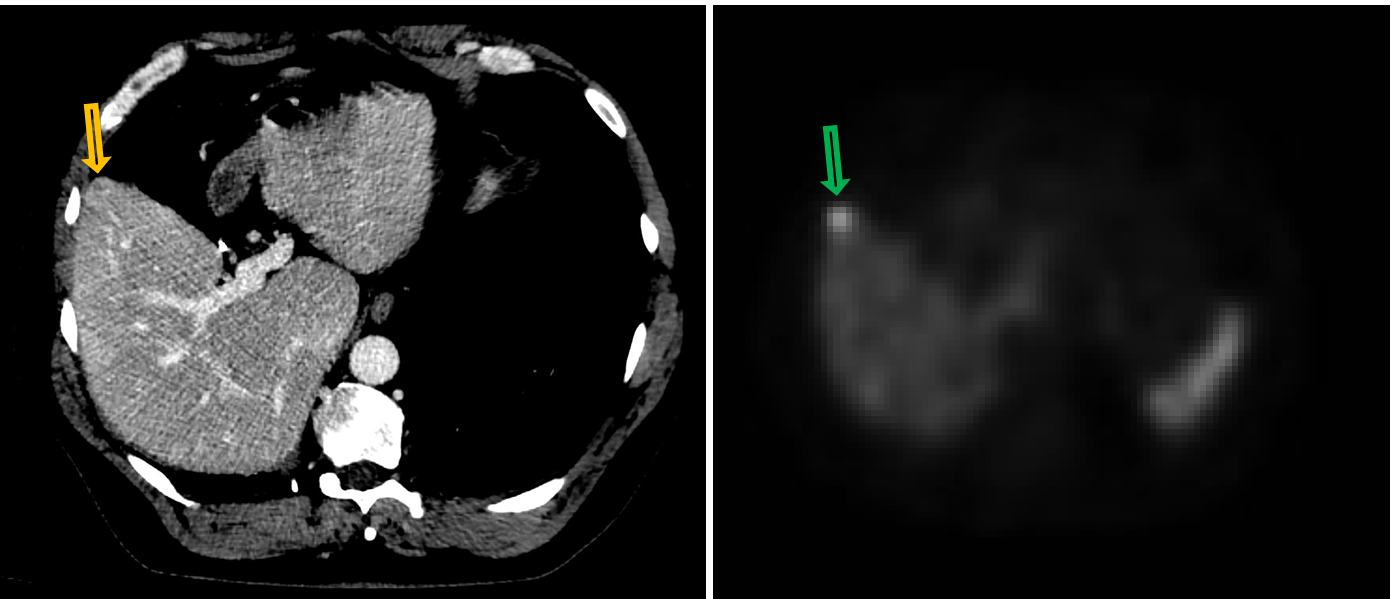

Patient history: follow-up studies of a patient under treatment of small bowel neuroendocrine tumor

Modality: left–contrast enhanced venous phase, soft tissue window (iv. iodine-based contrast agent); right– SPECT (applied radiopharmacon: Tektrotyd Tc-99m)

Region: upper abdomen, axial views

Radiologic sign: Small-sized, intensively enhancing ring-like, circumscribed lesion that can be hardly suspected in the right lobe of the liver (yellow arrow). At the same location SPECT shows increased radiopharmacon uptake (green arrow).

Diagnosis: liver metastasis of small bowel neuroendocrine tumor

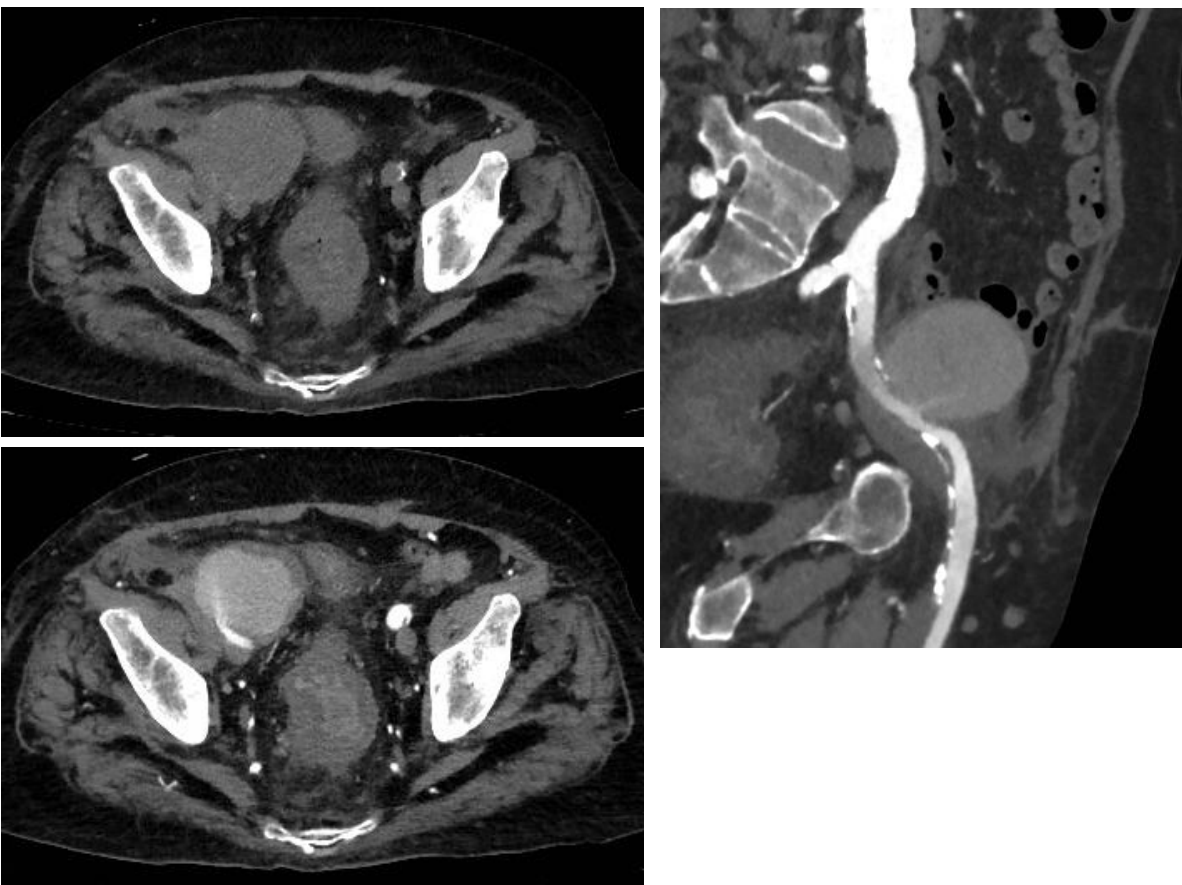

13.3

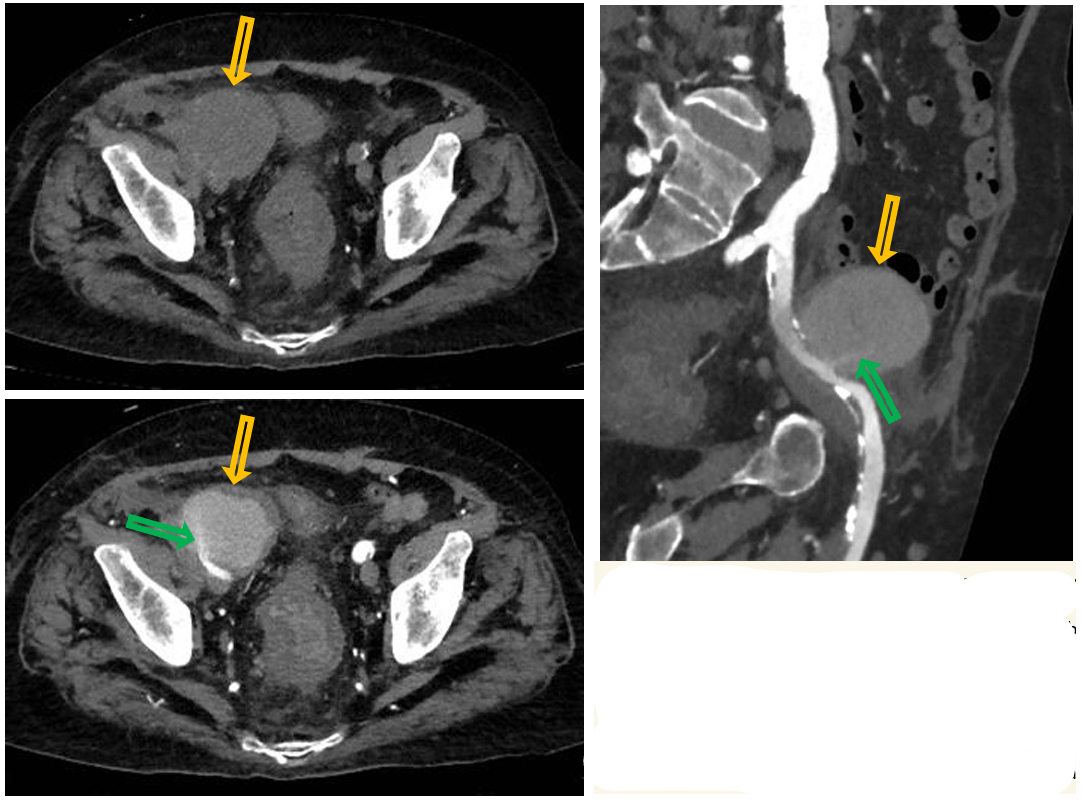

Patient history: elderly patient with end-stage renal disease, transplant kidney removal surgery a few hours before, large hematoma on US

Modality: left upper and lower images – non-enhanced abdomen and pelvis CT and CTA, axial plane, soft tissue window (iv. iodine-based contrast agent); right – CTA MPR (multiplanar reconstruction)

Region: pelvis

Radiologic sign: Mass along the right external iliac artery with an approximate noncontrast density of 25 HU, the density measured on CTA is around 100 HU. As seen on CTA, the contrast agent is flowing into the lesion in a narrow lane (green arrow).

Diagnosis: post-surgical right external iliac artery pseudoaneurysm

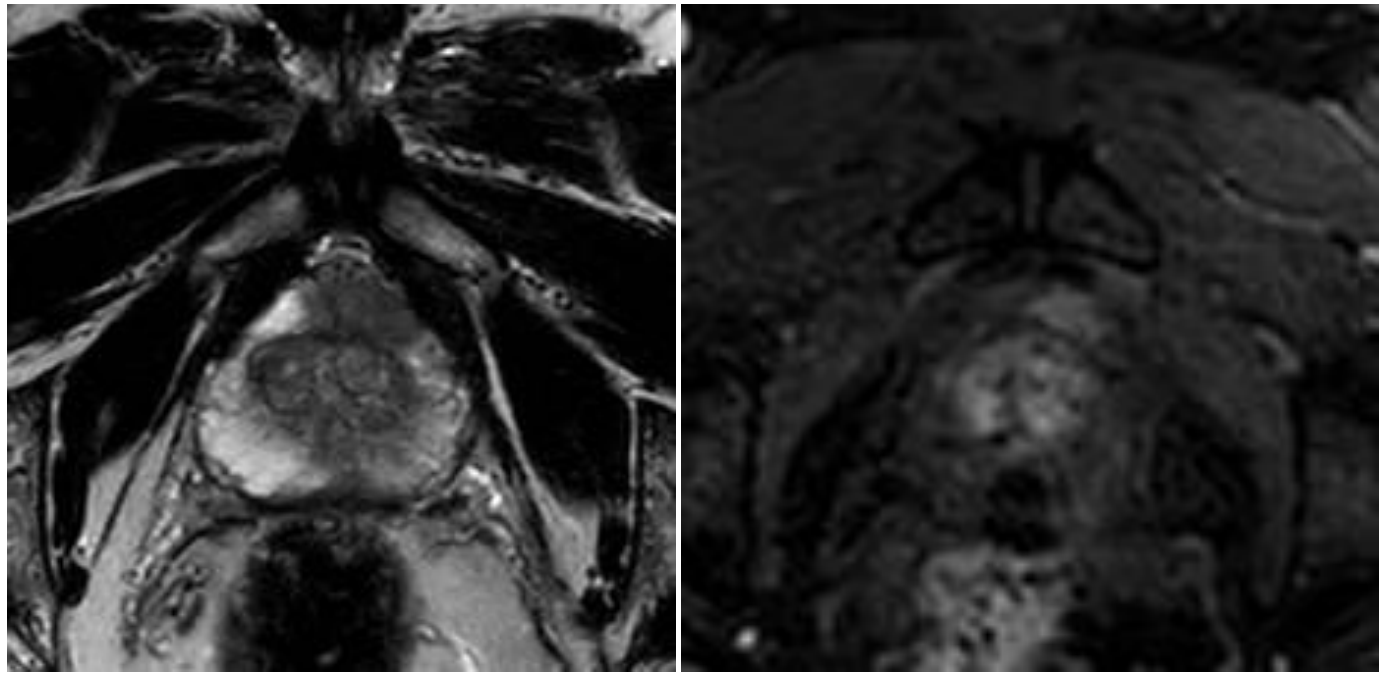

13.4

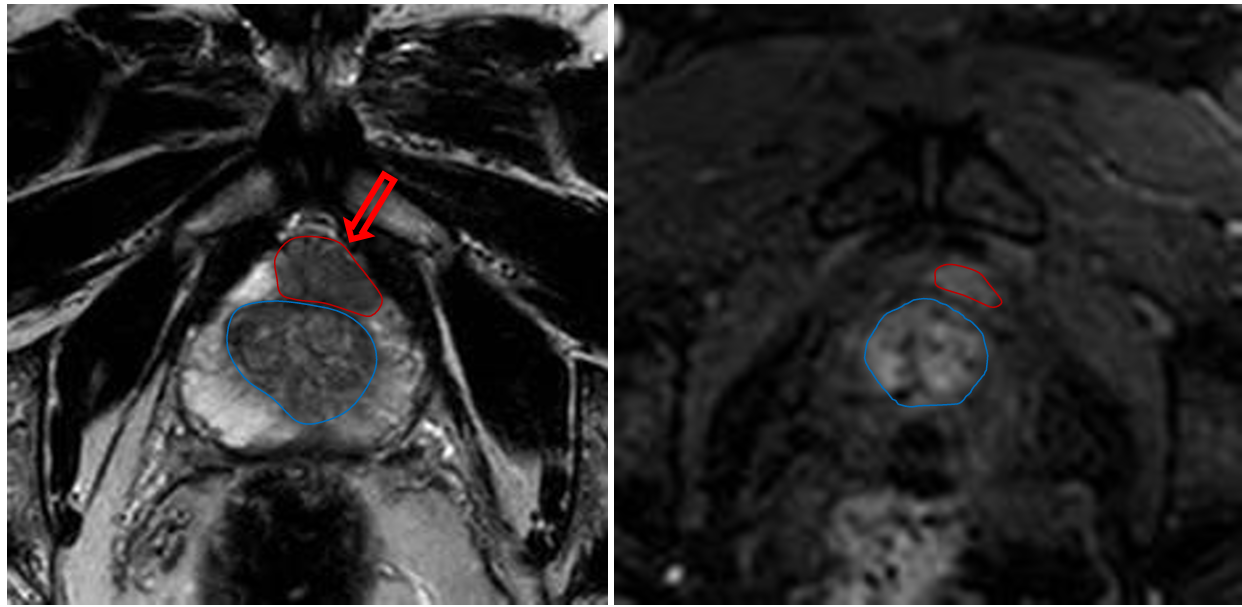

Patient history: elevated PSA level and positive transrectal ultrasonography study in an elderly patient

Modality : T2W MRI and dynamic contrast-enhanced MRI of the prostate after iv. gadolinium contrast agent administration

Region : pelvis, axial views

Radiologic sign: T2 hypointensity in the peripheral zone (left panel); intensive contrast-enhancing mass in the same area (signed with red); normal transitional zone (signed with blue)

Diagnosis: prostate adenocarcinoma

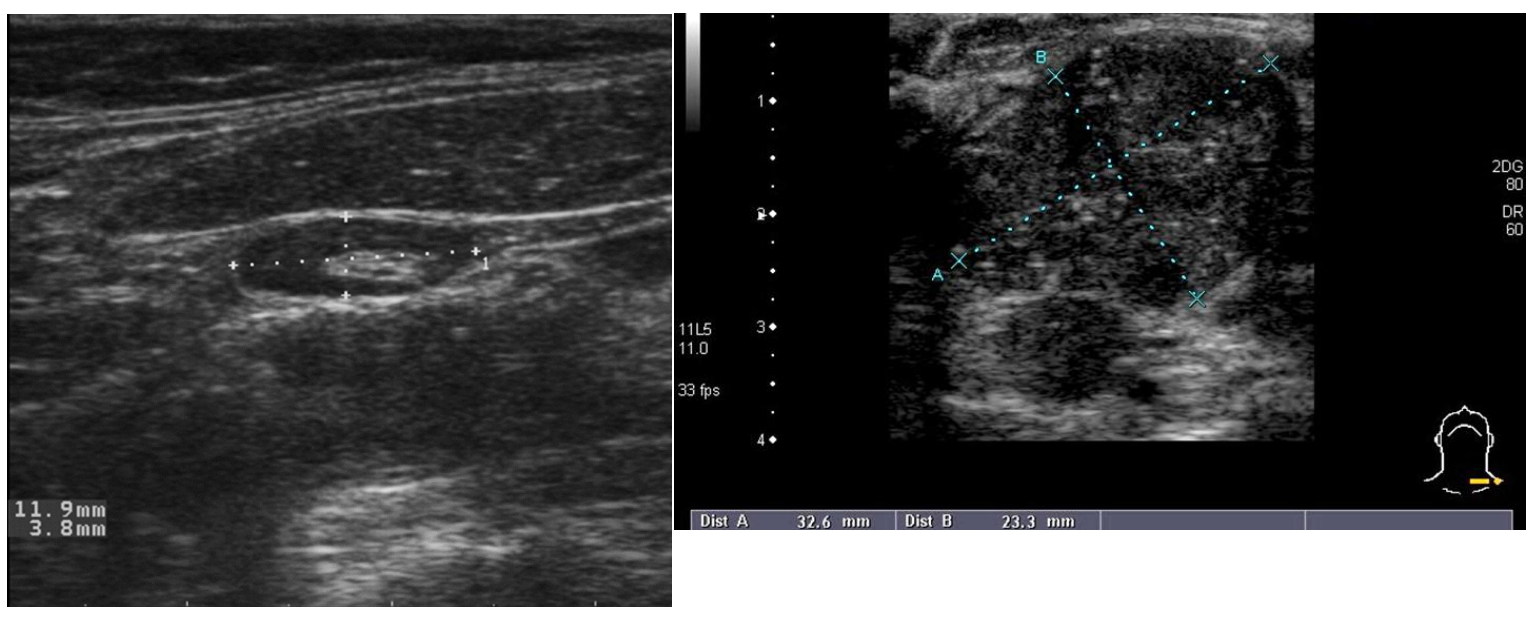

13.5

Patient history: right image – palpable left supraclavicular mass in a middle-aged patient with pancreatic adenocarcinoma (left panel – asymptomatic)

Modality: ultrasound, linear high frequency transducer (7,5-12 MHz)

Region: superficial neck soft tissues

Radiologic sign: structure), larger than 3 cm left image – lymph node with normal size and morphology (hyperechoic, fatty hilum and - green arrow; hypoechoic cortex - blue arrow), short diameter is less than 10 mm; right image – enlarged lymph node conglomerate with pathologic appearance (hypoechoic, round, loss of hilar

Diagnosis: normal (left) and metastatic (right) lymph nodes (later proven to be a metastasis from pancreatic adenocarcinoma)

13.6

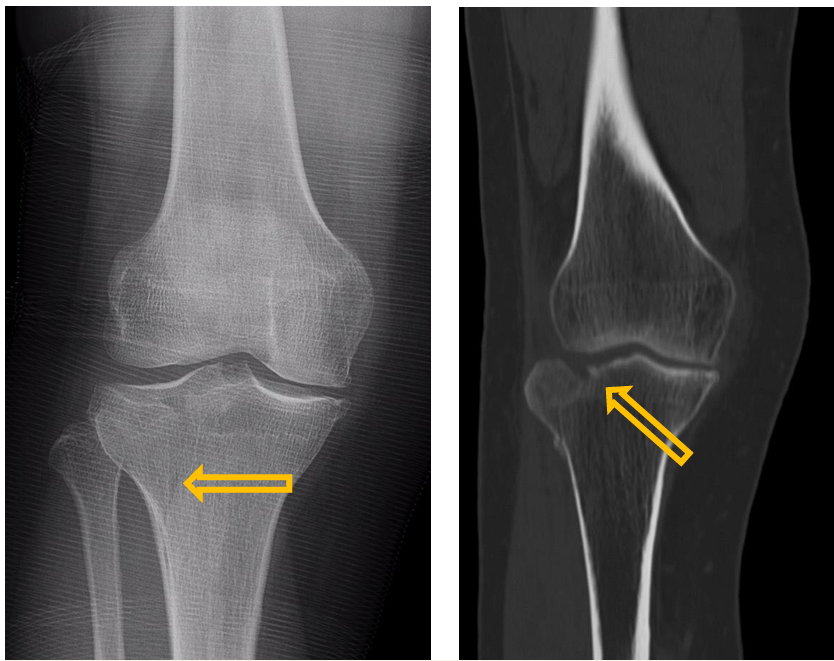

Patient history: knee trauma

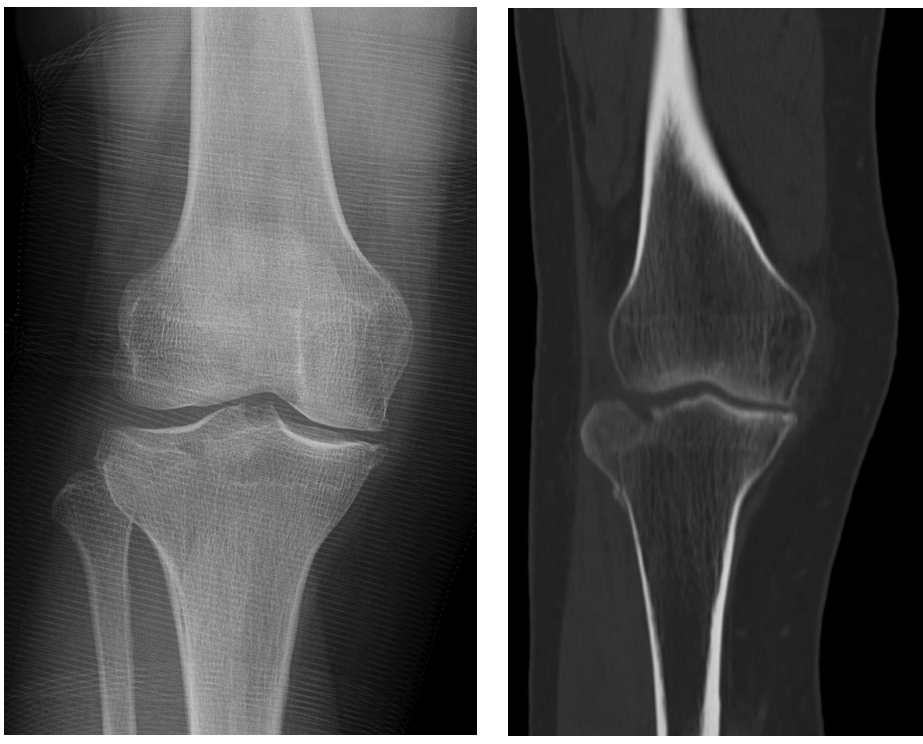

Modality: left image – AP knee radiograph; right image – noncontrast CT, coronal plane

Region: right knee

Radiologic sign: radiolucent fracture lines, interruption of the anatomic continuity of bone cortex

Diagnosis: acute fracture of tibial plateau

14.1

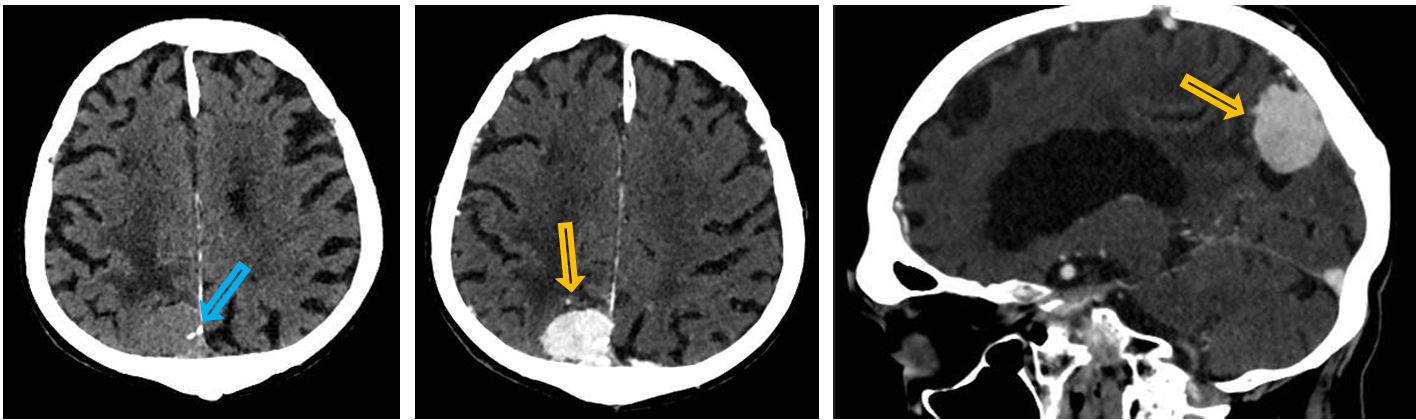

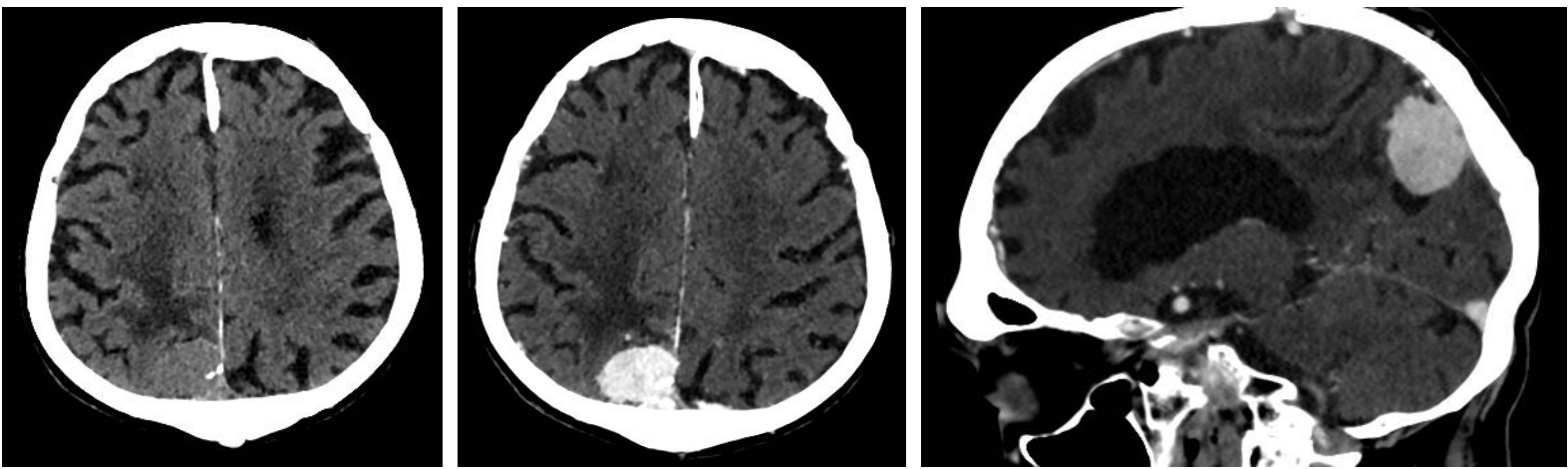

Patient history: epileptic seizure in a middle-aged patient with non-MR-compatible pacemaker Modality: left image – noncontrast CT, axial plane; middle and right images – contrast enhanced CT, axial and sagittal plane (iv. iodine-based contrast agent)

Region: brain

Radiologic sign: Right parietal extra-axial mass with small hyperdense calcifications (blue arrow) displaying intensive contrast-enhancement (yellow arrow). The mass exerts external compression on the brain parenchyma.

Diagnosis: meningioma (most common extra-axial solid mass)

14.2

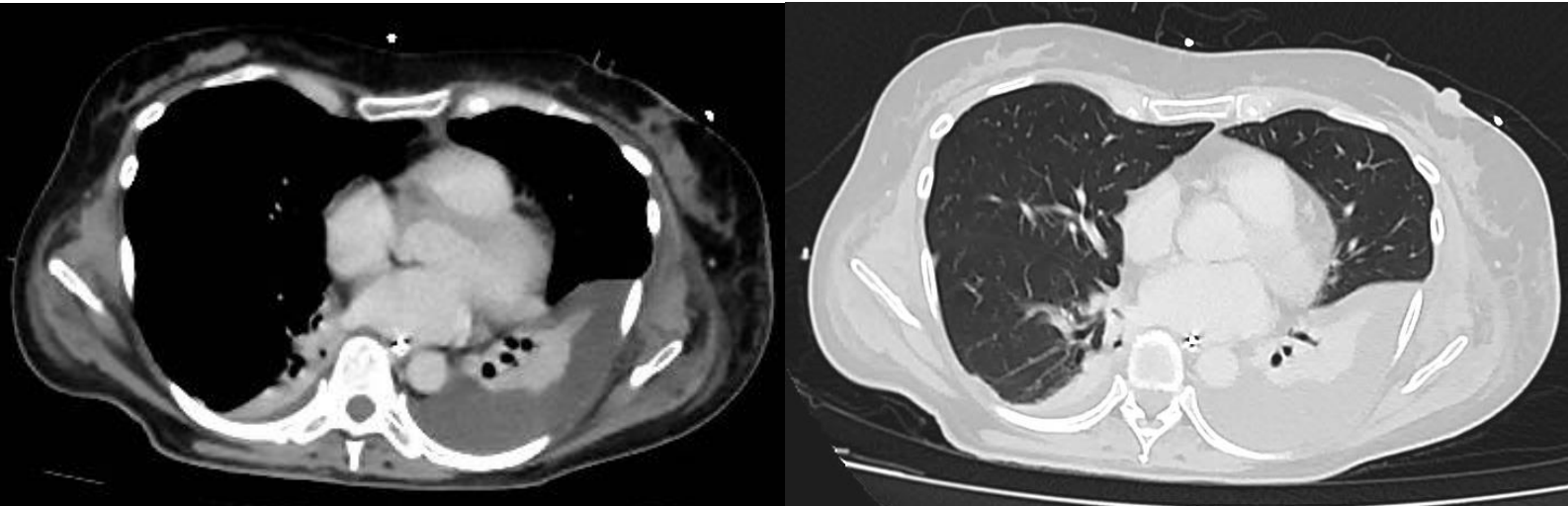

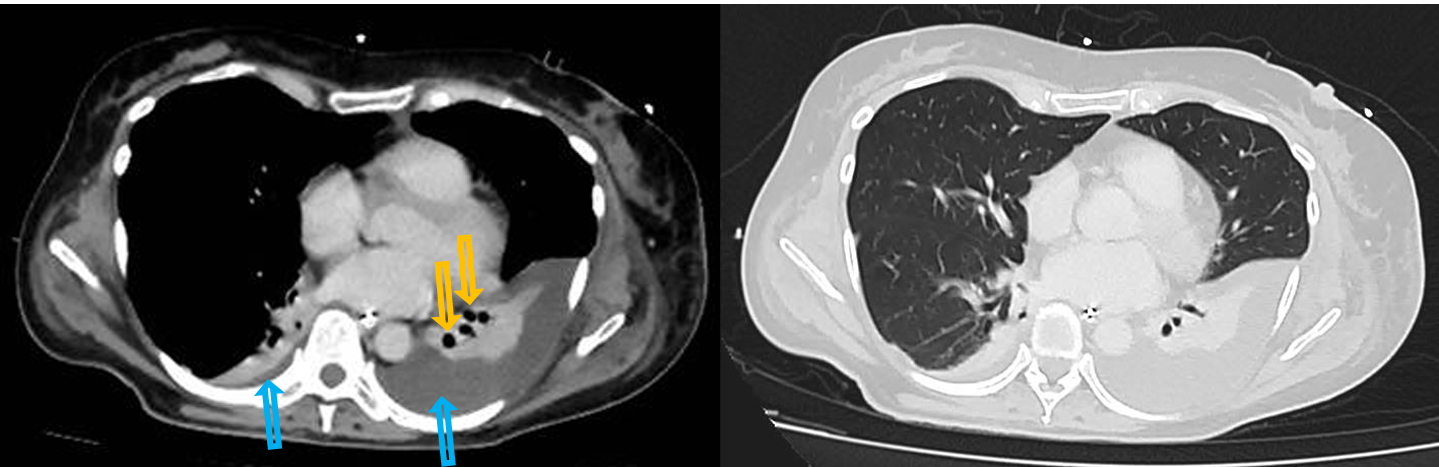

Patient history: postoperative CT scan after abdominal surgery

Modality : left – contrast-enhanced CT, soft tissue window; right – contrast-enhanced CT, lung window

Region: chest, axial planes

Radiologic sign: Minimal pleural effusion on the right side with an approximate density of 0 HU (blue arrow). 3 cm-wide pleural effusion on the left side (blue arrow), left lower lobe is devoid of air, air bronchograms can be seen (yellow arrows).

Diagnosis: bilateral hydrothorax with concomitant left lower lobe atelectasis

14.3

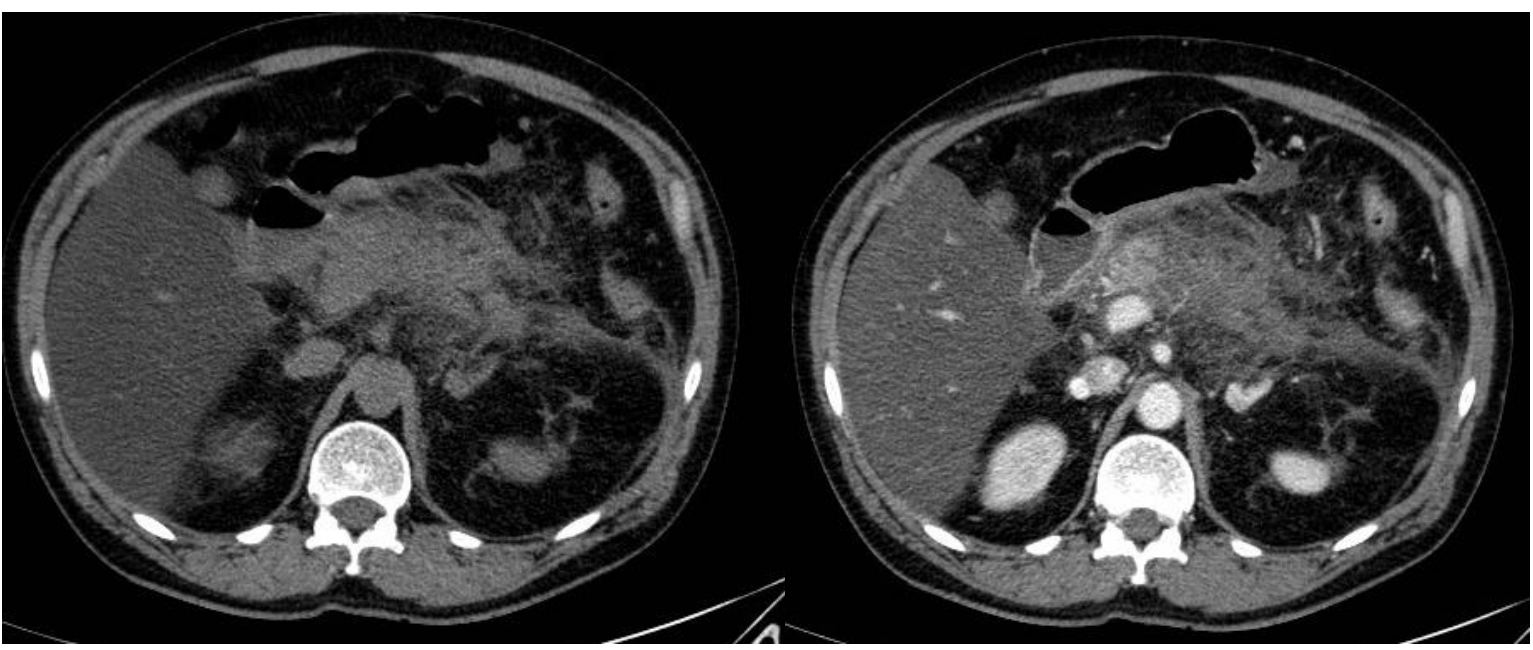

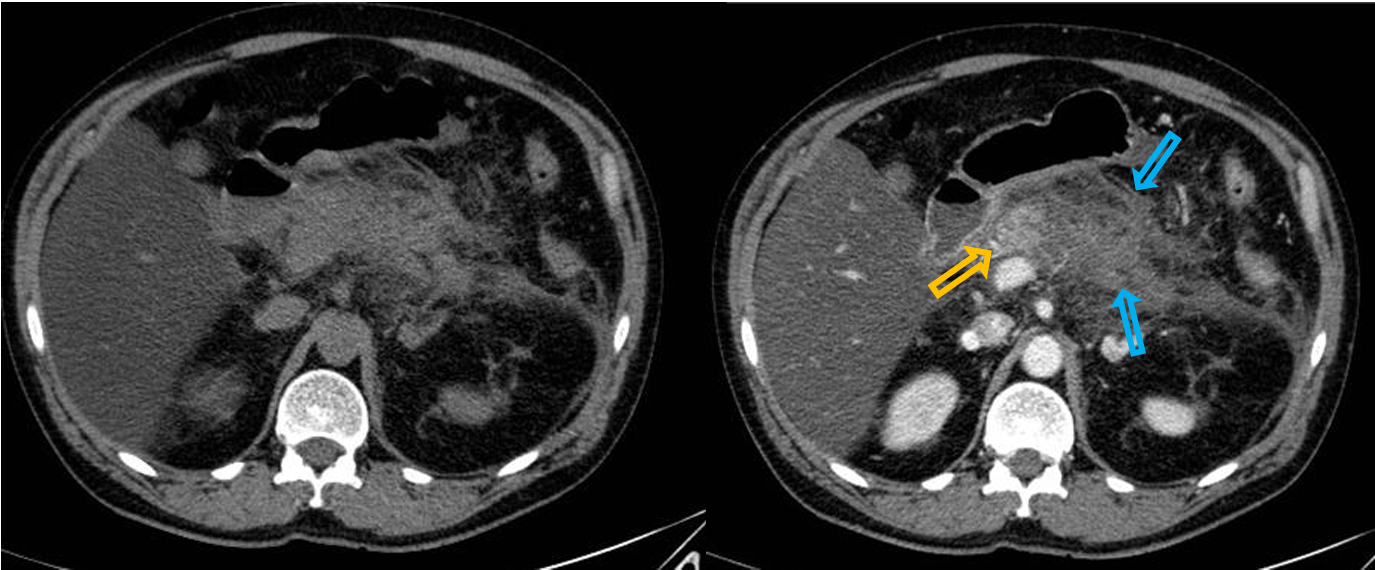

Patient history: fever, intense upper abdominal pain radiating to the back, massively elevated amylase and lipase levels

Modality: left – Noncontrast CT, right – Contast-enhanced CT, arterial phase, iv. iodine-based contrast agent

Region: upper abdomen

Radiologic sign: Enlarged pancreas with indistinct margins (blue arrow); enhancing pancreatic head (yellow arow) reflects living tissue, while hypodens, non-enhancing body and tail suggests necrosis. Increased density of the surrounding mesenterial fat due to fat necrosis; decreased liver density on non-contrast series (see Image 14).

Diagnosis: acute necrotizing pancreatitis, fatty liver

14.4

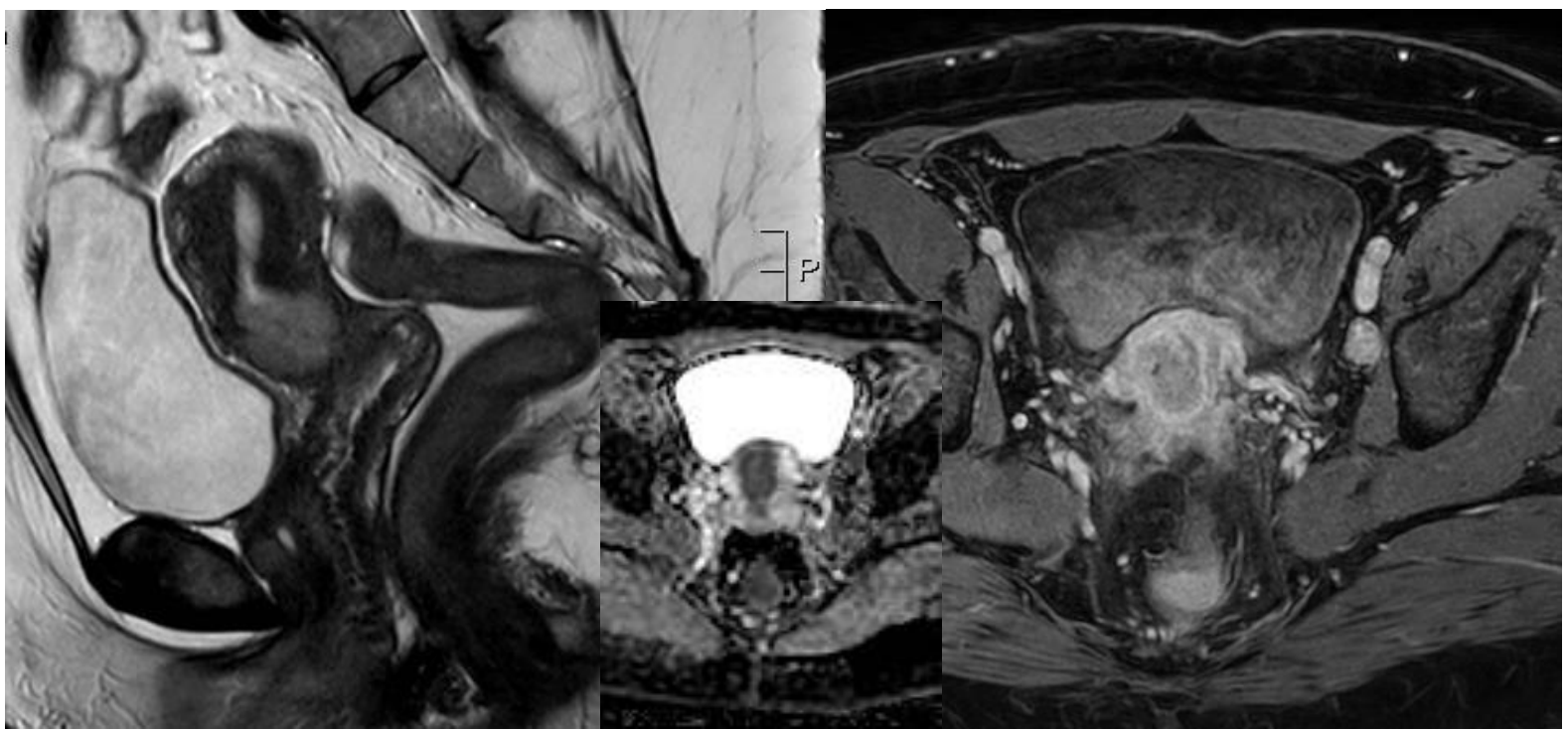

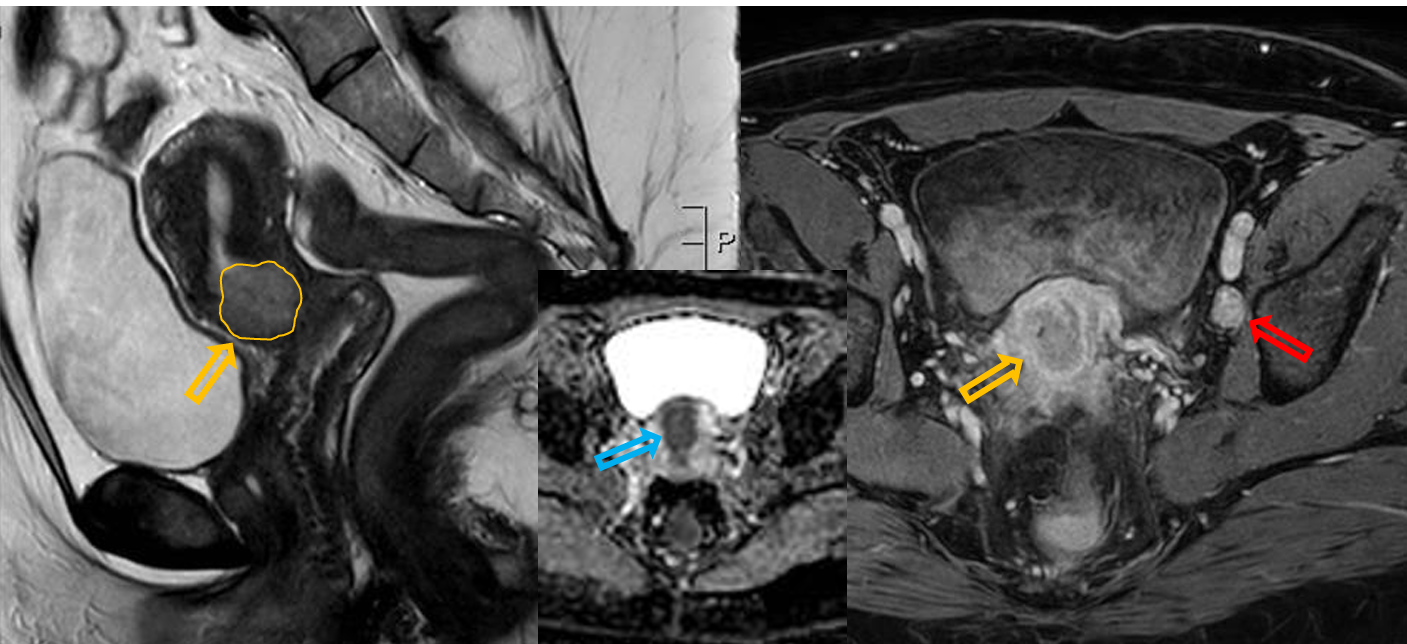

Patient history: vaginal bleeding, pelvic pain, colposcopy-guided cervical biopsy identified cervical cancer

Modality: left image – T2W sagittal MRI; middle image – ADC map axial MRI; right image – postcontrast T1W fatsat, axial MRI (iv. gadolinium)

Region: pelvis

Radiologic sign: Contrast-enhancing, cervical mass infiltrating the myometrium (yellow arrow), showing diffusion restriction (blue arrow) and T2-hyperintensity. A pathologically enlarged right iliac lymph node is visible (red arrow).

Diagnosis: cervical carcinoma with locoregional lymphadenopathy

14.5

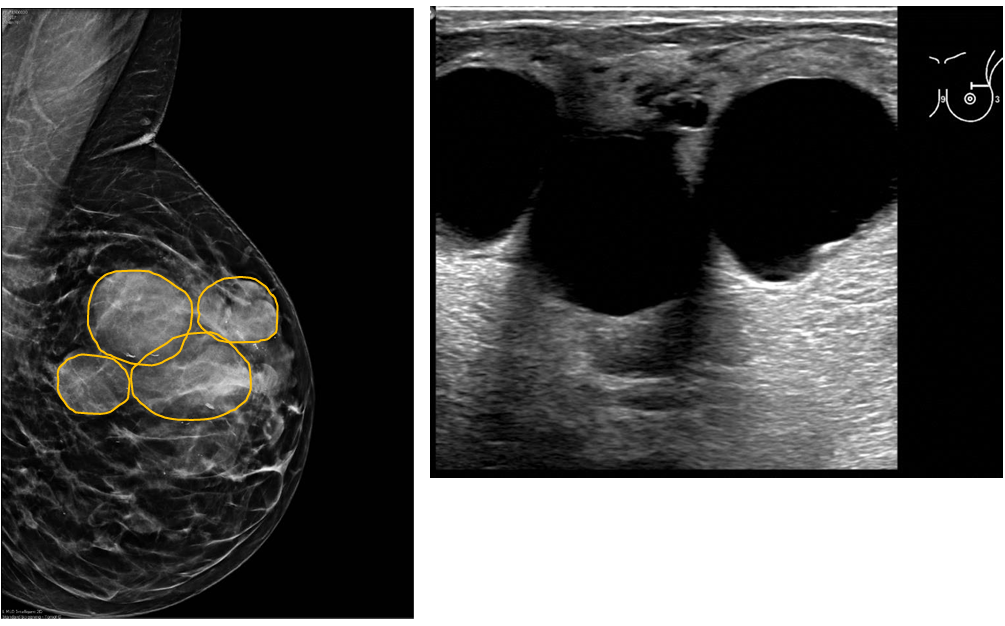

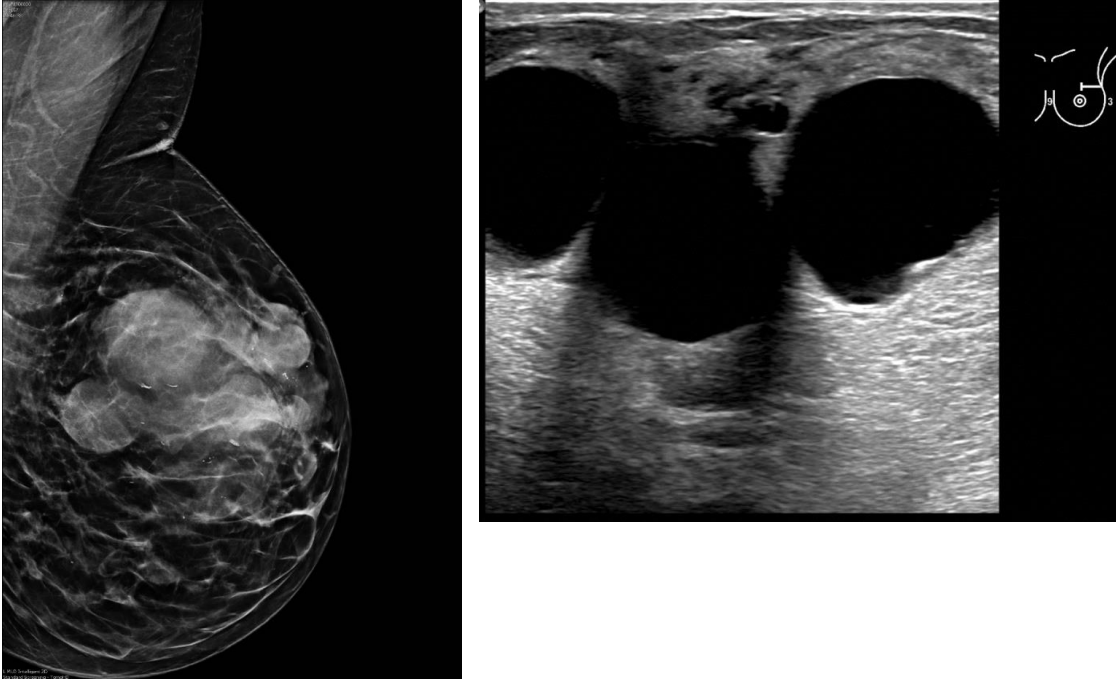

Patient history: palpable left breast masses in a 48-year-old patient

Modality: left image – mammogram of left breast in MLO view; right image – US of left breast (upper lateral quadrant), high frequency (7-12 MHz) linear transducer

Region: left breast

Radiologic sign:: Multiple, well-defined masses in the left breast that show up as anechoic lesions with acoustic enhancement on the ultrasound.

Diagnosis multiple cysts in the left breast

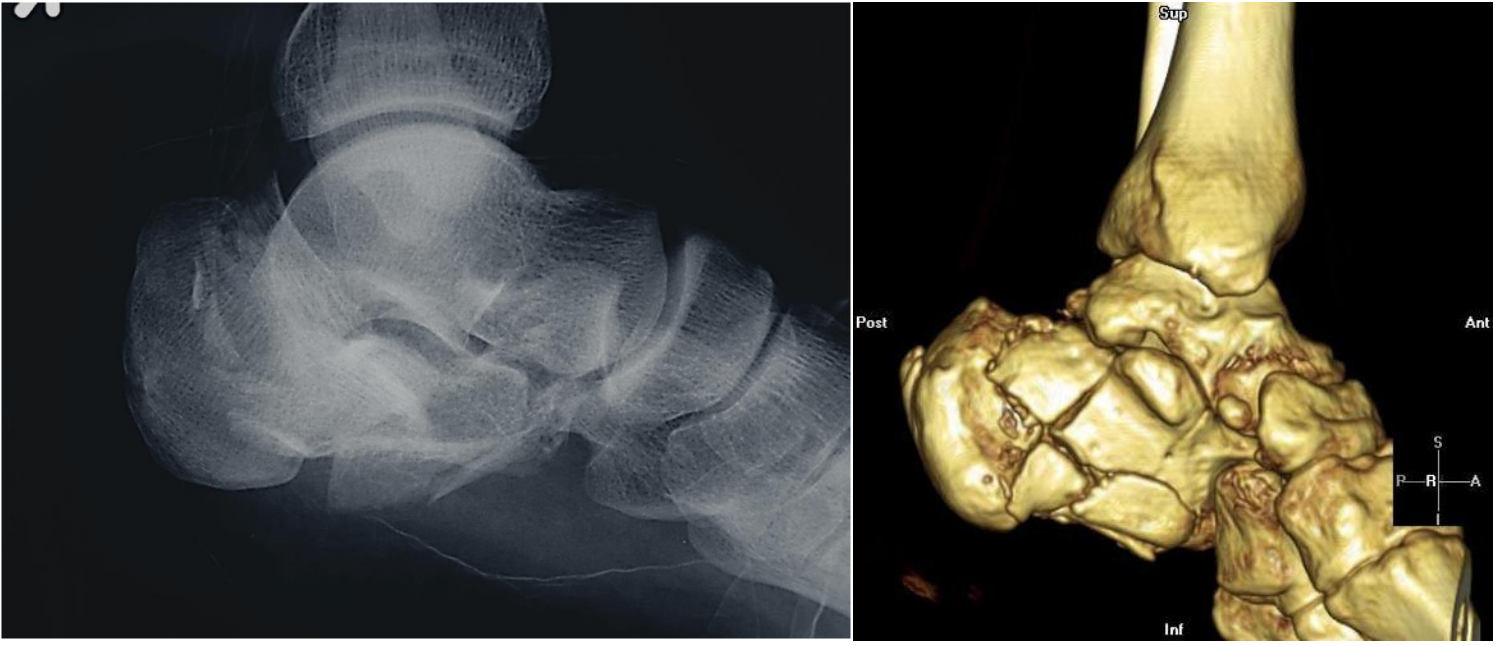

14.6

Patient history: a history of a fall from a height

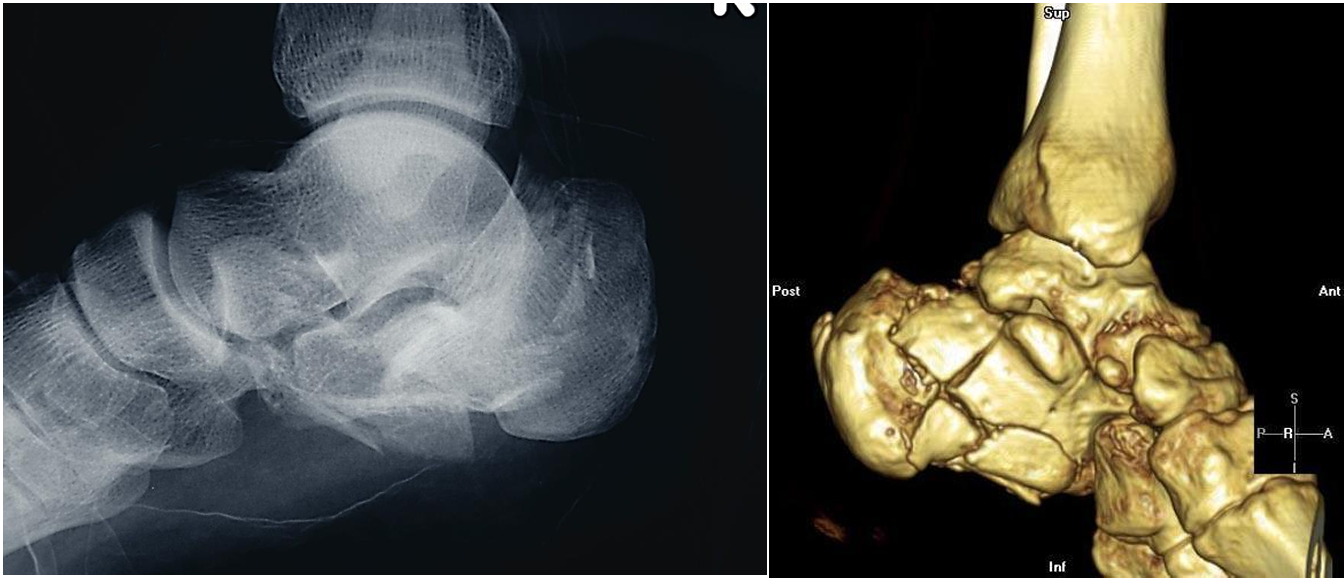

Modality: ankle X-ray – lateral view (left image), CT 3D reconstruction (right image)

Region: left ankle

Radiologic sign: abrupt discontinuity of the cortex of the calcaneus, lucent fracture lines

Diagnosis: comminuted fracture of the calcaneus (Lover’s fracture or Don Juan-fracture)

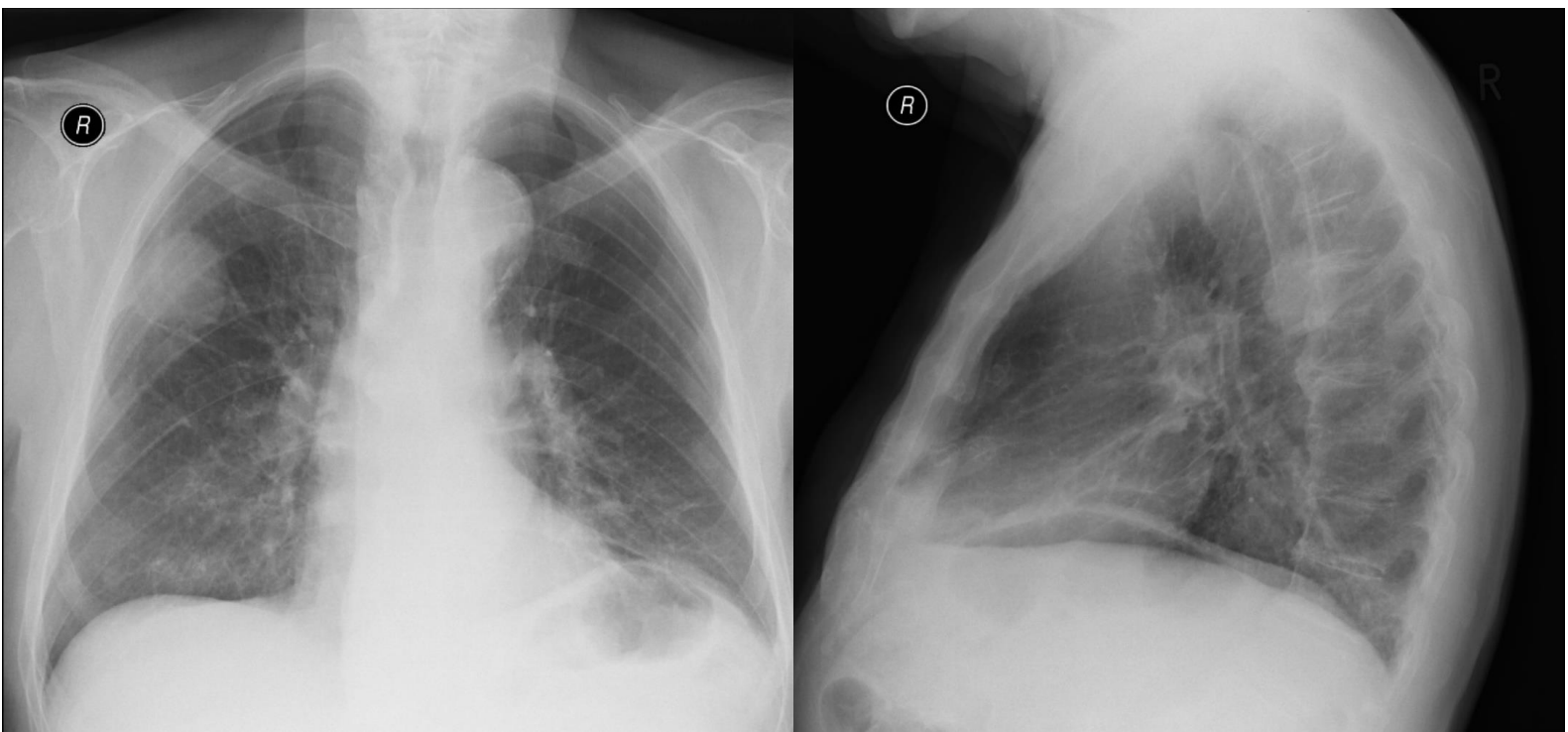

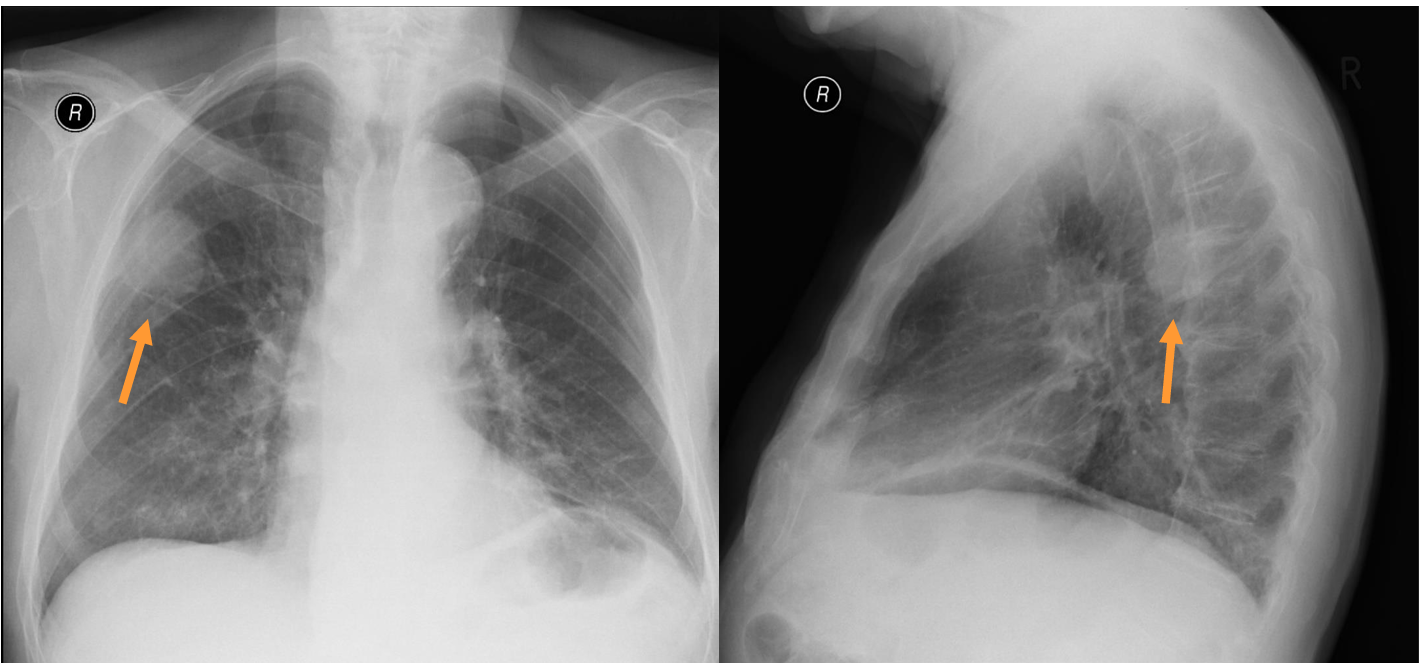

15.1

Patient history: chest screening in an asymptomatic middle-aged patient

Modality: left– PA chest radiograph right – left lateral chest radiograph

Region:chest

Radiologic sign: peripheral, well-circumscribed, novel (compared to older films) mass in the right upper lobe

Diagnosis: lung adenocarcinoma

15.2

Patient history: melanoma malignum, at present headache and epileptic seizure

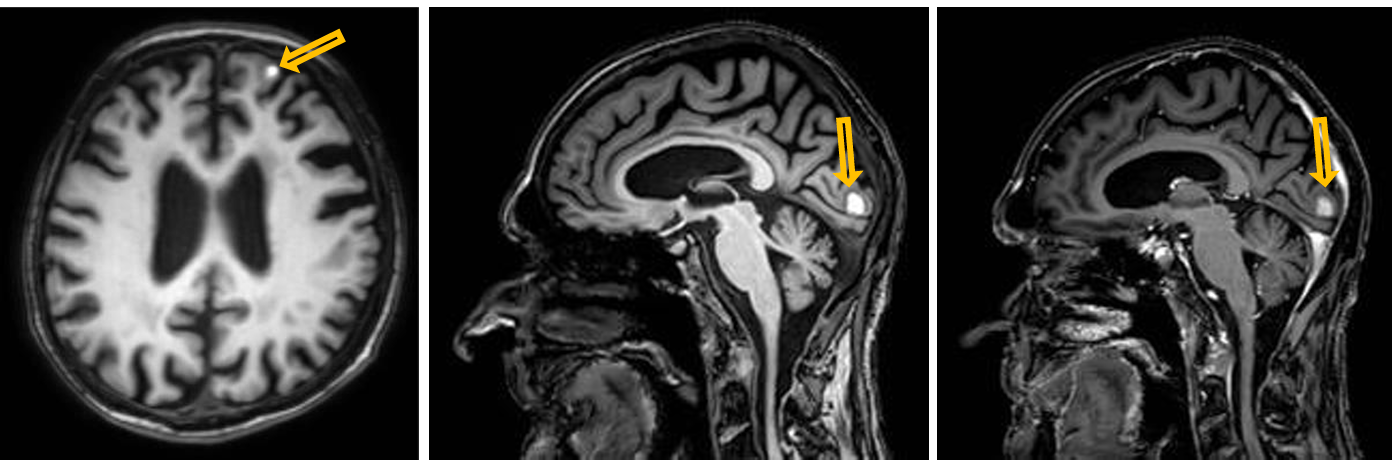

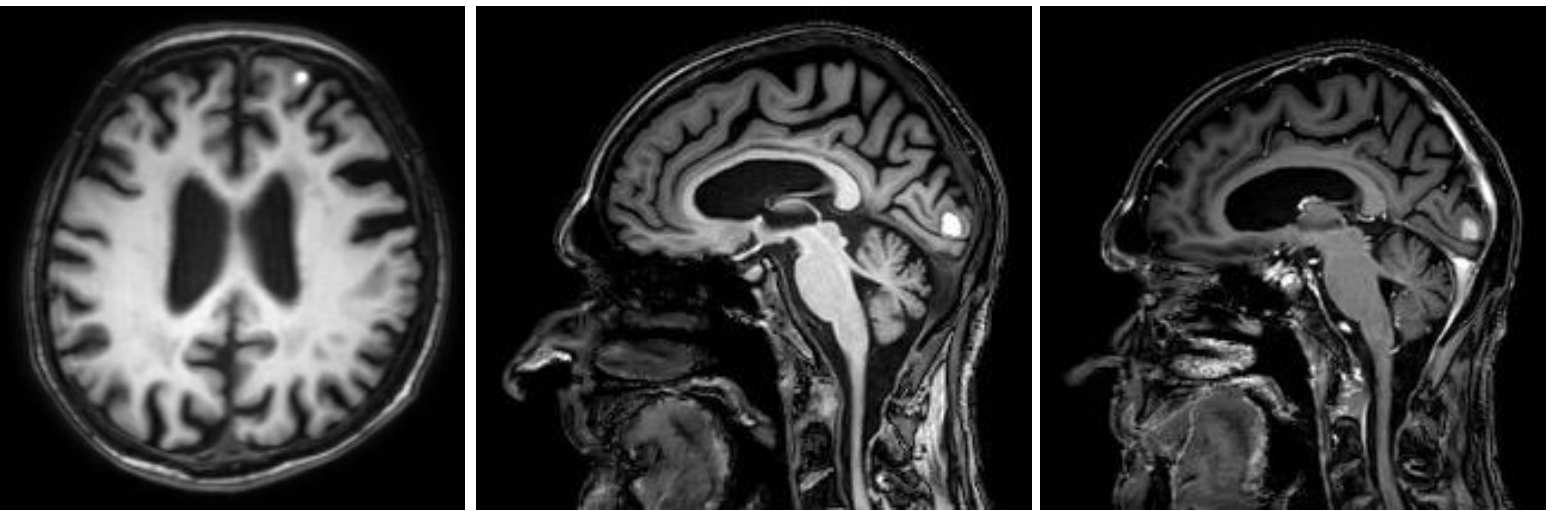

Modality: left image – non-enhanced T1W MRI, axial plane; middle image – non-enhanced T1W MRI, sagittal plane; right image – postcontrast T1W MRI, sagittal plane (iv. gadolinium)

Region: skull

Radiologic signs: multiple contrast-enhancing, T1 hyperintense intra-axial space-occupying lesions in the left frontal and occipital lobes (yellow arrows)

Diagnosis: multiple brain metastases from malignant melanoma

15.3

Patient history: fatigue, weight loss and jaundice in a middle-aged male patient

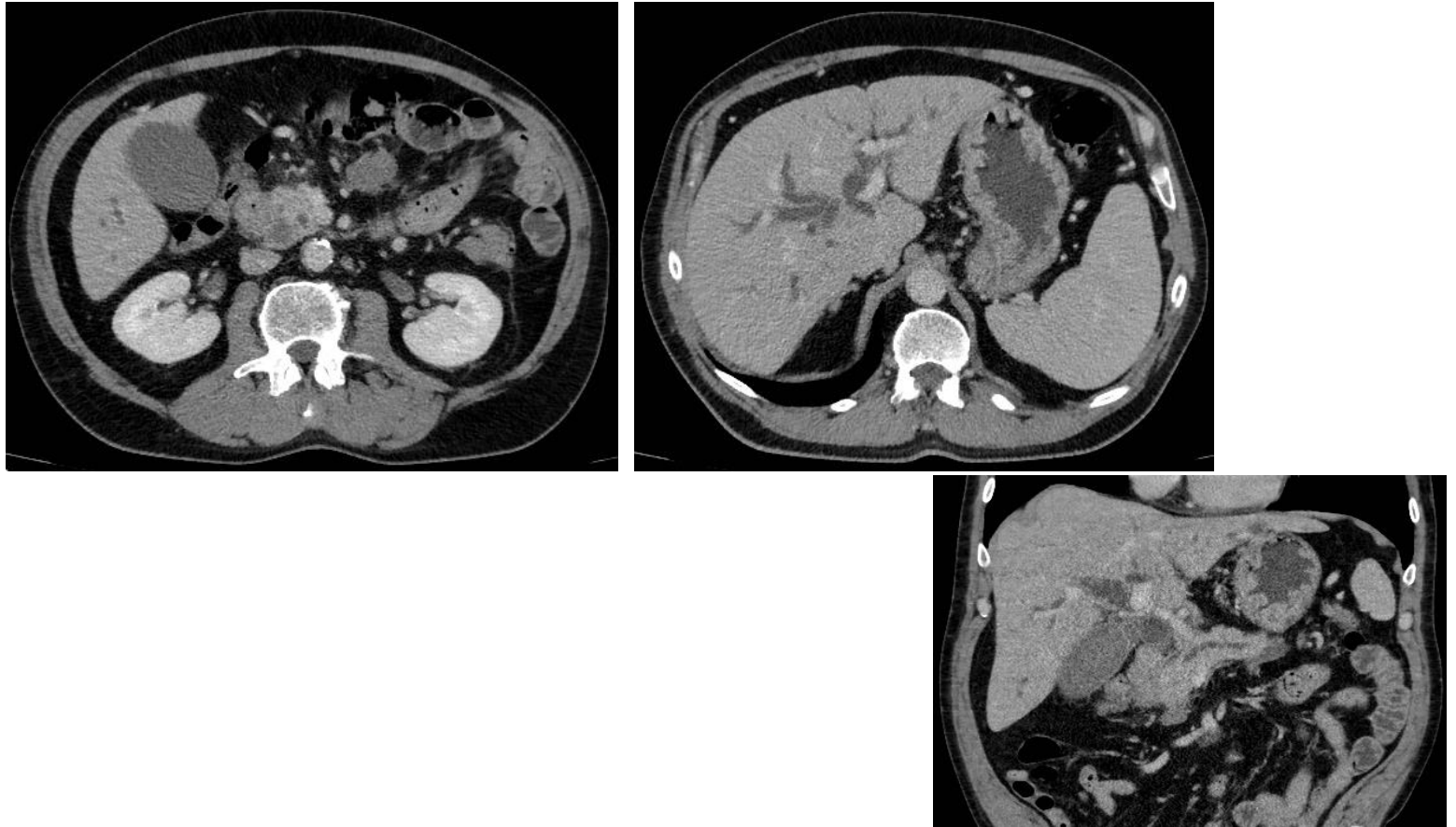

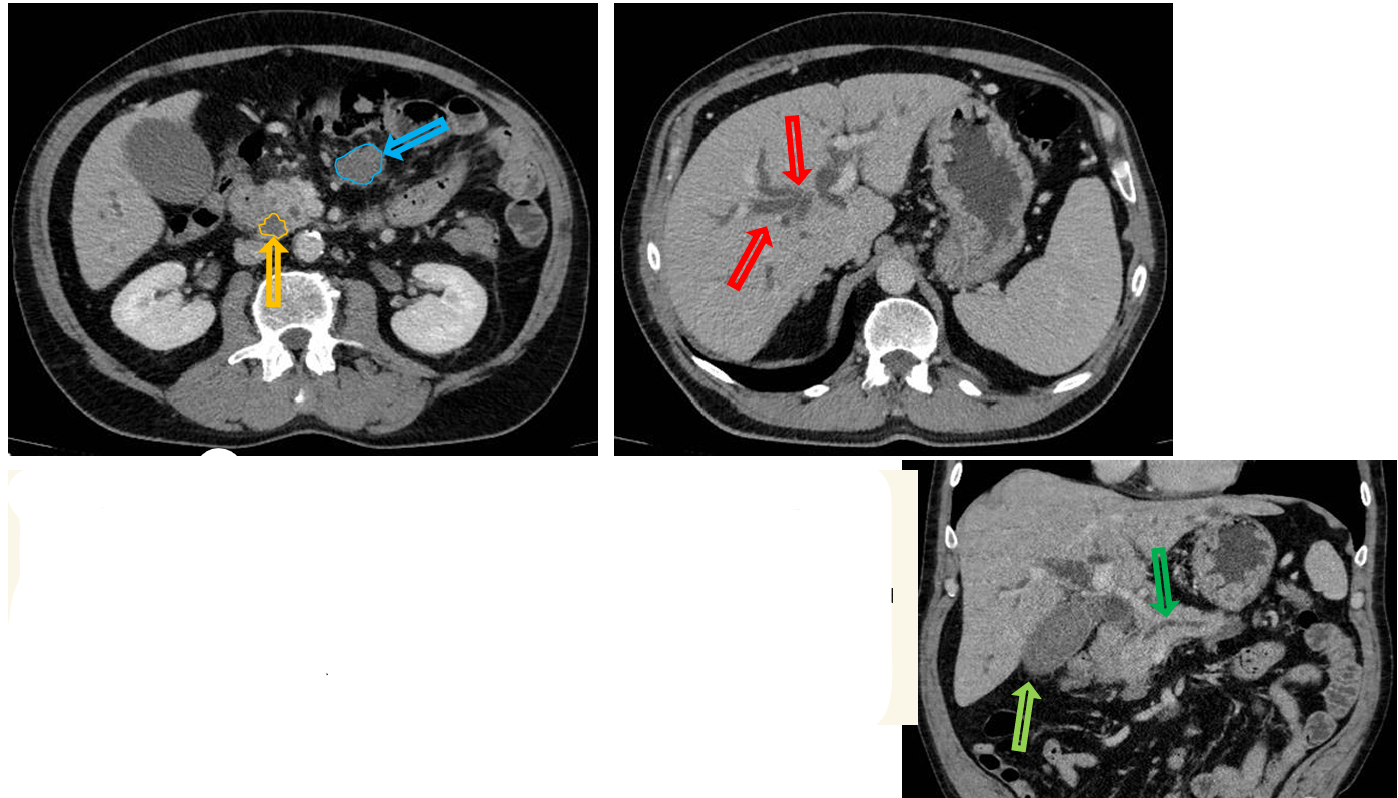

Modality: contrast enhanced CT (venous phase), left and right – axial planes, bottom – coronal plane reconstruction (iv. iodine-based contrast agent)

Region: upper abdomen

Radiologic sign: mass in the pancreas head that is hypodense in the venous phase (yellow area); dilated hypodense intrahepatic bile ducts (red arrows, normally not visible), gallbladder distended with fluid, hydropic (light green arrow), pancreatic duct also dilated due to the obstruction (dark green arrow). Enhancing soft tissue mass with lobulated margin in the mesenterium (blue arrow).

Diagnosis: pancreas adenocarcinoma with regional lymphadenopathy, distended bile ducts and pancreatic duct

15.4

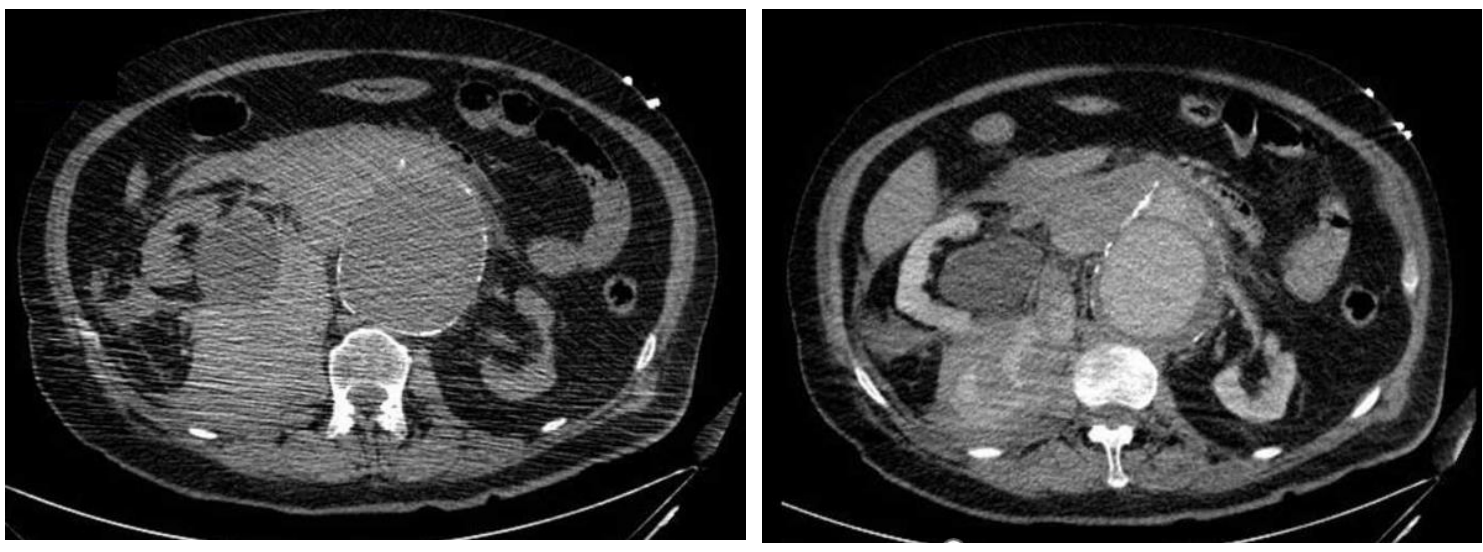

Patient history: acute abdominal pain, hypotension, heart palpations and pulsatile abdominal mass in an elderly patient Modality: left: Non-enhanced CT, right: Postcontrast CT (venous phase), iv. iodine-based contrast agent

Region: abdomen, retroperitoneum

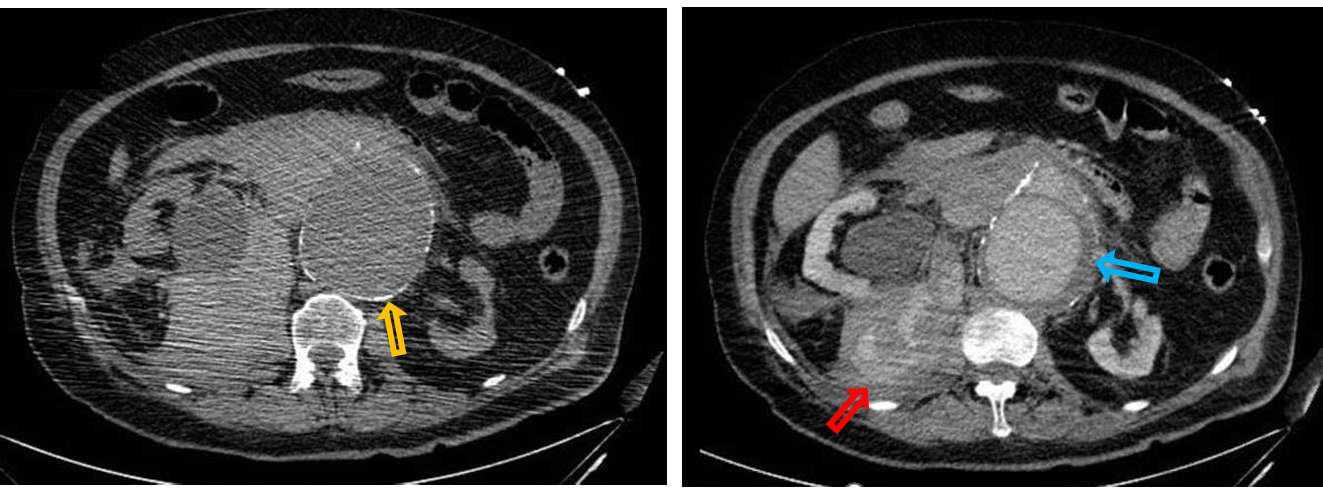

Radiologic sign: Dilated abdominal aortic aneurysm with wall calcifications (yellow arrow) and hypodense wall thrombus (blue arrow), retroperitoneal fluid collection with active extravasation of contrast material on postcontrast scan (fluid becomes denser, its average density is 60-80 HU, which is characteristic for fresh hematoma) (red arrow). The large hematoma pushes the right kidney ventrally.

Diagnosis: abdominal aortic aneurysm rupture

15.5

Patient history: known invasive ductal carcinoma, staging MR

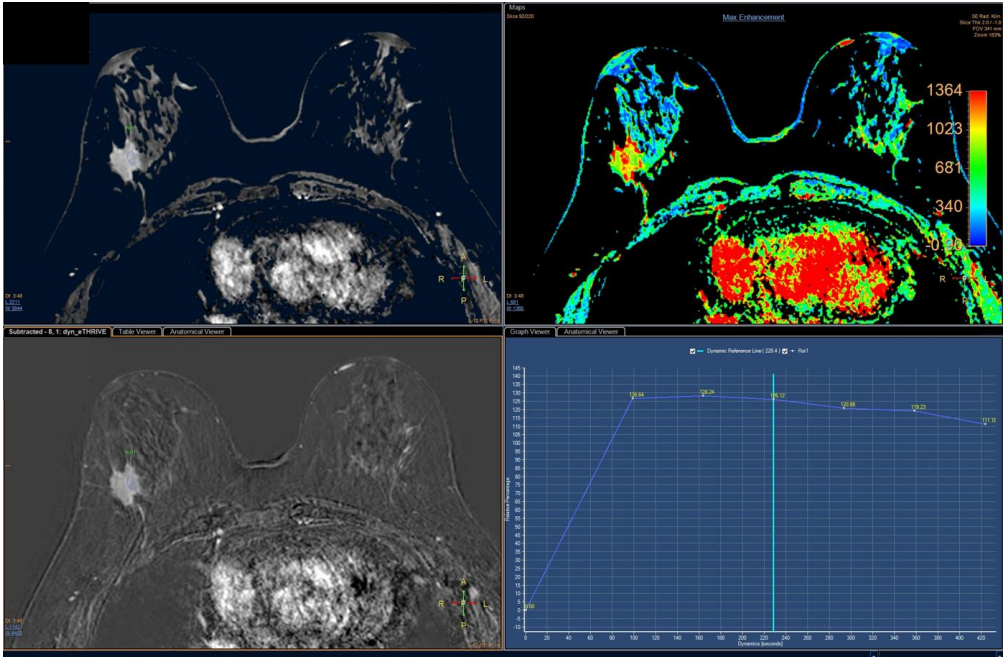

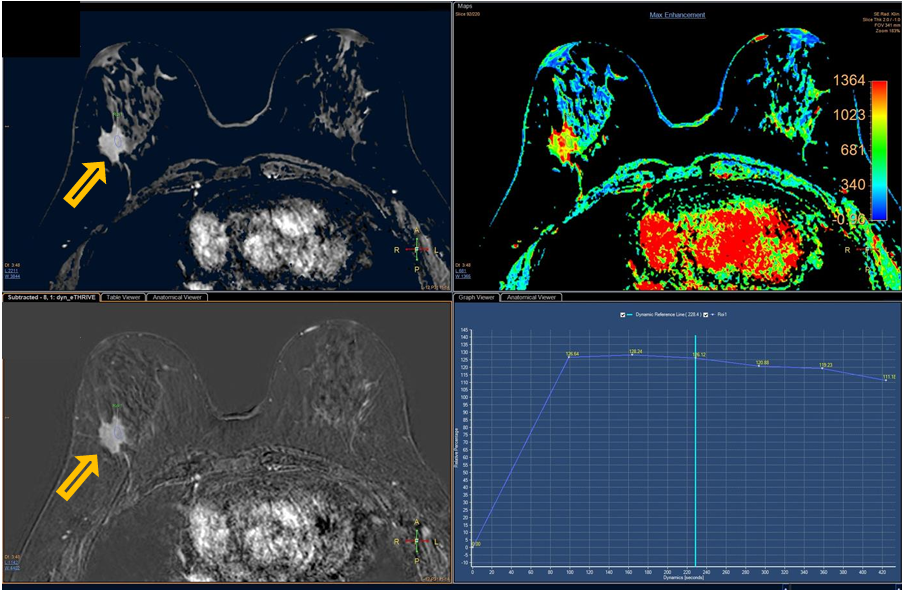

Modality: dynamic contrast enhanced MRI (eThrive – upper left image), dynamic subtraction MRI (lower left image); contrast agent: iv. gadolinium; right images show the kinetics of contrast enhancement (highest rate of washout signed with red color) Region: breast, axial plane

Radiologic sign: Irregular, spiculated mass in the right breast (yellow arrow), with intense contrast enhancement. The kinetic enhancement curve is characterized by a washout pattern.

Diagnosis : invasive breast carcinoma in the right breast, no multiplicity or contralateral breast lesion

15.6

Patient history: routine abdominal ultrasonography (left); years of heavy alcohol consumption, at present fatigue and enlarging abdominal circumference (right)

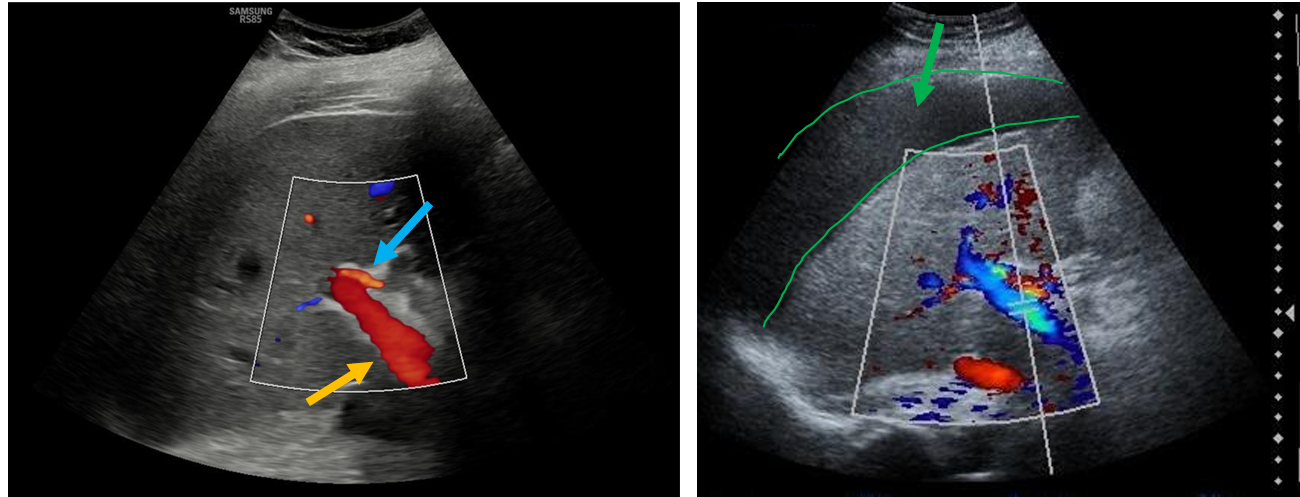

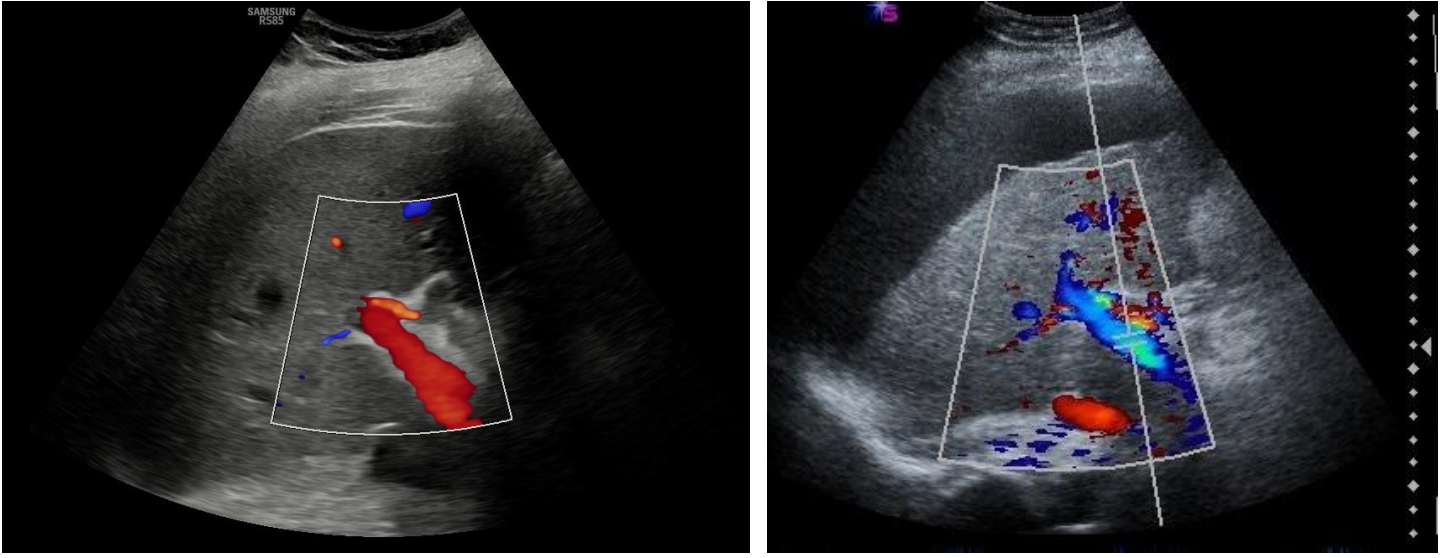

Modality: abdominal ultrasound, 3-5 MHz convex transducer

Region: abdomen, right upper quadrant

Radiologic sign: left image – normal hepatopetal flow in the portal vein (yellow arrow); blue arrow signs the narrower hepatic artery adjacent to portal vein; right image – reversed, hepatofugal flow in the portal vein in a liver cirrhotic patient due to increased hepatic resistance; perihepatic fluid (ascites) is also observable on the same image (green arrow and outline).

Diagnosis: reversed portal flow and ascites in liver cirrhosis
