3.3 Instrumentation

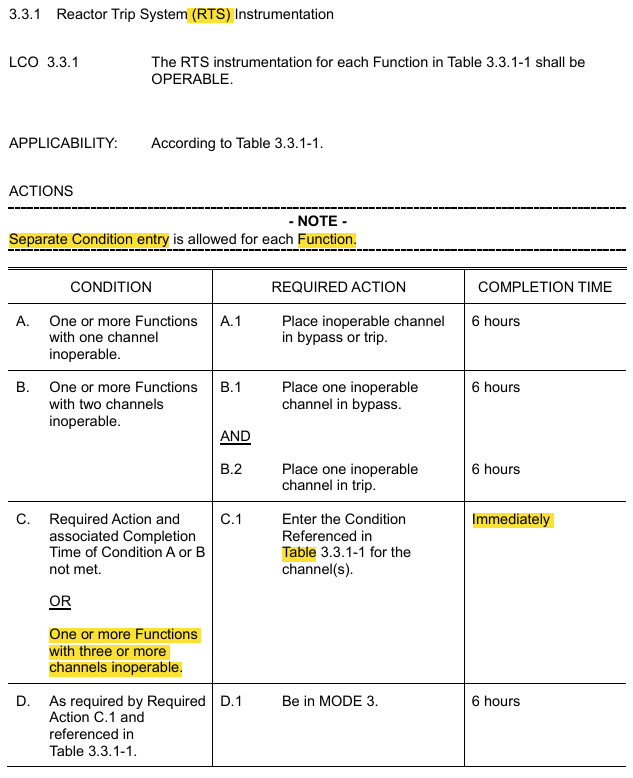

3.3.1 RTS Instrumentation

3.3.1 RTS Instrumentation

Surveillance

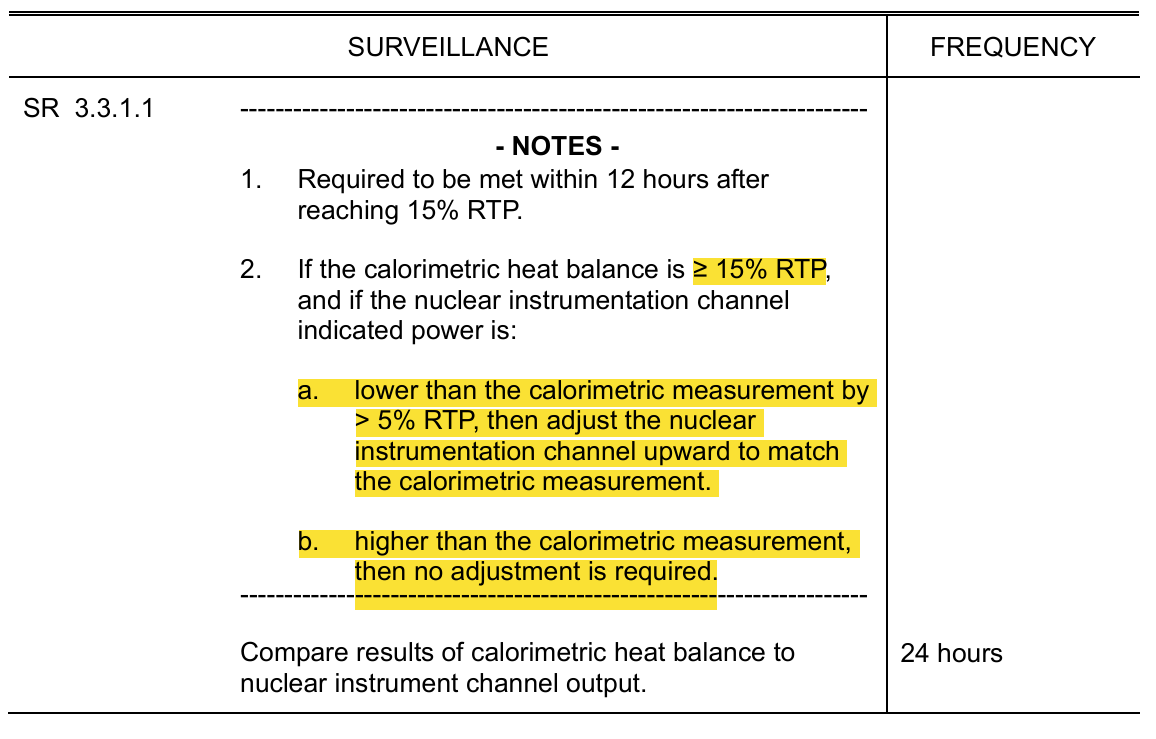

SR 3.3.1.1

3.3.1 RTS Instrumentation

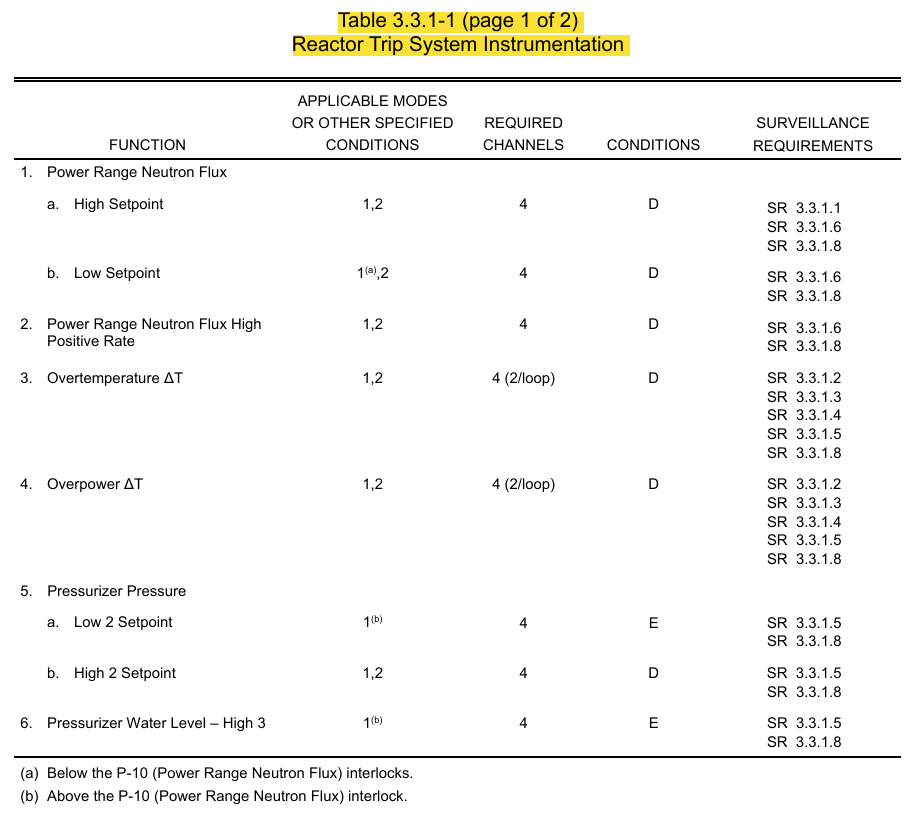

Table (1 of 2)

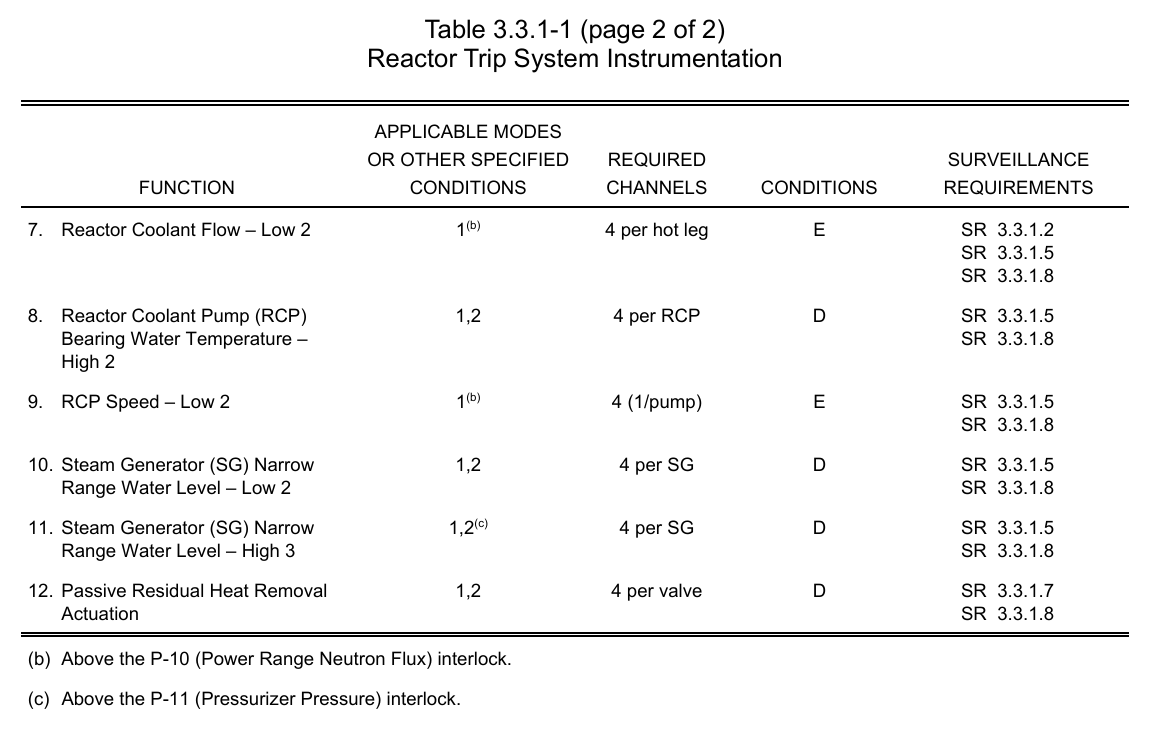

Table (2 of 2)

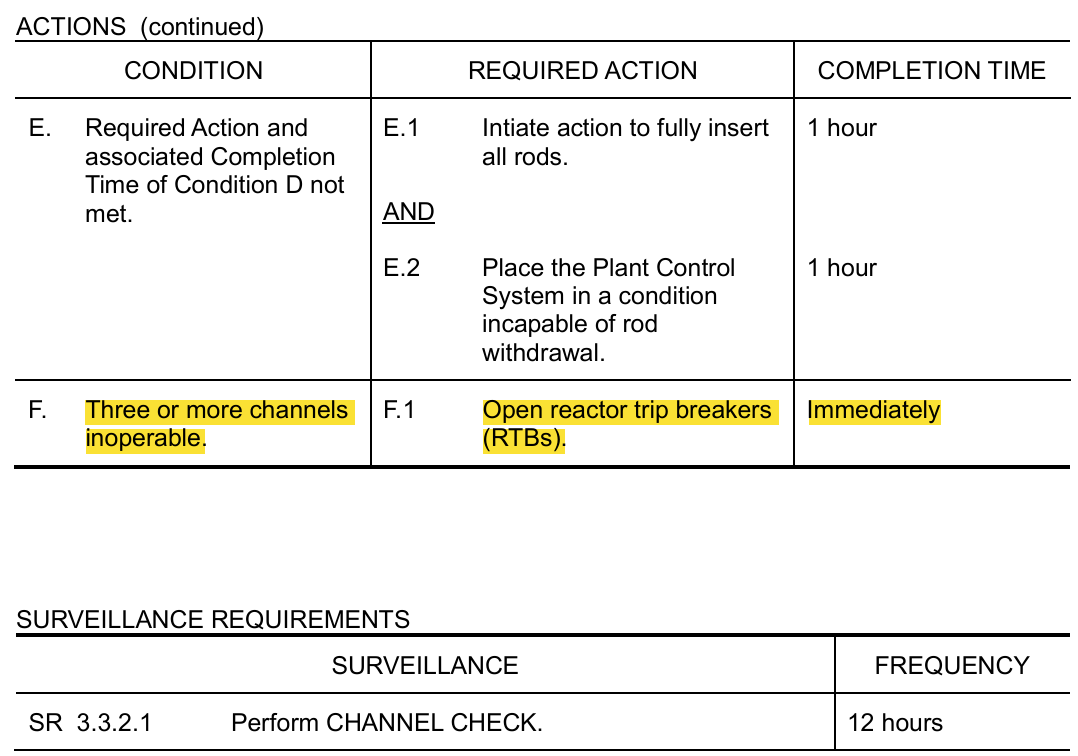

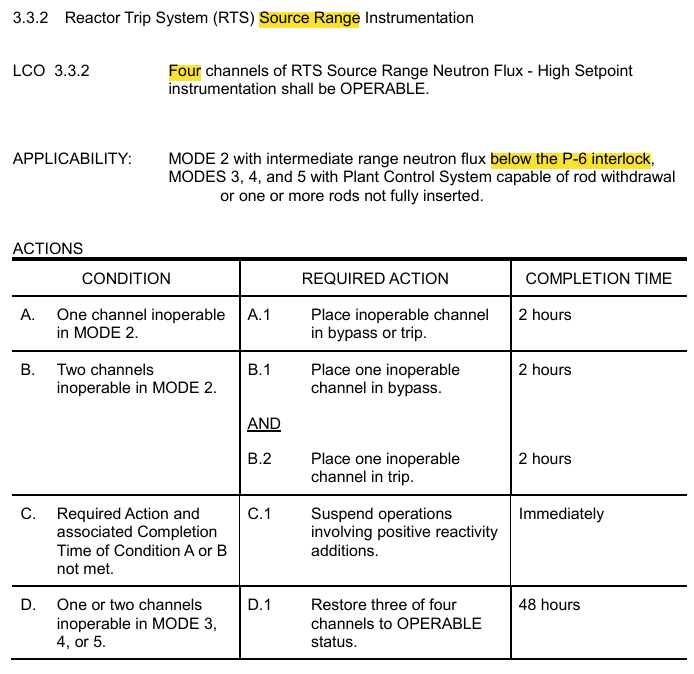

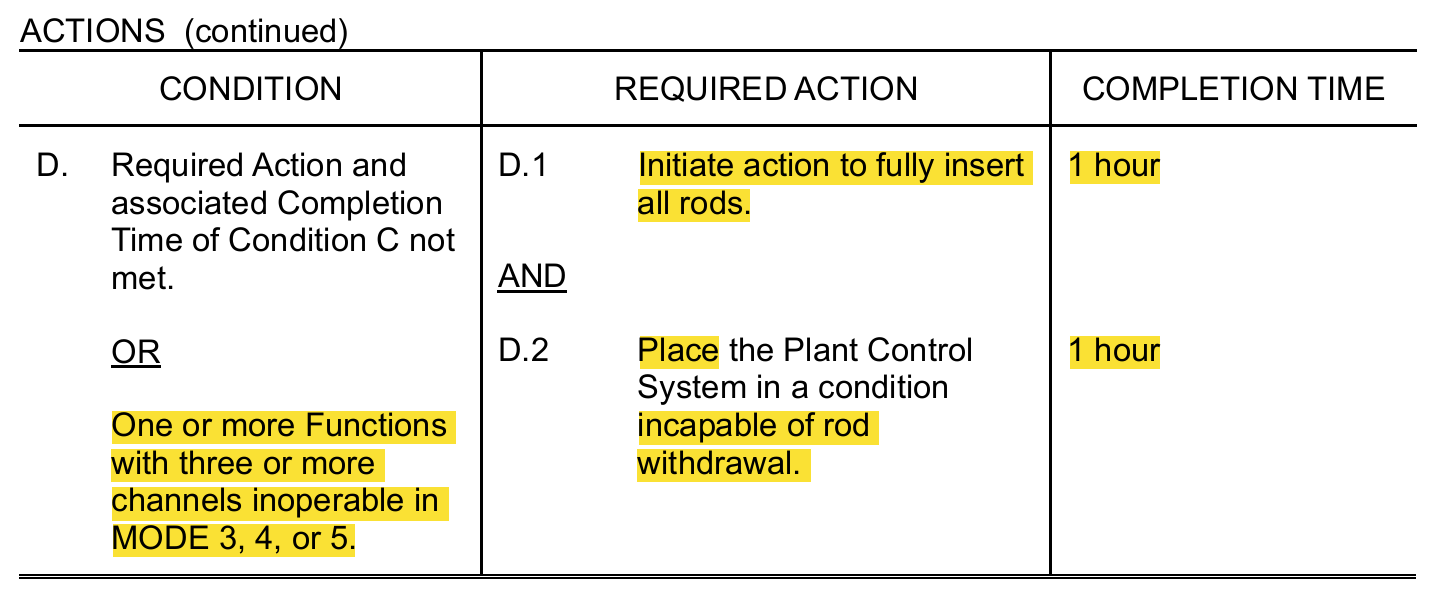

3.3.2 RTS Source Range Instrumentation

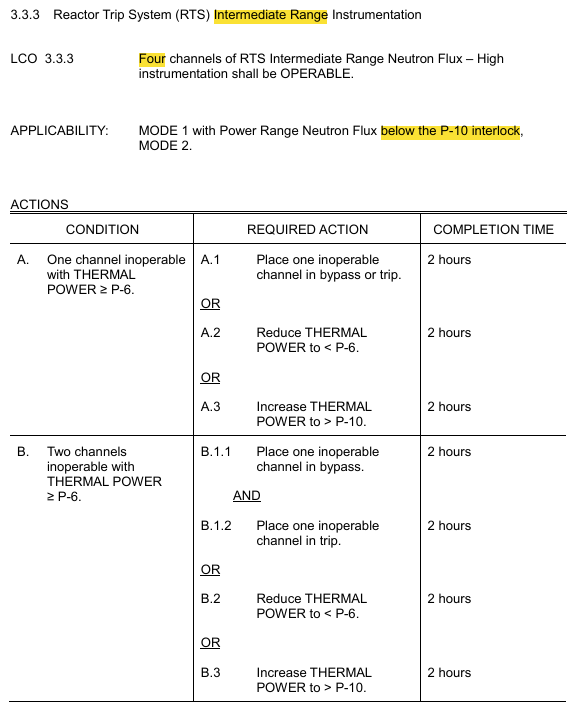

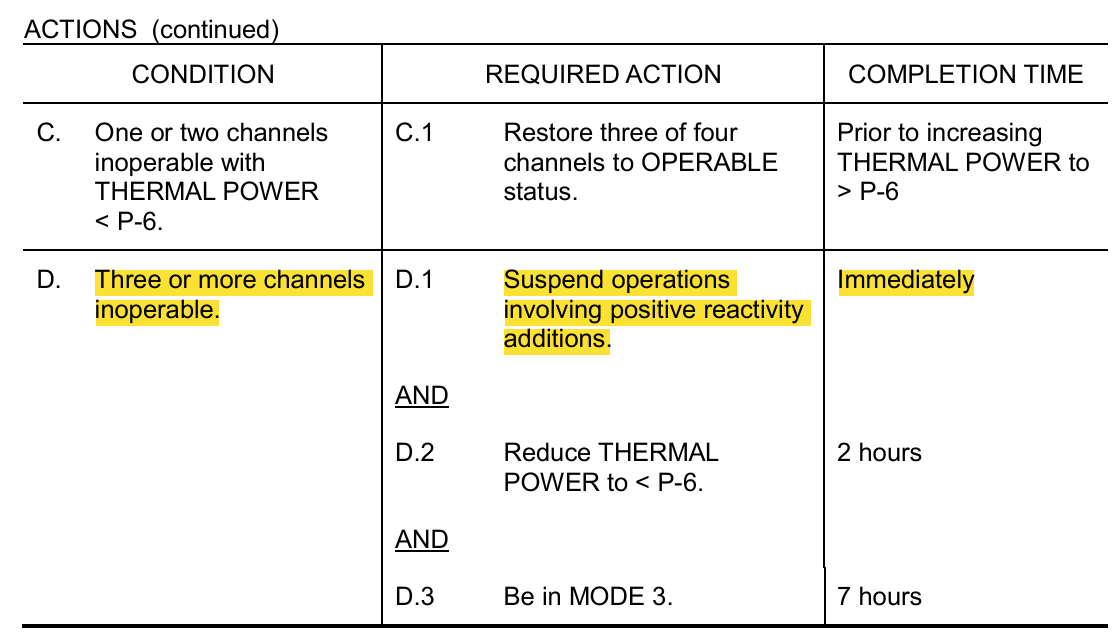

3.3.3 RTS Intermediate Range Instrumentation

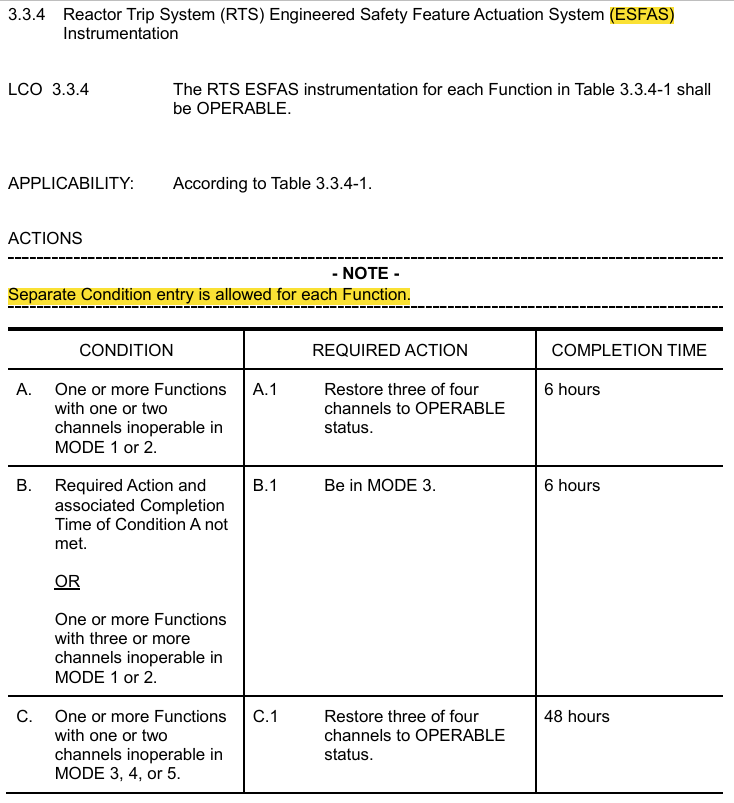

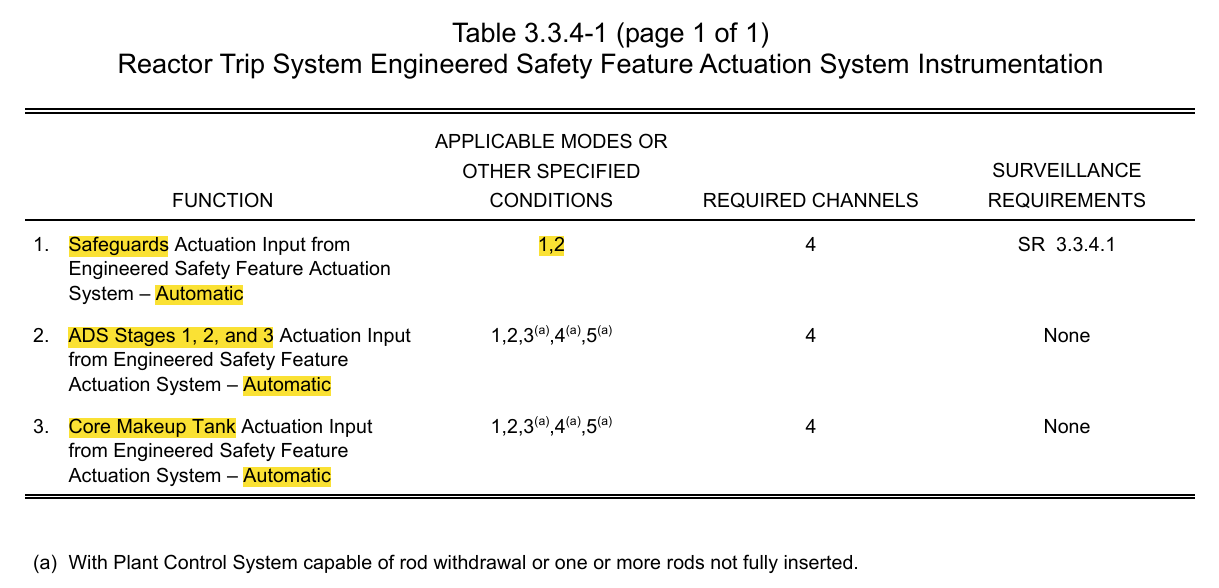

3.3.4 RTS ESFAS Instrumentation

3.3.4 RTS ESFAS Instrumentation

Table

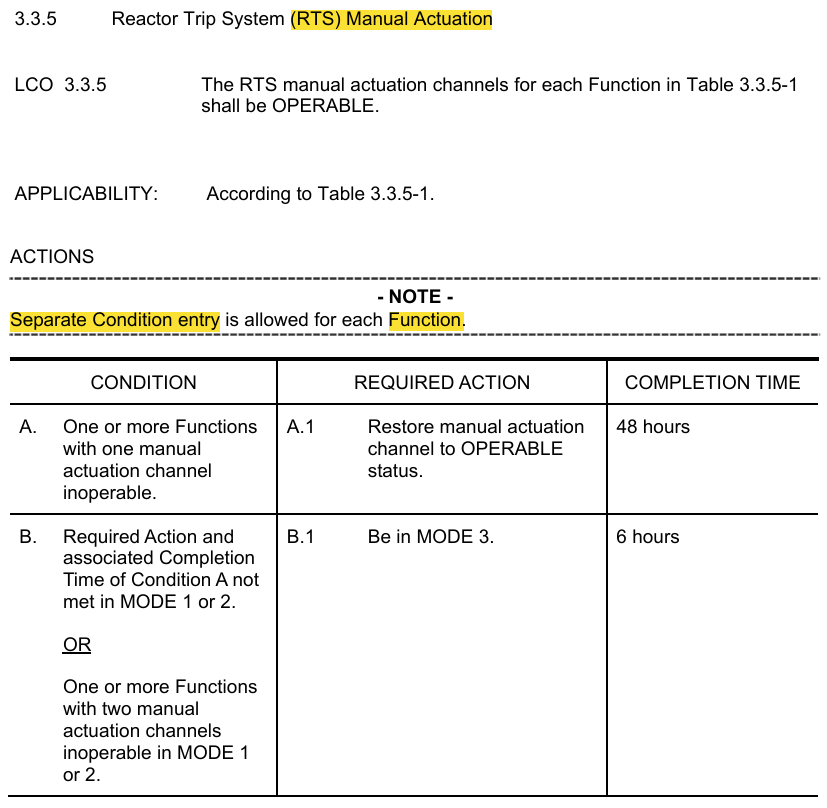

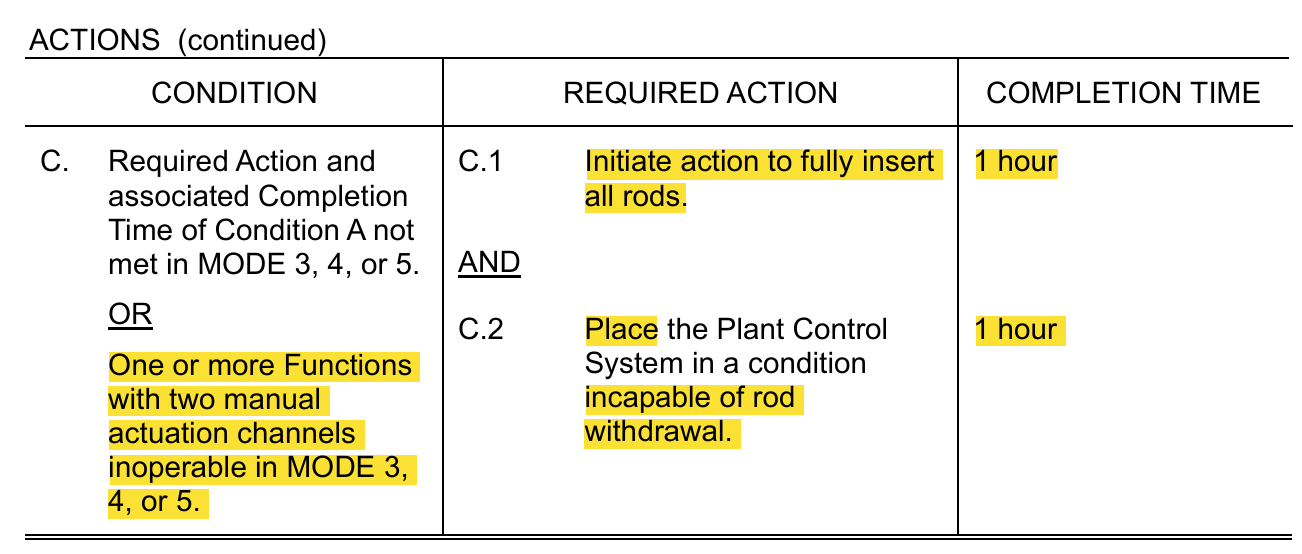

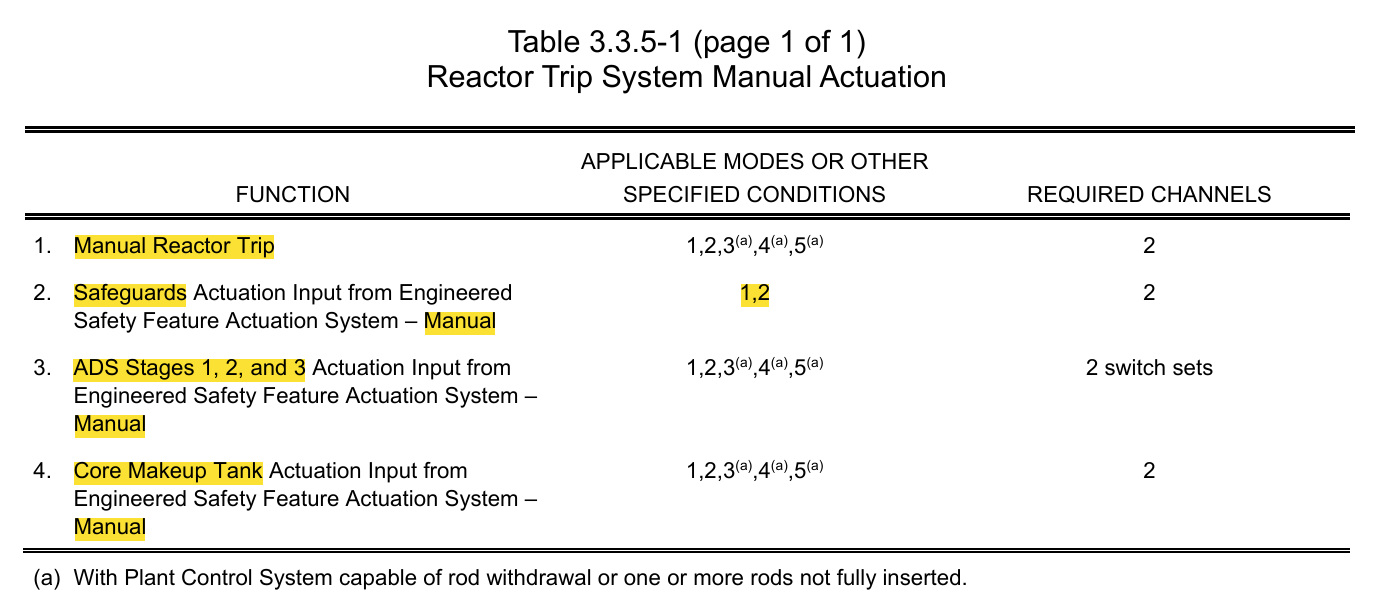

3.3.5 RTS Manual Actuation

3.3.5 RTS Manual Actuation

Table

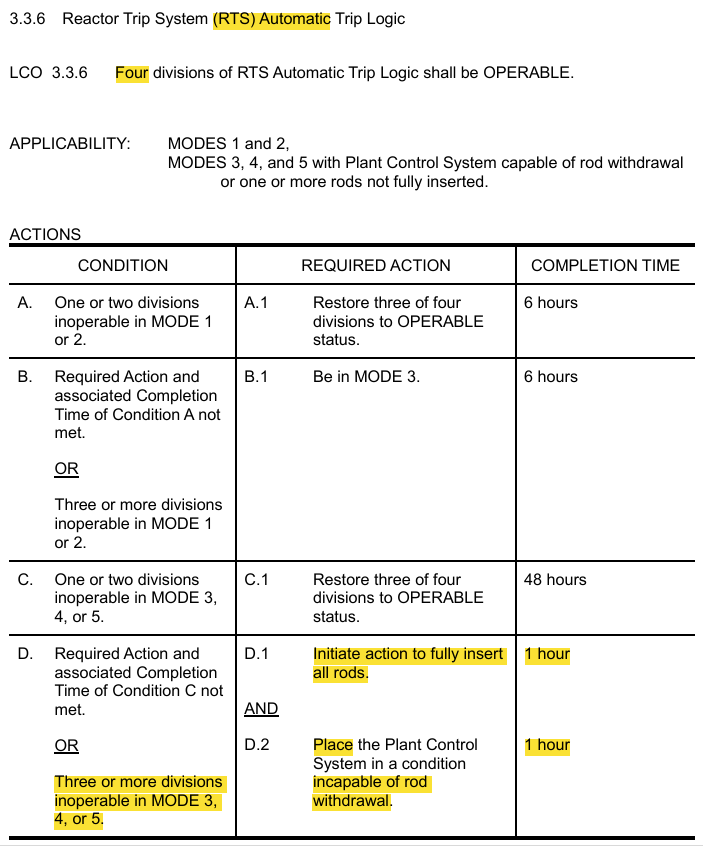

3.3.6 RTS Automatic Trip Logic

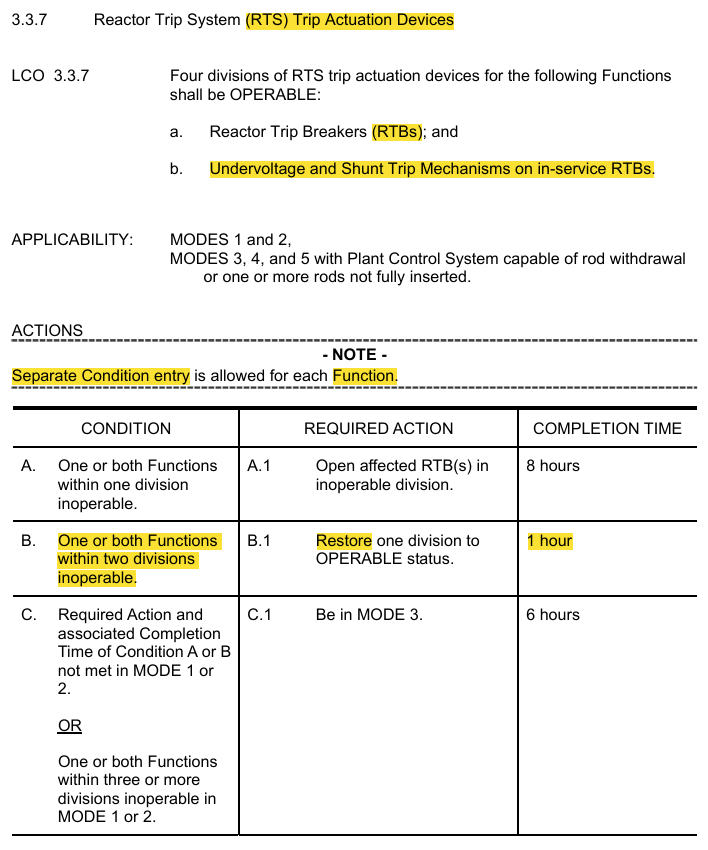

3.3.7 RTS Trip Actuation Devices

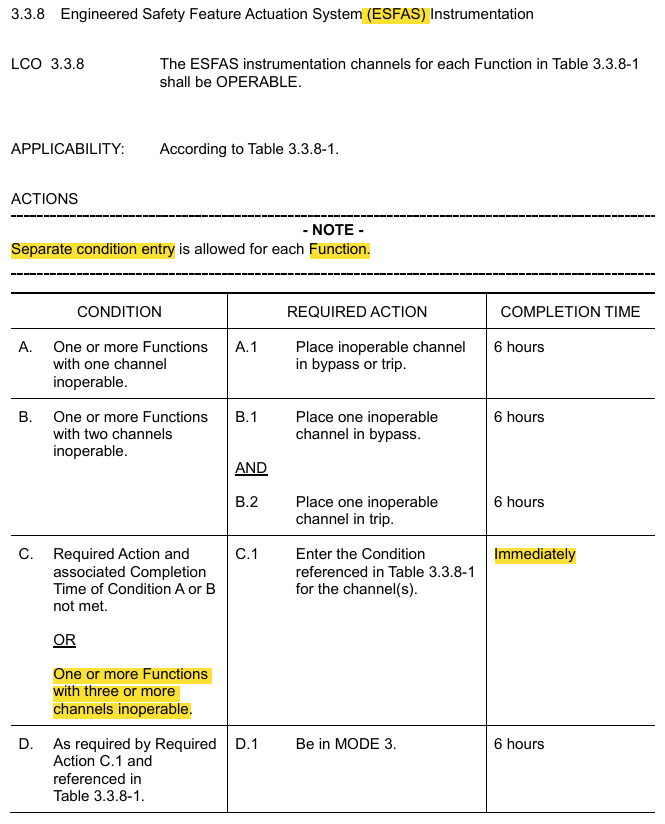

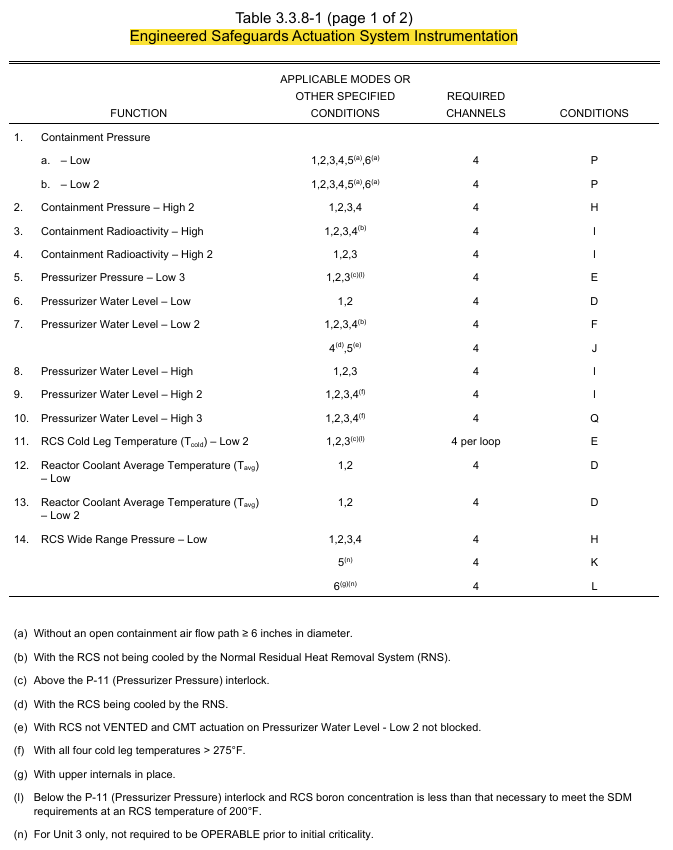

3.3.8 ESFAS Instrumentation

3.3.8 ESFAS Instrumentation

Table (1 of 2)

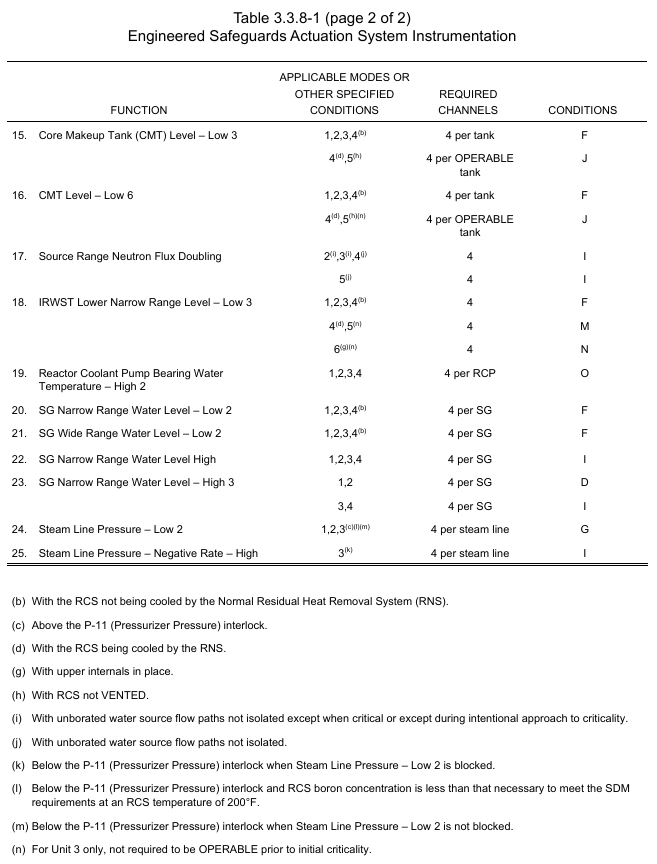

Table (2 of 2)

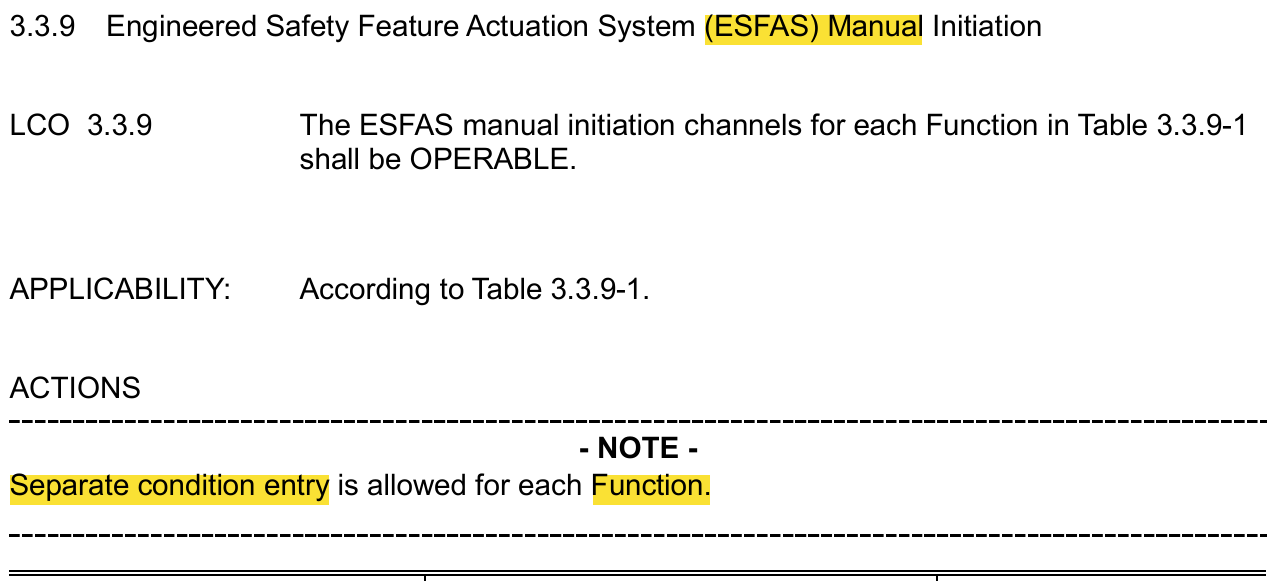

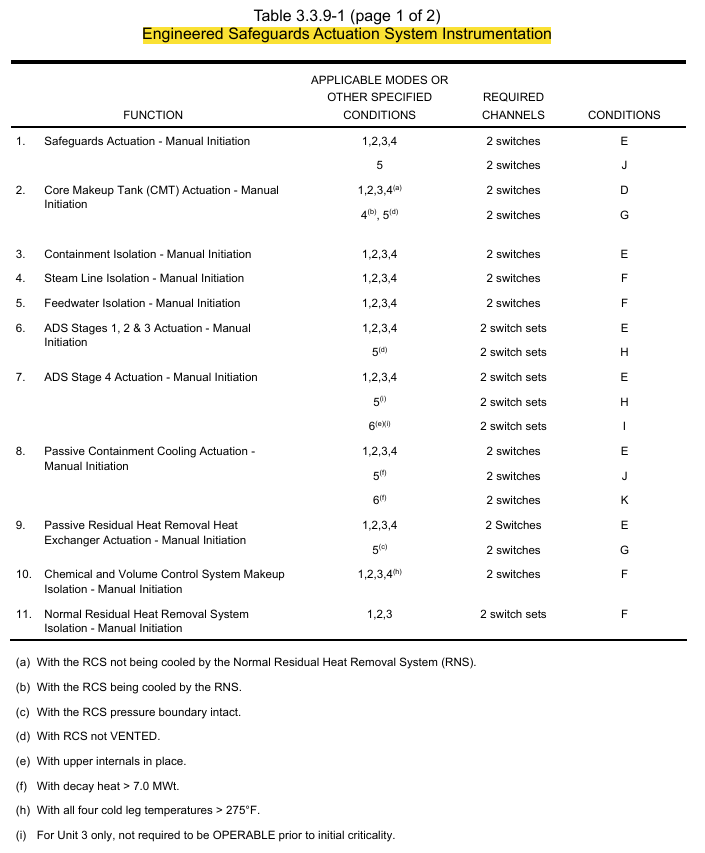

3.3.9 ESFAS Manual Initiation

3.3.9 ESFAS Manual Initiation

Table (1 of 2)

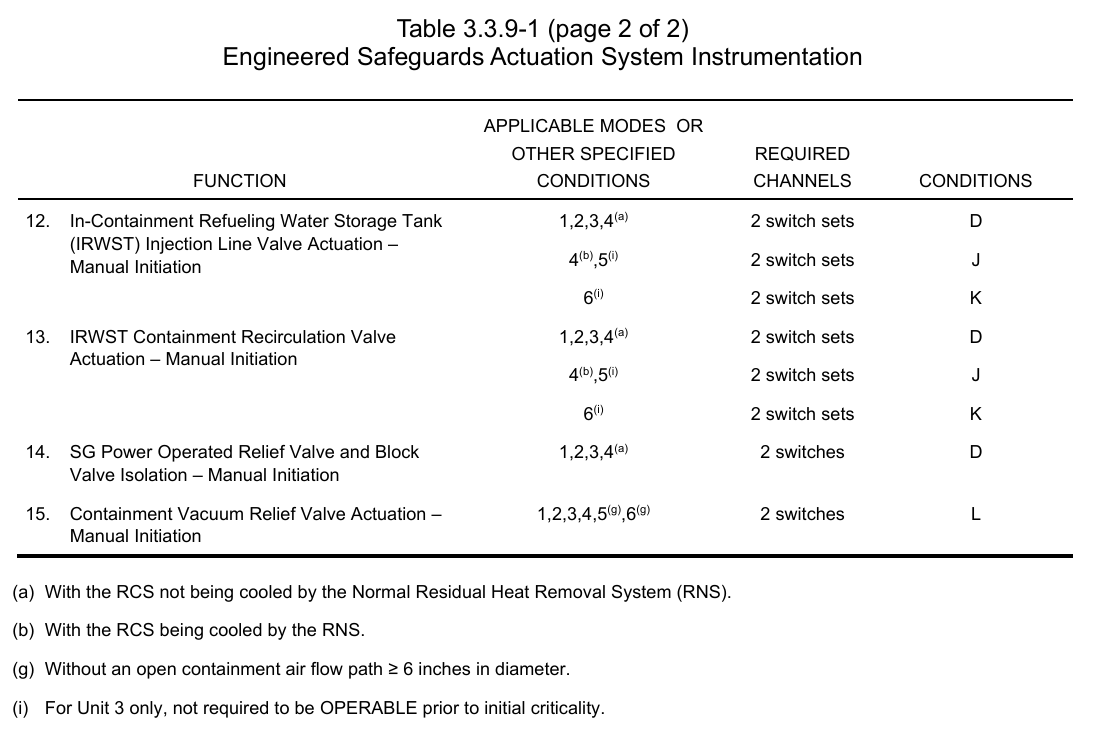

Table (2 of 2)

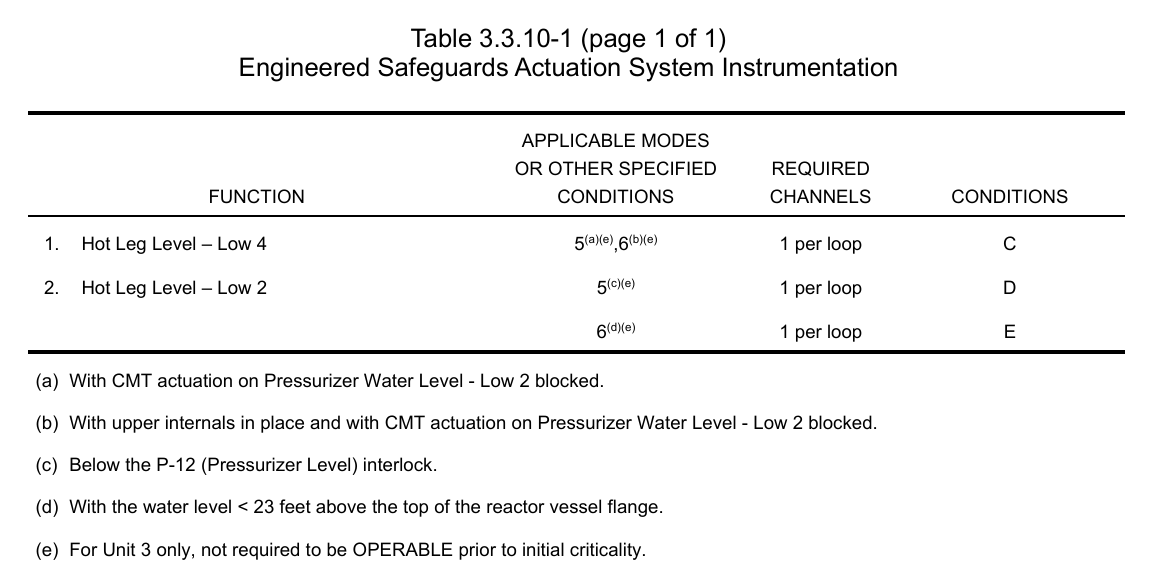

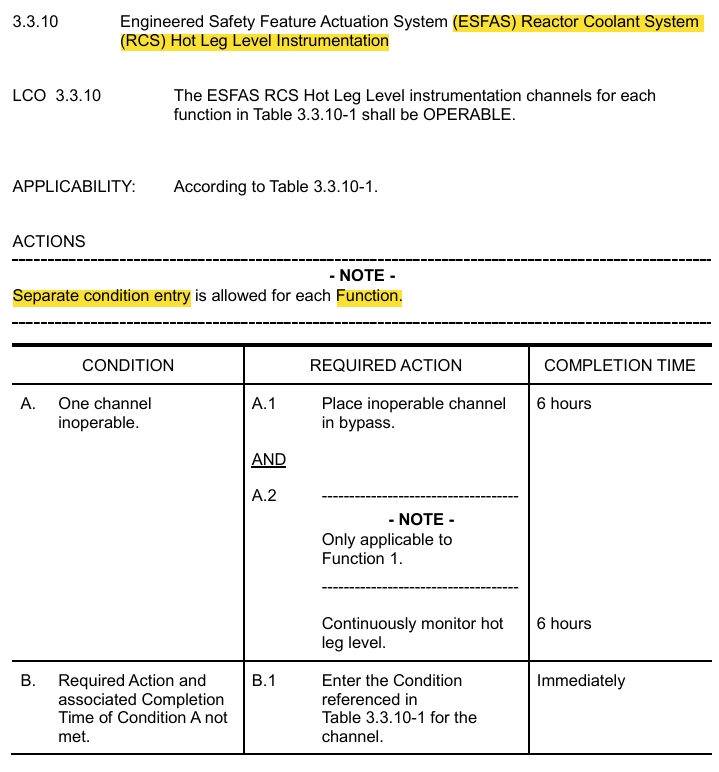

3.3.10 ESFAS RCS Hot leg Level Instrumentation

Table

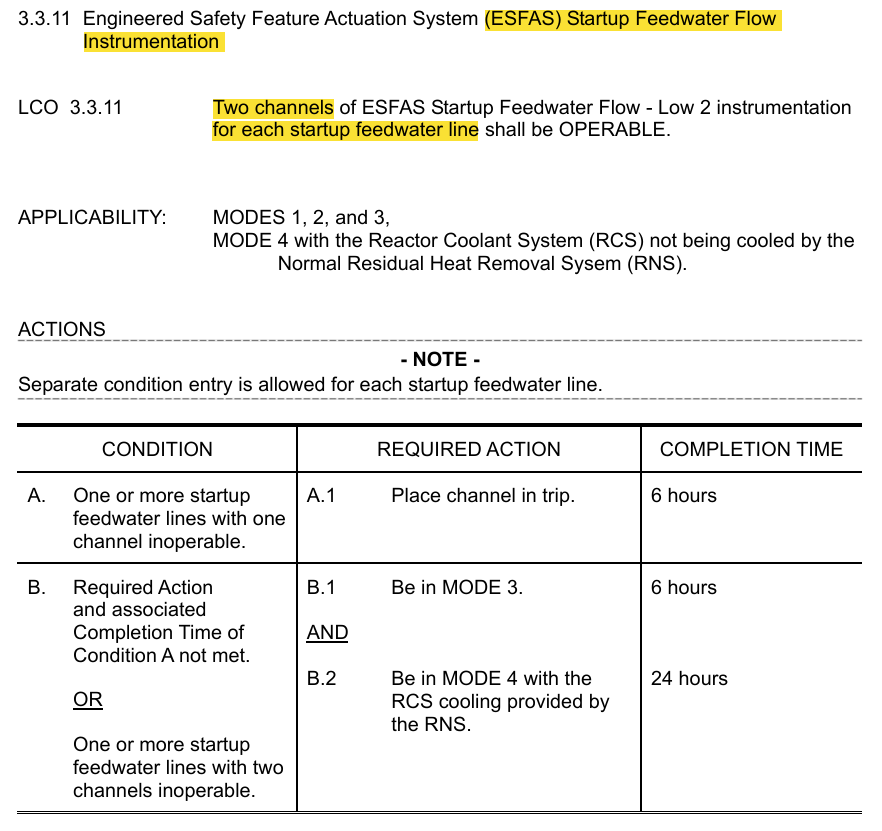

3.3.11 ESFAS Startup Feedwater Flow Instrumentation

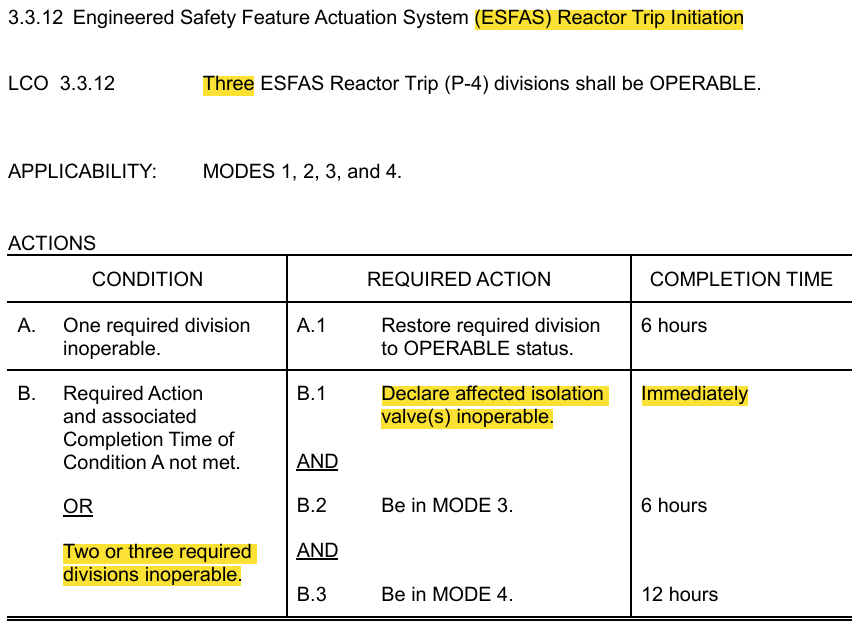

3.3.12 ESFAS Reactor Trip Initiation

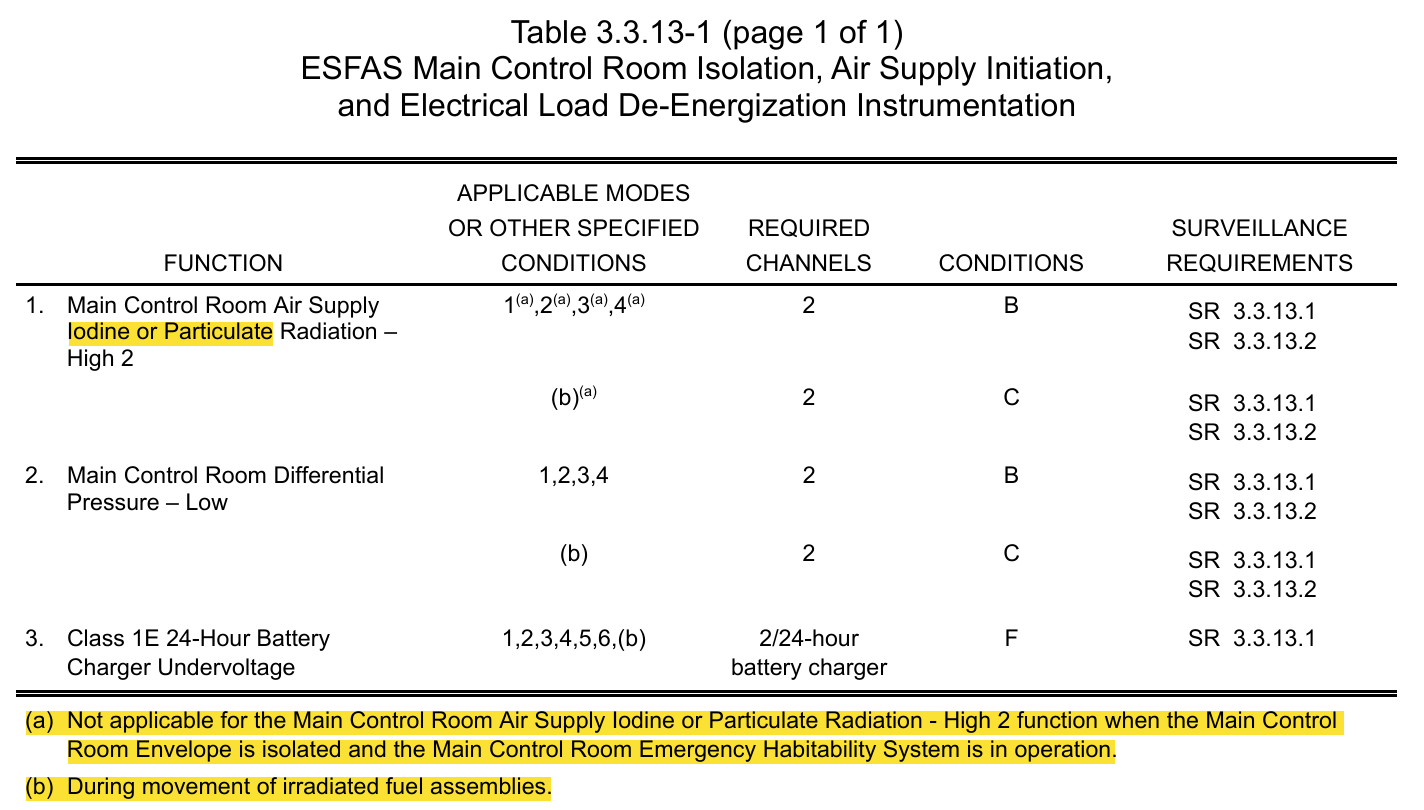

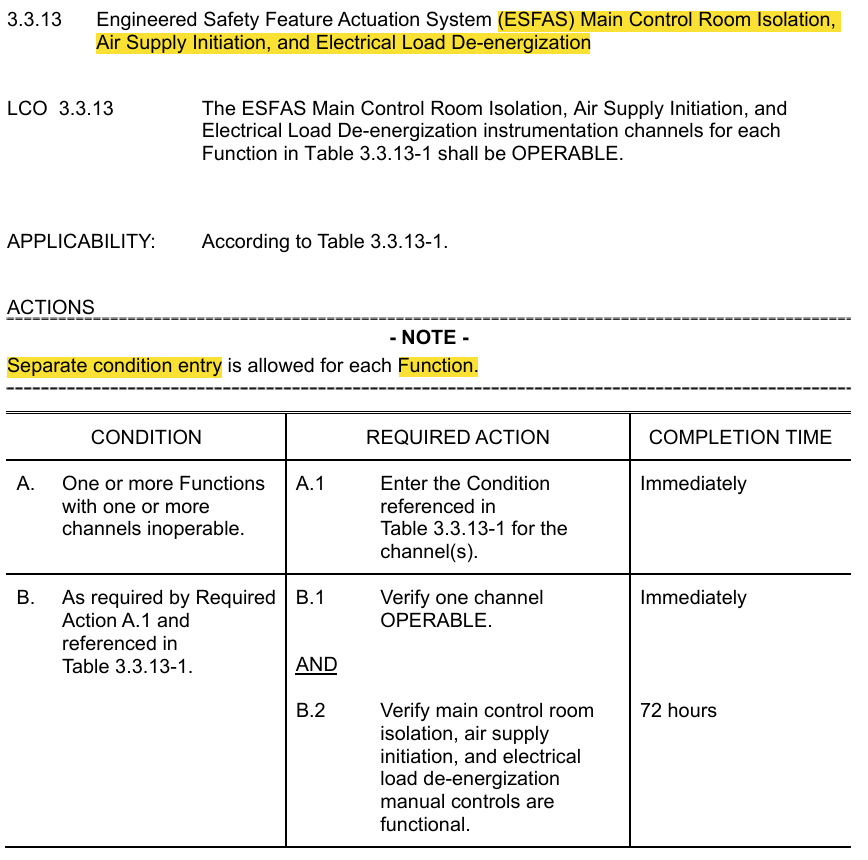

3.3.13 ESFAS Main Control Room Isolation, Air Supply Initiation, and Electrical Load De-energization

Table

MCR Supply Duct Rad Monitor B (VBS-JS-01B)

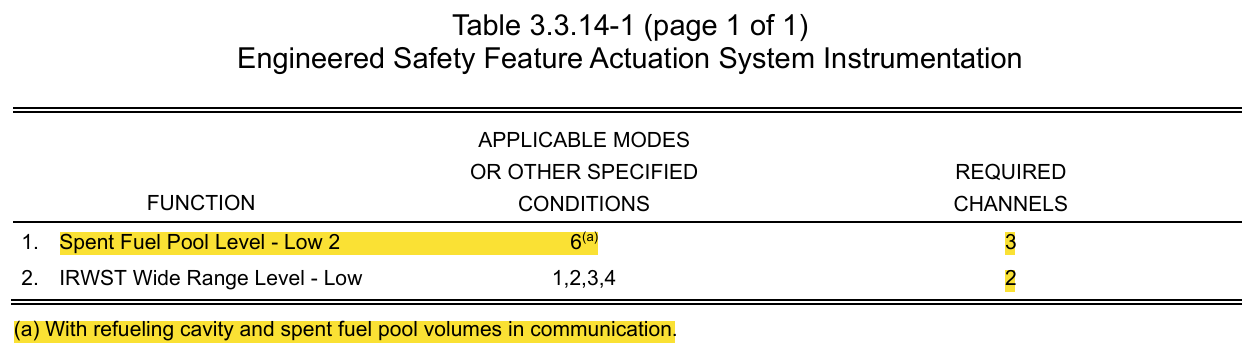

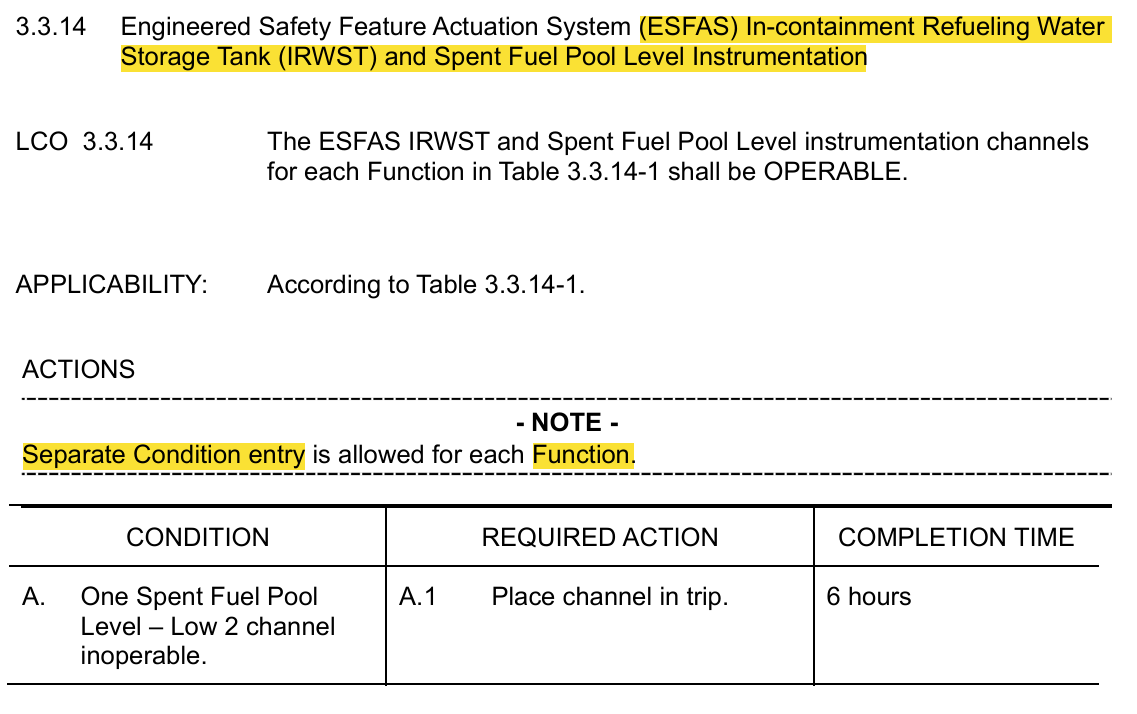

3.3.14 ESFAS IRWST and Spent Fuel Pool Level Instrumentation

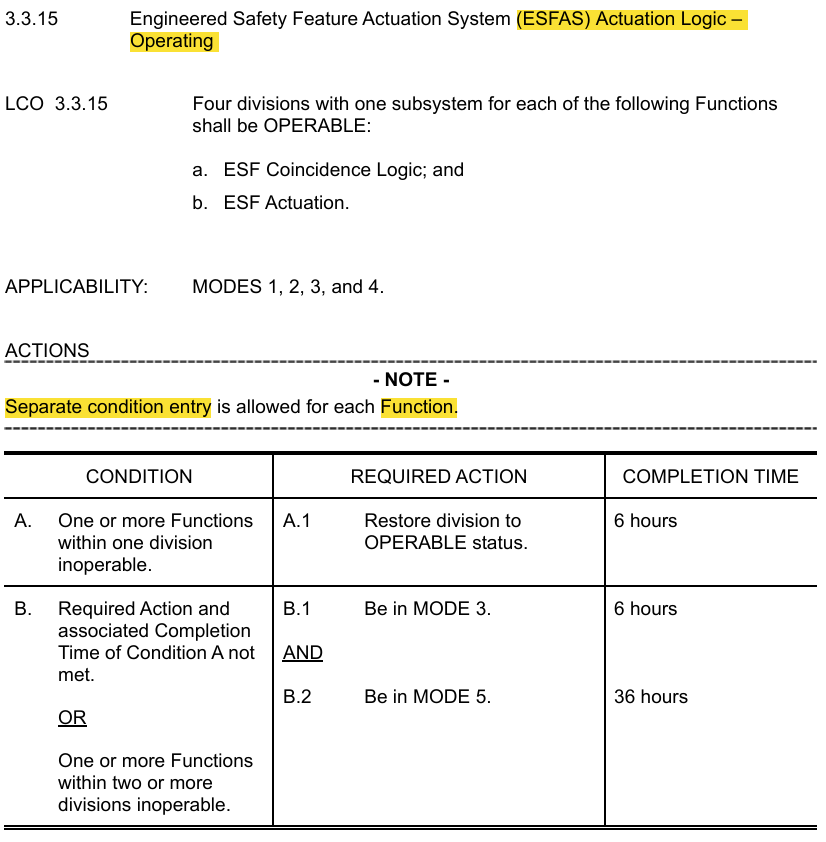

3.3.15 ESFAS Actuation Logic - Operating

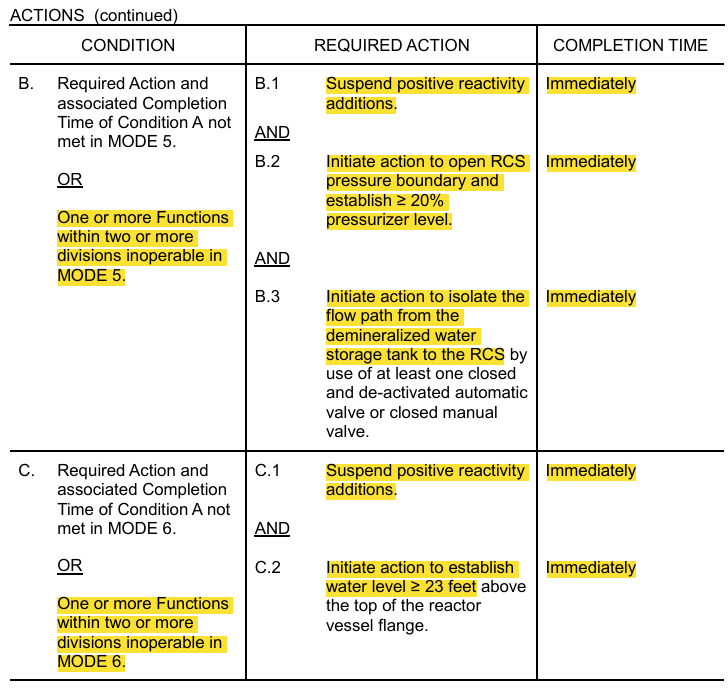

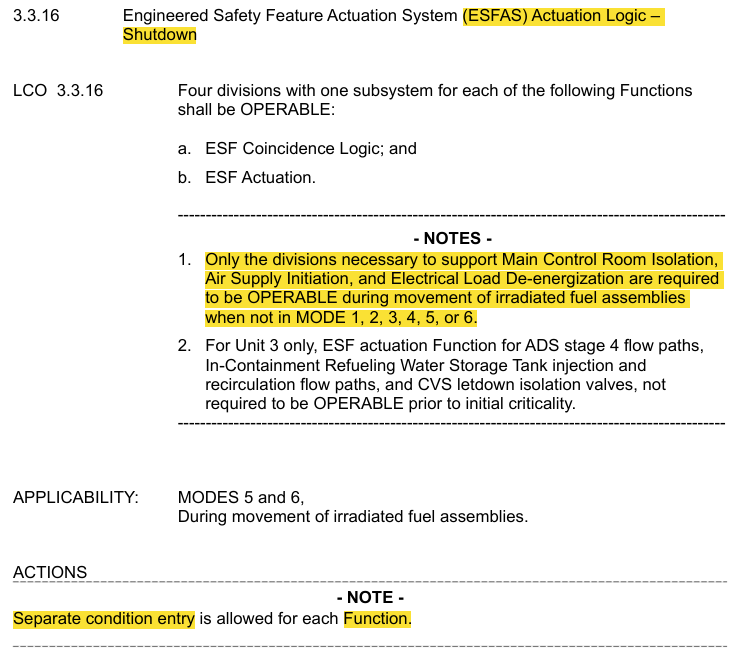

3.3.16 ESFAS Actuation Logic - Shutdown

Not pictured:

During movement of Fuel, immediately suspend moving fuel

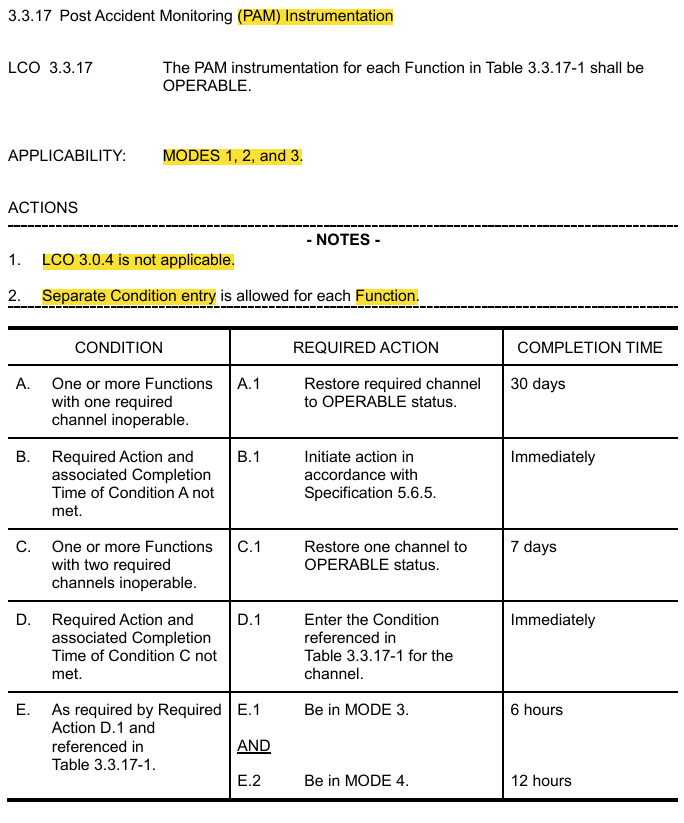

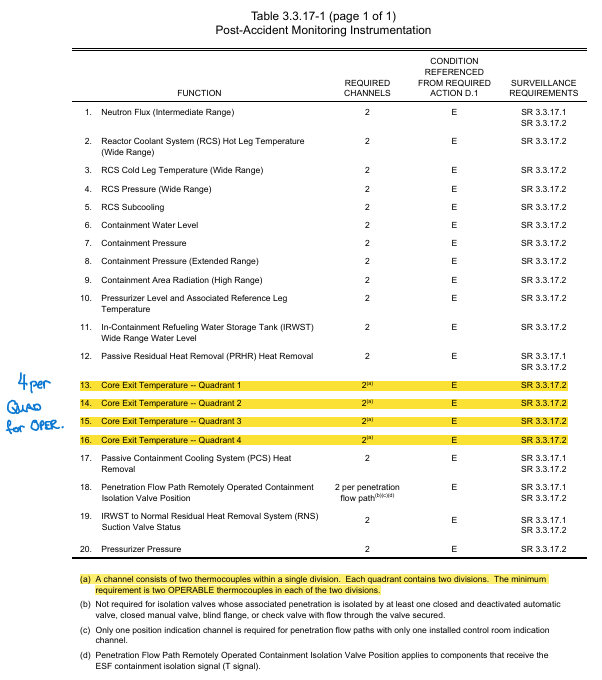

3.3.17 PAM Instrumentation

Table

Bases

Lowest Level operable combined with standpipe and flow instrument thingy

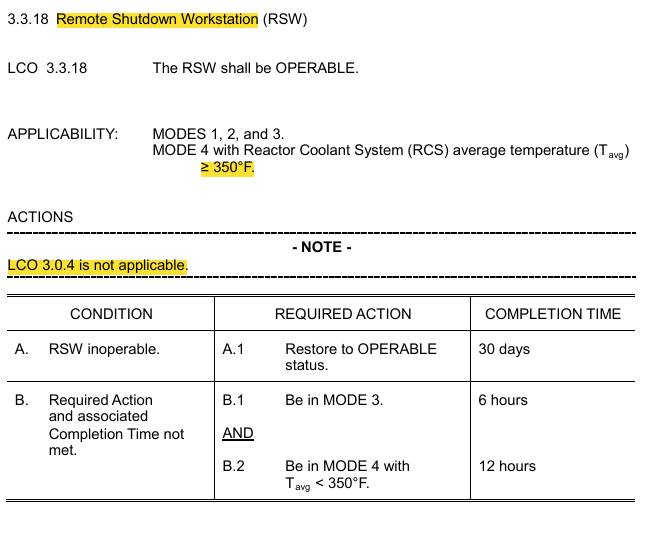

3.3.18 Remote Shutdown Workstation (RSW)

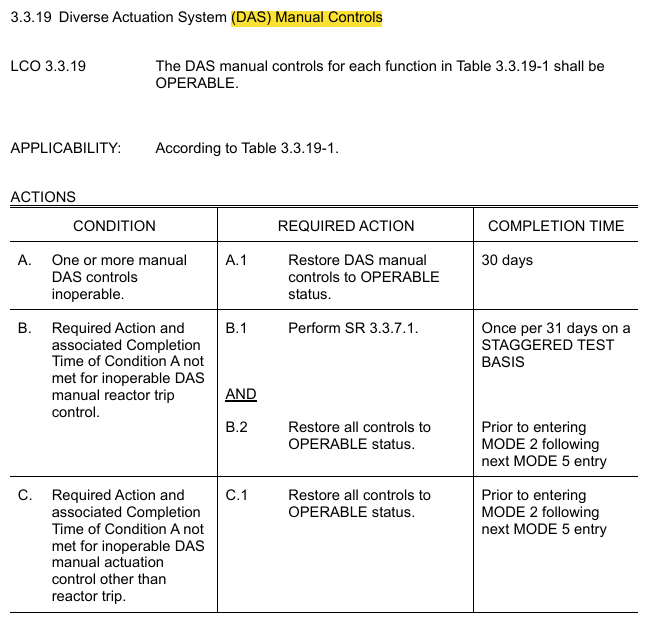

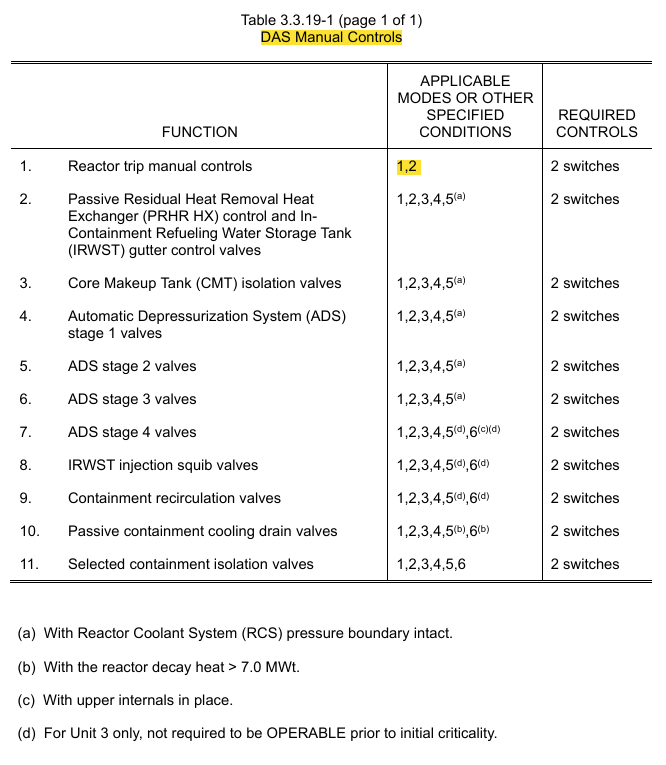

3.3.19 DAS Manual Controls

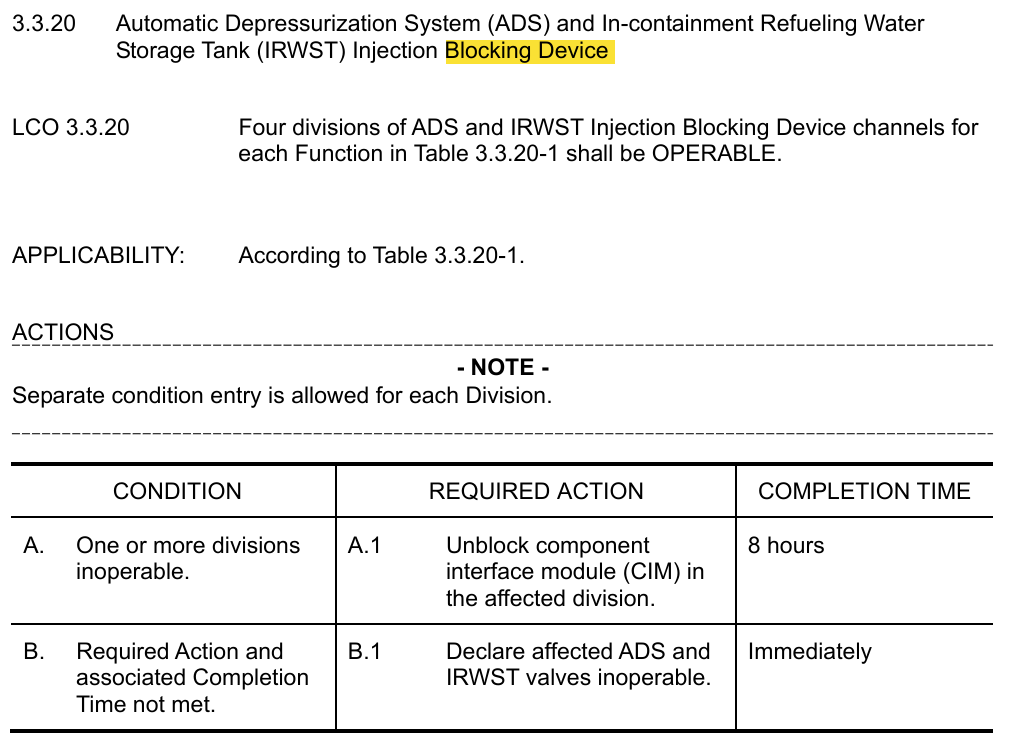

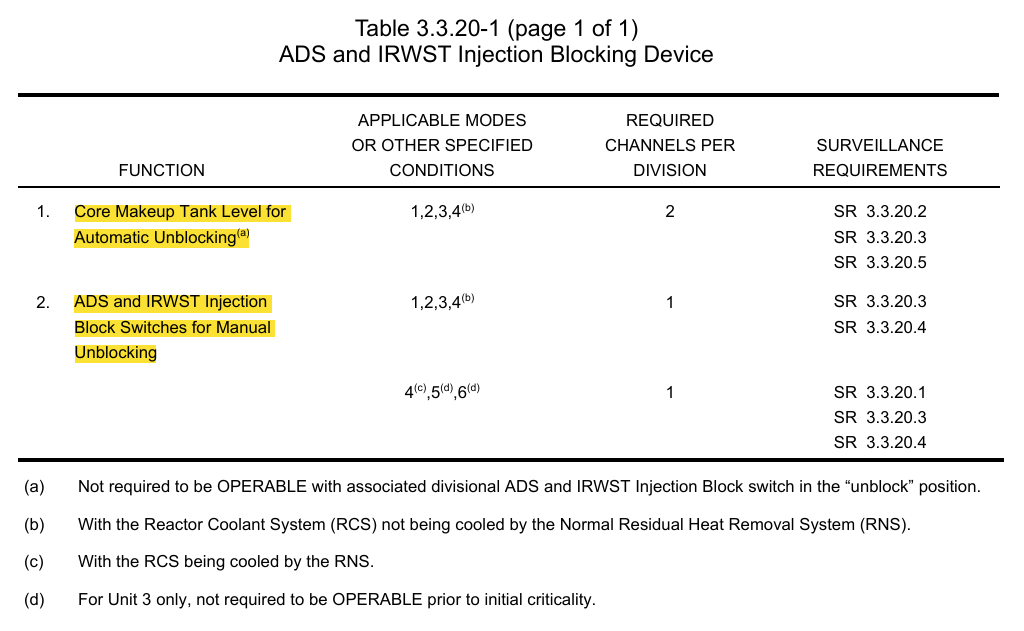

3.3.20 ADS and IRWST Injection Blocking Device

Table
