ANATOMY LAB Module 1

-cells, tissues, and anatomical directions, skeletal histology, axial skeleton, appendicular skeleton, integumentary

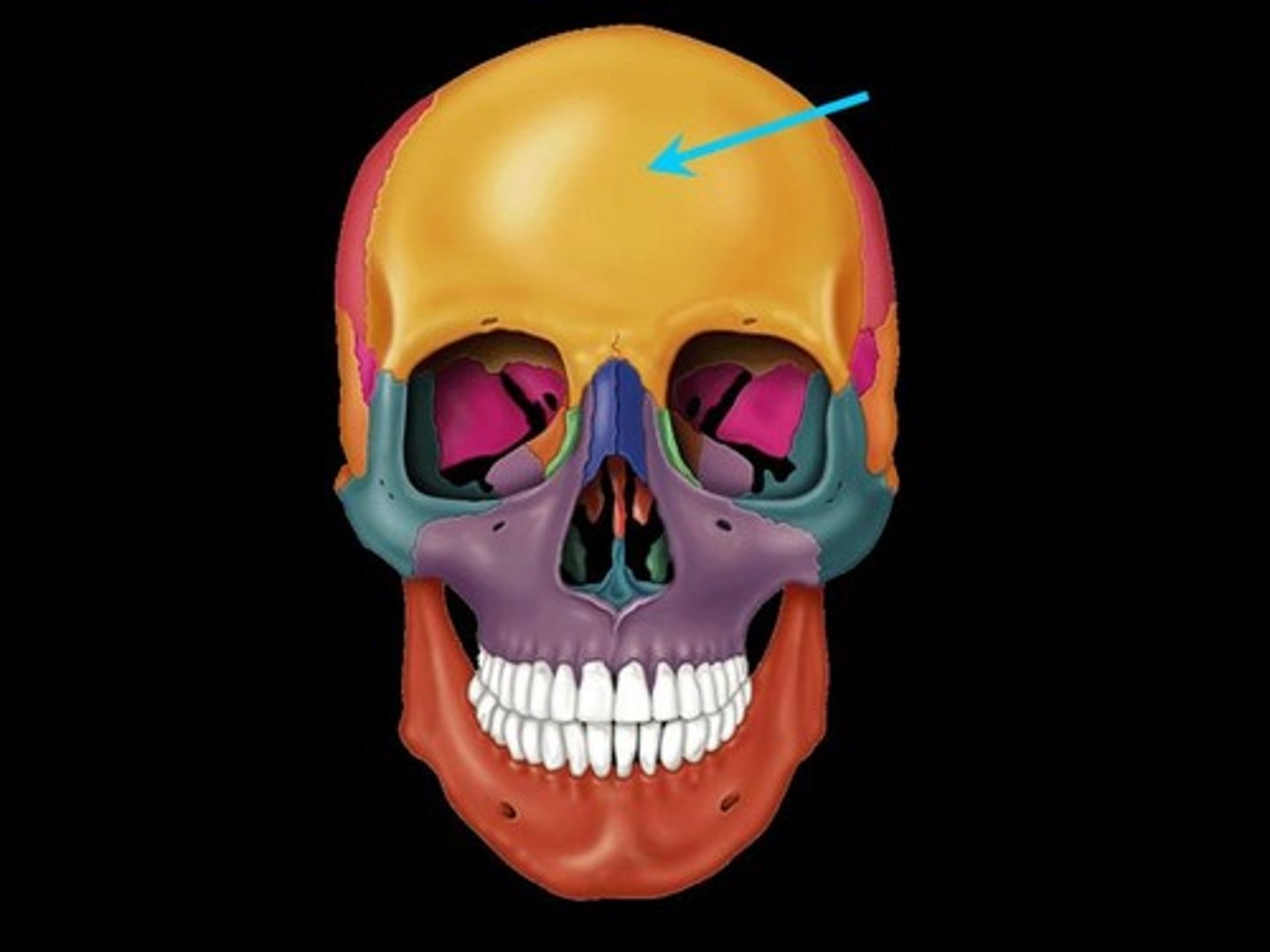

Frontal

Occipital

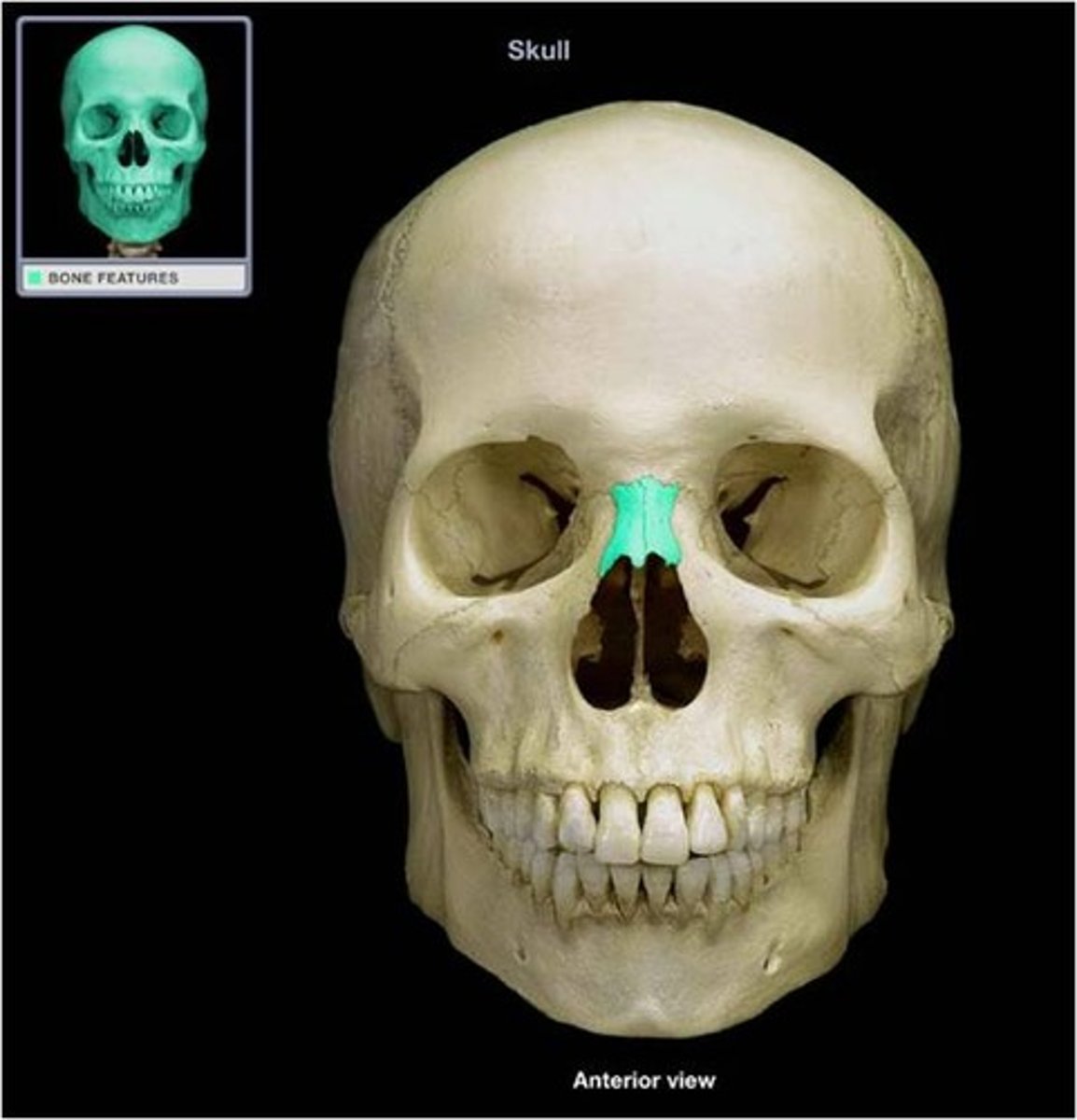

Nasal

forms the bridge of the nose

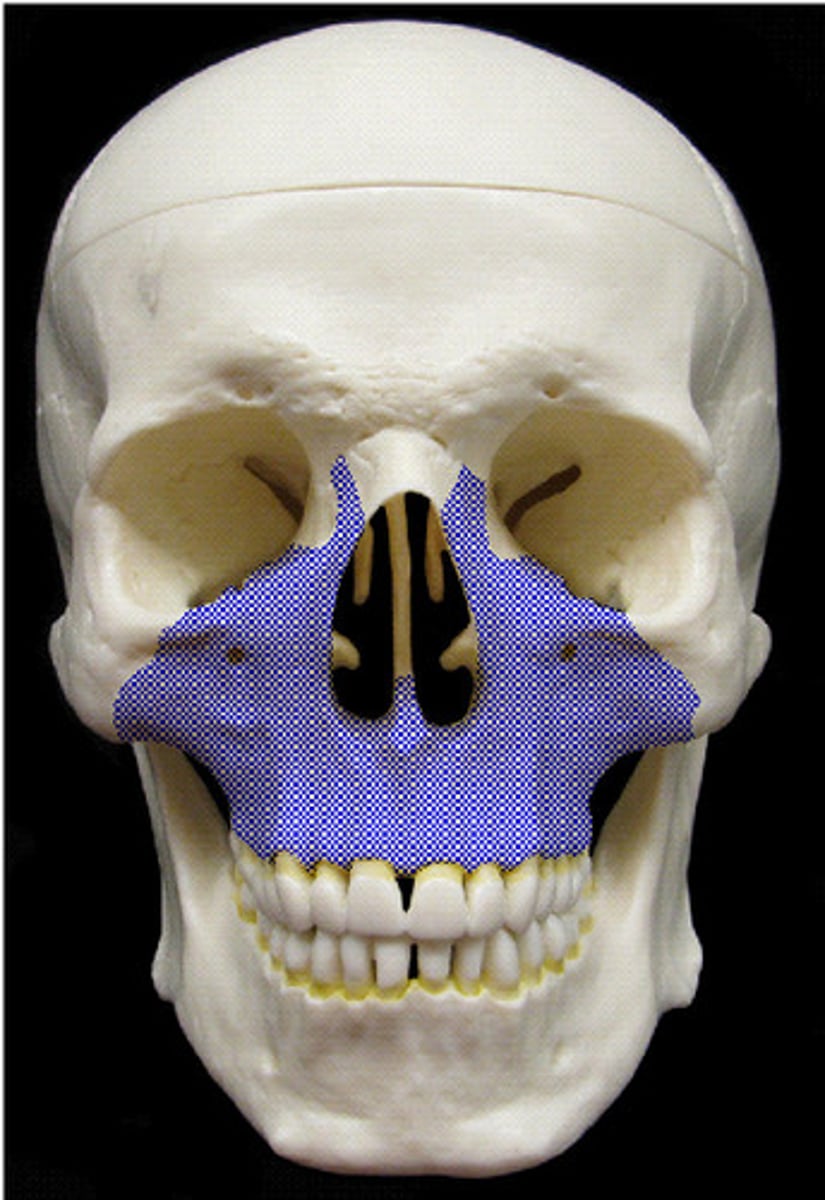

Maxilla

upper jaw

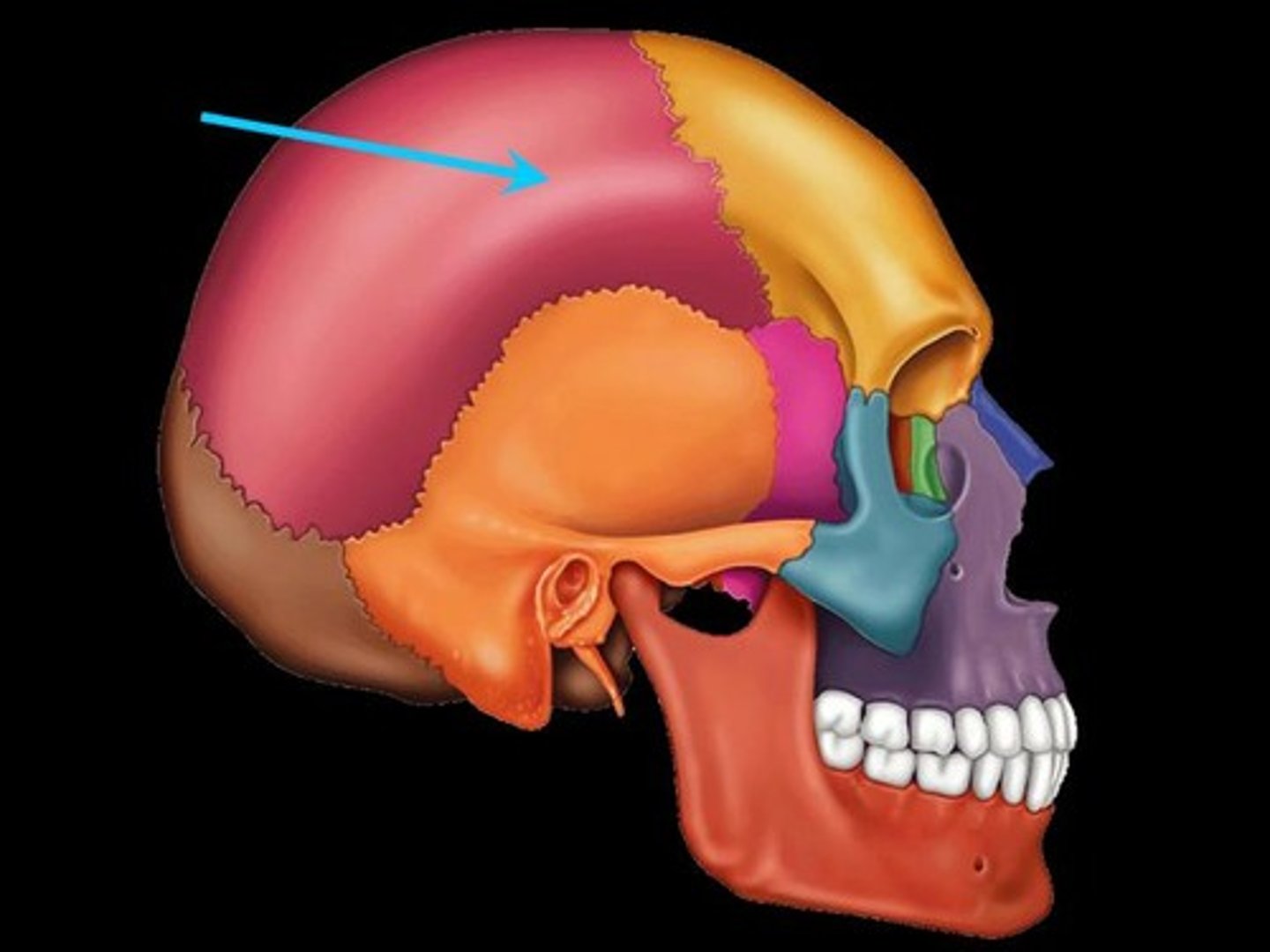

Parietal

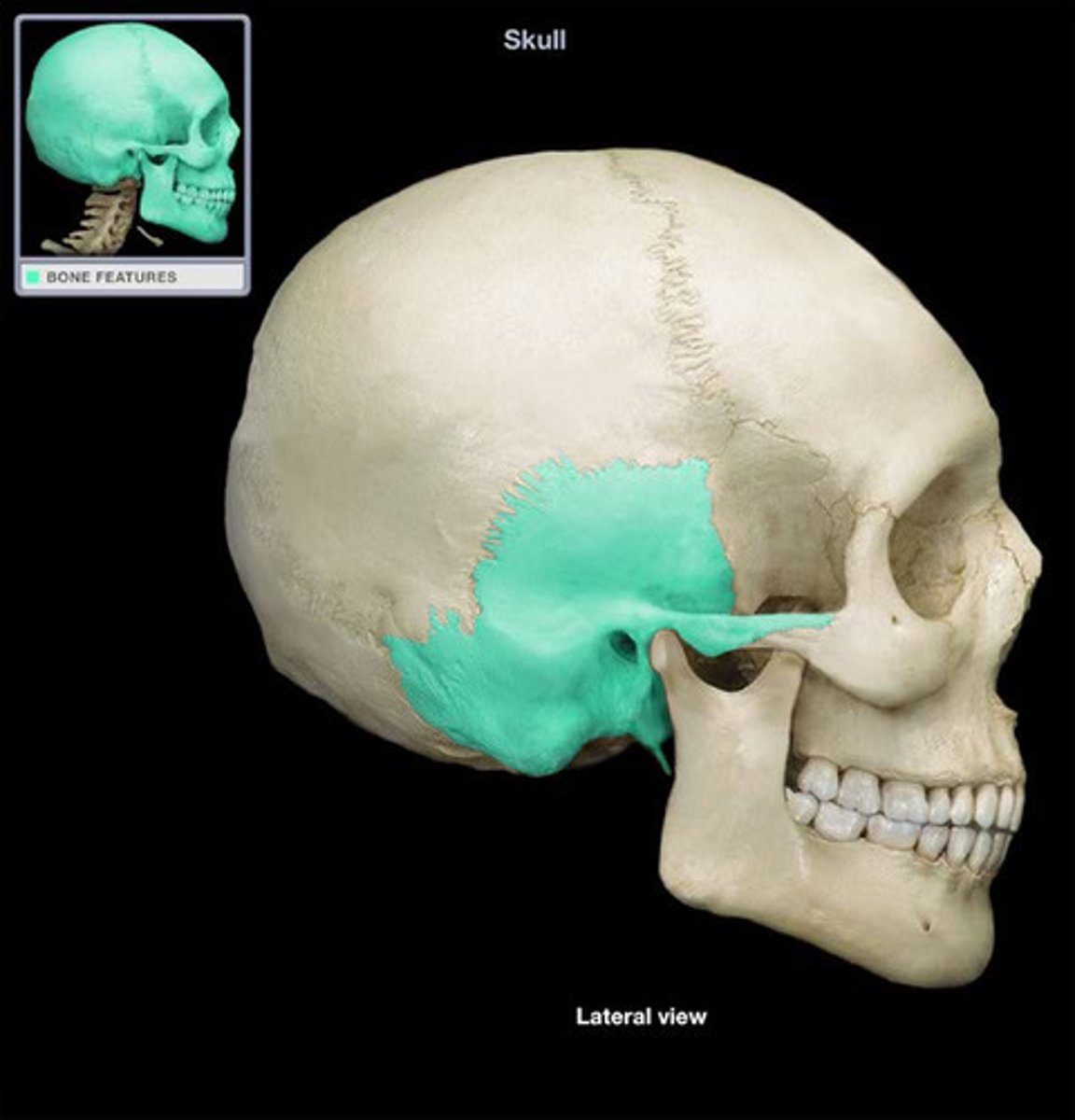

Temporal

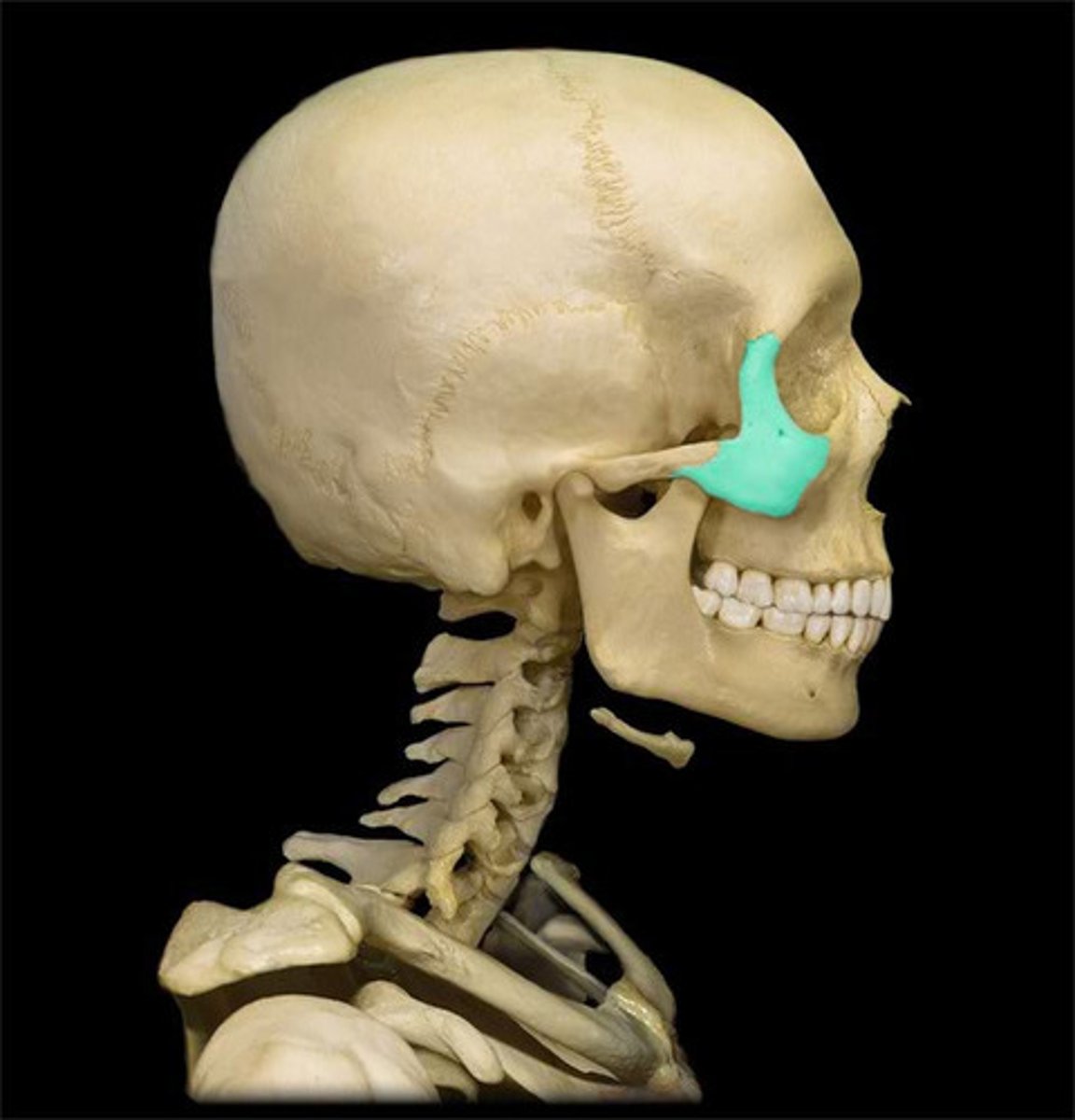

Zygomatic

Mandible

Sphenoid

external view

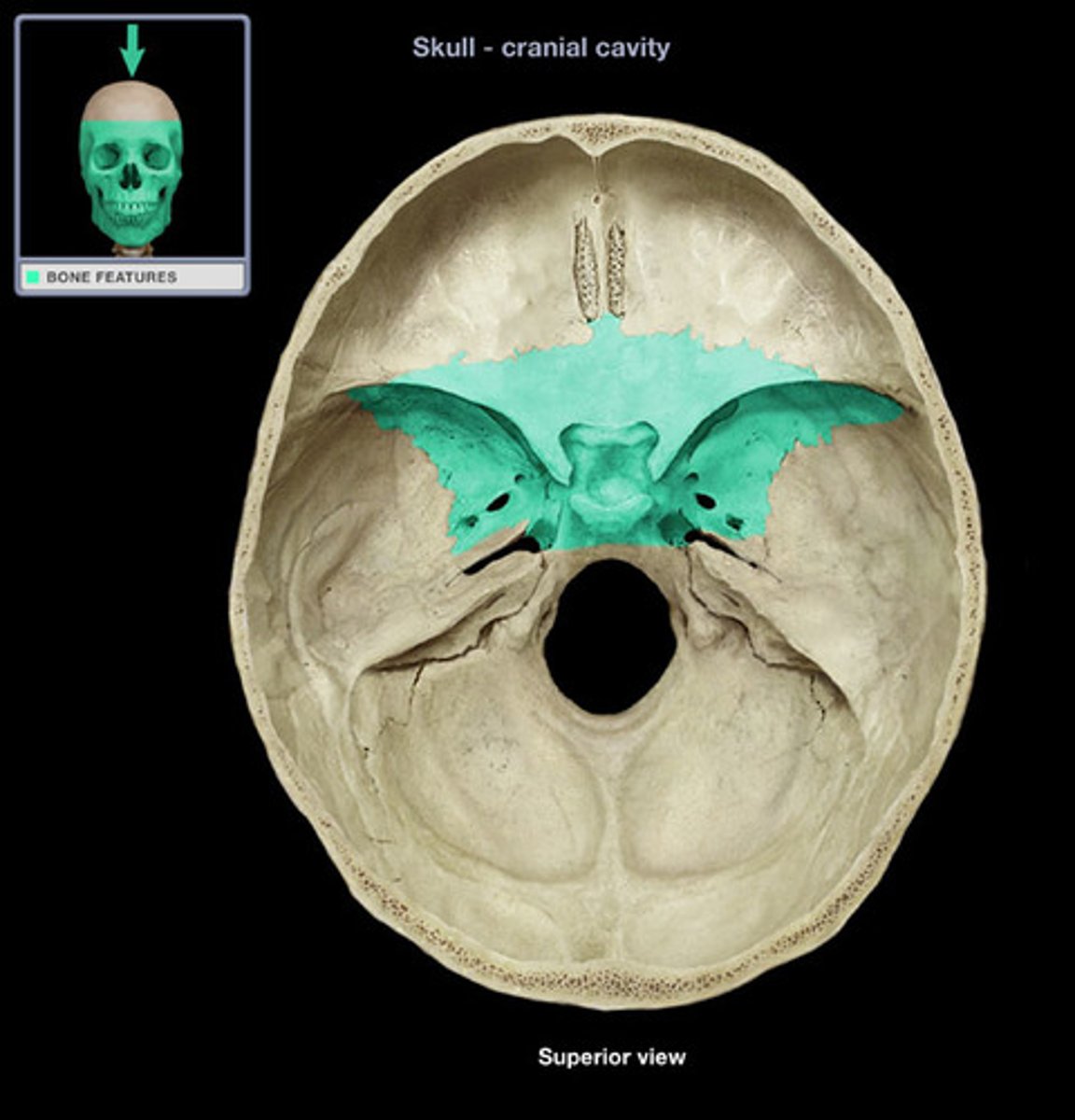

Sphenoid

internal view

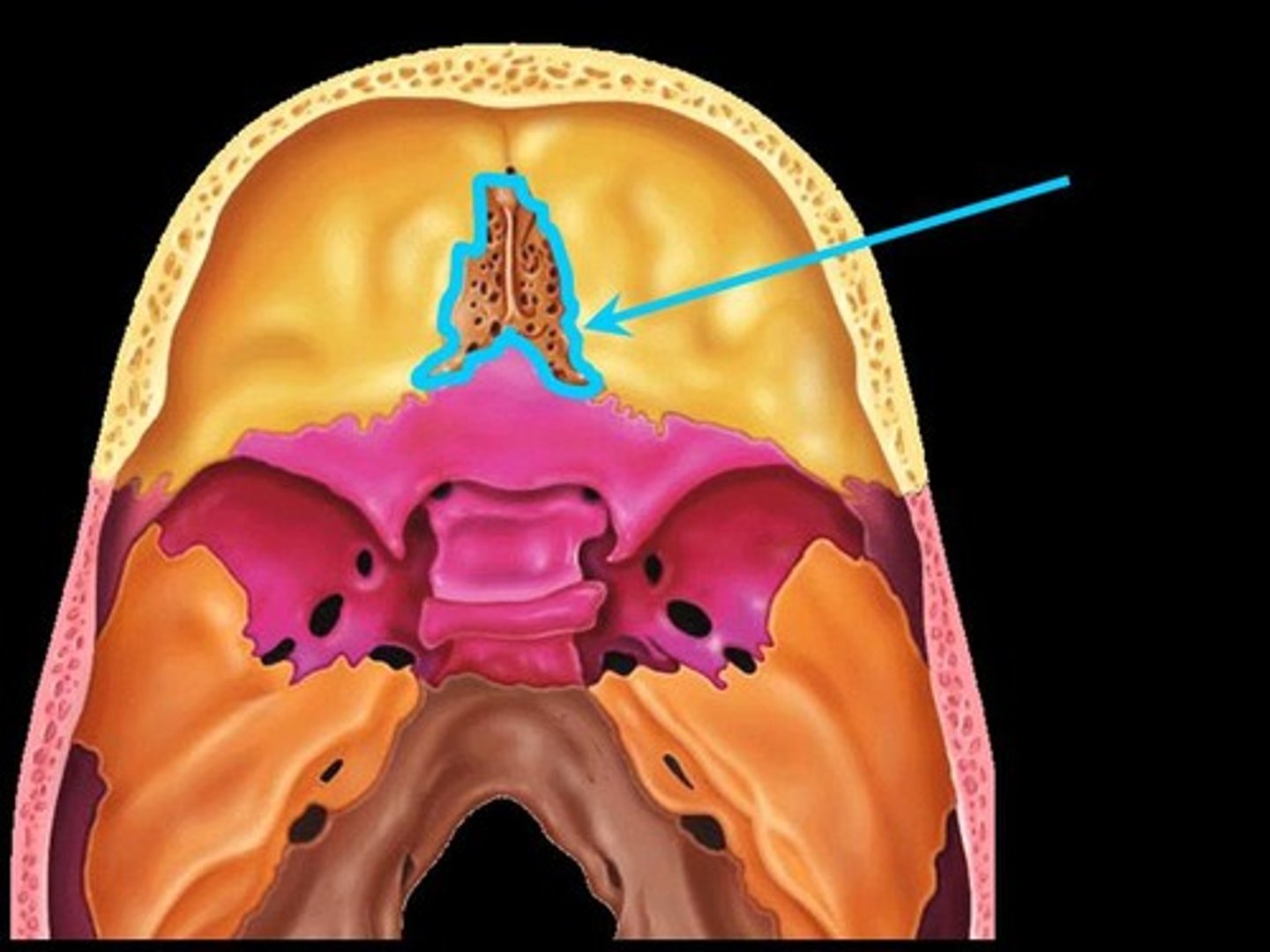

Ethmoid

internal view

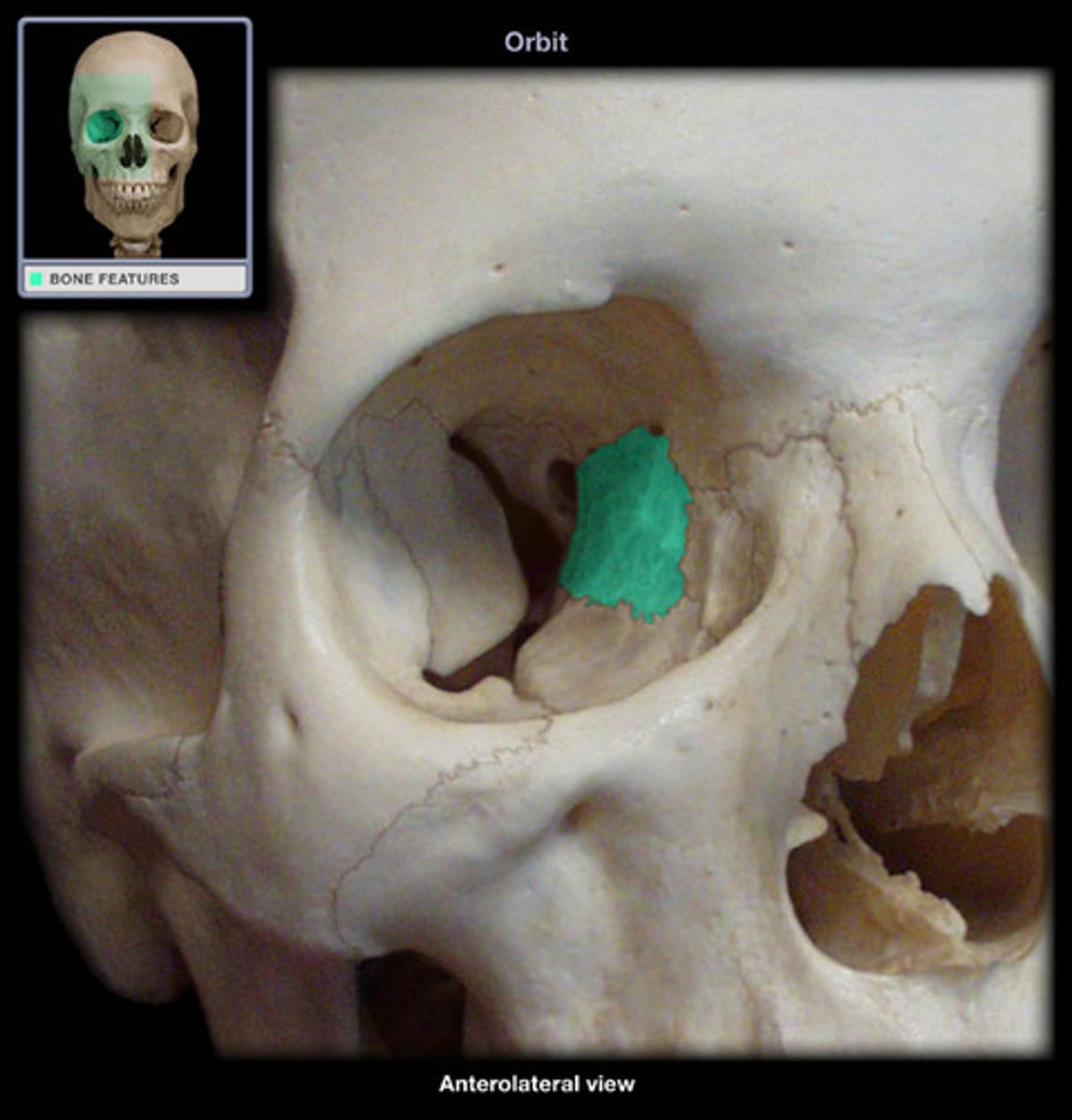

Ethmoid

external view

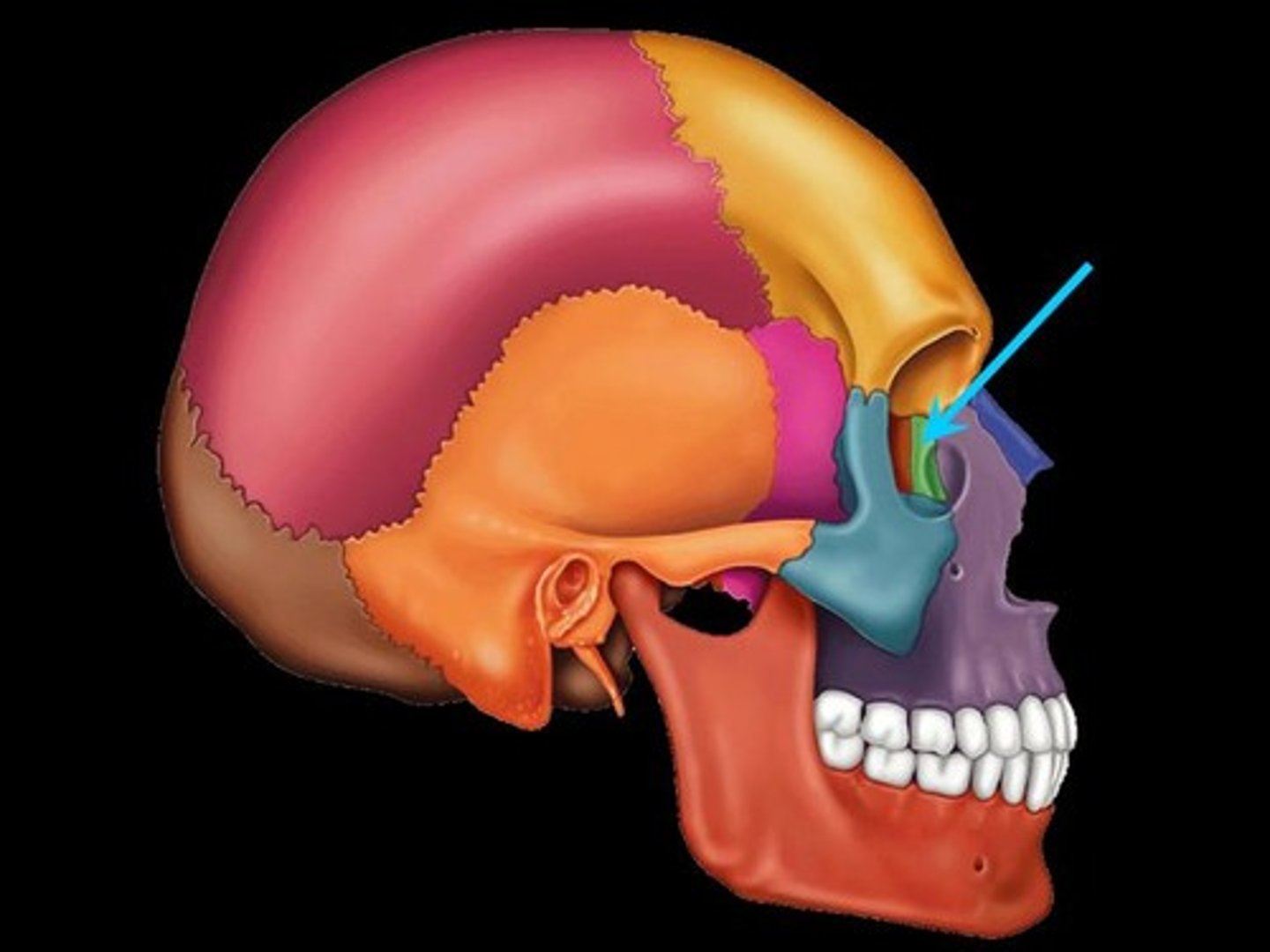

Lacrimal

easy to see from a LATERAL perspective

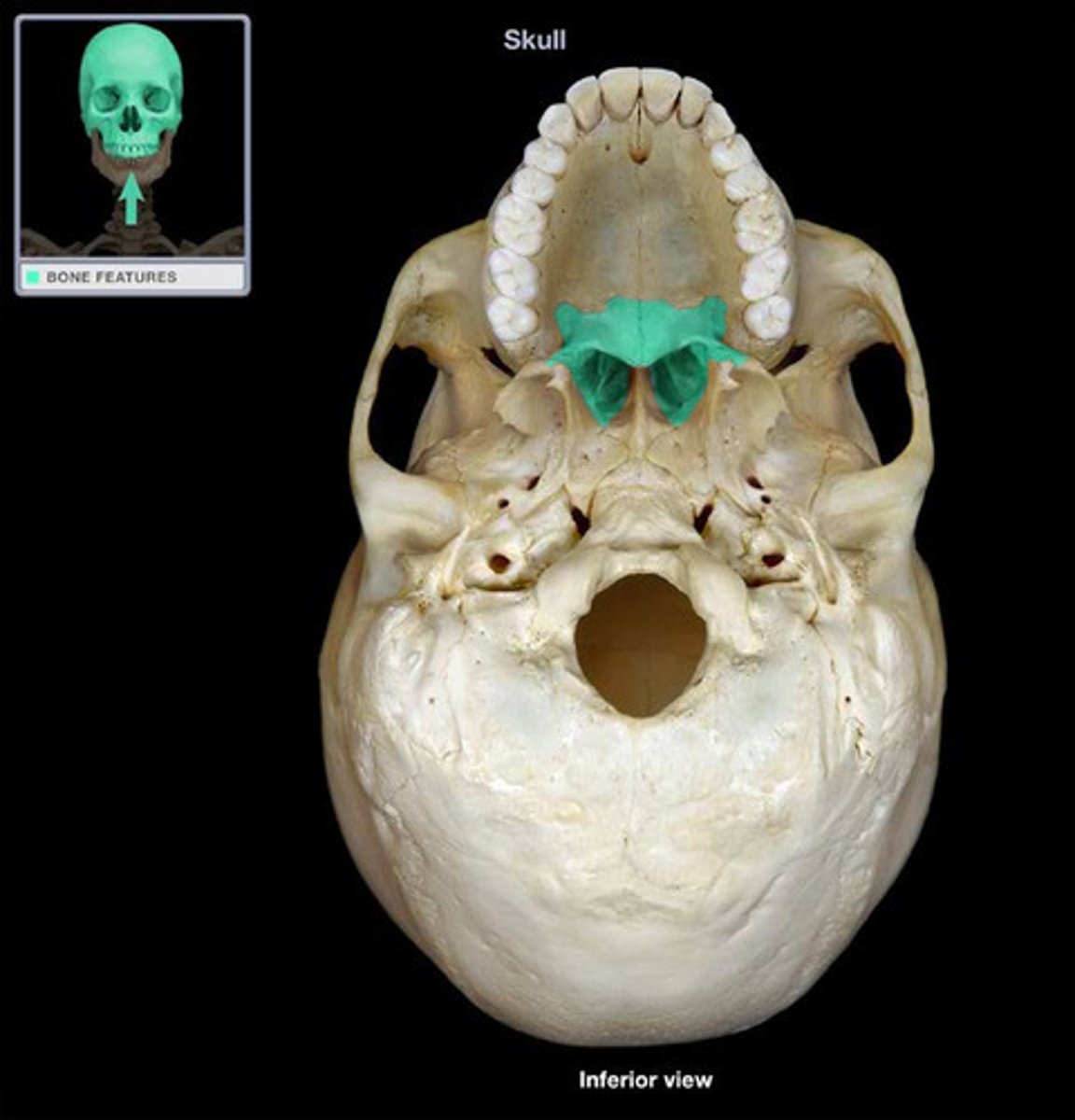

Palatine

Makes up the posterior roof of the mouth

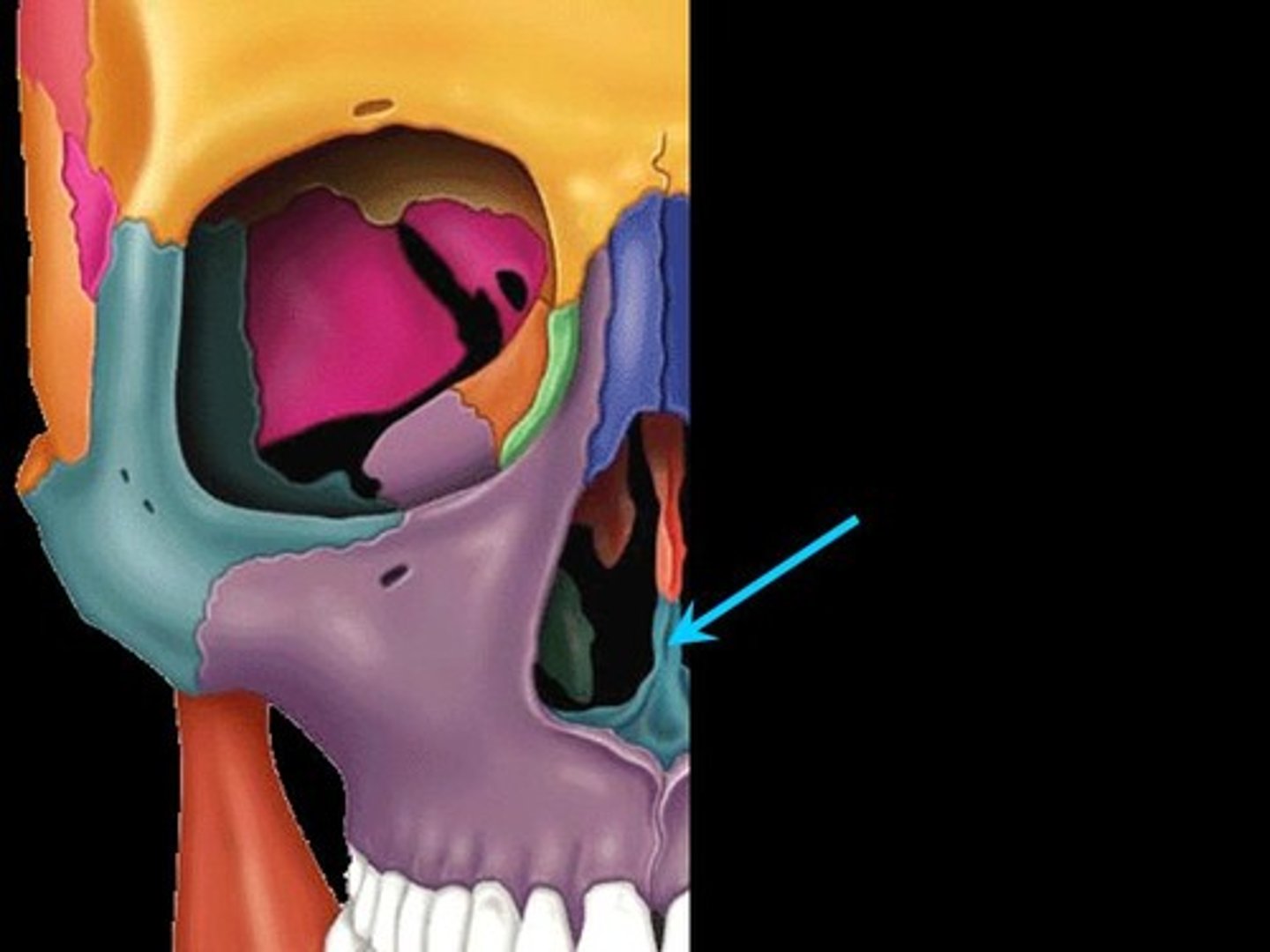

Vomer

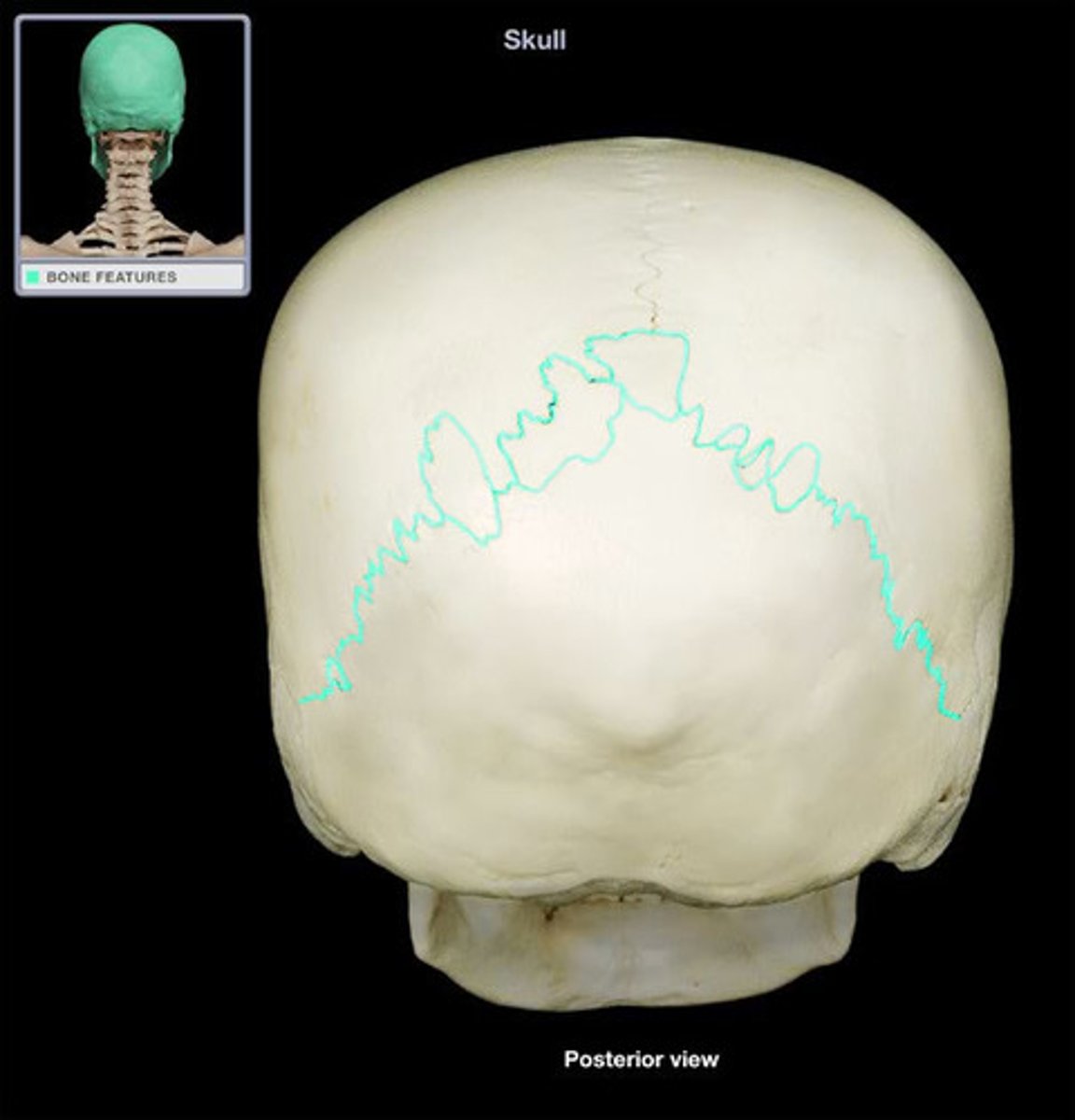

lambdoid suture

between parietal bones and occipital bone

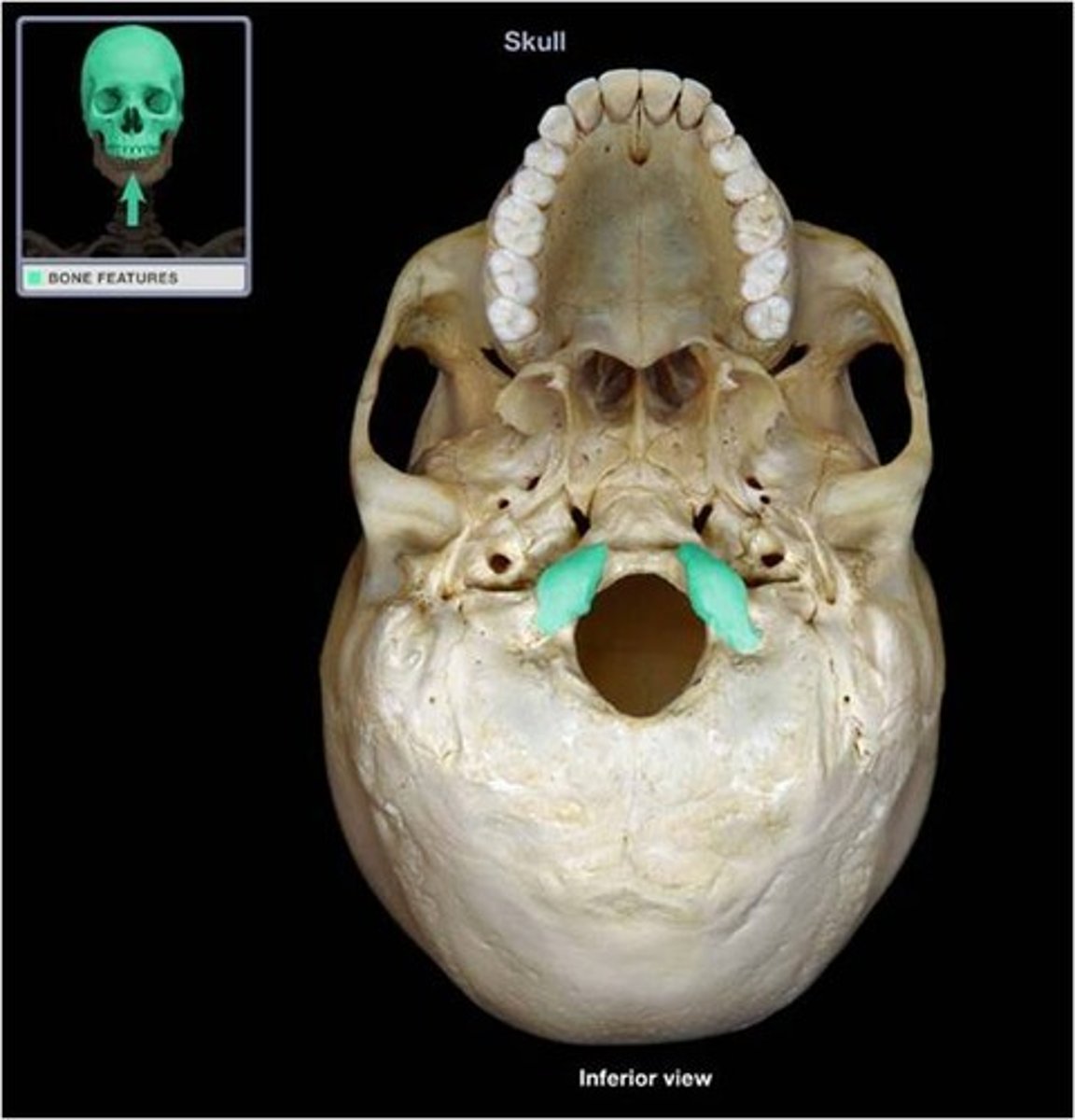

occipital condyles

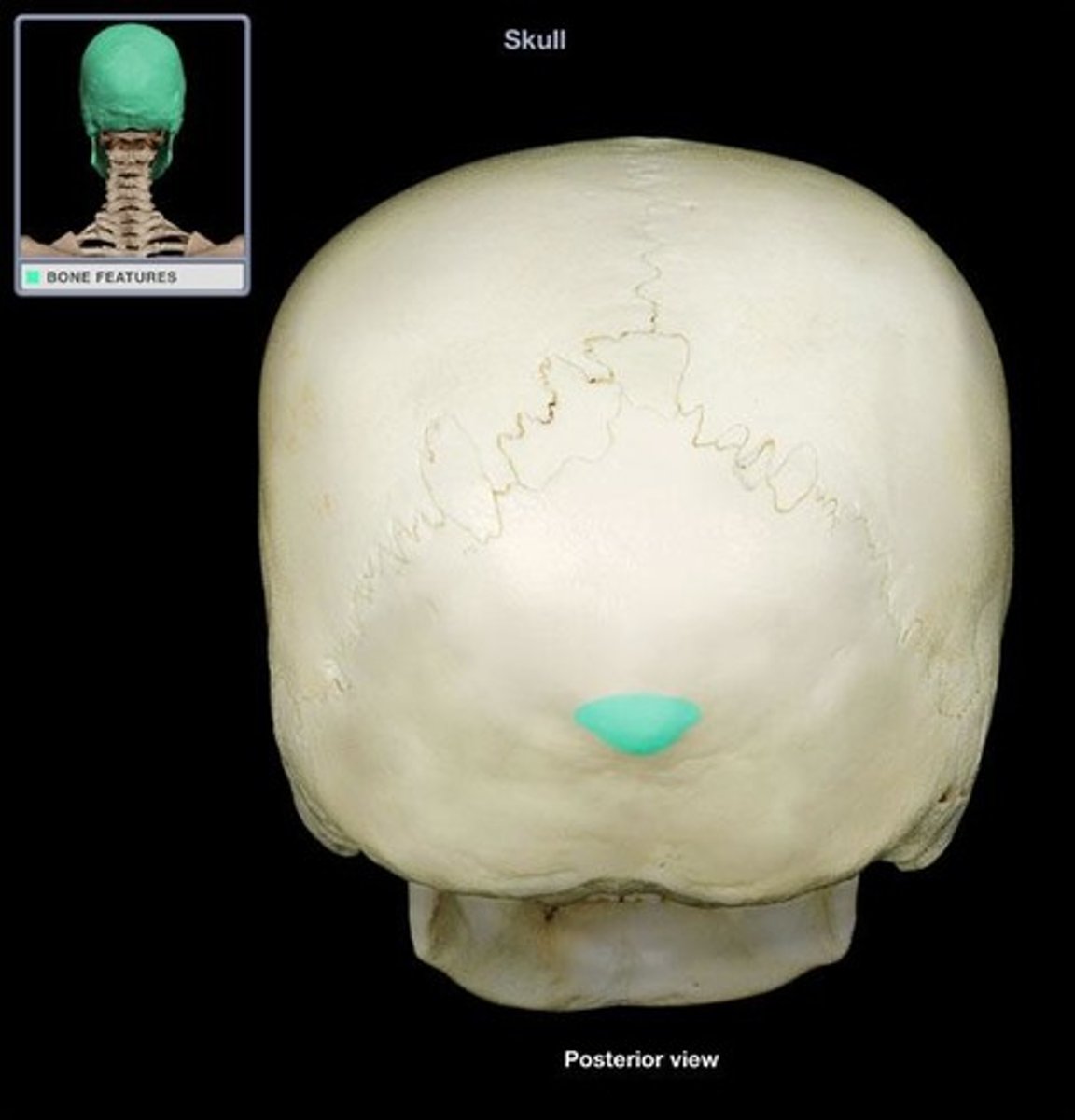

external occipital protuberance

foramen magnum

hypoglossal canal

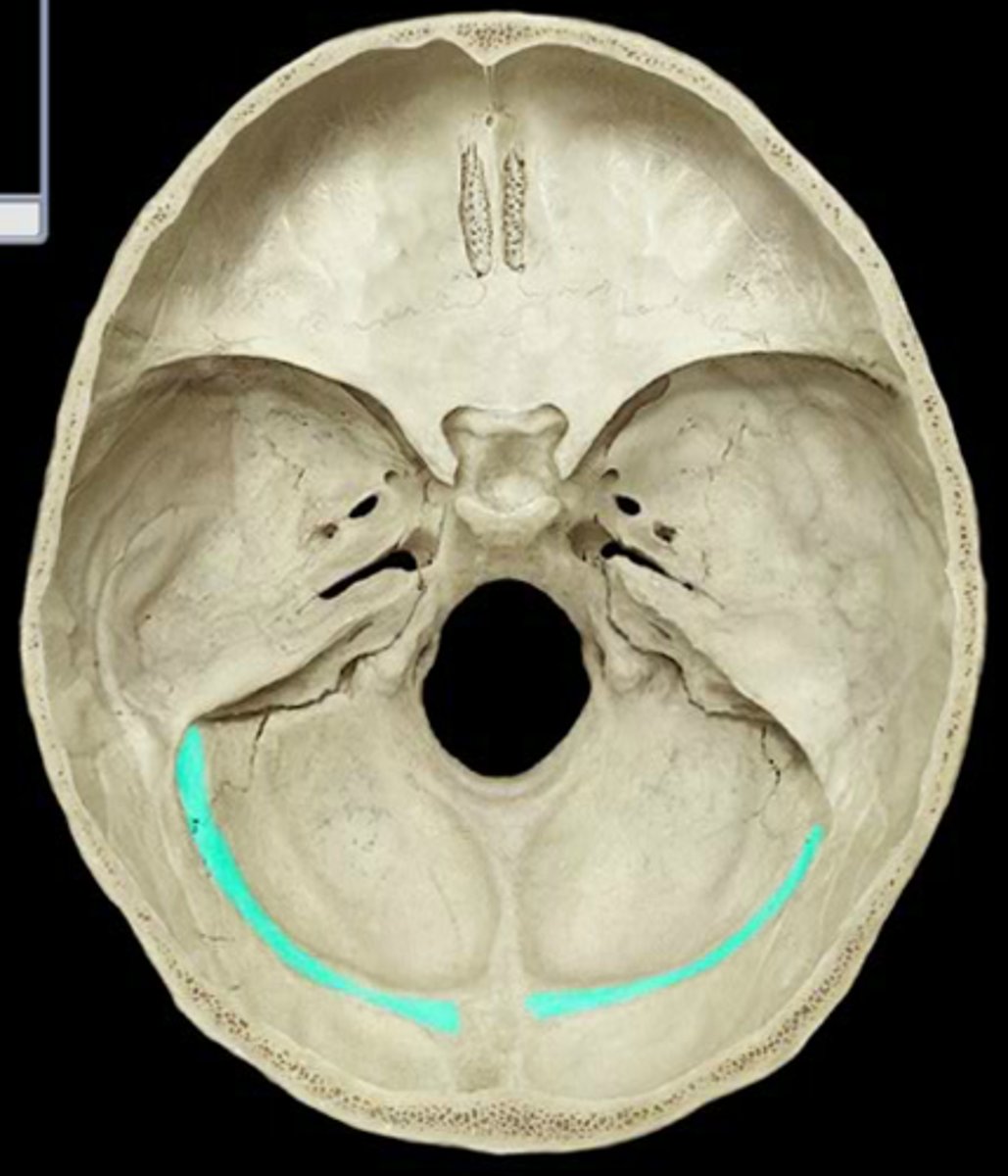

groove for transverse sinus

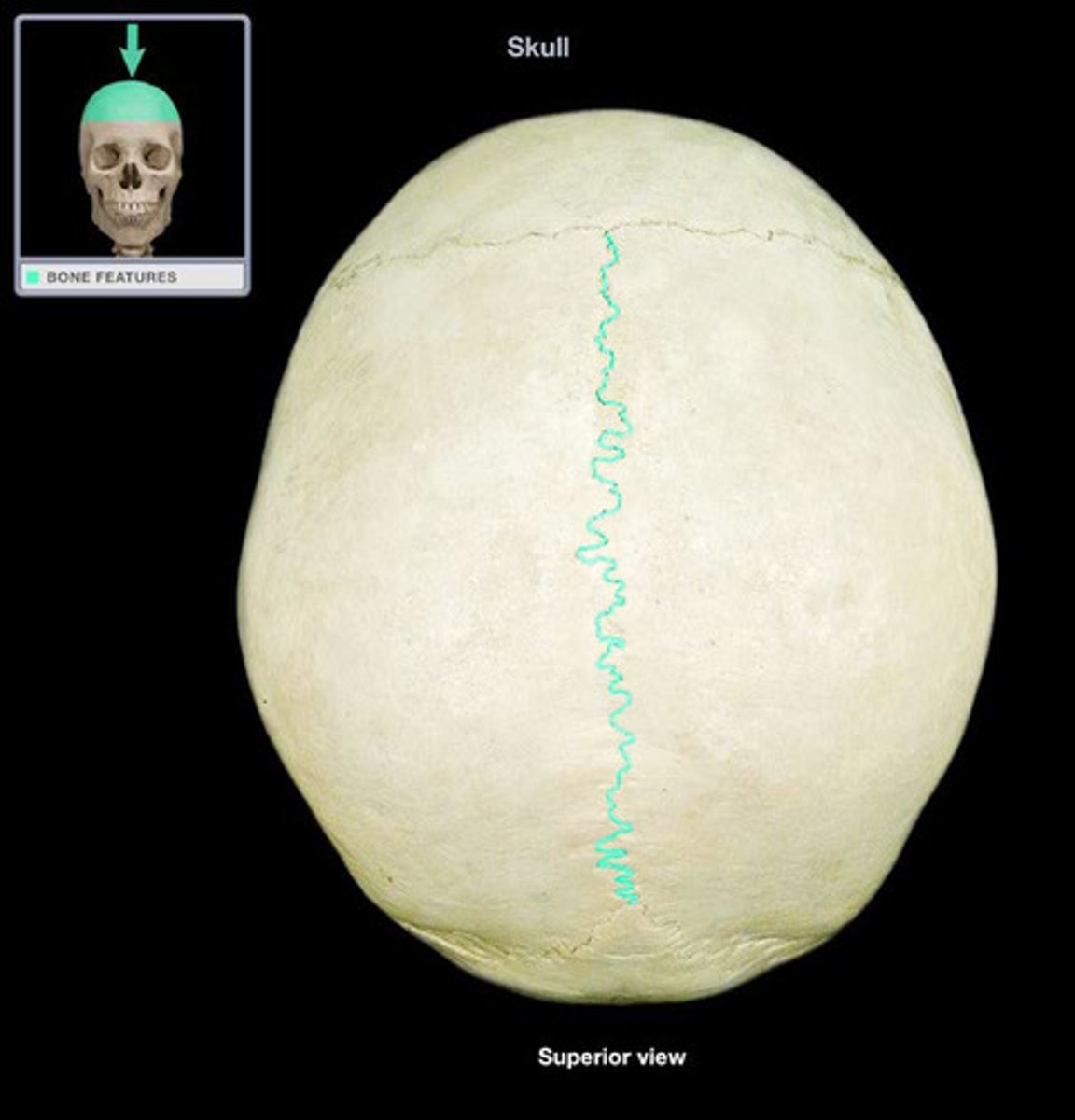

sagittal suture

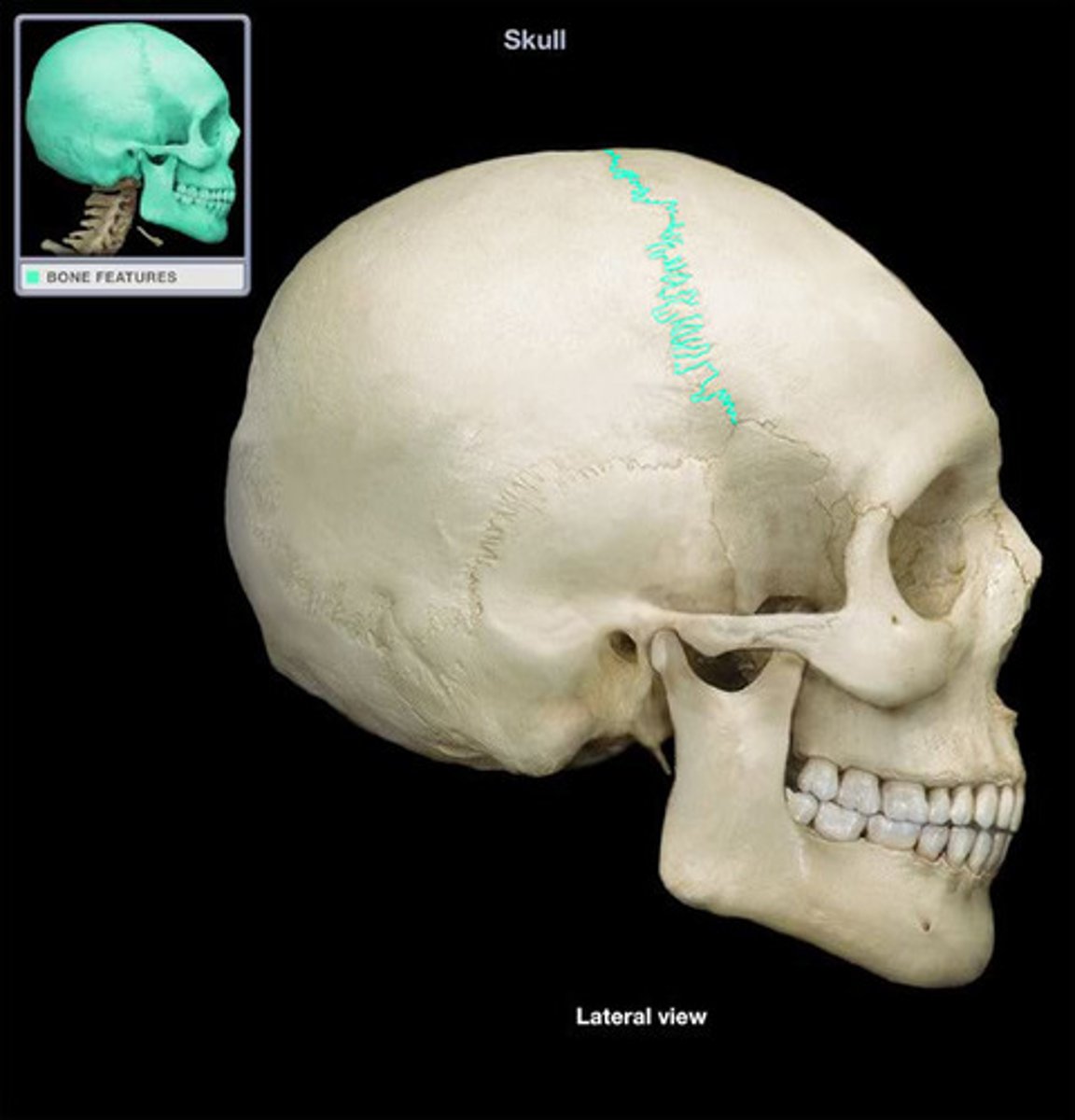

coronal suture

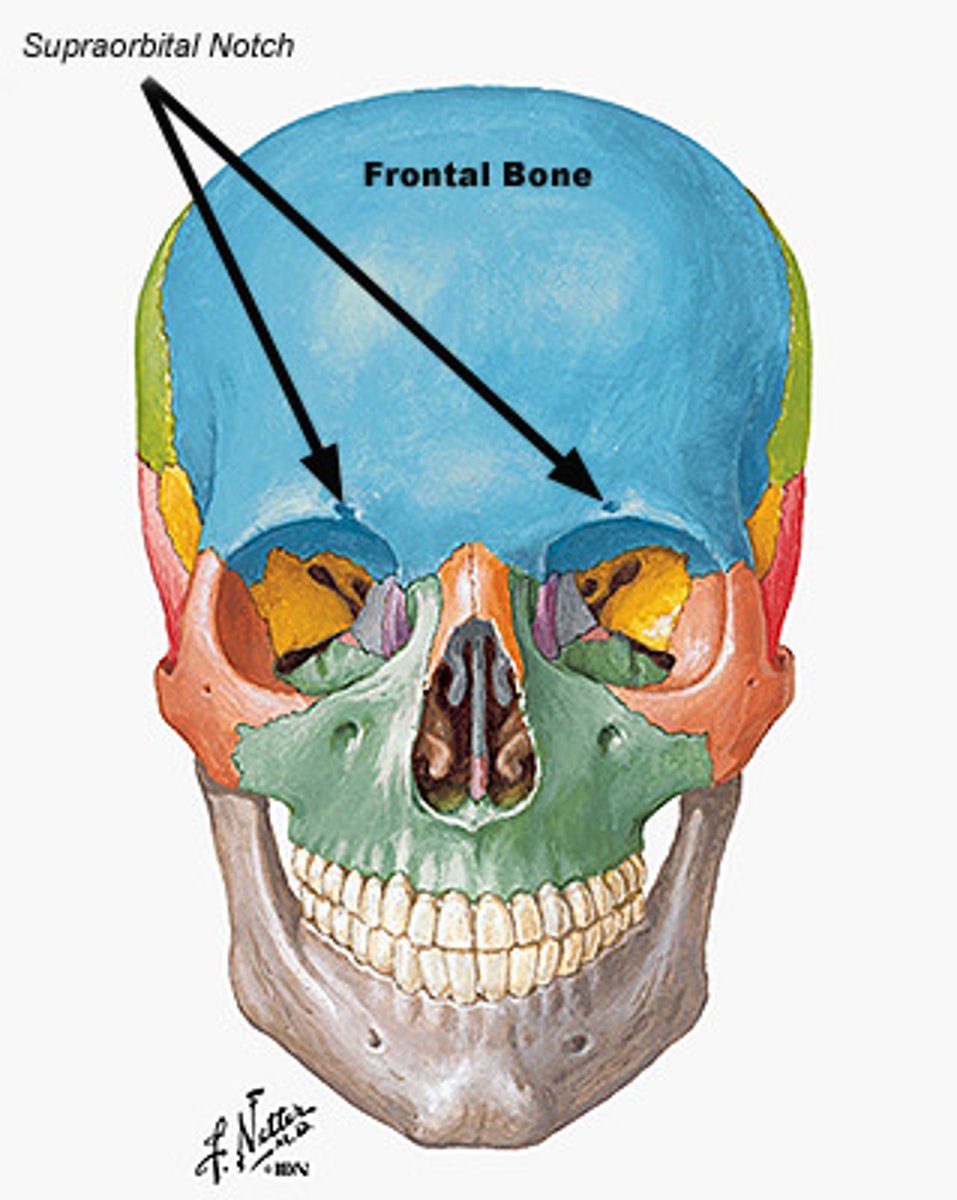

supraorbital foramen (notch)

squamosal suture

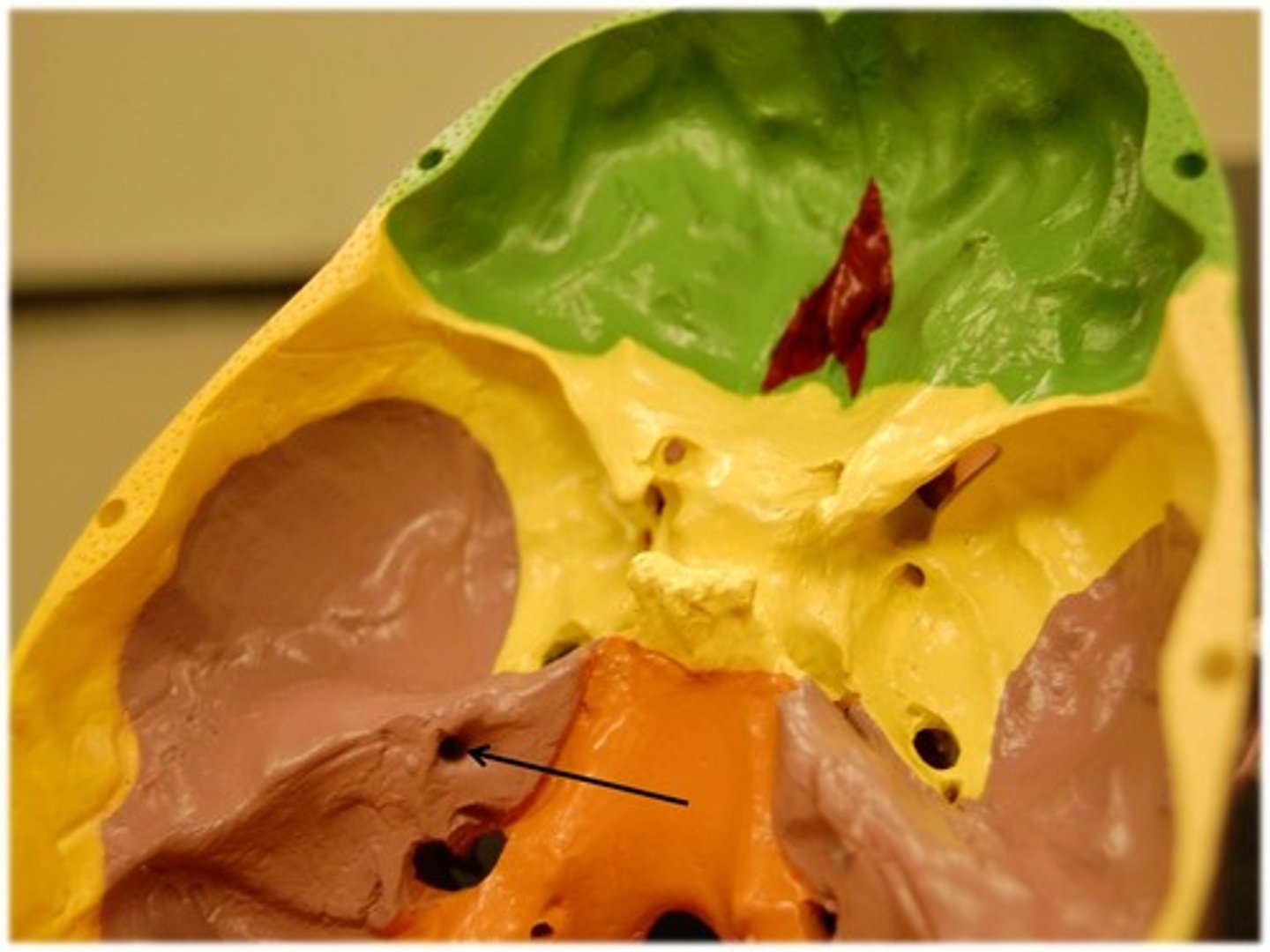

internal auditory meatus

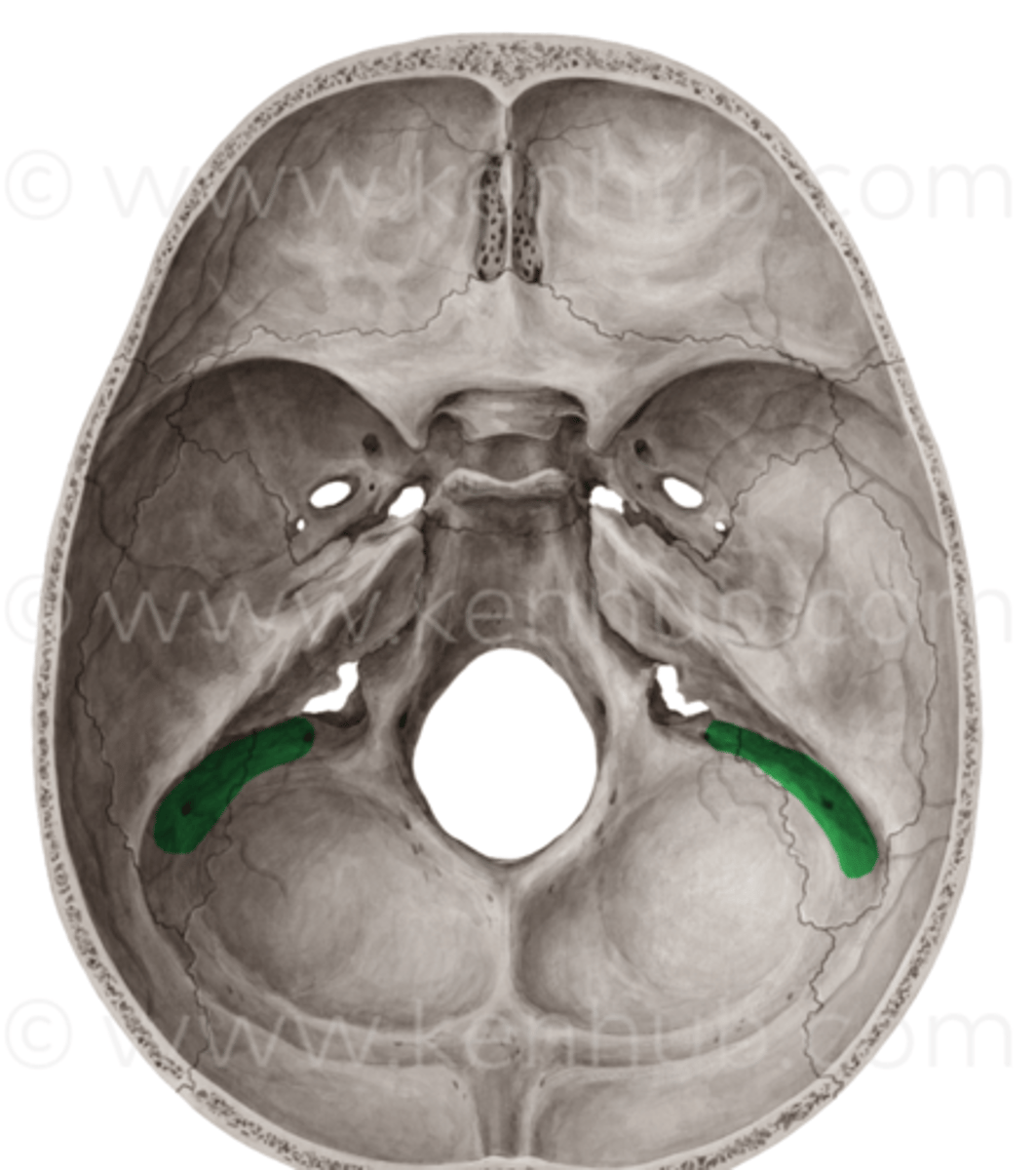

groove for sigmoid sinus

petrous portion

raised portion on top section of skull towards bottom

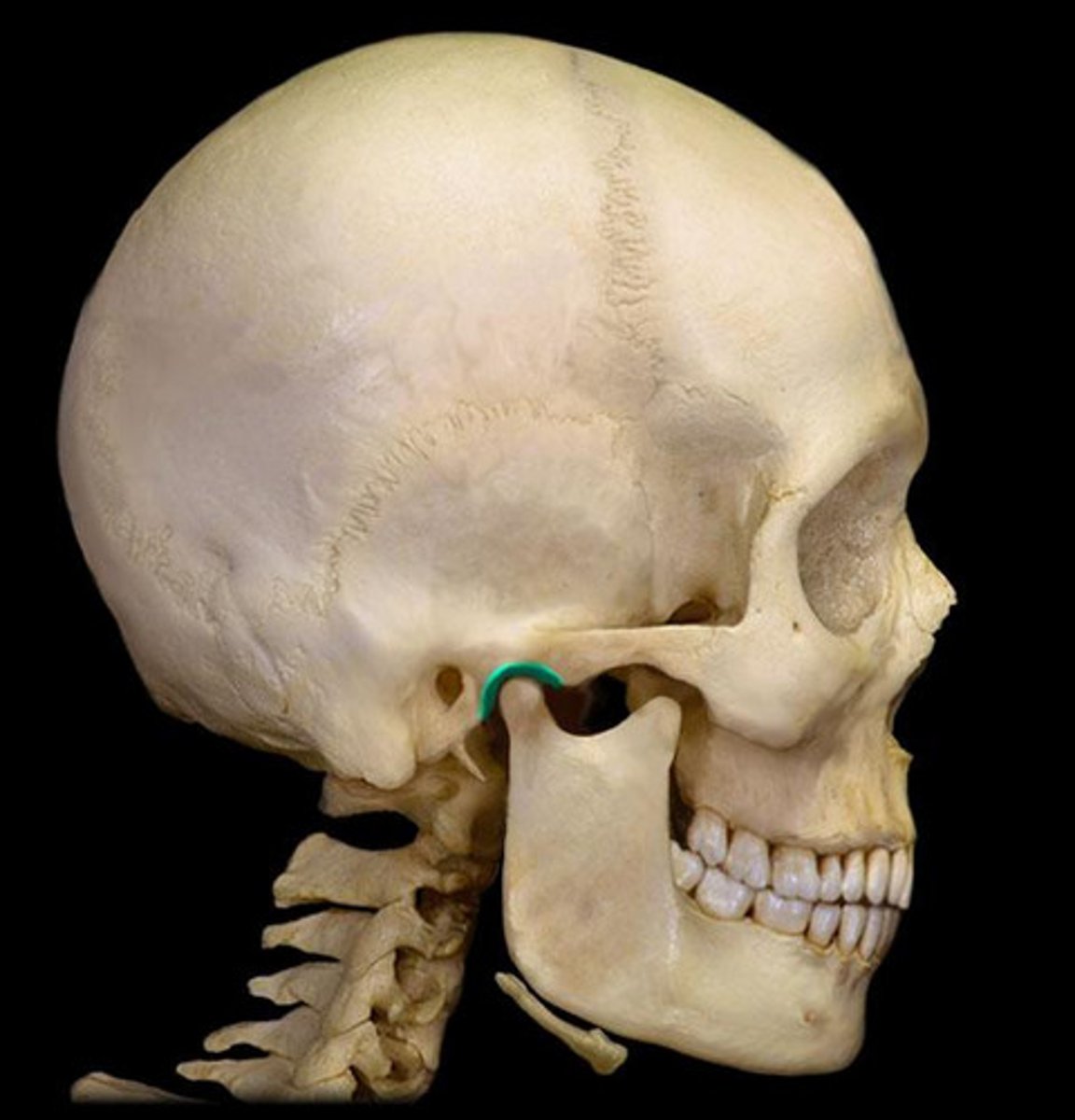

mandibular fossa

the depression in the temporal bone into which the condyle of the mandible fits

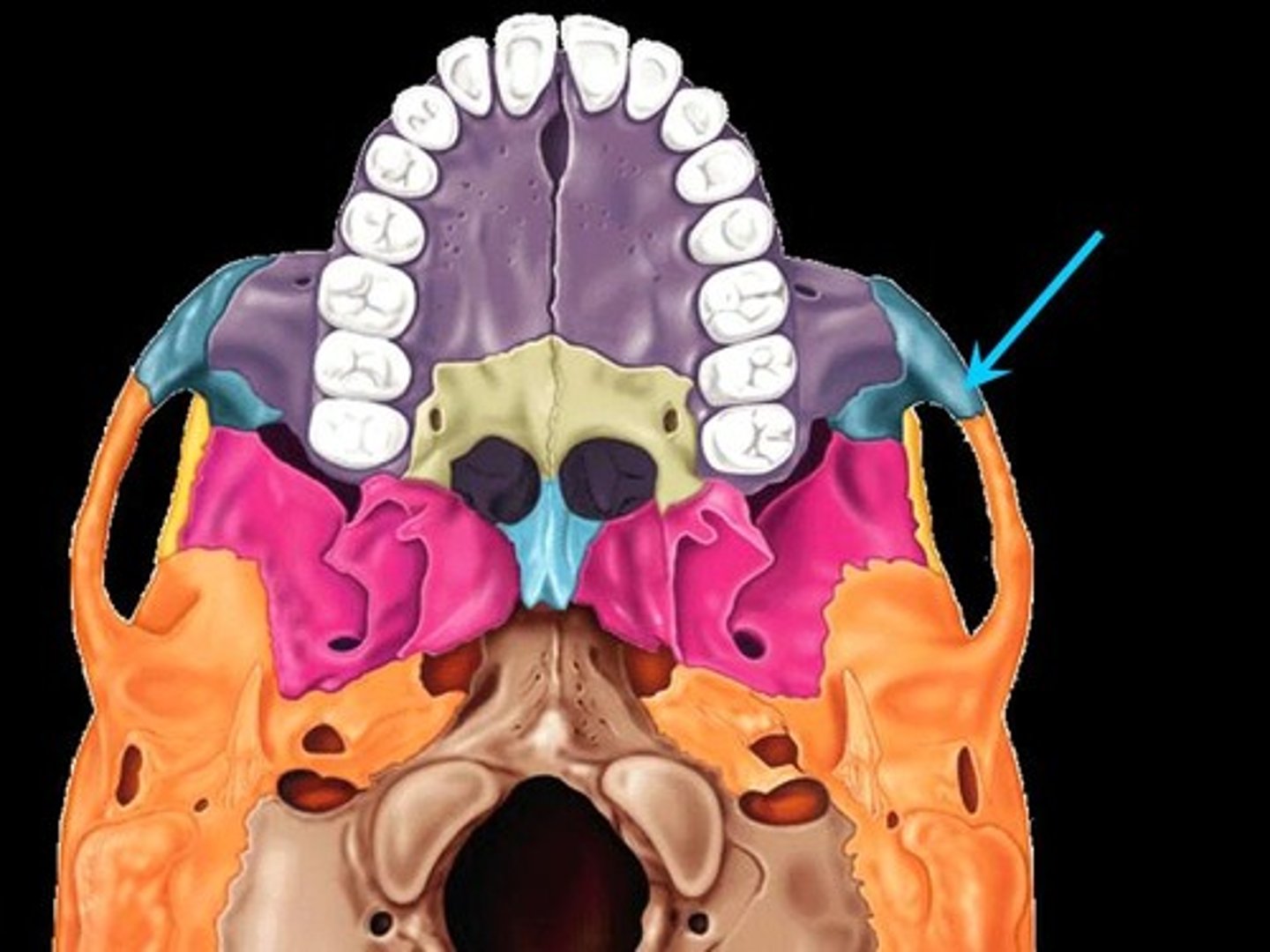

zygomatic process

BLANK of the temporal bone

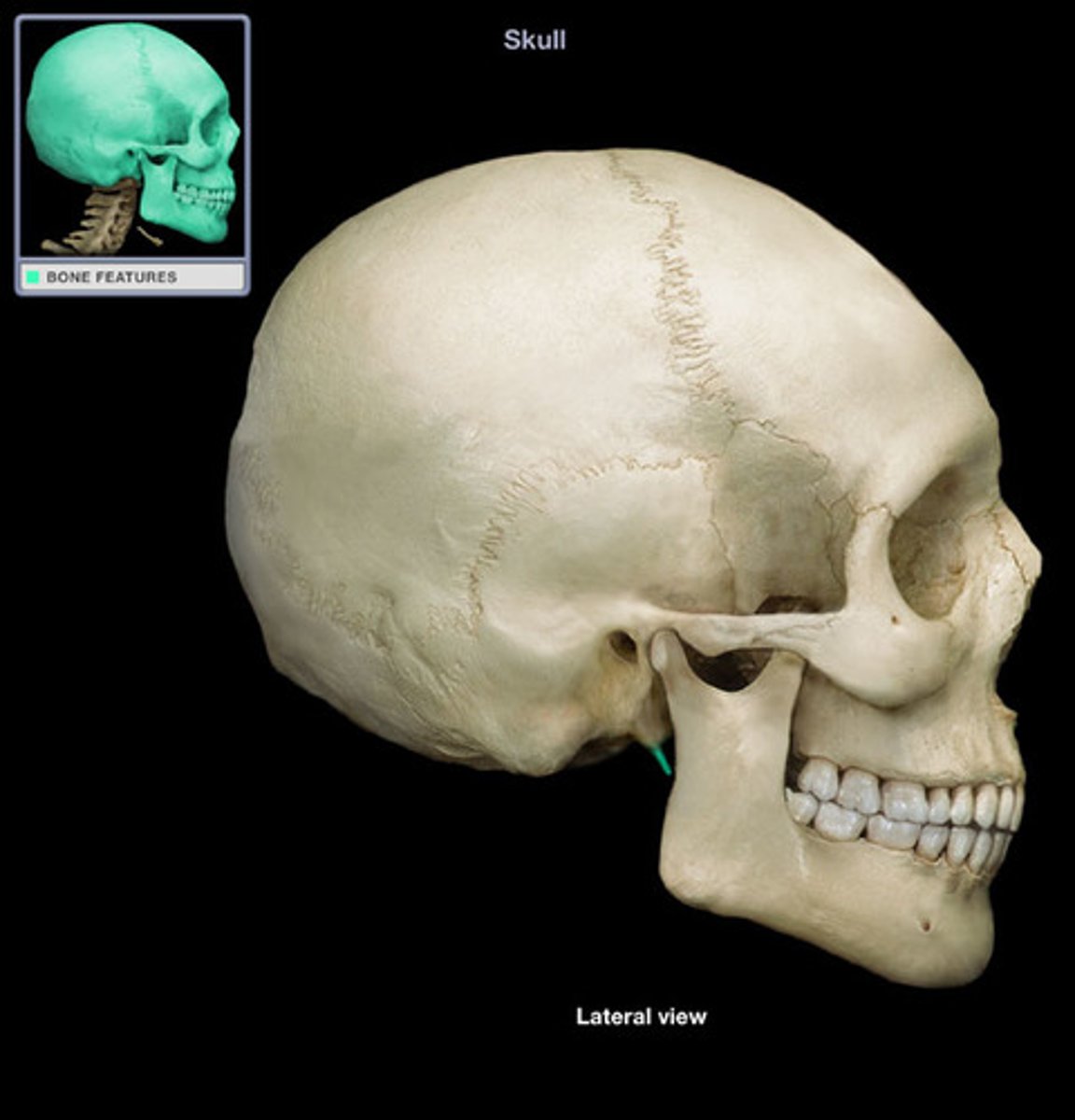

styloid process

Specific to the temporal bone

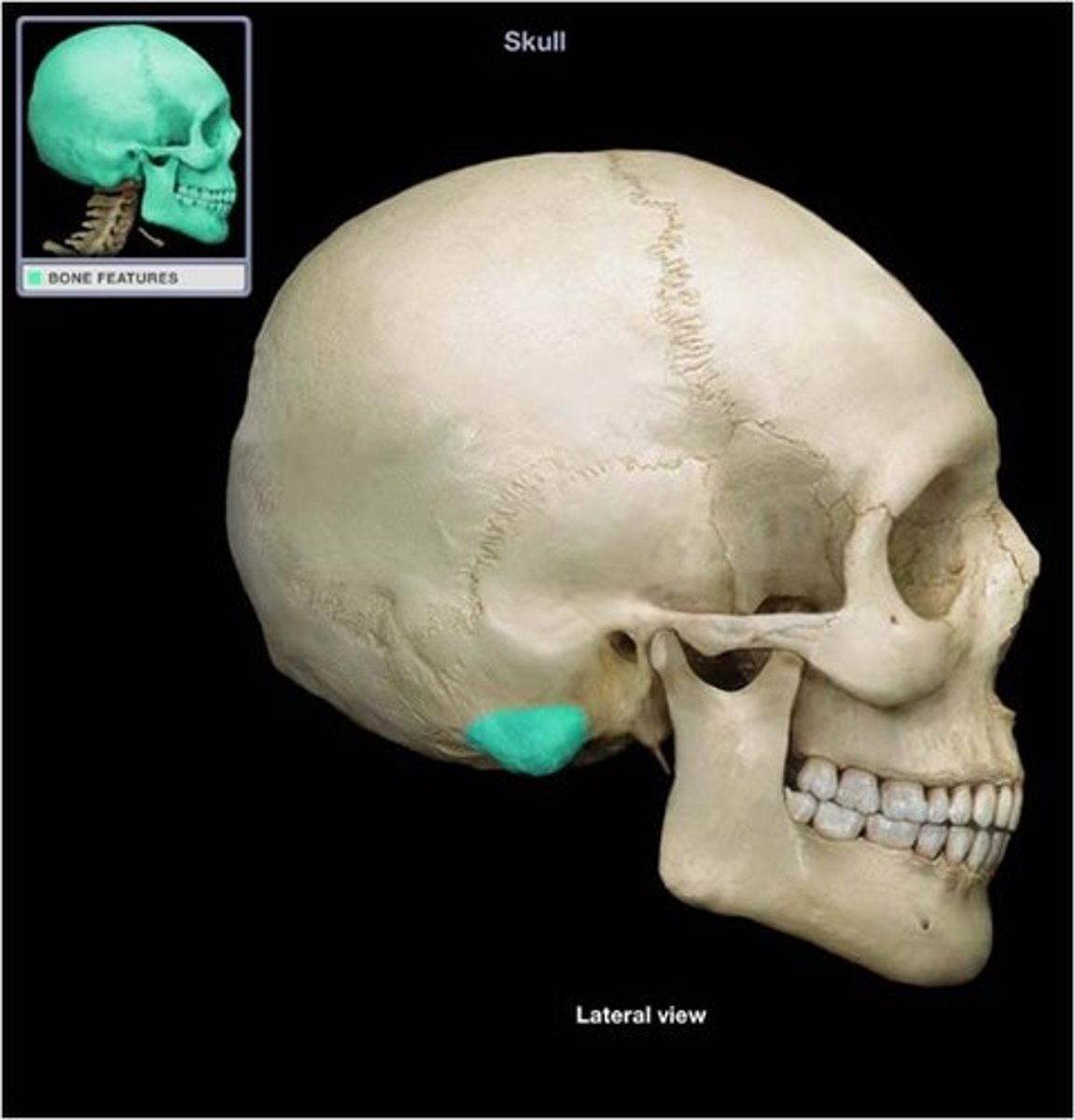

mastoid process

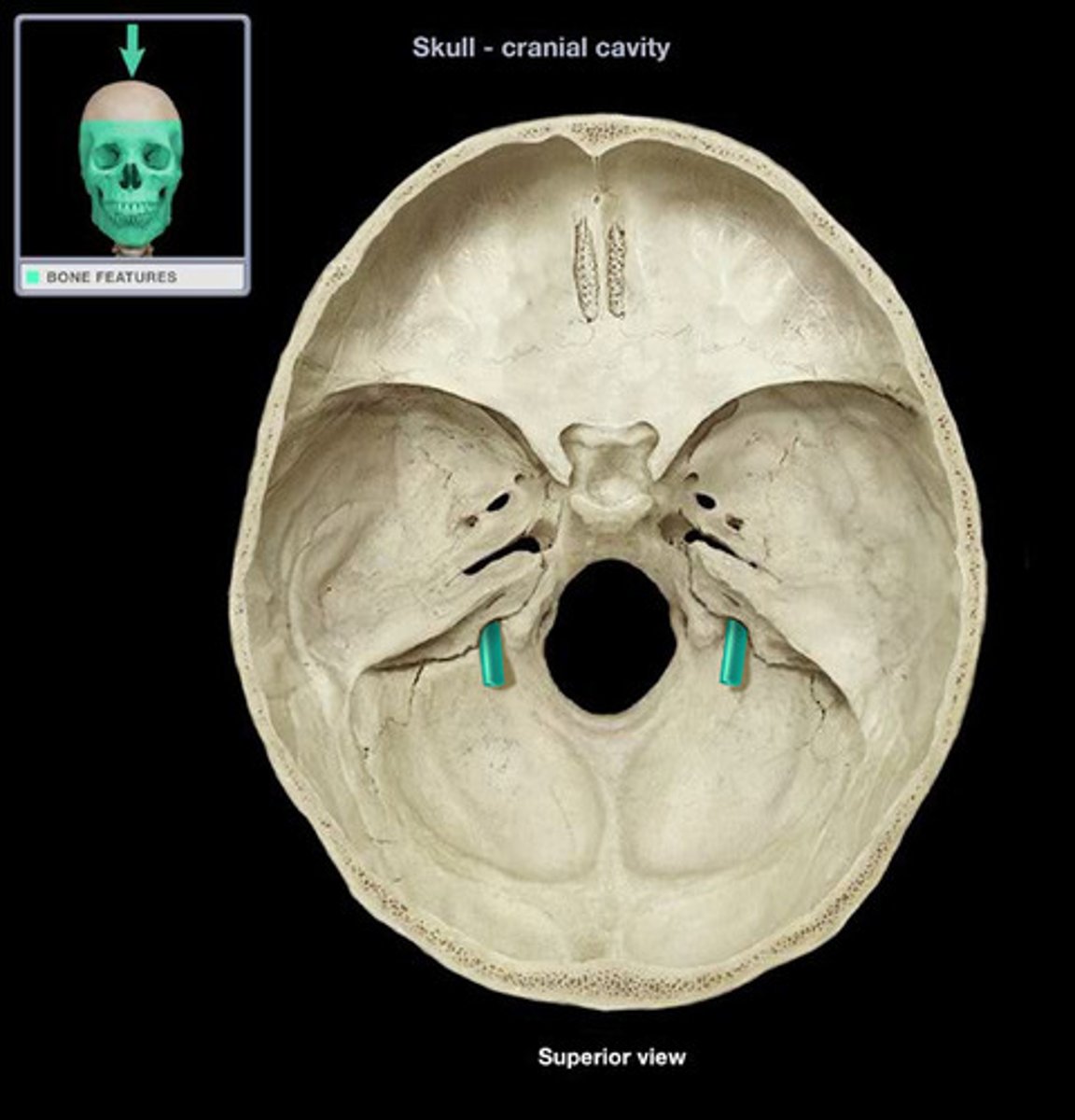

jugular foramen

hole for jugular vein

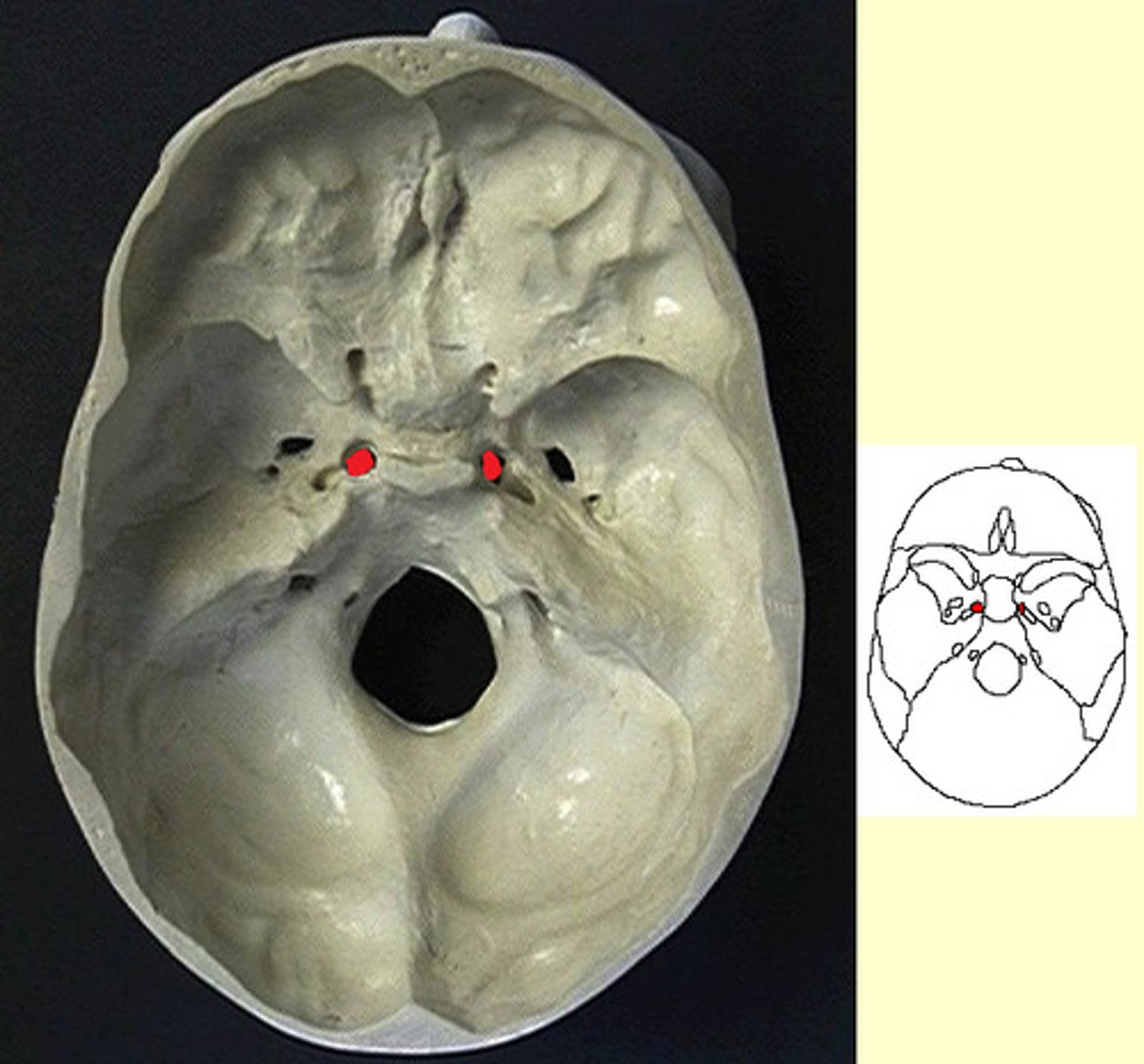

carotid canal

internal carotid artery

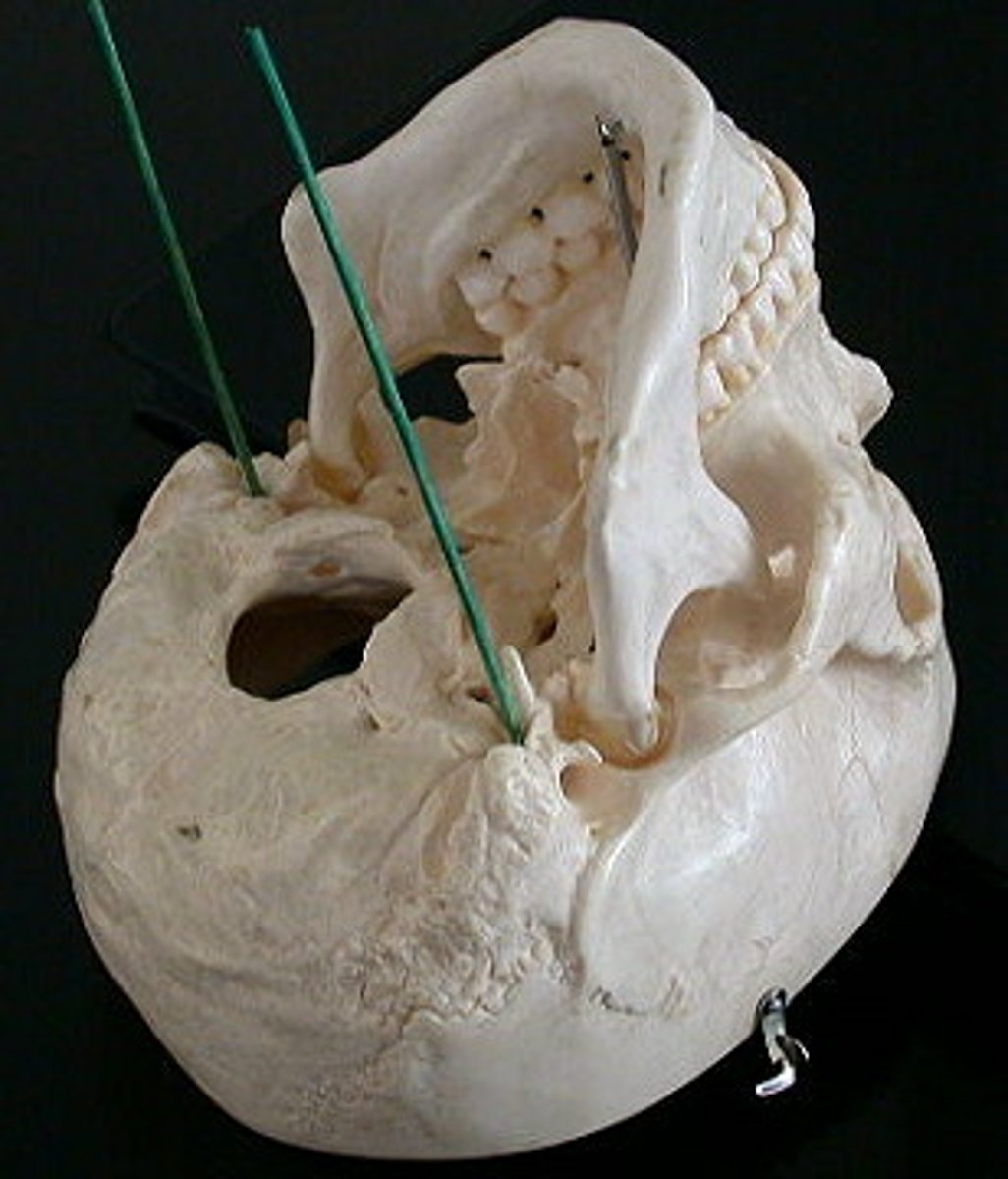

stylomastoid foramen

between the styloid and mastoid processes

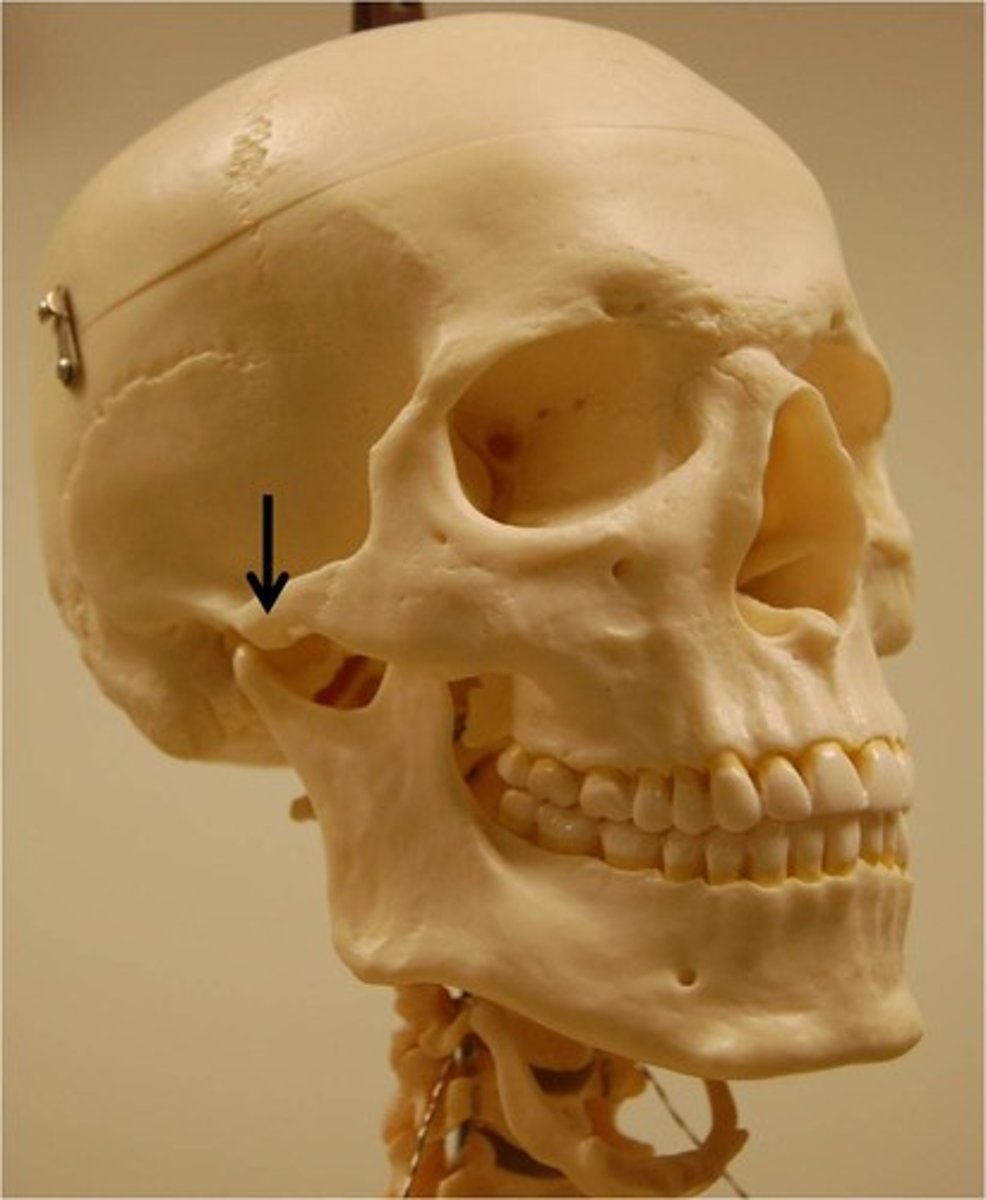

temporal process

BLANK of the zygomatic bone

greater wings

lesser wings

pterygoid process

Apart of the sphenoid bone

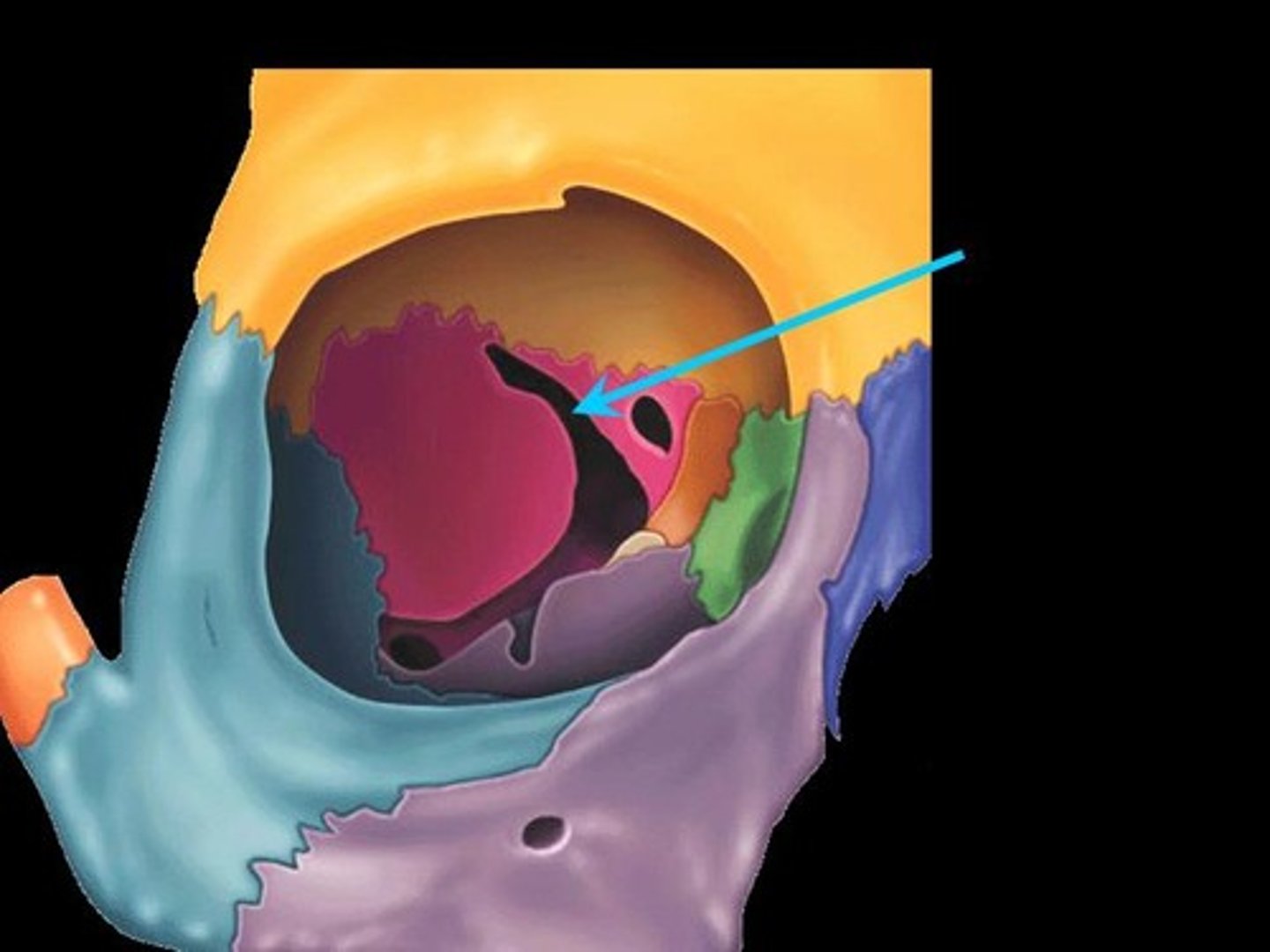

superior orbital fissure

Sella turcica (or hypophyseal fossa)

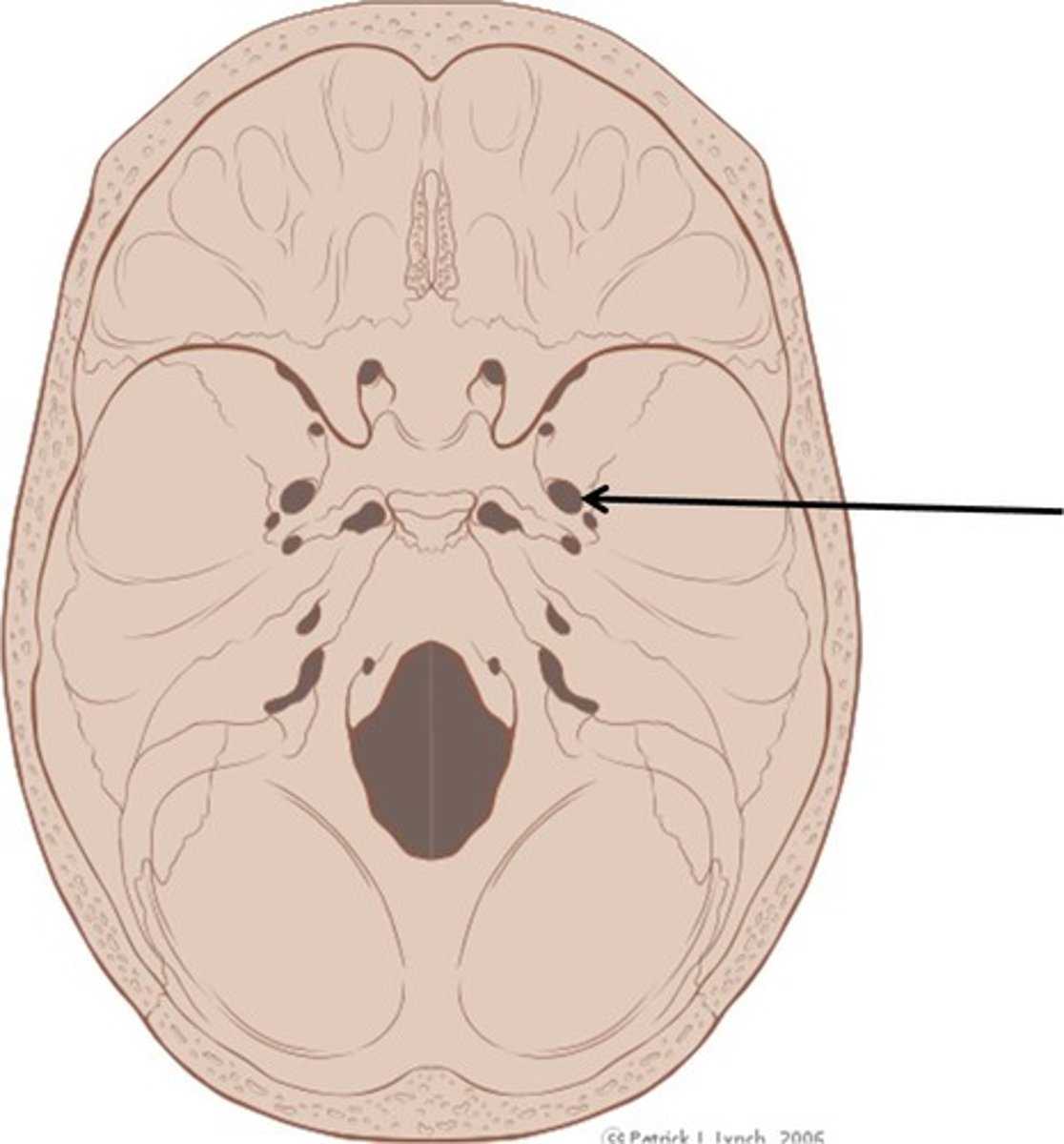

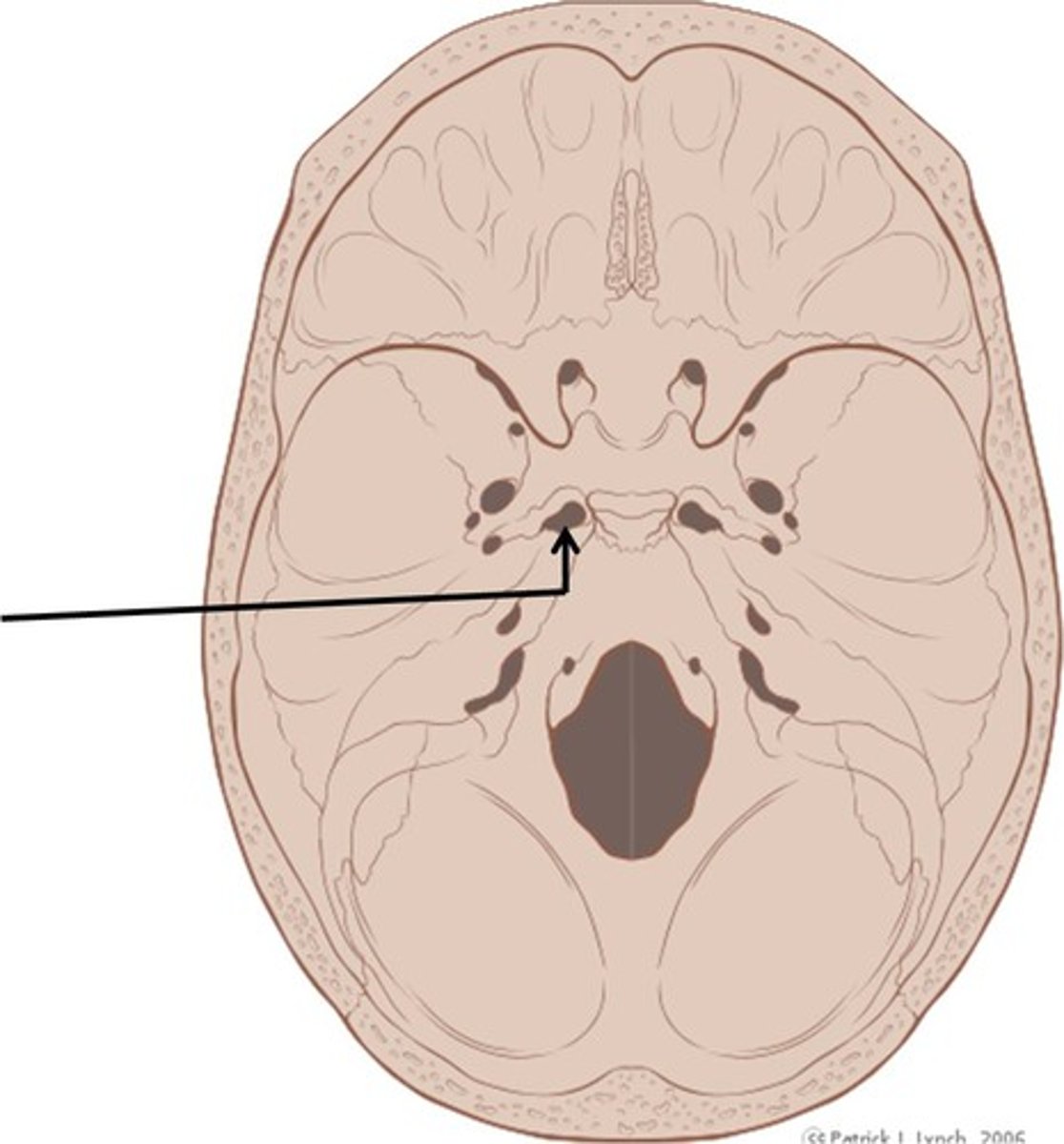

foramen ovale

foramen spinosum

foramen rotundum

foramen lacerum

optic canal (foramen)

cribriform plate

the PLATE around little foramina

olfactory foramina

the HOLES

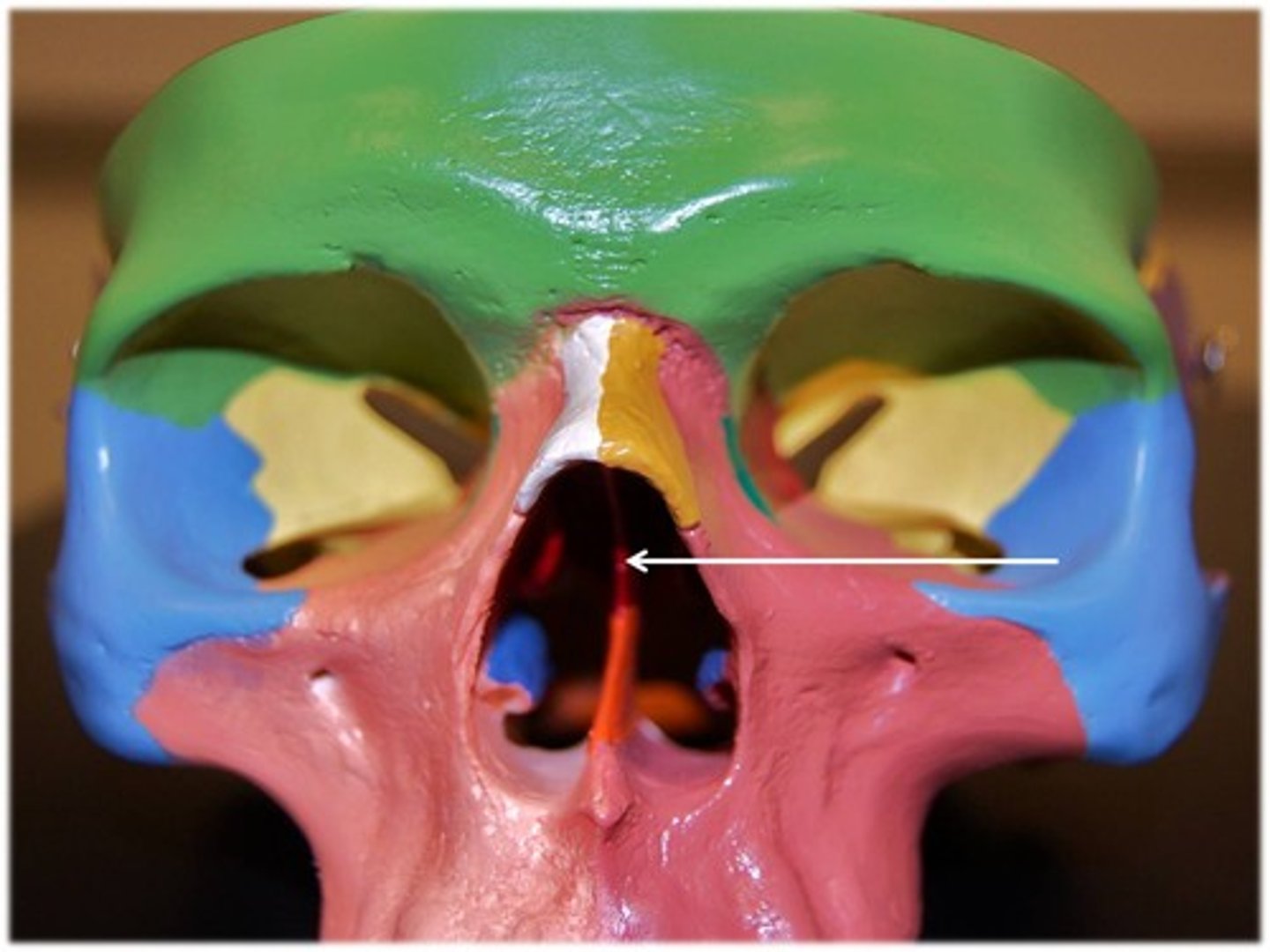

perpendicular plate

upper two-thirds (apart of Ethmoid bone)

crista galli

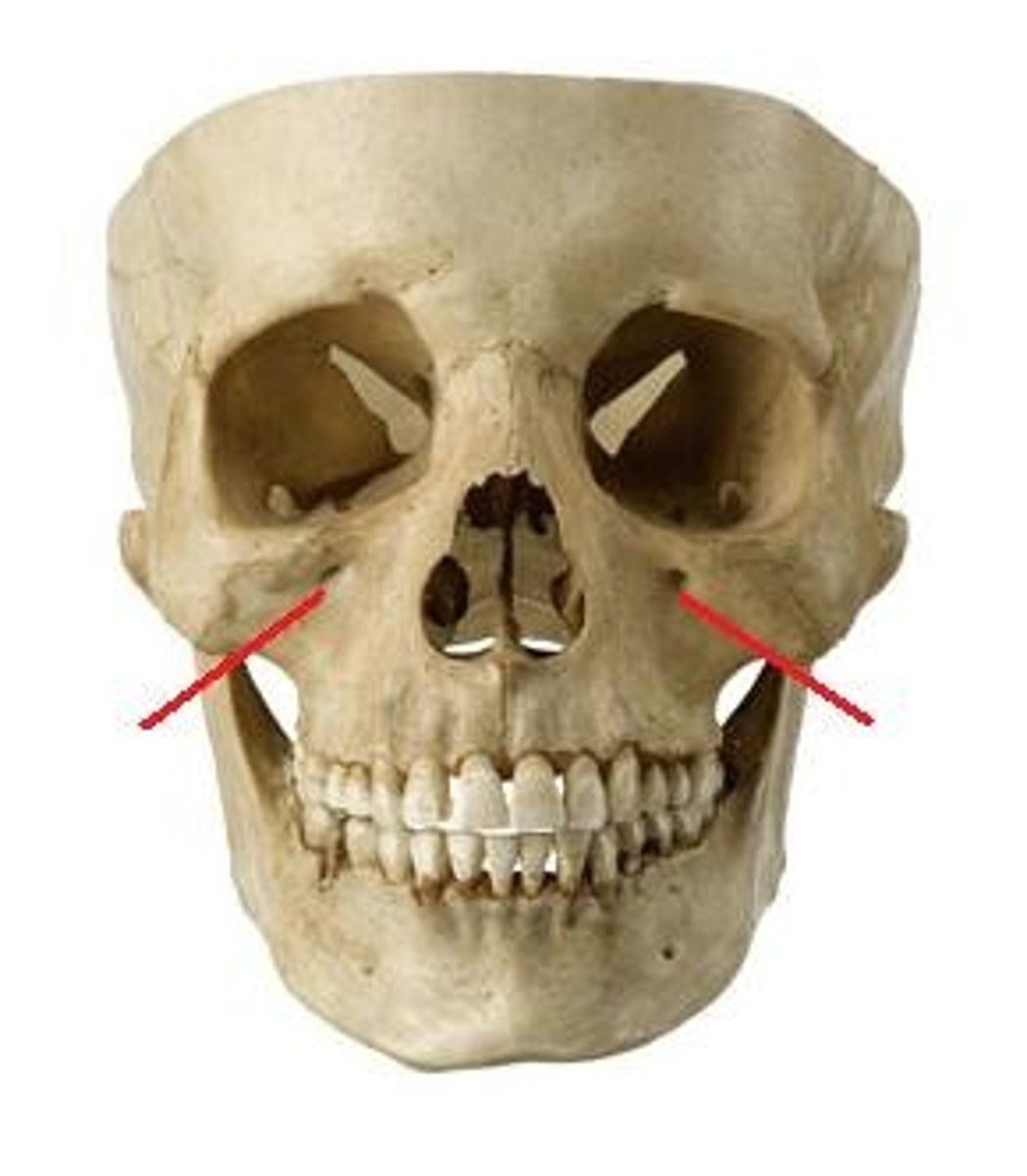

infraorbital foramen

maxilla

palatine processes

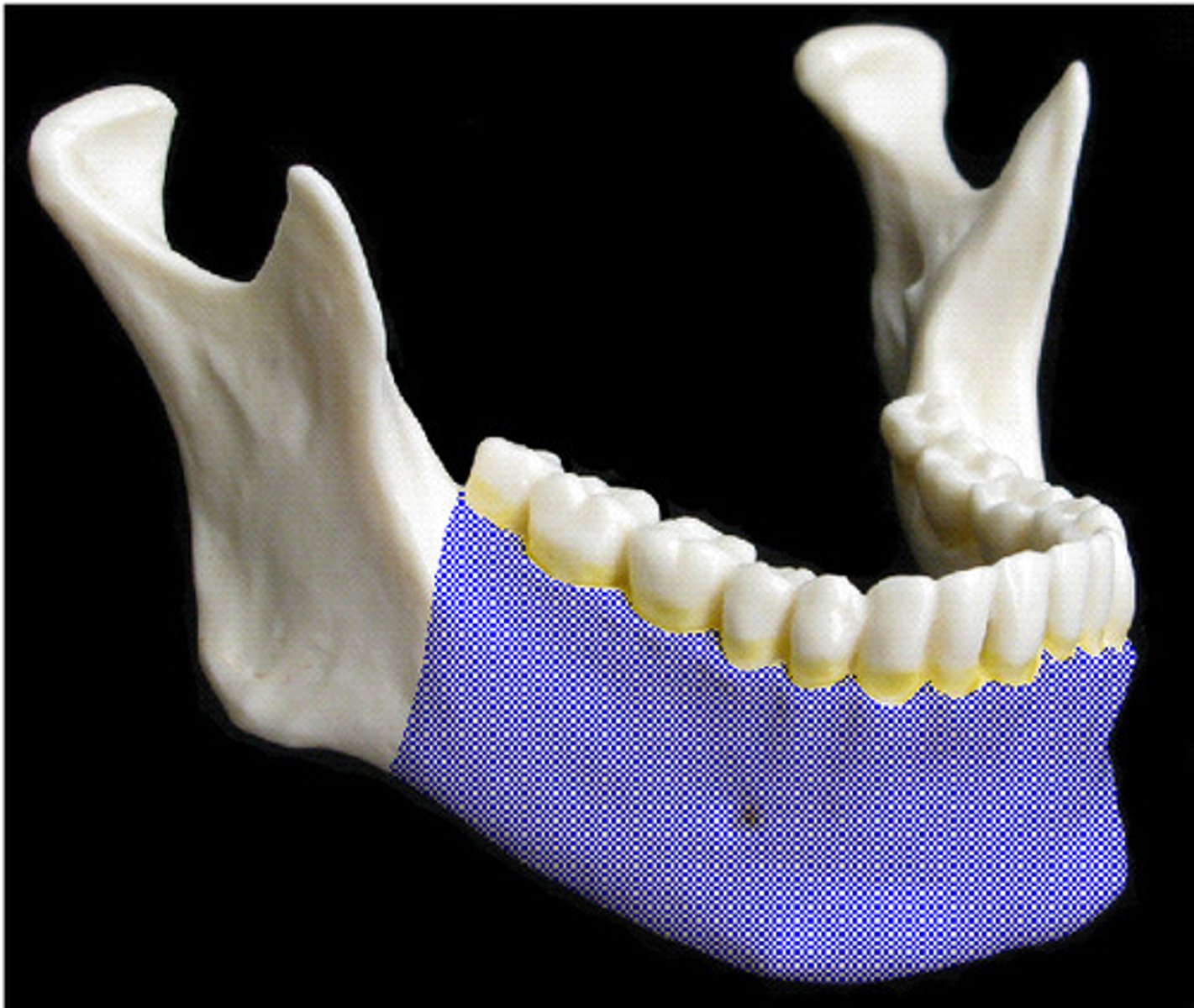

body of the mandible

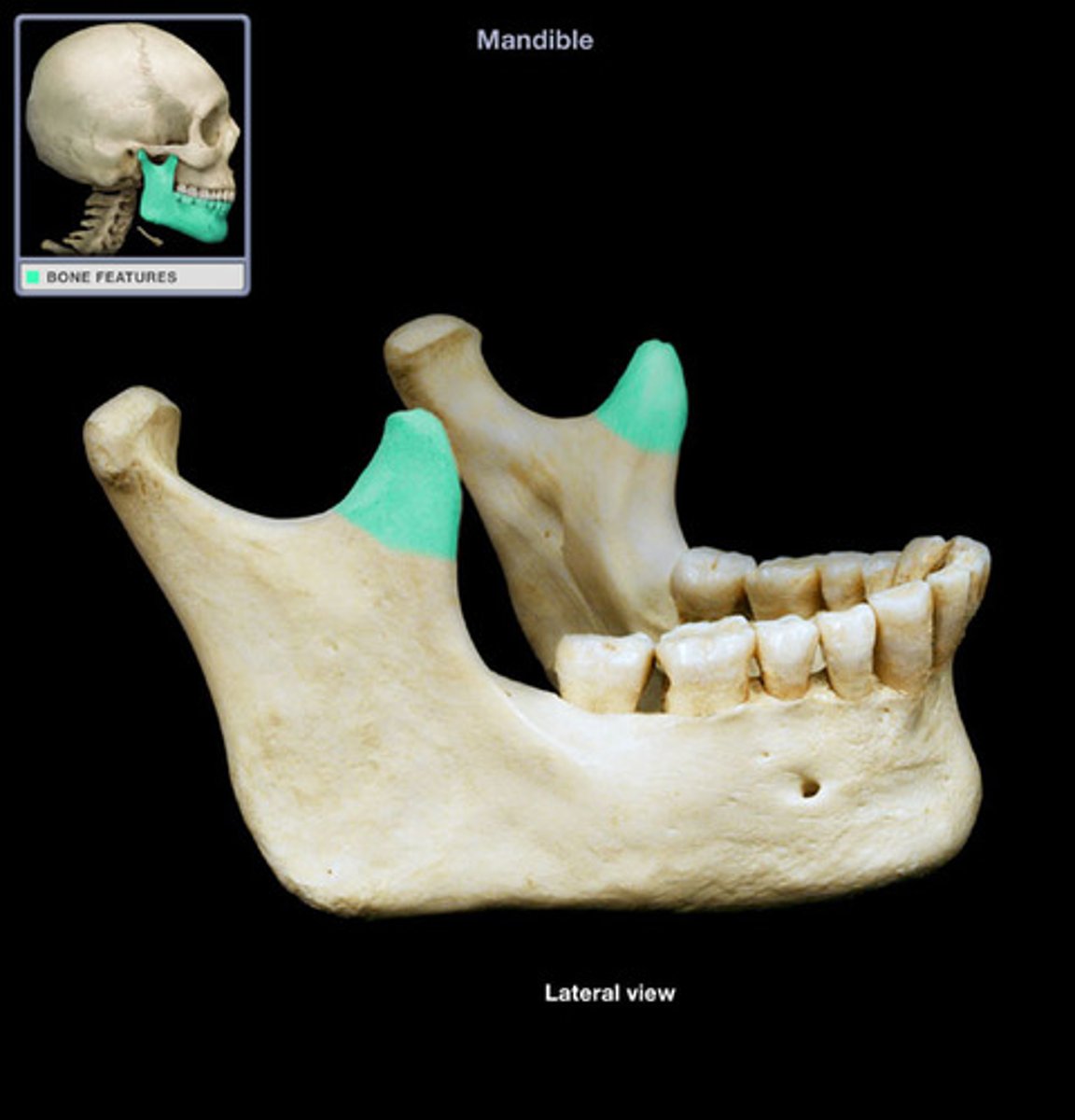

coronoid process of the mandible

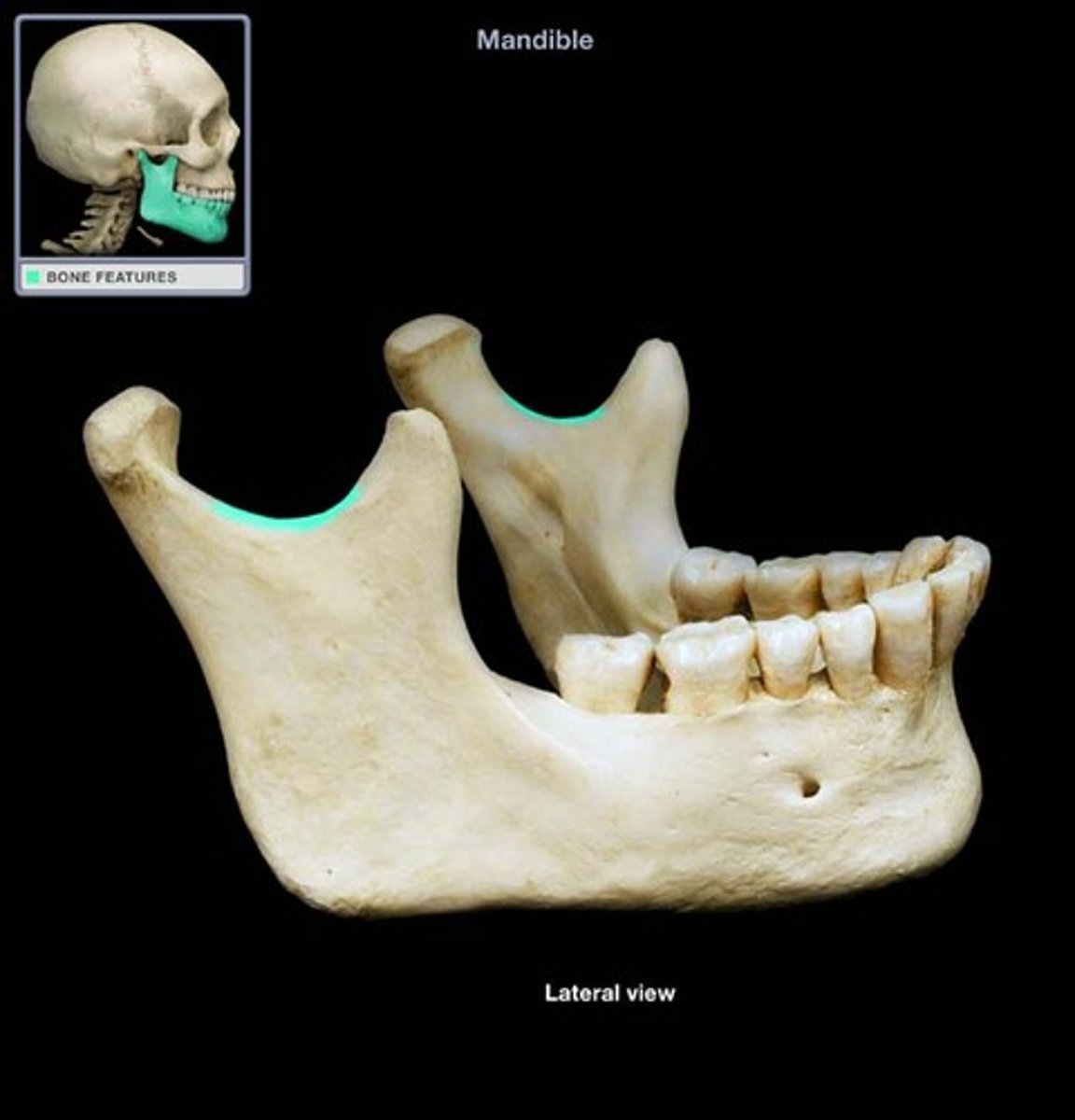

mandibular notch

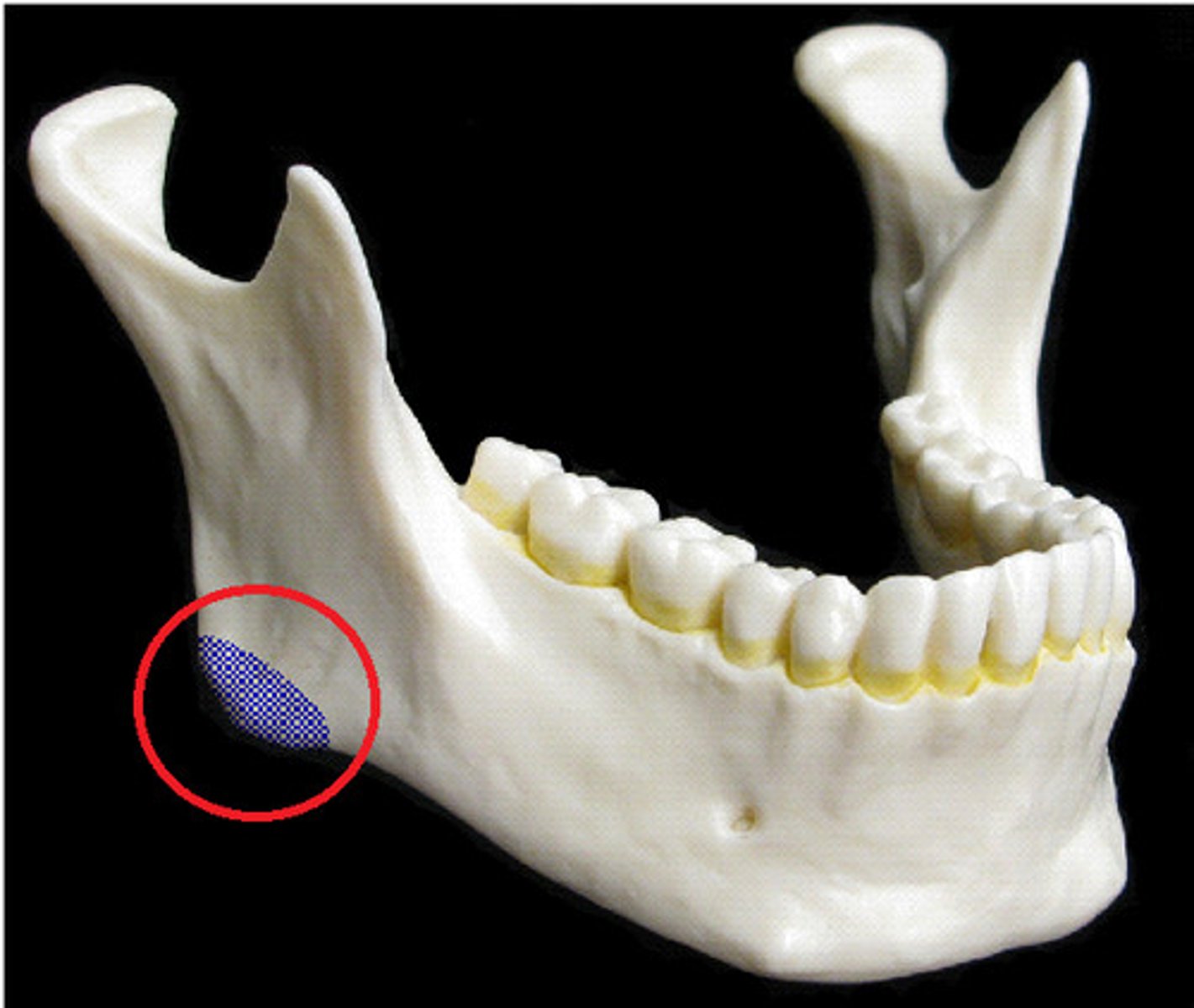

mandibular angle

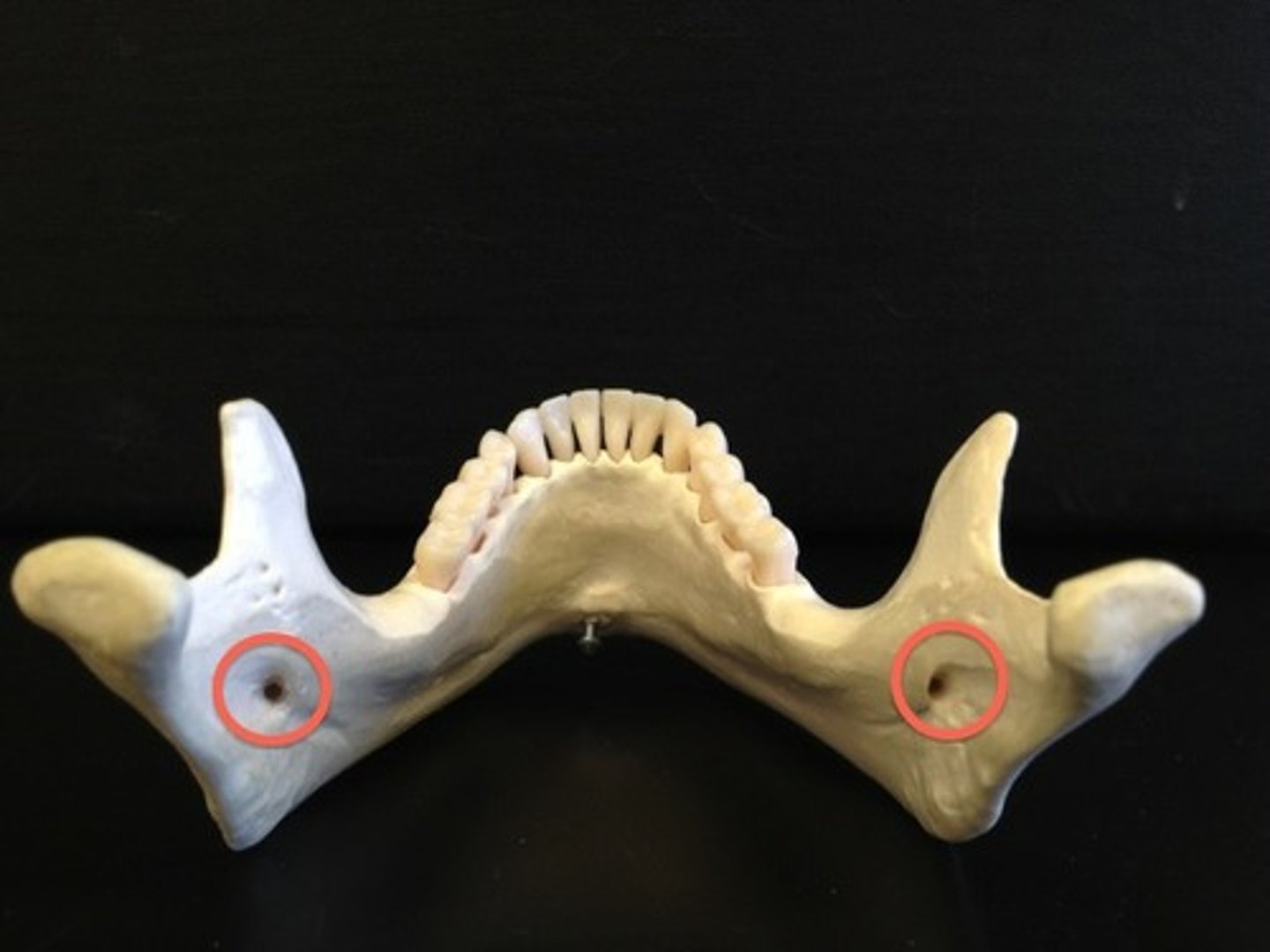

mandibular foramen

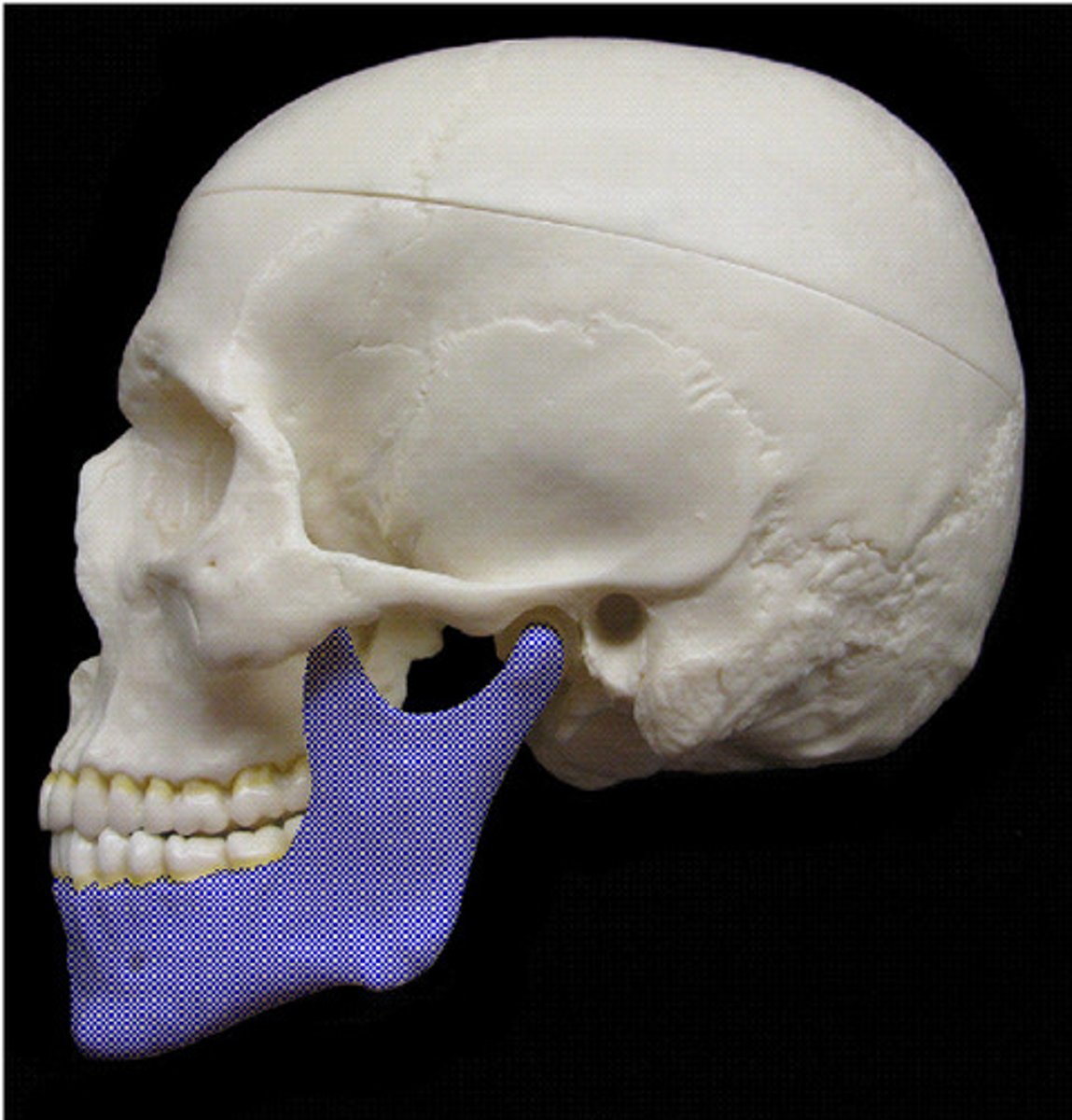

ramus

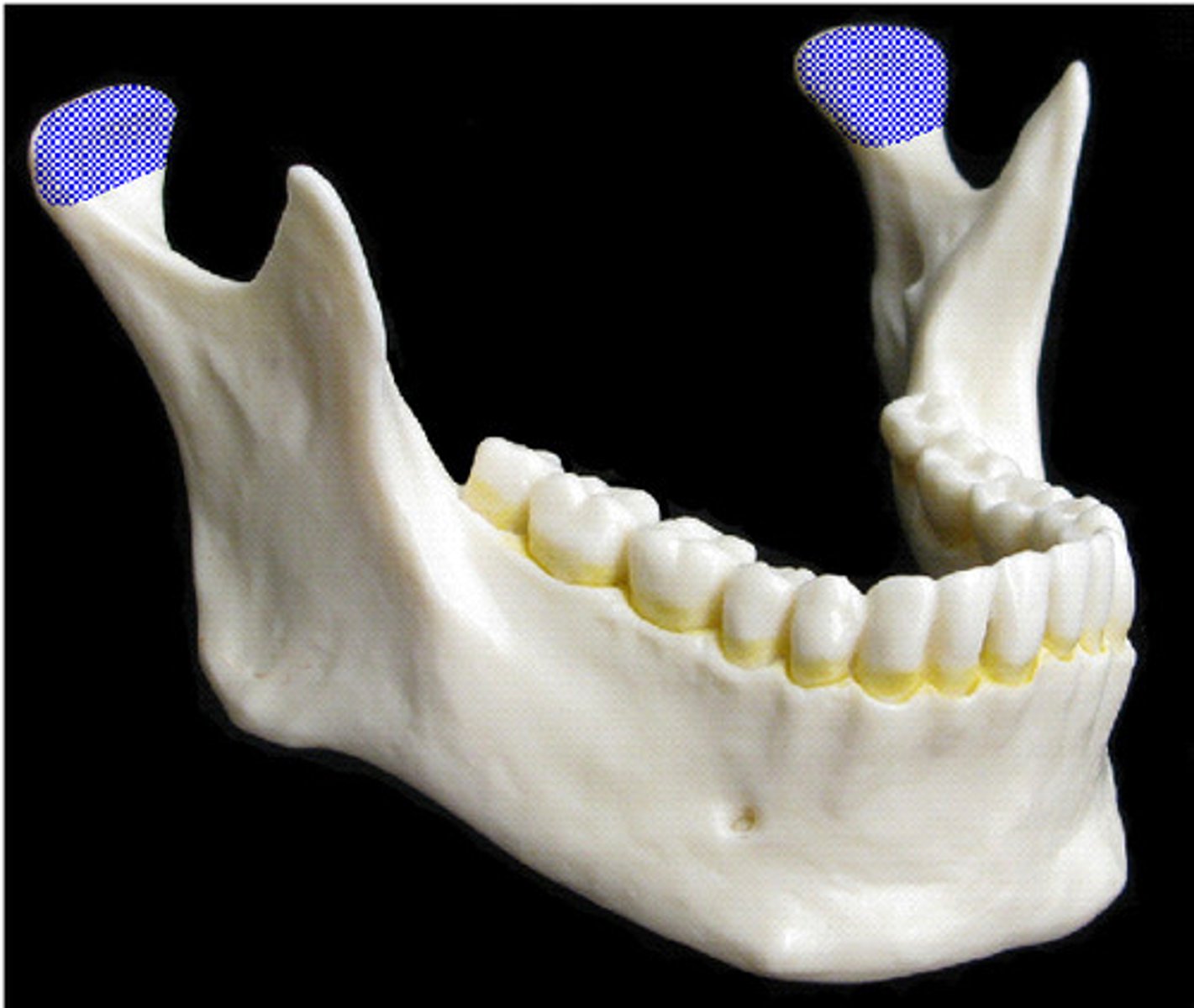

mandibular condyle

mental foramen

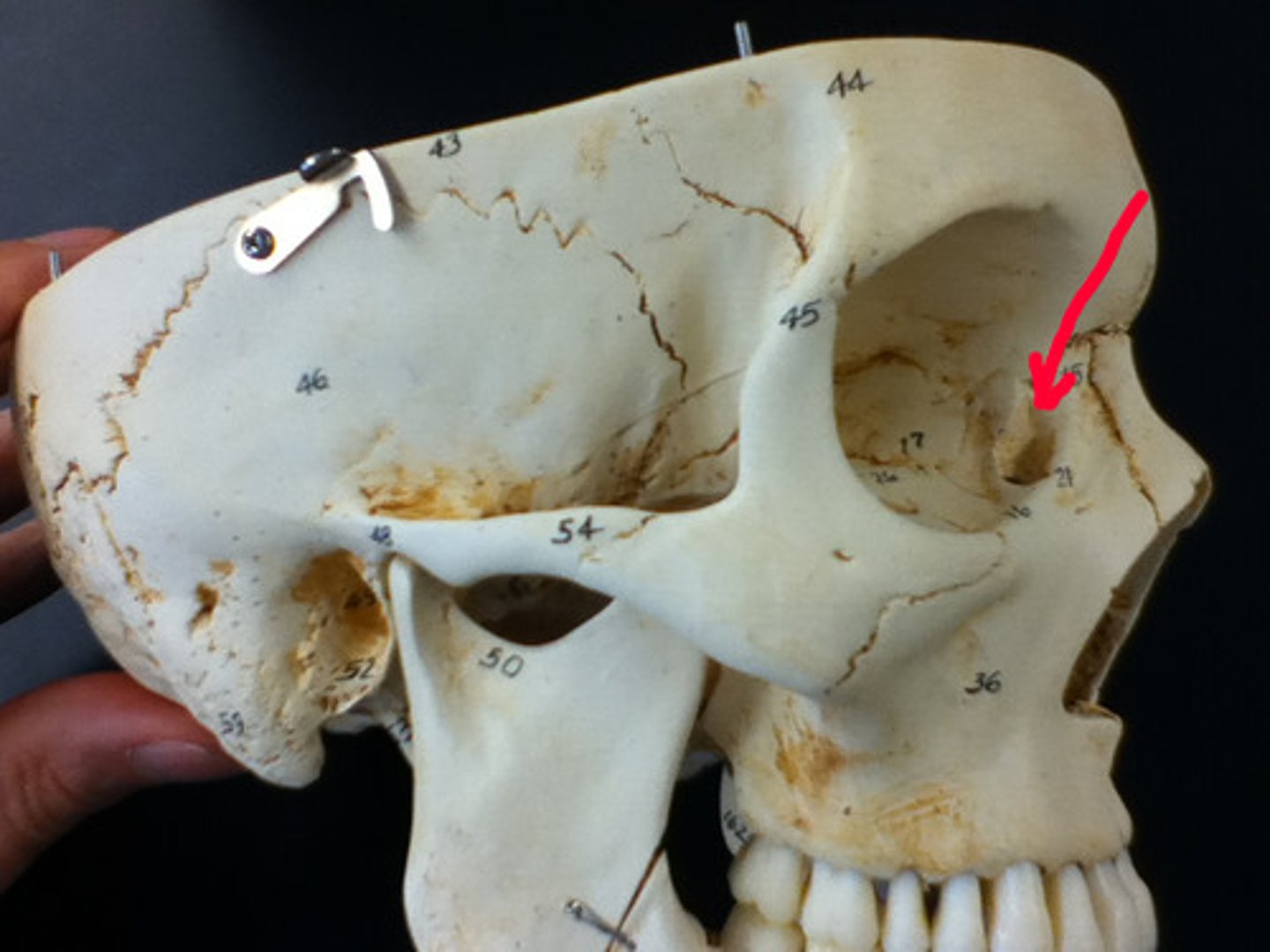

lacrimal duct

tear DUCT

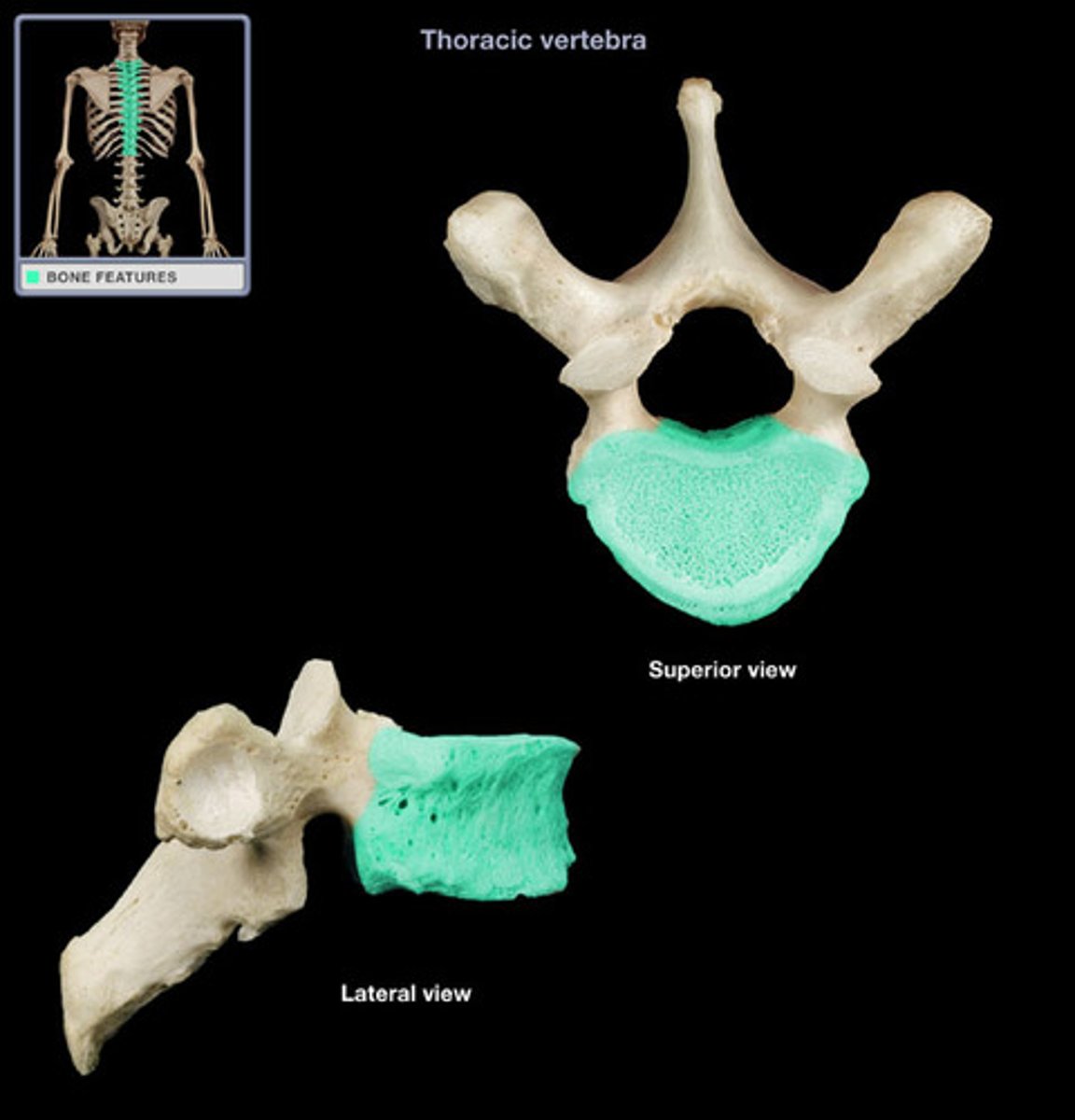

body

BLANK of the vertebra

lamina(e)

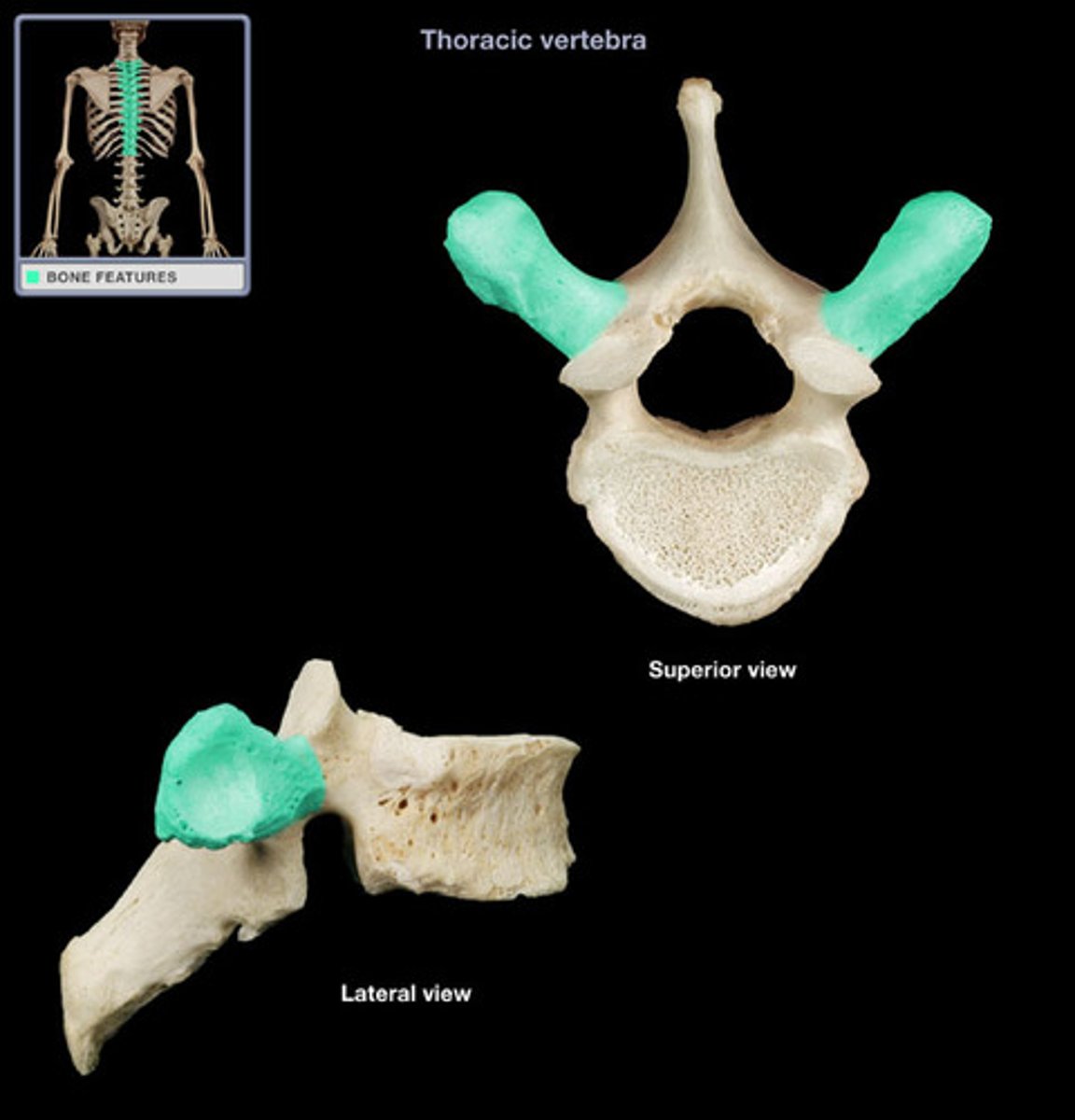

transverse process

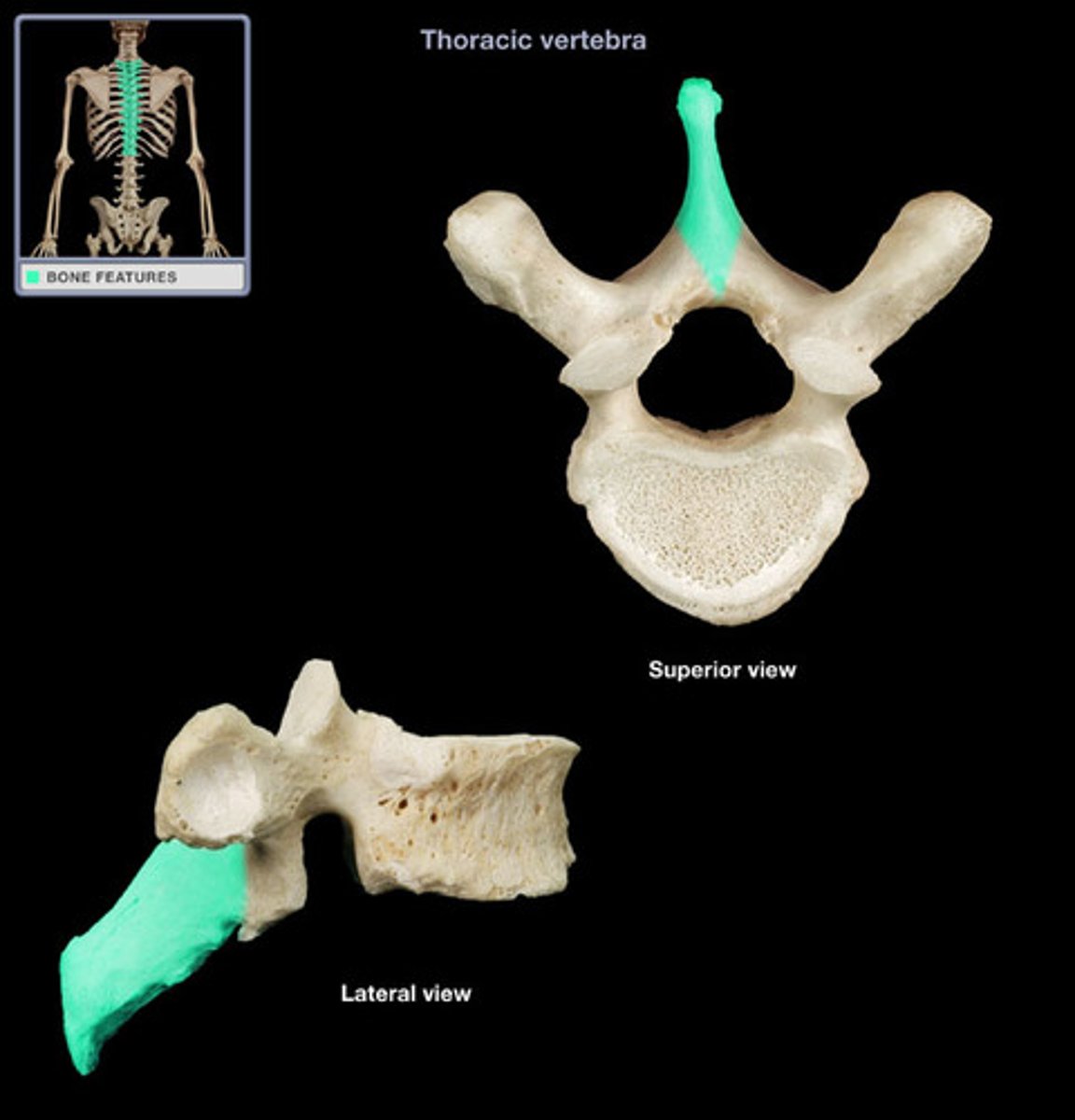

spinous process

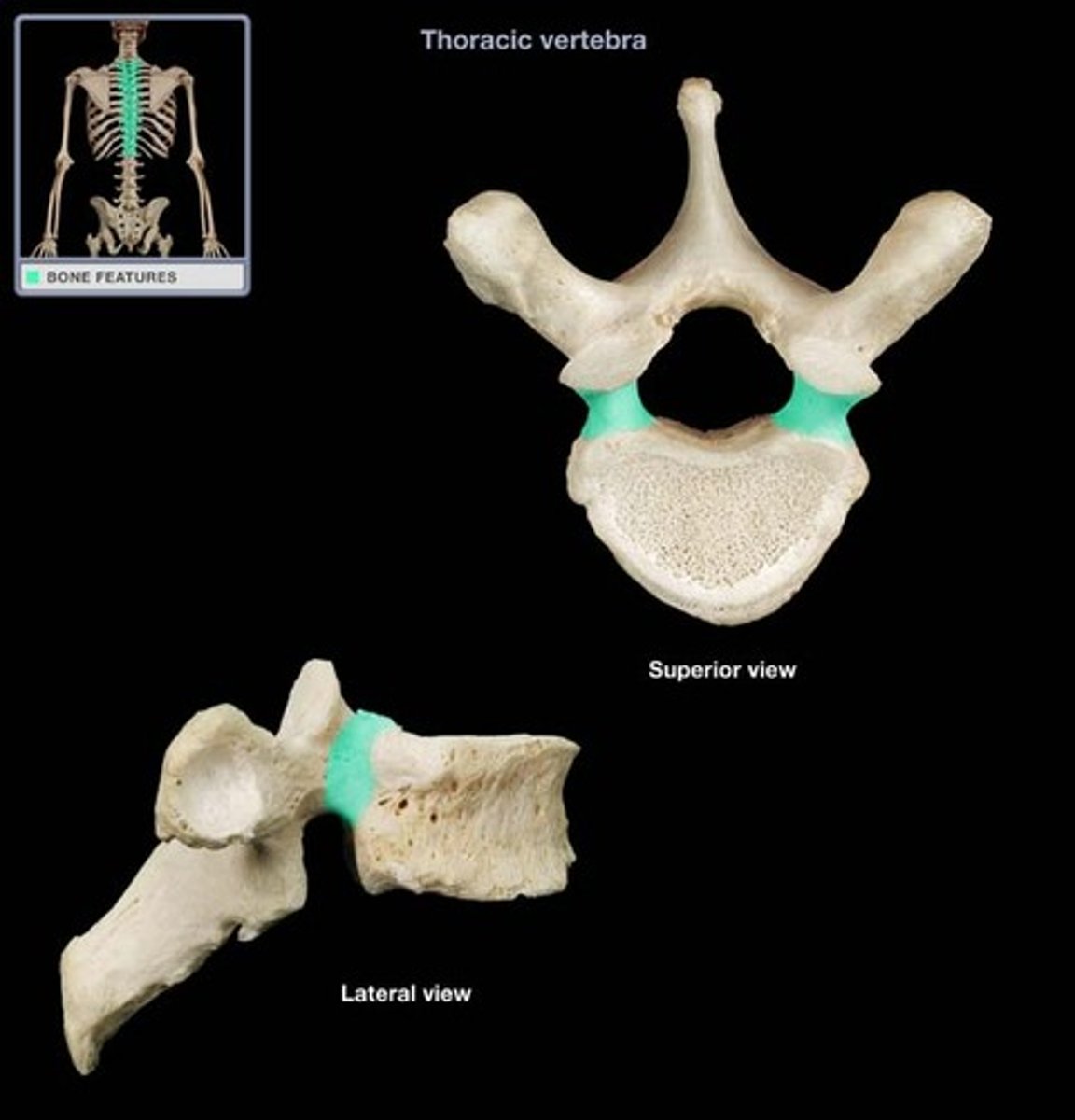

pedicle(s)

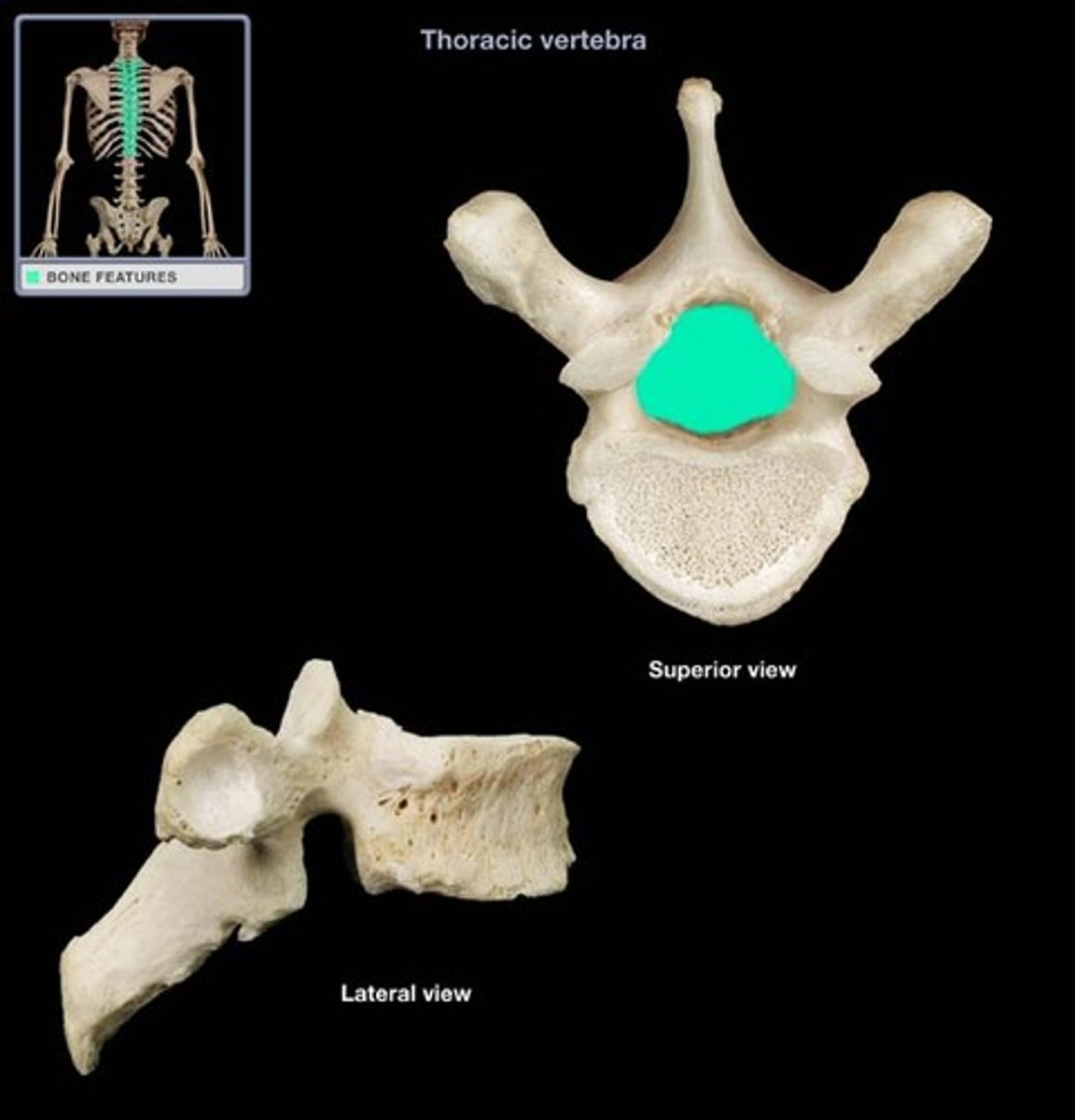

vertebral foramen

When all vertebrae are together, these holes make the vertebral canal

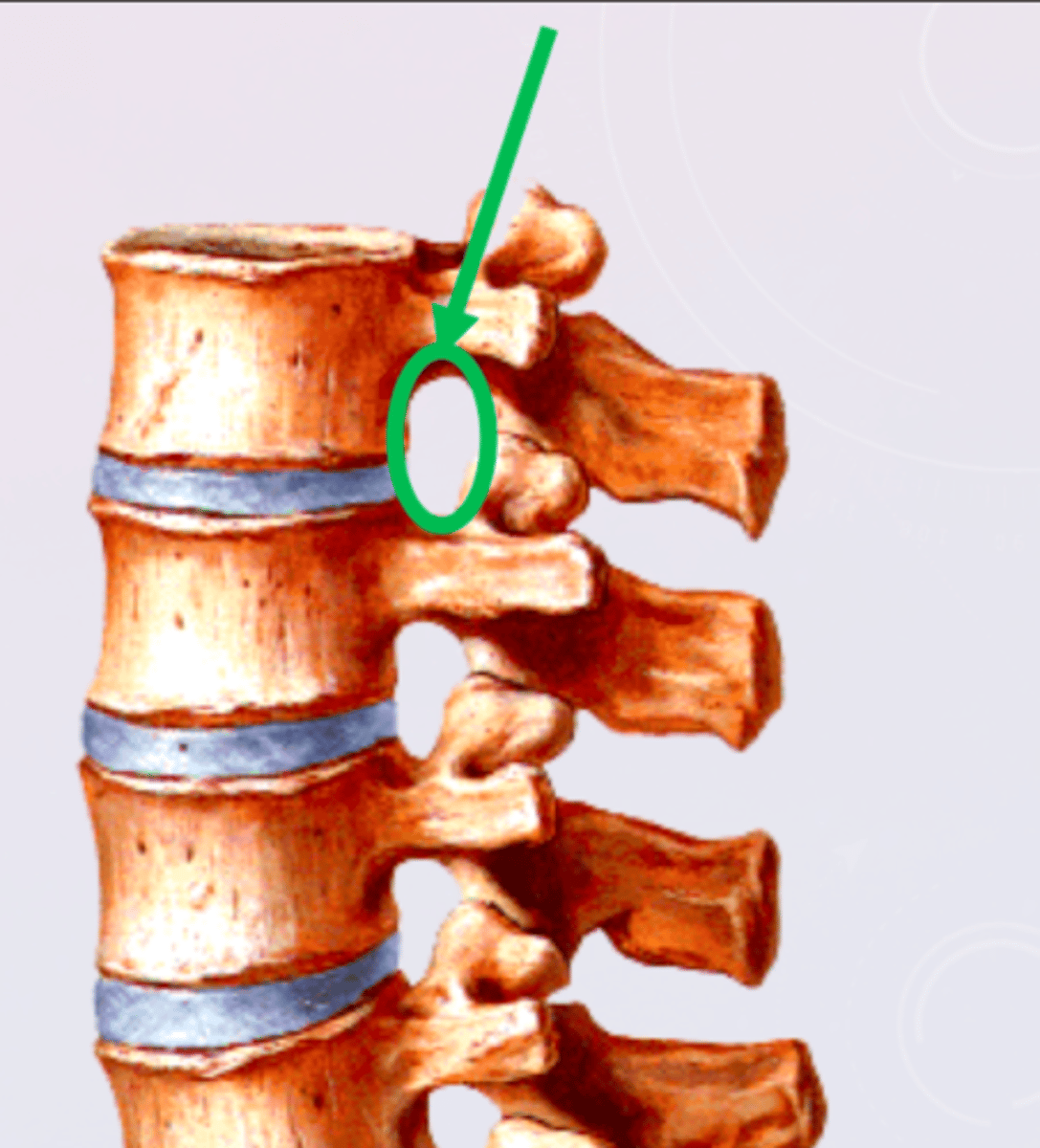

interverbral foramen

- Only found with two vertebrae connected

- Runs transversely

- The portion of the spine that is inflamed during stenosis of the cervical/lumbar region(s)

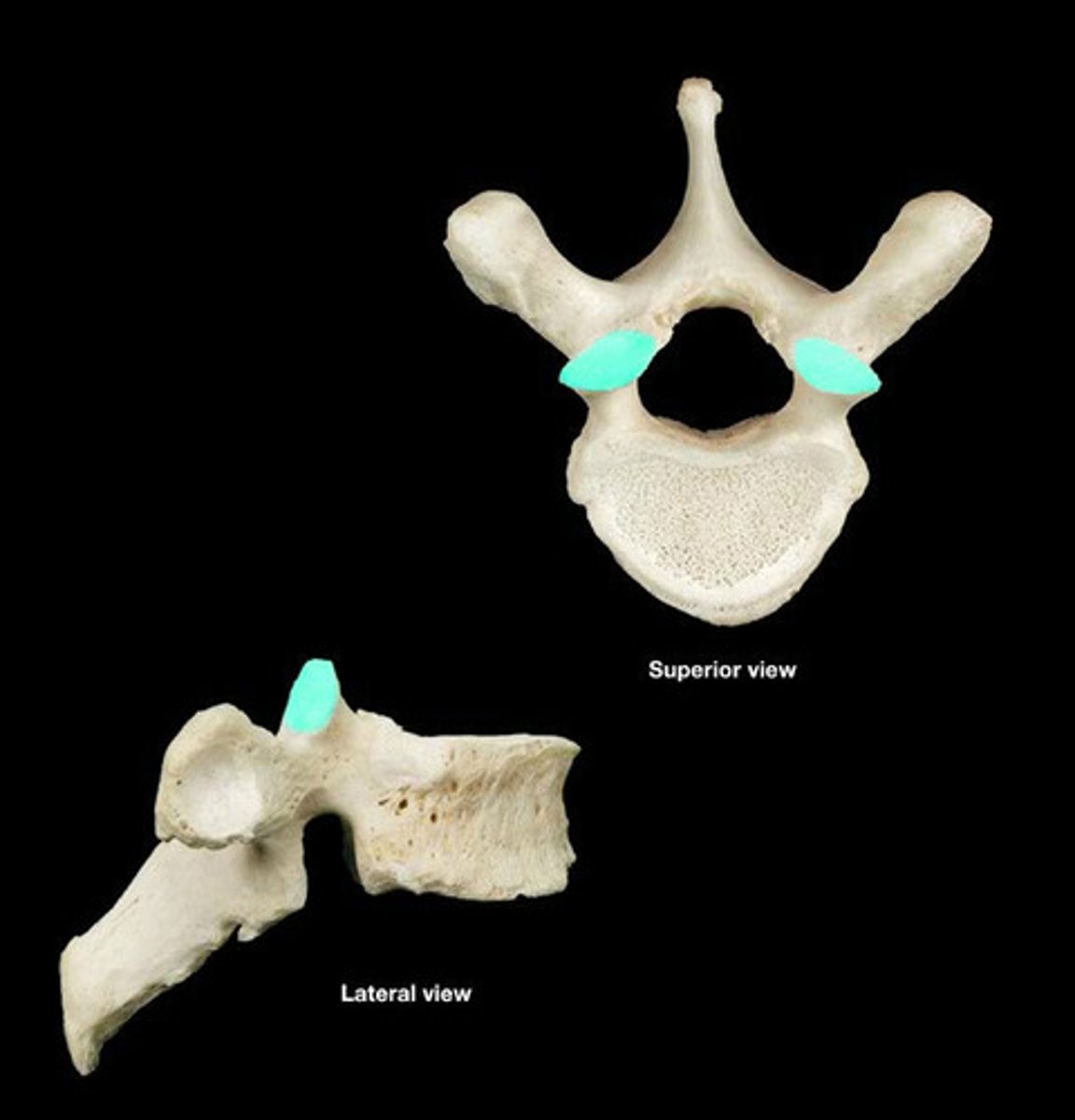

superior articular processes

inferior auricular processes

transverse foramen

only found in the cervical region of the spine

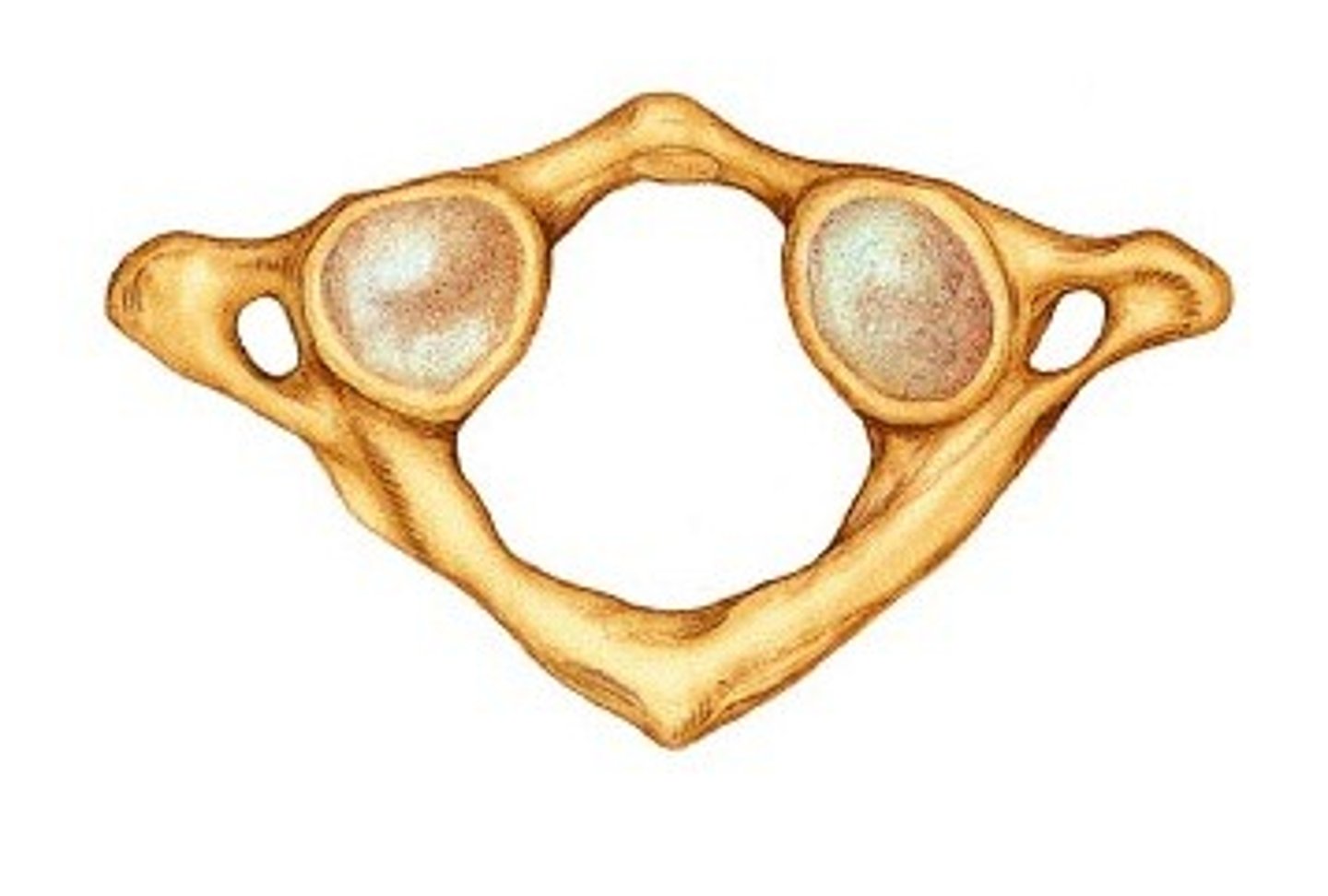

atlas

C1

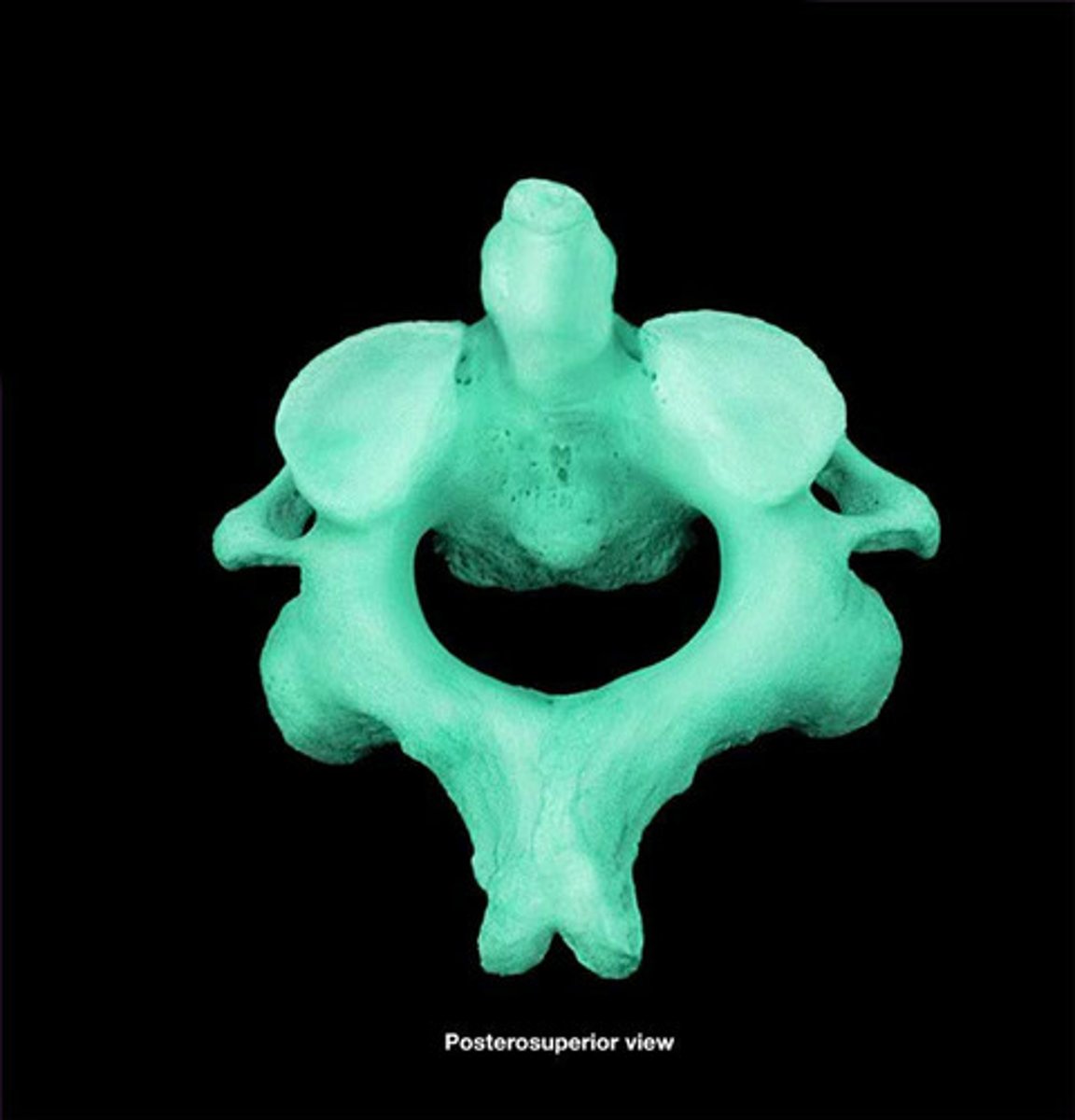

axis

C2

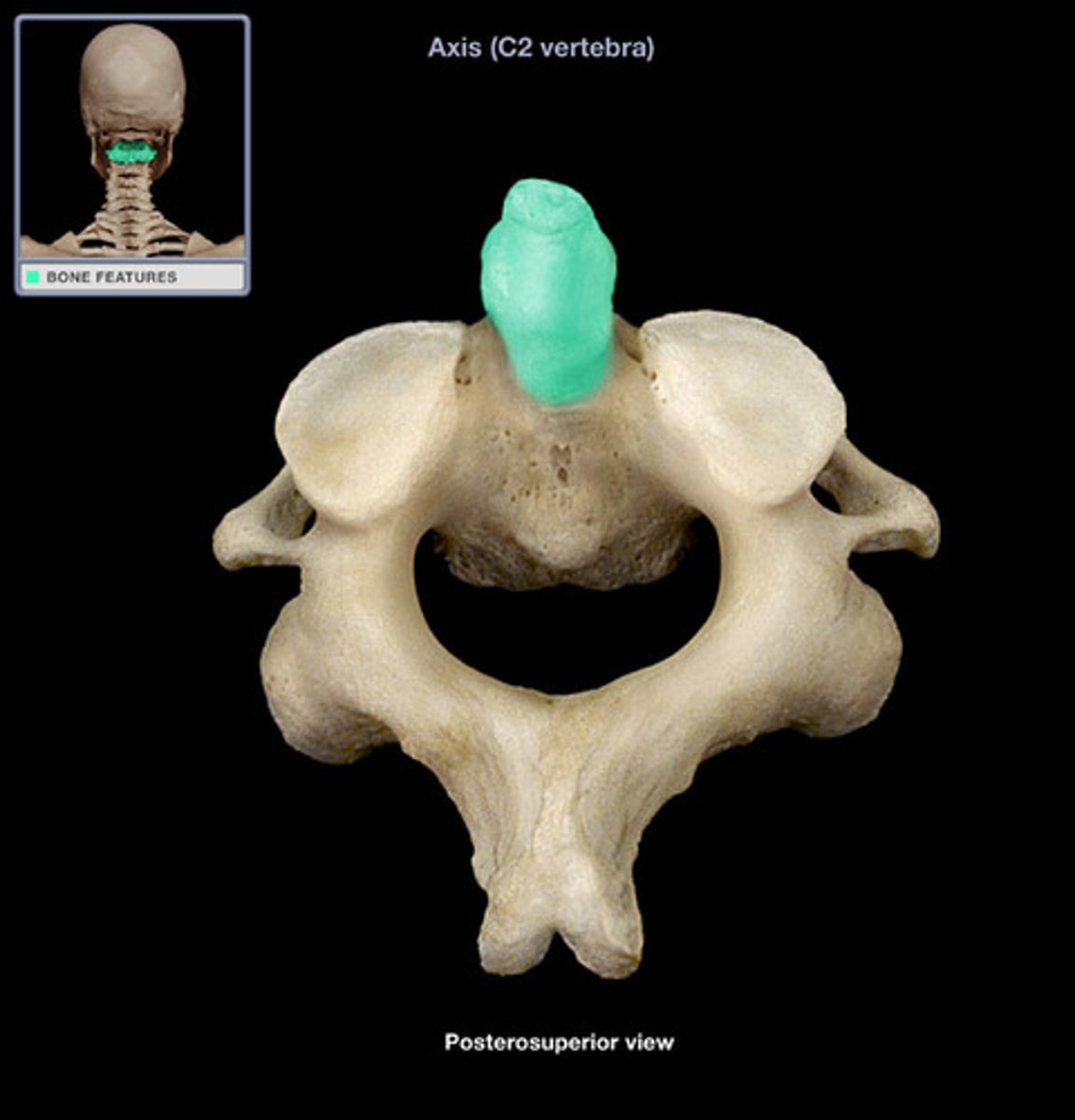

dens

on C2

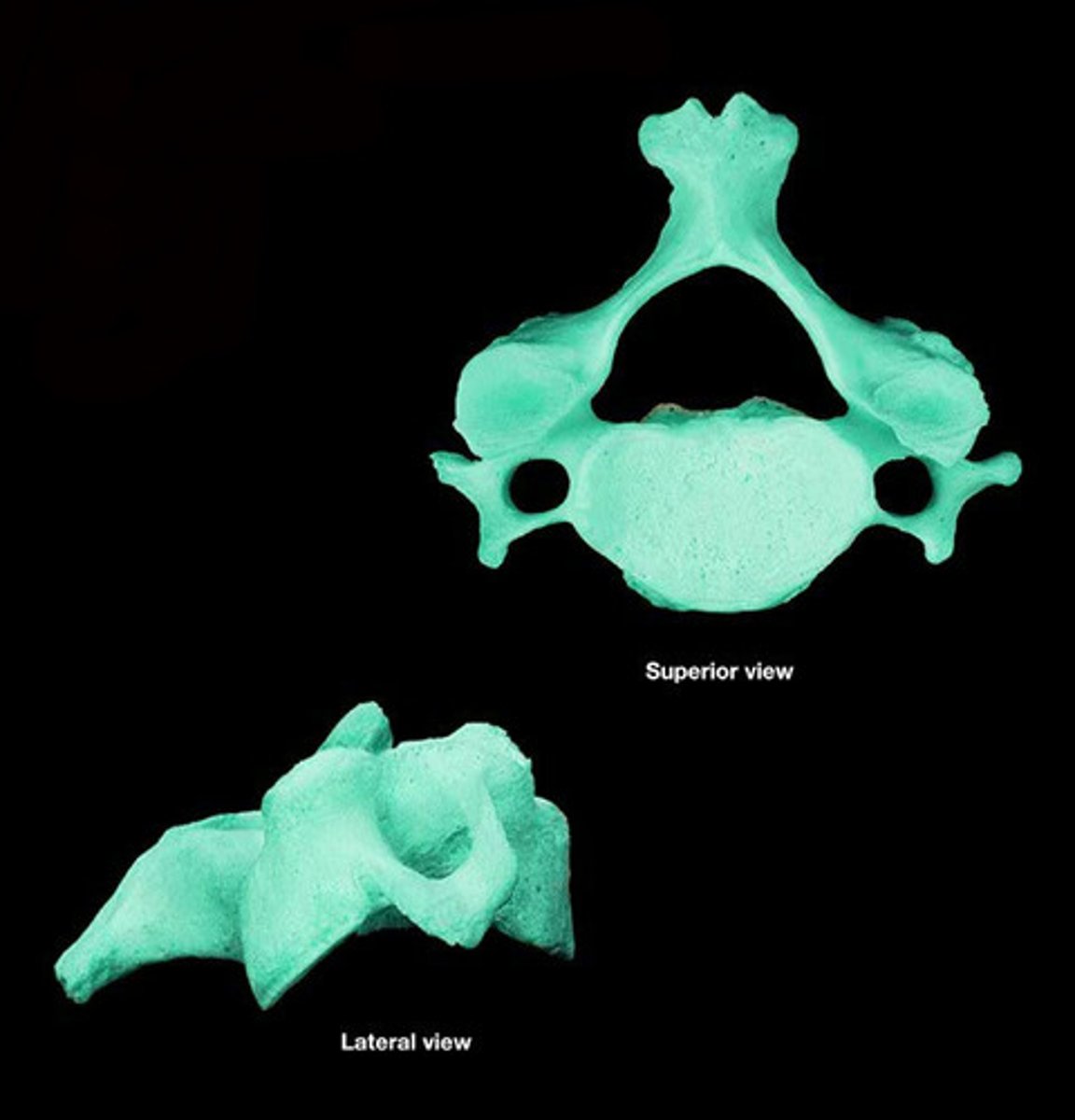

How many cervical vertebrae are there?

7 (C1-C7)

How many thoracic vertebrae are there?

12 (T1-T12)

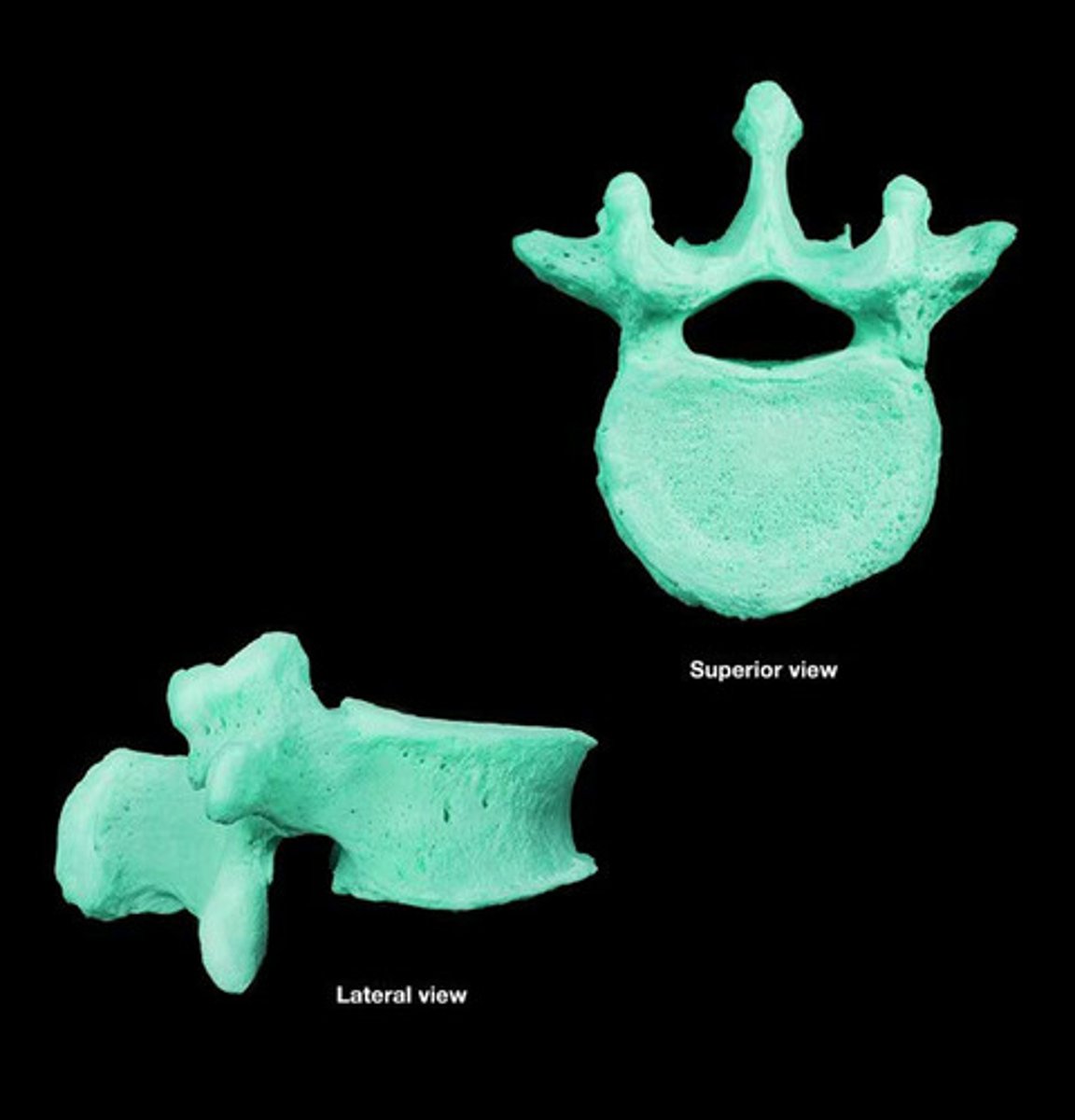

How many lumbar vertebrae are there?

5 (L1-L5)

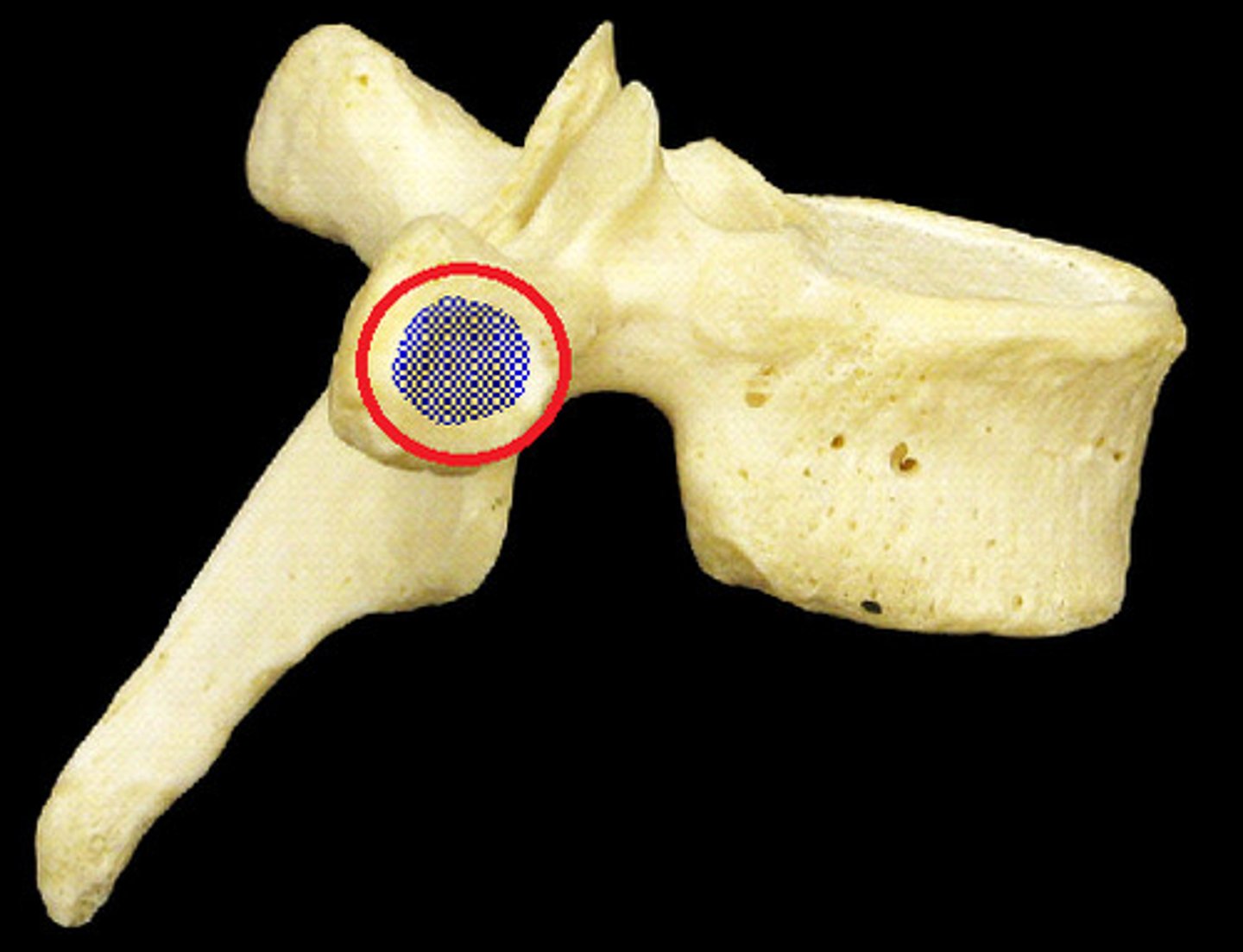

costal facets of the thoracic vertebrae

articulates with the articular tubercle of the rib

In what order do the vertebrae follow?

Cervical (C1-C7), Thoracic (T1-T12), Lumbar (L1-L5)

Sacrum

5 fused vertebrae (curves anteriorly)

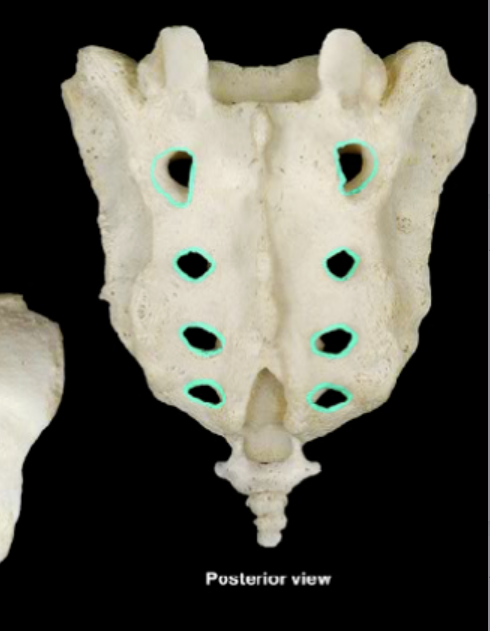

posterior sacral foramina

posterior BLANK

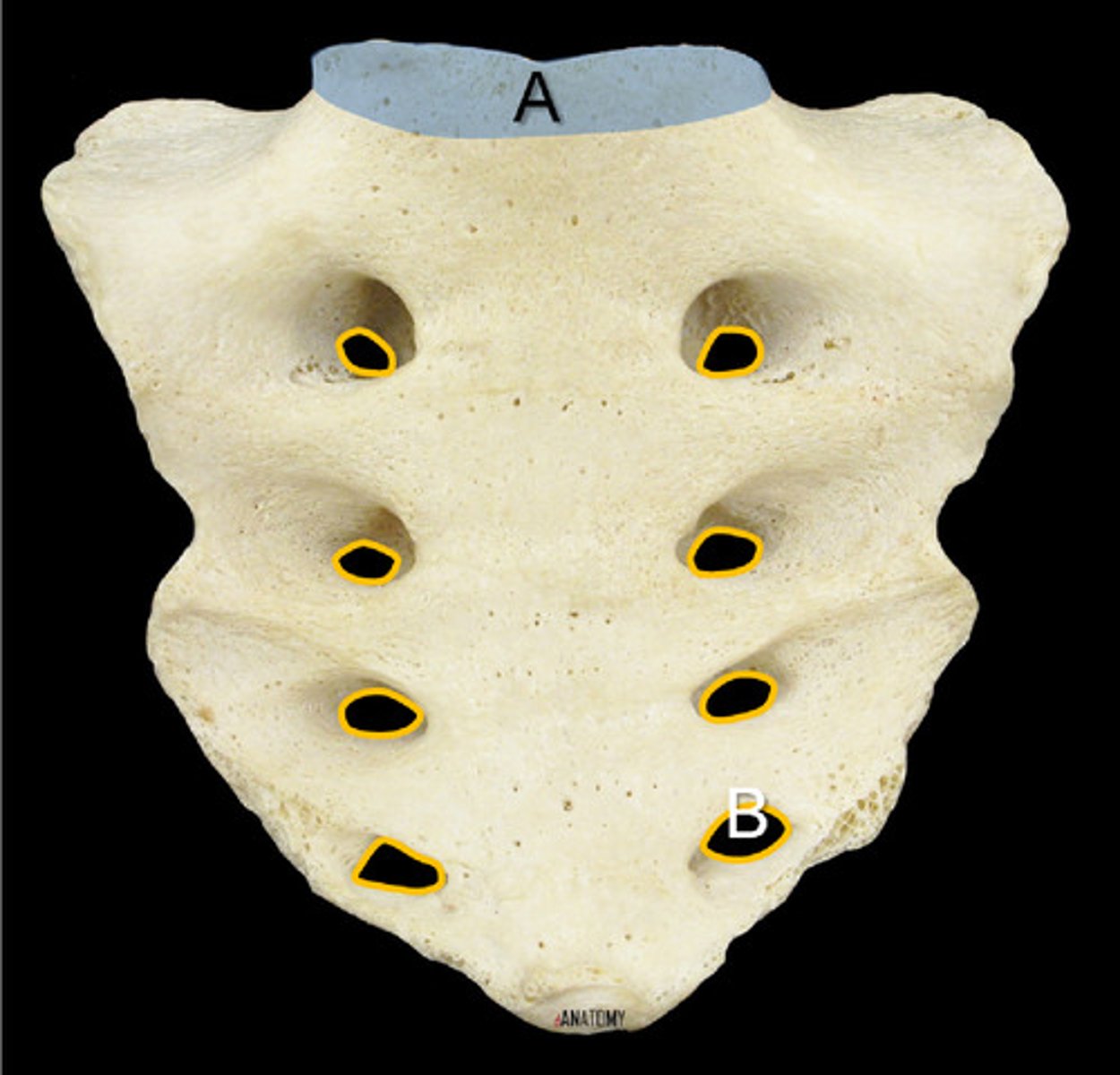

anterior sacral foramina

anterior BLANK

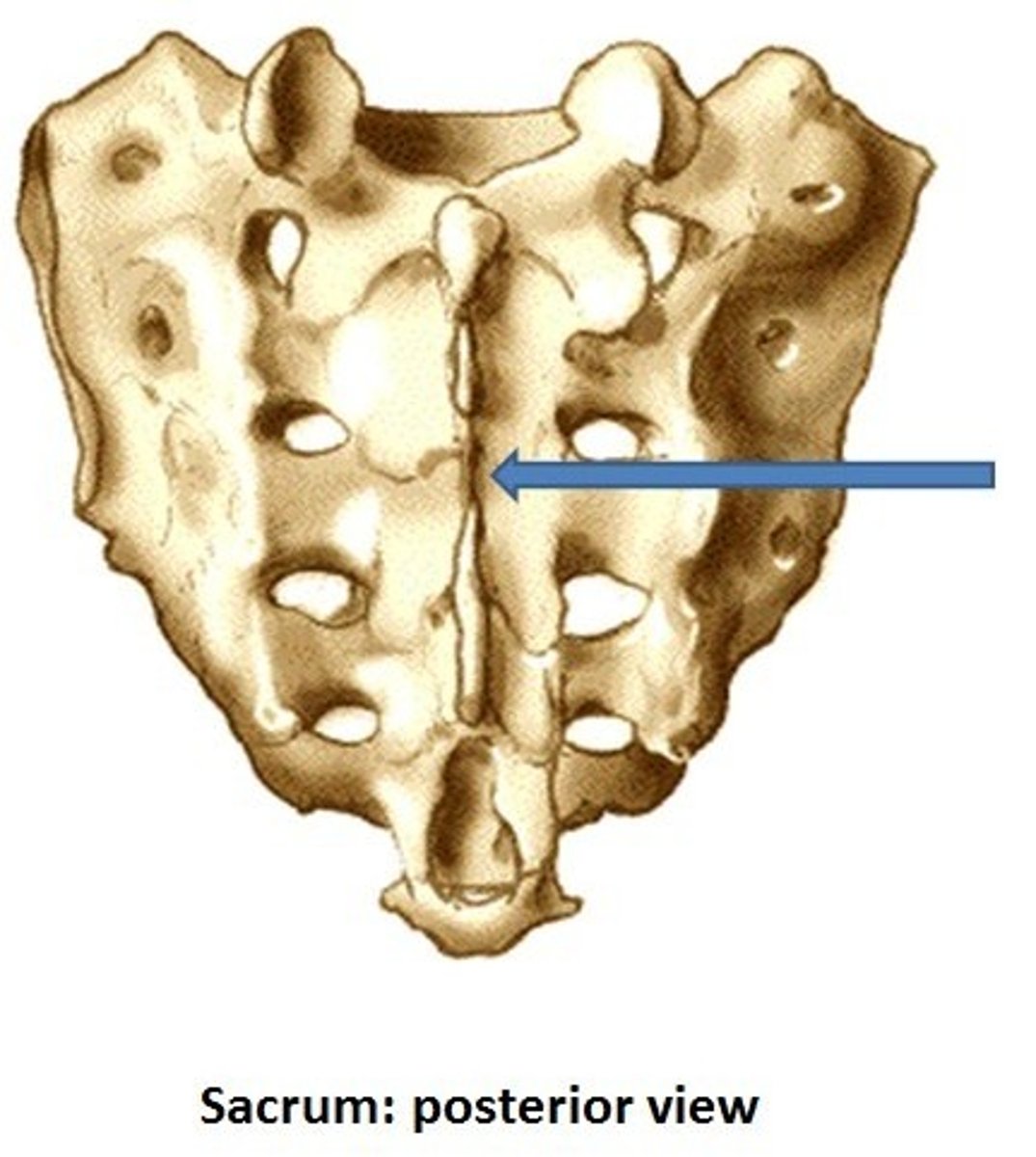

median sacral crest

fused spinous processes

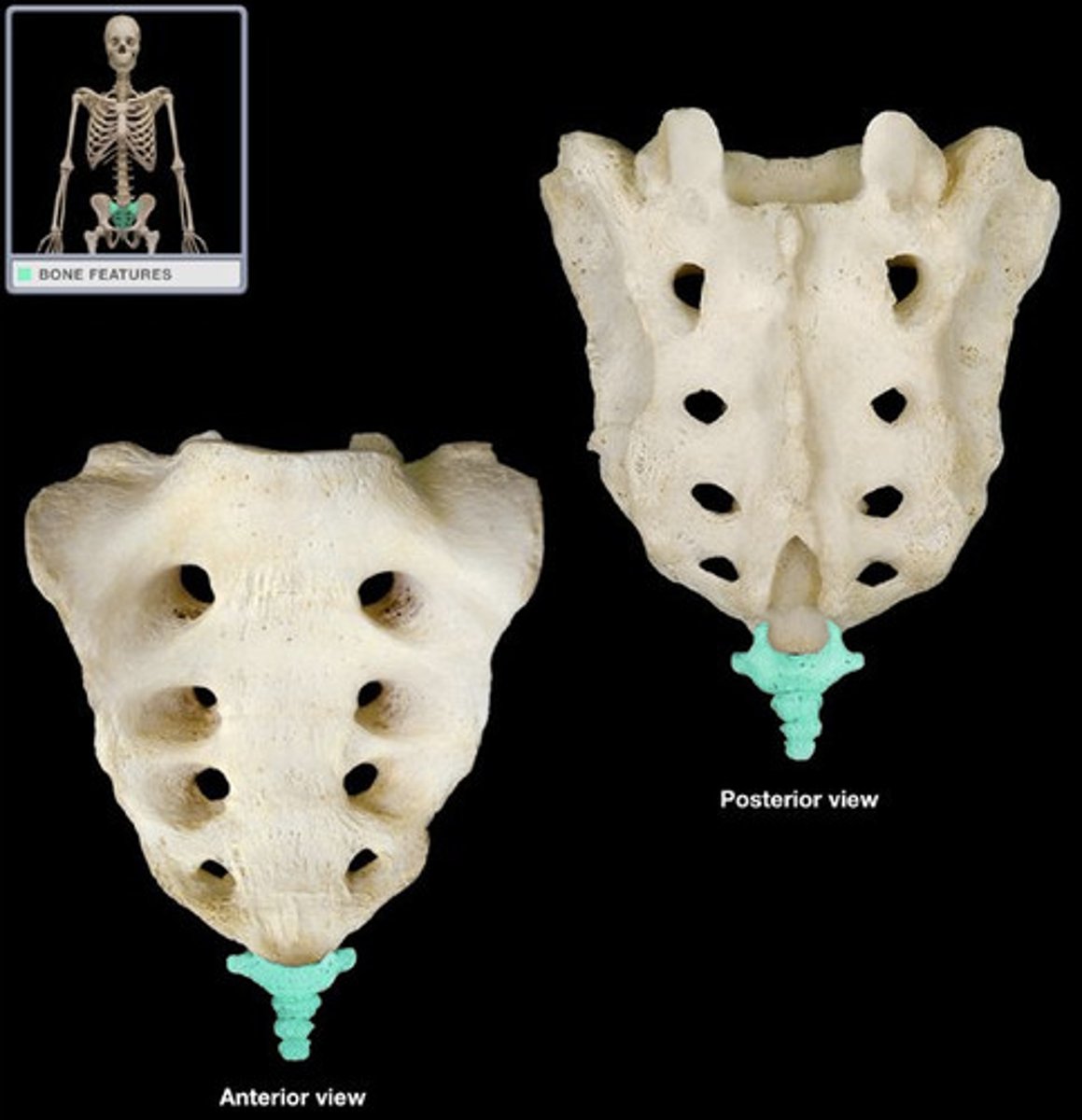

coccyx

little guy made of 4 fused rudimentary vertebrae

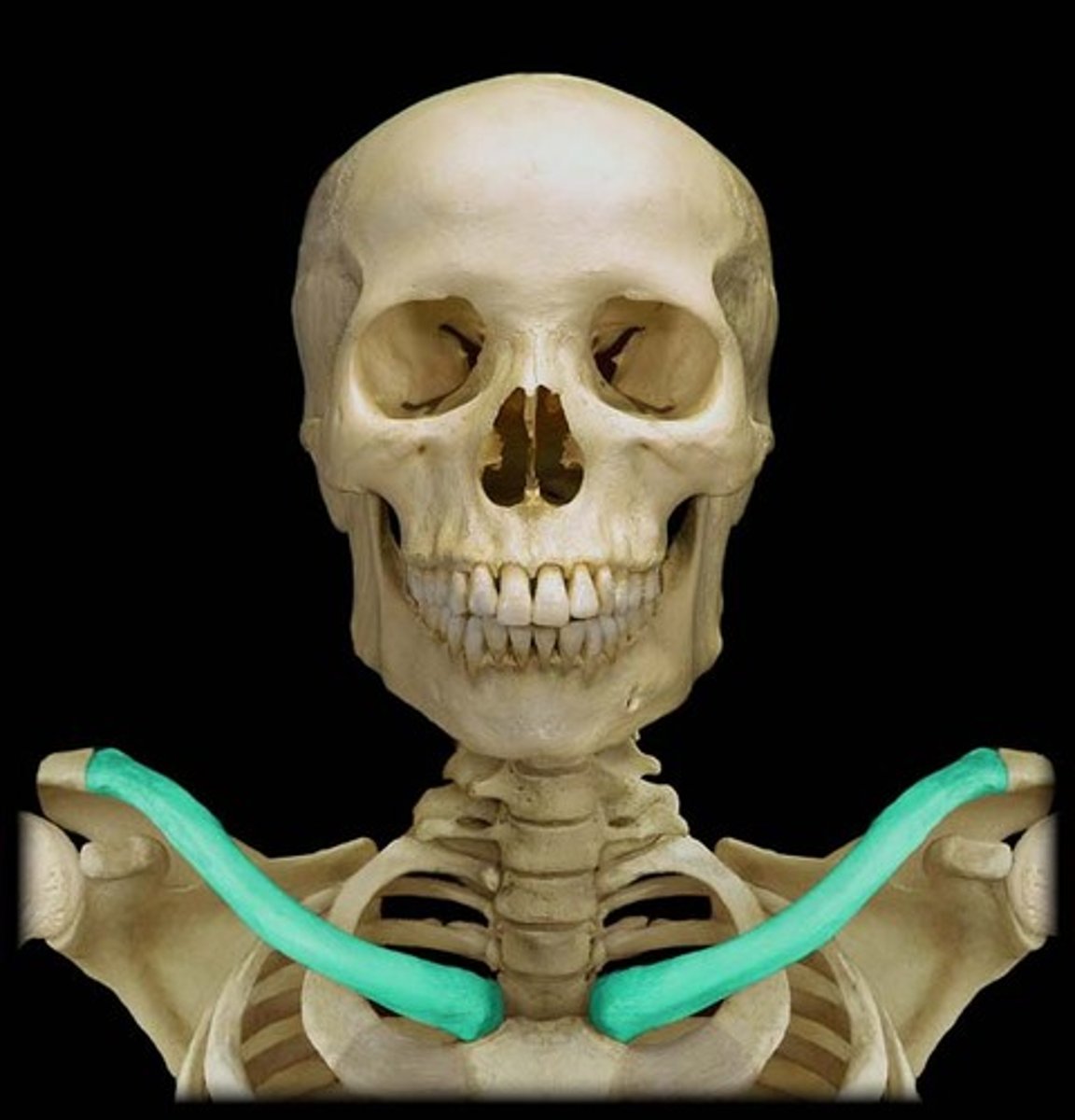

clavicle

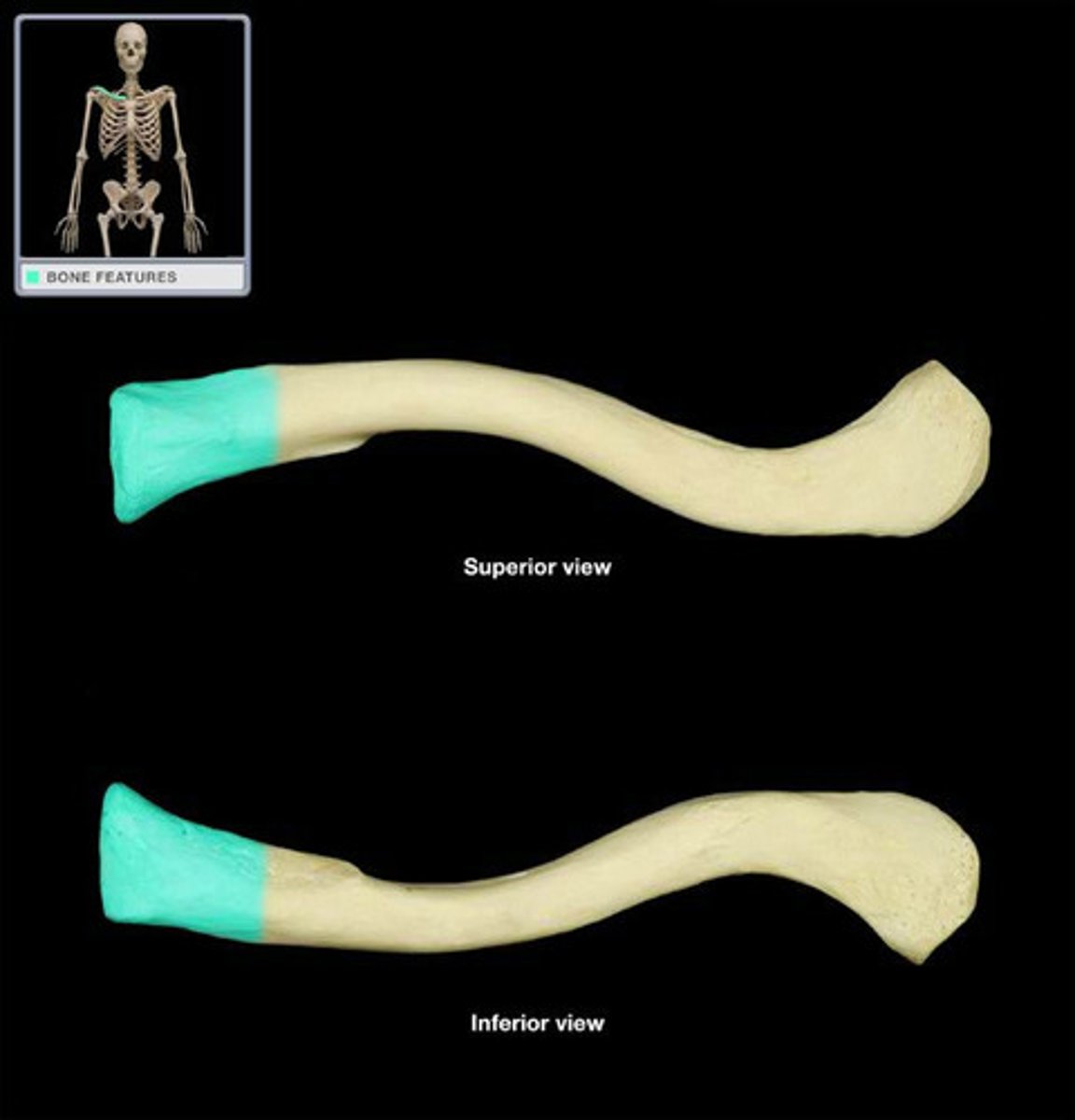

sternal end

BLANK of clavicle

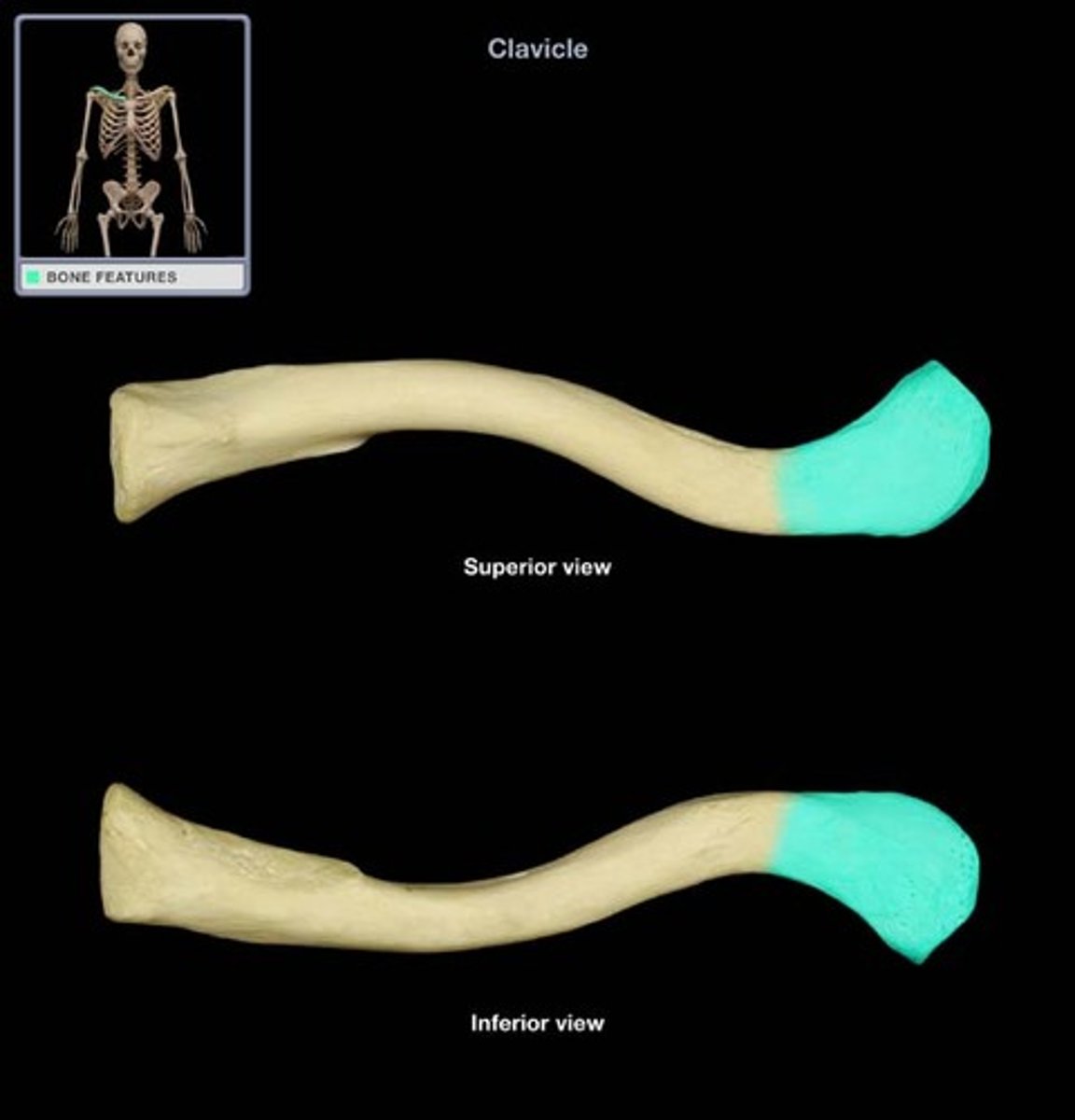

acromial end

BLANK of clavicle

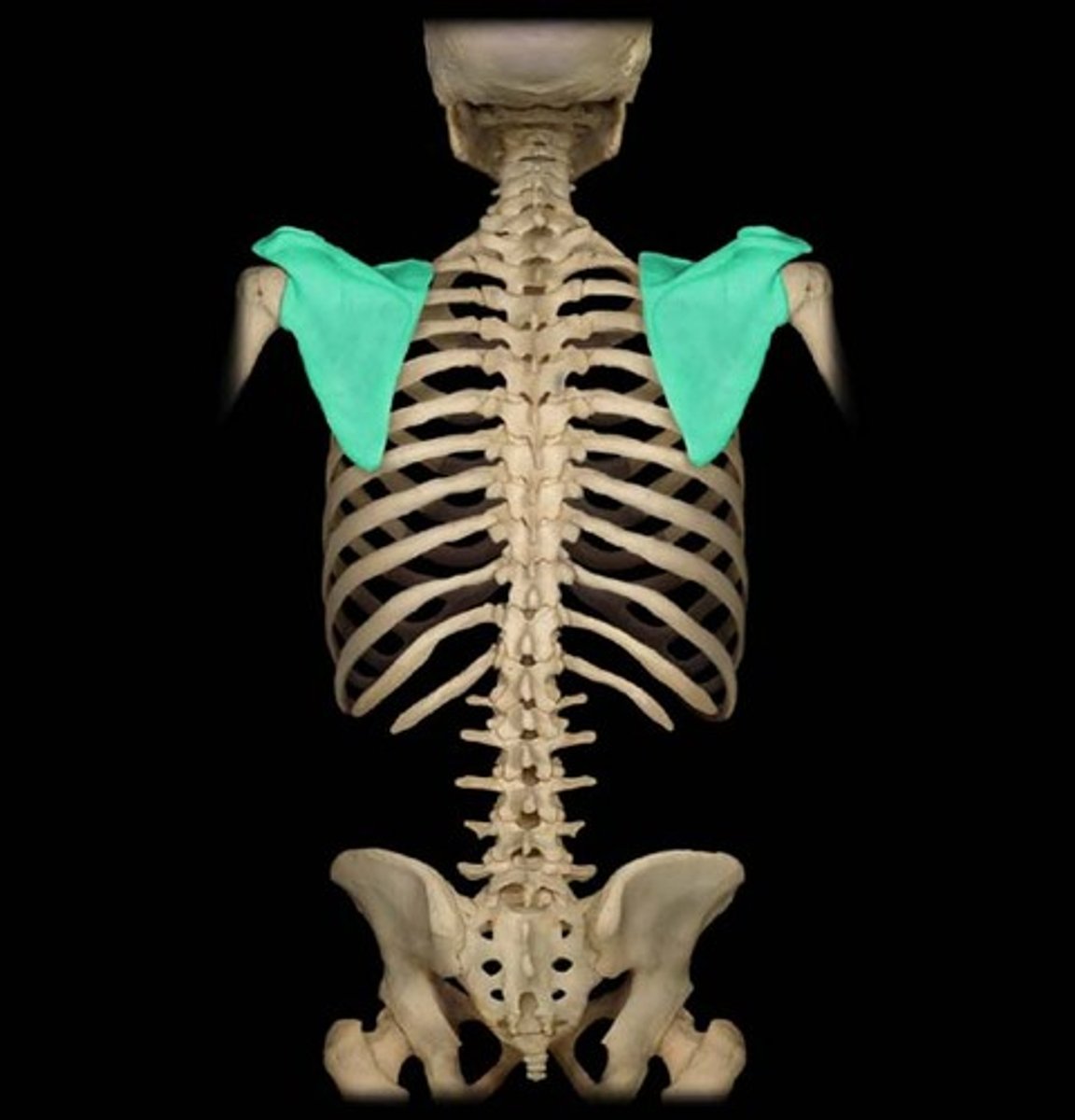

Scapula

medial border

BLANK of the scapula

superior border

BLANK of the scapula

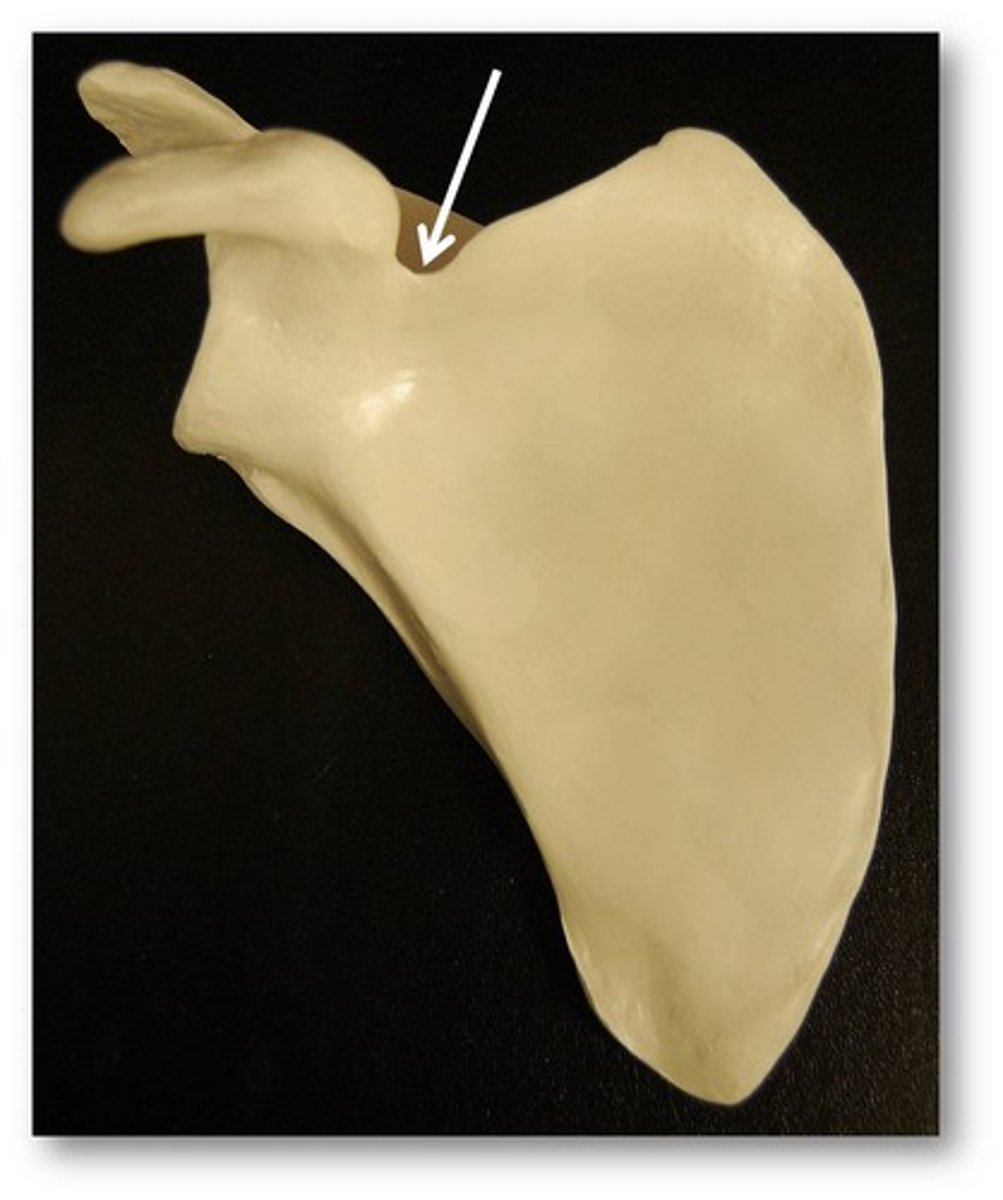

suprascapular notch

BLANK of the scapula

glenoid cavity (fossa)

articulates with the head of the humerus

acromion process

BLANK of the scapula

supraspinous fossa

Name this specific area of the scapula.

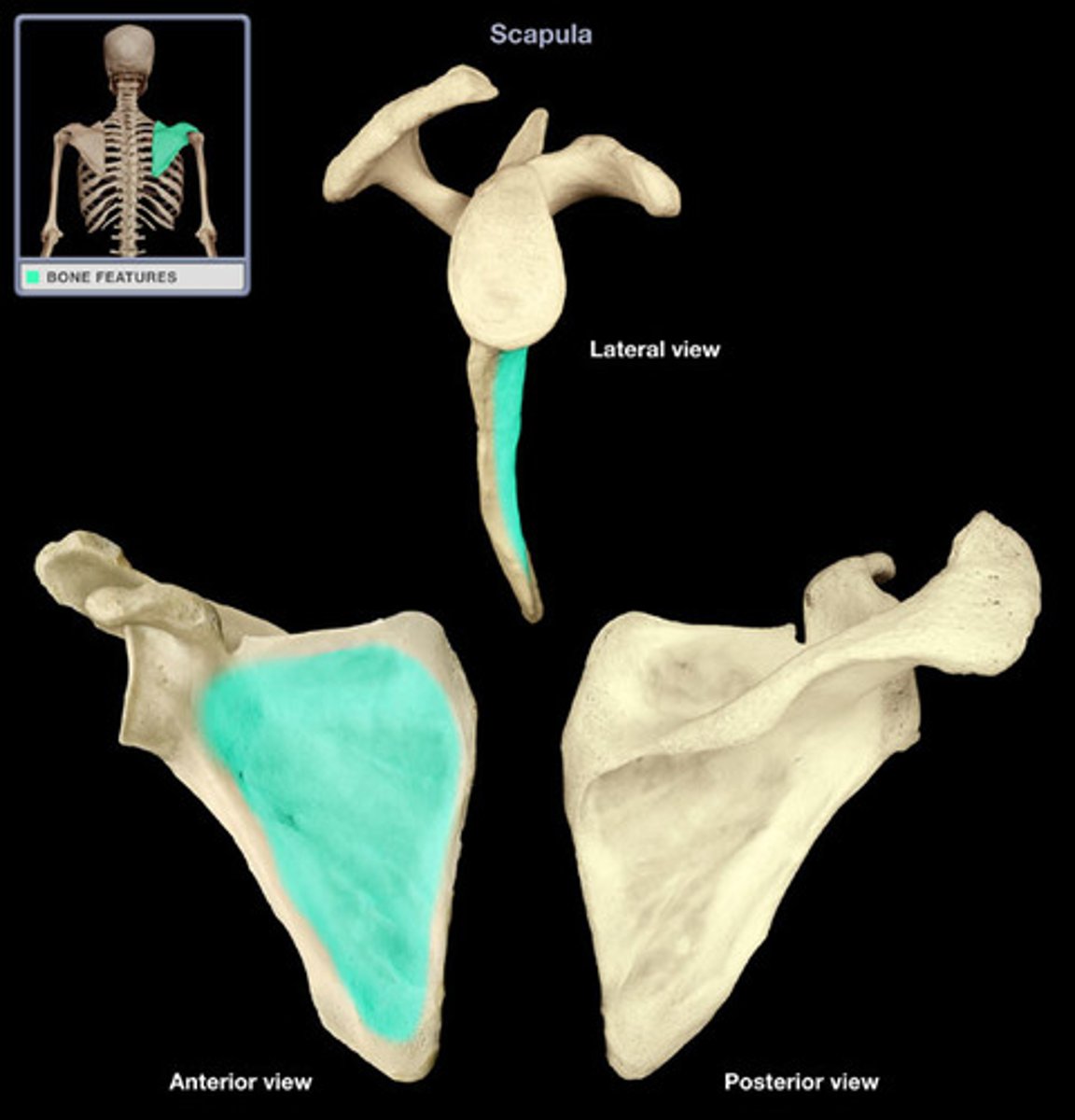

subscapular fossa

anterior surface of scapula

lateral border

inferior angle

BLANK of the scapula

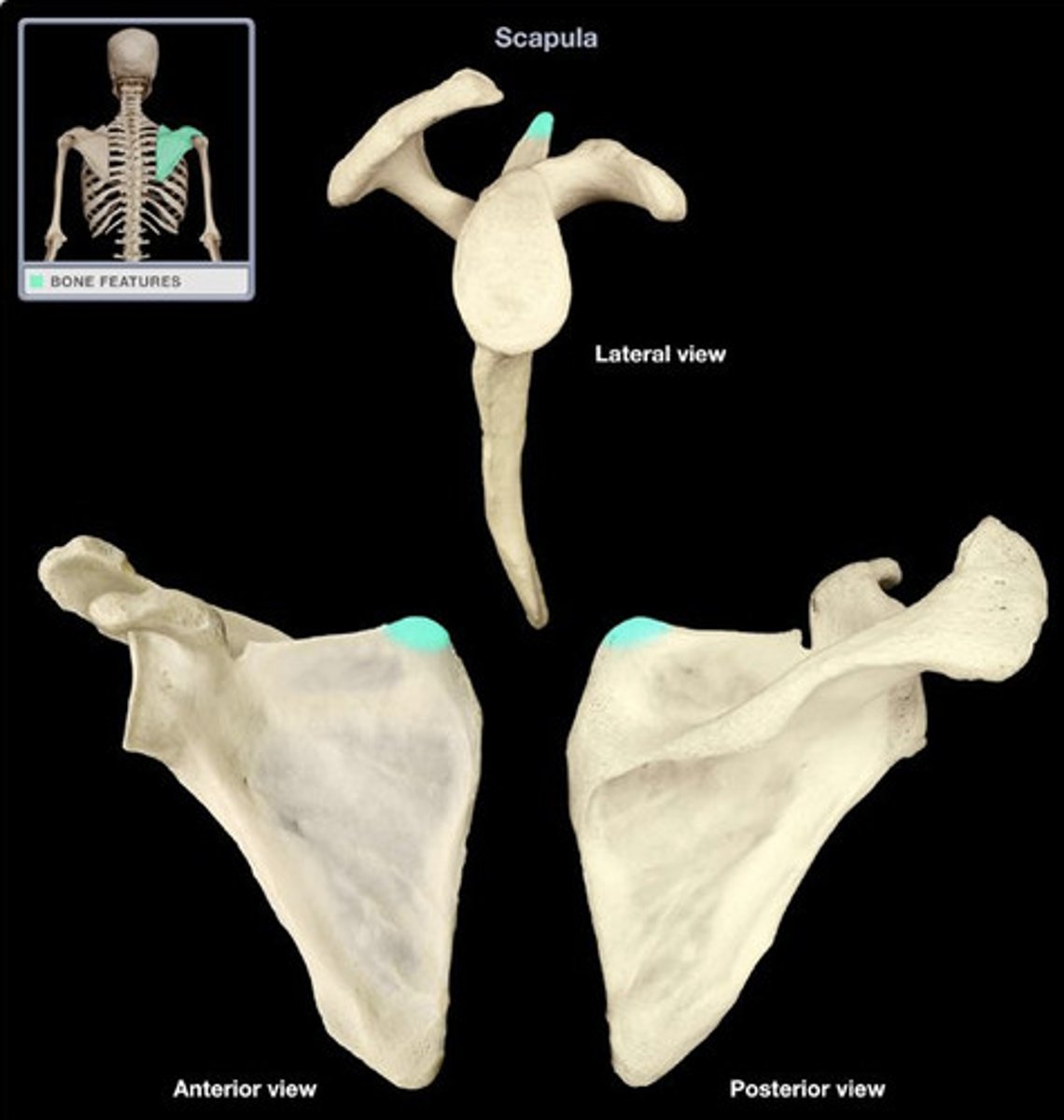

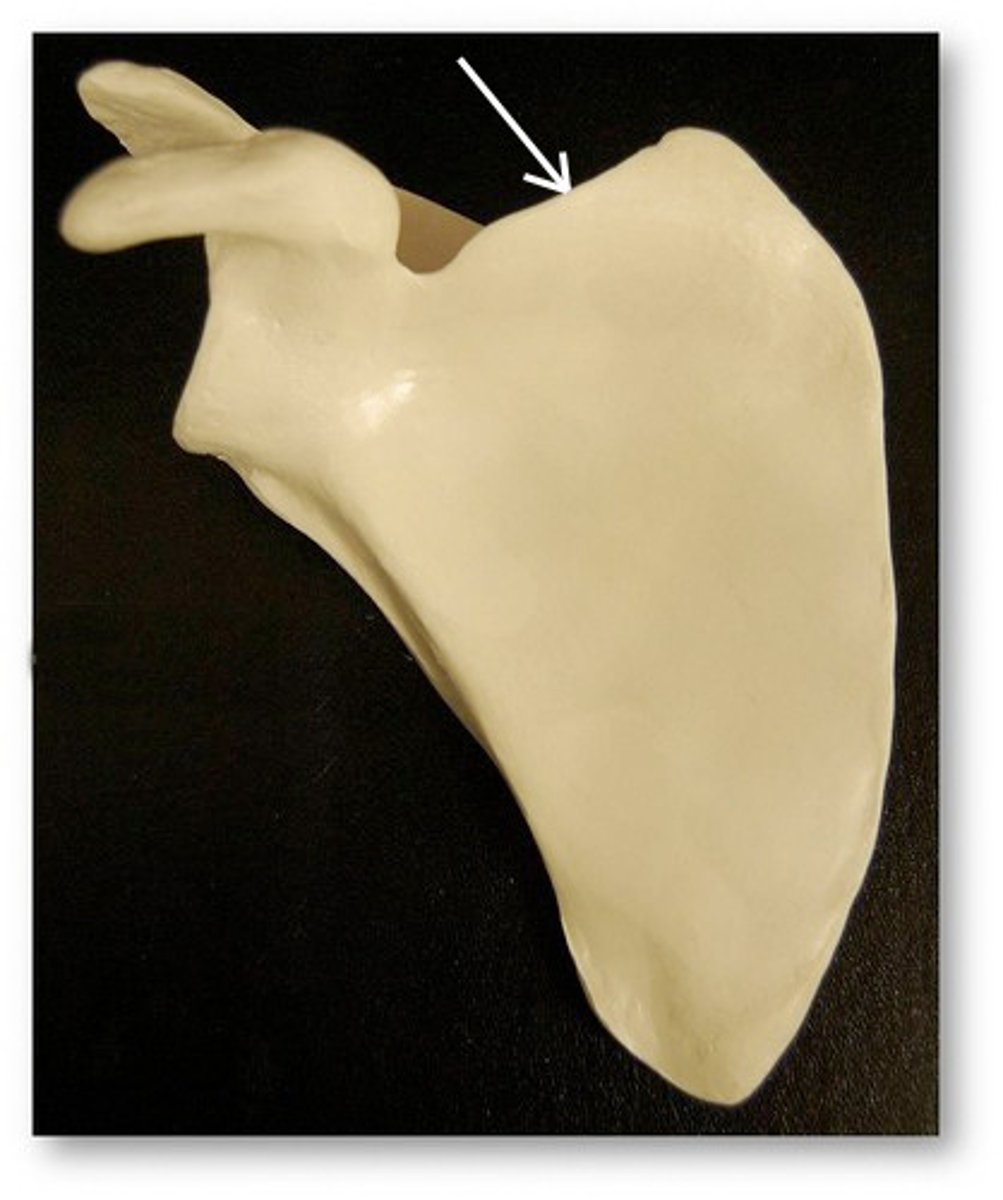

superior angle

BLANK of the scapula

coracoid process

BLANK of the scapula

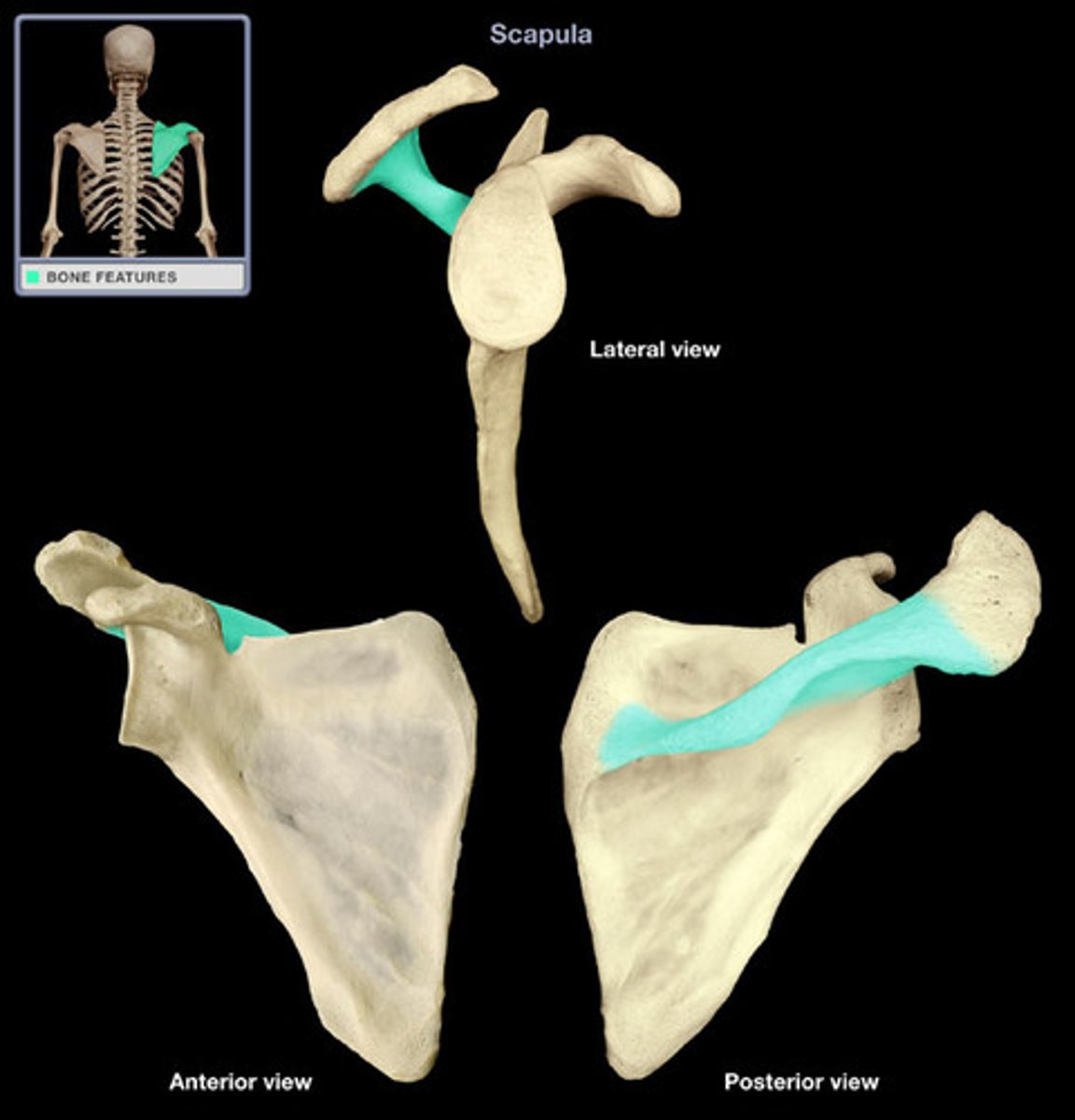

scapular spine

always on the posterior side
