Chapter 6 Materials

yield strength

the stress beyond which a material becomes plastic; yielding is both useful (forming, absorbing energy) and dangerous

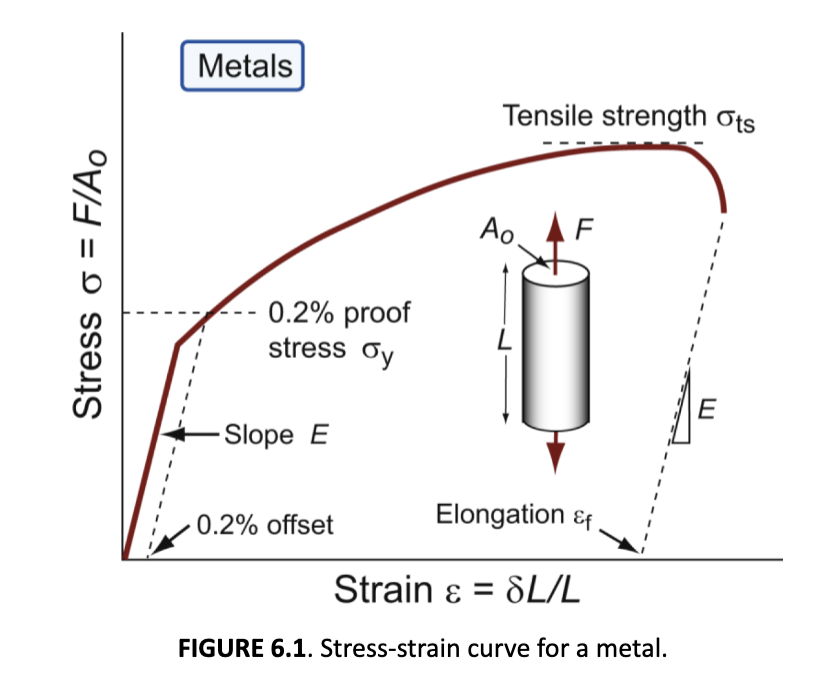

0.2% proof (or offset yield) stress

The yield stress, σ_y (or elastic limit, σ_el), requires careful definition. In metals, the onset of plasticity is not always distinct. We will define:

tensile strength

Beyond the yield point, most metals work harden, causing the rise to a maximum

necking

after a material reaches its tensile strength, it undergoes non-uniform deformation (this) and fracture; relatively large amounts of strain localize disproportionately in a small region of the material. resulting prominent decrease in local cross-sectional area. decrease in stress, but increase in strength

ducility

measured by the amount of elongation to fracture - how much you can deform an object before it breaks

failure

yield properties and ductility are measured with standard tensile tests continued to _________;

line: elastic

curve: plastic

nonlinear; temperature

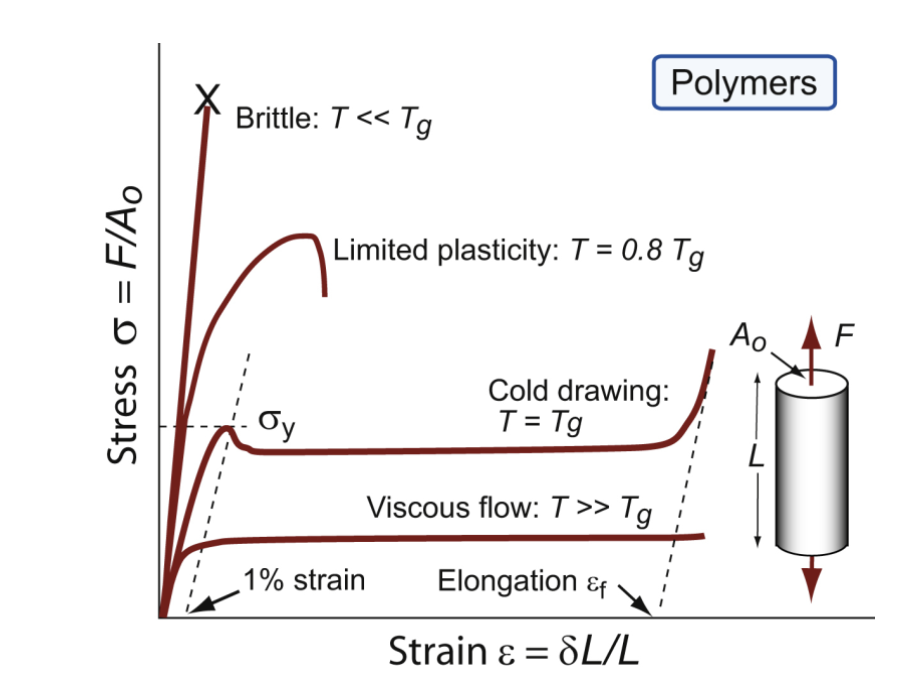

for polymers, σ_y is the stress at which the stress-strain curve becomes markedly _________; typically, a strain of 1% - beyond, yielding behavior depends on ________-

brittle polymer

well below T_g

some plasticity in polymer

approaching T_g

cold drawing

polymers at T_g ; large extension at constant stress, molecules gradually align, harden, and then fracture. Neck forms that is stronger than the rest of the material, and more and more joins the neck

viscous flow

at higher temperatures, polymers become a liquid with __________; moldable; thermosets instead become rubbery and then decompose

set deviation of 0.5%

σ_y for a polymer matrix composite is defined by this

plastic deformation in thermoplastics

dependent on temperature; high temp breaks the intermolecular bonds easily

plastic strain

ε_pl is the permanent strain resulting from plasticity, the total minus the recoverable elastic part:

ε_pl = ε_tot - ε_el = ε_tot - σ/E

ductility

measure of how much plastic strain can be tolerated; in a standard tensile test, it is measured by the elongation ε_f (tensile strain at fracture in %). Strictly speaking, it depends on sample dimensions and is not a material property.

plastic work

done in deforming a material permanently by yielding or crushing. The increment done for a small permanent extension or compression dL under force F per unit volume V=A_oL_o is

dW_pl = F dL/V = F dL/(A_oL_o) = (F/A_o)(dL/L_o) = σdε_pl

Thus

W_pl = ∫ from 0 to ε_f (σdε_pl)

area under stress-strain curve (including plastic deformation region)

ceramics and glasses

brittle at room temperature- they have yield strengths, but these are never reached because they fracture first; even in compression, they crush before they yield

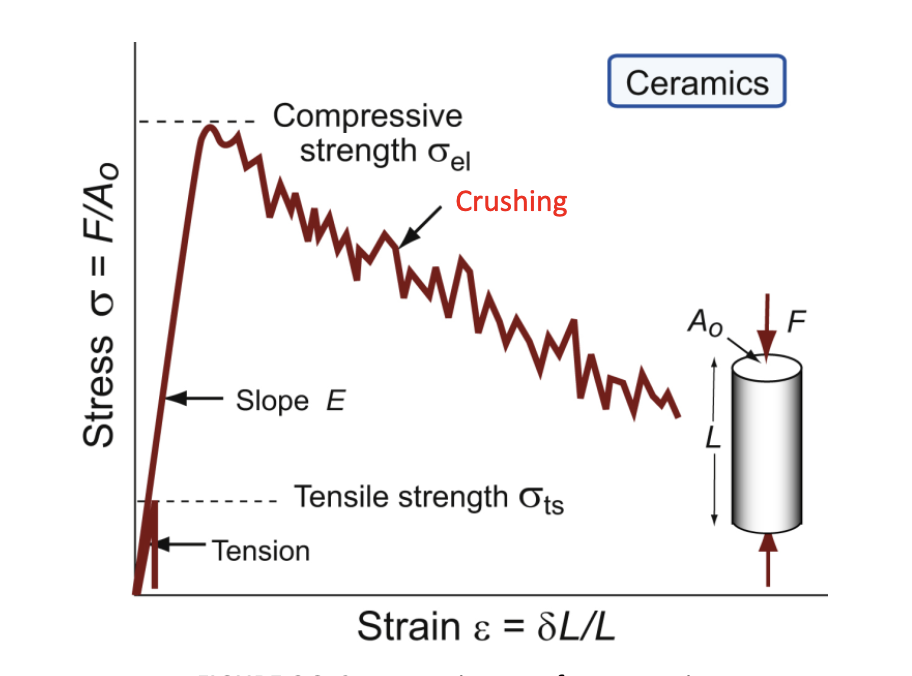

compressive crushing strength

sometimes this practical measure is used; not a true yield strength, but is called the elastic limit σ_el

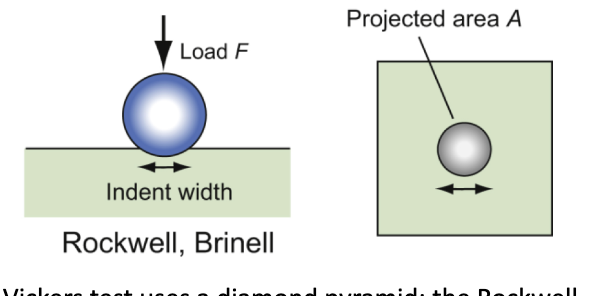

hardness test

an indenter is pressed into surface; the size of the permanent indentation is a measure of resistance to plastic deformation.

Easier and more or less nondestructive. Nonlinear scales often used

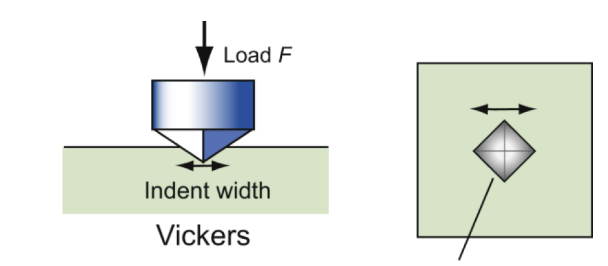

Vickers hardness

Brinell hardness

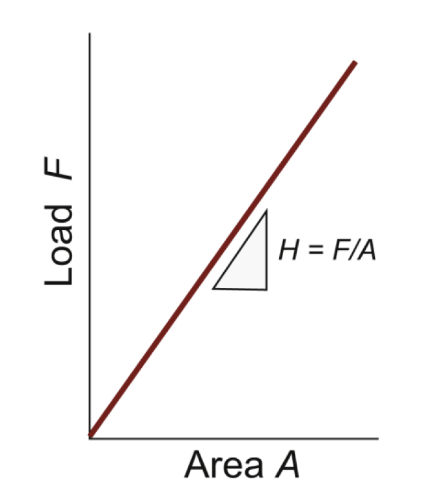

hardness

H = F/A; A is the area of the indentation projected onto a plane perpendicular to the load. The indented region is constrained by surrounding material and thus H > σ_y

Nonlinear scales often used

narrow range; manipulable

the elastic modulus typically has a _________, while strength can span a decade or more - it is ___________

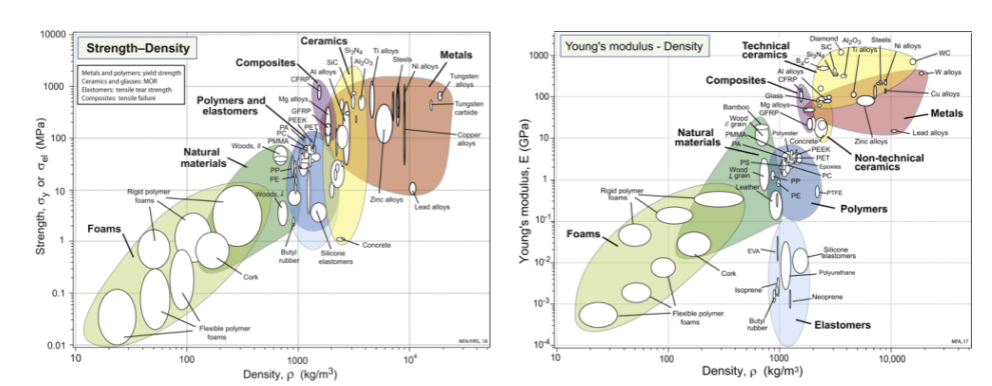

two major differences between E-density chart and strength density chart

1. elastomers → low E, amorphous, glass transition temperature is really low, behaving like a liquid at room temp, molecules cross link, brittle at low temp, away from other materials; strength: pull until it snaps, moves to same correlation with other materials

2. bubbles are small in metals for E vs density, not for strength - large changes in vertical direction because you can adjust strength by different processing methods

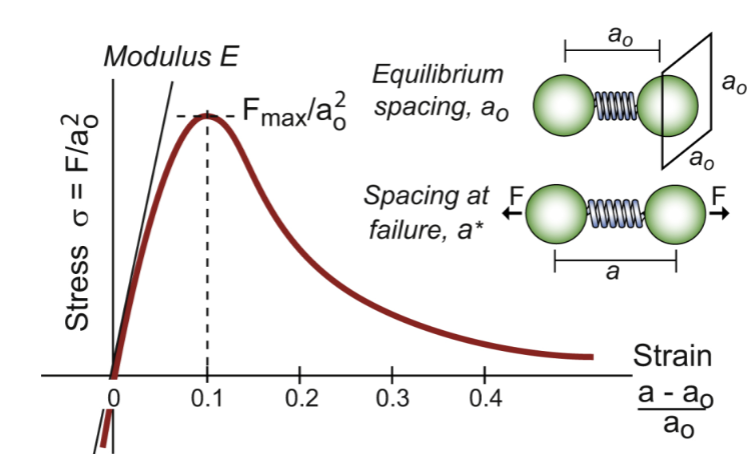

bonds

like springs, have a stress-strain curve; straight line slope is E. F_max/a_o² is ideal strength of the material - drops as atoms pull apart. Resists more when squeezing vs pulling

bond stress

approximate σ=F/a₀², stretch from initial length a₀ to a, giving a strain (a-a₀)/a₀

bond strength

peak strength on stress-strain curve for atomic/molecular bonds

broken

the bond is “________” when stretched more than ~10% of the original length (strain ~ 0.1)

S=F/δ and δ=a₀/10, so F to do this is ~Sa₀/10

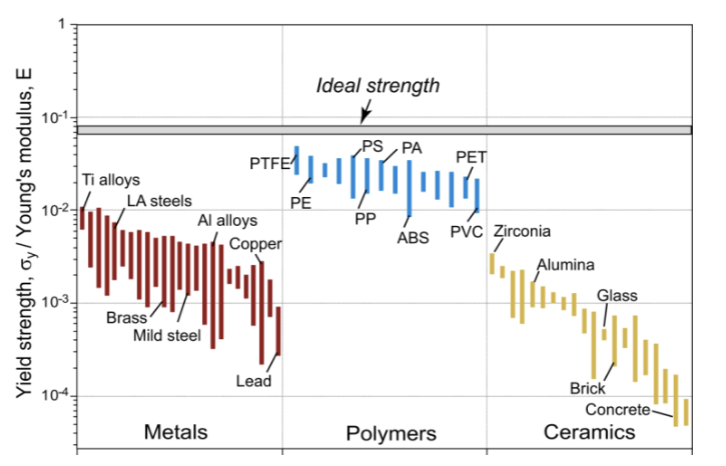

ideal strength

should be σ_ideal ~ F_max/a₀² = S/(10a₀) = E/10

σ_ideal/E ~ 1/10, more refined analysis gives ~1/15

crystalline imperfection

defects in metals and ceramics; often organized by dimensionality: point defects, dislocations, grain boundaries

real materials

riddled with imperfections (with a few exceptions) and these defects explain strength, diffusion, conductivity, etc

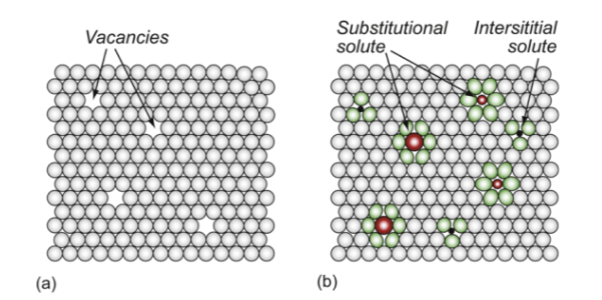

point defects

vacancies, impurities - substitutional, interstitial; 0 dimensional defect

missing atoms; or foreign (solute) atoms in interstitial and substitutional sites (introduces stresses due to difference in sizes)

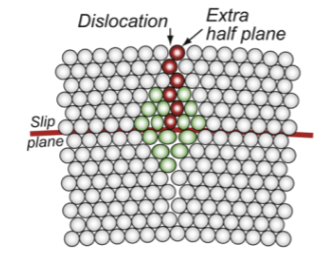

dislocation

an extra half-plane of atoms; can move

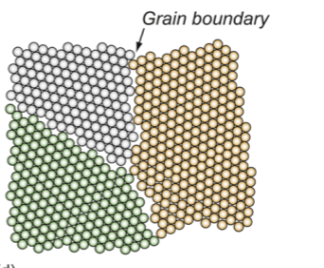

grain boundary

planar (2D) defect on the surface of a material; occurs between any two crystals with slightly different orientations - atoms don’t match exactly, causing distortion

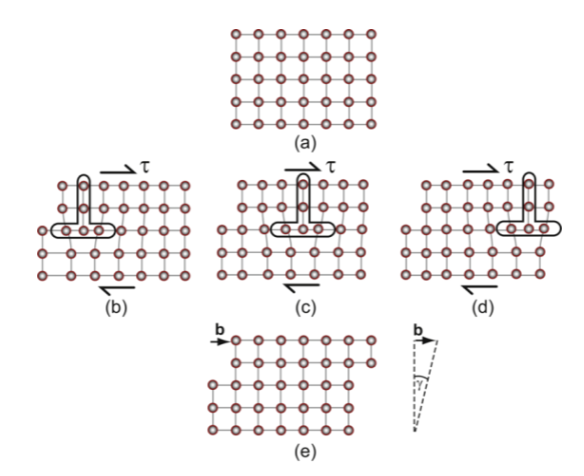

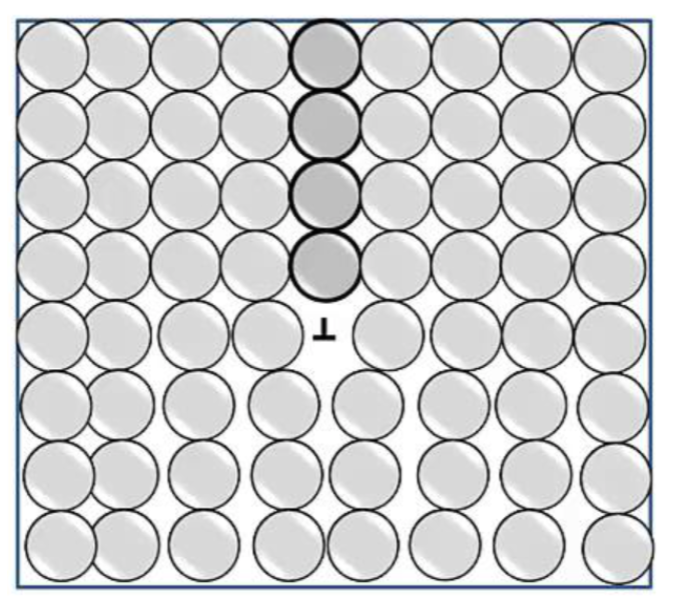

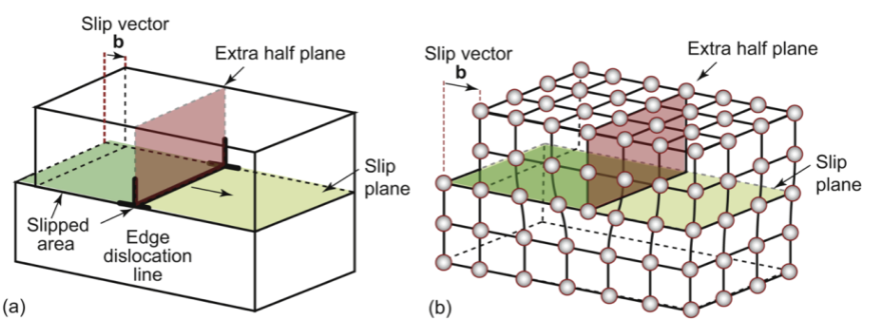

edge dislocation

edge of extra “half-plane.” The dislocation line separates the part of the plane that has slipped from the part that has not. Movement of atoms!

Introduces a shear stress that shifts the dimensions by cutting, slipping, and rejoining bonds across a slip plane. The slip vector b is perpendicular to the edge dislocation line.

compressive and tensile

edge dislocations cause __________ stress where there is an extra half plane, and __________ stress where there is the normal arrangement of atoms

slip vector

Burger’s vector b describes the direction and magnitude of the relative motion and results in a shear strain γ at the end of the process. Upper half moves relative to the lower half by one dislocation (vector b)

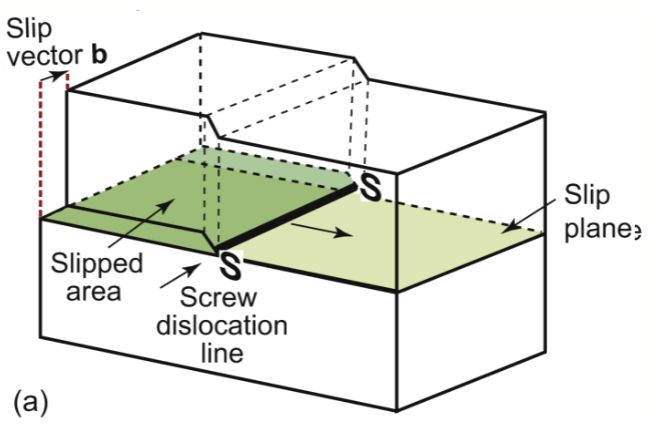

screw dislocation

displacement parallel to the edge of the cut, rather than perpendicular. Geometry is similar to a corkscrew. Like a spiral ramp; has a shear stress along its length. moves backward by one atomic spacing

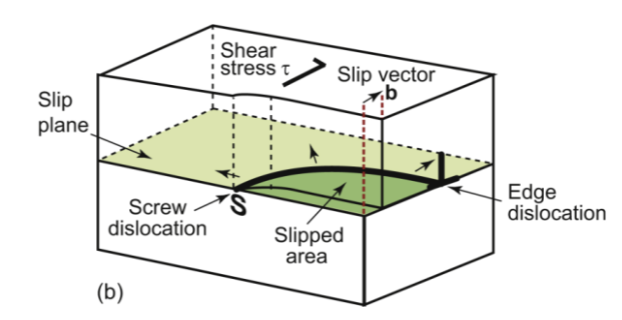

mixed dislocations

made up of little segments of both edge and screw - b is fixed, while the line wanders. It is far easier to move a dislocation through a crystal, breaking and reforming bonds along a line, than simultaneously breaking all of the bonds in an entire plane. it can be likened to moving a carpet a short distance by pushing a small fold across. These are not in straight lines!

slip systems

Dislocations move more easily on some planes and in some directions than others — preferred slip planes, slip directions; depend on crystal structure

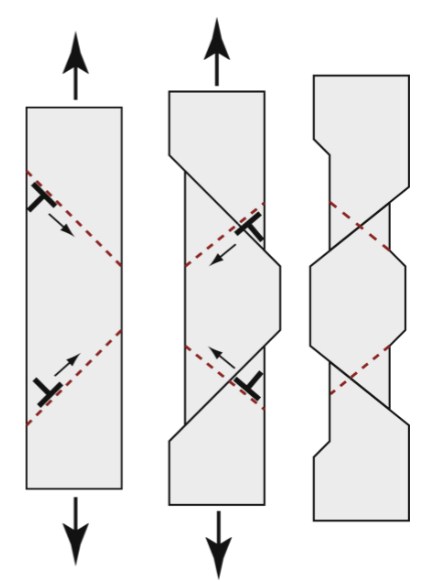

many dislocations

individual slip displacements are tiny; with _____________ moving on many planes, macroscopic shape changes can occur, while volume is essentially unchanged

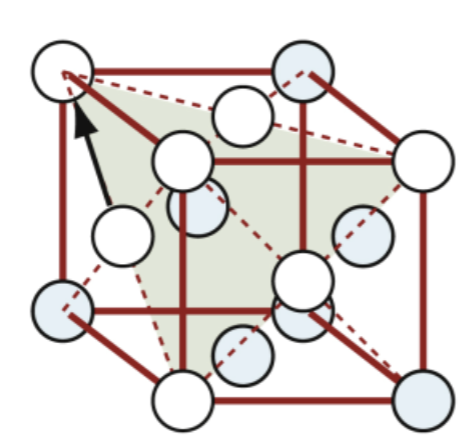

FCC slip systems

close-packed planes are perpendicular to body diagonals of a cube — 4 planes per unit cell

Atoms in close-packed layers touch along face diagonals — 3 directions per close-packed plane

→ 12 slip systems

very ductile when pure

FCC metals are usually…

crystallography

controls strength and ductility of pure metals

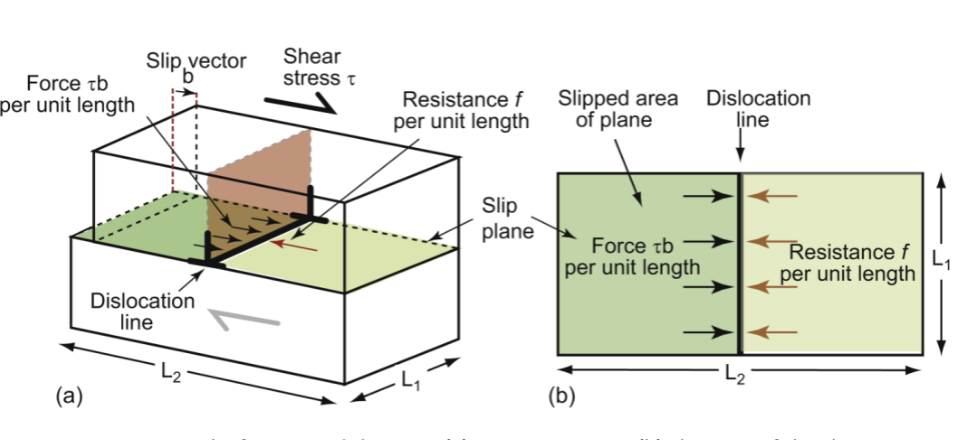

friction-like resistance

crystals resist dislocation motion with this f per unit length - yielding occurs when an external force (F_s) exceeds f. Breaking bonds requires energy

static until it is exceeded

line tension

dislocations attempt to keep their length as short as possible - they behave as if they have this, T, like a rubber band; T ~ Eb²/2 - can be lowered by reducing b (in close-packed planes in FCC metals)

lattice resistance

contributions to f: f_i (the intrinsic resistance of the lattice to shear due to bonding) is lower in metals, but very high in ceramics. however, metals can be further strengthened, while ceramics are prone to fracture

obstacles to slipe in metals and allows

solid solution hardening, f_ss, precipitation hardening, f_ppt, working hardening via new dislocations, f_wh, and grain boundaries, f_gb.

can be manipulated in manufacturing

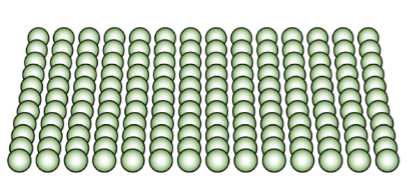

perfect lattice

resistance f_i

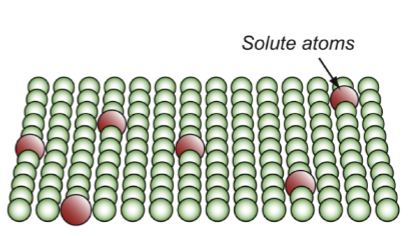

solution hardening

resistance f_ss, adding specific atoms to the crystal (alloying) or impurities

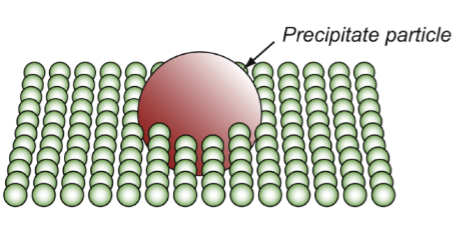

precipitate hardening

resistance f_ppt

other particles/crystals in the lattice that are bigger than the atoms

work hardening

resistance f_wh

add new defects into the crystal; parallel, can repel one another

total shear yield strength

is the sum of the intrinsic shear strength of the lattice plus the contributions due to solid solution hardening, precipitate hardening, work hardening, and grain boundary hardening. Need to extend from loading in shear to loading in tension

impede dislocation motion

to strengthen metals, obstacles increase f and improve strength - found from spacing and strength of interaction; the shear stress needed to force the dislocation through the field of obstacles has the form Δτ = αEb/L

where α is dimensionless and characterizes the obstacle strength of interaction with a dislocation (between 0 and 1)

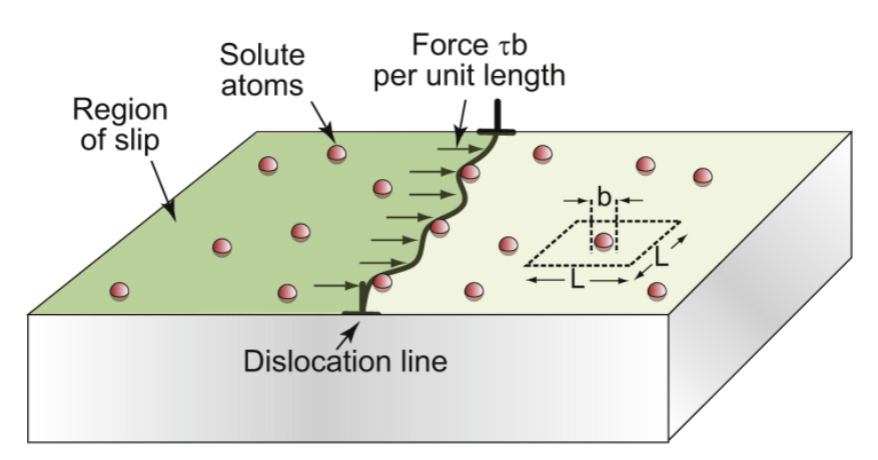

solution hardening

deliberate addition of impurities (alloying). Every element has a slightly different size; this locally strains the lattice, which “roughens” the plane and interferes with dislocation motion

concentration (atom fraction)

c = b²/L² thus L=b/c^1/2

this gives τ_ss= αEc^1/2

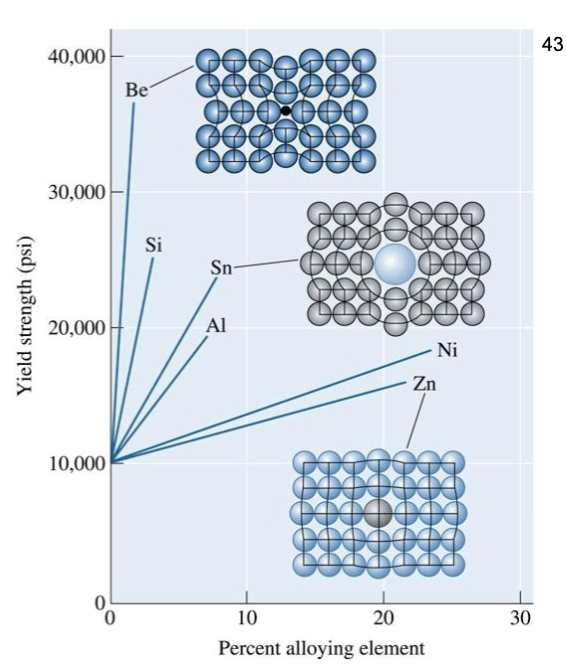

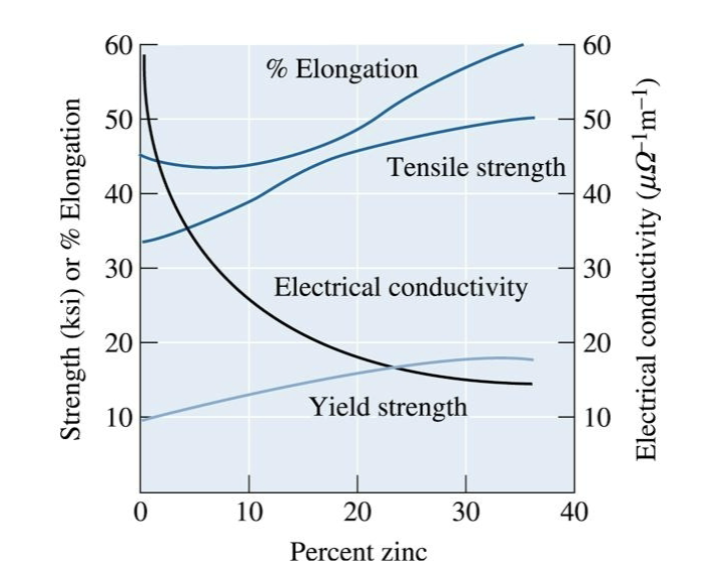

atomic size difference and amount of alloying element

nickel and zinc atoms are about the same size as copper atoms, but beryllium and tin have greater effect on yield strength because their larger difference in size causes a bigger hindrance to movement of dislocation, which increases strength.

Increasing both _____________ and ____________ increases solid-solution strengthening

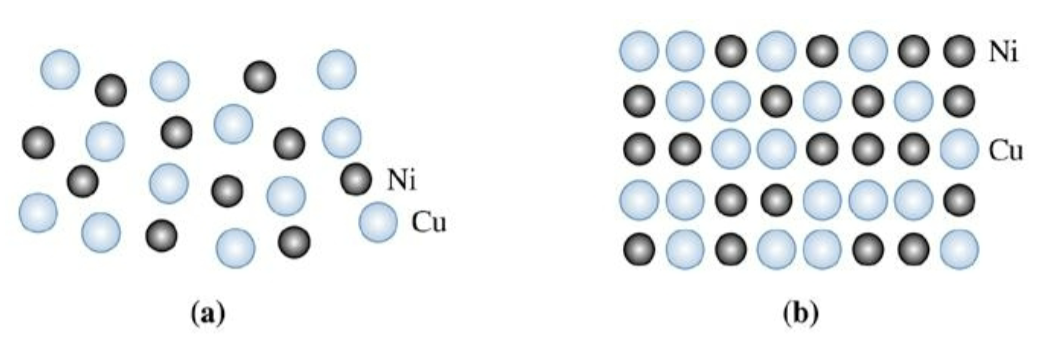

solid solubility

liquid copper and liquid nickel are completely soluble in each other. Solid copper-nickel allows display complete ___________, with copper and nickel atoms occupying random lattice sites in the FCC crystal.

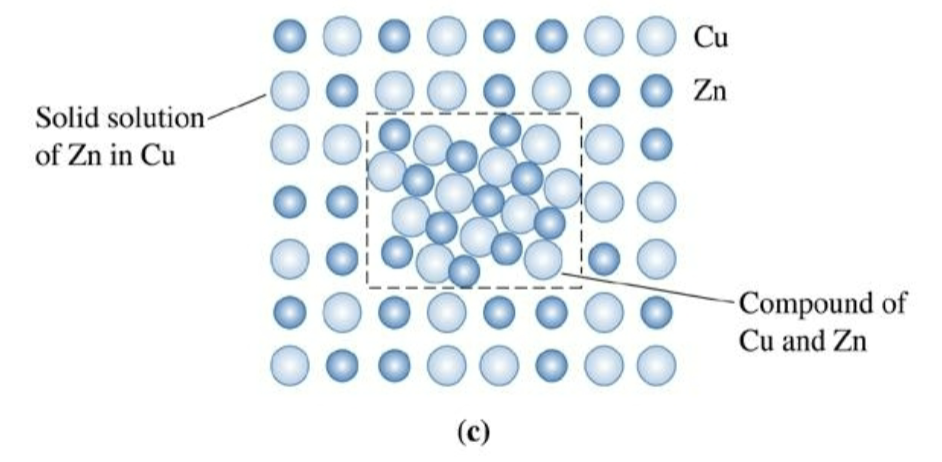

second phase; limited solubility

in copper-zinc allows containing more than 30% Zn, a ___________ forms because of the ______________ of zinc in copper. Exceeding this value means a precipitate forms

phase

a structurally homogeneous (same crystal structure) and distinct portion of matter (has boundaries surrounding it that separates it from others).

solubility limit

in metals, is mainly a function of relative atomic size. If two metals have atoms that differ widely in size, they will not be very soluble in one another

dispersion and precipitate strengthening

dispersed small, strong particles either in a metal matrix composite (by mixing) or via an in-situ precipitation process (exceeding the solubility limit). Spacing between atoms is the critical factor

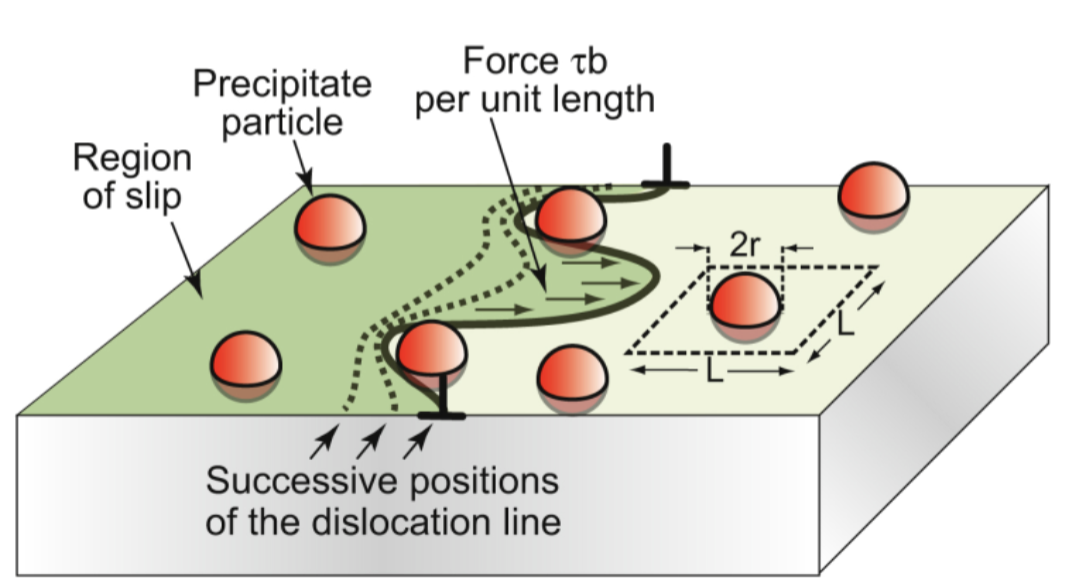

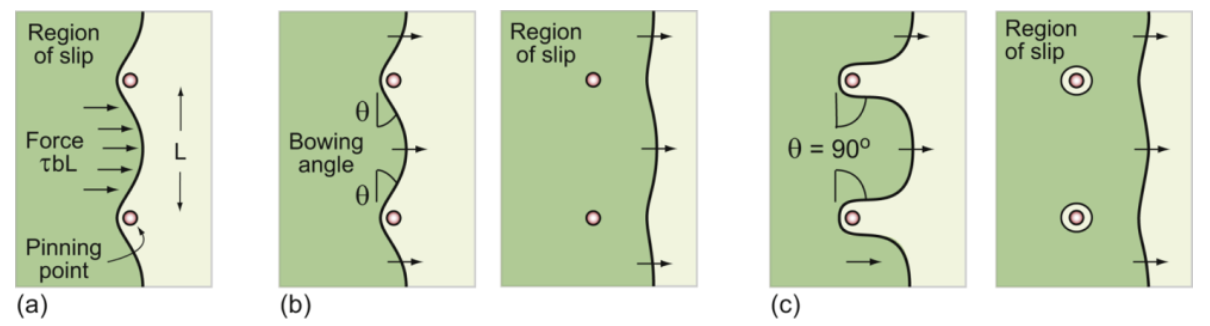

dislocation pinning

a. force on dislocation between pinning points

b. dislocation bowing and escape from weak obstacles

c. dislocation escape strong obstacles

dislocation bows

between particles against line tension; wants to be as short as possible

critical configuartion

of precipitate strengthening, the semicircle where the total force on a line segment of length L is just balanced by the force 2T due to line tension

dislocation escapes

when τ_ppt = 2T/bL ~ Eb/L

work hardening

add more dislocations to the material to increase the strength; dislocations are generated by plastic deformation

dislocation density

the line length per unit volume; even a well annealed sample has this value in the 10^10, deformed can be 10^17

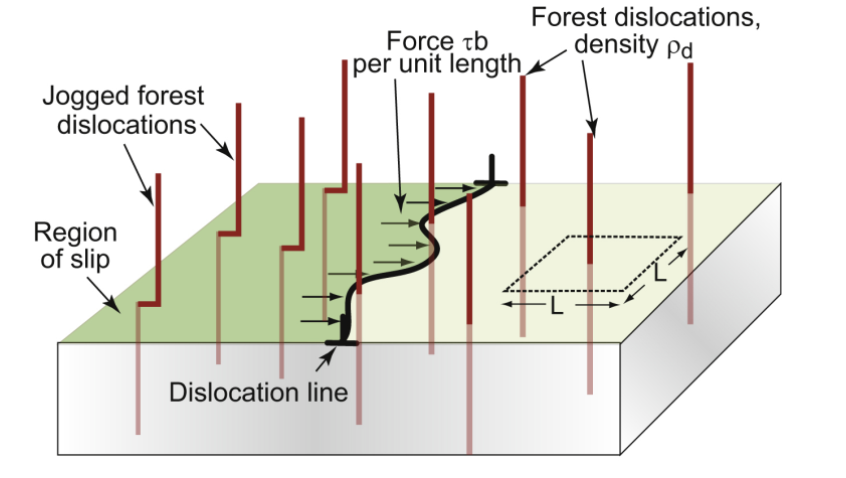

forest; job

in work hardening, a moving dislocation runs into a “________” of dislocations with average spacing L=ρ_d^-1/2 and creates a “____” of length b in each other dislocation, each exerting a pinning force of p=Eb²/2

yields τ_wh ~ Eb(ρ_d^-1/2)/2

strengthening by deformation

in metals, is related to increasing the dislocation density; at stresses higher than the yield strength, dislocations begin to move (called slip) and then encounter obstacles (pinning. Even higher stresses produce more dislocation → leads to more interaction, more entanglement, and more strengthening

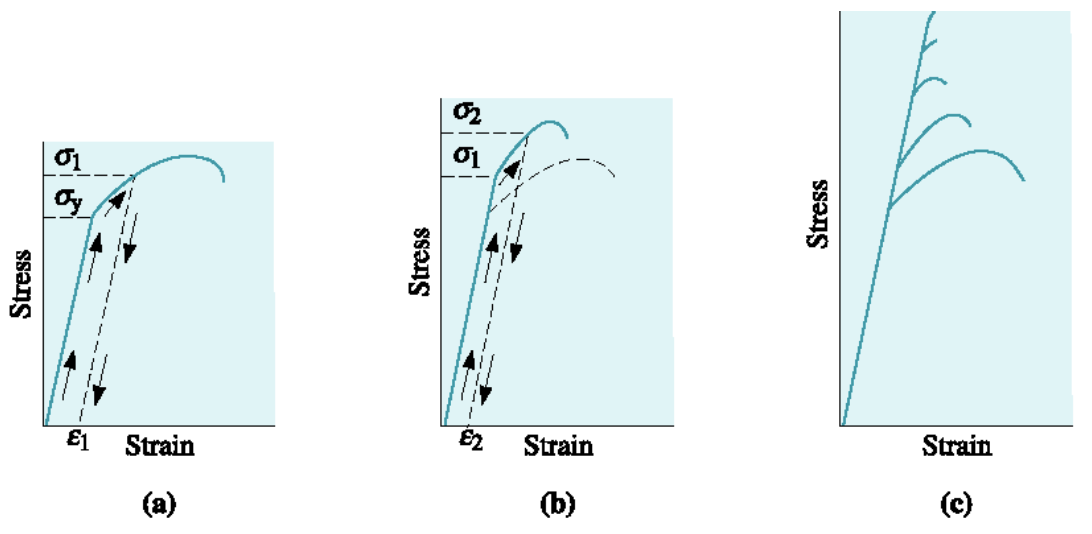

cold work

repeated application of loads beyond the yield strength increases the yield and tensile strengths, but decreases ductility until the yield, tensile, and breaking strengths coincide - then, no further plastic deformation is possible.

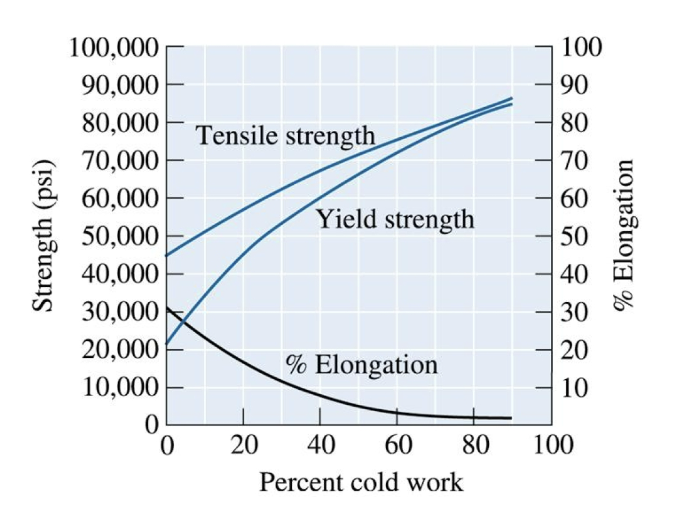

percent cold work

%CW = 100 x (A_o - A_f)/A_o

A_o is original cross-sectional area

A_f is final cross-sectional area.

As this increases, the yield strength and tensile strength increase, but ductility decreases.

crack

there is a maximum amount of cold work that a material can accommodate. If more cold work than this is attempted, the material will…

final steps in processing

mechanical behavior requirements can be met through design of the deformation process. one of … can be plastic deformation to get the required final strength

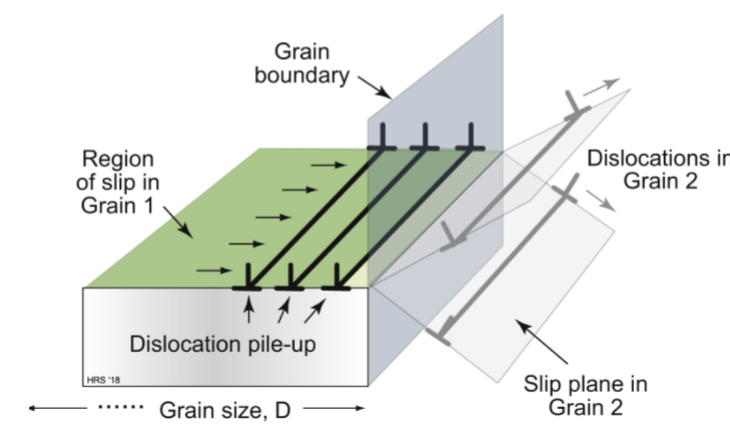

grain boundary hardening

these disrupt dislocation motion; experimentally determined relationship is τ_gb ~ k_p/D^1/2

where k_p is the Petch constant and D is grain size. The effect increases significantly when grains approach 1 micrometer or smaller

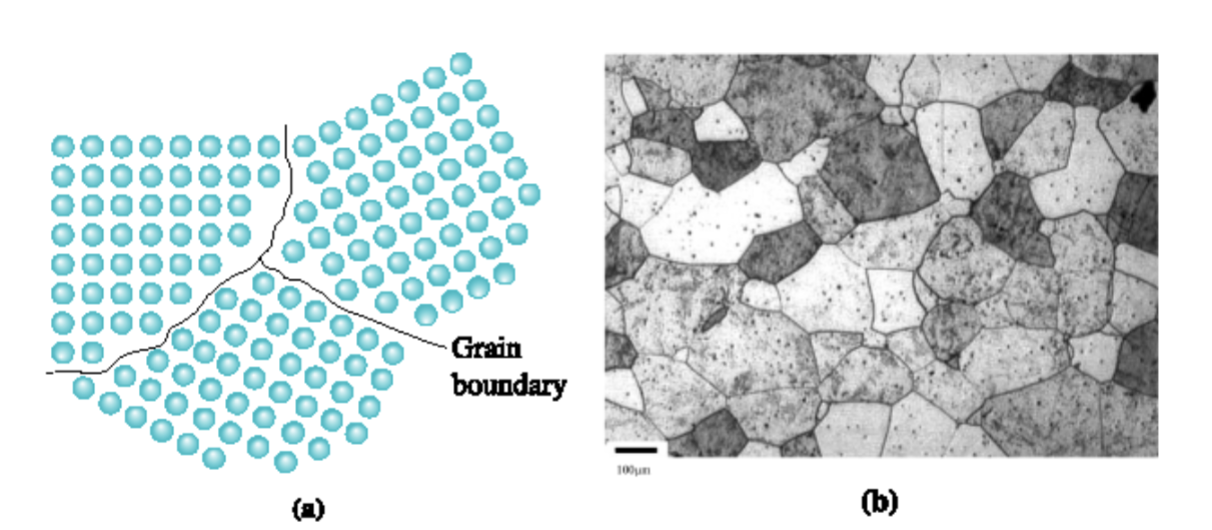

grain boundaries

many materials are polycrystalline (made up of many grains); each grain has the same crystal structure, but is oriented differently in space from other grains

boundaries; interiors

the atoms in the __________ between grains are not spaced and positioned as they are in the _________ of the grains; no equilibrium spacing

acid solution on surface

energy is higher in the grain boundary → preferentially attacked and make grooves in the metal sample to estimate the grain size

impede dislocation motion

grain size impacts mechanical behavior because grain boundaries…

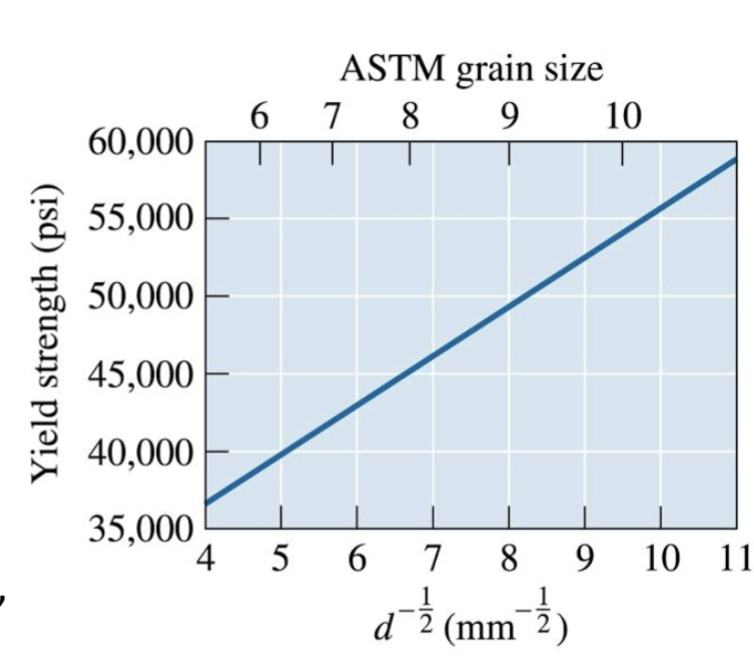

Hall-Petch equation

relates grain size to yield strength: σ_y = σ_o + Kd^-1/2

σ_y is the yield strength; d is the average grain diameter, and σ_o and K are constants

total shear yield strength

to a first approximation:

τ_y = τ_i + τ_ss + τ_ppt + τ_wh + τ_gb

= τ_i + αEc^1/2 + Eb/L + Eb(ρ_d)^1/2 /2 + k_p/(D)^1/2

related to spacing of obstacles

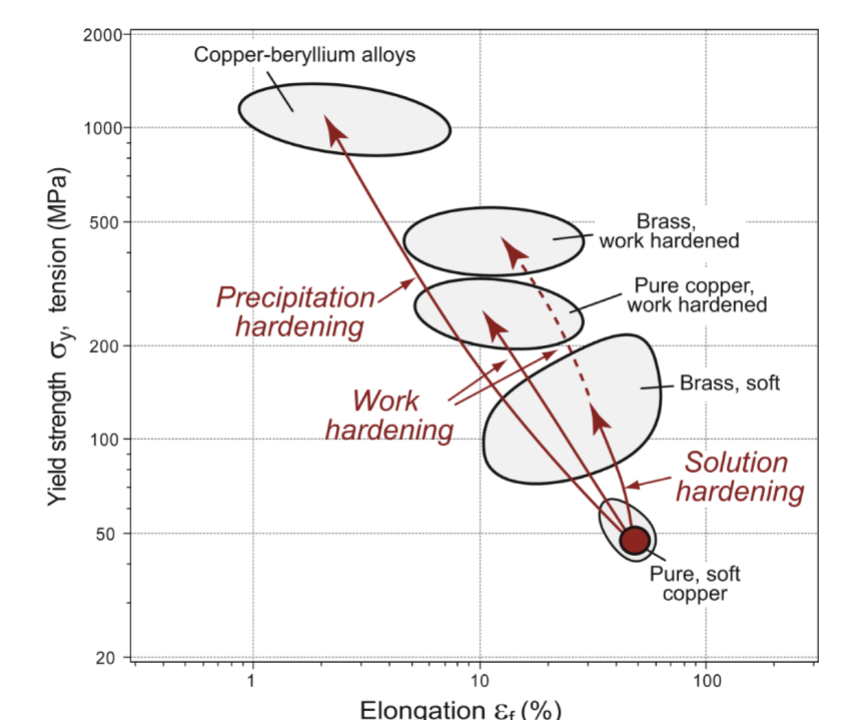

optimize properties

Manipulating the strength of metals has been the most explored area of materials science; hardening mechanisms are often combined to…

lower ductility

increased strength leads to …

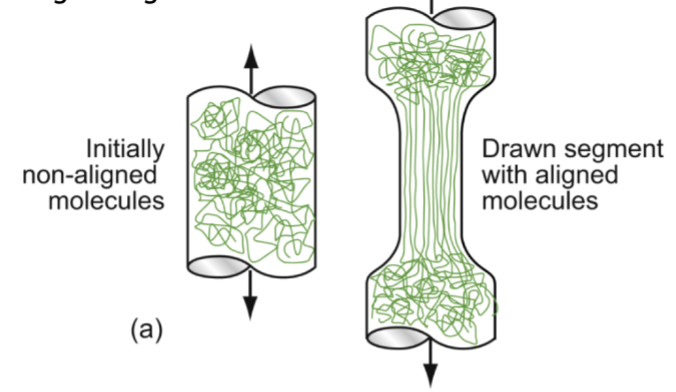

drawing

above ~0.75T_g, thermoplastic polymers exhibit some ductility. During _______, the chains slide over each other, unravel, and align (in 1 or 2 dimensions, no 3D). The material is now stiffer and stronger than before, but possible geometries are limited.

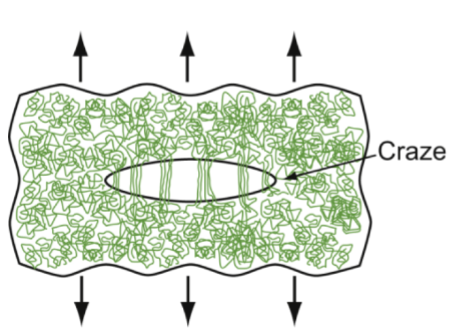

crazing

PE and PP draw at room temp; PMMA requires higher T. Drawing at too low a temperature leads to ________ - incipient cracks with ligaments bridging the craze surfaces - if continued, it fractures

strengthening of polymers

dislocations are not relevant, there is relative slippage of polymer chain segments or shear among molecular clusters in a glass.

impeding the slippage

strengthening in polymers is achieved by doing this via blending, drawing, crosslinking, and reinforcement; breaking and reforming of bonds

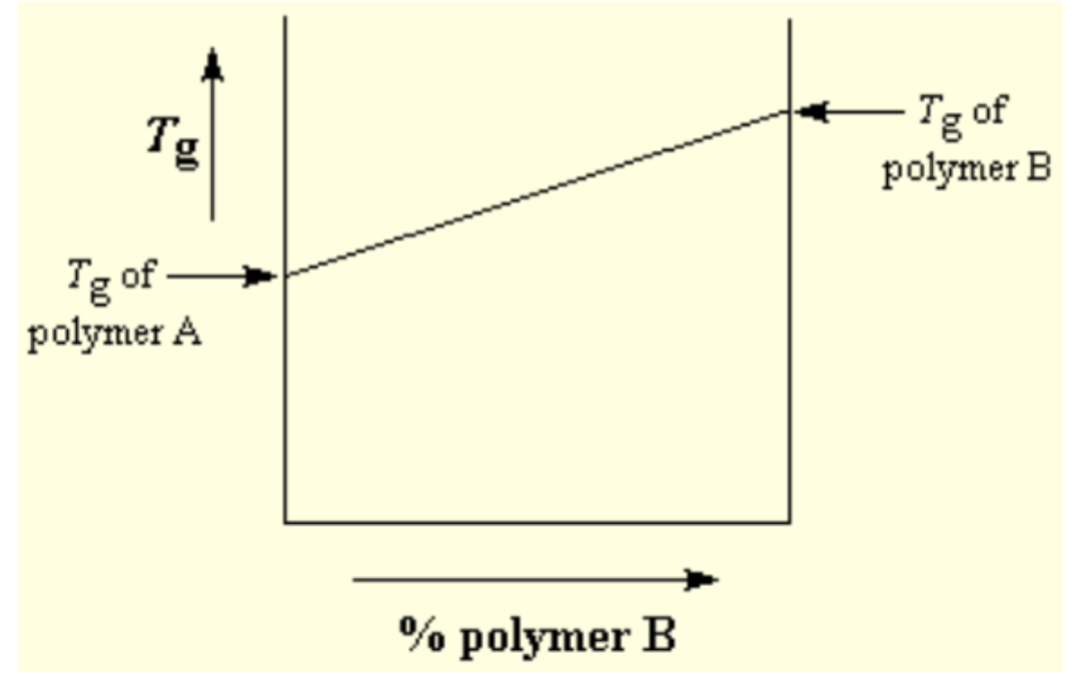

blend

mixture of two polymers; property variation can be linear or non-linear

drawing

alignment by stretching (mylar film, fishing line)

crosslinking

replace weak Van der Waals bonds with strong covalent bonds; vulcanized rubber, epoxies; make more rigid

reinforcement

add cheap fillers or engineered fibers to create a composite material
