Knee, Tibia, and Fibula Structures

which condyle of the femur is larger

medial femoral condyle

function of the larger medial condyle

allows proper knee alignment and locking-home mechanism

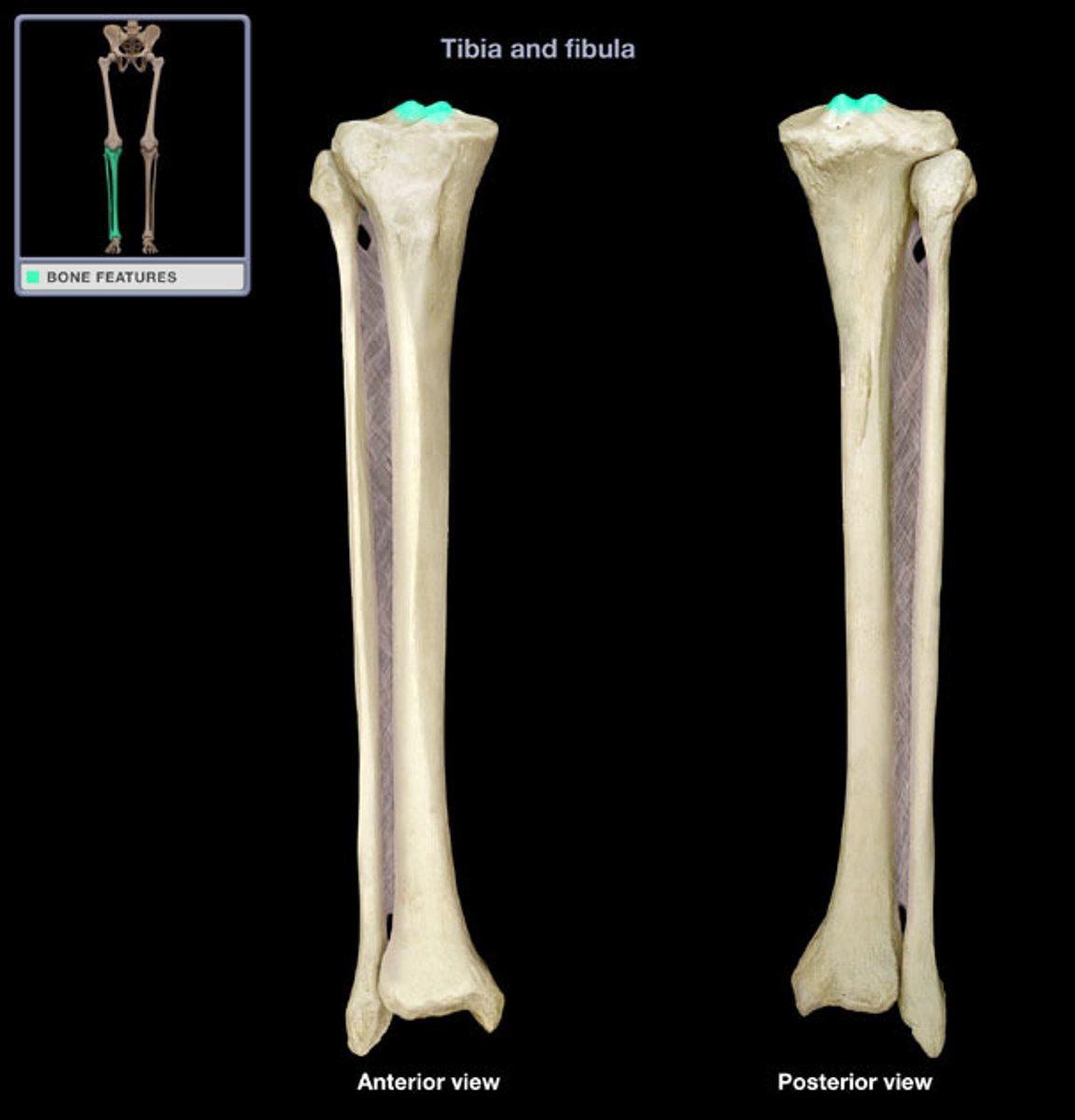

intercondylar eminence

anterior cruciate ligament

ACL origin

medial surface of lateral femoral condyle

ACL insertion

anterior surface of intercondylar eminence

posterior cruciate ligament

PCL origin

Lateral surface of medial femoral condyle

PCL insertion

Posterior to the intercondylar eminence

ACL/PCL function

resist tibial/femoral translation, aid in resisting rotation of tibia/femur

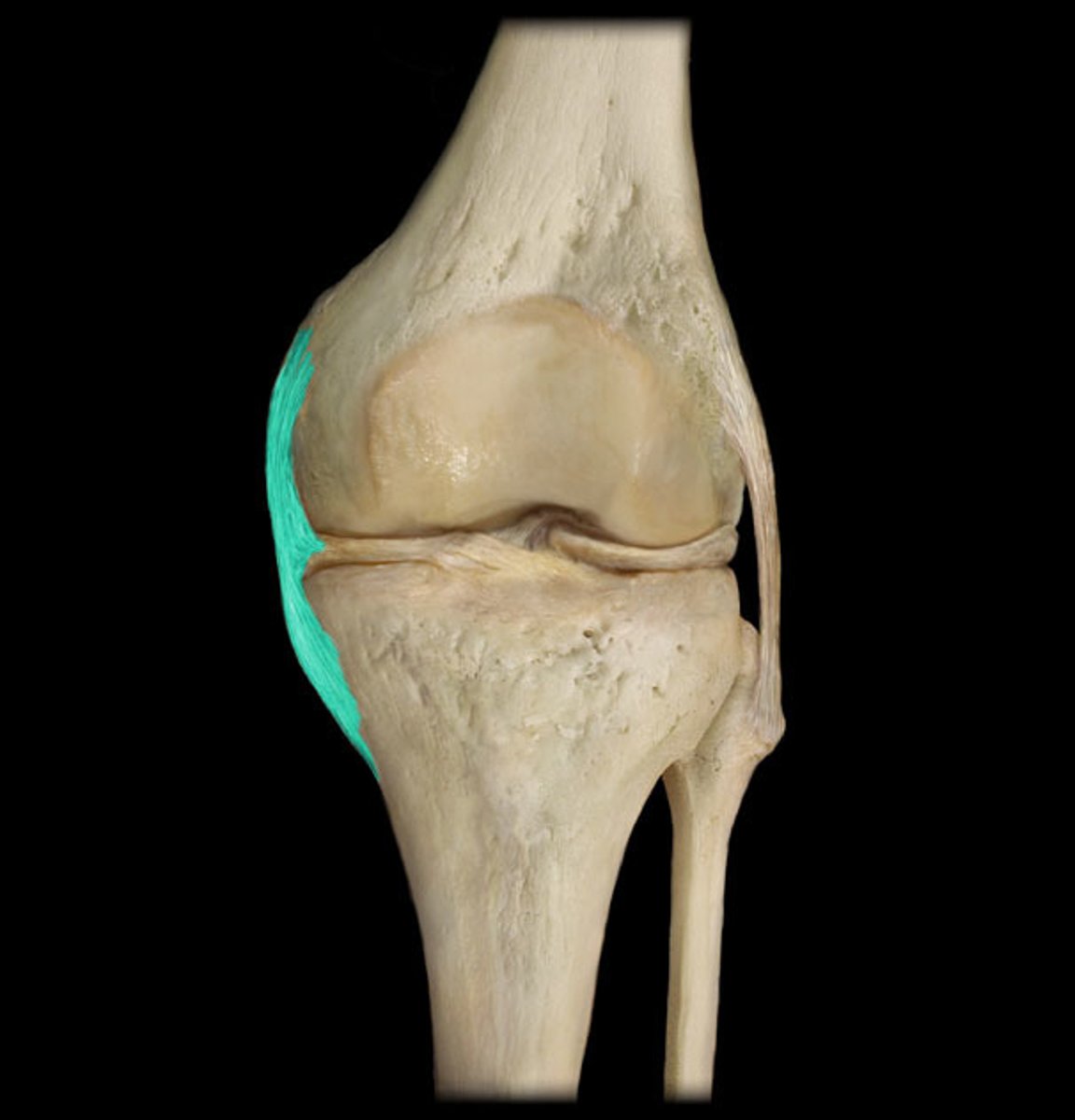

medial collateral ligament

lateral collateral ligament

MCL/LCL function

resists valgus/varus forces, aid in limiting rotation of femur/tibia

medial meniscus

lateral meniscus

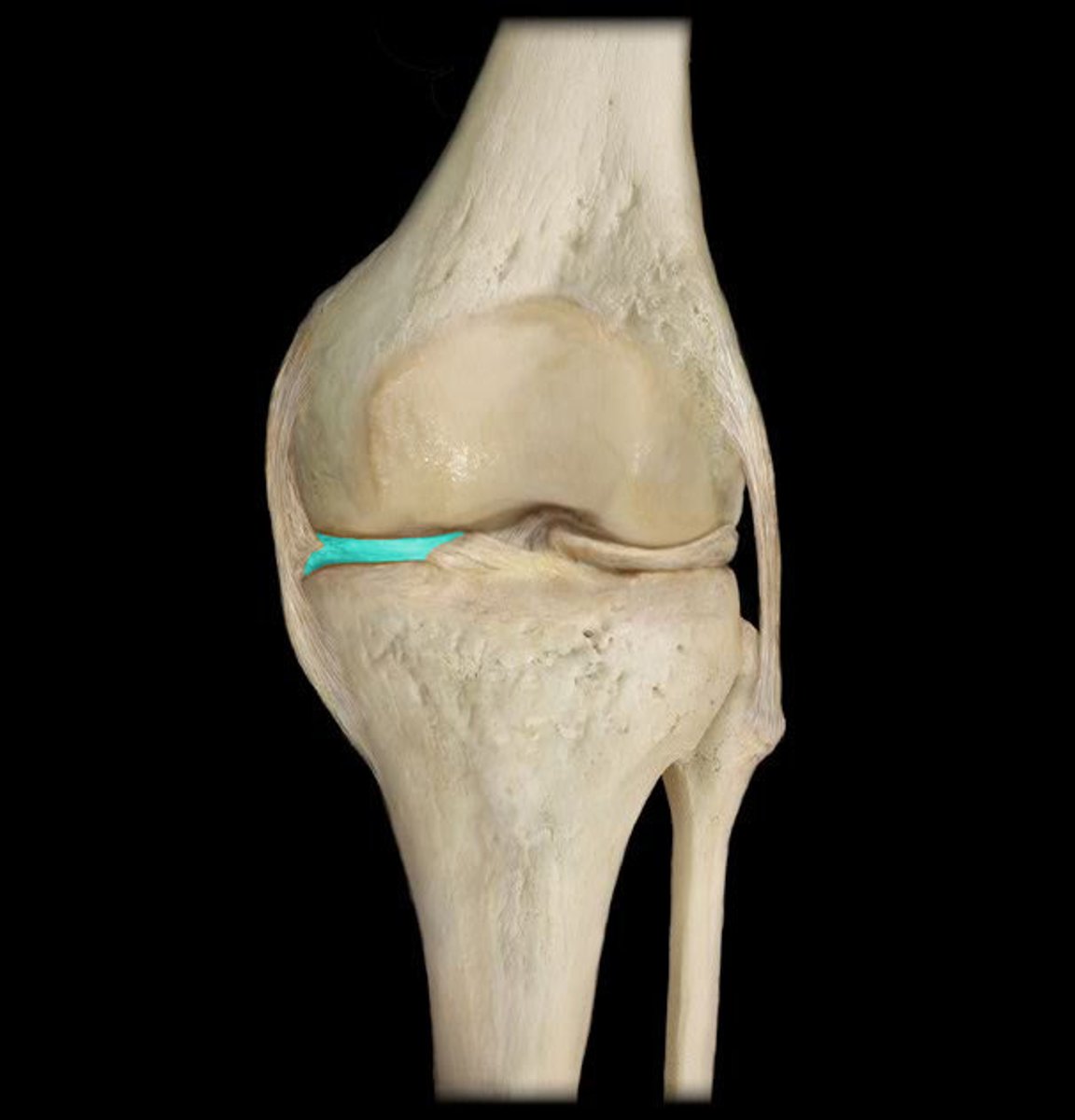

coronary ligament knee

attaches medial meniscus to MCL

components of anterior joint capsule of the knee

IT band, patella, patellar ligament, lateral patellar retinaculum, medial patellar retinaculum

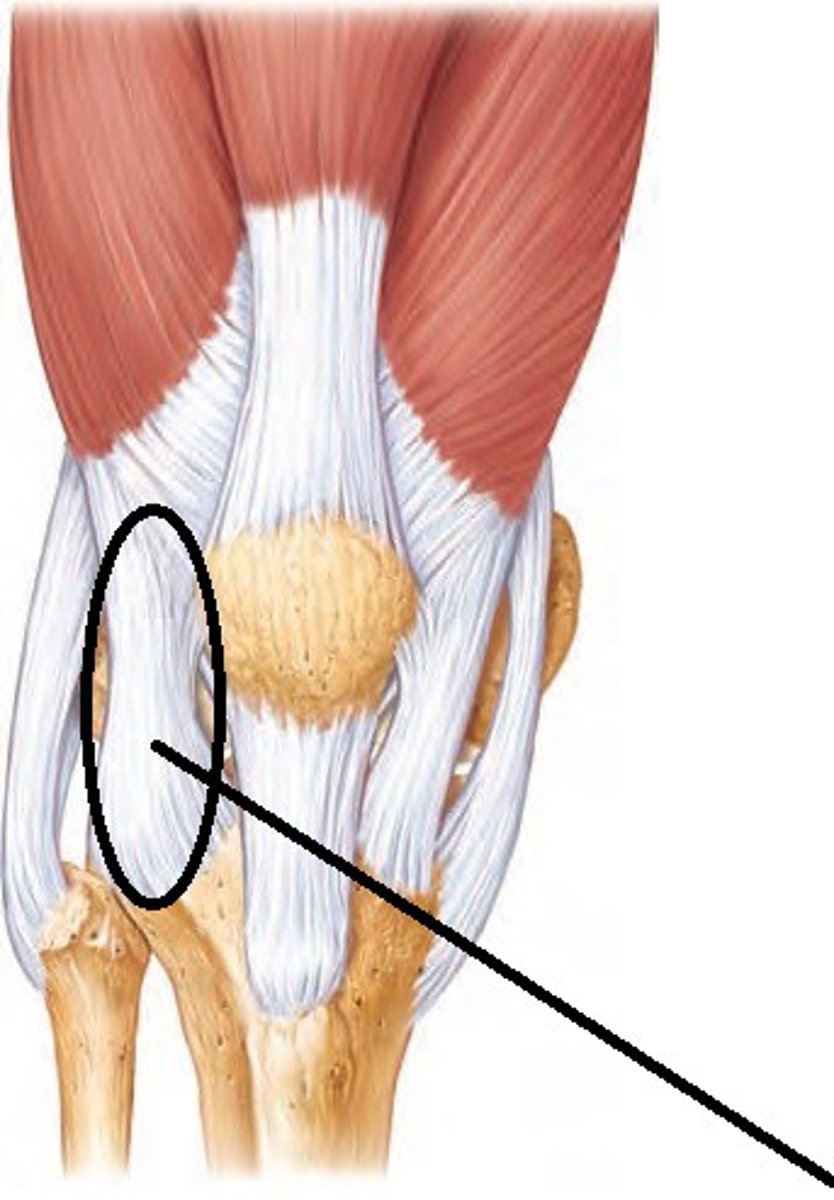

lateral patellar retinaculum

continuation of vastus lateralis

medial patellar retinaculum

continuation of vastus medialis

components of posterior joint capsule of the knee

oblique popliteal ligament and arcuate popliteal ligament

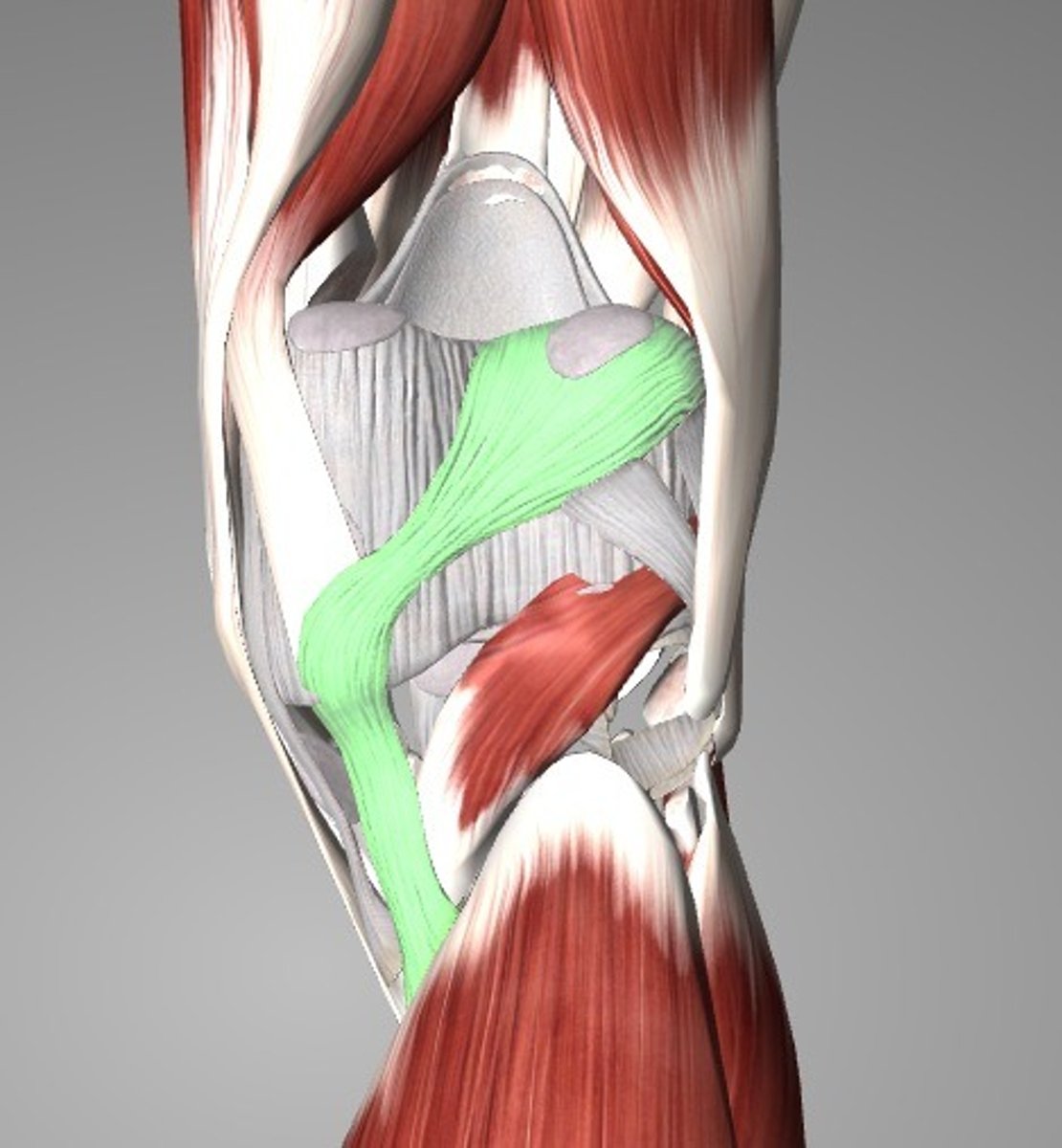

oblique popliteal ligament

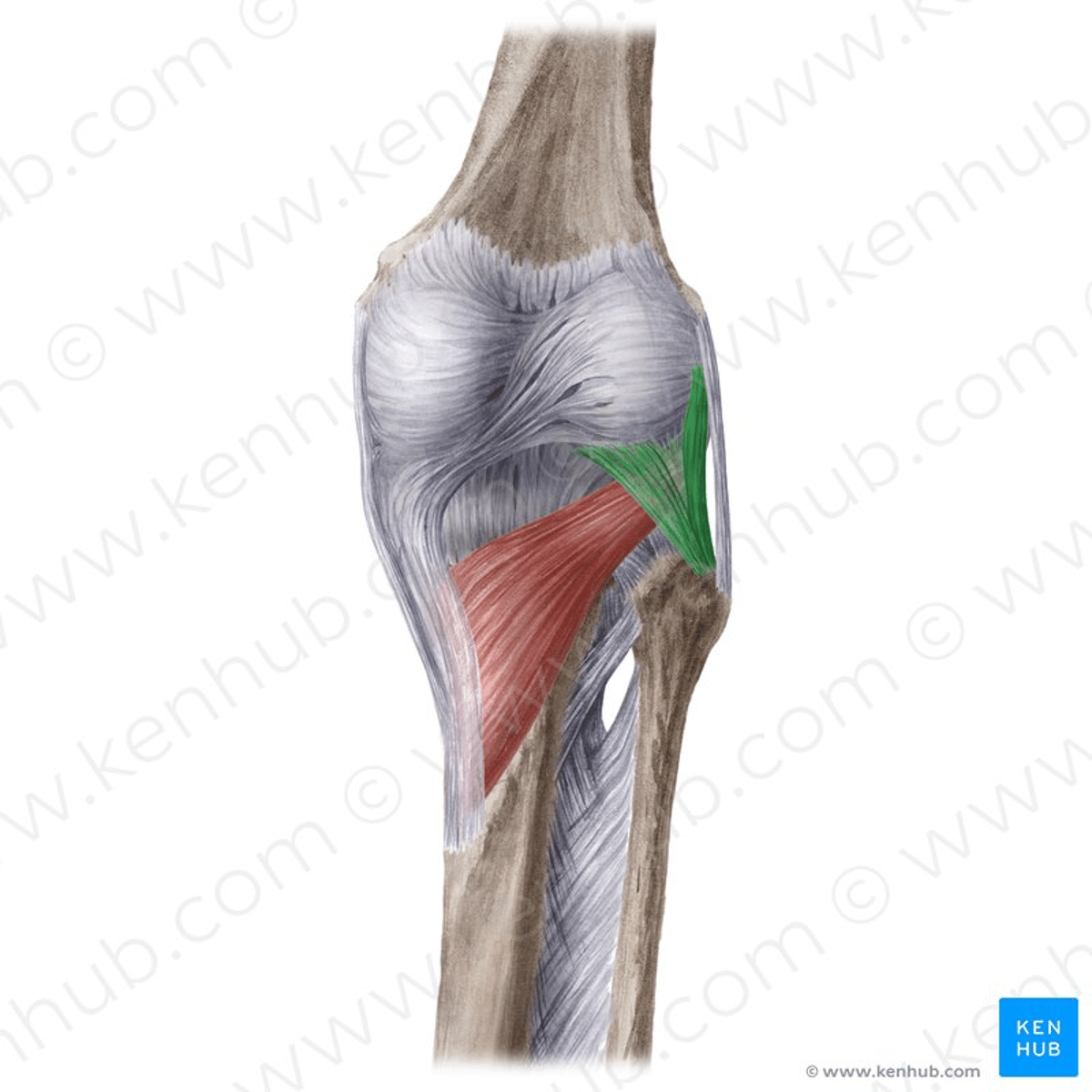

arcuate popliteal ligament

false bursa

communicate with knee joint synovial fluid

false bursa of the knee

suprapatellar and deep infrapatellar

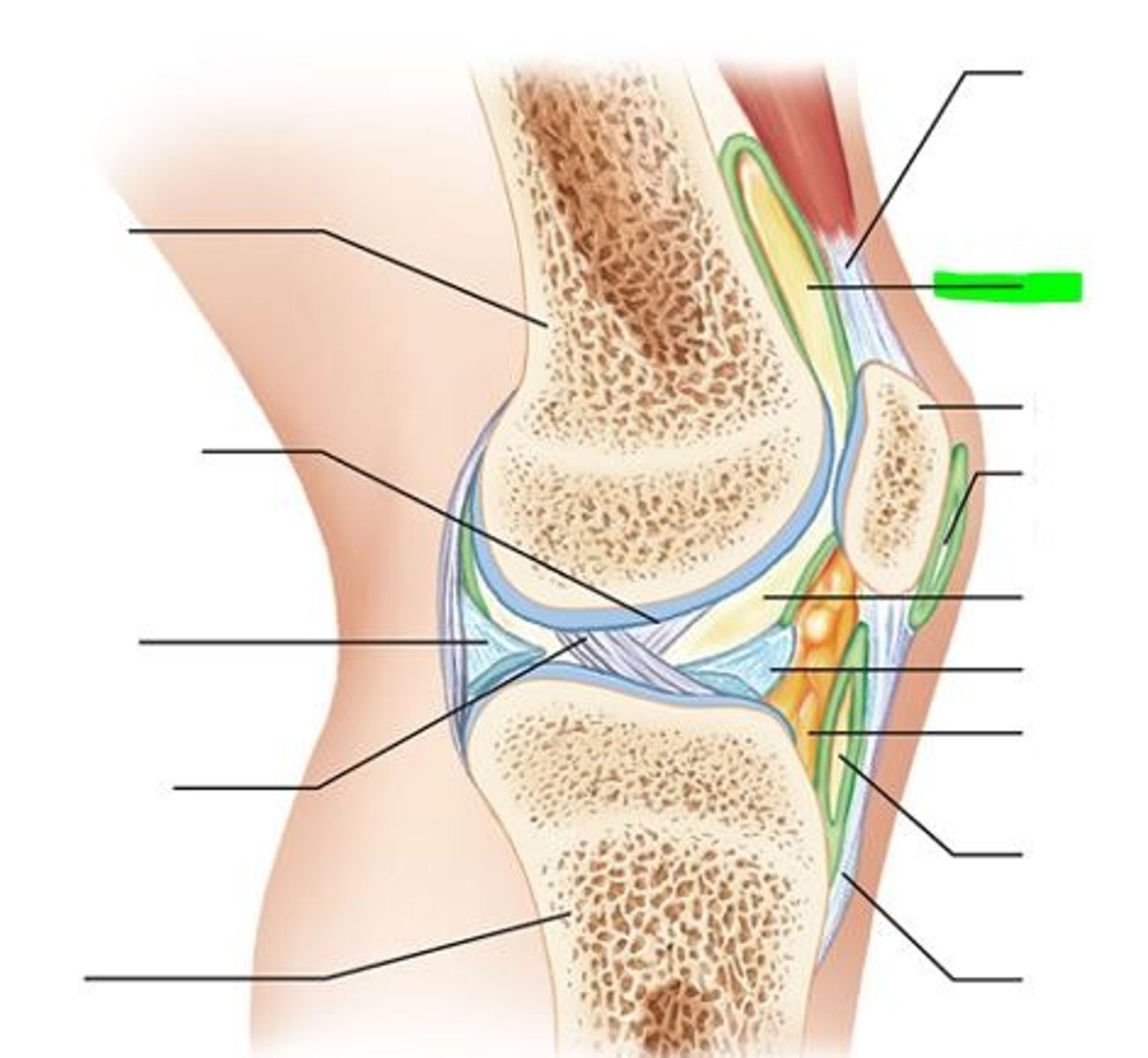

suprapatellar bursa

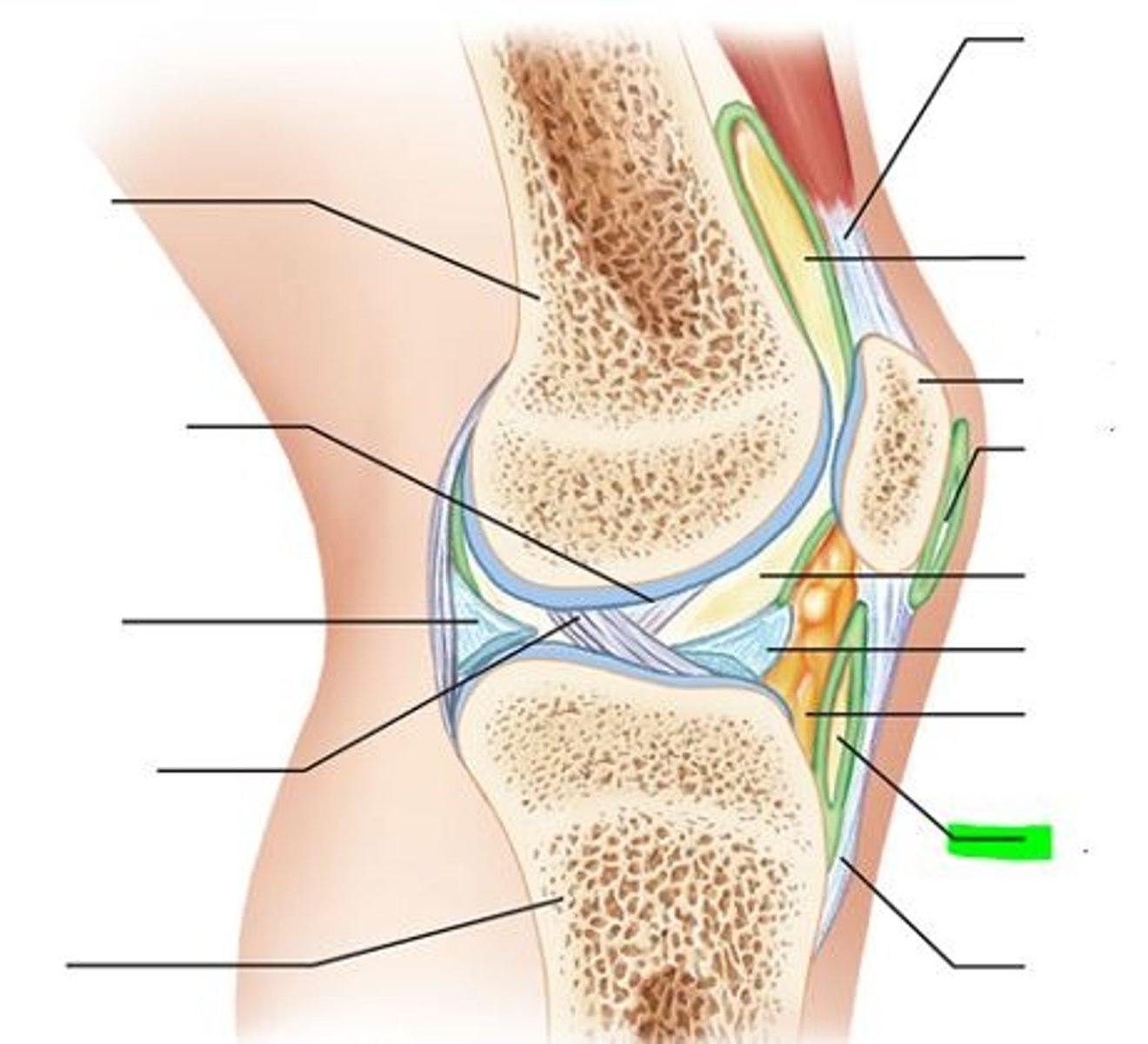

deep infrapatellar bursa

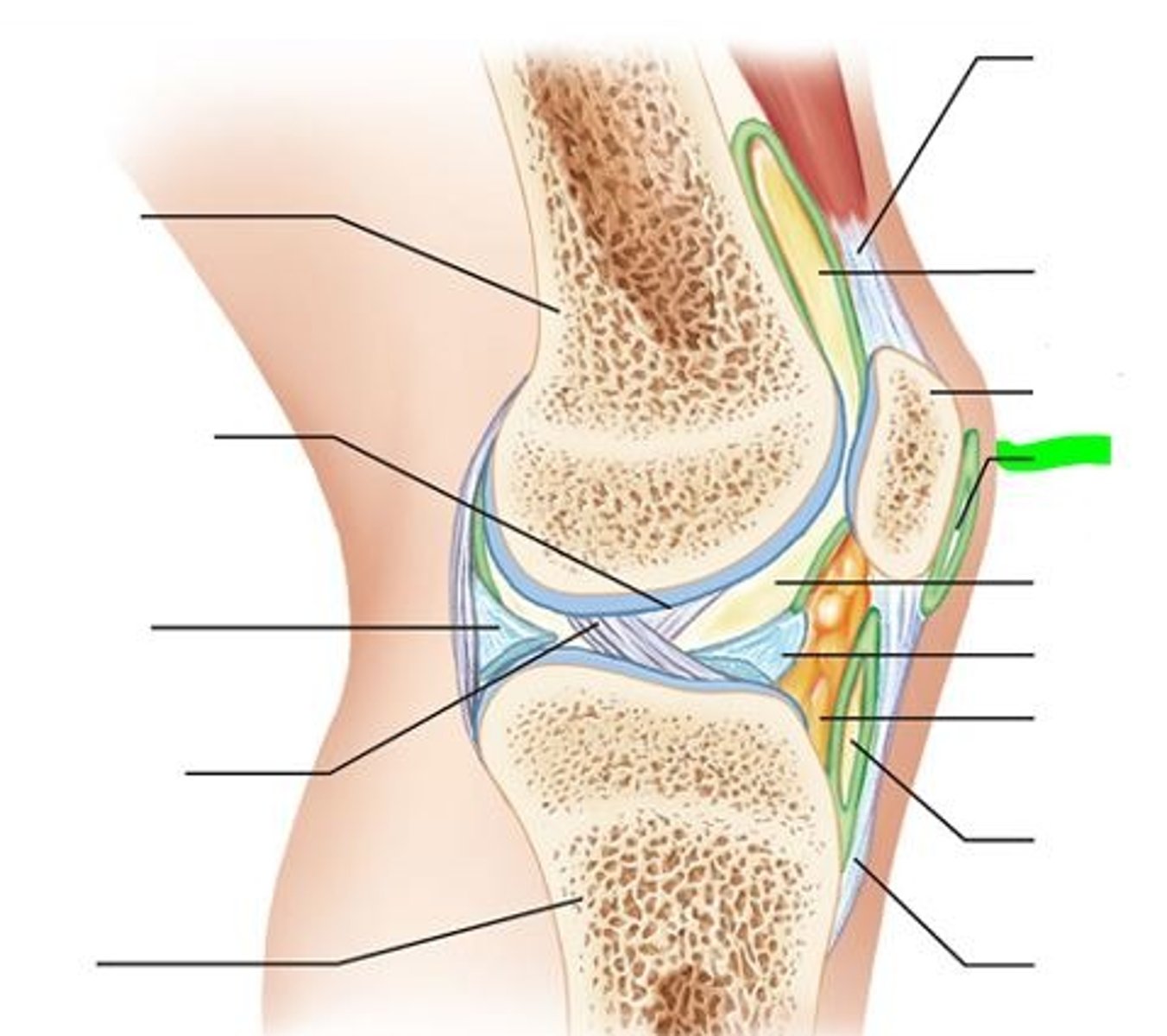

true bursa

separate from knee synovial fluid

true bursa of the knee

prepatellar and superficial infrapatellar

prepatellar bursa

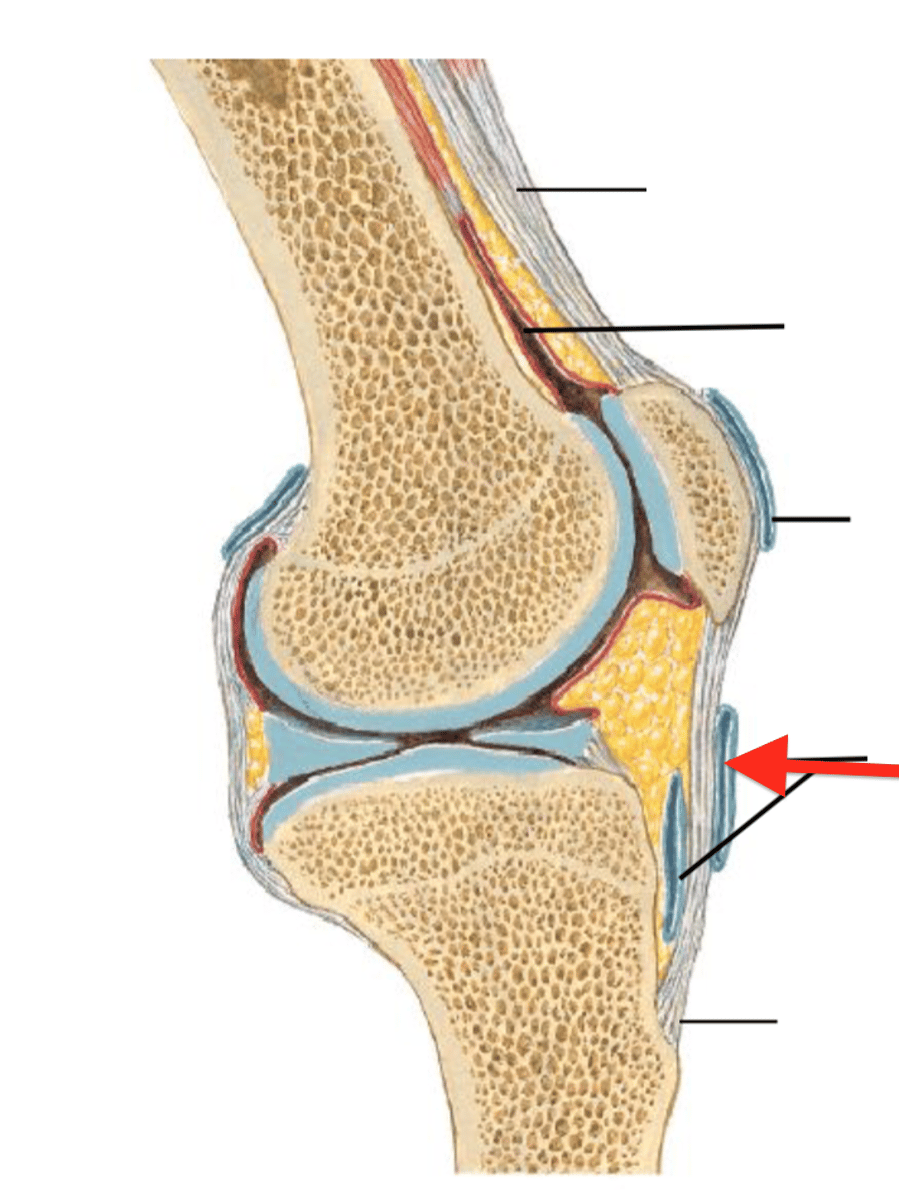

superficial infrapatellar bursa

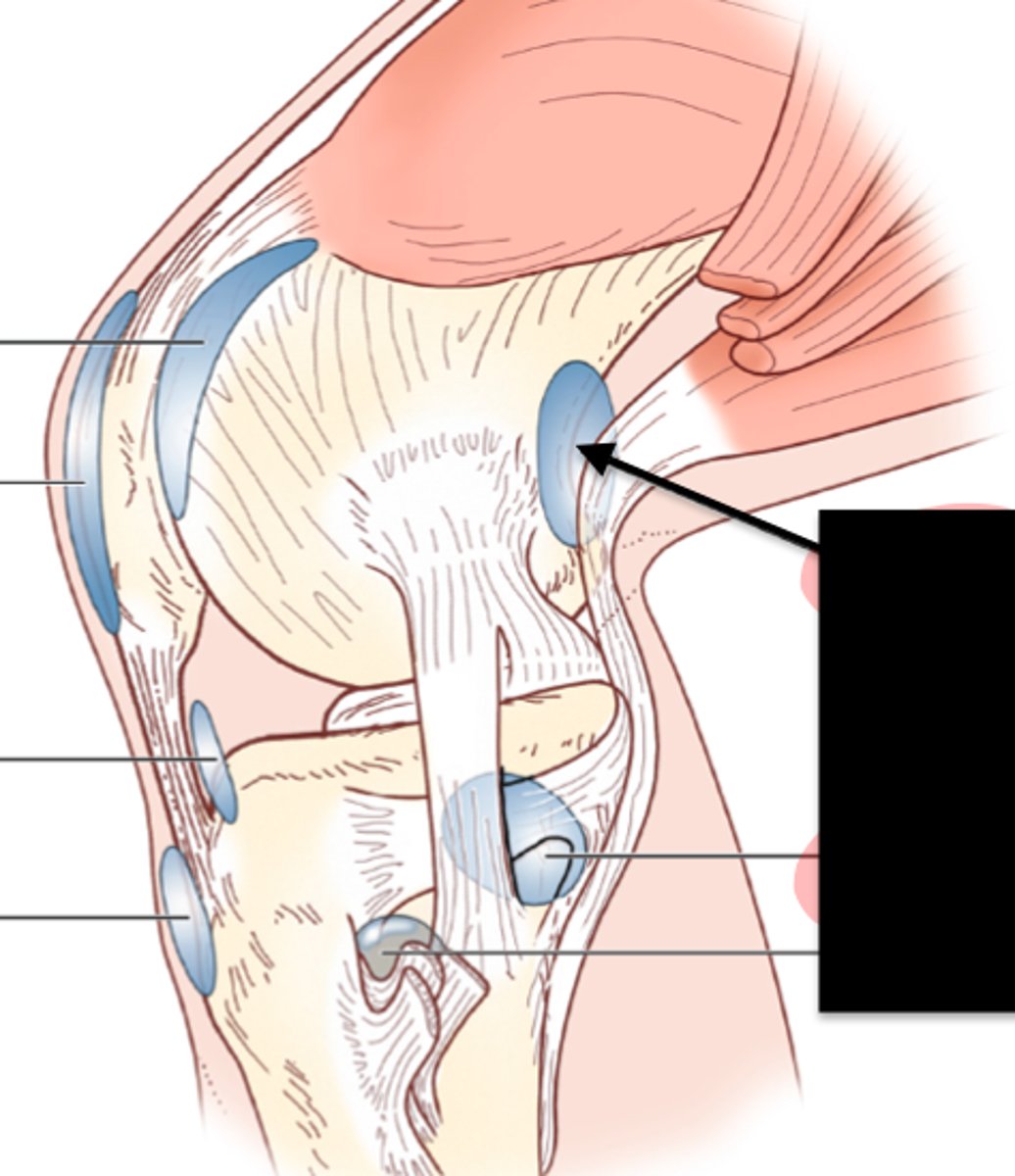

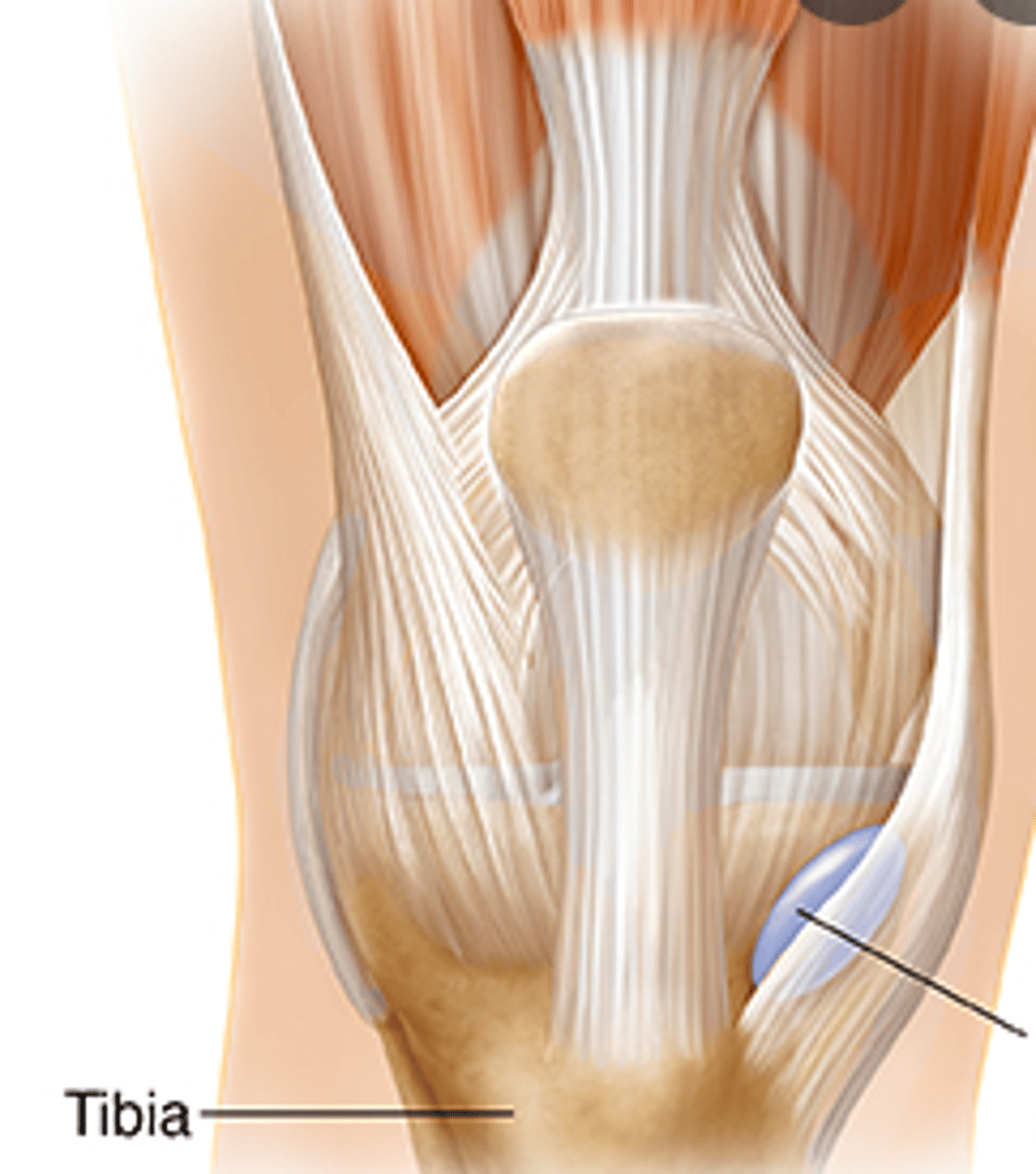

pes anserine bursa

gastrocnemius bursa (Baker's cyst)

medial tibial condyle

lateral tibial condyle

tibial plateau

tibial tuberosity

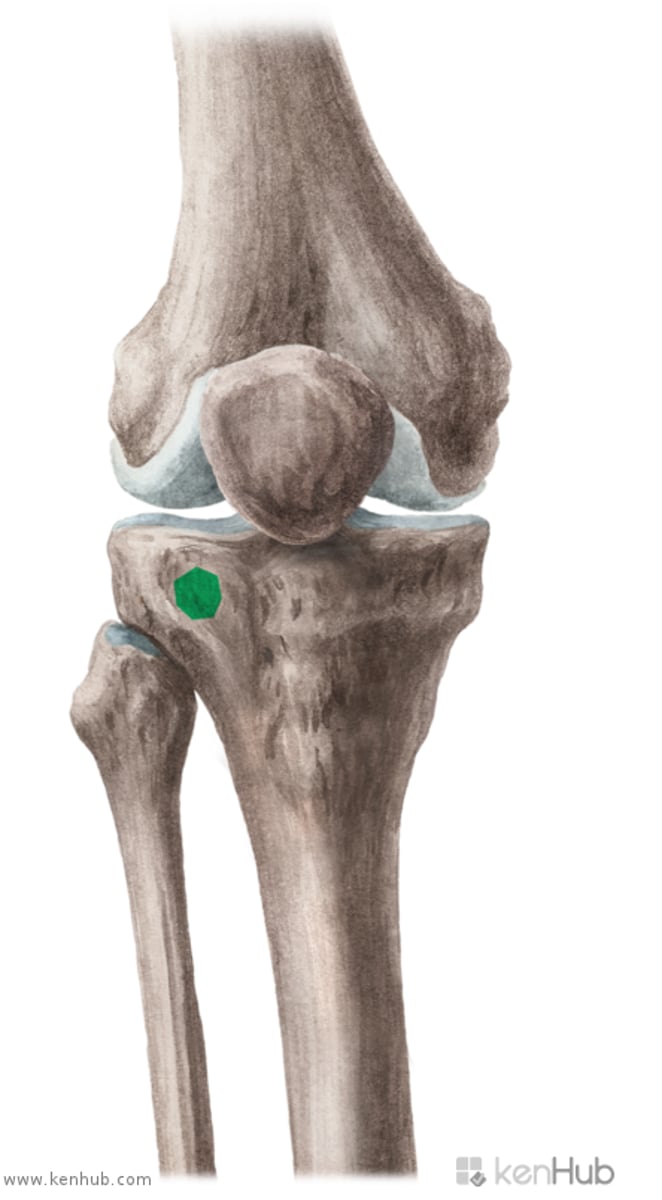

Gerdy's tubercle

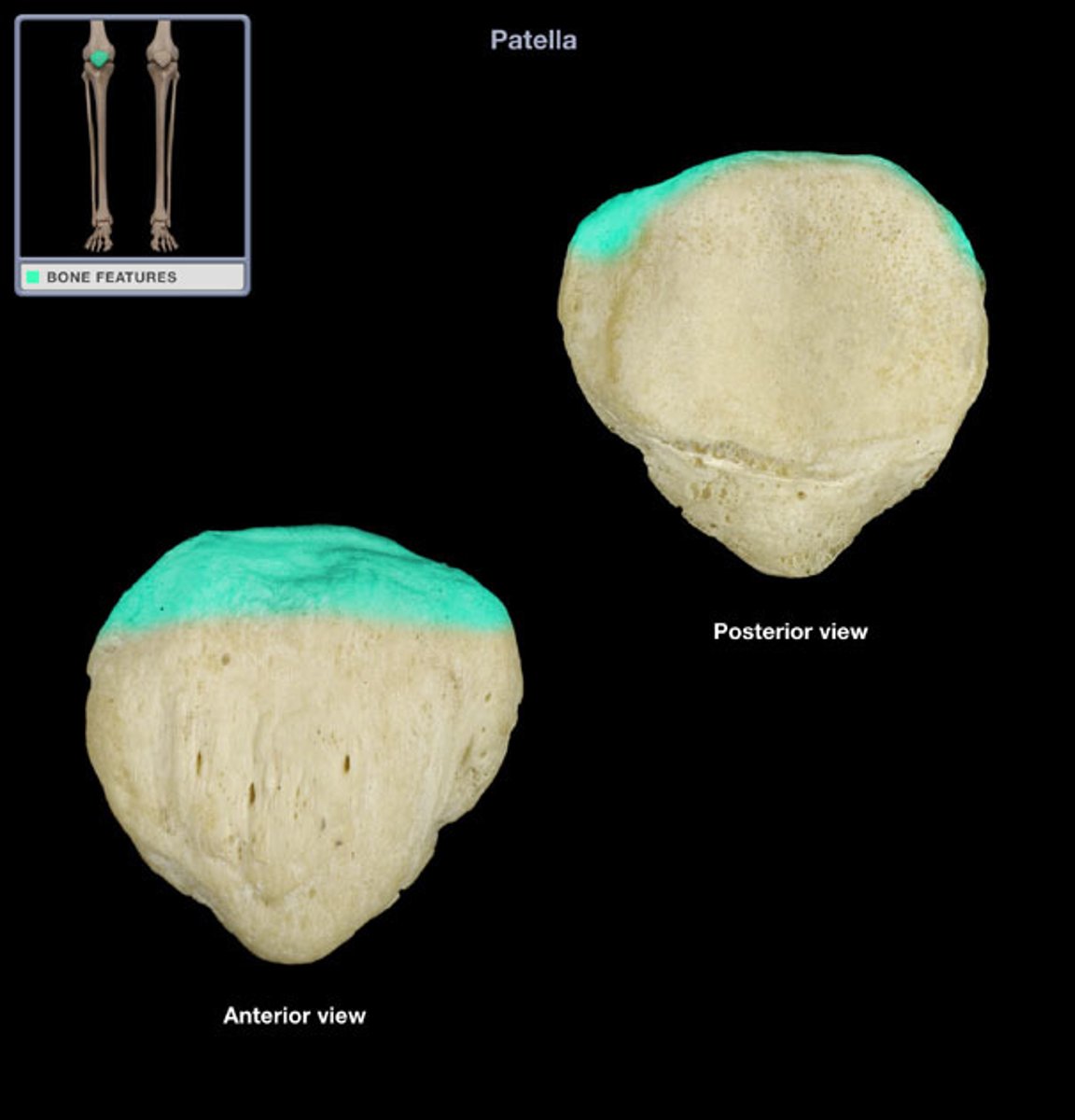

base of patella

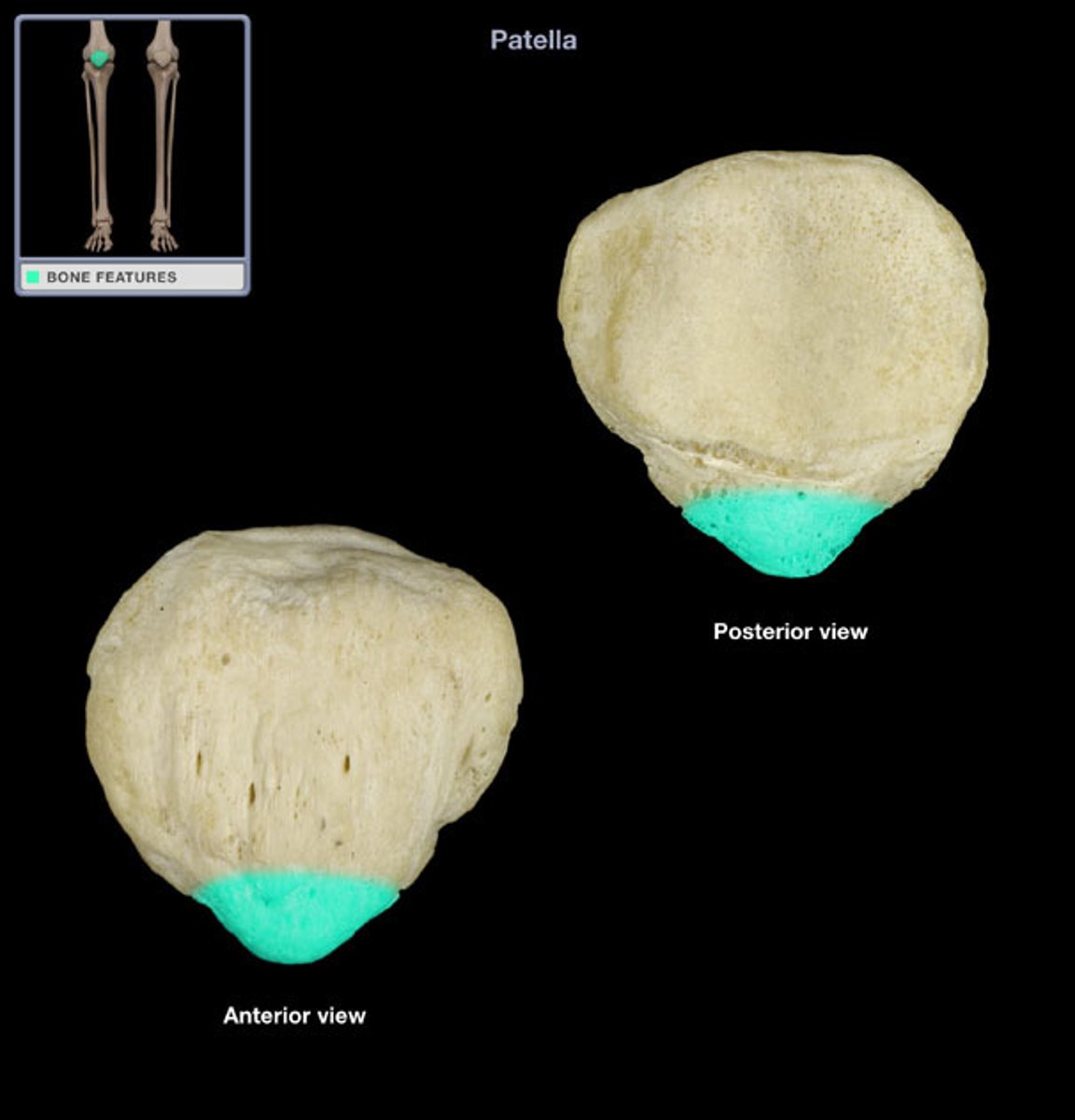

apex of patella

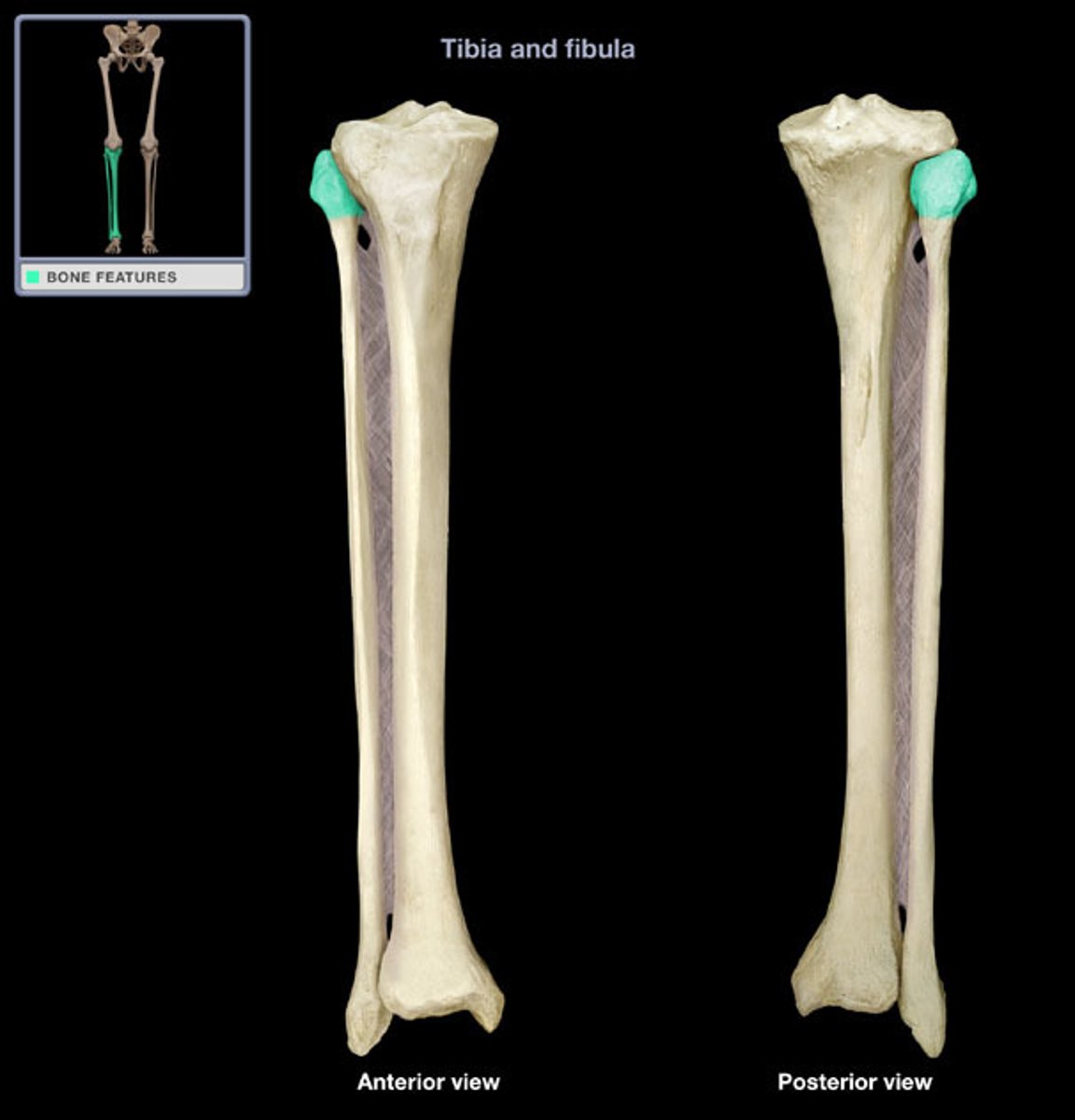

fibular head

fibular neck
