Bones & Sutures of the Skull

Neocranium

Bony case of brain

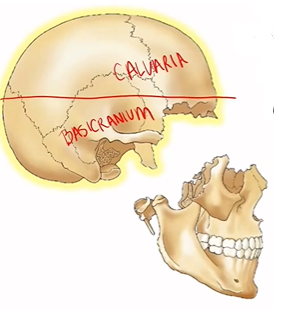

Two parts of neurocranium

1. Calvaria: dome-like roof (‘skullcap’)

2. Basicranium / Cranial Base: floor

Frontal Bone

Parietal Bone

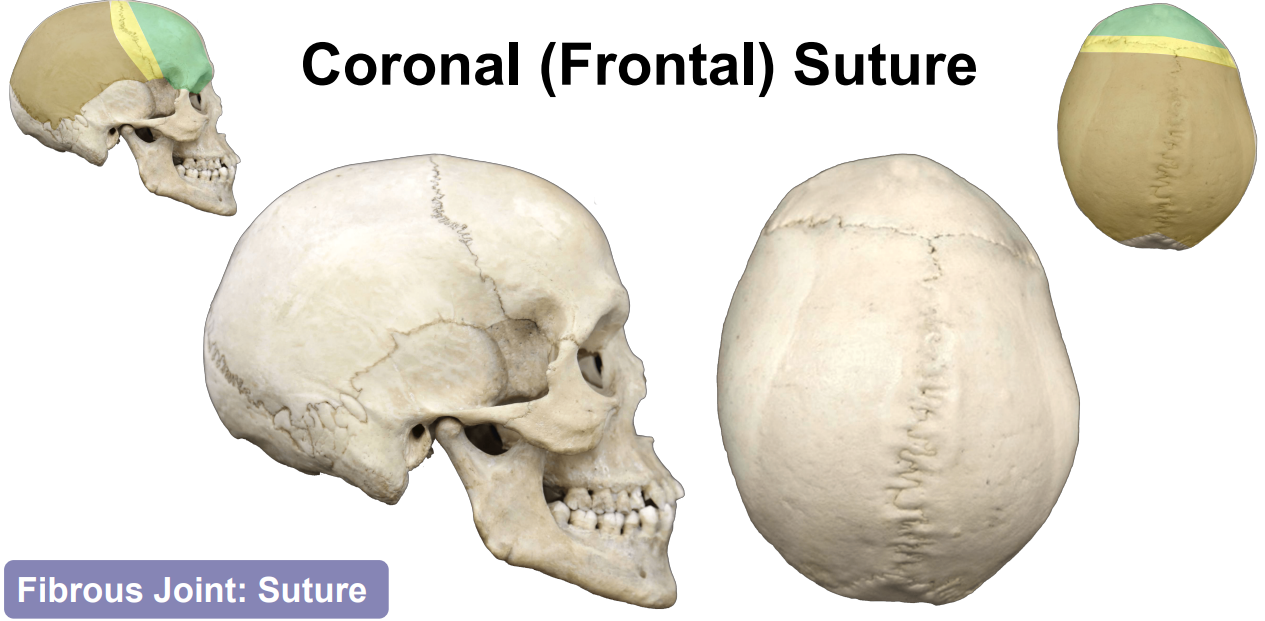

Coronal (Frontal) Suture unites which bones

Unites frontal bone & both parietal bones

What type of joints are the sutures in the skull?

Fibrous Joint: Suture

Joint specific to the skull where bones are close together and joined by sutural ligaments

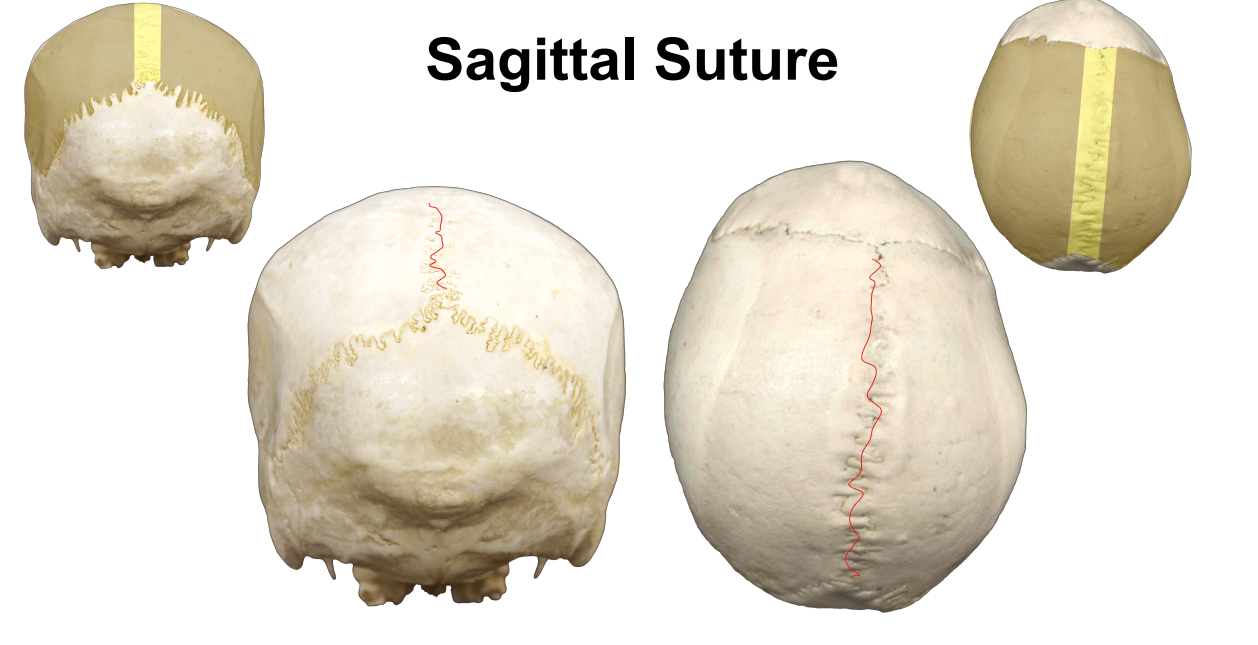

Sagittal Suture

Unites parietal bones in midline

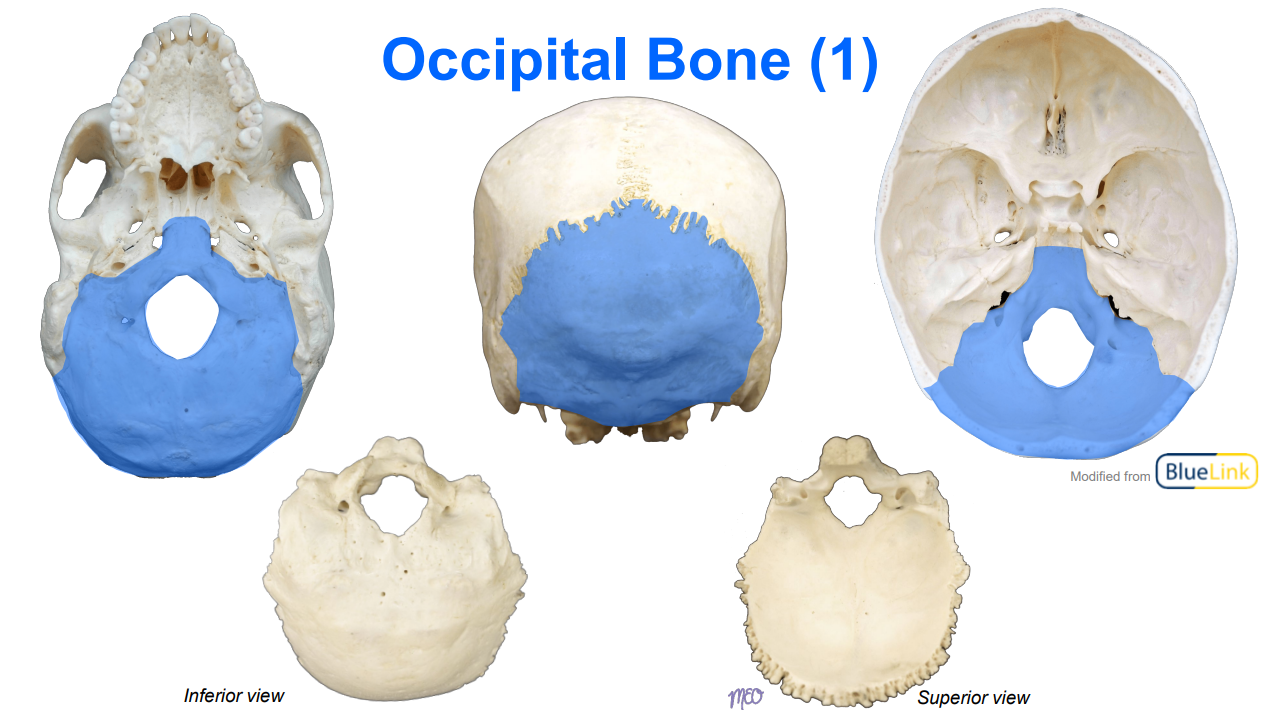

Occipital bone

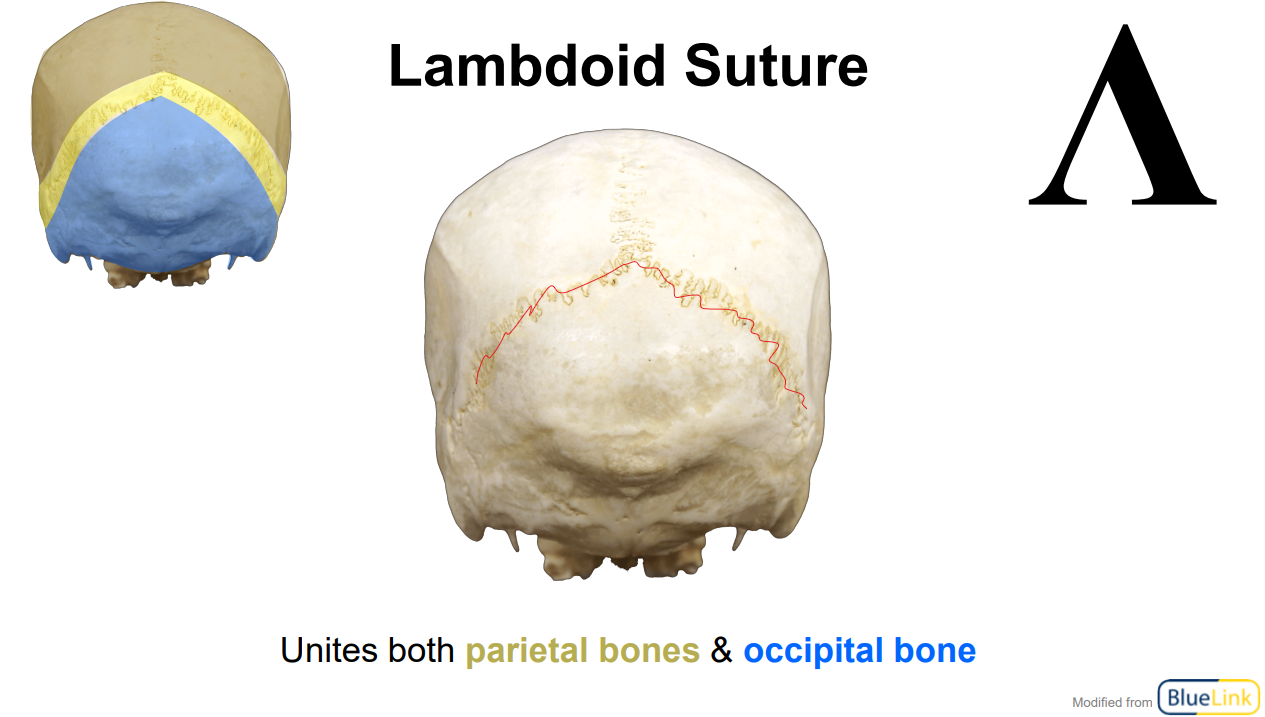

Lambdoid Suture

United both parietal bones & occipital bone

Temporal Bones

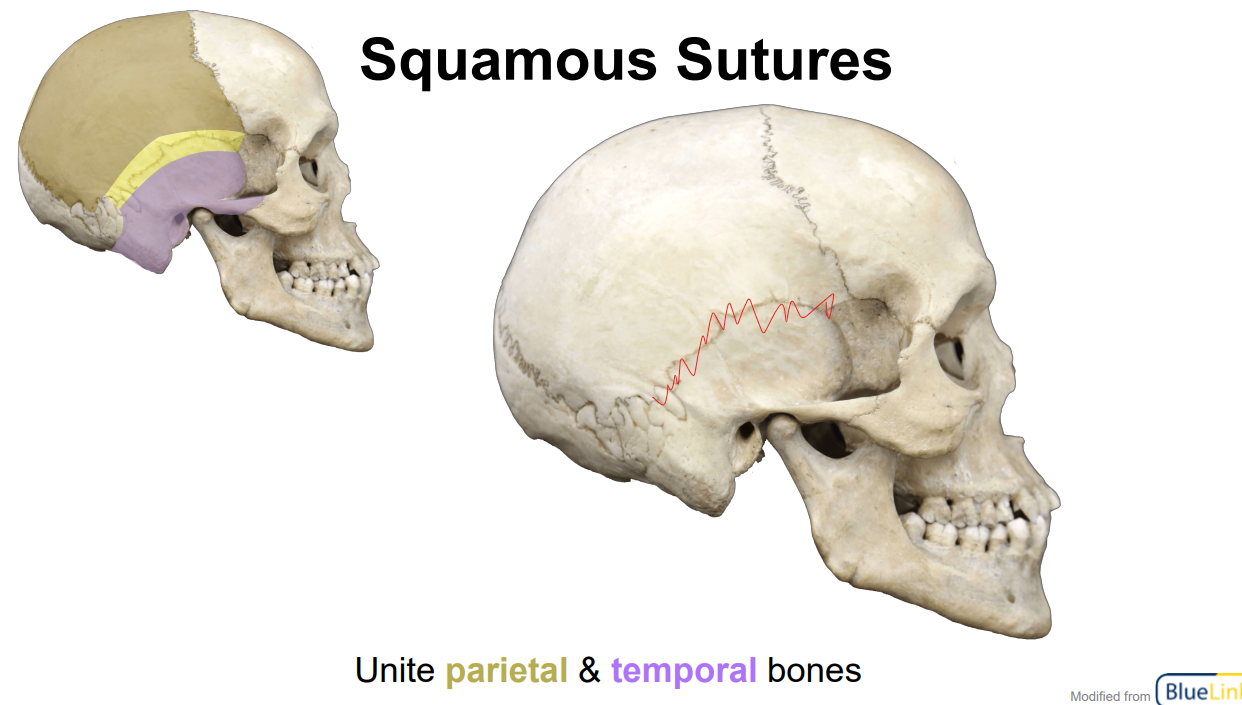

Squamous Sutures

Unite parietal and temporal bones

Ethmoid Bone

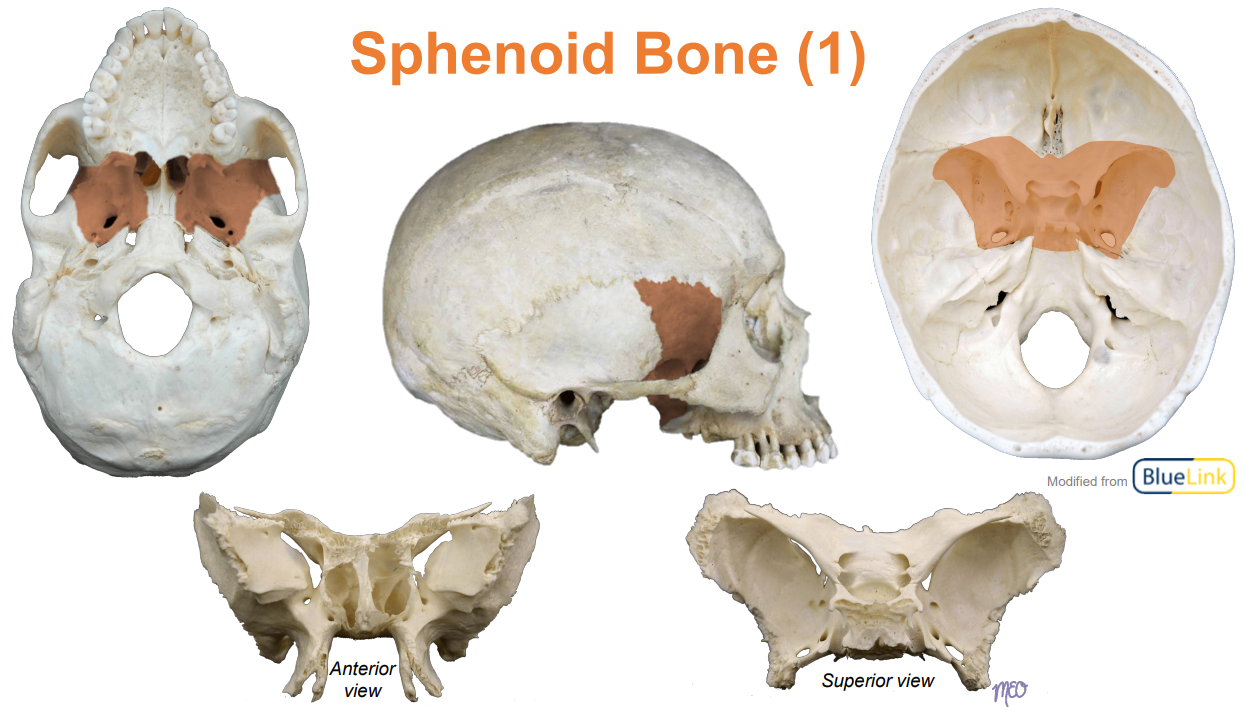

Sphenoid bone

Pterion

articulation point of frontal, parietal, temporal, and sphenoid bones

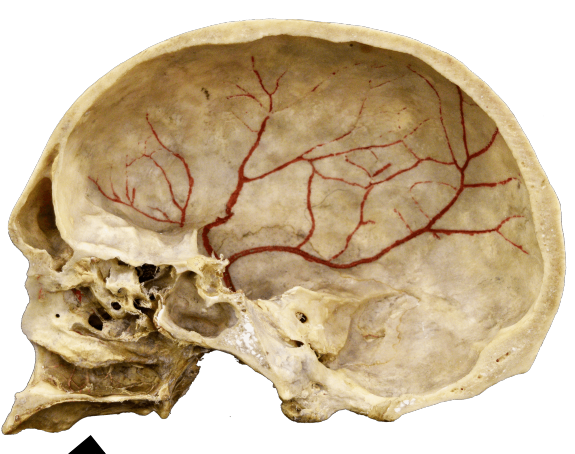

What artery is associated with the pterion

branches of middle meningeal artery travel deep to this spot

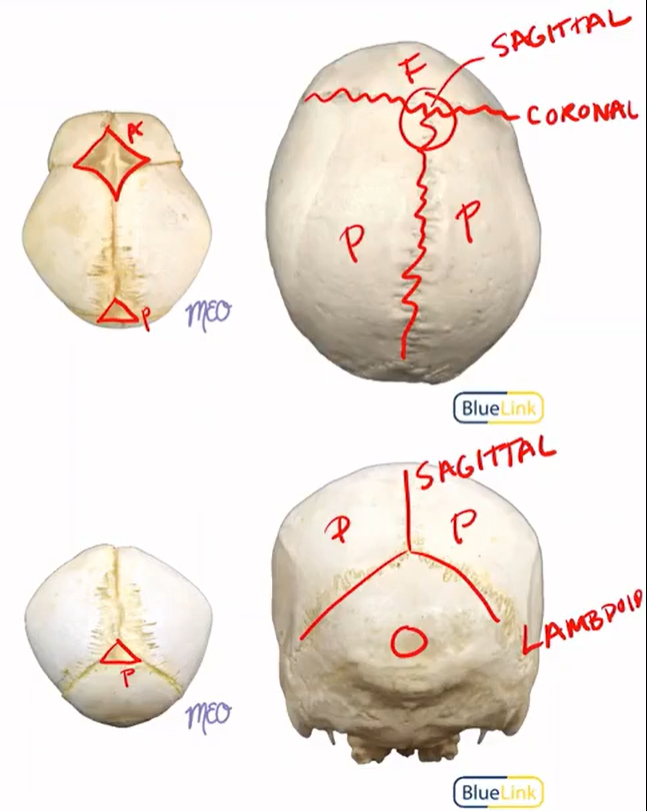

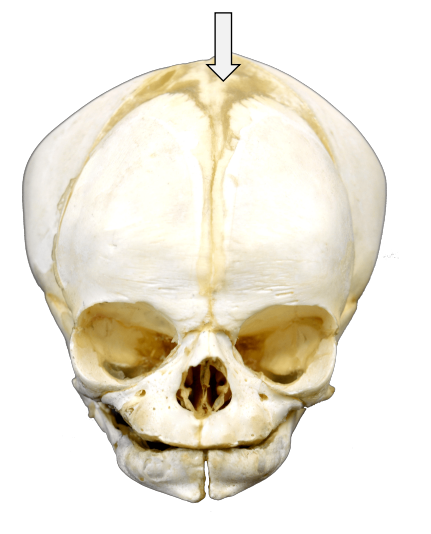

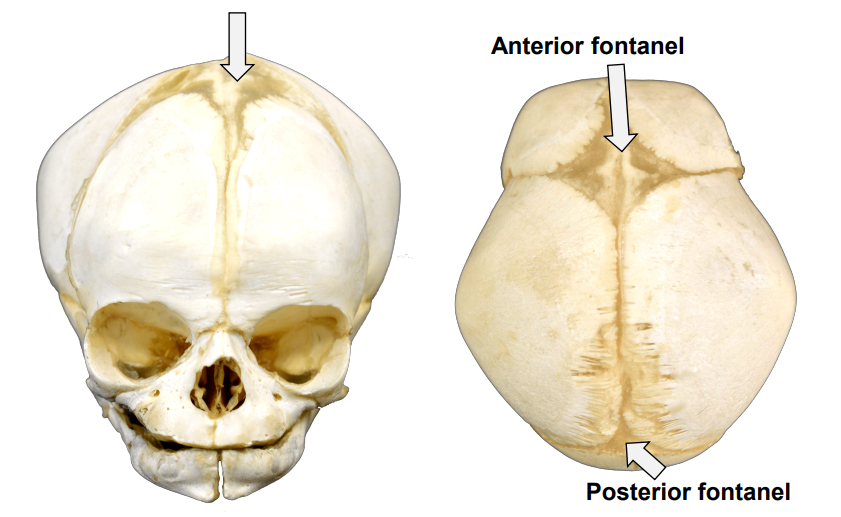

Fetal Sutures and Fontanels

Dense connective tissue regions between incompletely ossified cranial bones

What are the two fontanels

• anterior fontanel

• posterior fontanel

Viscerocranium

facial skeleton

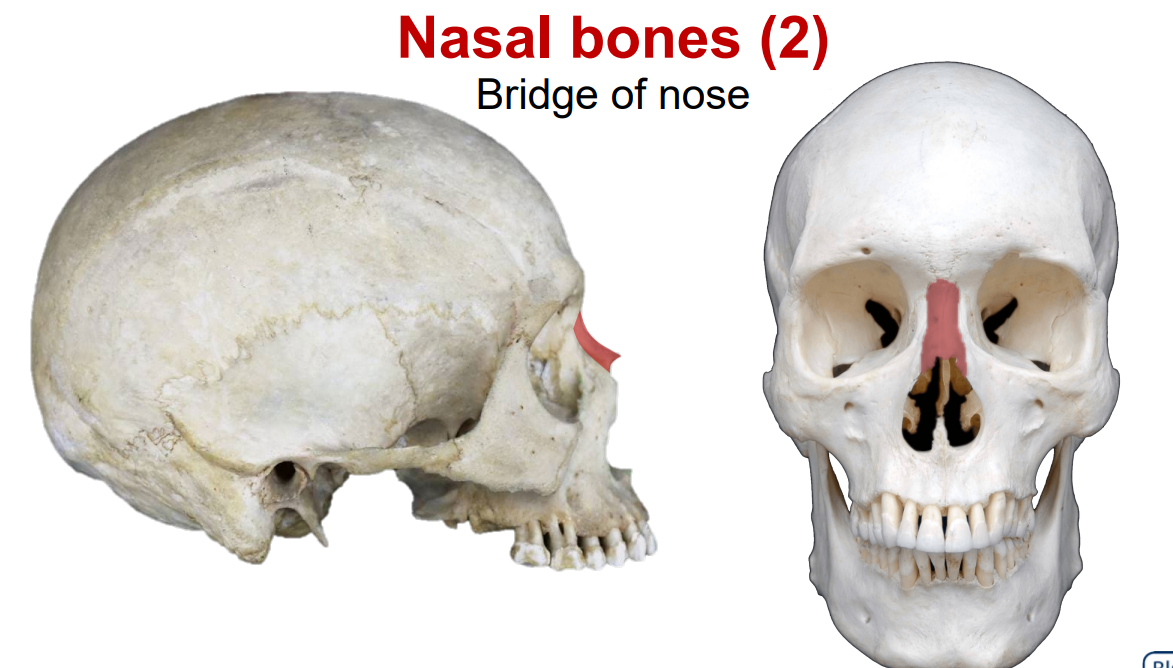

Nasal bones

Bridge of nose

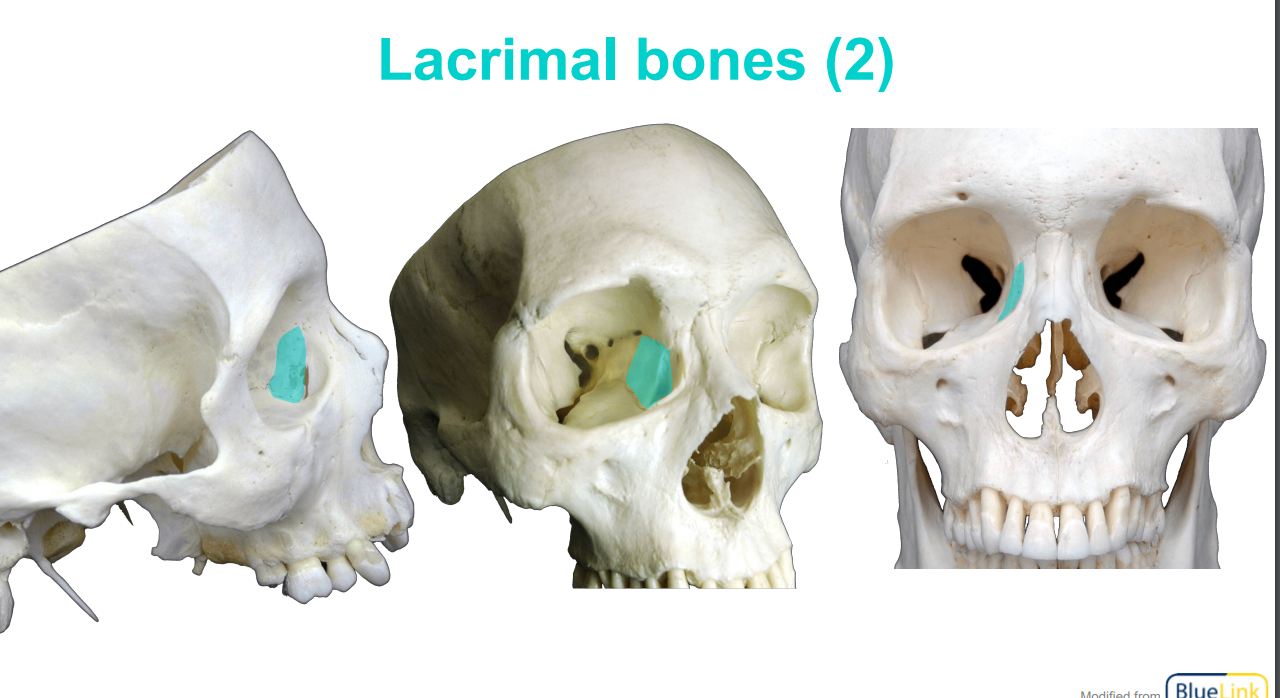

Lacrimal Bones

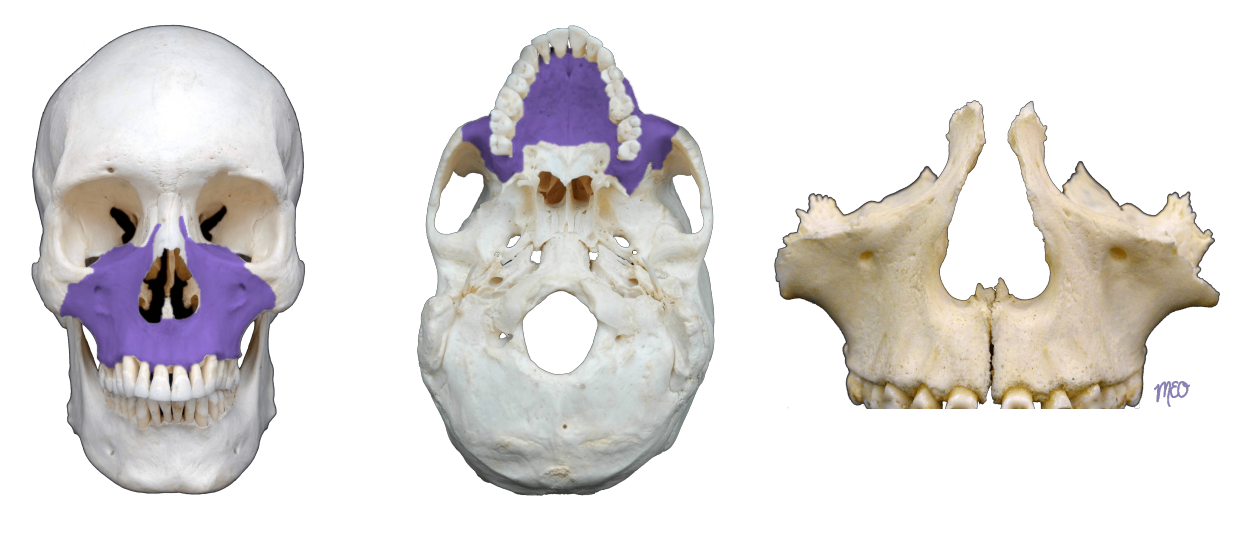

Maxillary bones

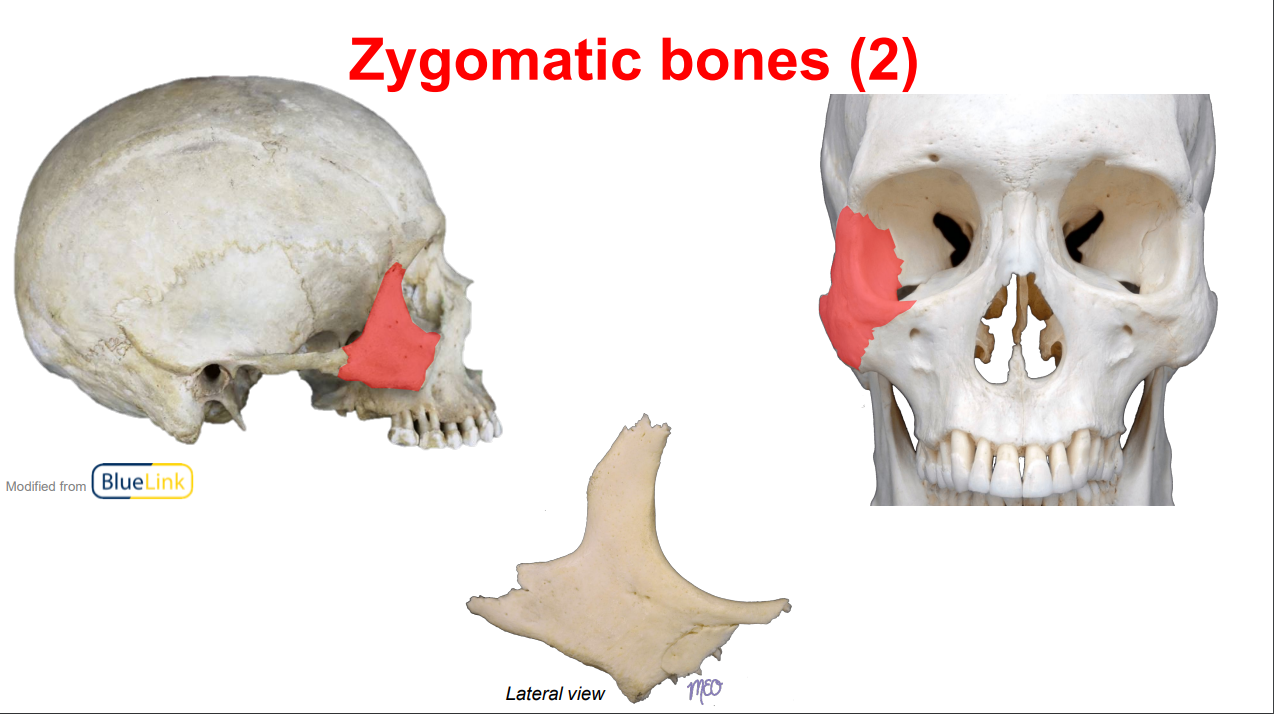

Zygomatic bones

cheek bone

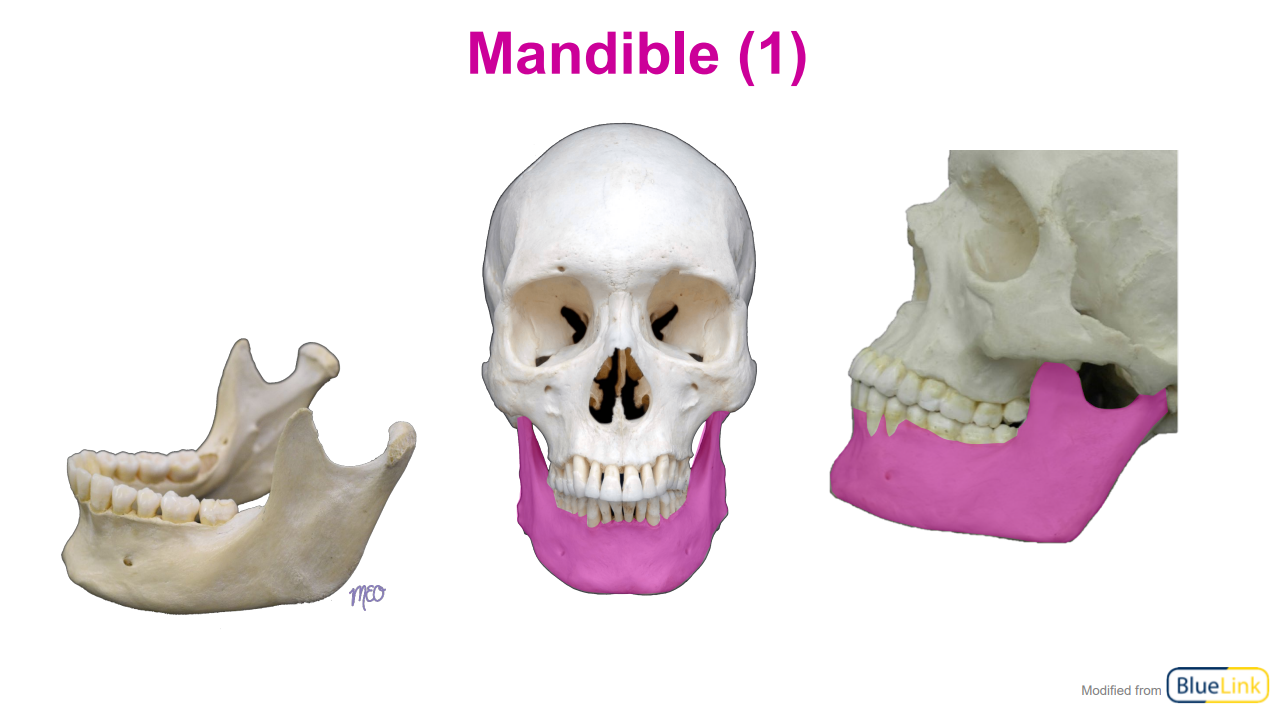

Mandible

Jaw bone

When the anterior fontanelle ossifies, which two sutures join the space?

Frontal and Sagittal

When the posterior fontanelle ossifies, which two sutures join the space?

Sagittal and Lambdoid
