a jet airplane takes 2 hours to travel 1600 miles in a straight line. what is the avg velocity of the jet?
800 mph
a grandfather clock ticks once when the pendulum swings from left to right and once again on the swing from right to left. there are two ticks each second. what is the frequency of pendulum motion in cycles per second (Hz)?
1 Hz
when a wave travels from one place to another, what is transported?
energy
assume that you have a periodic wave traveling down an infinitely long rope. what happens to the wavelength if you increase the period of this wave?
it increases
if the fundamental frequency of a rope fixed at both ends is 30 Hz, the frequency of the second harmonic is
60 Hz
A long pendulum hanging from the classroom’s ceiling has a period of 8s. what is the frequency of this pendulum?
1/8 Hz
a node is the point of maximum displacement on a standing wave
false
standing waves…
c. are a result of the superposition of two traveling waves
while standing on a dock, you observe waves passing beneath you. if you observe 20 wave crests passing directly below you in 2 minutes and judge the crests to be 1m apart, what’s the period of the waves?
6 seconds
a pure tone is always…
a sinusoidal sound wave
sometimes, you can faintly hear somebody speaking behind a wall in the room next to you because…
part of the original sound wave is transmitted through the wall
in transverse waves, particles of the medium move perpendicular to the direction in which the wave travels
true
compliance is inversely proportional to stiffness
true
the amount of inertia of an object is directly proportional to…
mass

in the following figure of a pendulum, the inertial force is maxium at
A
force =
mass x acceleration
if a hockey puck slides on a perfectly frictionless surface, it will eventually slow down because of its inertia
false
the unit for pressure is N/m2
true
sawtooth waves have energy at all harmonics (even and odd)
true
3rd harmonic =
2nd overtone
as frequency increases,
A and C
the frequency of free vibration is also called resonant or natural frequency
true
mass reactance is greater at higher frequencies
true
stiffness reactance is greater at low frequencies
true
at resonant frequency…
B and C
air and water have the same impedance
false
the rate at which work is done is called…
power
which statement(s) are true?
A and B
a band pass filter has __ cutoff frequencies
2
a very small portion of energy is transmitted if there is an impedance mismatch
true
a filter which is used to eliminate just one frequency is called…
notch filter
which type of filters have two cutoff frequencies?
A and B
which statement is true for a tube open at both ends?
an antinode will form at both ends
an organ pipe is 1m long and is open at one end and closed at the other. which of the following is the frequency of one of the harmonics of the pipe? assume that the speed of sound is 340 m/s
255 Hz
in a tube only open at one end…
only odd harmonics can be produced
tube length and fundamental frequency are inversely proportional to each other
true
three pure tone frequencies of 6 Hz, 4 Hz, and 3 Zz are played at one time near a taut string of length 1m that is tied at both ends. it is observed that only the 6 Hz tone makes the string vibrate in one of its allowed modes. from this info, you can deduce that…
the lowest natural resonant frequency is 6 Hz
A tube open at both ends can resonate at odd and even harmonics
true

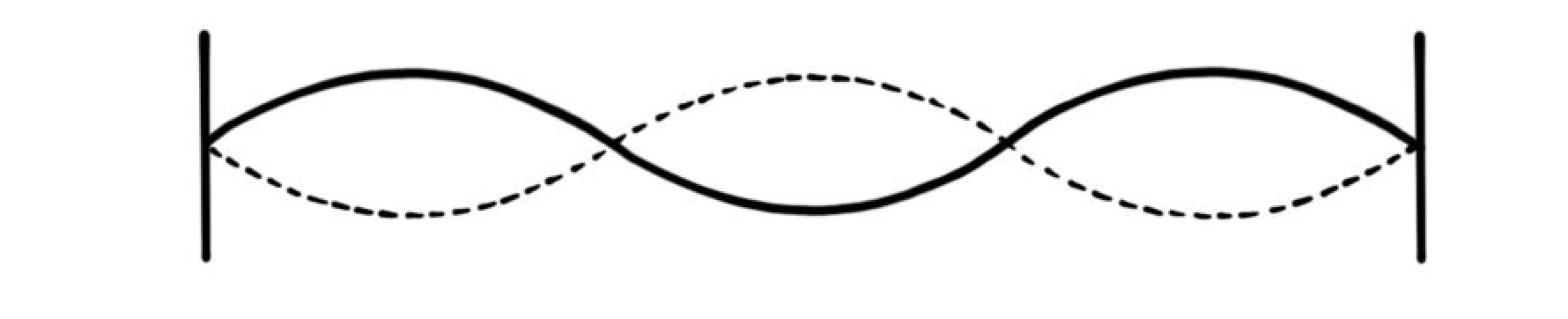

you set up a standing wave on a string, as shown. what harmonic is this?
3rd

you set up a standing wave on a string, as shown. how many nodes are there?
4
which of these statements is true?
the decibel is the standard unit of measure of sound level
identify the correct statement
A and B
50 dB SPL = 50 dB IL
true
if there are two sound sources in a room, and each source generates 80 dB of noise, what is the overall intensity of noise in that room?
83 dB
the unit of power is watt
true
identify the correct equation
intensity = power/area
according to the inverse square law, “the sound energy per unit area received at any point is _____ proportional to the square of the distance from the source”
A. inversely
8.2 bels = ____ decibels
82 dB
if there are 10 sound sources in a room, each source generates 70 dB of noise, what will be the overall intensity level of noise in that room?
80 dB
an increase in sound pressure by a factor of 2 corresponds to how many decibels?
6 dB
what is the sound pressure level of re: 2×101 Pa of a sound with an absolute pressure of 2×104?
60 dB
10 dB corresponds to what intensity ratio?
10
what is the intensity level re: 10-12 watt/m2 of a sound with an intensity of 2×10-6 watt/m2?
63 dB
an increase in intensity by a factor of 4 corresponds to how many decibels?
6
an increase in intensity by a factor of 10 corresponds to how many decibels?
10
