50 Terms
Soil, waste or leader (above grade)
Soil, waste or leader (below grade)

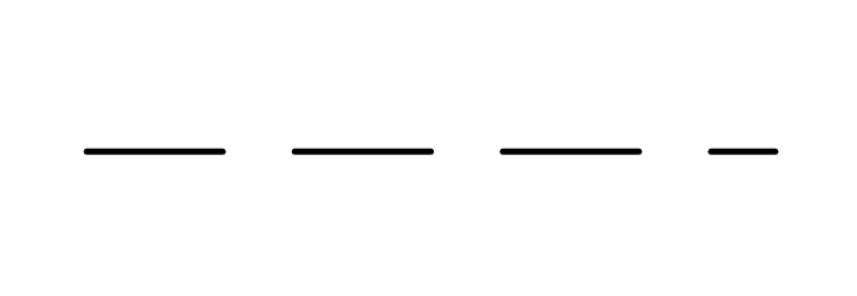

Vent

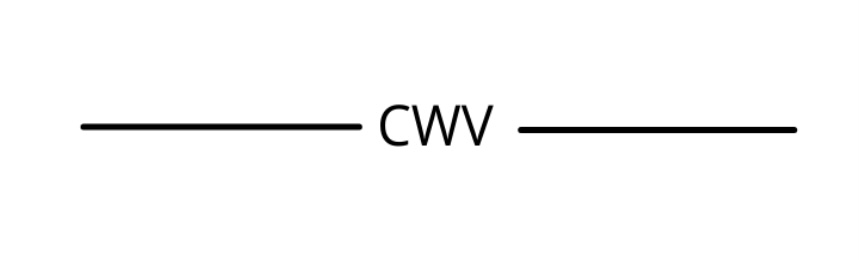

Combination Waste and Vent

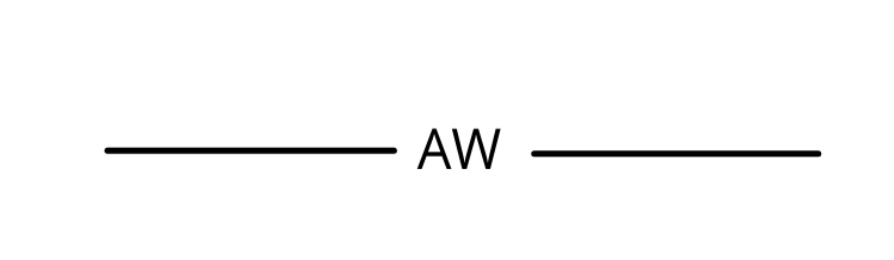

Acid Waste
Acid Vent
Indirect Drain
Storm Drain

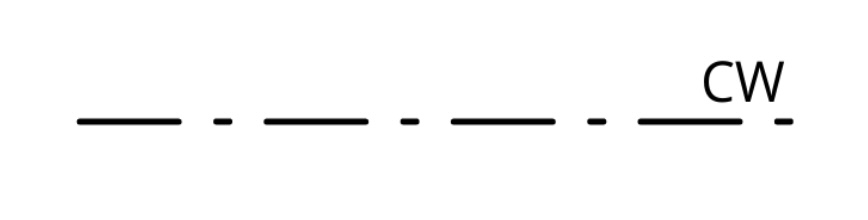

Cold Water

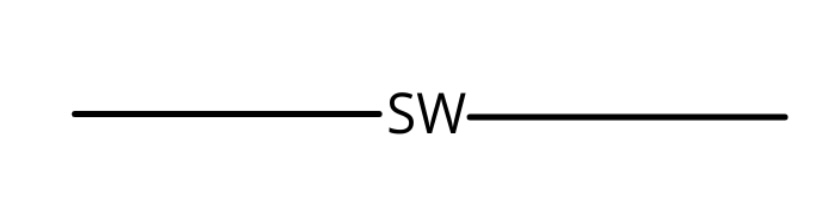

Soft Cold Water

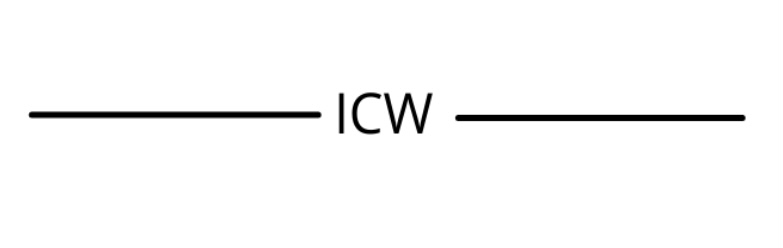

Industrialized Cold Water

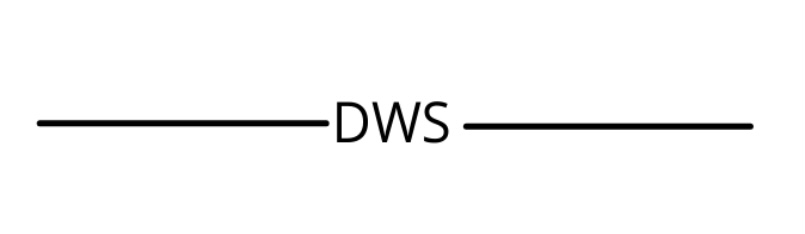

Chilled drinking water supply

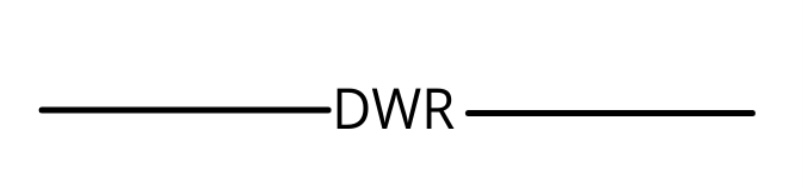

Chilled drinking water return
Hot Water
Hot Water Return
Sanitizing Hot Water Supply (180F)
Sanitizing Hot Water Return (180F)
Industrialized Hot Water Supply
Industrialized Hot Water Return
Tempered Water Supply
Tempered Water Return
Fire Line
Wet Standpipe
Dry Standpipe
Combination Standpipe
Main Supplies Sprinkler
Branch and Head Sprinkler
Gas - Low Pressure
Gas - Medium Pressure
Gas - High Pressure
Compressed Air
Vacuum
Vacuum Cleaning
Oxygen
Liquid Oxygen
Nitrogen
Liquid Nitrogen
Nitrous Oxide
Hydrogen
Helium
Argon
Liquid Petroleum Gas
Industrial Waste
Pneumatic Tube Runs
Cast Iron
Culvert Pipe
Clay Tile
Ductile Iron
Reinforced Concrete
Drain-open Tile or Agricultural Tile
