42 Terms

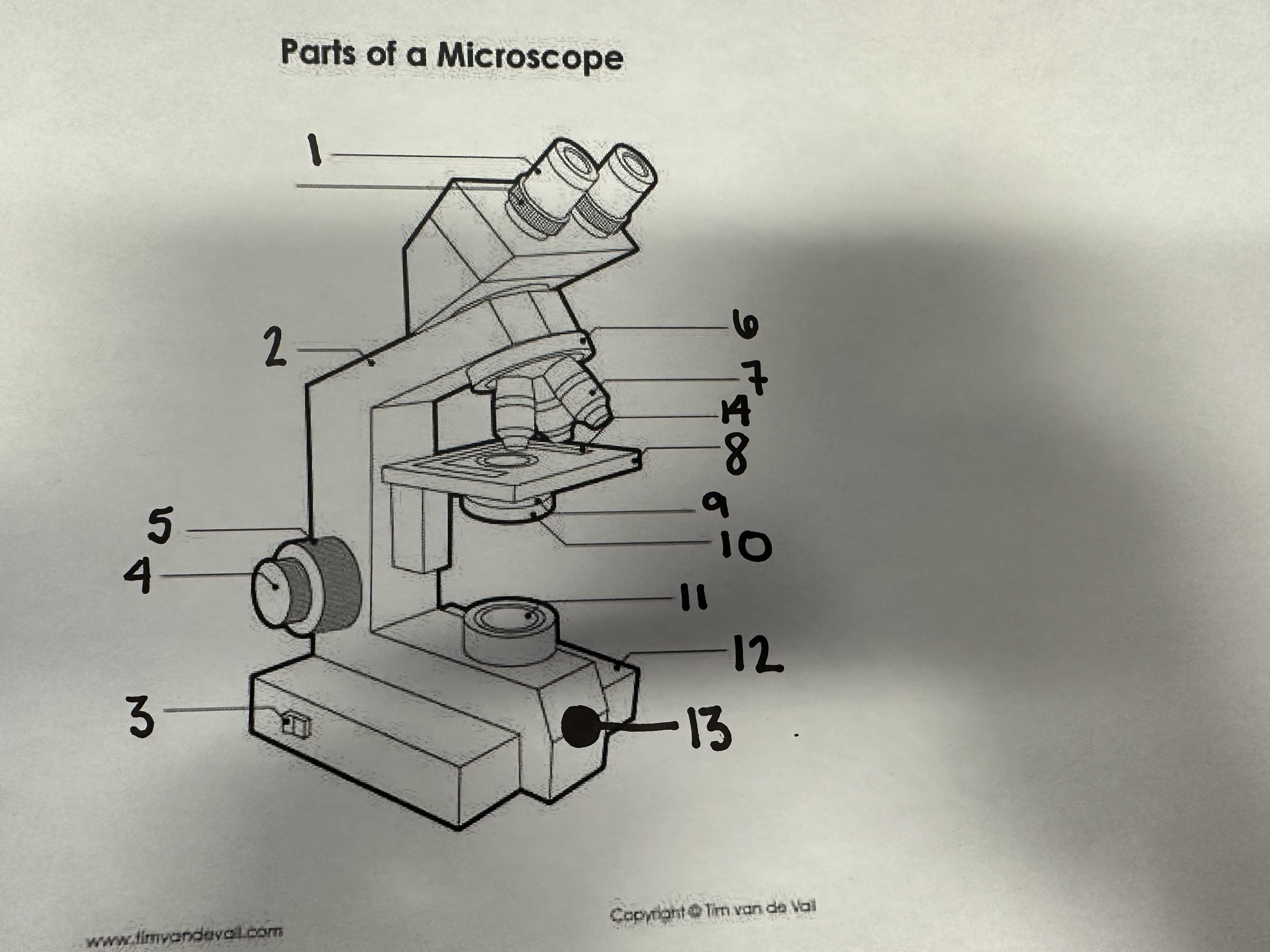

1
New cards
Name number 1
Name number 1
Occular/Eyepiece
2
New cards
Name number 2
Name number 2
Arm
3
New cards
Name number 3
Name number 3
On/Off
4
New cards
Name number 4
Name number 4
Fine-Adjustment Knob
5
New cards
Name number 5
Name number 5
Course-Adjustment Knob
6
New cards
Name number 6
Name number 6
Nosepiece
7
New cards
Name number 7
Name number 7
Objectives
8
New cards
Name number 8
Name number 8
Mechanical Stage
9
New cards
Name number 9
Name number 9
Condenser
10
New cards
Name number 10
Name number 10
Iris Diaphragm
11
New cards
Name number 11
Name number 11
Illuminator
12
New cards
Name number 12
Name number 12
Base
13
New cards
Name number 13
Name number 13
Illumination Dial/Voltage Control
14
New cards
Name number 14
Name number 14
Slide Holder
15
New cards
What is the function of number 1
What is the function of number 1
contains a magnifying lens, magnifies objects 10x, we have binocular microscopes
16
New cards
What is the function of number 2
What is the function of number 2
supports upper parts and is carrying handle
17
New cards
What is the function of number 3
What is the function of number 3
on and off switch
18
New cards
What is the function of number 4
What is the function of number 4
provides precision focusing by slight movements of the stage, always use this with high and oil objectives
19
New cards
What is the function of number 5
What is the function of number 5
focuses by moving the stage in big movements, used for major focus adjustment, use this only with low magnification objectives
20
New cards
What is the function of number 6
What is the function of number 6
the revolving part that contains the objectives
21
New cards
What is the function of number 7
What is the function of number 7
magnifying lenses
22
New cards
What is the function of number 8
What is the function of number 8
a movable stage that aids in the accurate positioning of the slide
23
New cards
What is the function of number 9
What is the function of number 9
condenses light before it travels past the specimen achieving depth of field
24
New cards
What is the function of number 10
What is the function of number 10
the (iris) diaphragm lever adjusts the amounts of light also allowing depth of field
25
New cards
What is the function of number 11
What is the function of number 11
provides a light source, directs a beam of light on the object
26
New cards
What is the function of number 12
What is the function of number 12
the flat surface (bottom) of the microscope that rests on the counter
27
New cards
What is the function of number 13
What is the function of number 13
controls the amount of voltage and therefore the intensity of light
28
New cards
What is the function of number 14
What is the function of number 14
holds slides in place on the stage
29
New cards
Ocular Magnification
10 times
30
New cards
Scanning
4x
31
New cards
Low
10x
32
New cards
High
40x
33
New cards
Oil
100x
34
New cards
Total Scanning magnification
40x.
35
New cards
Total Low Magnification
100x.
36
New cards
Total High Magnification
400x
37
New cards
Total Oil Magnification
1000x
38
New cards
When should you NEVER use the course adjustment knob?
On high power
39
New cards
Red lens band
Scanning
40
New cards
Yellow lens band
Low
41
New cards
Blue lens band
High
42
New cards
White lens band
Oil
