ECG readings

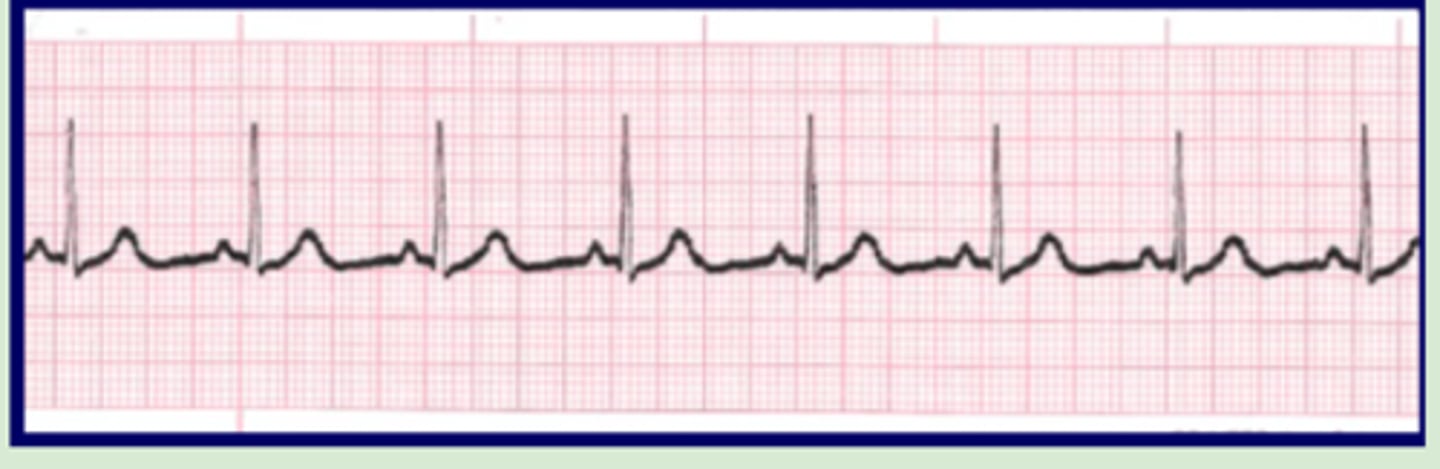

normal sinus rhythm

Originate: SA node

QRS complex: narrow

P wave: before QRS, same

Heart rate: 60-100 bpm

R-R intervals: regular

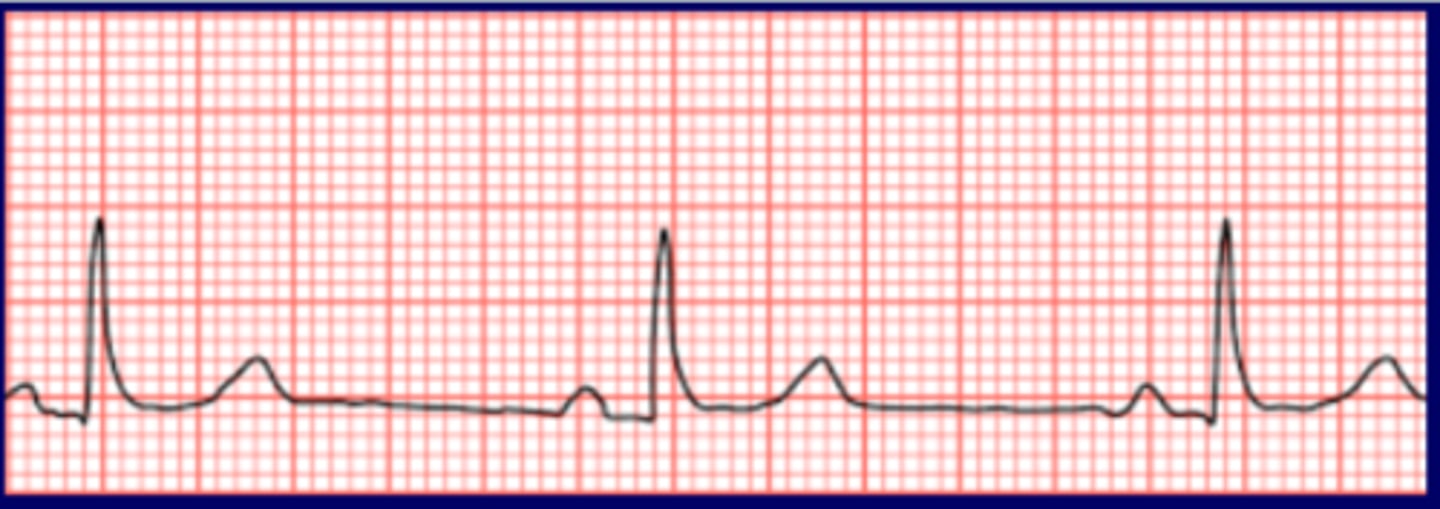

sinus bradycardia

Originate: SA node

QRS complex: narrow/wide

P wave: before QRS, same

Heart rate: <60 bpm

R-R intervals: regular

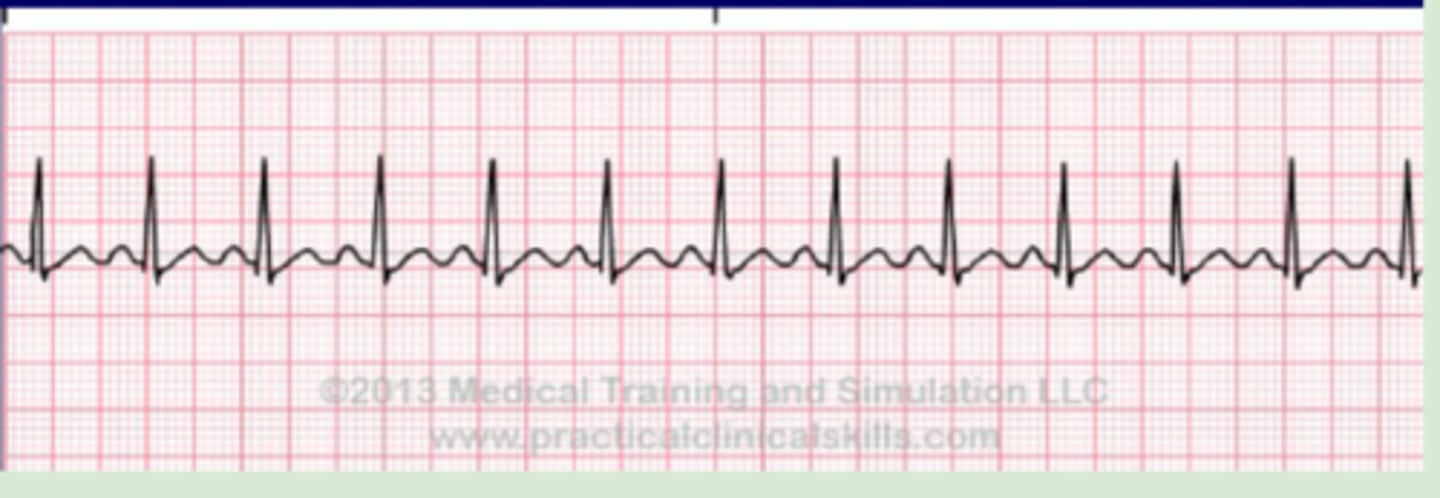

sinus tachycardia

Originate: SA node

QRS complex: narrow

P wave: before QRS, same

Heart rate: >100 bpm

R-R intervals: regular

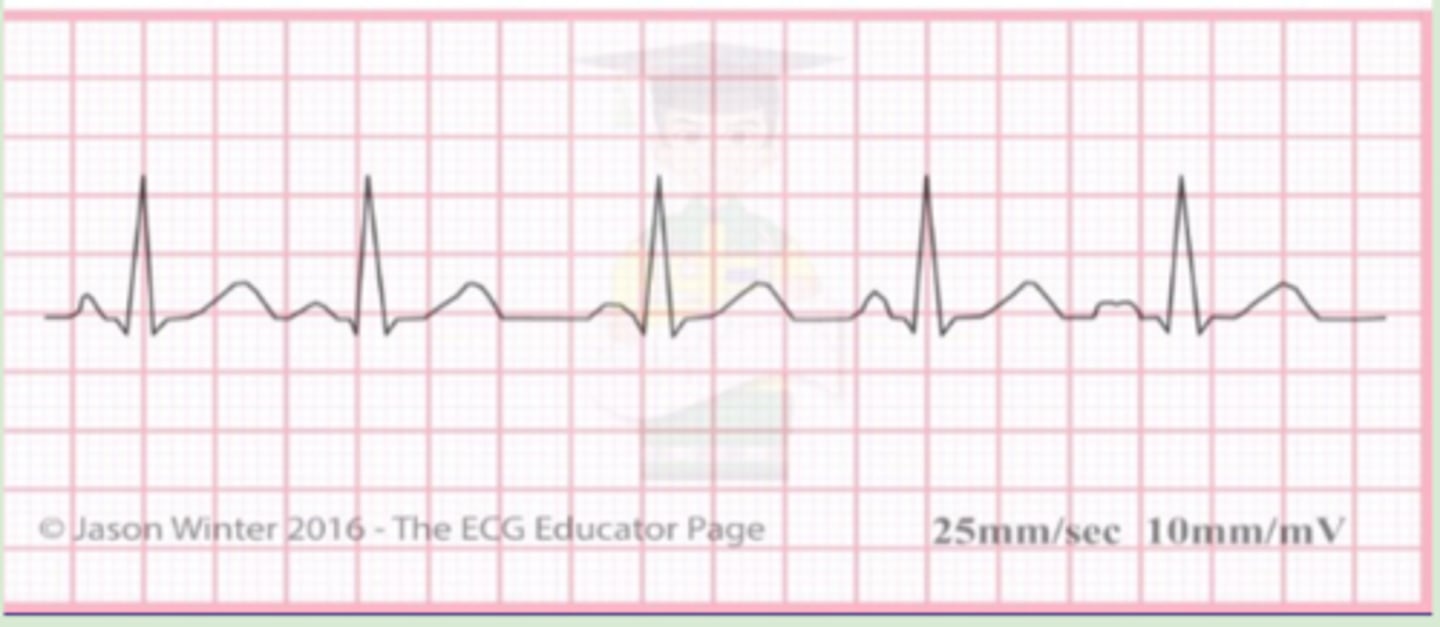

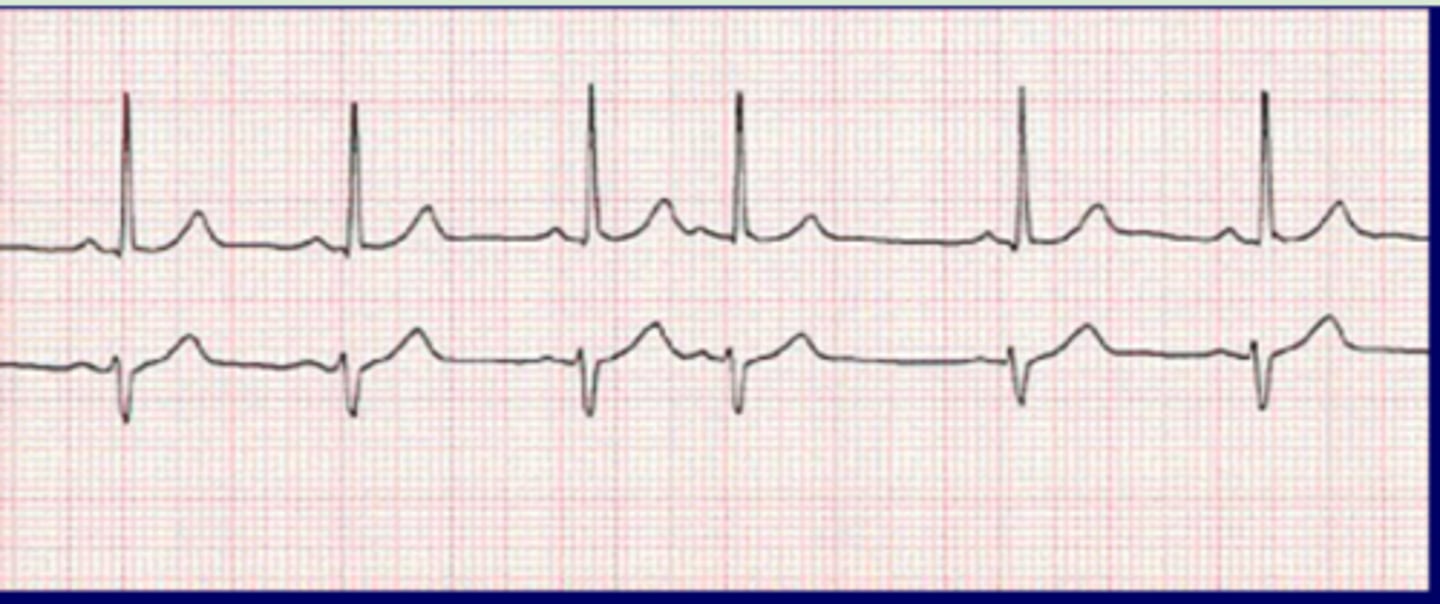

sinus arrhythmia

Originate: SA node

QRS complex: narrow

P wave: same

Heart rate: 60-100 bpm

R-R intervals: irregular

wandering atrial pacemaker

Originate: AV node

QRS complex: narrow

P wave: at least 3 different waves

Heart rate: <100 bpm

R-R intervals: regular

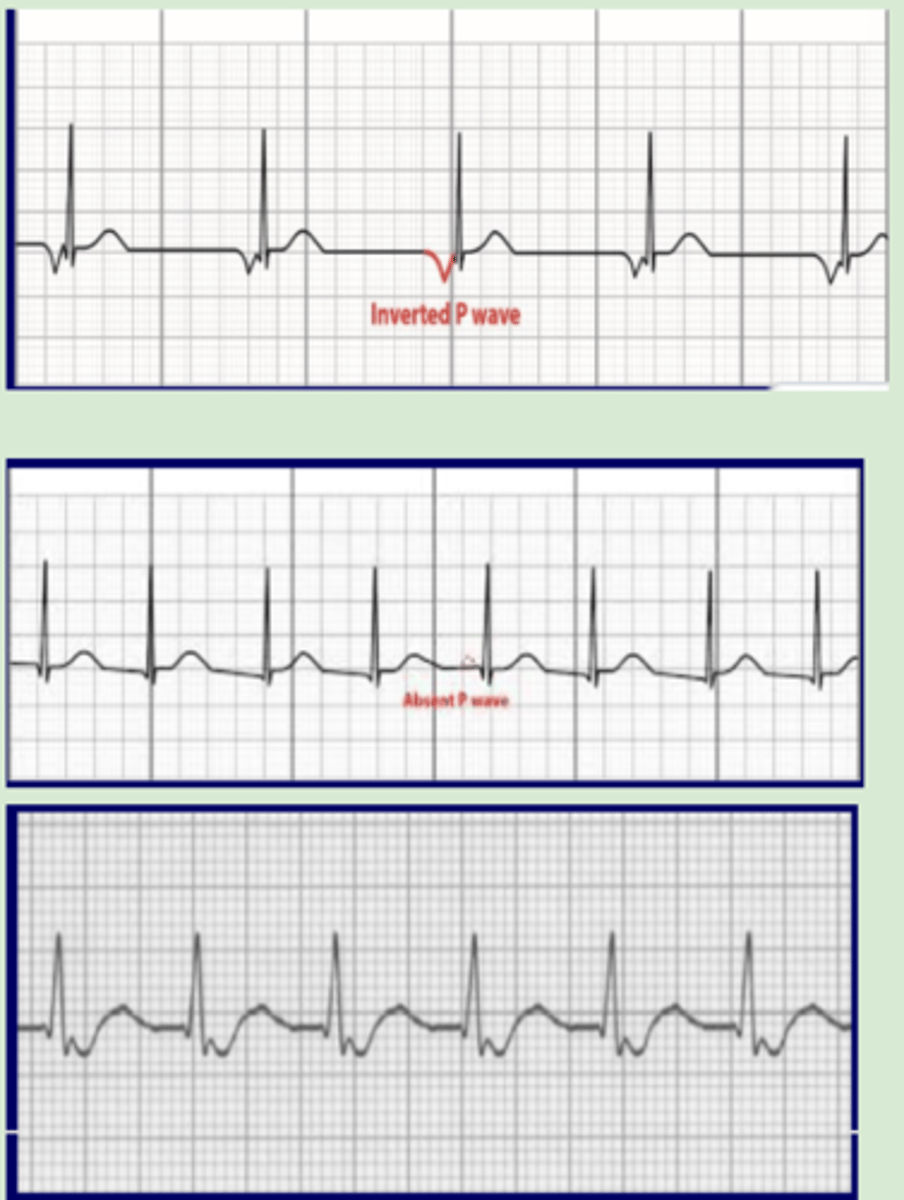

AV nodal junctional rhythm

Originate: AV node

QRS complex: narrow

P wave:

-Top of AV node = inverted, prior to QRS

-Middle of AV node = hidden in QRS

-Bottom of AV node = inverted, after QRS

Heart rate: 40-60 bpm

R-R intervals: regular

-Accelerated junctional rhythm: >60-100 bpm

-Junctional tachycardia: >100 bpm

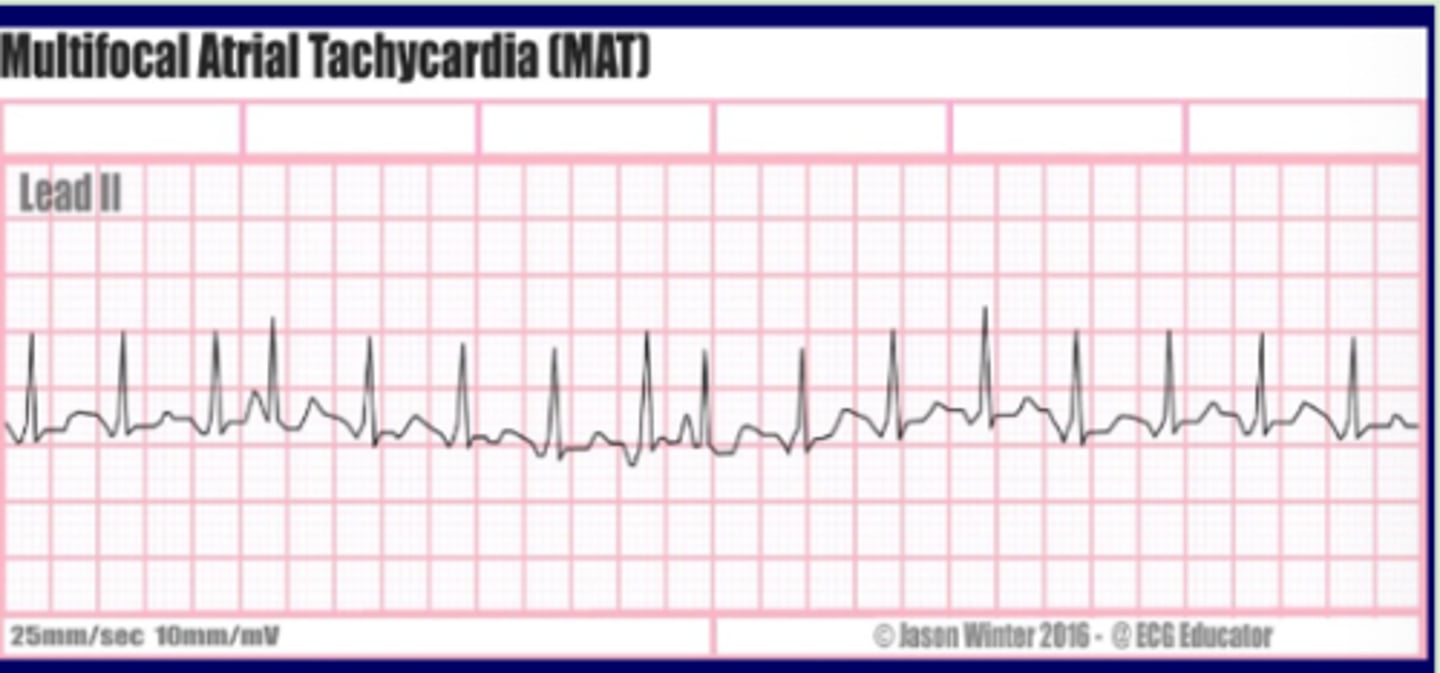

multifocal atrial tachycardia

Originate: multiple rapidly firing atrial impulses

QRS complex: narrow

P wave: different

Heart rate: >100 bpm

R-R intervals: irregularly irregular

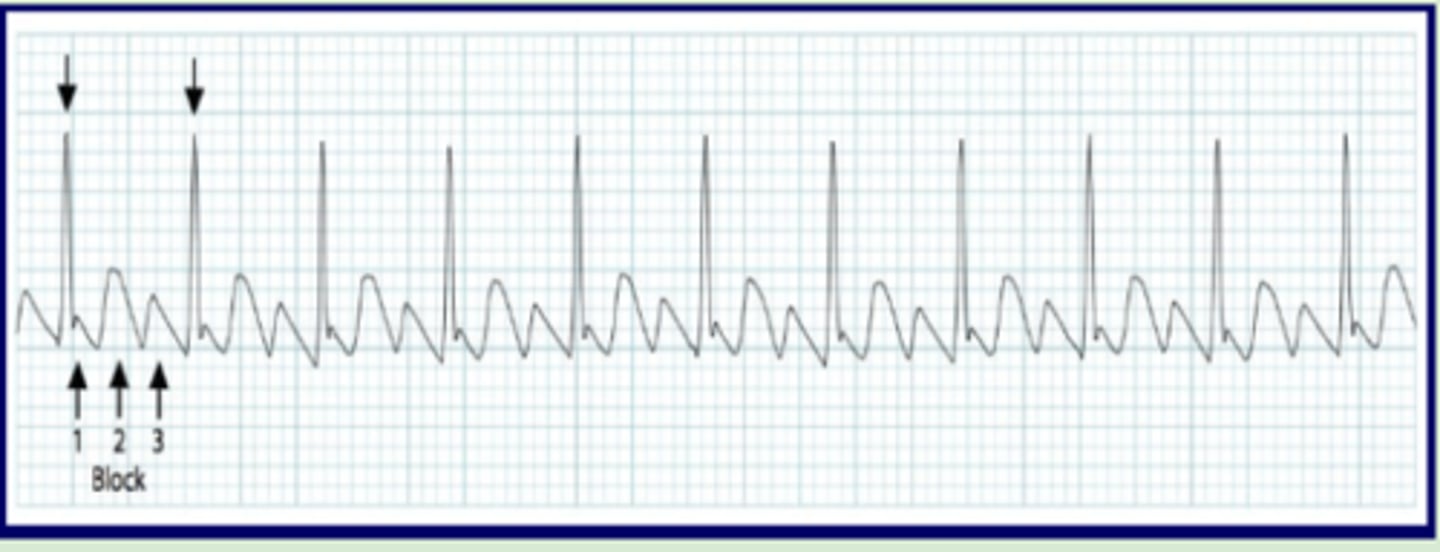

atrial flutter

Originate: atrial automaticity focus in self-perpetuating loop

QRS complex: narrow

P wave: saw tooth pattern

Heart rate: 250-400 bpm

R-R intervals: regular

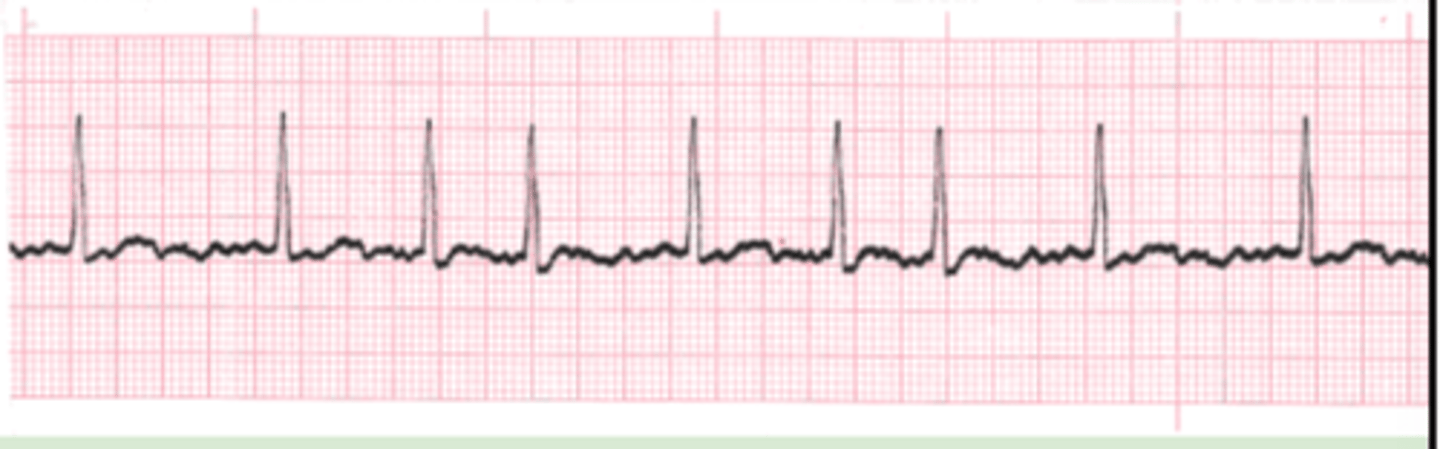

atrial fibrillation

Originate: atrial is fibrillating and not contributing to ventricular filling

QRS complex: narrow

P wave: none

Heart rate: variable

R-R intervals: irregular

Unsynchronized and chaotic

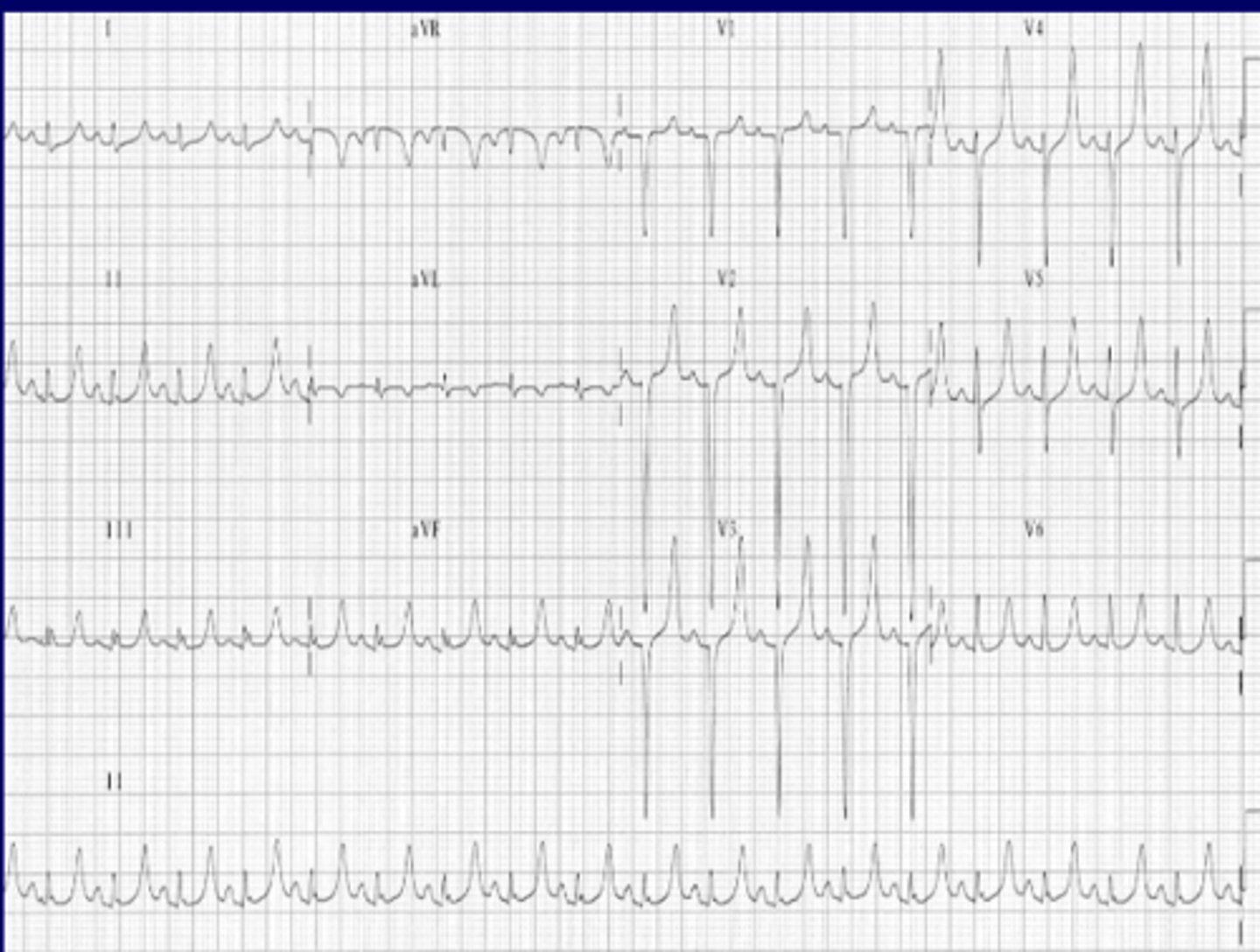

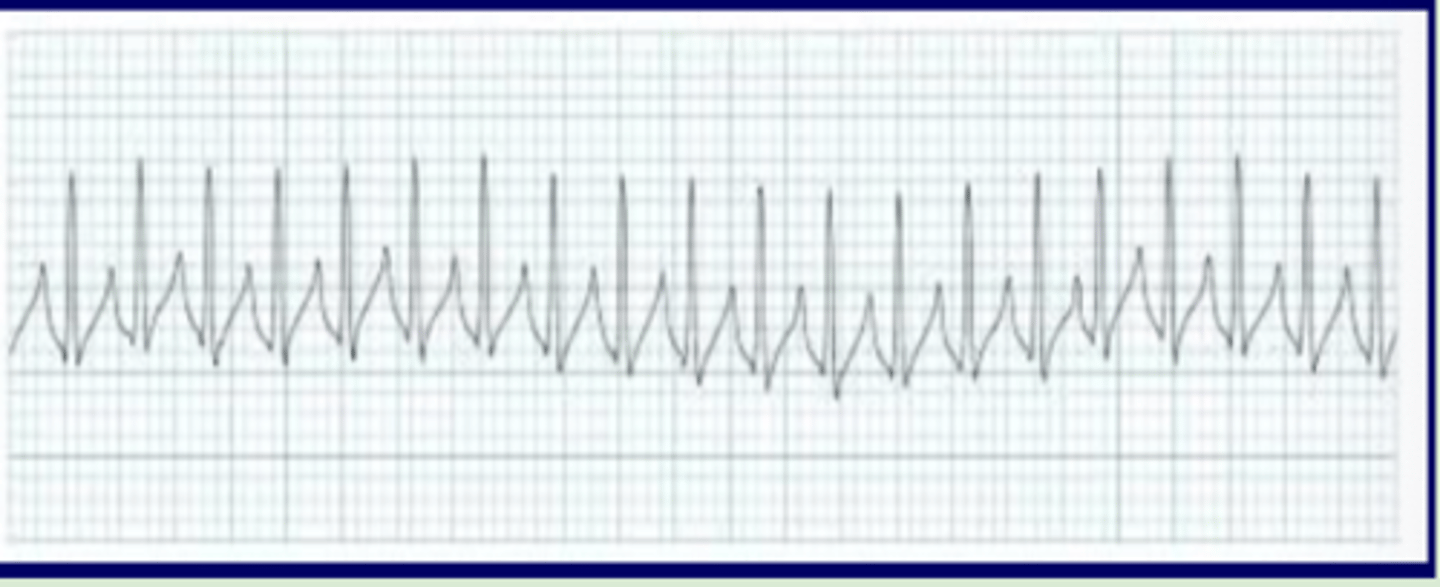

supraventricular tachycardia (SVT)

Originate: atrial or AV nodal focus

QRS complex: narrow

P wave: may not be identifiable

Heart rate: 140-280 bpm

R-R intervals: regular

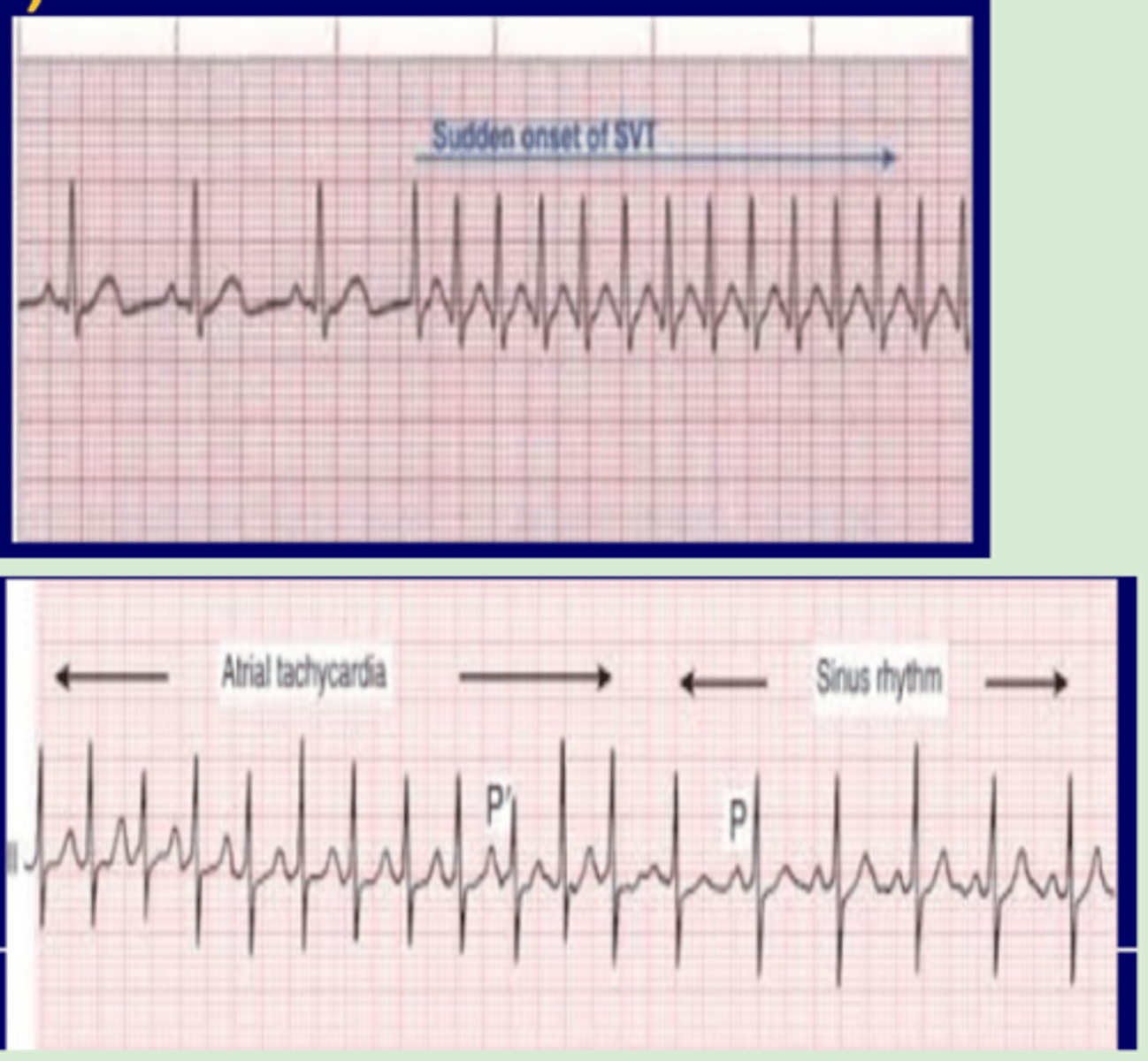

paroxysmal SVT

Abrupt onset

Abrupt offset

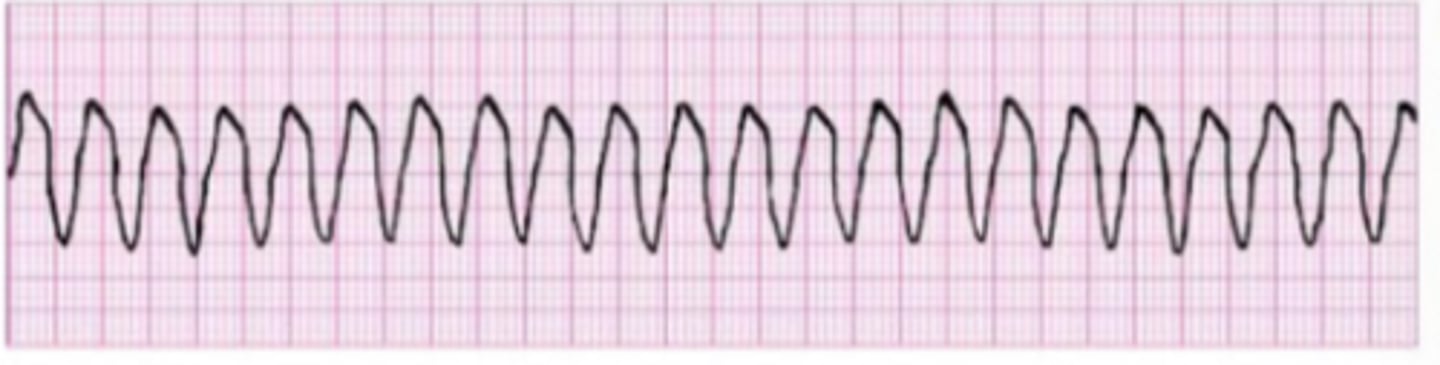

monomorphic ventricular tachycardia

Originate: ventricular automaticity focus

QRS complex: wide

P wave: none

Heart rate: very rapid

R-R intervals: regular

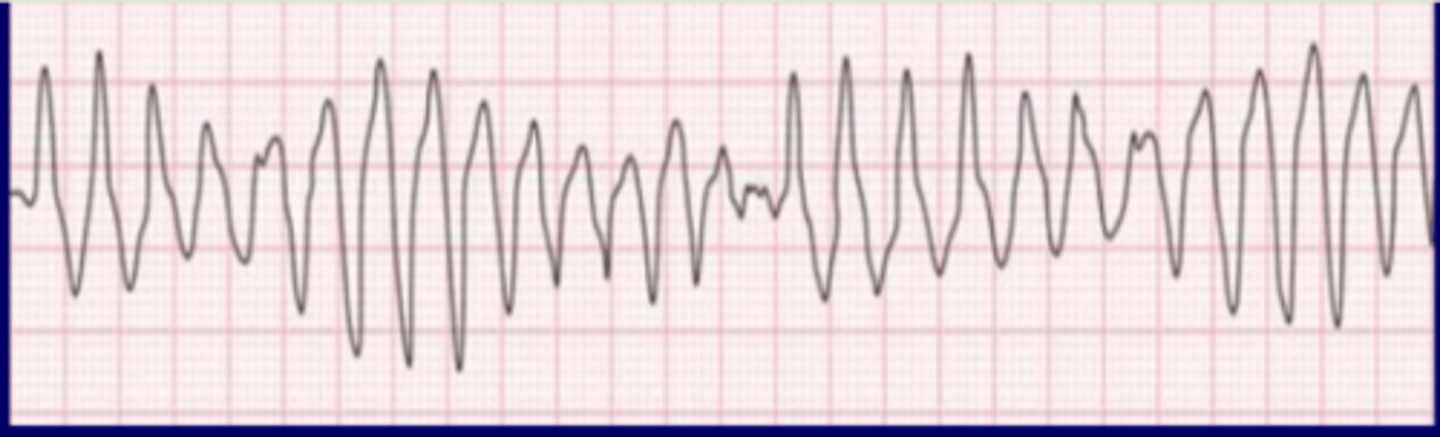

torsades de pointes

Originate: ventricular automaticity focus

QRS complex: twist

P wave: none

Heart rate: very rapid

R-R intervals: irregular

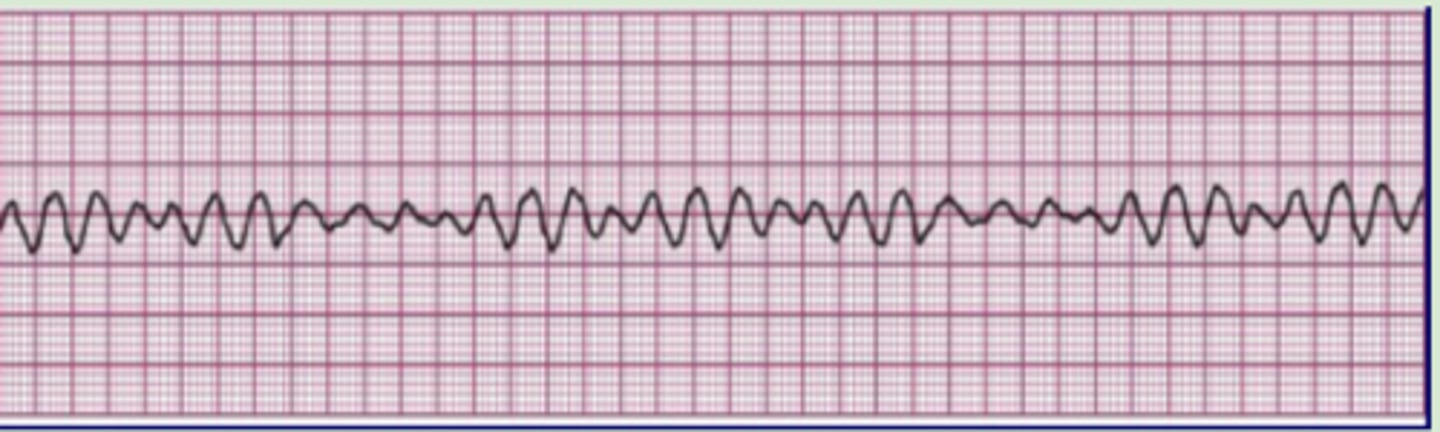

ventricular fibrillation

Originate: multiple weak ectopic ventricular foci

QRS complex: none

P wave: none

Heart rate: none

R-R intervals: irregular

Ventricle quivers

No cardiac output, no perfusion, no pulse

premature atrial contraction (PAC)

Originate: ectopic atrial focus fires impulse within SR

QRS complex: narrow

P wave: different

Heart rate: 60-100 bpm until PAC

R-R intervals: regular until premature beat causes interval to come earlier than expected

Pause after premature beat

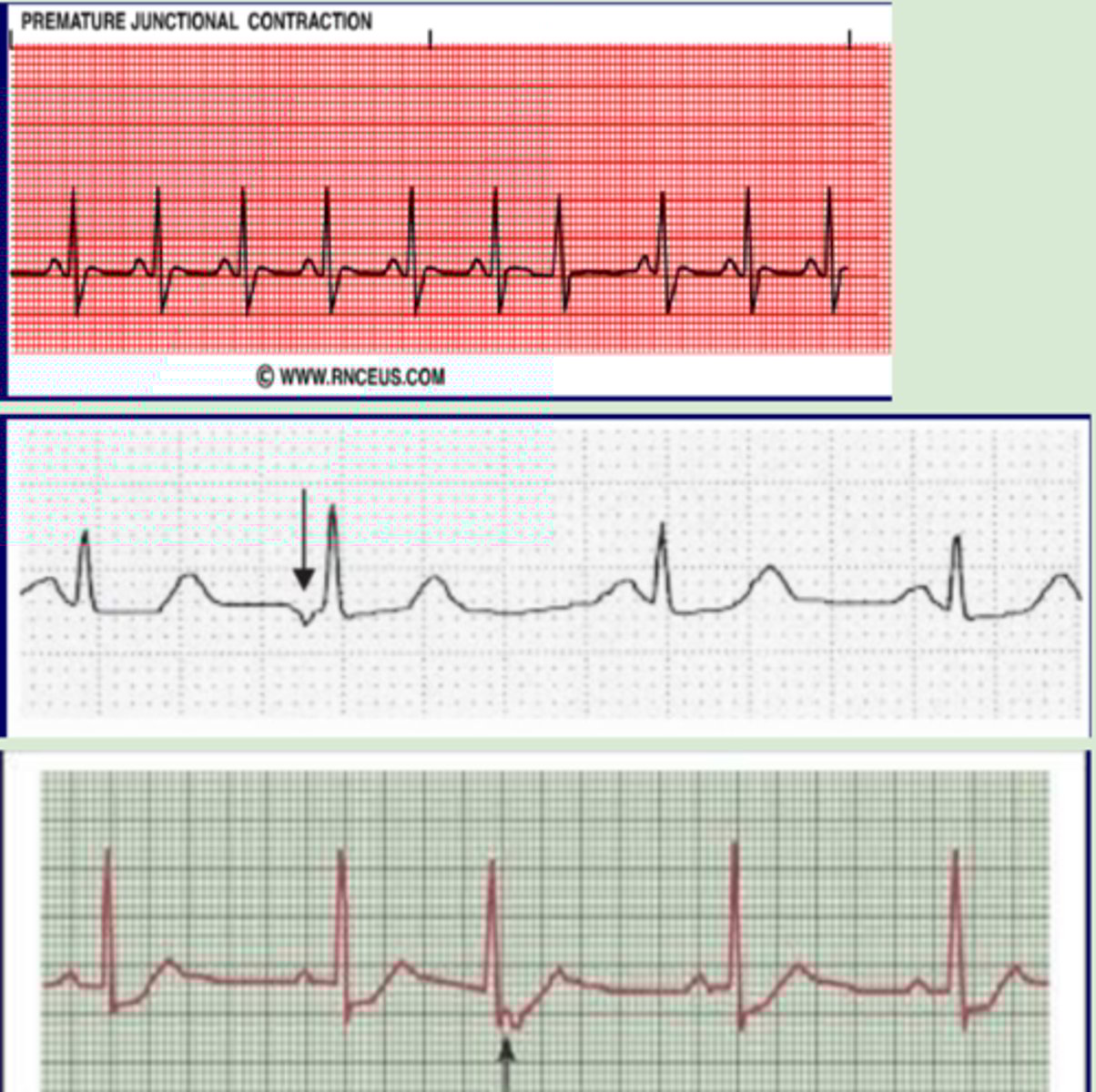

premature junctional contraction (PJC)

Originate: AV node

QRS complex: narrow

P wave:

-None

-inverted before

-inverted after

Heart rate: 60-100 bpm until PJC

R-R intervals: regular until PJC

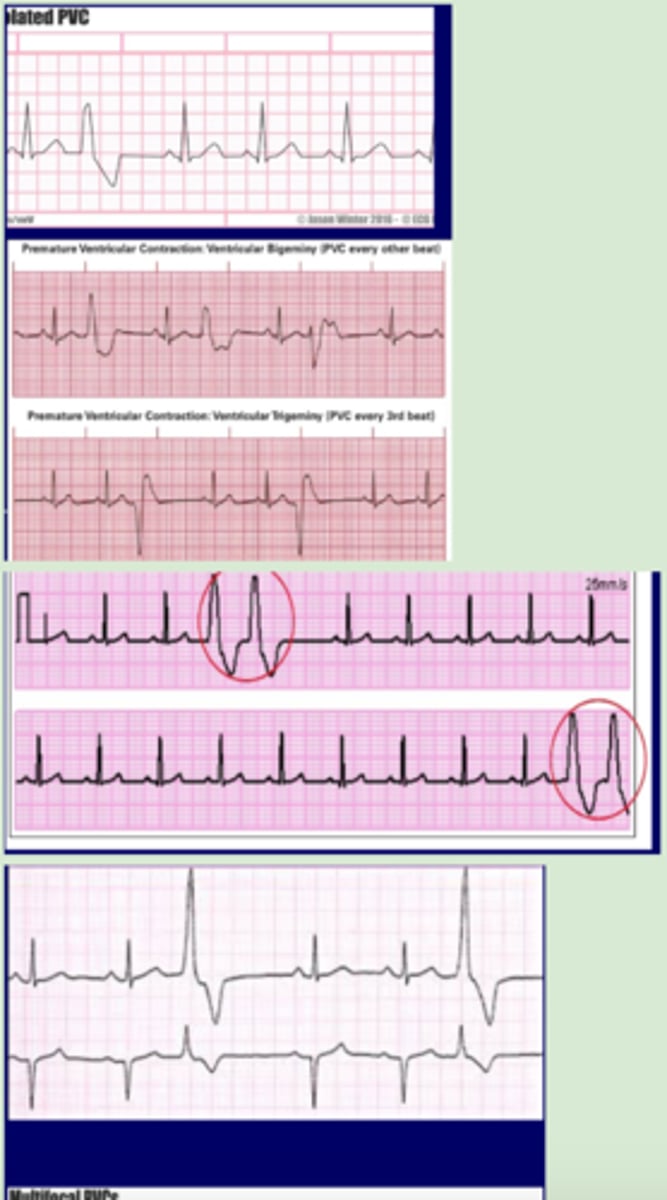

premature ventricular contraction (PVC)

Originate: irritable ventricular focus

QRS complex: wide

P wave: same until PVC

Heart rate: 60-100 bpm until PVC

R-R intervals: regular until PVC

Regularity:

-Isolated

-Bigeminy (every other beat)

-Trigeminy (every 3rd beat)

Series:

-Couplet (2 in row)

-Triplet (3 in row)

Morphology:

-Unifocal (same morphology)

-Multifocal (different morphology)

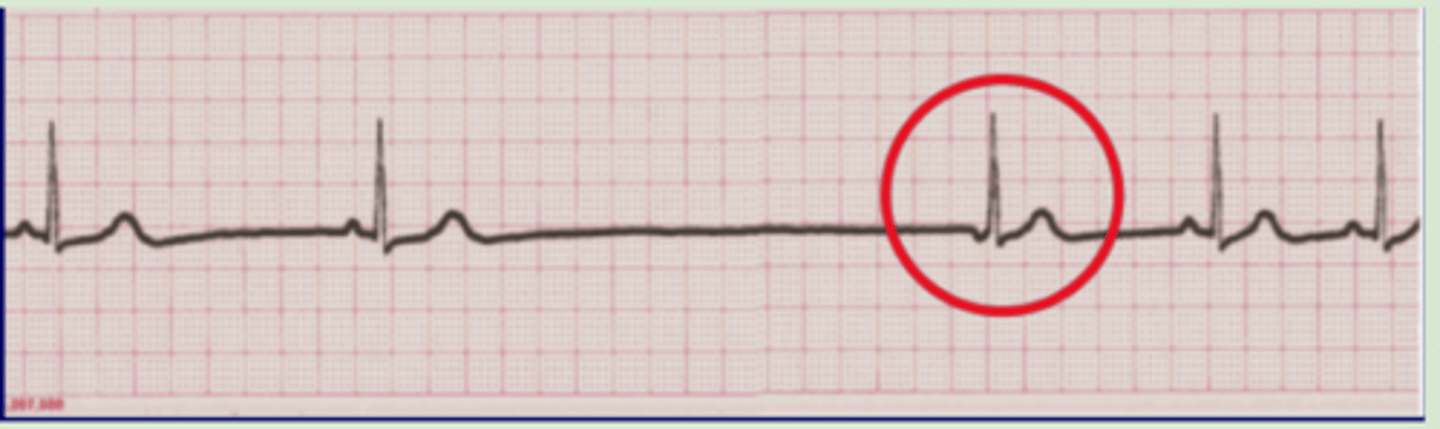

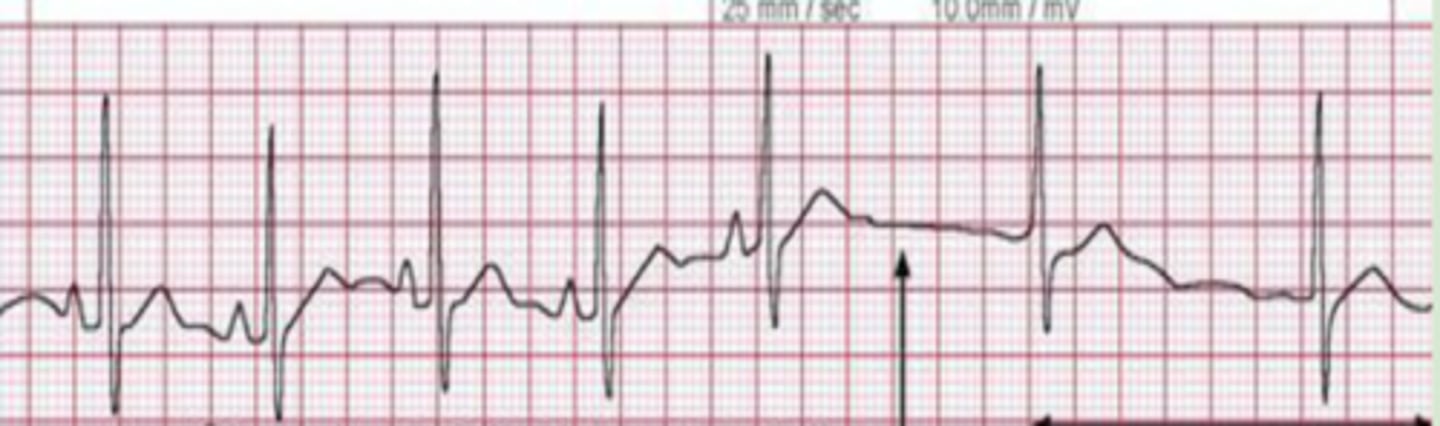

junctional escape beat

Regular sinus rhythm with a long pause followed by a singular junctional beat and return to normal sinus

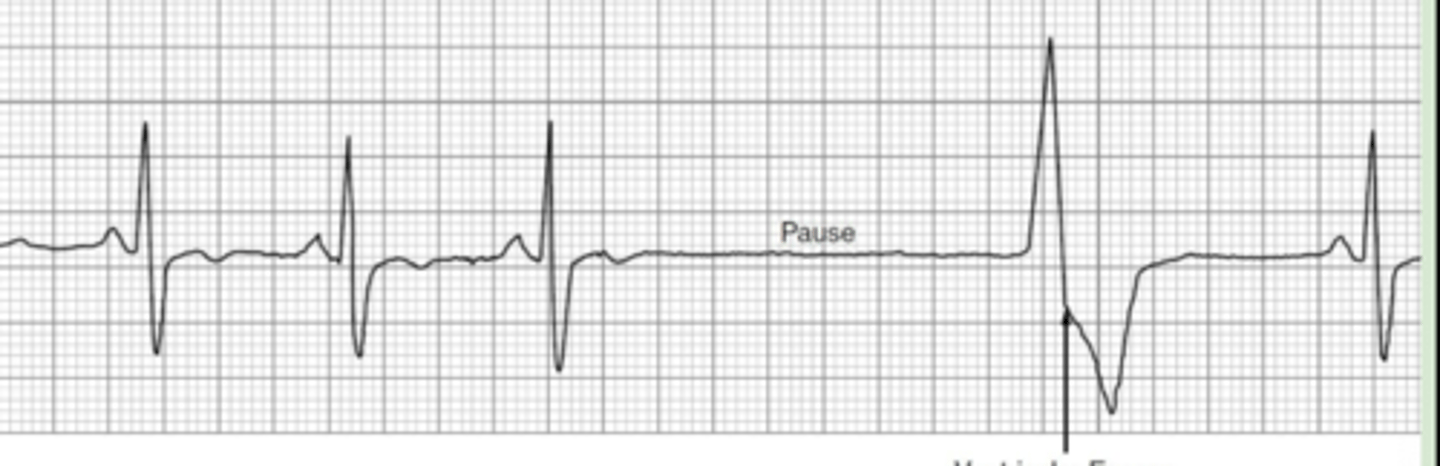

ventricular escape beat

Sinus rhythm → long pause → singular ventricular beat → return to normal rhythm

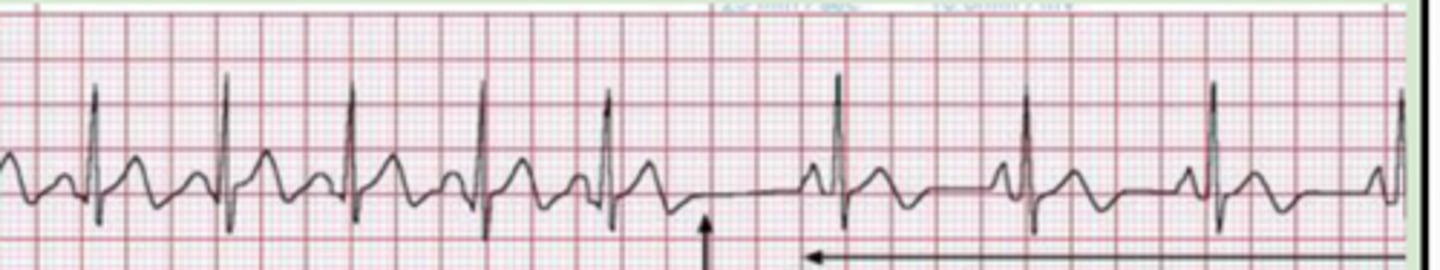

atrial escape rhythm

Failure of the sinus node → brief pause → takeover of rhythm by another atrial impulse

-P wave will differ following pause

junctional escape rhythm

Failure of the sinus node → brief pause → takeover of rhythm by the AV node

-inversion or absence of P wave will present in new rhythm

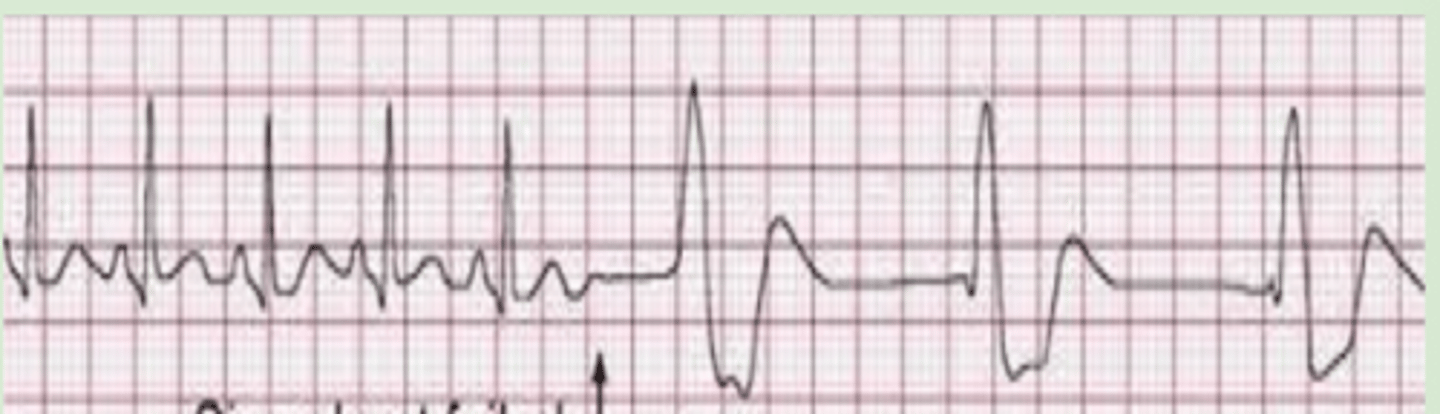

ventricular escape rhythm

Failure of the sinus node → brief pause → takeover of rhythm by focus in the ventricle

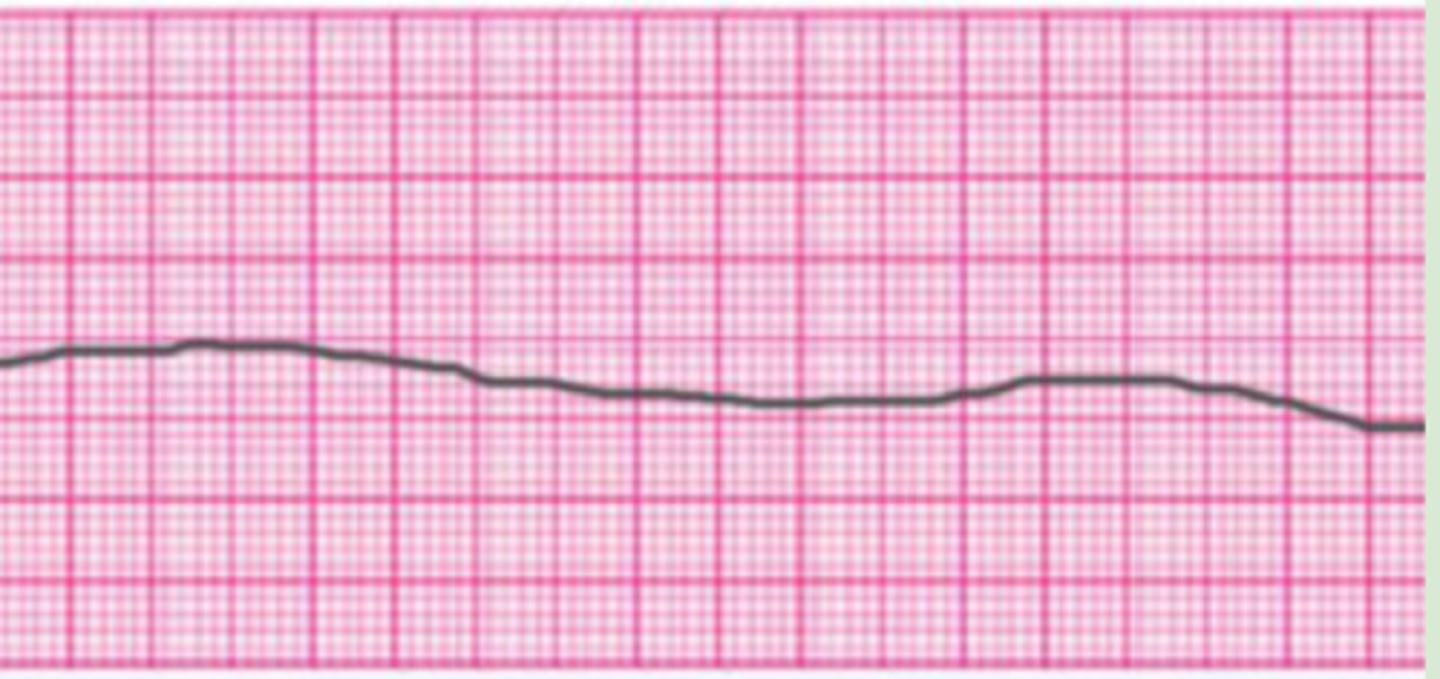

asystole

Failure of the sinus node → no assumption of pacemaker activity by other areas → no cardiac output, no perfusion, and no pulse

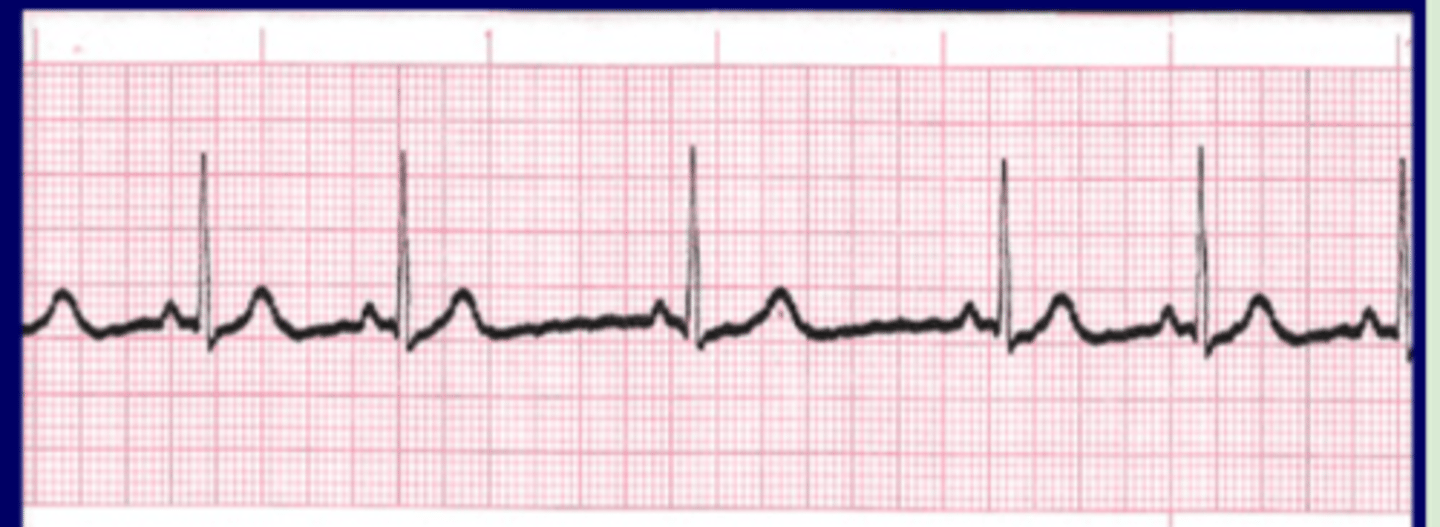

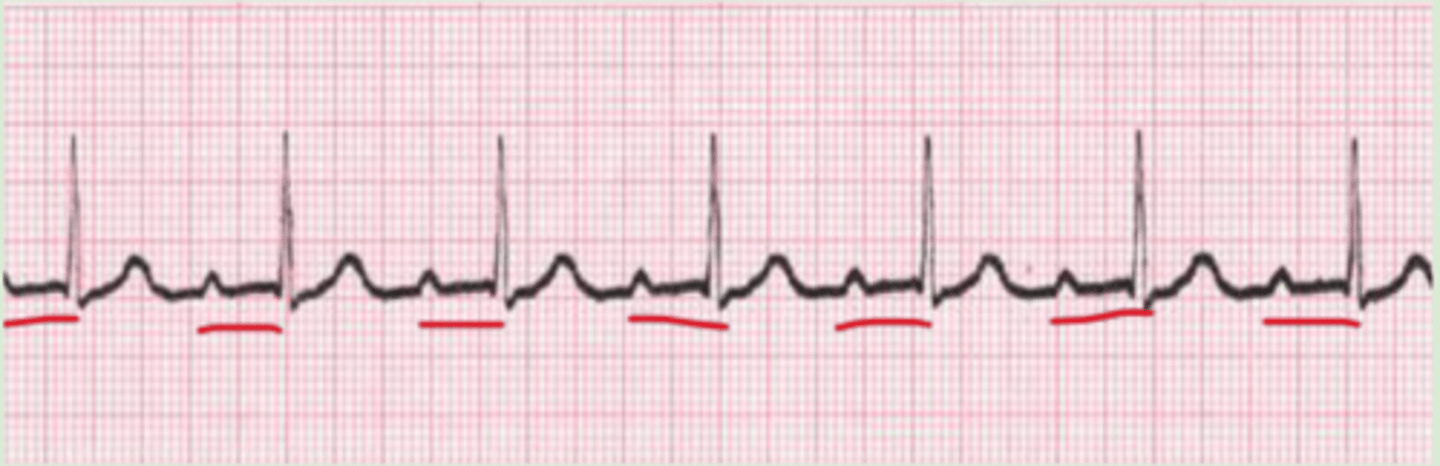

first degree AV block

Delayed impulse from SA to AV node → prolonged PR interval with each beat

-1 box large

-rest will look normal

second degree type I AV block (wenckebach)

Impulses through the AV node take progressively longer showing then are completely blocked

-PR interval will slowly become more prolonged → P wave with no present QRS complex to follow → rhythm picks back up

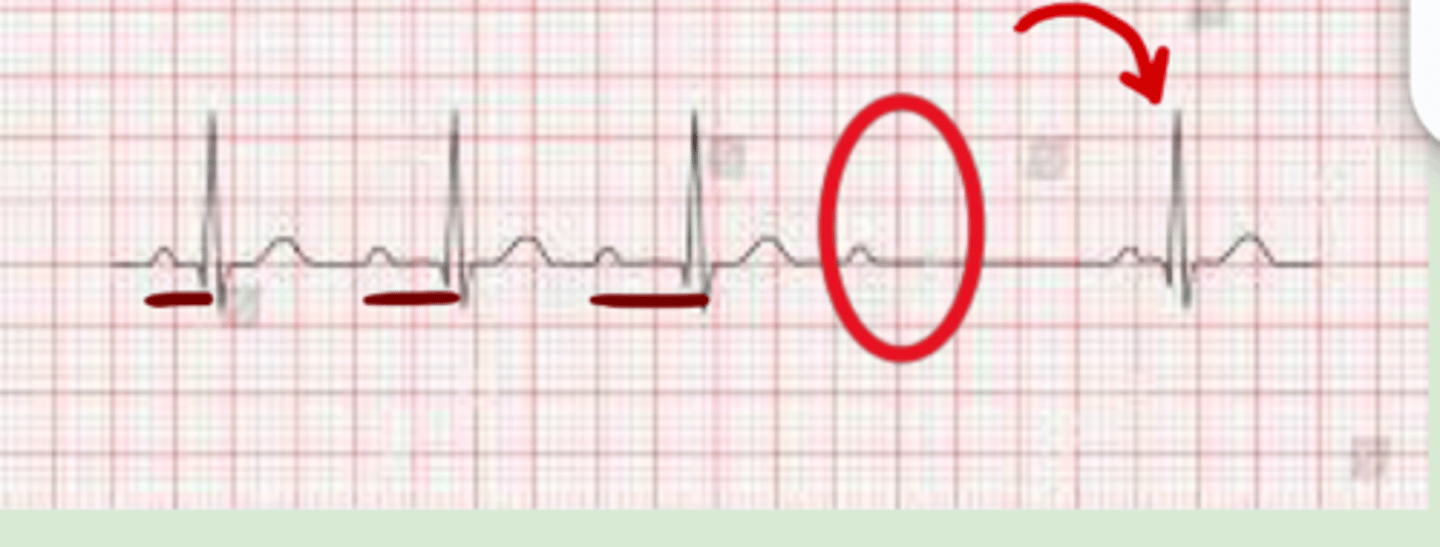

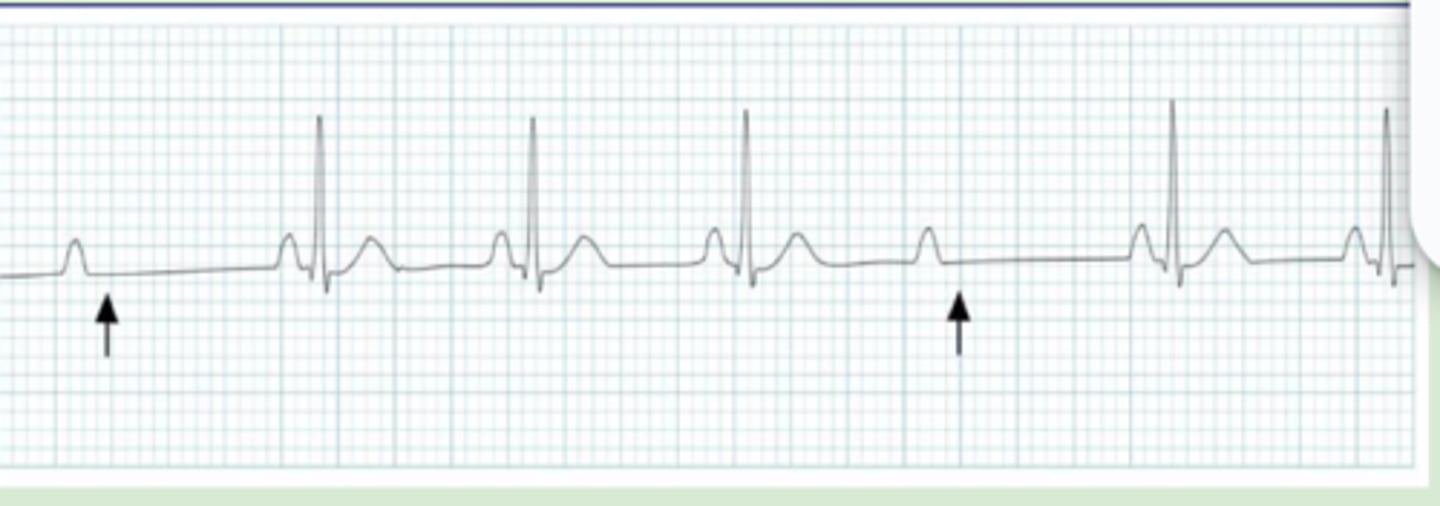

second degree type II AV block

Atrial impulses are locked sporadically

-NO prolongation prior to dropping of the QRS complex → PR interval will be constant

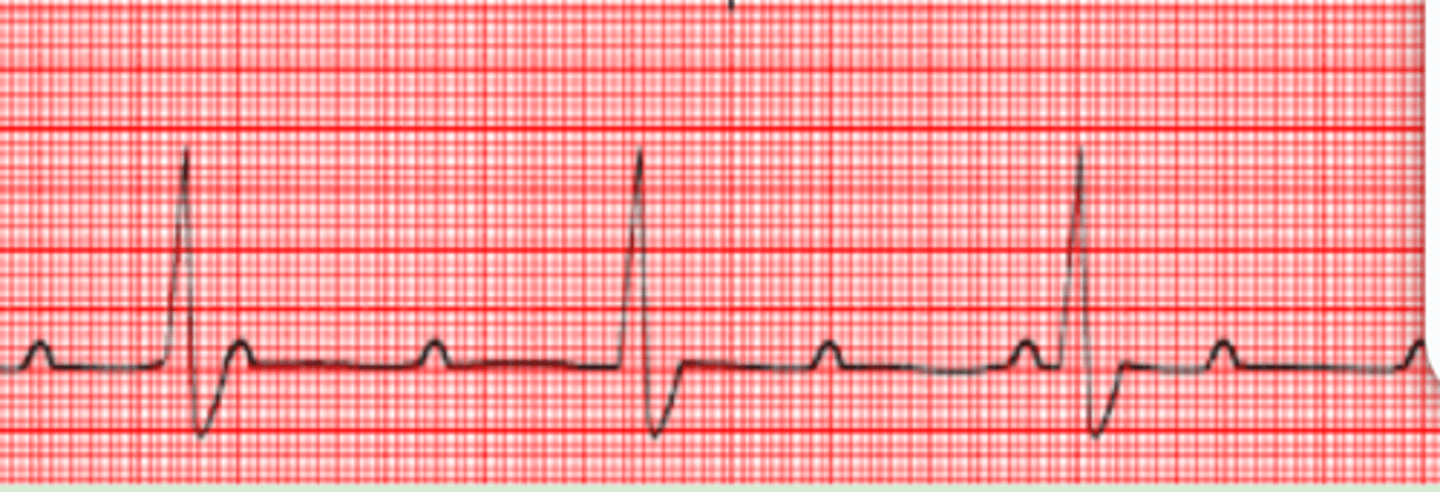

third degree

Sinus beats are independent from the beat originating in the AV node or ventricle

-There will be zero relation of P waves to the QRS complex

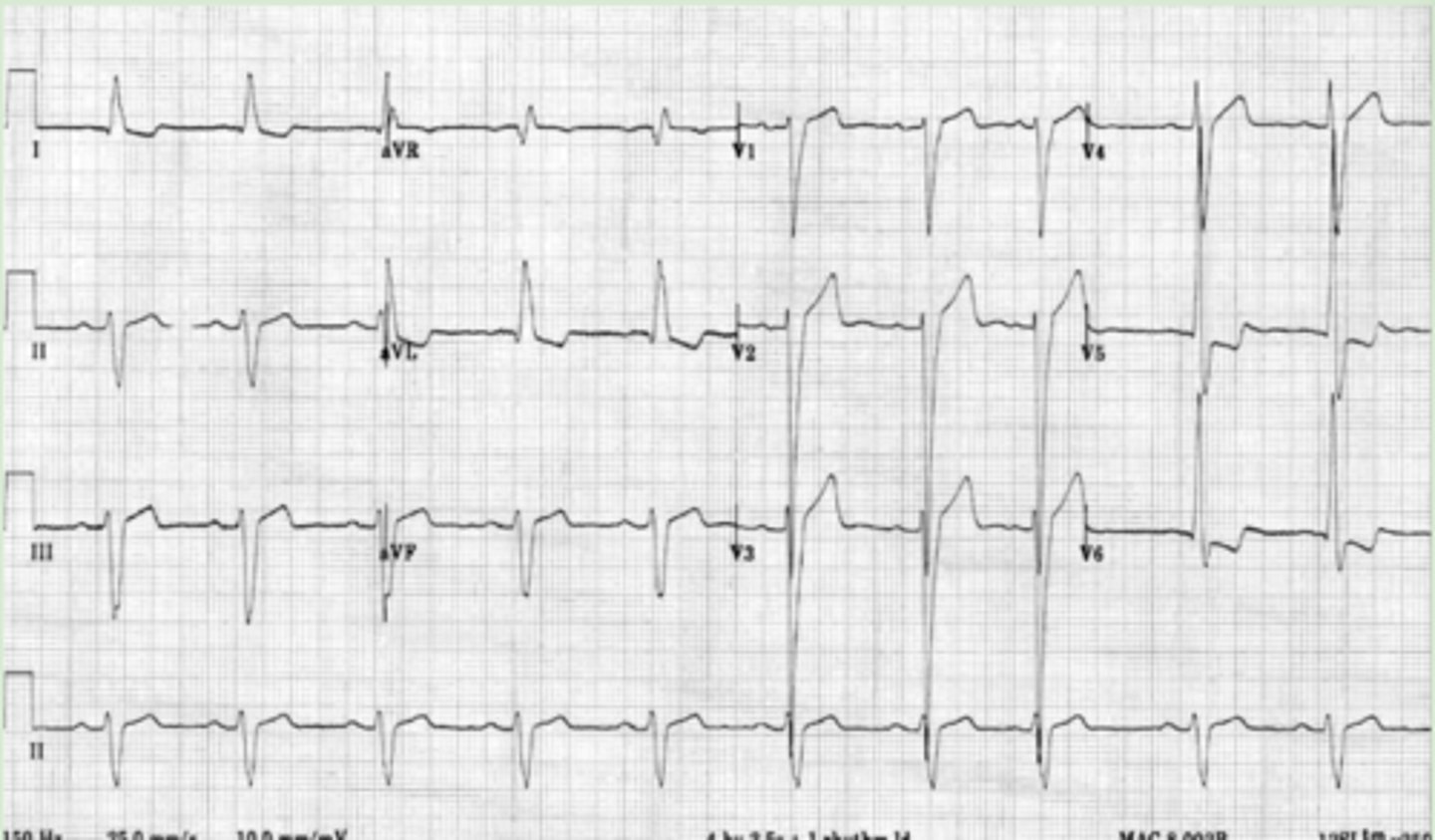

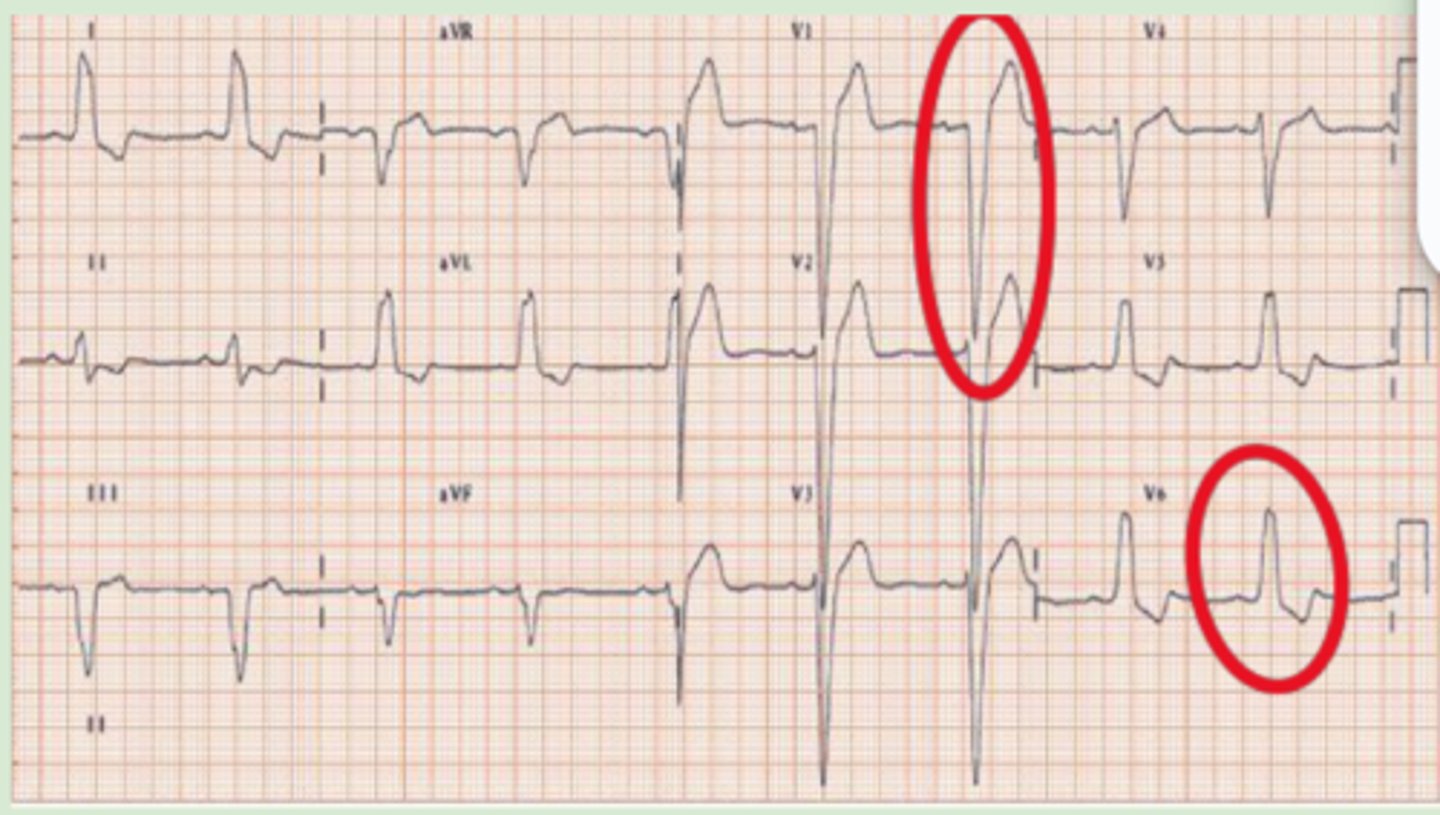

left bundle branch block

QRS = >0.12 seconds

Primarily V1 but also V2-V3

-Deep S waves

V5-V6

-Tall R waves

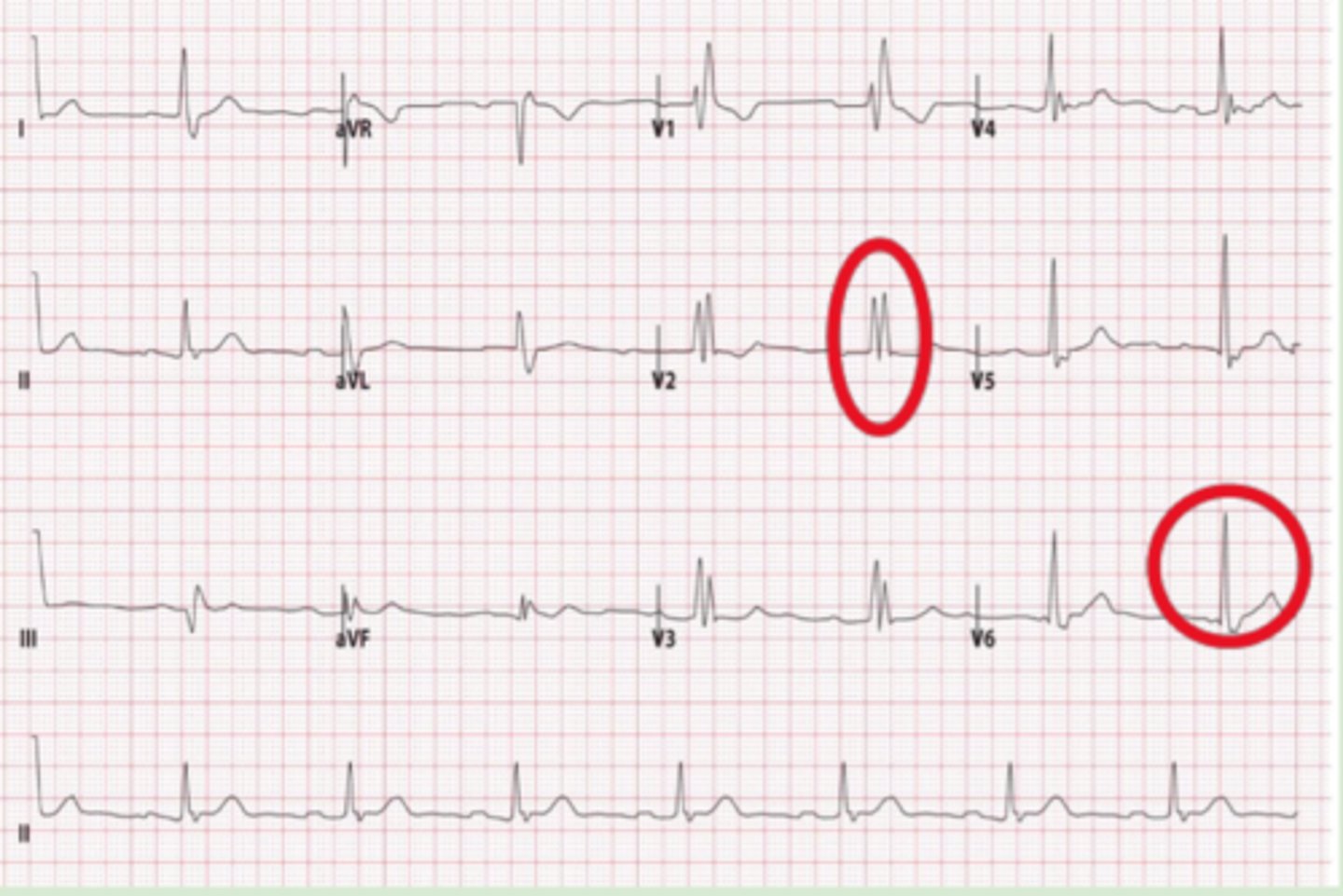

right bundle branch block

QRS = >0.12 seconds

Primarily V1 but also V2-V3

-RSR appearance (M wave)

V5-V6

-Wide, slurred s wave

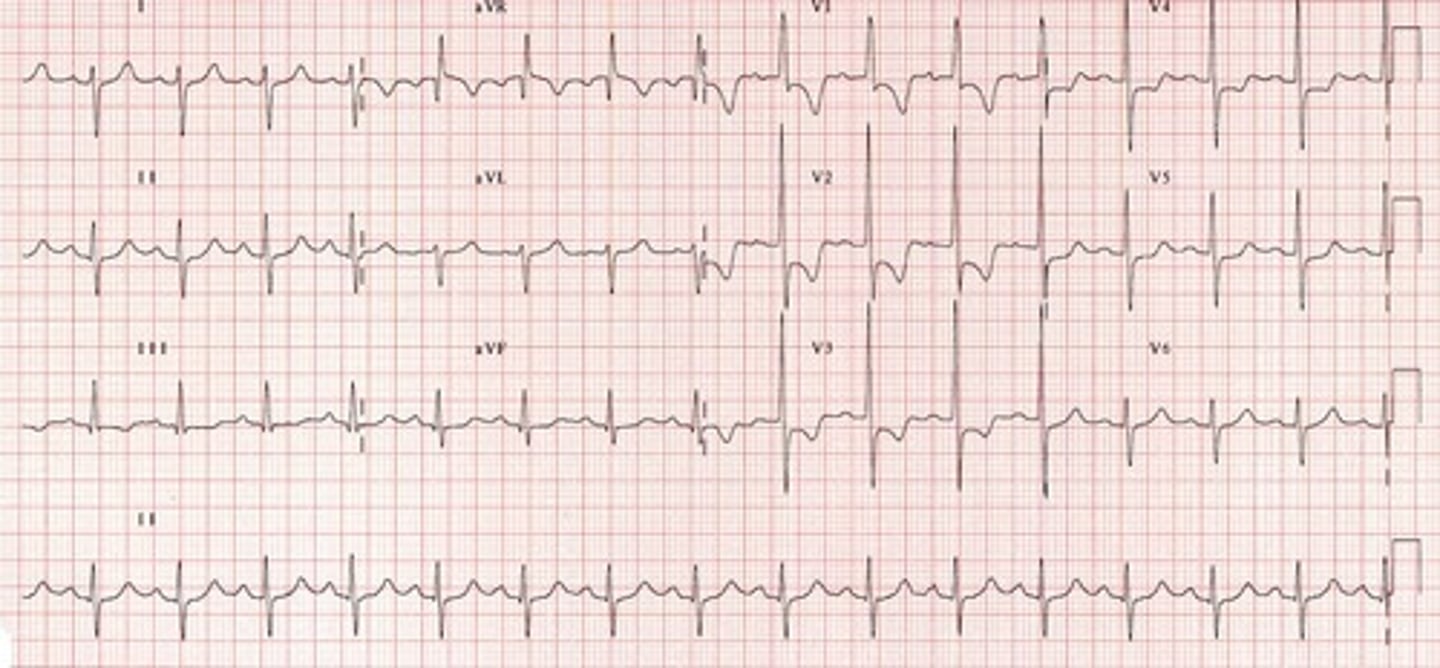

right ventricular hypertrophy

V1 = Dominant R wave

-Larger than S wave or > 7 mm tall

-May also see T wave inversions

V5&6 = Dominant S wave

-Larger than R wave or > 7 mm tall

left ventricular hypertrophy

I, aVL = Increased amplitude of R waves

III, aVR, V1-V3 = Increased depth of S waves

V5-V6 = Tall R waves

-Will also see ST & T wave abnormalities consistent w/ LV strain

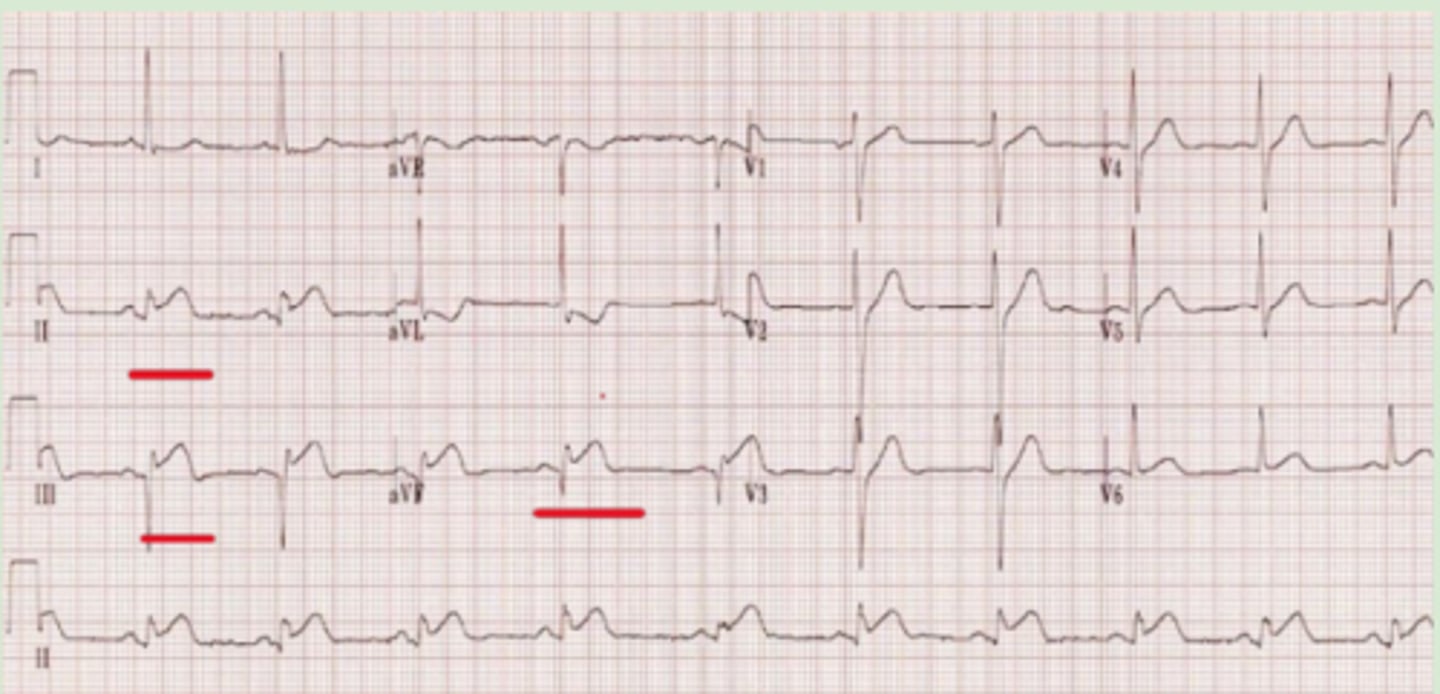

inferior myocardial infarction

ST elevations in leads II, III, aVF

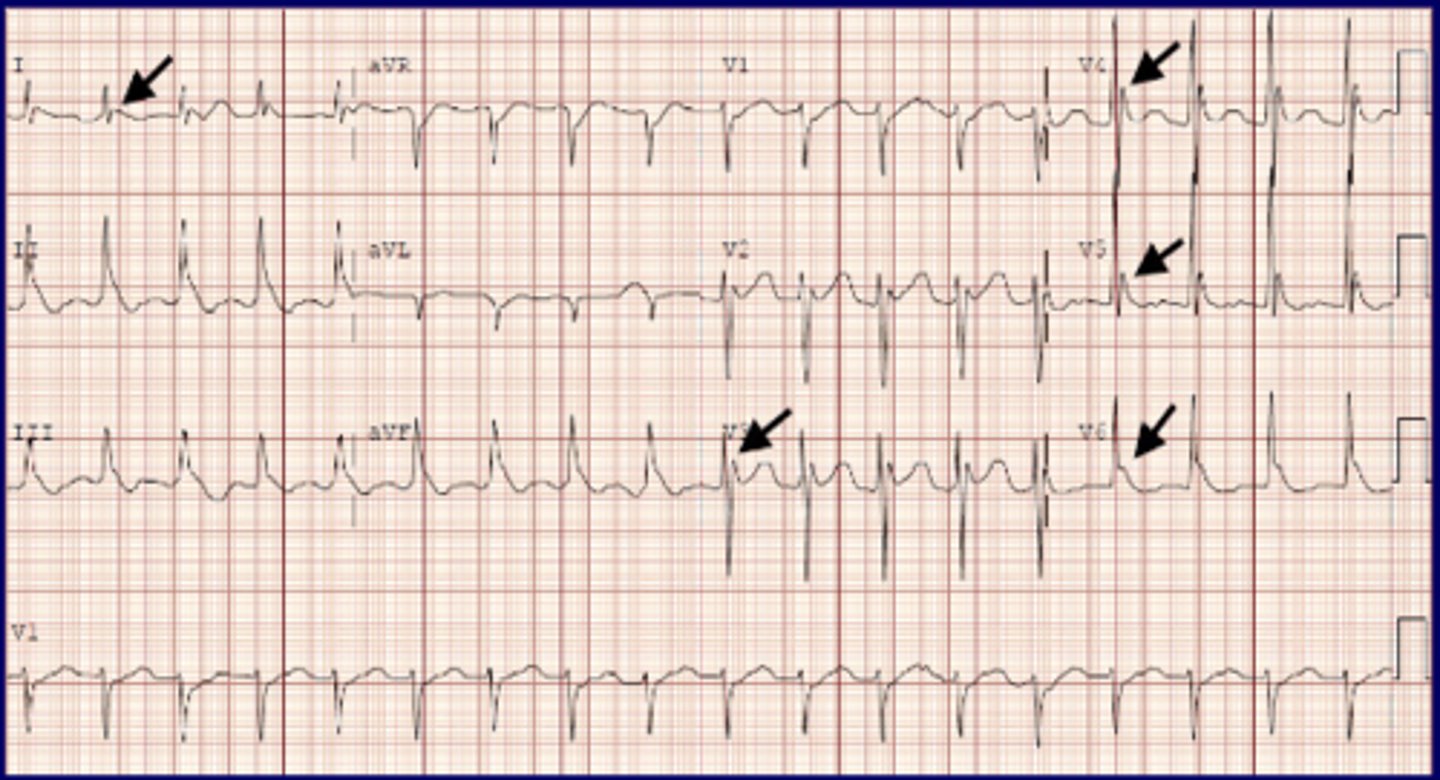

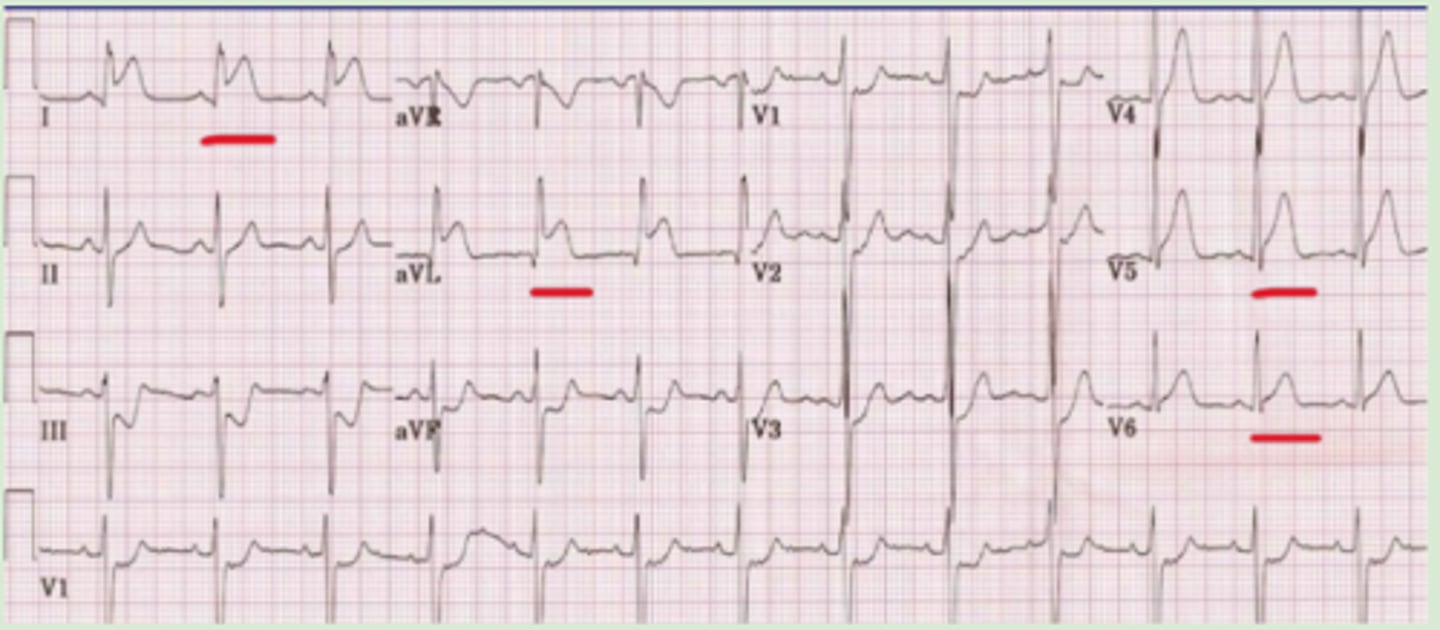

lateral myocardial infarction

ST elevations in leads I, aVL, V5, V6

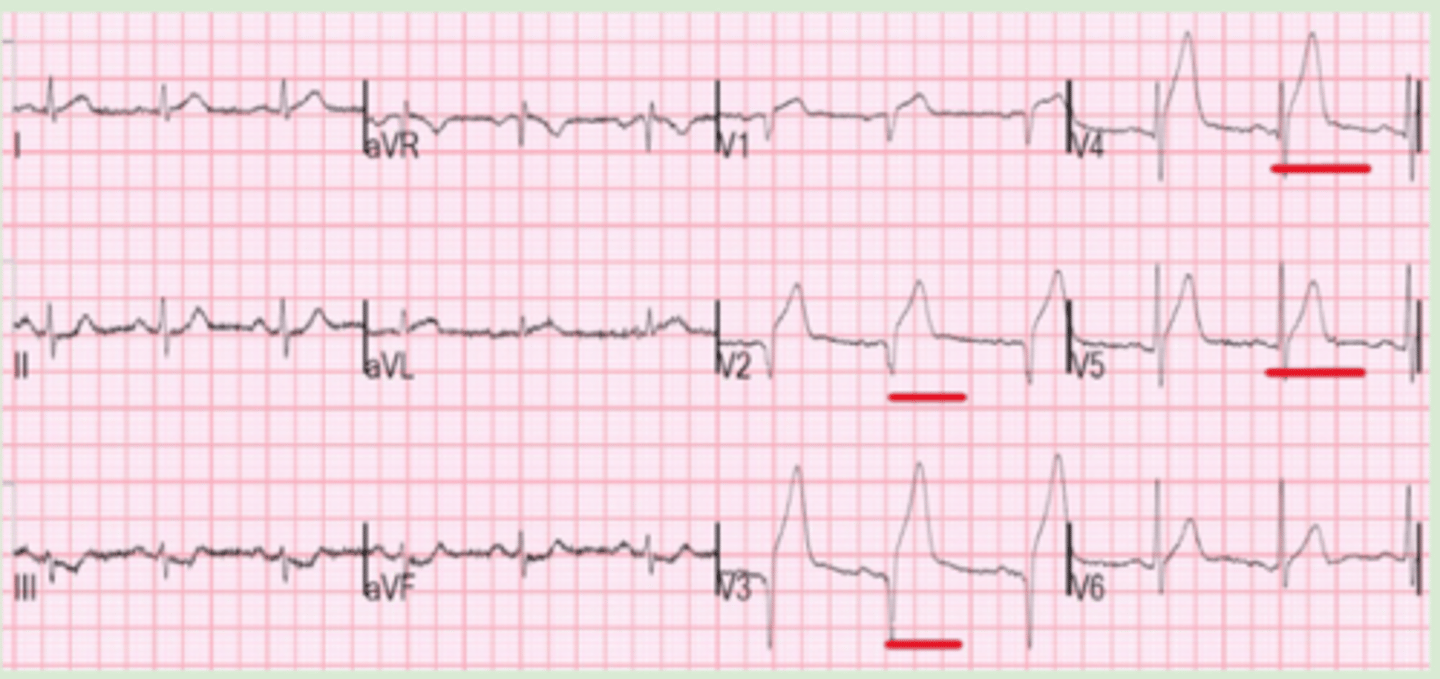

anterior myocardial infarction

ST elevation in leads V3 and V4

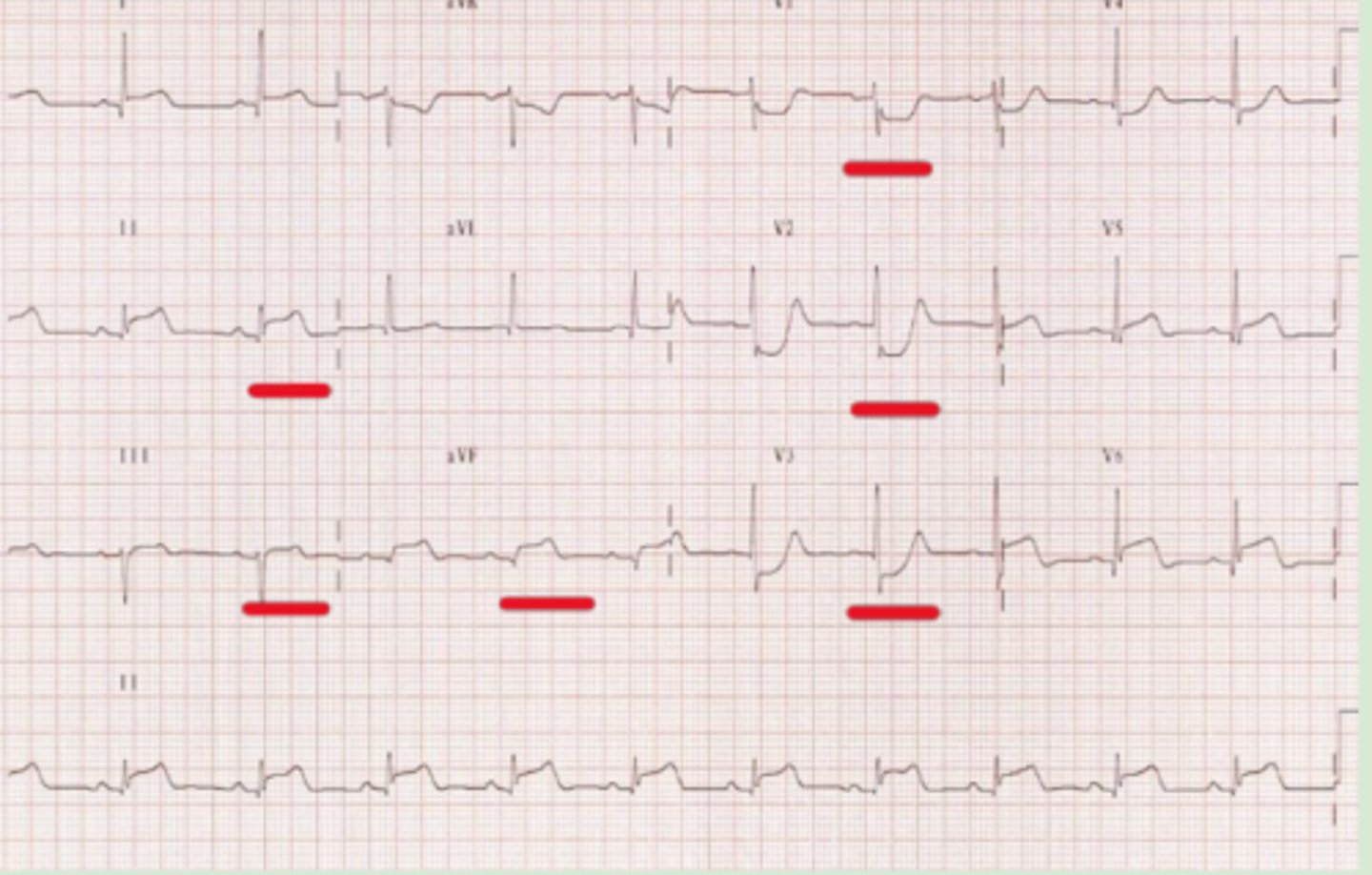

inferior + posterior myocardial infarction

ST elevation in leads II, III, aVF + ST depression in leads V1-V3

myocardial ischemia

ST depression consistent across leads with no presence of elevation

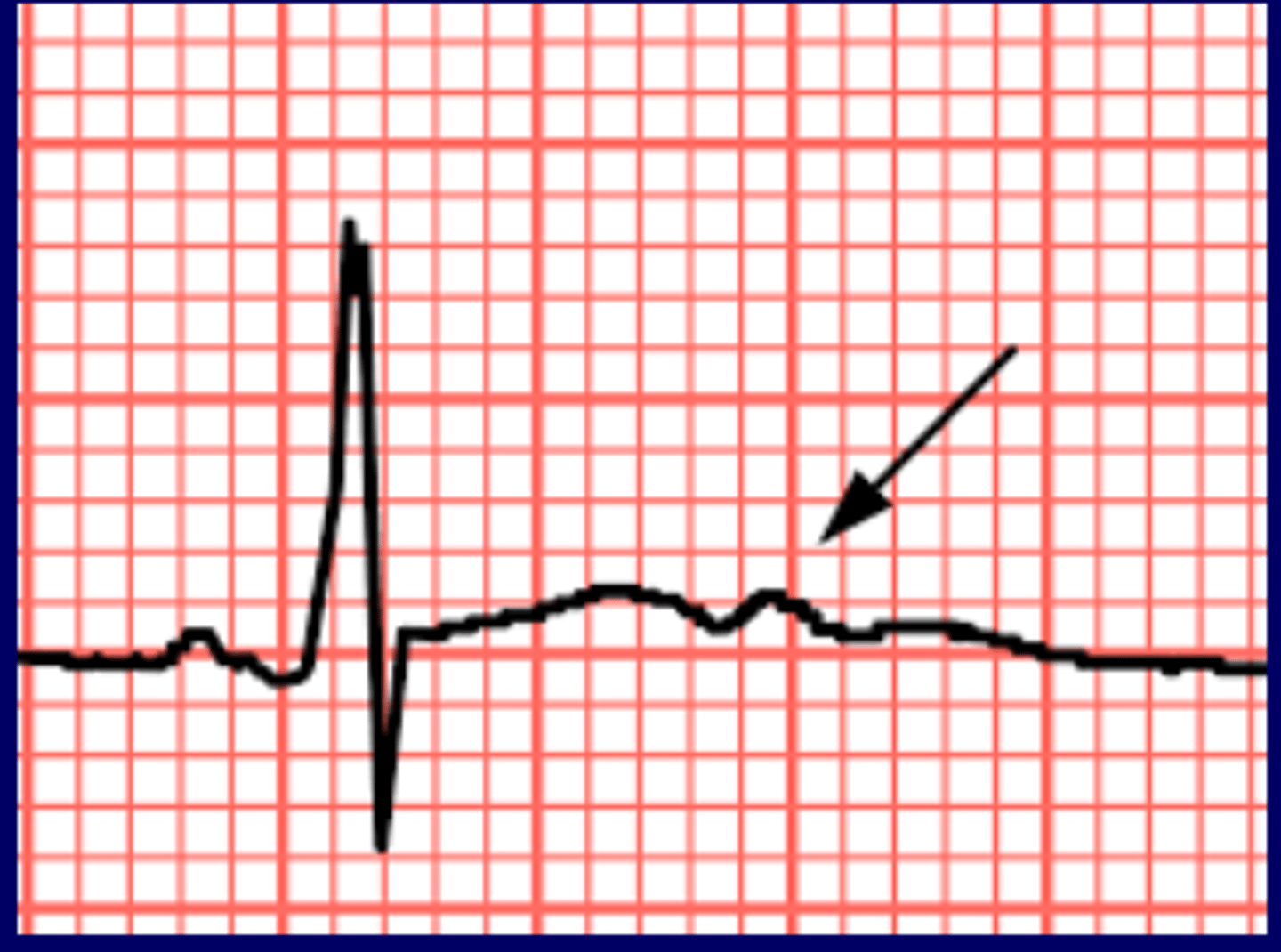

moderate hypokalemia

prominent U wave

severe hypokalemia

hyperkalemia

hypothermia

Osborne J-wave

-occurs near J-point on the S wave and ST junction
