human heart anatomy and physiology

What tissue is this?

cardiac muscle

What are these arrows pointing to?

intercalated disc

What is this pointer pointing to?

Intercalated discs

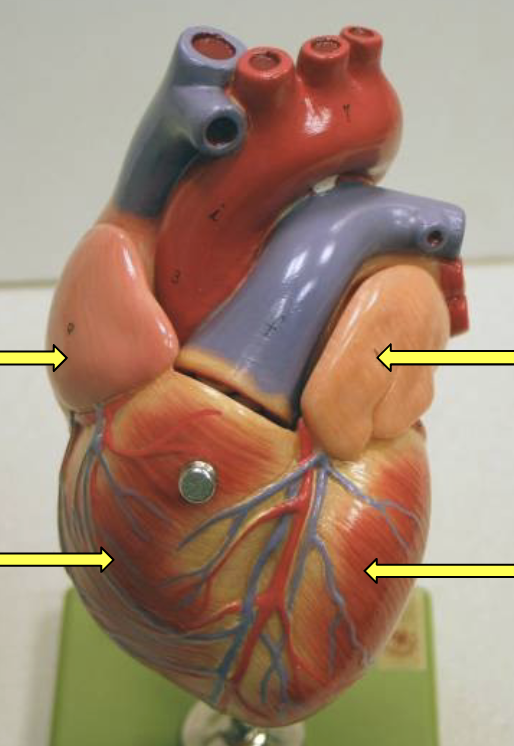

Identify the chambers

1) right atrium
2) left atrium
3) right ventricle
4) left ventricle

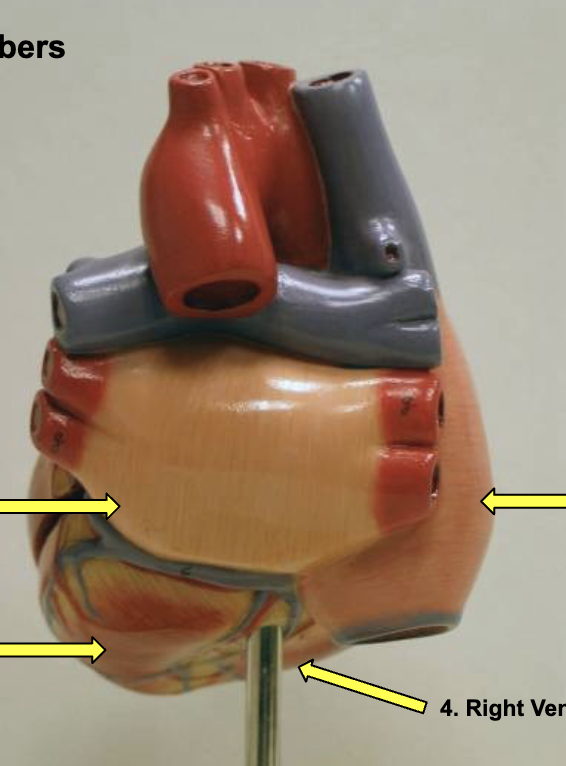

identify the chambers

1) left atrium
2) right atrium
3) left ventricle
4) right ventricle

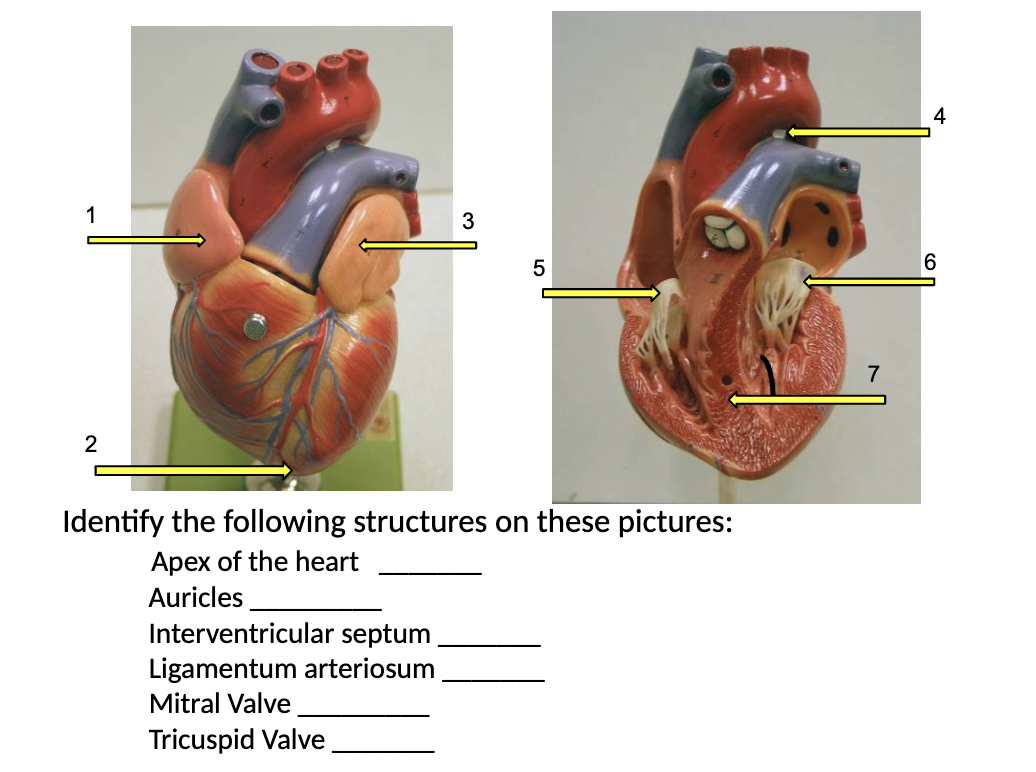

Identify the following structures

2
1 and 3
7
4
6
5

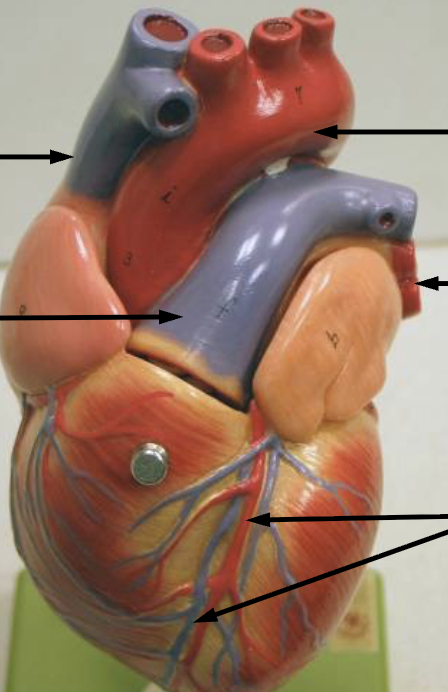

identify the blood vessels at the tip of the pointer

1) aorta
2) superior vena cava
3) pulmonary veins
4) pulmonary trunk
5) branches of coronary circulation

identify the blood vessels at the tip of the pointer

1) aorta
2) superior vena cava
3) pulmonary artery (left)
4) pulmonary artery (right)
5) pulmonary veins (left)
6) pulmonary veins (right)
7) coronary sinus
8) inferior vena cava

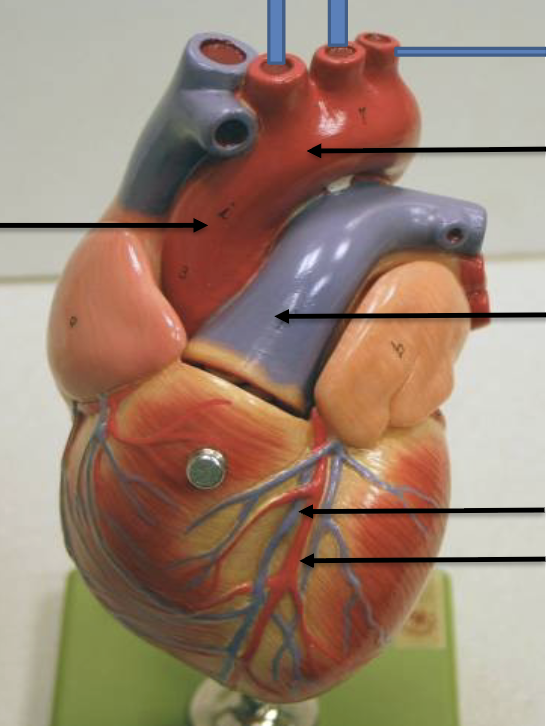

label them

1) brachiocephalic trunk
2) left common carotid artery
3) left subclavian artery
4) arch of aorta
5) aorta
6) pulmonary trunk
7) great cardiac vein
8) anterior interventricular artery

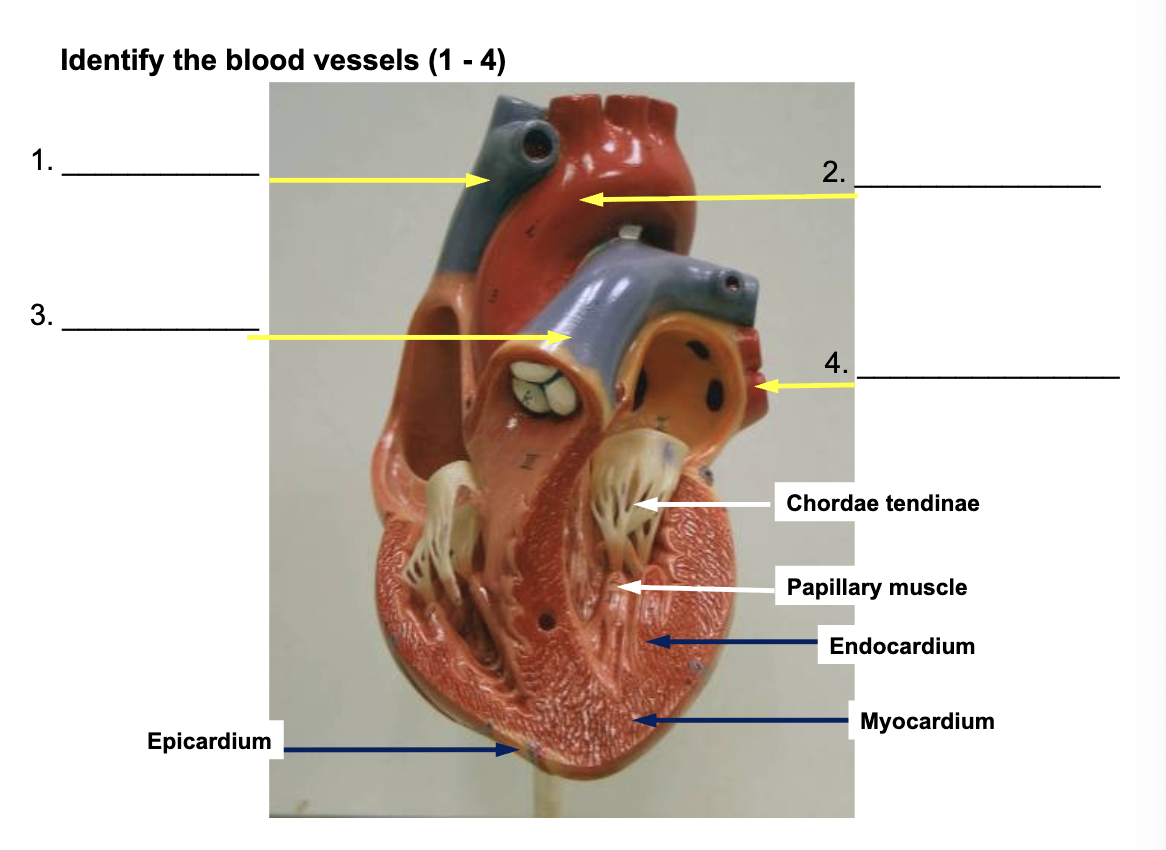

Identify the blood vessels

1) superior vena cava
2) aorta
3) pulmonary trunk
4) left pulmonary vein

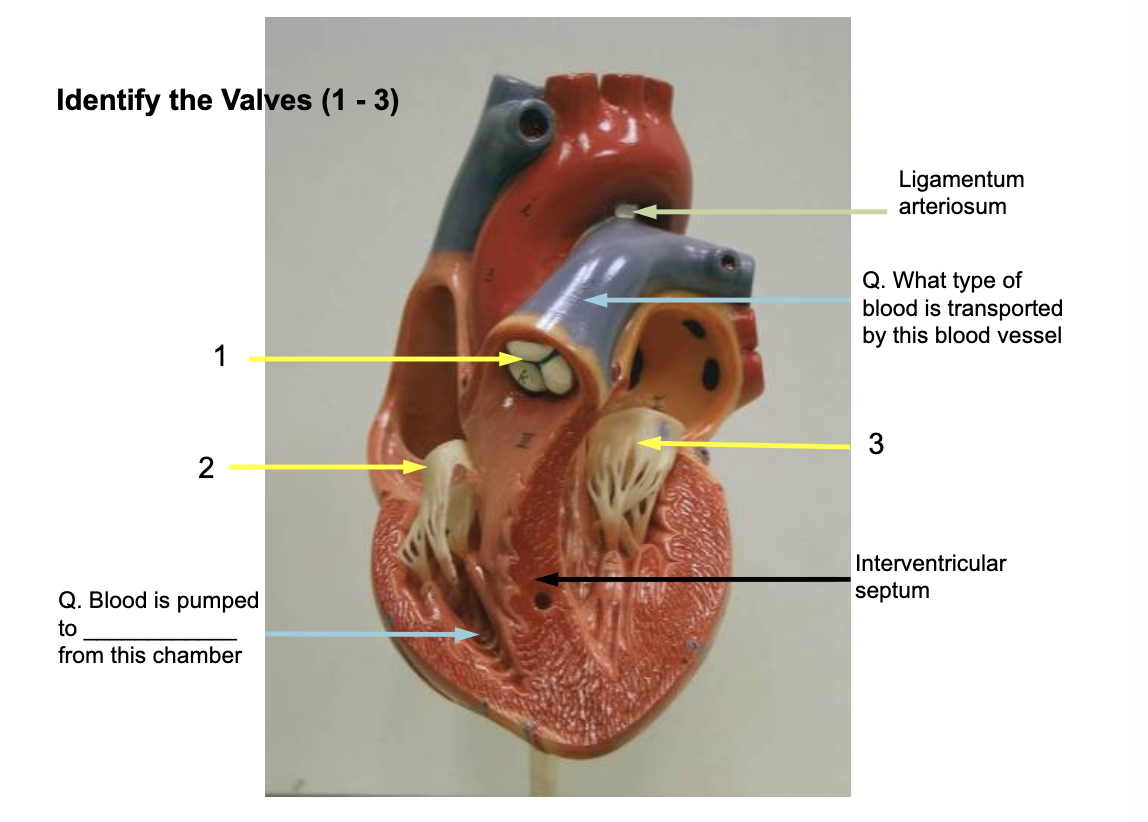

Identify the valves

1) pulmonary valve
2) tricuspid valve
3) bicuspid valve

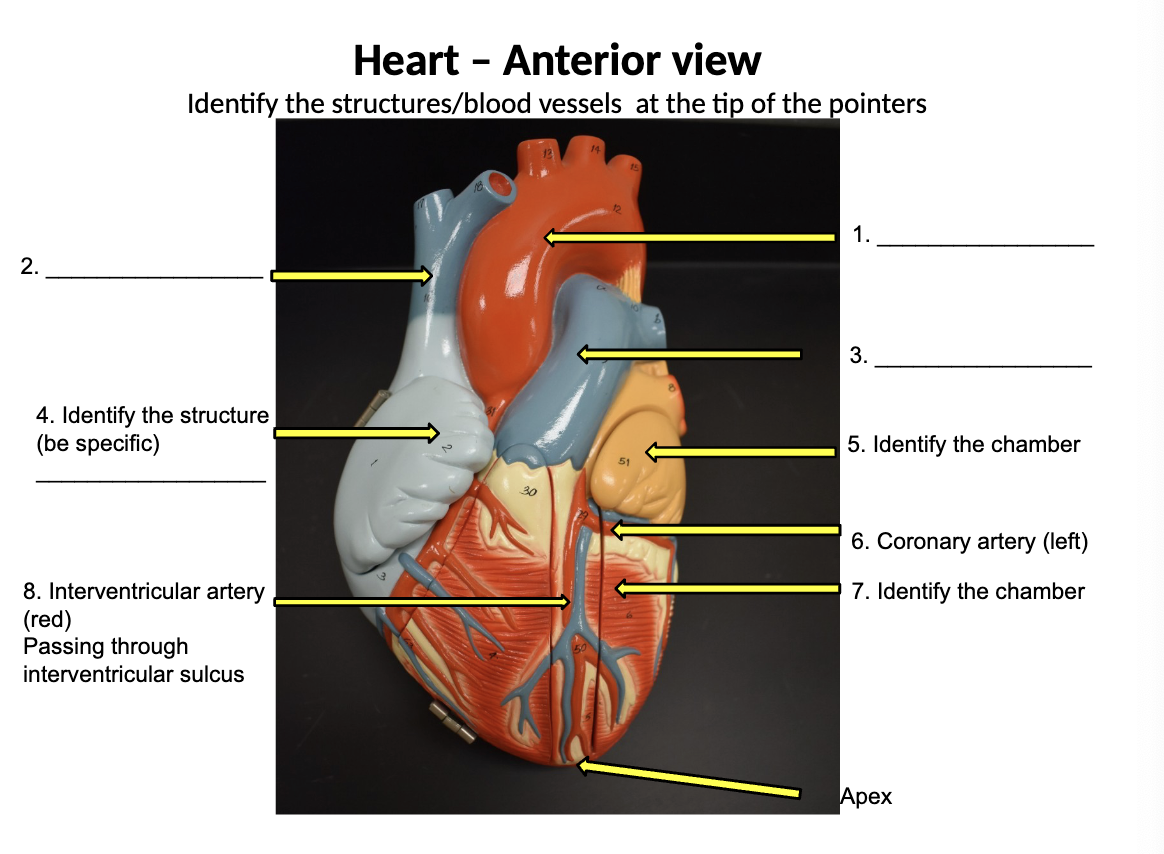

identify

1) ascending aorta
2) superior vena cava
3) pulmonary trunk
4) auricle
5) left atrium
6) circumflex artery
7) left ventricle
8) anterior interventricular artery

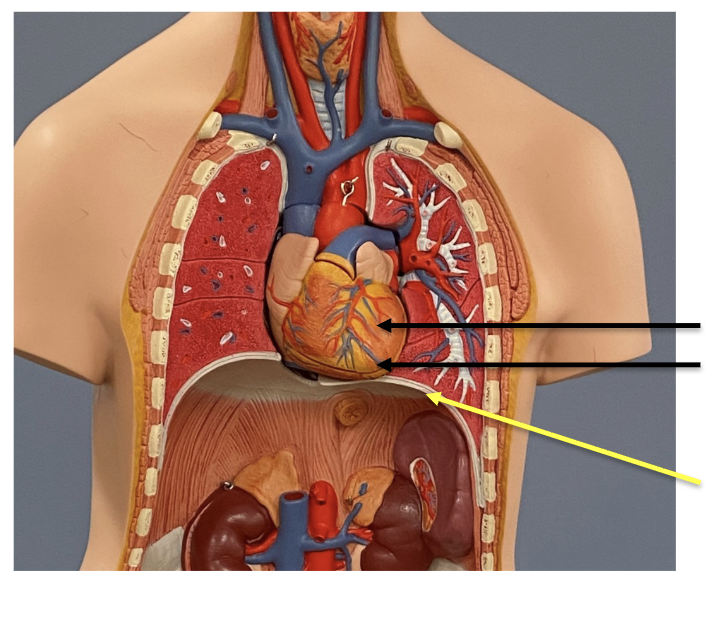

identify

heart

apex of heart

diaphragm

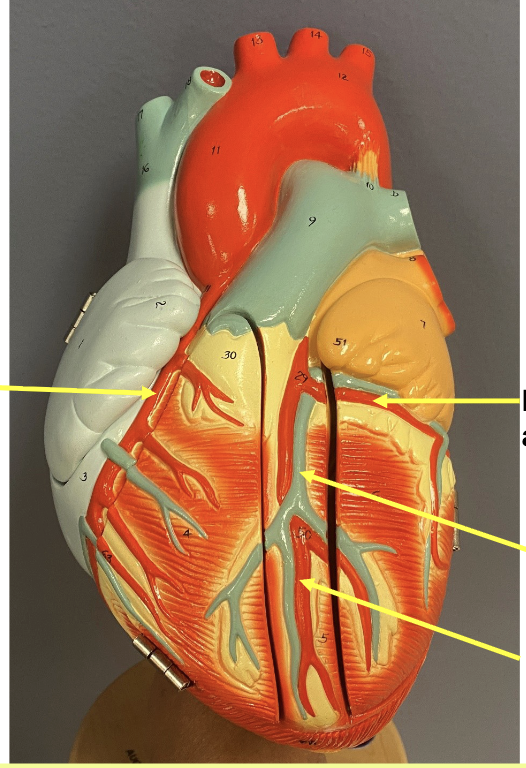

identify

1) right coronary artery
2) left coronary artery
3) great cardiac vein
4) anterior interventricular artery

Where should I listen to hear the aortic valve and pulmonary valve?

2nd intercostal space

Where should I listen to hear the tricuspid valve and bicuspid valve?

5th intercostal space

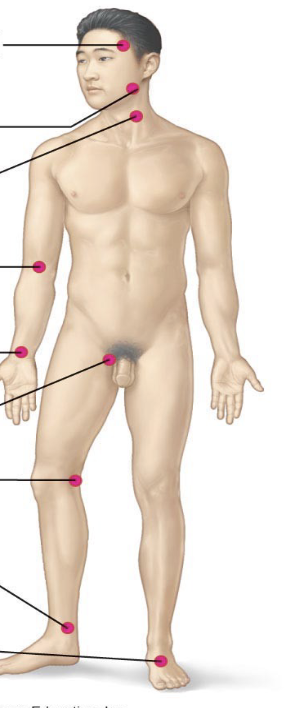

Name the pulse points

superficial temporal artery
facial artery
common carotid artery
brachial artery
radial artery
femoral artery
popliteal artery
posterior tibial artery
dorsalis pedis artery

What is systolic pressure?

Maximum pressure in the arteries during ventricular contraction

What is diastolic pressure?

Minimum pressure in the arteries during ventricular relaxation

If a person has a blood pressure 130/95 mm of Hg
What will be the pulse pressure
what will be the MAP

PP= 130-95= 35 mmHg
MAP= 95+(1/3)(35)= 95+11.7= 107 mmHg

What do you use to measure blood pressure?

sphygmomanometer

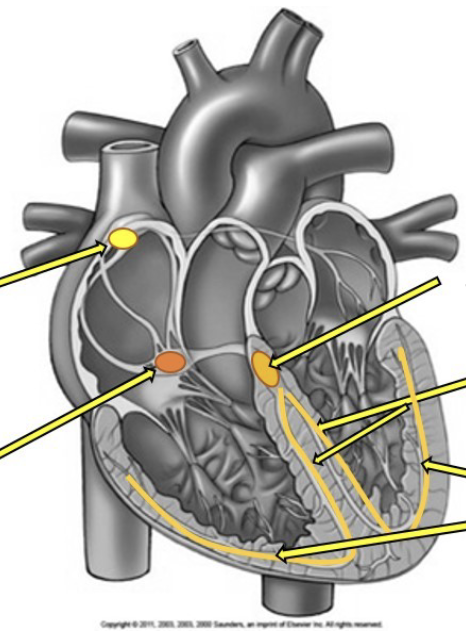

Name the cardiac conduction system

1) sinoatrial node (sa node)
2) atrioventricular node (av node)
3) AV bundle or bundle of his
4) bundle branches
5) purkinje fiber

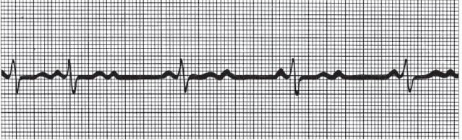

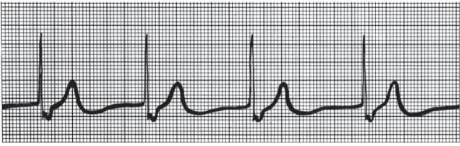

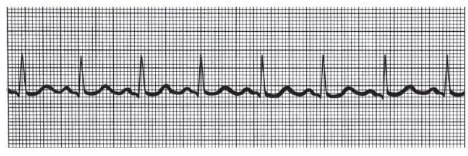

What kind of rhythm is this?

normal sinus rhythm

What kind of rhythm is this?

junctional rhythm

What kind of rhythm is this?

Second-degree heart block

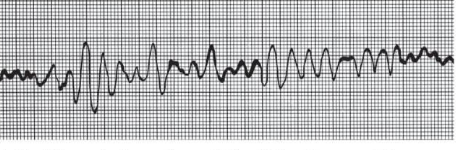

What kind of rhythm is this?

ventricular fibrillation

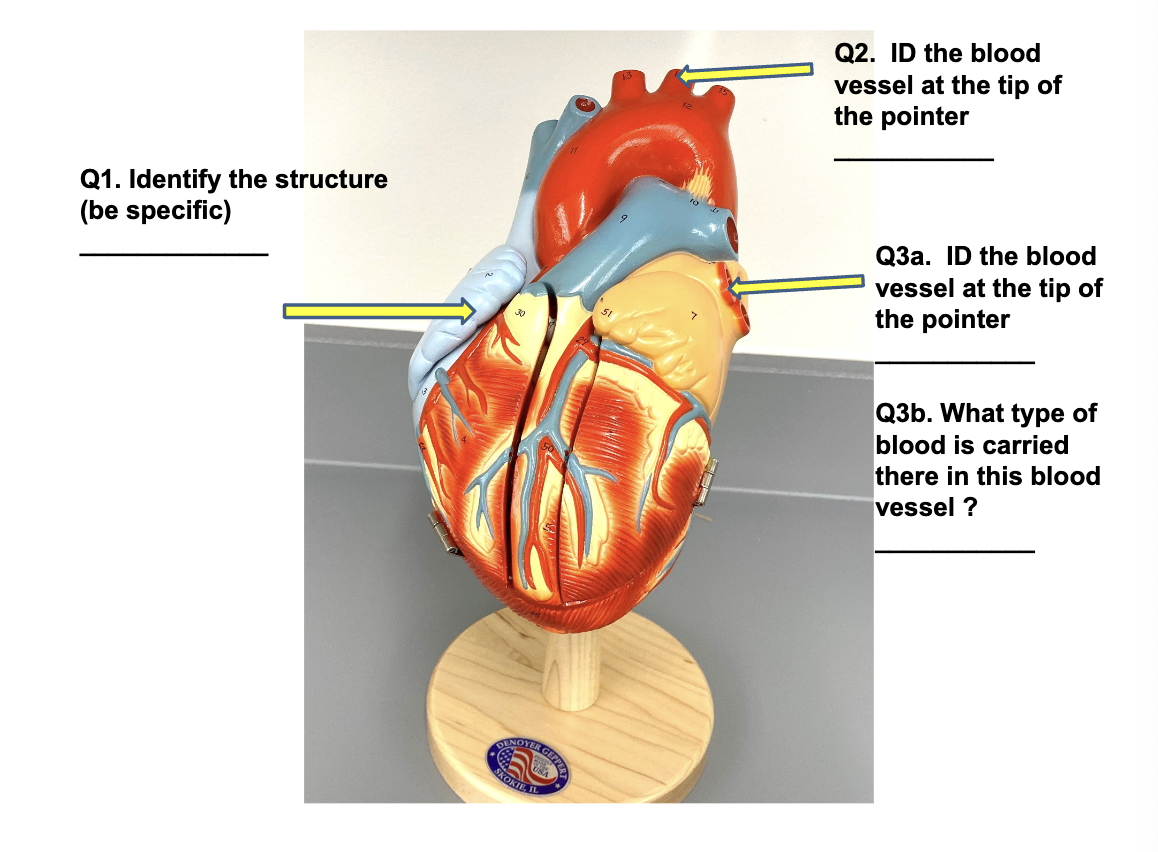

identify

1) right auricle
2) left common carotid artery
3a) pulmonary vein
3b) oxygenated blood

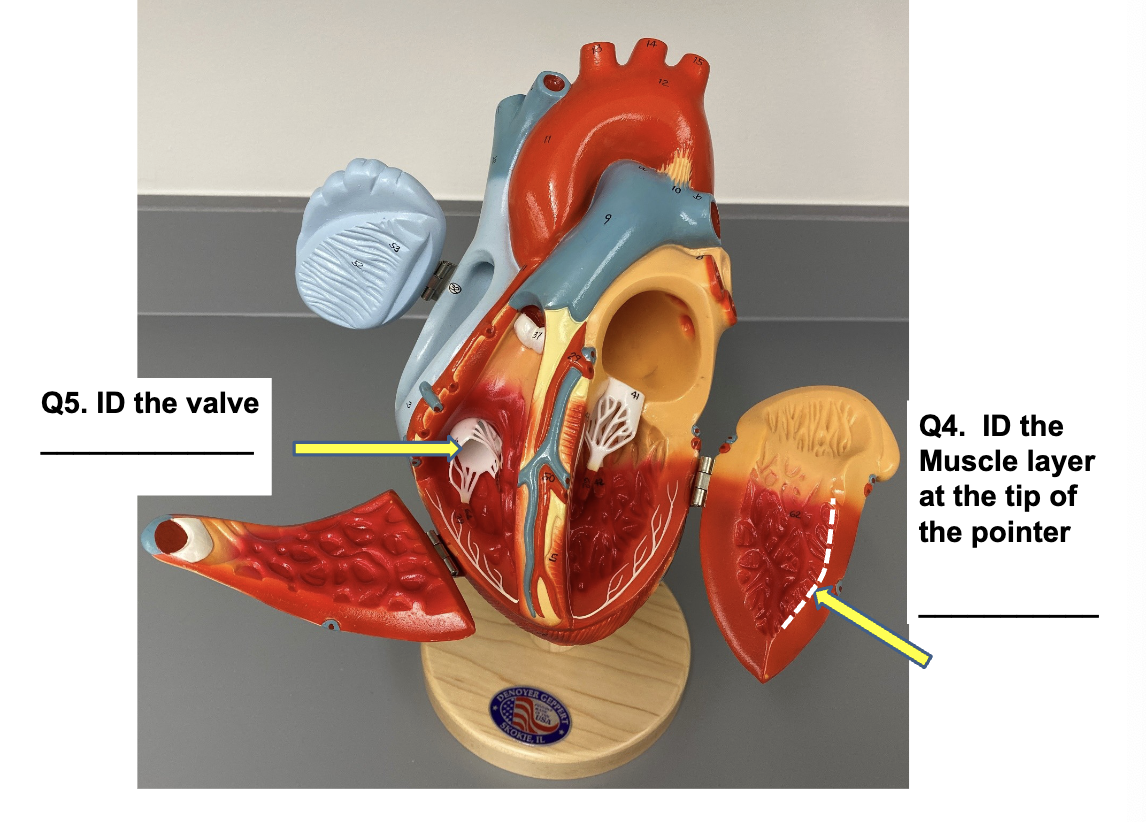

identify

4) myocardium
5) tricuspid valve

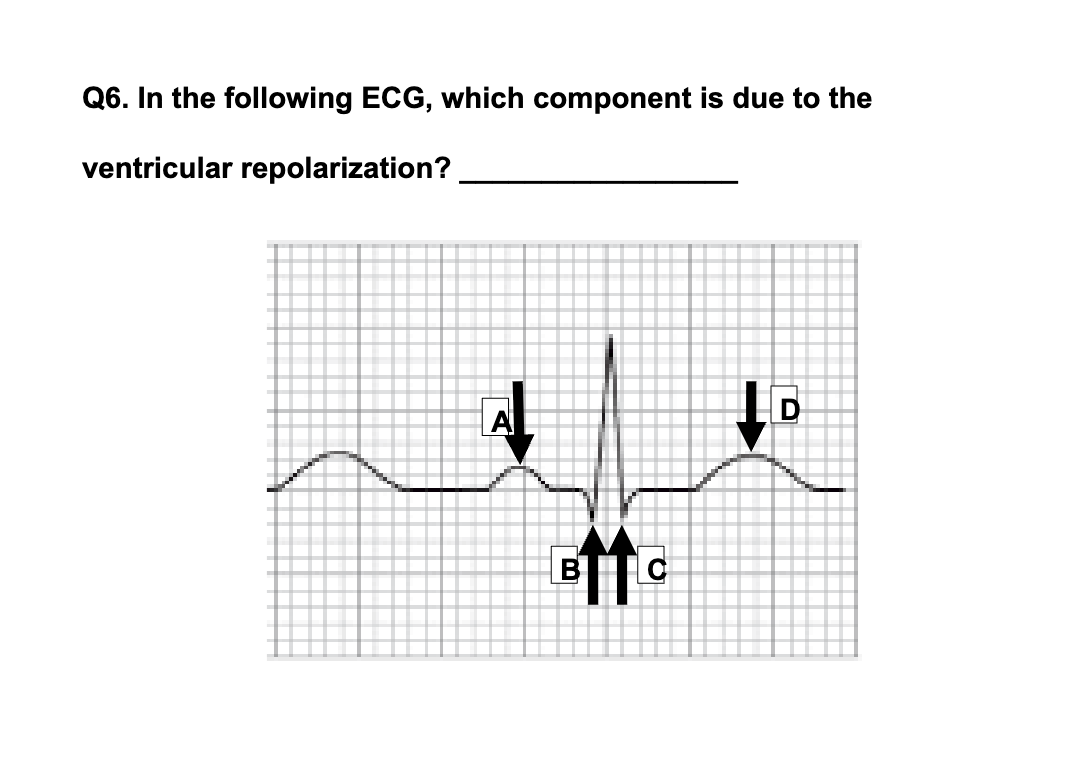

what component is due to ventricular repolarization?

D

Identify the organ
Identify the specific structure at the tip of the pointer

1) cardiac muscle
2) intercalated disc

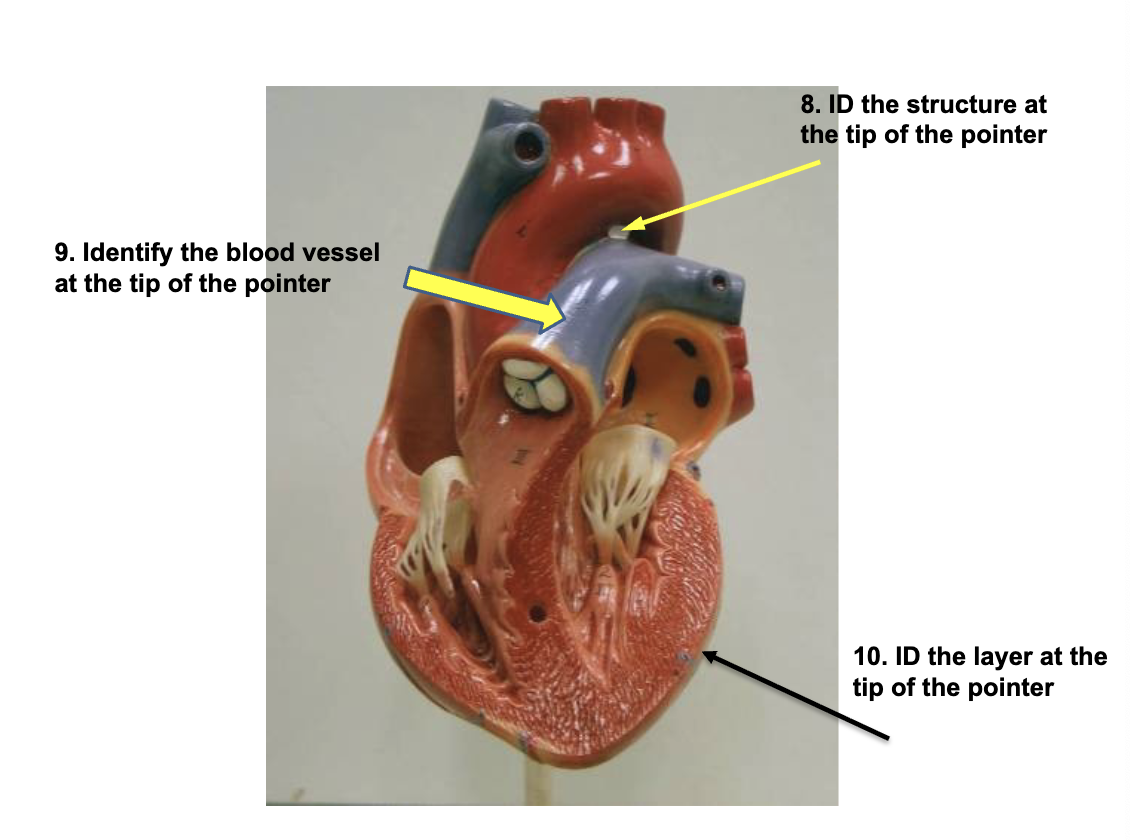

Identify

8) ligamentum arteriosum
9) pulmonary trunk
10) pericardium

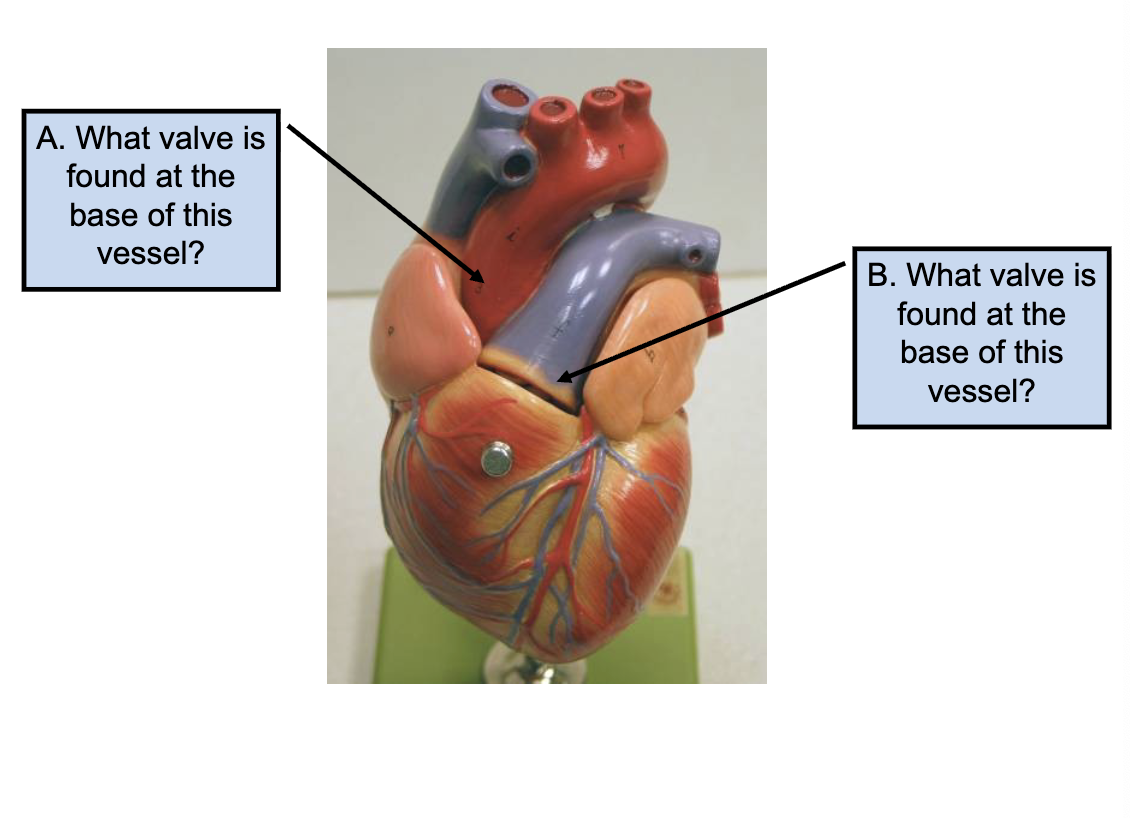

identify

A) pulmonary valve
B) aortic valve

identify

1) pulmonary system or left atrium
2) left pulmonary vein

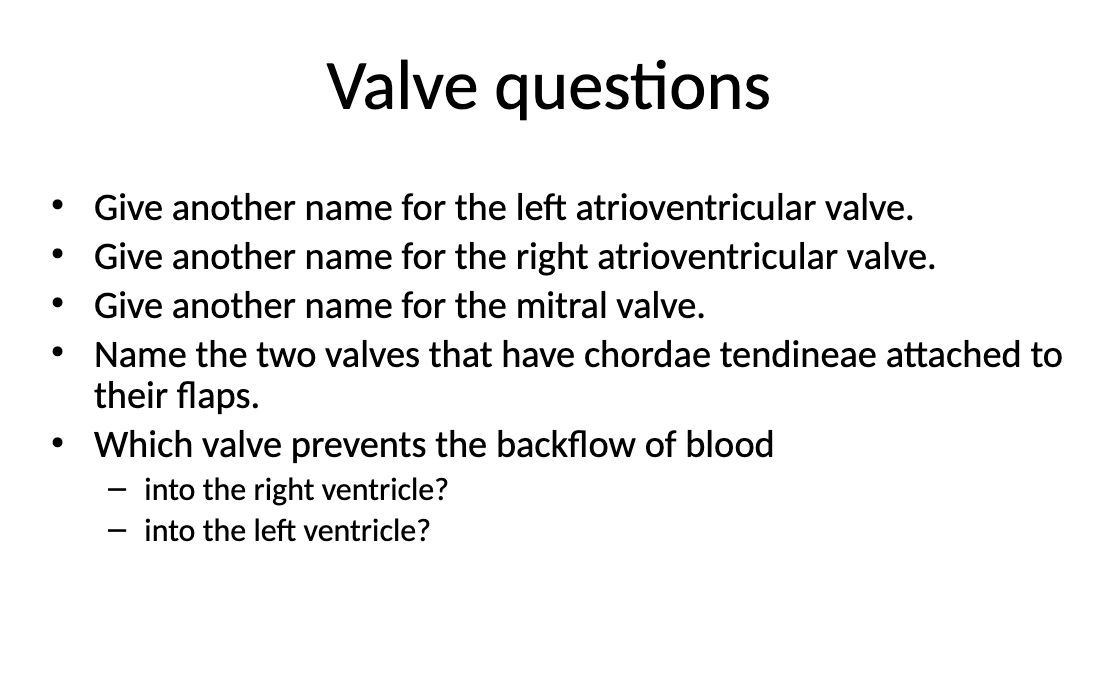

Give another name for the left atrioventricular valve
Give another name for the right atrioventricular valve
Give another name for the mitral valve
Name the two valves that have chordae tendineae attached to their flaps
Which valve prevents the backflow of blood
- into the right ventricle
- into the left ventricle

1) mitral (bicuspid) valve
2) tricuspid valve
3) bicuspid valve
4) tricuspid and bicuspid valve
5) tricuspid valve, bicuspid valve

Pulse points at the back of the knee is called

popliteal artery

Pulse point near the wrist which is most commonly used for measuring pulse rate is

radial artery

Name the instrument used to measure blood pressure

sphygmomanometer

Name the instrument used to measure heart sound

stethoscope

What is sound of korotkoff

tapping sounds heard through a stethoscope

What is pulse rate? Which artery is most commonly used to measure pulse rate?

Number of heartbeats per minute felt through an artery
radial artery

What artery is palpated for measuring blood pressure?

brachial artery
