Circle theorems (including intersecting chords)

Angles in the same segment are equal

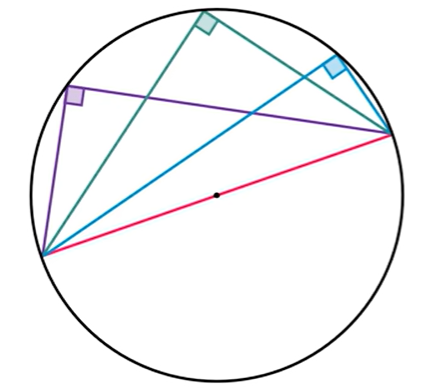

The angle in a semicircle is 90^o

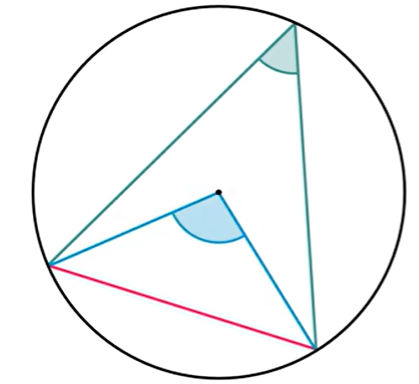

The angle at the circumference is half the angle at the centre

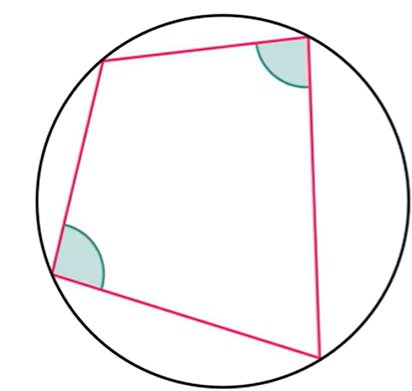

Opposite angles in a cyclic quadrilateral sum to 180^o

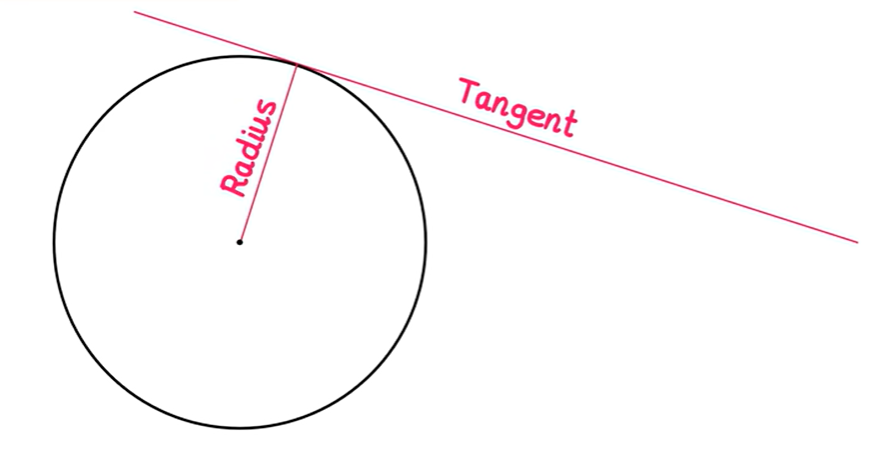

The tangent is perpendicular to the radius

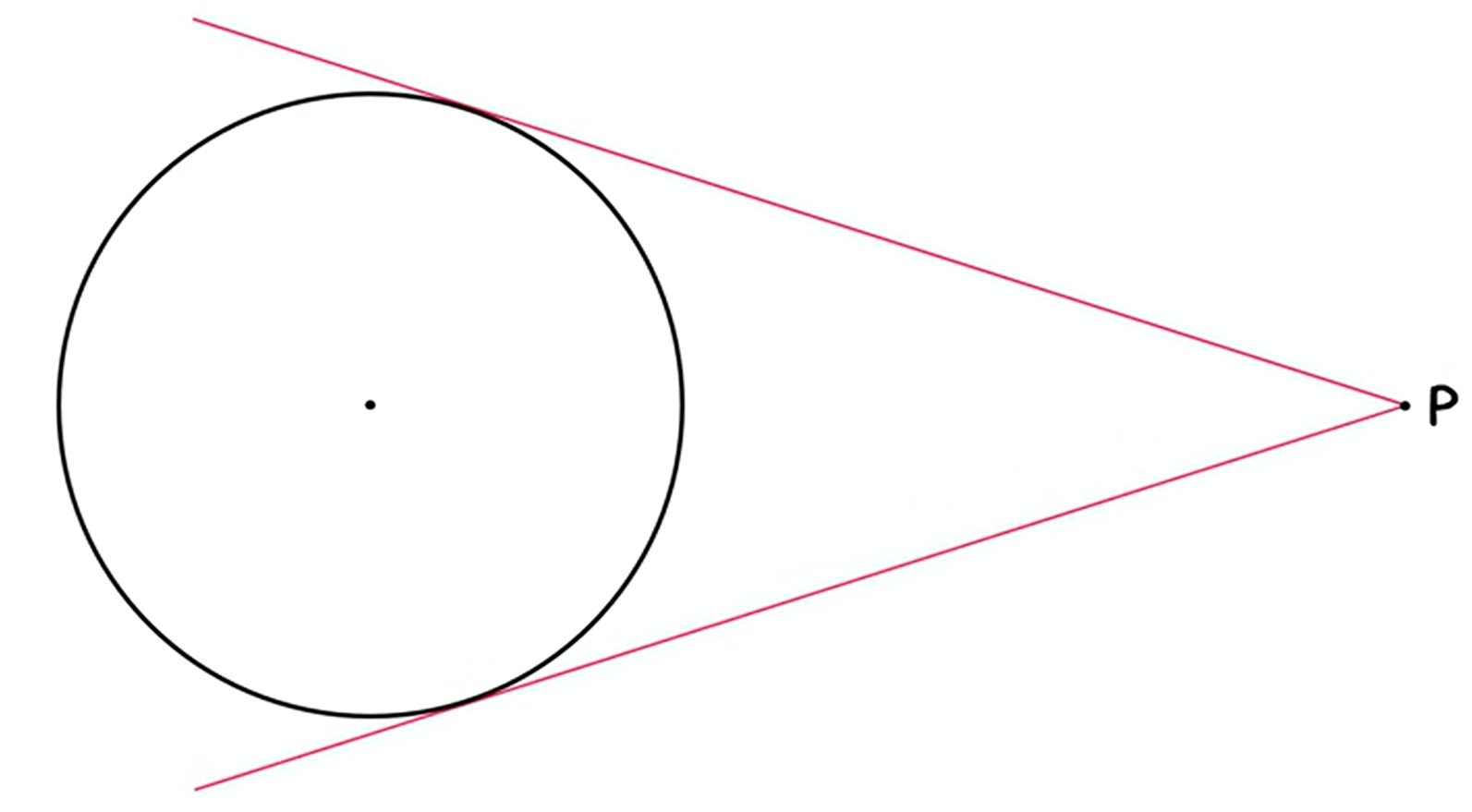

Tangents from the same point are equal in length

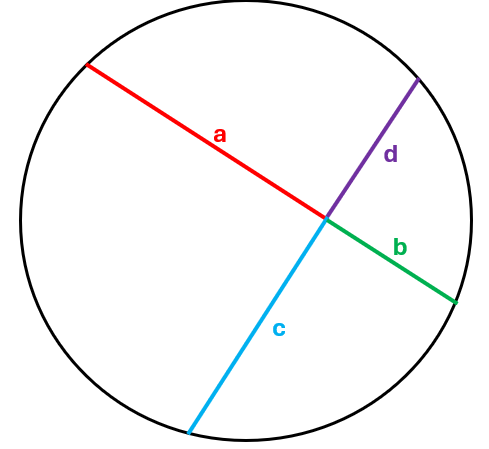

Two chords intersect inside the circle
ab = cd

Two chords intersect outside the circle
ab = cd

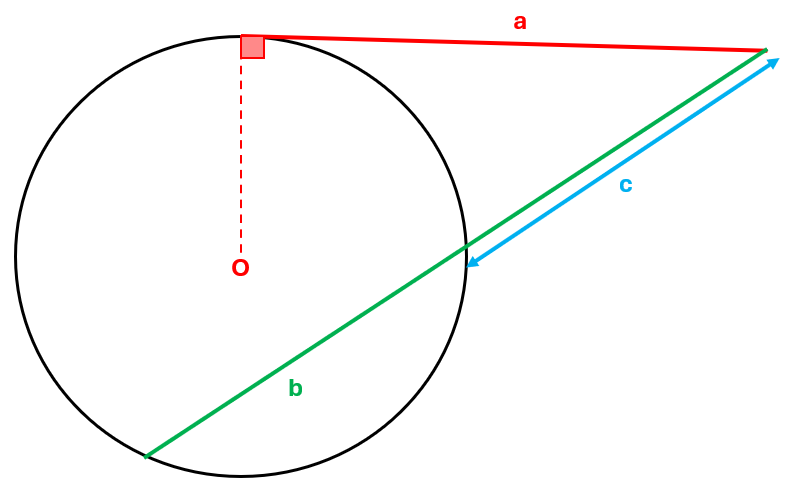

A chord and tangent intersect outside the circle
a² = bc
