KVL For AC Circuits

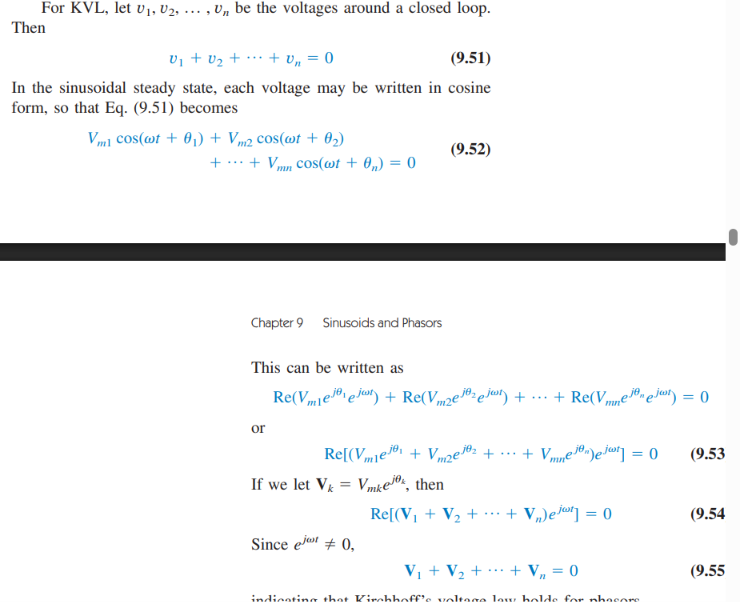

KVL applies to AC circuits in the frequency domain just as it does to DC circuits in the time-domain. The sum of all of the phasor voltage drops and rises will always equal 0; furthermore, the phasor voltage source must always equal all of the phasor voltages in the circuit itself throughout so.



<p>KVL applies to AC circuits in the frequency domain just as it does to DC circuits in the time-domain. The sum of all of the phasor voltage drops and rises will always equal 0; furthermore, the phasor voltage source must always equal all of the phasor voltages in the circuit itself throughout so. </p><p></p><p></p>
2
New cards

KCL For AC Circuits

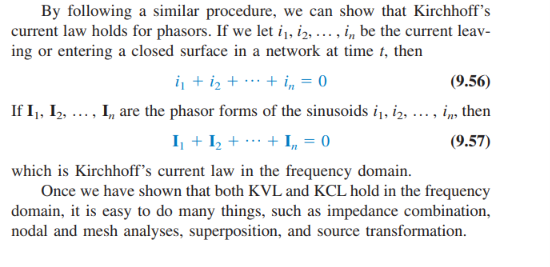

As with KVL, KCL also applies in AC circuits. The sum of all of the phasor currents entering a node must equal all of the phasor currents LEAVING that node as well. Standard protocol as always, therefore we have the following:



<p>As with KVL, KCL also applies in AC circuits. The sum of all of the phasor currents entering a node must equal all of the phasor currents LEAVING that node as well. Standard protocol as always, therefore we have the following:</p><p></p><p></p>
