17: Respiratory Anatomy (Lab)

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/107

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

108 Terms

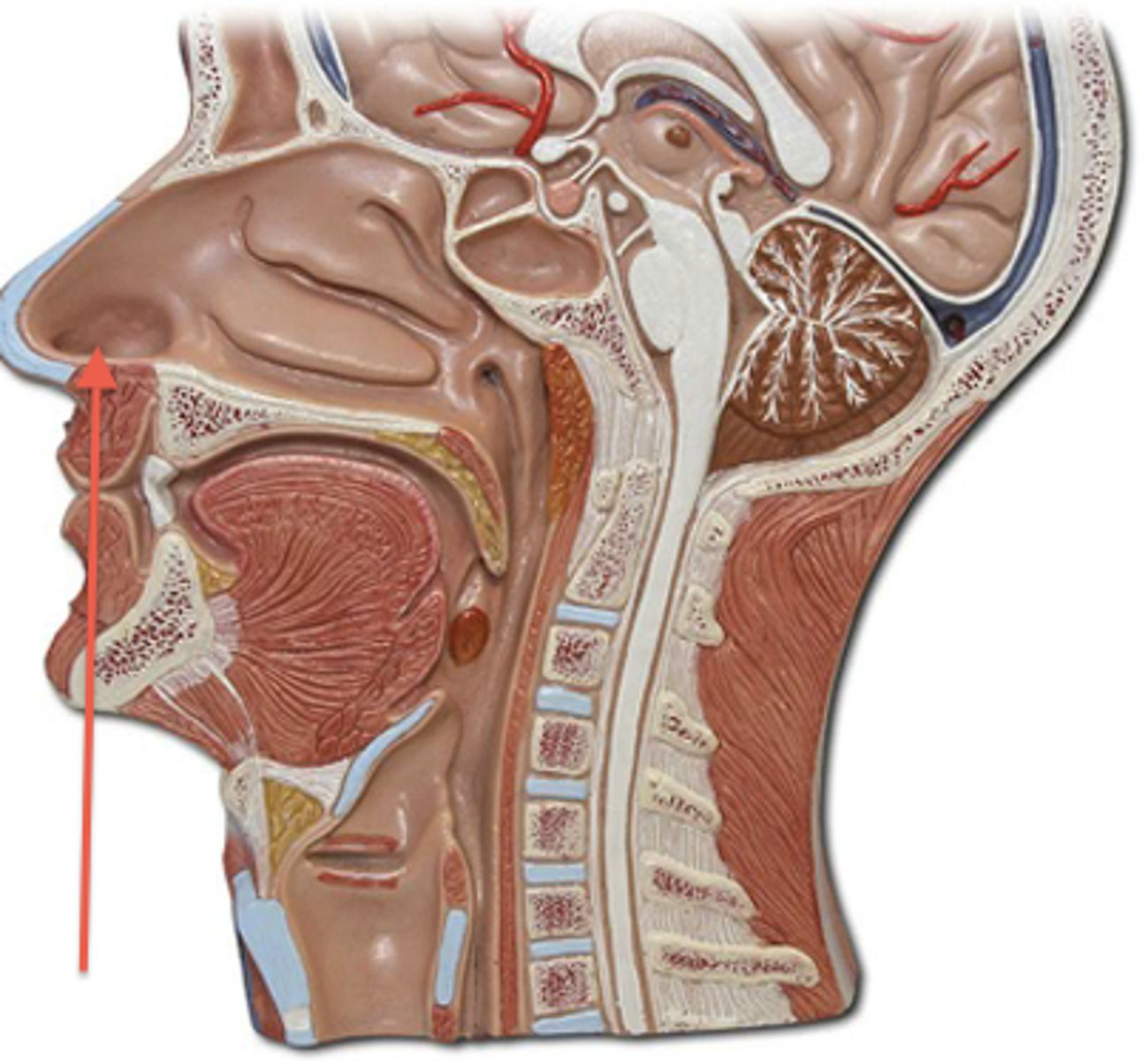

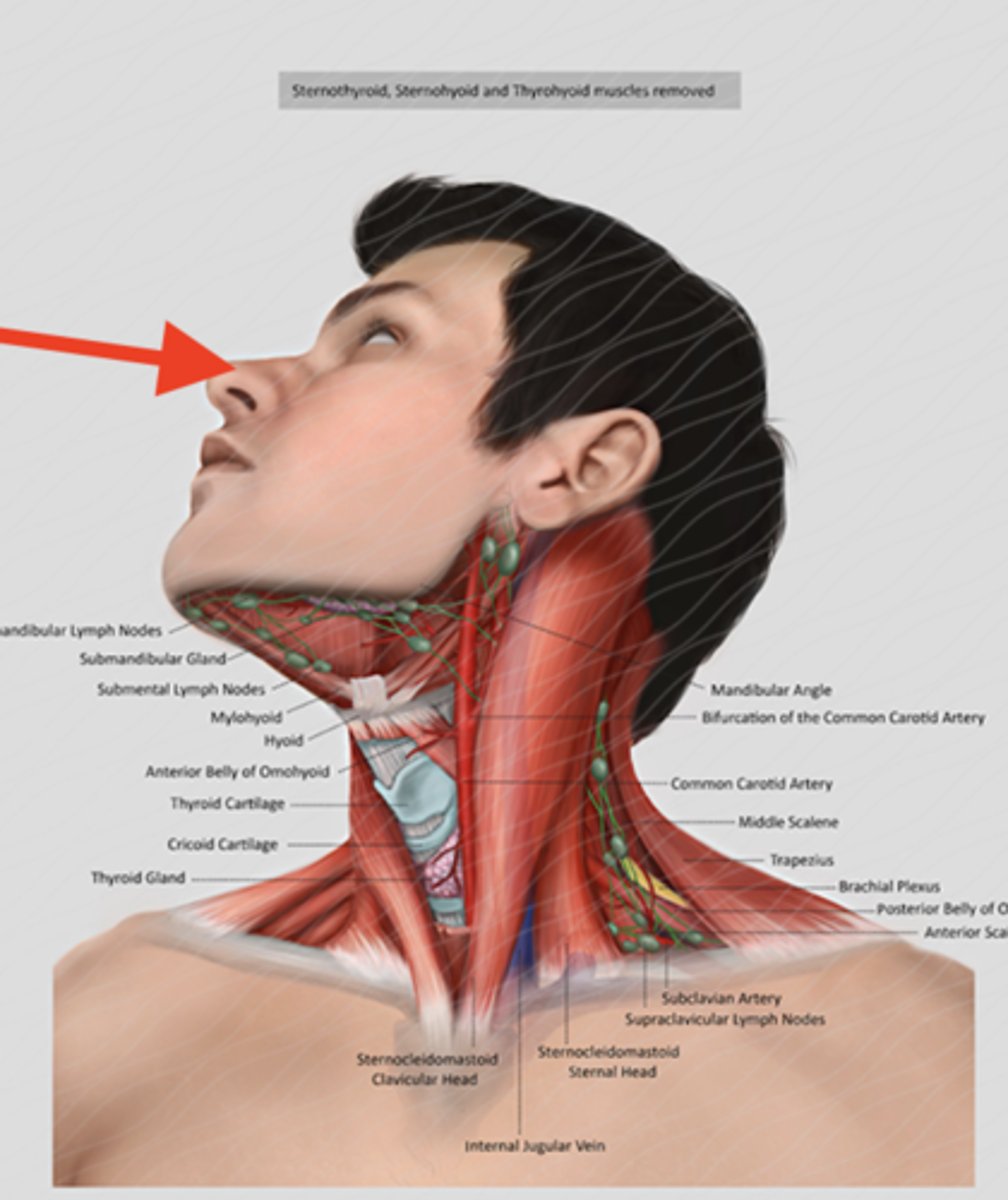

1
New cards

Nose

What is this? (Dont be too specific)

<p>What is this? (Dont be too specific)</p>
2
New cards

External nares

What is this? (The pocket area)(You pick boogers here)

<p>What is this? (The pocket area)(You pick boogers here)</p>
3
New cards

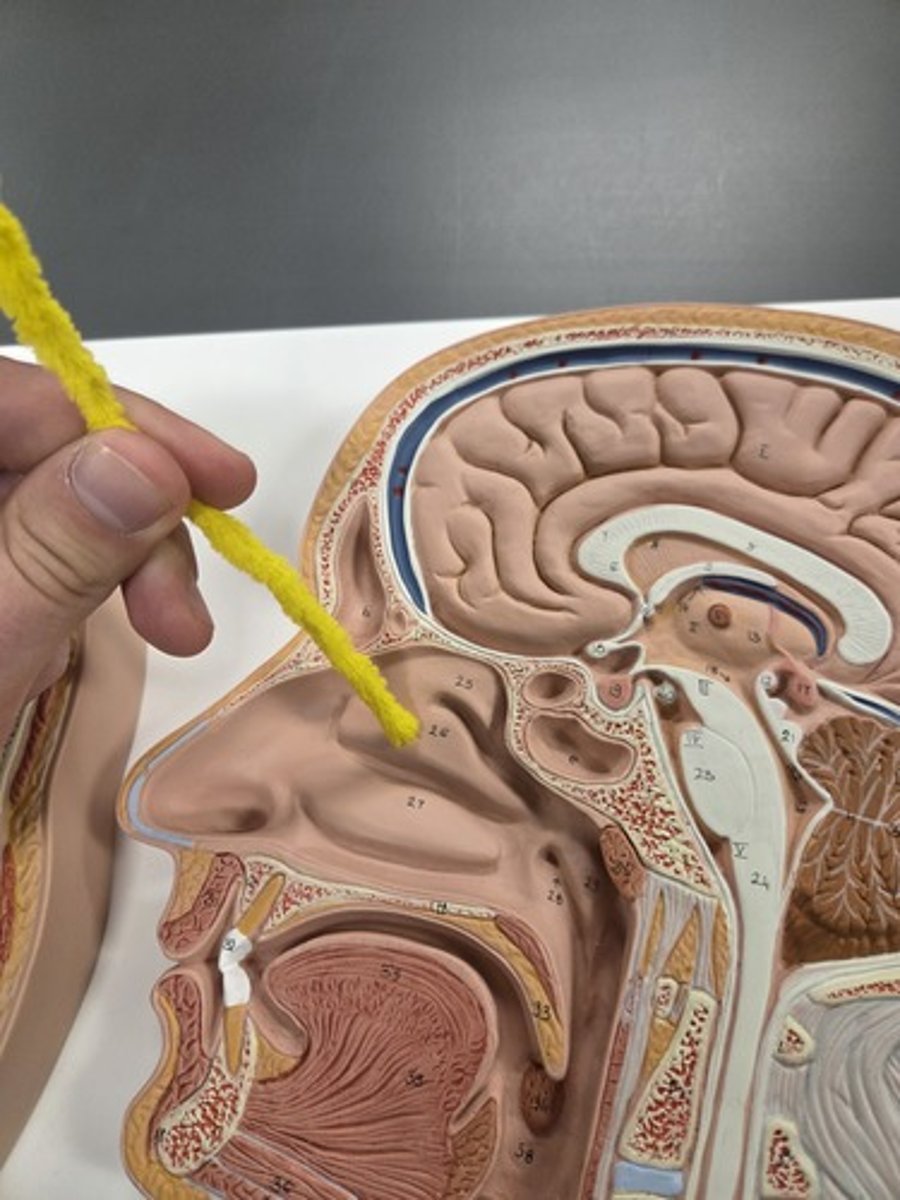

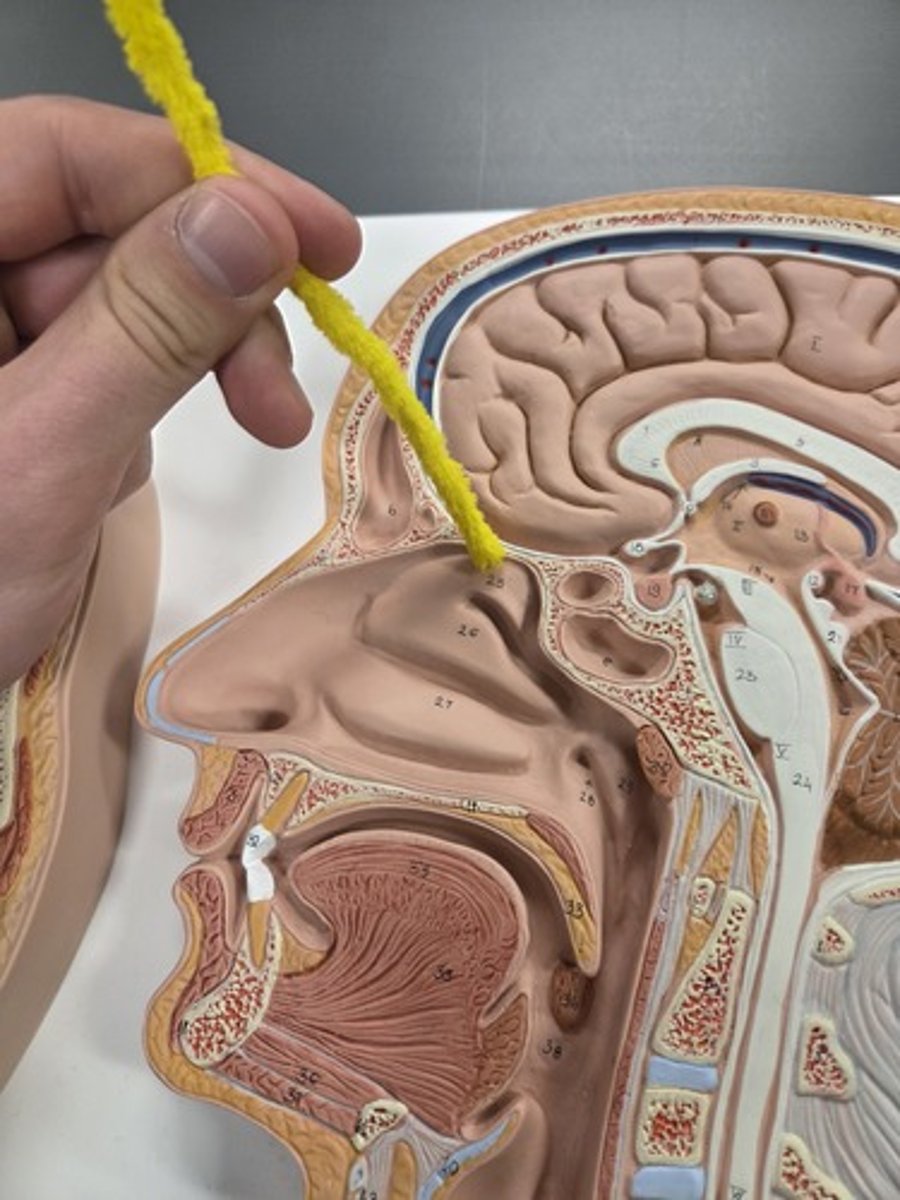

Superior nasal concha (turbinate)

What is this?

<p>What is this?</p>
4
New cards

Middle nasal concha (turbinate)

What is this?

<p>What is this?</p>
5
New cards

Inferior nasal concha (turbinate)

What is this?

<p>What is this?</p>
6
New cards

hard palate

Red boxed area

<p>Red boxed area</p>

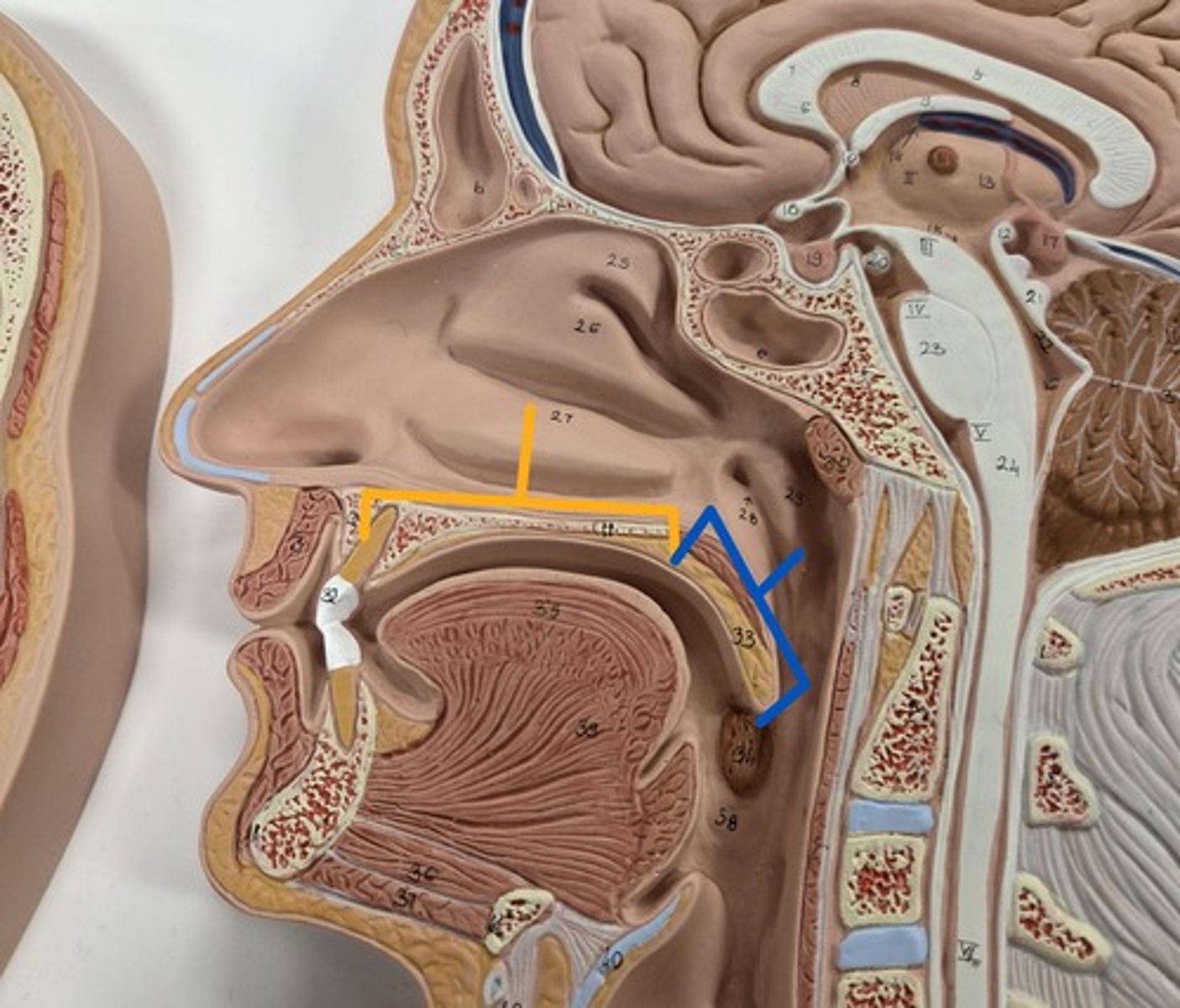

7
New cards

Hard palate

Orange boxed area

<p>Orange boxed area</p>
8
New cards

Soft palate

Purple boxed area

<p>Purple boxed area</p>
9
New cards

Soft palate

Blue boxed area

<p>Blue boxed area</p>
10
New cards

Uvula

Orange arrow, tip of it

<p>Orange arrow, tip of it</p>
11
New cards

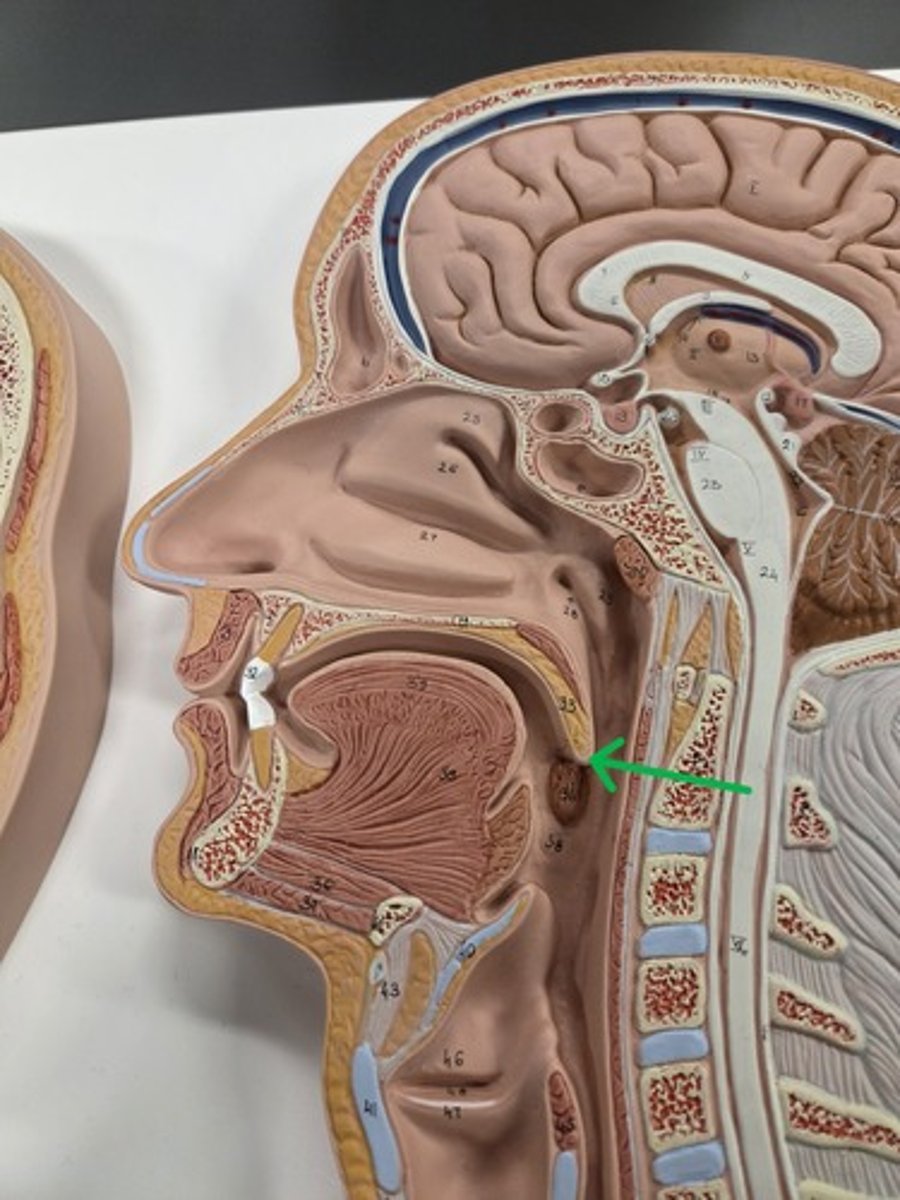

Uvula

Green arrow, tip of the tissue

<p>Green arrow, tip of the tissue</p>
12
New cards

Sinuses

Ignore the arrow, what are all of these colored areas called?

<p>Ignore the arrow, what are all of these colored areas called?</p>

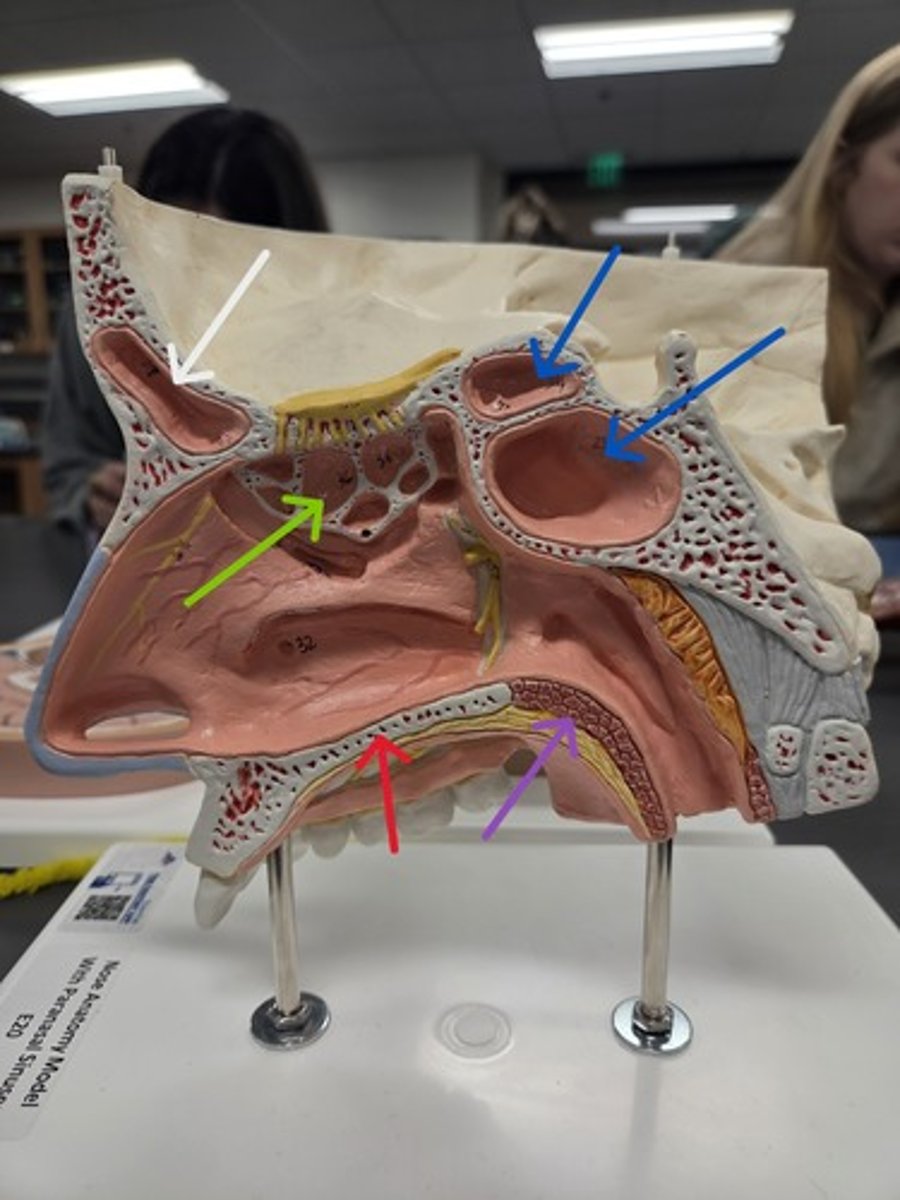

13
New cards

Frontal sinus

White arrow

<p>White arrow</p>
14
New cards

Maxillary sinus

White arrow

<p>White arrow</p>
15
New cards

Sphenoid sinus

Blue arrows

<p>Blue arrows</p>
16
New cards

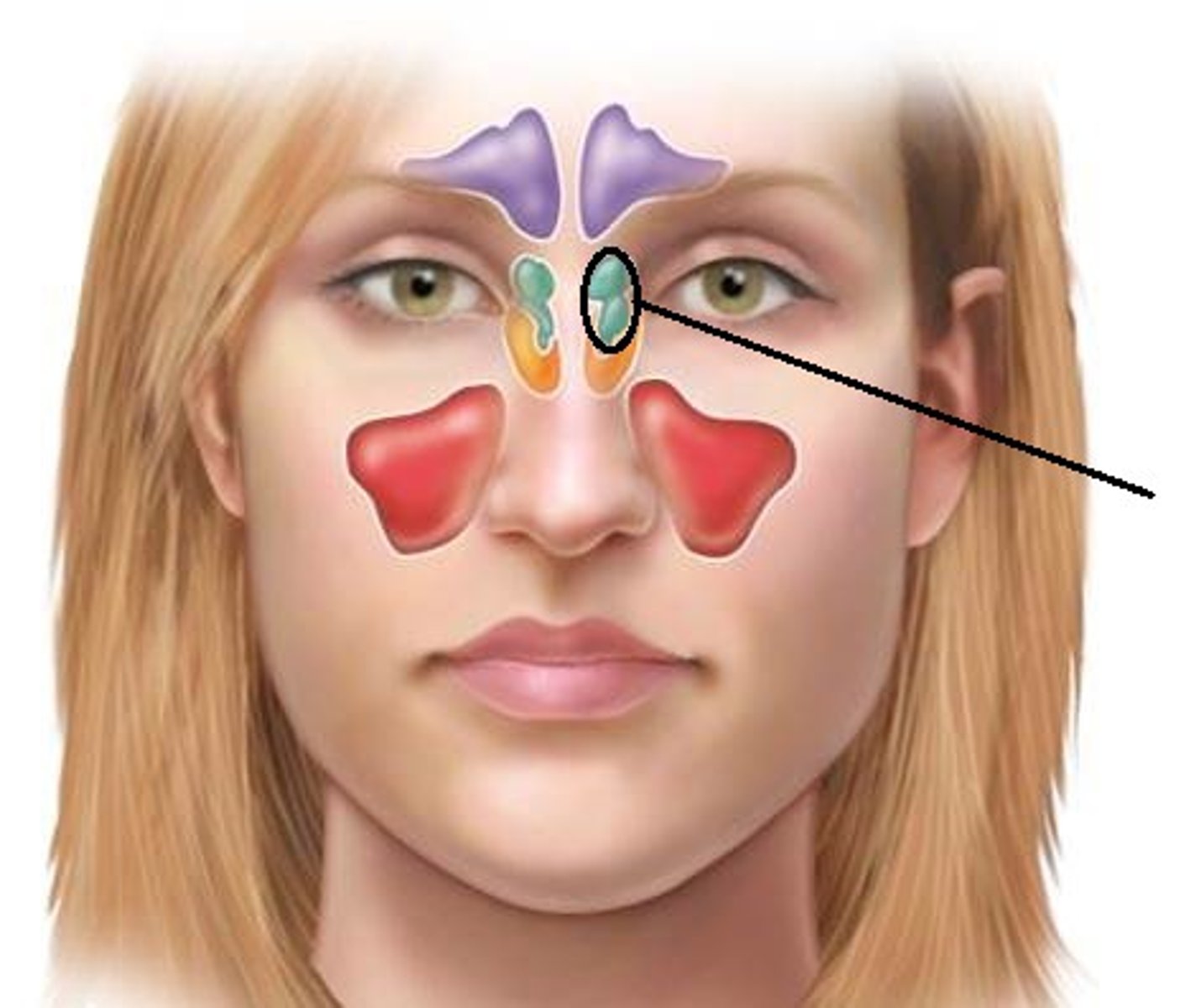

Ethmoid sinus

Green arrow, all of the little pockets

<p>Green arrow, all of the little pockets</p>
17
New cards

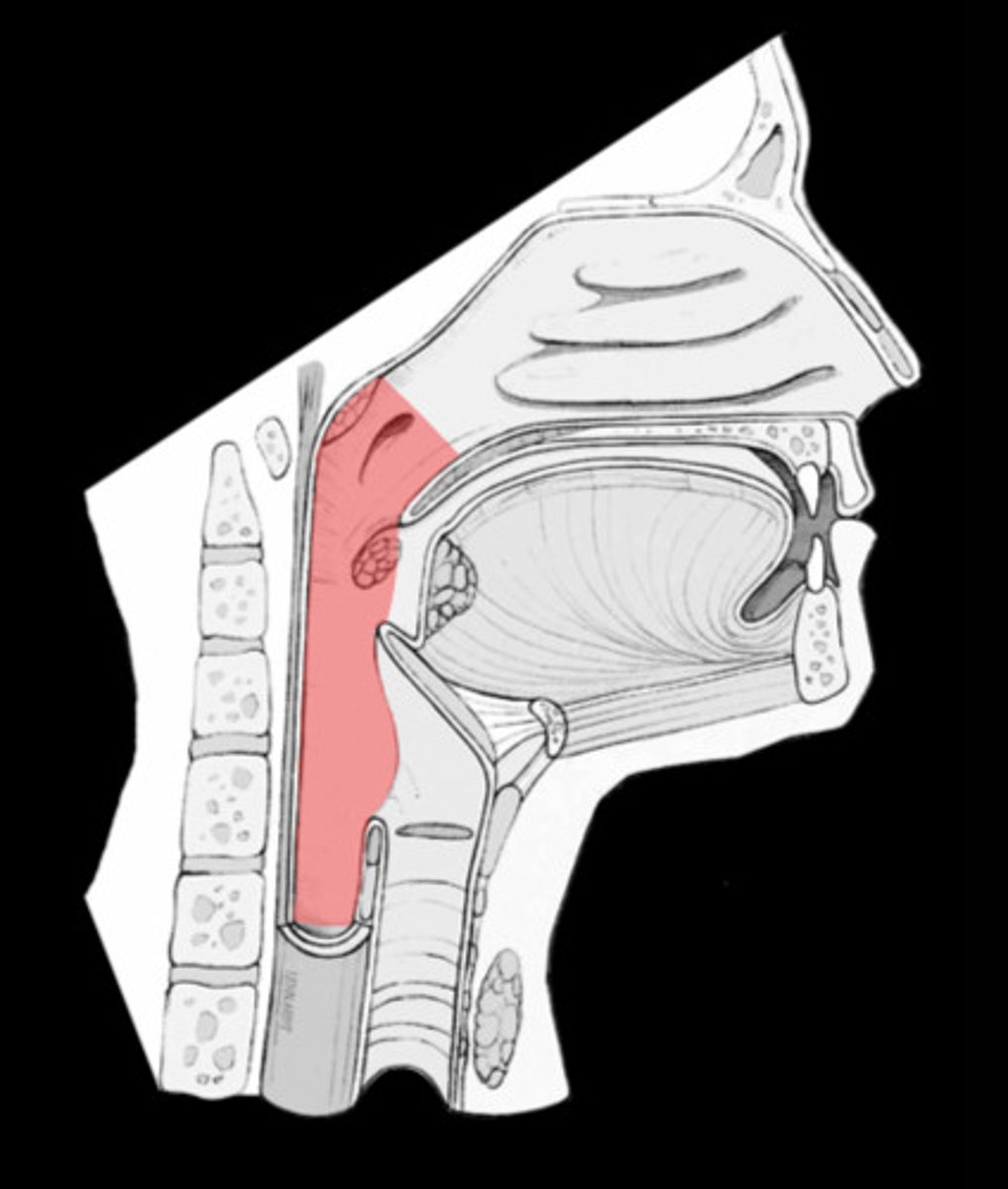

Pharynx

What is this pink highlighted area called?

<p>What is this pink highlighted area called?</p>

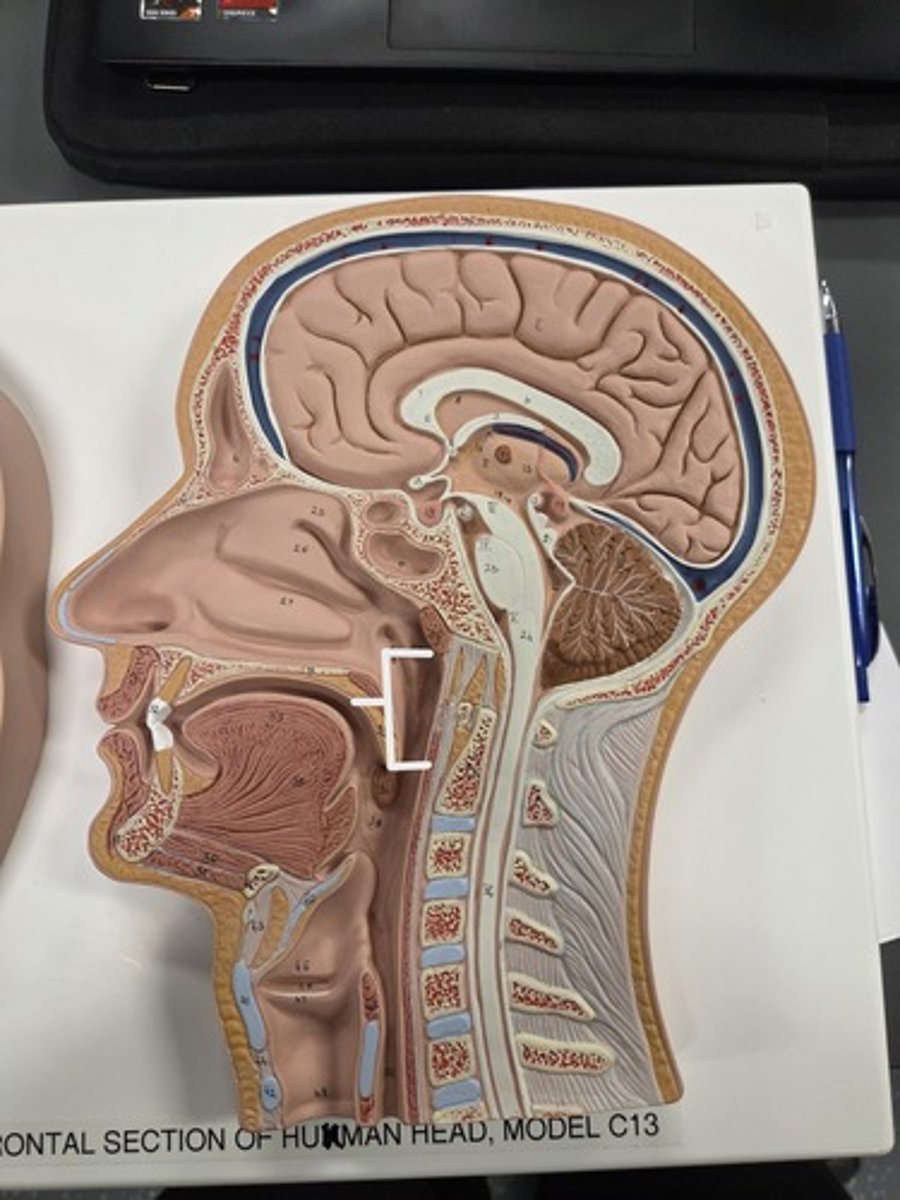

18
New cards

Nasopharynx

White boxed area

<p>White boxed area</p>
19
New cards

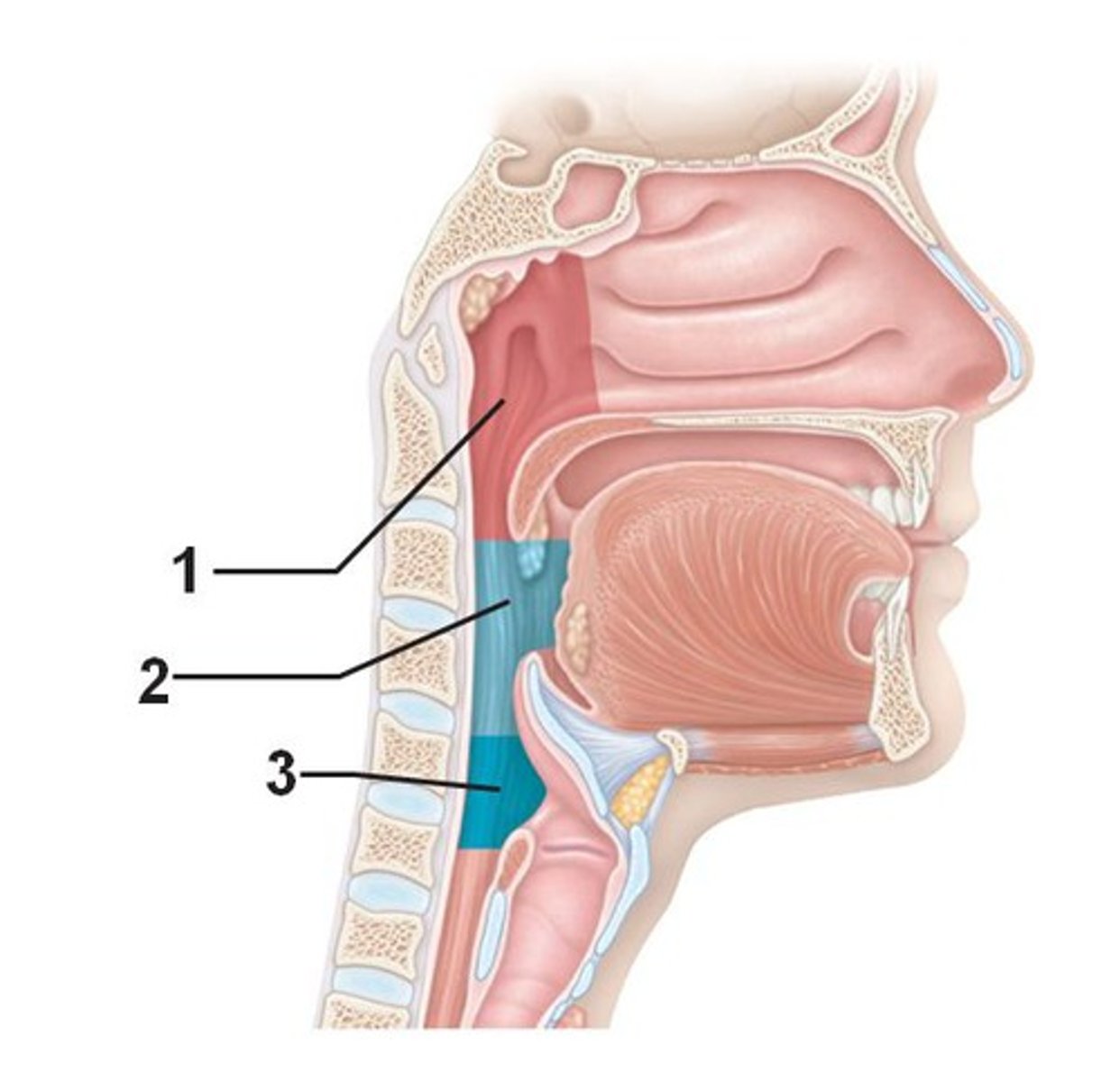

Nasopharynx

Number 1

<p>Number 1</p>
20
New cards

Oropharynx

Green boxed area

<p>Green boxed area</p>
21
New cards

Oropharynx

Number 2

<p>Number 2</p>
22
New cards

Laryngopharynx

Red boxed area

<p>Red boxed area</p>
23
New cards

Laryngopharynx

Number 3

<p>Number 3</p>

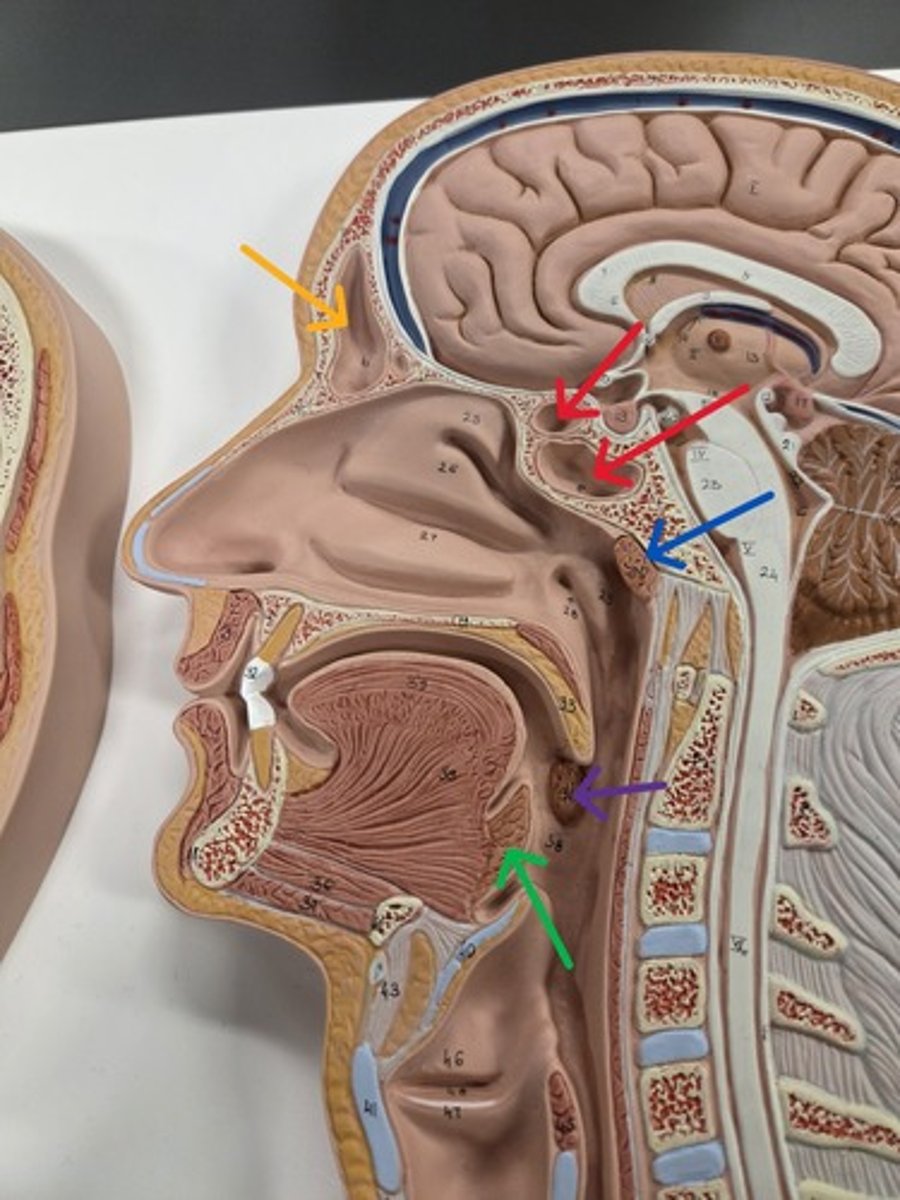

24
New cards

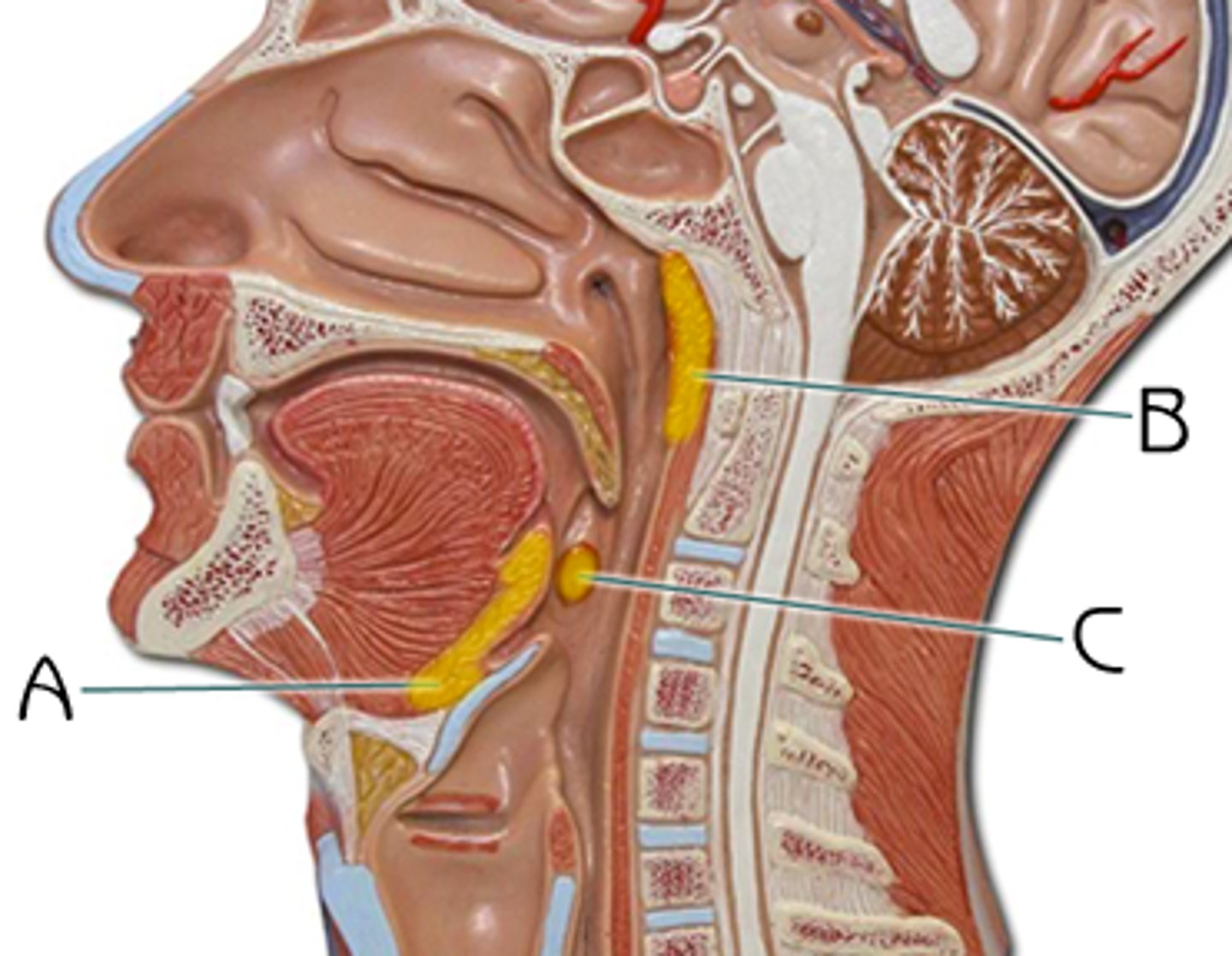

Tonsils

What are all of these yellow colored areas called

<p>What are all of these yellow colored areas called</p>
25
New cards

Palatine tonsil

Purple arrow

<p>Purple arrow</p>
26
New cards

Pharyngeal tonsil (adenoids)

Blue arrow

<p>Blue arrow</p>
27
New cards

Lingual tonsil

Green arrow

<p>Green arrow</p>

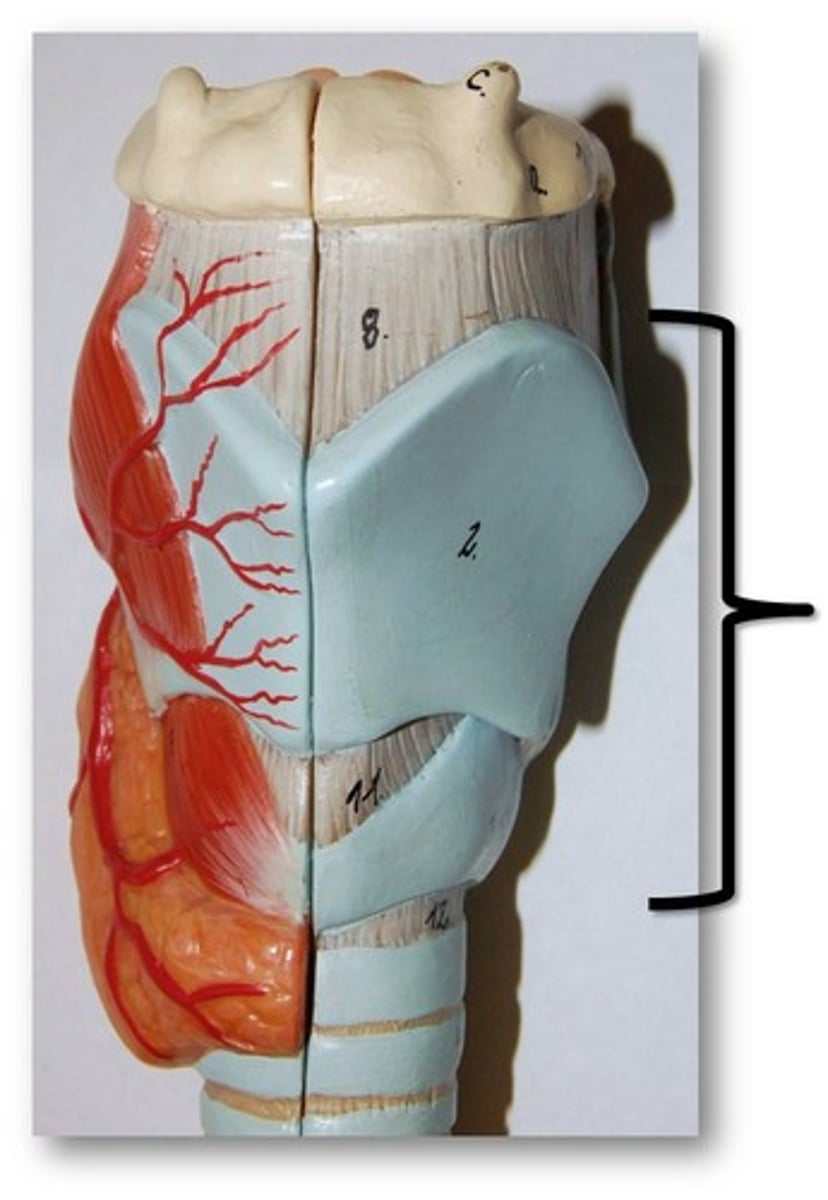

28
New cards

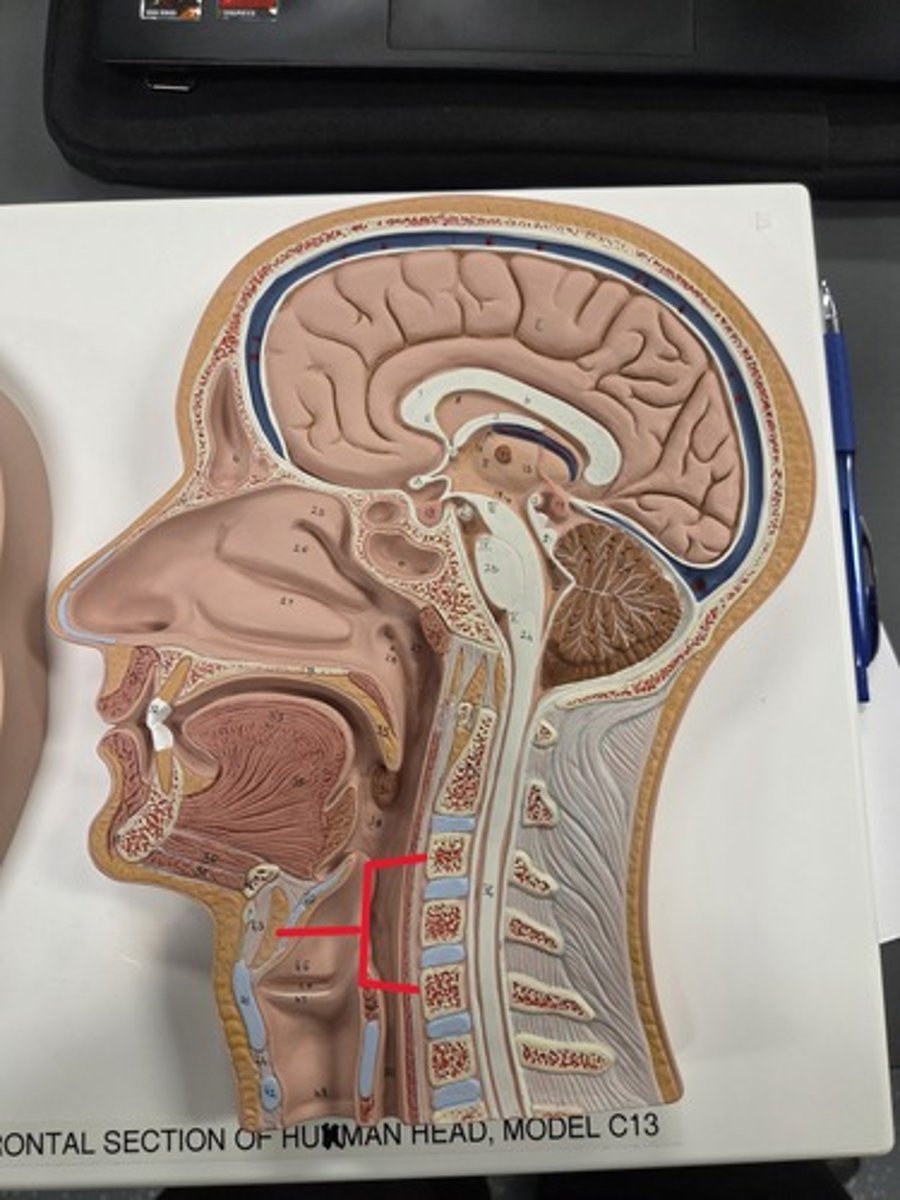

Larynx

What is this entire structure being bracketed called?

<p>What is this entire structure being bracketed called?</p>
29
New cards

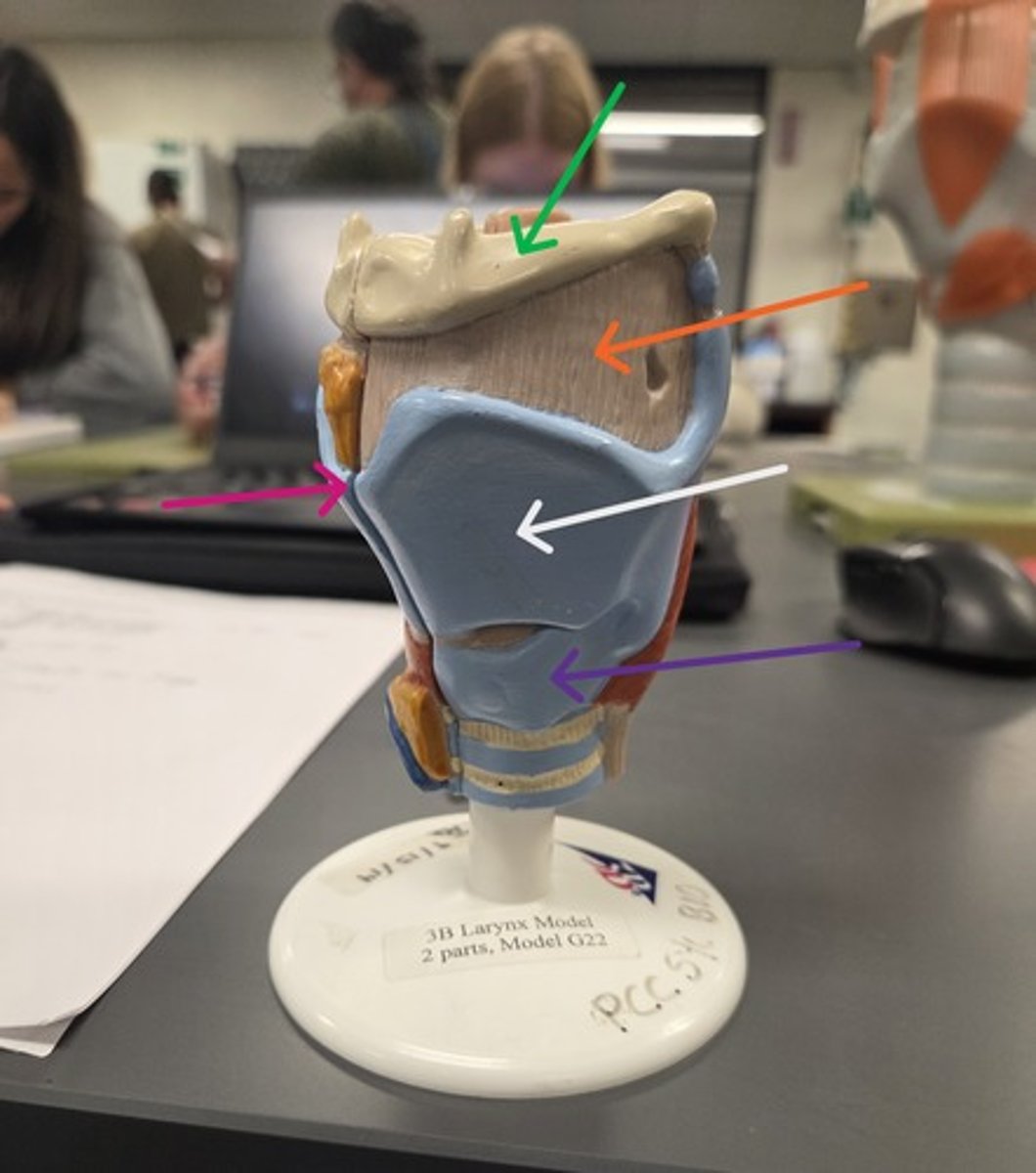

Thyroid cartilage

White arrow (Whole thing)

<p>White arrow (Whole thing)</p>
30
New cards

Laryngeal prominence

Pink arrow (AKA adams apple)

<p>Pink arrow (AKA adams apple)</p>
31
New cards

Cricoid cartilage

Purple arrow

<p>Purple arrow</p>
32
New cards

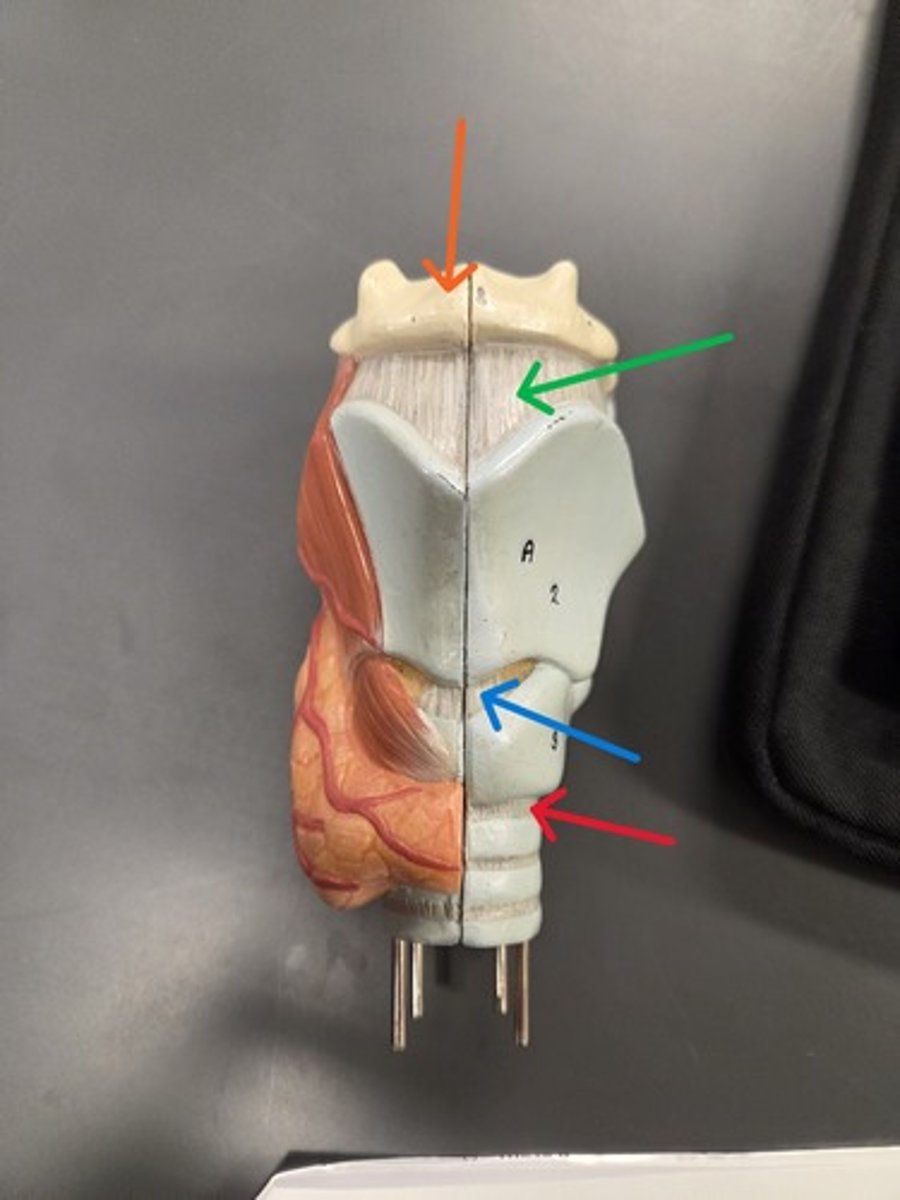

Cricothyroid ligament

Blue arrow

<p>Blue arrow</p>
33
New cards

Thyrohyoid membrane

Green arrow

<p>Green arrow</p>
34
New cards

Thyrohyoid membrane

Orange arrow

<p>Orange arrow</p>
35
New cards

cricotracheal ligament

Red arrow

<p>Red arrow</p>
36
New cards

Arytenoid cartilage

Orange arrows

<p>Orange arrows</p>
37
New cards

corniculate cartilage

green arrows

<p>green arrows</p>
38
New cards

Epiglottis

Red arrow, whole flap

<p>Red arrow, whole flap</p>
39
New cards

Glottis

Blue arrow, the opening, not the flaps

<p>Blue arrow, the opening, not the flaps</p>

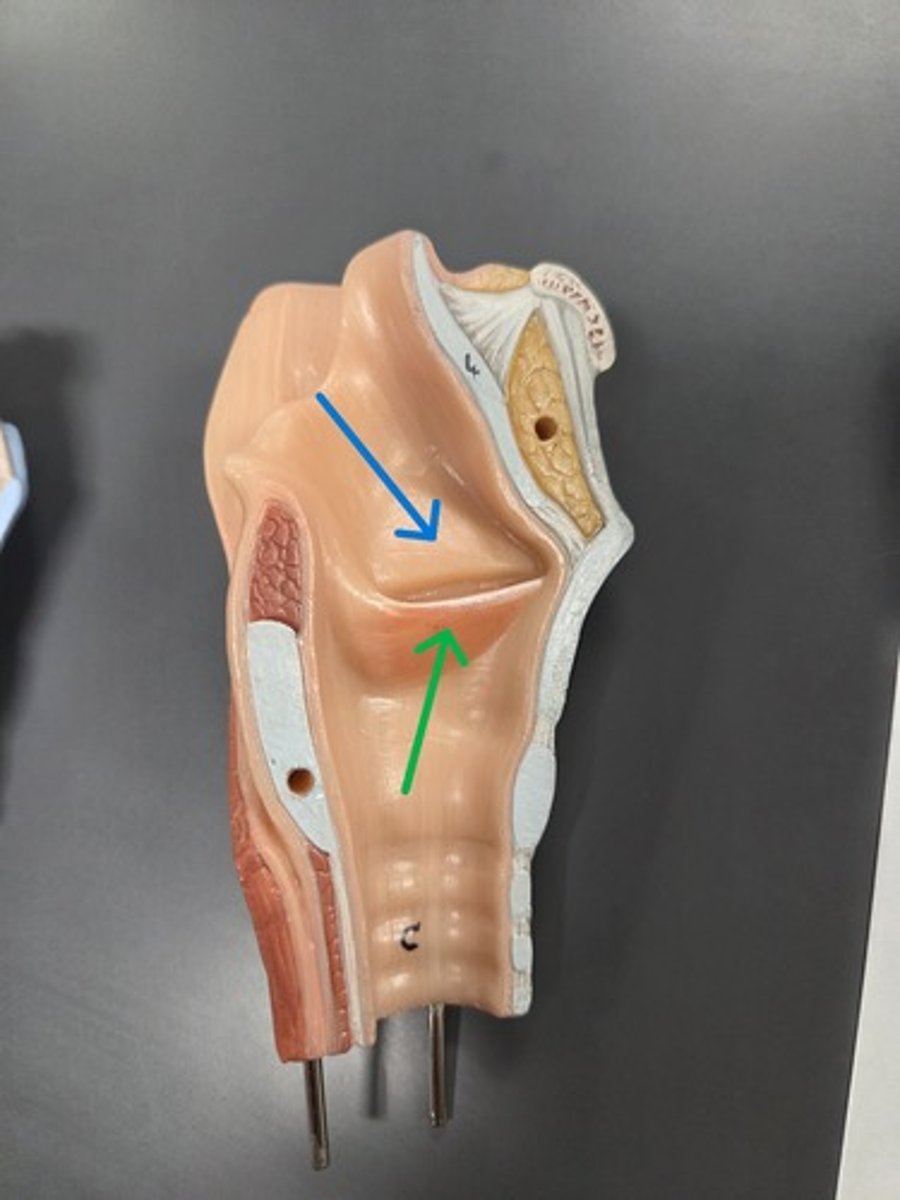

40
New cards

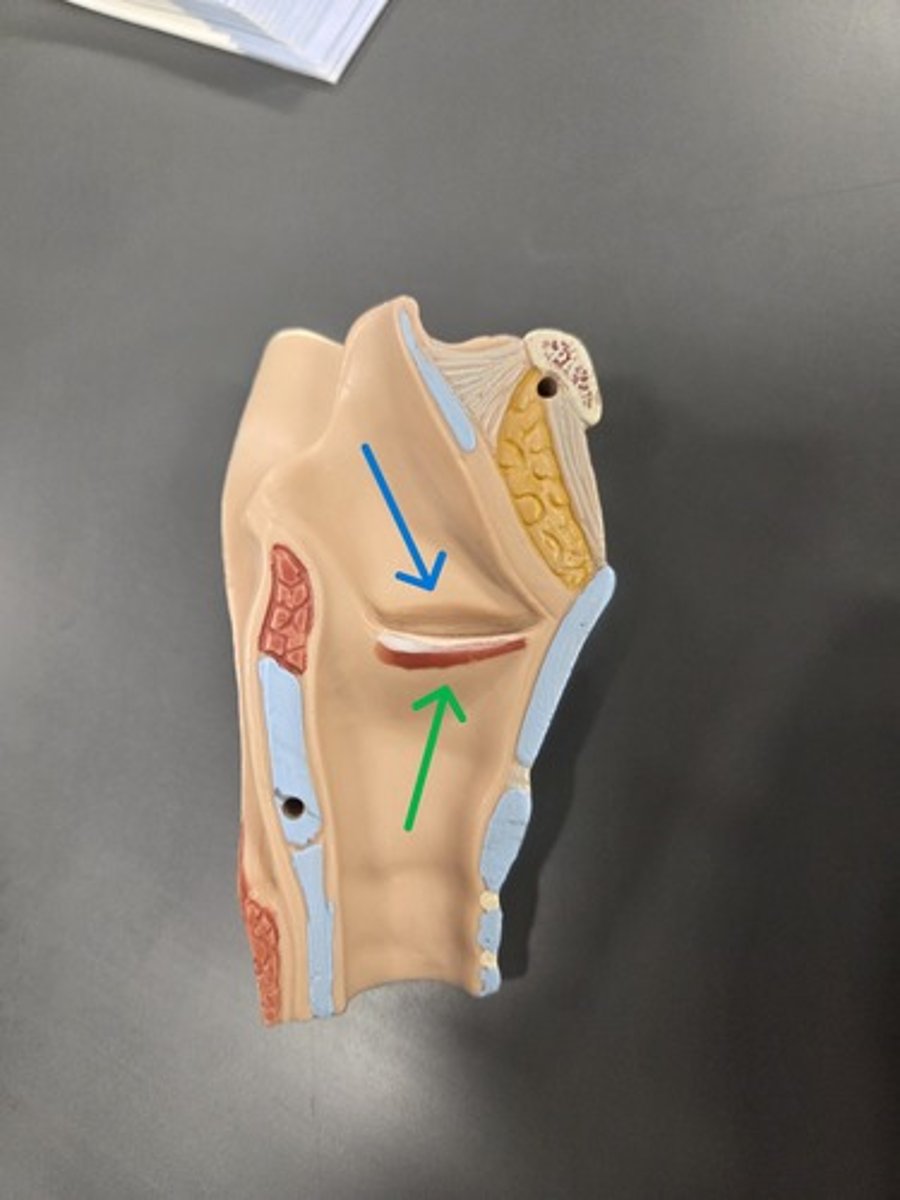

Vestibular folds (false vocal cords-upper)

Blue arrow

<p>Blue arrow</p>
41
New cards

Vocal folds (true vocal cords-lower)

Green arrow

<p>Green arrow</p>
42
New cards

Hyoid bone

Green arrow

<p>Green arrow</p>
43
New cards

Trachea

Red boxed area

<p>Red boxed area</p>
44
New cards

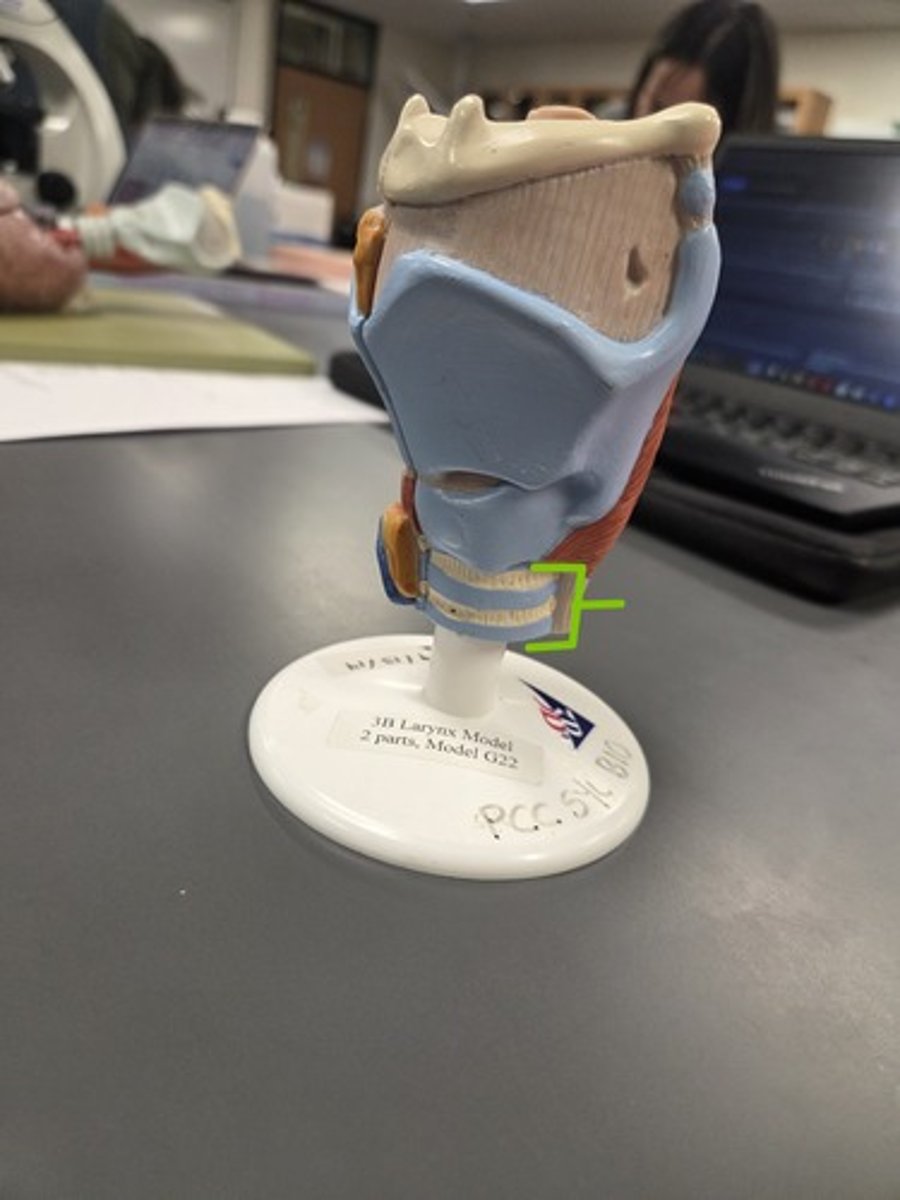

Trachea

Green boxed area

<p>Green boxed area</p>

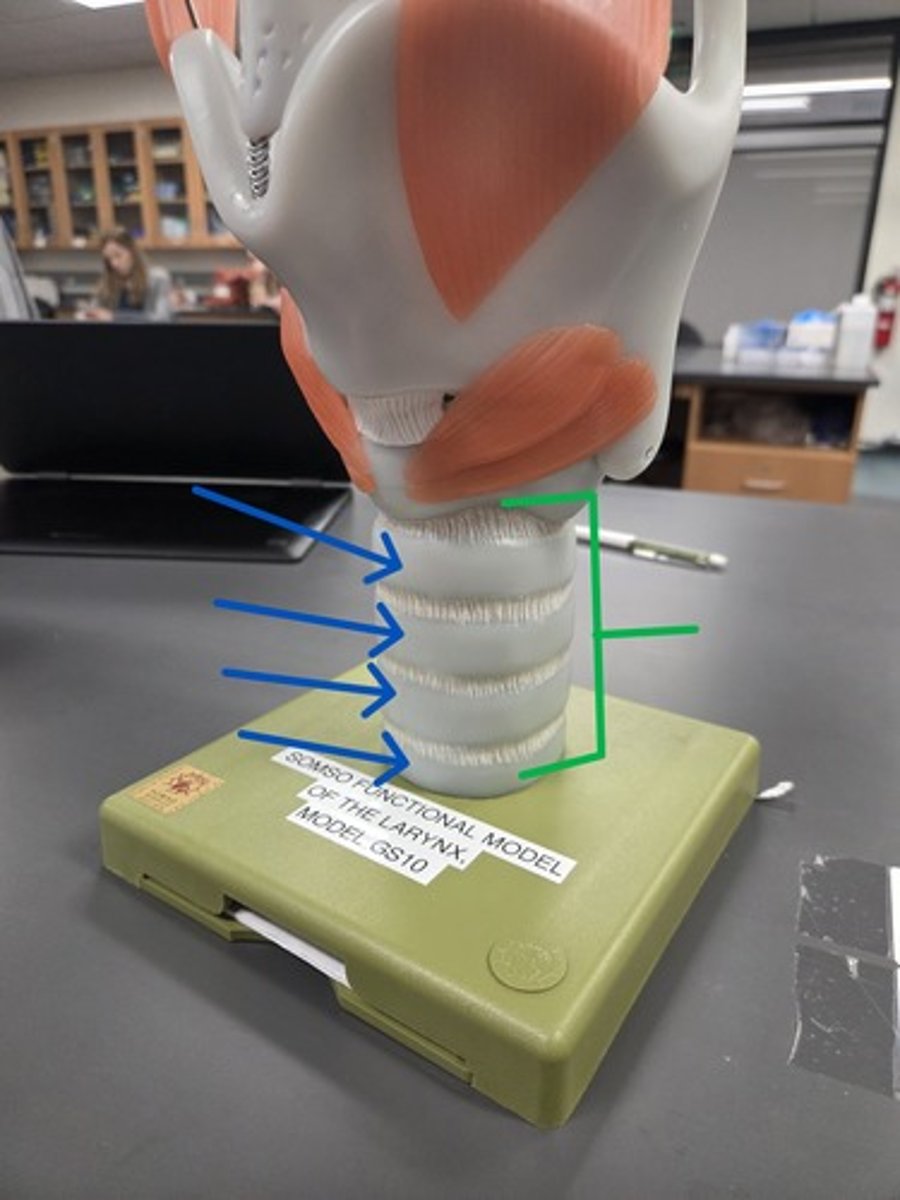

45
New cards

Tracheal cartilage (C-Ring)

Blue arrows

<p>Blue arrows</p>

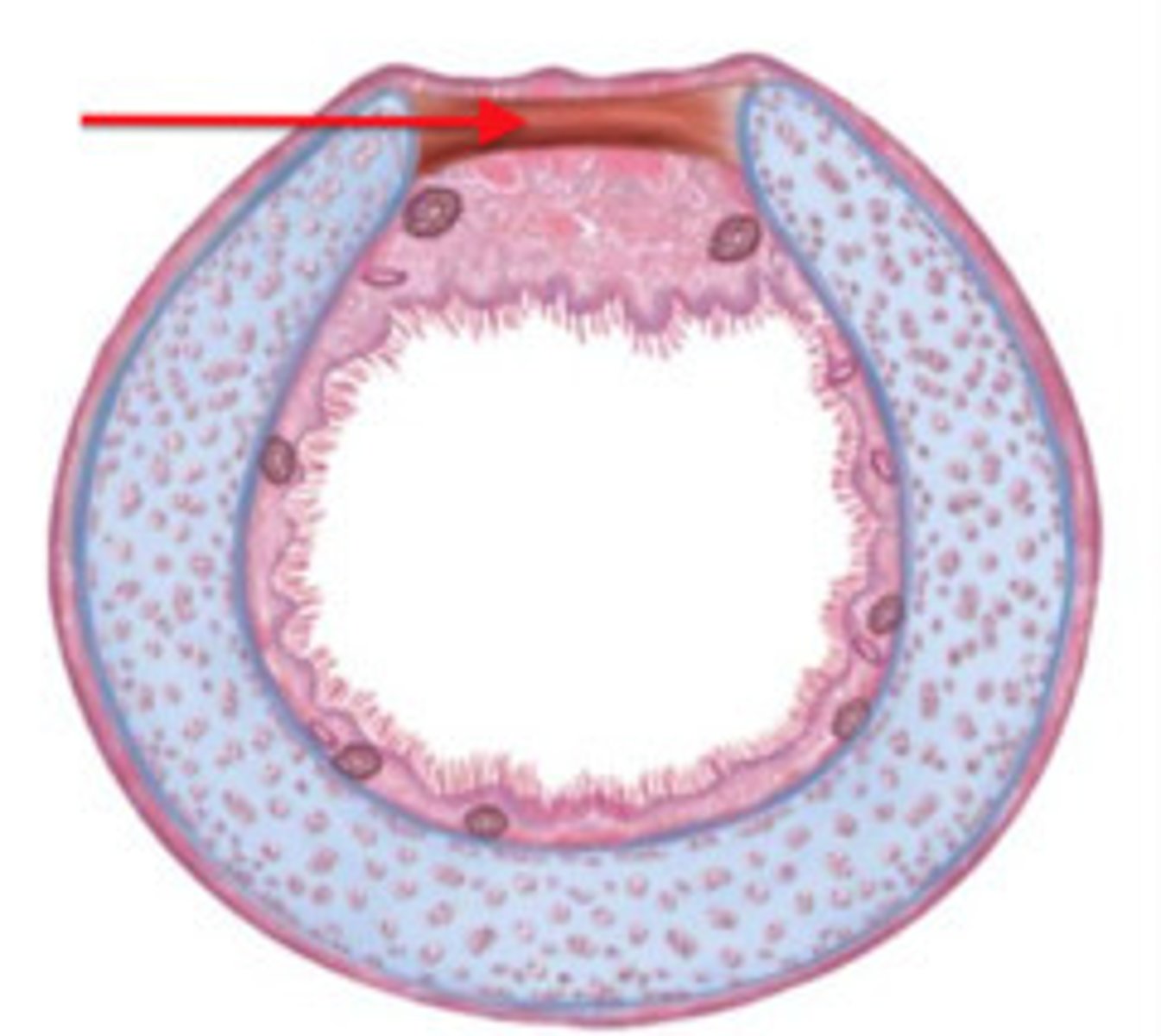

46
New cards

Trachealis

Muscle within the trachea

<p>Muscle within the trachea</p>
47
New cards

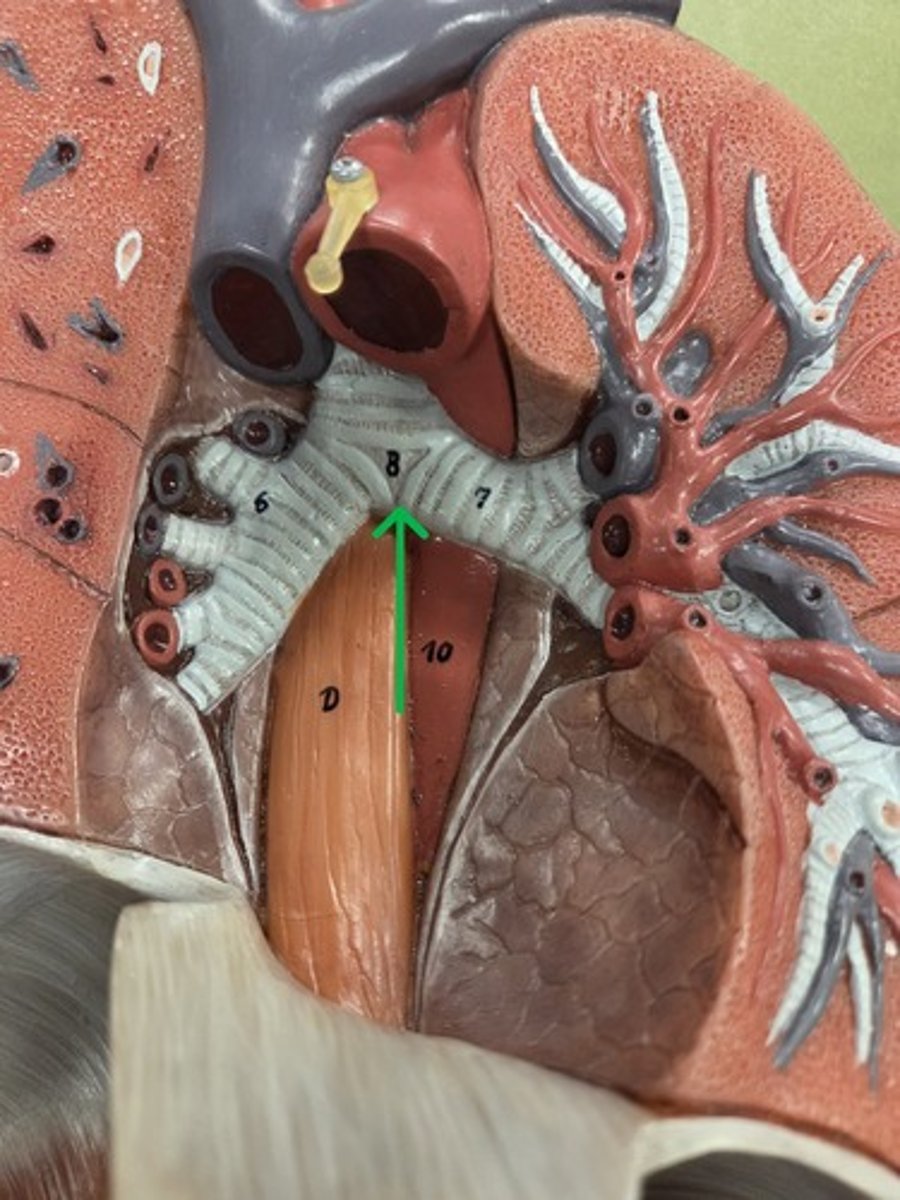

Carina

Green arrow, tip before branching

<p>Green arrow, tip before branching</p>

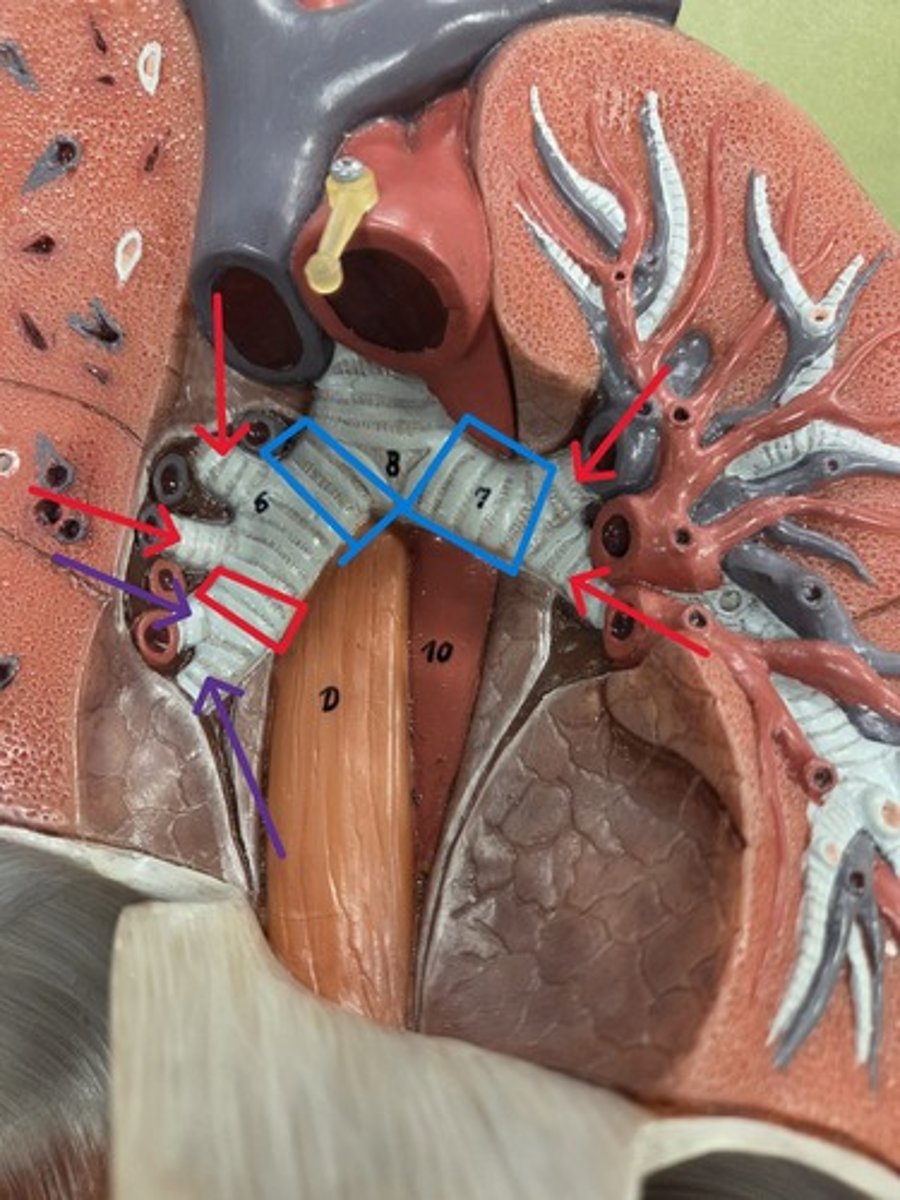

48
New cards

Primary (mainstem) bronchi

Blue boxed area

<p>Blue boxed area</p>
49
New cards

Secondary (lobar) bronchi

Red arrows and red boxed area

<p>Red arrows and red boxed area</p>
50
New cards

Tertiary (segmental) bronchi

Purple arrows

<p>Purple arrows</p>
51
New cards

Bronchioles

Histology!

52
New cards

Terminal bronchioles

Histology!

53
New cards

Respiratory bronchioles

Histology!

54
New cards

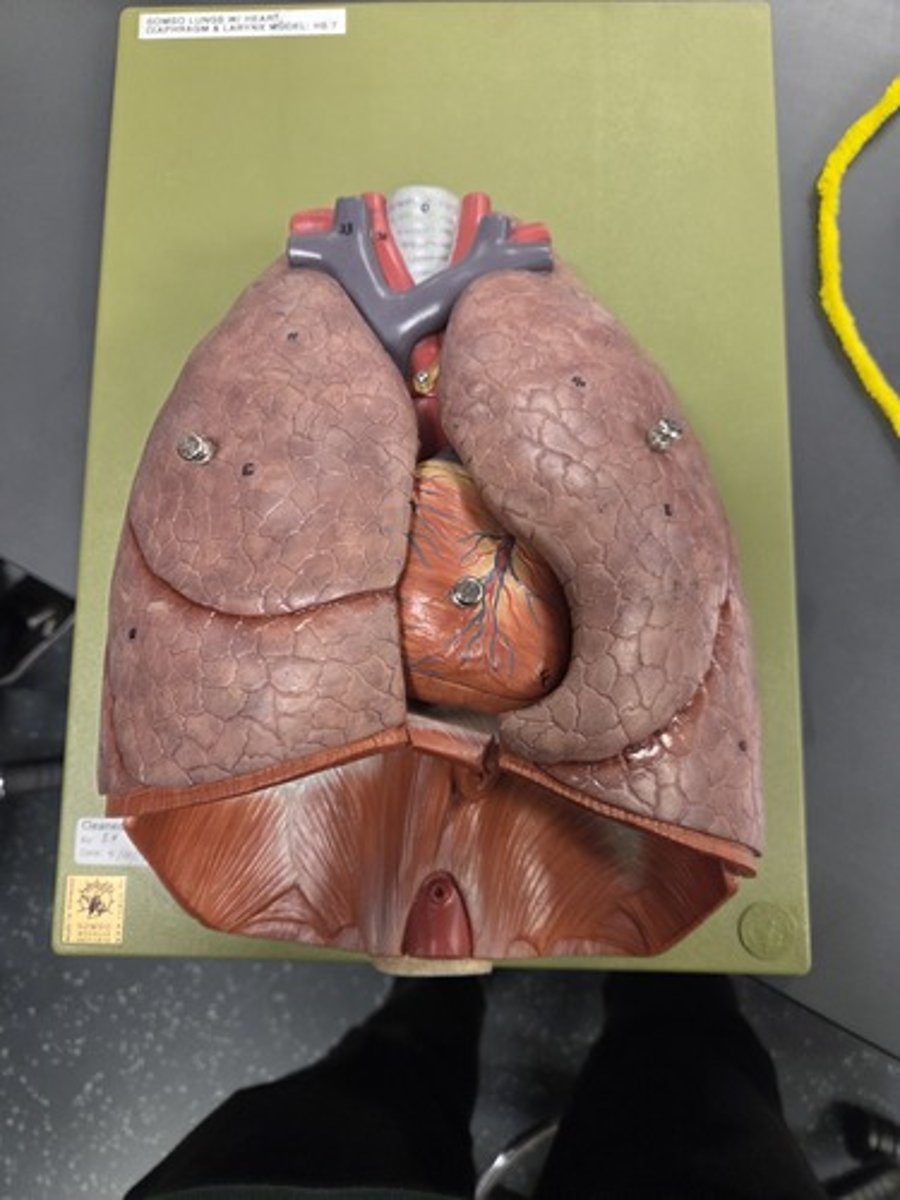

Lungs

The two big sacs (Quite obvious)

<p>The two big sacs (Quite obvious)</p>

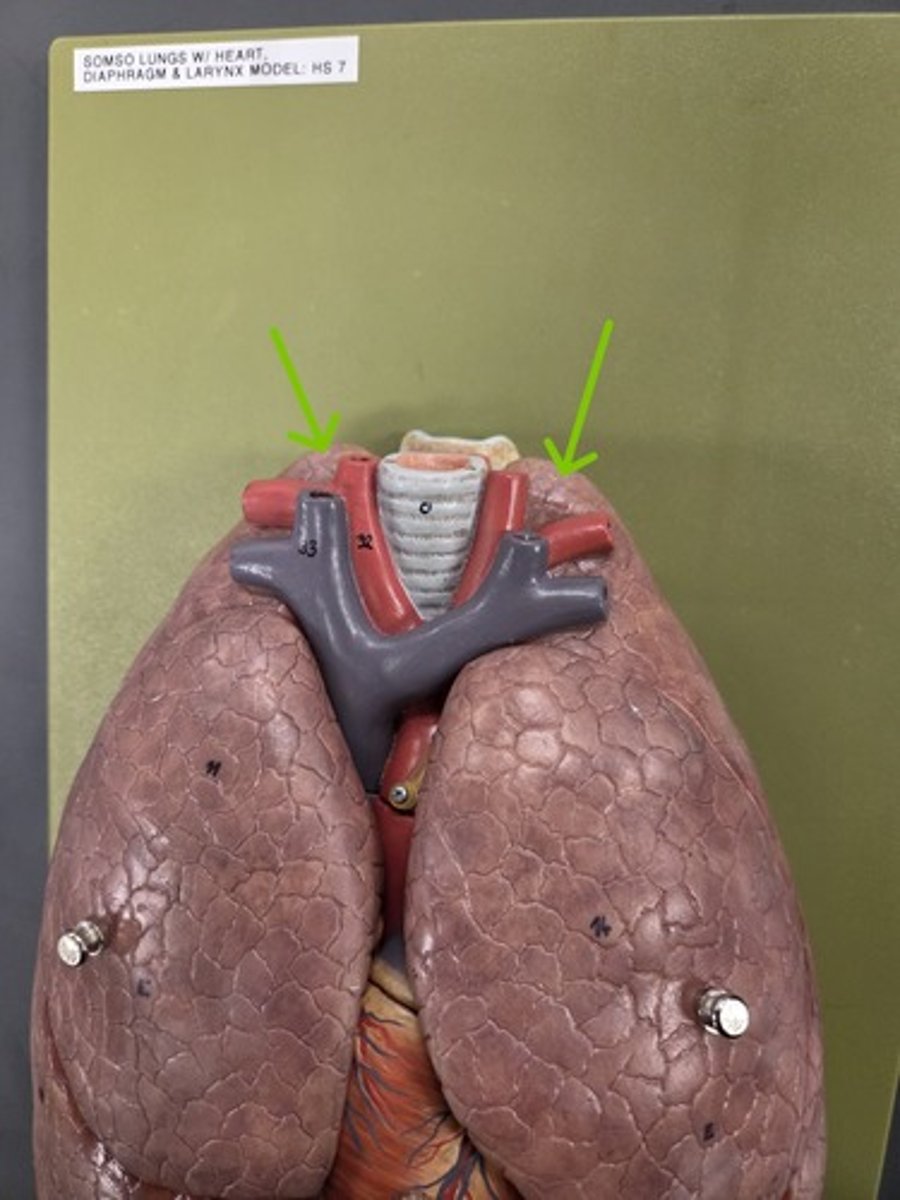

55
New cards

Apex of lung

Green arrows, the tips

<p>Green arrows, the tips</p>
56
New cards

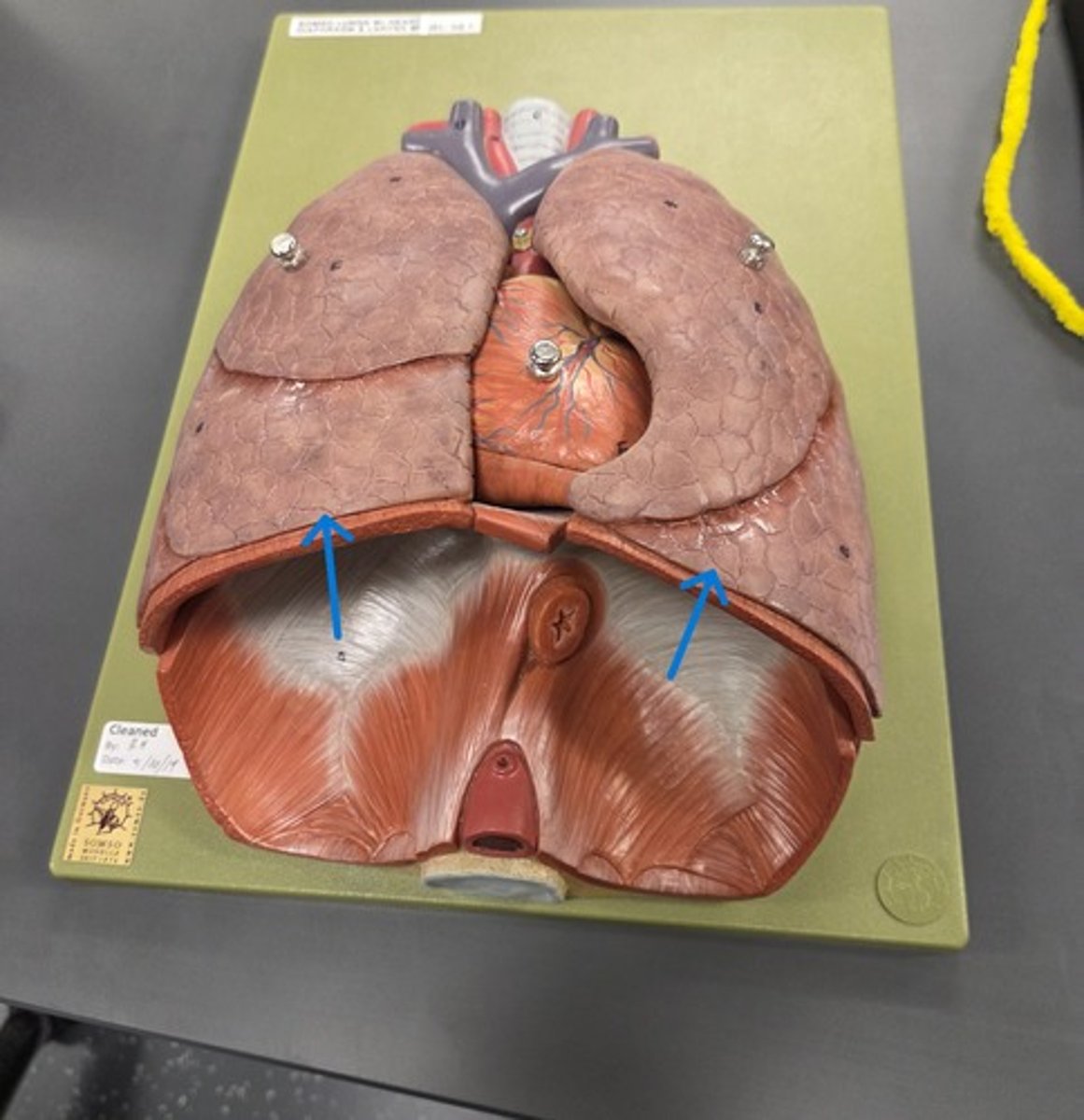

Base of lung

Blue arrows, the bottom parts

<p>Blue arrows, the bottom parts</p>

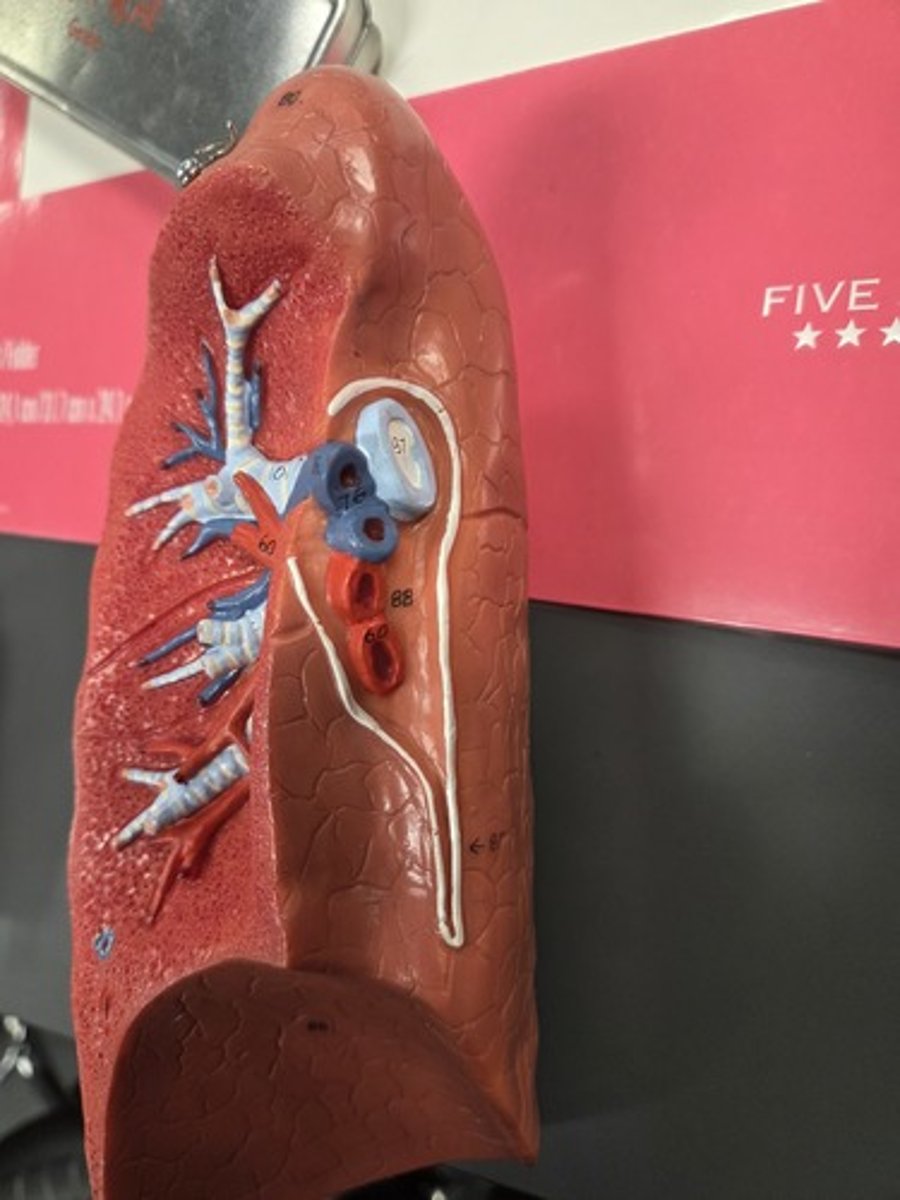

57
New cards

Hilus of lung

The items within the white encircled area

<p>The items within the white encircled area</p>

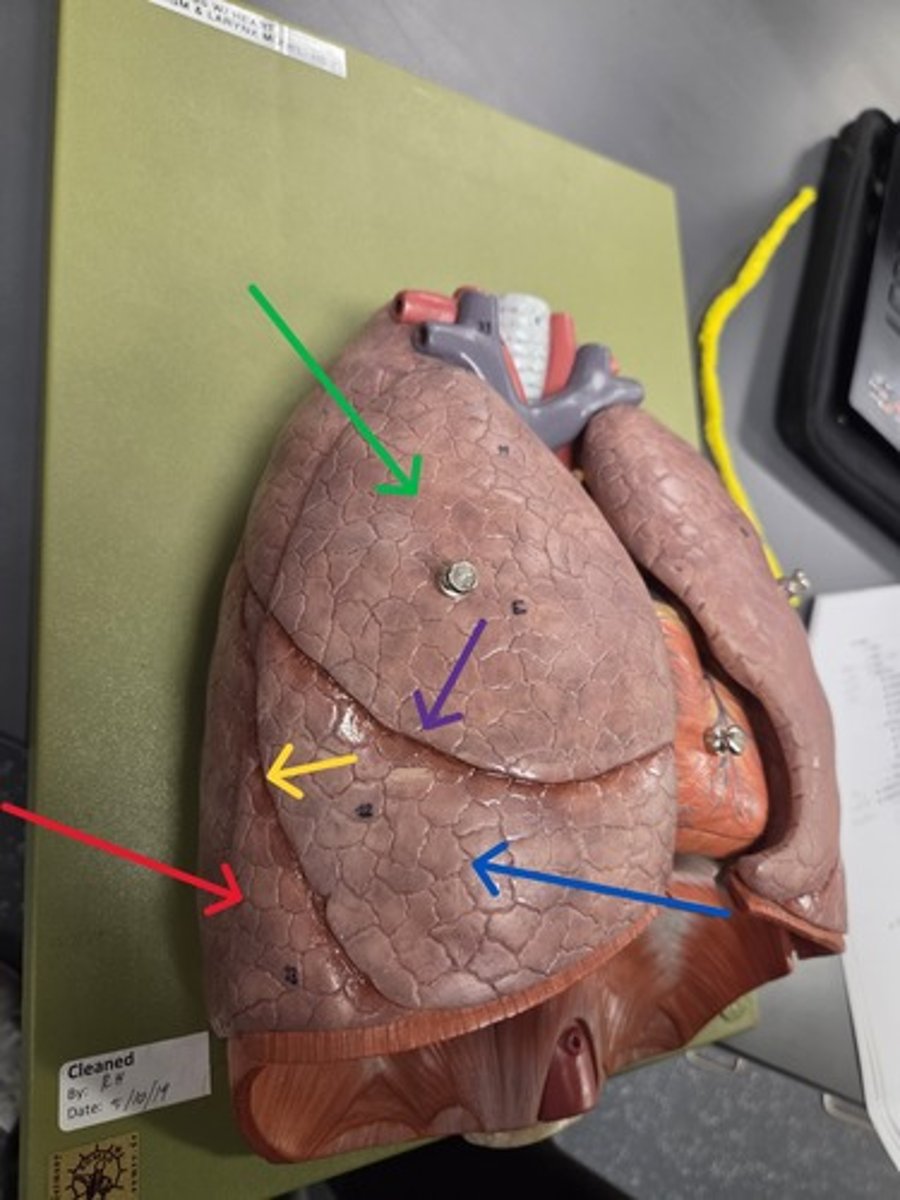

58
New cards

Right lung

What lung are all of the arrows pointing to?

<p>What lung are all of the arrows pointing to?</p>
59
New cards

Superior lobe of the lung

Green arrow

<p>Green arrow</p>
60
New cards

Middle lobe of the lung

Blue arrow

<p>Blue arrow</p>
61
New cards

Inferior lobe of the lung

Red arrow

<p>Red arrow</p>
62
New cards

Horizontal fissure

Purple arrow

<p>Purple arrow</p>
63
New cards

Oblique fissure

Yellow arrow

<p>Yellow arrow</p>
64
New cards

Left lung

What side of the lung are all the arrows pointing at?

<p>What side of the lung are all the arrows pointing at?</p>
65
New cards

superior lobe

Green arrow

<p>Green arrow</p>
66
New cards

inferior lobe

Red arrow

<p>Red arrow</p>
67
New cards

oblique fissure

Blue arrow, seperating line

<p>Blue arrow, seperating line</p>
68
New cards

Cardiac notch

Yellow arrow, the divot in the lung

<p>Yellow arrow, the divot in the lung</p>
69
New cards

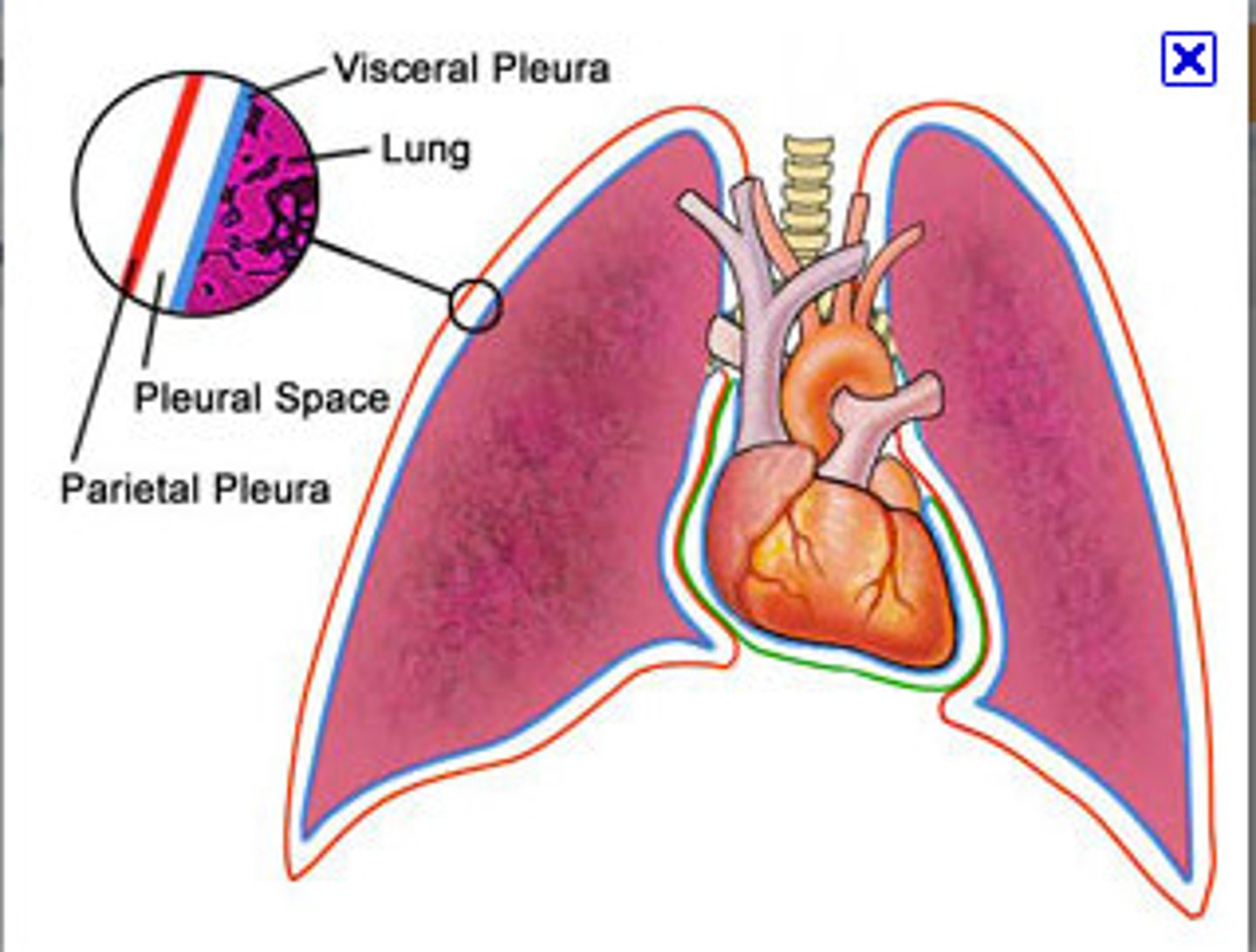

Parietal pleura

lines the thoracic cavity

<p>lines the thoracic cavity</p>
70
New cards

Visceral pleura

Covers surface of lung

<p>Covers surface of lung</p>
71
New cards

pleural fluid

What is within the pleural cavity (which is between the visceral and parietal pleura)

72
New cards

Mediastinum

Cavity the heart sits in (black boxed area)

<p>Cavity the heart sits in (black boxed area)</p>
73
New cards

Diaphragm, external intercostals, Scalenes, Pectoralis minor, serratus anterior, sternocleidomastoid

What are Inspiratory muscles?

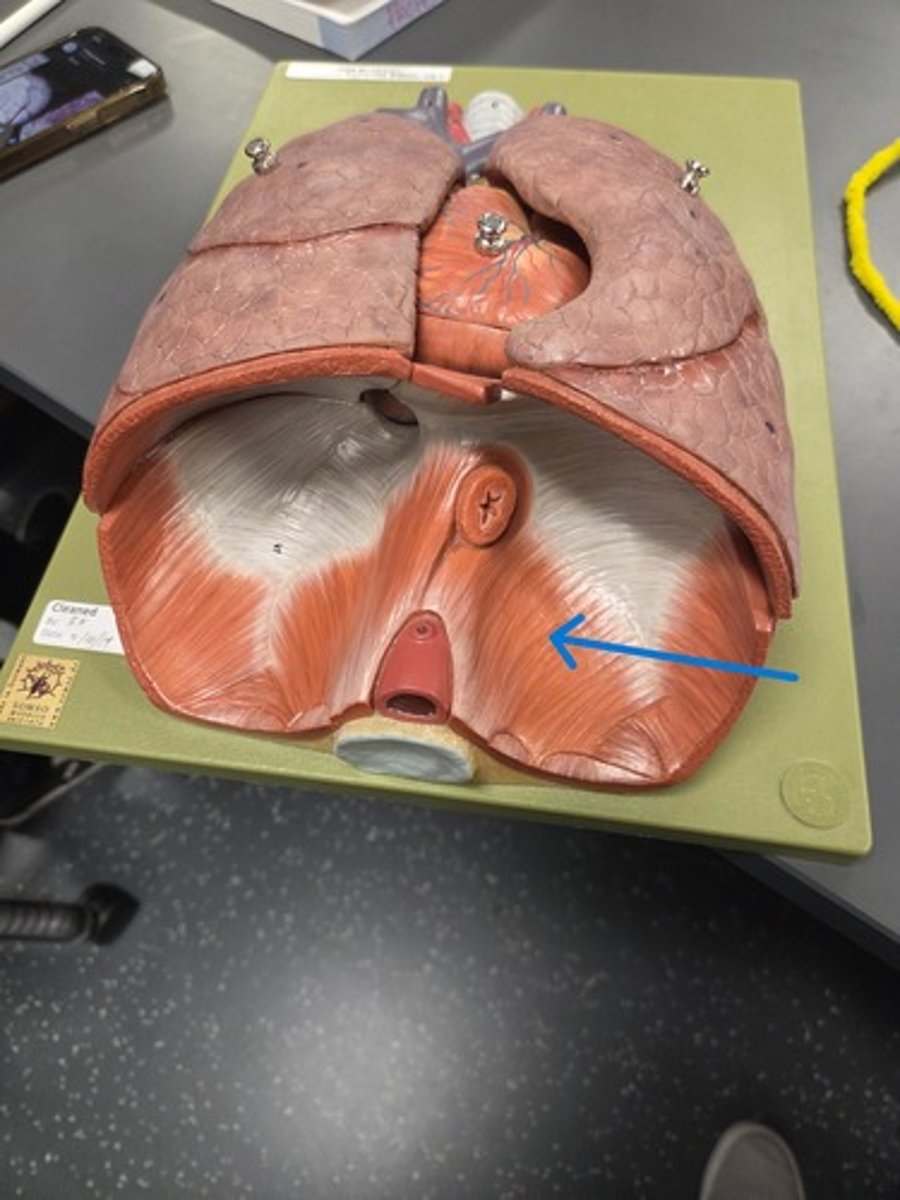

74
New cards

Diaphragm

Blue arrow, whole muscle

<p>Blue arrow, whole muscle</p>
75
New cards

External intercostals

Blue arrows

<p>Blue arrows</p>
76
New cards

Scalenes

Blue arrows

<p>Blue arrows</p>
77
New cards

Pectoralis minor

Red arrow

<p>Red arrow</p>
78
New cards

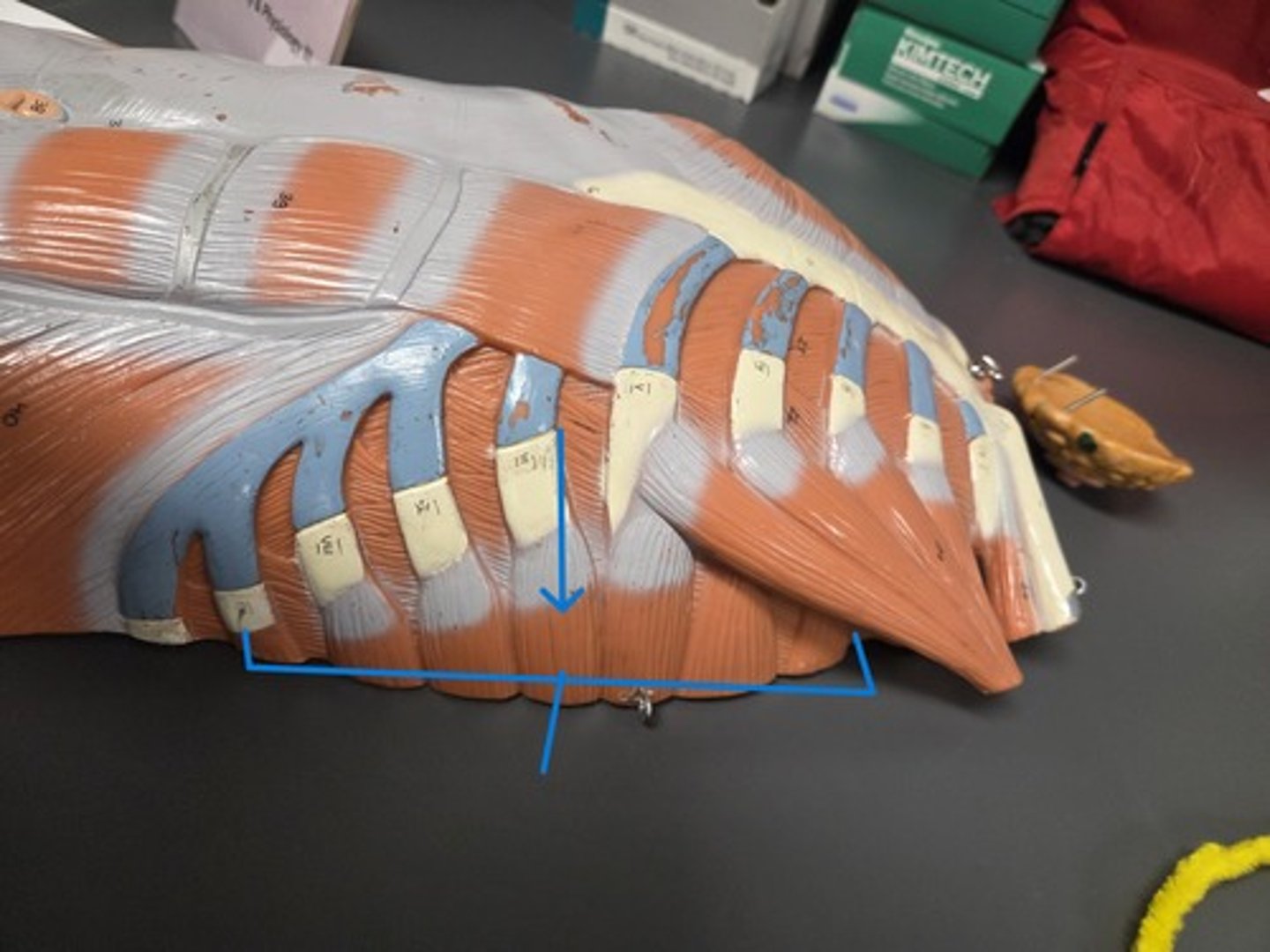

Serratus anterior

Blue boxed area and arrow

<p>Blue boxed area and arrow</p>
79
New cards

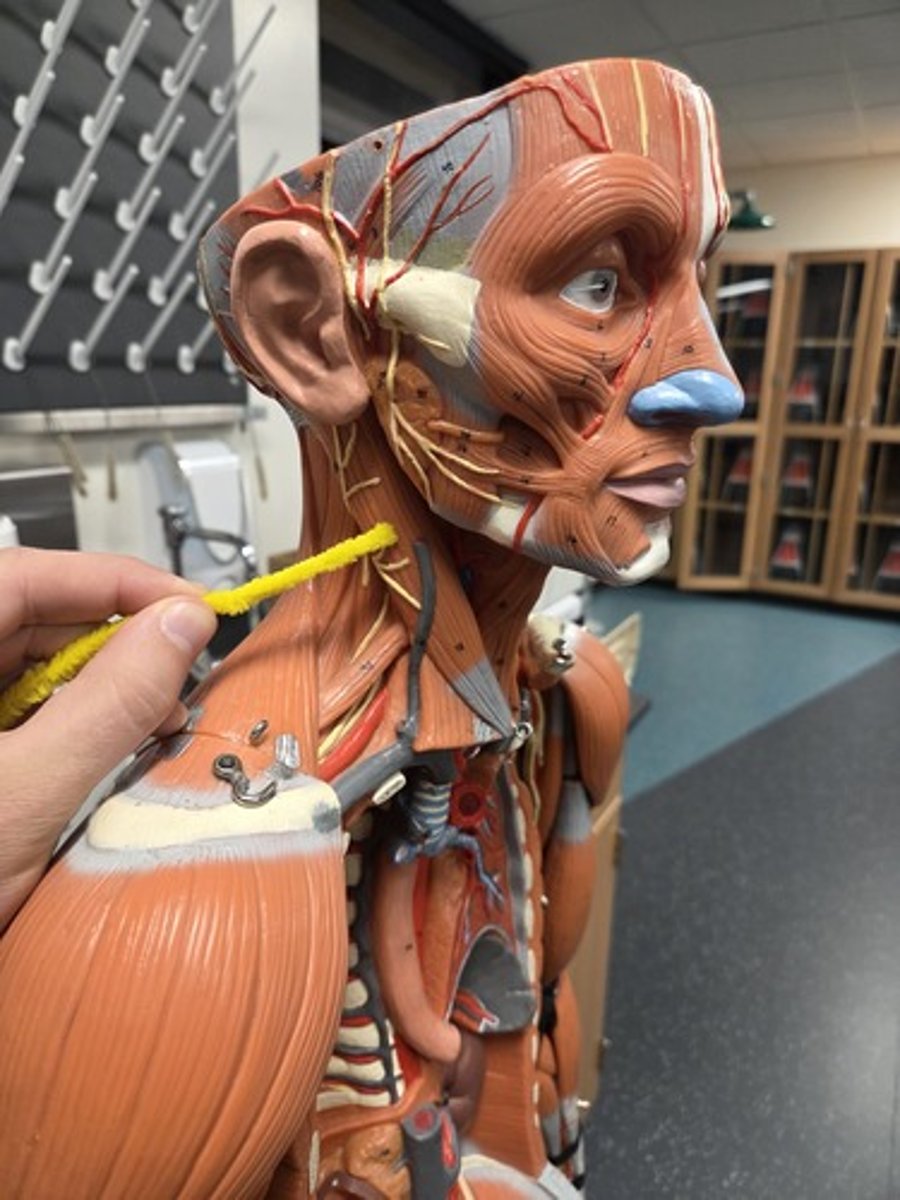

Sternocleidomastoid

knowt flashcard image
80
New cards

Internal intercostals, Transverse Abdominis, Rectus Abdominis

What are the Expiratory muscles? (for forced exhalation)

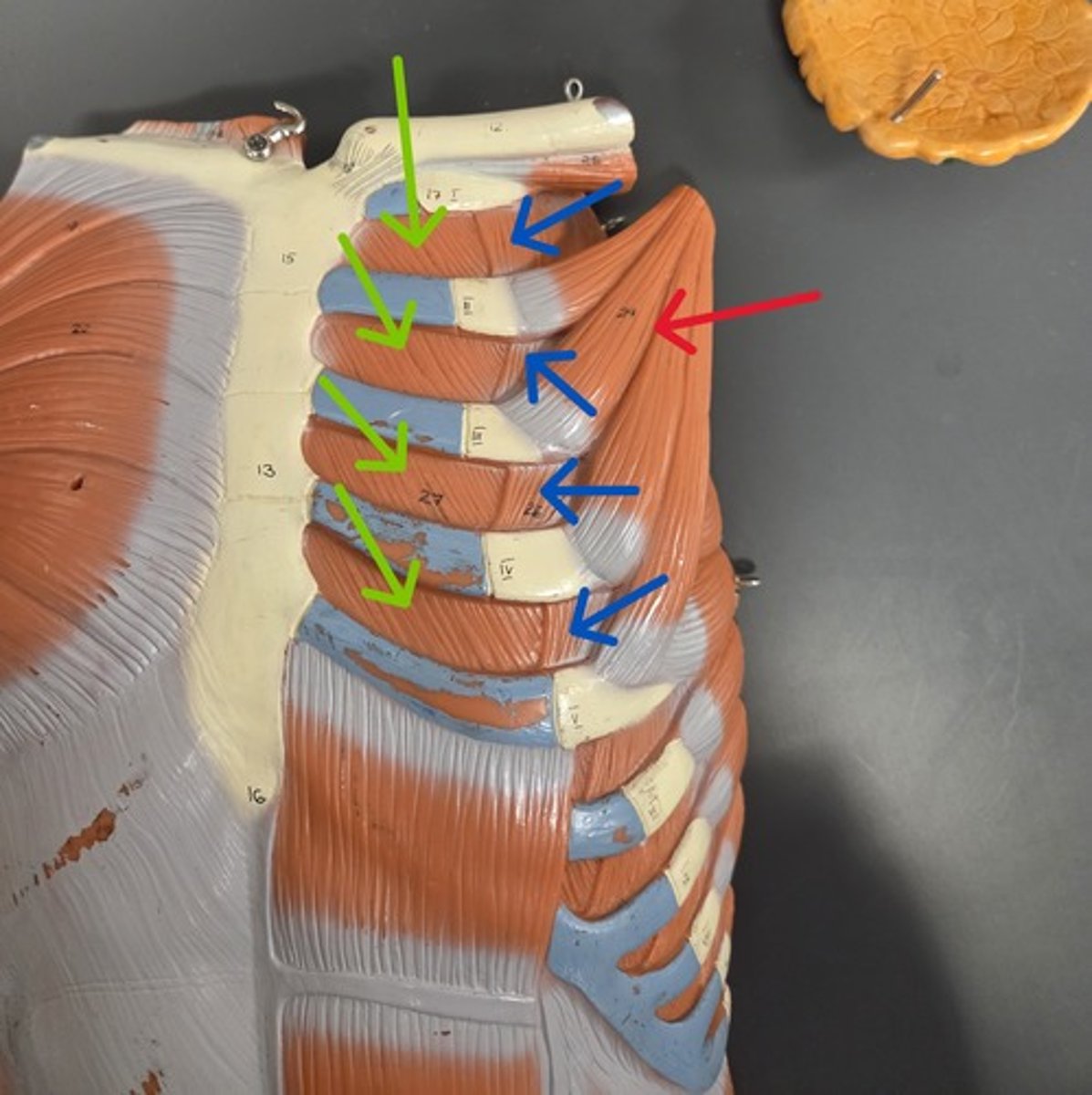

81
New cards

Internal intercostals

Green arrows

<p>Green arrows</p>
82

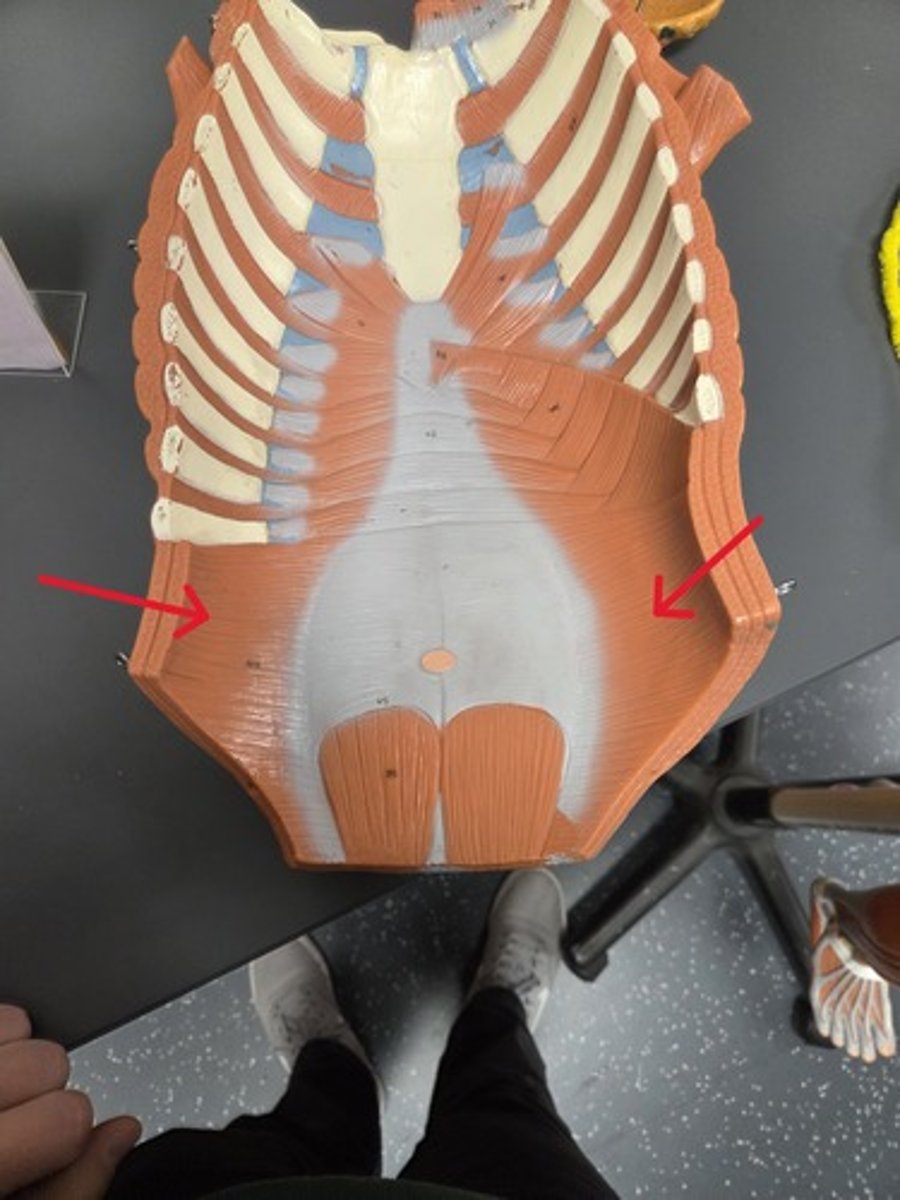

New cards

Transverse abdominis

Red arrows

<p>Red arrows</p>
83

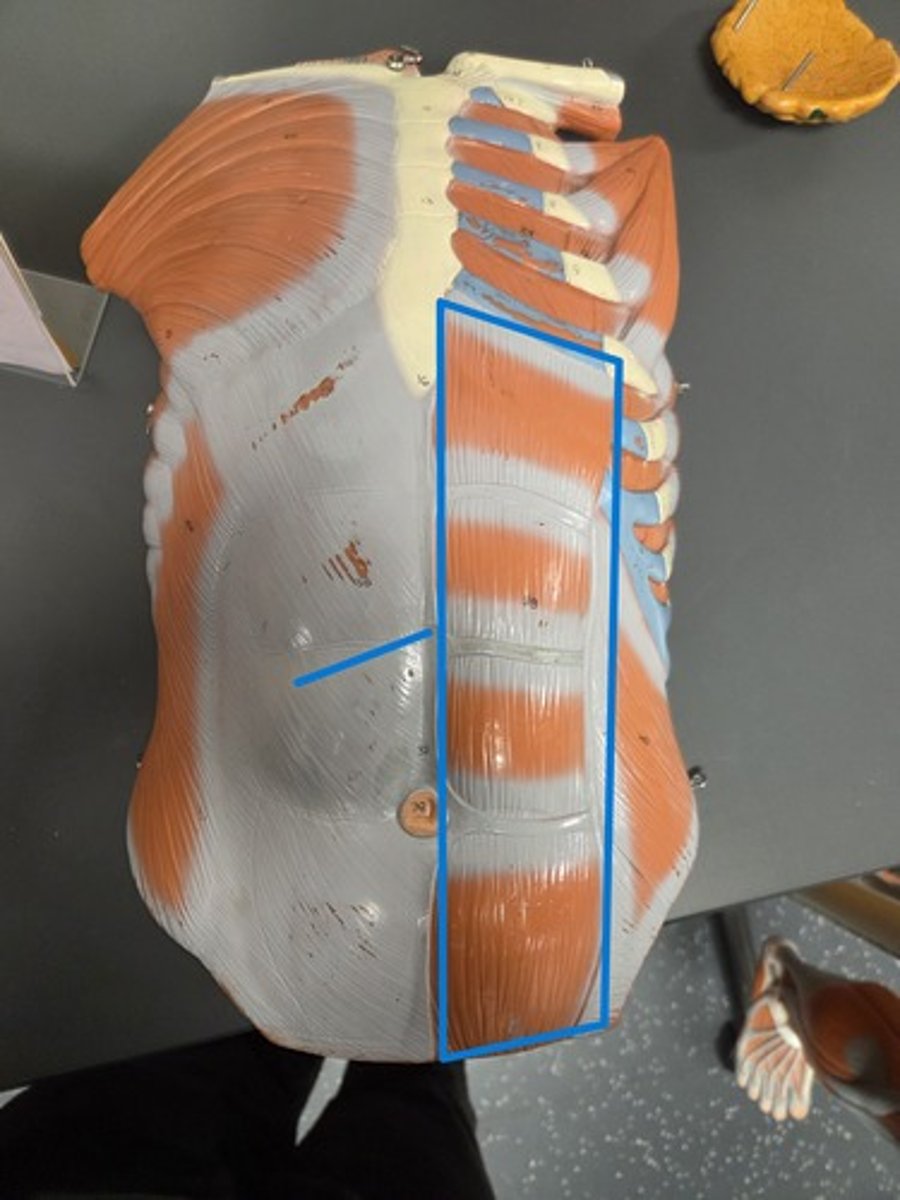

New cards

Rectus abdominis

Boxed blue area

<p>Boxed blue area</p>
84
New cards

Trachea

What is this whole structure that is being showcased? (sorry for the low quality)

<p>What is this whole structure that is being showcased? (sorry for the low quality)</p>
85
New cards

Pseudostratified ciliated columnar epithelium (trachea)

What is being pointed at?

<p>What is being pointed at?</p>
86
New cards

Goblet cells (Trachea)

What is being pointed at? (the white)

<p>What is being pointed at? (the white)</p>
87

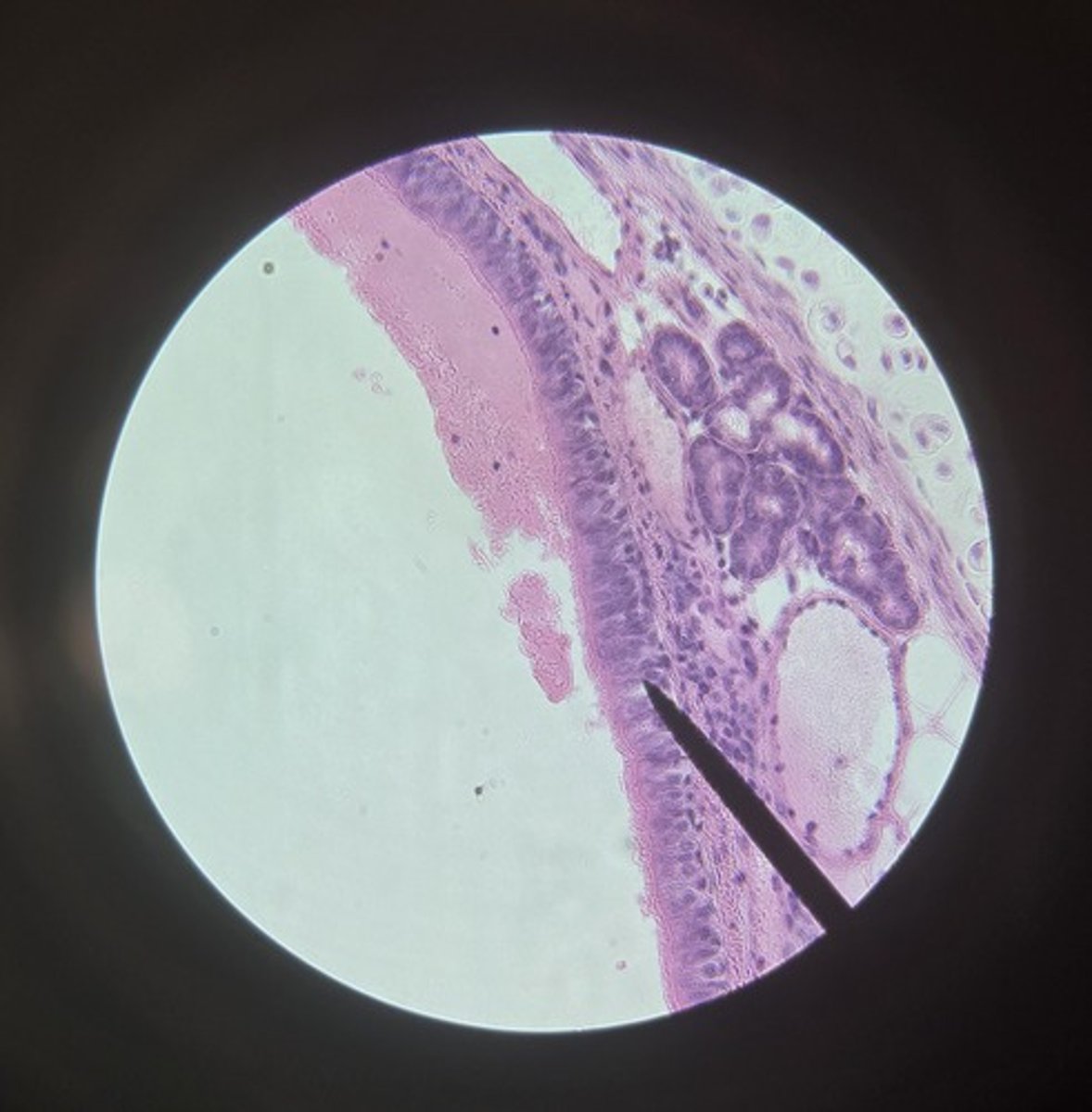

New cards

Seromucous glands (trachea)

What is being pointed at? (The whole cluster

<p>What is being pointed at? (The whole cluster</p>
88
New cards

hyaline cartilage rings

What is being showcased?

<p>What is being showcased?</p>
89
New cards

Smooth muscle/Trachealis

What is being showcased?

<p>What is being showcased?</p>
90
New cards

Bronchus

What is this whole circular structure?

<p>What is this whole circular structure?</p>
91
New cards

Pseudostratified ciliated columnar epithelium (bronchus)

What is this tissue?

<p>What is this tissue?</p>
92
New cards

Hyaline cartilage (Bronchus)

What is this tissue? (It forms in spirals, not rings)

<p>What is this tissue? (It forms in spirals, not rings)</p>
93
New cards

Smooth muscle

What is this tissue? (In spirals, not rings)

<p>What is this tissue? (In spirals, not rings)</p>
94
New cards

Bronchiole

What is this structure? (NOTE that it doesn't have hyaline cartilage

<p>What is this structure? (NOTE that it doesn't have hyaline cartilage</p>
95
New cards

Simple columnar epithelium (Bronchiole)

What is this tissue? (Sorry for the low quality)

<p>What is this tissue? (Sorry for the low quality)</p>
96
New cards

Bronchioles

What vessels of the lungs do NOT have goblet cells or glands?

<p>What vessels of the lungs do NOT have goblet cells or glands?</p>
97
New cards

Smooth muscle (bronchiole)

What is being pointed at? (It's the little strands of tissue above the epithelium)

<p>What is being pointed at? (It's the little strands of tissue above the epithelium)</p>
98
New cards

Alveolar duct

What is the area encircled in blue?

<p>What is the area encircled in blue?</p>
99
New cards

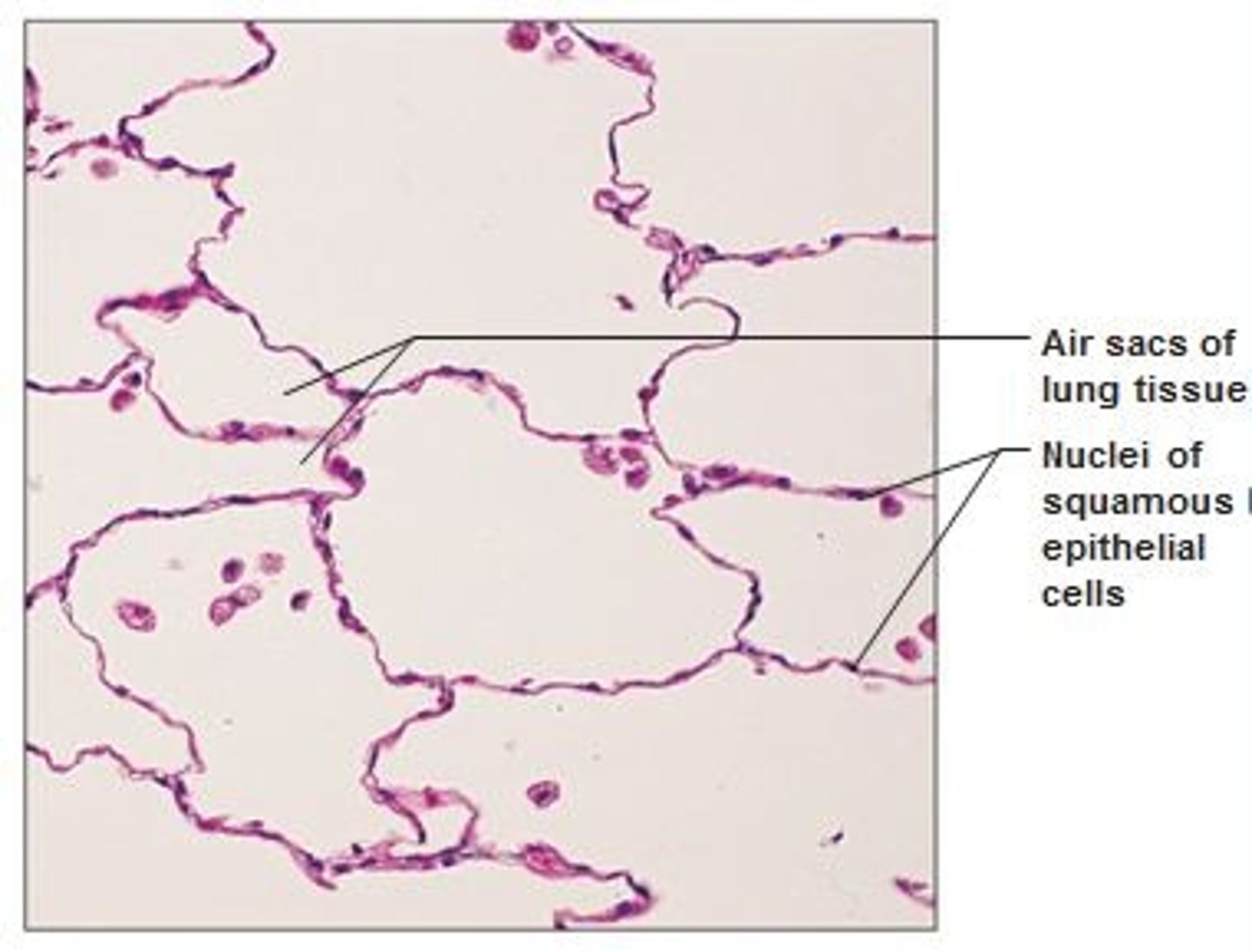

Simple squamous epithelium

What are type 1 pneumocytes made of?

<p>What are type 1 pneumocytes made of?</p>

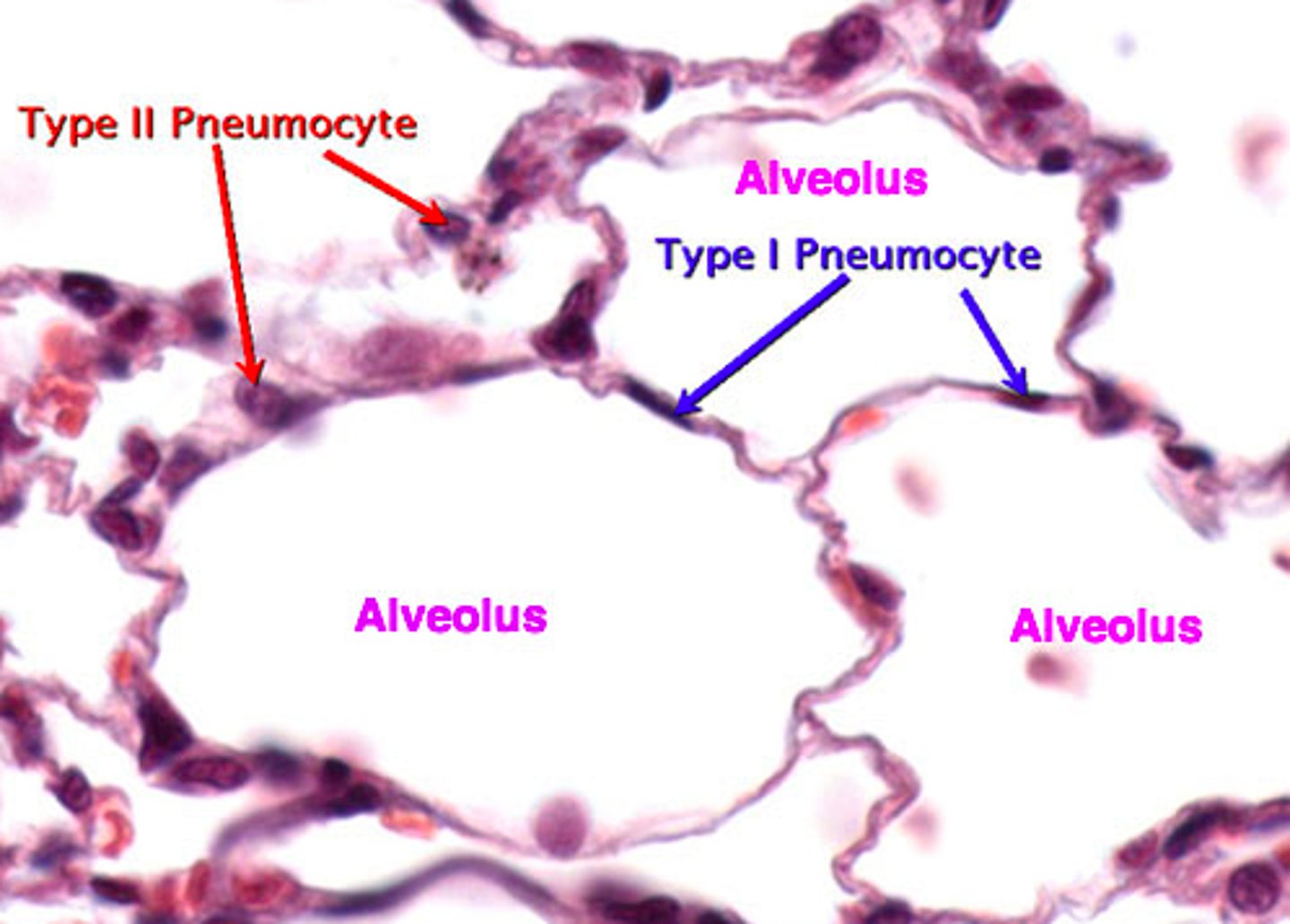

100
New cards

Type 1 Pneumocyte (Alveolar duct)

No possible better photo, this is a type 1 pneumocyte (Notice it's flat shape)

<p>No possible better photo, this is a type 1 pneumocyte (Notice it's flat shape)</p>
