1
New cards

Carbon

A semiconductor element that is mainly used in the production of resistors

2
New cards

Three valence electrons

The number of valence electrons of gallium

3
New cards

Five valence electrons

The number of valence electrons of arsenic

4
New cards

Ionization potential

This is the potential required to remove a valence electron from the atomic structure

5
New cards

IIIA, IVA, V

What groups do most semiconductors belong?

6
New cards

1.5×10 raised to 10

At room temperature there are approximately this value of free carriers in a 1 cm cube of intrinsic silicon

7
New cards

Intrinsic carriers

The free electrons in a material due only to external causes are referred to as

8
New cards

2.5×10 raised to 13

At room temperature there are approximately this value of free carriers in a 1 cm cube of intrinsic silicon material

9
New cards

Relative mobility

This is the ability of the free carriers to move throughout the material

10
New cards

Drift velocity

the average velocity at which free charge carriers move through a conductor because of an applied electric field.

11
New cards

Doping compensation

The addition of donor impurities to a P-type semiconductor or of acceptor impurities to an n- type semiconductor

12
New cards

Transistor, junction, diode, solid state device

These are electronic device devices, which operates by which of the movement of electrons within a solid piece of semiconductor material

13
New cards

It decreases with an increase in light intensity

In addition to rectifying properties, selenium has the pro of being light sensitive how is selenium resistance affected by light?

14
New cards

Czochralski Process

This is a method of crystal growth used to obtain single crystals of semiconductors

15
New cards

Higher

  • The farther an electron is from the nucleus, the ____ Is the energy state

  • It is farther

  • It has less attraction

  • It has less negative potential energy


16
New cards

The breaking of covalent bonds

What process takes place within the semiconductor to cause hole flow?

17
New cards

For high temperature and high power requirement of semiconductors, the material used is

Silicon carbide

18
New cards

The energy difference across the forbidden gap

What determines whether the assorted material with as a conductor semiconductor or an insulator?

19
New cards

Edison effect

The emission of electrons from hot bodies

20
New cards

Lossev effect

This is the radiation that results from the recombination of charge carriers injected in a PN or PIN Junction, which is biased in forward direction

21
New cards

10^12

At room temperature, an intrinsic silicon material will have about one free electron for every ___ atoms

22
New cards

Less than 100V - 400V max

This is the breakdown voltage of Germanium

23
New cards

Vt = kT/q

Thermal voltage formula

24
New cards

Intrinsic

A material which has an equal number of electron hole pairs and conducting electrons is known as what type of semiconductor material

25
New cards

Trivalent

The semiconductor doping impurities of arsenic, antimony and bismuth are classified as what type of impurities

26
New cards

Neutrally charged. This is because the holes in the electrons just allows current flow not make it charged

P-type germanium and n-type silicon is ___ charged.

27
New cards

Reverse saturation current

The current that exists under reverse bias condition

28
New cards

Open switch

A reversed bias diode is like a

29
New cards

1N

The part number for a diode will always begin with the prefix

30
New cards

1 PN Junction

The diode prefix 1N, the number one indicates

31
New cards

Photocells

Selenium works especially well in

32
New cards

2.5mV

In the forward, bias region, the characteristics of a silicon diode shifts to the left at a rate of this value per centigrade degree increase in temperature

33
New cards

10

In the reverse bias region, the reverse saturation current of a silicon diode doubles for every ____ degrees Celsius rise in temperature

34
New cards

higher

The lower the Q point of operation, the ___ is the AC resistance

35
New cards

Galena

Early semiconductor diets are made mostly of minerals like

36
New cards

0.2V

Silicon has a built-in potential of 0.7 V Germanium is 0.3 V while Schottky has

37
New cards

Avalanche diodes

These are diodes which operates in reverse breakdown voltage

38
New cards

6.2V

Avalanche diodes, has breakdowns of about

39
New cards

Esaki diode

Other name for tunnel diode

40
New cards

Quantum tunneling

Tunnel diode exhibits negative resistance, which is caused by

41
New cards

Trickle charging

This is when charging does not occur during the entire cycle, but only when the charging voltage is more than the voltage of the battery

42
New cards

Inductive kick

Trying to change the current, one inductive element took quickly may result in this which could damage surrounding elements

43
New cards

Snubber

One of the cheapest but most effective ways to protect the switching system is to place a capacitor called ___ across the coil

44
New cards

Decrease it

How does forward biasing affect junction resistance?

45
New cards

They move away from the junction

When the PN Junction die is reversed, biased what happens to the majority carriers

46
New cards

Zeroing

This is a process whereby an applied form of zero average value is changed to one that has a DC level.

47
New cards

Voltage regulator

Avalanche voltage is routinely exceeded when a PN junction acts as E

48
New cards

Barrier Junction

The placing of an impurity on a semiconductor of the opposite impurity and fusing the two together produce what type of semiconductor junction

49
New cards

Depletion region

After the junction combination process has reached equilibrium. What is the area that surrounds the junction called?

50
New cards

As mixers, as switches, as detectors

Signal diodes are used for which of the following purposes

51
New cards

CR3

This Alphanumeric code correctly identifies the diode, crystal rectifier number 3 in a circuit

52
New cards

Do not pry the diode from the circuit, do not use excessive heat to remove the diode, do not remove the dial from the circuit while voltage is applied

When replacing a diode in a circuit, which of the following safety precautions should you observe in removing the diode from the circuit?

53
New cards

Two equal voltages from one transformer

The purpose of a center tap in a transformer is to provide

54
New cards
term image

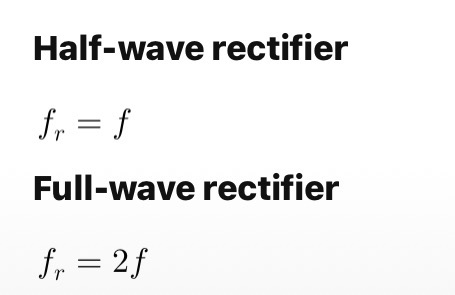

Ripple frequency formula

55
New cards

Vave = Vp / pi

Average voltage output of a halfwave rectifier

56
New cards

Vave = Vp*(2/pi)

Average voltage output of a full wave rectifier

57
New cards

RC capacitor input

What type of filter is the most basic power supply filter?

58
New cards

0%

In a voltage regulator, what percent of regulation would be ideal?

59
New cards

Either the load has infinite resistance or it is open

A no-load condition means that

60
New cards
<p></p>


Power supply percent of regulation formula

61
New cards

The peak value of the rectified voltage

The ideal DC output voltage of a capacitor input filter is equal to

62
New cards

r=Vrms(ripple)peaktopeakVdcr=\frac{Vrms(ripple)peak-to-peak}{Vdc}

Ripple factor formula

63
New cards

Vrip=IdcfC=(VdcppRload)fCVrip=\frac{Idc}{fC}=\frac{(\frac{Vdc-pp}{Rload})}{fC}

Ripple voltage formula

64
New cards

Changes in output, voltage, and input voltage

Line regulation is determined by

65
New cards

Changes in low current and output voltage

Low regulation is determined by

66
New cards

Temperature of operation

The zener potential of a zener diode is very sensitive to the

67
New cards

Zener effect

Which breakdown theory explains the action that takes place in a heavily dope PN junction with reverse bias below 5 V

68
New cards

Zener potential

The reverse breakdown voltage of a semiconductor diode will increase or decrease with temperature depending on the

69
New cards

More positive than the anode

The cathode of a Zener diode in a voltage regulator is normally

70
New cards

Zener breakdown

If a certain zener diode has a voltage of 3.6 V it operates in

71
New cards
<p>Change in Zener voltage divided by the change in Zener current</p>

Change in Zener voltage divided by the change in Zener current

Formula for the impedance of a Zener diode

72
New cards

It will increase

An increase in reverse bias of a varactor will have what effect on the width of the depletion region

73
New cards

It will decrease

What happens to the capacitance of a varactor diode as the reverse bias is increased

74
New cards

As a tuning device

In electronic circuits, how is the varactor used?

75
New cards

Reverse

What would a varactor be normally biased?

76
New cards

Ge and GaAs

What are the two materials used with tunnel diodes?

77
New cards

Tunnel / Esaki diodes

Is a heavily doped semiconductor p-n junction that uses quantum tunneling to let current flow at very low voltages. It shows negative resistance, meaning current drops as voltage rises.

78
New cards

No minority carries

What makes Schottky diodes high speed types?

79
New cards

A CMOS integrated circuit

Requires very little power to function

80
New cards

The phase of an applied ac signal

This is an unimportant factor concerning the frequency at which a PN Junction will work effectively

81
New cards

Can cause objectionable signal distortion

A diode audio limiter circuit

82
New cards

A microwave communications device

A Gunnplexer can be used as a

83
New cards

Gunnplexer

a compact microwave transceiver module that combines a Gunn diode oscillator (to generate a microwave signal) and a Schottky diode mixer (to receive signals) inside a single waveguide cavity.

84
New cards

Computer card readers, photographic light meters, optic scanning equipment

These are the uses of photodiodes

85
New cards

Photocell

This is the device which is similar in operation to a photodiode

86
New cards

Infrared

Diodes constructed of GaAs emit light in the ___ zone

87
New cards

Combination of Blue LED with yellow Scintillator Coat / combination of 3 LEDs

White LED is normally made of

88
New cards

Energy bandgap

The wavelength and frequency of light of a specific color are directly related to

89
New cards

Decreases with light intensity when reversed bias

The internal resistance of a photodiode

90
New cards

Optoisolator

Suppose you want a circuit to operate in a stable manner when the load impedance varies. you might consider a coupling method that employs

91
New cards

Electron energy level changes

Admission of energy in an IRED INFRARED EMITTING DIODE is caused by

92
New cards

Point contact

What term is used for a semiconductor that has three or more elements?

93
New cards

They generate less noise, they handle more power, they provide higher current and voltage gain

Junction transistors have replaced point contact transistors for the following reasons

94
New cards

This is the emitter in the type of transistor

In a schematic, what is indicated by the angular line with the arrowhead in the direction of the arrow

95
New cards

Five

GaAs transistor has _____ times the operating speed of silicon Si

96
New cards

Passivating

What is the layer which protects junctions in transistors called?

97
New cards

Overlay

What is the name of the type of high frequency transistors

98
New cards

0.92 - 0.998

Alpha typically extends from this range of values

99
New cards

AC alpha

This is formally called the common base, short circuit, amplification factor

100
New cards

50-400

Beta typically extent from about this range, but mostly in the mid range
