16 Terms

1
New cards
<p>3200-3600</p>

3200-3600

alcohol O-H stretch

2
New cards
<p>2500-3500</p>

2500-3500

carboxylic acid OH

3
New cards
<p>3300 sharp </p>

3300 sharp

2 peaks its NH and one peak its NH2

4
New cards

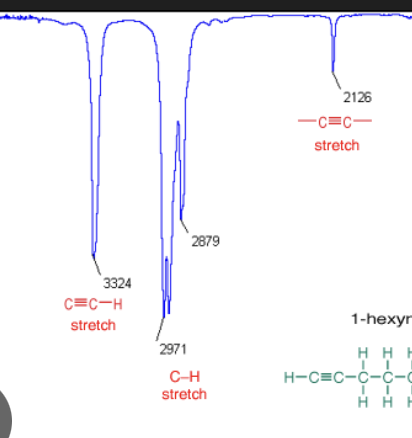

<p>3300 cm sharp and 2100-2260 cm</p>

3300 cm sharp and 2100-2260 cm

alkyne carbon to hydrogen

5
New cards

2850-2960

alkane C-H stretch

6
New cards

3030

aromatic C-H stretch

7
New cards

1600 and 1500 two peaks

aromatic ring C=C stretches

8
New cards

2100-2500 sharp

Ctriple bond N

9
New cards

2100-2500 weak

C triple bond C

10
New cards

1735 (1730-1750)

ester C=O stretch

11
New cards

1715

ketone CO stretch

12
New cards

1720-1740

aldehyde CO stretch

13
New cards

1710

carboxylic acid CO stretch

14
New cards

1650

C=C stretch

15
New cards

1000-1300

C-O stretch

16
New cards

600-900

aromatic CH
