16 Terms

1
New cards

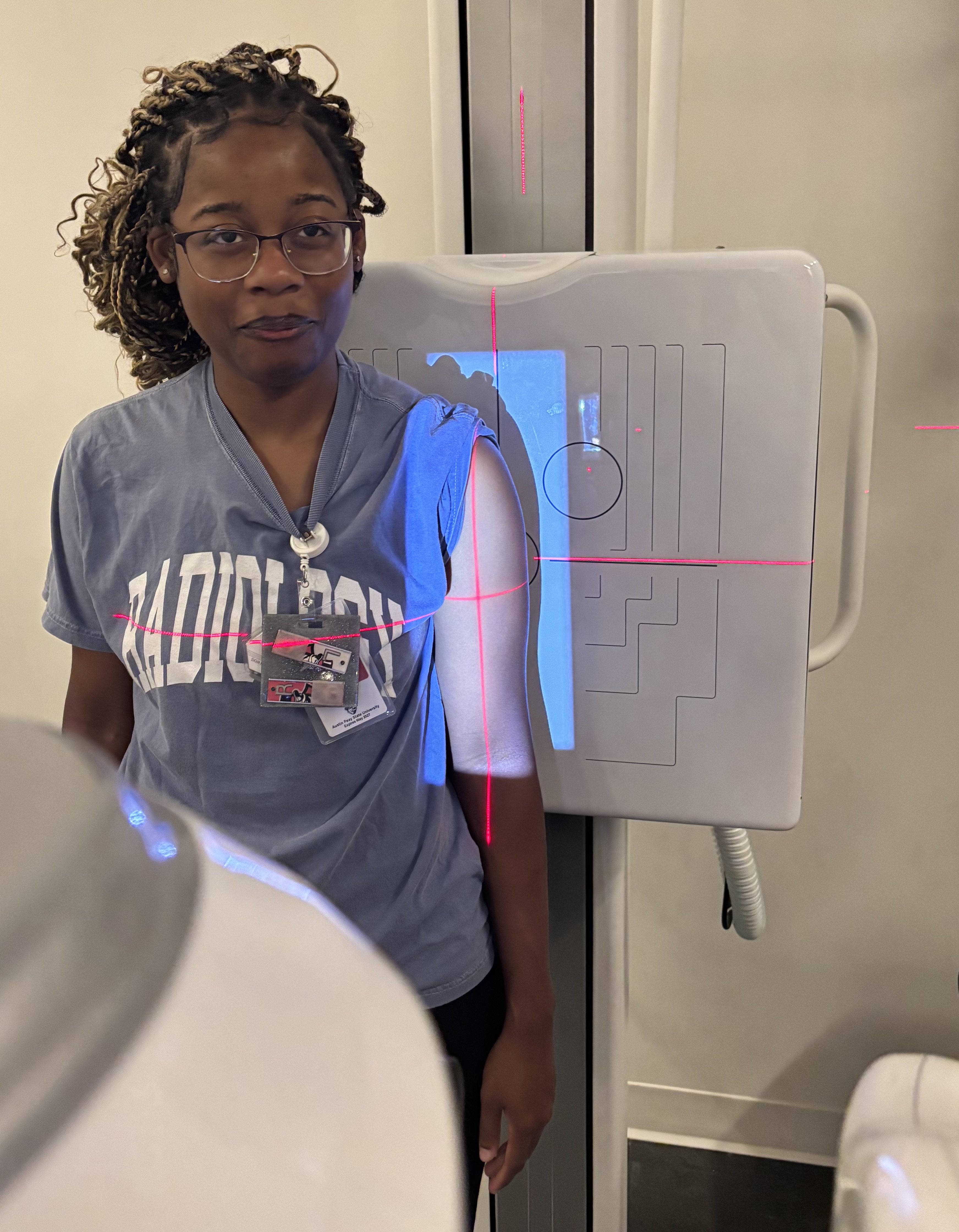

<p><span><strong>Humerus (Non-Trauma)</strong></span></p>

Humerus (Non-Trauma)

AP External

• kVp: 70

• mAs: 12–15

• SID: 40

• CR: Midpoint of humerus

• Epicondyles parallel

• Breathing: Suspend

2
New cards

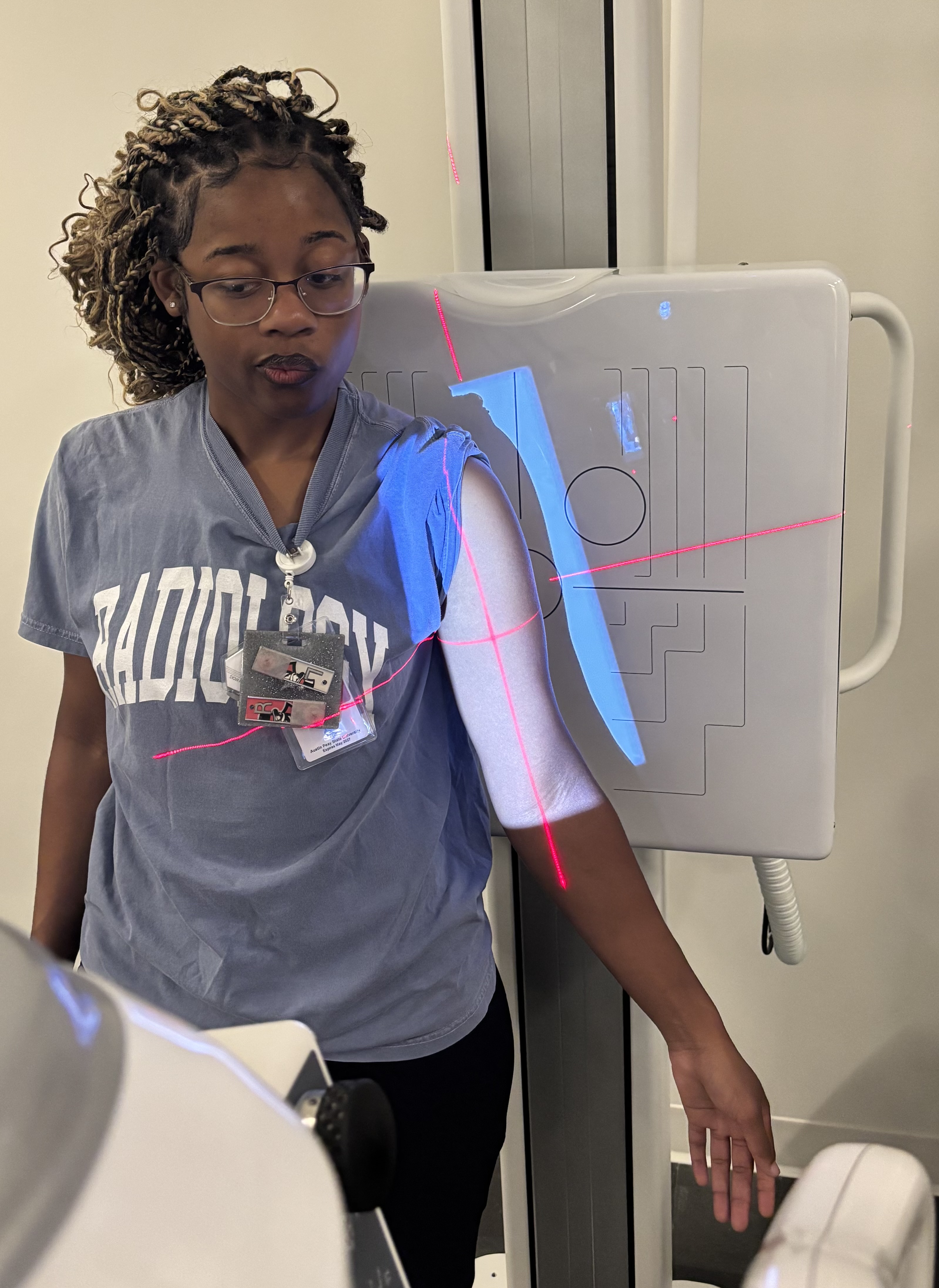

<p><span><strong>Humerus (Non-Trauma)</strong></span></p>

Humerus (Non-Trauma)

AP Internal

• kVp: 70

• mAs: 12–15

• SID: 40

• CR: Midpoint of humerus

• Epicondyles perpendicular

• Breathing: Suspend

3
New cards

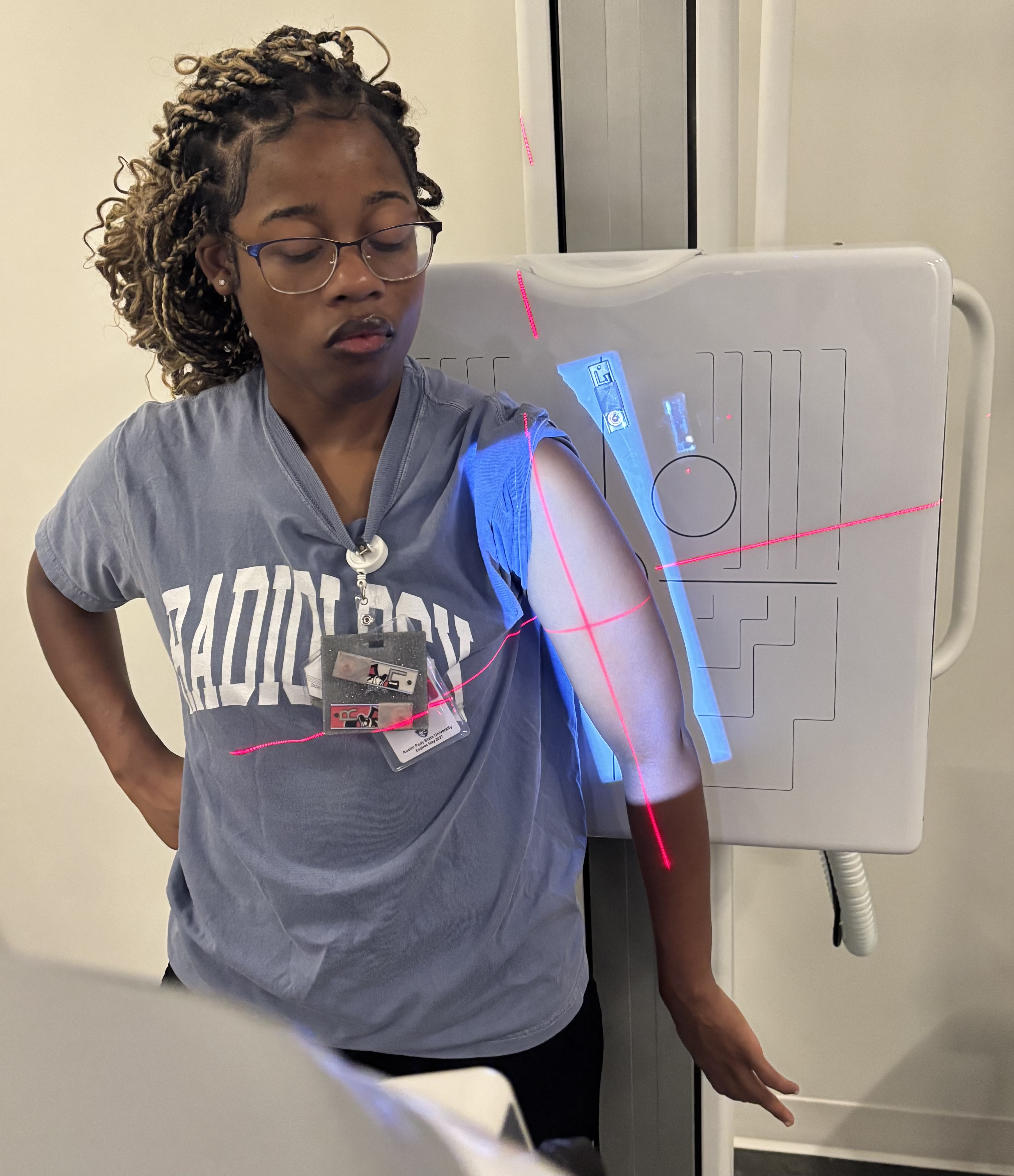

<p><strong>Humerus (Trauma)</strong></p>

Humerus (Trauma)

AP Neutral

• kVp: 70

• mAs: 12–15

• SID: 40

• CR: Midpoint of humerus

• Epicondyles at 45°

• Breathing: Suspend

4
New cards

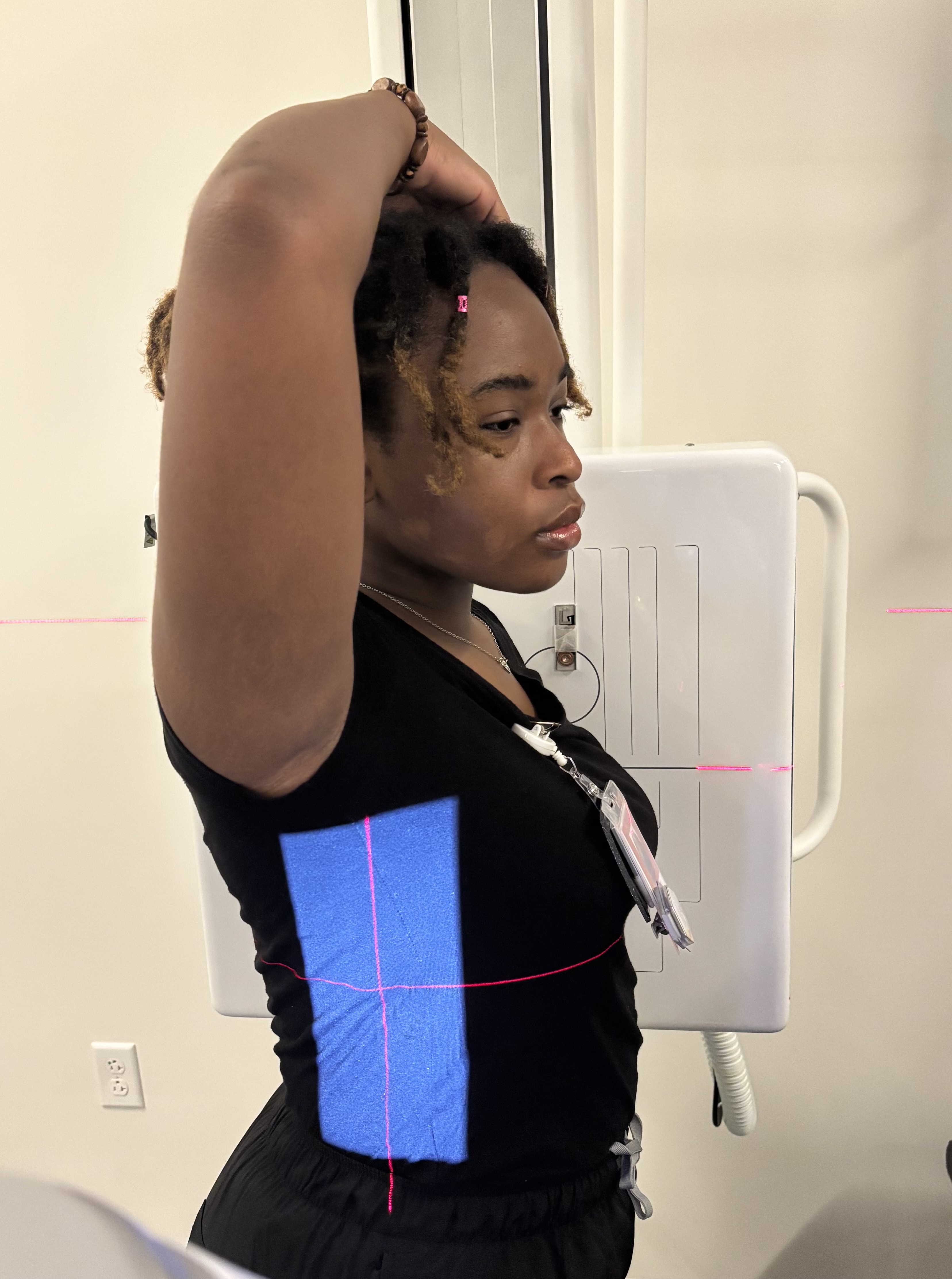

<p><strong>Humerus (Trauma)</strong></p>

Humerus (Trauma)

Trans-thoracic Lateral Humerus

• kVp: 70

• mAs: 12–15

• SID: 40

• CR: Mid-diaphysis

• Affected arm against board, non-affected arm above head

• Breathing: Orthostatic

5
New cards
<p><strong>Shoulder Routine (Non-Trauma)</strong></p>

Shoulder Routine (Non-Trauma)

AP Internal

• kVp: 70

• mAs: 16–20

• SID: 40

• CR: 1 in. below coracoid process

• Epicondyles perpendicular

• Breathing: Suspend

6
New cards
<p><strong>Shoulder Routine (Non-Trauma)</strong></p>

Shoulder Routine (Non-Trauma)

AP External

• kVp: 70

• mAs: 16–20

• SID: 40

• CR: 1 in. below coracoid process

• Epicondyles parallel

• Breathing: Suspend

7
New cards

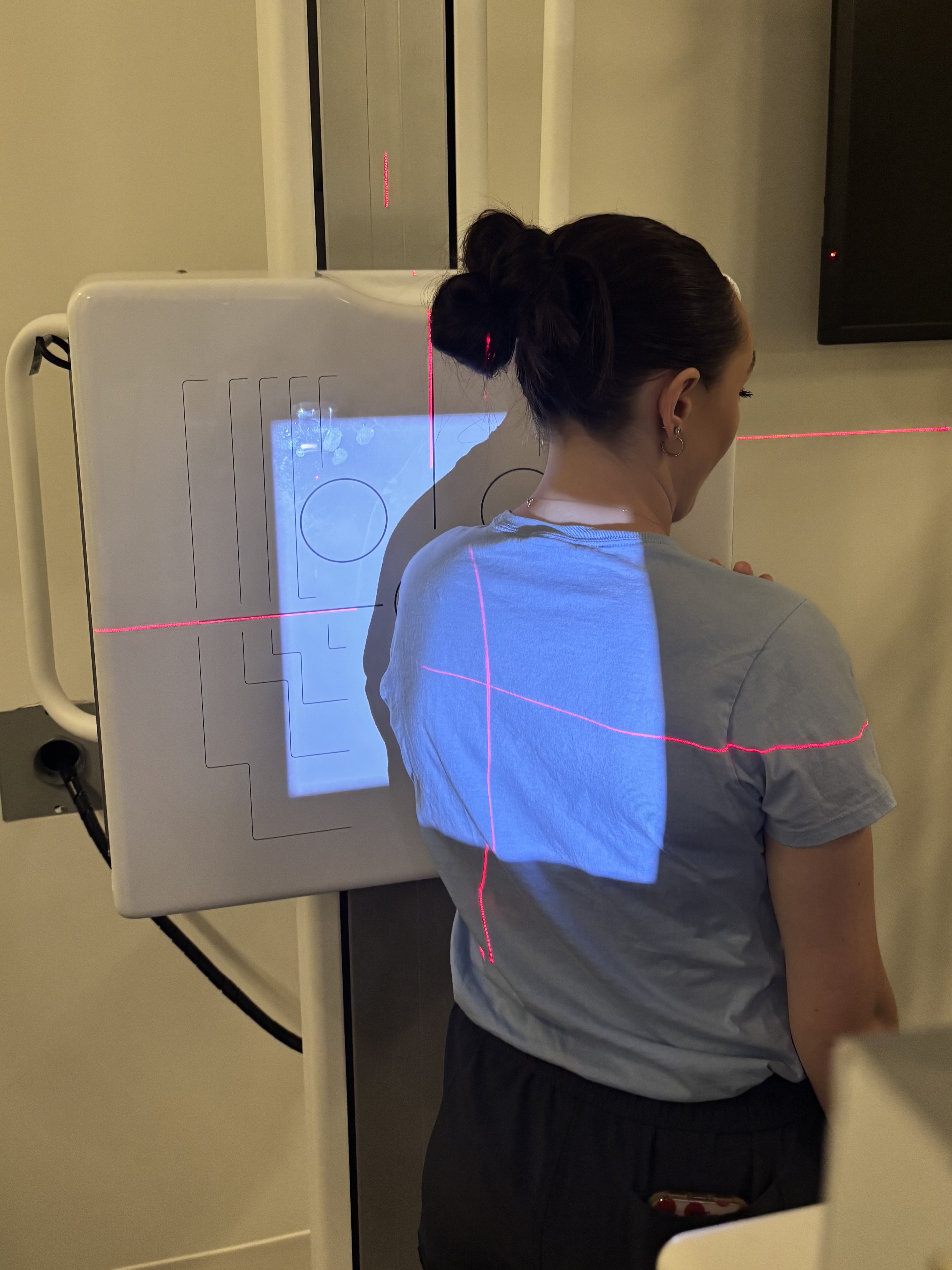

<p><strong>Shoulder Routine (Non-Trauma)</strong></p>

Shoulder Routine (Non-Trauma)

Scapular Y View

• kVp: 70

• mAs: 20–25

• SID: 40

• CR: Mid-vertebral border of scapula

• Affected shoulder toward IR, opposite shoulder rotated away

• Breathing: Suspend

8
New cards

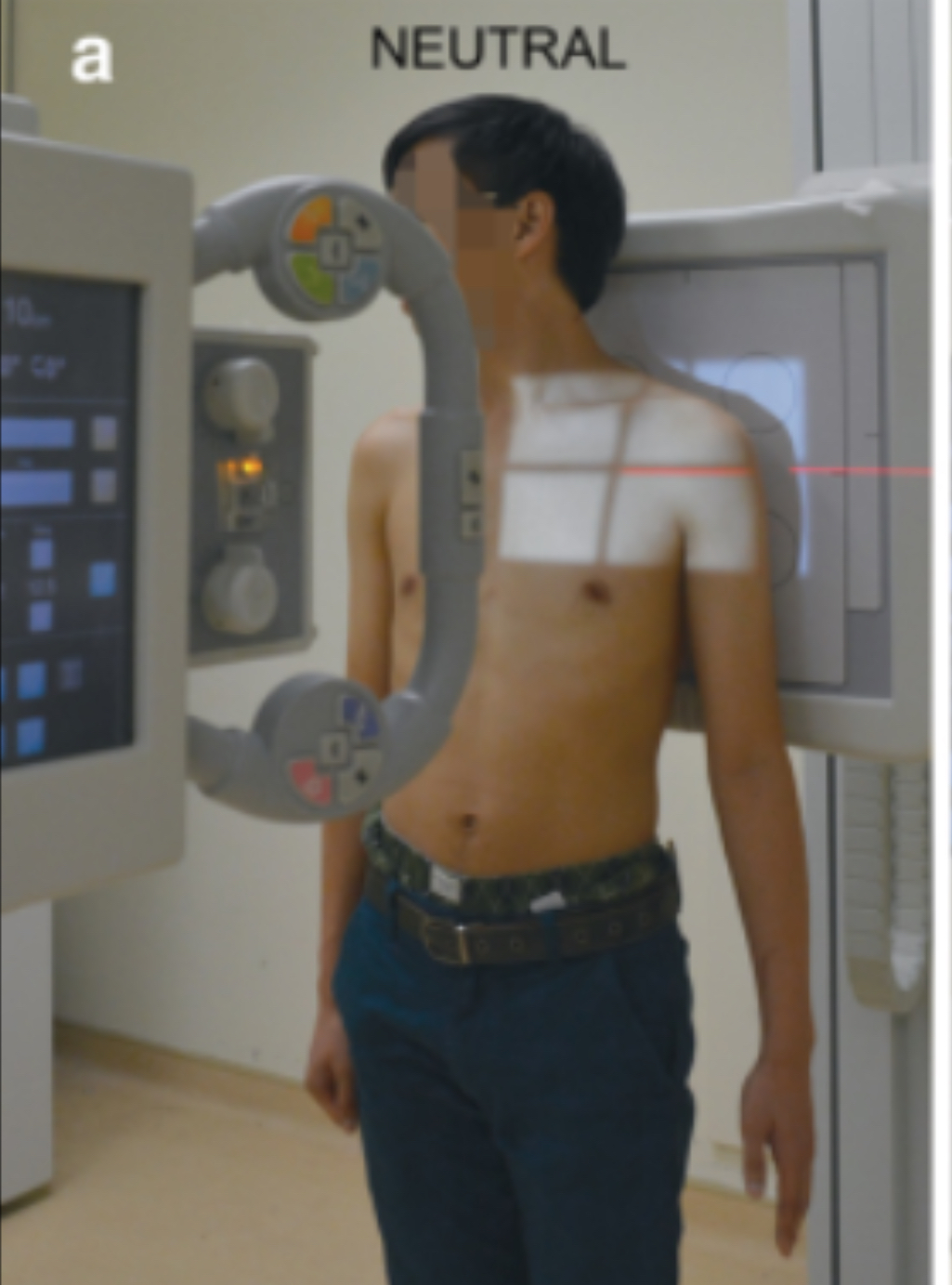

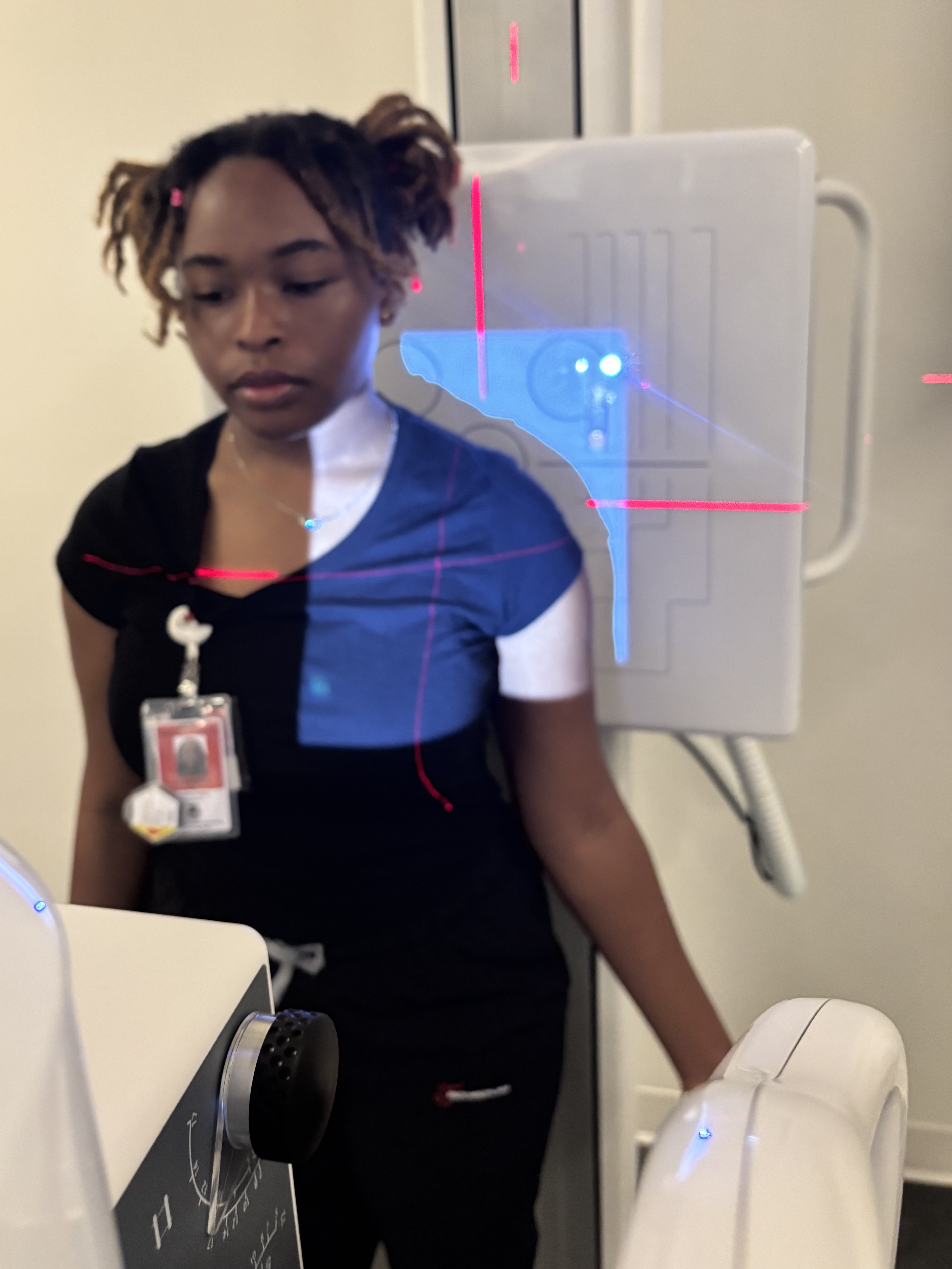

<p><strong>Shoulder (Trauma)</strong></p>

Shoulder (Trauma)

AP Neutral

• kVp: 70

• mAs: 16–20

• SID: 40

• CR: 1 in. below coracoid process

• Breathing: Suspend

9
New cards
<p><strong>Shoulder (Trauma)</strong></p>

Shoulder (Trauma)

Trans-thoracic, Proximal Humerus

• kVp: 70

• mAs: 16–20

• SID: 40

• CR: Surgical neck

• Affected arm against board, other arm raised

• Breathing: Orthostatic

10
New cards

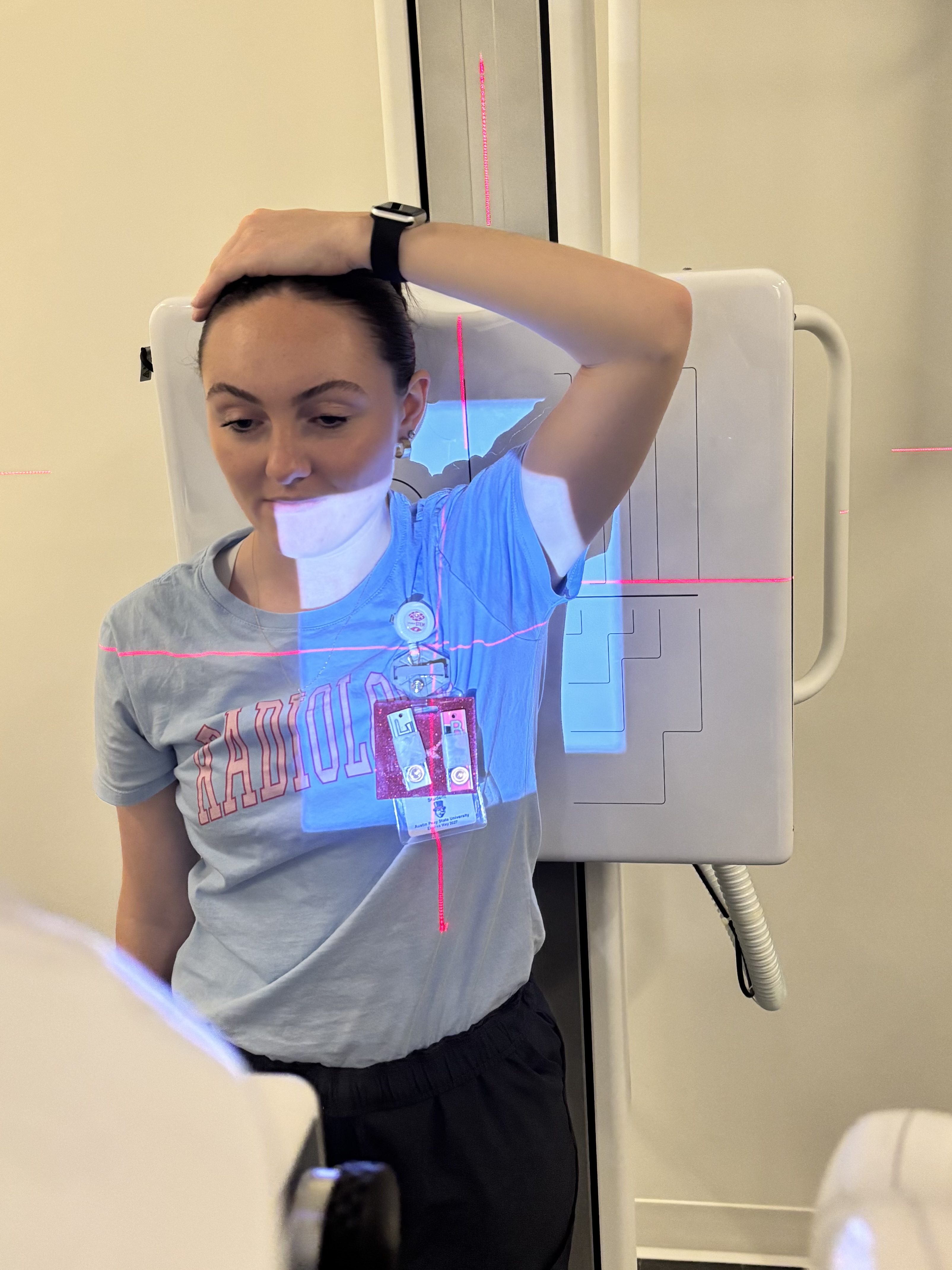

<p><strong>Scapula</strong></p>

Scapula

AP

• kVp: 70

• mAs: 16–20

• SID: 40

• CR: 2 in. below coracoid process

• Affected arm above head

• Breathing: Orthostatic

11
New cards

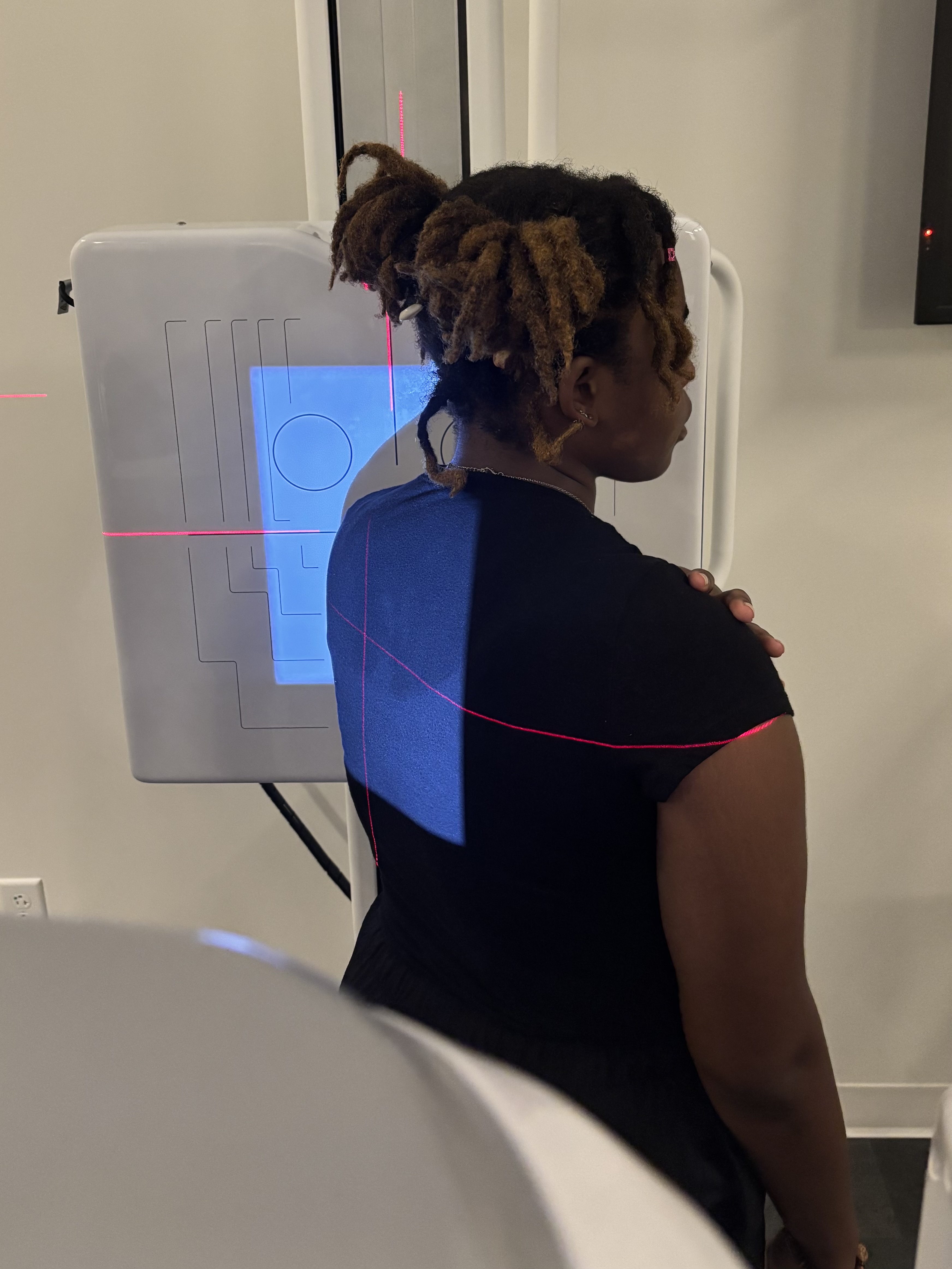

<p>Scapula</p>

Scapula

Lateral (Scap Y)

• kVp: 70

• mAs: 20-25

• SID: 40

• CR: Mid-vertebral border of scapula

• Affected arm holds opposite shoulder

• Breathing: Suspend

12
New cards

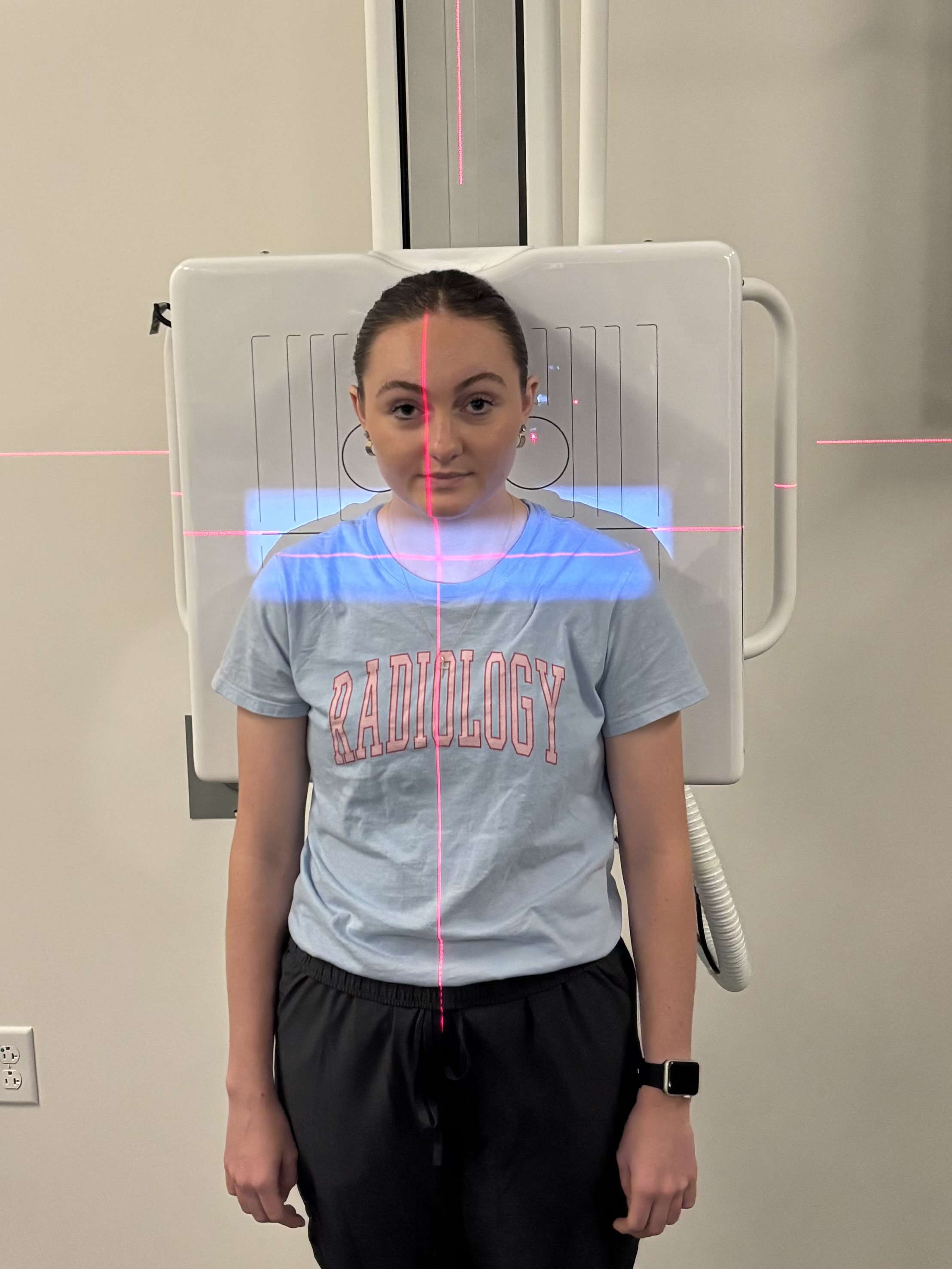

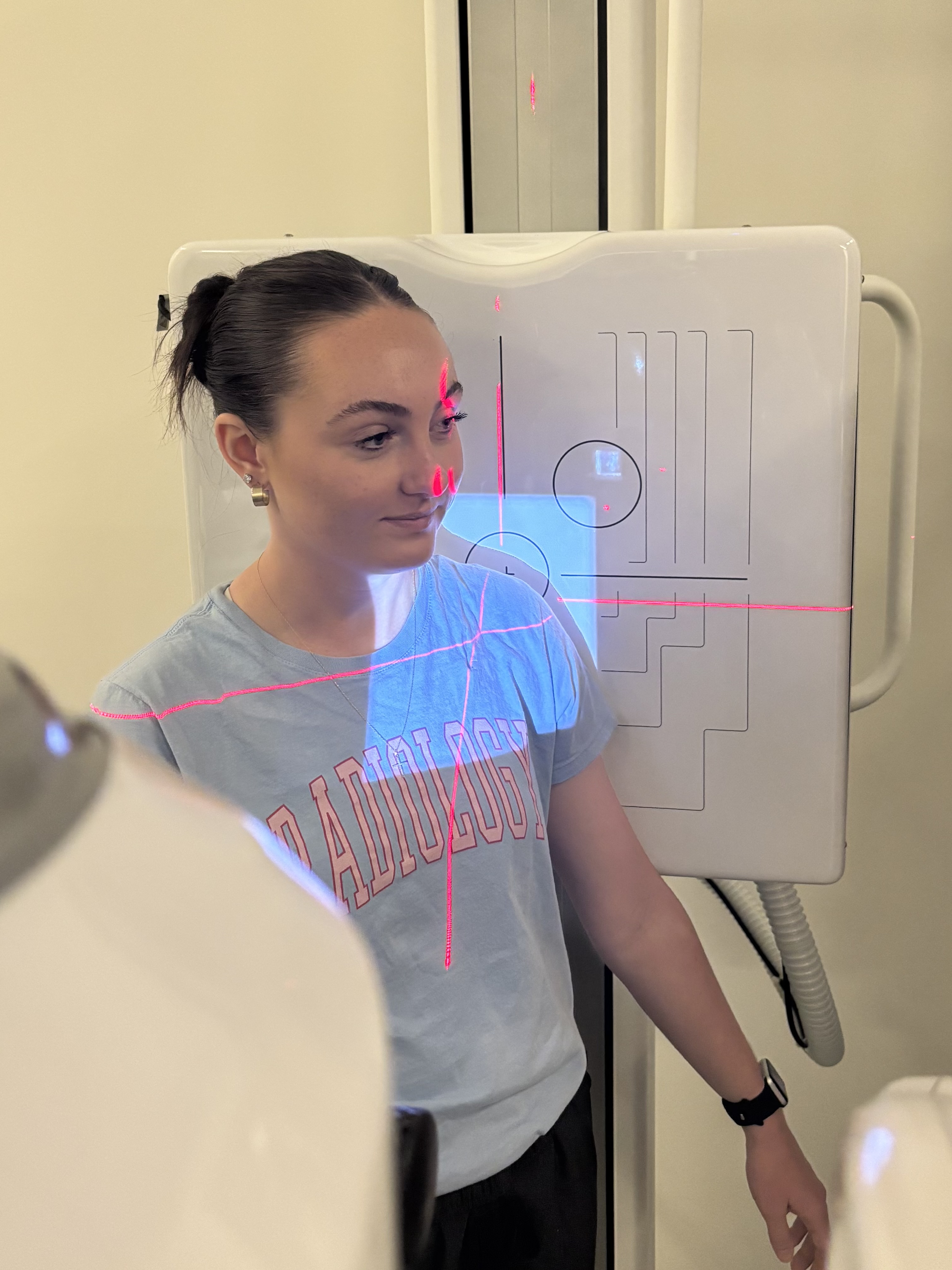

<p>Clavicle </p>

Clavicle

AP

• kVp: 70

• mAs: 12–15

• SID: 40

• CR: Mid-clavicle

• Breathing: Suspend

13
New cards
<p>Clavicle </p>

Clavicle

AP Axial

• kVp: 70

• mAs: 12–15

• SID: 40

• CR: 15° cephalad

• Breathing: Suspend

14
New cards
<p>AC joints </p>

AC joints

Bilateral with & without weights

• kVp: 70

• mAs: 16–20

• SID: 72

• CR: Midpoint between AC joints

• Breathing: Suspend

15
New cards
<p><strong>Shoulder Special View</strong></p>

Shoulder Special View

AP Internal

• kVp: 70

• mAs: 16–20

• SID: 40

• CR: 1 in. below coracoid process

• Epicondyles perpendicular

• Breathing: Suspend

16
New cards
<p><strong>Shoulder Special View</strong></p>

Shoulder Special View

Grashey Method

• kVp: 70

• mAs: 16–20

• SID: 40

• CR: Scapulohumeral joint

• Body: AP, rotated 35–45° oblique

• Breathing: Suspend
