Interior Design Final

BYU WIN-25

Elevation View

Front or side view of the structure

Floor Plan

View of the Layout of the structure with no Furniture

Furniture Plan

View of the Layout of the structure with Furniture

In the Floor or Furniture Plan what do the Dashed Lines Mean

Something above the cutting plane

Section Plan

Shows a cut through the Structure

True Or False

Dimensions are labeled as such

Feet’ - Inches”

True

True Or False

Measurements should be labeled Above the sketch of the structure

False

True Or False

The Measurements/Dimensions are placed on top of the Lines, not through it.

True

Do the tick marks on the plan lean to the Right “/“ or to the Left “\“?

To the Right “/”

True or False?

The right of the Plan Sketch can also be labeled with dimension that can be seen right side up when rotating it 90 deg, CCW

True

True or False?

The point end of the Trangle is where the hinge is. (Rotates around that Point)

True

What is the residential Plan Scaling?

1/4” = 1’ - 0”

What is the commercial Plan Scaling?

1/8” = 1’ - 0”

What does this symbol indicate

Highlight POV of elevation Views

Where is the Page number usually located in the Title Block?

Consistently on the bottom right

What is the wall standard thickness (width) of the interior?

Walls 4”

What is the wall standard thickness (width) of a exterior wall when designing?

Walls 6”

What is this symbol?

Elevator

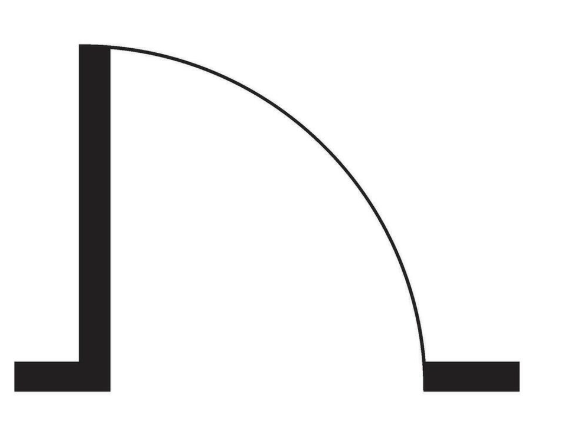

What is this symbol?

Door

What is this symbol?

Toilet

What is this symbol?

Shower

What is this symbol?

Sink

What is this symbol?

Window

Proxemics - What is the distance for intimate Convo?

<1’ - 6”

Proxemics - What is the distance for Personal Convo?

1’ - 6” to 4’ - 00”

Proxemics - What is the distance for Social Convo?

4’ to 12’

Proxemics - What is the distance for Public Convo?

12’ <

What is a Stair Riser Max Height?

7 3/4”

What is the max difference between steps on stairs?

3/8”

What is the minimum tread width of a step on stairs?

10”

Where do the Smoke Detectors have to be located?

Sleeping rooms, outside of sleeping rooms, and one on each floor, should all be connected

Where should the CO detector be located?

Outside of every sleeping room

What is the minimum size for a residential room

At least one 7’ tall on one side and 120 sq ft total

How wide do hallways and stairs need to be?

36”

At least one door in the house excluding the Garage has to be ____ wide.

32”

What is the 4” diameter Sphere used for

Safety for baby heads

What is the hand Rail height in stairs?

36”

How big does the area of a window have to be?

9 ft sq

True or False?

All rooms should not have an exit that is not through the main entrance.

False

What is the front clearance for a toilet

21”

How big does a shower have to be (B * W)

30 in sq

When does a model code become law?

When the city adopts it.

What kind of stone design is this?

Ashlar

What is the Ashlar stone design?

Cut stones that are fit together

What kind of stone design is this?

Fieldstone

What is the Fieldstone stone design?

Rocks put togethor that you found in the field (Usually more round)

What is the most common brick pattern

Running Bond

What is 1/3 Running Bond

Offset by 1/3

What type of Brick bond is this?

Running Bond

What type of Brick bond is this?

Common Bond

Which type of bond has a row of Headers

Common Bond

What type of Brick bond is this?

Flemish Bond

Which Type of Brick design is the strongest?

Flemish Bond

Which is the weakest and ugliest brick design

Stack Bond

What type of Brick bond is this?

Stack Bond

What type of stone is this? (veiny and Cracked)

Marble

What type of stone is this? (Salt and pepper)

Granite

What type of stone is this? (Sedimentary and rough)

Limestone

What type of stone is this? (has bubbles)

Traverstine

What type of stone is this?(Thin)

Flagstone

What is this?

Pelmet valance

What is this?

Cornice

What is this?

Jabot

What is this?

Cascade

What is this?

Festoon / Swag

Soft or Hard?

Drapers?

Soft

Soft or Hard?

Cornices

Hard

How is glass strengthened?

Its cooled fast and laminated

True Or False?

IF you paint a color on the floor, it will look brighter than if it is on the wall

True

Where is gloss used?

Somewhere that can be messy

Flat finish

Good at hiding the bumpiness, but picks up imperfections easily

Satin Finish

Inbetween gloss and matte

Solvent

All it does is spread the color over the wall

What carpet is the most environmentally friendly (and fire-resistant)

Wool

What carpet is the least environmentally friendly (but most durable)

Nylon

What carpet has cornstarch, pretty environmentally friendly

Sorona/Triexta

What Carpet is Easily recycled, soft

Polyester

What carpet has low melting pt, dyes well

Olefin

What Carpet is used in a classroom, stiff (they all start as loop and sometimes get cut)

Loop

So twisted they fall over

Frieze

Some Soft, some Looped

Random Tip Shear

What is the standard carpet wdith

12’

What does this symbol represent?

Flammability

What does this symbol represent?

Wet and Dry Crocking

What does this symbol represent?

Colorfastness to light

What does this symbol represent?

Physical Properties

What does this symbol represent?

Abrasion General

What does this symbol represent?

Abrasion Heavy Duty

What is a C.O.M.

Customer’s Own Material: Bring Your Own Fabric

anything plastic-y

Man made

from plants (cotton, bamboo, linen (flax), hemp, jute)

Cellulosic

from animals (wool, silk, alpaca, cashmere)

Protein

Know stone finishes – Flamed, Gloss, Honed, Natural / Cleft

Flamed

Rough

Know stone finishes – Flamed, Gloss, Honed, Natural / Cleft

Honed

Smooth but Shiny

Know stone finishes – Flamed, Gloss, Honed, Natural / Cleft

Polished

Gloss

Know stone finishes – Flamed, Gloss, Honed, Natural / Cleft

Natural / Cleft

Natural ridges

wood pulp, gets harder over time, durable

Linoleum:

(needs to air out for humidity)

Bamboo

vinyl resin, plasticizer

VCT (12”x12”)

very thin, so liquids won’t seep through

Sheet vinyl:
