RPC ( Remote procedure call )

What is the full form of RPC

Remote procedure call

What do you mean by procedure call ?

It means a calling a program which is present somewhere else

What are the other name of procedural call?

Function call or Subroutine call

What is RPC?

• It is a protocol in which one program can request a service from program which is located in different computer on a network without understanding the network details

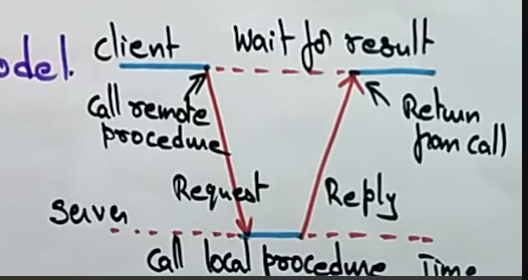

• RPC uses client server model

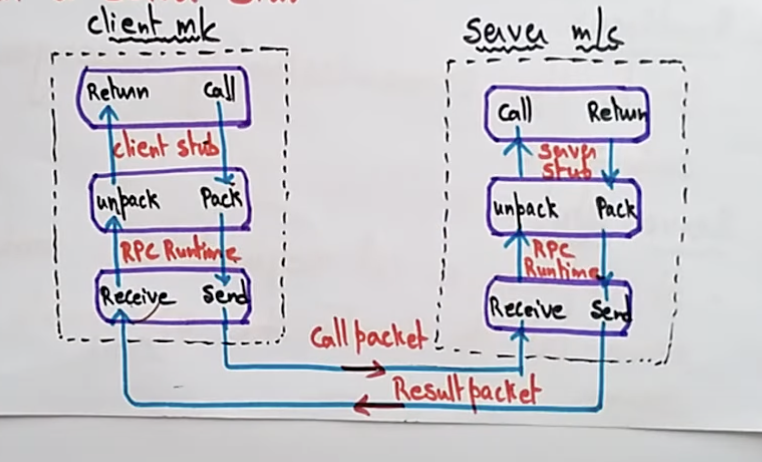

What are the elements of RPC?

1. The client : The one who initiates the process of RPC

2. The client Stub :
   The work of Client Stub is to packs and unpacks the message which contain the requirements.
   - Once pack send it to RPC runtime

   - Unpack when got from RPC runtime

   - Sends to RPC runtime through local OS

3. The RPC run time : It is a Package which is reponsible for sending message between client and server
   - Sends to server through Remote OS

4. The server stub : The work of Server Stub is to packs and unpacks the message which contain the requirements.
   - Once pack send it to RPC runtime

   - Unpack when got from RPC runtime

5. The server

Stub: It is a piece of code which converts parameters into the formate which is acceptable to send in the network
(1,2) at sender side

(4,5) at reciver side

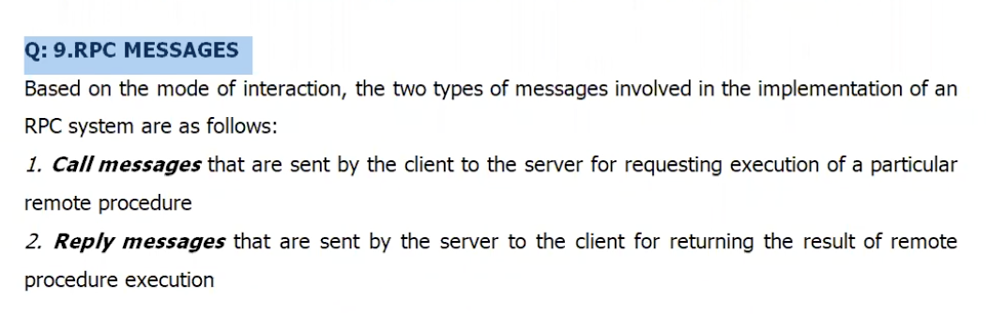

What is RPC message?

It is a message which travel between client and receiver using RPC

It contain two things :

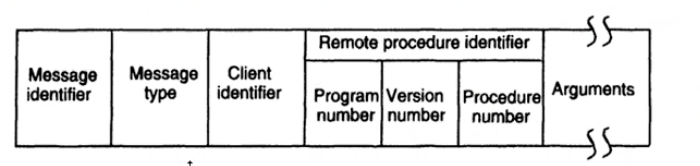

1. Call Packet: It gets generated by client side using remote OS which contain procedure name , parameters and meta data.

2. Result Packet : It gets generated by server side using remote OS which contain result of execution or error

What is stub generation ?

Stub can be generated in two ways:

1. Manually: In this implementer provides a set of transaction function by which user can make their own stub

2. Automatically: The most common way for stub generation , It uses IDL (interface defining language) that is used to define the interface between client and server
