Drone Licensure

What is a drone?

An aircraft operated without the possibility of direct human intervention from within or on the aircraft

Small Unmanned Aircraft weighs how much

55 Pounds

Small unmanned Aircarft system

Technical term for a drone meaning the entire system require for safe use of the aircraft

How does the military use the drone

For surveillance and offensive strikes

How do hobbyist use the drone

For Fun

How do Farmers use the drone

To survey their fields and deliver pesticides and fertilizers and to monitor livestock

How do Photographers and videographers use Drones

To capture stunning footage and stills from different angles

How does the architecture and construction fields use drones

for documenting existing conditions and construction administration/inspection

What are propellers used for

They allow the drone to fly. Their rotational speed determine how fast and high the drone goes

How does a drone propeller know when to turn

By making one set of propellers spin faster than the other

What is the gimbals job on a drone

It allows for more stable footage and control over where the camera is pointing

The mavic pro is a 3 axis gimbal which means

It can rotate the camera up and down, left and right, and from side to side

What does the LED Indicators of a drone do?

Some tell you what side of front of the drone and others tell you the status of the drone and the amount of charge is left in the battery

Control Sticks

Used to control movement of the drone

Shutter and record Buttons

Use to quickly take a picture or stand and stop recording a video

Camera settings dial

Adjusts the brightness of the photo or video you are about to take

Spinning the Gimbal dial to the left tilts the camera

so it looks up

Spinning the gimbal dial to the left tells the drone

to look down

When a control tower, located on an airport within Class D airspace, ceases operation for the day, what happens to the airspace designation?

The airspace reverts to Class E or a combination of Class E and G airspace during the hours the tower is not in operation.

What is the relationship of lift, drag, thrust, and weight when the airplane is in straight-and-level flight?

Lift equals weight and thrust equals drag.

You are approaching an obstacle that is 800 feet above the ground. Under Part 107, can you legally fly over this obstacle?

Yes, if you are within 400 feet of the obstacle and fly at or below 1200 feet AGL.

To avoid a near midair collision (NMAC) with a manned airplane, you estimate that your small UA climbed to an altitude greater than 400 feet AGL. To whom must you submit a written report of the deviation?

The Federal Aviation Administration, if requested.

A public unmanned aircraft system (UAS)

is a UAS owned or operated by a federal, state, or local government agency.

According to 14 CFR part 107, what is required to operate a small UA within 30 minutes after official sunset?

Use of anti-collision lights.

What is density altitude?

The pressure altitude corrected for non-standard temperature.

Which statement about longitude and latitude is true?

Lines of longitude cross the Equator at right angles.

What are the standard temperature and pressure values for sea level?

15 °C and 29.92 inches Hg.

A person whose sole task is watching the sUAS to report hazards to the rest of the crew is called:

Visual observer.

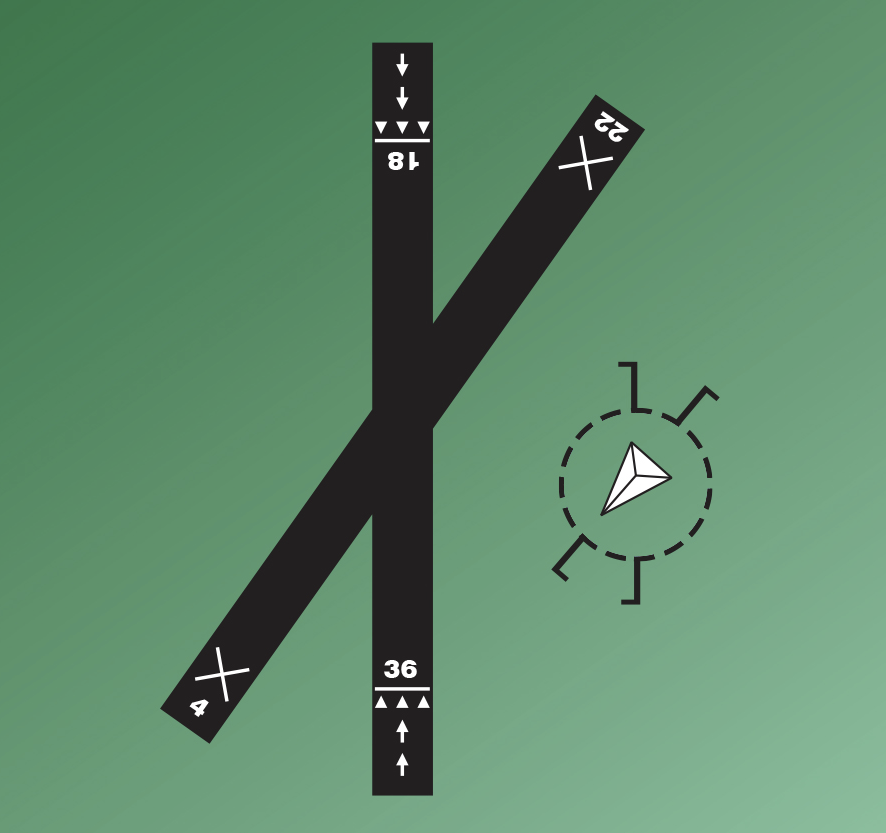

(Refer to Figure 49.) Select the proper traffic pattern and runway for landing.

Right-hand traffic and Runway 18.

The typical uncharted outer radius limits of Class C airspace are normally

20 nautical miles.

The recommended entry position to an airport traffic pattern is

to enter 45° at the midpoint of the downwind leg at traffic pattern altitude.

You are conducting sUAS operations just north of an airport when ATC instructs you to remain clear of final for runway 9. You

can continue your operations.

The numbers 8 and 26 on the approach ends of the runway indicate that the runway is orientated approximately

080° and 260° magnetic.

Possible mountain wave turbulence could be anticipated when winds of 40 knots or greater blow

across a mountain ridge, and the air is stable.

What effect does oxygen have on night vision?

As altitude increases, the available oxygen decreases, degrading night vision.

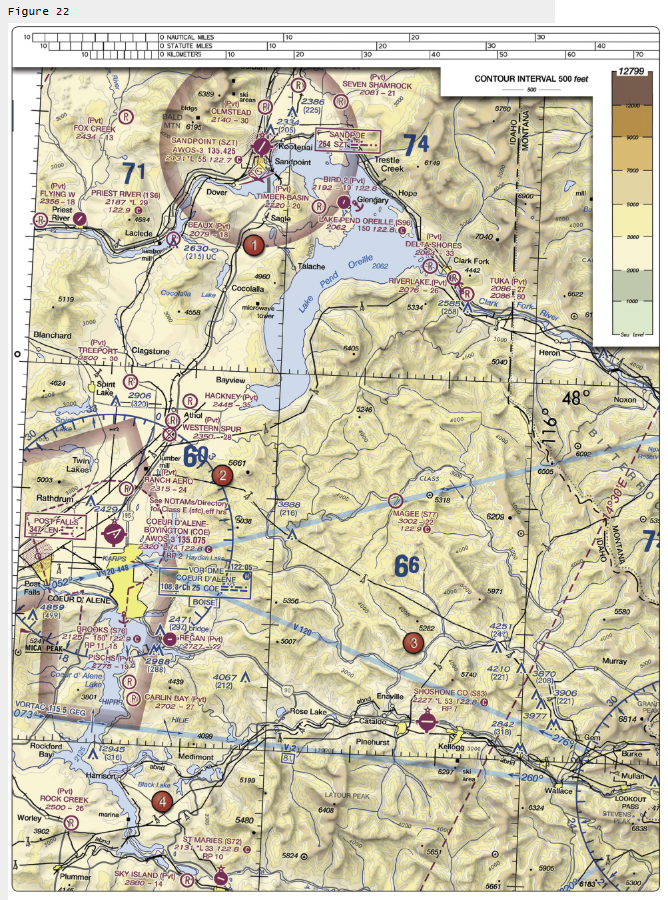

The vertical limits of that portion of Class E airspace designated as a Federal Airway over Magee Airport are

1,200 feet AGL to 17,999 feet MSL.

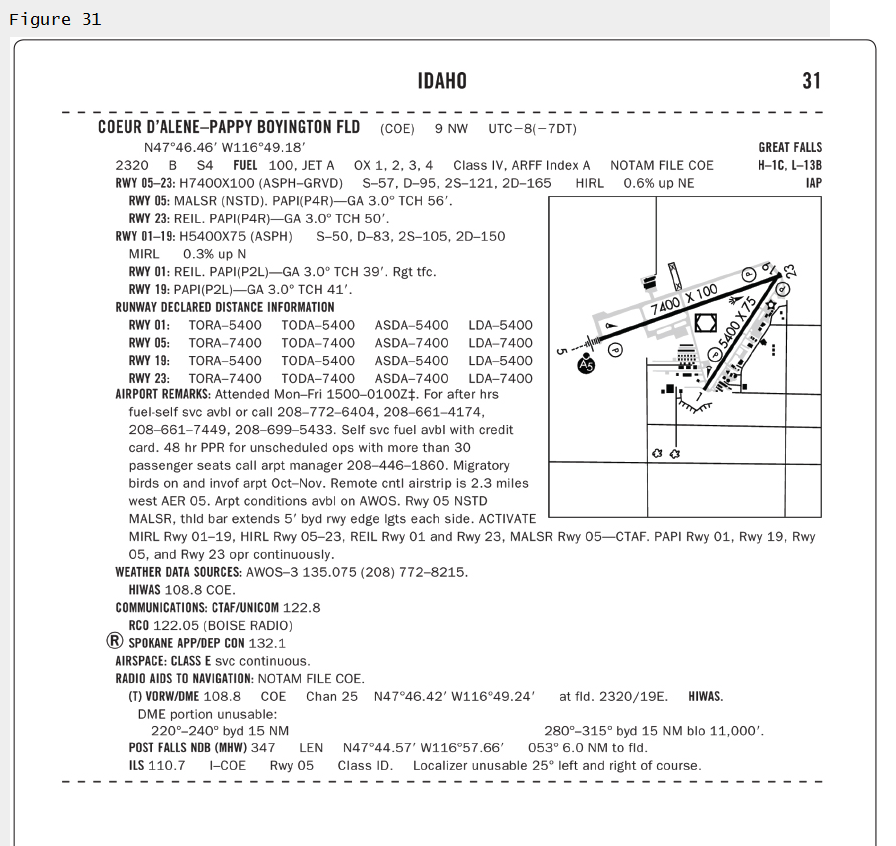

(Refer to Figure 22, area 2; and Figure 31.) At Coeur d'Alene, which frequency should be used as a Common Traffic Advisory Frequency (CTAF) to monitor airport traffic?

122.8 MHz.

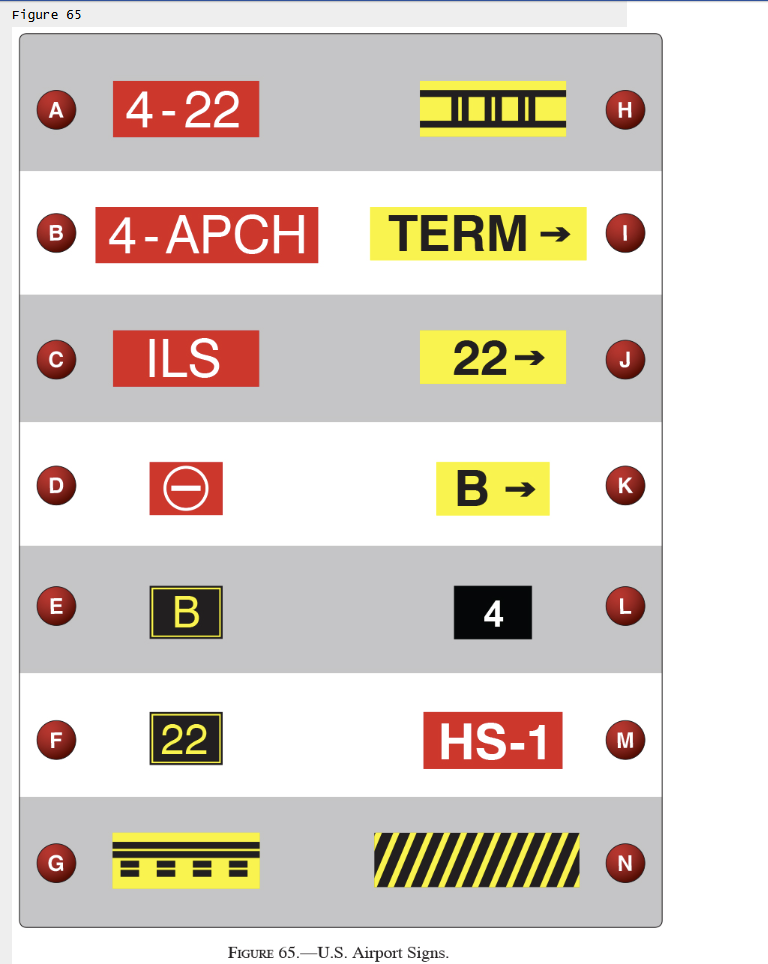

The red symbol at sign D would most likely be found

at an intersection where a roadway may be mistaken as a taxiway.

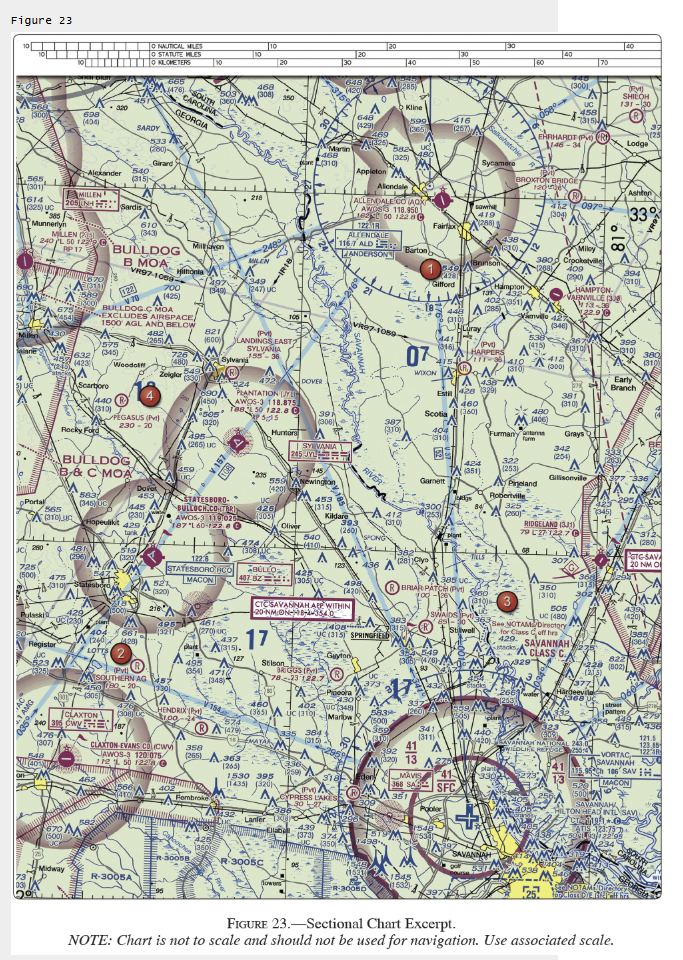

You have been hired to inspect a farm 3 miles west of Hilton Head Airport, in what type of airspace will you be operating?

Class C

An ATC radar facility issues the following advisory to a pilot during a local flight:

"TRAFFIC 2 O'CLOCK, 5 MILES, NORTHBOUND..."

Where should the pilot look for this traffic?

Between directly ahead and 90° to the right.

In order to get permission to fly your drone in controlled airspace through LAANC, you need to make your request

on the Internet.

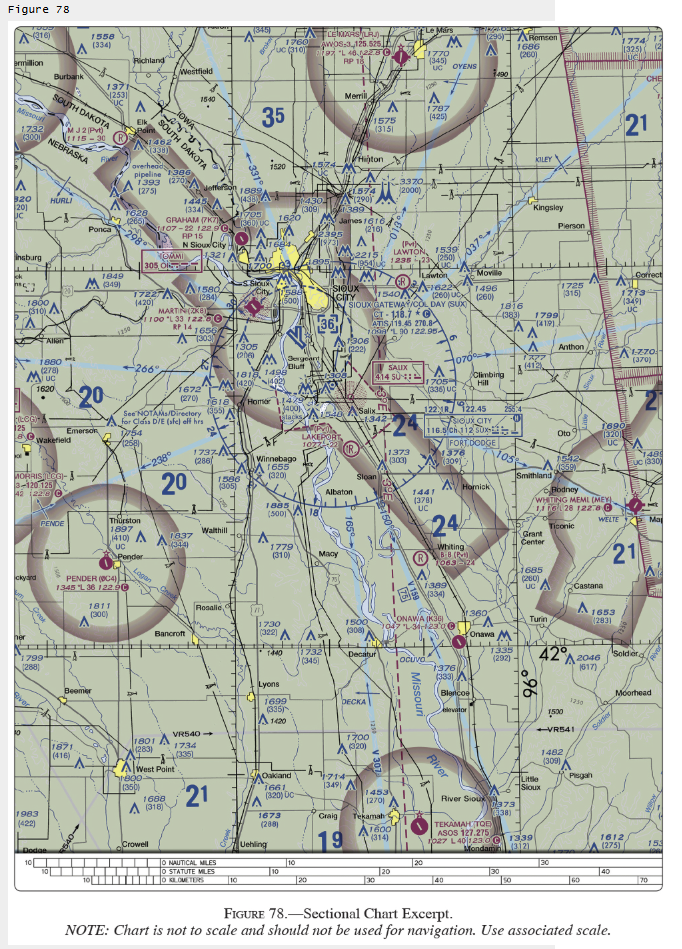

In what airspace is Onawa (K36) located?

Class G.

You are part of a news crew, operating an sUAS to cover a breaking story. You experience a flyaway during landing. The unmanned aircraft strikes a vehicle, causing approximately $800 worth of damage. When must you report the accident to the FAA?

Within 10 days.

One of the most easily recognized discontinuities across a front is

a change in temperature.

Which is true concerning the blue and magenta colors used to depict airports on Sectional Aeronautical Charts?

Airports with control towers underlying Class B, C, D, and E airspace are shown in blue.

Under Part 107, you must cease operating an sUAS at

the end of evening civil twilight.

If there is thunderstorm activity in the vicinity of an airport at which you plan to land, which hazardous atmospheric phenomenon might be expected on the landing approach?

Wind-shear turbulence.

A military air station can be identified by a rotating beacon that emits

two quick, white flashes between green flashes.

When using the PAVE checklist, you want to evaluate the risks involving the

Pilot, Aircraft, enVironment, and External pressures.

The two categories of airspace are

Regulatory and Non regulatory

what categories are within the regulatory and non regulatory

Controlled, uncontrolled, special use and other airspace

which of the 4 categories is not a way in which airspace is dictated by

Aircraft landing

what is a controlled airspace

The different classifications of airspace and defined dimensions within which air traffic control service is provided

ATC

air traffic control

Controlled airspace that is of concern to the remote pilot

Class B, C, D, E

Class B

Airspace from the surface to 10000 feet mean sea level surrounding the nations busiest airports

MSL

Mean sea level

The configuration of class B airspace area is

Individually tailored, consists of a surface area and two or more layers

Must a remorte pilot receive authorization from ATC before operating in the class B airspace

Yes

Class C

Airspace from 4,000 feet above the airport elevation surrounding airports with operational control towers, served by radar approach control

The configuration of class C airspace area is

Individually tailored, typically consists of a surface area with a five nautical mile radius and an outer circle of ten nautical miles extending from 1,200 to 4,000 feet above airport elevation.

Must a remote pilot receive authorization from ATC before operating in the

B, C, D,E

Class D

Airspace from the suraface to 2500 feet above the airport elevation surrounding airports with operational control towers

The configuration of class D airspace area is

Individually tailored and contains the procedures when published

which federal agency is resposible for regulating and overseeing civil aviation in the united states?

The Federal Aviation Administration (FAA)

SAUS

Small Unmanned Aircraft System

What is an SAUS

A Drone

A small unmanned Aircraft system is how many pounds

Less than 55 Pounds

14 CFR Part 107

regulations only pertains to drones

Which tittle of the code of federal regulations (CFR) applies specifically to the operation of small unmanned aircraft systems (sUAS)

Tittle 14- Aeronautics and space

Who is required to complete the trust (The recreational UAS Safety Test)?

Individuals flying drones strictly for recreational purposes

A remote pilot conducts a drone flight in exchange for services instead of money. How is this operation classified

Commercial, because the flight was conducted in exchange for services

Under part 107 who is resposible for the safe operation of small unmanned aircraft system

the remote pilot in comand

According to 14 CFR 107.35 How many Small unmanned aircraft can a remote pilot fly at one time

one Small unmanned aircraft

VO

Visual Observer

RPIC

Remote Person in Command

During Part 107 operation, May a visual observer (VO) assume control of the small unmanned aircraft during flight?

No a visual observer may not manipulate the flight controls

cs

Control station

In small unmanned aircraft operations, what best describes the control station?

The ground - based control equipment used by the remote pilot to operate the small unmanned aircraft at the pilot’s location

A remore pilot is operating a small unmanned aircraft near a building that is 600 feet tall. under part 107 what is the max altitude the sUAS may be flown when poerating close to this structure

1000 feet AGL

a recreational drone pilot wants to fly above 400 feet AGL while operating over a tall structure. What is the correct FAA rule?

The pilot must remain at or below 400 feet AGL

which statement is correct regarding a small UAS operation during an in-flight emergency?

The remote pilot in command may deviate from part 107 rules to avoid collision with a manned aircraft

a remote pilot observes a hot air balloon approaching the operating area. what action is required?

Yield the right of way and maneuver the sUAS to remain well clear

Property damage must be reported to the FAA withing 10 calendar days if the damage is

More than $500 excluding damage to the small unmanned aircraft

what is the max allowable ground speed of a small unmanned aircraft?

87 knots (100 miles per hour)
