VBS(H3) - Nuclear Island Nonradioactive Ventilation

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/12

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

13 Terms

1
New cards

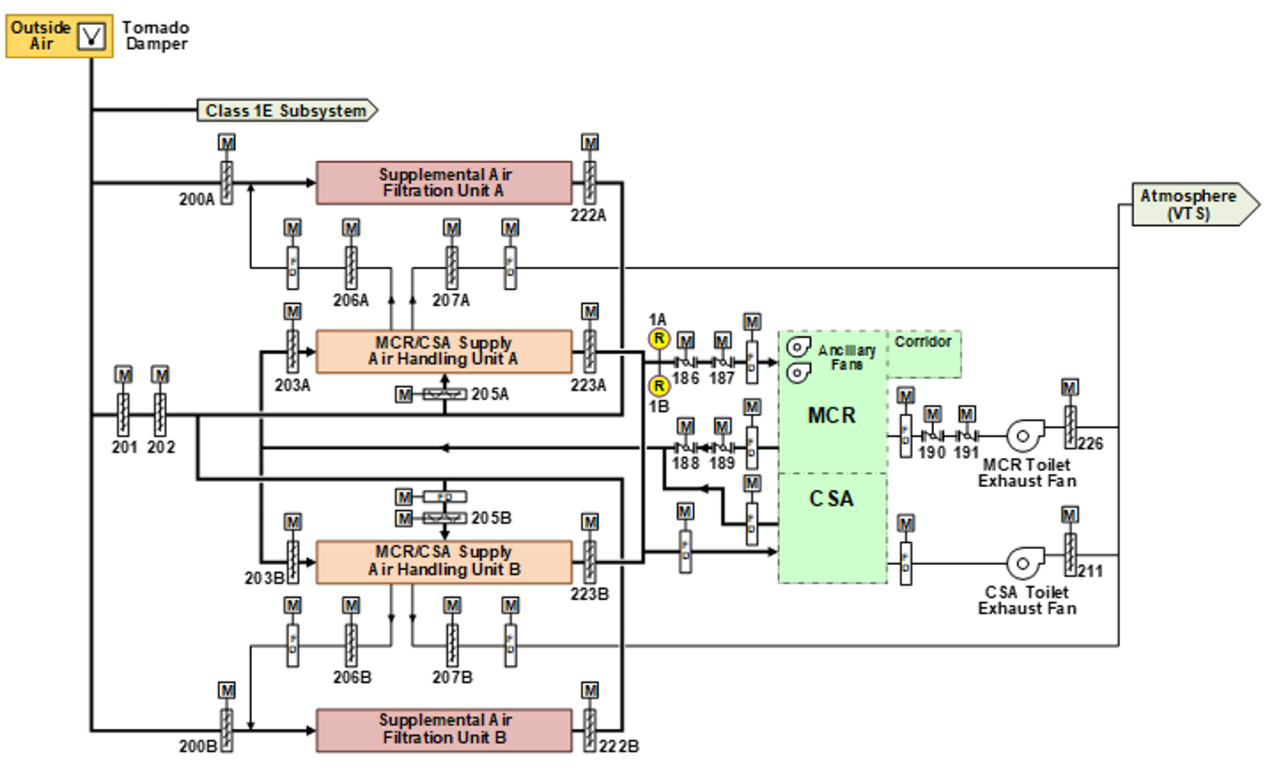

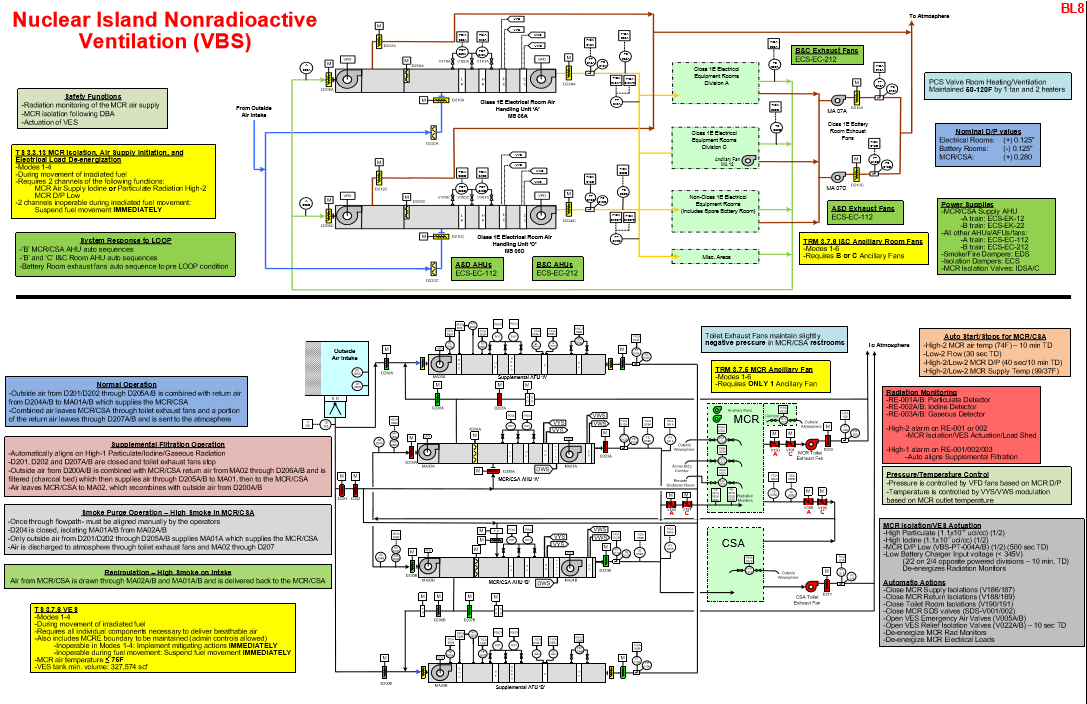

Simplified Diagram

knowt flashcard image
2
New cards

VBS

Big Note

knowt flashcard image
3
New cards

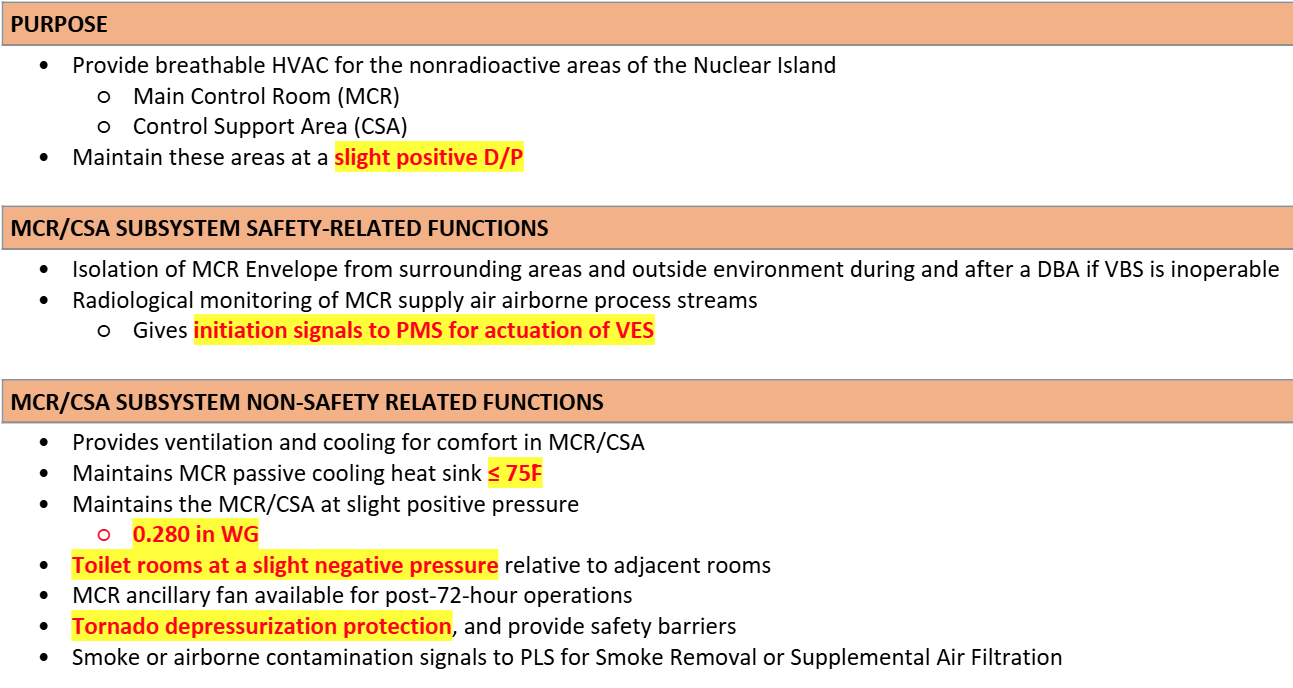

Function

knowt flashcard image
4
New cards

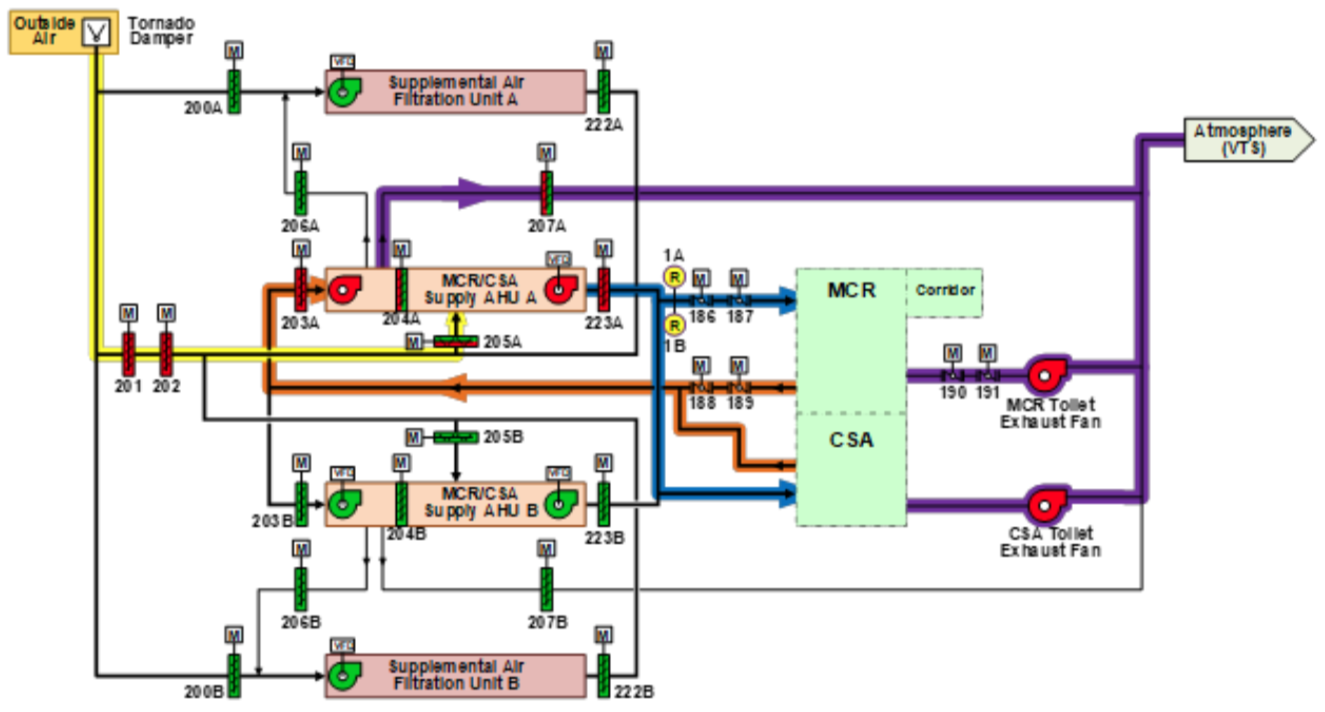

Normal Operation Flow Path

knowt flashcard image
5
New cards

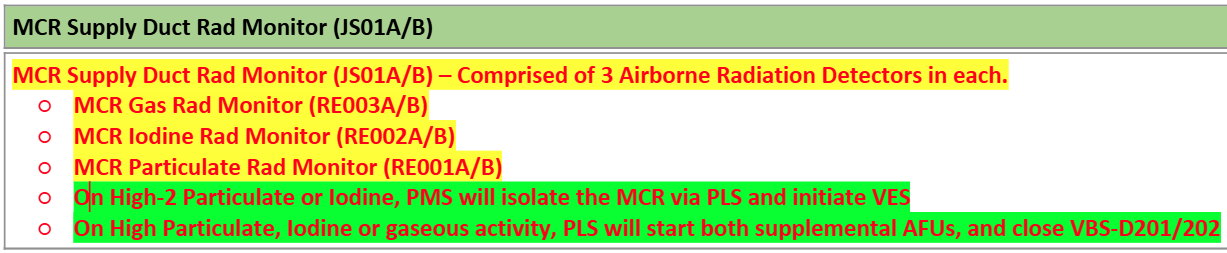

High 1 Gaseous, why is this different

PIG all you need is PI (pie)

<p>PIG all you need is PI (pie)</p>
6
New cards

Main Control Room AHUs

knowt flashcard image
7
New cards

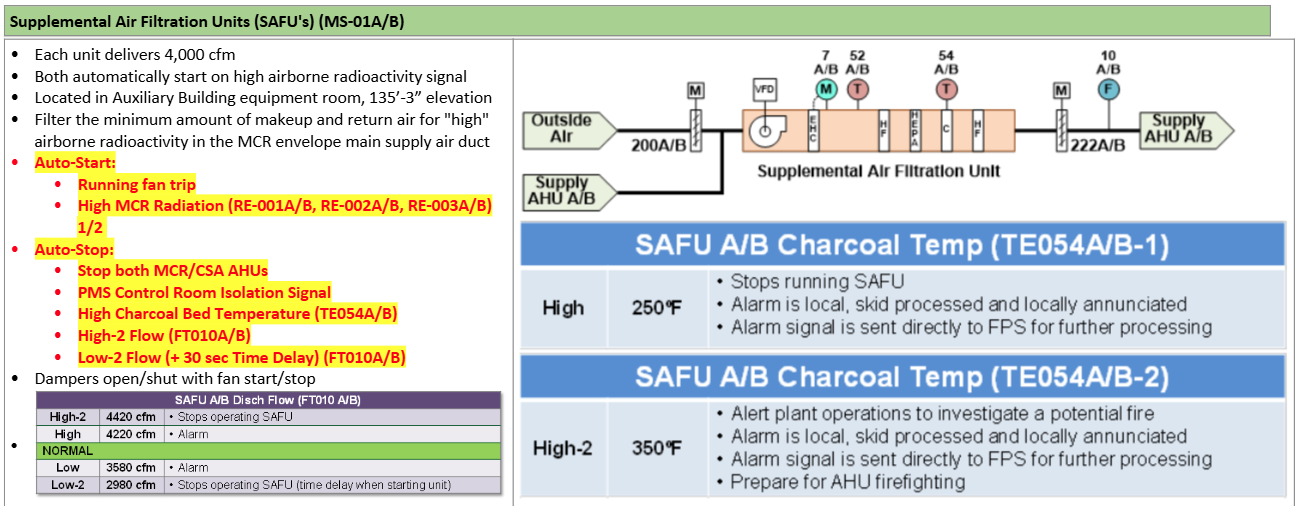

Supplemental Air Filtration Units

knowt flashcard image
8
New cards

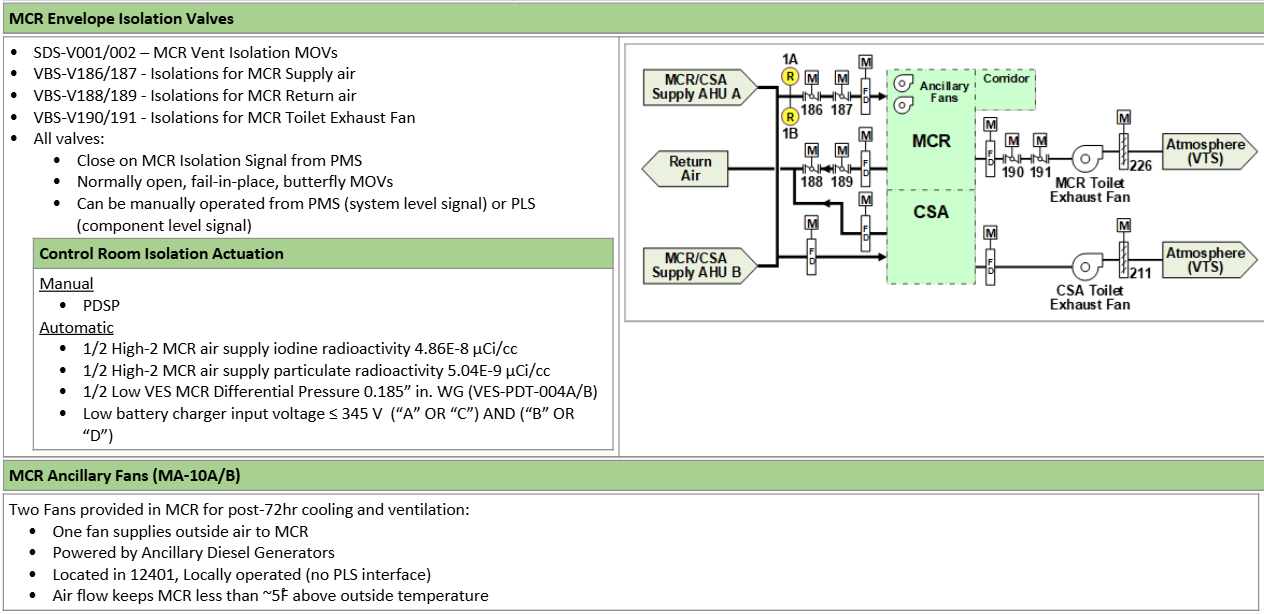

Envelope Isolation Valves

MCR Ancillary Fans

knowt flashcard image
9
New cards

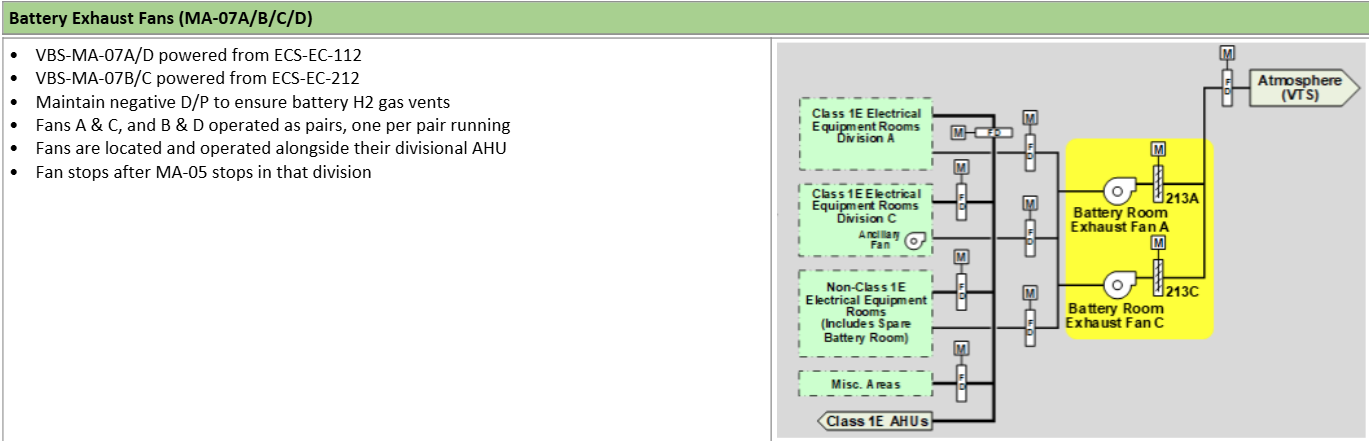

Battery Room Exhaust Fans

knowt flashcard image
10
New cards

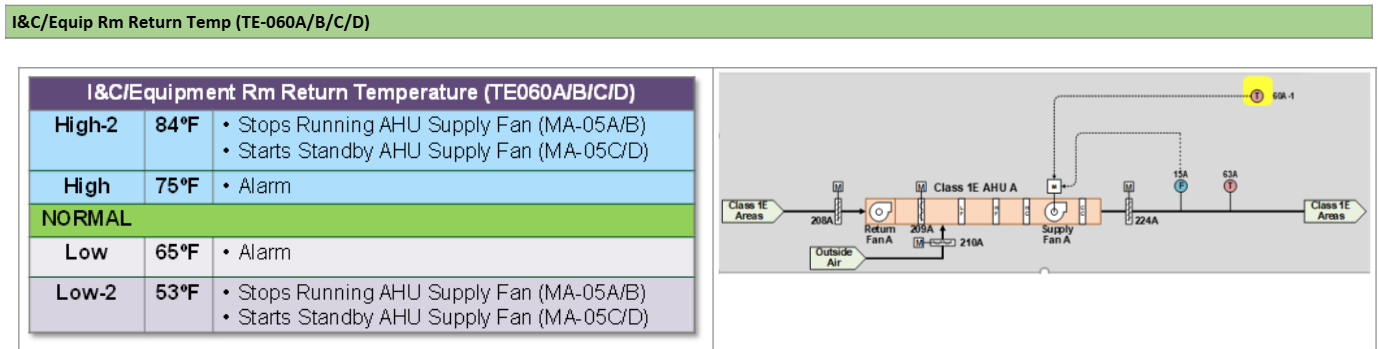

I&C/Equipment Return Temperature

VES Operability Requirement: <85°F

<p>VES Operability Requirement: &lt;85°F</p>
11
New cards

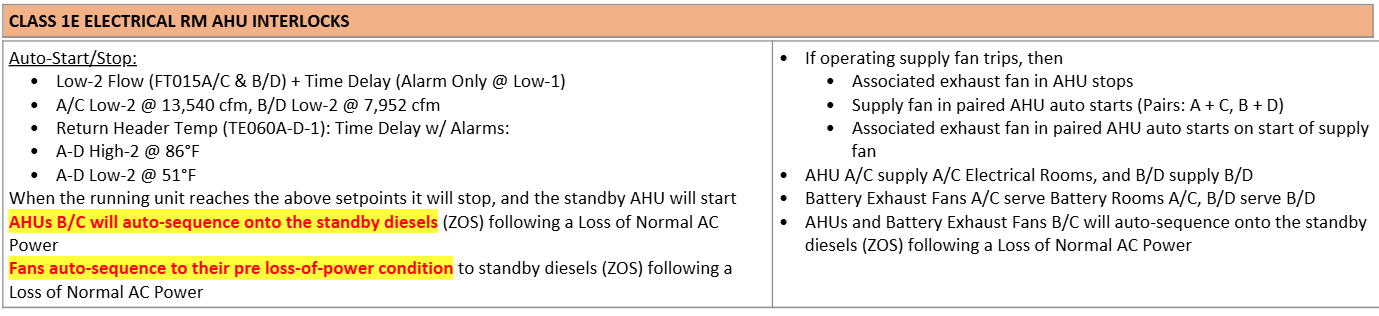

AHU Electrical Interlocks

knowt flashcard image
12
New cards

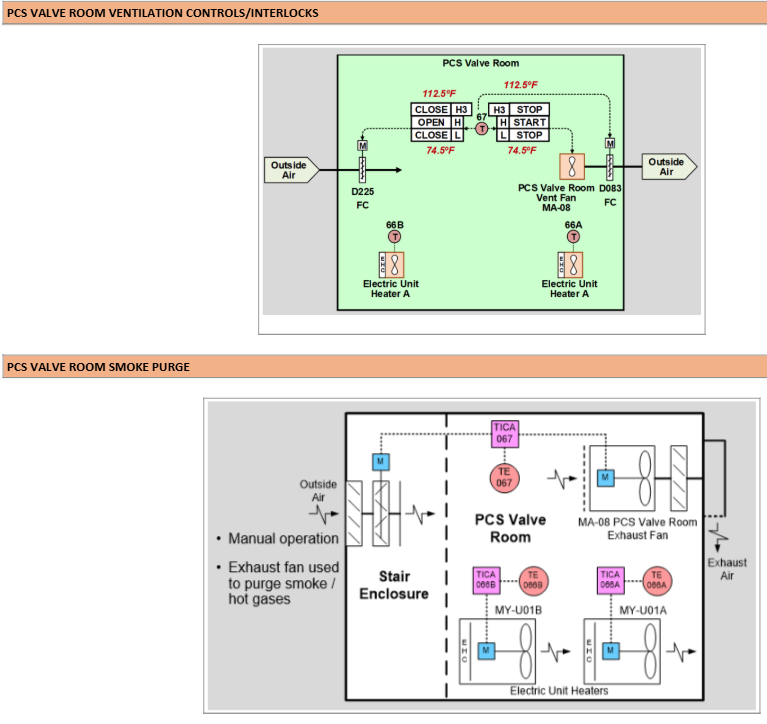

PCS Valve Room

Interlocks

Smoke Purge

knowt flashcard image
13
New cards

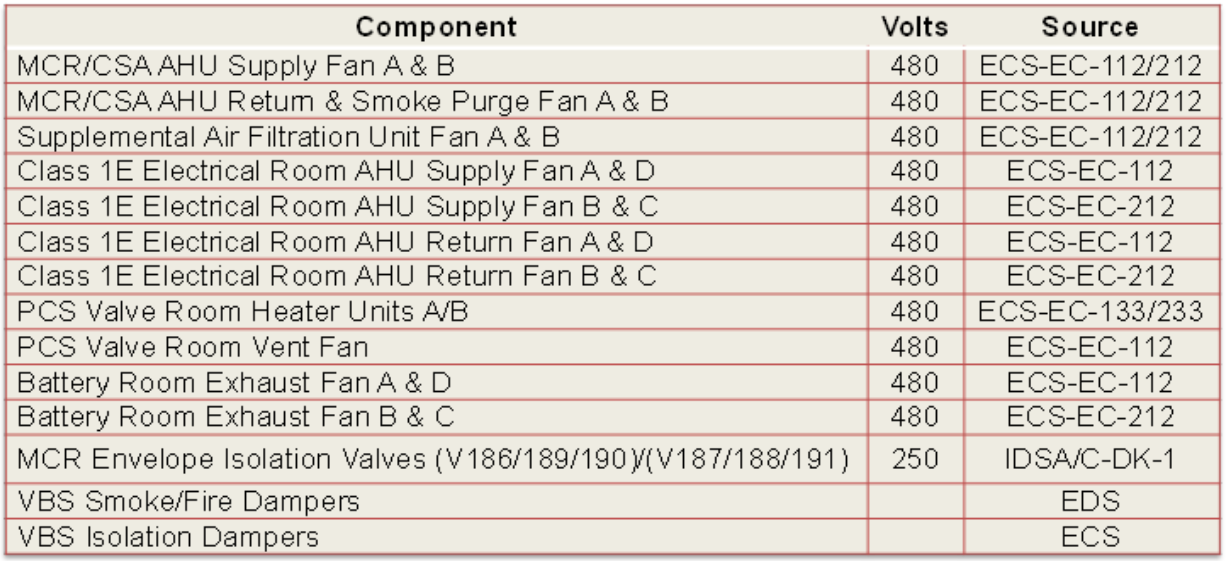

Power Supply Overview

knowt flashcard image
