iSENSE Production Assembly Process

iSense

an electronic product designed to be triggered by a sudden darkness

iSense

when triggered, it activates a buzzer and running lights

iSense

can be used as a burglar alarm, touchless door bell and as a light sensor

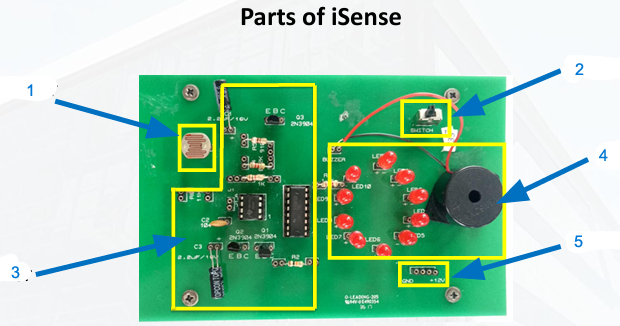

1. Light Sensor

2. Switch

3. Controller

4. Output

5. Power Source

Identify the parts of iSense

iSense Operation

involves the following steps:

1. Initially, when the switch is turned on, the circuit is powered on and only one LED is on

2. LDR is exposed to high intensity light

3. When LDR is exposed to darkness, it sends a signal to the 555 Timer

4. The 555 Timer activates the running lights and the buzzer

5. The running lights and the buzzer stops when LDR is exposed to light again

6. Only one LED is on again

Material Handling

refers to the process of moving, controlling, protecting, as well as storing materials or components manufacturing

Material Handling

process of preparing the necessary items for assembly

Material Handling

a crucial process because all the materials should be handled well in order to keep them safe, reach their destination safely, and maintain their quality and condition

• Able to determine appropriate distance to be covered

• Facilitate the reduction in material damage as to improve quality

• Reducing overall manufacturing time by designing efficient material movement

• Improve material flow control

• Creation and encouragement of safe and hazard-free work condition

• Improve productivity and efficiency

• Better utilization of time and equipment

Main objectives of material handling

• Establish a clear understanding of output requirements for the overall process as well as each step in the process

• Focus on prevention of problems, not correction. Prevention is much less costly

• Ensure that each process step guarantees that its output is correct and complete; mistake-proof where feasible

Principles in Material Handling Process

1. Perform 5S in the work area

2. Prepare necessary check sheet

3. Prepare all materials and tools needed in the process

4. Turn on fluorescent lamp and wear your PPE at all times

Preparation for Work
