Computer Science GCSE

Why do computers use binary?

Transistors store data using on and off, this can be represented in binary using 1s and 0s.

A bit is

binary digit

A nibble is

4 bits

A byte is

8 bits

A kilobyte is

1000 bytes

A megabyte is

1,000,000 bytes

A gigabyte is

1,000,000,000 bytes

A terabyte is

1,000,000,000,000 bytes

A petabyte is

1,000,000,000,000,000 bytes

Denary means

decimal number

100 to binary

01100100

Binary number 01101000 to denary

104

A character set is

A list of all possible characters a computer can store and an equivalent binary number

ASCII is

A character set that stores characters using 8 bits per character

Unicode is

A character set that stores characters using 16 or 32 bits per character

How are images stored in binary?

-All colours in an image are assigned a unique binary number

-An image is made up of lots of pixels

-Each pixel is assigned a binary number based on its colours

An image has the resolution of 500 x 500 and contains 15 colours. Work out how many bits would be required to store this image. Your answer should be given in megabytes.

500 x 500 = 250,000

2^4 = 16 (colours)

250,000 x 4 = 1,000,000

1,000,000 / 8,000,000 = 0.125mb

A different image takes 500kb to store. A camera has 20MB of storage, how many images can it store?

20 x 1,000,000 = 20,000,000

500kb x 1000 = 500,000

20,000,000 / 500,000 = 40

40 images can be stored

Meta data is

extra information stored about a file e.g. the time last edited

Colour depth is

the number of bits required to store a single colour

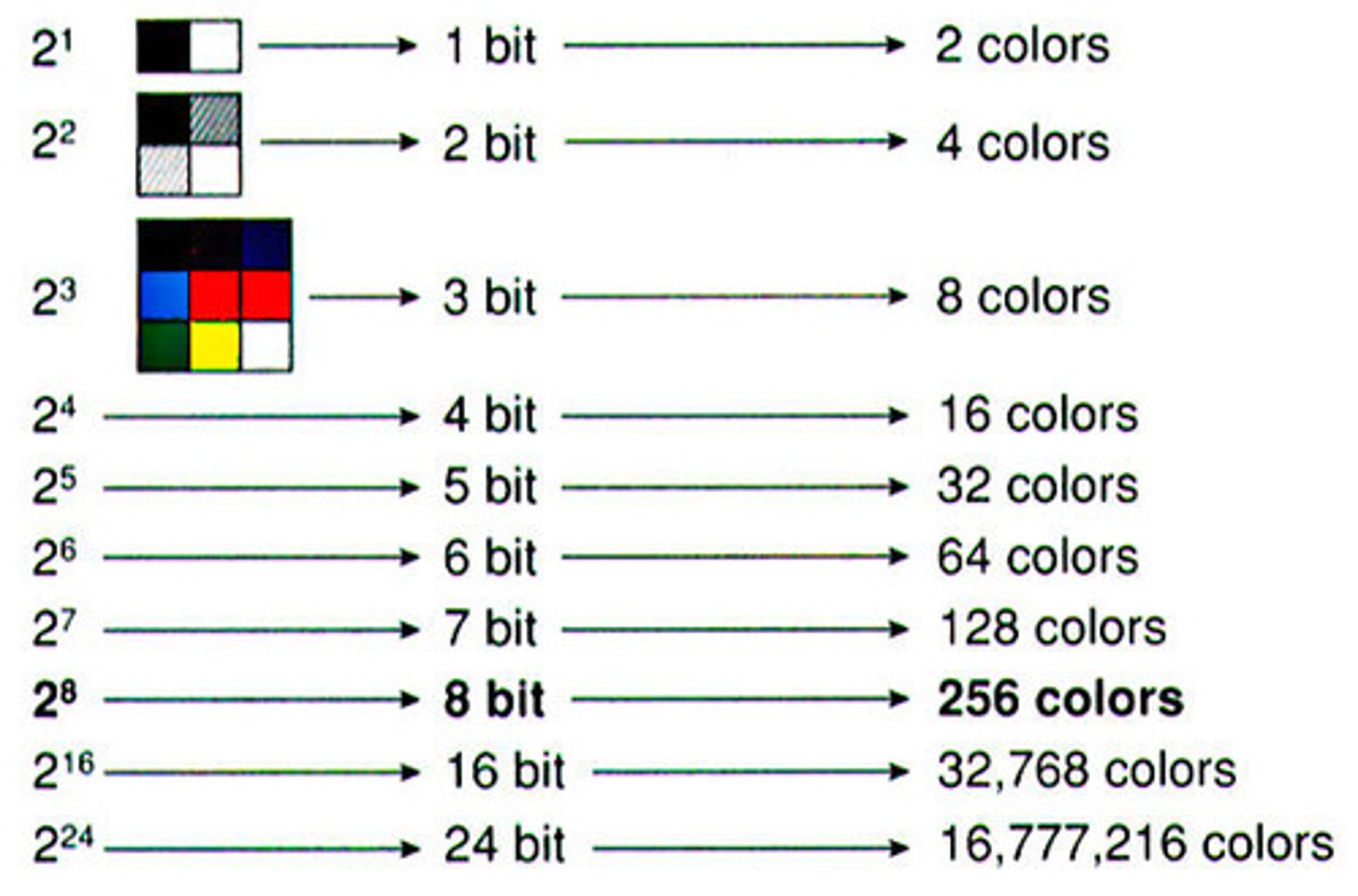

Colour depth 1,2,3,4

2,4,8,16

2 to the power of colour depth

How would a word be converted into binary?

By each letter individually converted using a character set

3 colours =

Colour depth of 2 x. amount of pixels

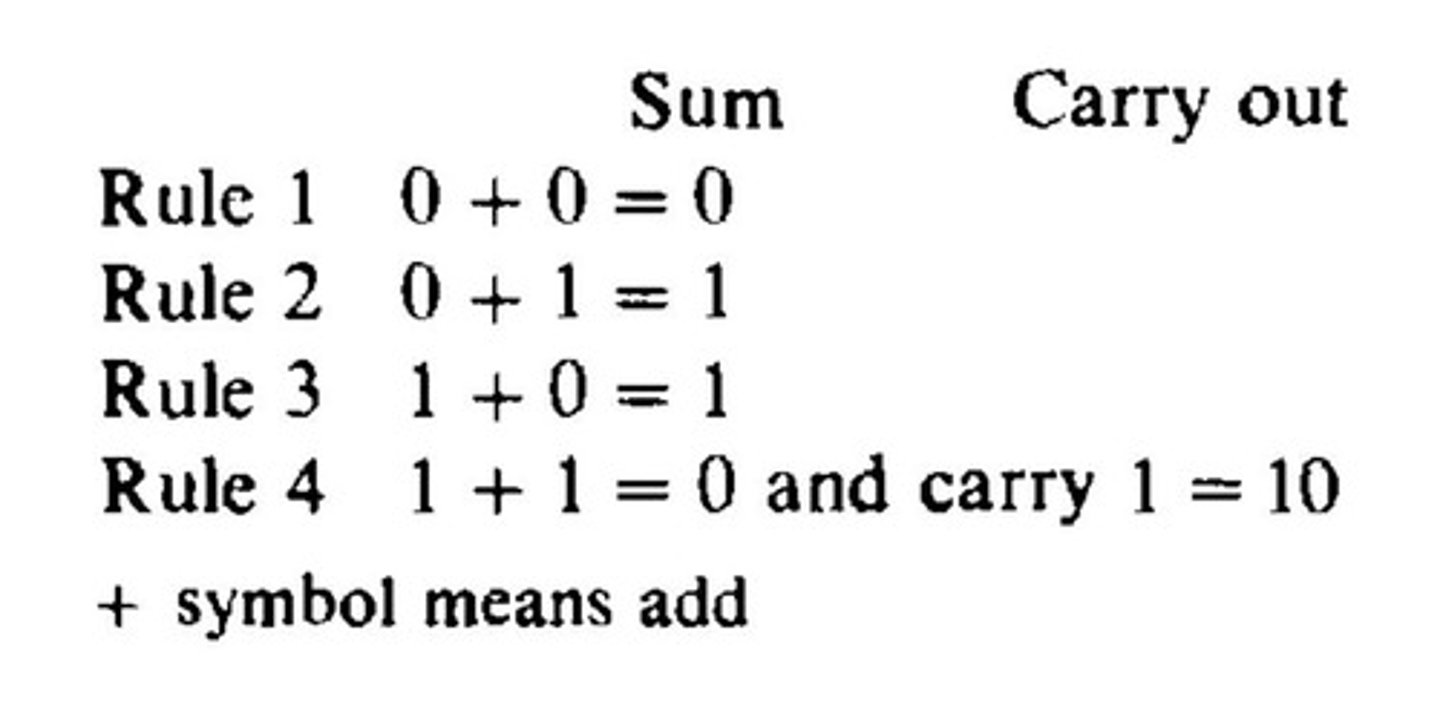

Binary addition rules

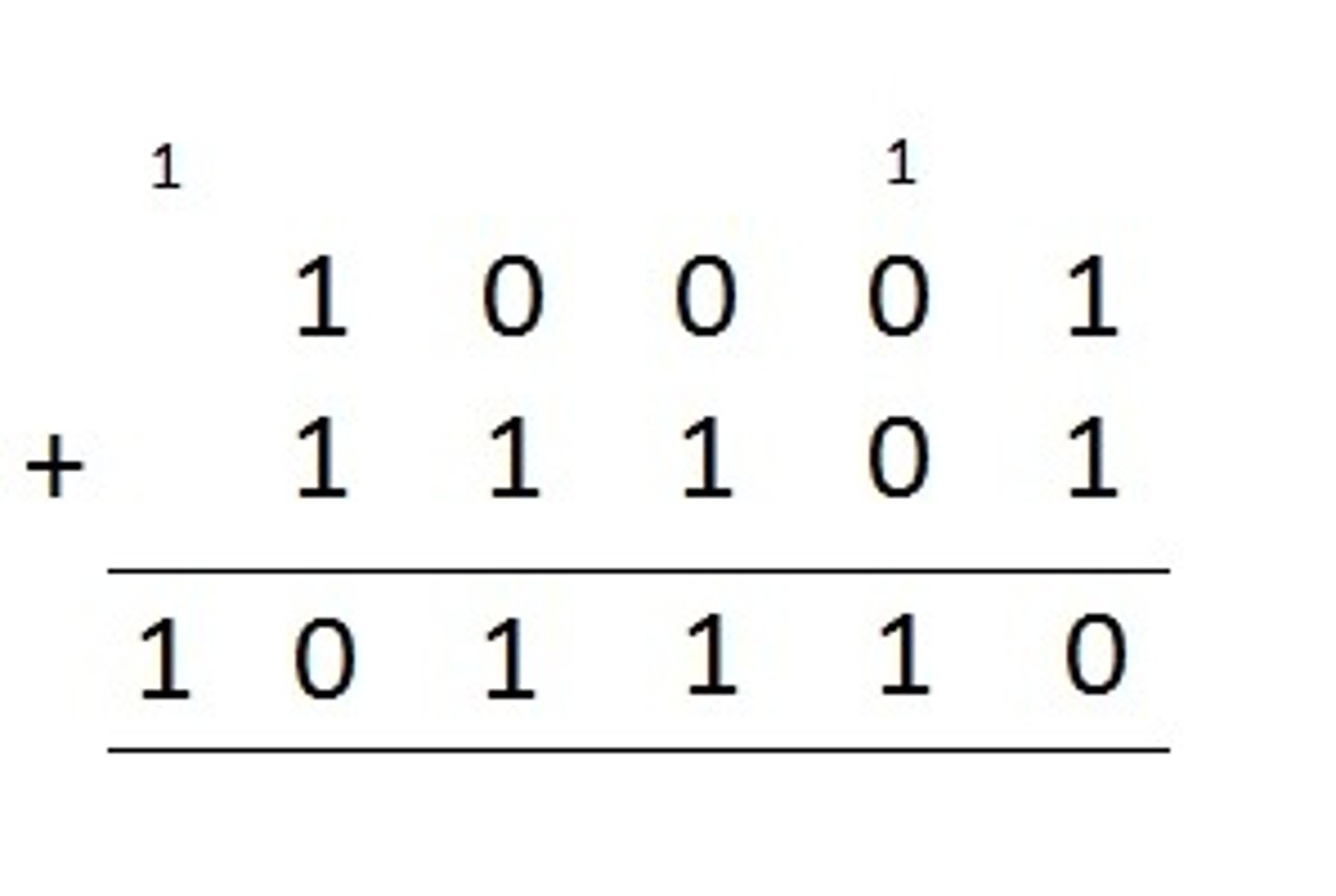

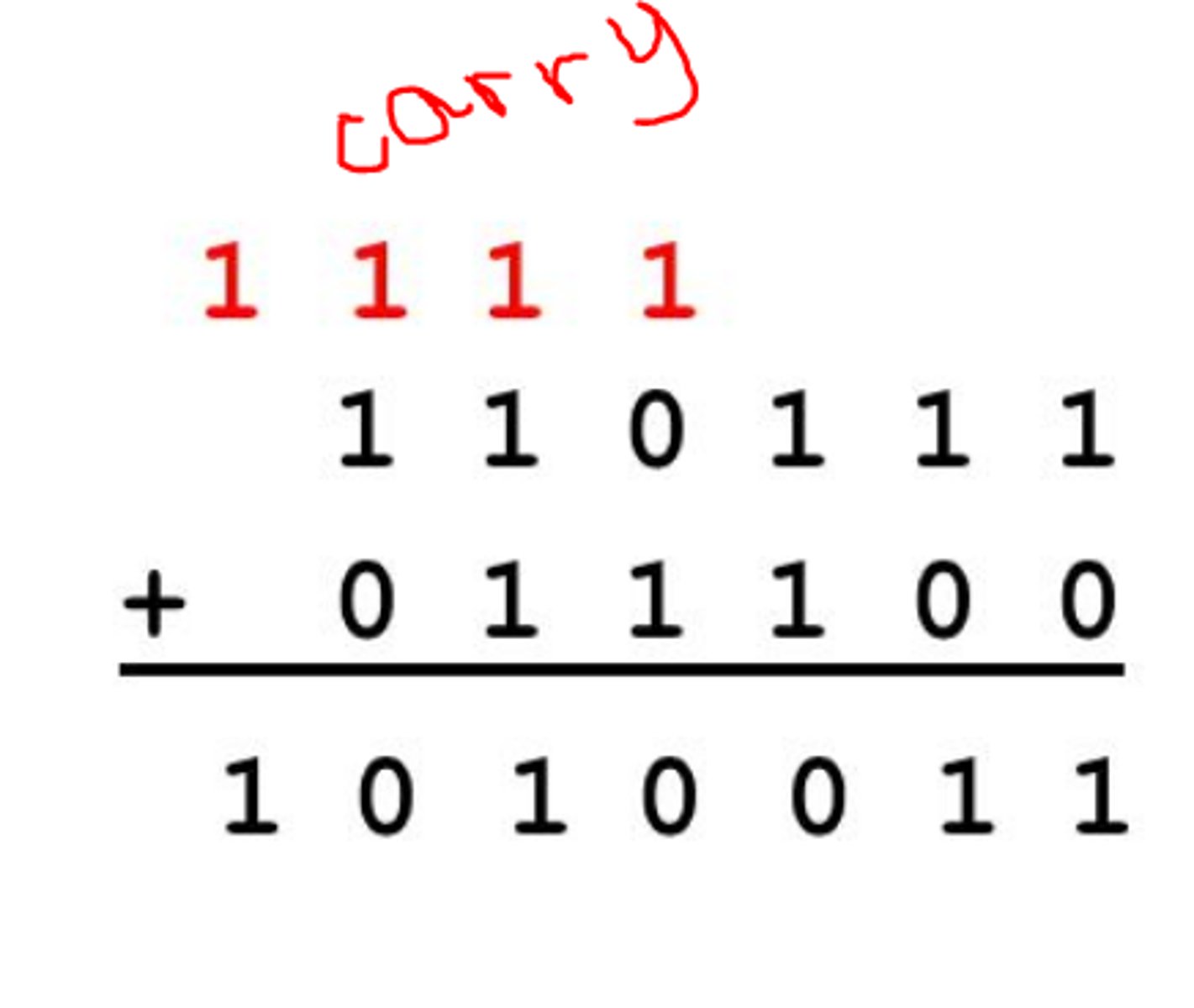

binary addition e.g.

Binary shift

-The numerical value of a binary number is doubled when a binary number is left shifted one place

-The numerical value of a binary number is halved when a binary number is right shifted one place

overflow error

When the result of a binary addition has more bits than expected and the most significant bit is ignored

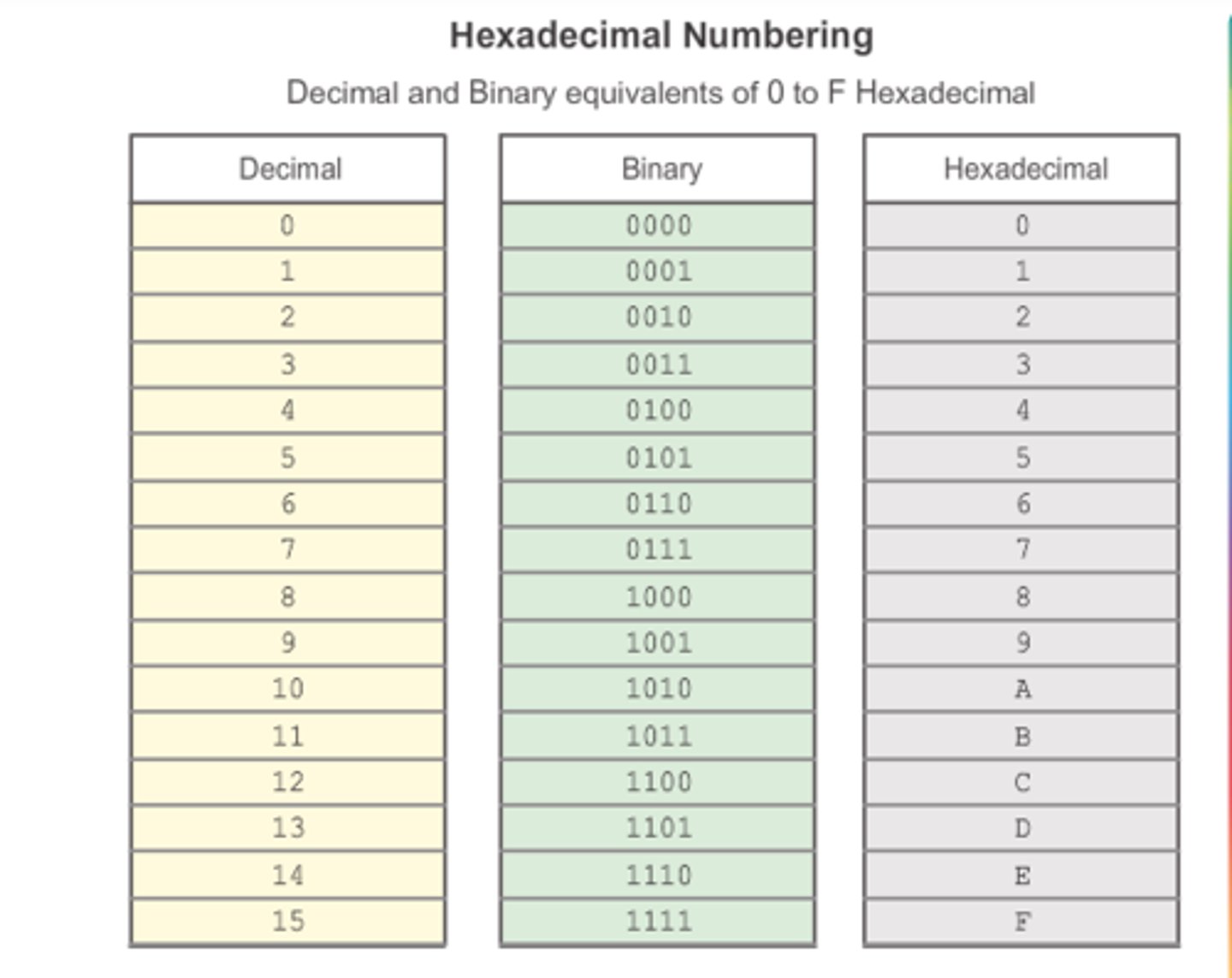

hexadecimal

The hexadecimal number system is base 16, using only digits 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A(10), B(11), C(12), D(13), E(14), and F(15).

100 to hexadecimal

6,4

7E to denary

-7 x 16

-E = 14

-112+14=126

-126=01111110

Convert the hexadecimal number to E5 to binary

E = 14

14 x 16 = 224

224 + 5 = 229

229 = 11100101

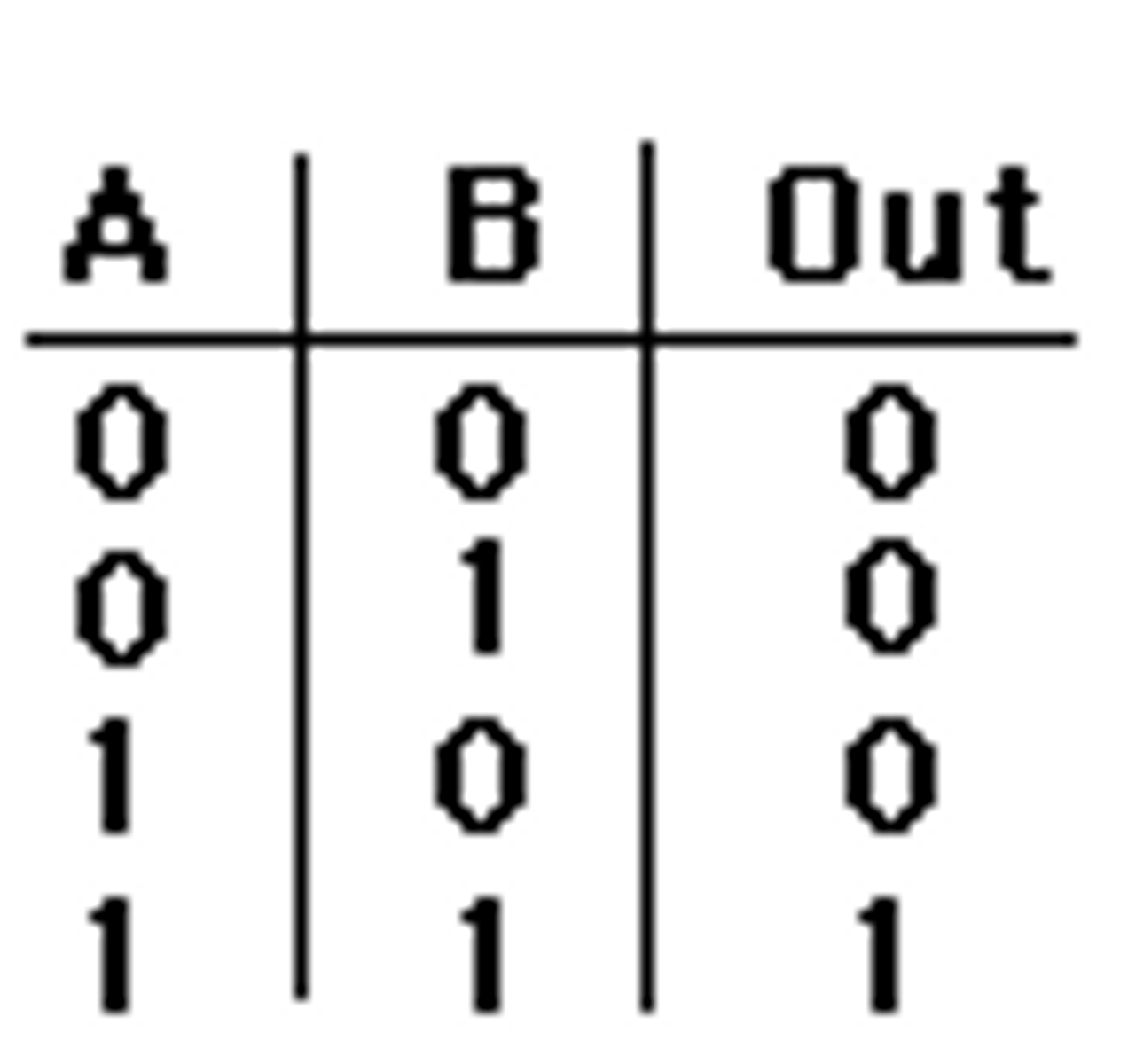

Truth table

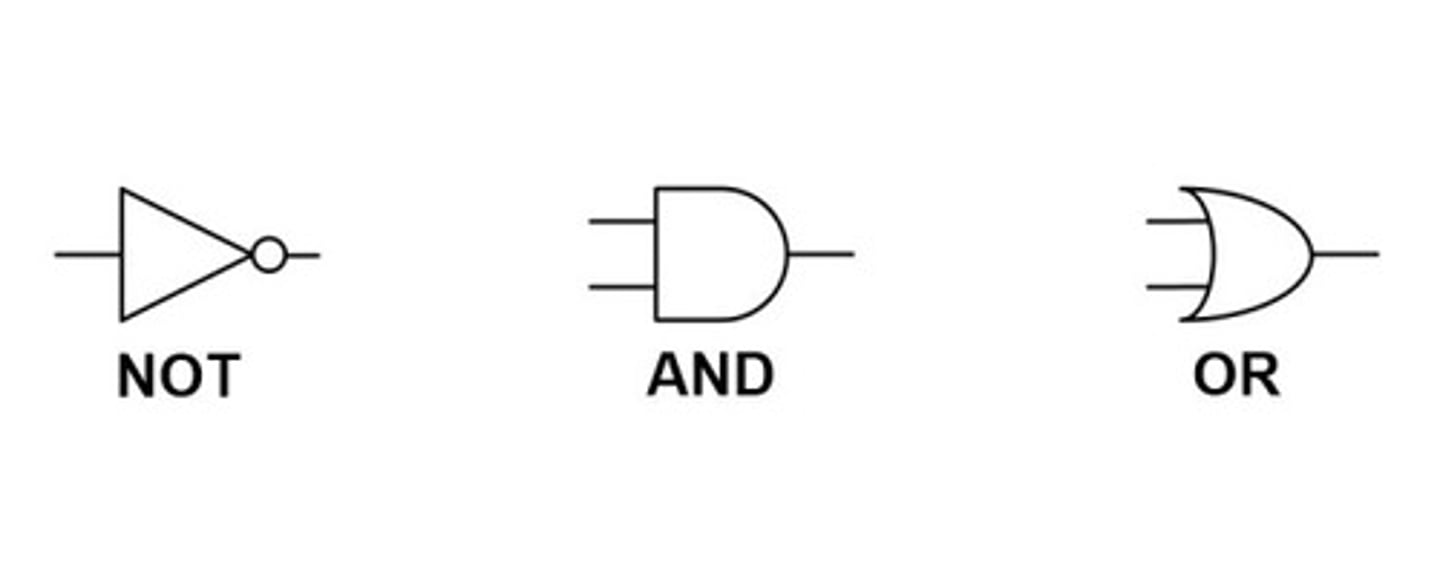

Logic gates

And gate symbol

^

Or gate symbol

V

not gate symbol

¬

Compression

modifying/restructuring a file to reduce its size

lossy compression

-Lossy compression is when data is lost in order to reduce the size on secondary storage

-Lossy compression is irreversible

-Lossy can greatly reduce the size of a file but at the expense of losing quality

-Lossy is only suitable for data where reducing quality is acceptable, for example images, video and sound

Losseless compression

-Lossless compression is when data is decreasing file size in order to reduce the size on secondary storage

-Lossless compression is reversible, the file can be returned to its original state

-Lossless can reduce the size of a file but not as dramatically as lossy

-Lossless can be used on all data but is more suitable for data where a loss in quality is unacceptable, for example documents

The effect of colour depth and resolution on the size and quality of an image file.

-As the resolution and/or colour depth increases, the bigger the size of the file becomes on secondary storage

-The higher the resolution, the more pixels are in the image, the more bits are stored

-The higher the colour depth, the more bits per pixel are stored

- The better resolution and colour depth the better the image quality

How audio is converted to binary

The sound is sampled at regular intervals. The amplitude of the wave is converted to binary

Sample rate is

Number of samples taken each second when recording sound.

sample interval is

The time gap between measurements of the sound wave being taken.

bit depth is

he number of bits used to represent each sound sample

The effect of sample rate on playback quality and file size

Playback quality= higher sample rate means more detail, better sound quality

File size = higher sample rate means more data, larger file size

The effect of sample interval on playback quality and file size

Playback quality= lower sample intervals means more detail, better sound quality

File size = lower sample intervals means more data, larger file size

The effect of bit depth on playback quality and file size

Playback quality= higher bit depth means bigger range, better sound quality

File size= higher bit depth means more data per sample, larger file size

bits required to store an image if there are 16 pixels and 4 colours

16 pixels x 2 colour depth = 32

5mb file - how many can be stored in a 1gb hard drive?

5mb/1000 = 0.005gb , 1/0.005 = 200 files

Computer

A computer is an electronic device that : takes input; processes data; and delivers output

Von Neumann Architecture consists of

A Control Unit, and Arithmetic Logic Unit, Main Memory ( RAM) and inputs and outputs

ALU ( arithmetic logic unit)

Performs arithmetic calculations and makes logical decisions

CU( Control unit)

Send signals to control how data moves around the CPU

Cache

Provides fast access to frequently used instructions and data

the use of cache memory and the role it plays in improving processing speeds

- stores the most frequently used instructions

- faster than accessing RAM

The purpose of the CPU

To process data and instructions, and to fetch and execute instructions

Fetch-decode-execute cycle

1. The PC is copied to the MAR

2. The instruction in the address that the MAR is pointing to is copied into the MDR

3. The PC is incremented by 1

4. The CU decodes the instruction in the MDR

5. The CU executes the decoded instructions

6.The cycle repeats

Registers

PC, MAR, MDR, ACC

Program Counter (PC)

holds the address of the next instruction to be executed

Memory Address Register (MAR)

hold the address of the current instructions being executed

Memory Data Register (MDR)

hold the actual data and or instructions that is being stored in RAM

Accumulator(ACC)

where arithmetic and logic results are temporarily stored

Factors affecting CPU performance

-Clock speed = cycles per second measured in hertz

-Cache size = Superfast working memory

- Number of cores- The number of duplicate processors linked together on a single chip

embedded systems

a computer system with a dedicated function within a larger mechanical or electrical system

typical properties of embedded systems

- low power consumption

- small size

- rugged operating ranges

- low cost per unit

RAM

Random Access Memory = You can read and write, volatile - currently stored instructions e.g. word , powerpoint

ROM

Read Only Memory = You can only read, non-volatile, operating system stored - partially , BIOS- inputs and outputs

3 main types of primary memory

ROM, RAM , cache

why do we need secondary storage?

-as a non volatile memory which is needed in order to keep files and data when the computer has no power

Magnetic storage HDD

Read/write magnetically (gets damaged easily - moving parts)

Solid-state storage (SSD) e.g. usb stick

Data is recorded onto solid memory chip without any moving parts(electronically)(does not get damaged easily)

Optical Storage CD/DVD

lasers read and write data using light (if scratched might lost data)

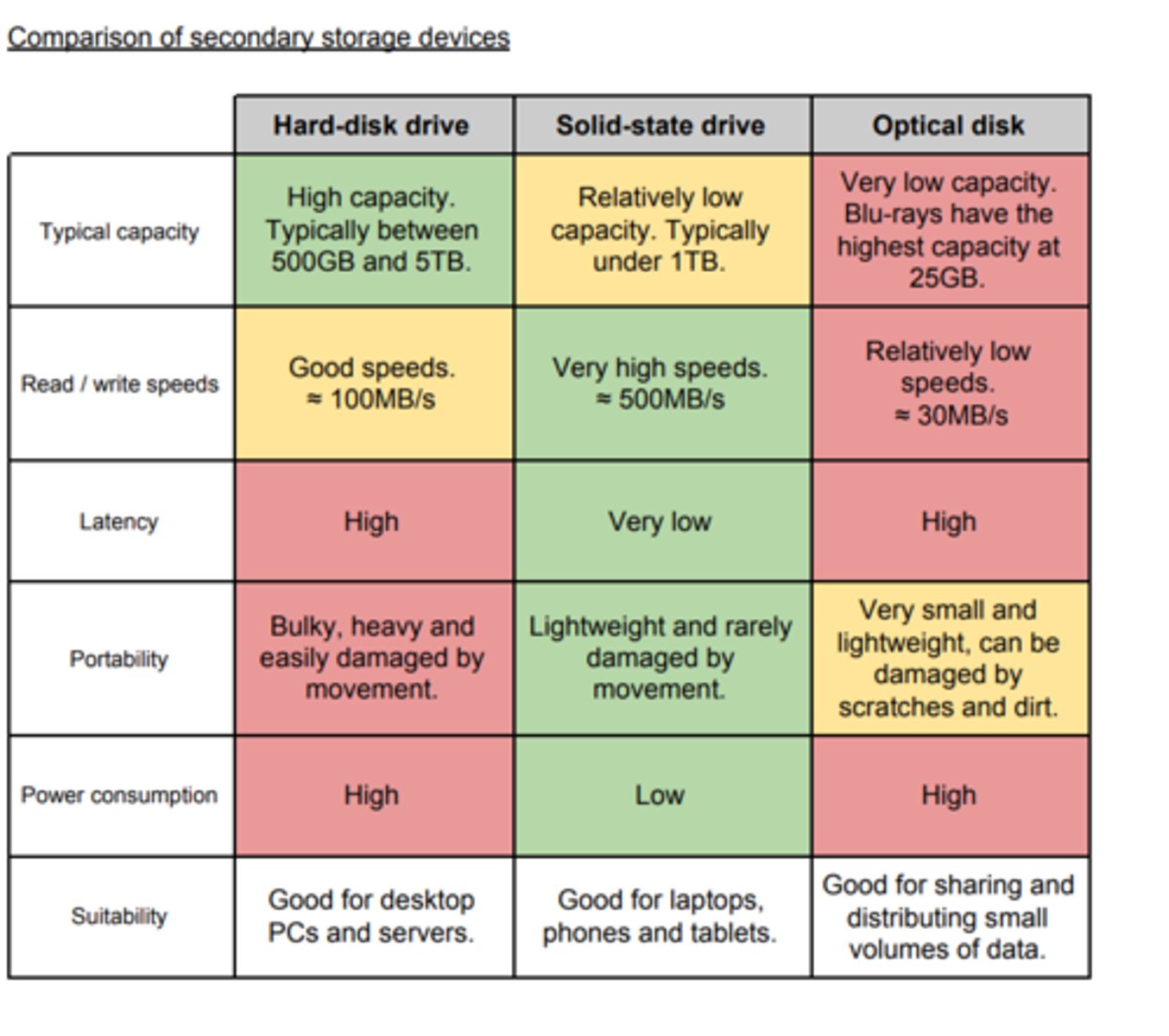

Disadvantages and advantages of different secondary storage

HDD is expensive and durable for longer amounts of time data can be stored but can get damaged when dropped

SSD is expensive per GB is durable

Optical is less expensive but can get damaged if scratched

What is a network?

More than one computer system connected together.

Advantages of a network

-Transfer files quickly and easily

-Share peripherals and internet connections

-Access files from any computer on a network

-Control security, software updates and backups via a server

-Communicate with each other via email and social media

Disadvantages of a network

-Increased security risk to data

-Malware and viruses can spread easily between computers

-If a server fails, the computer connected to it may not work

-Computers may run slower if there is a lot of data travelling on the network

WAN

Wide Area Network - The internet

LAN

Local Area Network e.g. school network

internet

network of an interconnected networks

LAN info

-e.g. school network

-computers are connected at one geographical area

-Connected by wireless, ethernet cables, fibreoptic

-Less expensive than WAN

-Privately owned

-More secure - anti viruses, firewalls, account management

-Speed- faster speed of up to 1000mbps

WAN info

-e.g. the internet

-Computers/devices are connected over a large geographical area

-Connected by phone lines, internet connection, satelite, fibre optic, public network systems

-More expensive - as you use a dedicated line

-Publicly owned

-Less secure

WAN is a collection of LAN whereas a LAN is a collection of devices

Factors affecting the network

-Bandwidth = higher - more data can be transferred at once

-Number of users = more users , slower network

-Transmission media = copper/fibre optics - speed higher, ethernet

Bandwidth

-The amount of data that can be sent and recieved successfully

in a specific period of time

-Not a measure of how fast data travels but how much data can be sent via transmission media

-Measurement: bits per second - bit rate

Number of users

Too many users or devices on same network can cause to slow down if there is insufficient bandwidth available

transmission media

-Wired connections offer higher bandwidth than wireless connections

-Fibre optic cables offer higher bandwidth than copper cables

error rate

Less reliable connections increase the number of errors that occur when data is transferred, resulting in data having to be resent. The signal quality of wireless is dependent on the range of the device and other environmental factors. Quality of signal provided by copper cables is determined by grade of material used- higher quality cable, higher better signal. Length of cable is a factor

latency

Caused by battlenecks in network infastructure e.g. not using switches appropriately segment network traffic. Various pieces of hardware like switches and cables may not operate at same speed.

IP Address (Internet Protocol Address)

logical address of your device

IPv4

32 bits from 0 to 255 e.g.:

15.1.200.105

Binary-8bits,8bits,8bits,8bits

IPv6

128 bits e.g.:

16 bits, 16 bits, 16 bits, 16 bits, 16 bits , 16 bits , 16 bits

A105:BBC:6BA:7CE:...:...:....:

Hexa + denary numbers

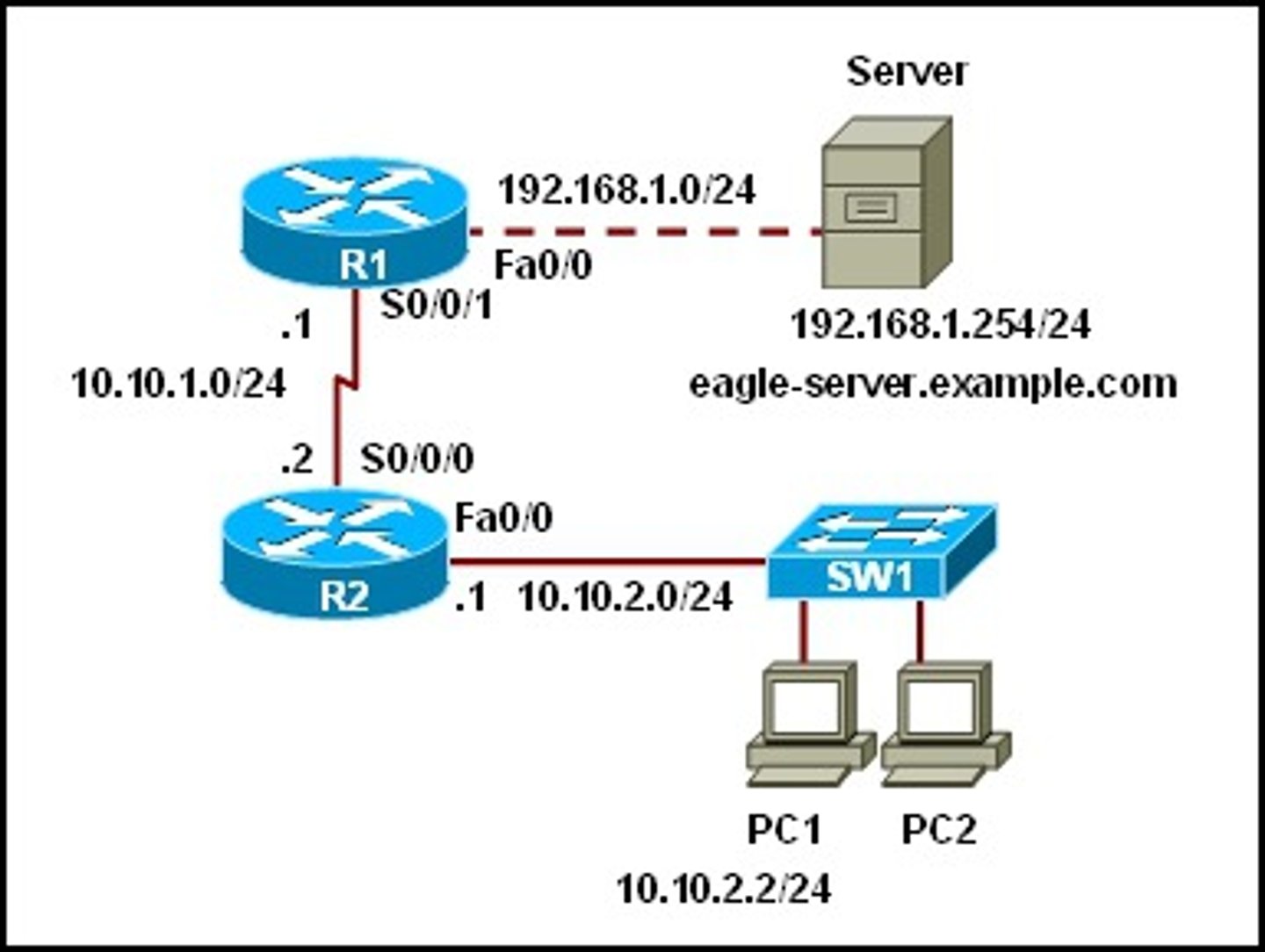

A router

has a unique WAN - facing ip address and a LAN - facing ip address - this enables a LAN device to have the same IP address as another device on a separate LAN

MAC address

Media access control - physical address of your device

48 bits long

8bits,8bits,8bits,8bits,8bits,8bits

CB:AB:6D:CF:C8:AA

Hexadecimal & denary

Wireless access points

allows wireless - enable devices to connect to a network without cables

router

to connect your N/W to the outer N/W WAN/ Internet

Switch

sends data between computers on a LAN. Allows the LAN to connect to a WAN

Network Interface Card (NIC)

it allows a device to connect to either a wired or wireless network (faster)

hardware required to connect a standalone computer to a LAN

-A network interface controller connects a device to wired or wireless network. An NIC uses a protocol to ensure successful communication

-Wireless access points allow wireless-enabled devices to access a network.Wired connections are popular because they avoid the need to install cables

-A router sends data between networks and is required to connect a local area network to a wide area network. Routers uses device's IP address to route traffic to other routers

DNS (Domain Name System) how it works

1. You open your web browser and type in a URL(e.g. "Google.com")

2. Your browser sends a request to a DNS server to find the IP address for "google.com"

3. The DNS looks it up and returns the IP address (e.g., "142.250.190.78")

4. Your browser then connects to the web server at the IP address

5. The web server sends the website's content back to your browser

6. Your browser displays the website for you to use

Web server common functions

-hosting websites

-dealing with client requests

Web page

stored as text (HTML,CSS,JavaScript) - sent to a browser which uses various rules to render it correctly
