week 1 - Computer Architecture and Principles of C

computer’s architecture - programmers perspective

computers = everywhere : embedded - washing machine, car fridge

‘ not embedded’ - normal laptops

• enigma machine - used for encryption

  • can only perform encryptions - hence application specific

1st programmable computer

invented by Konrad Zuse - German + made Z3 (world’s 1st fully operational electromechanical programmable computer) in 1941

butttt - another earlier computing device: the Analytical Engine - by Charles Babbage in 1830s - cites as 1st conceptual programmable computer

• x completed during Babbage’s lifetime but design laid out key principles of modern computers

stored program computers - John Von Neumann

stored program computers = became known as ‘VN architecture’ systems

• a computer that stores program instructions (+data) in memory

✓ thing as

- absence of physical relays or structures in VN = faster output

• wo mechanical relays, data can be sent to output devices via electronic signals = ↑ faster output speeds vs early mechanical systems

- flexibility - architecture = ↑ versatile + can handle wide range of tasks by simply changing program (instructions) stored in memory w/o need for hardware changes

- cost efficiency - single shared memory design = ↓ need for complex hardware = ↓ production + maintenance costs

- smaller, ↑ integrated systems - x bulky switches/relays = architecture allows for smaller + ↑ compact designs for output devices + their control systems

von Neumann architecture - in detail

3 components :

1. Central Processing Unit (CPU)

2. memory

3. input/output (I/O) interfaces

CPU - most important - has to execute a stream of instructions

heart of computing system

incl. 2 main components:

1. control unit (CU)

2. Arithmetic + Logic Unit (ALU) - performs mathematical or logical operations

memory

• computers memory used to store both program instructions + data

input/output interfaces

used to receive or send info from/to connected devices

• connected devices = peripheral devices

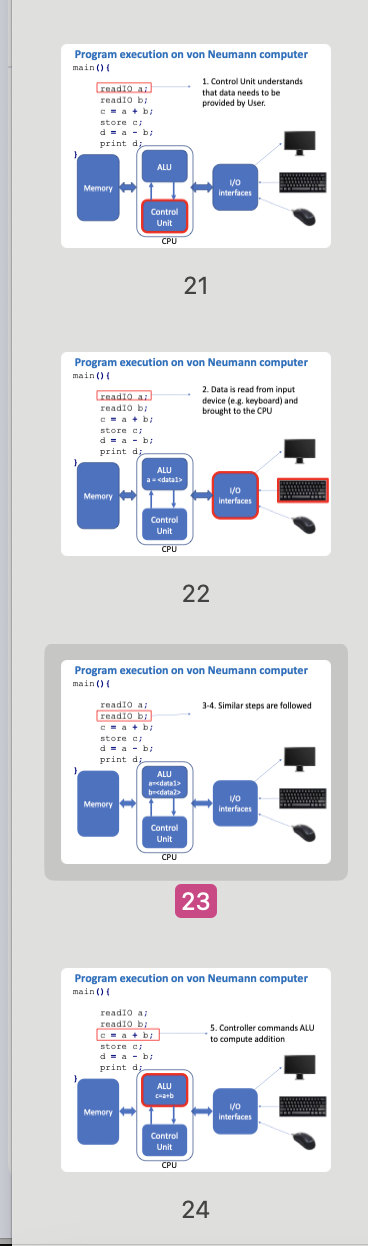

program execution of von Neumann computer

1. CU understands data needs to be provided by user

2. data is read from input device (e.g. keyboard) + brought to CPU

3. (3-4) similar steps followed

5. controller commands ALU to compute addition

6. controller copies data from ALU to memory

7. controller commands ALU to compute subtraction

8. controller sends data from ALU to display

organisation of a CPU - inside a CPU

.

Inside a CPU: Arithmetic and Logic Unit

Arithmetic and Logic Unit (ALU) is the union of the circuits for performing arithmetic and logical operations

Control Unit is responsible for step-by-step execution of instructions during a program execution.

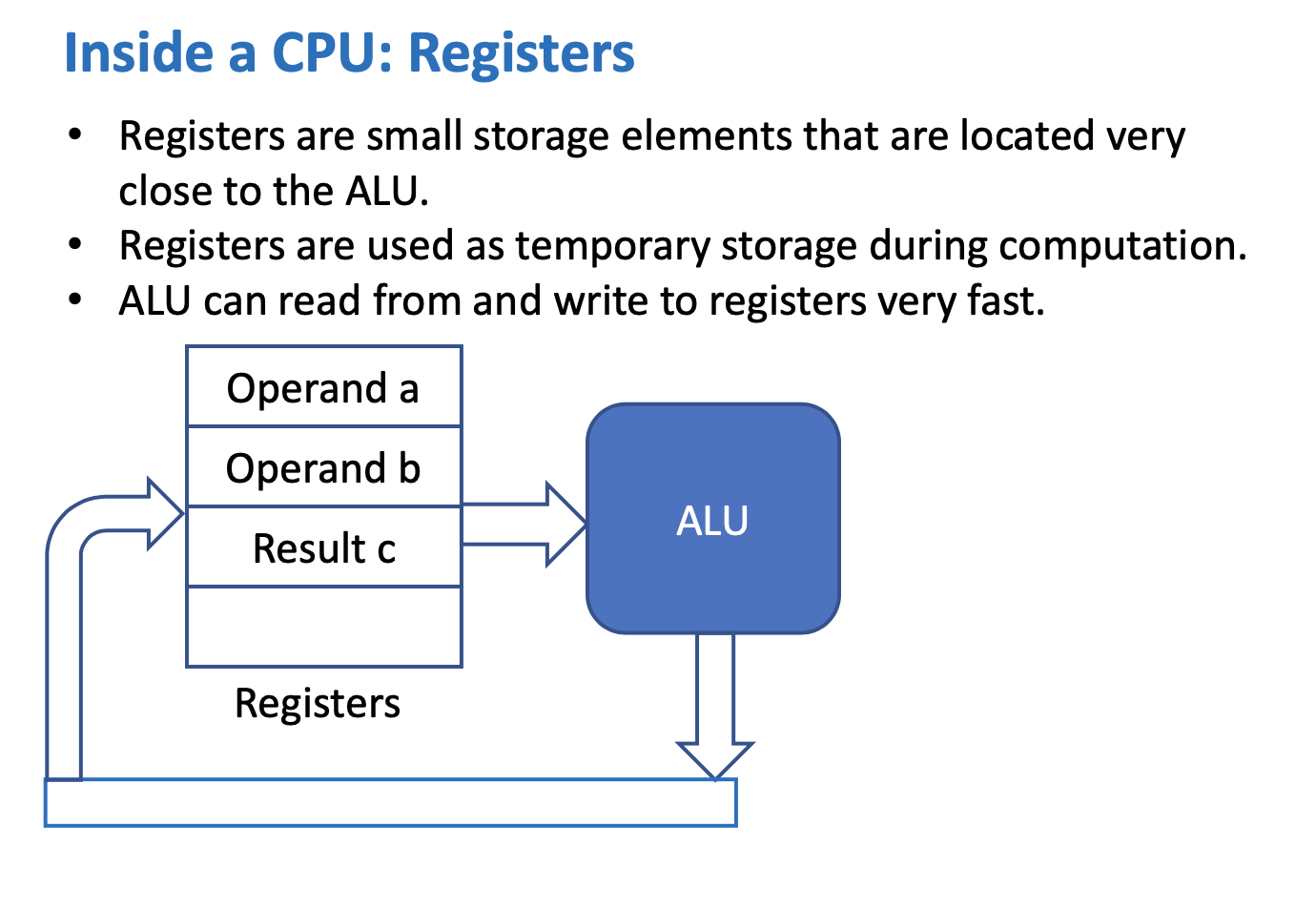

registers

= small storage elements that are located v close to ALU

• used as temp storage during computation

• ALU can read from + write to registers v. fast

typically as wide as the machine bit width

small memory cells that operate at v high speeds

✓for speed

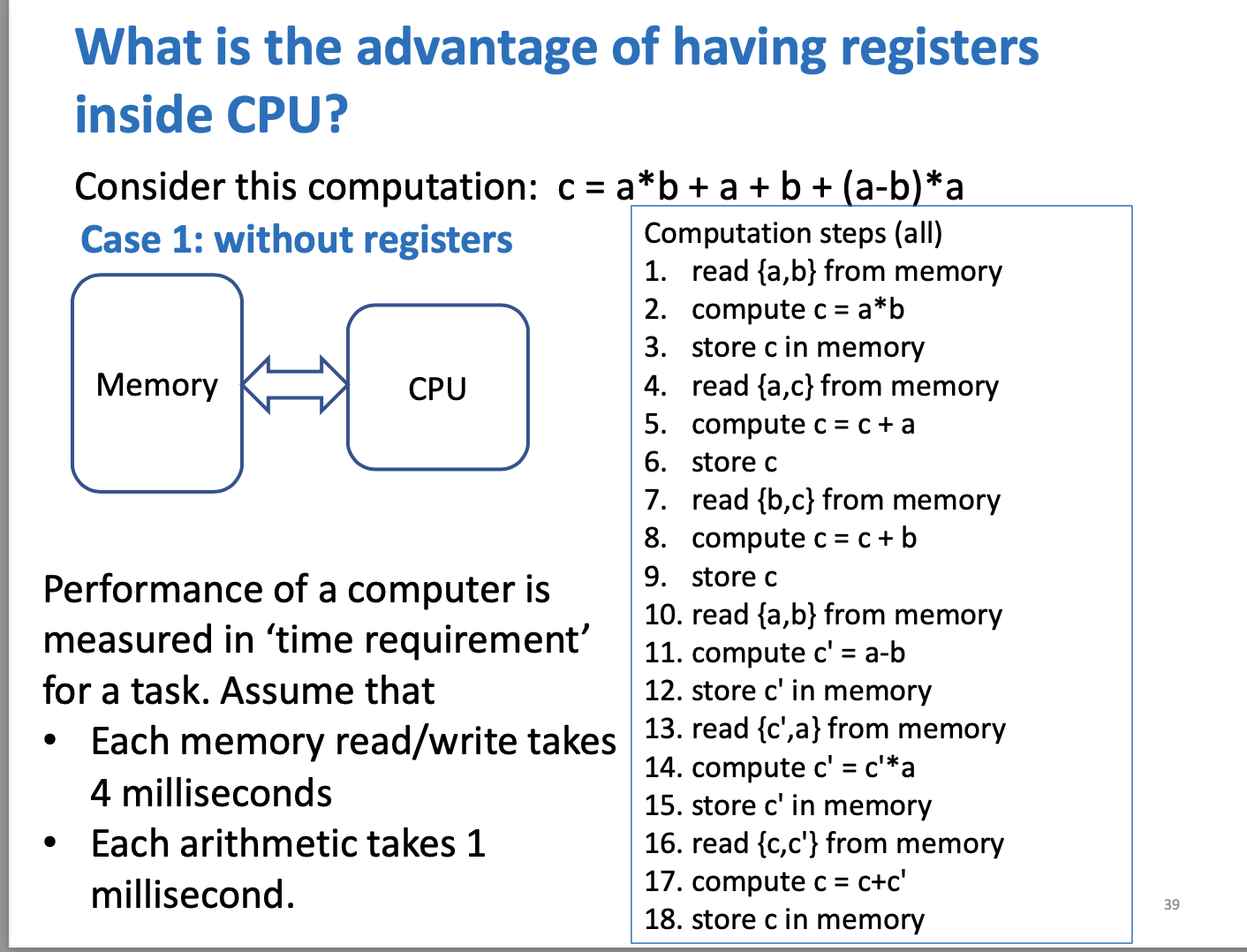

advantage of registers

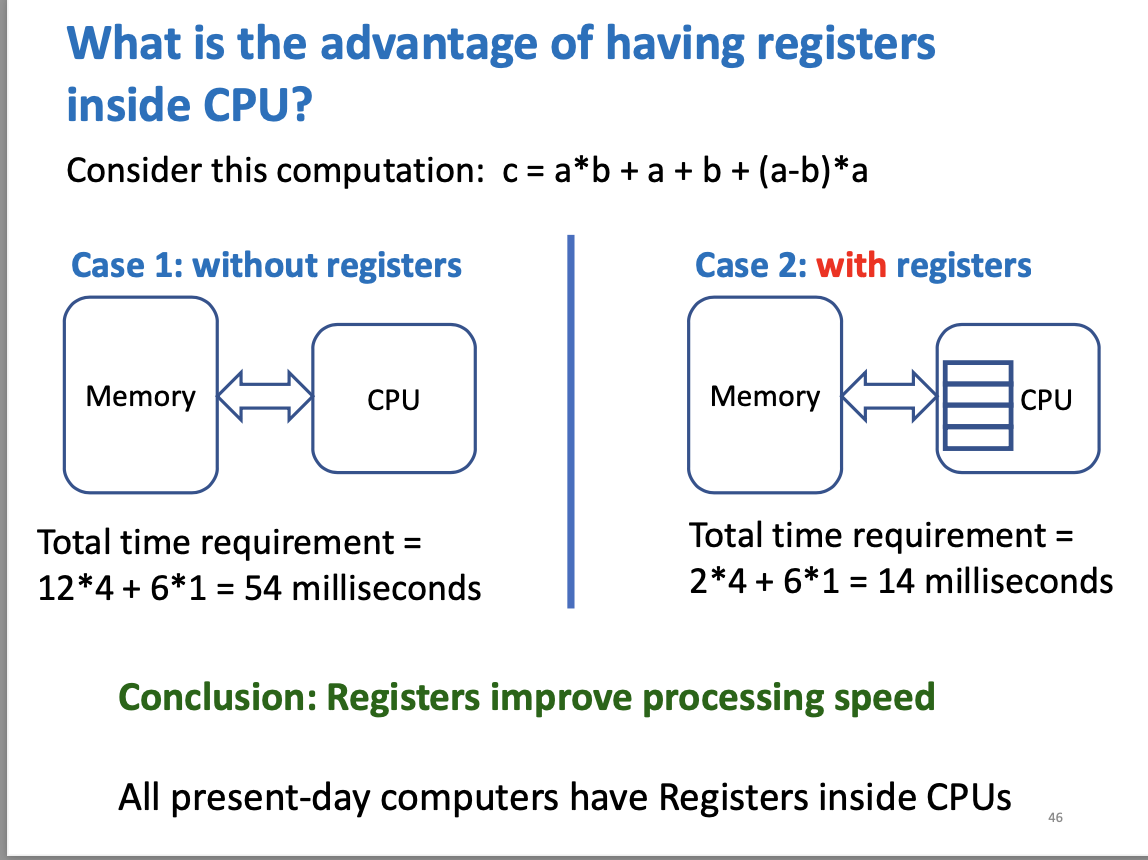

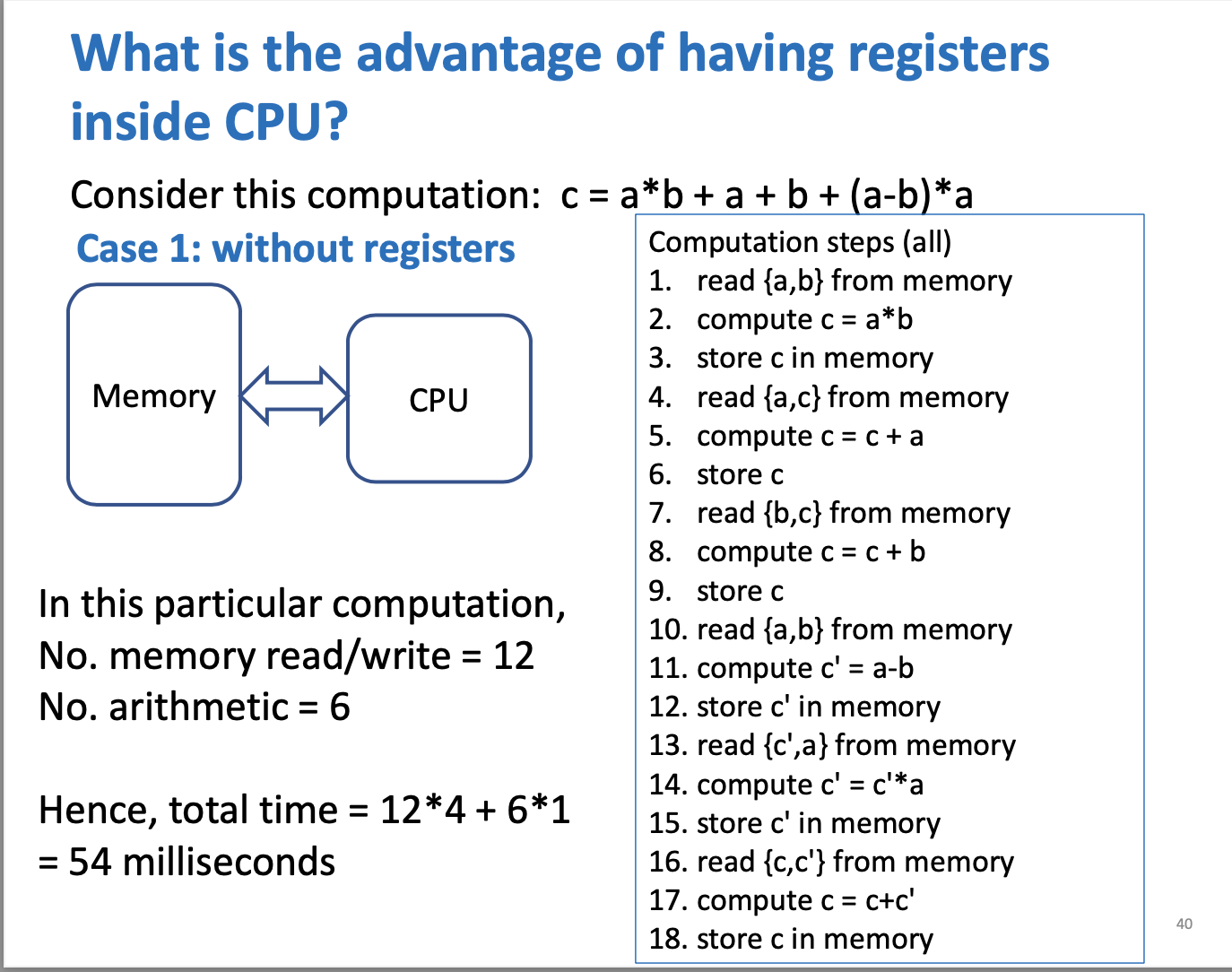

1st example - x registers : no. memory read/write = 12

no. arithmetic = 6

• hence total time = 12×4 + 6×1 = 54 milliseconds

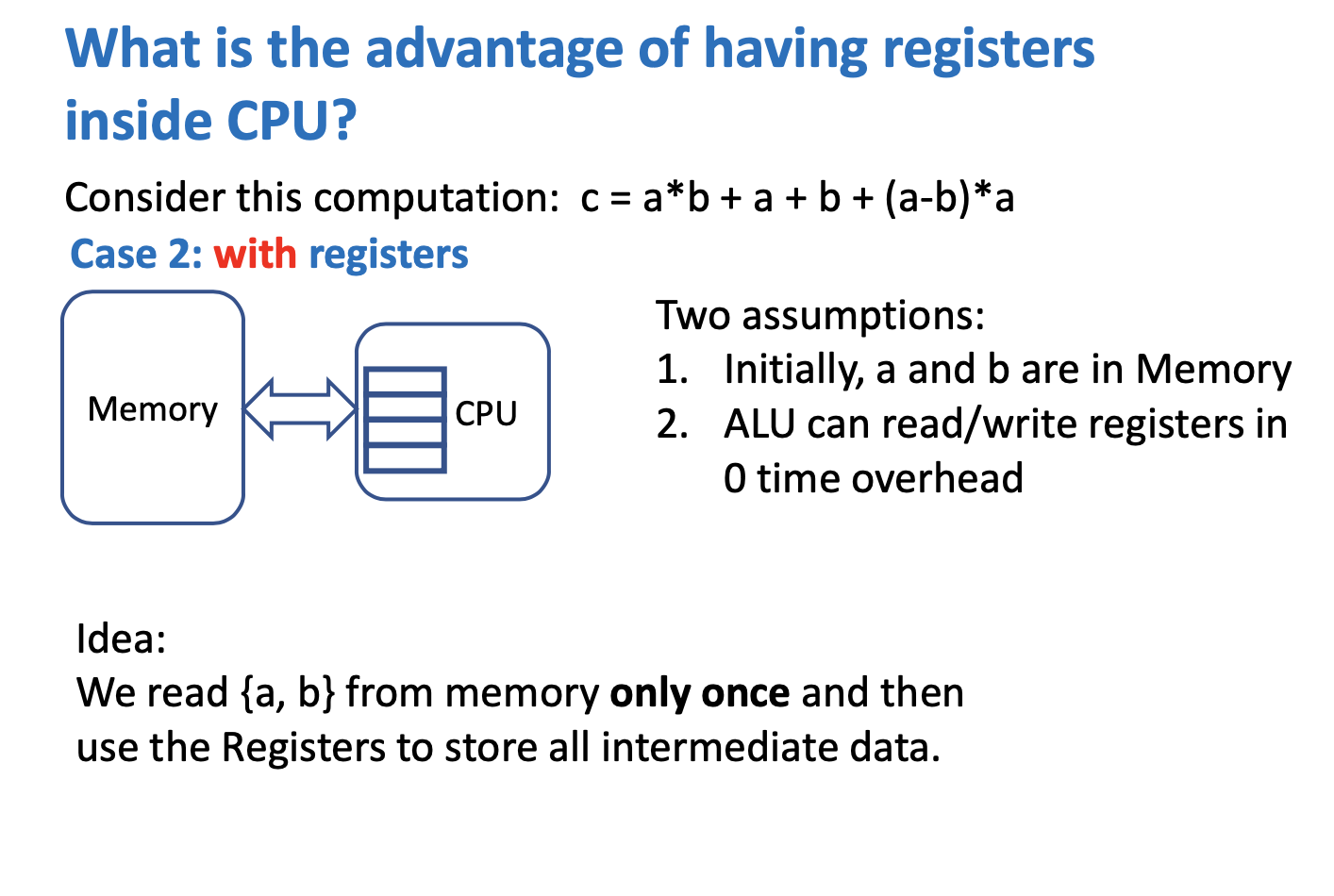

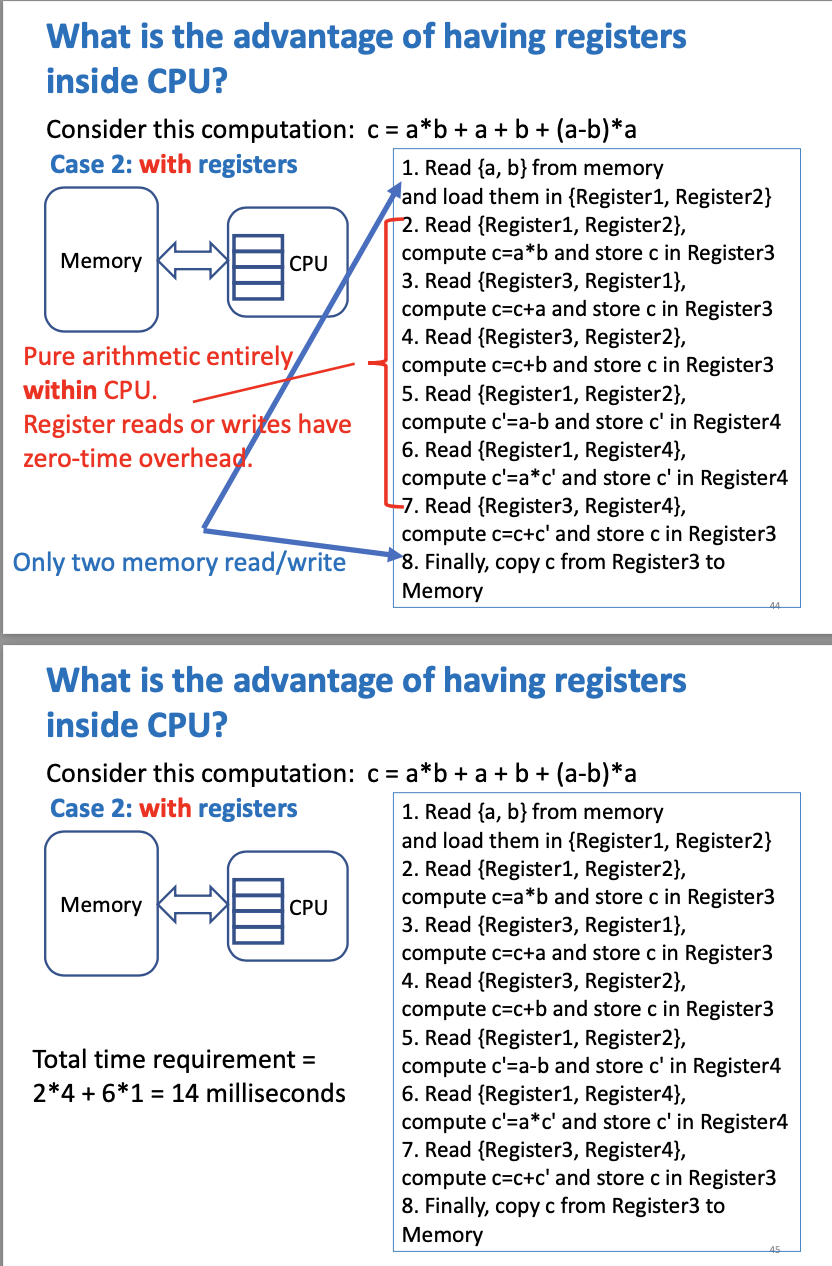

2nd example- w registers : this computation can do w/o continuously touching memory - just plug in values in registers + do all computations there

• total time requirement = 2×4 + 6×1 = 14 milliseconds

concl of registers

= registers improve processing speed

remember - cpu’s don’t need registers, they can just use memory to store

organisation of memory

programmer sees memory as a storage element

• memory = addressable storage

memory access

• during read + store operations, CPU generates memory addresses

• memory management unit (MMU) reads or writes from/to requested memory location

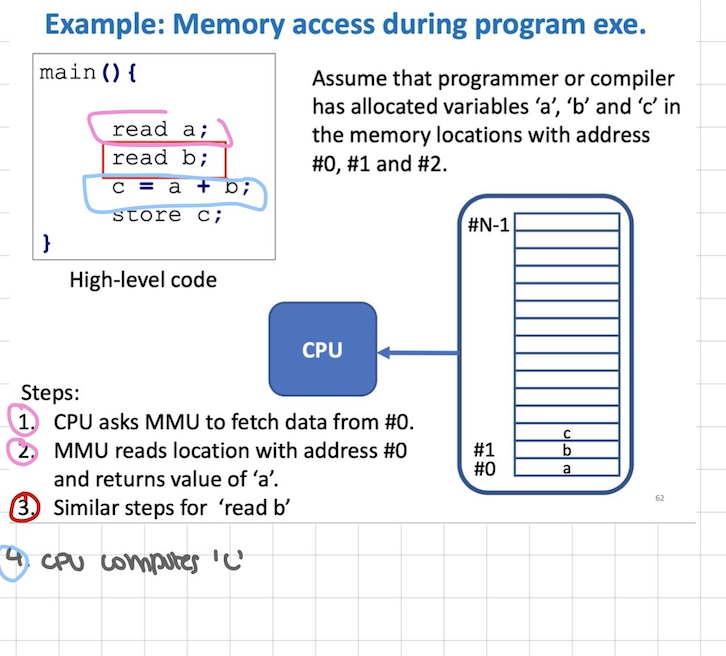

example: memory access during program execution

steps:

1. CPU asks MMU to fetch data from #0

2. MMU reads location with address #0 + returns value of ‘a’

3. similar steps for ‘read b’

4. CPU computes ‘c’

5. CPU instructs MMU to store ‘c’ in location with address #2

6. MMU writes ‘c’ at #2

number systems

decimal system = base 10 system

digits = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9

• for example: 957 = 9 × 10² + 5 × 10^1 + 7 × 10^0

binary number system = base 2 system

digits = 0, 1 - called a ‘bit’

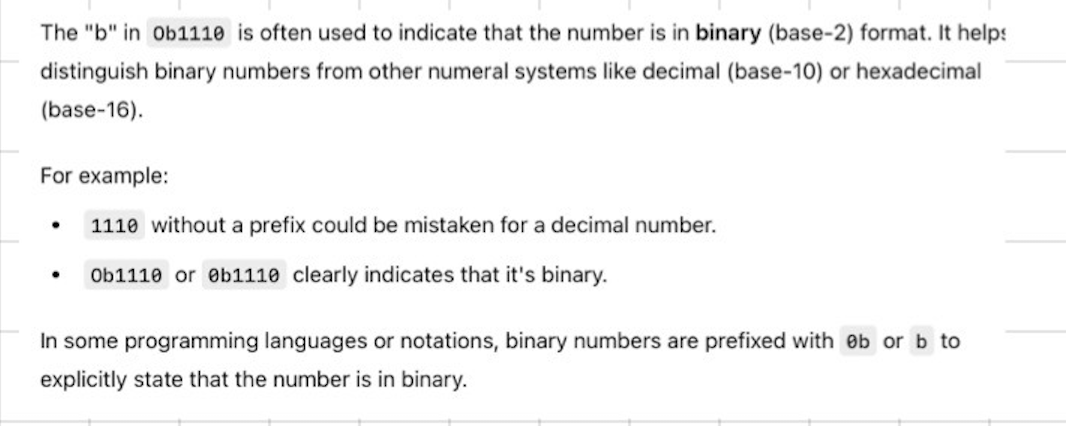

collection of 8 bits = byte, example : 0b11010100

• 0b1110 = binary number

• value = 1 × 2³ + 1 × 2² + 1 × 2^1 + 0 × 2^0

  = 14 in decimal

hexadecimal number system = base 16 system

digits = digits = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F

• example, 0xA3B is a hex number

  value = A x 16² + 3 × 16^1 + B

  = 10 × 16² + 3 × 16^1 + B

  = 214 in decimal

a byte consists of 2 hex digits

example: let the byte be 1001 0100 - hex equivalent is 0xD4

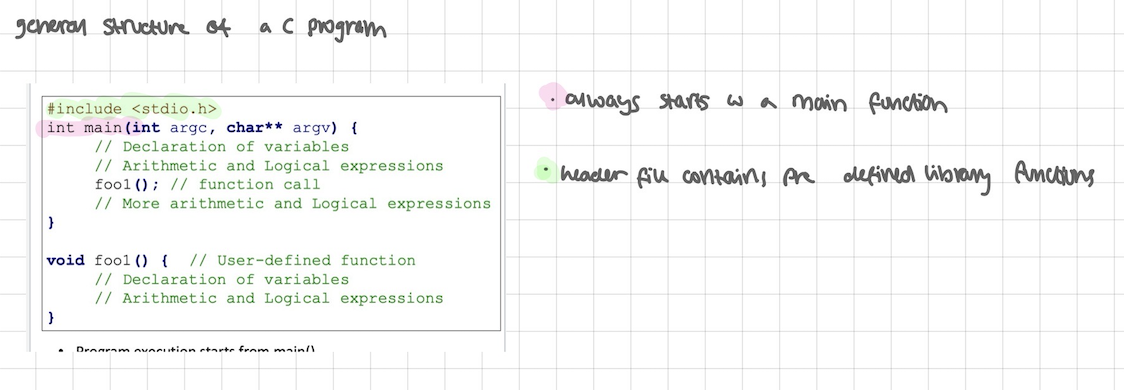

general structure of a c program

data types

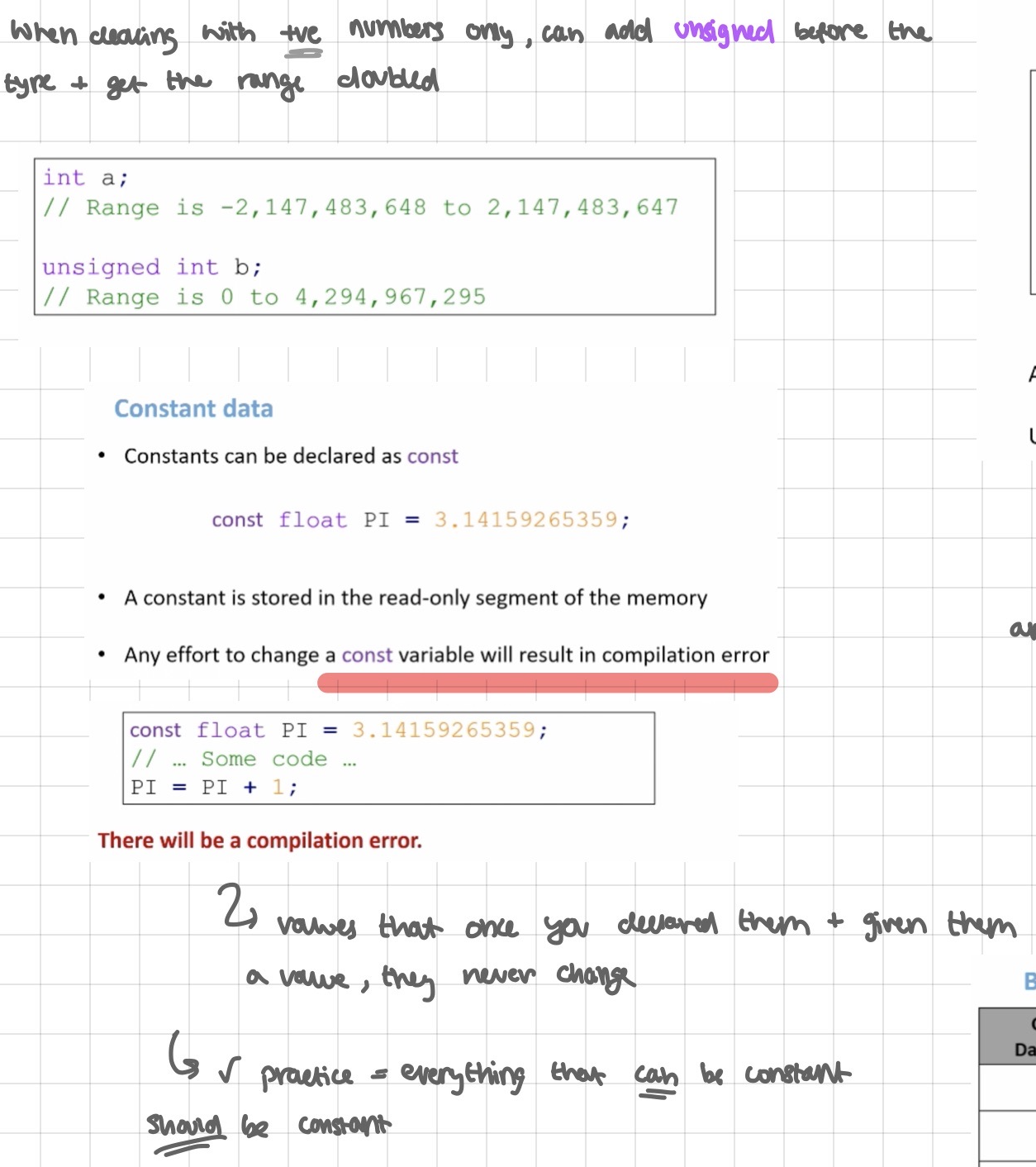

when dealing with +ve numbers only, can add unsigned before the type + get the range doubled

constants = declared as const

a constant is stored in the read-only segment of the memory

• any effort to change a const variable will result in compilation error

  • values that once u declared them + given them a value, they never change

  • ✓ practice = everything that can be constant should be constant

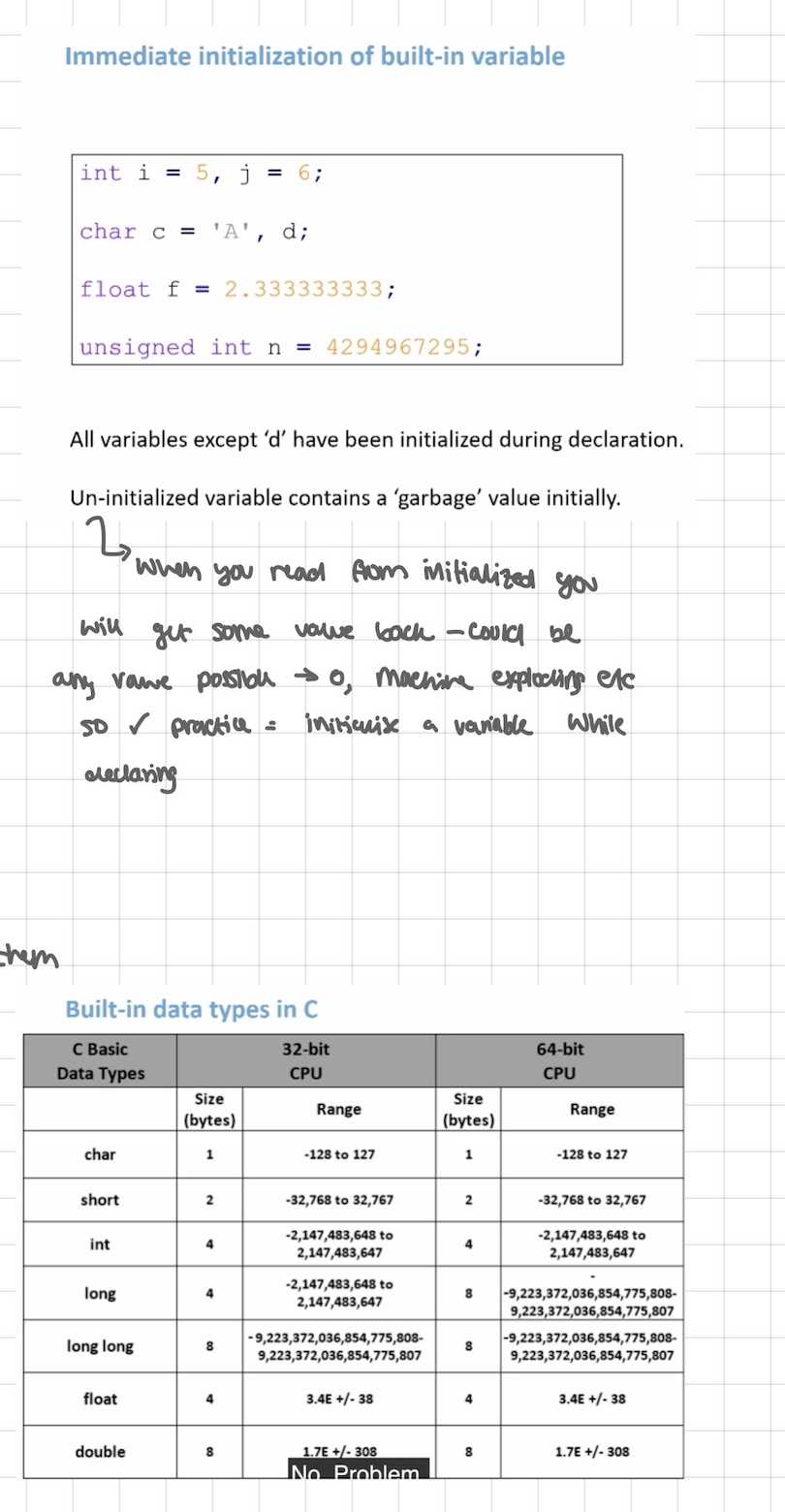

immediate initialisation of built-in variable

• un-intialised variable contains a ‘garbage’ value initially

• when you read from initialised you will get some value back - could be any value possible - 0, machine exploding etc

  • so ✓ practice = initialise a variable while declaring

more on data types

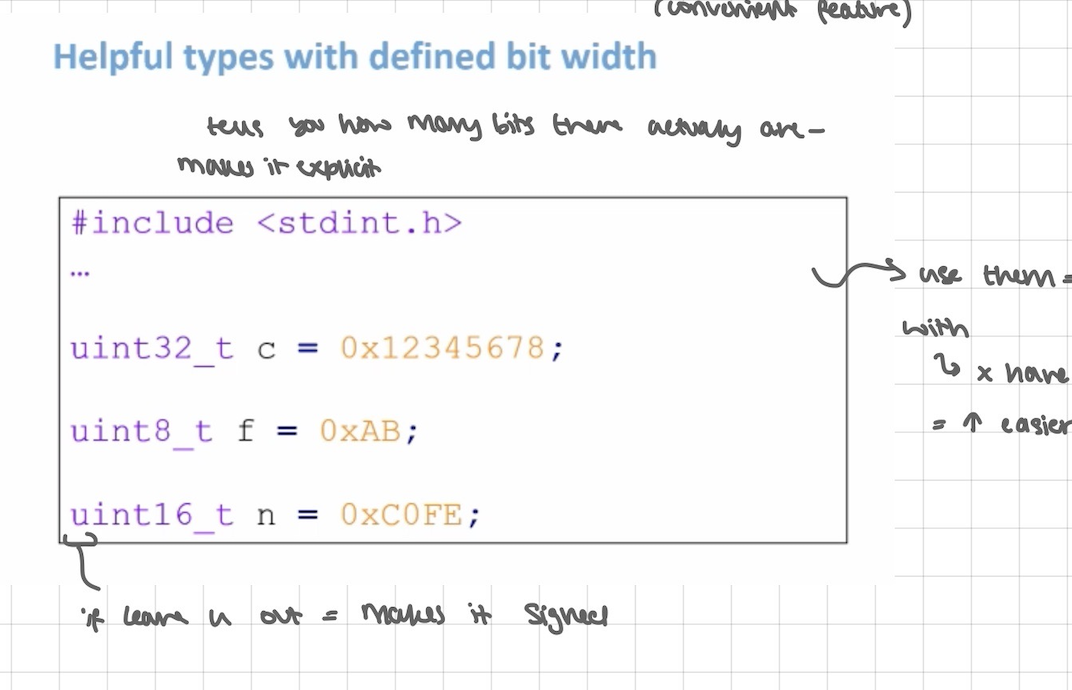

helpful types w defined bit width (convenient feature)

tells you how many bits there actually are - makes it explicit

• use then when u know what ur dealing with

  • x have to thing abt long vs long long = ↑ easier to use

control flow

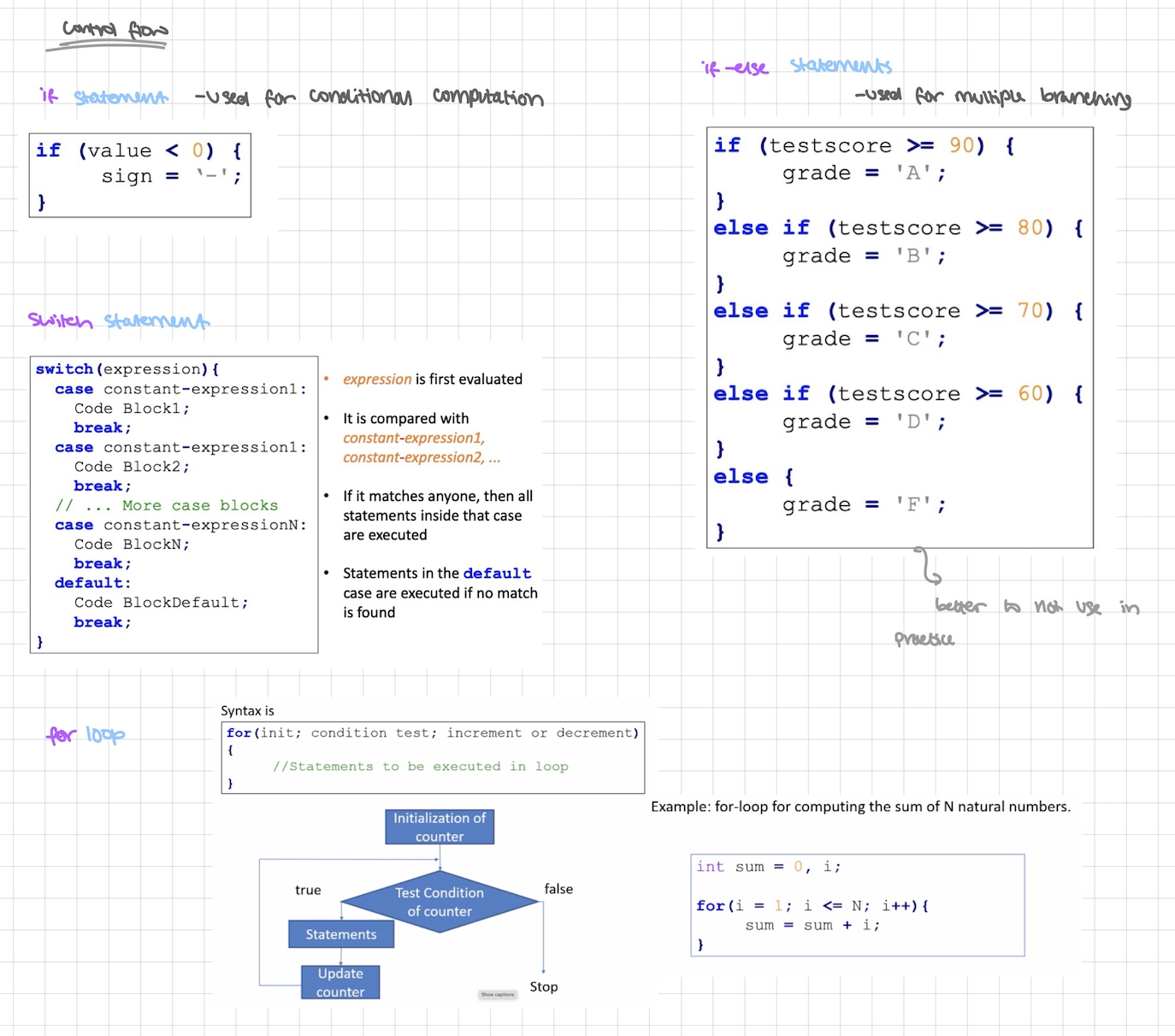

if statement - used for conditional computation

switch statement

• expression is 1st evaluated

• its compared with constant-expression1, constant-expression2,….

• if it matches anyone, then all statements inside that case are executed

• statements in the default case are executed if no match is found

if-else statements

• used for multiple branching

  • better to not use in practice

for loop

more control flow

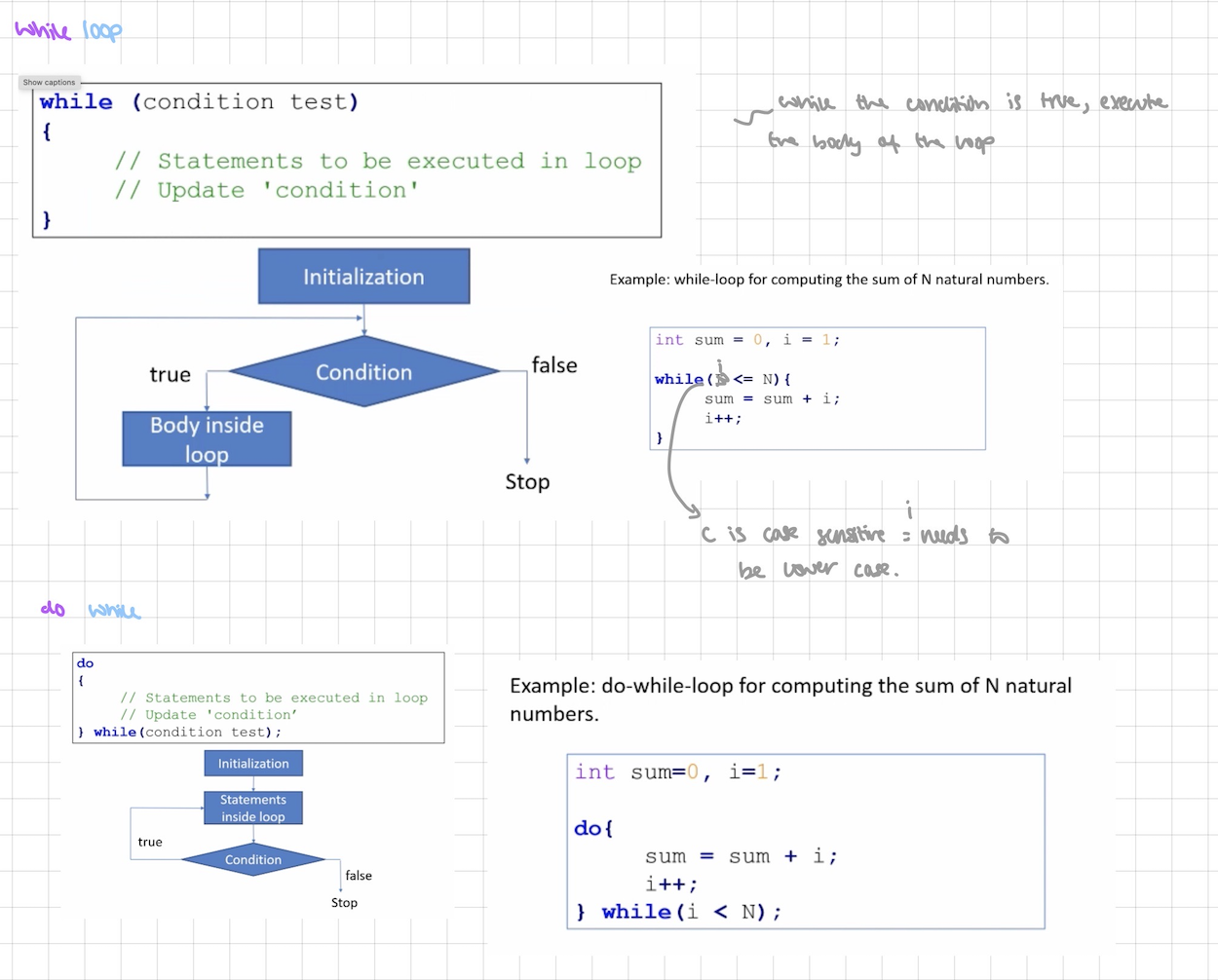

while loop

• while the condition is true, execute the body of the loop

do while

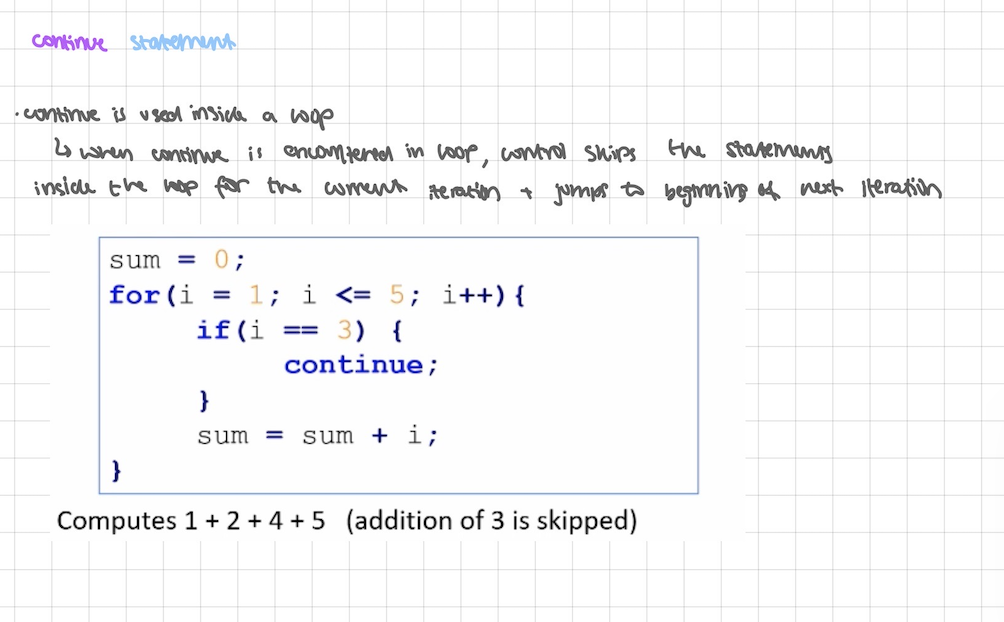

continue statement

• continue is used inside a loop

  • when continue is encountered in loop, control skips the statements inside the loop for the current iteration + jumps to beginning of next iteration

cont

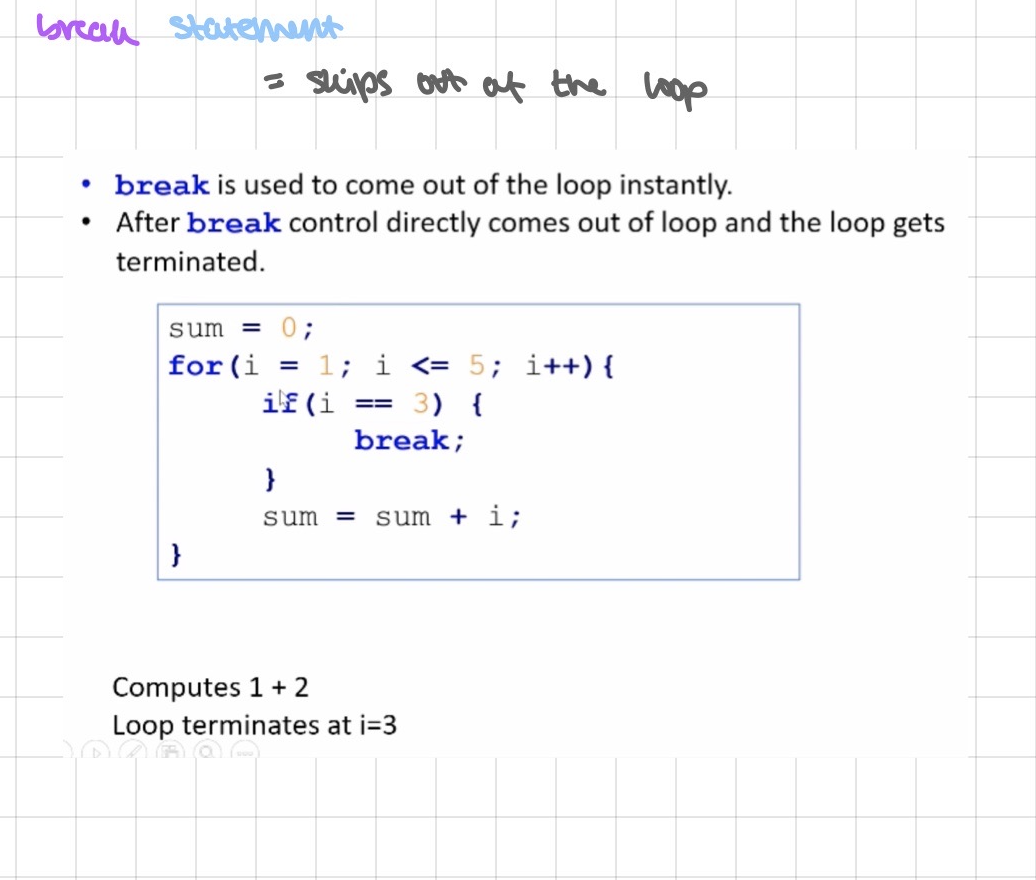

break statement

= skips out of the loop instantly

• after break control directly comes out of loop and the loop gets terminated

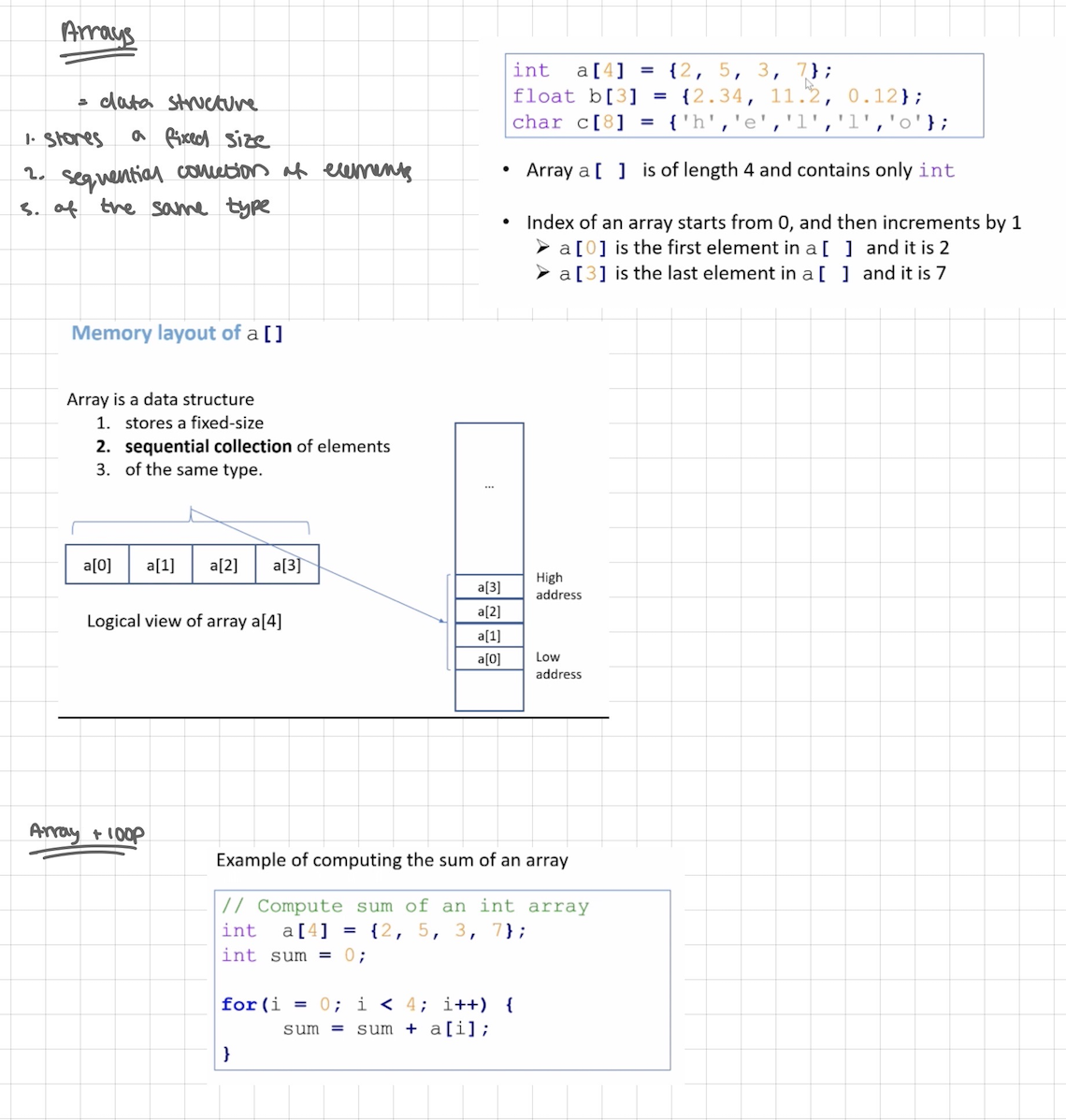

arrays

= data structure

1. stores a fixed size

2. sequential collection of elements

3. of the same type

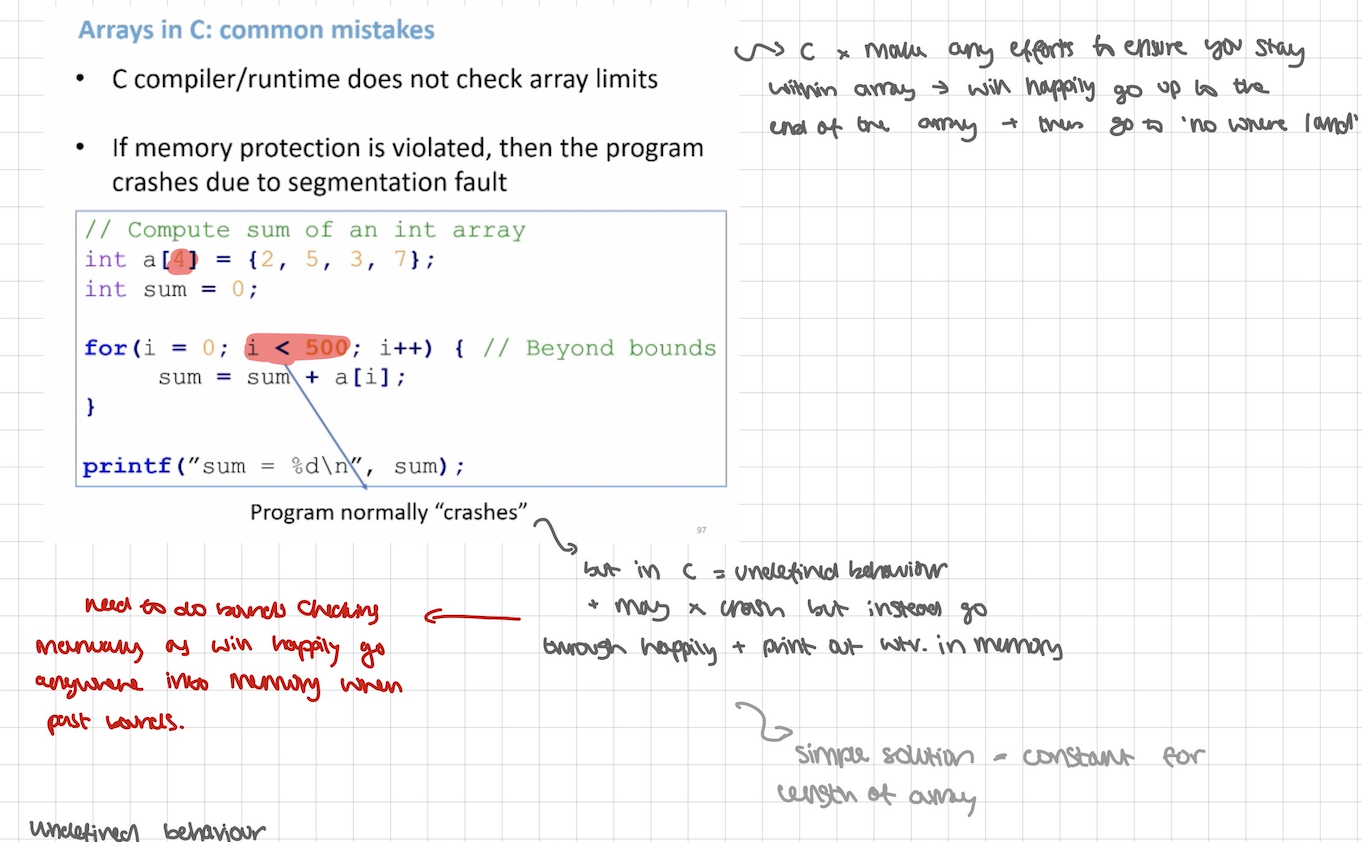

arrays in C: common mistakes

• C compiler/runtime doesn’t check array limits - C x make any efforts to ensure you stay within array - will happily go up to the end of the array + then go to ‘no where land’

• if memory projection = violated, then the program crashes due to segmentation fault

• program normally “crashes” - but in C = undefined behaviour + may x crash but instead go through happily + print out wtv in memory

• need to do bounds checking manually as will happily go anywhere into memory when past bounds

  • simple solution = constant for length of array

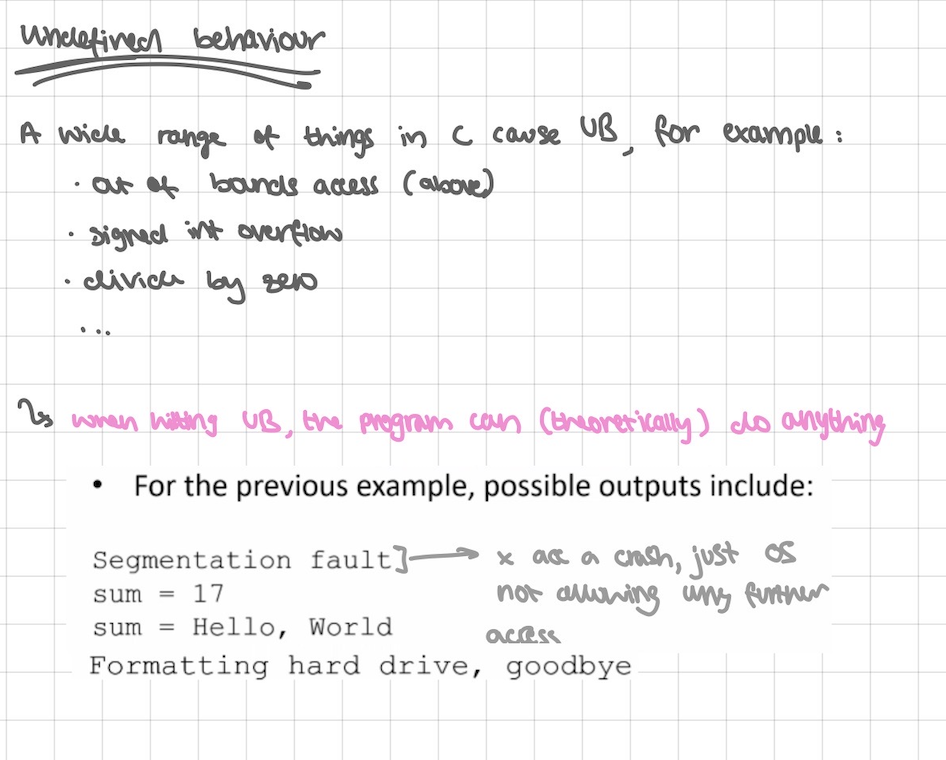

undefined behaviour

a wide range of things in C cause UB, for example:

• out of bounds access (above)

• signed int overflow

• divide by zero

• …

when hitting UB, the program can (theoretically) do anything

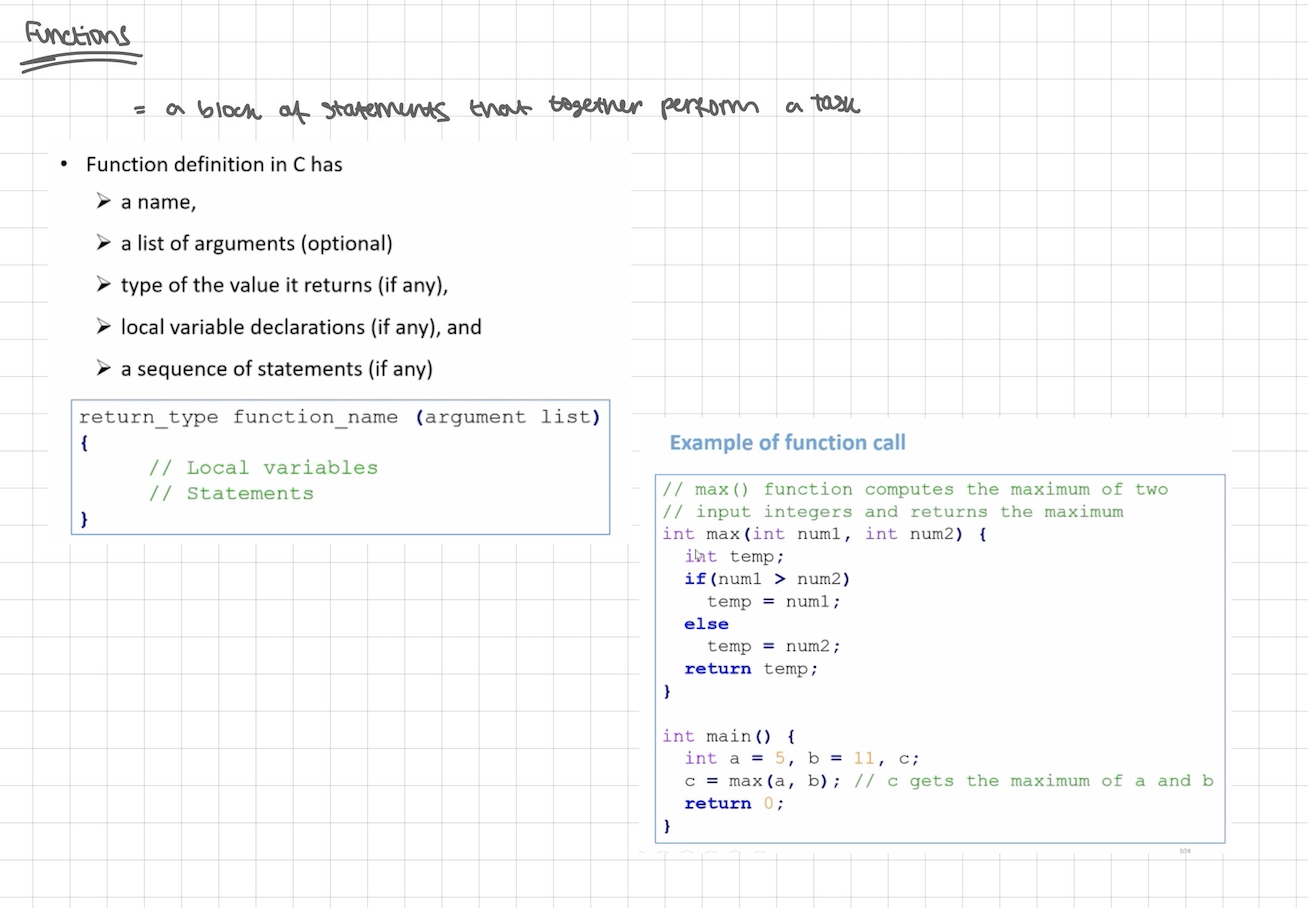

functions

= a block of statements that together perform a task

function definition in C has:

• a name

• a list of arguments (optional)

• type of value it returns (if any)

• local variable declarations (if any), and

• a sequence of statements (if any)

standard library (libc) I/O

printf() function - used to print outputs

• It is defined in stdio.h library and prototype is:

  printf ("%format", variable_name);

  format is a place holder which depends on data-type

scan() function = used to receive inputs from keyboard

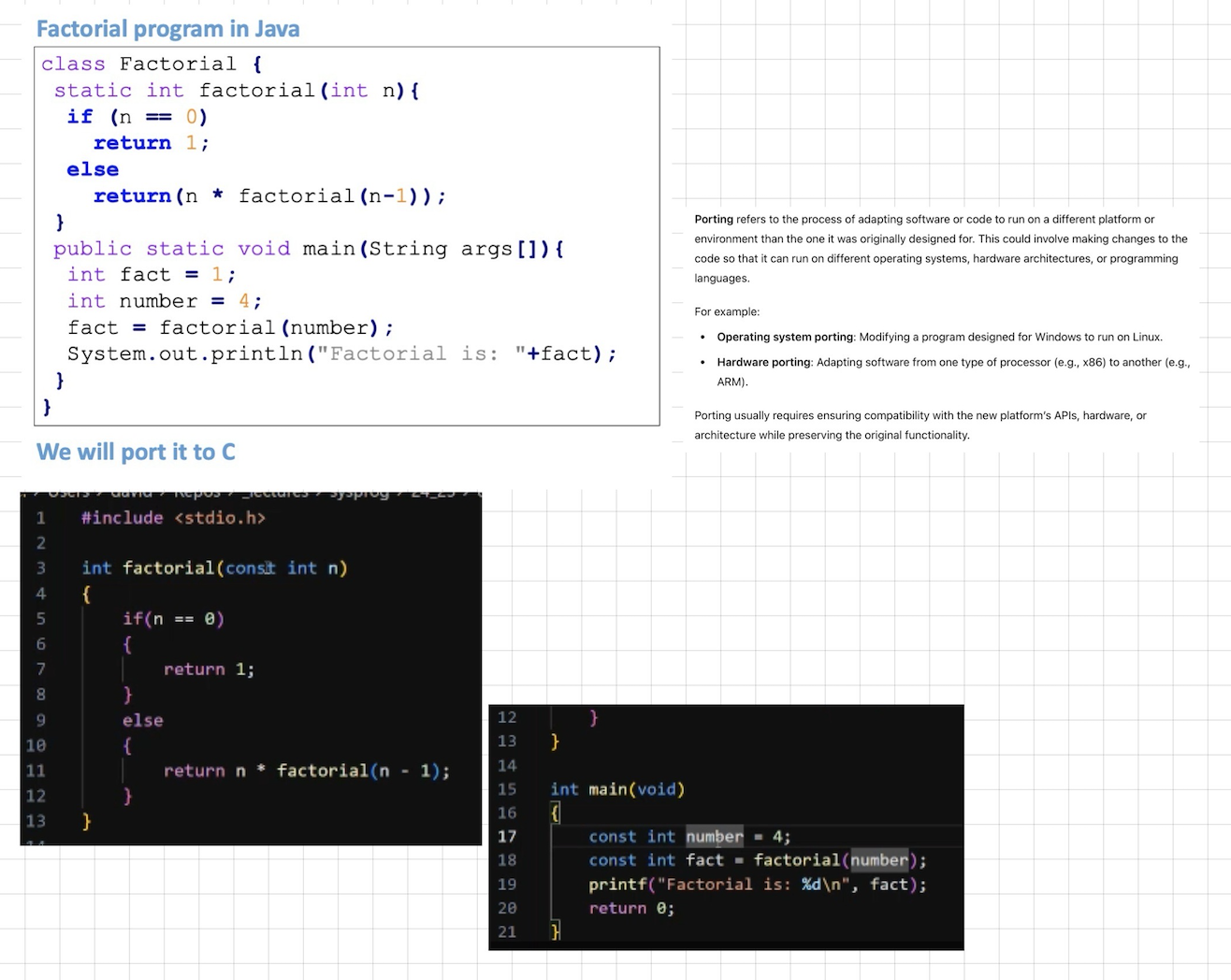

“porting” from Java

porting = process of adapting software or code to run on a diff platform/environment than the one it was originally designed for
