13 Terms

1
New cards

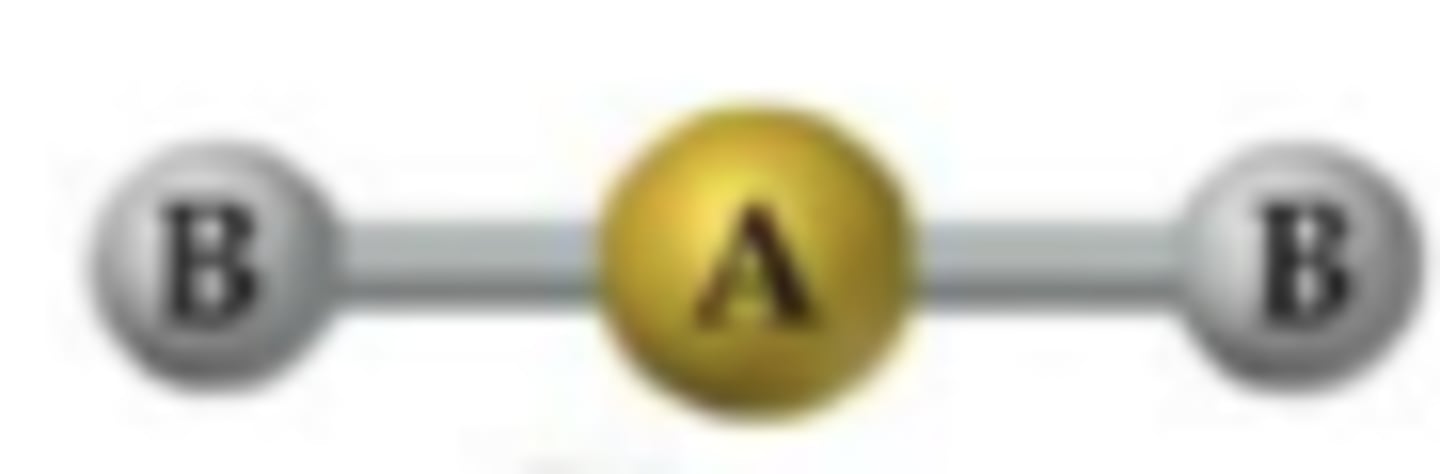

Linear

1-2 Constituents

0 Lone Pair

Bond Angle: 180o

<p>1-2 Constituents</p><p>0 Lone Pair</p><p>Bond Angle: 180o</p>
2
New cards

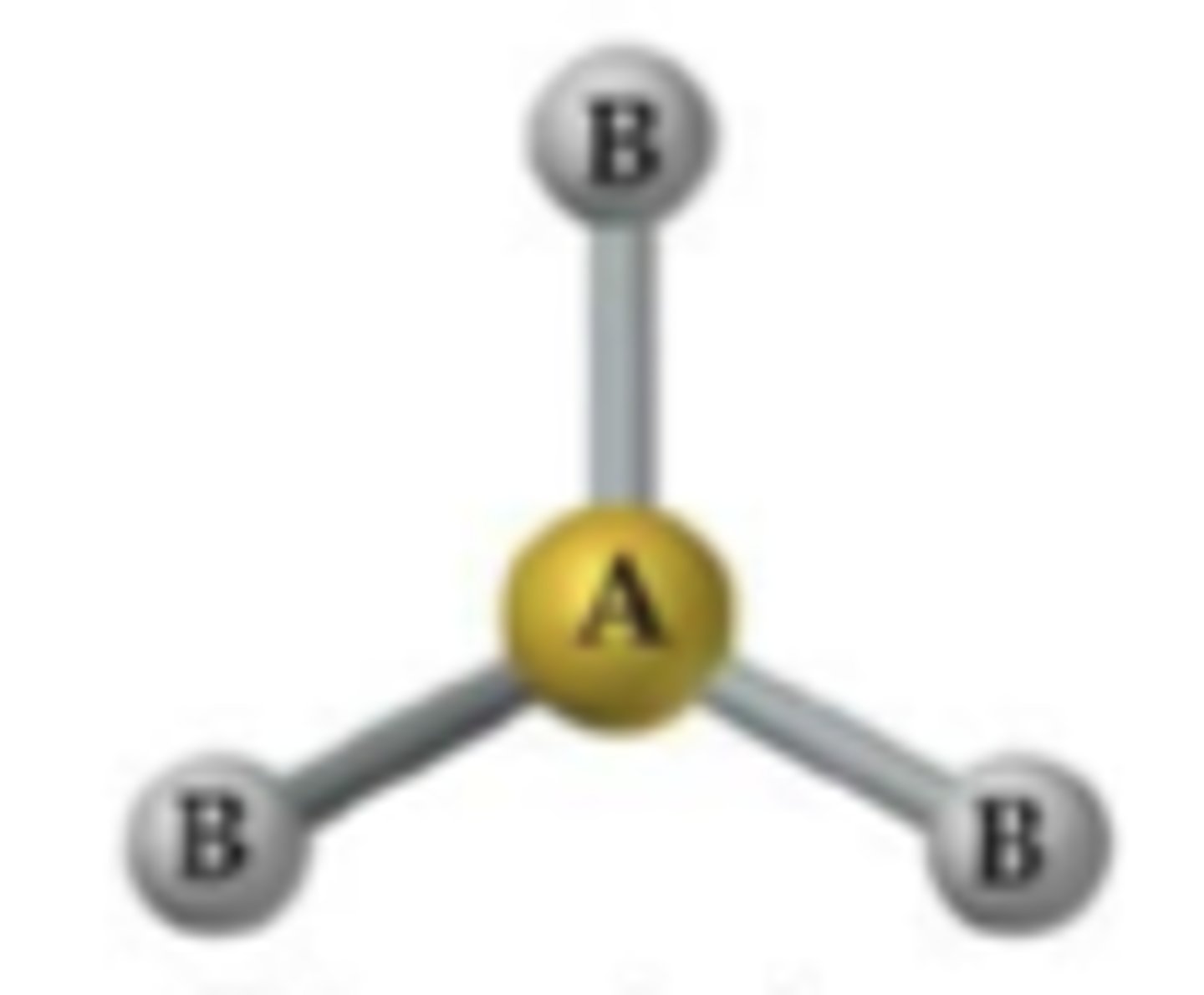

Trigonal Planar

3 Constituents

0 Lone Pair

Bond Angle: 120o

<p>3 Constituents</p><p>0 Lone Pair</p><p>Bond Angle: 120o</p>
3
New cards

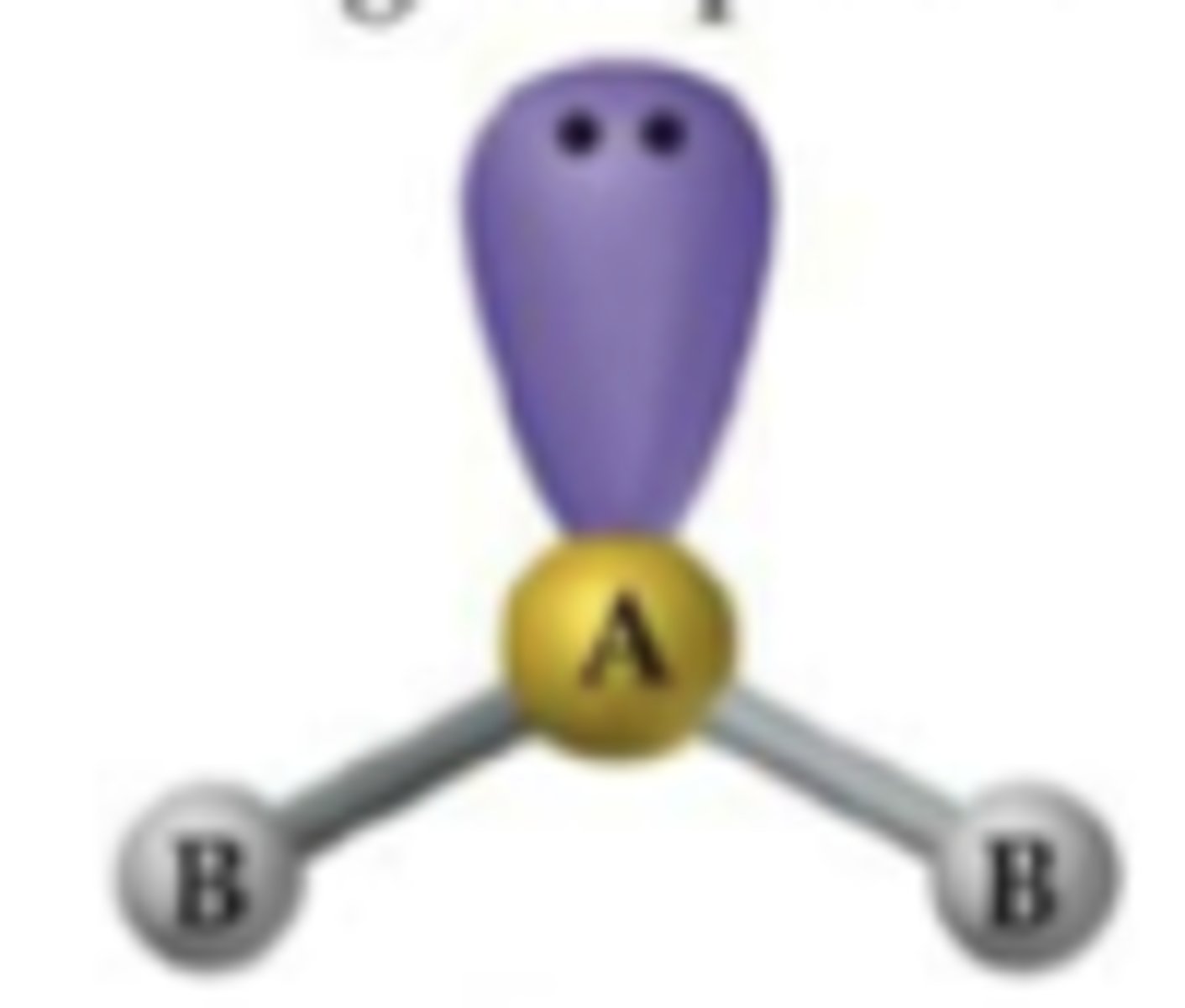

Bent (Trigonal Planar)

2 Constituents

1 Lone Pair

Bond Angle: <120o

<p>2 Constituents</p><p>1 Lone Pair</p><p>Bond Angle: &lt;120o</p>
4
New cards

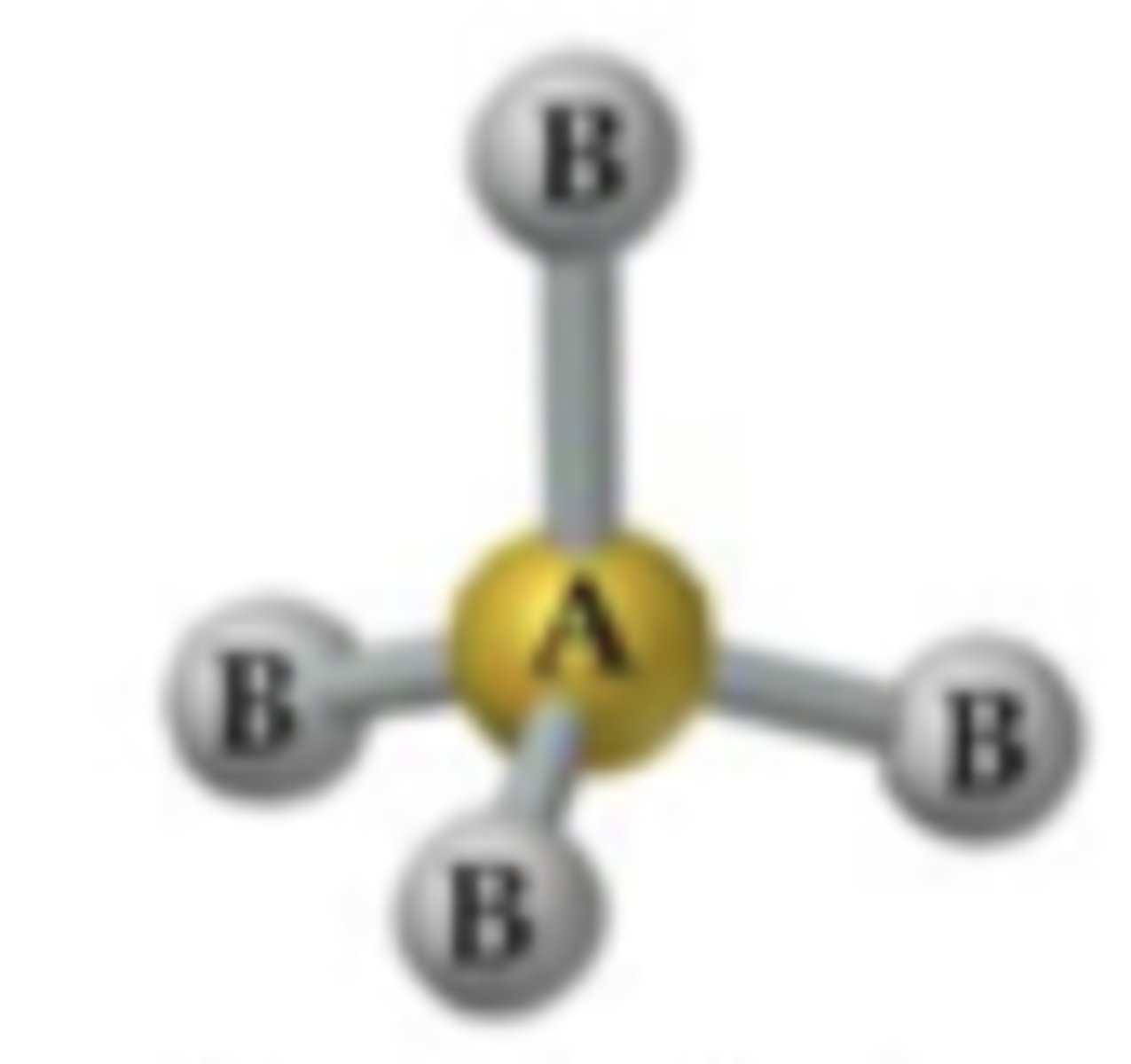

Tetrahedral

4 Constituents

0 Lone Pair

Bond Angle: 109.5o

<p>4 Constituents</p><p>0 Lone Pair</p><p>Bond Angle: 109.5o</p>
5
New cards

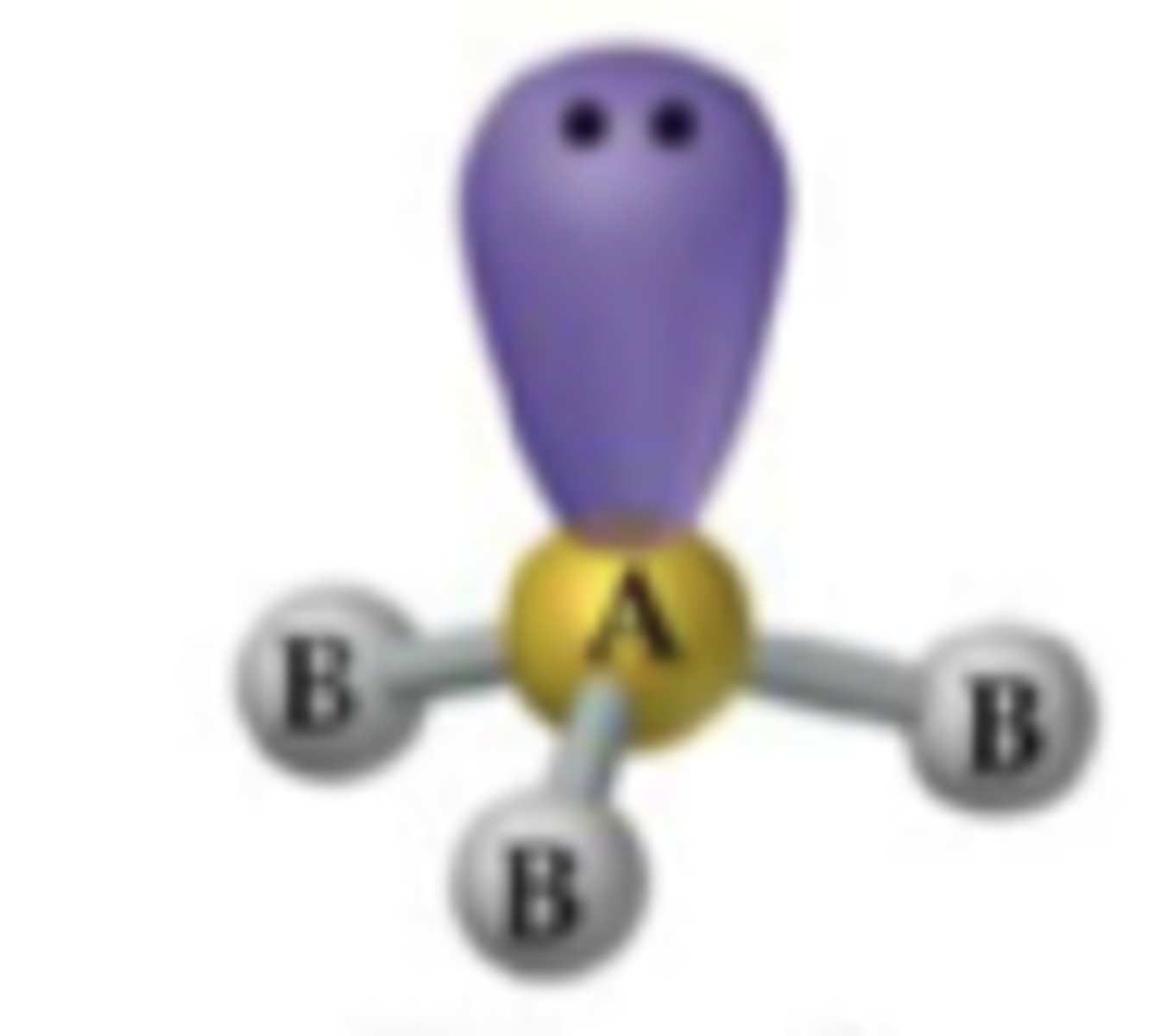

Trigonal Pyramidal (Tetrahedral)

3 Constituents

1 Lone Pair

Bond Angle: 107.3o

<p>3 Constituents</p><p>1 Lone Pair</p><p>Bond Angle: 107.3o</p>
6
New cards

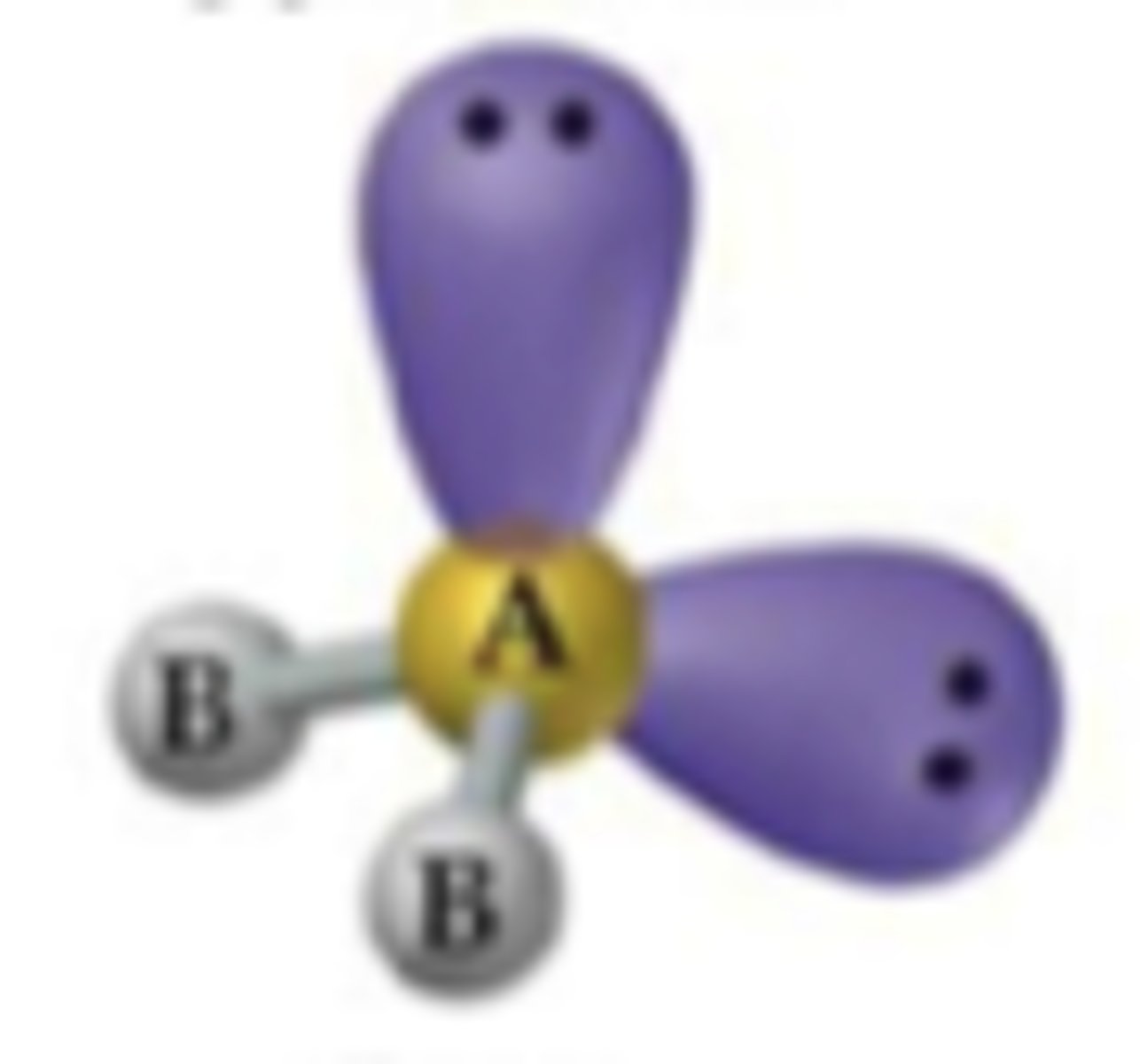

Bent (Tetrahedral)

2 Constituents

2 Lone Pair

Bond Angle: 104.5o

<p>2 Constituents</p><p>2 Lone Pair</p><p>Bond Angle: 104.5o</p>
7
New cards

Trigonal Bipyramidal

5 Constituents

0 Lone Pair

Bond Angle:

90o, 120o

<p>5 Constituents</p><p>0 Lone Pair</p><p>Bond Angle:</p><p>90o, 120o</p>
8
New cards

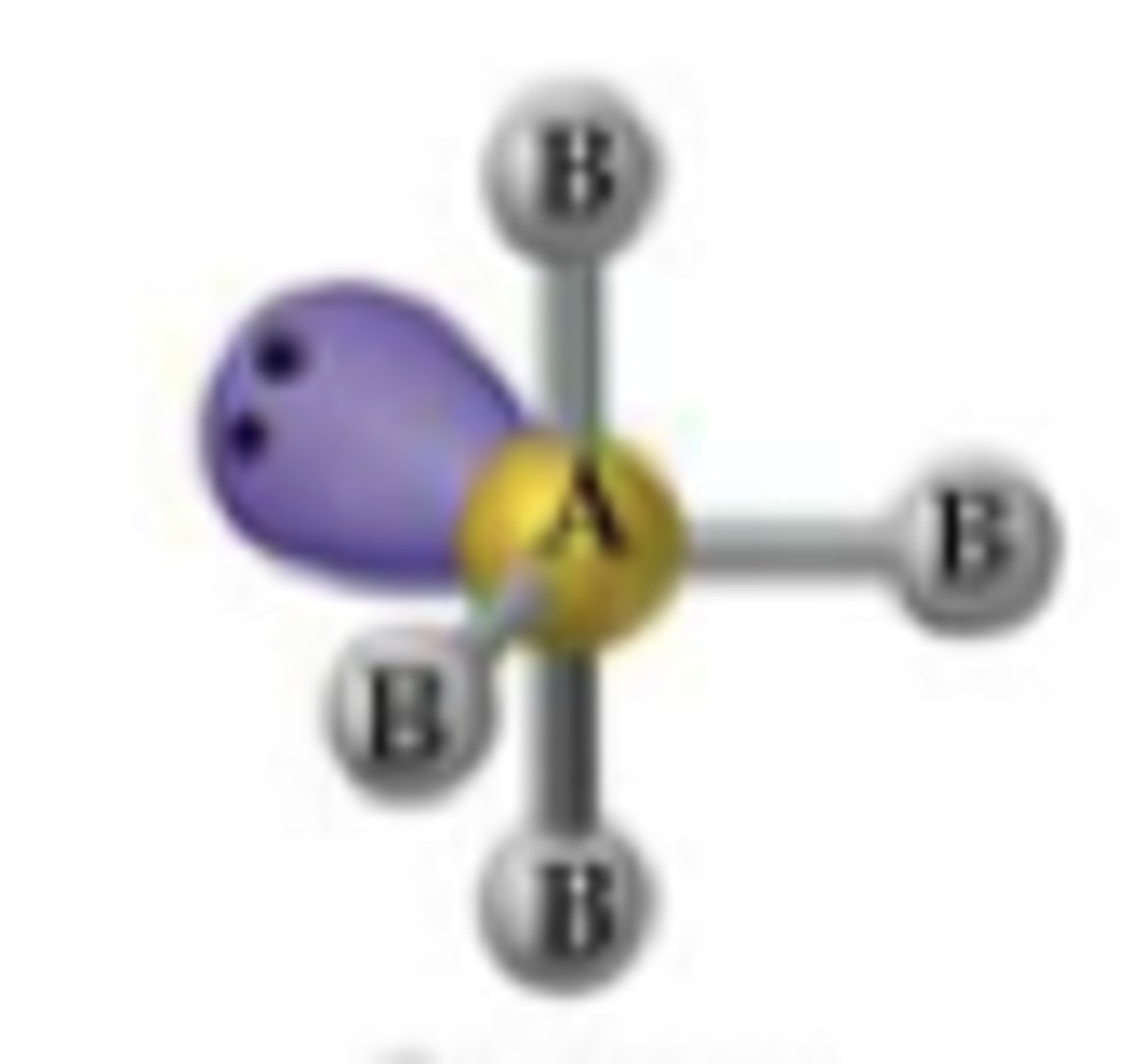

Seesaw

4 Constituents

1 Lone Pair

Bond Angle:

<90o, <,120o, <180o

<p>4 Constituents</p><p>1 Lone Pair</p><p>Bond Angle:</p><p>&lt;90o, &lt;,120o, &lt;180o</p>
9
New cards

T-shaped (Trigonal Bipyramidal)

3 Constituents

2 Lone Pair

Bond Angle:

<90o, <180o

<p>3 Constituents</p><p>2 Lone Pair</p><p>Bond Angle:</p><p>&lt;90o, &lt;180o</p>
10
New cards

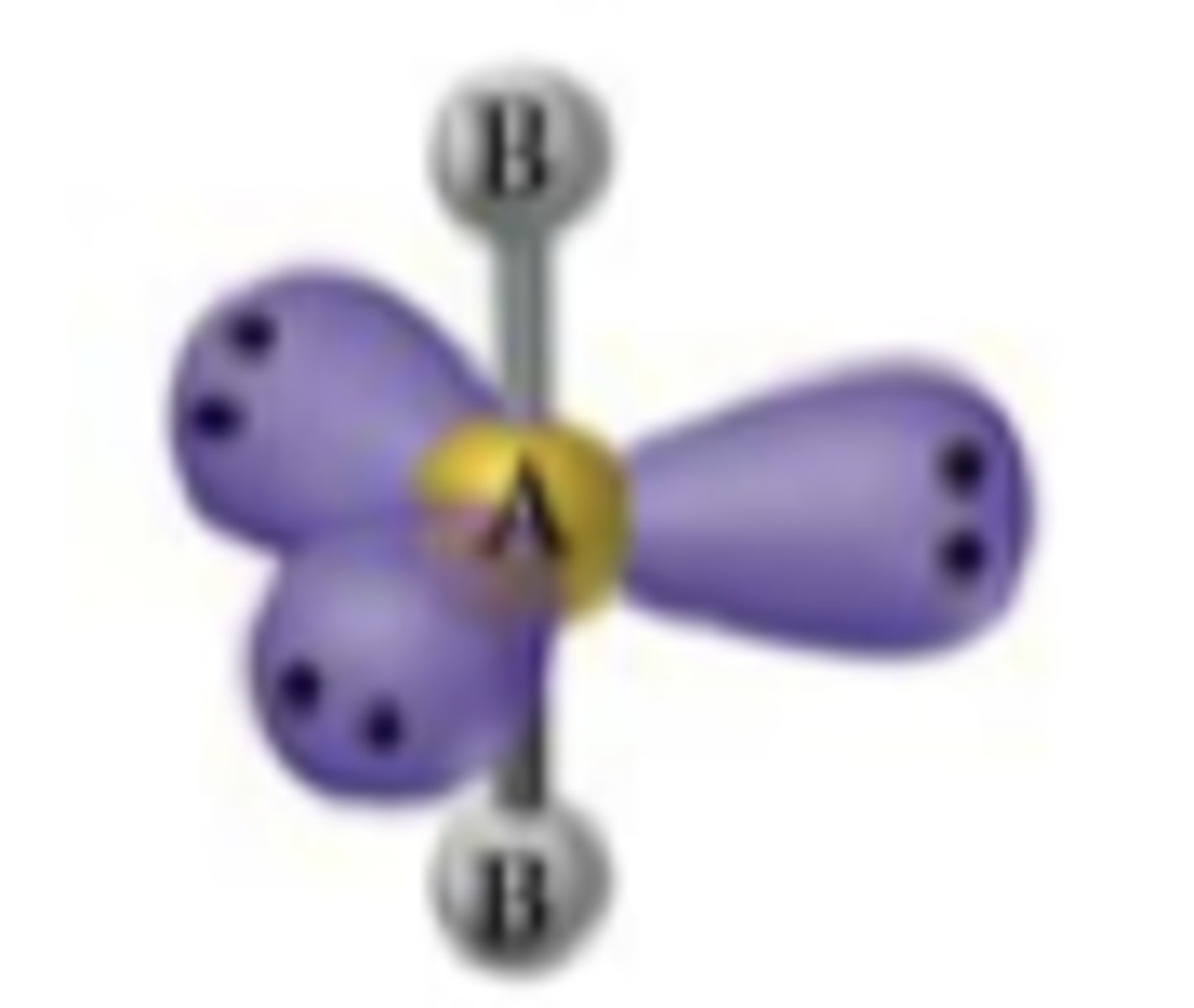

Linear (Trigonal Bipyramidal)

2 Constituents

3 Lone Pair

Bond Angle:

180o

<p>2 Constituents</p><p>3 Lone Pair</p><p>Bond Angle:</p><p>180o</p>
11
New cards

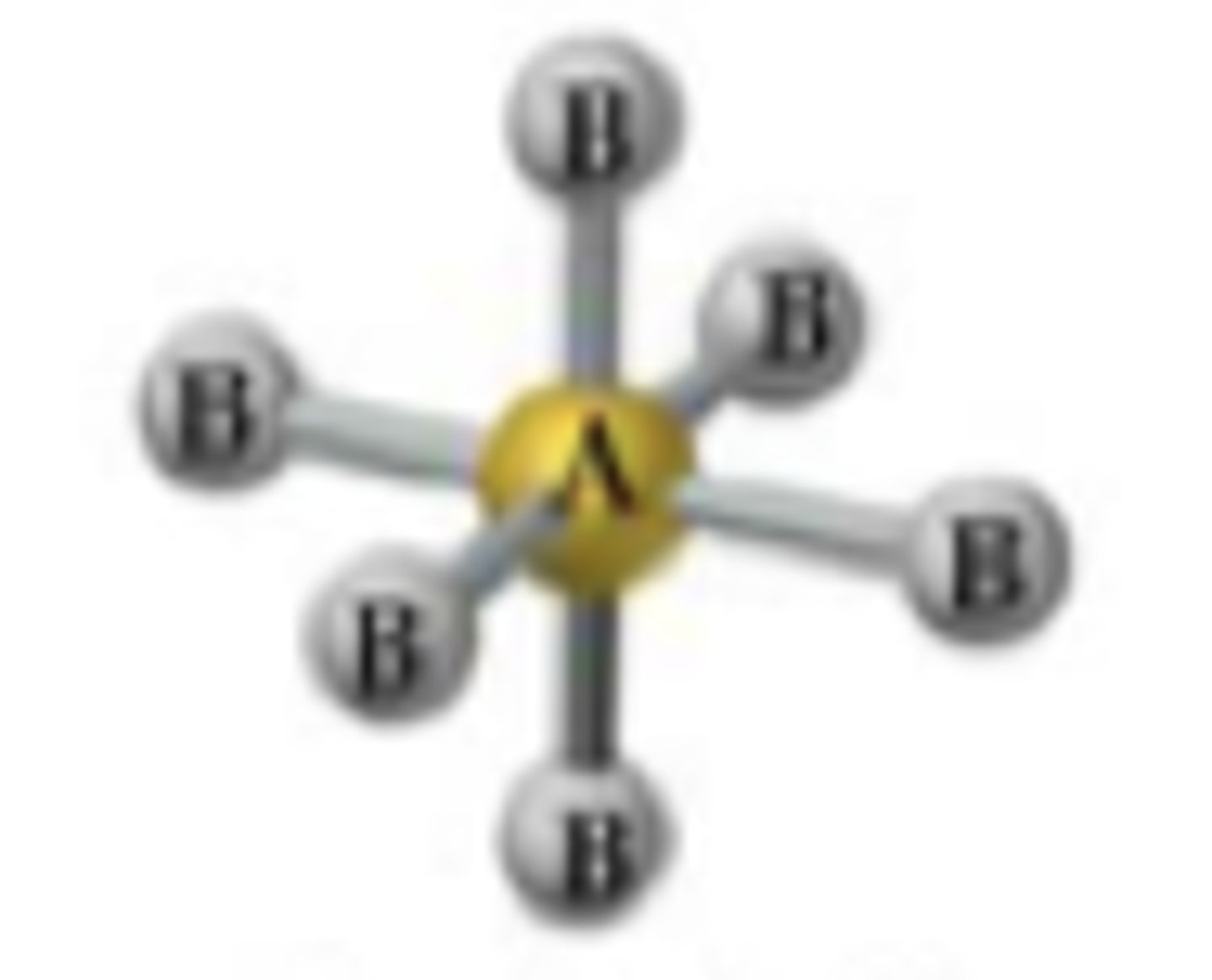

Octahedral

6 Constituents

0 Lone Pair

Bond Angle: 90o

<p>6 Constituents</p><p>0 Lone Pair</p><p>Bond Angle: 90o</p>
12
New cards

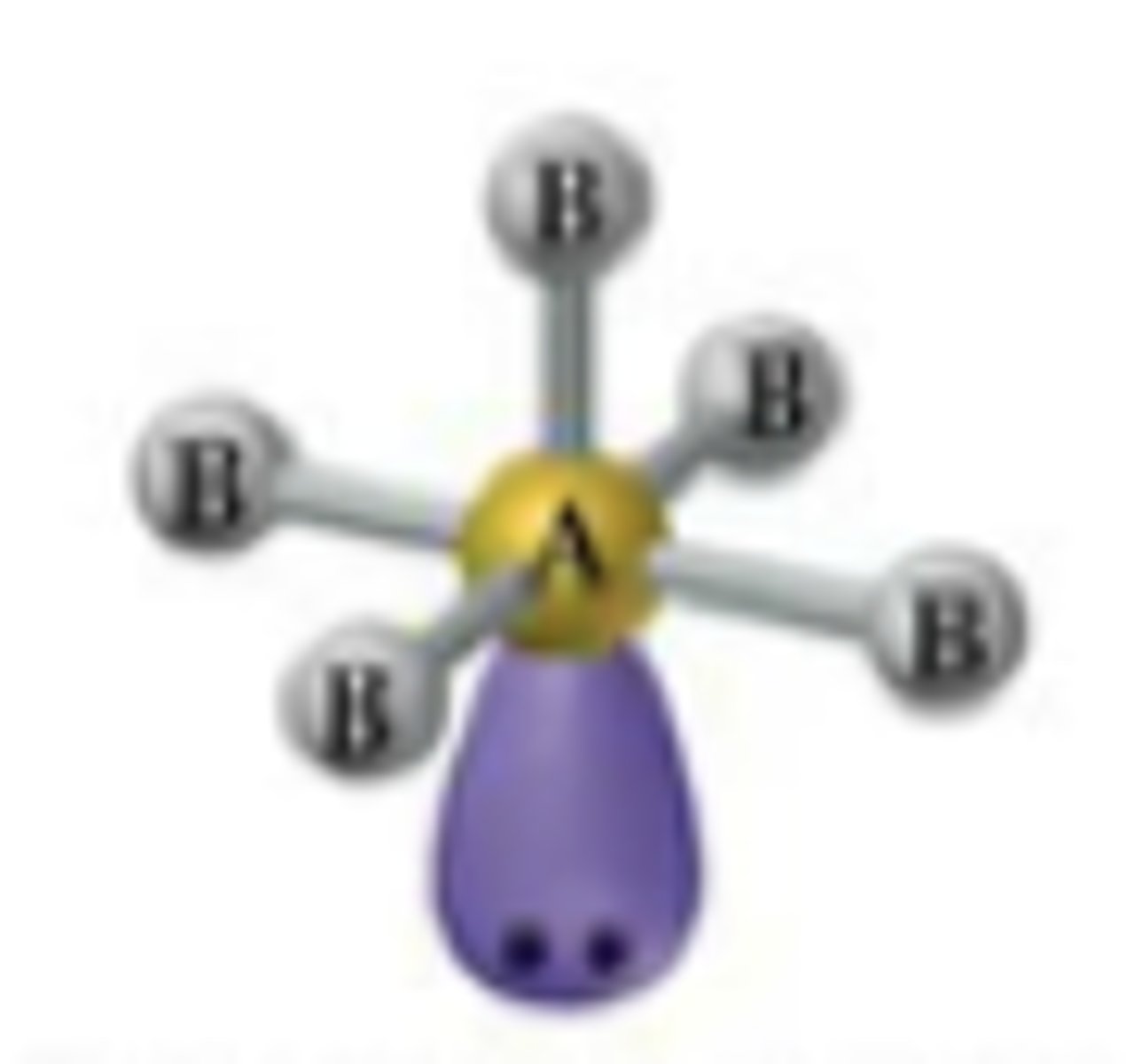

Square Pyramidal (Octahedral)

5 Constituents

1 Lone Pair

Bond Angle: <90o

<p>5 Constituents</p><p>1 Lone Pair</p><p>Bond Angle: &lt;90o</p>
13
New cards

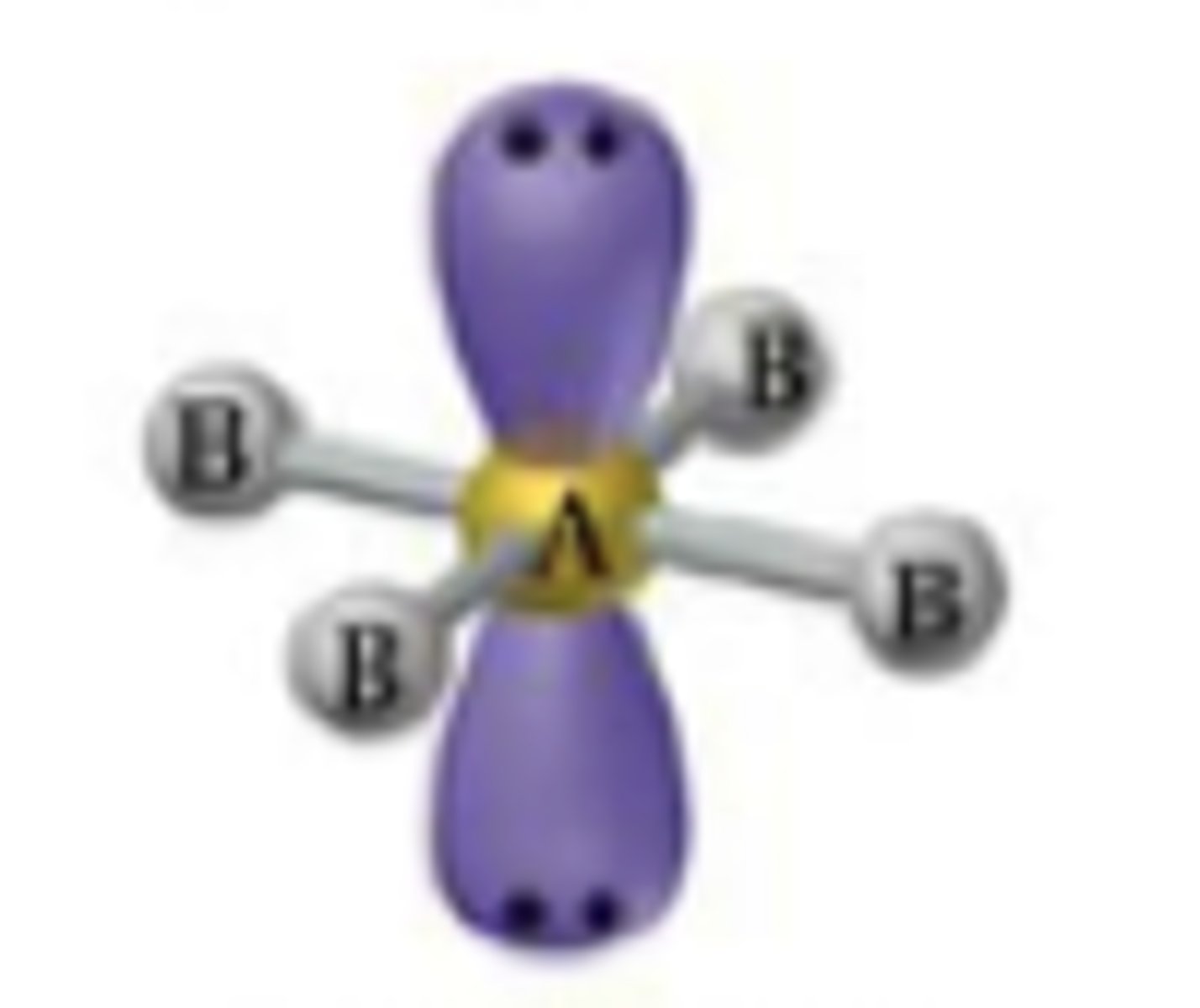

Square Planar (Octahedral)

4 Constituents

2 Lone Pair

Bond Angle: 90o

<p>4 Constituents</p><p>2 Lone Pair</p><p>Bond Angle: 90o</p>
