MINI Q #3: Free Body Diagrams & Net Force

Fg or ___

Weight, also known as the Force of Gravity

Fg =

Force due to gravity

Fn =

normal force

Ffr =

Friction Force

Fa =

Applied Force

Ft =

Force of tension

Net force is the _____ force.

leftover

Net force is calculated by, in other words, ______.

Winners - Losers
(minus)

A free body diagram (FBD) is a visual representation of all the ________ acting on an object.

external forces

We draw a _________ to represent an object in a free body diagram.

dot or box

The unit for force is _____.

N (newtons)

The unit for Weight or Fg is _____.

N (newtons)

Instead of using the word a "linear" to describe a pattern, we are enhancing our vocab to use the word:

directly proportional

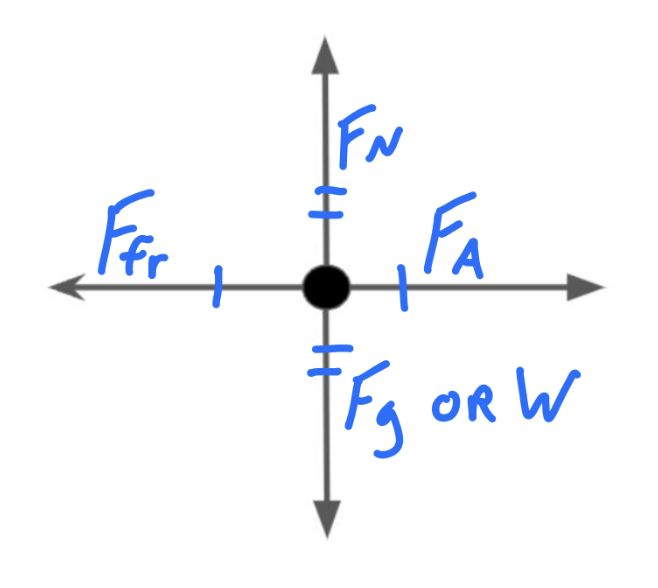

These forces are…

balanced

If an object experiences an acceleration, the forces must be __________.

unbalanced

If an object experiences constant velocity, the forces are ________.

balanced

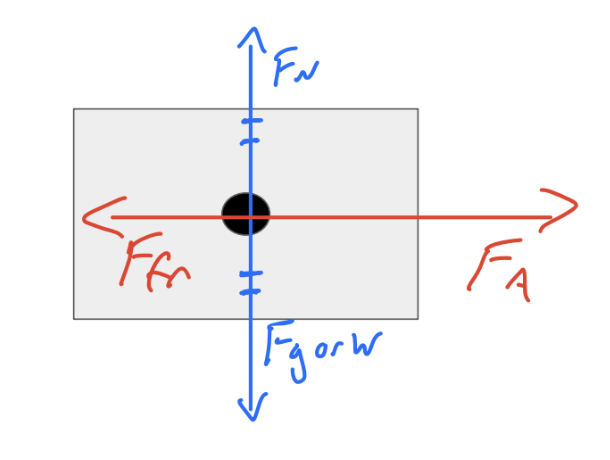

These forces are…

unbalanced

If an object was not moving at constant velocity, the forces are ________.

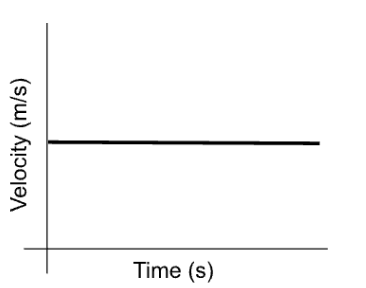

Describe the graph’s (1) slope, (2) velocity, and (3) acceleration.

slope = 0; object is not accelerating

Describe the graph’s (1) slope, (2) velocity, and (3) acceleration.

slope = positive; velocity is increasing and accelerating positively

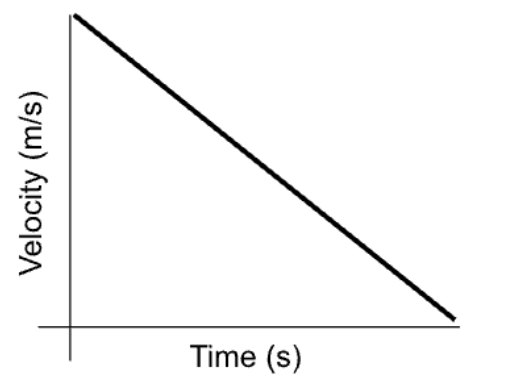

Describe the graph’s (1) slope, (2) velocity, and (3) acceleration.

slope = negative; velocity is decreasing and accelerating negatively
