Revised IRR BP 220 ( Economic and Socialized Housing Projects)

1. Water

2. Movement and circulation

3. Storm drainage

4. Solid and liquid waste disposal

5. Park/playground

6. Power

Basic needs of human settlements, enumerated in descending order as follows:

with reasonable distance from the project site / shall be provided for by the developer.

The prioritized basic needs cited earlier shall preferably be available ____

no fixed ratio

There shall be ____ between the saleable portion and non-saleable portion of a subdivision project.

1 hectare or above

Area allocated for parks and playgrounds shall be mandatory for projects ____ and shall be strategically located within the subdivision project.

100 square meters

In no case shall an area allocated for parks and playgrounds be less than

72 sqm

Minimum Lot Area - Single - Economic

64 sqm

Minimum Lot Area - Single - Socialized

48 sqm

Minimum Lot Area - Duplex - Socialized

54 sqm

Minimum Lot Area - Duplex - Economic

36 sqm

Minimum Lot Area - Row houses - Economic

28 sqm

Minimum Lot Area - Row houses - Socialized

22 sqm

The minimum floor area requirement for single-family dwelling shall be _____ for economic housing

18 sqm

The minimum floor area requirement for single-family dwelling shall be _____ for socialized housing

1.5, 1.5, 2

The minimum setback of dwelling unit both for economic and socialized housing project shall be as follows: (Front, Side, Rear)

150 liters per capita per day.

Minimum quantity requirement shall be (water)

concrete lined canal with load bearing cover.

The minimum drainage system for economic and socialized housing shall be

300 milimeters

Minimum drainage pipe shall be

50%, 20%, 10%, 5%

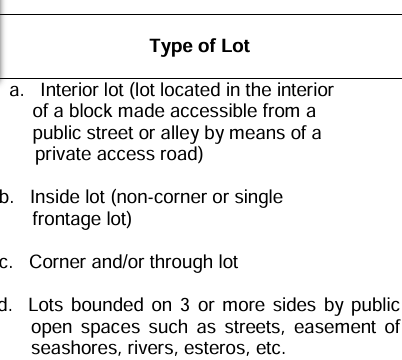

Percentage of Open Space

2.0 meters shall be provided

Where ceilings are not provided, a minimum headroom clearance of

10 occupants

A minimum of one entrance/exit shall be provided where the number of occupants is not more than

0.60 meter

Stairways shall have a minimum clear width of

150 millimeters or 6 inches thick

The firewall shall be of masonry construction, at least

duplex/single-attached units and at every unit for row houses.

A firewall shall be provided for

4.0 meters.

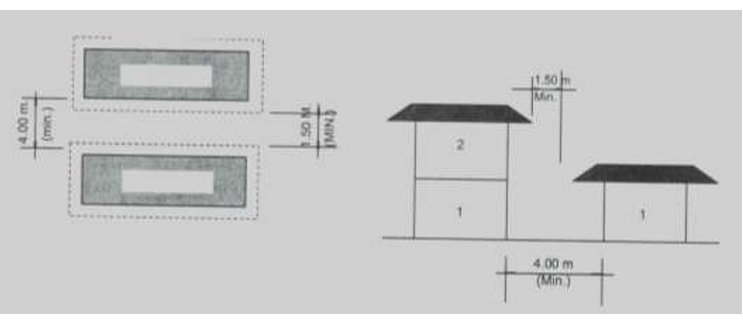

In general, the minimum distance between 2 buildings in which the taller buildings does not exceed 2 storeys shall be

10 meters.

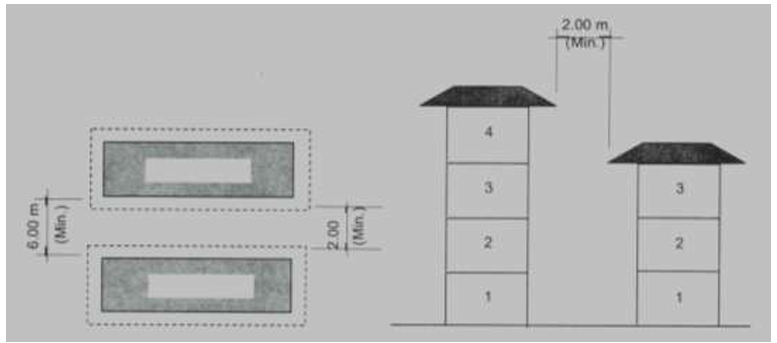

The minimum distance between buildings with more than 4 storeys

one (1) parking slot per eight (8) living units. (1:8)

For multi-family dwellings and condominiums, the parking requirement shall be

the minimum floor area of a living unit in multi-family dwellings shall be

6 storeys and beyond.

Provision of elevators shall be required for buildings
