Anatomy

Practical

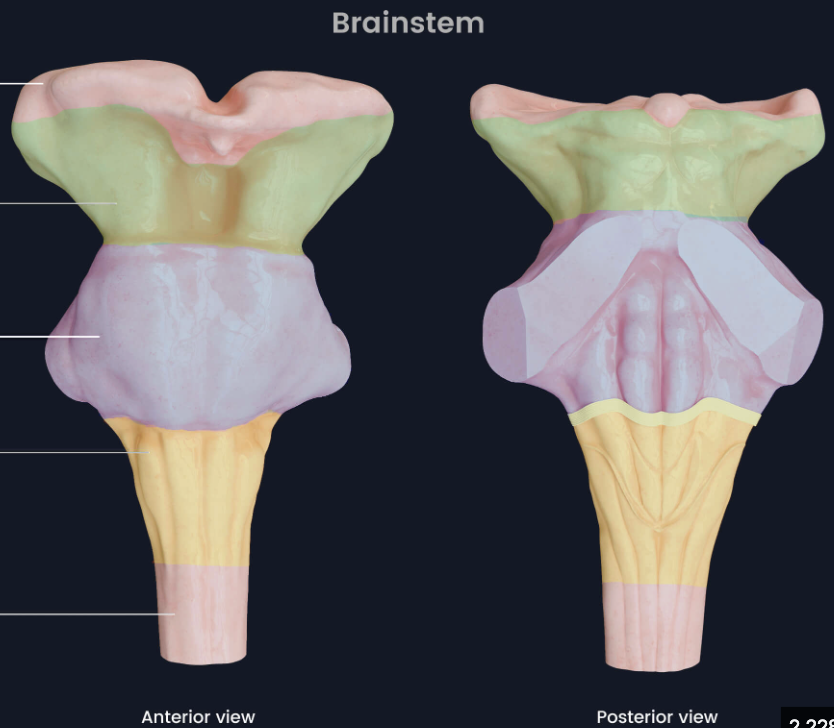

Name the purple-highlighted area

Pons

Name yellow-highlighted area

Medulla Oblongata

Name green-highlighted area

Midbrain

Name the structures on this area (midbrain)

cerebral peduncles

Name the structures on this area (pons)

Cerebellar Peduncles

Name this area

inter-peduncular fossa

Name this area

Pituitary Gland

Name these areas (both sides are the same)

Olive

Name these areas (both sides are the same)

Pyramids

Name this area (middle line)

Ventral-median fissure.

(Ventral=anterior, Median= middle, fissure=gap)

Name these two structures (posterior- brainstem)

Superior (top) and Inferior (bottom) colliculus

Name this structure

Cerebellum

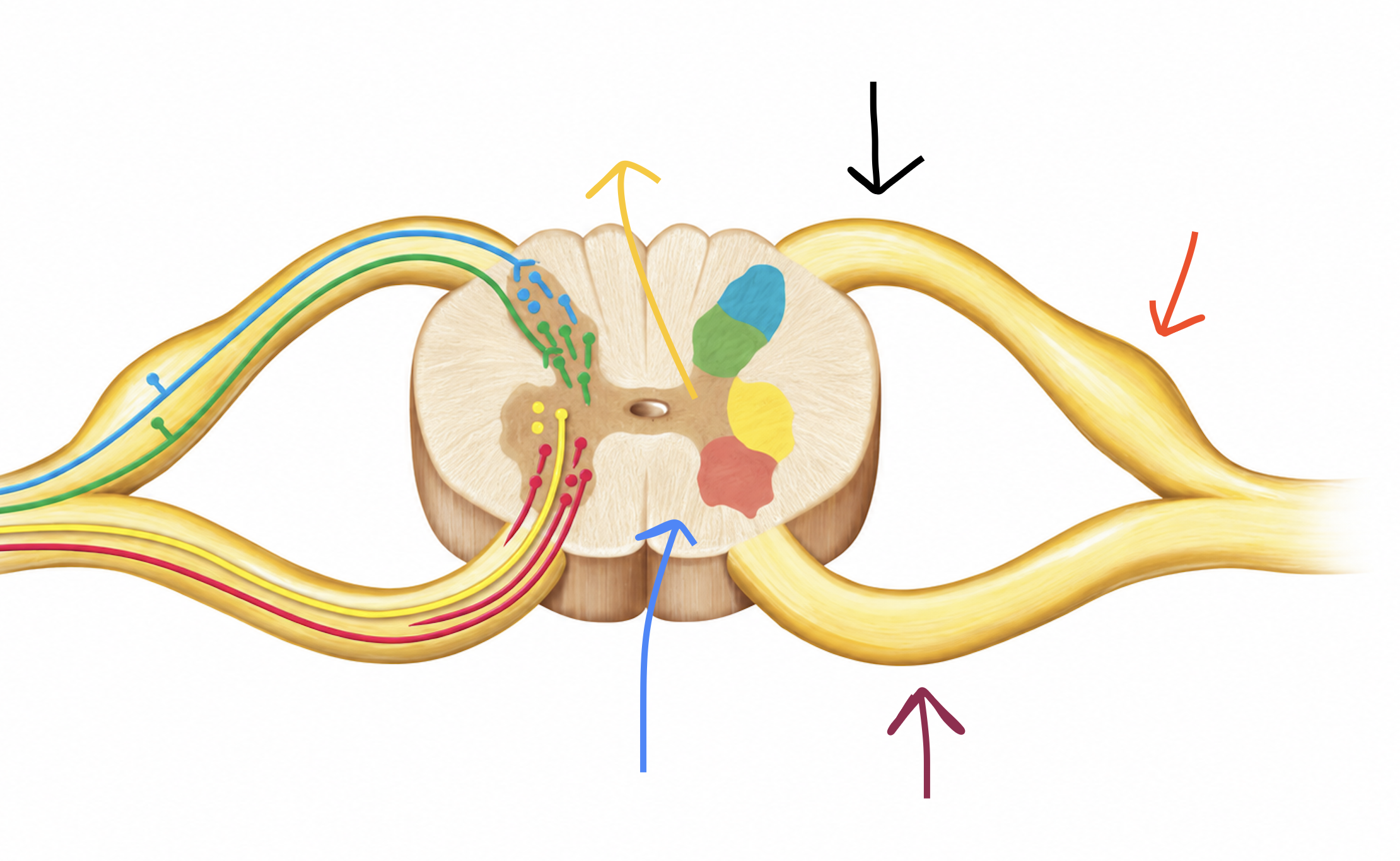

Spinal Chord

Name the black arrow

Dorsal root

Name the bright red arrow

Dorsal root ganglion

Name the yellow arrow

Grey matter

White matter

Name the blue arrow

Name the purple arrow

Lateral Horn

Name the dark red arrow

Ventral horn

Name; L

retina

Name; F

Cornea

Name; E

Lens

Name; I

Fovea centralis

Name; H

Optic disc

Name; 1

Lateral rectus

Name; 4

medial rectus

Name; 2

inferior rectus

Name; 3, and 5

inferior oblique (3), Superior oblique (5)

inner ear ;

Name; 1. blue area, 2. Yellow

Semicircular canals (blue). Cochlea (yellow).

name ; 1. purple arrow, 2. orange arrow

1. oval window, 2. round window

Name; 1 blue arrow, 2. green arrow, 3. pink arrow

1. auricle. 2. helix. 3. Lobule.

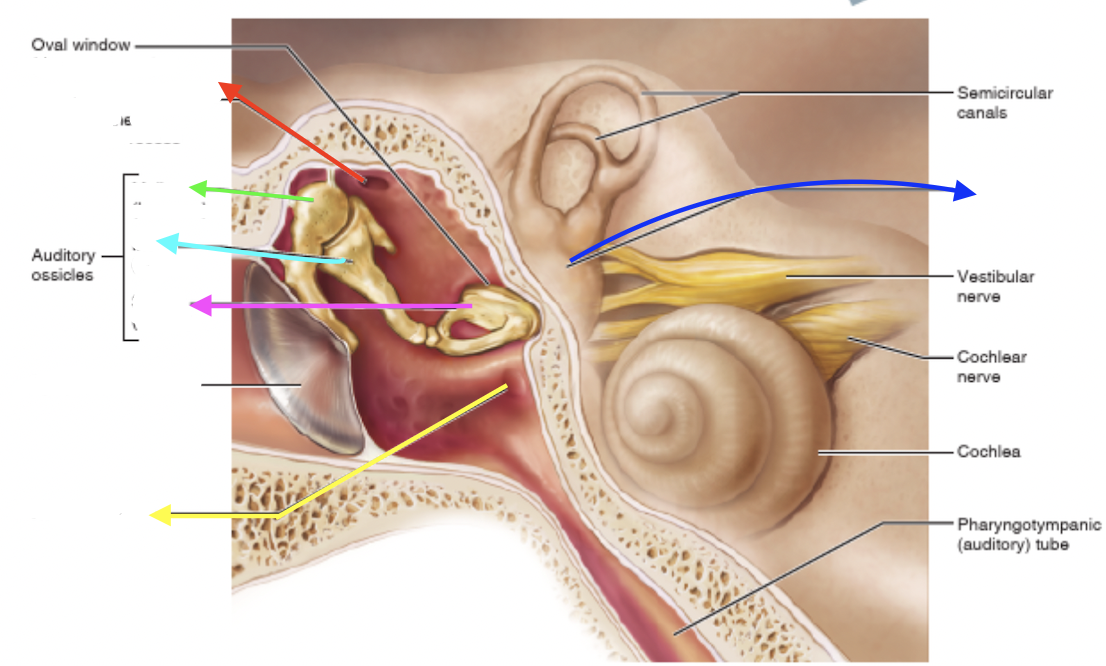

Name; Orange arrow

External acoustic meatus

Name; magenta arrow

Tympanic membrane

Name; Green arrow

Malleus (hammer)

Name; Light blue arrow

Incus

Name; pink arrow

Stapes

(right inner kidney)

Name; light blue arrow

Renal Cortex

Name; green arrow

Renal medulla

Name; Pink arrow

Major Calyx

Name; Yellow arrow

Papilla (of pyramids)

Name; dark blue arrow

Renal Pelvis

Name; 1. Orange, and 2. Red arrow

1. Minor Calyx.

2. Ureter

Name; 1. purple arrow. 2. Black line arrow

1. Renal column(s).

2. Renal pyramid(s)

Name the light-blue lined area

Lateral margin

Name the pink lined area

Medial margin

Is this the anterior surface of a (left) kidney or posterior?

Anterior

Name the 1. red arrow

2. green arrow

1. inferior pole

2. superior pole

name the yellow area

renal hillum

name the brown and orange arrow

1. (brown) renal artery

2. (orange) renal vein

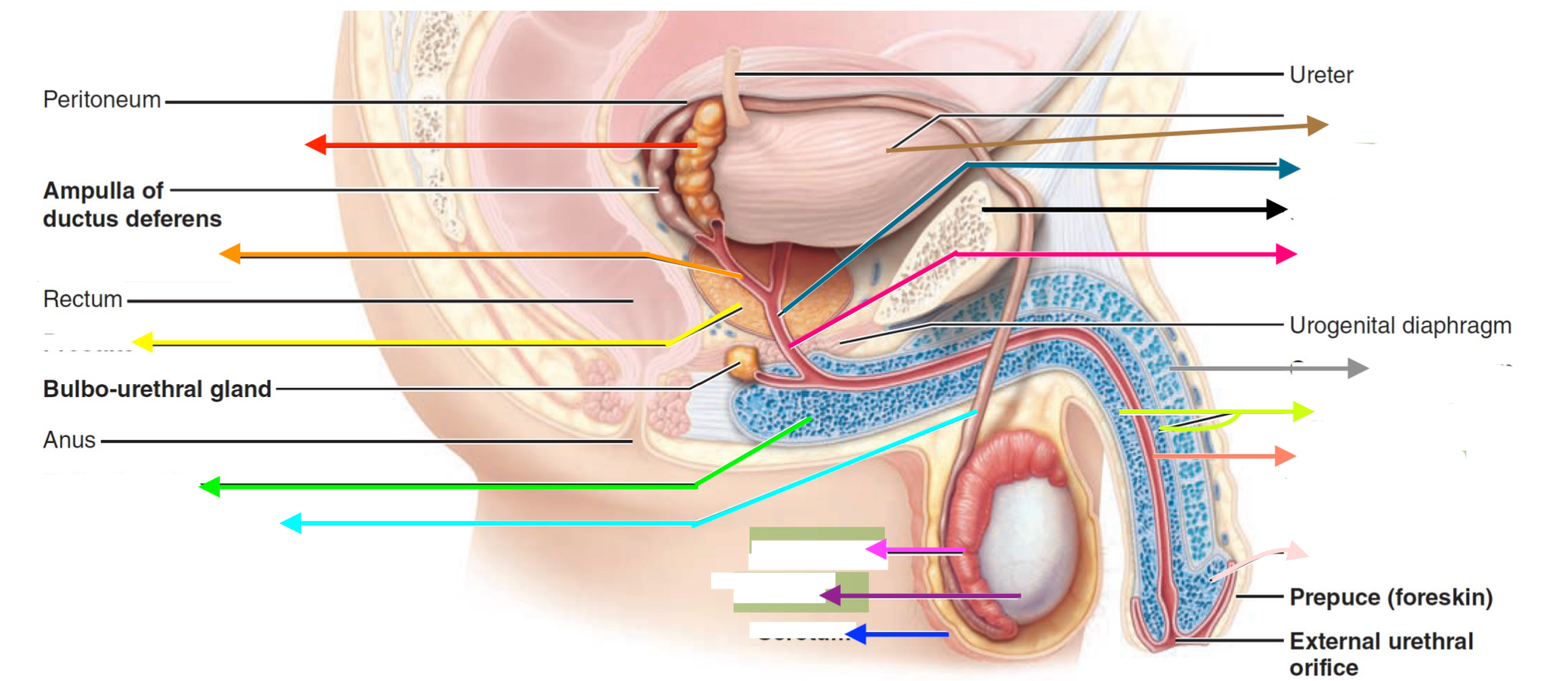

orange

ejaculatory duct

yellow

prostate

green

bulb of pen*s

neon blue

ductus deferens

lime green

corpus spongiosum

brown

baldder

peach pink

spongy urethra

dark blue

scrotum

pink

epididymus

purple

testis

baby pink

glands penis

grey

corpus cavernosum

black

pubis

turquoise

prostatic urethra

magenta/hot pink

membranous urethra

( Cross sectional view of pen*s). Name in order : green, blue, pink

(green) corpus cavernosum, (blue) corpus spongiosum, (pink) pen*s spetum.

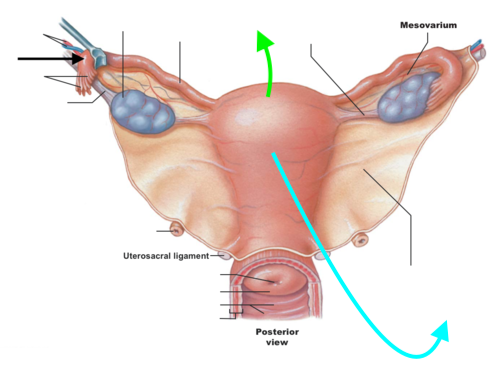

(Posterior view of isolated uterus and rectum) Name in order: Green, Blue

Fundus of uterus, Body of uterus

name orange arrow

round ligament

pink arrow

ampula of fallopian tube

red arrow

isthmus of fallopian tube

blue arrow

ovarian ligament

(pelvic muscles) Name in order; yellow, green

Coccygeus muscle, levator ani muscle.

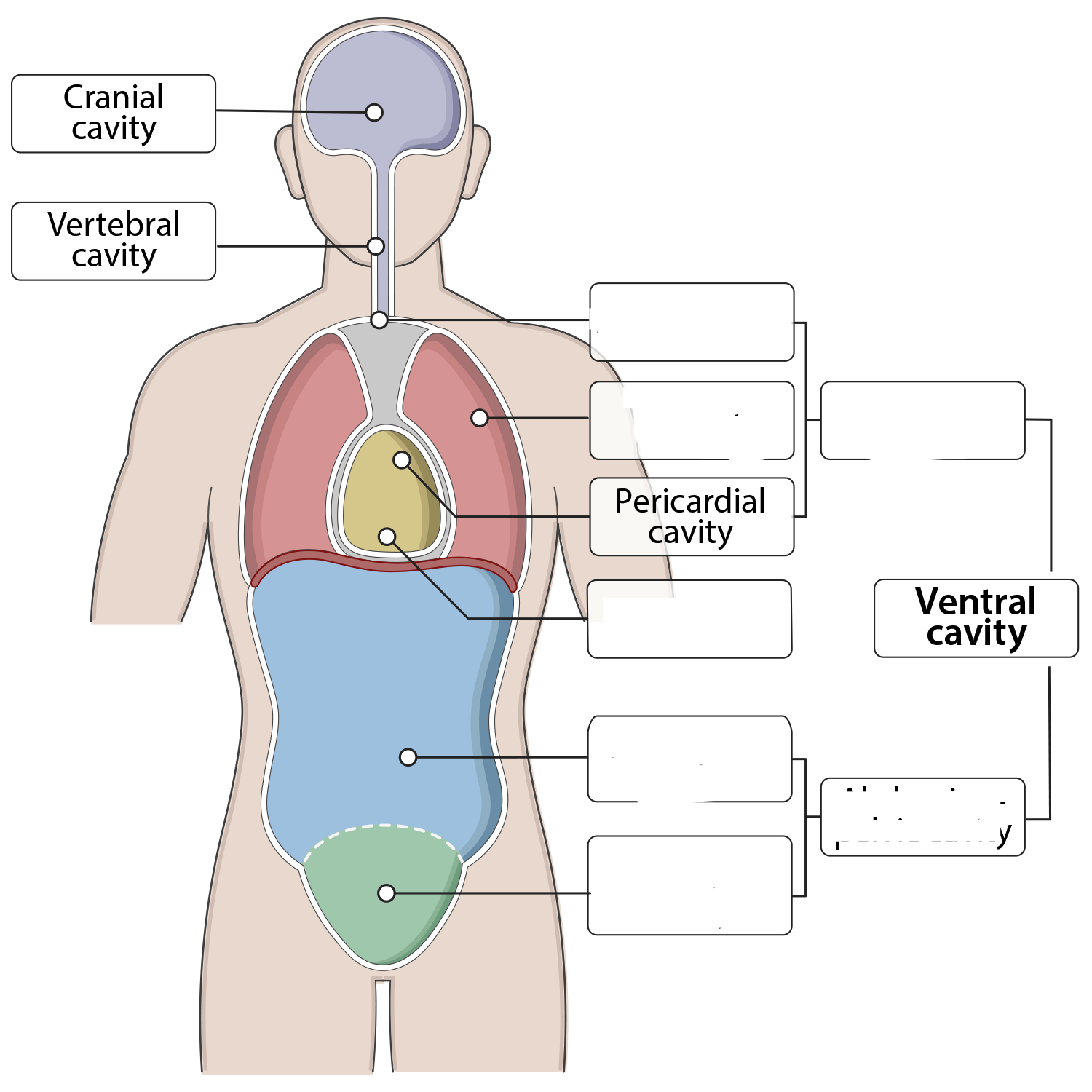

Blue area

abdominal cavity

red area

pleural cavity

grey area

mediastinum

green area

pelvic cavity

lower-yellow area

diaphram

neon blue area

thoracic cavity

brown

gingiva (gums)

yellow

hard pallete

green

soft pallete

blue

uvula

pink

gingiva (gums)

(top and bottom) purple

superior and inferior labial frenula

dark blue

tounge

orange

Palatoglossal arches

black line

Palatopharyngeal arches:

Green line

hard pallete

red line

soft palette

orange line

larynx

blue line

tounge

neon blue

submandibular duct

dark blue

submandibular gland

yellow

sublingual gland

green

sublingual ducts

red

parotid gland

orange

parotid duct

orange

incisors

yellow

canine

blue

premolar

green

molar

name this structure

parotid duct
