16 Terms
ray diagram

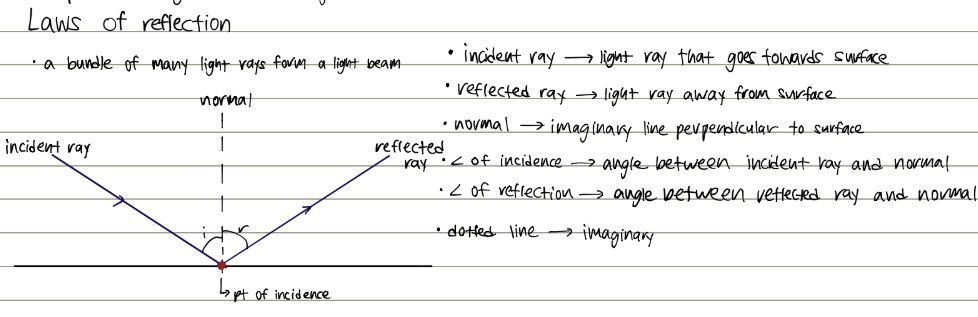

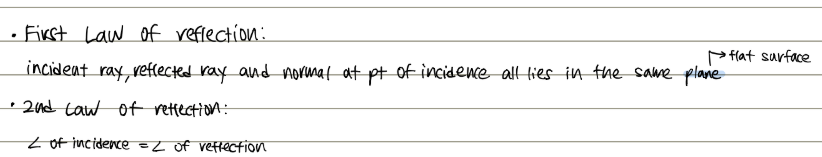

laws of reflection

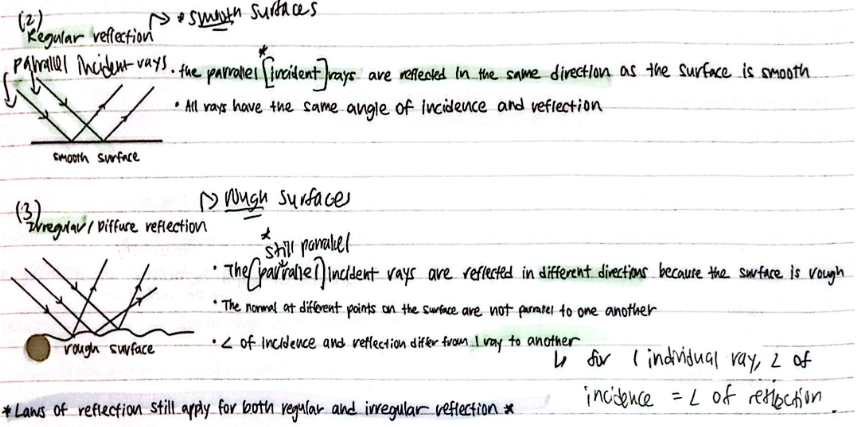

regular and irregular reflection

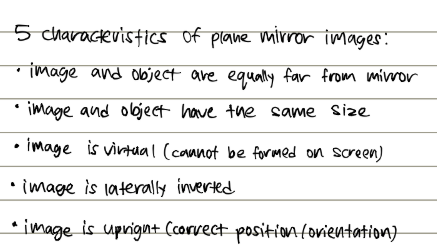

5 charateristics of plane mirrors

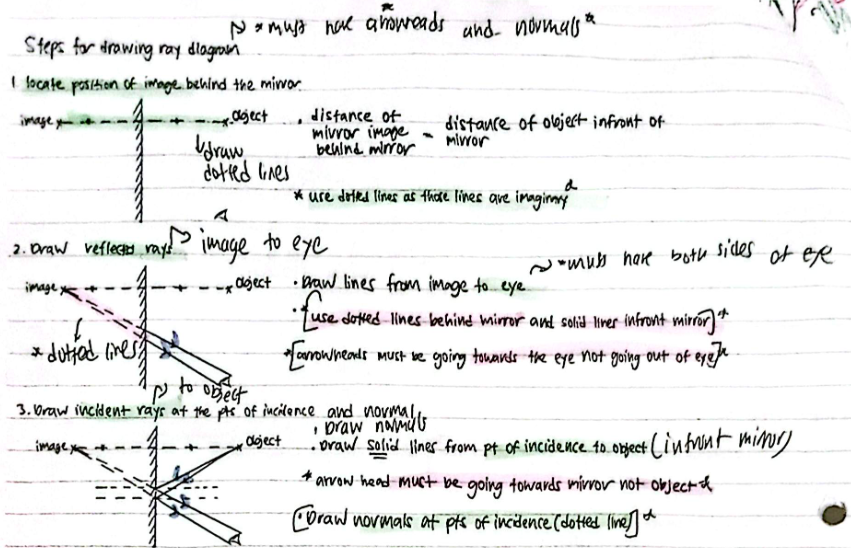

drawing ray diagram
application of reflection
refraction

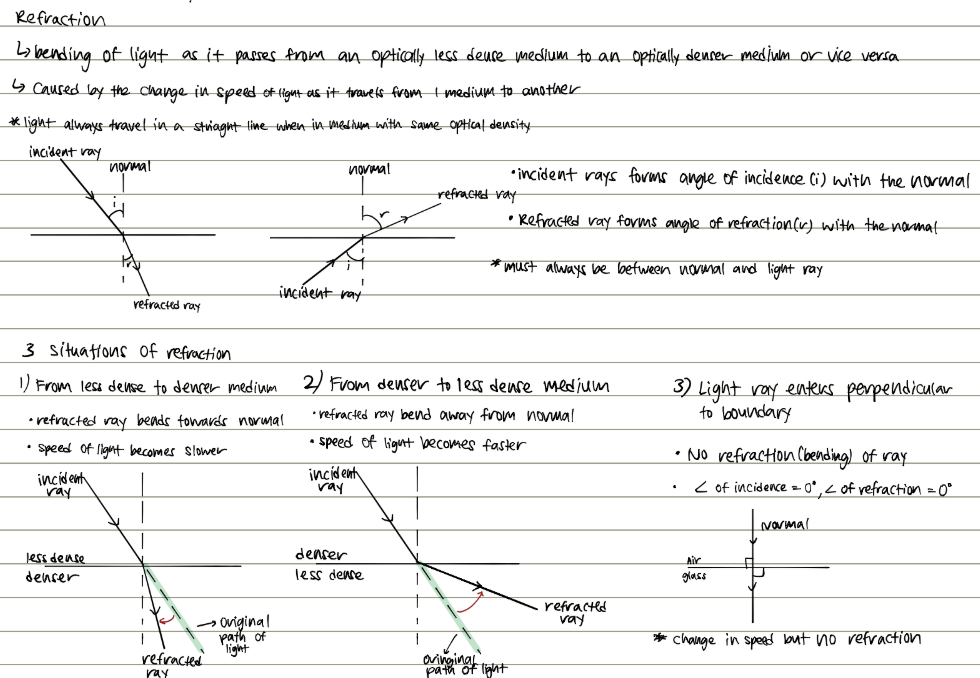

** refraction vs reflection
**must check whether is actually angle of incidence and refraction (must be between normal)
For the 3rd case, angle of incidence and refraction are not 90 degrees but is 0 degrees

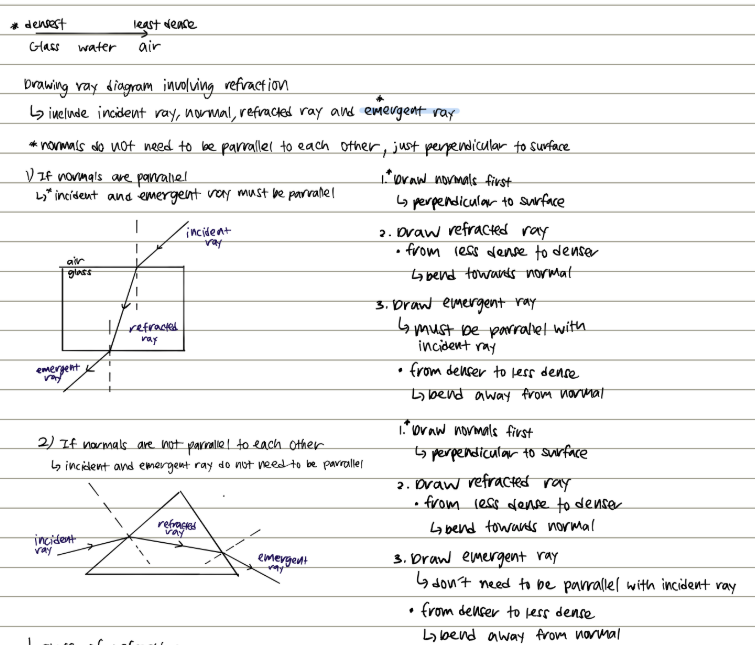

ray diagram for refraction

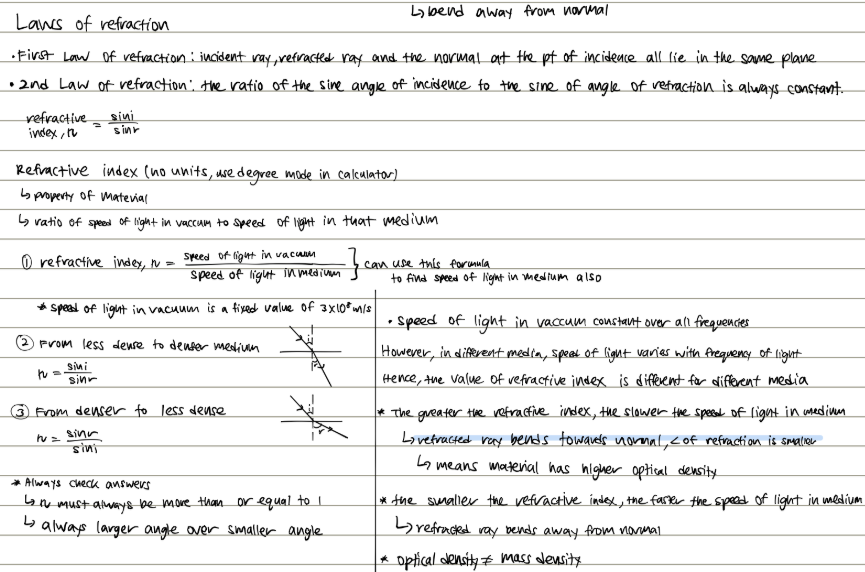

laws of refraction and refractive index

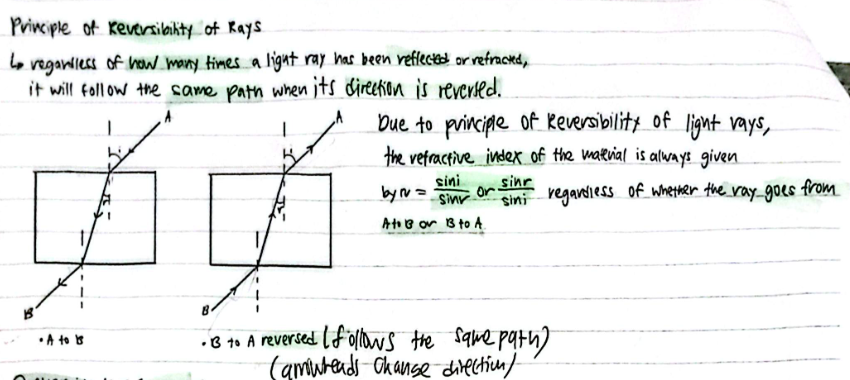

Principle reversibility of rays

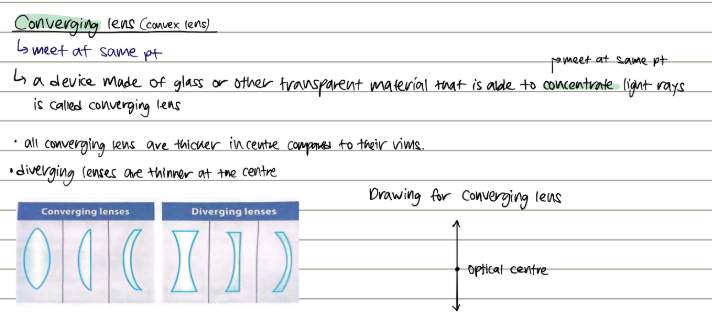

converging lens

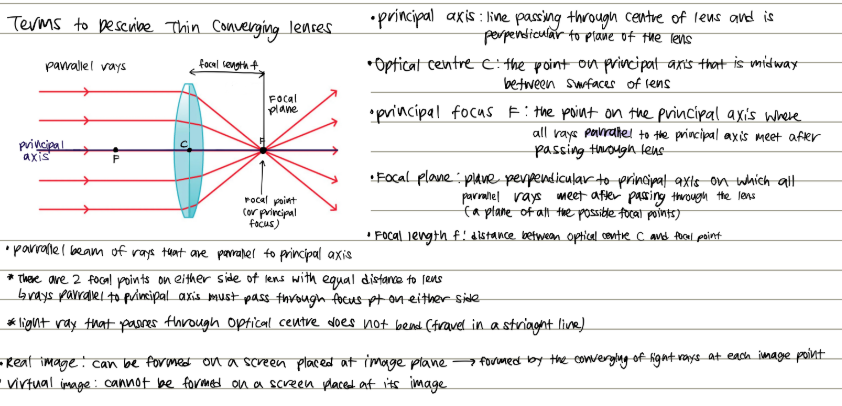

terms to describe thin converging lenses

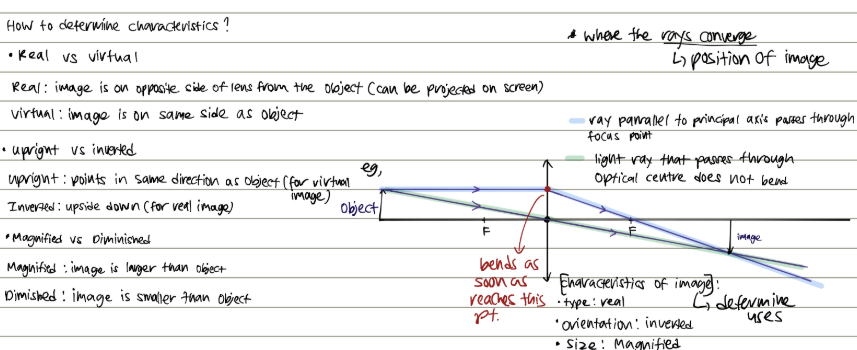

how to determine characteristics
characteristics of converging lens to describe
type: real/virtual
size: magnified/diminished/same size
orientation: upright/inverted

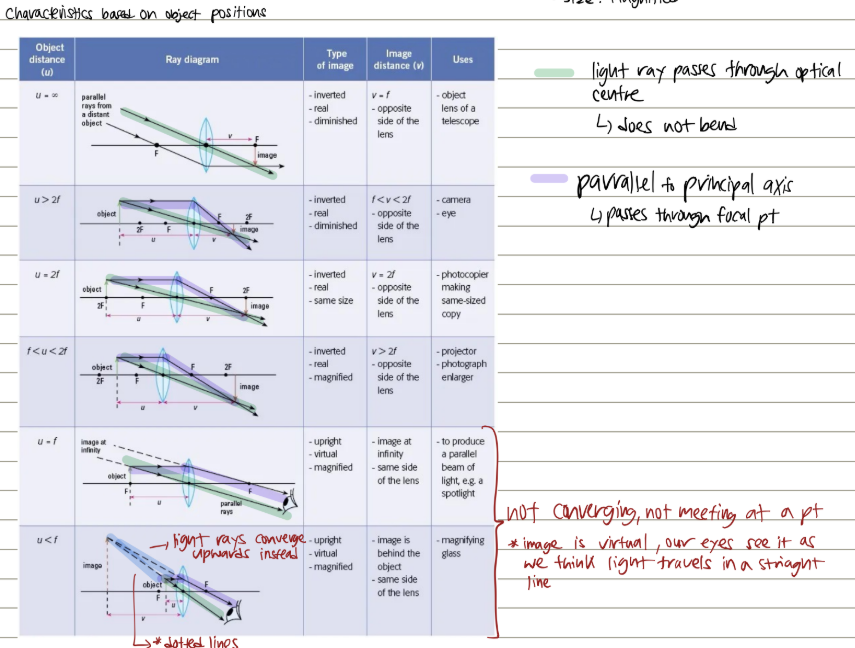

characteristics based on object positions

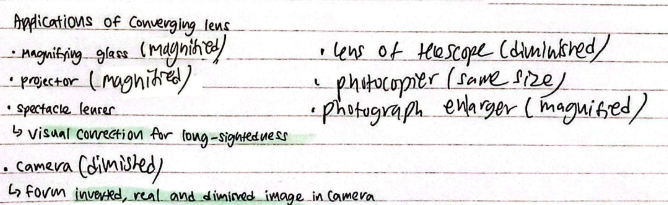

applications of converging lens
reminders
our eyes perceives light travels in a straight line
trace the light rays that actually enter the eye backwards in a straight
using dotted line
position of image is along that projected straight line
our eyes do not actually see actual object as light rays are bended
