Identify the structure
Arterial arcades of the intestines

Identify the structure that top blue arrow is pointing at
Ileocolic Artery

What structure is this?
Ileocolic Artery

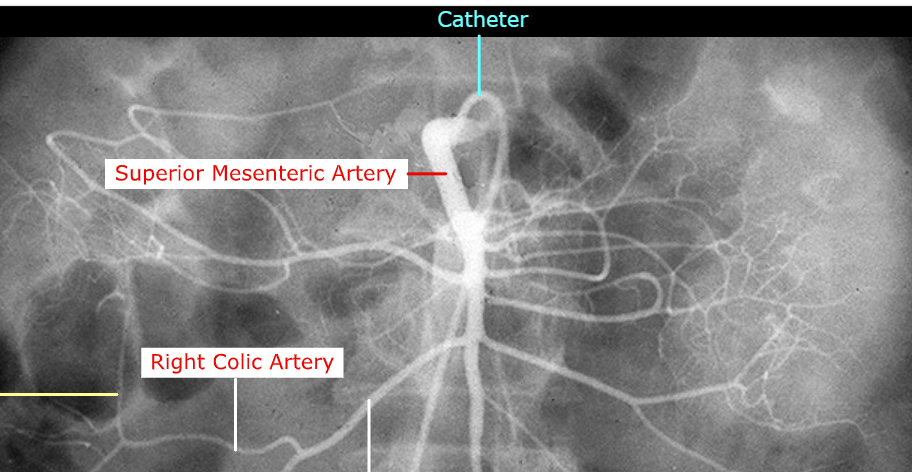

Identify the structure that the white arrow is pointing at
Ileocolic Artery

Identify the structure that the bottom white arrow is pointing at
Ileocolic Artery

Identify the structure
Patellar ligament

Identify the structure
Anterior cruciate ligament

Identify the structure
Medial collateral ligament

Identify the structure
Posterior talofibular ligament

Identify the structure
Quadriceps femoris tendon

Identify the structure
Sural nerve

Identify the structure
Interosseous membrane

Identify the structure
Iliotibial tract

Identify the structure
Anterior tibial artery and vein

Identify the structure
Superficial fibular nerve

Identify the structure
Superficial fibular nerve

Identify the structure
Popliteus muscle

Identify the structure
Deep fibular nerve

Identify the structure
Soleus muscle

Identify the structure
Calcaneofibular ligament

Identify the structure
Medial meniscus

Identify the structure
Deltoid ligament

Identify the structure
Dorsalis Pedis Artery

Identify the structure
Lateral Collateral Ligament

Identify the structure
Sustentaculum Tali

Identify the structure
Deep fibular nerve
what is the origin/insertion for the flexor digitorum brevis?
Originates from calcaneal tuberosity and inserts onto middle phalanges of digits 2-5
what is the origin/insertion for the fibularis longus?
Originates from head of fibula and inserts onto medial cuneiform/1st metatarsal

Identify the structure
Medial collateral ligament
what are the contents of the adductor canal?
1) saphenous nerve
2) femoral artery
3) femoral vein
what are the borders of the adductor canal?
1) vastus medialis (lateral)
2) sartorius (posterior)
3) adductor longus (anterior/medial)
what is the origin/insertion for the extensor digitorum longus?
origin: lateral condyle of fibula, insertion: phalanges of digits 2-5
what is the origin/insertion for the flexor digitorum longus?
origin: tibia, insertion: distal phalanges of 2-5
what is the origin/insertion for the extensor hallucis longus?
origin: fibula, insertion: distal phalanx of big toe
what is the origin/insertion for the tibialis anterior?
origin: lateral condyle of tibia, insertion: medial cuneiform

Identify the structure
Anterior cruciate ligament

Identify the structure
Medial meniscus

Identify the structure
Lateral meniscus

Identify the structure
Long plantar ligament
what is the origin/insertion for the quadratus plantae?
origin: calcaneus, insertion: proximal phalanx of great toe

Identify the structure
Lateral malleolus

Identify the artery
Lateral tarsal artery

Identify the structure
Patella

Identify the structure
Lateral collateral ligament

Identify the structure
Posterior cruciate ligament

Identify this structure
Great saphenous vein

Identify the structure
Tibia

Identify this structure
Abductor hallucis

Identify this structure
Extensor digitorum longus

Identify this structure
Tibialis posterior

Identify this structure
Deep fibular nerve

Identify this structure
Posterior tibial artery and vein + tibial nerve

Identify this structure
Gastrocnemius

Identify this structure
Fibular artery and vein

Identify this structure
Small saphenous vein

Identify this structure
Tibial nerve

Identify this structure
Tibialis anterior

Identify this structure
Calcaneal tendon

Identify this structure
Anterior talofibular ligament

Identify this structure
Talus

Identify this structure
Medial plantar artery

Identify this structure
Tibia

Identify this structure
Lateral collateral ligament

Identify this structure
Short plantar ligament

Identify this structure
Lateral condyle of femur

Identify this structure
Anterior cruciate ligament

Identify this structure
Anterior cruciate ligament

Identify this structure
Medial meniscus s

Identify this structure
Fibula

Identify this structure
Fibularis longus

Identify this structure
Calcaneal tendon

Identify this structure
Tibialis posterior

Identify this structure
Anterior talofibular ligament

Identify this structure
Talus

Identify this structure
Calcaneus

Identify this structure
Lateral plantar artery

Identify this structure
Lateral condyle of femur

Identify this structure
Sartorius

Identify this structure
Anterior cruciate ligament

Identify this structure
Medial collateral ligament

Identify this structure
Calcaneal tendon

Identify this structure
Flexor digitorum longus

Identify the structure
Lateral meniscus

Identify this structure
Common fibular nerve

Identify this structure
Common fibular nerve

Identify this structure
Lateral meniscus

Identify this structure
Tibial nerve

Identify this structure
Calcaneal tendon

Identify this structure
Flexor hallucis longus

Identify this structure
Posterior talofibular ligament

Identify this structure
Semimembranosus muscle

Identify the structure
Fibularis longus

Identify this structure
Gastrocnemius

Identify this structure
Short head of biceps femoirs
