supportive structures of the brain

what are the arachnoid mater has protrusions that punch through the dura mater to enter the xxx called xxx

dural venous sinus, arachnoid villi

what are dural reflections

double-layered folds of the inner meningeal layer of the dura mater that dip inward into the cranial cavity to compartmentalize, support and stabilize the brain

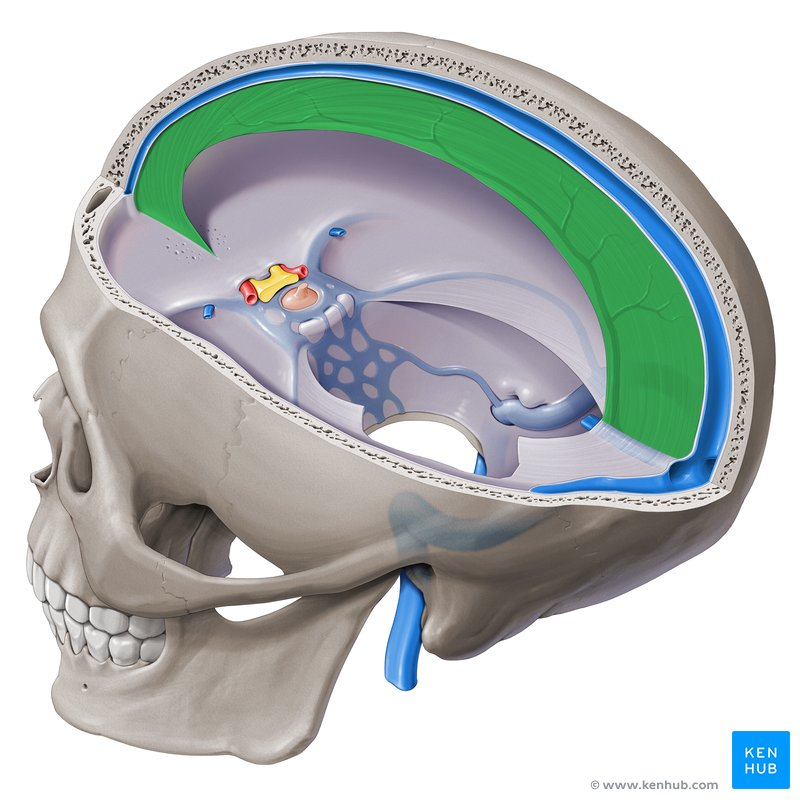

falx cerebri

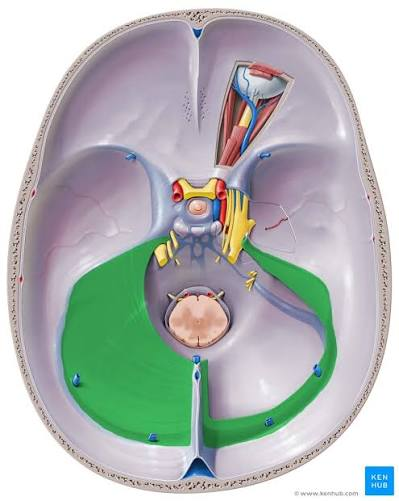

tentorium cerebelli

diaphragma sellae

falx cerebelli

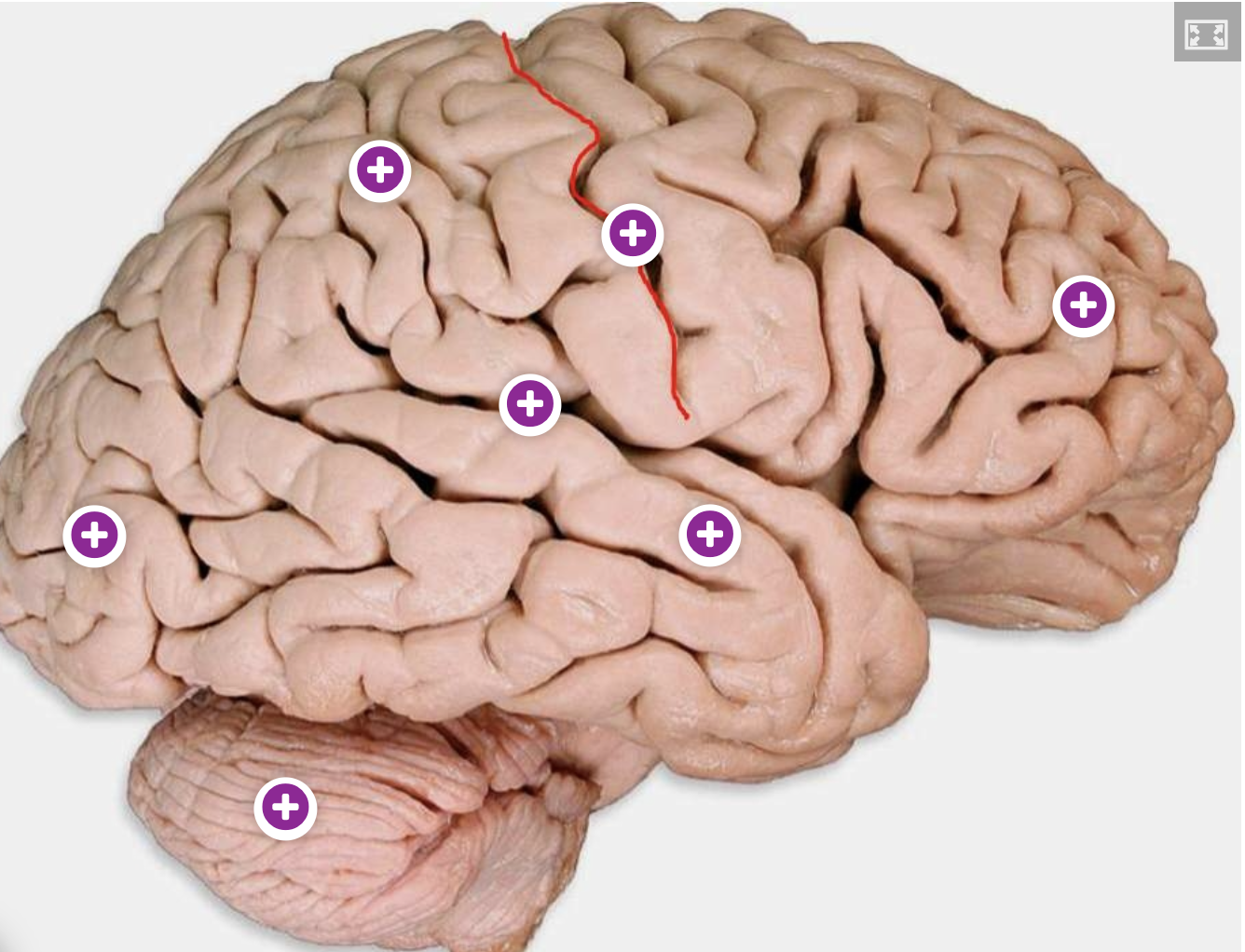

what is the red line

central sulcus

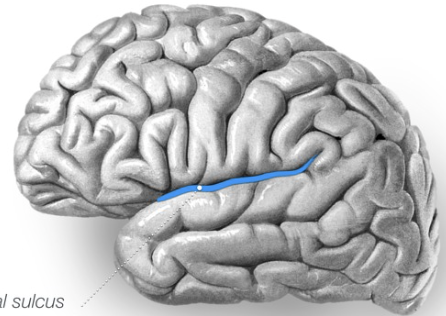

lateral fissure

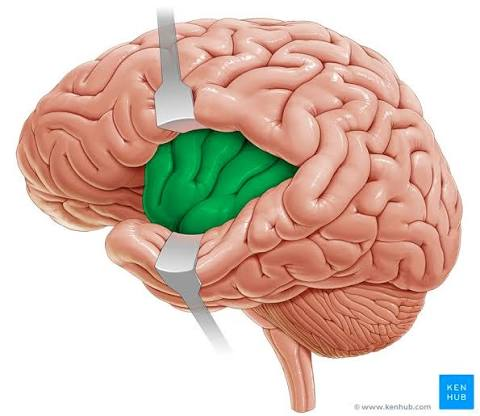

insular lobe

yellow arrow

corpus callosum

1

cerebrum

2

thalamus of diencephalon

3

hypothalamus of diencephalon

4

midbrain of brainstem

5

pons of brainstem

6

cerebellar vermis

7

medulla oblongata

8

spinal cord

substantia nigra

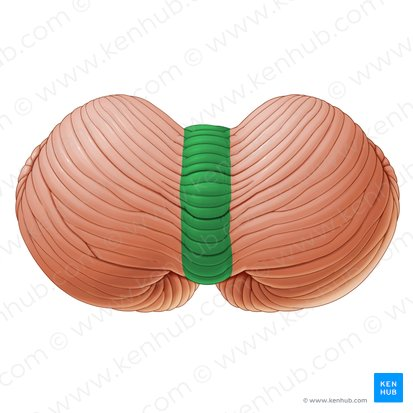

what is the median segment of the cerebellum called

vermis

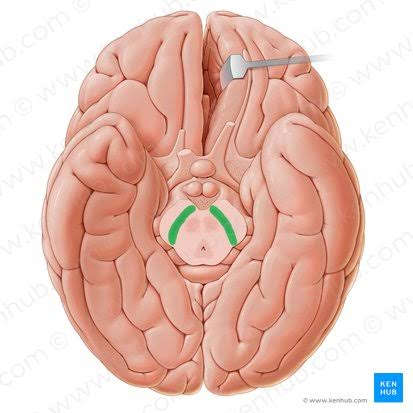

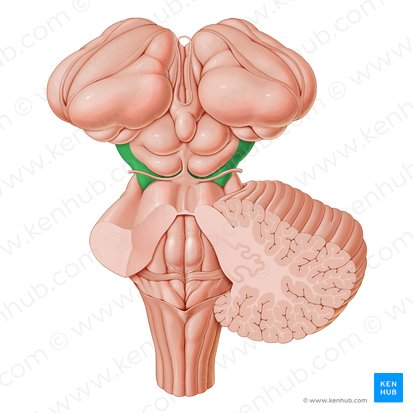

cerebral peduncles

tectum

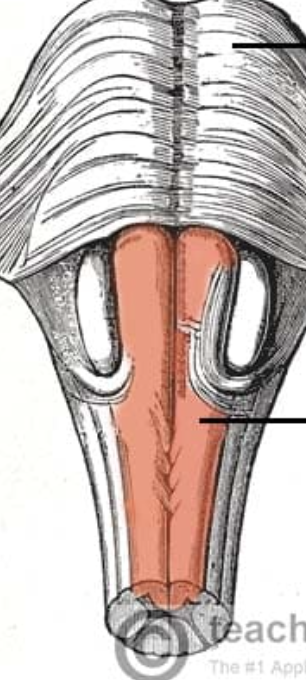

orange

medullary pyramid

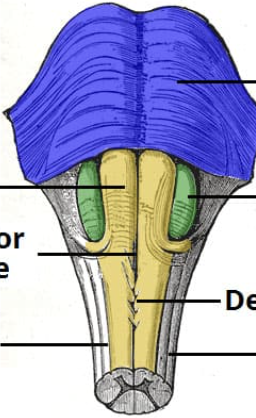

green

olives (medulla oblongata)

what are the thin folds on surface of cerebellum called

folia

what are the deep grooves that separate the folia called

fissures

what are the three paired cerebellar peduncles that are attaches brainstem to ipsilateral cerebellar hemisphere and vermis

superior (connects midbrain and cerebellum), middle (connects pons and cerebellum), inferior (connects medulla oblongata and cerebellum)

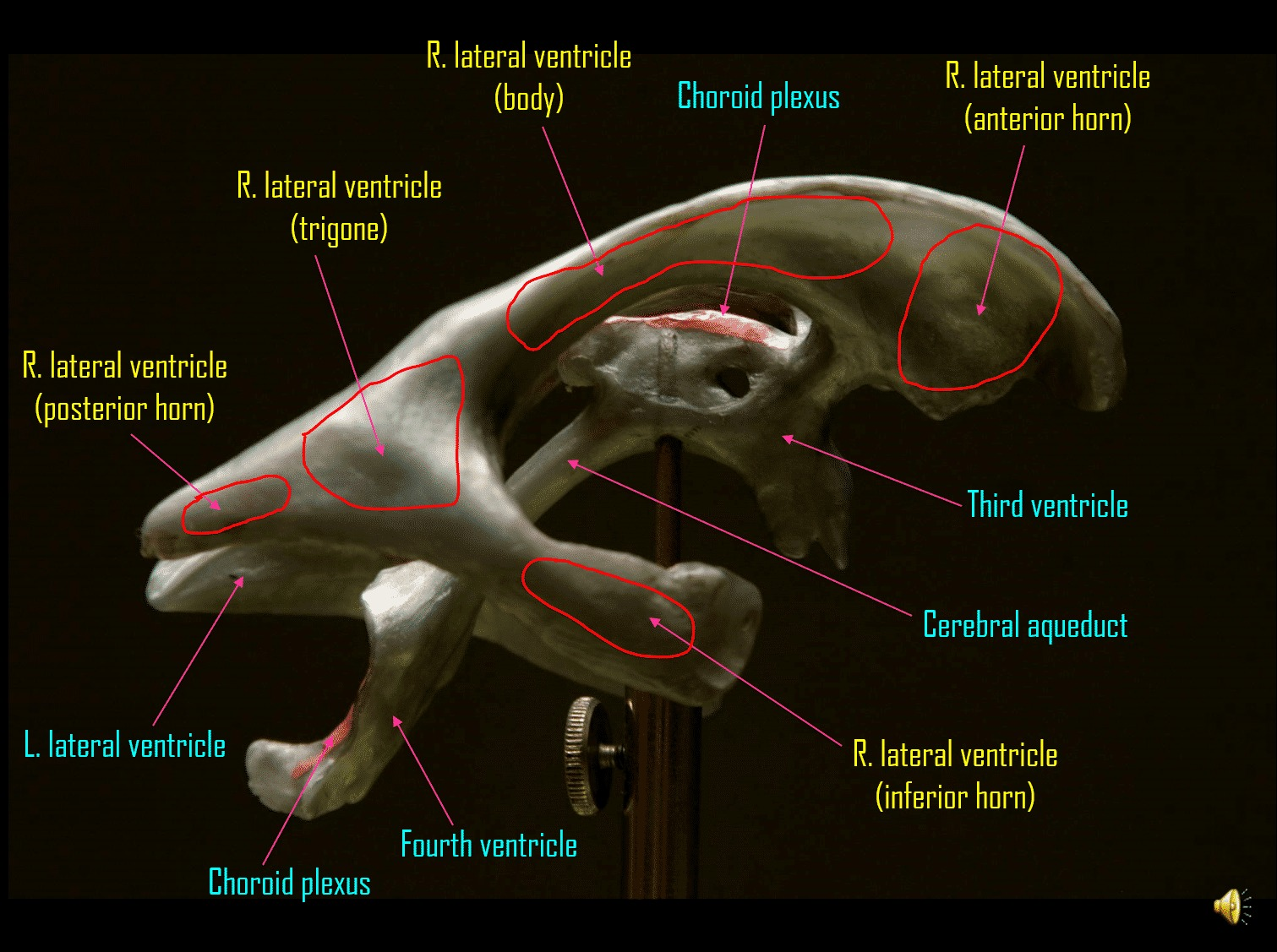

what are the 5 parts of lateral ventricle in the brain

posterior horn, trigone, body, anterior horn, inferior horn

arachnoid granulation

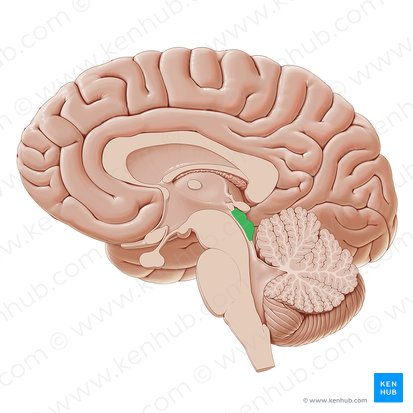

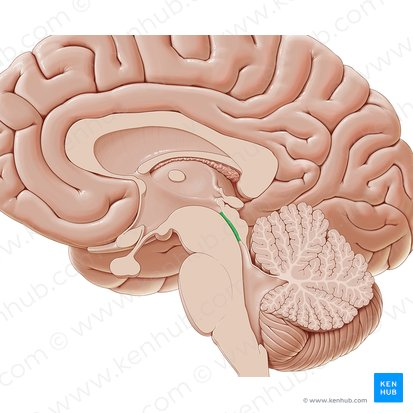

cerebral aquaduct

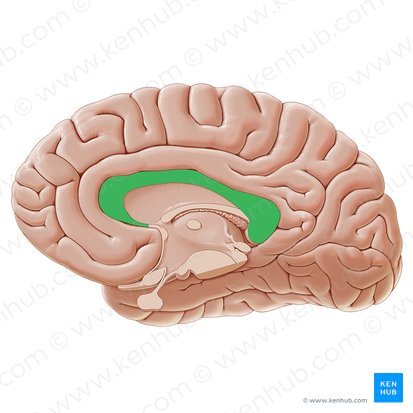

corpus callosum

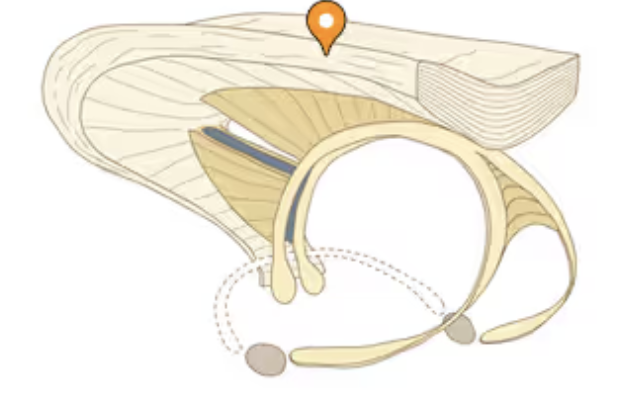

what are the parts of corpus callosum

rostrum and genu, body, splenium

rostrum of corpus callosum

genu of corpus callosum

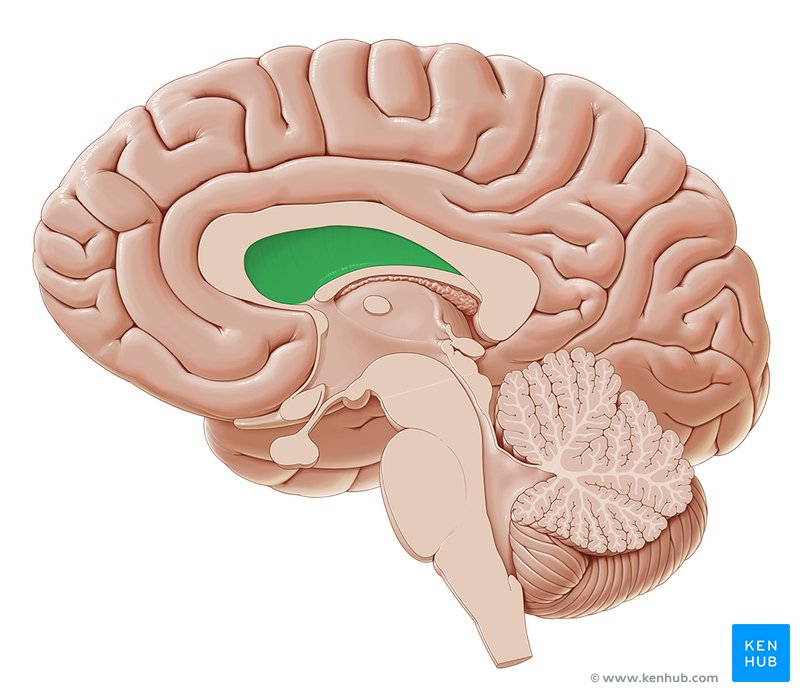

body of corpus callosum

splenium of corpus callosum

septum pellucidum

what are the cerebral cortex divided into

frontal, parietal, occipital, temporal and insula

what is the folds on surface of cerebral hemisphere called

cerebral gyri

what is the groove between two gyri called? and what is it lined with

cerebral sulci, pia mater

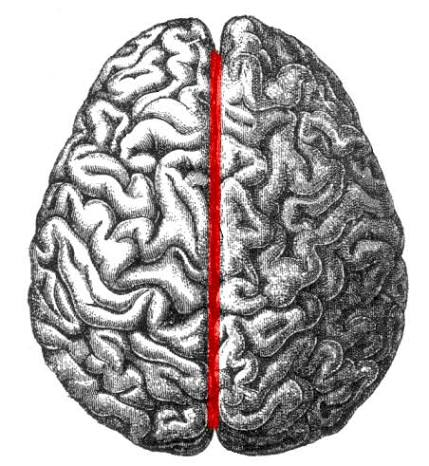

longitudinal fissure

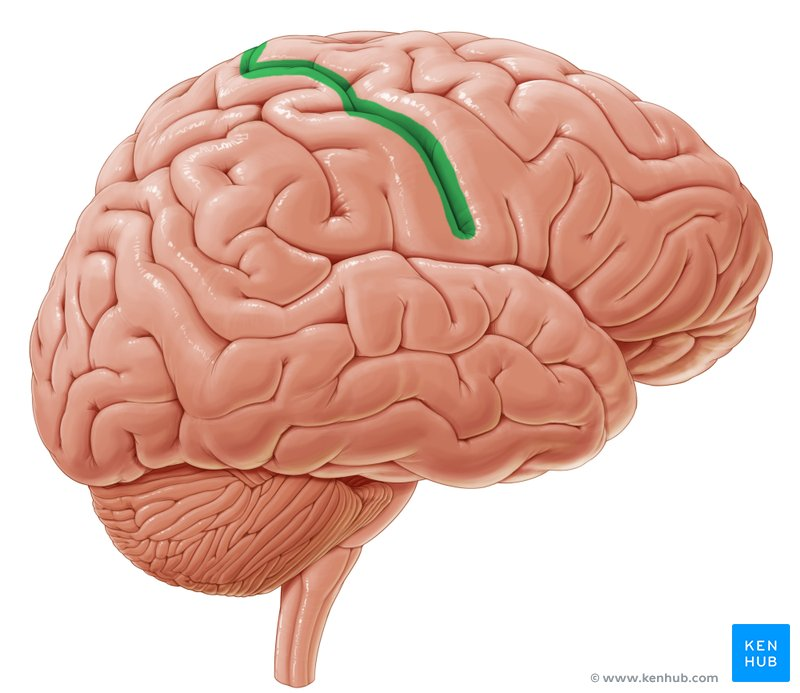

central sulcus

what does basal nuclei include

caudate nucleus, putamen, claustrum, globus pallidus (sometimes also include subthalamic nucleus, substantia nigra)

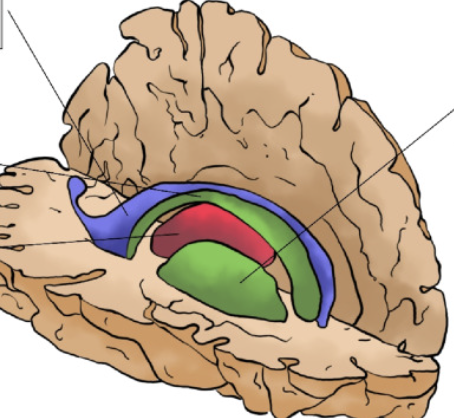

green (lower)

lentiform nucleus ( putamen and globus pallidus)

green (upper)

caudate nucleus

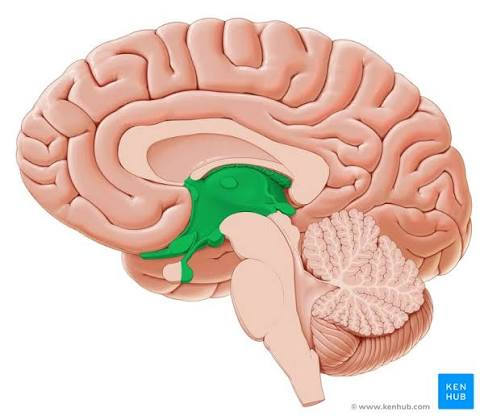

diencephalon

thalamus of diencephalon

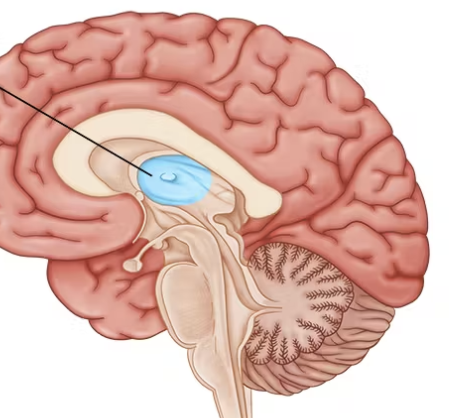

interthalamic adhesion of diencephalon

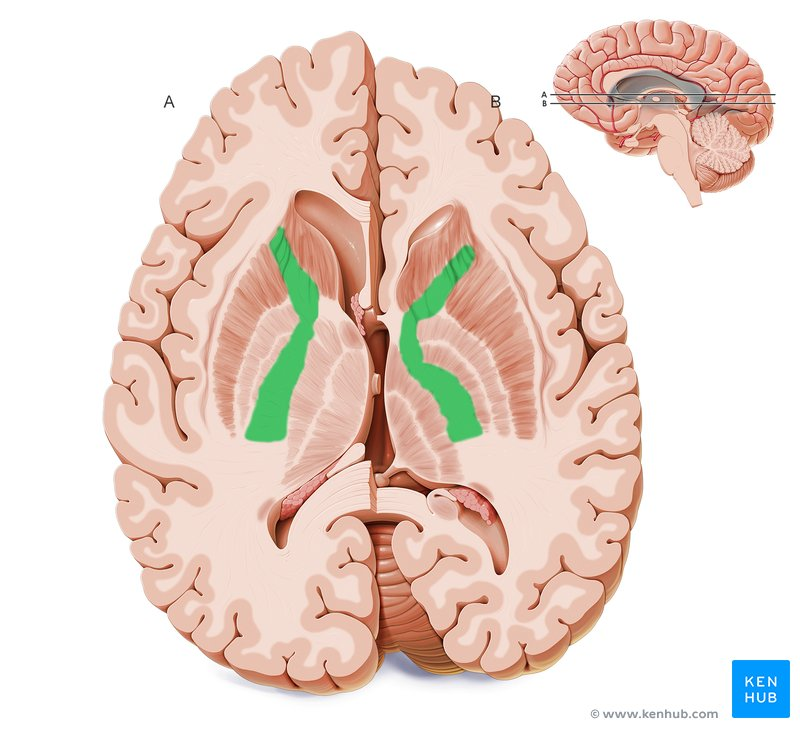

internal capsule of diencephalon

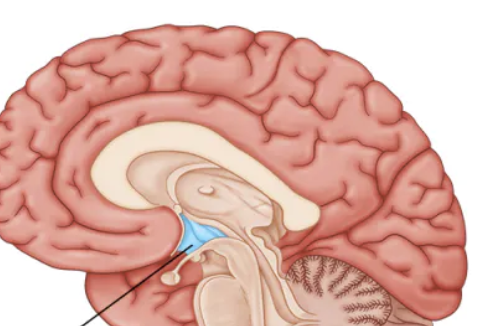

hypothalamus of diencephalon

blue

epithalamus of diencephalon

pink

pons

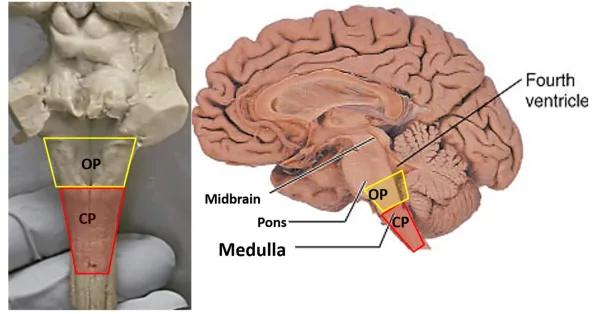

what are the parts of the medulla

open medulla and closed medulla

which part of the brain is anterior horn of lateral ventricle located

frontal lobe

which part of the brain is body of lateral ventricle located

pariental lobe

which part of the brain is posterior horn of lateral ventricle loacted

occipital lobe

which part of the brain is the inferior horn of lateral ventricle located

temporal lobe

which part of the brain is 3rd ventricle located

diencephalon

which part of the brain is the cerebral aqueduct located

midbrain

which part of the brain is the 4th ventricle located

pons, medulla oblongata and cerebellum
