Brainstem Anatomy

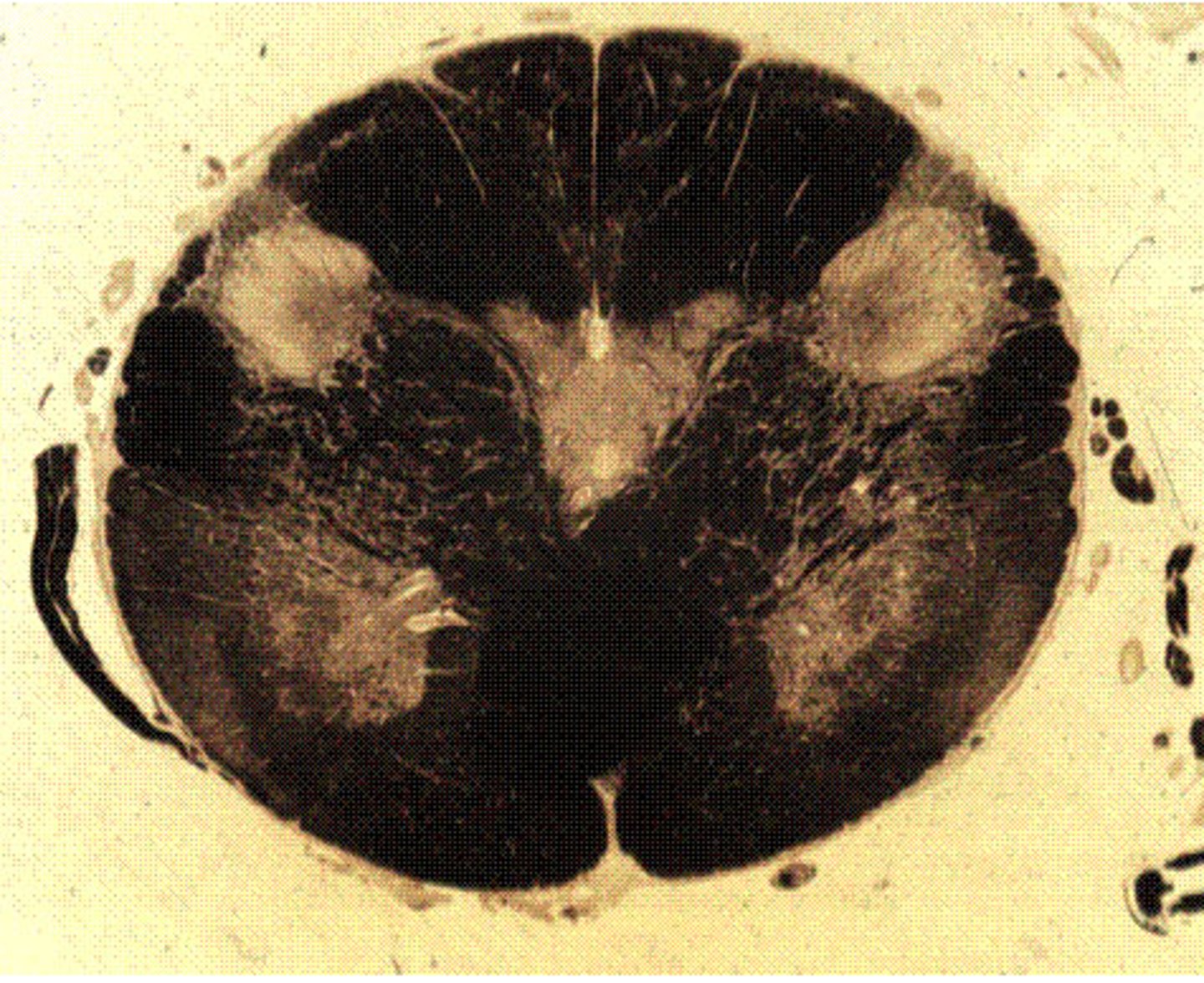

Medulla Pyramidal Decussation

Fasciculus Cuneatus

Fasciculus Gracilis

Nucleus Cuneatus

Nucleus Gracilis

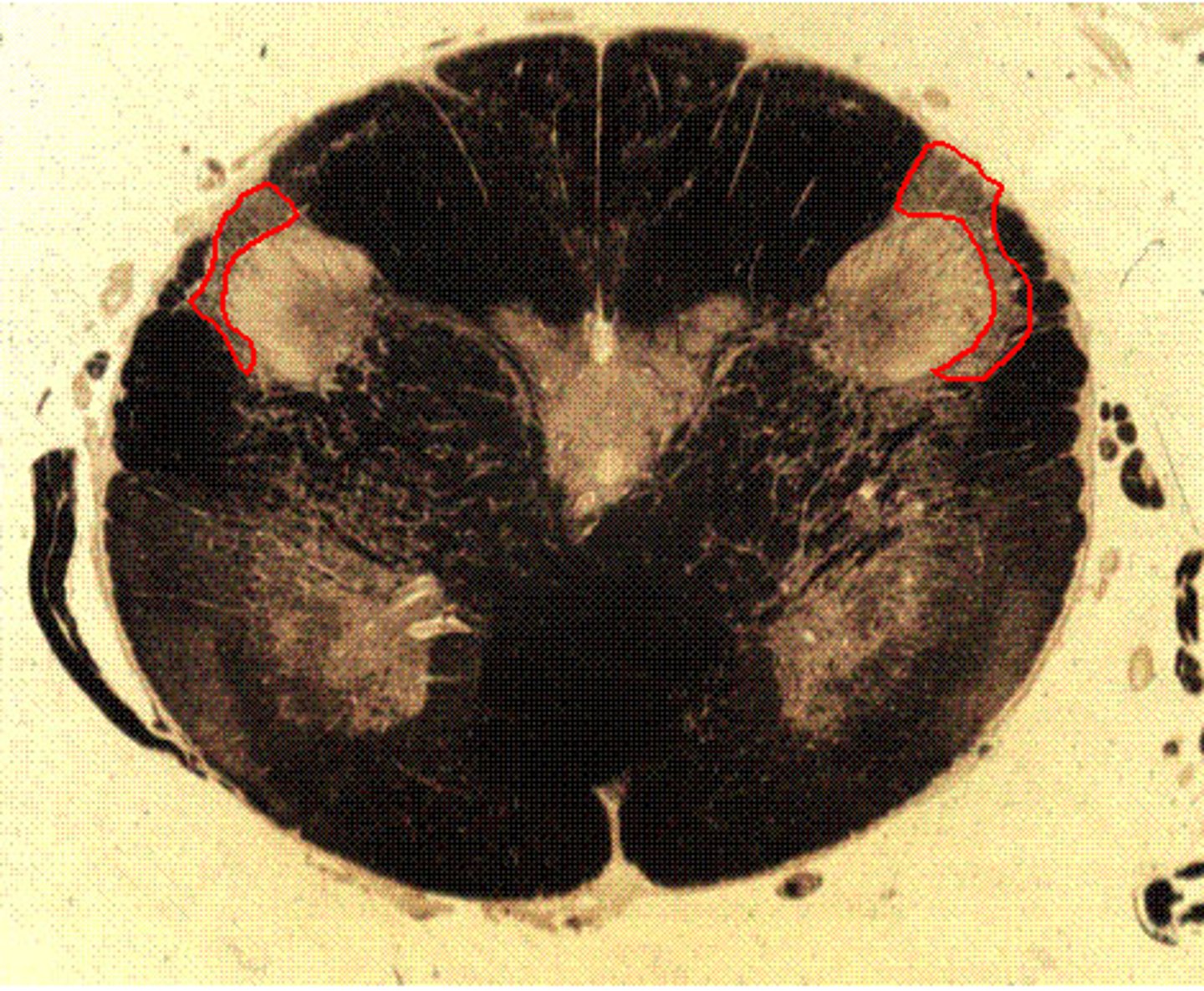

Spinal Trigeminal Tract

[Darker]

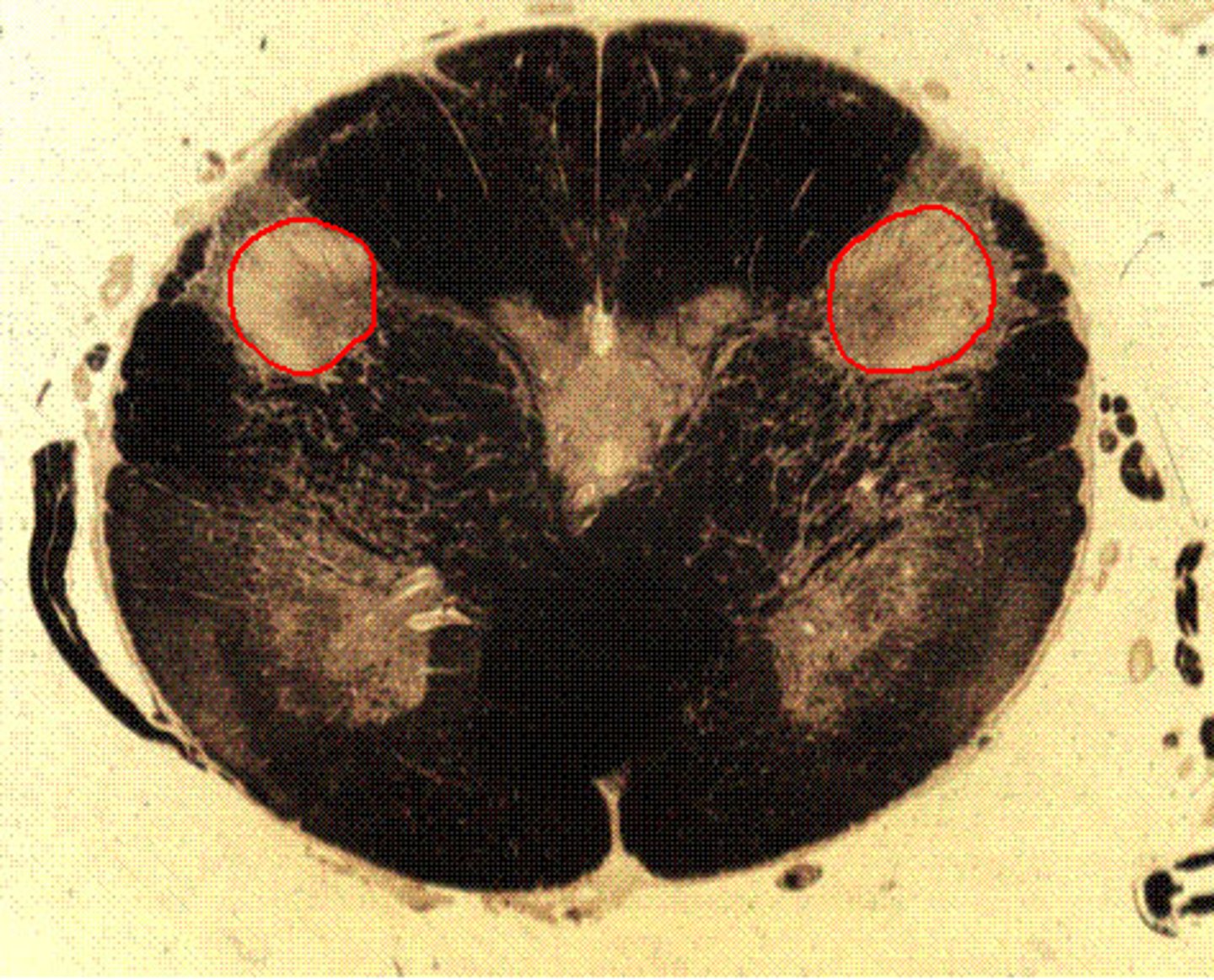

Spinal Trigeminal Nucleus

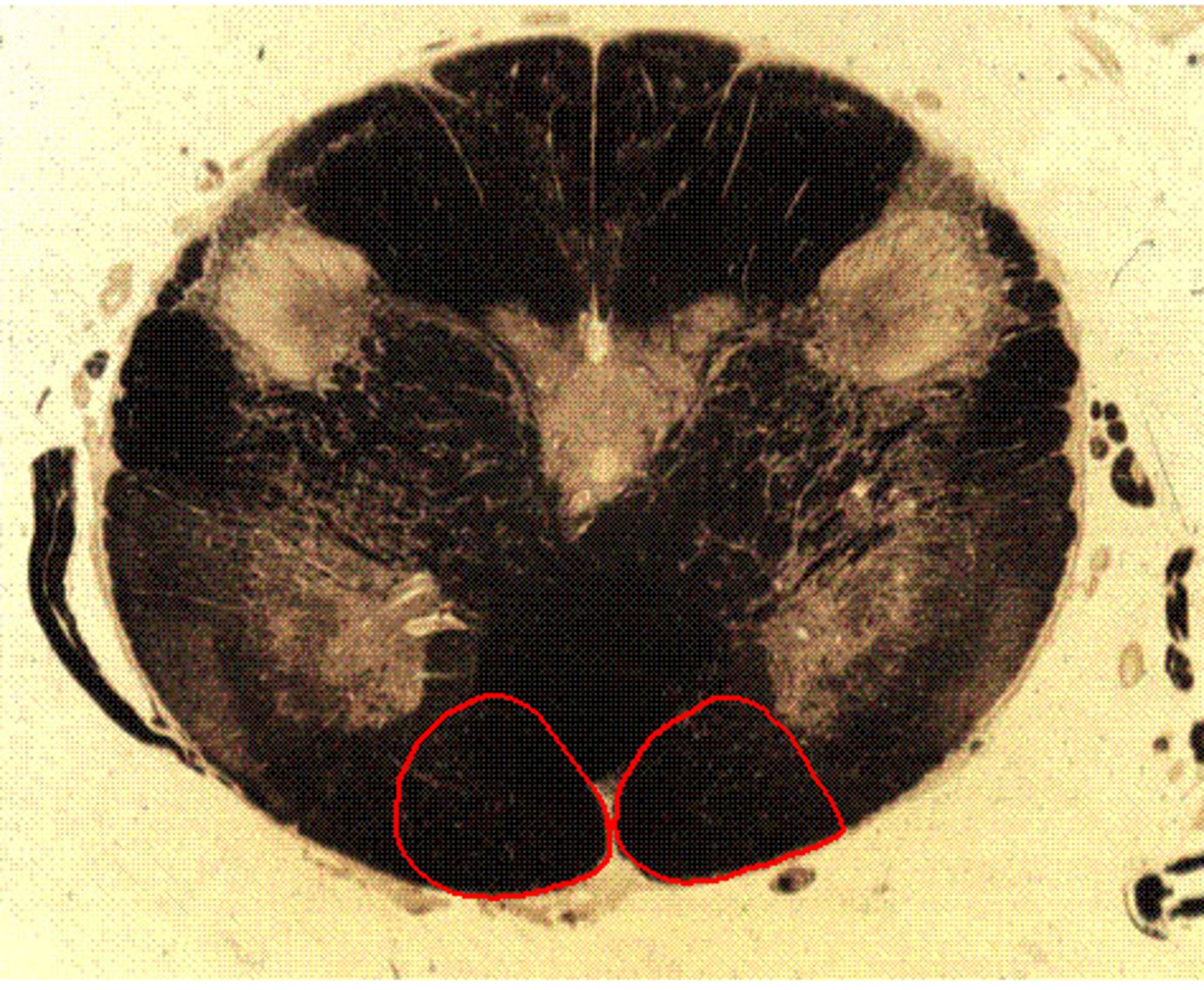

Pyramid

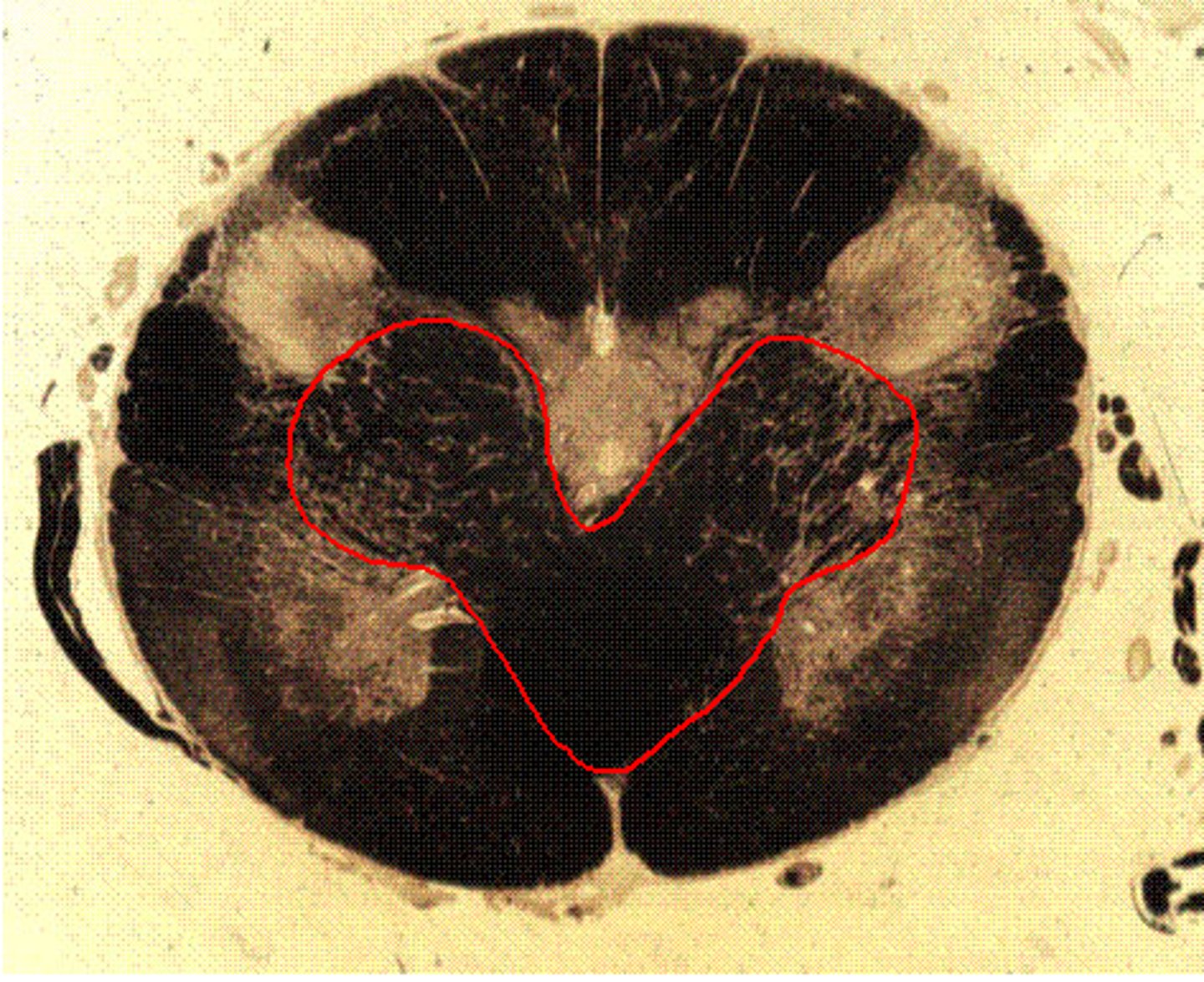

Pyramidal Decussation

Medulla Obex

Spinal Trigeminal Tract

Spinal Trigeminal Nucleus

Fasciculus Cuneatus

Nucleus Cuneatus

Nucleus Gracilis

Internal Arcuate Fibers

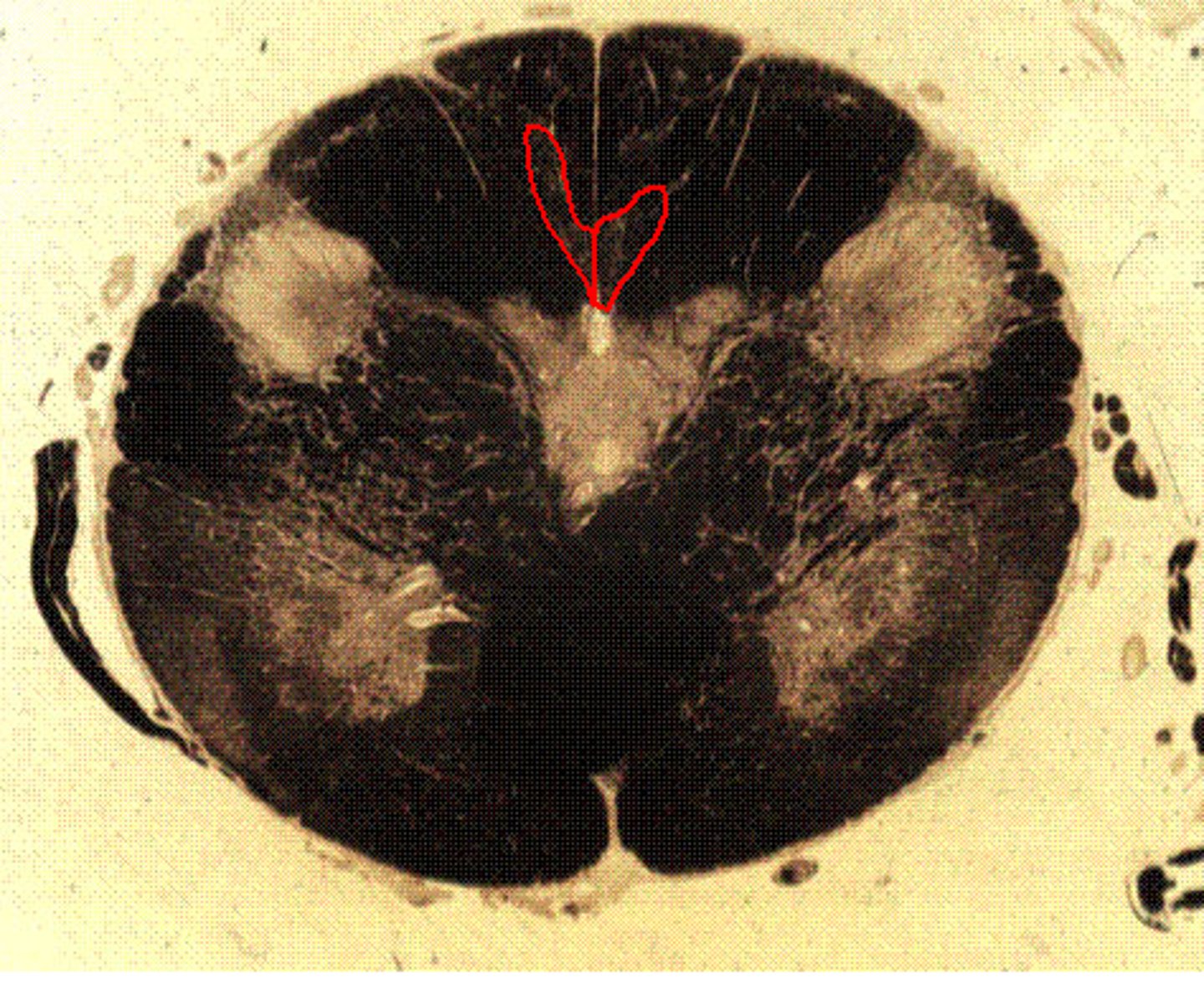

Medial Lemniscus

Pyramid

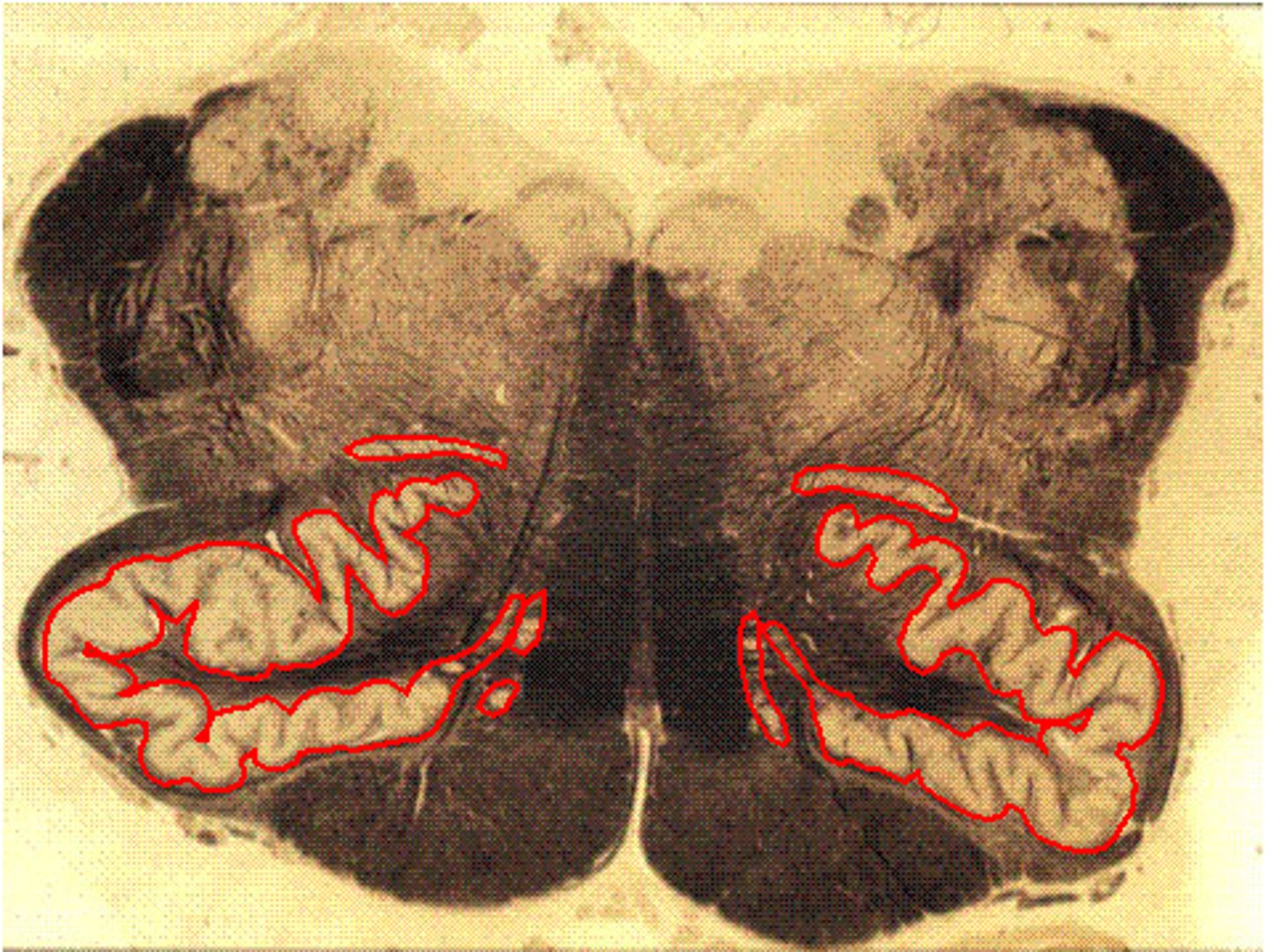

Inferior Olivary Nucleus

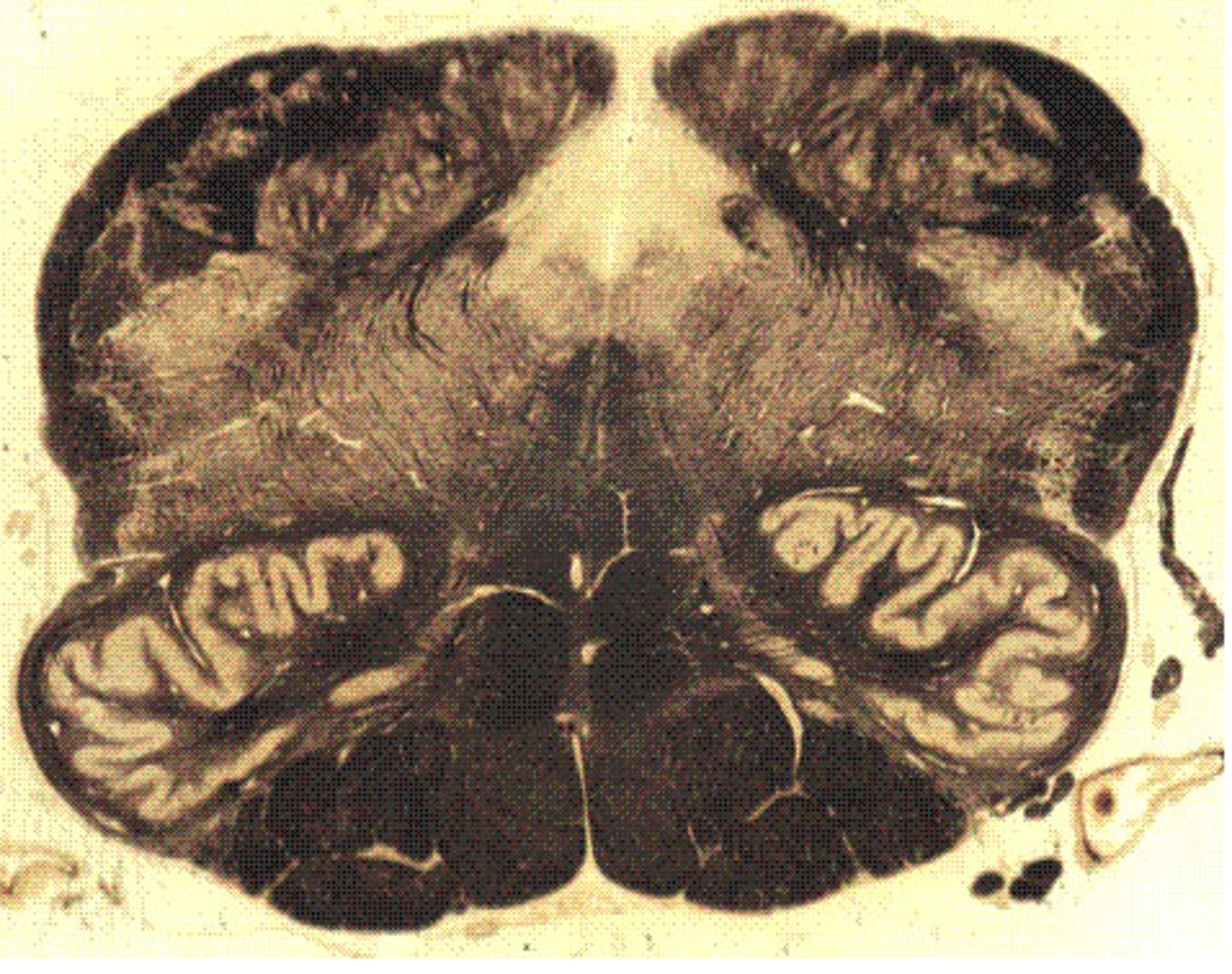

Rostrall Medulla

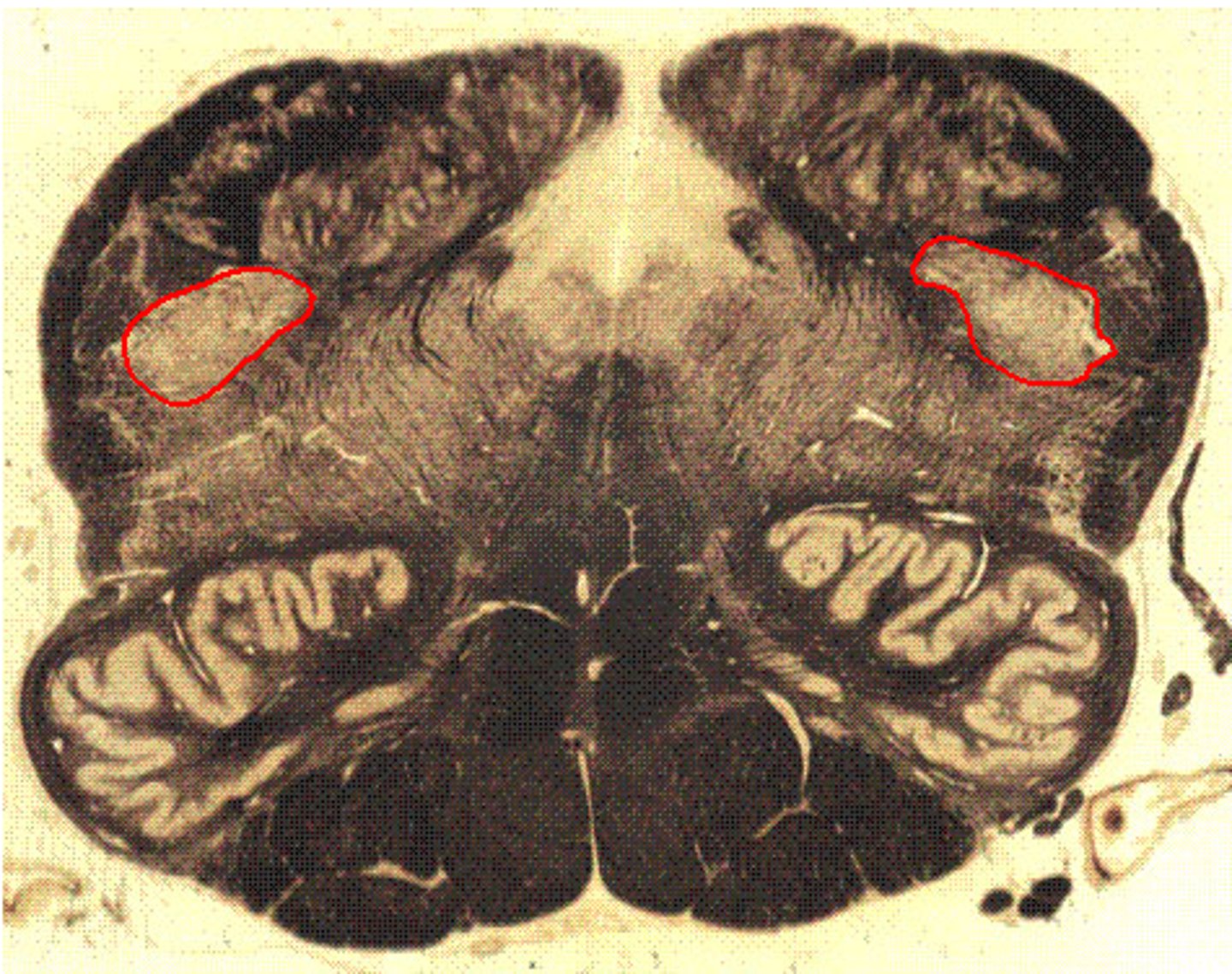

Inferior Cerebellar Peduncle

[aka "restiform body"]

Spinal Trigeminal Nucleus

Spinal Trigeminal Tract

Reticular Formation

Nucleus Ambiguous

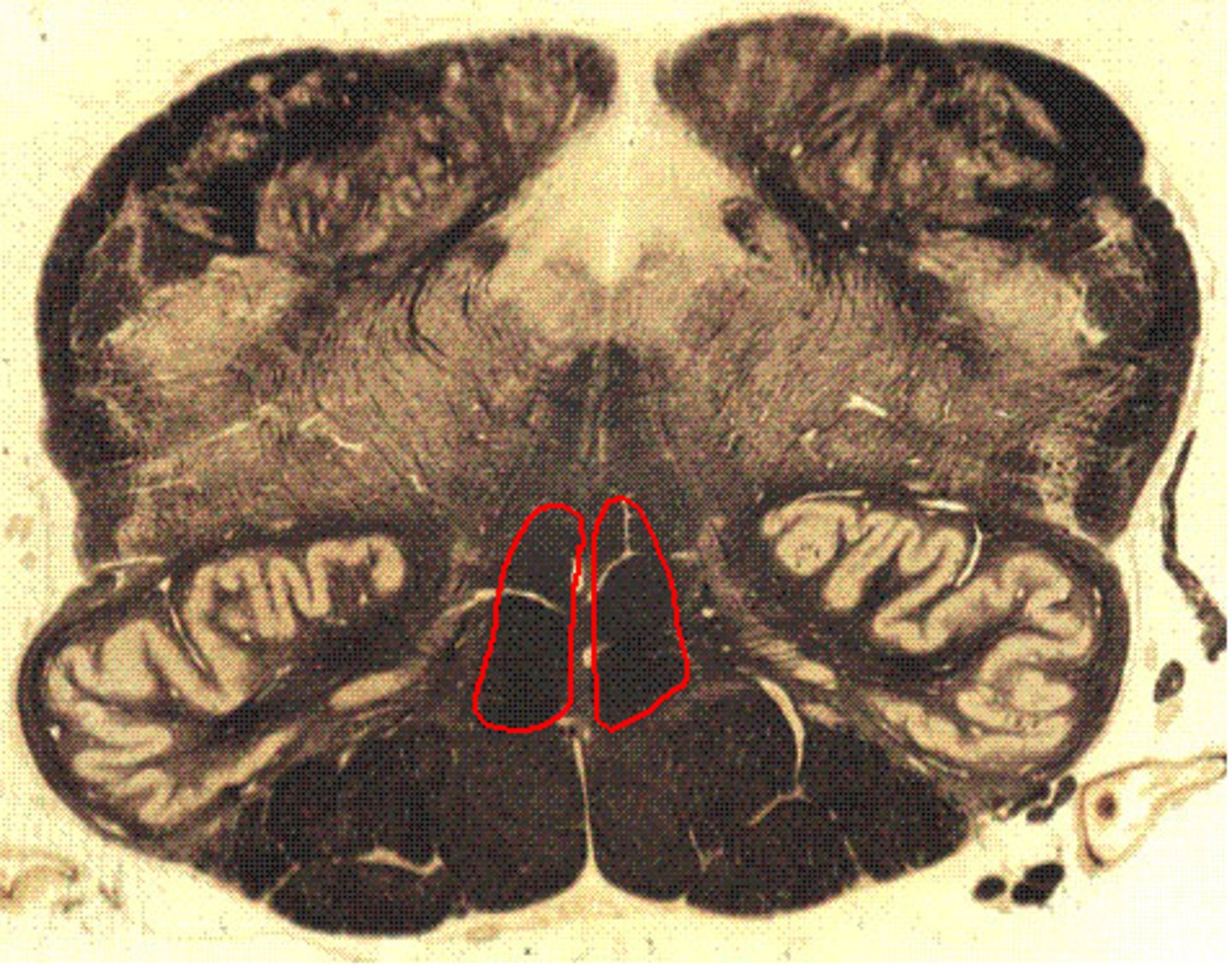

Medial Lemniscus

Pyramid

Inferior Olivary Nucleus

Lateral Nucleus Cuneatus

Pons Facial Nucleus

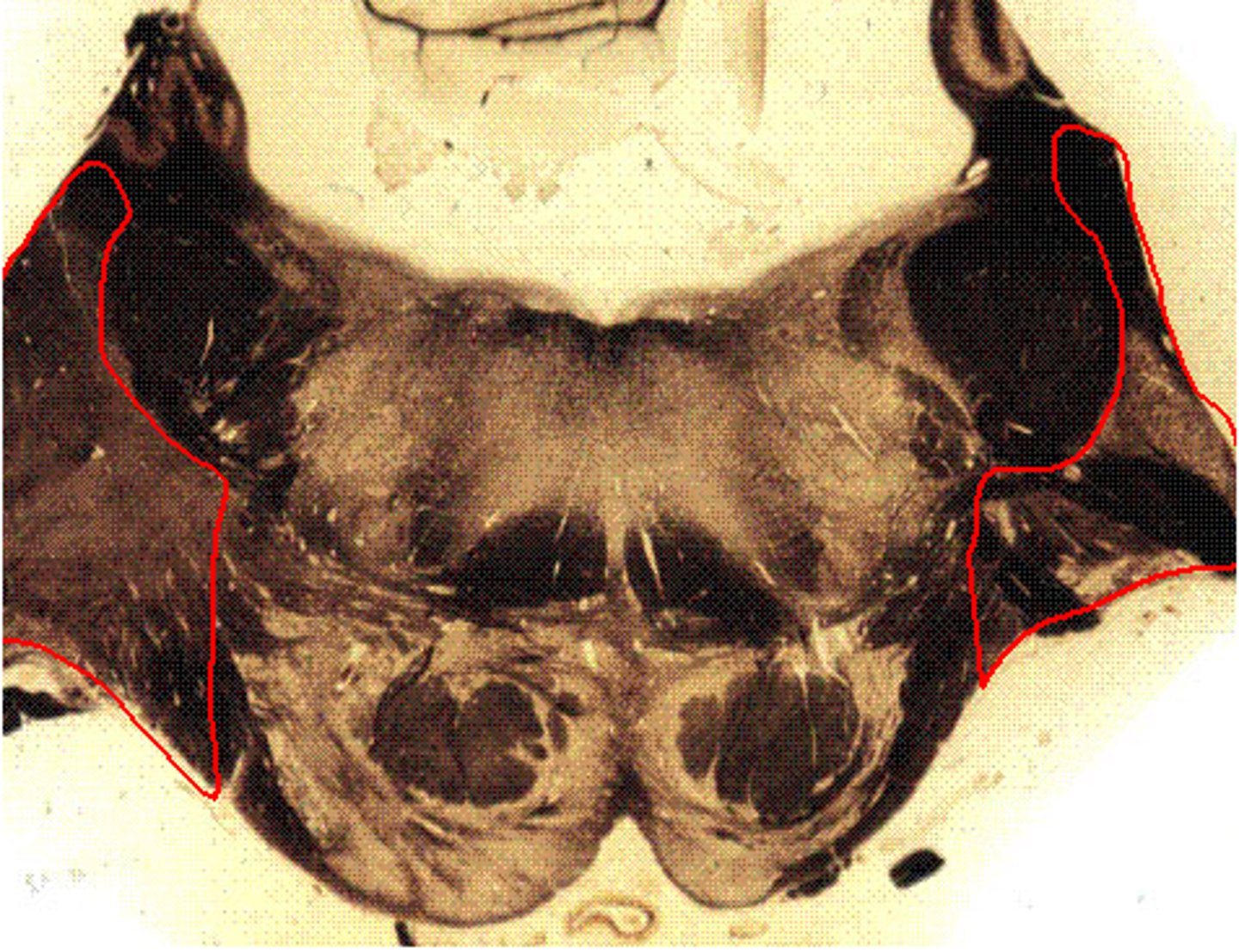

Middle Cerebellar Peduncle

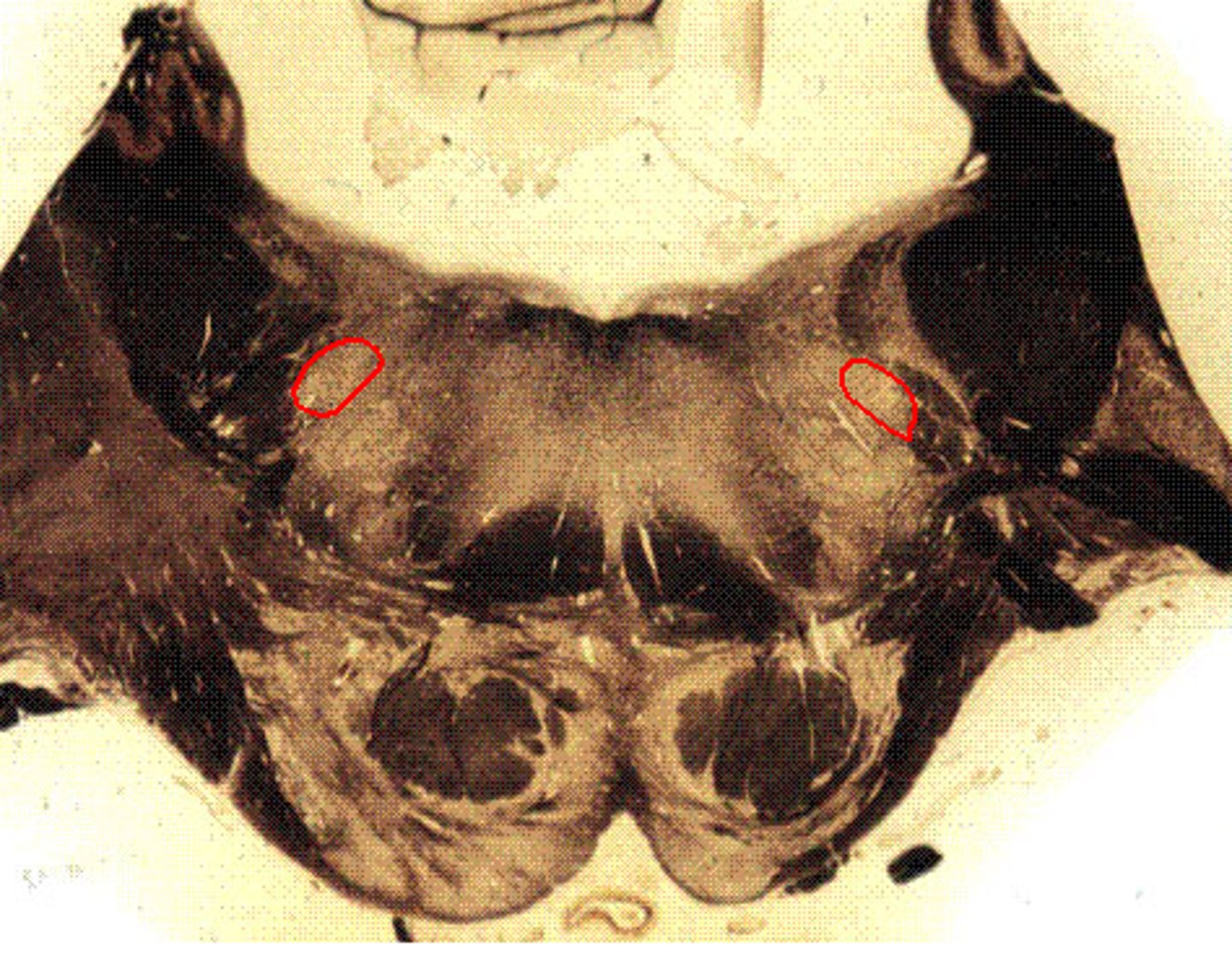

Spinal Trigeminal Nucleus

Spinal Trigeminal Tract

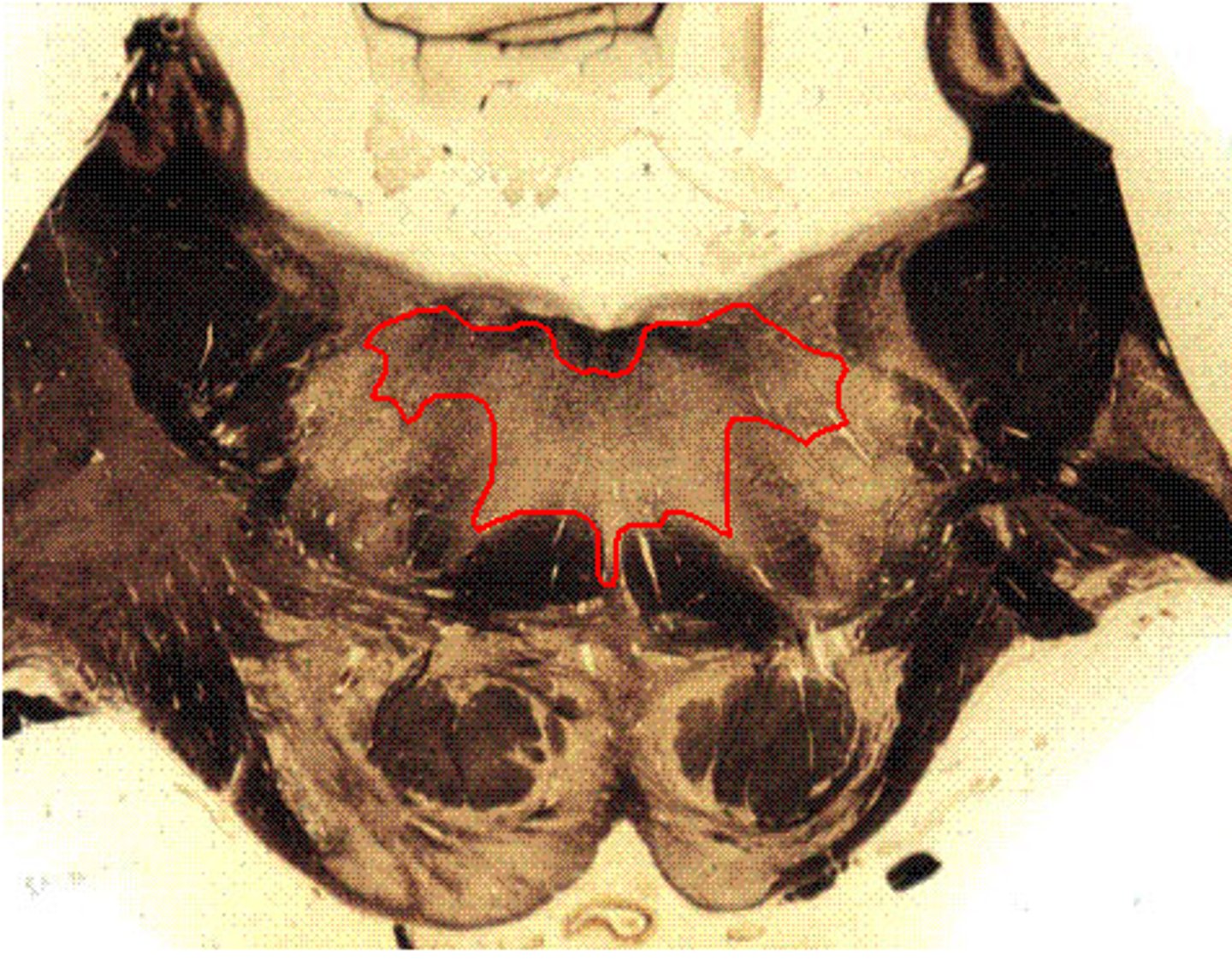

Tegmentum

Reticular Formation

Pontine Nuclei

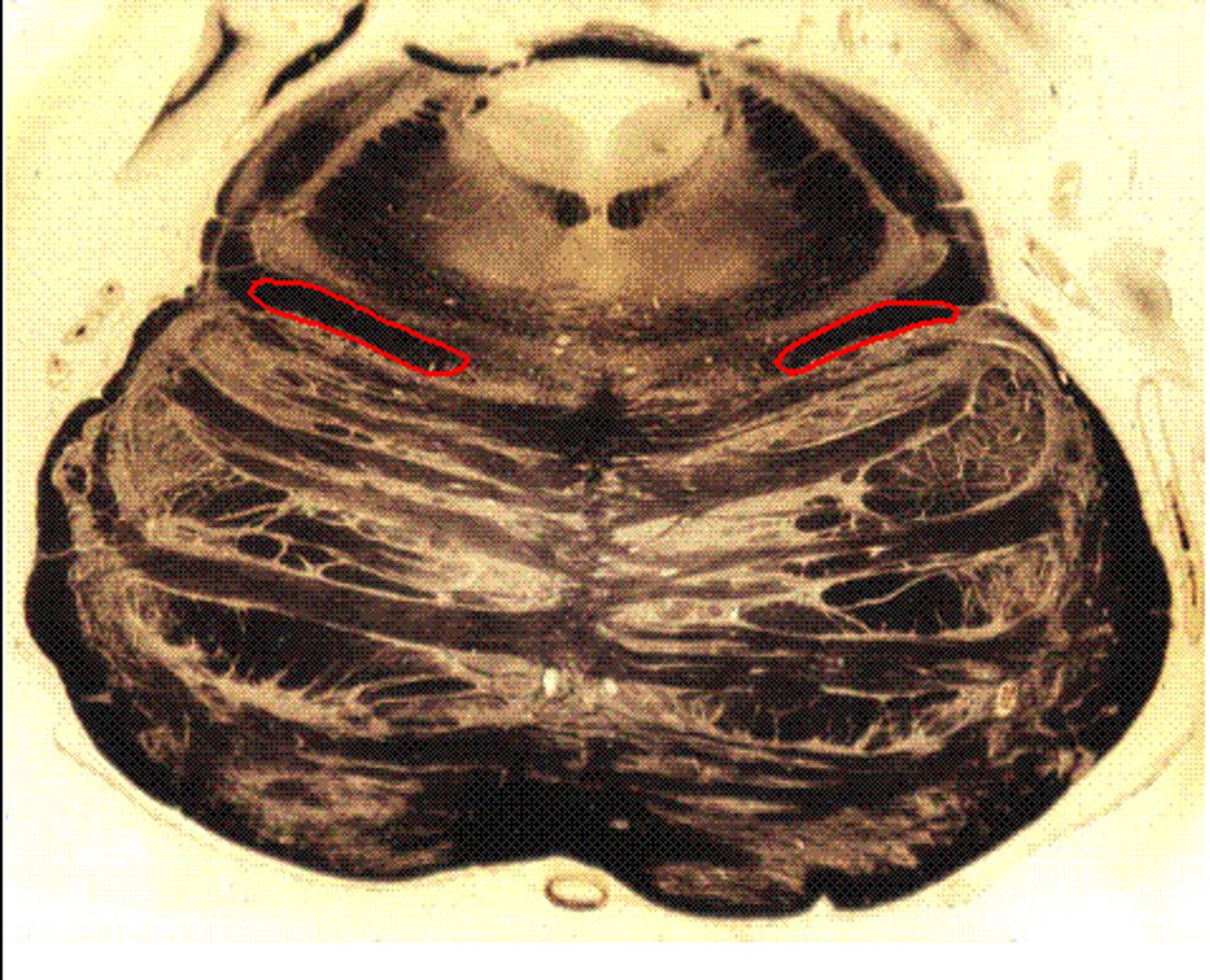

Medial Lemniscus

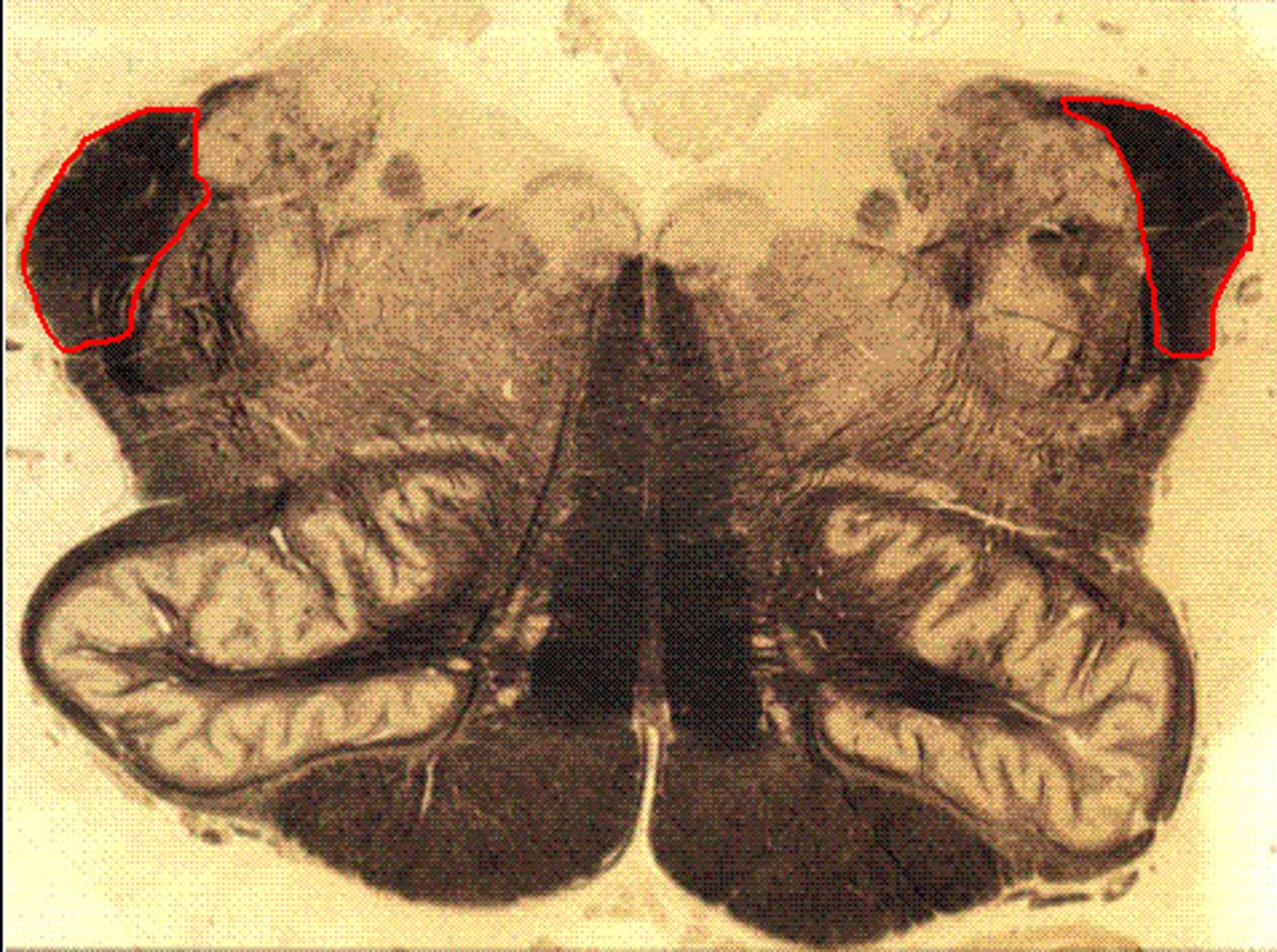

Inferior Cerebellar Peduncle

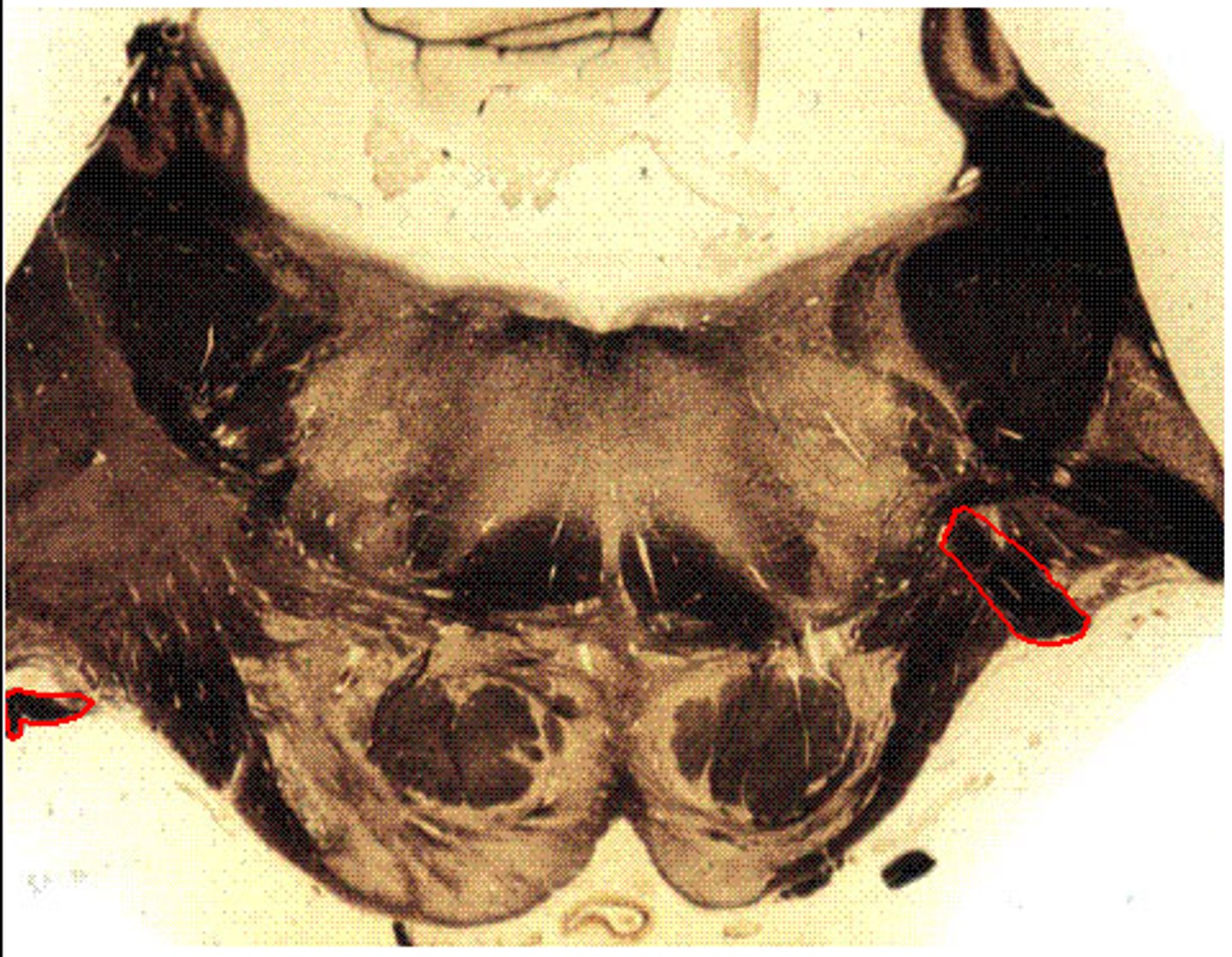

Facial Nerve

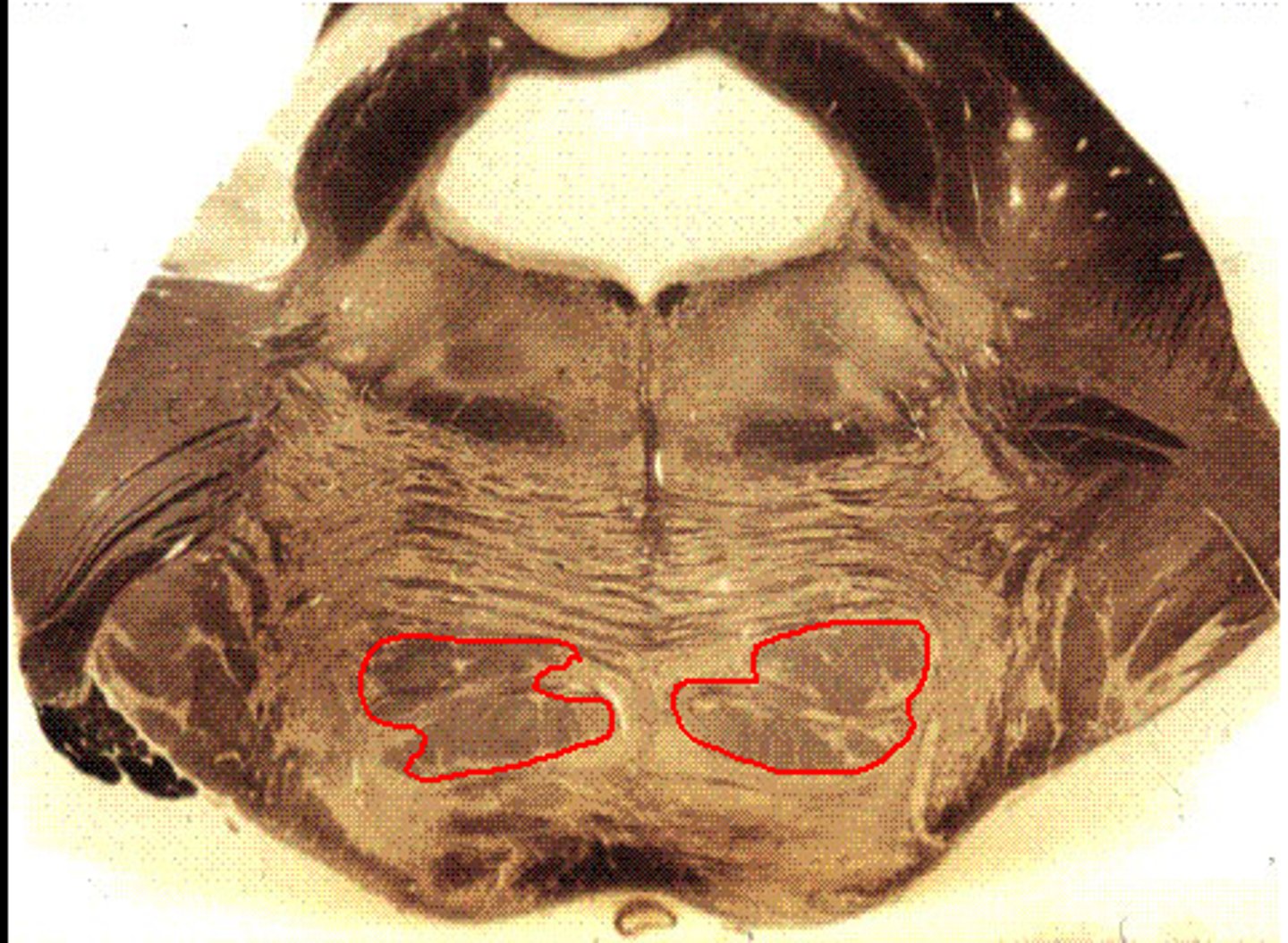

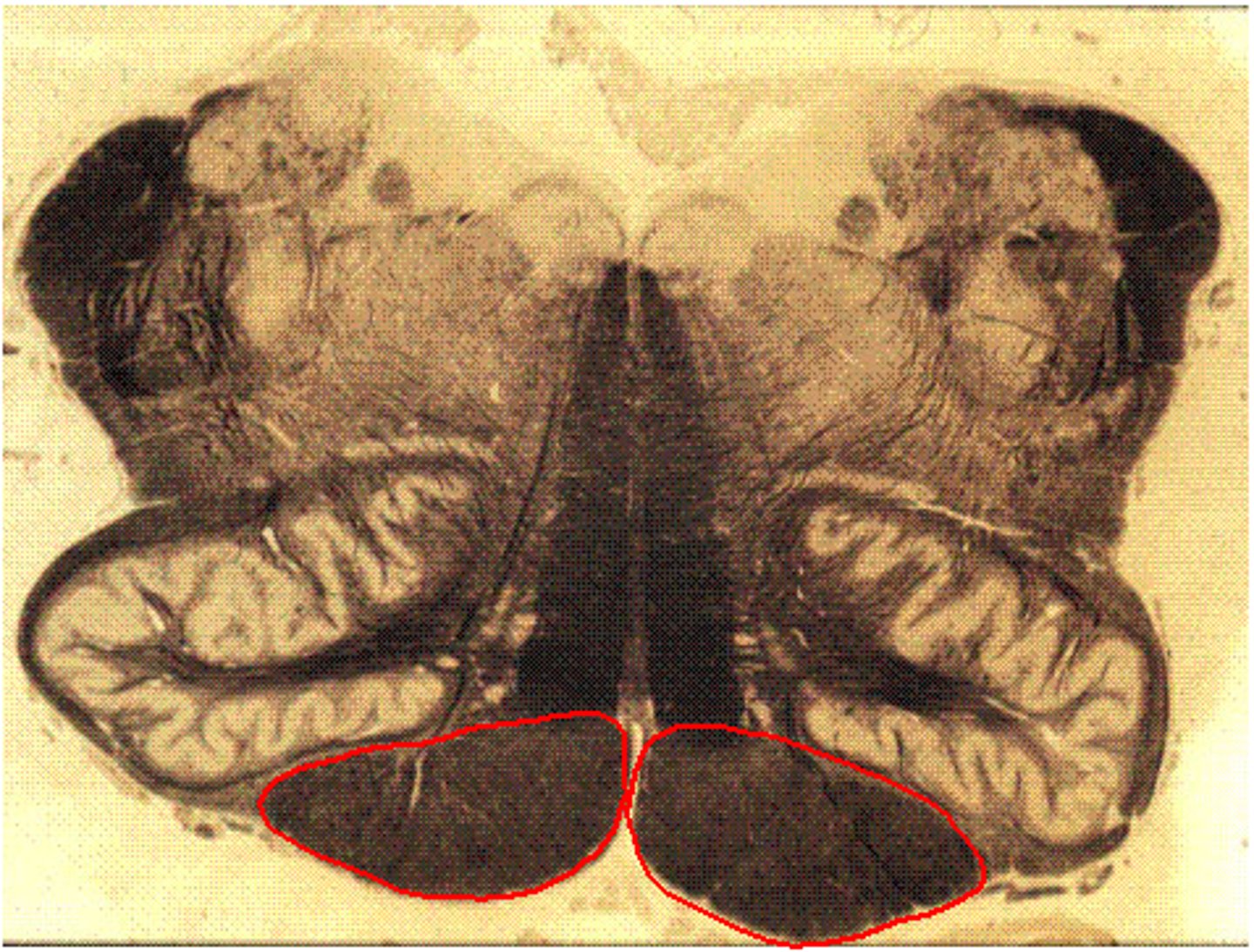

Corticospinal Tract

Basilar Artery

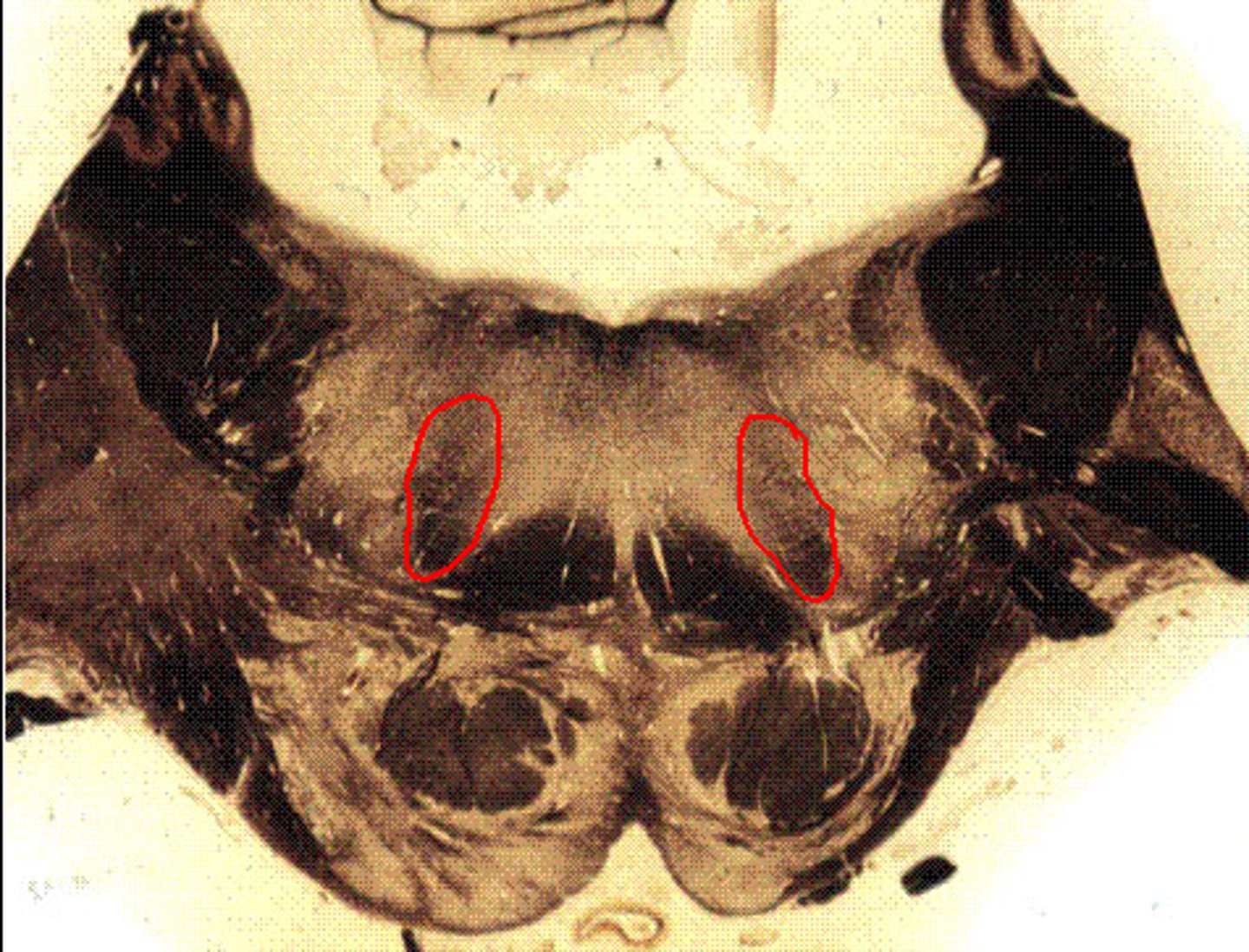

Central Tegmental Tract

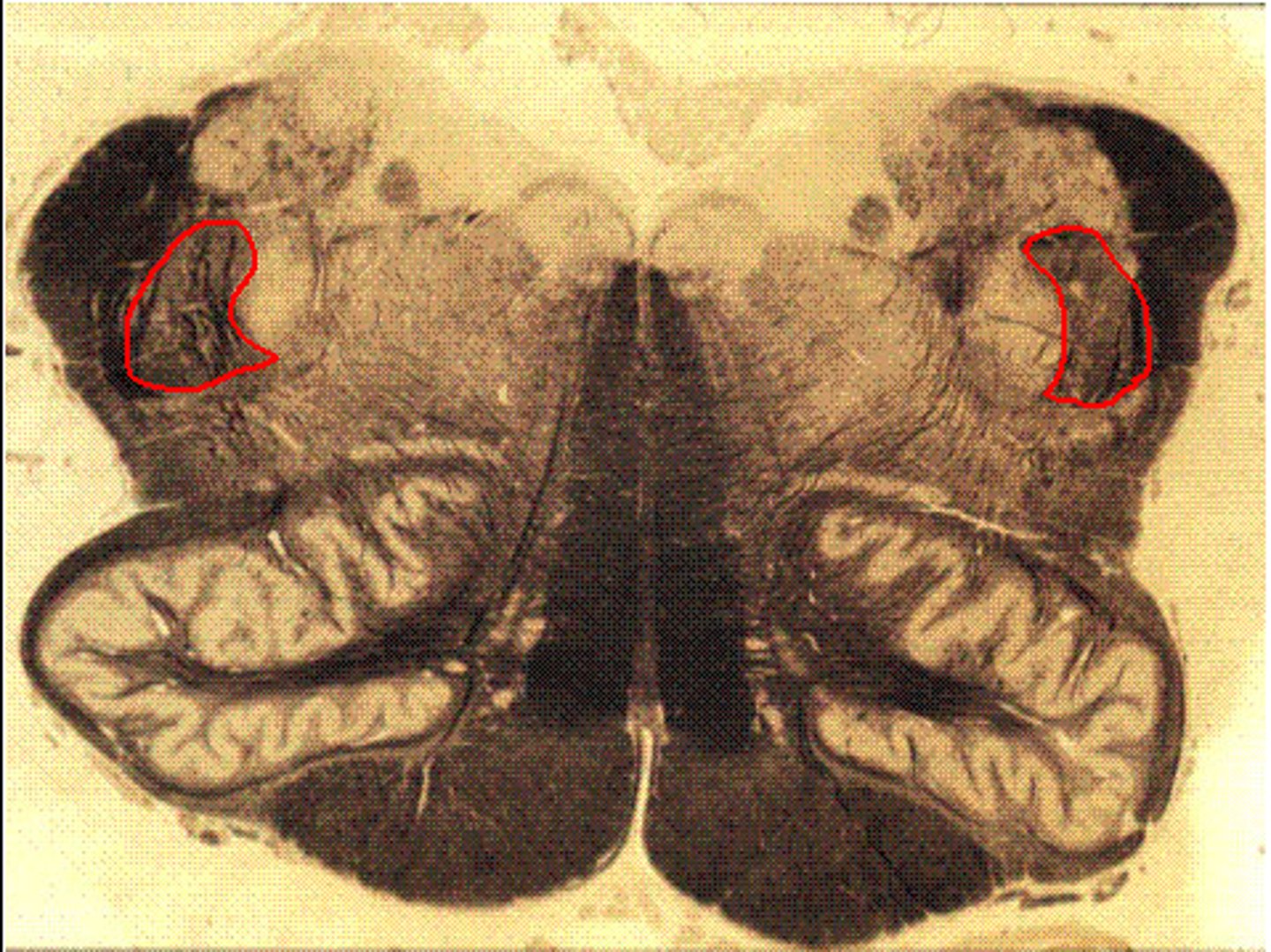

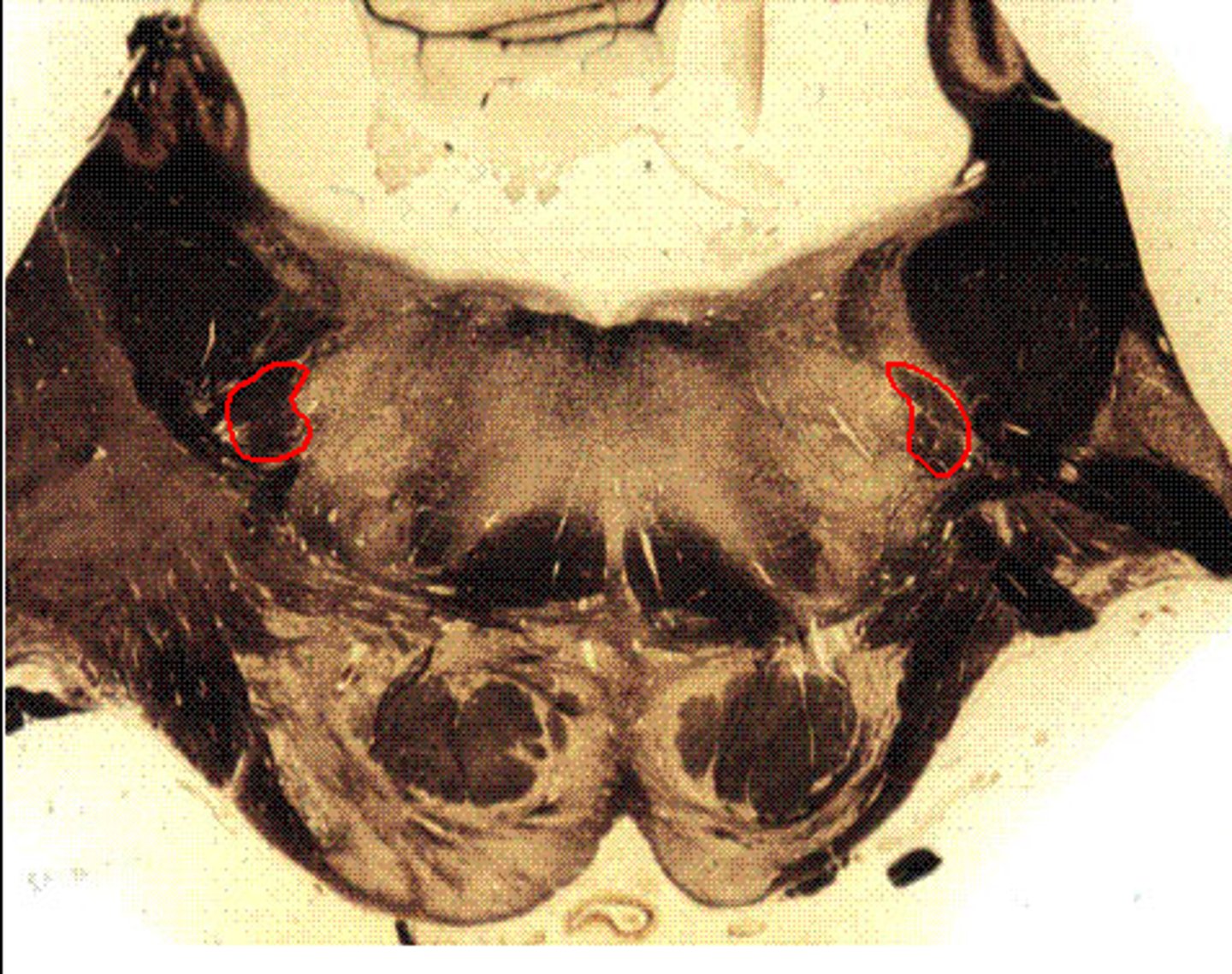

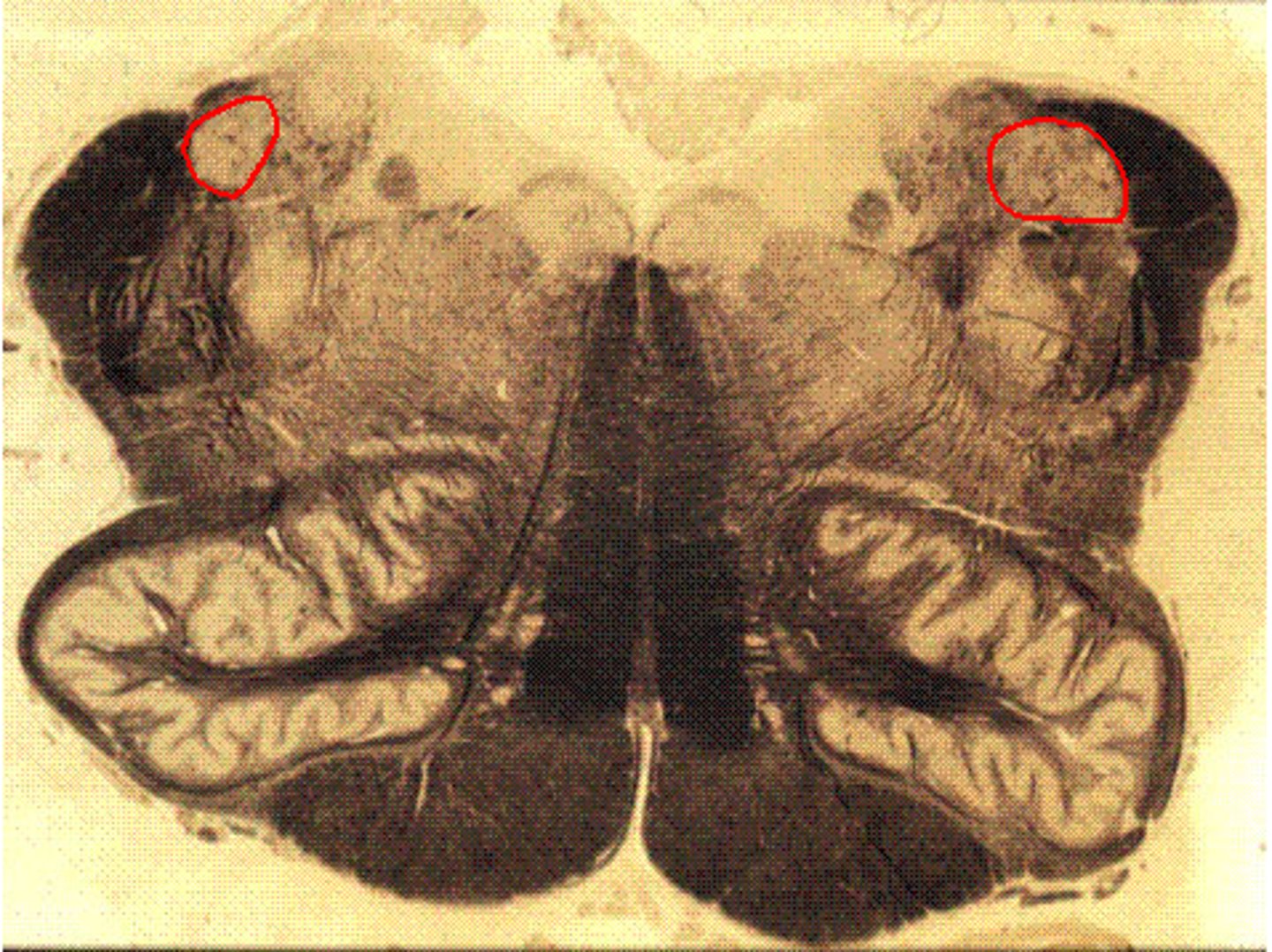

Spinal Trigeminal Nucleus

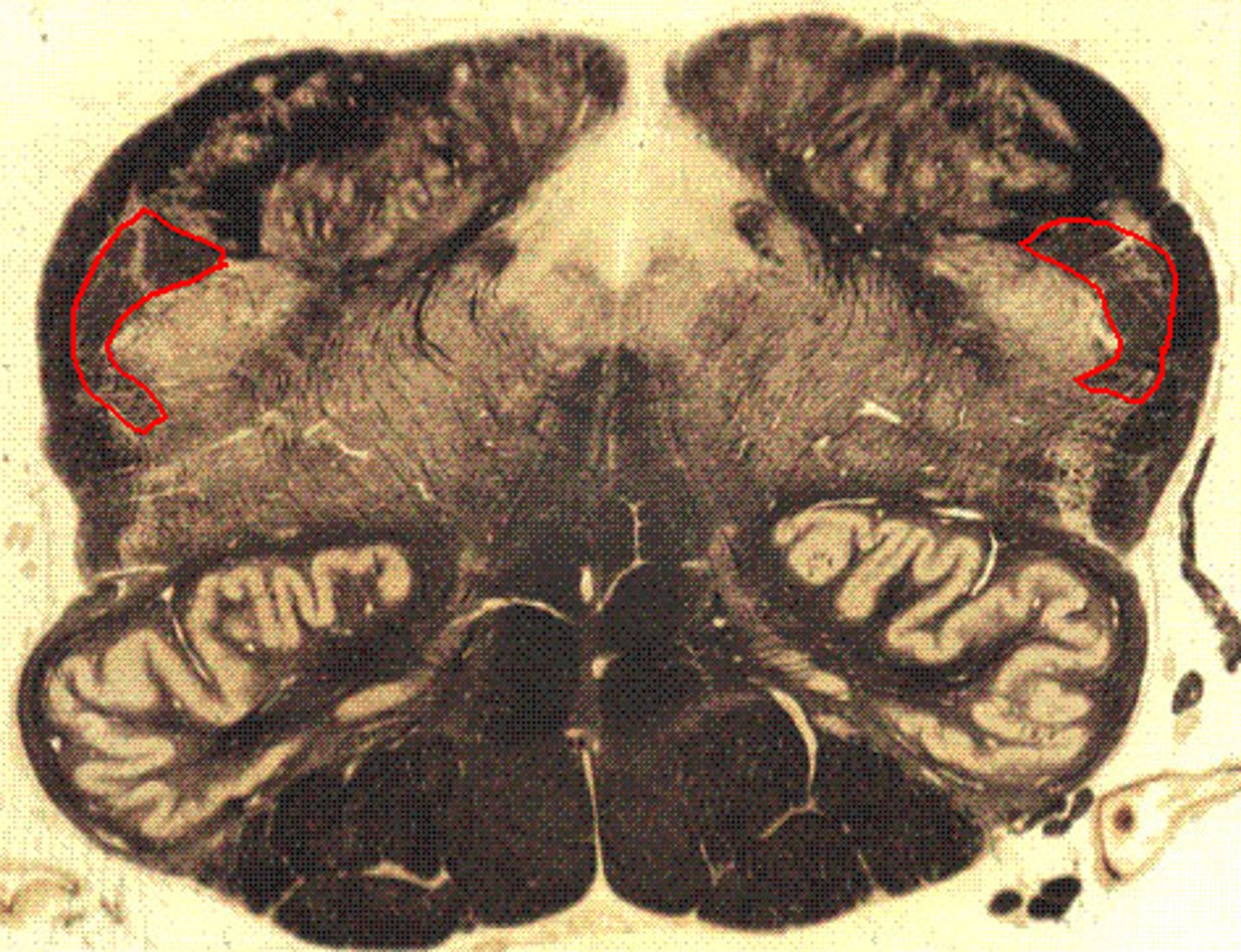

Spinal Trigeminal Tract

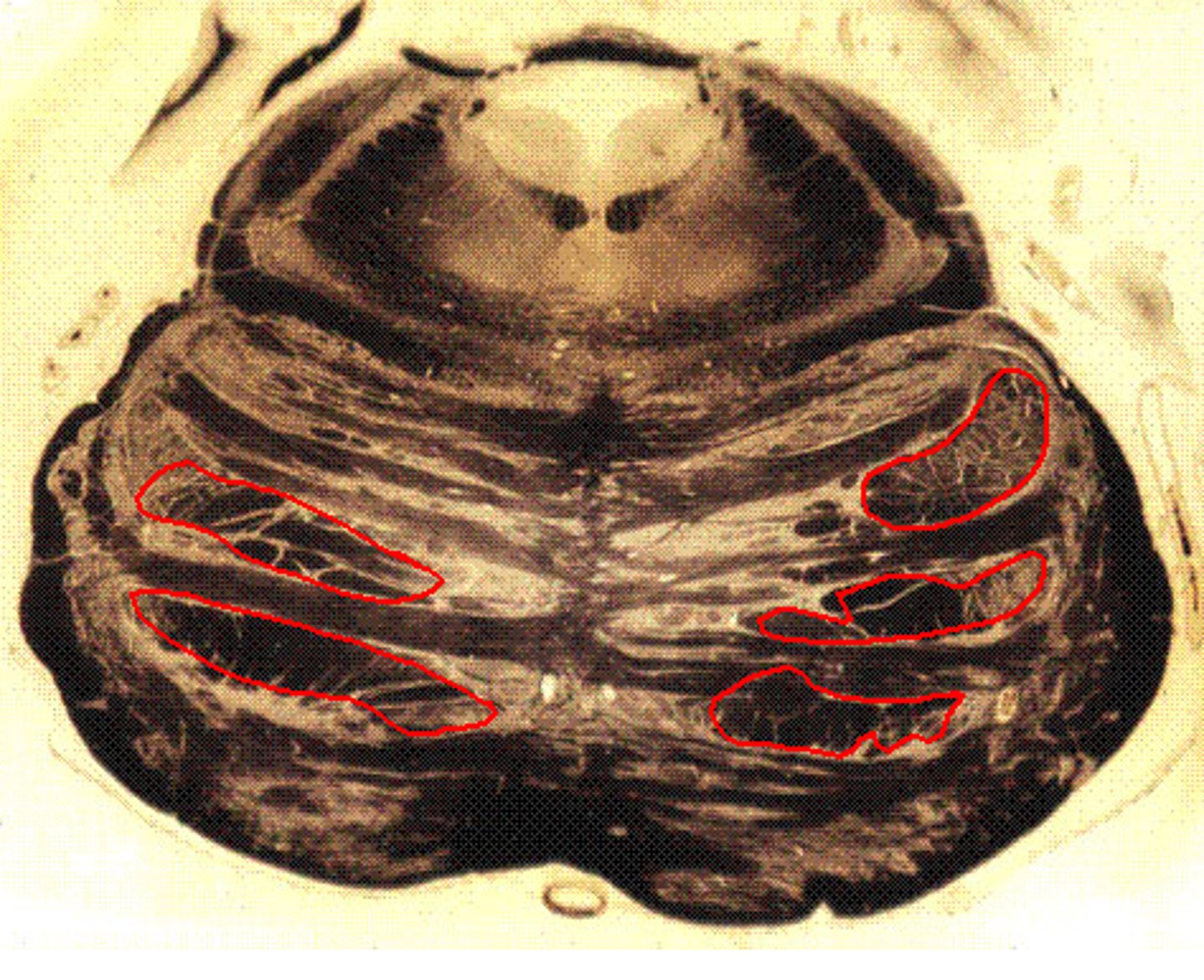

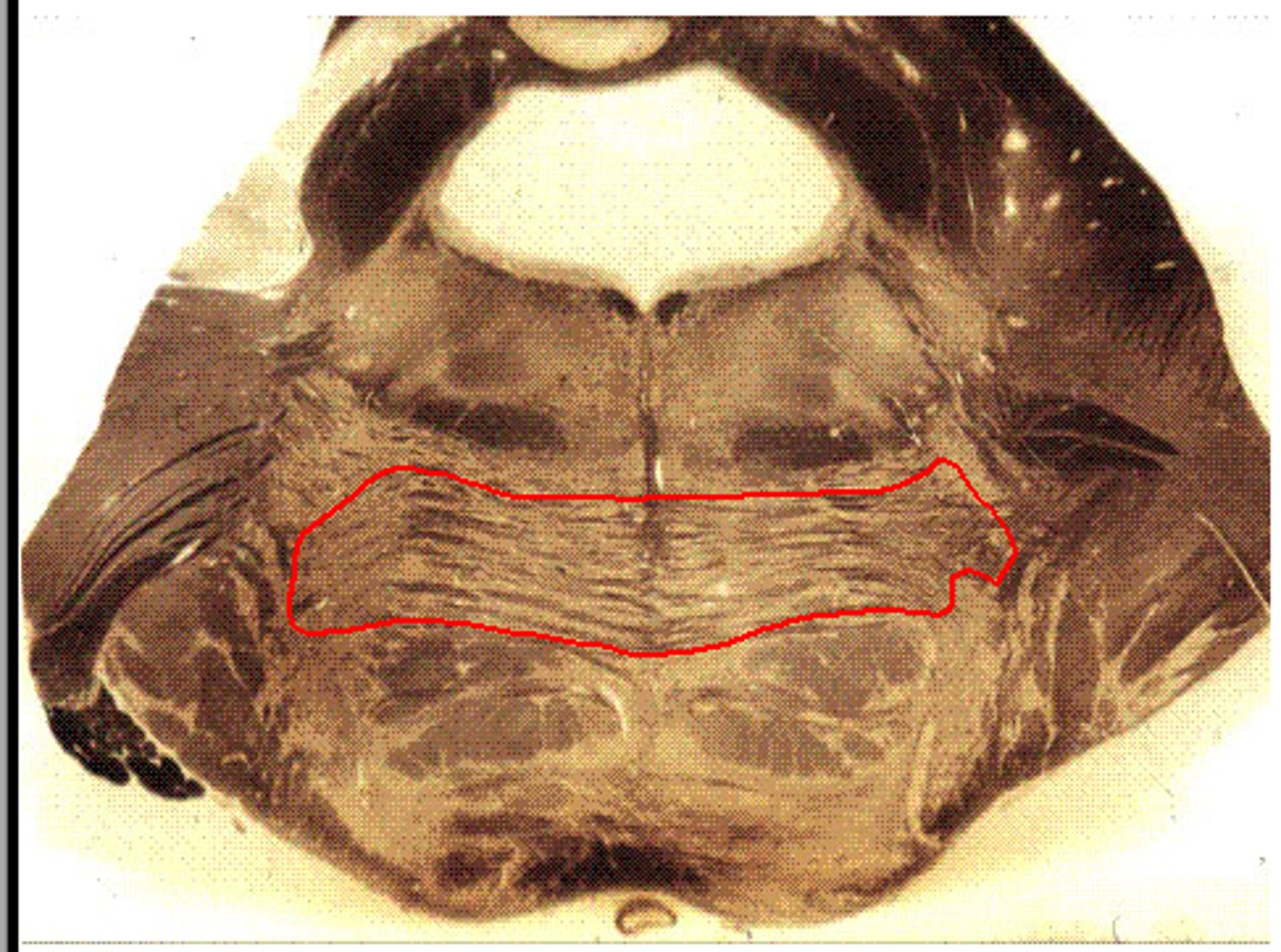

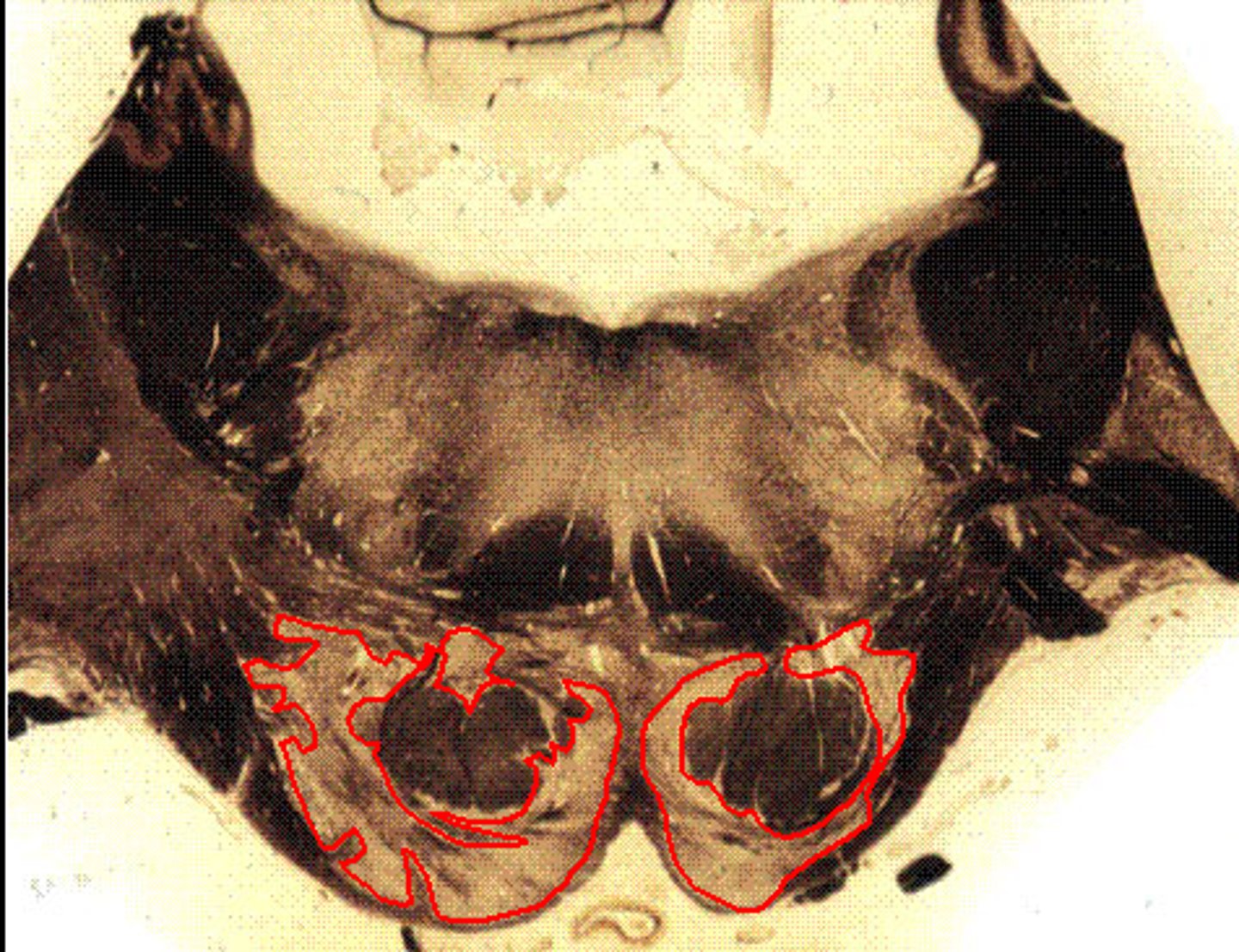

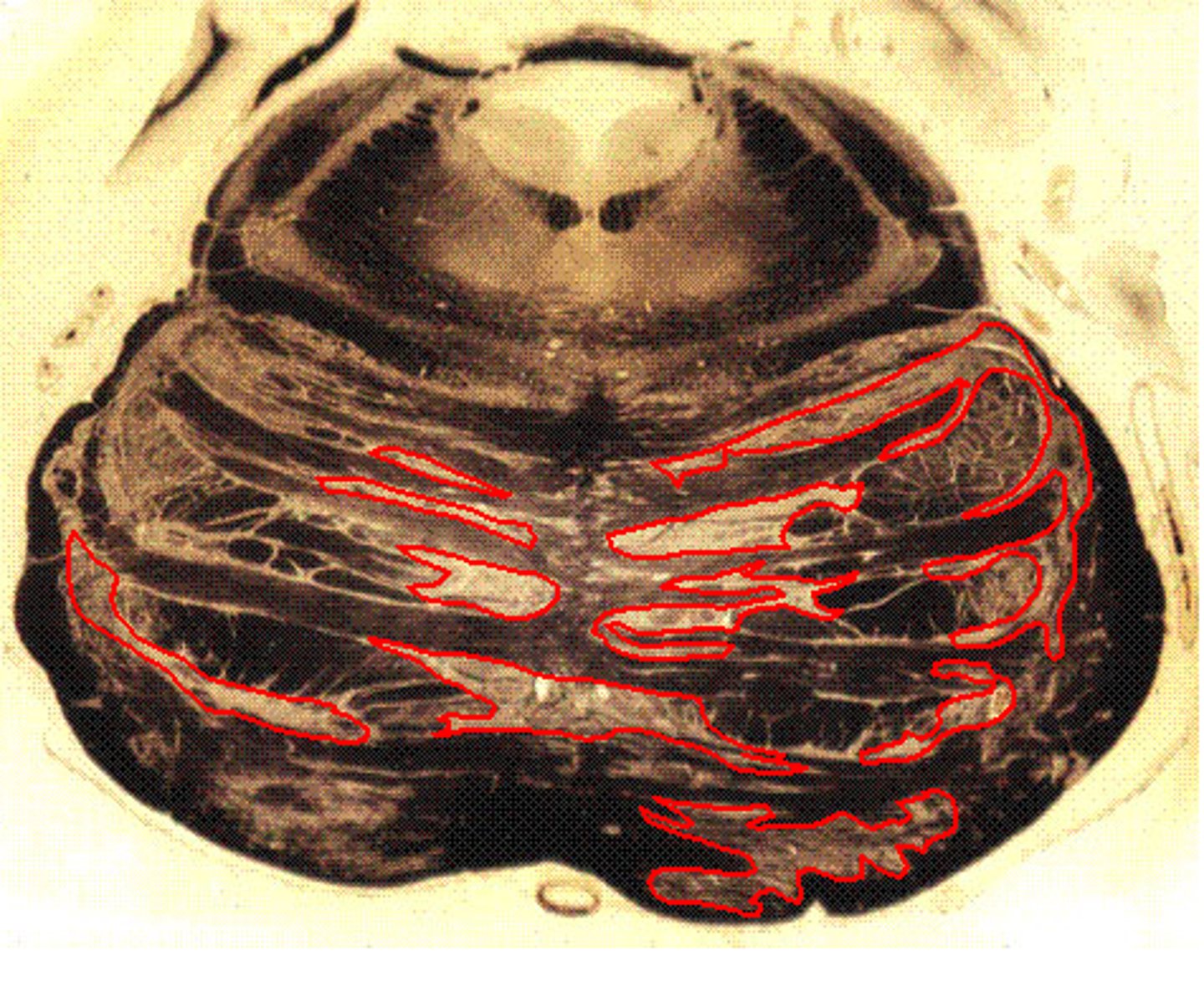

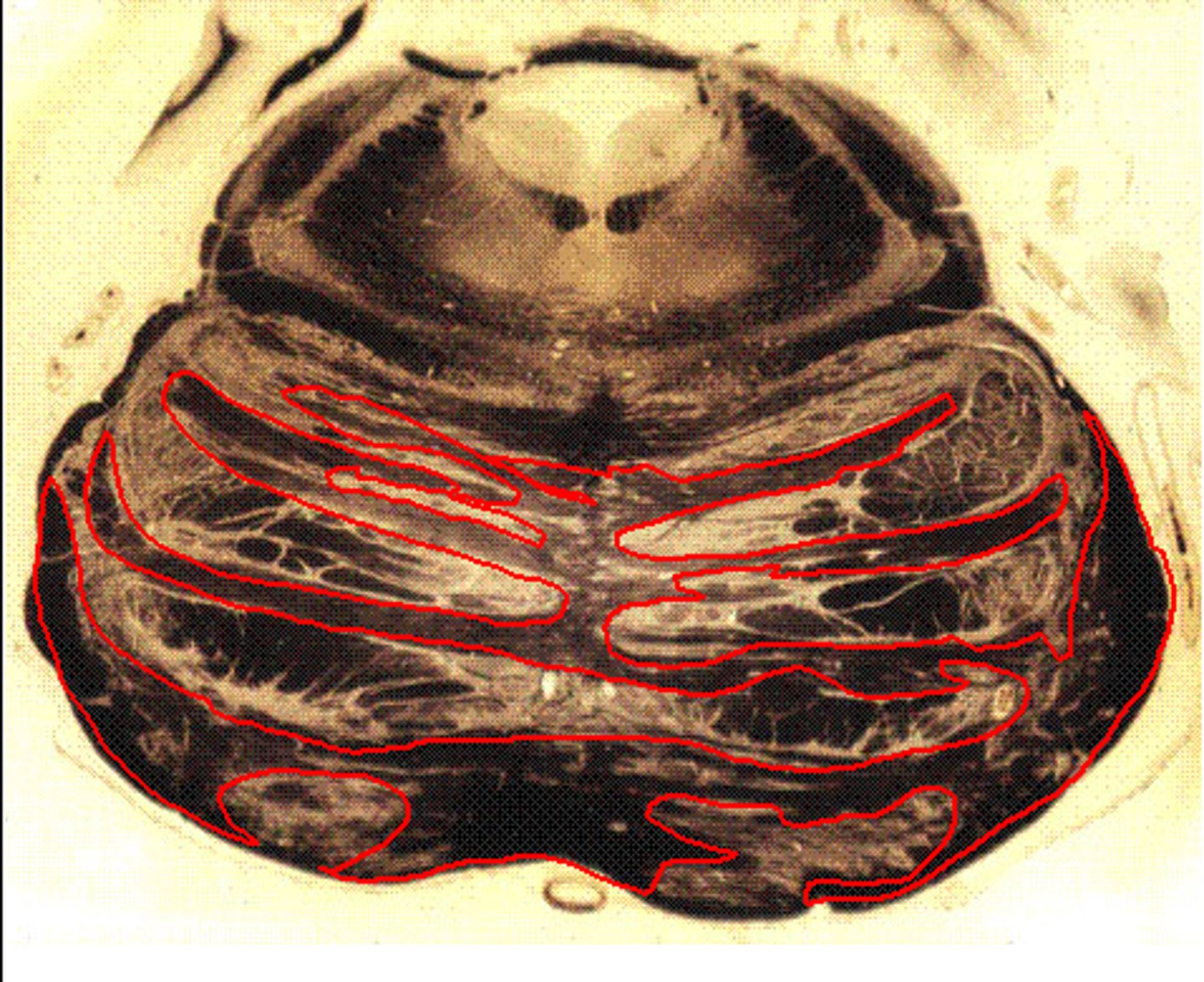

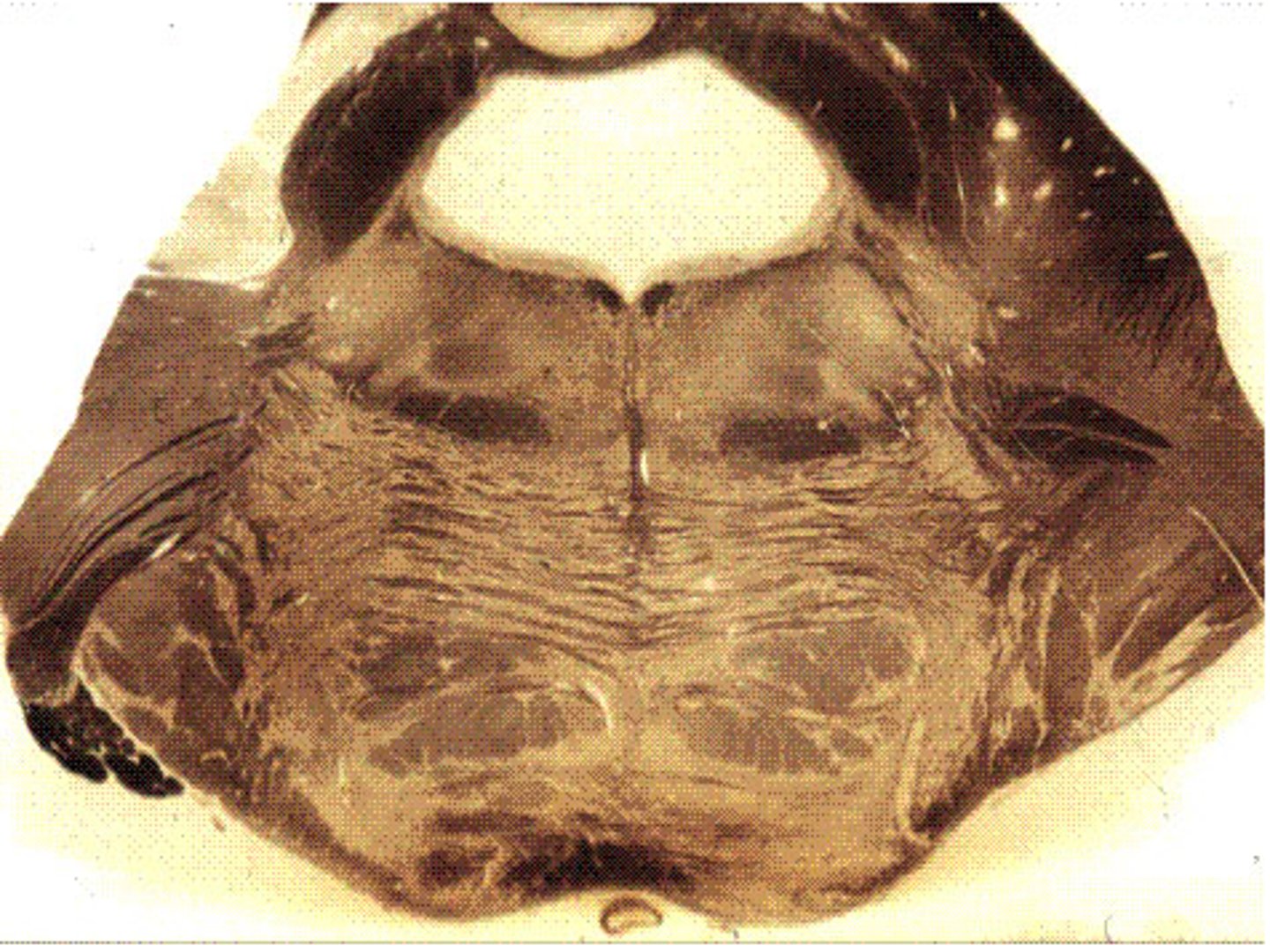

Transverse pontine fibers

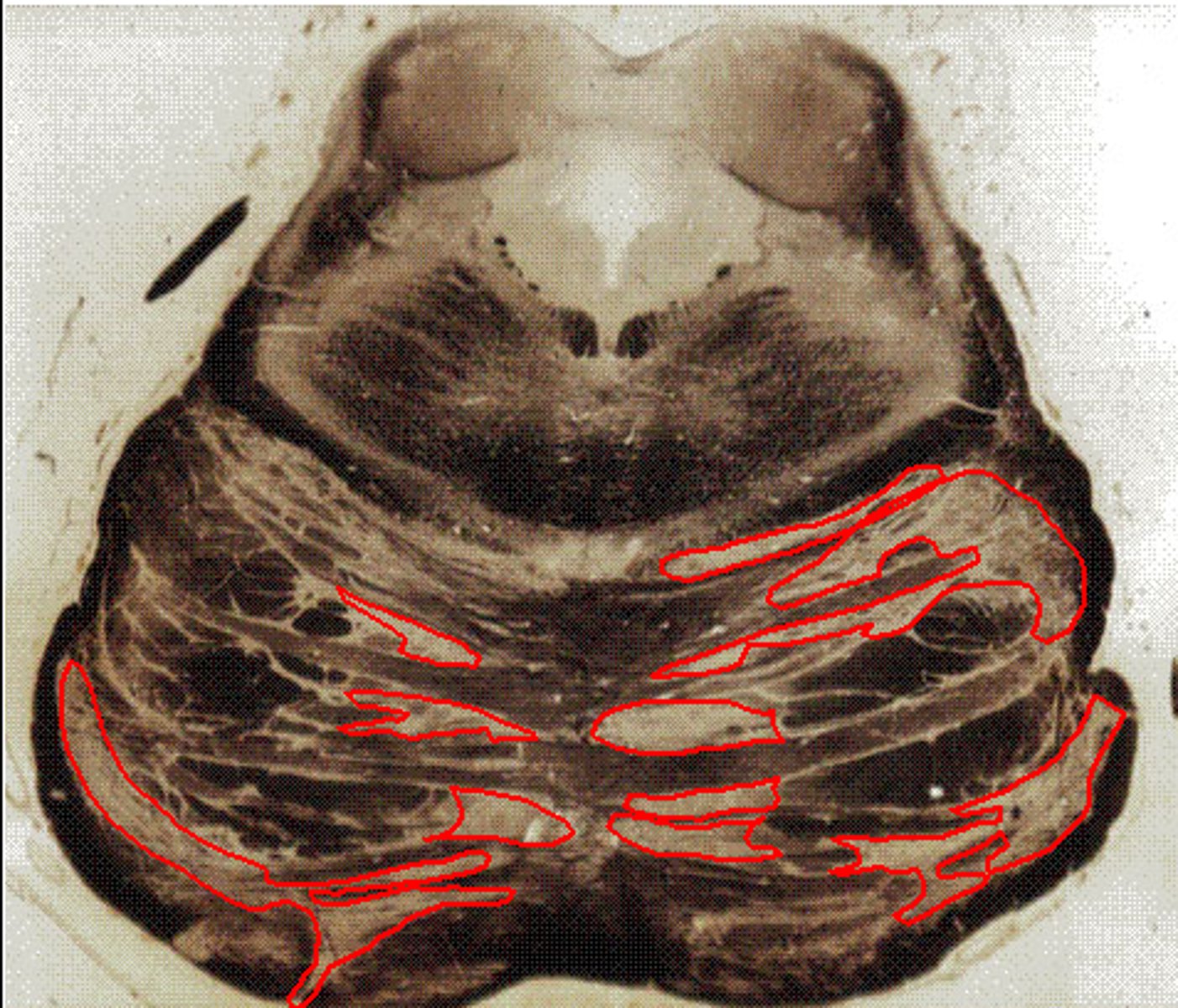

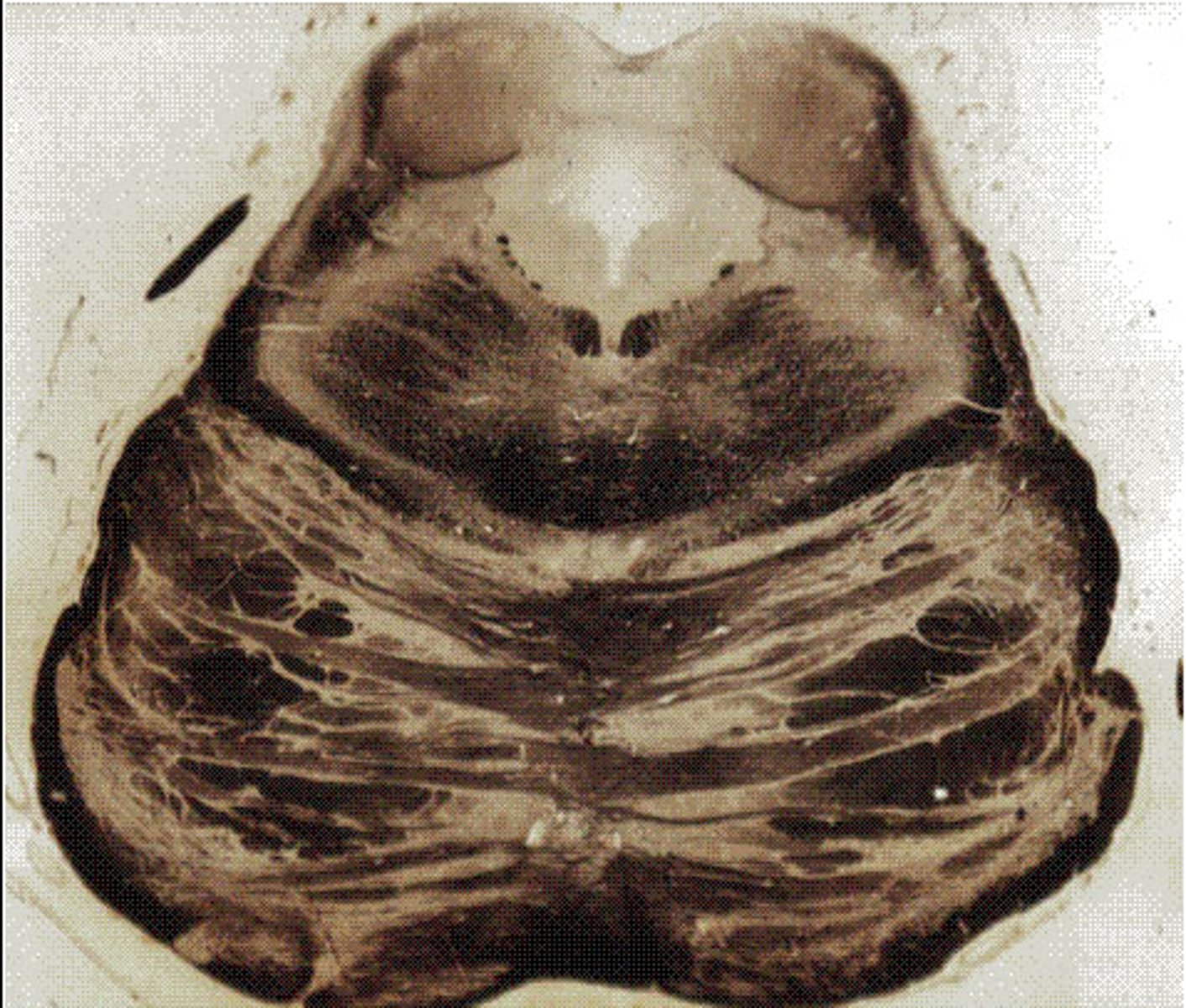

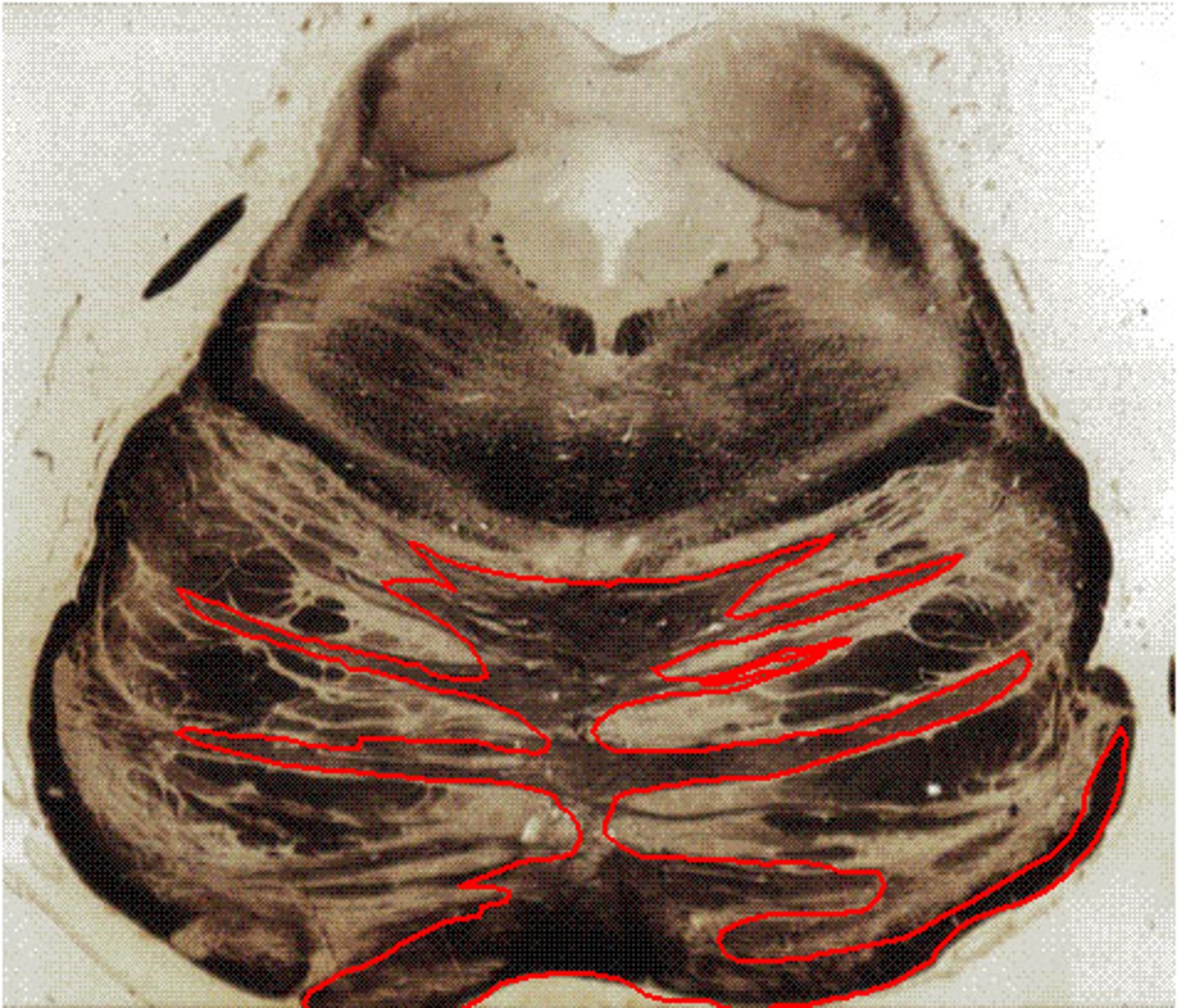

NOTE the fibers running towards the top of the red section, these are more visible as one moves caudally up the pons

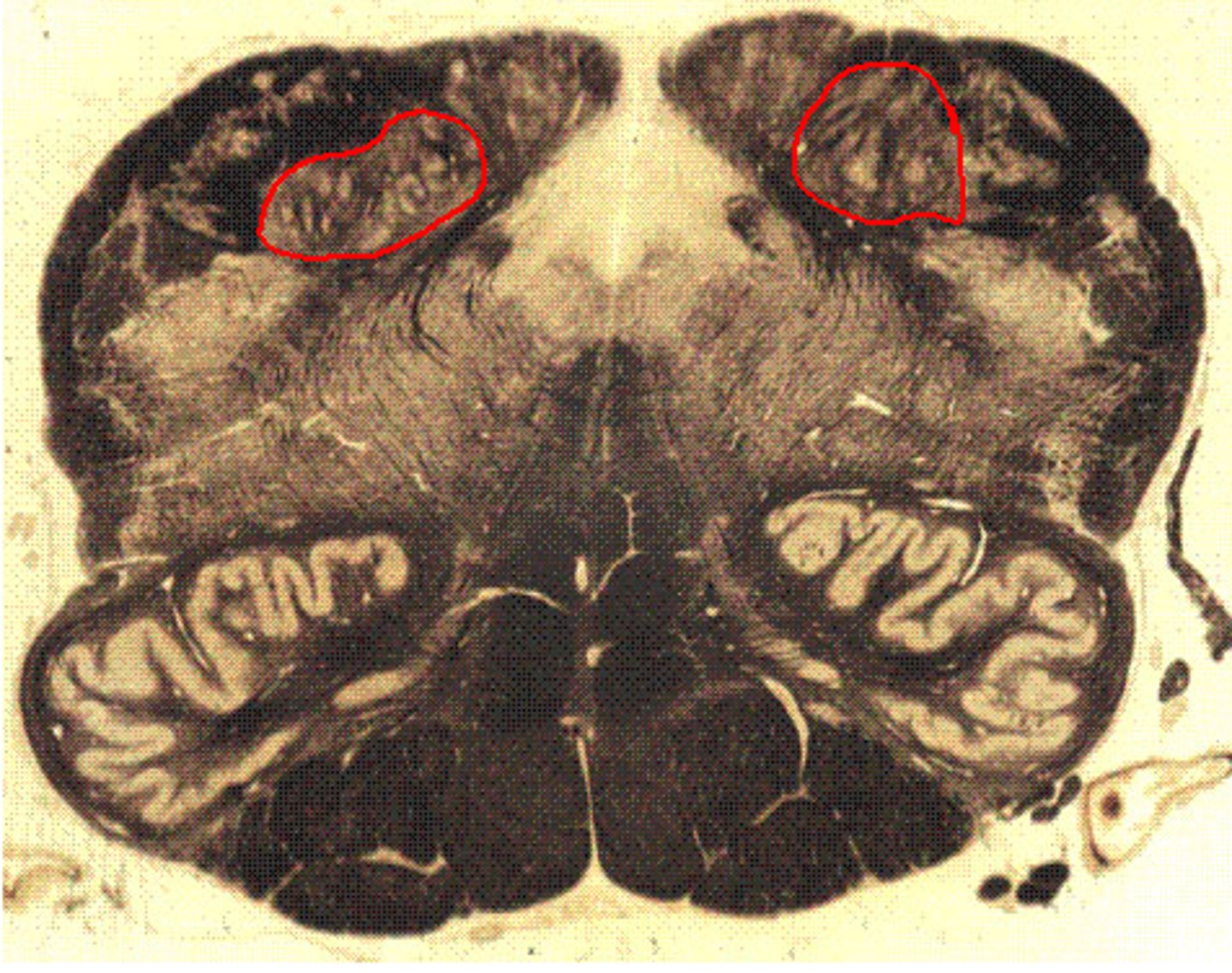

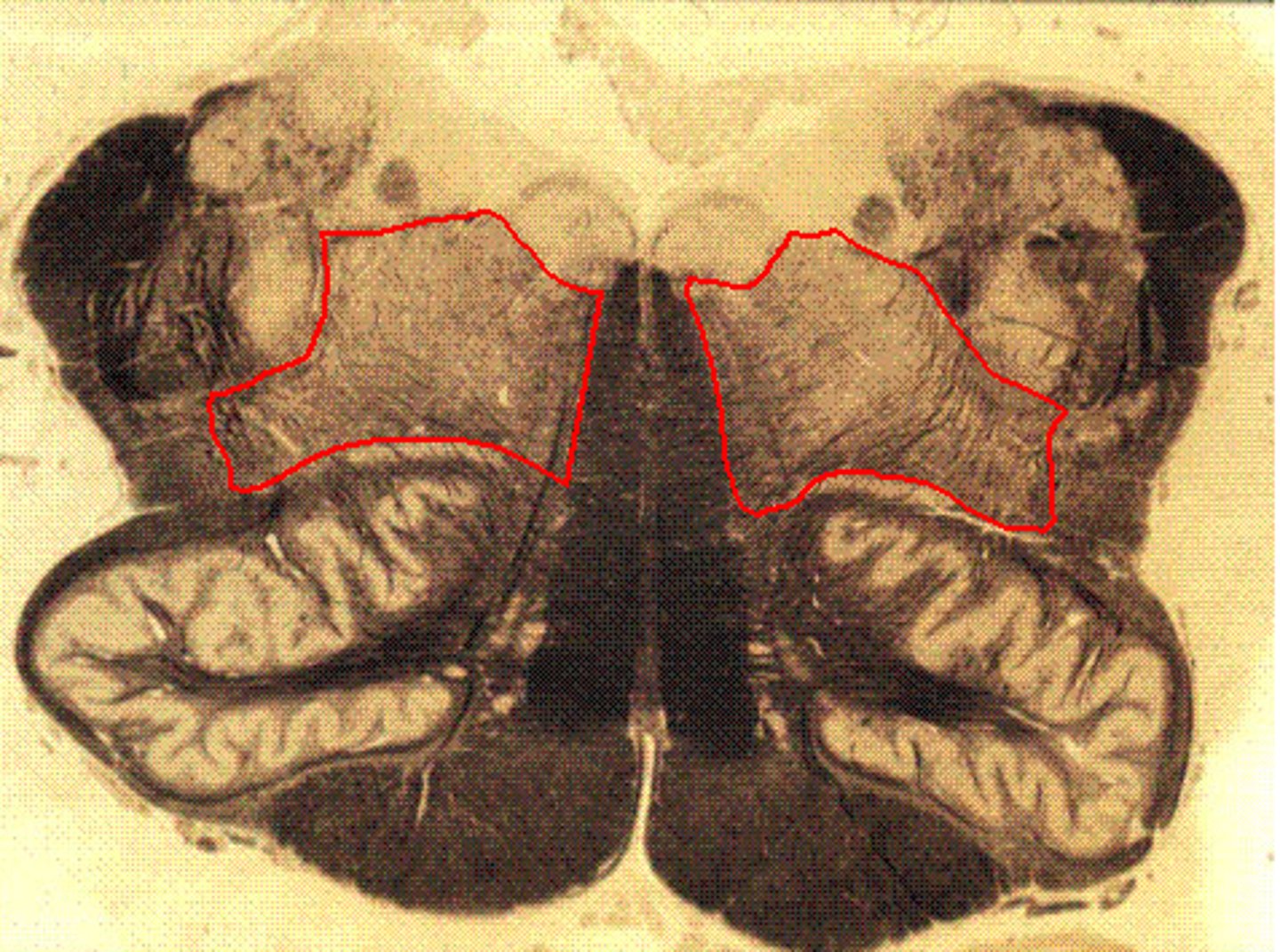

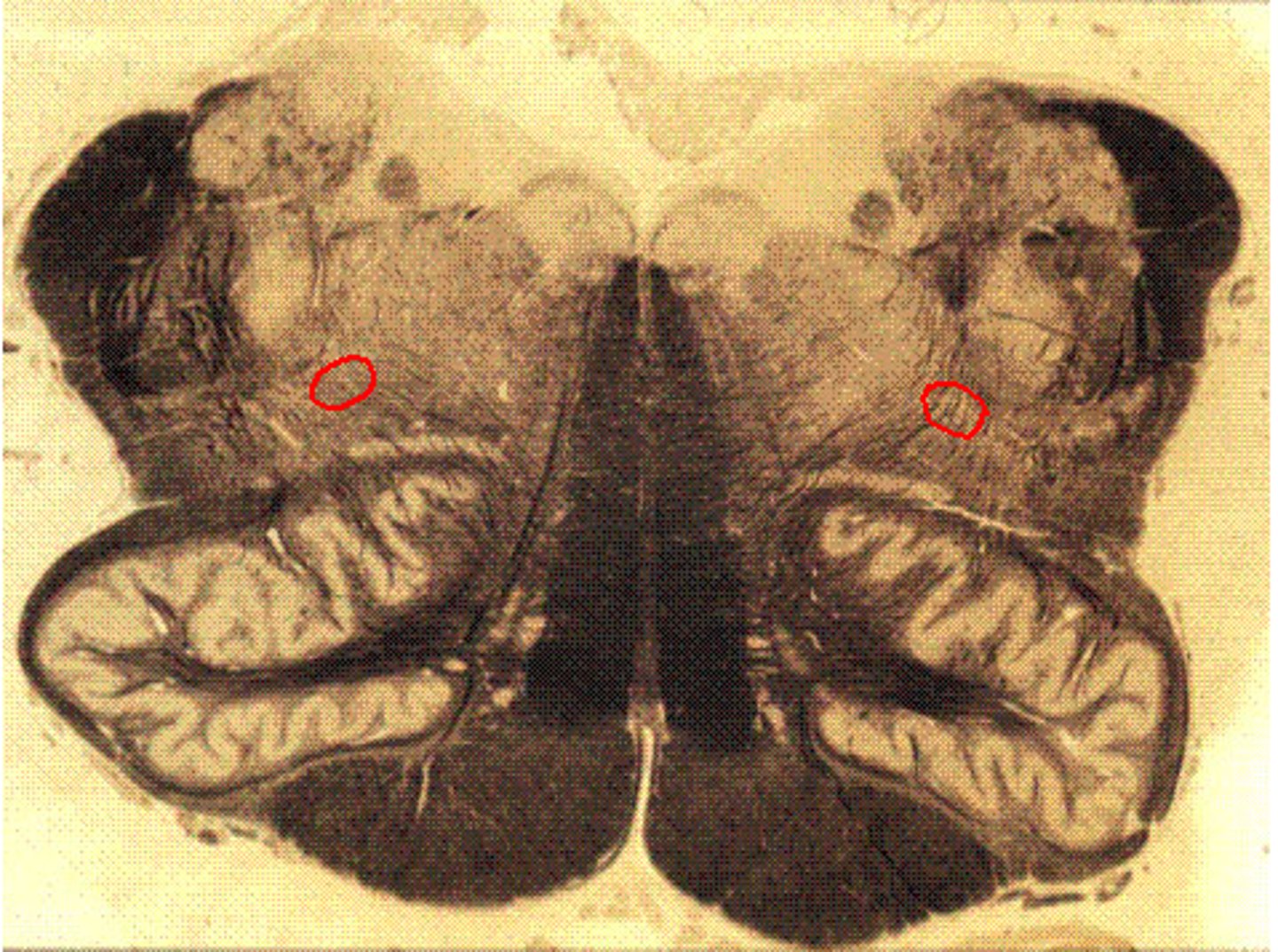

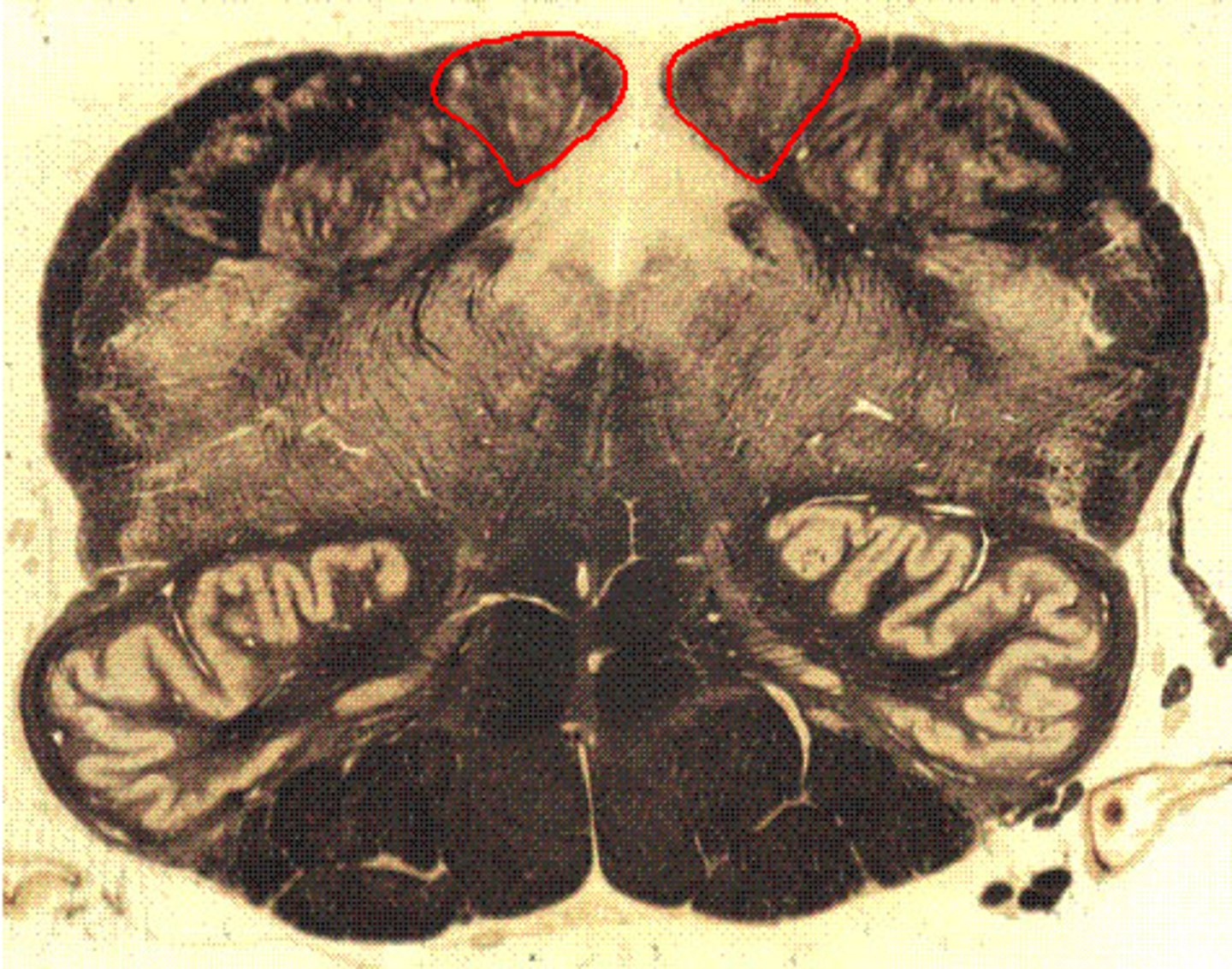

Deep cerebellar nuclei

Deep cerebellar nuclei were not included in brainstorm schematics, note where these are

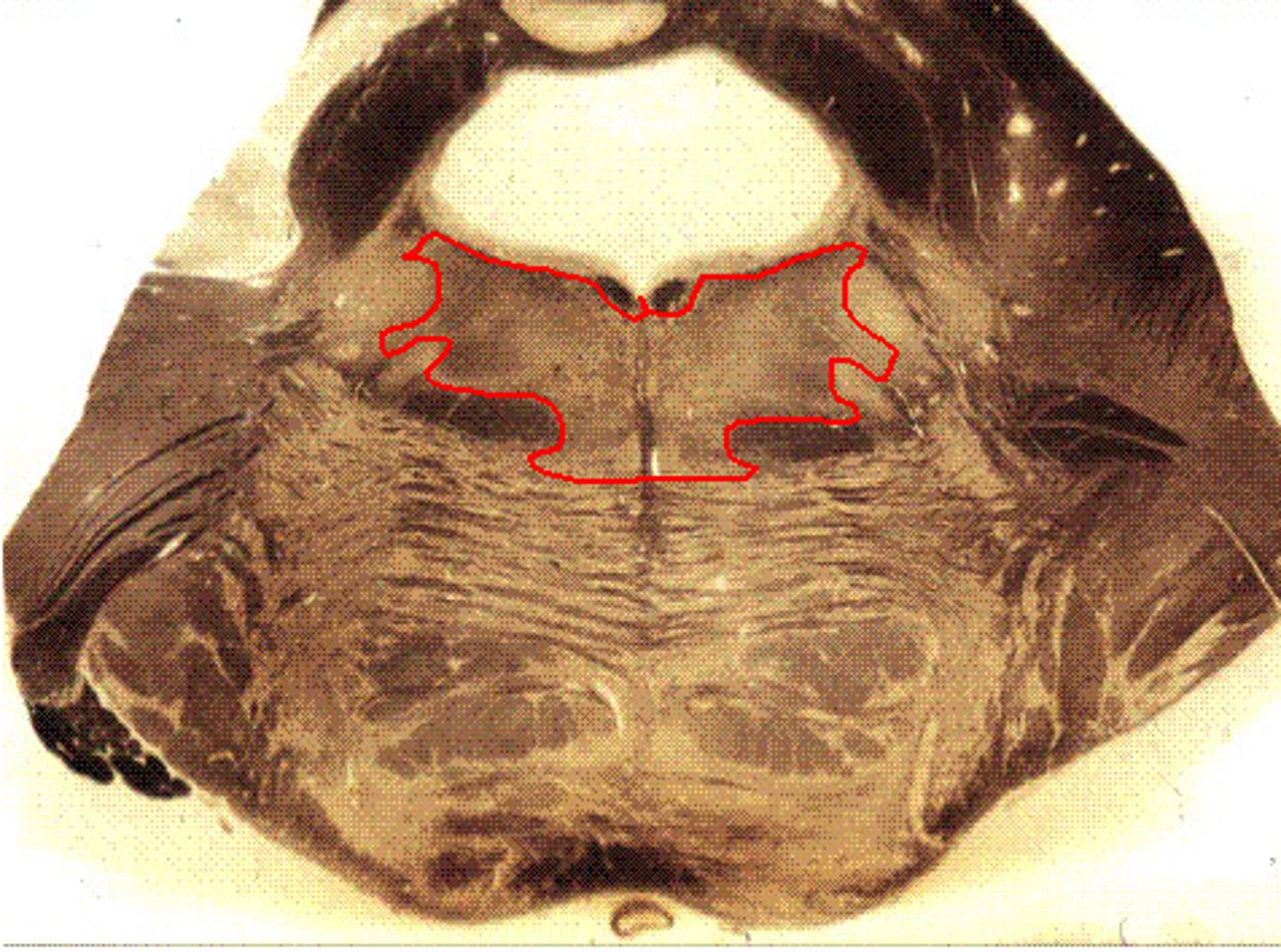

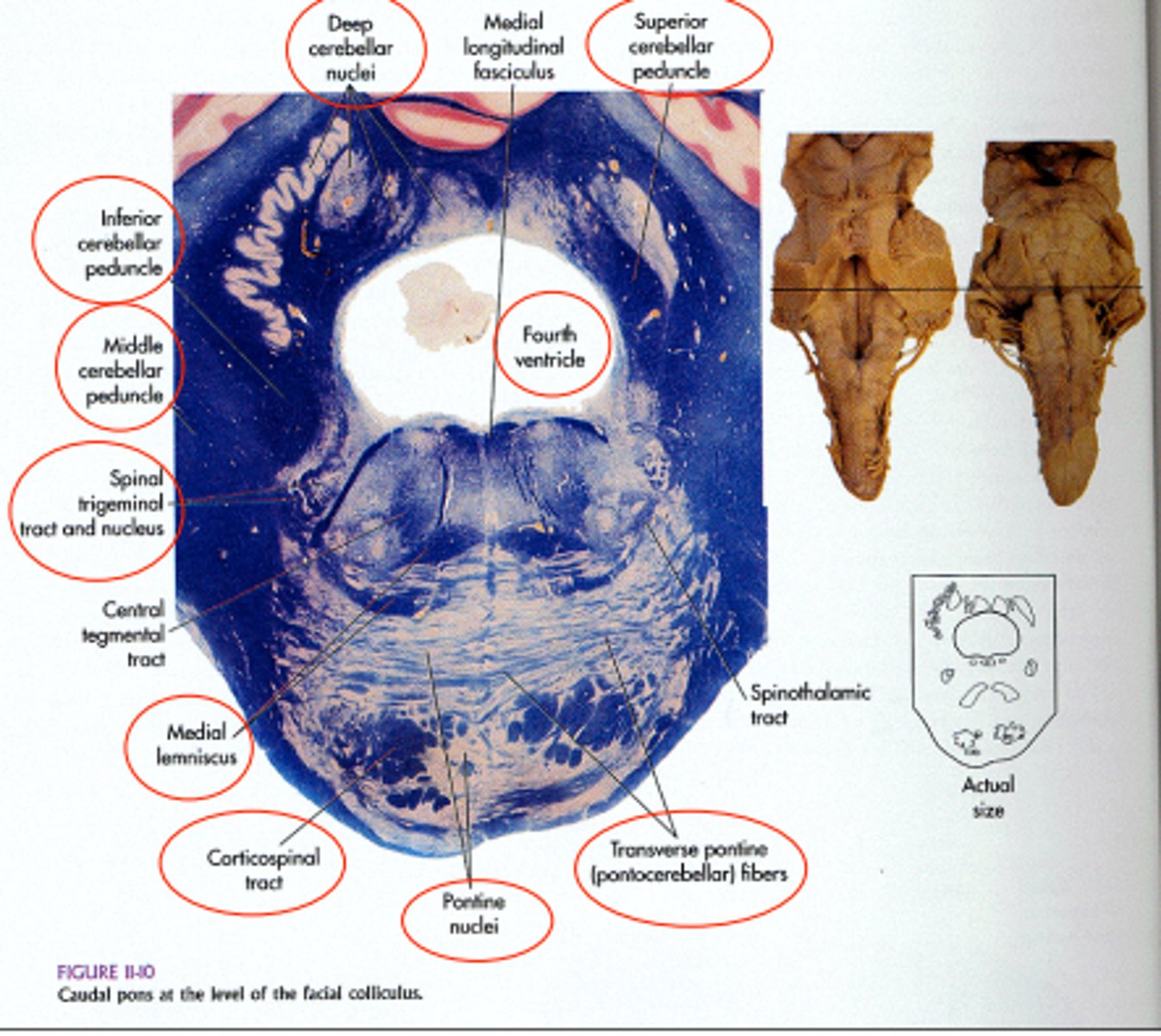

Pons Trigeminal Nuclei

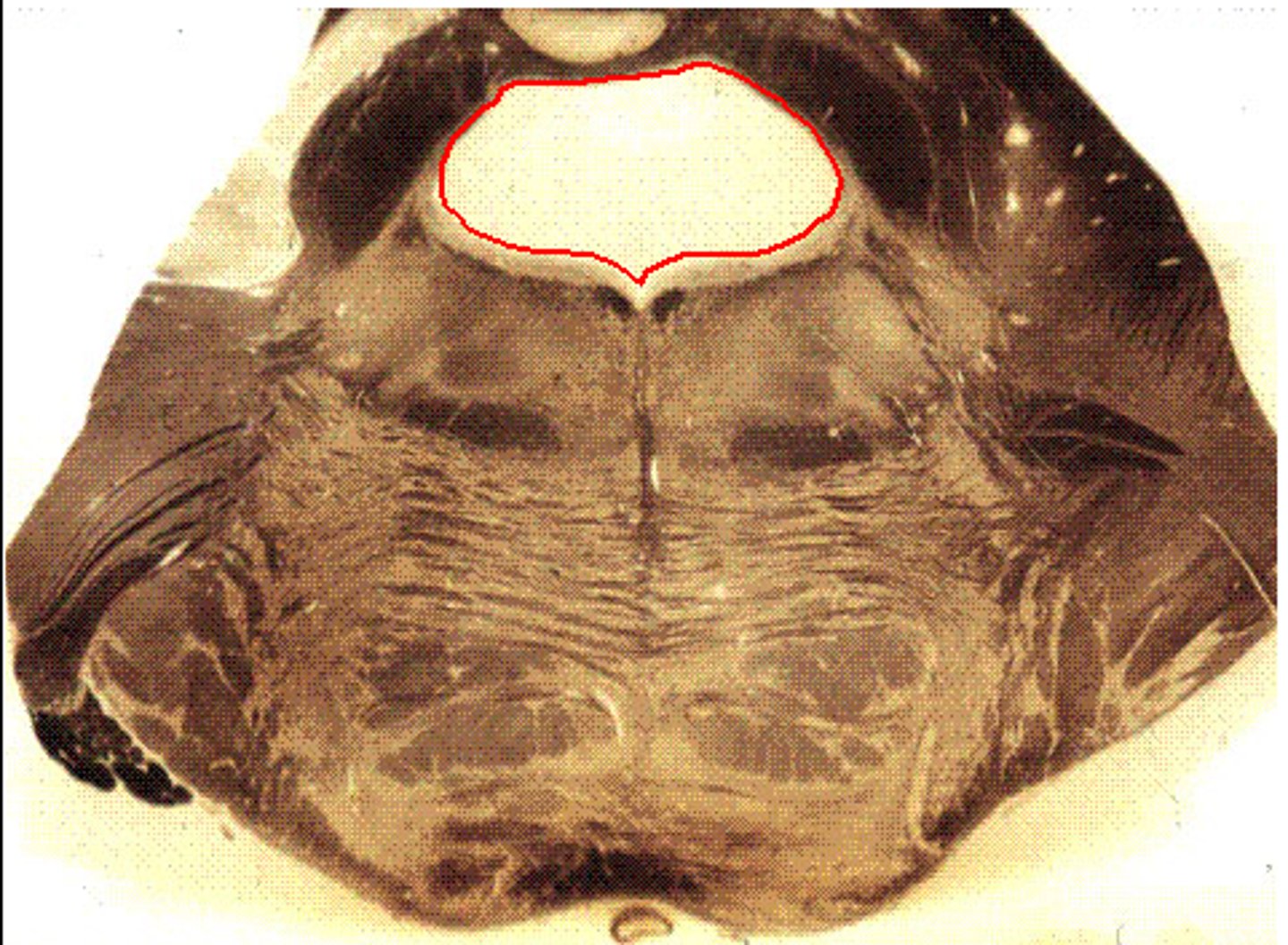

Fourth Ventricle

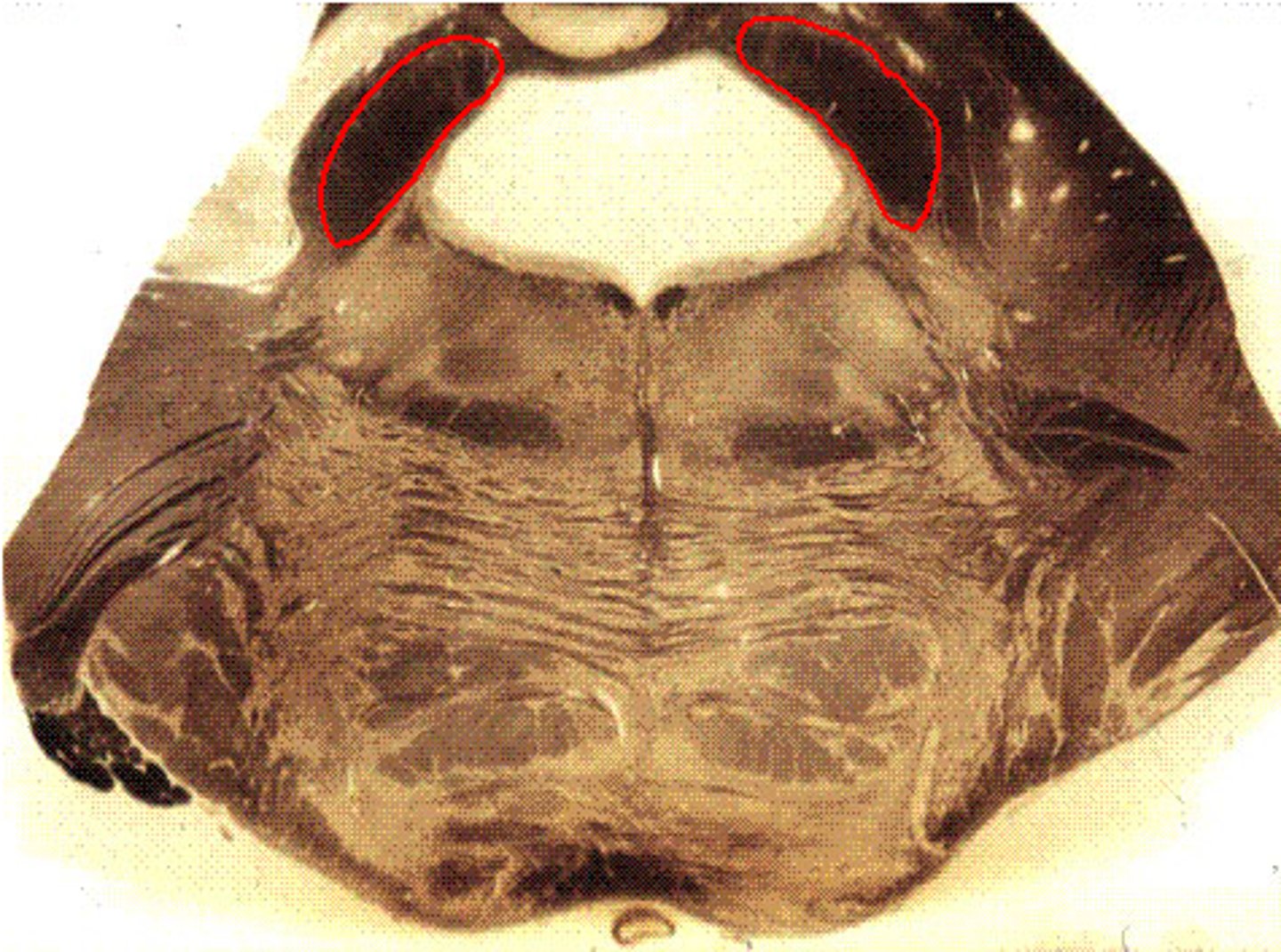

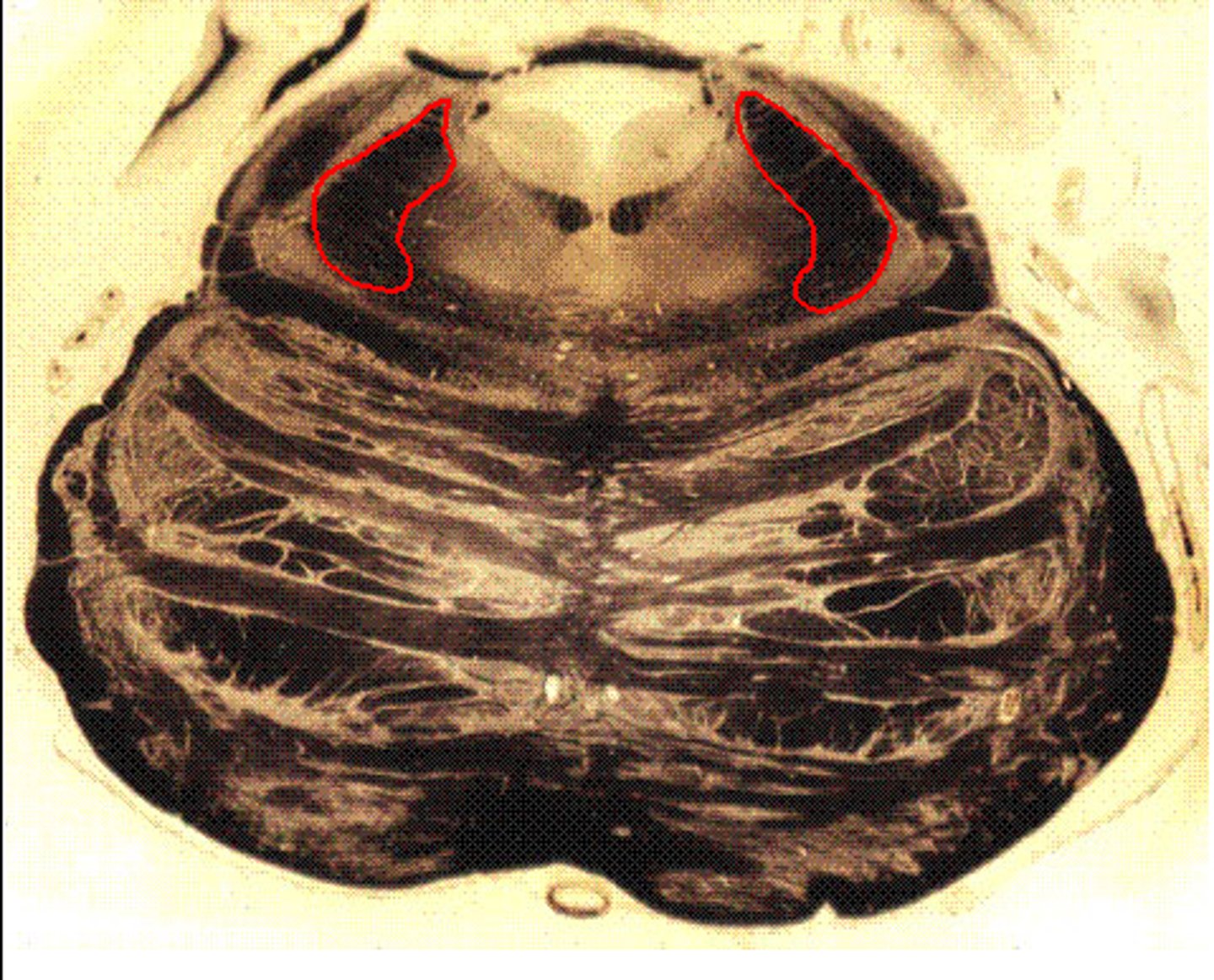

Superior Cerebellar Peduncle

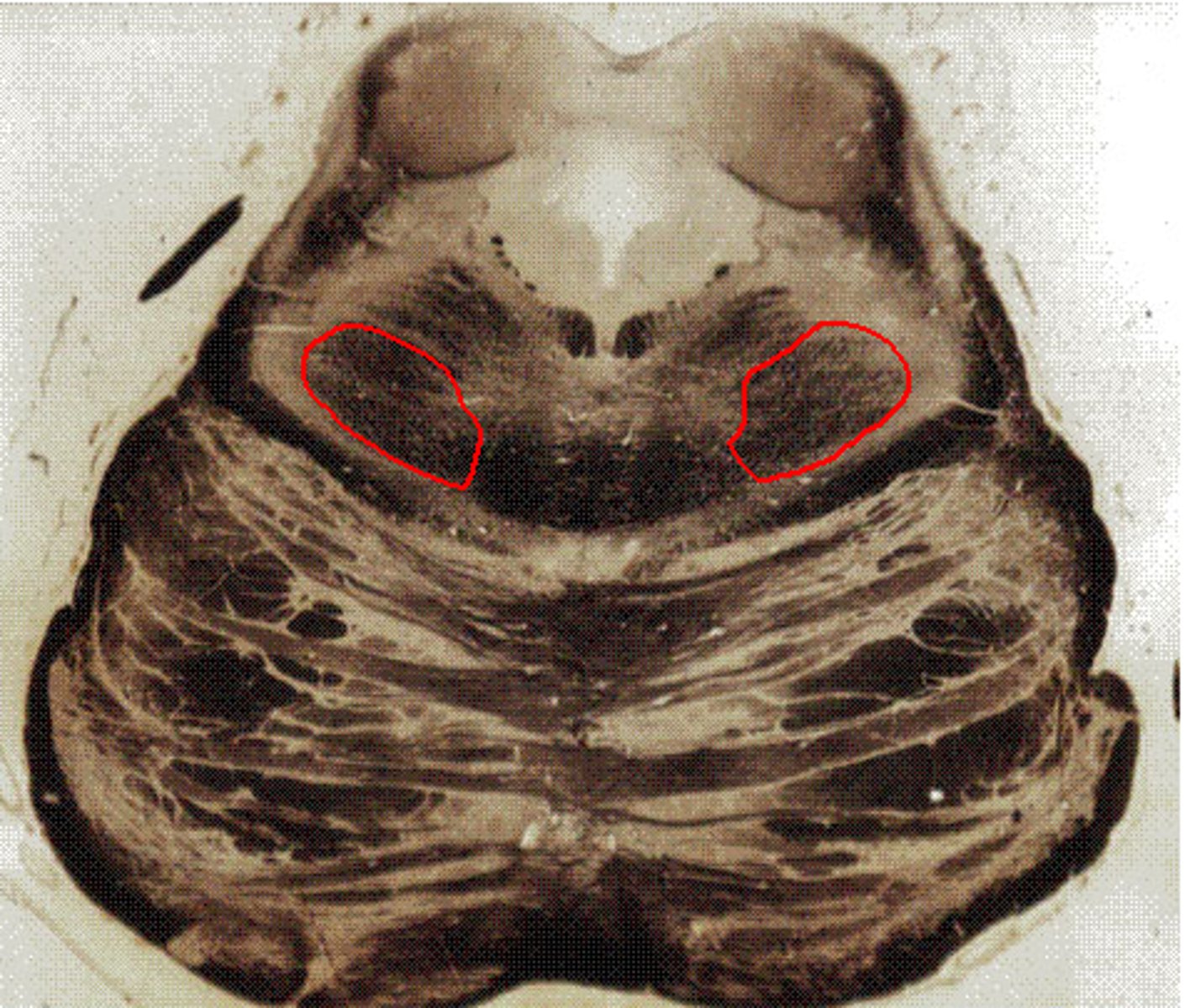

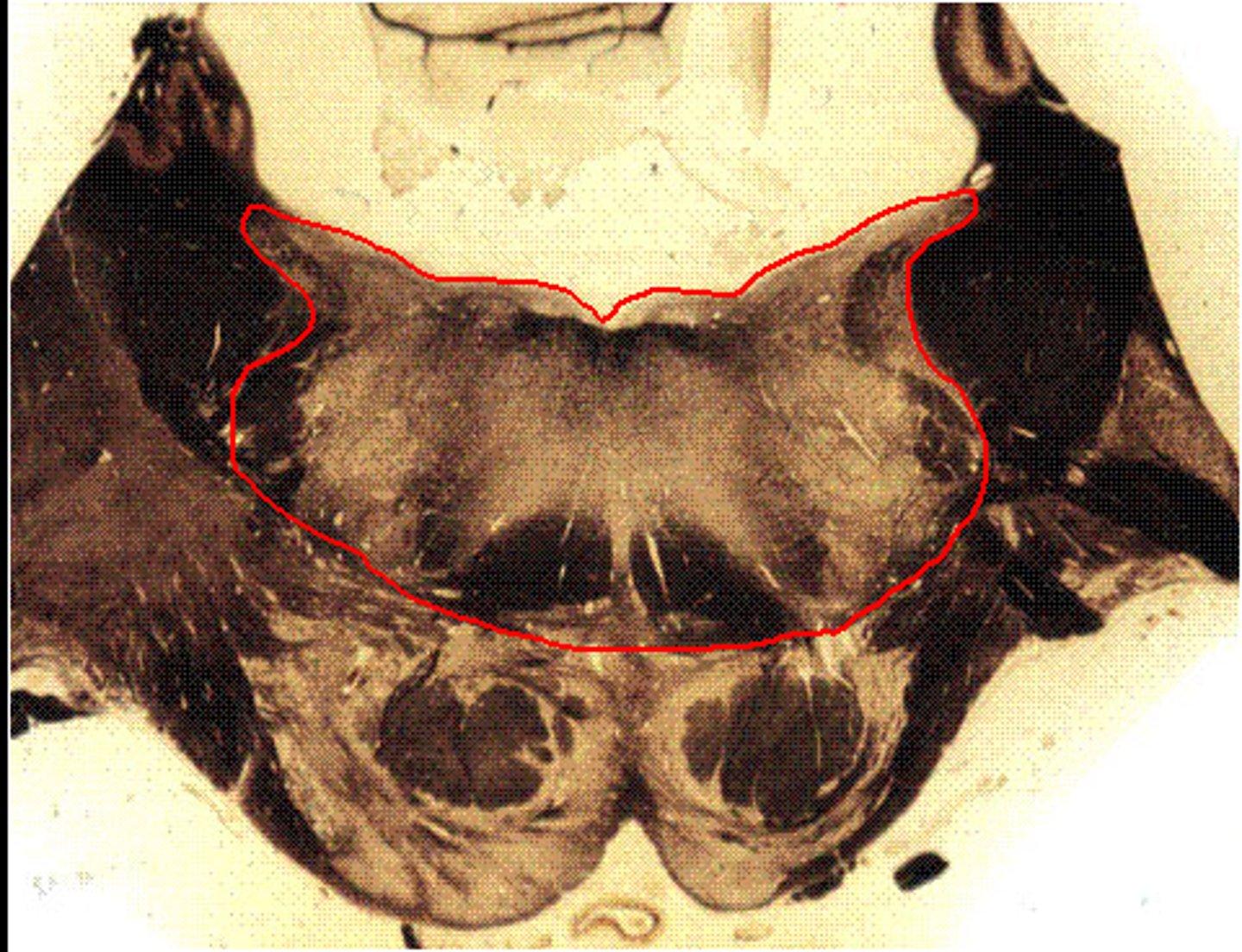

Reticular Formation

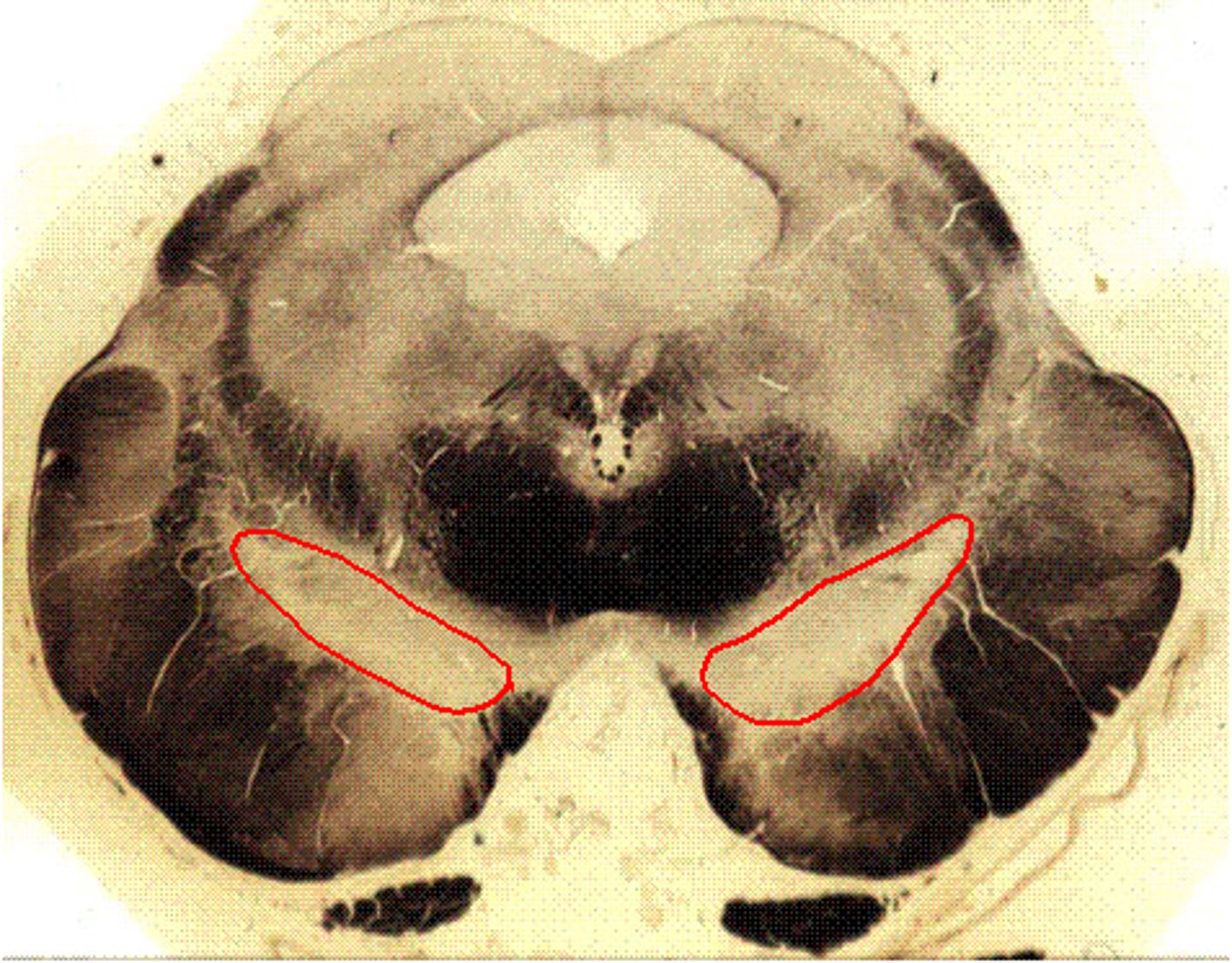

Medial Lemniscus

Pontine Nuclei

Transverse pontine fibers

also called pontocerebellar fibers

Corticospinal Tract

Corticobulbar and Corticopontine fibers are also in this area

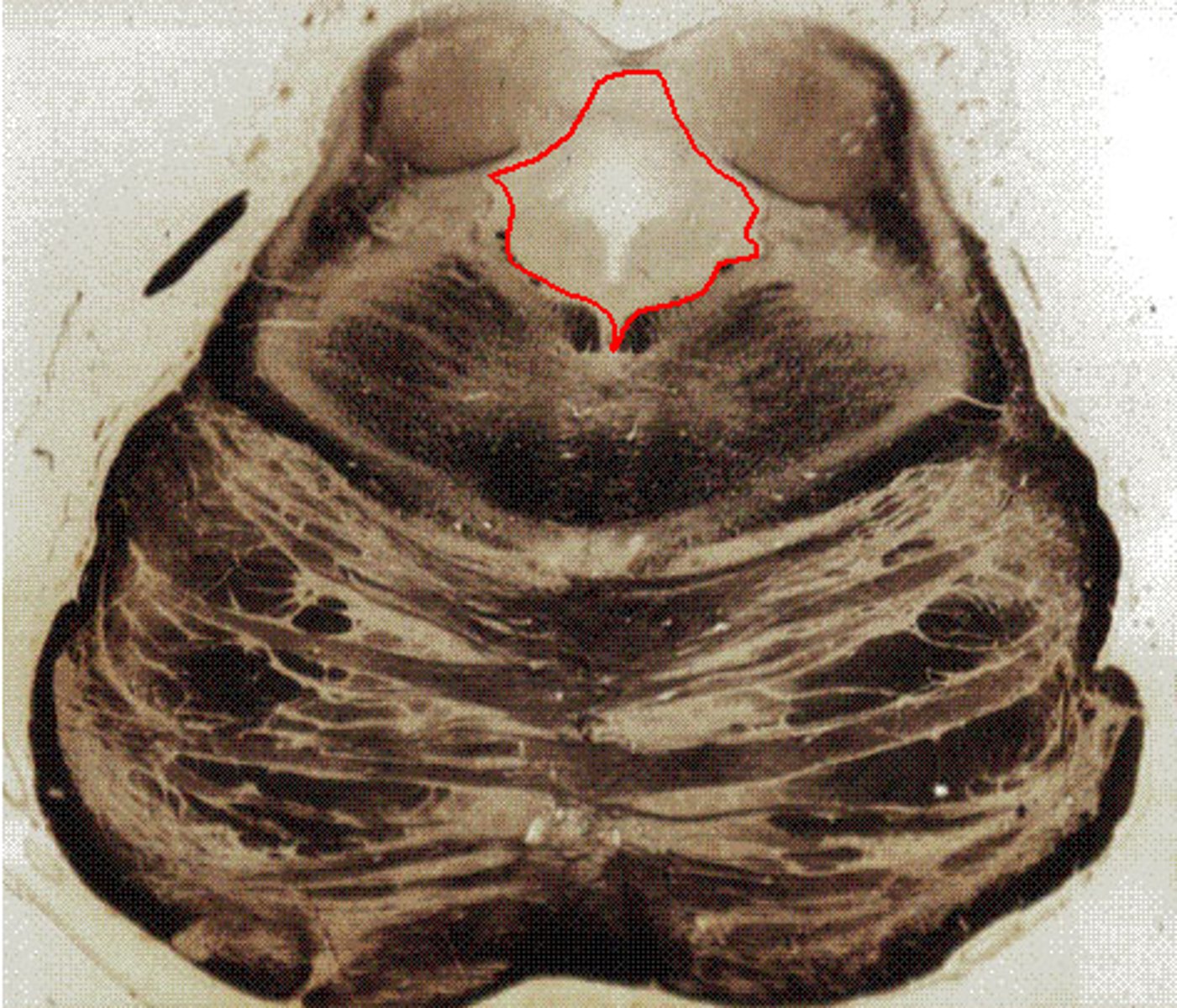

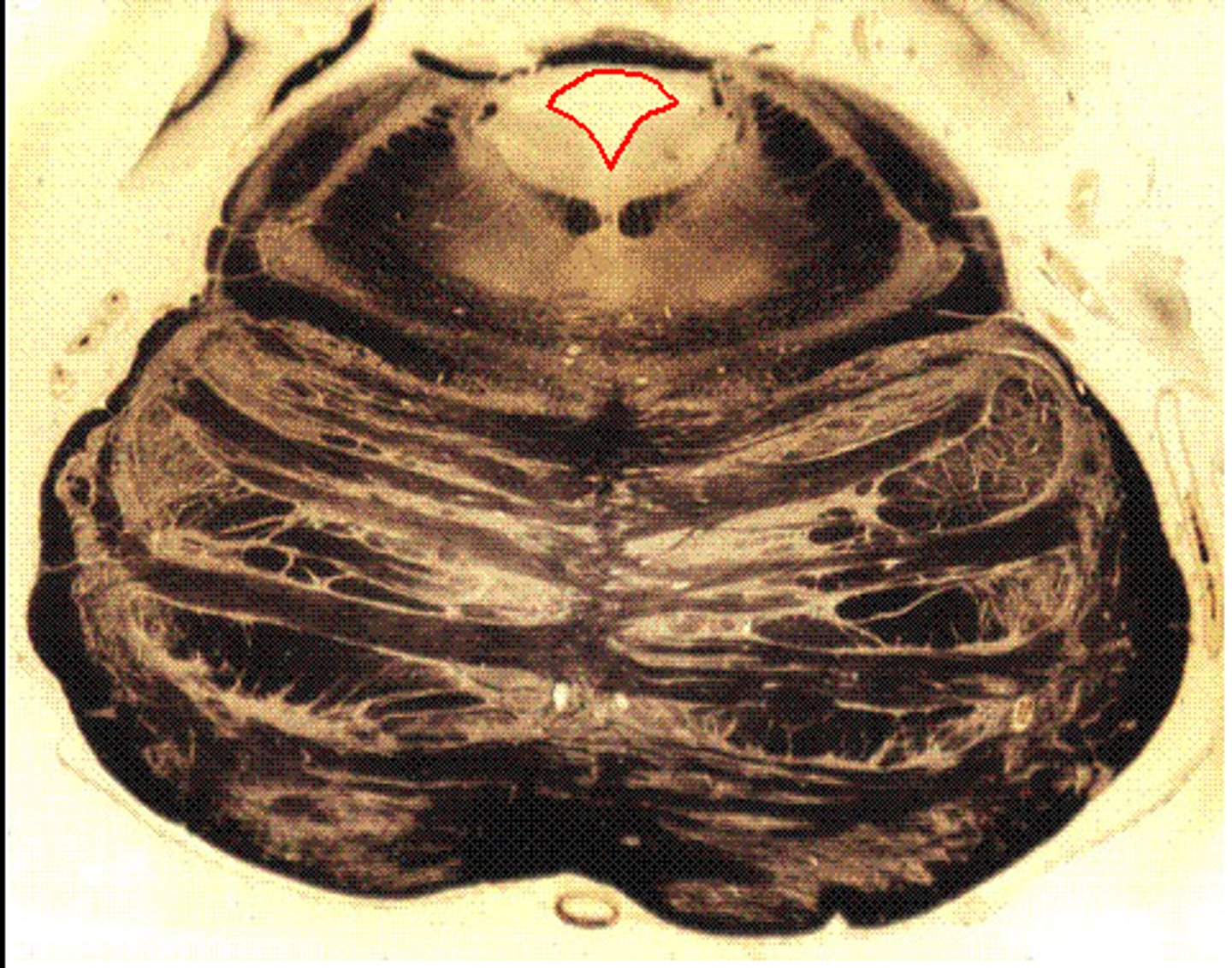

Fourth Ventricle

on brainstorm this is the cerebral aqueduct, but on the ppt this was marked as the _________

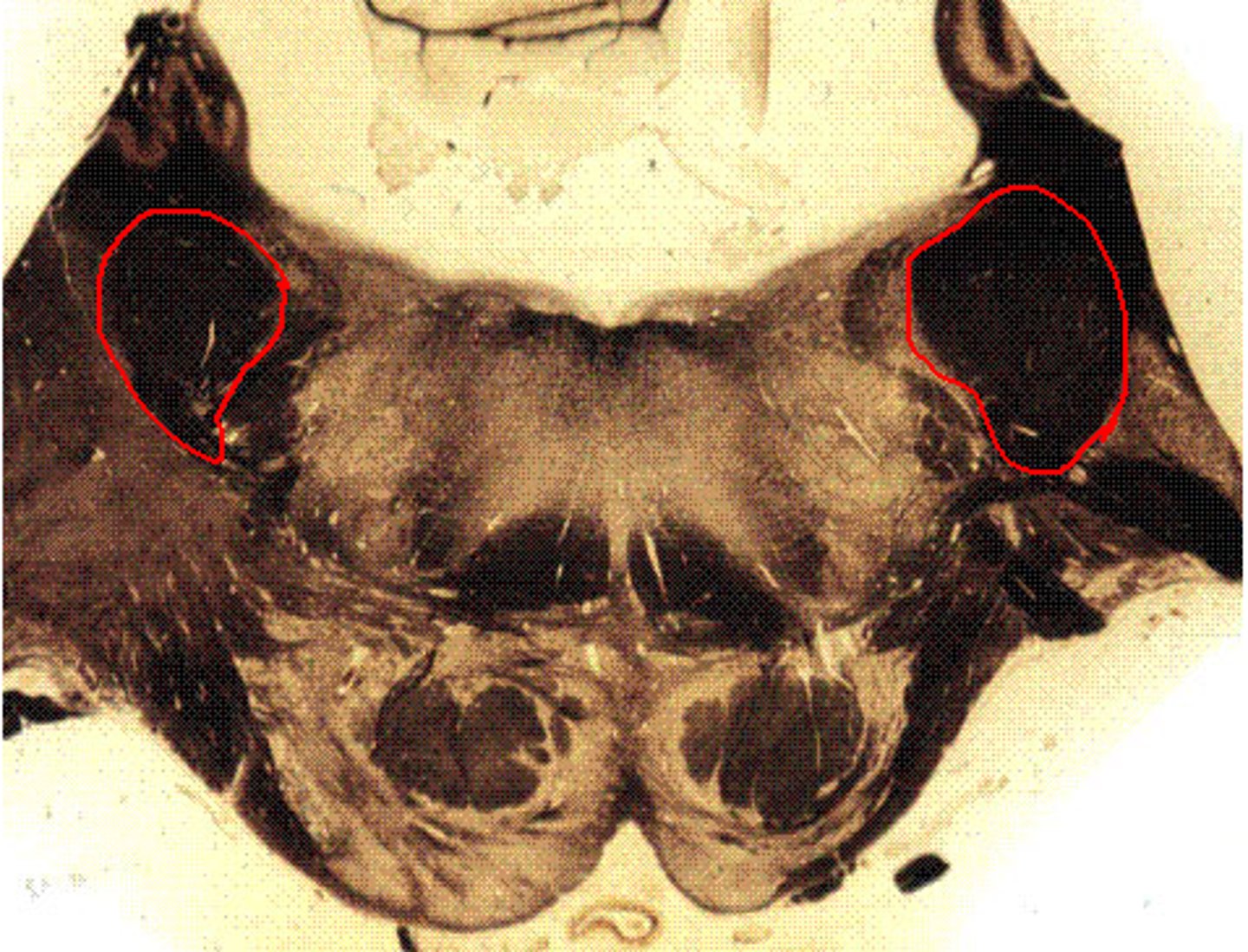

Superior Cerebellar Peduncle

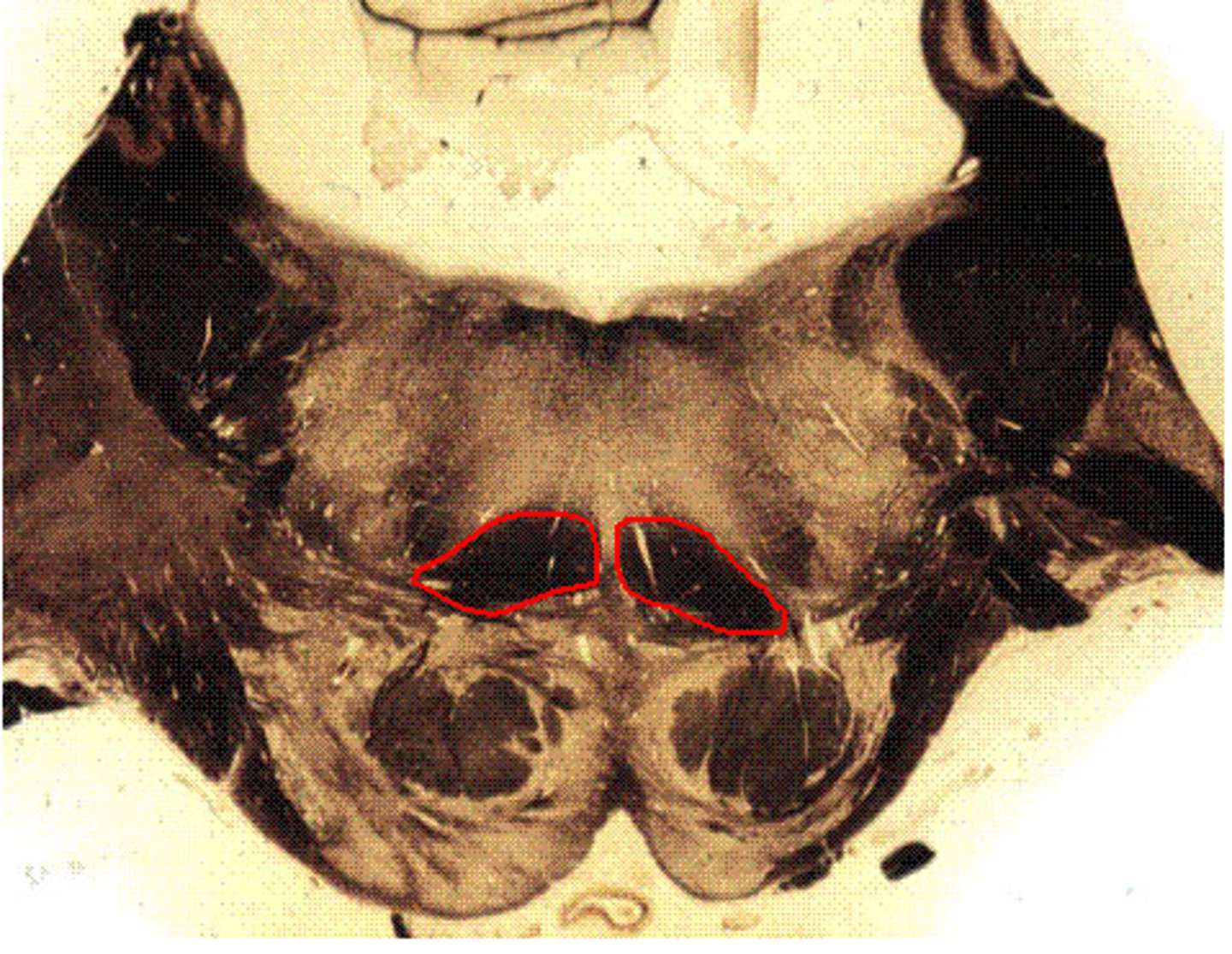

Medial Lemniscus

Transverse pontine fibers

also called pontocerebellar fibers

Pontine Nuclei

Corticospinal Tract

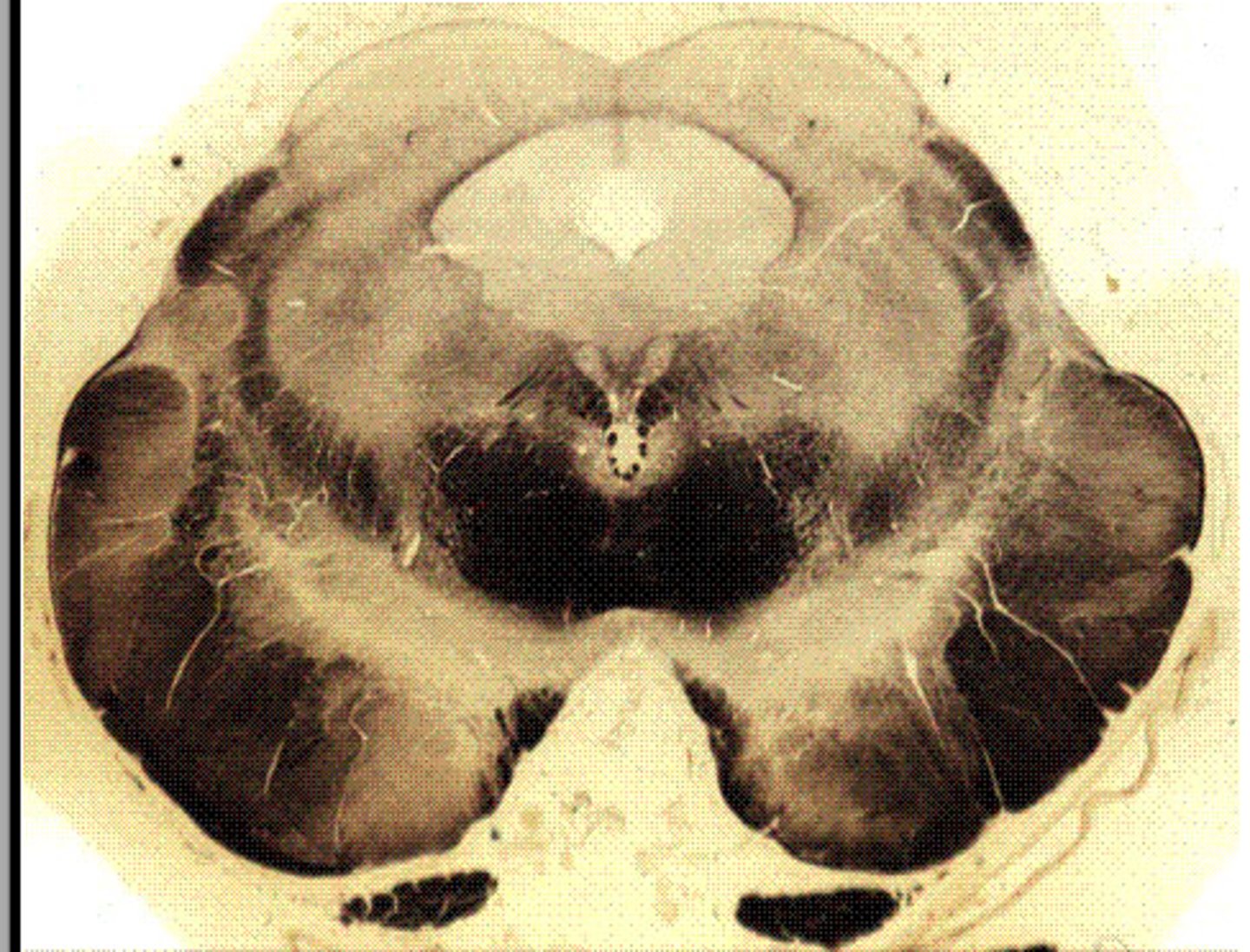

Midbrain Inferior Colliculus

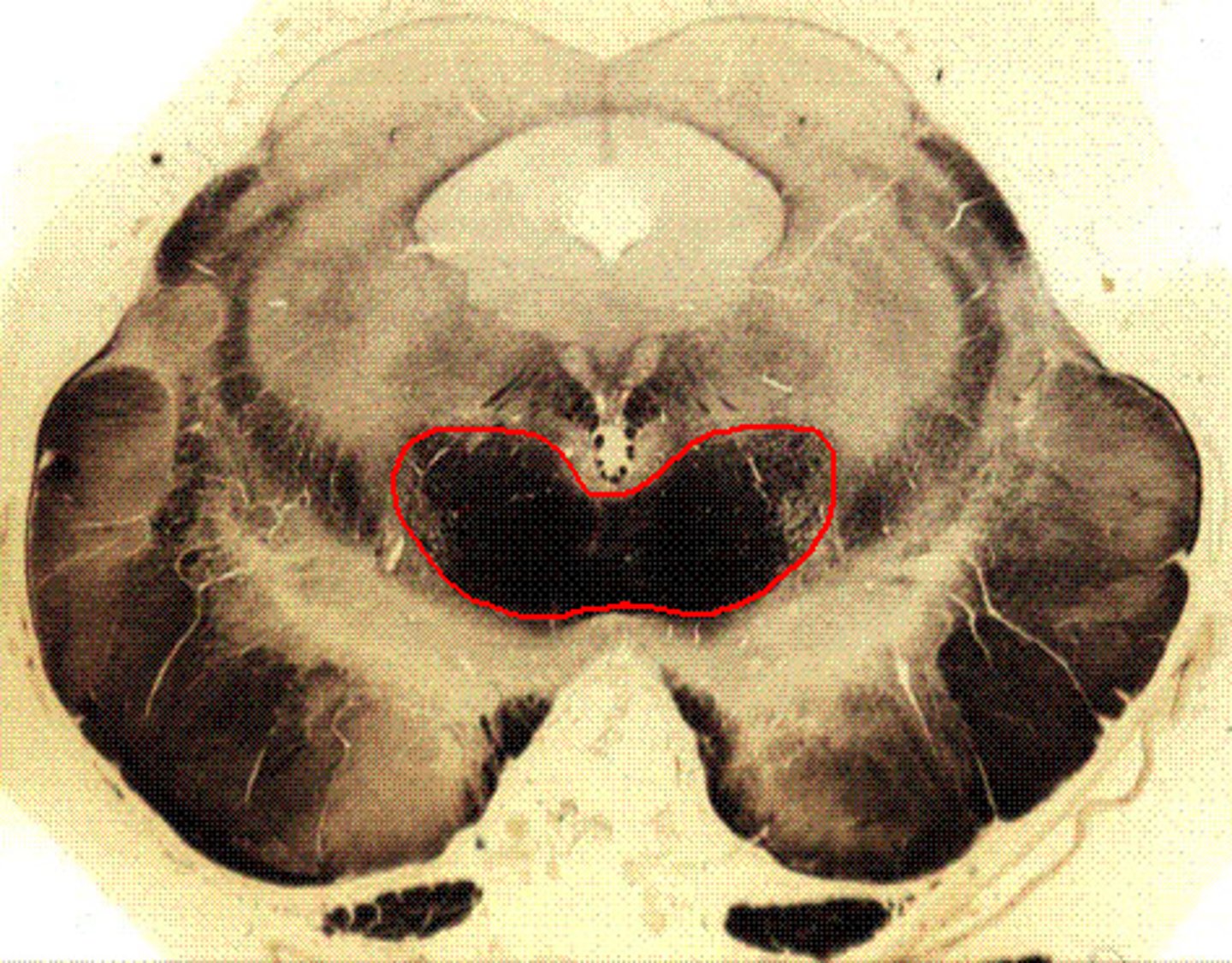

Periaqueductal Gray

Inferior Colliculus

Medial Lemniscus

Pontine Nuclei

Superior Cerebellar Peduncle

Cerebral Peduncle

NOTE: the bottom of the highlighted area is the beginning of the _________

Midbrain Superior Colliclulus

Superior Colliculus

Cerebral Aqueduct

Periaqueductal Grey

Medial Lemniscus

Substantia Nigra

Cerebral Peduncle

Decussation of the Superior Cerebellar Peduncle
