1_Basic Device Configuration

IP address, subnet mask

To prepare a switch for remote management access, the switch must be configured with an _____ and a _____.

default gateway

To manage the switch from a remote network, the switch must be configured with a _____.

switch virtual interface (SVI)

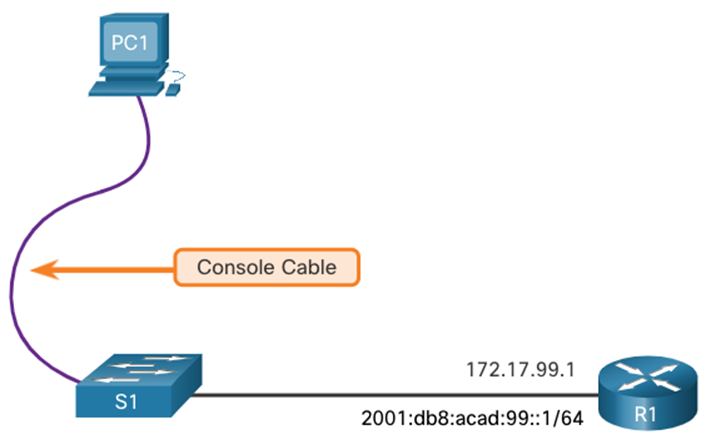

the _____ on S1 should be assigned an IP address.

console cable

is used to connect to a PC so that the switch can be initially configured.

VLAN 1

By default, the switch is configured to have its management controlled through _____

VLAN 1

All ports are assigned to _____ by default.

management VLAN

For security purposes, it is considered a best practice to use a VLAN other than VLAN 1 for the _____.

configure the management interface,

configure the default gateway,

verify configuration

3 steps for switch svi configuration

VLAN interface configuration mode,
management SVI

Step 1: Configure the Management Interface: From _____, an IPv4 address and subnet mask is applied to the _____ of the switch.

SVI for VLAN 99

The _____ will not appear as “up/up” until VLAN 99 is created and there is a device connected to a switch port associated with VLAN 99.

IPv6

The switch may need to be configured for _____.

S1(config)# interface vlan 99

Enter interface configuration mode for the SVI.

S1(config-if)# ip address ip address subnet mask

Configure the management interface IPv4/IPV6 address.

S1(config-if)# no shutdown

Enable the management interface

S1(config-if)# end

Return to the privileged EXEC mode.

S1# copy running-config startup-config

Save the running config to the startup config.

router advertisement (RA) message

A switch will receive its default gateway information from a _____.

IPv6 default gateway

the switch does not require an _____.

show ip interface brief, show ipv6 interface brief

2 commands that are useful for determining the status of both physical and virtual interfaces.

route Layer 3 packets

An IP address applied to the SVI is only for remote management access to the switch; this does not allow the switch to _____.

Full-duplex communication

increases bandwidth efficiency by allowing both ends of a connection to transmit and receive data simultaneously.

bidirectional communication

Full-duplex communication is also known as _____.

microsegmentation

Full-duplex communication requires _____.

microsegmented LAN

is created when a switch port has only one device connected and is operating in full-duplex mode.

no collision domain

There is _____ associated with a switch port operating in full-duplex mode.

half-duplex communication

is unidirectional.

half-duplex communication

creates performance issues because data can flow in only one direction at a time, often resulting in collisions.

Gigabit Ethernet and 10 Gb NICs

require full-duplex connections to operate

collision detection circuit

In full-duplex mode, the _____ on the NIC is disabled.

Full-duplex

offers 100 percent efficiency in both directions (transmitting and receiving).

This results in a doubling of the potential use of the stated bandwidth.

Switch ports

____ can be manually configured with specific duplex and speed settings.

10 or 100 Mbps

The 10/100/1000 ports operate in either half- or full-duplex mode when they are set to _____.

1000 Mbps (1 Gbps)

The 10/100/1000 ports operate only in full-duplex mode when it is set to _____.

Autonegotiation

is useful when the speed and duplex settings of the device connecting to the port are unknown or may change.

manually,
speed and duplex settings

When connecting to known devices such as servers, dedicated workstations, or network devices, a best practice is to _____ set the _____.

troubleshooting switch port issues

When _____, it is important that the duplex and speed settings are checked.

connectivity issues

Mismatched settings for the duplex mode and speed of switch ports can cause ______.

mismatched settings

Autonegotiation failure creates _____.

All fiber-optic ports

_____, such as 1000BASE-SX ports, operate only at one preset speed and are always full-duplex

automatic medium-dependent interface crossover (auto-MDIX)

When ____ is enabled, the switch interface automatically detects the required cable connection type (straight-through or crossover) and configures the connection appropriately.

straight-through cables

When connecting to switches without the auto-MDIX feature, _____ must be used to connect to devices such as servers, workstations, or routers

Crossover cables

When connecting to switches without the auto-MDIX feature, _____ must be used to connect to other switches or repeaters.

auto-MDIX enabled

With ____, either type of cable can be used to connect to other devices, and the interface automatically adjusts to communicate successfully.

mdix auto interface configuration mode

On newer Cisco switches, the ____ command enables the feature auto-mdix

interface speed and duplex

When using auto-MDIX on an interface, the _____ must be set to auto so that the feature operates correctly.

show controllers ethernet-controller, phy

To examine the auto-MDIX setting for a specific interface, use the _____ command with the _____ keyword.

include Auto-MDIX filter

To limit the output to lines referencing auto-MDIX, use the _____.

show interfaces [interface-id]

Display interface status and configuration.

show startup-config

Display current startup configuration.

show running-config

Display current running configuration.

show flash

Display information about flash file system.

show version

Display system hardware and software status.

show history

Display history of command entered.

show ip interface [interface-id], show ipv6 interface [interface-id]

Display IP information about an interface.

show mac-address-table, show mac address-table

Display the MAC address table.

show running-config

this command can be used to verify that the switch has been correctly configured

show interfaces

this command displays status and statistics information on the network interfaces of the switch

show interfaces

is frequently used when configuring and monitoring network devices.

show interfaces

is useful for detecting common media issues

show interfaces

One of the most important parts of this output is the display of the line and data link protocol status

first parameter

refers to the hardware layer and indicates whether the interface is receiving a carrier detect signal

second parameter

refers to the data link layer and indicates whether the data link layer protocol keepalives are being received.

interface is up and the line protocol is down

Network Access Layer Issues:

encapsulation type mismatch,
the interface on the other end could be error-disabled, there could be a hardware problem.

line protocol and the interface are both down

Network Access Layer Issues:

a cable is not attached,
some other interface problem exists

interface is administratively down

Network Access Layer Issues:

it has been manually disabled (the shutdown command has been issued) in the active configuration.

Input Errors,

Runts,

Giants,

CRC,

Output Errors,

Collisions,

Late Collisions

7 Error Types

Input Errors

Total number of errors.

Input errors

is the sum of all errors in datagrams that were received on the interface being examined.

Runts,

Giants,

Cyclic Redundancy Check error,

no buffer,

frame,

overrun,

ignored counts

7 Input errors

Runt Frames,

Giants,

CRC errors

The reported input errors from the show interfaces command include the following (3)

Runts

Packets that are discarded because they are smaller than the minimum packet size for the medium.

Runts

Ethernet frames that are shorter than the 64-byte minimum allowed length

Malfunctioning NICs

are the usual cause of excessive runt frames

collisions

can also cause of excessive runt frames

Giants

Packets that are discarded because they exceed the maximum packet size for the medium.

Giants

Ethernet frames that are larger than the maximum allowed size

Cyclic Redundancy Check error

are generated when the calculated checksum is not the same as the checksum received

Cyclic Redundancy Check error

usually indicate a media or cable error

electrical interference,

loose or damaged connections,

incorrect cabling

3 causes of CRC errors

too much noise on the link,

cable,

noise sources

If you see many CRC errors, there is _____ and you should inspect the _____. You should also search for and eliminate ____.

Output Errors

Sum of all errors that prevented the final transmission of datagrams out of the interface that is being examined.

Collisions,
Late collisions

The reported output errors from the show interfaces command include the following (2)

Collisions

Number of messages retransmitted because of an Ethernet collision.

Collisions

____ in half-duplex operations are normal.

Collisions

you should never see ____ on an interface configured for full-duplex communication.

Late Collisions

A collision that occurs after 512 bits of the frame have been transmitted

Excessive cable lengths

are the most common cause of late collisions.

duplex misconfiguration

Another common cause of late collisions.

TCP port 23

Telnet uses ____.

Telnet

It is an older protocol that uses unsecure plaintext transmission of both the login authentication (username and password) and the data transmitted between the communicating devices.

Wireshark

A threat actor can monitor packets using ____.

TCP port 22

Secure Shell (SSH) uses _____.

Secure Shell (SSH)

It provides a secure (encrypted) management connection to a remote device.

Secure Shell (SSH)

should replace Telnet for management connections.

Secure Shell (SSH)

provides security for remote connections by providing strong encryption when a device is authenticated (username and password) and also for the transmitted data between the communicating devices.

show version

command on the switch to see which IOS the switch is currently running

k9

An IOS filename that includes the combination “_____” supports cryptographic (encrypted) features and capabilities.

Verify SSH support,

Configure the IP domain,

Generate RSA key pairs,

Configure user authentication,

Configure the vty lines,

Enable SSH version 2

6 steps to configure ssh

show ip ssh

command to display the version and configuration data for SSH on the device that you configured as an SSH server

show ip ssh

If the switch is not running an IOS that supports cryptographic features, this command is unrecognized.
