4 Terms

1
New cards

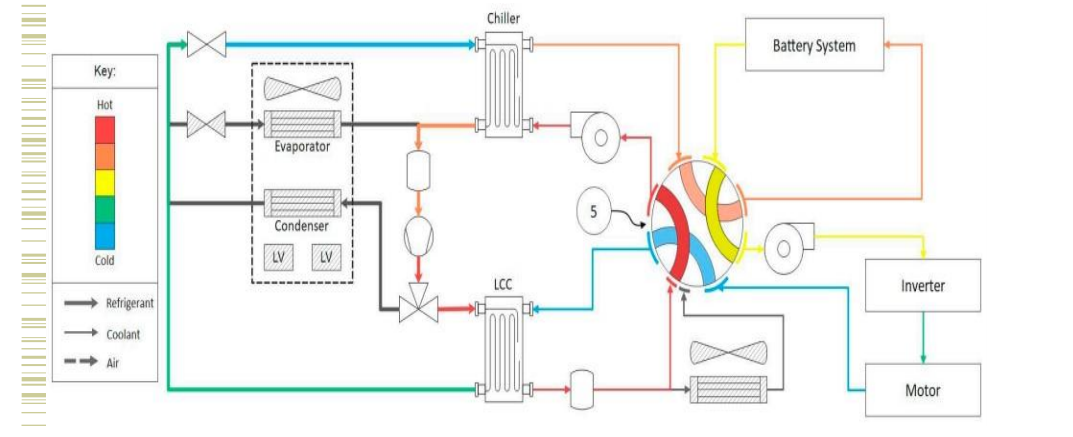

<p></p>


Atmosphere temperature is greater than -10 C and the cabin needs heating. The heat pump absorbs the heat from the atmosphere and puts it in the cabin.

2
New cards
<p></p>


The atmospheric temperature is less than -10 C and this time both battery and the cabin requires heating. The compressor will be supplying heat to both the battery and cabin. Internal recirculation and Low Voltage heater are active.

3
New cards
<p></p>


The cabin does not need heating, but the battery needs heating. The compressor is responsible to supply heat to the battery.

4
New cards
<p></p>


The cabin needs cooling.
