ANAT A215 Mini Lecture #2 (LN 8&9)

Anatomy - A215

os coxae

“hip bone"

femur region

“thigh”

tibia & fibula

“leg”

tarsals

“ankle”

metatarsals

“foot” (most of the back of the foot and the sole of the foot)

phalanges (lower limb)

“toes”

pes

“foot” (all of foot)

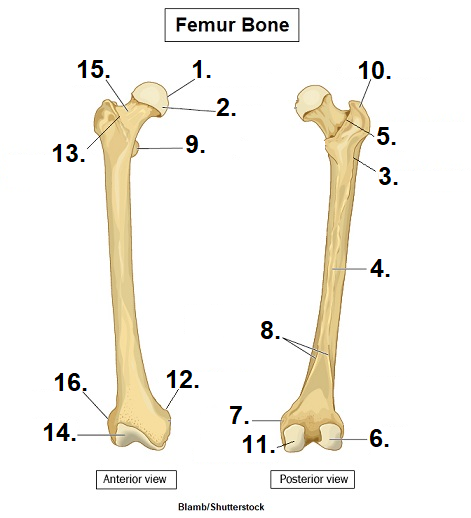

#1

Head of femur

#15

Neck of femur

#13

Greater trochanter of femur

#9

Lesser trochanter of femur

#16

Lateral EPIcondyle of femur

#12

Medial EPIcondyle of femur

#14

Patellar surface of femur

#10

Greater trochanter of femur

#3

Gluteal tuberosity of femur

#4

Linea Aspera of femur

#7

Adductor tubercle of femur

#11

Medial condyle of femur

#6

Lateral condyle of femur

Left or Right

Right Femur

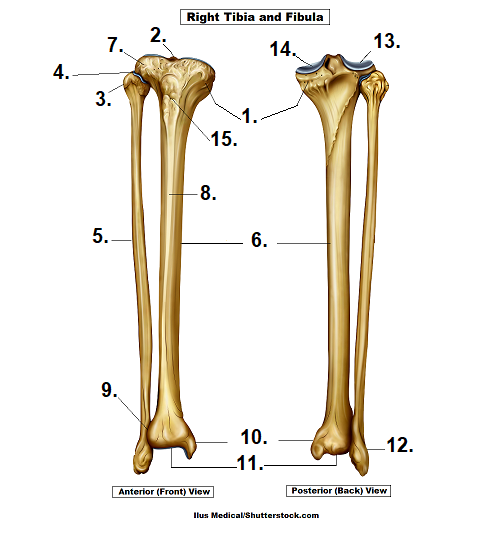

#15

Tibial tuberosity

#14

Medial condyle of tibia

#13

Lateral condyle of tibia

#3

Head of fibula

#10

Medial malleolus of tibia

#12

Lateral malleolus of fibula

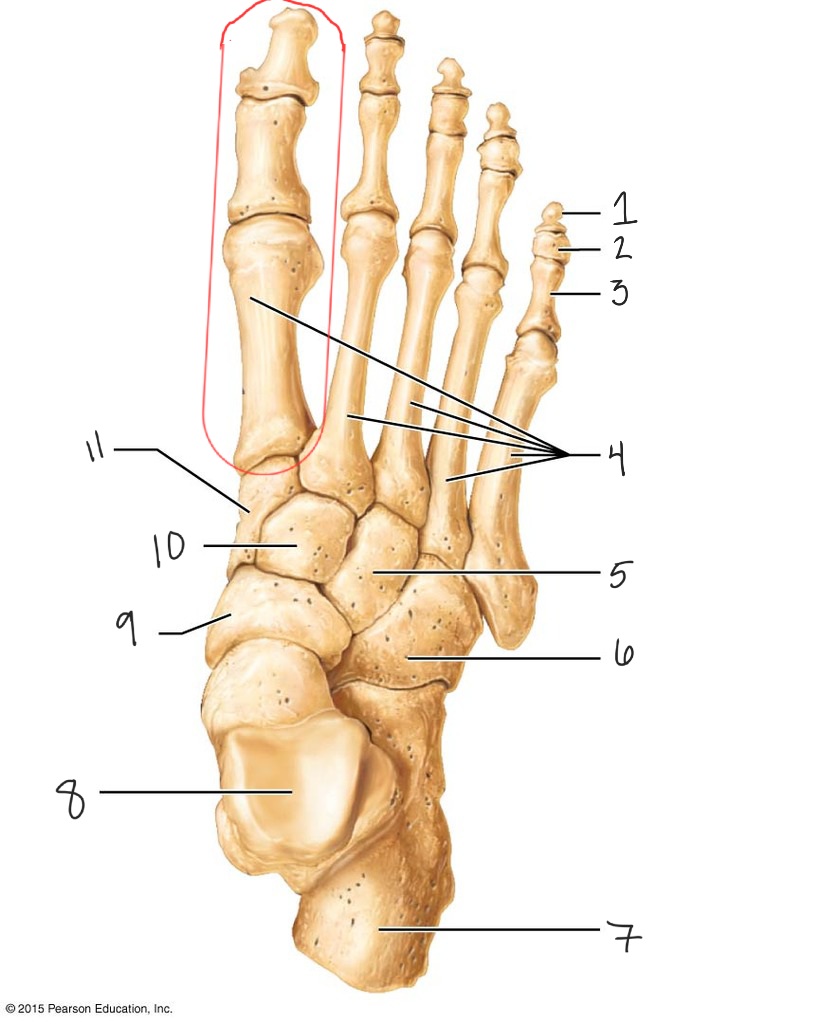

#1

Distal phalanges of foot

#2

Middle phalanges of foot

#3

Proximal phalange of foot

#4

Metatarsals of foot

#5

Lateral Cuneiform

#6

Cuboid

#7

Calcaneus

#8

Talus

#9

Navicular

#10

Intermediate Cuneiform

#11

Medial Cuneiform

Red Section

Hallux - “big toe”

Whats included in the Pectoral Girdle

• Clavicle

• Scapula

What's included in Brachium

• Humerus

Whats included in the Antebrachium

• Radius

• Ulna

Whats included in the manus

• Carpals

• Metacarpals

• Phalanges

What is the joint called … (Scapula with Humerus)

Glenohumeral Joint

Whats included in the os coxa

• Illium

• Pubis

• Ischium

Whats included in the thigh

Femur

Whats included in leg

• Fibula

• Tibia

Whats included in pes

• Tarsals

• Metatarsals

• Phalanges

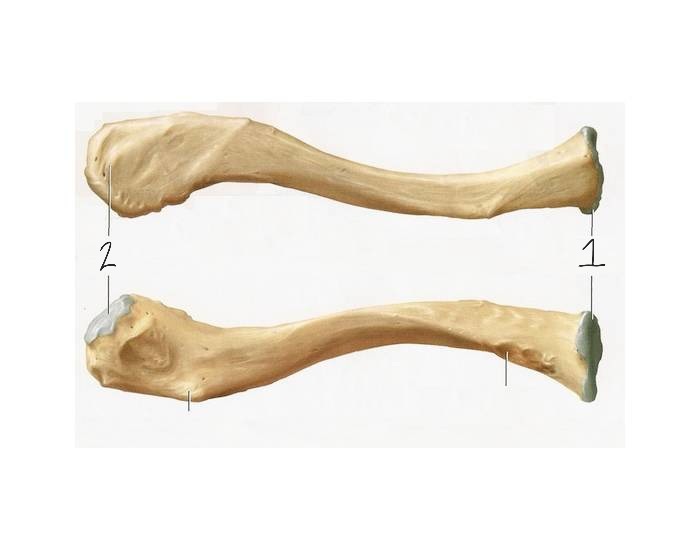

#1

Sternal end of clavicle

#2

Acromial end of clavicle

What is this bone

Left clavicle bone

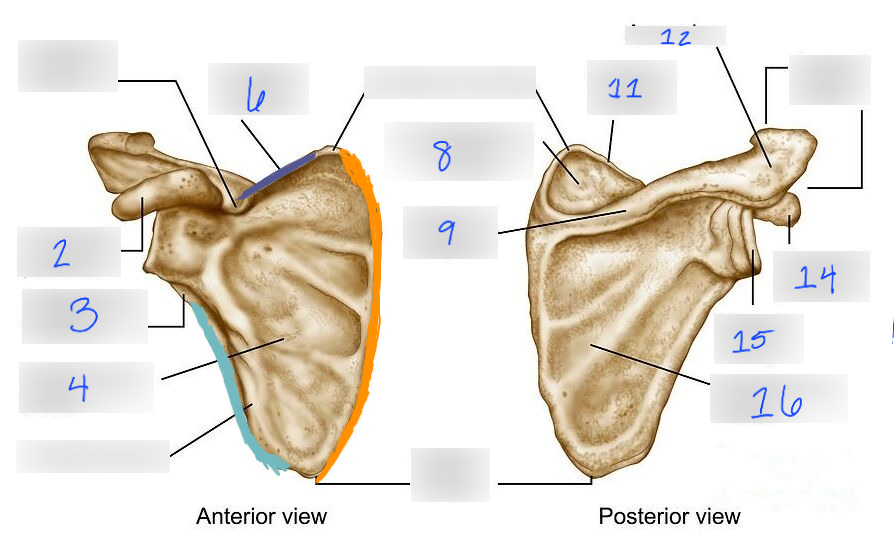

Blue section

Lateral boarder of scapula

Orange section

Medial Boarder of scapula

Dark purple region

Superior boarder of scapula

#2

Coracoid process of scapula

#3

Inferior Glenoid Tubercle of scapula

#4

Subscapular fossa of scapula

#8

Supraspinous fossa of scapular

#9

Spine of scapula

#16

Infraspinous fossa of scapula

#15

Glenoid cavity of scapula

#14

Coracoid process of scapula

#12

Acromion process of scapula

Name the bone

Right scapula

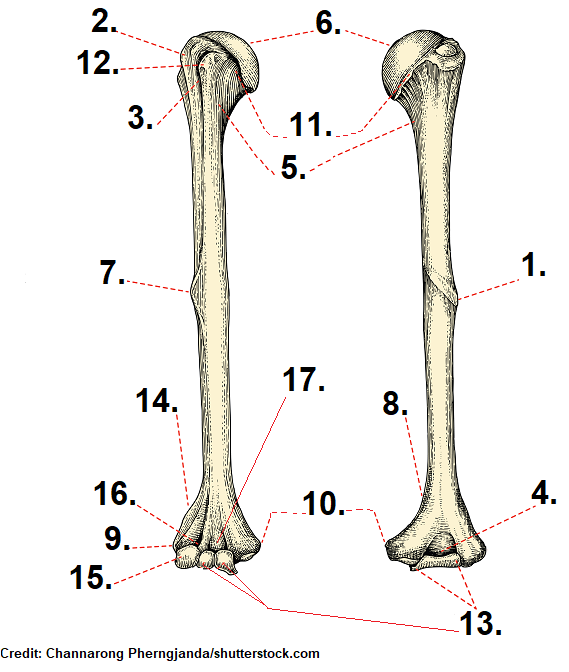

Name the bone

Right Humerus

#2

Greater tubercle of humerus

#3

Intertubercle groove of humerus

#4

Olecranon fossa of humerus

#6

Head of humerus

#7

Deltoid tuberosity of humerus

#9

Lateral EPIcondyle of humerus

#10

Medial EPIcondyle of Humerus

#12

Lesser tubercule of Humerus

#13

Tochlea of humerus

#15

Capitulum of humerus

#16

Radial fossa of humerus

#17

Coronoid fossa of humerus

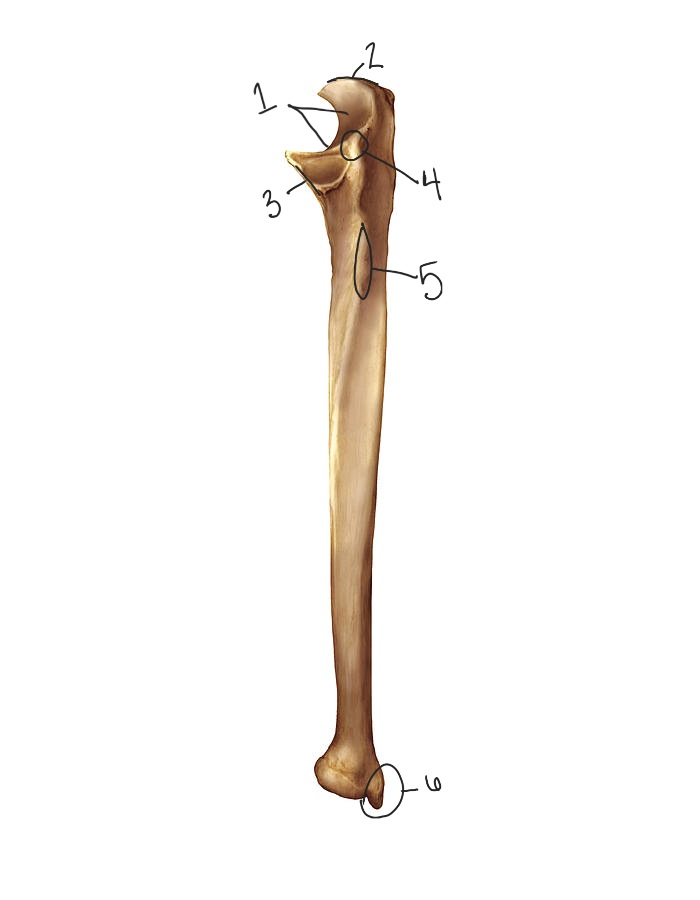

Name the bone

Ulna

#1

Trochlear notch of Ulna

#2

Olecranon process of Ulna

#3

Radial notch of Ulna

#4

Coronoid process of Ulna

#5

Ulnar tuberosity

#6

Styloid process of Ulna

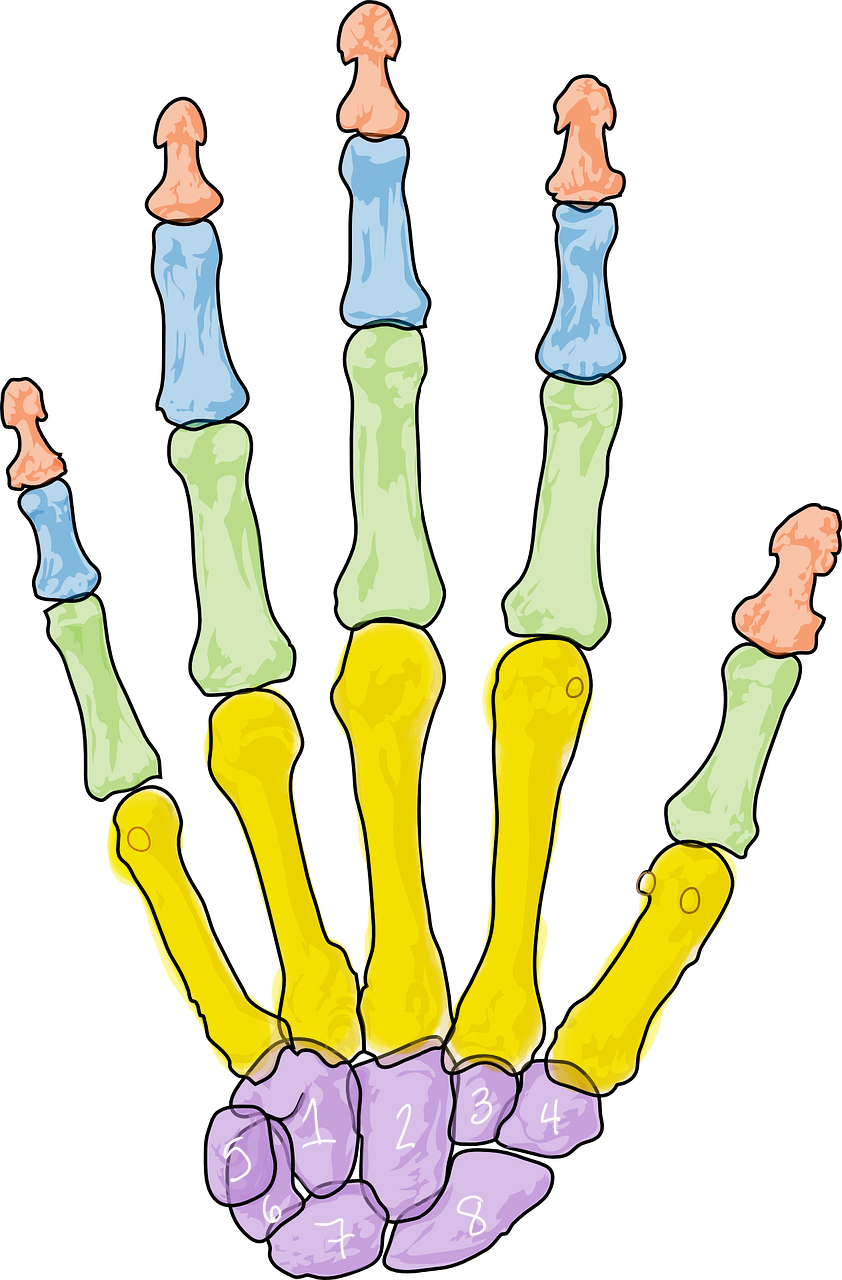

Red region

Distal phalanges of hand

Blue region

Middle phalanges of hand

Left or right

Left hand

Green region

Proximal phalanges of hand

Yellow region

Metacarpals of hands

Purple region

Carpals of hand

#1

Hamate

#2

Capitate

#3

Trapezoid

#4

Trapezium

#5

Pisiform

#6

Triquetrum

#7

Lunate

#8

Scaphoid

The pelvic girdle is consisted of.. (joints)

• Sacroiliac joint

• Pubic symphysis

Appropriate name for Thumb

Pollex
