1
New cards

Left Liver

  • Do a a Longitudinal Survey: IVC → when the Left Liver ends

  • 1) Long Shot: This demonstrates Liver Parenchyma

  • Do a Transverse Survey: Diaphragms → when it Ends

  • 2) Trans Shot: Find LEFT Portal Vein + Centre + Elongate


2
New cards

Right Liver

  • Long Survey: From all the way lateral → IVC/Aorta

  • 1) Long Shot: Include Right Kidney

  • 2) Long Shot: Same w/ Measurement from just outside diaphragm → end of Liver (13-15cm)

  • 3) Long Shot: Sweep Medially (before IVC) → For Liver Parenchyma

  • Trans survey: Diaphragm → End of Liver

  • 4) Trans Shot: Find RIGHT Portal Vein (Hyperechoic Outline)


3
New cards

Spleen

  • For Long Survey: Angle Tube so that it is pointed to head + angled to rib → Look in between each rib from side to side

  • 1) Long Shot: Include Spleen

  • 2) Long Shot: Measurement (10-12cm = normal | 13 = borderline)

  • Trans Survey: Angle 90 degrees from Long + Diaphragm → end of Spleen

  • 3) Trans Shot: Spleen


4
New cards

Aorta

  • Trans Survey: Start understernum + angle up, Diaphragm → Bifurcation of Rt. + Lt. Iliac Arterys

  • 1) Trans Shot: Above/Below level of SMA

  • 2) Trans Shot: Above Bifurcation w/ Measurement (<3cm)

  • Long Survey: Diaphragm → Bifurcation

  • 3) Long Shot: Above/Below level of SMA

  • 4) Long Shot: Above Bifurcation w/ Measurement (<3cm)


5
New cards

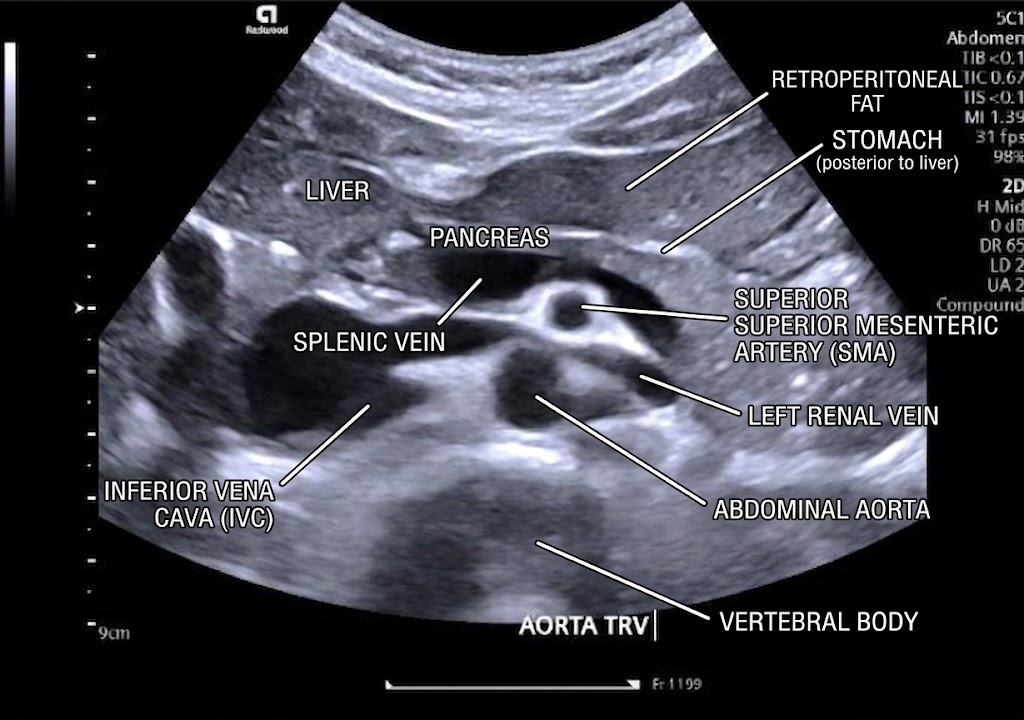

Aorta Anatomy Trans

knowt flashcard image
6
New cards

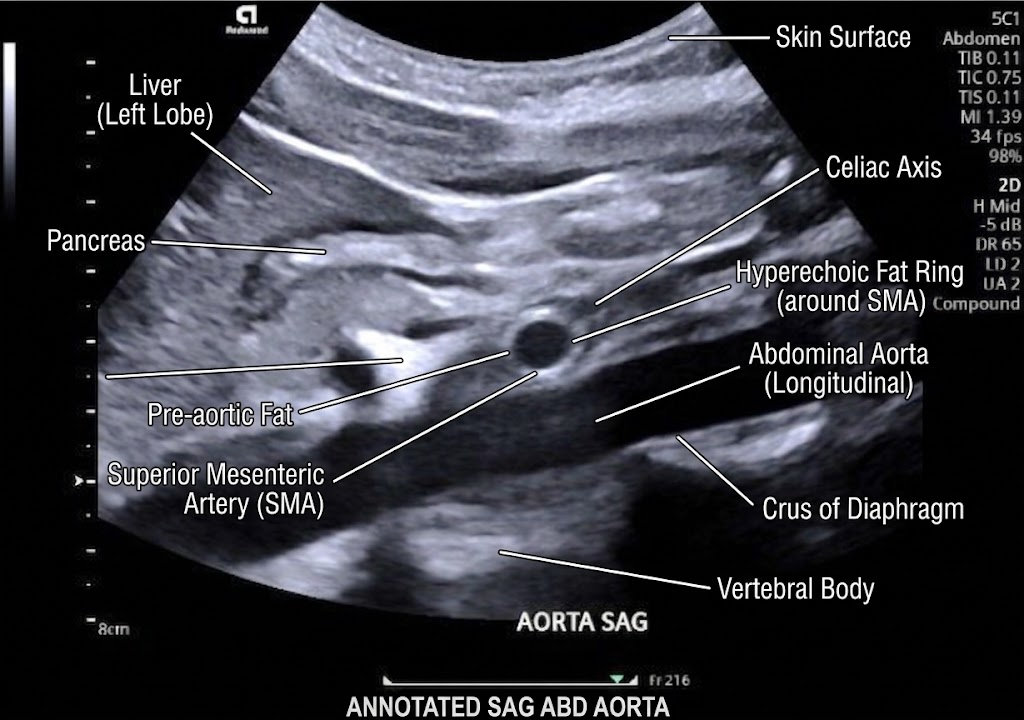

Aorta Anatomy Long (some are weird/wrong)


<p></p>
7
New cards

Right Kidney

  • Long Survey

  • 1) Long Shot: Elongate Kidney as much as possible

  • 2) Long Shot: w/ Measurement (9-13cm)

  • Trans Survey

  • 3) Upper Pole

  • 4) Middle Pole: Renal Pelvis (can use colour as it has B.S.)

  • 5) Lower Pole


8
New cards

GB

  • Long Survey: Elongate it out by turning the probe

  • 1) Long Shot: Measure the Wall (<3mm)

  • Trans Survey

  • 2) Superior: Neck

  • 3) Body

  • 4) Fundus


9
New cards

Carotid

  • Trans Survey: Bifurcation → Clavicle

  • 1) Trans Shot: CCA midway between survey

  • 2) Trans Shot: Bifucation (ECA = medial + smaller)

  • Long survey: Bifircation → Clavicle

  • 3) Long CCA

  • 4) Long CCA with Colour

  • 5) Long CCA w/ Spectral Measuring Peak Systolic Velocity

  • 6) Long ICA

  • 7) Long ICA w/ Colour

  • 8) Long ECA

  • 9) Long ECA w/ Colour


10
New cards

Carotid Measurement

Peak Systolic Velocity (PSV) of CCA should be LESS THAN 100cm/sec
